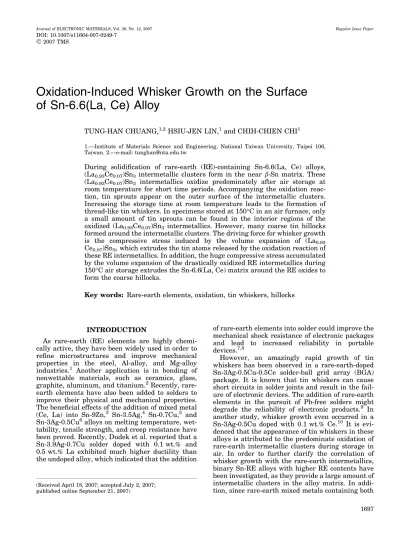

Oxidation-Induced Whisker Growth on the Surface
of Sn-6.6(La, Ce) Alloy
TUNG-HAN CHUANG,1,2HSIU-JEN LIN,1and CHIH-CHIEN CHI1
1.—Institute of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan. 2.—e-mail: [email protected]
During solidification of rare-earth (RE)-containing Sn-6.6(La, Ce) alloys, (La0.93Ce0.07)Sn3 intermetallic clusters form in the near b-Sn matrix. These (La0.93Ce0.07)Sn3 intermetallics oxidize predominately after air storage at room temperature for short time periods. Accompanying the oxidation reac-tion, tin sprouts appear on the outer surface of the intermetallic clusters. Increasing the storage time at room temperature leads to the formation of thread-like tin whiskers. In specimens stored at 150C in an air furnace, only a small amount of tin sprouts can be found in the interior regions of the oxidized (La0.93Ce0.07)Sn3 intermetallics. However, many coarse tin hillocks formed around the intermetallic clusters. The driving force for whisker growth is the compressive stress induced by the volume expansion of (La0.93 Ce0.07)Sn3, which extrudes the tin atoms released by the oxidation reaction of these RE intermetallics. In addition, the huge compressive stress accumulated by the volume expansion of the drastically oxidized RE intermetallics during 150C air storage extrudes the Sn-6.6(La, Ce) matrix around the RE oxides to form the coarse hillocks.
Key words: Rare-earth elements, oxidation, tin whiskers, hillocks
INTRODUCTION
As rare-earth (RE) elements are highly chemi-cally active, they have been widely used in order to refine microstructures and improve mechanical properties in the steel, Al-alloy, and Mg-alloy industries.1 Another application is in bonding of nonwettable materials, such as ceramics, glass, graphite, aluminum, and titanium.2Recently, rare-earth elements have also been added to solders to improve their physical and mechanical properties. The beneficial effects of the addition of mixed metal (Ce, La) into Sn-9Zn,3 Sn-3.5Ag,4 Sn-0.7Cu,5 and Sn-3Ag-0.5Cu6alloys on melting temperature, wet-tability, tensile strength, and creep resistance have been proved. Recently, Dudek et al. reported that a Sn-3.9Ag-0.7Cu solder doped with 0.1 wt.% and 0.5 wt.% La exhibited much higher ductility than the undoped alloy, which indicated that the addition
of rare-earth elements into solder could improve the mechanical shock resistance of electronic packages and lead to increased reliability in portable devices.7,8
However, an amazingly rapid growth of tin whiskers has been observed in a rare-earth-doped Sn-3Ag-0.5Cu-0.5Ce solder-ball grid array (BGA) package. It is known that tin whiskers can cause short circuits in solder joints and result in the fail-ure of electronic devices. The addition of rare-earth elements in the pursuit of Pb-free solders might degrade the reliability of electronic products.9 In another study, whisker growth even occurred in a Sn-3Ag-0.5Cu doped with 0.1 wt.% Ce.10 It is evi-denced that the appearance of tin whiskers in these alloys is attributed to the predominate oxidation of rare-earth intermetallic clusters during storage in air. In order to further clarify the correlation of whisker growth with the rare-earth intermetallics, binary Sn-RE alloys with higher RE contents have been investigated, as they provide a large amount of intermetallic clusters in the alloy matrix. In addi-tion, since rare-earth mixed metals containing both (Received April 18, 2007; accepted July 2, 2007;
published online September 21, 2007) 2007 TMS
La and Ce costs less than pure rare-earth elements and is the most popularly used metal in industry for material modifications, whisker growth in a Sn-6.6 (La, Ce) has been investigated.
EXPERIMENTAL
The rare-earth mixed metal used in this study contained 12% Ce, 2% Pr, 0.3% Nd, and 85.7% La (wt.%). For the preparation of Sn-6.6(La, Ce) alloy, the mixed metal was added to pure Sn, and the mixture was melted at 1,000C under a vacuum of 10-4Pa. After solidification, the ingots were cut with a diamond saw, ground with 2000 grit SiC paper, and polished with 0.3 lm Al2O3 powder. After storage at room temperature and 150C for various time periods, the microstructures of the specimens and the morphology of the tin whiskers that had formed on the surface were observed by scanning electron microscopy (SEM), and their chemical compositions were analyzed by an electron probe microanalyzer (EPMA). To determine the oxidation behaviors of these alloys, the percentage weight gain (weight gain/original weight · 100%) of the specimens was continuously measured at 150C in an air furnace using a thermal gravity analyzer (TGA). In addition, the percentage weight gain of the specimens during air storage at room tem-perature was measured intermittently with a microbalance.
RESULTS AND DISCUSSION
The microstructure of as-cast Sn-6.6(La, Ce) alloy contains many clusters with a size of about 10 lm, as shown in Fig. 1. EPMA analyses indicate that the chemical compositions (at.%) of these clusters are Sn:La:Ce = 71.9:26.1:2.0, which correspond to the (La0.93Ce0.07)Sn3phase. No sign of Pr and Nd can be detected in the intermetallic clusters due to their minor concentrations in the alloy. According to the binary La-Sn phase diagram, these (La0.93Ce0.07)Sn3 clusters resulted from a peritectic reaction during solidification of the Sn-6.6La alloy.11The matrix of this alloy should consist of b-Sn mixed with a small amount of the eutectic (La, Ce)Sn3 phase. Figure 2 reveals that, after storage at room temperature in air for 0.5 h, the surface of the (La0.93Ce0.07)Sn3 intermetallic phase oxidized to a composition of Sn:La:Ce:O = 36.5:17.2:2.1:44.2 (at.%). Accompany-ing the oxidation of these intermetallic clusters, bright particles with a composition near pure tin appeared on the surfaces of certain intermetallics. The diameters of these tin sprouts were about 1 lm. As the storage time increased, greater numbers of rare-earth intermetallic clusters exhibited the for-mation of tin sprouts on their surfaces. In addition, certain tin sprouts were found to grow slightly longer after the initial formation, as shown in Fig. 2c. After long-term storage at room tempera-ture, all of the (La0.93Ce0.07)Sn3intermetallics were covered with tin sprouts with lengths of about
3.0 lm, as illustrated in Fig. 3. However, in a rare case, shown in Fig. 3b, a long whisker grew to a length of over 40 lm after air storage at room tem-perature for 188 h. During the period of storage from 188 h to 559 h, the morphology of the tin whiskers on the surface of the (La0.93Ce0.07)Sn3intermetallic clusters remained unchanged (Fig. 3c). This implies that the driving force for whisker growth had been exhausted. From Fig. 3, it can also be observed that pressure has been applied to the Sn-6.6(La, Ce) matrix adjacent to the rare-earth intermetallic clusters and caused a convex profile. This indicates that the (La0.93Ce0.07)Sn3intermetallics expanded in volume and that this expansion was constrained by the near b-Sn matrix.
During air storage at an elevated temperature of 150C, the small tin sprouts in the interior regions of the (La0.93Ce0.07)Sn3 intermetallic phase grew very slowly, as shown in Fig. 4. In contrast, many coarse hillocks appeared at the edges of the inter-metallic clusters at the early stage of 150C storage for 10 min (Fig. 4a). These hillocks grew obviously when the storage time was increased from 10 to 90 min, as illustrated in Fig. 4. These hillocks were about 7 lm in size after storage at 150C for 40 h, as shown in Fig. 5a. However, these tin hillocks ceased to grow during long-term storage from 40 h to 224 h Fig. 1. Microstructure of the as-cast Sn-6.6(La, Ce) alloy, showing peritectic (La0.93Ce0.7)Sn3 intermetallic clusters in the near b-Sn
matrix: (a) low magnification, (b) high magnification.
1698 Chuang, Lin, and Chi
in the 150C air furnace (Fig. 5). It can also be seen in Fig. 5 that fewer tin sprouts appeared in the interior regions of (La0.93Ce0.07)Sn3 intermetallics, and that these had no tendency to lengthen during long-term storage from 40 h to 224 h at 150C. This failure to lengthen any further indicates that the driving force for the whisker growth was rapidly exhausted in the beginning of the 150C storage period. In comparison to the morphology of (La0.93 Ce0.07)Sn3 intermetallics observed on the surface of Sn-6.6(La, Ce) alloy after air storage, both tin whiskers and hillocks were absent when specimens were aged at room temperature and at 150C for 2 h
under 10-2Pa vacuum, as illustrated in Fig. 6a and b, respectively. The results provide evidence that the growth of tin whiskers and hillocks is caused by the oxidation of the (La0.93Ce0.07)Sn3 intermetallic phase. This inference can be reconfirmed by the EPMA analyses of the outer surface of (La0.93 Ce0.07)Sn3 clusters during 150C storage in an air furnace for various periods of time. Figure 7 shows that the compositions (at.%) of La and O increased drastically from 10.2 and 35.8 to 17.1 and 43.6, respectively, during 150C storage for 30 min. At longer storage times, the compositions of La and O Fig. 2. Tin sprouts on the surfaces of oxidized (La0.93Ce0.7)Sn3
intermetallic clusters in the Sn-6.6(La, Ce) alloy after air storage at room temperature for short periods: (a) 0.5 h, (b) 2 h, and (c) 4 h.

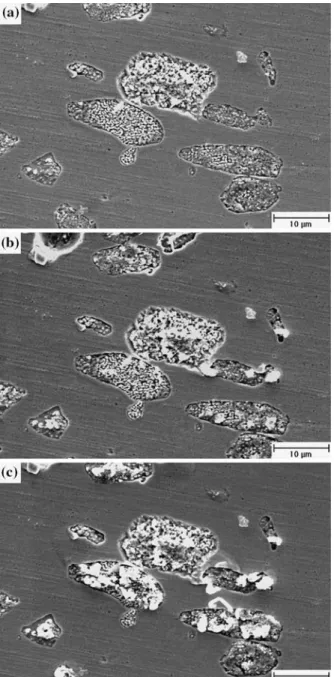

Fig. 3. Tin whisker growth on the surface of oxidized (La0.93
Ce0.7)Sn3 intermetallic clusters in Sn-6.6(La, Ce) alloy after air
storage at room temperature for long periods: (a) 42 h, (b) 188 h, and (c) 559 h.
remained almost constant, at 21.5 and 46.7, respectively. In contrast, the composition (at.%) of Sn decreased from 51.9 to 37.2 in 30 min and then slowly dropped to 27.9 at 40 h. The composition of Ce increased slightly from 2.1 to 3.9 during 150C storage for 40 h.
The preferential oxidation of Sn-6.6(La, Ce) to pure Sn can be evidenced by the TGA curves of the percentage weight gain presented in Fig. 8. It can be seen that, during storage at 150C in air for 100 min, both Sn-6.6(La, Ce) and pure Sn speci-mens oxidized linearly. However, the Sn-6.6(La, Ce) alloy has an oxidation rate about sixfold higher than
that of pure Sn. Because the La and Ce elements have minor solubility in Sn matrix, the TGA results are attributed to the preferential oxidation of the (La0.93Ce0.07)Sn3 intermetallic phase. The volume expansion of the oxidized (La0.93Ce0.07)Sn3clusters is constrained by the near b-Sn matrix, which leads to a compressive stress that causes the Sn atoms around the oxidized (La0.93Ce0.07)Sn3 intermetallic clusters to be extruded out of the specimen surface, thus causing the coarse hillocks shown in Figs. 4 and 5. During air storage at room temperature, Sn-6.6(La, Ce) oxidizes much more slowly than it does at 150C, as shown in Fig. 9, which presents Fig. 4. Hillock formation on the surface of oxidized (La0.93Ce0.07)Sn3
intermetallic clusters in Sn-6.6(La, Ce) alloy after storage at 150C in air furnace for short periods: (a) 10 min, (b) 30 min, and (c) 90 min.

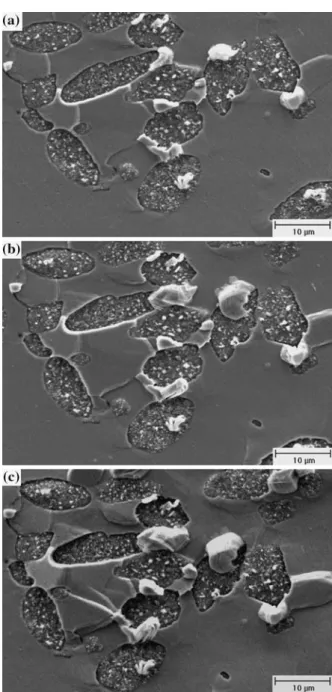

Fig. 5. Hillock formation on the surface of oxidized (La0.93Ce0.07)Sn3
intermetallic clusters in Sn-6.6(La, Ce) alloy after storage at 150C in air furnace for long periods: (a) 40 h, (b) 112 h, and (c) 224 h.
1700 Chuang, Lin, and Chi
the intermittent measurements of the percentage weight gain of the specimens. In this case, the tin atoms that resulted from the oxidation reaction of (La0.93Ce0.07)Sn3 precipitates were moderately extruded through the weak spots in the oxide layer to form the tin sprouts and whiskers, as shown in Figs. 2 and 3.
In order to further confirm the growth mechanism of tin whiskers and hillocks on the surface of Sn-6.6(La, Ce) alloy, specimens were cut across the
(La0.93Ce0.07)Sn3intermetallic clusters, as shown in Fig. 10. It can be seen in Fig. 10a that an oxide layer with cracks appears on the outer surface of the (La0.93Ce0.07)Sn3 intermetallic cluster in a Sn-6.6(La, Ce) specimen stored at room tempera-ture for 48 h. Pure tin atoms released by the (La0.93Ce0.07)Sn3phase after the oxidation reaction are also found to penetrate through these cracks and sprout out of the oxide layer. However, Fig. 10b shows that a compact oxide layer forms on the (La0.93Ce0.07)Sn3 intermetallics after 150C storage in an air furnace for 1 h. A thin oxide layer can also be observed surrounding the unoxidized rare-earth intermetallic cluster. The absence of cracks, which act as the microchannels to transport the tin atoms after oxidation, explains the lower numbers of tin sprouts and whiskers in the interior regions of the oxide layer on the (La0.93Ce0.07)Sn3 intermetallics, as shown in Figs. 4 and 5. However, the huge compressive stress accumulated by the volume expansion of the compact oxide layer causes coarse hillocks to form around the oxidized (La0.93 Ce0.07)Sn3phase on the surface of the Sn-6.6(La, Ce) alloy.
Fig. 6. Morphology of (La0.93Ce0.07)Sn3 intermetallic clusters in
Sn-6.6(La, Ce) alloy after storage in a vacuum furnace of 10-2Pa at (a) room temperature for 500 h and (b) 150C for 2 h.
0 10 20 30 40 50 60 0 Sn La Ce O % ) .t (a n oi ti s o p m o C Time (h) 5 10 15 20 25 30 35 40 45
Fig. 7. Composition profile of the outer surface of (La0.93Ce0.07)Sn3
phase formed in Sn-6.6(La, Ce) specimens stored at 150C in air furnace for various times.
0 0.2 0.4 0.6 0.8 1 1.2 0 Sn-6.6(La, Ce) Sn n ( % ) i a G t h gi e W Time (min) 10 20 30 40 50 60 70 80 90 100
Fig. 8. Percentage weight gain of Sn-6.6(La, Ce) alloy and pure Sn during oxidation reaction at 150C in air.
0 200 400 600 800 1000 1200 0.0 0.1 0.2 0.3 0.4 0.5 Sn-6.6(La,Ce) n ( % ) i a G t h gi e W Time (h)
Fig. 9. Percentage weight gain of Sn-6.6(La, Ce) alloy at room temperature.
CONCLUSIONS
After solidification of a Sn-6.6(La, Ce) alloy, many cluster-shaped (La0.93Ce0.07)Sn3 intermetallics with a size of about 10 lm can be observed. These peri-tectic intermetallic clusters oxidize predominately to the b-Sn matrix during air storage. This oxidation reaction leads to the release of pure Sn atoms. After storage at room temperature, the oxide layer that
forms on the (La0.93Ce0.07)Sn3 intermetallics con-tains cracks that act as microchannels to transport the released Sn atoms out of the specimens, in turn causing the formation of tin sprouts and whiskers in the interior regions of the oxidized rare-earth in-termetallics. After storage at 150C in an air fur-nace, however, a compact oxide layer appears on the (La0.93Ce0.07)Sn3 phase in the Sn-6.6(La, Ce) speci-mens. In addition, a thin oxide layer surrounds the phase clusters. The accumulated compressive stress resulting from the volume expansion of the oxide layer extrudes the nearby Sn-6.6(La, Ce) alloy ma-trix, causing the formation of many coarse tin hill-ocks around the (La0.93Ce0.07)Sn3 intermetallic clusters on the surface of this rare-earth-containing alloy.
ACKNOWLEDGEMENTS
The authors are grateful for the sponsorship of National Science Council, Taiwan, under Grant No.
NSC-95-2221-E002-120 and National Taiwan
University under Grant No. 95-R210. REFERENCES 1. L.Y. Jones, Mat. Sci. Technol. 12, 981 (1996).
2. F. Hillen, D. Pickart-Castillo, Ino J. Rass, and E. Lugsche-ider, Welding Cutting 52(8), 454 (2000).
3. C.M.L. Wu, D.Q. Yu, C.M.T. Law, and L. Wang, J. Electron. Mater. 31, 921 (2002).
4. C.M.L. Wu, D.Q. Yu, C.M.T. Law, and L. Wang, J. Mater. Res. 17, 3146 (2002).
5. C.M.L. Wu, D.Q. Yu, C.M.T. Law, and L. Wang, J. Electron. Mater. 31, 928 (2002).
6. Z.G. Chen, Y.W. Shi, Z.D. Xia, and Y.F. Yan, J. Electron. Mater. 31, 1122 (2002).
7. M.A. Dudek, R.S. Sidhu, N. Chawla, JOM June, 57 (2006). 8. M.A. Dudek, R.S. Sidhu, N. Chawla, and M. Renavikar,
J. Electron. Mater. 35, 2088 (2006).
9. T.H. Chuang and S.F. Yen, J. Electron. Mater. 35, 1621 (2006).
10. T.H. Chuang, S.F. Yen, Mater. Sci. Forum March, 539 (2007).

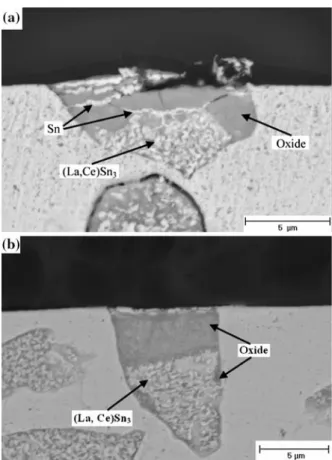

11. M. Hansen, K. Anderko, eds., Constitution of Binary Alloys (New York, Tornato, London: McGraw-Hill, 1958), p. 892. Fig. 10. Cross sections of the oxidized (La0.93Ce0.07)Sn3
interme-tallic clusters in Sn-6.6(La, Ce) alloy after air storage at (a) room temperature for 48 h and (b) 150C for 1 h.
