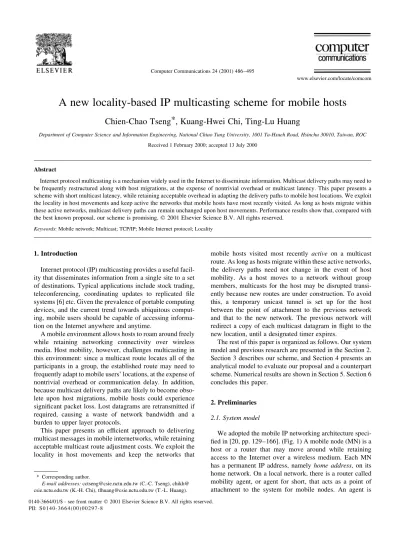

A new locality-based IP multicasting scheme for mobile hosts
Chien-Chao Tseng*, Kuang-Hwei Chi, Ting-Lu Huang
Department of Computer Science and Information Engineering, National Chiao Tung University, 1001 Ta-Hsueh Road, Hsinchu 30010, Taiwan, ROC Received 1 February 2000; accepted 13 July 2000
Abstract
Internet protocol multicasting is a mechanism widely used in the Internet to disseminate information. Multicast delivery paths may need to be frequently restructured along with host migrations, at the expense of nontrivial overhead or multicast latency. This paper presents a scheme with short multicast latency, while retaining acceptable overhead in adapting the delivery paths to mobile host locations. We exploit the locality in host movements and keep active the networks that mobile hosts have most recently visited. As long as hosts migrate within these active networks, multicast delivery paths can remain unchanged upon host movements. Performance results show that, compared with the best known proposal, our scheme is promising. q 2001 Elsevier Science B.V. All rights reserved.
Keywords: Mobile network; Multicast; TCP/IP; Mobile Internet protocol; Locality
1. Introduction
Internet protocol (IP) multicasting provides a useful facil-ity that disseminates information from a single site to a set of destinations. Typical applications include stock trading, teleconferencing, coordinating updates to replicated ®le systems [6] etc. Given the prevalence of portable computing devices, and the current trend towards ubiquitous comput-ing, mobile users should be capable of accessing informa-tion on the Internet anywhere and anytime.
A mobile environment allows hosts to roam around freely while retaining networking connectivity over wireless media. Host mobility, however, challenges multicasting in this environment: since a multicast route locates all of the participants in a group, the established route may need to frequently adapt to mobile users' locations, at the expense of nontrivial overhead or communication delay. In addition, because multicast delivery paths are likely to become obso-lete upon host migrations, mobile hosts could experience signi®cant packet loss. Lost datagrams are retransmitted if required, causing a waste of network bandwidth and a burden to upper layer protocols.
This paper presents an ef®cient approach to delivering multicast messages in mobile internetworks, while retaining acceptable multicast route adjustment costs. We exploit the locality in host movements and keep the networks that
mobile hosts visited most recently active on a multicast route. As long as hosts migrate within these active networks, the delivery paths need not change in the event of host mobility. As a host moves to a network without group members, multicasts for the host may be disrupted transi-ently because new routes are under construction. To avoid this, a temporary unicast tunnel is set up for the host between the point of attachment to the previous network and that to the new network. The previous network will redirect a copy of each multicast datagram in ¯ight to the new location, until a designated timer expires.
The rest of this paper is organized as follows. Our system model and previous research are presented in the Section 2. Section 3 describes our scheme, and Section 4 presents an analytical model to evaluate our proposal and a counterpart scheme. Numerical results are shown in Section 5. Section 6 concludes this paper.
2. Preliminaries 2.1. System model

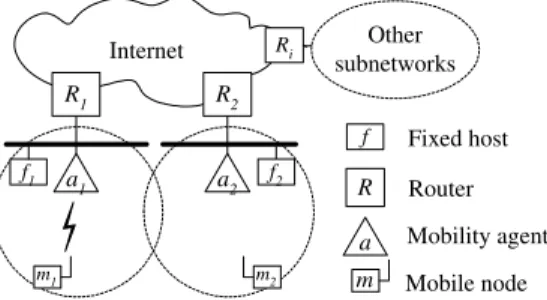

We adopted the mobile IP networking architecture speci-®ed in [20, pp. 129±166]. (Fig. 1) A mobile node (MN) is a host or a router that may move around while retaining access to the Internet over a wireless medium. Each MN has a permanent IP address, namely home address, on its home network. On a local network, there is a router called mobility agent, or agent for short, that acts as a point of attachment to the system for mobile nodes. An agent is 0140-3664/01/$ - see front matter q 2001 Elsevier Science B.V. All rights reserved.
PII: S0140-3664(00)00297-8 * Corresponding author.
E-mail addresses: [email protected] (C.-C. Tseng), chikh@ csie.nctu.edu.tw (K.-H. Chi), [email protected] (T.-L. Huang).
said to be home to a mobile node if the agent has a network pre®x matching that of the MN's home address, or a foreign agent otherwise. Upon detecting movement into a new network, an MN registers at the local agent, with the infor-mation about its home agent and its previous agent. The new agent then informs the two entities of the MN's migration. For brevity a (wireless) subnetwork hereinafter refers to a local network, an administered area of a mobility agent.
To deliver datagrams to a group, multicast-capable routers, namely multicast routers, are introduced for group management and Internet-wide delivery service. Multicast routers learn which groups have members on each of their attached subnetworks, using the Internet Group Manage-ment Protocol (IGMP) [12]. A multicast router keeps a list of multicast group memberships for each attached subnet-work. Routers periodically transmit query messages in their respective administered areas. In response, local hosts send a report message for each group to which they belong, within a speci®ed period. Notice that when a host ®rst joins a group, it transmits a report for the group rather than waiting for a router query. Conversely, when a host wishes to leave a group, if it was the last host that replied to an IGMP query with a membership report for that group, it initiates a leave-group message. This causes the local multi-cast router to send a group-speci®c query onto the subnet-work. If no reports are received within 10 s, the router removes the group and will not forward remotely originated multicasts for that group onto the subnetwork.
In conjunction with IGMP, multicast routers construct delivery paths and forward datagrams towards group members across internetworks. Several routing protocols are in common use or in some stage of development [2]. For the rationale and deployment of such protocols, we refer the reader to [17]. Effectively a route in the form of a span-ning tree is established to locate all participant hosts of a group. However, some dense mode protocols, like the Distance Vector Multicast Routing Protocol (DVMRP) [21] or Multicast Open Shortest Path First (MOSPF) [18], build a delivery tree for each source subnetwork per group. Joining a group means that a user must be grafted into the multicast tree(s). The existing routing protocols are capable of seamlessly providing both join (graft) and leave (prune) functions [3].
2.2. Issues and related work
In a mobile environment multicast delivery paths tend to be transient in nature and may need to adapt accordingly when participants move. It is nontrivial to restructure the paths along with host movements all the way because a large number of multicast routers could be involved for update, especially when dense mode protocols are employed.
Most of the previous schemes avoid adjusting multicast routes to group members' locations, by hiding host mobility from multicast tree constructions. In the approach by Acharya [1], datagrams are delivered using campus-wide broadcast. Therefore MNs are able to receive multicasts without modifying multicast routes upon each move. As a framework designed for an obsolete mobile IP [13], this scheme is less popular.
One of the two options proposed in the current mobile IP standard is that an MN on a foreign subnetwork uses a co-located care-of address to conduct multicast communication [20, pp. 119±120]. In this scenario the system could suffer from frequent multicast route reconstructions. Alterna-tively, the other proposed option builds multicast routes as if each MN were always situated at its home subnetwork. Each MN maintains a bi-directional tunnel with its home agent via which multicasts are sent and received. As a consequence, multicast datagrams will be delivered as unicast packets to each mobile host that is away from home, even though multiple mobile hosts served by a home agent happen to visit a common subnetwork. Dupli-cate multicast messages will arrive at that foreign subnet-work, causing unnecessary network load.
Similar to the second multicasting option in Mobile IP, Chikarmane et al. [9] presented a scheme that maintains delivery paths on the basis of MNs' home agents, while with an important distinction as follows. When a home agent serves the mobile hosts of a given group at several foreign subnetworks, it tunnels only one copy of the received multicast datagrams to each such foreign subnet-work. Link-level multicast is used by the local agents at these subnetworks to complete the last-mile delivery. When the MNs of different home agents are attached to a particular foreign agent, multiple tunnels will terminate at that foreign agent. To avoid duplicate multicasts being directed to that subnetwork in this case, the foreign agent designates one of these MN home agents to forward multi-cast traf®c. Other non-designated home agents suppress traf-®c re-direction. As an optimization of Mobile IP multicasting, Chikarmane's scheme is very general: it uses home agents to accommodate mobile host memberships and supports administratively scoped (private) multicasts on home networks. The performance evaluation of this scheme is approached by simulations in [24].
A ¯aw in the aforementioned research is the maintenance of multicast routes regardless of the MNs' whereabouts. Message exchanges among MNs that are away from home Internet Fixed host Router R Mobility agent Mobile node R1 a1 R2 a2 a Ri m m2 m1 f2 f1 f Other subnetworks
can traverse a long delivery path. This may increase the communication delay, waste network bandwidth, and place a burden on the network entities along the delivery paths. As a remedy, we propose a cost-effective approach allowing for the dynamic adjustment of multicast trees to mobile hosts' locations. Remarkably our scheme is indepen-dent of the multicast routing protocol in use, to be described below.
3. The proposed approach
We exploit the locality property in mobile host migra-tions. As evidenced in previous research such as [11,14], most of the MNs usually possess locality in their mobility behaviors Ð a subnetwork visited by an MN tends to be re-visited in the near future.
3.1. Overview
In this text, a locality is de®ned as the set of subnetworks that were visited by the mobile hosts of a group during the most recent Dt time units. Fig. 2 illustrates an example of the
locality {n2; n3; n4; n5} for a group of members m1and m2at
some time instant. We say that a subnetwork is active on a multicast route if it is included in the route, or inactive otherwise. In our approach, each subnetwork in a locality is kept active for Dt time units after the corresponding group of MNs has moved off. If a host of the group moves into such a subnetwork before Dt expires, this subnetwork is revived. Otherwise the subnetwork will be dropped from the locality. Hence a locality speci®es an area where the hosts of a multicast group are able to migrate without alter-ing delivery paths. This bene®t is effective unless the local-ity changes, upon which the multicast delivery paths are adjusted accordingly.
3.2. Realization
A simple way to capture the notion of localities is to let mobility agents learn local MN group memberships and perform IGMP reports for Dt time units on behalf of those MNs that have moved away. This will effectively hold the subnetworks in a locality from being pruned from multicast delivery paths for a period of time.
Each mobility agent keeps track of local MN group memberships, using a triple kg; Dt; mn_idsl per group g,
where mn_ids denotes a set of local MNs in group g (Fig.
3a). Initially, when an MN, say mi, requests to join group1g
toward the local multicast router, this request is also over-heard by the local mobility agent. Given that group g is new to the agent, a corresponding triple is created locally. Then
miis added to the mn_ids ®eld. Instantly the agent sets its
network interface to recognize the multicast group address, namely joining group g simultaneously along with mi.
Whenever MN mimoves and changes its attached agent,
say from aj to ak, the associated membership information
with miwill be handed from ajto aklocally. Fig. 3b
illus-trates the handoff procedure, where ahis mi's home agent
and the dashed line represents the exchange of Registration Request and Registration Reply messages de®ned by the
mobile IP. To begin, ak sends aj a Membership Binding
message, indicating the identities of groups to which ak
currently belongs. In response, ajreturns a Binding Reply
message, containing the group identities for mi. Then ak
immediately joins those groups present in the Binding Reply message, but absent from the Membership Binding message, in the same way as a normal host joins a group.
Meanwhile ajredirects multicast datagrams in ¯ight to ak
(thereby to mi) for the new groups that ak joins, until a
designated timer expires.
This handoff procedure is inspired from [20, pp. 129± 166]. We extend the use of forwarding pointers to forward multicast traf®c in ¯ight to the new agent of mi. Such a technique, called tunneling in the literature, forwards the traf®c to each applicable MNs using unicast. In this manner,
mi is able to receive timely multicasts in the course of
rebuilding multicast delivery paths.
Whenever all MNs of a group have moved off a subnet-work, the local mobility agent determines the value of Dt in the group's triple and will issue IGMP reports for the group for Dt time units (a method for choosing Dt is proposed in Section 4.1). If any host of the group arrives before Dt has expired, this subnetwork is revived. The local agent is suppressed from originating IGMP reports, since the host will do that. On the other hand, if none of the group returns before Dt time units have elapsed, the local mobility agent sends a leave-group message to the local multicast router, to depart from the group. As a result, the subnetworks that the MNs of a group visited most recently are kept active as the group locality.
3.3. Multicast routing
The foregoing treatment is independent of the multicast routing protocols in use. To avoid ambiguity, each ®xed or mobile host should originate multicast packets using its own home address as the IP source address so that recipients can distinguish the multicast senders. For this, we need to support multicast delivery from visiting mobile nodes for n5 n4 n3 n2 m2 m1 Coverage area of a wireless subnetwork Subnetwork's identity
Fig. 2. A locality resulting from host migrations.
1 This can be an IGMPv3's Report message indicating its interest in receiving multicast traf®c from a speci®c source [7].
those routing protocols, such as DVMRP or MOSPF, that forward multicasts according to the datagram source address. We could use the IP-in-IP encapsulation technique [19] as follows. As shown in Fig. 4, the local mobility agent intercepts and encapsulates the multicast datagrams whose IP source addresses are foreign to the subnetwork, and re-sends these datagrams using its own IP address. Here the encapsulation of a datagram means that an outer IP header is inserted in front of the original datagram. The outer IP head-er's Source Address and Destination Address specify the agent IP address and the destination multicast group address, respectively. In this way, packets will be routed along the established paths toward the downstream subnet-works and routers, hop by hop, to group members.
On receiving a multicast datagram forwarded to a subnet-work, the local mobility agent examines whether or not the datagram has been encapsulated, i.e. whether an integer 4 has been assigned to the Protocol Number ®eld in the data-gram's IP header. If so, the outer IP header is removed and the resultant datagram is forwarded to the intended MNs on the subnetwork, over wireless media.
Here mobility agents are assumed to be multicast-aware so that multicast datagrams originating from a visiting MN will not be dropped but processed for outgoing delivery. Besides, ®xed hosts are assumed to know IP-in-IP so as to determine whether they should decapsulate the received multicast datagrams beforehand.
3.4. Remarks and discussion
Our scheme, in addition to saving the overhead of rebuilding multicast routes, reduces packet losses experi-enced by migrant hosts. Within active subnetworks, the
hosts are able to receive multicasts without disruption from each of these subnetworks locally. Even as a host moves to a previously inactive subnetwork, packet forward-ing for the host is activated. In contrast, those schemes usforward-ing home agents to join delivery trees might route multicast datagrams in ¯ight to incorrect destinations in the event that mobile nodes have changed locations and their respec-tive serving home agents are not yet aware since the regis-tration messages are underway. As a remedy, a packet forwarding technique could also be employed in those approaches. Despite this, those schemes will still encounter packet loss, if network-layer handoff is not carefully imple-mented [15,23]. Packet loss reduction will maintain communication ef®ciency, free higher layer protocols from re-transmitting lost datagrams, and avoid a signi®cant waste of network bandwidth in case of applications with streaming data.
The locality property in host movements has been studied considerably, such as in [11,14]. Most of the previous research used this property to track the location or to reduce the registration costs of mobile nodes. In this study we deploy this property orthogonally to maintain multicast routes. The group management protocol software performed on mobility agents is the entity to be modi®ed.
Our scheme can be employed to reduce the excessive cost caused by frequent host movements [8], especially with inter-regional mobility. A region refers to a cluster of subnetworks and routers encompassed by an enterprise or a campus. As an example, assume that a group locality
includes subnetworks n2 and n3, in Fig. 2 that belong to
two different regions. Although the MNs of the group
make inter-region moves between n2 and n3, multicast
routes, once established, need not change as [8] does.
m
Routing data
g
sm sa g sm g data sa g sm g data sm g data
(sm: source MN's home address; sa: foreign agent IP address) Original packet Encaps. header
Internet
a R a
R
f
m
Fig. 4. A paradigm of multicast routing.
aj Multicast
router
mi To other multicast routers
Query Report
gj1 gj2
(a) Group management on a subnetwork
(move)
1
aj ak
ah
mi
(b) Message flow in handoff procedure
tj1 tj2
2 {mi}
{mk,ml}
In our architecture a subnetwork without group members remains active for up to extra Dt time units. Multicast traf®c directed to such subnetworks during this period is wasted. Indeed, yet another form of wasting network bandwidth is shown in previous schemes like in [9,10,20], in the sense that they may use longer paths to deliver multicast data-grams. We will investigate the network bandwidth demanded by these schemes in the next section.
4. Performance analysis
The choice of Dt is important to our scheme; the longer Dt is, the fewer multicast routes are reconstructed, yet the more multicast traf®c is likely to be wasted for delivery to subnet-works without recipients. Given a multicast arrival rate at a subnetwork, we suggest a proper value for Dt such that the cost of rebuilding multicast routes and wasted network traf®c is minimized. Then our scheme, using the suggested Dt, is compared with a counterpart approach in terms of message cost and communication delay. Here we choose Chikarmane's framework [9,10] as the base for comparison, since it outperforms other peer schemes in these dimen-sions. Note that all of the performance measures in this section describe the time averaged (long term) behavior of a single multicast group. A group containing ®xed hosts bene®ts our scheme in that the multicast delivery paths are less volatile.
4.1. Selection ofDt
Consider subsequently a subnetwork in the system. Since the MNs could enter or leave the subnetwork independently at will, the arrivals and departures of MNs could be treated as Poisson processes [16, p. 61]. Sojourn time for MNs in a
subnetwork can have a general distribution with mean 1/m,
wheremis called the mobility rate in some literature. Letl
be the MNs' aggregate arrival rate at a subnetwork. Provided that a subnetwork accommodates an average of
n MNs, then by Little's rule, we havel nm: In practice,
the rates at which local hosts, ®xed or mobile, join and leave
a group can be incorporated intol andm, respectively.
We say that a subnetwork is busy for the group under discussion if it accommodates at least one member of the group, or idle otherwise. As an idle period starts, this period will terminate immediately upon the arrival of an MN member. Since the time until the next MN's arrival is expo-nentially distributed, it follows that
Probidle period duration # y 1 2 e2ly; y $ 0
and the probability density function is p y le2ly:
Now let us investigate the extra traf®c induced by a subnetwork in our scheme. As mentioned before, multicast routes are reconstructed unless an idle subnetwork turns busy within Dt time units. We represent the reconstruction
cost as the number of packets,g, to be generated, for
remov-ing the idle subnetwork from and re-incorporatremov-ing the
subnetwork later into multicast routes. Letting u denote
the multicast packet arrival rate at a subnetwork, we can express the ensemble overhead traf®c as a function
G Dt ZDt 0 uyp y dy 1 Z1 Dtgp y dy lu 1 l2 ul 2uDt e2lDt 1
The ®rst integral indicates the number of multicast data-grams received by an idle subnetwork when the subnet-work's idle period, y, is shorter than the chosen value of Dt. The second integral above states that, in case the idle
period y exceeds Dt, g packets are produced to adjust the
multicast delivery paths.
Observe that g may vary vastly in different multicast
routing protocols, and is related to the topology of the Inter-net multicast backbone, the locations of group members, whether newly arrived MNs send multicasts, etc. In parti-cular, a multicast-sender move may cause a signi®cant amount of traf®c for dense mode protocols, for example,
incurring DVMRP broadcast-and-prune operations.
Namely, the ®rst few multicast packets from the source subnetwork will be delivered to all other DVMRP subnet-works, and those routers that do not lead to the group member are then pruned off the delivery tree. Aside from counting messages, protocol processing overhead on
multi-cast routers can also be weighted as a part ofg.
Our goal is to ®nd Dt such that G(Dt) is minimized. For this, differentiating G(Dt), we have
G0 Dt uDt 2gle2lDt and G00 Dt g1 u l 2uDt l2e2lDt
When G0 Dt 0; it follows that Dt g=u: Since
G00 g=u . 0; G g=u is minimal. In order to decide whether
G g=u is also minimum, we need to examine G(0), since
G(Dt) is indifferentiable when Dt is 0, where the minimum
may take place. If G g=u , G 0 g; then we set Dt tog=u:
Otherwise, the overhead traf®c could be prohibitively heavy and thus Dt is suggested to be zero. Lastly, substituting the value of Dt as above into Eq. (1), we measure the overhead traf®c in our scheme. In other words
Dt g u if u l 1 2 e 2l g=u ,g 0 otherwise 8 > < > :
and G Dt min{g; u=l 1 2 e 2l g=u}:
4.2. Message cost
This subsection addresses the number of multicast messages resulting from our approach and from Chikarmane's scheme [9,10], respectively. As before, we
restrict attention to a subnetwork. Traf®c induced by other subnetworks can be obtained similarly using the method introduced here. A subnetwork changes its idle or busy state alternatively, like a renewal process. We will measure the message count of interest in the two subject schemes during a renewal period, E[busy time] 1 E[idle time].
To see the expectation of renewal periods, we model a subnetwork using the M=G=1 queue in which host arrivals
are Poisson distributed with parameterl and mean service
time is 1/m. Then, as noted in [16, p. 234], we have
Probi members on a subnetwork l=i!mi e2l 1=m
Therefore the probability of ®nding none on a subnetwork is
Proba subnetwork is idle e2l 1=m
Moreover, because the distribution of a renewal period is non-lattice, by Theorem 3.4.4 of [22], it follows that
Proba subnetwork is idle Eidle time
Ebusy time 1 Eidle time
Since E[idle time] is equal to 1/l, these last two equations
lead to
Ebusy time 1 Eidle time el 1=m
l
and
Ebusy time el 1=m2 1
l
Now with a multicast arrival rate ofu, we have a message
count in our scheme ofu£ E[busy time] plus our overhead
traf®c, i.e. u l el 1=m1 g2 u l 2uDt e2lDt
For Chikarmane's scheme, message counts are examined in two separate cases. First, when a subnetwork is home to no MN in the group under discussion, the subnetwork will
receive multicasts during its busy period, hence u=l
el 1=m2 1 messages. Second, if a subnetwork is home to
some MN in the group, then the subnetwork will receive
multicasts during the group lifetime, thus u=lel 1=m
packets during a renewal period. 4.3. Communication delay
We de®ne communication delay as the averaged message delivery time between two MNs in a group, across internet-works. Assume that the delivery time between any pair of hosts has the same distribution with mean d.
Chikarmane's scheme needs d 1 1 2ed 1 1 2ed of
communication delay, whereedenotes the probability of an
MN being home. The ®rst term, d, accounts for the case where these two mobile nodes are home. The second and the third terms, respectively, indicate the extra message delivery time from a host that is away from home to its home agent, and from a recipient home agent to a corre-sponding node served.
In our approach, mobile nodes are normally straightaway reachable from multicast routes, so a datagram could be delivered to the intended group members within d time. However, an exception arises as a destination MN moves to a previously inactive subnetwork. In the very beginning when the subnetwork turns active, multicast packets for the MN need to be delivered indirectly via its previous mobility agent. Such indirect delivery of messages continues until a timer of v seconds expires, thus with the probability v/ E[active time]. E[active time], the expectation of a subnet-work's active time, is derived below. To summarize, the
communication delay of our scheme is d 1
v=Eactive timed:
A subnetwork in our architecture changes its active or inactive state alternatively. Speci®cally in terms of the state transitions, a subnetwork behaves as if it were the
M=G=1 queue where MNs' arrival rate is stilll and service
time averages 1=m 1 Dt: Again, from [16, p. 234] and
Theorem 3.4.4 of [22], we have the equality
Proba subnetwork is inactive e2l 1=m1Dt
Eactive time 1 Einactive timeEinactive time 2
Observe that when a subnetwork starts inactive, this period will terminate immediately upon the arrival of the next mobile node. Since the time until the next MN has
memory-less distribution, we have E[inactive time] 1/l. This
Table 1
Network parameters
Notation De®nition Value
n Expected number of group members on a subnetwork involved in multicasting 0.1, 0.5, 1.0, 2.0 g Message count of adjusting multicast routes 500, 1000, 2000, 4000 u Average number of packets directed to a subnetwork per second
10 d Packet delivery time
through the Internet 0.3 s [11]
v Timeout value for
tunneling messages in our scheme
10 s e Probability that an MN
dwells at its home subnetwork
results in
Eactive time 1l el 1=m1Dt2 1:
5. Numerical results
This section demonstrates the evaluation results of the proposed approach in comparison with Chikarmane's scheme under a parameter setting summarized in Table 1. To see the relative performance, metrics of interest are depicted as a normalized form, where the numerator repre-sents the corresponding measure for our approach and the denominator the counterpart measure for Chikarmane's scheme. The horizontal axis of all subsequent ®gures
repre-sents MNs' sojourn time, denoted as 1/min this text, within
a subnetwork.
To our best knowledge, there are no proper reference
materials for determining parameters n,l,u, and v in our
model. For a better understanding of their effects on system performance, on principle a wider range or a worse-case (with respect to our scheme) of these values is chosen. For example, we consider different ns to correspond to the cases where group members are sparsely or densely distributed in
a mobile environment. Forg, a light value refers to a setting
where maintaining multicast routes upon host movements is not costly. In contrast, an extremely large value, 4000, corresponds to a case where DVMRP is deployed in the system and a multicast sender move incurs
broadcast-and-prune operations. This g value could be already large
enough, assuming hundreds of DVMRP networks on
today's multicast backbone [5]. Next, to decide u we
continue tracking an MBone session of multicast address 224.2.172.238 as the representative, the largest observed group so far in the Mlisten-collected statistics [4]. From the statistics, the number of packets received by each member during the period it joins the session is known.
This could give us an overestimate ofu. Lastly consider v
in our scheme. Since the packet delivery time through the Internet is 0.3 s [11], setting v to 10 s will suf®ce for a round-trip delay to ensure that graft messages are reliably processed.

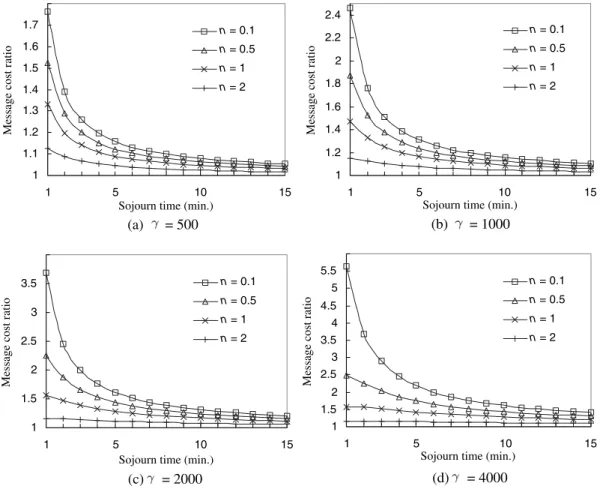

Fig. 5 compares message costs for the two subject schemes, provided that the subnetwork under discussion is home to no MN in a multicast group. It can be seen that Chikarmane's scheme outperforms ours in this case, while the outperformance reduces as the MN sojourn time increases. This is because, with longer sojourn time, MNs tend to behave like stationary hosts and therefore we have 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1 5 10 15
Sojourn time (min.)
Message cost ratio n = 0.1 n = 0.5 n = 1 n = 2 1 1.5 2 2.5 3 3.5 1 5 10 15
Sojourn time (min.)
Message cost ratio n = 0.1 n = 0.5 n = 1 n = 2 (b) = 1000 (c) = 2000 (d) = 4000 (a) = 500 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 1 5 10 15
Sojourn time (min.)
Message cost ratio n = 0.1 n = 0.5 n = 1 n = 2 1 1.2 1.4 1.6 1.8 2 2.2 2.4 1 5 10 15
Sojourn time (min.)
Message cost ratio n = 0.1 n = 0.5 n = 1 n = 2
less overhead traf®c for adjusting multicast delivery paths. In particular, when n is 0.1, our message cost appears unacceptably high. This corresponds to the subnetwork rarely accommodating group members but is still included in the group's locality. We believe that such a scenario is uncommon, as reasoned in the following. A locality can be viewed as a group of mobile hosts' favorite area, where they are likely to reside. This implies that a large portion of the subnetworks in the locality could usually see the group member(s). In other words, a comparatively larger number of subnetworks, on average, could accommodate more MNs than n being 0.1. Thus the high message cost induced by a single subnetwork with rare group membership could only impose a light load on the overall system.
Fig. 6 demonstrates that, when a subnetwork is home to an MN of a given group, our approach will cost fewer messages than the counterpart scheme does. Recall that the measure refers to counting the messages delivered to or from the system by a subnetwork during a renewal period, a busy period plus the succeeding idle period. In Chikarmane's model, the subnetwork will receive multicast messages throughout the renewal period, regardless of whether the mobile nodes of the group are locally present. We treat those messages directed to the idle subnetwork as additional traf®c. Such traf®c resulting from Chikarmane's
scheme is shown to exceed the overhead traf®c for our scheme due to delayed changes in multicast routes.
As another remark on Fig. 6, the message cost ratios for n being 0.1, 0.5, and 1 are smaller than that for n being 2, as the MN sojourn time increases. One can expect that a subnetwork with less population remains idle most of the
time during a renewal period. And, as Little's rulel nm
suggests, the subnetwork's idle period (1/l) increases along
with the MN sojourn time (1/m), while inversely with n. In
consequence, Chikarmane's approach results in more and more multicast traf®c directed to an idle subnetwork with fewer group members. From this ®gure, such additional messages in the case of a lower n are shown to outnumber those in the case of n being 2.
Due to space limitations, in the following we provide
®gures only under high g traf®c, a condition

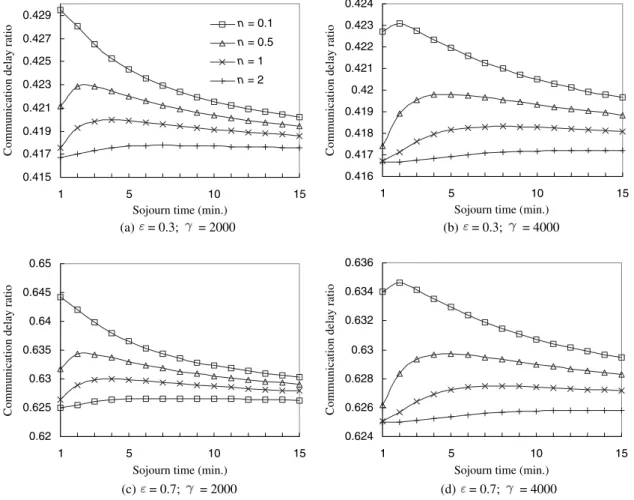

disadvanta-geous to us. From Fig. 7 it can be seen that we demand shorter multicast latency than the counterpart scheme does
by at least 36%. Further, the smaller e is, the greater
performance we gain in this dimension. A higher e
means that the mobile nodes are often located at their home networks. This circumstance is advantageous to Chikarmane's approach, in that multicast messages can be delivered to and from MNs without redirections, saving communication delay. (a) = 500 (b) = 1000 (c) = 2000 (d) = 4000 n = 0.1 n = 0.5 n = 1 n = 2 0 0.2 0.4 0.6 0.8 1 1 5 10 15
Sojourn time (min.)
Message cost ratio 0 0.2 0.4 0.6 0.8 1 1 5 10 15
Sojourn time (min.)
Message cst ratio 0 0.2 0.6 0.8 1 1 5 10 15
Sojourn time (min.)
Message cost ratio 0 0.2 0.4 0.6 0.8 1 1 5 10 15
Sojourn time (min.)
Message
cost
ratio
0.4
6. Conclusions
This paper presented a scheme, backward compatible with the TCP/IP protocol suites, for delivering multicast messages in a mobile internetworking environment. To lower the overhead of adjusting multicast delivery paths to mobile host locations, we exploited the locality property in host migrations. We kept active those subnetworks that mobile hosts visited most recently. In this manner, as long as hosts roam within these active networks, the established delivery paths need not change along with host movements. The length of Dt is important to the performance of our scheme. In Section 4.1, we suggested a value for Dt such that the overhead for rebuilding multicast routes and network traf®c waste is minimized. Further, an analytical model was developed to evaluate our multicasting scheme using the suggested Dt. In comparison with the best known proposal, numerical results show that our scheme demands remarkably shorter communication delay, while at the expense of small traf®c overhead. This indicates that our scheme is promising. This study was inspired from an observation that host movements exhibit temporal locality. Occasionally host mobility is random. For cost and performance considera-tions, we would avoid keeping active those subnetworks
that are located on MNs' random moving paths. This can be achieved as follows. When a subnetwork starts busy, it determines whether it should become active on multicast delivery paths. We averaged the length of a subnetwork's idle periods in the past and then applied the technique presented in Section 4.2 to derive the expected message cost. If our scheme outnumbers Chikarmane's approach, say by 30%, then the subnetwork is not incorporated into multicast routes. In this way only those subnetworks at which MNs dwell long enough are kept active in the system. Messages intended for a mobile member in an inactive subnetwork will require tunneling from somewhere in the set of active subnetworks. The detailed protocol as well as the related issues require thorough future investigation. Acknowledgements
This study is supported by the National Science Council, ROC, under grants NSC88-2213-E009-081 and NSC89-2213-E009-028. We thank Dr. W. Fenner, from AT&T Research in Menlo Park, and T. Maufer, from 3Com, and anonymous referees for their valuable help and comments.
0.415 0.417 0.419 0.421 0.423 0.425 0.427 0.429 1 5 10 15
Sojourn time (min.)
Communication delay ratio 0.416 0.417 0.418 0.419 0.42 0.421 0.422 0.423 0.424 1 5 10 15
Sojourn time (min.)
Communication delay ratio 0.62 0.625 0.63 0.635 0.64 0.645 0.65 1 5 10 15
Sojourn time (min.)
Communication delay ratio 0.624 0.626 0.628 0.63 0.632 0.634 0.636 1 5 10 15
Sojourn time (min.)
Communication delay ratio (a) = 0.3; = 2000 (b) = 0.3; = 4000 (c) = 0.7; = 2000 (d) = 0.7; = 4000 n = 0.1 n = 0.5 n = 1 n = 2
References
[1] A. Acharya, A. Bakre, B.R. Badrinath, IP multicast extensions for mobile internetworking, IEEE INFOCOM'96, 1996, pp. 67±75. [2] K.C. Almeroth, The evolution of multicast: from the MBone to
Inter-domain multicast to Internet2 deployment, IEEE Network 14 (1) (2000) 10±20.
[3] K.C. Almeroth, A long-term analysis of growth and usage patterns in the multicast backbone (MBone), Proc. IEEE 2 (2000) 824±833 (INFOCOM 2000, 19th Annual Joint Conf. IEEE Comput. Commun. Soc.).
[4] K.C. Almeroth, M.H. Ammar, Mlisten: MBone collection tool, http:// www.cc.gatech.edu/computing/Telecomm/mbone/.
[5] K.C. Almeroth et al., The Mantra Project, http://imj.ucsb.edu/mantra. For DVMRP information, see http://imj.ucsb.edu/mantra/geographic/ geo-java/geo-plot-dvmrp-networks.html.
[6] K.P. Birman (Ed.), Building Secure and Reliable Network Applica-tions Manning, 1996.
[7] B. Cain, A. Thyagarajan, S.E. Deering, Internet group management protocol, version 3, Internet Draft kdraft-ietf-idmr-igmp-v3-00.txtl, 1997.
[8] K.H. Chi, C.C. Tseng, T.L. Huang, A framework for mobile multicast using dynamic route reconstructions, The Comput. J. 42 (6) (1999) 522±533.
[9] V. Chikarmane, R. Bunt, C. Williamson, Mobile IP-based multicast as a service for mobile hosts, Proceedings of the 2nd IEEE International Workshop on Services in Distributed and Network Environments, 1995, pp. 11±18.
[10] V. Chikarmane, et al., Multicast support for mobile hosts using mobile IP: design issues and proposed architecture, ACM/Baltzer Mobile Network. Appl. 3 (4) (1999) 365±379.
[11] G. Cho, L.F. Marshall, An ef®cient location and routing scheme for mobile computing environment, IEEE J. Select. Areas Commun. 13 (5) (1995) 868±879.
[12] W. Fenner, Internet group management protocol, version 2, RFC 2236, Network Working Group, 1997.
[13] J. Ioannidis, D. Duchamp, G.Q. Maguire, Jr., IP-based protocol for mobile internetworking, SIGCOMM'91, 1991, pp. 235±245. [14] R. Jain, et al., A caching strategy to reduce network impacts of PCS,
IEEE J. Select. Areas Commun. 12 (8) (1994) 1434±1444. [15] M. Khalil, et al., Buffer management for mobile IP, Internet Draft
kdraft-mkhalil-mobileip-buffer-00.txtl, 1999.
[16] L. Kleinrock, Queueing Systems, vol. I, Wiley, New York, 1975. [17] T.A. Maufer (Ed.), Deploying IP Multicast in the Enterprise,
Prentice-Hall, Upper Saddle River, NJ, 1998.
[18] J. Moy, Multicast extensions to OSPF, RFC 1584, Network Working Group, 1994.
[19] C. Perkins, Encapsulation within IP, RFC 2003, Network Working Group, 1996.
[20] C. Perkins (Ed.), Mobile IP Design: Principles and Practices, Addi-son-Wesley Longman, Reading, MA, 1998.
[21] T. Pusateri, Distance vector multicast routing protocol, Internet Draft, kdraft-ietf-imdr-dvmrp-v3-08l, 1999.
[22] S.M. Ross (Ed.), Stochastic Processes 2nd ed., Wiley, New York, 1996.
[23] C.H. Tsai, K.H. Chi, C.C. Tseng, Integration of network and data-link layer protocols for mobile internetworking, Proceedings of the 5th Workshop on Mobile Computing, Taichung, Taiwan, 2000, pp. 83±88. [24] C.L. Williamson, et al., Performance evaluation of the Mom mobile multicast protocol, ACM/Baltzer Mobile Network Appl. 3 (4) (1998) 189±201.
Chien-Chao Tseng is currently a professor in the Department of Computer Science and Infor-mation Engineering at National Chiao-Tung University, Hsin-Chu, Taiwan. He received his BS degree in Industrial Engineering from National Tsing-Hua University, Hsin-Chu, Taiwan, in 1981; MS and PhD degrees in Computer Science from the Southern Methodist University, Dallas, Texas, USA, in 1986 and 1989, respectively. His research interests include Mobile Computing, and Wireless Internet.
Kuang-Hwei Chi received his BS degree in Computer Science and Information Engineering from Tatung Institute of Technology, Taipei, Taiwan, in 1991 and his MS degree in Computer Science and Information Engineering from National Chiao-Tung University, Hsinchu, Taiwan, in 1993. He is currently a PhD candi-date in the Department of Computer Science and Information Engineering from National Chiao-Tung University. He is a member of the ACM.
Ting-Lu Huang studied at Tung-hi University (BS, 1976), University of Texas at Arlington (MS, 1981), and Northwestern University (PhD, 1989). He is currently an associate professor in the Department of Computer Science and Information Engineering at National Chiao-Tung University. He has been working on mutual exclusion algorithms, causal-ity in distributed computing, testing and debug-ging of concurrent software, and veri®cation.
