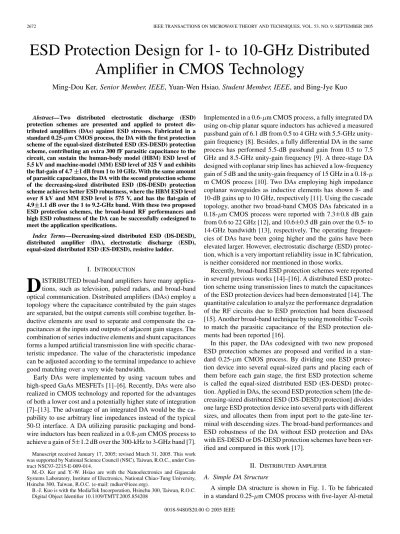

circuit, can sustain the human-body model (HBM) ESD level of 5.5 kV and machine-model (MM) ESD level of 325 V and exhibits the flat-gain of 4.7 1 dB from 1 to 10 GHz. With the same amount of parasitic capacitance, the DA with the second protection scheme of the decreasing-sized distributed ESD (DS-DESD) protection scheme achieves better ESD robustness, where the HBM ESD level over 8 kV and MM ESD level is 575 V, and has the flat-gain of 4.9 1.1 dB over the 1 to 9.2-GHz band. With these two proposed ESD protection schemes, the broad-band RF performances and high ESD robustness of the DA can be successfully codesigned to meet the application specifications.
Index Terms—Decreasing-sized distributed ESD (DS-DESD),
distributed amplifier (DA), electrostatic discharge (ESD), equal-sized distributed ESD (ES-DESD), resistive ladder.
I. INTRODUCTION
D
ISTRIBUTED broad-band amplifiers have many applica-tions, such as television, pulsed radars, and broad-band optical communication. Distributed amplifiers (DAs) employ a topology where the capacitance contributed by the gain stages are separated, but the output currents still combine together. In-ductive elements are used to separate and compensate the ca-pacitances at the inputs and outputs of adjacent gain stages. The combination of series inductive elements and shunt capacitances forms a lumped artificial transmission line with specific charac-teristic impedance. The value of the characcharac-teristic impedance can be adjusted according to the terminal impedance to achieve good matching over a very wide bandwidth.Early DAs were implemented by using vacuum tubes and high-speed GaAs MESFETs [1]–[6]. Recently, DAs were also realized in CMOS technology and reported for the advantages of both a lower cost and a potentially higher state of integration [7]–[13]. The advantage of an integrated DA would be the ca-pability to use arbitrary line impedances instead of the typical 50- interface. A DA utilizing parasitic packaging and bond-wire inductors has been realized in a 0.8- m CMOS process to achieve a gain of 5 1.2 dB over the 300-kHz to 3-GHz band [7]. Manuscript received January 17, 2005; revised March 31, 2005. This work was supported by National Science Council (NSC), Taiwan, R.O.C., under Con-tract NSC93-2215-E-009-014.
M.-D. Ker and Y.-W. Hsiao are with the Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C. (e-mail: mdker@ieee.org).
B.-J. Kuo is with the MediaTek Incorporation, Hsinchu 300, Taiwan, R.O.C. Digital Object Identifier 10.1109/TMTT.2005.854208
GHz and 8.5-GHz unity-gain frequency [9]. A three-stage DA designed with coplanar strip lines has achieved a low-frequency gain of 5 dB and the unity-gain frequency of 15 GHz in a 0.18-m CMOS process [10]. Two DAs e0.18-mploying high i0.18-mpedance coplanar waveguides as inductive elements has shown 8- and 10-dB gains up to 10 GHz, respectively [11]. Using the cascade topology, another two broad-band CMOS DAs fabricated in a 0.18- m CMOS process were reported with 7.3 0.8 dB gain from 0.6 to 22 GHz [12], and 10.6 0.5 dB gain over the 0.5- to 14-GHz bandwidth [13], respectively. The operating frequen-cies of DAs have been going higher and the gains have been elevated larger. However, electrostatic discharge (ESD) protec-tion, which is a very important reliability issue in IC fabricaprotec-tion, is neither considered nor mentioned in those works.
Recently, broad-band ESD protection schemes were reported in several previous works [14]–[16]. A distributed ESD protec-tion scheme using transmission lines to match the capacitances of the ESD protection devices had been demonstrated [14]. The quantitative calculation to analyze the performance degradation of the RF circuits due to ESD protection had been discussed [15]. Another broad-band technique by using monolithic T-coils to match the parasitic capacitance of the ESD protection ele-ments had been reported [16].
In this paper, the DAs codesigned with two new proposed ESD protection schemes are proposed and verified in a stan-dard 0.25- m CMOS process. By dividing one ESD protec-tion device into several equal-sized parts and placing each of them before each gain stage, the first ESD protection scheme is called the equal-sized distributed ESD (ES-DESD) protec-tion. Applied in DAs, the second ESD protection schem [the de-creasing-sized distributed ESD (DS-DESD) protection] divides one large ESD protection device into several parts with different sizes, and allocates them from input port to the gate-line ter-minal with descending sizes. The broad-band performances and ESD robustness of the DA without ESD protection and DAs with ES-DESD or DS-DESD protection schemes have been ver-ified and compared in this work [17].
II. DISTRIBUTEDAMPLIFIER
A. Simple DA Structure
A simple DA structure is shown in Fig. 1. To be fabricated in a standard 0.25- m CMOS process with five-layer Al-metal 0018-9480/$20.00 © 2005 IEEE
Fig. 1. Basic scheme of the DA.
interconnects, this DA will be codesigned with the distributed ESD protection scheme. A three-stage DA with a flat gain of 5 dB over a 10-GHz bandwidth was expected to be achieved. The number of stages was decided according to the consider-ation of the layout area, the inductor loss, and the power con-sumption. The input and output were matched to 50 , and the phase shift was designed to be approximately linear over the passband. The supply voltage of the DAs in the 0.25- m CMOS process is 2.5 V.
The gate-inductors and the parasitic gate-capacitances form the artificial gate-line. Similarly, the drain-inductors and the drain-capacitances construct the artificial drain-line. The cutoff frequency of the artificial transmission line is defined as
. According to the circuit structure shown in Fig. 1, a peak in the gain response will appear near the cutoff frequency of the transmission line. Since a flat gain response across the passband is preferred, this effect should be reduced. The stag-gering technique [18] was employed in this design. The depen-dence of the gain response of the DA on the staggering factor is shown in Fig. 2. Defined as the ratio of the drain-line to the gate-line cutoff frequencies, the staggering factor of about 0.7 has been analyzed as the optimum value from Fig. 2, [18].
The impedance looking into the termination of the – arti-ficial transmission line ( ) can be expressed as
(1) The and are the inductance, capacitance, and cutoff fre-quency of the – artificial transmission line, respectively. The impedance looking into the – artificial transmission line will exhibit a strong deviation from the nominal impedance near the line’s cutoff frequency. One way to realize the image-impedance match is to insert -derived half sections between the lines and each termination or each port [19]. Such half sections can greatly improve the impedance match. The -derived half cir-cuit is illustrated in Fig. 3, where the optimum value of
Fig. 2. Normalized gain response of the DA under different staggering factors, wherer = 1 corresponds to the unstaggered case.
Fig. 3. Low-passm-derived half section.

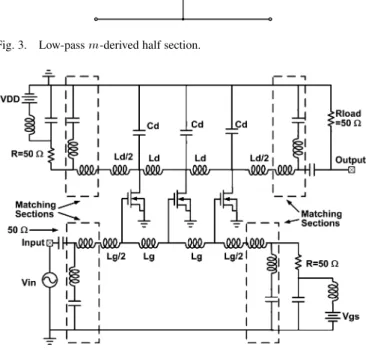

Fig. 4. Modified DA with staggering technique andm-derived half section. is applied to this DA circuit. With the combination of the stag-gering technique and the -derived half section, the basic DA is modified and shown in Fig. 4.
B. Ideal DA
With the given topology and the design specifications, the cir-cuit parameters can be obtained. After some minor tuning based on those component values in the given CMOS process, the DA circuit schematic is shown in Fig. 5 with the matching compo-nent values. The additional capacitance has been added to fulfill the required value in Fig. 4. The simulated result of S21-pa-rameter of this DA is shown in Fig. 6, where it performs approx-imately 5.1 0.3 dB over 16 GHz. The simulated results of RF performance on S11-, S22-, and S12-paremeter almost achieve the value below 10 dB over 16 GHz, as shown in Fig. 6. The
Fig. 5. Initial DA according to the theorems.
Fig. 6. Simulated results of RF performance on S21-, S11-, S22-, and S12-parameters of the initial DA in Fig. 5.
Fig. 7. Simulated phase shift of S21-parameter of the initial DA in Fig. 5.
simulated phase shift of the S21-parameter in Fig. 7 is approx-imately linear, which means the time delay is almost constant over the bandwidth from 0.5 to 18 GHz. As observed, the sim-ulated results fit well to the conventional theory. However, with the consideration of the parasitics of the passive components, especially the on-chip spiral inductors, the situation could be different.
Fig. 9. Comparison of inductance among the lumped -model and the simulated spiral inductor.
C. Inductor Modeling
Due to the mutual influences among the components, to op-timize a DA with physical components becomes a complicated design cycle. Because of the complexities, an auto-optimization solution is employed. To utilize this solution, the passive com-ponent models need to be constructed first. Among those pas-sive components, on-chip spiral inductors are the most impor-tant and critical for the complicated parasitic effects. Thus, an on-chip spiral inductor library should be built up first.
The method to generate inductor models is a combi-nation of the analytic methods, measured data, simulated data, and some other techniques [20], [21]. In this work, six on-chip spiral inductors have been generated by the lumped -model shown in Fig. 8 and modeled from 1 to 3.5 turns with the step of 0.5 turn. The basic structures, including the inner radius of 55 m, top metal width of 10 m, and the spacing between two metals of 2 m, of these inductors were kept the same. The inductance curve of the lumped model, illustrated in Fig. 9, fits well to the simulation curve of the on-chip spiral inductor up to 16 GHz. Therefore, these lumped models can still be employed to replace the simulated spiral inductors for optimizing the RF performance of the DA.
D. Optimized DA
After building an on-chip spiral inductor library, the auto-op-timization can be operated in the ADS simulator. A general DA structure was set up as that in Fig. 5, with all variable passive component values. Then, the optimization targets were set up in the EM simulator. First, the S-parameters except S21-param-eter were chosen to be less than 10 dB over the 16-GHz band-width. The forward gain S21 was kept more than 5 dB over the
Fig. 10. Randomly optimized DA.
Fig. 11. Feasibly optimized DA.
same bandwidth. Second, the difference of the time delay over the 16-GHz bandwidth was controlled to the minimum. The in-ductor model can be adjusted by changing the turns. The DA is kept in optimization cycles until these goals can not be ap-proached. The optimized structure with the component values is shown in Fig. 10. Observed in Fig. 10, the turns of the induc-tors were random values between 1 and 3.5, which were difficult to be implemented in physical design. So, we had to reoptimize the circuit with the feasible turn values which are between 1 and 3.5 with the step of 0.5. After replacing the ideal inductors with the feasible on-chip spiral inductors, the feasible DA is shown in Fig. 11. The -derived half sections were removed, for the reason that the on-chip inductors could not reach the arbitrary turns required in the optimization process. Without the -de-rived half sections, the S21-parameter does not attenuate very rapidly around the cutoff frequency compared to the ideal-in-ductor one and the randomly optimized one, as shown in Fig. 12.
Fig. 12. Comparison of S21-parameters among the feasibly optimized, randomly optimized, and ideal-inductor DAs.
Fig. 13. Traditional ESD protection design with a pair of diodes connected to the input pad and a VDD-to-VSS ESD clamp circuit.
For the area saving and the simplicity to compare the DAs with different ESD protection schemes, the performance of the fea-sible DA in such a 0.25- m CMOS process was acceptable.
III. DISTRIBUTEDAMPLIFIERWITHESD PROTECTIONDESIGN
A. Concept of Distributed ESD Protection
The ESD protection is very important during IC manufac-turing. Since the DA is the front-end of the whole system, the ESD protection is indispensable. The parasitic capacitance and resistance from the ESD protection circuit will degrade the per-formance of DA in impedance match and noise figure. To avoid these, the ESD protection components should be built with low capacitances and high Q factors. The shallow-trench-isolated (STI) diodes fit these two requirements [22]. Besides, they can sustain a very high ESD protection level with the cooperation of a turn-on efficient VDD-to-VSS ESD clamp circuit [23]. How-ever, the broad-band matching over 10 GHz is infeasible with the traditional ESD protection scheme [24], which uses a pair of diodes connected to the input pad with a VDD-to-VSS ESD clamp circuit, as shown in Fig. 13. To achieve a comparable broad-band input match of the DA after inserting the ESD pro-tection circuit, the ESD propro-tection components must be sepa-rated as the MOSFETs in the DA. The extra parasitic capaci-tance of each ESD protection component can be absorbed into each section of the artificial gate-line. Hence, the value of the characteristic impedance in each section changed little and the matching condition can still be maintained.
Fig. 14. DA with distributed ESD (DESD) protection circuit. The dimensions of the devices in DA are the same as those in Fig. 11.
Fig. 15. Resistive ladder model of the DESD protection circuit during the ESD event.
B. New Proposed Distributed ESD Protection Circuits
According to the distributed ESD topology in [15], a DA is codesigned with the ES-DESD protection scheme, as shown in Fig. 14. The STI diodes, used as ESD protection devices, were divided into three sections with equal sizes to conform to the gain stages of the DA. With the turn-on-efficient VDD-to-VSS ESD clamp circuit, the DA with the ES-DESD protection scheme was supposed to have high ESD robustness. Under the ESD stress, the DA with ES-DESD protection can be approximately modeled as a simple resistive ladder [14], as shown in Fig. 15, where Rc denotes the series resistance of the spiral inductor and Resd is the equivalent turn-on resistance of the ESD diode. The large values of Rc and Resd degraded the ESD robustness when the ESD-generated heat across them. Therefore, in order to enhance the ESD robustness, the Resd and Rc should be minimized. According to this consideration, the decreasing-sized distributed ESD (DS-DESD) protection scheme is proposed. The new proposed DS-DESD protection scheme by enlarging the size of ESD protection devices at the first ESD protection stage can reduce the Resd of the first stage, where is usually the most possible location to be damaged by ESD. With a relatively large device size at the first ESD protec-tion stage, it can discharge ESD current more quickly at the first ESD protection stage, as compared to the ES-DESD protection scheme. Thus, the DA with the new proposed DS-DESD pro-tection is believed to have better ESD robustness, as compared to that of the DA with the ES-DESD protection.
Fig. 16. Simulated results of RF performance on S21-parameters of the DAs without and with the distributed ESD (DESD) protection circuits. The total parasitic capacitance of all ESD diodes is 300 fF.
C. Broad-band Performance of DA Without and With ESD Protection
For a broad-band circuit, the S-parameters, the noise figure, and the phase shift are the main factors to determine the RF performance. The simulations of the DA without the ESD pro-tection and the DAs with the ES-DESD propro-tection or DS-DESD protection were operated to examine how much the degradation of the performance would be after inserting the ESD protection circuit into the DA.
In the ES-DESD and DS-DESD protection schemes, two amounts of the total parasitic capacitances contributed by all the ESD protection diodes were chosen. The first amount was 300 fF and the second one was 600 fF. The parasitic capaci-tances of the ESD protection diodes in these ESD protection circuits are listed in Table I.
In the first group, S21-parameters and the phase shifts of the DA0 (DA without the ESD protection), DA1 (ES-DESD protec-tion with 300 fF), and DA2 (DS-DESD protecprotec-tion with 300 fF) were compared in Figs. 16 and 17, respectively. As seen from Fig. 16, DA0 had the best performance, and DA2 had the worst frequency response among these three circuits. However, the difference of the passband-gain among these three circuits was small. The phase shifts of these three types of DAs in Fig. 17 were three straight lines from low frequency to about 14 GHz, which had no apparent difference.
Fig. 17. Simulated phase shifts of the DAs without and with the distributed ESD (DESD) protection circuits. The total parasitic capacitance of all ESD diodes is 300 fF.
Fig. 18. Simulated results of RF performance on S21-parameters of the DAs without and with the distributed ESD (DESD) protection circuits. The total parasitic capacitance of all ESD diodes is 600 fF.
In the second group, the total parasitic capacitance was twice the amount of the first group. Hence, the S21-parameters of DA3 (ES-DESD protection with 600 fF) and DA4 (DS-DESD pro-tection with 600 fF) degraded more seriously than those of DA1 and DA2 in the first group, as shown in Fig. 18. Still, the DA with the DS-DESD protection had the worst frequency response. The phase shifts of the circuits in the second group were compared in Fig. 19. The phase shifts of DA3 and DA4 were less linear than those of DA1 and DA2 because of the larger parasitic ca-pacitances contributed by the ESD protection circuits. From the simulation results, to provide the distributed ESD (DESD) pro-tection to a DA and to take care of the broad-band performance simultaneously, the sizes of the ESD diodes can not be too large. Thus, the DAs with the DESD protection scheme in the first group with total parasitic capacitance of 300 fF (contributed by ESD protection diodes) were preferred.
IV. EXPERIMENTALRESULTS
One DA without ESD protection (DA0) and five DAs with ESD protection circuits have been fabricated in a standard
Fig. 19. Simulated phase shifts of the DAs without and with the distributed ESD (DESD) protection circuits. The total parasitic capacitance of all ESD diodes is 600 fF.
TABLE II
PARASITICCAPACITANCES OF THEESD PROTECTIONDIODES IN THE
FABRICATEDDAs WITHESD PROTECTION
0.25- m CMOS process. The parasitic capacitances con-tributed by the ESD protection diodes in the five DAs with ESD protection are listed in Table II. The die photo of these fabri-cated DAs is shown in Fig. 20. In the following subsections, the broad-band performances, including the S-parameters, the noise figures, and the phase shifts of these six DAs will be measured and compared. The ESD protection levels of these six DAs will be also tested and compared with failure analysis.
A. Broad-band RF Performance
The S-parameters of these six DAs have been measured on-wafer with two-port ground-signal-ground (G-S-G) probes from 1 to 18 GHz. The 20-GHz S-parameter measurement system (HP85122A) is used to characterize the behavior of the circuits. The S21-parameter of the DA without ESD protection compared to that of the simulated one is shown in Fig. 21. The probed response, shown in Fig. 21, correlates well with the response of the post-simulation, but still some differences exist. The post-simulation was operated with the addition of the interconnects used in layout. The effects of the interconnects were obtained from the EM simulator of ADS momentum. The simulated response is 5 dB with 1-dB flatness from 1 GHz to 10 GHz and a unity-gain frequency of 15.1 GHz. However, the measured response is 5 dB with -dB flatness from 1 to 11.4 GHz and a unity-gain frequency of 16.7 GHz. The deviation of the RF performance can be attributed to several reasons,

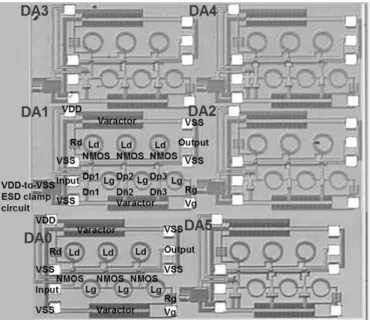

Fig. 20. Die photo of the DAs without and with the ESD protection circuits. The DA1–DA5 have ESD protection, but the DA0 which is a reference for RF performance comparison has no ESD protection.
Fig. 21. Measured S21-parameter compared to the post-simulated S21-parameter of the DA without the ESD protection circuit.
including the inaccuracy of the simulated spiral inductors, the temperature coefficients of the resistors, and the imprecise estimation of the pad effects, etc.
The coupling between the inductors was not considered in the circuit design. Since the inductances used in this circuit are quite small, the coupling between the inductors is also rather small. As shown in Fig. 21, there is a slight difference between the simulated and measured broad-band RF performances of the DAs. The measured RF performance is degraded as compared to the simulated one. However, the degradation is fairly slight below the frequency of 14 GHz. Thus, the coupling between the inductors can be ignored without causing major design errors in the target of 1- to 10-GHz DAs.
According to the simulation results of S21-parameters in Figs. 16 and 18, the DA without ESD protection achieves the best gain response among all the DAs. With the same total
Fig. 22. Comparison of the measured S21-parameters among the DA without ESD protection and the DAs with ESD protection.
parasitic capacitance contributed by ESD protection diodes, the DAs with ES-DESD protection perform better in S21-parameter than the DAs with DS-DESD protection. The measured results of the DA without ESD protection and five DAs with ESD protection, as compared in Fig. 22, conform to the simulated performances with the exception that DA2 achieves a better gain response than DA1. The reason for this measured result is that the decreasing parasitic capacitances of the ESD protection diodes compensating the miller effect in each gain stage with the increasing gain. With the increasing total parasitic capaci-tance of the ESD diodes in the DAs with ESD protection, the S21-parameters in these DAs are degraded. Hence, only DA1 and DA2 have the comparable performance to DA0.
The S-parameters, except S21, of the simulated and im-plemented DAs without ESD protection, DA1, and DA2 are shown in Fig. 23(a)–(c). The measured S11-parameter of the DA without ESD protection, as illustrated in Fig. 23(a), corre-sponds well to the simulated one and meets the specification of less than 10 dB. The measured S11-parameter of DA1 degrades less than that of DA2, but they both do not meet the specification anymore.
As shown in Fig. 23(b) and (c), the measured S22-param-eters and S12-paramS22-param-eters of these three implemented circuits exhibit better output matching and reverse isolation than the simulated ones of the DA without ESD protection. As shown in Fig. 24, the simulated and measured phase shifts of the DA without ESD protection both present roughly linear curves from 1 to 16 GHz, but DA1 and DA2 only maintain the same situa-tion up to 14 GHz.
The noise figure was measured by the high frequency mod-eling system (HP85122A) and the noise parameters extraction software (ATN NP5B) from 1 to 18 GHz. The results are com-pared in Fig. 25. The measured data of DA0 achieve the lowest value of 4.4 dB at 6 GHz. The lowest value in measurement is larger than that of 3.6 dB in simulation. In DA1 and DA2, the lowest noise figures are 0.5 and 0.6 dB higher than that of the measured DA without ESD protection. It means that the ESD protection diodes contribute extra noise.
Fig. 23. (a) S11-parameters, (b) S22-parameters, and (c) S12-parameters among the simulated and fabricated DA0s without ESD protection, DA1 with ES-DESD protection, and DA2 with DS-DESD protection.
B. ESD Robustness
To compare the ESD robustness, DA0 (the DA without the ESD protection) and five DAs with ESD protection were tested according to the criterion of 30% I–V curve shift at 1- A cur-rent. The results of the human-body model (HBM) [25] ESD stresses and the machine model (MM) [26] ESD stresses are
Fig. 24. Phase shifts among the simulated and fabricated DAs without ESD protection, DA1 with ES-DESD protection, and DA2 with DS-DESD protection.
Fig. 25. Noise figures among the simulated and fabricated DAs without ESD protection, DA1 with ES-DESD protection, and DA2 with DS-DESD protection.
shown in Table III. As seen in Table III, the DA without ESD protection only sustains a very low ESD protection level, which is far below the ESD specifications for commercial ICs which are 2 kV in HBM and 200 V in MM.
The ESD robustness of the DA is substantially improved after inserting the distributed ESD protection circuit. The enhance-ment of ESD robustness is significant in that DA1 (employing the ES-DESD protection scheme) achieves the HBM ESD level of 5.5 kV and the MM ESD level of 325 V. Furthermore, equipped with the equally total parasitic capacitance of ESD protection diodes in DA1, DA2 with the DS-DESD protection scheme sustains the even higher ESD level of more than 8 kV in HBM and 575 V in MM. With larger ESD protection diodes, contributing larger parasitic capacitances, the ESD robustness of the DA with ESD protection is better and the DS-DESD protection scheme exhibits higher ESD robustness than the ES-DESD one.
Table IV summarizes the performances of the published CMOS DAs compared with the DA without ESD protection, DA1, and DA2 in this work. DA1 and DA2 exhibit satisfactory
TABLE IV
COMPARISONSAMONG THEPUBLISHEDCMOS DAs
broad-band performances and succeed in providing excellent ESD protection.
C. Failure Analysis
The EMMI (photon emission microscope) pictures in Fig. 26 have confirmed that the ESD damage, indicated by the arrow, is located on the junction of the first p-diode with a large shining area after the positive-to-VSS (PS-mode) MM ESD stress. In PS-mode, the input pad is zapped by a positive ESD stress and the VSS pad is grounded. From the resistive ladder model in Fig. 15, during the ESD event, most ESD current is surely dis-charged through the shortest path, namely the first section of ESD protection circuit. This evidence has confirmed that the DS-DESD scheme can indeed achieve better ESD performance than the ES-DESD scheme in DA application.
V. CONCLUSION
Two new types of broad-band ESD protection schemes used to protect the DA have been proposed and successfully inves-tigated in a standard 0.25- m CMOS process. From the ex-perimental results, the DA, employing the ES-DESD protec-tion scheme with the total parasitic capacitance of 300 fF con-tributed by the ESD protection diodes in the input port, has high ESD robustness (the HBM ESD level of 5.5 kV and the

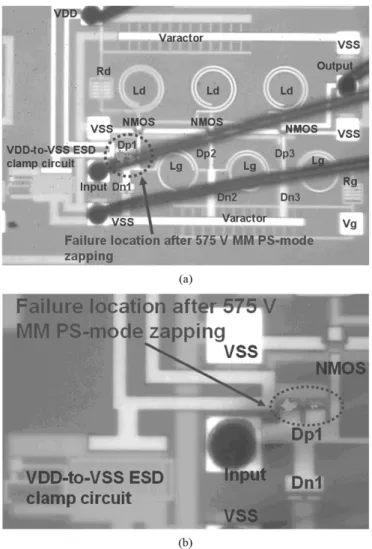

Fig. 26. EMMI photographs to show the location of ESD damage in DA2 with DS-DESD protection after positive-to-VSS (PS-mode) MM ESD stress. (a) Whole view of DA2 with DS-DESD protection. (b) Zoomed-in view of the damaged location on the p-diode (Dp1) at the first section of ESD protection.
MM ESD level of 325 V) with only a little degradation on the broad-band RF performance. The decreasing-sized distributed ESD (DS-DESD) protection scheme, applied to the DA with the total parasitic capacitance of 300 fF contributed by the ESD diodes in the input port, has enhanced the ESD robustness to a higher level (the HBM ESD level of more than 8 kV and the MM ESD level of 575 V) and has not deteriorated the broad-band RF performance much. Hence, the proposed two ESD protec-tion schemes are useful and feasible to codesign the RF perfor-mance and ESD robustness of DA in broad-band applications.
