Carrier gas effects on the SiGe quantum dots formation

(1)

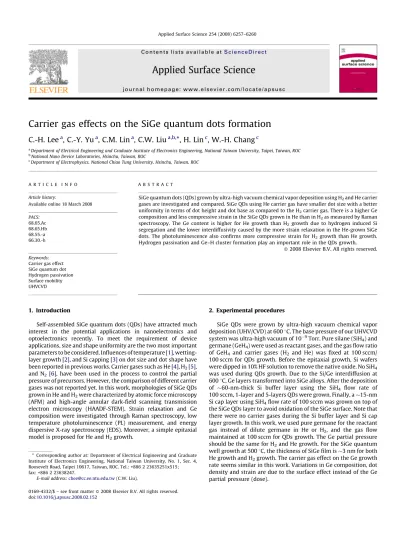

Carrier gas effects on the SiGe quantum dots formation

C.-H. Lee

a

, C.-Y. Yu

a

, C.M. Lin

a

, C.W. Liu

a,b,

*

, H. Lin

c

, W.-H. Chang

c

a_{Department of Electrical Engineering and Graduate Institute of Electronics Engineering, National Taiwan University, Taipei, Taiwan, ROC} b

National Nano Device Laboratories, Hsinchu, Taiwan, ROC

c

Department of Electrophysics, National Chiao Tung University, Hsinchu, Taiwan, ROC

1. Introduction

Self-assembled SiGe quantum dots (QDs) have attracted much interest in the potential applications in nanoelectronics and optoelectronics recently. To meet the requirement of device applications, size and shape uniformity are the two most important parameters to be considered. Inﬂuences of temperature[1], wetting-layer growth[2], and Si capping[3]on dot size and dot shape have been reported in previous works. Carrier gases such as He[4], H2[5], and N2 [6], have been used in the process to control the partial pressure of precursors. However, the comparison of different carrier gases was not reported yet. In this work, morphologies of SiGe QDs grown in He and H2were characterized by atomic force microscopy (AFM) and high-angle annular dark-ﬁeld scanning transmission electron microscopy (HAADF-STEM). Strain relaxation and Ge composition were investigated through Raman spectroscopy, low temperature photoluminescence (PL) measurement, and energy dispersive X-ray spectroscopy (EDS). Moreover, a simple epitaxial model is proposed for He and H2growth.

2. Experimental procedures

SiGe QDs were grown by ultra-high vacuum chemical vapor deposition (UHV/CVD) at 600 8C. The base pressure of our UHVCVD system was ultra-high vacuum of 10 9_{Torr. Pure silane (SiH}

4) and germane (GeH4) were used as reactant gases, and the gas flow ratio of GeH4 and carrier gases (H2 and He) was fixed at 100 sccm/ 100 sccm for QDs growth. Before the epitaxial growth, Si wafers were dipped in 10% HF solution to remove the native oxide. No SiH4 was used during QDs growth. Due to the Si/Ge interdiffusion at 600 8C, Ge layers transformed into SiGe alloys. After the deposition of 60-nm-thick Si buffer layer using the SiH4 flow rate of 100 sccm, 1-layer and 5-layers QDs were grown. Finally, a 15-nm Si cap layer using SiH4flow rate of 100 sccm was grown on top of the SiGe QDs layer to avoid oxidation of the SiGe surface. Note that there were no carrier gases during the Si buffer layer and Si cap layer growth. In this work, we used pure germane for the reactant gas instead of dilute germane in He or H2, and the gas flow maintained at 100 sccm for QDs growth. The Ge partial pressure should be the same for H2and He growth. For the SiGe quantum well growth at 500 8C, the thickness of SiGe film is 3 nm for both He growth and H2growth. The carrier gas effect on the Ge growth rate seems similar in this work. Variations in Ge composition, dot density and strain are due to the surface effect instead of the Ge partial pressure (dose).

Applied Surface Science 254 (2008) 6257–6260

A R T I C L E I N F O

Article history:

Available online 18 March 2008 PACS: 68.65.Ac 68.65.Hb 68.55.-a 66.30.-h Keywords: Carrier gas effect SiGe quantum dot Hydrogen passivation Surface mobility UHVCVD

A B S T R A C T

SiGe quantum dots (QDs) grown by ultra-high vacuum chemical vapor deposition using H2and He carrier gases are investigated and compared. SiGe QDs using He carrier gas have smaller dot size with a better uniformity in terms of dot height and dot base as compared to the H2carrier gas. There is a higher Ge composition and less compressive strain in the SiGe QDs grown in He than in H2as measured by Raman spectroscopy. The Ge content is higher for He growth than H2growth due to hydrogen induced Si segregation and the lower interdiffusivity caused by the more strain relaxation in the He-grown SiGe dots. The photoluminescence also conﬁrms more compressive strain for H2growth than He growth. Hydrogen passivation and Ge–H cluster formation play an important role in the QDs growth.

* Corresponding author at: Department of Electrical Engineering and Graduate Institute of Electronics Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Taipei 10617, Taiwan, ROC. Tel.: +886 2 23635251x515; fax: +886 2 23638247.

E-mail address:[email protected](C.W. Liu).

C o n t e n t s l i s t s a v a i l a b l e a tS c i e n c e D i r e c t

Applied Surface Science

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / a p s u s c

(2)

3. Results and discussion

Morphologies of 1-layer SiGe QDs without Si capping layer grown in He and in H2have been observed by AFM (Fig. 1). Average dot heights are 10 and 12 nm for He and H2growth, while average dot bases are 88 and 89 nm for He and H2growth, respectively. Dot densities are similar (1.1 1010cm 2) for He-grown sample and H2-grown sample. The average dot height indicates that H2-grown sample can have slightly taller dots (12 nm height) than He-grown sample (10 nm height) measured by AFM. The HAADF-STEM also shows the similar trend. Dot height distribution (Fig. 2) and dot base distribution (Fig. 3) are different for H2growth and He growth. For H2-grown sample, the bimodality is clearly evidenced in H2 growth for dot height distribution (Fig. 2(b)), and a broad distribution is observed for dot base (Fig. 3). Standard deviations of dot height are 3.2 and 4.4 nm for He growth and H2 growth,

respectively, and those of dot base are 29 and 41 nm for He growth and H2 growth, respectively. QDs grown in He have better uniformity than in H2. Different morphologies are also found through HAADF-STEM images. The scanning transmission electron microscopy of 5-layers QDs grown in He and H2 are shown in

Fig. 4(a) and (b), respectively. The thickness of the Si layer between the SiGe QDs layers is 60 nm. H2carrier gas creates taller dots than He carrier gas, consistent with AFM results.

Raman spectra of 5-layers SiGe QDs grown in He and H2with 488 nm laser excitation are shown inFig. 5with the resolution of 0.2 cm 1_{. Besides strong bulk Si signal at 520 cm} 1_{, the Si–Ge 2TA} phonon, Ge–Ge phonon, and Si–Ge phonon of dots were also observed. For the peak at 417 cm 1_{, QDs contribute more} intensity of the Raman spectra than wetting layers. The sample with wetting layers only has very weak intensity at 417 cm 1_. The Si–Ge phonon peak (417 cm 1_{) is sensitive to both the strain}

Fig. 1. The 2.5mm 2.5mm AFM image of SiGe QDs grown in different carrier gases: (a) He and (b) H2.

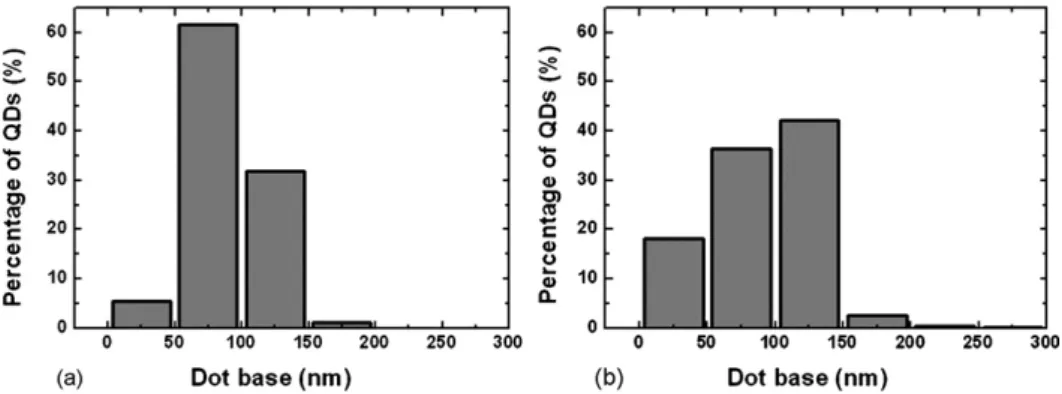

Fig. 2. The dot height distribution of SiGe QDs grown in (a) He and (b) H2. The bimodality is clearly evidenced in H2growth.
