長期演進技術網路無線資源控制狀態轉換之非連續接收節能機制效能分析

(1)

Analysis of Discontinuous Reception Power

Saving with Radio Resource Control States

Transition in LTE Networks

A THESIS Presented to

The Academic Faculty By

Cheng-Wen Hsueh

In Partial Fulfillment

of the Requirements for the Degree of Master in Communications Engineering

Institute of Communications Engineering College of Electrical and Computer Engineering

National Chiao Tung University

2013

(2)

Abstract

The 3GPP long term evolution(LTE) not only offer high bandwidth for data transfer but also exhaust the User Equipment(UE)’s battery life quickly. In order to save the UE’s battery Life, discontinuous reception(DRX) is speci-fied to reduce the UE’s power consumption, DRX allow the UE to turn off RF module when there is no data need to transfer. This work focus on anal-ysis DRX mechanism with different RRC states, we use a simple numerically analytical to model this. We divided the time period for power-saving opera-tion into several independent parts to derive the power consumpopera-tion and the transmission delay. To analysis the power advisably, we introduce the real power consumption through the power model. We evaluate the performance that the UE is more power effectively when enters RRC IDLE in lower arrival rate, and there is trade-off between the power and the transmission delay.

(3)

Acknowledgements

I would like to thank my parents and my younger sister. They always give me endless supports. I especially thank Professor Li-Chun Wang and Li-Ping Tung who gave me many valuable suggestions in my research during these two years. I would not finish this work without his guidance and comments. In addition, I am deeply grateful to my laboratory mates, Yim-Ming, Shao-Heng, Yi-Cen, Gen-Hen, Si-Han and junior laboratory mates at Mo-bile Communications and Cloud Computing Laboratory at the Graduate In-stitute of Communications Engineering in National Chiao-Tung University. They provide me with a lot of assistance and share happiness with me.

(4)

List of Tables

2.1 Comparison of Various Analytical Model in DRX operation. . 6 2.2 LTE power model. . . 9

(8)

List of Figures

1.1 LTE network architecture between eNB and UE. . . 2 2.1 Illustration of LTE DRX operation in RRC CONNECTED. . 7 2.2 Different RRC states in LTE networks. . . 9 3.1 3GPP LTE-A wireless networks DRX operation with RRC

states transition. . . 11 5.1 Comparison between the analytical model and the simulation

results in different Power-saving factor with RRC states tran-sition. . . 25 5.2 Comparison between the analytical model and the simulation

results in different transmission delay with RRC states tran-sition. . . 26 5.3 Power-saving factor with RRC states transition (CIDLEDRX =

1000 ms). . . 28 5.4 The trend of E[TL] and E[TIDLE] in different CIDLE. . . 29

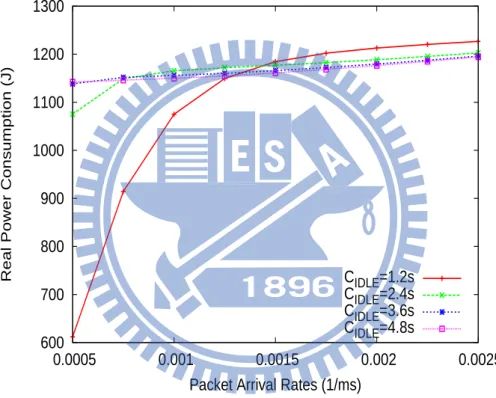

5.5 Real Power Consumption in 1 second. . . 30 5.6 Average packet transmission delay with RRC states transition

when N = 2 and CIDLEDRX = 1000 ms. . . 31

(9)

Chapter 1 Introduction

The fourth generation (4G) wireless technologies, such as Long Term Evo-lution (LTE) of Universal Mobile Telecommunications System (UMTS) of-fer high bandwidth for data transof-fer to support various applications. The LTE has downlink peak date rate of 100Mbps and uplink peak data rate of 50Mbps by adopting some novel technologies (e.g., MIMO and OFDMA). However, the high complexity of these new technologies may exhaust the UE battery power quickly. Figure 1.1 shows LTE network architecture between evolved Node B (eNB) and UE. In order to extend UE’s battery lifetime, DRX is specified in 3GPP LTE standard to reduce the power consumption of UE [1] [2]. In DRX operation, the UE periodically wakes up to monitor new packet arrival in physical downlink control channel (PDCCH). If pack-ets arrive, UE stays active until no more packpack-ets are received for a period of time.

In [3–5], they considered the DRX operation with different channel con-ditions, following the CQI to change the DRX parameters for performance improvement. In [6–9], they introduced some ways to improvement VoIP performance in the DRX operation. And the LaVoLTE is proposed in [10],

(10)

Figure 1.1: LTE network architecture between eNB and UE.

based on time series prediction and enhanced eNodeB architecture to deter-mine DRX opportunities during video streaming over Real Time Protocol (RTP) in a TDD-LTE network without compromising the QoS. In [11], to power down energy consuming circuits in RF and BB, they proposed a Fast Control Channel Decoding (FCCD) that the UE is not Nscheduled to receive downlink data in the current TTI. In [12], they studied the characteristics of different types of services. In [13], they introduced the DRX operation under different RRC states. According to [14], RRC states has dramatically impacts on UE’s power consumption and packet transmission delay. For the performance of DRX, several analytical studies have been conducted. Yang et al. [15, 16] proposed a Markov chain model of the DRX in UMTS system where packet arrivals follow a Poisson process. Mihov et al. used semi-Markov process to model the DRX in LTE system [17]. In [18], they use the Markov model to build an algorithm that selects DRX parameters under the QoS constraints. Jin and Qiao proposed an accurate analytical model to

(11)

avoid sophisticated steps [19].

DRX operation can manage UEs to achieve suitable battery consump-tion in both RRC CONNECTED and RRC IDLE states in Evolved Univer-sal Terrestrial Radio Access Network (E-UTRAN). Radio Resource Control (RRC) is a protocol that communicates between the UE and the eNB, which is part of LTE air interface control plane. It provides lots of functionalities, such as paging, connection maintenance, security, QoS management, etc.. Under the same condition, UE may trigger different operations depending on its RRC state. For example, if the signal quality from one neighboring eNBs is better than the serving eNB, UE will trigger handover (HO) opera-tion if the UE is in RRC CONNECTED state or perform a cell reselecopera-tion if the UE is in RRC IDLE state.

1.1 Problem and Solution

In this thesis, we focus on the DRX operation, and we also consider the influence from RRC states transition, which is an important operation in LTE system. We present a simple analytical model to analyze the efciency of DRX operation and the inuence of the RRC states transition. Our proposed model is similar to [19], but is more general in the 3GPP LTE-A power saving operation since the RRC operation is taken into consideration.

1.1.1 Simple Analytical Model

To achieve this goal, we divide the DRX and RRC operations into several parts, and we can derive them separately before we combine the results. As the same as [15], we assume packet arrival intervals and transmission time follow exponential and general distribution, respectively. The eNB allocates

(12)

a single-transmission RLC buffer for each UE, and the transmission buffer size is infinite. To derive the power consumption, we divide the time period into sleeping state with RRC states transition and active state. Then, we can easily obtain the expected time duration of any state. Then, we can have two results, i.e., power saving factor with RRC states transition and real power consumption. We also derive the transmission delay by consider-ing two states: immediate-transmittconsider-ing state and bufferconsider-ing-and-forwardconsider-ing state. The immediate-transmitting state can be modeled by a M/G/1 queu-ing system, and the bufferqueu-ing-and-forwardqueu-ing state is derived, completely. The analytical results show that there is much higher probability that the UE enters RRC IDLE at lower packet arrival rate, and the power consump-tion is relatively low at same time.

1.2 Thesis Outline

The rest of the article is organized as follows. We introduce the DRX op-eration and the RRC states transition in Chapter 2. We also introduce our system model in Chapter 3. Then, a analytical model has been proposed to analyze the power consumption and the transmission delay in Chapter 4. To verify our analytical, we simulate the DRX and RRC operation in Chapter 5. The numerically results of analytical model are shown in Chapter 6. Finally, Chapter 7 concludes this thesis.

(13)

Chapter 2 Background

In this chapter, we firstly survey related works to Discontinuous Recep-tion(DRX) operation and Radio Resource Control(RRC) in LTE network. Then, we introduce their operation in next two sections. And the power model of UE is introduced in last section.

2.1 Literature Survey

DRX and RRC mechanisms will operate in different forms, which depends on the characteristics of traffic. Consequently, it has impacts on UE’s power consumption. For an effective investigation on the sufficiency of the LTE DRX mechanisms, traffic analysis is of high importance. Thus, in [12], they studied the characteristics of different types of services. In [13], they in-troduced the DRX operation under different RRC states. According to [14], RRC states has dramatically impacts on UE’s power consumption and packet transmission delay. For the performance of DRX, several analytical studies have been conducted. Yang et al. [15, 16] proposed a Markov chain model of the DRX in UMTS system where packet arrivals follow a Poisson

(14)

pro-Table 2.1: Comparison of Various Analytical Model in DRX operation.

DRX Operation Queueing [15–17] Numerical [19] Our Proposed

DRX Parameters ◦ ◦ ◦

Power-saving Factor ◦ ◦ ◦

Transmission Delay ◦ ◦ ◦

Real Power Consumption × × ◦

Cross Layer Analysis × × ◦

cess. Mihov et al. used semi-Markov process to model the DRX in LTE system [17]. In [18], they use the Markov model to build an algorithm that selects DRX parameters under the QoS constraints. Jin and Qiao proposed an accurate analytical model to avoid sophisticated steps [19].

2.1.1 Discontinuous Reception(DRX) Mechanism

Op-eration

In Evolved Universal Terrestrial Radio Access Network (E-UTRAN) Discon-tinuous reception (DRX) is managed by the Radio Resource Control(RRC) [1]. DRX is a process of turning off a radio receiver when it does not expect to receive incoming messages. DRX can be enabled for UEs in RRC IDLE or RRC CONNECTED mode. Here focus on the DRX in RRC CONNECTED since in RRC IDLE state the UE does not have any sessions.

In RRC CONNECTED state, RRC controls DRX by configuring the following parameters [2]: DRX inactivity timer (CI), DRX retransmission

timer, DRX start offset, On duration timer, long DRX cycle (CL), number

of short DRX cycle (N ) and short DRX cycle (CS).

(15)

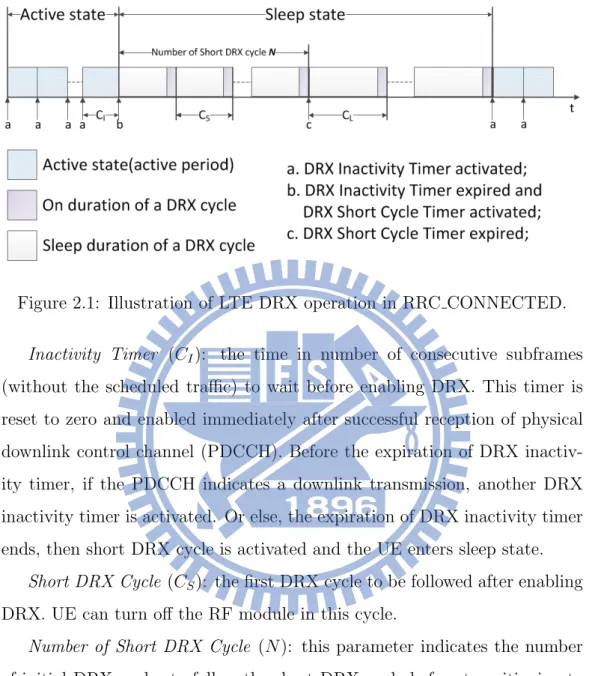

Figure 2.1: Illustration of LTE DRX operation in RRC CONNECTED.

Inactivity Timer (CI): the time in number of consecutive subframes

(without the scheduled traffic) to wait before enabling DRX. This timer is reset to zero and enabled immediately after successful reception of physical downlink control channel (PDCCH). Before the expiration of DRX inactiv-ity timer, if the PDCCH indicates a downlink transmission, another DRX inactivity timer is activated. Or else, the expiration of DRX inactivity timer ends, then short DRX cycle is activated and the UE enters sleep state.

Short DRX Cycle (CS): the first DRX cycle to be followed after enabling

DRX. UE can turn off the RF module in this cycle.

Number of Short DRX Cycle (N ): this parameter indicates the number

of initial DRX cycles to follow the short DRX cycle before transitioning to the long DRX cycle.

Long DRX Cycle (CL): the DRX cycle to be followed after N short DRX

cycles.

ON Duration Timer : the number of frames over which the UE shall read

the DL control channel every DRX cycle before entering the power saving mode. This timer is less than CS and CL. In this thesis, to simplify our

(16)

analytical model, we don’t consider this parameter.

DRX Offset : to obtain the starting subframe number for DRX cycle. Retransmission Timer : the maximum number of subframes the UE should

wait before turning off the circuits if a retransmission of data is expected from the eNB.

2.1.2 Radio Resource Control(RRC)

Radio Resource Control(RRC) protocol layer exists in UE and evolved node-B(eNB), it is part of LTE air interface control plane. In DRX mode, the UE powers down most of its circuitry when there are no packets to be trans-mitted/received. During this time UE listens to the downlink (DL) occa-sionally and may not keep in sync with uplink (UL) transmission depending on whether the UE is registered with an eNB (RRC CONNECTED) or not (RRC IDLE). In the RRC IDLE state, the UE is registered with the evolved packet system (EPS) mobility management (EMM) but does not have an active session. In this state the UE can be paged for DL traffic. UE can also initiate UL traffic by requesting RRC connection with the serving eNB. In the RRC CONNECTED state DRX mode is enabled during the idle periods during the packet arrival process. Figure 2.2 shows different RRC states in LTE networks.

2.1.3 UE’s Power Model in LTE

To calculate the real power consumption, we introduce a power model in Table 2.2 [14]. We notice that the power consumption in RRC IDLE is much lower than that in RRC CONNECTED. In addition, the network re-entry time is denoted as TREEN T RY to indicate the delay of the UE entering network

(17)

Figure 2.2: Different RRC states in LTE networks.

Table 2.2: LTE power model.

Power (mW) Duration (ms) Short DRX On in RRC CONNECTED 1680.2±15.7 1.0±0.1

Long DRX On in RRC CONNECTED 1680.1±14.3 1.0±0.1 Off Duration in RRC CONNECTED 1060.0±3.3 N/A

Low power state in RRC IDLE 11.4±0.4 N/A DRX On in RRC IDLE 594.3±8.7 TREEN T RY:260.1

(18)

Chapter 3 System Models

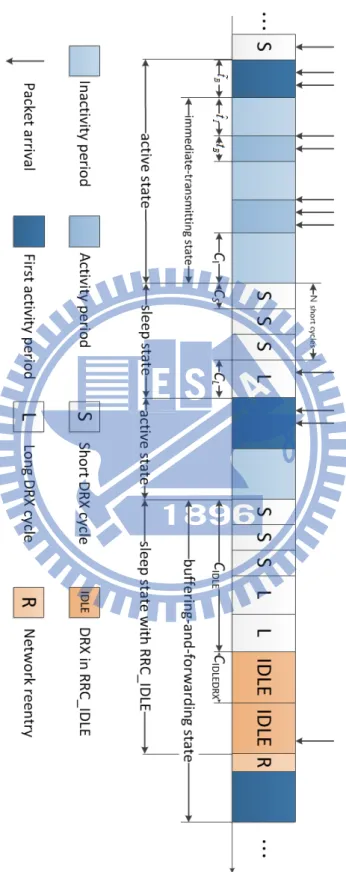

Figure 3.1 shows the DRX operation with RRC state transition in 3GPP LTE, we use active and sleeping (with RRC states transition) states to derive the power consumption. As shown in this figure, we define four operational states for proper analysis which is introduced upon. Additionally, we de-fine activity period by the time duration from time instant that the Radio Network Controller(RNC) begins to transmit packets under the condition that the RNC is not transmitting packets in either active or sleeping state to the time instant that RNCs buffer becomes empty due to the completion of packet transmissions. The first activity period is defined by the activity pe-riod, following DRX cycles. Meanwhile, the 3GPP LTE Advanced standard specifies that the inactivity period is the time duration when an inactivity timer is activated.

3.1 System Architecture

Two results are obtained as follow: One is the power-saving factor with RRC states transition which is defined as the sleeping time over overall operation

(19)

(20)

time. Furthermore, immediate-transmitting and buffering-and-forwarding states are introduced to derive the transmission delay with RRC states tran-sition.

3.2 Active State and Sleeping State

We first consider power-saving operation in the steady state. The steady-state power-saving operation is divided into two stationary parts, i.e., the operation in active and sleeping (with RRC states transition) states, respec-tively. As we will explain later, the proposed approach gives us an easy way to derive the expected time duration that the UE spends in each station-ary part. Once we obtain the time durations in active and sleeping (with RRC states transition) states, it is simple to have the power-saving factor. Then, we continue to use these time durations to derive the average packet transmission delay.

In active state, the UE receives packets during activity periods or waits for new packet arrivals until inactivity timer timeout. For example, when RNC’s buffer becomes empty after completing buffered packet transmissions, the UE activates an inactivity timer prior to the beginning of sleeping state. Unless there arrives a new packet within the timer expiration, the UE enters sleeping state. Otherwise, a new activity period begins for the UE to receive the newly arrived packets. The activity period can be extended as long as more packets arrive at the RNC during ongoing packet transmission times. Therefore, in active state, the activity period interleaved with the inactivity period repeats until the inactivity timer expires.

And sleeping (with RRC states transition) state begins with the inactivity timer’s expiration. In sleeping (with RRC states transition) states, the UE

(21)

monitors new packet arrivals by periodically receiving indication messages every DRX cycle. If the UE notices new packet arrivals, the operational state transits to active state for the UE to receive those packet during the activity period. Optionally, a short cycle can be employed for more fre-quent packet arrivals than a long DRX cycle. Long DRX cycle begins after maximum number (N ) of short DRX cycles has no receive any new packet. When there is still no transmission of packets for an extended period of time, (CIDLE), the eNB initiates RRC connection release. Accordingly, the UE

enters RRC IDLE state at same time.

3.3 Immediate-Transmitting State and

Buffering-and-forwarding State

After considering the power-saving operation in the steady state, we also consider the transmission delay which is divided into two stationary parts, i.e., immediate-transmitting state and buffering-and-forwarding state.

When the UE is in immediate-transmitting state, the packets suffers de-lay due to residual time. Residual time is defined by the time required to complete packet transmissions of all packets remaining in the transmission buffer, as well as ongoing packet transmission when a packet arrives at an arbitrary time. We find out that the delay due to the residual time is mod-eled by a M/G/1 queuing system. The Pollaczek-Khinchine (PK) formula presents packet transmission delay for a typical M/G/1 queuing system [20]. In buffering-and-forwarding state, the RNC does not transmit but buffers packets during sleeping state and thereafter transmits the buffered pack-ets during active state. By using the feature, we derive the delay for the case when the UE is in buffering-and-forwarding state. Again, we apply the

(22)

M/G/1 queuing model to the derivation of packet transmission delay when the RNC forwards buffered packets in buffering-and-forwarding state.

3.4 Performance Metrics

To analyze the DRX operation with RRC states transition aptly, we intro-duce three types of definition, power-saving factor with radio resource control states, transition, real power consumption with radio resource control states transition and transmission delay with radio resource control states transi-tion.

3.4.1 Power-saving Factor with Radio Resource

Con-trol States Transition

In the previous study [15–17, 19, 21], they use power-saving factor to analyze the power consumption. The definition of the power-saving factor is the percentage of time UE spends in sleep, which is an indicator of the power saving performance the DRX mechanism achieves. It is formulated by

E[TD]

E[TA] + E[TD]

(3.1) where TA is the time of UE stays in the active state, and TD is the UE stays

in DRX operation in RRC CONNECTED.

However, there has some different in our case. Due to consider the RRC effect, we modify this factor and dene power saving factor with RRC states transition as the sleeping time ratio, compared with the overall operation time. Then, it can be formulated by

E[TD] + E[TIDLE]

E[TA] + E[TD] + E[TIDLE]

(3.2) where TIDLE is the UE stays in RRC IDLE.

(23)

3.4.2 Real Power Consumption with Radio Resource

Control States Transition

In addition to power saving factor, we introduce a simple way to calculate the real power consumption. pactive, pdrx and pidle are the power consumption in

three different states: active state, DRX in RRC CONNECTED, and DRX in RRC IDLE, respectively, which can be obtained from the truly power consumption, as shown in TABLE 2.2. Then, the real power consumption with RRC states transition can be formulated by

1

E[TA]+E[TD]+E[TIDLE]

×(pactiveE[TA] + pdrxE[TD] + pidleE[TIDLE]).

(3.3)

3.4.3 Transmission Delay with Radio Resource

Con-trol States Transition

The original definition of transmission delay is the waiting time of a packet call delivery experiences before UE wakes up. In our case, we also consider the RRC states transition in the transmission delay. To analyze delay more aptly, the network re-entry time is denoted as TREEN T RY to indicate the

(24)

Chapter 4 Proposed Analytical Model

4.1 Assumptions

We assume that packet arrival intervals are modeled as an exponentially dis-tributed random variable with mean 1/λ, and transmission times are general distribution with E[X] = τ for a single packet. The traffic intensity ρ = λτ . In addition, we know that the number of packet arrivals can be modeled with the Poisson process since packet arrivals follow an exponential distribu-tion. Then, we simply derive the average number packet arrivals during the transmission time for a single packet by ∑∞

n=0

(λτ )n

n! e−λτ = λτ = ρ.

4.2 Definitions

Random variable ˆtI represents the time of inactivity timer which starts when

there is no data to transmit but stops due to a new packet arrival. Random variable tBrepresents the subsequent activity period after the inactivity timer

stops. Random variable ˜tB represents the transmission time for the buffered

(25)

variable TA, TD and TIDLE indicate the times that the UE stays in active

state, DRX operation state, and RRC IDLE state. According to 3GPP LTE specification, CI, CS, CL, CIDLEDRX represent inactivity timer, short DRX

cycle, long DRX cycle, and DRX cycle in RRC IDLE. Considering the impact of situation where the UE enters RRC IDLE state, we adopt CIDLE as the

control timer from RRC CONNECTED to RRC IDLE.

4.3 Power consumption

To analyze the power aptly, we introduce two types of definitions, power-saving factor with RRC states transition and real power consumption. For this purpose, we have to derive E[TA], E[TD], and E[TIDLE]. First, the

power-saving factor with RRC states transition is formulated by

E[TD] + E[TIDLE]

. (4.1)

The duration of active state will be extended when there are some packets arrived before inactivity timer (CI) expires, and the inactivity timer will

restart again. Accordingly, we can derive the new packet arrival probability by∫CI

0 λe−λtdt = 1− e−λCI. The duration of sleep state can be derived in the

similar way. When there are some packets arrived within the short DRX cycle (CS) or long DRX cycle (CL), the UE will enter active state and the timer will

stop counting. Otherwise, the time period of sleeping state will be extended. Thus, we can derive the probability of the UE staying in short DRX cycle by ∫_∞

CSλe

−λt_{dt = e}−λCS _{on the condition of no packet arrived within the short}

DRX cycle. The probability of the UE staying in long DRX cycle can be derived by∫_C∞

Lλe

−λt_{dt = e}−λCL_{, similarly. The probabilities of the UE leaving}

(26)

∫CI

0 λe−λtdt = e−λC

I_{, 1}−e−λCS_{, and 1}−e−λCL_{, respectively. Additionally, we}

derive the probability of the UE leaving RRC IDLE by 1−∫_C∞

IDLEλe

−λt_{dt =}

1− e−λCIDLE_{. The sleeping state with RRC IDLE consists of short DRX}

cycle, long DRX cycle, and the duration of RRC IDLE. After figuring out these independent probabilities, we can represent the probabilities of active state and sleeping state with RRC IDLE, respectively.

Probability of active state αi

we adopt i to indicate how many times of inactivity timer restarts, which means there is still new packet arrived before inactivity timer expires. The probability of active state can be derived by

αi = (1− e−λCI) i

e−λCI _(4.2)

where i≥ 0.

Probability of sleeping state with RRC IDLE δj

we adopt j to indicate the number of short and long DRX cycles. To indicate

CIDLE by unit of short DRX cycle, L = (CIDLE− CS)/CL is used to replace

the time of the UE staying in long DRX cycle, then N + L is the total cycle of short and long DRX cycles. The probabilities of the sleep state can be derived by (4.3). δ λ λ j C j C e S e S = − − − − ( ) 1(1 ), <1< ≤ − < ≤ + − − − + − − j N e e e N j N L e C N C j N C C S L L S ( ) ( ) ( ), ( ( ) λ λ λ λ 1 1 )) (N e− CL) (L −e− CIDLE), N+ <L j      λ λ 1 (4.3)

(27)

Now, to derive the time durations for active state and sleeping state with RRC IDLE, we assume that E[tS] and E[tL] are the average time where short

and long DRX cycles last, and E[tIDLE] is the average time of the UE staying

in RRC IDLE. Therefore, we have

E[TA] = E[˜tB] + ∞

∑

0

iαi(E[ˆtI] + E[tB]) + CI

= E[˜tB] + (E[ˆtI] + E[tB])(eλCI − 1) + CI

(4.4) E T E T E t E t E t j e e C D IDLE S L IDLE C j C S S S [ ] [ ] [ ] [ ] [ ] ( ) ( ) + = + + = −λ −1 − −λ 1 jj N C N C j N j N N L C L j N e e e C j S L L = − − − + = + + −

∑

+ − × − + 1 1 1 1 ( )( ) ( ) ( ) ( ( ) λ λ λ − − + × − − = + + ∞ − −

∑

( ))( ) ( ) ( ) N L e e e C C N j N L C L C IDLEDRX S L IDLE λ λ λ 1 1 (4.5)

Now, we proceed to derive E[ˆtI], E[˜tB] and E[tB]. Since ˆtI follows a

truncated exponential distribution, the probability density function (pdf)

f (t) is given by f t e e t C C t C t I I I ( ) , , . = − ≤ ≤ <     − − 1 1 0 0 λ λ λ (4.6)

(28)

Then, we can derive E[ˆtI] by E[ˆtI] = ∫_∞ 0 tf (t)dt = 1_λ − 1 eλCI−1CI. (4.7)

Random variable tB starts when there is a new packet arrived and it will

continue until all the buffered packets have been transmitted. Besides, we can model the number of packet arrivals as the Poisson process since packet arrivals follow an exponential distribution. Then, we can derive the av-erage packet arrivals during the transmission time for a single packet by

∞

∑

n=0

(λτ )n

n! e−λτ = λτ = ρ. It means that a single packet transmission produces

additional ρ packets. In addition, it need τ ρ transmission time. Eventually, we got E[tB] by E[tB] = ∞ ∑ n=0 τ ρn = τ 1− ρ. (4.8) Accordingly, random variable ˜tBcan be derived as the same way. ˜tB

indi-cates the first time period to transmit the packets buffered during the DRX cycle or RRC IDLE state. We introduce λ(E[TD] + E[TIDLE]) to indicate the

number of packets buffered at the beginning during the sleeping state with RRC IDLE, and we can derive E[˜tB] by

E[˜tB] = λ(E[TD] + E[TIDLE])

τ

1− ρ = (E[TD] + E[TIDLE])

ρ

1− ρ (4.9)

4.3.1 Power-saving Factor

Now, we can summarize the power-saving factor with RRC states transition as

(29)

E T E T E T E T E T E T E T E D IDLE D IDLE A D IDLE [ ] [ ] [ ] [ ] [ ] ( [ ] [ ])( ) ( + + + = + 1−ρ [[ ] [ ]) ( ) ( ) ( ) ( T E T e j e e C j D IDLE C C j C S j N I S S + + − = − + − − − − =

∑

1 1 1 1 1 λ λ λ λ N N e e e C j N L e C N C j N C j N N L L S L L )( ) ( ) ( ) ( ( ))( ( ) − − − + − = + + − − + − +

∑

λ λ 1 λ 1 1 λλC N λC L λC j N L IDLEDRX S_{) (}_e− L_{) (} _e− IDLE₎_C = + + ∞ −              

∑

1 1     − − + − − − − = − −

∑

( ) ( ) ( ) ( )( ) ( 1 1 1 1 ρ λ λ λ λ j e e C j N e e C j C S j N C N C S S S L₎₎ ₍ ₎ ( ( ))( ) ( ) ( ( ) j N C j N N L L C N C L e C j N L e e L S L − + − = + + − − − + − + −

∑

1 1 1 1 λ λ λ e e C e C j N L IDLEDRX C IDLE I − = + + ∞

∑

                  + − λ λ λ ) ( ) 1 1 1 .. (4.10)

4.3.2 Real Power Consumption

In addition to power-saving factor, we introduce a simple way to calculate the real power consumption. pactive, pdrx and pidle are the power consumption in

three different states: active state, DRX in RRC CONNECTED, and DRX in RRC IDLE, respectively, which can be obtained from the truly power consumption, as shown in TABLE 2.2. Then, the real power consumption with RRC states transition can be formulated by

1

E[TA]+E[TD]+E[TIDLE]

×(pactiveE[TA] + pdrxE[TD] + pidleE[TIDLE]).

(30)

4.4 Transmission Delay

In order to analyze the transmission delay with RRC states transition, we adopt the methodology proposed in [19] to divide whole operation into immed-iate-transmitting state and buffering-and-forwarding state. In immediate-transmitting state, we introduce a typical M/G/1 queuing system with Pollac-zek-Khinchine formula to simply derive the average packet transmission delay (E[DI]) [20]. The result is

E[DI] =

λE[X2_]

2(1− ρ). (4.12) In buffering-and-forwarding state, we consider two types of delay: the residual time, which can be solved as (4.12), similarly, and the packet buffer-ing operation durbuffer-ing the DRX cycle or RRC IDLE state. These two types of delay resulted from the packets arrived during the DRX cycle or RRC IDLE. To calculate the average number of waiting packet, we introduce two nota-tions, E[K] and E[W ]. E[K] is the average number of waiting packet in transmission buffer, and E[W ] is the average waiting time since packet ar-rived during the DRX cycle or RRC IDLE. Then we can derive the packet buffering operation by

E[DB] = E[W ] + E[X]E[K] (4.13)

where E[K] = λE[DB], which is obtained from Little’s Law. And we can

derive E[DB] by

E[DB] = E[W ] + E[X]E[K]

= E[W ] + λτ E[DB]

= E[W ] + ρE[DB]

= E[W ]₁_−ρ .

(4.14)

When there are one or more packet arrivals during the DRX cycle or RRC IDLE, it will start the first active period after the cycle ends. Such

(31)

cycle becomes the last DRX cycle in sleeping state (with RRC IDLE). So we need to derive the average time that the arrival packets in the last DRX cycle until the first active period starts. The packet arrival time in the last cycle is uniform distribution, which follows the property of the Poisson process [22]. According to the packets arrive at the DRX cycle or RRC IDLE, we can obtain E[W ] = CS/2 (or CL/2) or CIDLEDRX/2. In addition, the network

re-entry time is denoted as TREEN T RY to indicate the delay of the UE entering

network from RRC IDLE to RRC CONNECTED. The probabilities of the packets suffering from delay can be derived by

PS =

E[tS]

(4.15)

PL =

E[tL]

(4.16)

PIDLE =

E[tIDLE]

(4.17) From (4.12)-(4.17), we can obtain the average transmission delay with RRC states transition by E D P P P E D P E D C P E D C S L IDLE I S I S L I L [ ] ( ) [ ] ( [ ] ( )) ( [ ] ( = − − − + + − + + 1 2 1 ρ 211 2 1 1 2 − + + − + = + ρ ρ )) ( [ ] ( ) ) [ ] [ ] P E D C T E D E t C IDLE I IDLEDRX REENTRY I S SS L L IDLE IDLEDRX D IDLE C ID E t C E t C E T E T e P I + + + + − + [ ] [ ] ( [ ] [ ] 1λ( λ 1)) L LETRNENTRY. (4.18)

(32)

Chapter 5 Simulation and Analytical

Results

To confirm correctness of the analytical model, we verify the analytical model by comparing analytical results with simulation results. We develop a simula-tor to simulate DRX operation with RRC states transition which is written by Java. For Simulation parameters, we have expected transmission time(τ ), av-erage packet arrival rate(λ),InactivityTimer(CI), short DRX cycle(CS), long

DRX cycle(CL), number of short DRX cycle(N ), expended period of time

that UE enters RRC IDLE when there is no transmission of packets(CIDLE),

(33)

5.1 Power Consumption and Transmission

De-lay Verify Between Simulation and

Ana-lytical Model

We simulate different CIDLEto compare with the analytical model. As shown

in Figure 5.1 and Figure 5.2, acceptable-matched results show that numerical equations are correctly derived. But there still has some mismatch which is caused by our simulator neglects some complicate factor. So the simulator still have to be improved actuality.

0.8 0.82 0.84 0.86 0.88 0.9 0.92 0.94 0.96 0.0005 0.001 0.0015 0.002 0.0025

Power Saving Factor

Packet Arrival Rates (1/ms)

Ana. at C_IDLE=1.2s Sim. at C_IDLE=1.2s Ana. at C_IDLE=2.4s Sim. at C_IDLE=2.4s Ana. at C_IDLE=3.6s Sim. at C_IDLE=3.6s

Figure 5.1: Comparison between the analytical model and the simulation results in different Power-saving factor with RRC states transition.

(34)

100 150 200 250 300 350 400 450 500 0.0005 0.001 0.0015 0.002 0.0025 Transmission Delay (ms)

Ana. at C_IDLE=1.2s Sim. at C_IDLE=1.2s Ana. at C_IDLE=2.4s Sim. at C_IDLE=2.4s Ana. at C_IDLE=3.6s Sim. at C_IDLE=3.6s

Figure 5.2: Comparison between the analytical model and the simulation results in different transmission delay with RRC states transition.

5.2 Analytical Parameters

To evaluate the impact of condition where UE enters RRC IDLE state; in this chapter, we use MATLAB tool to obtain the numerical results from our derived model.The corresponding parameters are set as follows. We have packet transmission time τ = 0.1ms, DRX InactivityTimer CI = 100ms,

short DRX cycle CS = 200ms, long DRX cycle CL = 400ms, and network

(35)

5.3 Power-saving Factor with RRC States

Transition in Different C

IDLE

The power-saving factor with RRC states transition is illustrate in Figure 5.3. When CIDLE = 1.2s, the UE will enter RRC IDLE with higher probability

at lower packet arrival rate. Nevertheless, when CIDLE = 4.8s, the UE will

enter RRC IDLE with lower probability even at lower packet arrival rate. So we can manifest the UE is more power efficiency when CIDLE = 1.2s.

The effect of E[TIDLE] can be neglected when packet arrival rate increase

gradually. According to the reason that the power consumption is dramatic different between RRC IDLE and RRC CONNECTED, which is illustrated in TABLE 2.2, we propose another way to indicate the power consumption appropriately.

To explain the reason why the power-saving factor in CIDLE= 1.2s, Figure

5.4 shows the trend of E[TL] and E[TIDLE] in different CIDLE, we can realize

E[TL] is more outstanding than E[TIDLE] when the DRX effect increases.

5.4 Real Power Consumption with RRC

States Transition in Different C

_IDLE

To indicate the effect of power consumption, we calculate the real power consumption based on TABLE 2.2. In Figure 5.5, we observe that the time for the UE to enter RRC IDLE become longer at lower packet arrival rate; it implies real power consumption is relatively low. In addition, power con-sumption is increased when CIDLE = 4.8s, which is different from the trend

of power-saving factor, as shown in Figure 5.3. It is obviously to see that the real power consumption model can express more reality than power-saving

(36)

0.8 0.82 0.84 0.86 0.88 0.9 0.92 0.94 0.96 0.0005 0.001 0.0015 0.002 0.0025

Power Saving Factor

C_IDLE=1.2s C_IDLE=2.4s C_IDLE=3.6s C_IDLE=4.8s

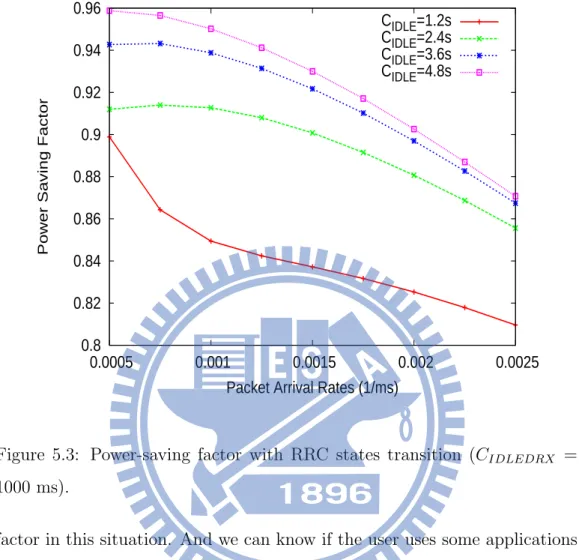

Figure 5.3: Power-saving factor with RRC states transition (CIDLEDRX =

1000 ms).

factor in this situation. And we can know if the user uses some applications like web or other some non-GBR(Guranteed Bit Rate) services, we suggest the CIDLE can set in 1 or 2 seconds which can be more power-saving when

the UE can stays in RRC IDLE for longer time.

5.5 Transmission Delay with RRC States

Transition in Different C

IDLE

Figure 5.6 depicts the average transmission delay under different packet ar-rival rate λ. The average transmission delay decreases as the packet arar-rival

(37)

0 500 1000 1500 2000 2500 1500 2000 2500 3000 3500 4000 4500 Time Period(ms) C_IDLE Time(ms) T_L T_IDLE

Figure 5.4: The trend of E[TL] and E[TIDLE] in different CIDLE.

rate increases since the UE stays in RRC IDLE state for shorter time. Fur-thermore, Figure 5.5 and Figure 5.6 show that there is a trade-off between the transmission delay and the real power consumption. And due to there is much higher delay when the UE enters RRC IDLE, the applications like VoIP or other some GBR services do not aptly to enters RRC IDLE.

5.6 Probability of the UE enters RRC IDLE

We use Figure 5.7 as an evidence to show that the probability of staying in RRC IDLE state for UE decreases as the the packet arrival rate increases. It implies that there is a high probability of entering the RRC IDLE state when UE with lower packet arrival rate.

(38)

600 700 800 900 1000 1100 1200 1300 0.0005 0.001 0.0015 0.002 0.0025

Real Power Consumption (J)

(39)

100 150 200 250 300 350 400 450 500 0.0005 0.001 0.0015 0.002 0.0025 Transmission Delay (ms)

Figure 5.6: Average packet transmission delay with RRC states transition when N = 2 and CIDLEDRX = 1000 ms.

(40)

0 0.1 0.2 0.3 0.4 0.5 0.6 0.0005 0.001 0.0015 0.002 0.0025 Probability

(41)

Chapter 6 Conclusions

In this thesis, in order to realize the impact of RRC states transition on DRX mechanism, we derive some numerical functions to model this effect from simple probability theory. By dividing the DRX and RRC operations into several independent parts, we can calculate them separately and then combine the result eventually. We obtain the power saving factor with RRC effect, real power consumption, and packet transmission delay. The analyt-ical results show that there is a trade-off between the power consumption and transmission delay, which has also been verified. Furthermore, under lower packet traffic arrival rate, the UE enters RRC IDLE states with higher probability, thus it can save much more power. This work can be extended to determine the best DRX and RRC operation parameters.

(42)

Bibliography

[1] 3GPP TR 36.321 V11.2.0, Evolved Universal Terrestrial Radio Access

(E-UTRA); Medium Access Control (MAC) Protocol Specification (Re-lease 11), 3rd Generation Partnership Project Std., March 2013.

[2] 3GPP TR 36.331 V11.3.0, Evolved Universal Terrestrial Radio Access

(E-UTRA); Radio Resource Control (RRC); Protocol specification (Re-lease 11), 3rd Generation Partnership Project Std., March 2013.

[3] L. Liu, X. She, and L. Chen, “Multi-user and Channel Dependent Scheduling Based Adaptive Power Saving for LTE and Beyond System,” in 16th Asia-Pacific Conference on Communications (APCC), 2010, pp. 118–122.

[4] K. Aho, J. Puttonen, T. Henttonen, and L. Dalsgaard, “Channel Quality Indicator Preamble for Discontinuous Reception,” in IEEE 71st

Vehic-ular Technology Conference(VTC Spring), 2010, pp. 1–5.

[5] S. Gao, H. Tian, J. Zhu, and L. Chen, “A more Power-efficient Adaptive Discontinuous Reception Mechanism in LTE,” in Proc. IEEE Vehicular

(43)

[6] Y. Fan, P. Lunden, M. Kuusela, and M. Valkama, “Efficient Semi-persistent Scheduling for VoIP on Eutra Downlink,” in Vehicular

Tech-nology Conference, 2008. VTC 2008-Fall. IEEE 68th, 2008, pp. 1–5.

[7] K. Aho, I. Repo, T. Nihtila, and T. Ristaniemi, “Analysis of VoIP Over HSDPA Performance With Discontinuous Reception Cycles,” in Sixth

International Conference on Information Technology: New Generations( ITNG ’09), 2009, pp. 1190–1194.

[8] K. Aho, T. Henttonen, J. Puttonen, and T. Ristaniemi, “Trade-off Be-tween Increased Talk-time and LTE Performance,” in Ninth

Interna-tional Conference on Networks (ICN), 2010, pp. 371–375.

[9] M. Polignano, D. Vinella, D. Laselva, J. Wigard, and T. Sorensens, “Power Savings and QoS Impact for VoIP Application with DRX/DTX Feature in LTE,” in Proc. IEEE 73rd Vehicular Technology

Confer-ence(VTC Spring), 2011, pp. 1–5.

[10] R. Kalle, A. Nandan, and D. Das, “La VoLTE: Novel Cross Layer Opti-mized Mechanism of Video Transmission Over LTE for DRX,” in Proc.

IEEE 75th Vehicular Technology Conference(VTC Spring), 2012, pp.

1–5.

[11] M. Lauridsen, A. Jensen, and P. Mogensen, “Fast Control Channel De-coding for LTE UE Power Saving,” in Proc. IEEE 75th Vehicular

Tech-nology Conference(VTC Spring), 2012, pp. 1–5.

[12] S. Baghel, K. Keshav, and V. Manepalli, “An Investigation Into Traf-fic Analysis for Diverse Data Applications on Smartphones,” in Proc.

(44)

[13] C. Bontu and E. Illidge, “DRX Mechanism for Power Saving in LTE,”

Communications Magazine, IEEE, vol. 47, no. 6, pp. 48–55, 2009.

[14] J. Huang, F. Qian, A. Gerber, Z. M. Mao, S. Sen, and O. Spatscheck, “A Close Examination of Performance and Power Characteristics of 4G LTE Networks,” in Proc. 10th International Conference on Mobile Systems,

Applications, and Services, 2012, pp. 225–238.

[15] S.-R. Yang and Y.-B. Lin, “Modeling UMTS Discontinuous Reception Mechanism,” IEEE Transactions on Wireless Communications,, vol. 4, no. 1, pp. 312–319, 2005.

[16] S.-R. Yang, S.-Y. Yan, and H.-N. Hung, “Modeling UMTS Power Sav-ing with Bursty Packet Data Traffic,” IEEE Transactions on Mobile

Computing, vol. 6, no. 12, pp. 1398–1409, 2007.

[17] Y. Mihov, K. Kassev, and B. Tsankov, “Analysis and Performance Eval-uation of the DRX Mechanism for Power Saving in LTE,” in IEEE 26th

Convention of Electrical and Electronics Engineers in Israel (IEEEI),

2010, pp. 000 520–000 524.

[18] Y.-P. Yu and K.-T. Feng, “Traffic-based DRX Cycles Adjustment Scheme for 3GPP LTE Systems,” in Proc. IEEE 75th Vehicular

Tech-nology Conference(VTC Spring), 2012.

[19] S. Jin and D. Qiao, “Numerical Analysis of the Power Saving in 3GPP LTE Advanced Wireless Networks,” IEEE Transactions Vehicular

Tech-nology, vol. 61, no. 4, pp. 1779–1785, 2012.

[20] H. Takagi, Queueing Analysis: A Foundation of Performance

(45)

[21] L. Zhou, H. Xu, H. Tian, Y. Gao, L. Du, and L. Chen, “Performance Analysis of Power Saving Mechanism with Adjustable DRX Cycles in 3GPP LTE,” in Vehicular Technology Conference, 2008. VTC 2008-Fall.

IEEE 68th, 2008, pp. 1–5.

(46)

Vita

Cheng-Wen Hsueh

He was born in Taiwan, R. O. C. in 1989. He received a B.S. in De-partment of Electronic Engineering from Chung Yuan Christian University in 2011. From July 2011 to August 2013, he worked his Master degree in the Mobile Communications and Cloud Computing Lab in the Department of Communication Engineering at National Chiao-Tung University. His re-search interests are in the field of wireless communications and mobile com-puting.

長期演進技術網路無線資源控制狀態轉換之非連續接收節能機制效能分析

Analysis of Discontinuous Reception Power

Saving with Radio Resource Control States

Transition in LTE Networks

A THESIS Presented to

The Academic Faculty By

Cheng-Wen Hsueh

2013

Abstract

Acknowledgements

Contents

List of Tables

List of Figures

Chapter 1

Introduction

1.1

Problem and Solution

1.1.1

Simple Analytical Model

1.2

Thesis Outline

Chapter 2

Background

2.1

Literature Survey

2.1.1

Discontinuous Reception(DRX) Mechanism

Op-eration

2.1.2

Radio Resource Control(RRC)

2.1.3

UE’s Power Model in LTE

Chapter 3

System Models

3.1

System Architecture

3.2

Active State and Sleeping State

3.3

Immediate-Transmitting State and

Buffering-and-forwarding State

3.4

Performance Metrics

3.4.1

Power-saving Factor with Radio Resource

Con-trol States Transition

3.4.2

Real Power Consumption with Radio Resource

Control States Transition

3.4.3

Transmission Delay with Radio Resource

Con-trol States Transition

Chapter 4

Proposed Analytical Model

4.1

Assumptions

4.2

Definitions

4.3

Power consumption

∑

∑

∑

4.3.1

Power-saving Factor

∑

∑

∑

∑

∑

∑

4.3.2

Real Power Consumption

4.4

Transmission Delay

Chapter 5

Simulation and Analytical

Results

5.1

Power Consumption and Transmission
