Abstract—GaN-based 2-D photonic crystal (PC)
surface-emitting lasers (PCSELs) with AlN/GaN distributed Bragg reflec-tors are fabricated and investigated. A clear threshold character-istic under the optical pumping at room temperature is observed at about 2.7 mJ/cm2 with PC lattice constant of 234 nm. Above the threshold, only one dominant peak appears at 401.8 nm with a linewidth of 0.16 nm. The laser emission covers whole circular 2-D PC patterns of 50 µm in diameter with a small divergence angle. The lasing wavelength emitted from 2-D PC lasers with different lattice constants occurs at the calculated band edges, showing dif-ferent polarization angles due to the light diffracted in specific directions, corresponding exactly to Γ-, K -, and M -directions in the K space. The PCSEL also shows a spontaneous emission cou-pling factor β of 5× 10−3and a characteristic temperature of 148 K. Furthermore, the coupled-wave model in 2-D hexagonal lattice is applied to distinguish the discrepancy in threshold power and the corresponding coupling coefficient. The results show that the las-ing actions within Γ, K , and M modes have a substantial relation between the threshold energy density and the coupling coefficient.
Index Terms—GaN, hexagonal lattice, photonic crystal (PC),
surface-emitting lasers.
I. INTRODUCTION
D
URING the past decade, photonic crystals (PCs) have drawn much attention, and have many advantages to con-trol the light propagation and photonic bandgap. The appli-cations of PCs nanostructure can function as good photonic devices [1]–[3]. In general, there are two types of PC lasers, which have been developed and investigated. The first one fab-ricates a PC defect with an optical gain surrounded by 2-D or 3-D PC mirrors to form a resonant cavity, and lasing actions arise from the resonant cavity modes with high Q-values and a small modal volume. This kind of microcavity laser can achieve strong Purcell effect and the low-threshold lasing [4], [5].Another type of PC lasers can operate without any de-fined cavity and extrinsic mirror because Bloch waves have an intrinsic feedback mechanism near the bandgap edge. Thus,
Manuscript received October 31, 2008. First published February 24, 2009; current version published June 5, 2009. This work was supported in part by the Ministry of Education (MOE) Aim for the Top University (ATU) Program, Nano Facility Center, and in part by the National Science Council, Taipei, Taiwan, under Contract NSC95-3114-P-009-001-MY2 and Contract NSC96-2120-M009-006.
The authors are with the Department of Photonics and the Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]; [email protected]; [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/JSTQE.2008.2010877
this kind of PC laser is called as the band edge laser. To date, there have been several reports on this type of laser such as using InP, organic, and GaN material systems [6]–[9], whereas detailed analysis, such as emission modes, polariza-tion, characteristic temperature, spontaneous coupling factor, and lasing characteristics of different band edges have not been reported.
In this study, the nitride-based band edge PC lasers with a dis-tributed Bragg reflector (DBR) were fabricated and investigated. The PC laser structure consisted of 29 pairs of AlN/GaN DBR, n-type GaN, multiquantum wells (MQWs), and p-type GaN grown by metal–organic chemical vapor deposition system. The optical characteristics of the PC lasers with different PC lattices including the threshold energy densities, the transition behavior from spontaneous emission to stimulated emission, character-istic temperature, laser polarization, and spontaneous emission coupling factors, were obtained under the optical pumping con-ditions. The bottom DBR can play a role as a low refractive layer in the whole structure, leading to the confined light fields of the fundamental guided mode in the active region with large confinement factors [10]. Above the threshold energy density, the laser emission covering whole circular 2-D PC patterns is directly emitted out of the in-plane surface with a small di-vergence angle, forming surface-emitting laser schemes, where the name of photonic crystal surface-emitting laser (PCSEL) was thus obtained. Besides, the lasing wavelength emitted from GaN-based PC lasers with different lattice constants occurred at the calculated band edges, showing that different polariza-tion angles indicated different lasing modes corresponding to Γ, K, and M Brillouin zone boundaries [11]. Moreover, we calculated the coupled-wave model in 2-D hexagonal lattice to explain the discrepancy in threshold power with a TE-like mode by considering higher components of Bloch modes and the corresponding coupling coefficients [12]–[14]. The charac-teristics of large-area, small-divergence-angle, and single-mode emission from the GaN-based PCSELs show high potential in high-power blue–violet emitter applications.
II. EXPERIMENTALPROCESS ANDSAMPLESTRUCTURE
The GaN-based PCSEL structure shown schematically in Fig. 1(a) was grown by a metal–organic chemical va-por deposition system on a c-face 2-in-diameter sapphire. Trimethylindium, trimethylgallium, trimethylaluminum, and ammonia were used as the In, Ga, Al, and N sources, respectively. The 35-pair quarter-wave GaN/AlN DBR grown on

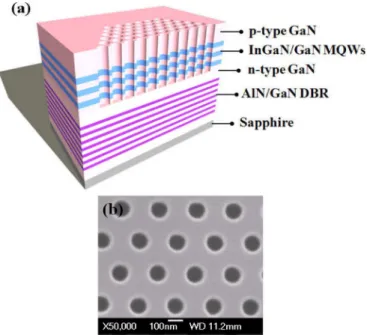

Fig. 1. (a) Schematic layer structure of GaN-based PCSELs with bottom AlN/GaN DBR. (b) Top-view SEM image of the PC structure with hexagonal lattices and circle unit cells.
a 2-µm-thick undoped GaN buffer layer was crack-free and had a flat surface. The detailed growth parameters were reported elsewhere [15]. Then, an active region grown atop the DBR typically composed of ten In0.2Ga0.8N QWs (LW = 2.5 nm)
with GaN barriers (LB = 7.5 nm), and was surrounded by a
560-nm-thick Si-doped n-type GaN and a 200-nm-thick Mg-doped p-type GaN layer.
The as-grown sample was then first deposited with a hard mask consisting of an SiNxlayer of 200 nm by plasma-enhanced
chemical vapor deposition, followed by a soft mask consisting of a polymethylmethacrylate (PMMA) layer of 150 nm. Using electron beam lithography, we defined on the soft mask a hexag-onal PC pattern with the lattice constant a ranging from 190 to 300 nm and the circular hole diameter r chosen such that r/a ranged from 0.18 to 0.3. The whole PC pattern was of circu-lar and hexagonal shapes with a diameter of 50 µm. Then, the PC pattern on soft mask was transferred to SiNxfilm by
induc-tively coupled plasma–reactive ion etching (ICP-RIE). After the PMMA layer was removed by acetone, we used ICP-RIE to etch down the as-grown sample to about 400 nm deep. The etching process penetrated the MQWs active regions and created the PC patterns in the nitride layers. Finally, the SiNx hard mask was
removed by buffered oxide etch dipping. The top view of the hexagonal PC pattern on the GaN-based structure thus created is shown in Fig. 1(b).
III. MEASUREMENTSYSTEM ANDCHARACTERISTICS OFPCSELS
The typical photoluminescence (PL) spectrum of the PC sur-face emission structure had a peak centered at a wavelength of 415 nm with a linewidth of about 25 nm. At normal incidence at room temperature, the DBR showed the highest reflectivity of
Fig. 2. Measured output intensity versus input excitation energy density from the GaN-based PCSELs with bottom AlN/GaN DBRs at room temperature.
99% at the center wavelength of 415 nm, with a stopband width of about 30 nm, measured by an nk UV-Vis spectrometer.
The emission spectra of the GaN-based PC surface emis-sion structure were measured by using a microscopy system (WITec, Alpha SNOM). The optical pumping was performed by a Nd:YVO4355 nm pulsed laser with a pulsewidth of about 0.5 ns at a repetition rate of 1 kHz. The pumping laser beam, with a spot size of 50 µm, was normally incident onto the sample surface and covered the whole PC pattern area. A 15× objective lens with a numerical aperture of 0.32 was placed normal to the sample to collect the light emission from the top of the PC pat-tern. The light was then collected by a fiber with a 600 µm core and coupled into a spectrometer with a charge-coupled device (CCD). The spectral resolution is about 0.1 nm for spectral out-put measurement. The GaN-based PC surface-emitting lasers were placed in a cryogenics-controlled chamber for obtaining the characteristic temperature. The temperature of the chamber can be controlled from room temperature, 300 K, down to 100 K using the liquid nitrogen.
Fig. 2 shows the laser intensity as a function of the pump-ing energy at room temperature condition from the sample with PC lattice constant of 234 nm. The clear evidence of threshold condition occurred at the pumping energy (Eth) of 165 nJ cor-responding to an energy density of 2.7 mJ/cm2. The output laser intensity from the sample increased linearly and abruptly with the pumping energy density beyond the threshold.
Fig. 3 shows the excitation-energy-density-dependent emis-sion spectra. These spectra clearly show the transition behavior from spontaneous emission to stimulated emission with a single dominant peak. Above the threshold, we can observe only one dominant peak wavelength of 401.8 nm with a full width at half maximum (FWHM) of 0.16 nm limited by our measurement resolution.
The lasing area of the GaN-based PCSEL obtained by a CCD camera is relatively large that covers almost whole area of the PC pattern with only one dominant lasing wavelength. The mea-sured FWHM of laser emission divergence angle is smaller than 5◦, indicating that the surface emission is almost normal to the PC surface. It is interesting to note that the threshold power density of GaN-based 2-D surface-emitting PC laser is in the same order of or even better than the threshold for GaN-based
Fig. 3. Emission spectra under varied excitation energy density from the GaN-based PCSELs with bottom AlN/GaN DBRs at room temperature.

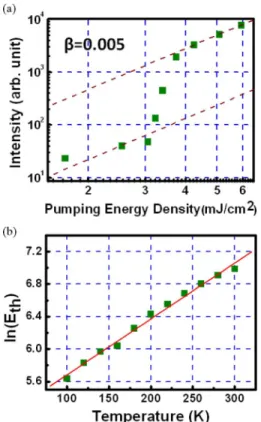

Fig. 4. (a) Laser emission intensity versus pumping energy in a logarithmic scale. The β-value estimated from the difference between the two dashed lines is about 5× 10−3. (b) Temperature dependence of the lasing threshold pumping energy (Et h).
vertical-cavity surface-emitting lasers (VCSELs) that we demonstrated recently [16]. Unlike the small emission spots observed in the GaN-based VCSELs, the large-area emission in PCSELs has great potential in applications requiring high-power-output operation.
To understand the spontaneous coupling factor β of the GaN-based PCSELs, we further replotted the laser emission inten-sity versed pumping energy from Fig. 2 in logarithmic scale, as shown in Fig. 4(a), and then calculated the difference be-tween the heights of the emission intensities before and after the threshold, corresponding roughly to the value of β.
Fig. 5. (a) Normalized frequency verses PC lattice constant. The solid square points are the lasing wavelengths from the different PC structures. (b) Calculated band diagram of the 2-D hexagonal lattice structure. The dotted lines are guides for band edges.
The β-value of our PC surface- emitting laser was estimated to be about 5× 10−3. Interestingly, this value is smaller than the GaN-based VCSELs [16], which could be due to the lower qual-ity factor in this GaN-based PC structure. However, the β-factor is still larger than the typical edge emitting lasers (normally about 10−5), indicating the enhancement of the spontaneous emission into a lasing mode provided by the high distributed feedback effect in GaN-based PCSELs.
Fig. 4(b) shows the seminatural logarithm plots of the depen-dence of the threshold pumping energy [ln(Eth)] on the opera-tion temperature (T0). The threshold energy gradually increased as the operation temperature rose from 100 to 300 K. The rela-tionship between the threshold energy and the operation temper-ature could be characterized by the equation Eth = E0eT /T0, where T0 is the characteristic temperature and E0 is a constant. Therefore, we obtained a characteristic temperature of about 148 K by linear fitting of the experimental data, which is close to the value reported for GaN-based edge emitting lasers [17].
IV. 2-D PLANE-WAVEEXPANSIONCALCULATION
The single-mode lasing phenomenon occurs only in the area with PC patterns. The normalized frequency (lattice constant over wavelength, a/λ) for the lasing wavelength emitted from our PC lasers with different lattice constants were plotted, as shown in Fig. 5(a). All the PC lasers have lasing peaks in a range from 401 to 425 nm. It can be seen that the normalized lasing frequency (dotted points in the figure) increased with the lattice constant in a discontinuous and step-like fashion. To calculate the band diagram of the hexagonal PC patterns in this structure, we employed the plane-wave expansion method in two dimensions with an effective index approach that took into account the effects of partial modal overlap of electromag-netic fields with the PC structures [9]. As a starting point, the overlapped ratio of light confined within the 2-D PC structure to light extended in the entire device, Γg, and the effective
refractive index of the entire device neff were first estimated by using the transfer matrix method. The calculation showed that the lowest order guided mode had the highest confinement factor for both PC and MQW regions, and the Γg and neff were estimated to be 0.563 and 2.495, respectively. Then, we
Fig. 6. Normalized frequency verses r/a ratios. The solid (black), dotted (red), and dashed (green) lines represent the simulation results of Γ, K , and M lasing groups by plane-wave expansion method. The square points present the experiment results mapped and compared with the simulation results.
determined the effective dielectric constants of the two materi-als in the unit cell, εaand εb, using n2eff = f εa+ (1− f)εband
∆ε = εb − εa= Γg(εm at− εair), where f = 2πr2/(a2
√
3) is a filling factor, and εm atand εairare dielectric constants of GaN (= 2.52) and air (= 12), respectively. The values of εa (4.11)
and εb (7.07) thus obtained were then put into the calculation
of the band diagram for the 2-D hexagonal lattice structure with
r/a = 0.25.
Fig. 5(b) shows the calculated band diagram of the 2-D hexag-onal lattice structure for TE mode. It can be expected that the lasing occurs at special points such as at Brillouin zone bound-ary near the band edges, because the Bragg condition is satisfied and the density of states is higher at these band edges [9]. At these lasing points, wave can propagate in different directions and couple with each other. The dotted lines are guides for band edges calculated in Fig. 5(b) and extended horizontally to Fig. 5(a) with the same normalized frequency. It can be seen that different groups of the normalized frequency observed in the PC samples with different lattice constants occur exactly at band edges such as Γ, M , and K points (or more specifically labeled as Γ1, K2, M 3), indicating that the laser operation was provided by multidirectional distributed feedback in the 2-D PC structure [7]. The characteristics of Γ, M , and K points lasing can be further identified by the polarization angle of the output emission. Note that the output intensity is higher when some of the lasing frequencies are in the stopband of DBR, which could be due to the fact that the bottom DBR here can be treated as a high reflectivity reflector, facilitating top emission efficiency.
Different lasing frequencies were measured from different PC lattice structures. The normalized frequencies as a function of r/a ratio were plotted as square points in Fig. 6. The solid (black), dotted (red), and dashed (green) lines are the calcu-lated band edge frequencies at the Γ, K, and M Brillouin zone boundaries as a function of r/a ratio, which were in accordance with the measured results.
V. LASINGPOLARIZATIONDIRECTION INREALSPACE
CORRESPONDING TOK-SPACE
The measured polarization curves for different band edge lasers grouped into Γ (red: circle points and solid line), K (green:

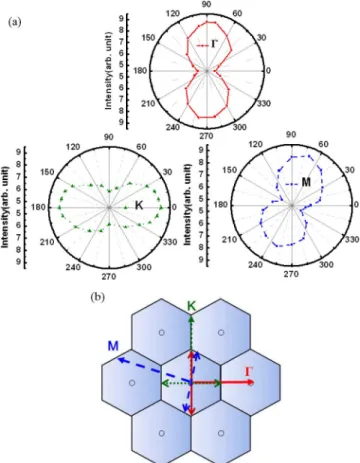

Fig. 7. (a) Measured polarization curves for different band edge lasers grouped into Γ (red: circle points and solid line), K (green: triangle points and dotted line), and M (blue: square points and dashed line) boundaries calculated by the plane-wave expansion method. (b) Main polarization directions obtained in (a) and their corresponding diffracted laser beams, which are normal to the polarization directions in a K -space map corresponding to our hexagonal PC lattice.
triangle points and dotted line), and M (blue: square points and dashed line) boundaries calculated by the plane-wave expansion method are shown in Fig. 7(a), and the degree of polarization from the emission defined as (Im ax− Im in)/(Im ax + Im in) was somehow around 50%. The polarization angles from the emis-sions of devices with different normalized frequencies grouped into Γ, K, or M band edge lasers were different. Since the PC lattices provide the optical feedback, which is the origin of the band edge laser operation, the direction and the polarization of the laser light will strictly follow the PC lattice vectors. The symmetric feedback directions provided by the 2-D lattice vec-tors could result in a relatively low degree of polarization when the measurement of the polarization is from the top of the de-vice [18]. As a result, it could be rather difficult to distinguish the specific polarization directions in PCSELs whenever they are categorized as Γ, K, or M band edge lasers. However, the feedback beams could not be equally diffracted by PC lattices probably due to some disorders or imperfections in the fabri-cated PC structure. This will result in some beams diffracted in specific directions having higher intensity. The ideally sym-metric polarization directions will also be broken. The preferred polarization directions for different band edge lasers should fol-low specific directions. The main polarization directions and

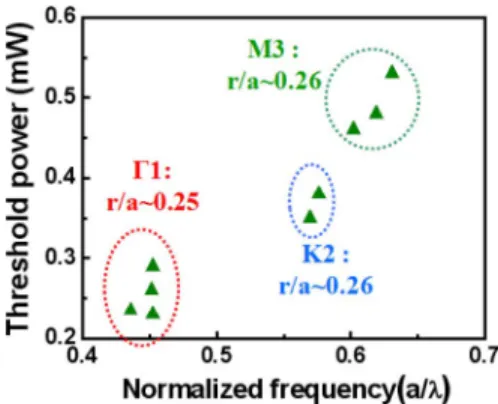

Fig. 8. Different threshold power versus normalized frequency.
the main diffracted laser beams, which are normal to the main polarization directions, can be drawn in a K-space map corre-sponding to our hexagonal PC lattice, as shown in Fig. 7(b). These main diffracted laser beams, shown as dashed lines in Fig. 7(b), point exactly to the Γ (solid red line), K (dotted green line), and M (dashed blue line) boundaries. The distinct polar-ization directions provide solid evidence that the lasing actions of our PC laser indeed originate from different band edges.
VI. COUPLED-WAVEMODELCALCULATION
From Figs. 5 and 7, we can obtain the laser emission that precisely occurs at three different band edge frequencies (Γ1, K2, M 3) with different threshold pumping powers. As shown in Fig. 8, we are able to classify the lasing actions into three groups, where lasing within Γ1 mode has the lowest threshold power while lasing within M 3 mode has the highest threshold power. Such results could be attributed to the different coupling effects at different band edges, which can be explained by coupled-wave model calculation.
To simplify the calculation, the 2-D PC structure investigated here consists of an infinite hexagonal lattice with circular air holes in the x- and y-directions. The corresponding 2-D K-space is shown in Fig. 9. The structure is also assumed to be uniform in the z-direction. In addition, the gain effects are neglected here during the calculation to extract the pure diffraction effects. While considering the infinite structure, the scalar wave equation for the magnetic field Hz in the TE mode can be written as
[12]–[14] ∂2Hz ∂x2 + ∂2Hz ∂y2 + k 2H z = 0 (1) where k2 = β2+ 2jαβ + 2β G=0 k(G)exp [j(G· r)]. (2)
And the magnetic field can be described by the Bloch mode when considering the Γ1band edge, as shown in Fig. 9
Hz(r) =
G
hGexp [j(k + G)r] (3)
Fig. 9. Schematic diagram of six propagation waves in hexagonal lattice for Γ1 band edge.
where
Hz = H1(x, y)e−iβ0xˆ+ H2e−iβ0((1/2) ˆx+ (
√ 3/2) ˆy ) + H3e−iβ0((−1/2)ˆx+( √ 3/2) ˆy )+ H 4eiβ0xˆ + H5e−iβ0((−1/2)ˆx−( √ 3/2) ˆy )+H 6e−iβ0((1/2) ˆx−( √ 3/2) ˆy ). (4) Substituting (4) and (2) into (1), and comparing the equal exponential terms, we can obtain six wave equations
− ∂ ∂xH1+ (−α − iδ)H1 =−iκ1 2 (H2+ H6) + i κ2 2 (H3+ H5) + iκ3H4 (5a) −1 2 ∂ ∂xH2− √ 3 2 ∂ ∂yH2+(−α−iδ)H2 =−iκ1 2 (H1+ H3) + i κ2 2 (H4+ H6) + iκ3H5 (5b) −1 2 ∂ ∂xH3− √ 3 2 ∂ ∂yH3 + (−α − iδ)H3 =−iκ1 2 (H2+ H4) + i κ2 2 (H1+ H5) + iκ3H6 (5c) ∂ ∂xH4+ (−α − iδ)H4 =−iκ1 2 (H3+ H5) + i κ2 2 (H2+ H6) + iκ3H1 (5d) 1 2 ∂ ∂xH5+ √ 3 2 ∂ ∂yH5+ (−α − iδ)H5 =−iκ1 2 (H4+ H6) + i κ2 2 (H1+ H3) + iκ3H2 (5e) −1 2 ∂ ∂xH6+ √ 3 2 ∂ ∂yH6 + (−α − iδ)H6 =−iκ1 2 (H1+ H5) + i κ2 2 (H2+ H4) + iκ3H3 (5f) where H1, H2, H3, H4, H5, and H6 express the enve-lope magnetic field distributions of individual lightwaves propagating in the six equivalent Γ- and M -directions: 0◦, +60◦, +120◦, +180◦, +240◦, and +300◦with respect to the
x-axis. κ1, κ2, and κ3 are the coupling coefficients between lightwaves propagating at 60◦ to each other (H1 and H2, H2
only the eigenfrequencies are concerned, the derivation terms and the threshold gain α in (5a)–(5e) can be set to zero, and the individual eigenfrequencies can then be derived as follows:
ν1 = c 2πneff (β0− κ1− κ2+ κ3) (6a) ν2 = c 2πneff β0− 1 2κ1+ 1 2κ2− κ3 (6b) ν3 = c 2πneff (β0+ κ1− κ2− κ3) (6c) ν4 = c 2πneff β0+ 1 2κ1+ 1 2κ2+ κ3 (6d) where c is the velocity of a photon in vacuum and neff is the effective refractive index of the device structure. There are four eigen-mode frequencies, ν1–ν4, which correspond to the four band edges, including two degenerate modes with ν2 and ν4. Once the frequency of the eigen mode at the individual band edges is obtained, the coupling coefficients κ1, κ2, and κ3 can be derived from (6a)–(6d) as follows:
κ1 = −ν1− ν2 + ν3+ ν4 ν1+ 2ν2+ ν3+ 2ν4 2β0 (7a) κ2 = −ν1 + ν2− ν3+ ν4 ν1+ 2ν2+ ν3+ 2ν4 2β0 (7b) κ3 = ν1− 2ν2− ν3+ 2ν4 ν1+ 2ν2+ ν3+ 2ν4 2β0. (7c)
By comparing the value of coupling coefficients κ1, κ2, and
κ3based on actual device parameters, we can determine which kind of distributed feedback mechanism provide the major sig-nificant contribution to support the lasing oscillation at Γ1band edge.
Similarly, we use the same calculation method to solve cou-pling coefficients for K2 and M 3 operation modes. We can obtain two individual eigen-mode frequencies for K2 and four eigen-mode frequencies for M 3, listed as follows.
1) K2 [shown in Fig. 10(a)]: There are two eigen-mode fre-quencies with only one coupling angle at 120◦ for one coupling coefficient
κ = ν2− ν1 ν1+ 2ν2
2β0 (8)
2) M 3 [shown Fig. 10(b)]: There are four eigen-mode fre-quencies with three coupling angles, i.e., 82◦, 98◦, and 180◦, for coupling coefficients κ1, κ2, and κ3
κ1 =
ν1− ν2− ν3+ ν4
ν1+ ν2+ ν3+ ν4
β0 (9a)
Fig. 10. Schematic diagram of propagation waves in hexagonal lattice for (a)
K 2 band edge and (b) M 3 band edge.
κ2 = −ν1 + ν2− ν3+ ν4 ν1+ ν2+ ν3+ ν4 β0 (9b) κ3 = −ν1− ν2+ ν3+ ν4 ν1+ ν2+ ν3+ ν4 β0. (9c)
The coupling coefficient of each PCSEL could then be evaluated by using the band edge frequencies, as shown in Fig. 5(b). First, for Γ1 mode, substituting the normalized fre-quencies, 0.4482, 0.4595, 0.4704, and 0.4930, with the PC lat-tice constant of about 180 nm into the expressions (7a)–(7c), we obtain the coupling coefficients κ1 ∼ 17480 cm−1, κ2 ∼ 11240 cm−1, and κ3∼ 11268 cm−1. The largest coupling co-efficient κ1shows that the lightwaves propagating at 60◦to each other dominate the coupling effect.
Similarly, for K2 mode, substituting the normalized fre-quencies 0.5326 and 0.5413 with the PC lattice constant of about 220 nm into (8), we obtained the coupling coefficient
κ∼ 4089 cm−1.
For M 3 mode, substituting the normalized frequencies, 0.6089, 0.6094, 0.6141, and 0.6234, with the PC lattice constant of about 247 nm into (9a)–(9c), we obtain the coupling coeffi-cient κ1 ∼ 1241 cm−1, κ2 ∼ 1356 cm−1, and κ3 ∼ 2683 cm−1. The largest coupling coefficient κ3shows that greatest feedback effect is similar to that of a conventional in-plane distributed feedback laser. Moreover, it is interesting to note that the lasing action within Γ1 mode shows the lowest threshold power in Fig. 8, which could be attributed to the largest coupling coeffi-cient. On the other hand, lasing within M 3 mode has the highest threshold power due to the lowest coupling coefficient.
VII. CONCLUSION
We have successfully fabricated a series of GaN-based PCSELs-incorporated AlN/GaN bottom DBRs with different
a characteristic temperature of about 148 K. Furthermore, the coupled-wave model in 2-D hexagonal lattice was applied to ex-plain the discrepancy in threshold power by considering higher components of Bloch modes and the corresponding coupling co-efficients. It was demonstrated that the lasing action within Γ1 mode that had the lowest threshold power corresponded to the largest coupling coefficient. On the contrary, the highest thresh-old energy power occurring within M 3 mode corresponded to the lowest coupling coefficient.
