A Study of Row-Based Area-Array I/O Design Planning in Concurrent Chip-Package Design Flow

19  Download (0)

Full text

(1)

30

HUNG-MING CHEN

IC-centric design flow has been a common paradigm when designing and optimizing a system. Package and board/system designs are usually followed by almost-ready chip designs, which causes long turn-around time communicating with package and system houses. In this article, the realizations of area-array I/O design methodologies are studied. Different from IC-centric flow, we propose a chip-package concurrent design flow to speed up the design time. Along with the flow, we design the I/O-bump (and P/G-bump) tile that combines I/O (and P/G) and bump into a hard macro with the considerations of I/O power connection and electrostatic discharge (ESD) protection. We then employ an I/O-row based scheme to place I/O-bump tiles with existed metal layers. By such a scheme, it reduces efforts in I/O placement legalization and the redistribution layer (RDL) routing. With the emphasis on package design awareness, the proposed methods map package balls onto chip I/Os, thus providing an opportunity to design chip and package in parallel. Due to this early study of I/O and bump planning, faster convergence can be expected with concurrent design flow. The results are encouraging and the merits of this flow are reassuring.

Categories and Subject Descriptors: B.7.2 [Integrated Circuits]: Design Aids General Terms: Algorithms, Design

Additional Key Words and Phrases: Area-array IC design, I/O-bump planning, chip-package feasibility study, concurrent IC design flow

ACM Reference Format:

Lee, R.-J. and Chen, H.-M. 2013. A study of row-based area-array I/O design planning in concurrent chip-package design flow. ACM Trans. Des. Autom. Electron. Syst. 18, 2, Article 30 (March 2013), 19 pages. DOI: http://dx.doi.org/10.1145/2442087.2442101

1. INTRODUCTION

Modern I/O planning is divided into two categories: peripheral I/O and area-array I/O. The peripheral I/O planning is to place I/Os along the sides of core bound-ary and the I/Os are connected with package balls by using wire-bonding process. Whereas, as shown in Figure 1(a) and Figure 2(a), this planning method always re-quires larger die size to accommodate I/Os and pads, and degrades the signal and power integrity in off-chip signaling due to parasitics and coupling effects [Caldwell et al. 1998; Wang et al. 2004]. On the other hand, the area-array I/O planning using the flip-chip technique overcomes those drawbacks in the peripheral style with higher cost. Figure 1(b) and Figure 2(b) and (c) show that the flip-chip area-array I/O tech-nology offers the considerable flexibility in optimizing core-I/O placement and package routing. It also has the features of smaller die size, higher I/O density, lower parasitic effects and better heat dissipation, and therefore meets the requirements of design-ing advanced and high-performance ICs in deep-submicrometer (DSM) environment Author’s address: R.-J. Lee, email: rjlee@vda.ee.nctu.edu.tw.

Permission to make digital or hard copies of part or all of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies show this notice on the first page or initial screen of a display along with the full citation. Copyrights for components of this work owned by others than ACM must be honored. Abstracting with credit is permitted. To copy otherwise, to republish, to post on servers, to redistribute to lists, or to use any component of this work in other works requires prior specific permission and/or a fee. Permissions may be requested from Publications Dept., ACM, Inc., 2 Penn Plaza, Suite 701, New York, NY 10121-0701 USA, fax+1 (212) 869-0481, or permissions@acm.org.

c

 2013 ACM 1084-4309/2013/03-ART30 $15.00 DOI: http://dx.doi.org/10.1145/2442087.2442101

(2)

Fig. 1. The simplified illustration of two general package types. (a) is the wire-bond package, and (b) is the flip-chip package.

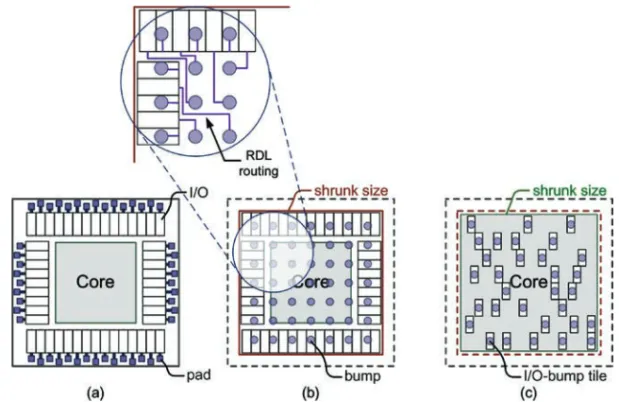

Fig. 2. The die size comparison of designs with different I/O planning. (a) is implemented with the peripheral I/Os and wire-bond package, (b) is a general flip-chip design planned with extrinsic area-array I/Os and connected to bumps by RDL routing and (c) is the proposed flip-chip design applied intrinsic area-array IO concept by using I/O-bump tiles.

[Pascariu et al. 2003; Chang and Chen 2008]. Table I reassurts the advantages over tra-ditional peripheral I/O methodology, with the addition of our row-based I/O planning. A further explanation is provided in our experimental results.

1.1. Previous Works

Regarding the current flip-chip area-array ICs, two different area-array I/O regimes are well known in industry: the extrinsic area-array I/O and intrinsic area-array I/O [Tan et al. 1997]. In Maheshwari et al. [1995], authors distinguished area-array I/O as redistribution and true area-I/O. For the extrinsic area-array IC, I/Os are placed along the peripheral boundary of the core. It is similar to the peripheral I/O planning but

(3)

based area-array I/Os instead of traditional peripheral I/Os.

Peripheral I/O Area-Array I/O

Tech. Die I/O I/O Die I/O-bump Die

(um) size size number size tile size size

(um2) (um2) (um2) (um2) difference

d1 0.18 25002 115× 65 220 23272 160× 80 −6.92% d2 0.18 32502 200× 60 188 34752 160× 80 +6.93% d3 0.18 25102 140× 65 130 27422 160× 80 +9.25% d4 0.13 25802 120× 75 200 23642 160× 80 −8.39% d5 0.13 47202 115× 50 628 46002 160× 80 −2.55% d6 0.09 68002 175× 65 390 66452 160× 80 −2.29%

(The utilization rate of core cells is kept the same)

uses a dedicated redistribution layer (RDL) to redistribute nets from peripheral I/Os to area-array bumps located in the center of core area, as shown in Figure 2(b). It migrates package design from wire-bond to flip-chip technology by a re-design process, namely RDL routing task, thus gaining the advantages of smaller parasitic effects and less thermal issues. However, the die size of this redistributed design will still be enlarged while the number of I/Os being increased due to the same I/O planning with that of peripheral I/Os. Figure 2(c) shows the intrinsic area-array IC, on the contrary, I/Os and bumps are freely located in the center of core region thus shrinking the die size and improving the flexibility in core-I/O placement as well as package routing.

Several works proposed methodologies to deal with flip-chip area-array ICs. Fang et al. [2007] and Fang et al. [2009] applied the network-flow-based and the integer-linear-programming (ILP) based RDL routing algorithms for designing extrinsic area-array ICs. The two-stage technique not only completes 100% routability, but also re-duces the total RDL wirelength and the signal skews compared with an industrial heuristic algorithm. On the other hand, two recent works focused on planning and plac-ing intrinsic area-array I/Os. Chen et al. [2006] applied I/O clusterplac-ing concept to place I/Os, and formulated the problem as a min-cost maximum flow problem. The encourag-ing results indicate that the method not only achieves better timencourag-ing performance but also reduces the design cost when compared with the conventional method commonly used by the designers. In Xiong et al. [2006], based on ILP framework, authors formu-lated a constraint-driven I/O planning and placement problem, and solved it by a multi-step algorithm. The experimental results show that their algorithm can effectively deal with large scale I/O placement problem and satisfy all design constraints in real design. Another recent work proposed a network-flow based multi-RDL router for the intrin-sic area-array flip-chip ICs [Fang and Chang 2008]. For chip-package codesign, their router completes both chip-level routing from block ports to I/O pads and package-level RDL routing from I/O pads to bump pads, thus improving the design convergence.

All the aforementioned researches achieve some notable results. However, as the chip-package design has become increasingly challenging, more considerations must be accounted for as noted here.

—These approaches assume that bumps are arranged in fixed array locations with unique spacing, they then design the area-array ICs by planning the I/O placement with cost functions and constraints or connecting bumps and I/Os with RDL routing. It is inevitable that area-array I/O planning and RDL routing need a lot of efforts to coordinate with the core cell placement and routing. Moreover, the presumed

(4)

Fig. 3. The conventional design flow. It iteratively optimizes the locations of core cells and I/Os, then performs the bump planning, RDL routing and finishes the bump placement for package routing. This sequential design flow takes long turn-around time to meet all design requirements.

uniform and fixed bump location restricts the flexibility in optimizing both chip and package designs.

—Most of previous works focus on designing area-array ICs and do not emphasize the package ballplan, which is given and optimized for PCB design. Without considering the package ballplan, the I/Os and bumps will possibly lead to complicated package substrate routing, even failed package design [Sheth et al. 2006].

—The conventional design flow, which is IC-centric [Fontanelli et al. 2002], has an implicit issue in design turn-around. As shown in Figure 3, chip designer usually assigns the initial I/O placement according to the results of core cell floorplanning. Next, the core cell placement and routing are iteratively optimized until the final results meet the design requirement such as minimum total wirelength. After that, this bottom-up design flow processes the bump planning and RDL routing, then pro-ceeds to the package-level design including package ball assignment and routing. The major disadvantage of this sequential design flow is evident: it will probably result in long and costly re-spin cycles on satisfying entire system’s design constraints.

1.2. Our Contributions

In order to deal with the issues enumerated above, here we propose a realizable area-I/O design methodology. The contributions presented in this article are as follows. —In this study, we propose a concurrent design flow, as shown in Figure 4. Since

(5)

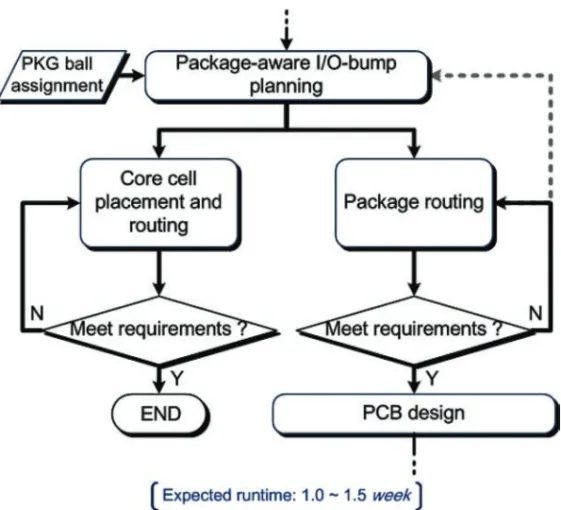

Fig. 4. The proposed concurrent chip-package design flow. Through package-aware I/O-bump planning, it completes the core cell and I/O placement and package routing simultaneously, thus reducing the design cycles between chip and package.

planning, the concurrent design flow completes chip-level core cell placement and routing and package-level bump-ball routing in parallel. Comparing with the sequential design flow (Figure 3), the proposed one will expectedly reduce the turn-around time when designing chip and package.

—To achieve concurrent design flow, one of the major contributions is I/O-bump and P/G-bump tile designs. Through designing the specific I/O-bump tiles (shown in Figure 5), complicated RDL routing efforts can be avoided. Under such circumstance, not only is the signal skew caused by RDL routing eliminated, but also the RDL can be released for I/O power delivery. Therefore, with the I/O-row based scheme (Figure 6), I/O-bump tiles can be freely placed at core area without keeping the same spacing. As a result, we significantly improve the flexibility in arranging I/Os and bumps for chip-level and package-level design.

—Another contribution is the package-aware I/O-bump planning in our concurrent design flow, which considers package ball locations and the essential concerns of chip-package codesign, such as noncrossing routing, the shortest wirelength and the minimum length deviation among all nets. The quick evaluation of the configurations can be achieved by different planning strategies.

Table II shows the average runtime of a SoC system design.1That has approximately

5.0M gate count and 500 I/Os. While implementing this system with typical design 1This SoC system provided as an example design is a chipset IC packaged with a flip-chip ball grid array (BGA). The related design information about the average runtime and design solutions in typical design flow is derived from an experienced engineer who is working for a design service compony in Hsinchu Science Park, Taiwan.

(6)

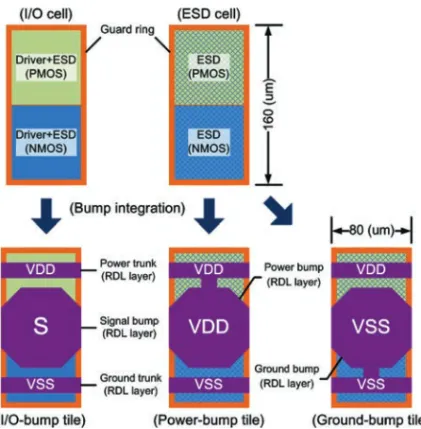

Fig. 5. The design of proposed I/O-bump tile that integrates I/O and bump into the single and unique interface between chip and package. Power-bump and ground-bump tiles are developed based on the same concept as well.

Fig. 6. The I/O-row based I/O-bump planning scheme. The width/height of tile and I/O-row are designed to satisfy the bump size/pitch. This scheme therefore simplifies the placement legalization of I/O-bump tiles.

(7)

T ab le II. The runtime compar ison of a S oC system design implemented with typical design flo w and our proposed approaches . Through using automated methodologies and going with the concurrent design flo w , the total runtime of this system can be significantly impro v ed. t1 t2 t3 t4 t5 t6 t7 Design I/O Core cell Core cell Bump RDL Ball Pa ck a g e task placement placement routing placement routing assignment routing Typical Manual Cadence Cadence Manual Cadence Manual Cadence design Solution design SoC SoC design Allegro design Allegro flow Encounter Encounter PKG Designer PKG Designer (sequential) Av e ra g e runtime ≈ 2. 0( w eek ) ≈ 1. 0( w eek ) ≈ 1. 5( w eek ) To ta l r u n ti m e = 7 i= 1 ti = 4. 5( w eek ) Our Automated Cadence Cadence Automated No Manual Cadence design Solution methodology SoC SoC methodology necessary design Allegro flow Encounter Encounter PKG Designer (concurrent) Av e ra g e runtime < 1. 5( w eek ) < 0. 1( w eek ) ≈ 1. 5( w eek ) To ta l r u n ti m e = max( ti )≈ 1. 5( w eek )

(8)

flow, the total runtime obtained from industry is around 4.5 (week). However, through using the proposed methodologies and going with the concurrent design flow, the total runtime can be significantly reduced to 1.5 (week). As a result, our approaches shorten the turn-around in converging the solutions of chip and package, and tremendously reduce the time-to-market (TTM) for designs.

The rest of the article is organized as follows. Section 2 introduces the row-based I/O-bump tile design. Section 3 defines the problem of package-aware I/O-bump plan-ning, while Section 4 describes the I/O-bump planning methods. Section 5 shows the experimental results, followed by the conclusion in Section 6.

2. NOVEL I/O-BUMP TILE DESIGN AND I/O-ROW BASED PLANNING

In order to ease the extra efforts in chip-package codesign and to achieve concurrent design flow, we integrate the I/O (and P/G) and area-array bump into one specific tile called I/O-bump2. It consequently provides all information needed in both chip-level

core-I/O placement and package-level bump-ball routing. As shown in Figure 5, each I/O-bump tile is designed as a hard macro that contains I/O driver, bump pad and power/ground trunk. All necessary interconnections are made using RDL layer, which is usually dedicated for connecting I/Os and bumps in flip-chip design. In addition to the signal bumps, we also design the power/ground-bump tile for power supply and ground connection based on the same concept. All these tiles include the indispens-able ESD protection circuit commonly used in modern ICs for preventing signal and power/ground bumps from ESD damage.

Moreover, to follow the package design rules, the bump size and pitch must be taken into consideration when planning I/O-bump tiles. In legalizing the I/O-bump tile placement, we propose an I/O-row scheme without adding extra routing layers. Figure 6 shows that each row is constructed with RDL layer. The minimum width/height of tile and I/O-row are designed to follow the basic flip-chip design rules of bump size/pitch. Once the tile is placed on the I/O-row, based on this design, only the bump spacing rules within a row should be checked. It simplifies and facilitates the task for resolving the placement legalization issue. In this article, the tile size of 160×80 (um2) is provided as

an example. It is not unified for all flip-chip designs and should be determined according to the minimum flip-chip design rules. Such scheme makes the RDL routing trivial and creates the single and unique interface between chip and package by combining I/O with bump, thus actually implementing the chip and package design in parallel.

3. I/O-BUMP PLANNING PROBLEM IN CONCURRENT DESIGN

With I/O-bump tile design, we believe that consequent I/O-bump planning can provide a fairly good starting point for both chip-level and package-level design in proposed design flow. We thus create the package-aware I/O-bump planning problem as the as-signment problem that assigns the I/Os and bumps according to given package ballplan. Here are the detailed problem definitions.

Input:

—The given net names and locations for n package balls. —The design rules for chip and package.

2In this work, we only give an example to have the size of I/O. In general case, as long as the I/O is well designed and its size is larger than bump pitch, such I/O-bump tile design would be no limitation on implementation. However this may affect the design flexibility when I/O size is smaller than bump pitch.

(9)

—The preliminary assignment provided for chip-level core-I/O placement and package-level bump-ball routing.

Assignment criteria (considering the flyline between bumps and balls):

—Minimum possible routing layer (minimum net crossing number). —Minimum timing delay (minimum total net length).

—Minimum signal skew (minimum sum of length difference/deviation on each net). Instead of calculating the actual wirelength, we use the flyline (net) length, which we choose to use the Euclidean distance between the bump and ball as the expected routing length, 45 degree distance can be employed as well. This estimation can be obtained easily and evaluates the performance of I/O-bump planning methods efficiently, it thus facilitating and speeding up the optimization works. Based on the same intention, our approach uses the flyline (net) crossing number to estimate the true crossing number of routing. The consistency between the flyline estimation and results of performing detailed package routing has been ensured in Meister et al. [2008]. More accurate wirelength estimation for detailed package routing (e.g., 45 degree routing) can be found in Sarrafzadeh and Wong [1992]. In the next section, we show how we arrange I/Os and bumps simultaneously with the specific I/O-bump tiles invention.

4. PACKAGE-AWARE I/O-BUMP PLANNING METHODS

According to the package ball locations (given pin-out/ballplan), here we employ two intuitive methods and one matching-based heuristic to plan I/O-bump tiles. Those methods help us achieve very efficient evaluation for all possible chip-package configu-rations. Each of them is distinguished by different design goals. Aiming at minimizing package routing layer to reduce package cost, the first heuristic is used to obtain a zero net crossing design. To mitigate the parasitic effect on routing nets and facilitate the wirelength matching, the second heuristic focuses on shortening the net length and minimizing the length deviation. As for the matching-based assignment, it balances all the aforementioned design requirements simultaneously.

Before planning I/O-bump tiles, we partition the whole package into four sectors: north, west, south and east similar to the works in Fang et al. [2007] and Fang et al. [2009]. In general design flow, designer specifically arranges the initial I/O location based on some particular purposes before running chip-level placement. In this study, according to the given package ball plan, the initial placement of corresponding I/O-bump tiles is randomly generated in each sector, as shown in Figure 7. In real design flow, the initial placement can be also given from the design team, and we can use our approaches to refine it. After that, each planning method mentioned above starts at the east sector. While I/O-bump tiles are planned within this sector, the planning method will be iteratively applied until all sectors’ tiles are assigned. Once the randomly generated tile locations have some issues with placing core cells or macros, these initial locations will be regenerated easily and the I/O-bump tiles will be re-planned speedily by our approach.

Aiming at different design goals, this work provides two intuitive methods and one matching-based heuristic to plan I/O-bump tiles. These methods efficiently evaluate all possible chip-package codesign configurations. Among these methods, the SORT minimizes the net crossing, and the GREEDY shortens the net length and reduces the length deviation. As for the matching-based assignment, it balances all the afore-mentioned design requirements simultaneously. Below we describe how these methods work in more details.

(10)

Fig. 7. The I/O-bump tiles placement regions. The whole package will be partitioned into four sectors and the initial placement of corresponding I/O-bump tiles will be given within each sector.

Fig. 8. Double sorting for planar planning. It sorts the I/O-bump tiles and produces the proper order by referring to the order of balls.

4.1. Double Sorting for Planar Planning

To achieve noncrossing (planar) routing results from die bumps to package balls, we propose a heuristic method called SORT . This method sorts the I/O-bump tiles and produces their proper order in accordance with the order of balls, thus resulting in zero net crossing by monotonic package routing.3 The detailed steps are listed below and illustrated in Figure 8 (Orderballand Orderbumpare the assigned serial number for balls and bumps).

Sort package balls: (1) Orderball← 0 (2) Repeat:

(3) sorting ball rows (upper⇒ lower)

3The monotonic package routing is a routing method that routes nets from die bumps to package vias on package top layer without U-turn path. It consumes less routing resource and results in higher routing completion compared with nonmonotonic routing method [Fang et al. 2009]. More detailed theory about monotonic routing can be found in Kubo and Takahashi [2005] and Yu and Dai [1995].

(11)

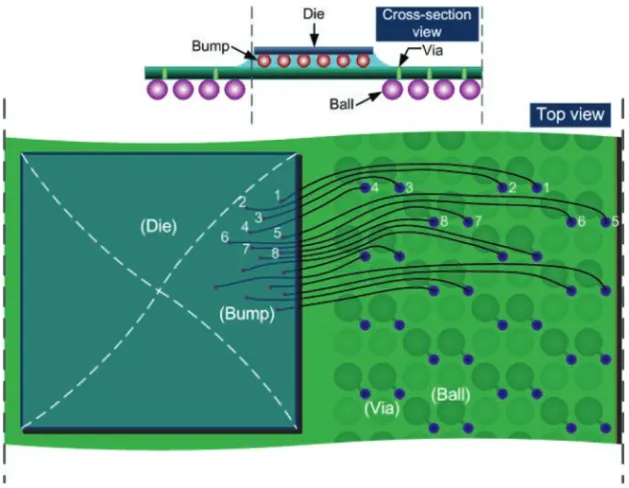

Fig. 9. Example of double sorting method. This method achieves zero net crossing when using the monotonic package routing. Such routing method routes nets from die bumps to package vias on package top layer without U-turn path.

(4) Repeat:

(5) sorting balls (outer⇒ inner)

(6) ordering the ball: Orderball← Orderball+ 1 (7) Until all balls are sorted within a ball row

(8) Until all ball rows are sorted within a package sector Sort I/O-bump tiles:

(1) Orderbump← 0 (2) Repeat:

(3) sorting I/O-bump tiles (upper⇒ lower, inner ⇒ outer) (4) ordering the bump: Orderbump← Orderbump+ 1

(5) Until all I/O-bump tiles are given an order within a package sector

As the sorting steps shown above, the vertical sorting is to order balls from upper row to lower row. For balls located at the same row, the horizontal sorting is to order balls from outer ball to inner ball. At the second stage, the same sorting steps will be followed to order I/O-bump tiles. After that, balls and bumps that have the same numbers will be paired for connection. Figure 9 shows an example; the sorted order of package balls and I/O-bump tiles will lead to noncrossing package routing while applying the monotonic routing.

4.2. Shortening Flylines Between I/O-Bumps and Package Balls

The previous sorted method intuitively succeeds in producing a zero-crossing package routing. However, regarding the package routing task, the wirelength is another critical

(12)

Fig. 10. Shortening flylines between I/O-bumps and package balls. It greedily chooses the shortest flyline between bumps and balls.

factor affecting its performance. Since the longer wirelength induces the larger para-sitic effects, nets from bumps to balls should be routed as short as possible. Besides, to achieve impedance matching, each net should be kept in the similar wirelength. For these two objectives, we apply a greedy way to shorten the total net length and the length deviation called GREEDY . The main idea of this method is to choose the shortest flyline between bumps and balls greedily at the moment. This method also consists of two stages: sorting balls and greedily find shorter flylines. The first stage of process is same as that in the previous method (ball sorting), and the detailed steps in the second stage are as follows.

Choose the shortest flyline greedily: (1) Orderbump← 0

(2) given the ball order in SORT , starting from the first ball (3) Repeat:

(4) connecting the ball with all unchosen I/O-bump tiles (5) choosing one I/O-bump tile that can result in the

shortest flyline

(6) ordering the chosen bump: Orderbump= Orderball, move to the next ball

(7) Until all balls are connected within a package sector

As we mentioned in Section 3, we use the flyline criteria to evaluate the performance of I/O-bump planning methods, and to facilitate the optimization works. The flyline length is the Euclidean distance between the package ball and assigned bump, and the length deviation is the difference between flyline length and the average length obtained from the SORT method. After applying the SORT heuristic, balls are ordered from outer ball to inner ball and from upper row to lower row as shown in Figure 10. According to this ball order, each ball is greedily paired with the closest I/O-bump tile thus shortening the flyline length at the moment. As a result, the GREEDY method can reduce the total net length, and at the same time help reduce the length deviation. Figure 11 shows the results achieved by the GREEDY method. Comparing with the

(13)

Fig. 11. Example of shortening flylines method. This method shortens the sum of length deviation on each net.

fairly different bump order. Therefore, it will inevitably cause the net crossing in package routing and increase the package design cost.

4.3. Matching-Based Assignment

For optimizing the requirements in chip-package codesign, designer must mini-mize the net crossing, the total net length, and the length deviation at the same time. We use the results obtained from the previous sorted method as the initial solution, and model the package-aware I/O-bump planning as a weighted bipartite matching problem, as shown in Figure 12. The assignment problem then becomes a matching problem to match the preordered ball set (Balli) (by SORT) and bump set (Bumpj) with the minimum edge weight (wi j). The objective functions are as follows. Minimize m  i=1 n  j=1 wi j· xi j subject to m  i=1 xi j= 1, ∀ j = 1, . . . , n (1) n  j=1 xi j = 1, ∀i = 1, . . . , m (2) xi j ∈ {0, 1}. (3)

(14)

Fig. 12. Matching-based assignment W BI PT . This method models the package-aware I/O-bump planning as a weighted bipartite matching problem to balance severeal design requirements.

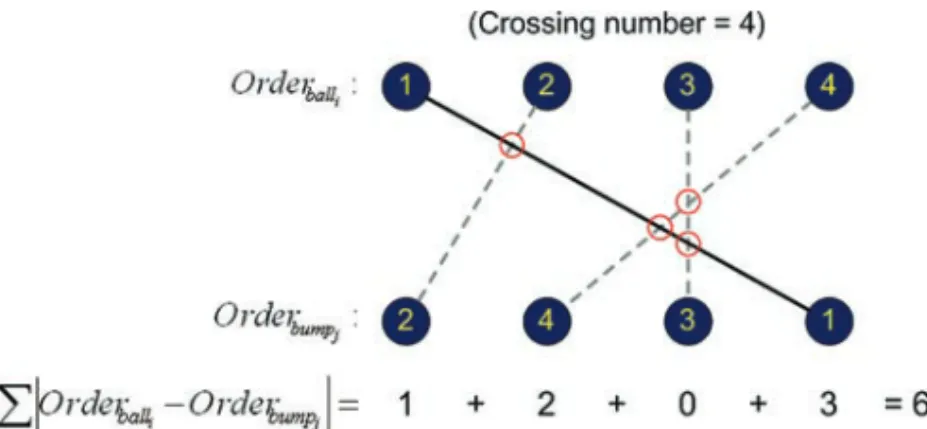

Fig. 13. Estimation of net crossing number. The estimated crossing number is larger than real one.

The element xi j, a binary variable, is 1 if Balli is assigned to Bumpj; otherwise, xi jis 0. Variables m and n are the total number of balls and bumps respectively (m= n). The edge weightwi j is formulated below:

wi j = α · Di f fi j+ β · |li j− AvgLength|, (4)

where Di f fi j (= |Orderballi − Orderbumpj|) is obtained through directly subtracting the

order of Bumpj from that of Balli, and therefore calculating the upper bound of flyline crossing number as shown in Figures 13 and 14. AvgLength is the average length ob-tained from the SORT method and li j is the Euclidean flyline length as mentioned in previous subsection. It can be seen that the edge weight consists of the net crossing (first term) and the length deviation (second term). As for the user-defined parame-tersα and β, they are used to adjust the importance of these two terms. Since the net length (li j) is also included in the second term of the edge weight, the weighted bipartite matching (W BI PT ) method reassigns the order of I/O-bump tiles and fulfils all assignment criteria through carefully specifying these user-defined parameters, in-cluding the wirelength due to the summation of li j. Moreover, such reassignment has more balanced net crossing and net length deviation, W BI PT method optimizes the I/O-bump planning comparing with the previous heuristics.

(15)

Fig. 14. Our crossing’s definition to show that our estimation is the upper bound of crossing number.

Table III.

The Summary of Six I/O-Bump Planning Methods

I/O-Bump Planning Method

1 SORT 2 GREEDY 3 W BI PT (α = 5000, β = 1.0) 4 W BI PT (α = 2500, β = 1.0) 5 W BI PT (α = 1000, β = 1.0) 6 W BI PT (α = 500, β = 1.0) 5. EXPERIMENTAL RESULTS

5.1. The Effectiveness of I/O-row Methodology

We have implemented our methodologies in C++, and the platform is on Intel Pentium IV 3.20GHz with 1.5GB memory. We have obtained six industrial chipset designs as our test cases to demonstrate the effectiveness of I/O-row based scheme on shrinking die size (or increasing I/O number). According to the core cell floorplanning results, the peripheral I/Os originally used in those designs are replaced with our I/O-bump tiles while keeping the utilization rate of core cells the same. Without sacrificing the wiring and placement resource of core cells, Table I shows the benefit of implementing I/O-bump tiles in I/O-pad limited designs (d1 and d4 to d6). For this kind of design, the number of its core cells is usually small, and its die size is mainly determined by the total occupied area of I/Os. Therefore, the flexibility of using area-array I/O-bump tile can help to reduce its die size compared with the style of locating peripheral I/Os at fixed site. On the contrary, the core limited designs (d2 and d3) that have an enormous number of core cells will not have such advantage while inserting I/O-bump tiles into their congested core area, and area increase is shown due to area-I/O application causing I/O-core integrated placement in such congested area.

5.2. I/O-Bump Planning Study

Our industrial cases listed in Table I are all chipset designs. Since they have the sim-ilar ball plan for the same I/O group, we choose two of these designs to measure the performance of planning methods. Design d4, which has the least I/O number among I/O-pad limited designs is tested and compared with the design d5 whose I/O num-ber is the most. Table III summarizes all applied algorithms. The methods SORT and GREEDY are two heuristic methods described in Section 4, and the last four algorithms are applying W BI PT with specific user-defined parameters. As we have described in Section 4, these methods have different characteristics, such as lower package design cost, less parasitic effect and better length matching. Like the inten-tion stated in Secinten-tion 3, to evaluate the performance of I/O-bump planning methods

(16)

Table IV.

The results on test case d4 (has 200 I/Os), when the initial I/O-bump tiles are randomly assigned (RAN D) and uniformly arranged at fixed location (U N I F) in each sector

Flyline criteria Total

Net crossing Net length Length deviation runtime

No. Imp. (%) Total (um) Imp. (%) Total (um) Imp. (%) (sec)

1a 0 100.00 2022540 − 485091 − < 1.0 2a 341 − 1998210 1.20 299349 38.29 < 1.0 RAN D 3a 0 100.00 2022540 0.00 485091 0.00 < 1.5 4a 8 97.65 2016260 0.31 432443 10.85 < 1.5 5a 30 91.20 2011210 0.56 391516 19.29 < 1.5 6a 75 78.01 2006650 0.79 359033 25.99 < 1.5 1b 0 100.00 2122570 424324 < 1.0 2b 462 2107850 0.69 326473 23.06 < 1.0 U N I F 3b 1 99.78 2122590 0.00 414079 2.41 < 1.5 4b 4 99.13 2121120 0.07 393317 7.31 < 1.5 5b 11 97.62 2115890 0.31 372148 12.30 < 1.5 6b 47 89.83 2112080 0.49 338260 20.28 < 1.5

(“−” stands for the baseline) Table V.

The results on test case d5 (has 628 I/Os), when the initial I/O-bump tiles are randomly assigned (RAN D) and uniformly arranged at fixed location (U N I F) in each sector

Flyline criteria Total

Net crossing Net length Length deviation runtime

No. Imp. (%) Total (um) Imp. (%) Total (um) Imp. (%) (sec)

1c 0 100.00 5473480 − 1432024 − < 2.0 2c 1056 5416680 1.04 720120 49.71 < 2.0 RAN D 3c 0 100.00 5473480 0.00 1432024 0.00 < 5.5 4c 32 96.97 5461600 0.22 1209704 15.52 < 5.5 5c 140 86.74 5447080 0.48 996644 30.40 < 5.5 6c 376 64.39 5437040 0.67 920888 35.69 < 5.5 1d 0 100.00 5813320 1645728 < 2.0 2d 1432 5775240 0.66 1410436 14.30 < 2.0 U N I F 3d 0 100.00 5813320 0.00 1645728 0.00 < 5.5 4d 24 98.32 5802480 0.19 1505192 8.54 < 5.5 5d 32 97.77 5794920 0.32 1480016 10.07 < 5.5 6d 148 89.66 5786320 0.46 1374196 16.50 < 5.5

(“−” stands for the baseline)

efficiently and facilitate the optimization works, all these characteristics are identified with three terms: Net crossing, Total net length, and Length deviation in experimental results. To demonstrate the features of our I/O-row based scheme on improving chip-package codesign requirements, the experimental results are achieved by adopting two different methods to place initial I/O-bump tiles. In Table IV and Table V, a and

c denote that initial locations of I/O-bump tiles are randomly generated in each sector

as long as the bump spacing meet design rules. Whereas b and d denote that initial I/O-bump tiles are uniformly arranged with fixed bump spacing.

The experimental results of test cases d4 and d5 shown in Table IV and Table V are consistent, and are independent of the I/O number. They both are fairly reassuring and encouraging. The SORT (1x) heuristic works toward obtaining the zero net-crossing in monotonic package routing through ordering I/O-bump tiles. Comparing with the

(17)

Fig. 15. Improvement curves of performance metrics plotted by randomly generating the initial I/O-bump tiles and applying method5c. After running ten times, the average improvements on net crossing, total net length and total length deviation are 86.22%, 0.47% and 27.43% respectively.

Fig. 16. Normalization of performance metrics obtained by adopting methods1c to 6c. The assignment algorithms (3c to 6c) can perform the tradeoffs between the net crossing and the length deviation by specifying the suitable user-defined parameters (α and β).

other methods, the GREEDY (2x) heuristic succeeds in shortening the total net length and the length deviation for flylines. Furthermore, the assignment algorithms W BI PT (3x to 6x) balance the net crossing and the length deviation. Comparing the results in Table IV and Table V, the randomly assigned initial I/O-bump tiles will produce the shorter net length and the length deviation among all planning methods due to higher flexibility, and the uniformly arranged ones will cause smaller net crossing number thus reducing package routing layers.

To ensure that our random manner of generating the initial I/O-bump tiles will not produce the worse results, we apply method5c ten times and plot the improvement curves of performance metrics. Figure 15 shows that the average improvements on net crossing, total net length and total length deviation are 86.22%, 0.47% and 27.43% re-spectively. As a result, the method W BI PT with appropriate parameters can certainly

(18)

optimize the I/O-bump tiles, even though their initial locations are not assigned by a deterministic algorithm.

Figure 16 is made by normalizing those performance metrics with their average value. The results show that we can specify the appropriate user-defined parameters (α andβ) to determine the priority of the net crossing and the length deviation according to the design requirements, and to obtain a fairly good point to continue with the detailed planning/routing. In other words, the results can be utilized as preliminary feasibility studies for all possible chip-package configurations.

6. CONCLUSION AND FUTURE WORK

In order to avoid much longer turnaround time with package and system houses, we study the realization of area-array I/O design methodology, emphasizing on package design awareness. With our setup in the design of I/O-bump tile and I/O-row based scheme, we further develop a chip-package concurrent design flow. Due to the early phase of I/O-bump planning study, faster convergence can be expected from some encouraging results.

For area-array I/O planning, our future work will focus on dealing with the dif-ferential signals and taking account of the power/ground-to-signal ratio in planning methodology, which are two major issues of maintaining signal integrity and power integrity for high-speed system.

ACKNOWLEDGMENT

The authors would like to thank the anonymous reviewers for providing valuable comments to greatly improve this article.

REFERENCES

CALDWELL, A., KAHNG, A. B., MANTIK, S.,ANDMARKOV, I. L. 1998. Implications of area- array i/o for row-based placement methodology. In Proceedings of the IEEE Symposium on IC/Package Design Integration. 93–98.

CHANG, C.-Y.ANDCHEN, H.-M. 2008. Design migration from peripheral asic design to area-i/o flip-chip design by chip i/o planning and legalization. IEEE Trans. VLSI Syst. 16, 1, 108–112.

CHEN, H.-M., LIU, I.-M.,ANDWONG, M. D. F. 2006. I/O clustering in design cost and performance optimization for flip-chip design. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst. 25, 11, 2552–2556.

FANG, J.-W.ANDCHANG, Y.-W. 2008. Area-i/o flip-chip routing for chip-package co-design. In Proceedings of the IEEE/ACM International Conference on Computer-Aided Design. 518–522.

FANG, J.-W., HSU, C.-H.,ANDCHANG, Y.-W. 2009. An integer-linear-programming-based routing algorithm for flip-chip designs. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst. 28, 1, 98–110.

FANG, J.-W., LIN, I.-J., CHANG, Y.-W.,ANDWANG, J.-H. 2007. A network-flow based rdl routing algorithms for flip-chip design. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst. 26, 8, 1417–1429.

FONTANELLI, A., ARRIGONI, S., RACCAGNI, D.,ANDROSIN, M. 2002. System-on-chip (SoC) requires ic and pack-age co-design and co-verification. In Proceedings of the IEEE Custom Integrated Circuits Conference. 319–322.

KUBO, Y.ANDTAKAHASHI, A. 2005. A global routing method for 2-layer ball grid array packages. In Proceedings of the International Symposium on Physical Design. 36–43.

MAHESHWARI, V., DARNAUER, J., RAMIREZ, J.,ANDDAI, W. W.-M. 1995. Design of fpgas with area i/o for field programmable mcm. In Proceedings of the ACM International Symposium on Field-Programmable Gate Arrays. 17–23.

MEISTER, T., LIENIG, J.,ANDTHOMKE, G. 2008. Novel pin assignment algorithms for components with very high pin counts. In Proceedings of the Conference and Exhibition on Design, Automation and Test in Europe. 837–842.

PASCARIU, G., CRONIN, P.,ANDCROWLEY, C. 2003. Next generation electronics packaging utilizing flip chip technology. In Proceedings of the IEEE International Electronics Manufacturing Technology Symposium. 423–426.

(19)

In Proceedings of the ACM/IEEE Design Automation Conference. 853–856.

TAN, C., BOULDIN, D.,ANDDEHKORDI, P. 1997. Design implementation of intrinsic area array ics. In Proceedings of the 17th Conference on Advanced Research in VLSI. 82–93.

WANG, J., MUCHHERLA, K. K.,ANDKUMAR, J. G. 2004. A clustering based area i/o planning for flip-chip technol-ogy. In Proceedings of the 5th International Symposium on Quality Electronic Design. 196–201. XIONG, J., WONG, Y.-C., SARTO, E.,ANDHE, L. 2006. Constraint driven I/O planning and placement for

chip-package co-design. In Proceedings of the Asia and South Pacific Design Automation Conference. 207–212. YU, M.-F.ANDDAI, W. W.-M. 1995. Single-layer fanout routing and routability analysis for ball grid arrays.

In Proceedings of the IEEE/ACM International Conference on Computer-Aided Design. 581–586.

Figure

Fig. 2. The die size comparison of designs with different I/O planning. (a) is implemented with the peripheral I/Os and wire-bond package, (b) is a general flip-chip design planned with extrinsic area-array I/Os and connected to bumps by RDL routing and (c
Fig. 2. The die size comparison of designs with different I/O planning. (a) is implemented with the peripheral I/Os and wire-bond package, (b) is a general flip-chip design planned with extrinsic area-array I/Os and connected to bumps by RDL routing and (c p.2
Fig. 1. The simplified illustration of two general package types. (a) is the wire-bond package, and (b) is the flip-chip package.
Fig. 1. The simplified illustration of two general package types. (a) is the wire-bond package, and (b) is the flip-chip package. p.2
Fig. 3. The conventional design flow. It iteratively optimizes the locations of core cells and I/Os, then performs the bump planning, RDL routing and finishes the bump placement for package routing
Fig. 3. The conventional design flow. It iteratively optimizes the locations of core cells and I/Os, then performs the bump planning, RDL routing and finishes the bump placement for package routing p.4
Fig. 4. The proposed concurrent chip-package design flow. Through package-aware I/O-bump planning, it completes the core cell and I/O placement and package routing simultaneously, thus reducing the design cycles between chip and package.
Fig. 4. The proposed concurrent chip-package design flow. Through package-aware I/O-bump planning, it completes the core cell and I/O placement and package routing simultaneously, thus reducing the design cycles between chip and package. p.5
Fig. 5. The design of proposed I/O-bump tile that integrates I/O and bump into the single and unique interface between chip and package
Fig. 5. The design of proposed I/O-bump tile that integrates I/O and bump into the single and unique interface between chip and package p.6
Fig. 6. The I/O-row based I/O-bump planning scheme. The width/height of tile and I/O-row are designed to satisfy the bump size/pitch
Fig. 6. The I/O-row based I/O-bump planning scheme. The width/height of tile and I/O-row are designed to satisfy the bump size/pitch p.6
Fig. 8. Double sorting for planar planning. It sorts the I/O-bump tiles and produces the proper order by referring to the order of balls.
Fig. 8. Double sorting for planar planning. It sorts the I/O-bump tiles and produces the proper order by referring to the order of balls. p.10
Fig. 7. The I/O-bump tiles placement regions. The whole package will be partitioned into four sectors and the initial placement of corresponding I/O-bump tiles will be given within each sector.
Fig. 7. The I/O-bump tiles placement regions. The whole package will be partitioned into four sectors and the initial placement of corresponding I/O-bump tiles will be given within each sector. p.10
Fig. 9. Example of double sorting method. This method achieves zero net crossing when using the monotonic package routing
Fig. 9. Example of double sorting method. This method achieves zero net crossing when using the monotonic package routing p.11
Fig. 10. Shortening flylines between I/O-bumps and package balls. It greedily chooses the shortest flyline between bumps and balls.
Fig. 10. Shortening flylines between I/O-bumps and package balls. It greedily chooses the shortest flyline between bumps and balls. p.12
Fig. 11. Example of shortening flylines method. This method shortens the sum of length deviation on each net.
Fig. 11. Example of shortening flylines method. This method shortens the sum of length deviation on each net. p.13
Fig. 13. Estimation of net crossing number. The estimated crossing number is larger than real one.
Fig. 13. Estimation of net crossing number. The estimated crossing number is larger than real one. p.14
Fig. 12. Matching-based assignment W BI PT . This method models the package-aware I/O-bump planning as a weighted bipartite matching problem to balance severeal design requirements.
Fig. 12. Matching-based assignment W BI PT . This method models the package-aware I/O-bump planning as a weighted bipartite matching problem to balance severeal design requirements. p.14
Fig. 14. Our crossing’s definition to show that our estimation is the upper bound of crossing number.
Fig. 14. Our crossing’s definition to show that our estimation is the upper bound of crossing number. p.15
Table IV.

Table IV.

p.16
Fig. 15. Improvement curves of performance metrics plotted by randomly generating the initial I/O-bump tiles and applying method 5c
Fig. 15. Improvement curves of performance metrics plotted by randomly generating the initial I/O-bump tiles and applying method 5c p.17
Fig. 16. Normalization of performance metrics obtained by adopting methods 1c to 6c
Fig. 16. Normalization of performance metrics obtained by adopting methods 1c to 6c p.17

References
