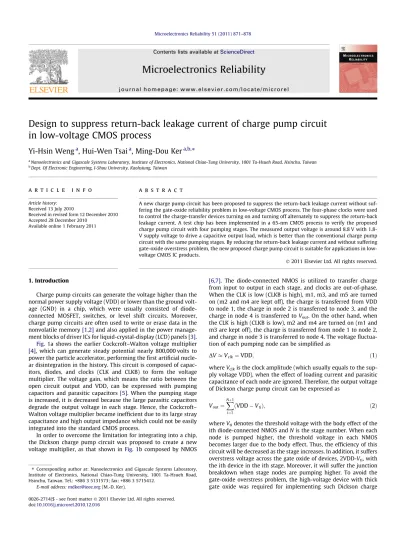

Design to suppress return-back leakage current of charge pump circuit in low-voltage CMOS process

Design to suppress return-back leakage current of charge pump circuit

in low-voltage CMOS process

Yi-Hsin Weng

a

_{, Hui-Wen Tsai}

a

_{, Ming-Dou Ker}

a,b,⇑

a

Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan

b

Dept. Of Electronic Engineering, I-Shou University, Kaohsiung, Taiwan

a r t i c l e

i n f o

Article history: Received 13 July 2010

Received in revised form 12 December 2010 Accepted 28 December 2010

Available online 1 February 2011

a b s t r a c t

A new charge pump circuit has been proposed to suppress the return-back leakage current without suf-fering the gate-oxide reliability problem in low-voltage CMOS process. The four-phase clocks were used to control the charge-transfer devices turning on and turning off alternately to suppress the return-back leakage current. A test chip has been implemented in a 65-nm CMOS process to verify the proposed charge pump circuit with four pumping stages. The measured output voltage is around 8.8 V with 1.8-V supply voltage to drive a capacitive output load, which is better than the conventional charge pump circuit with the same pumping stages. By reducing the return-back leakage current and without suffering gate-oxide overstress problem, the new proposed charge pump circuit is suitable for applications in low-voltage CMOS IC products.

Ó 2011 Elsevier Ltd. All rights reserved.

1. Introduction

Charge pump circuits can generate the voltage higher than the normal power supply voltage (VDD) or lower than the ground volt-age (GND) in a chip, which were usually consisted of diode-connected MOSFET, switches, or level shift circuits. Moreover, charge pump circuits are often used to write or erase data in the nonvolatile memory[1,2]and also applied in the power manage-ment blocks of driver ICs for liquid-crystal-display (LCD) panels[3].

Fig. 1a shows the earlier Cockcroft–Walton voltage multiplier

[4], which can generate steady potential nearly 800,000 volts to power the particle accelerator, performing the first artificial nucle-ar disintegration in the history. This circuit is composed of capac-itors, diodes, and clocks (CLK and CLKB) to form the voltage multiplier. The voltage gain, which means the ratio between the open circuit output and VDD, can be expressed with pumping capacitors and parasitic capacitors[5]. When the pumping stage is increased, it is decreased because the large parasitic capacitors degrade the output voltage in each stage. Hence, the Cockcroft– Walton voltage multiplier became inefficient due to its large stray capacitance and high output impedance which could not be easily integrated into the standard CMOS process.

In order to overcome the limitation for integrating into a chip, the Dickson charge pump circuit was proposed to create a new voltage multiplier, as that shown inFig. 1b composed by NMOS

[6,7]. The diode-connected NMOS is utilized to transfer charge from input to output in each stage, and clocks are out-of-phase. When the CLK is low (CLKB is high), m1, m3, and m5 are turned on (m2 and m4 are kept off), the charge is transferred from VDD to node 1, the charge in node 2 is transferred to node 3, and the charge in node 4 is transferred to Vout. On the other hand, when

the CLK is high (CLKB is low), m2 and m4 are turned on (m1 and m3 are kept off), the charge is transferred from node 1 to node 2, and charge in node 3 is transferred to node 4. The voltage fluctua-tion of each pumping node can be simplified as

D

V  Vclk¼ VDD; ð1Þ

where Vclkis the clock amplitude (which usually equals to the

sup-ply voltage VDD), when the effect of loading current and parasitic capacitance of each node are ignored. Therefore, the output voltage of Dickson charge pump circuit can be expressed as

Vout¼

X

Nþ1 i¼1

ðVDD  VtiÞ; ð2Þ

where Vtidenotes the threshold voltage with the body effect of the

ith diode-connected NMOS and N is the stage number. When each node is pumped higher, the threshold voltage in each NMOS becomes larger due to the body effect. Thus, the efficiency of this circuit will be decreased as the stage increases. In addition, it suffers overstress voltage across the gate oxide of devices, 2VDD-Vti, with

the ith device in the ith stage. Moreover, it will suffer the junction breakdown when stage nodes are pumping higher. To avoid the gate-oxide overstress problem, the high-voltage device with thick gate oxide was required for implementing such Dickson charge 0026-2714/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.

doi:10.1016/j.microrel.2010.12.016

⇑ Corresponding author at: Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan. Tel.: +886 3 5131573; fax: +886 3 5715412.

E-mail address:mdker@ieee.org(M.-D. Ker).

Microelectronics Reliability 51 (2011) 871–878

Contents lists available atScienceDirect

Microelectronics Reliability

pump circuit. However, the thick gate-oxide NMOS often has a high threshold voltage which somehow degrades the pumping effi-ciency. Due to the fact that the CMOS technology is continuously scaled down, some modified charge pump circuits[8–22] based on Dickson charge pump circuit were invented to eliminate the body effect, to overcome the threshold drop and the gate-oxide overstress problem, and to improve the efficiency.

The charge pump circuit proposed in[8]has similar concept as Dickson charge pump circuit. It utilizes four-phase clock to control the gate voltage of the charge-transfer devices to eliminate the threshold drop issue except the diode-connected transistor at the output stage. A bootstrapped circuit [9] and auxiliary circuits

[10,11]used in the charge pump circuits could elevate the pump-ing voltage of Dickson voltage multiplier, yet these charge pump circuits occupied more silicon area and wasted more extra power in the systems. The floating-well technique[12]was used to re-duce the influence of the body effect on the diode-connected MOS-FET, but the substrate current generated due to the floating-well connection might affect other circuits in the same chip. The mod-ified design [13]could transfer the charge from input to output completely by using switches, although it also suffered the body effect and the threshold drop in the final stage. The dynamical operation decides the conducted connection of the bulk terminals of the charge-transfer devices by using auxiliary small MOSFET

[14]. However, it could generate the parasitic capacitors and sub-strate current when the bulk terminals of the charge-transfer de-vices were floating during the clock transitions. Besides, above charge pump circuits all suffer the gate-oxide overstress problem. The charge pump circuits consisted of all PMOS can eliminate the body effect without extra layers[15,16]. Nonetheless, the imple-mentation of all PMOS devices causes larger area and parasitic capacitance, and more devices connected to the pumping nodes degraded the efficiency of charge pump circuits. Charge pump cir-cuits[17–22]can eliminate the threshold drop by using switches and overcome the gate-oxide overstress problem with two-branch structure. However, the circuit[17,18]has serious leakage current generated in bulk-diodes of PMOS since the bulks of PMOS in these circuits are connected to the drain terminals of NMOS in the same pumping stage. The enhanced charge pump circuit[19]could be turned on easily due to the decrease for the turn-on resistors of the charge-transfer devices. Nevertheless, it occupied more silicon

area because of extra capacitors needed. Multi-stage charge pump circuits[20–22] have higher voltage gain than previous works. Nonetheless, the leakage current is generated during the clock transitions, and it is particularly serious as the clock signals are not ideal[23].

2. Charge pump circuit without gate-oxide overstress problem

Fig. 2a shows the charge pump circuit of the prior art[22] de-signed with low-voltage devices and without suffering the gate-oxide overstress problem. CLK and CLKB are out-of-phase with the amplitude of VDD. This circuit uses two branches to avoid the gate-oxide overstress, where the voltage difference between the drain/source and the gate in each MOSFET is not over VDD. This circuit has no threshold drop through using switches to transfer charge from input to output. However, in this charge pump circuit, the return-back leakage current during the transition of clocks causes some degradation on the output voltage (Vout).

For example, when CLK is from low to high (CLKB is from high to low), the voltage of node 4 becomes 5VDD from 4VDD, the volt-age of node 8 becomes 4VDD from 5VDD, and the voltvolt-age of node A still holds in 4VDD. Hence, it is expected that mp8 inFig. 2a has to be turned off and simultaneously mn8 and mp7 inFig. 2a have to be turned on. Actually, mp8 could not be turned off immediately while mn8 and mp7 have been turned on already. Thus, mp8, mn8, and mp7 would provide a leakage path such that the charge at the output will return back through mp8, mn8, and mp7 to node 7. Similarly, if mp4 is already turned on and mn4 as well as mp3 could not be turned off immediately, it also provided a leakage path from output to node 3. The simulated results are shown in

Fig. 2b, where the leakage currents are generated in these devices during the clock transitions. For PMOS (mp4, mp8), the return-back leakage current is positive, with peak current around 100

l

A. Similarly, the return-back leakage current is negative in NMOS (mn4, mn8), and the peak current is also around 100

l

A. 3. Newly proposed charge pump circuit

In this work[24], the new charge pump circuit is proposed to suppress the return-back leakage current in the previous work Fig. 1. The schematics of (a) Cockcroft–Walton voltage multiplier[4]and (b) Dickson charge pump circuit[5].

[22]during clock transitions. Therefore, pumping efficiency of the new design is further improved for implementation in the low-voltage CMOS processes.Fig. 3a shows the newly proposed charge pump circuit with the corresponding clock waveforms (CLKA, CLKB, CLKC, and CLKD) shown inFig. 3b. In the schematic diagram, C represents the main pumping capacitor, and Cs is the auxiliary pumping capacitor with a small capacitance. Each stage also con-tains Branch A and Branch B, which have identical structures but are turned on alternately to pump output voltage to high. By using the clock signals (CLKA to CLKD) as depicted inFig. 3b to create four operation periods, PMOS (mc1, mc2, mc3, mc4, md1, md2, md3, and md4) of small dimensions and the auxiliary Cs capacitors control the main charge-transfer devices (mp1, mp2, mp3, mp4, mp5, mp6, mp7, and mp8) turning off properly. Thus, return-back leakage current during the clock transitions can be avoided. More details about circuit operation in the four separate periods are introduced in the following.

3.1. During the period T_1

During the period T_1, CLKA, CLKB, CLKC, and CLKD are high, low, high, and high to low, respectively. At this moment, the volt-age difference V15 (V37) between node 1 and node 5 (node 3 and node 7) is –VDD. Hence, mn1 and mc1 (mn3 and mc3) are turned on to transfer charge from input node of VDD to node 1 (node 2 to node 3) and transfer charge from node 5 (node 7) to node c1 (c3). At the same moment, mp5 and mn6 (mp7 and mn8) are turned on

to transfer charge from node 5 to node 6 (node 7 to node 8). Simul-taneously, mn5 (mn7) is kept off to cut off the leakage path from node 5 back to input node of VDD (node 7 back to node 6), and mp1 and mn2 (mp3 and mn4) are kept off to cut off the leakage path from node 2 back to node 1 (node 4 back to node 3).

For the last output stage, mp4 and mn8 are turned on (mn4 and mp8 are kept off), and the pumping voltage will be transferred from node 4 to the output.

3.2. During the periods T_2 and T_4

During the periods T_2 and T_4, CLKA, CLKB, CLKC, and CLKD are low, low, high, and high, respectively. At this period, the main charge-transfer devices (mn1, mn2, mn3, mn4, mn5, mn6, mn7, and mn8) are turned off because all the voltage differences from gate to source of charge-transfer devices are zero. In the meantime, the small-size PMOS (mc1, mc2, mc3, mc4, md1, md2, md3, and md4) are turned on to raise the node voltages of c1/d1, c2/d2, c3/ d3, and c4/d4 to the level of 2VDD, 3VDD, 4VDD, and 5VDD, respec-tively. Therefore, the gate voltages of all charge-transfer PMOS de-vices (mp1, mp2, mp3, mp4, mp5, mp6, mp7, and mp8) are higher than their corresponding source voltages to keep themselves off. 3.3. During the period T_3

During the period T_3, CLKA, CLKB, CLKC, and CLKD are low, high, high to low, and high, respectively. At this moment, the Fig. 2. (a) The charge pump circuit reported in the prior art[22]to solve the gate-oxide overstress problem in low-voltage CMOS process and (b) the return-back leakage current generated in mp4, mn4, mp8, and mn8 in the final stage during the transitions with 1.8-V amplitude of clock signals.

voltage difference V15 (V37) between node 1 and node 5 (node 3 and node 7) is VDD. Hence, mn5 and md1 (mn7 and md3) are turned on to transfer charge from the input node of VDD (node 6) to node 5 (node 7) and transfer charge from node 1 (node 3) to node d1 (d3). At the same moment, mp1 and mn2 (mp3 and mn4) are turned on to transfer charge from node 1 to node 2 (node 3 to node 4). Simultaneously, mn1 (mn3) is kept off to cut off the leakage path from node 1 back to the input node of VDD (node 3 back to node 2), and mp5 as well as mn6 (mp7 and mn8) are kept off to cut off the leakage path from node 6 back to node 5 (node 8 back to node 7). For the last output stage, mp8 and mn4 are turned on (mn8 and mp4 are kept off), and the pumping voltage will be transferred from node 8 to the output.

4. Experimental verification 4.1. Simulation

A 65-nm CMOS process model with 2.5-V devices is used to simulate and verify the performances of newly proposed charge pump circuit (this work) and the previous work ofFig. 2a (for com-parison).Fig. 4shows the simulated result of the return-back leak-age current of the newly proposed charge pump circuit during the clock transitions. The peak currents are around 2

l

A for NMOS and PMOS in the final stage. As the result, the newly proposed charge pump design is effective to suppress the return-back leakage cur-rent in the conventional charge pump circuits. Fig. 5shows the voltage waveforms of each node to verify the newly proposed charge pump circuit without gate-oxide overstress problem. From this simulation, the voltage difference is not over 1VDD (1.8 V).

To have a fair comparison, the newly proposed charge pump cir-cuit (this work) and the previous work[22]ofFig. 2a are designed under same condition which contains 2-pF pumping capacitor, 1.8-V supply voltage, 10-MHz clock frequency, 20-pF output loading capacitor, and the same sizes of charge-transfer devices. Addition-ally, the auxiliary capacitor (Cs) in the newly proposed charge pump circuit is designed with 25 fF.Fig. 6compares the simulated output voltages of the previous work[22]and this work under dif-ferent voltage levels of VDD. InFig. 6, the output voltages of these circuits are degraded when the input VDD is decreased. The simu-lated output voltage of the newly proposed charge pump circuit is 8.85 V, but that of previous work (Fig. 2a) is only 8.3 V with 1-ns rise/fall time of all clock signals and 1.8-V supply voltage. More-over, the return-back leakage current will be essentially reduced when the VDD voltage level is reduced. The output voltages of pvious work and this work are close at 5 V in the simulation re-sults ofFig. 6under the condition of 1-V supply voltage and tiny rise/fall time.

The overshooting/undershooting ripples at the simulated out-put voltage waveforms of the previous work[22]and the newly proposed charge pump circuit in the steady state are shown in

Fig. 7a and b, respectively. The value of the output ripple is calcu-lated by

Rippleð%Þ ¼Vpp

Vout 100%; ð3Þ

where Voutis the average output voltage and VPPis the peak-to-peak

ripple voltage in the output voltage waveforms. If the supply volt-age (VDD) increases, the quantity of the return-back leakvolt-age current will also increase because the output voltage becomes higher. Hence, the ripple will increase under higher supply voltage (VDD). Fig. 3. (a) The schematic of newly proposed charge pump circuit and (b) the corresponding clock waveforms with 1.8-V amplitude and 10-MHz frequency to create four separate operation periods (T_1, T_2, T_3, and T_4).

The relative simulated results are shown inFig. 8. From this figure, although the output value of this work (8.85 V) is higher than the previous work[22](8.3 V) under the supply voltage of 1.8 V, the output ripple of this work is still smaller than that of the previous work[22].

When the rise/fall times of clock signals are increased, the time periods of the return-back leakage current will become longer, so the quantity of return-back leakage current will also increase

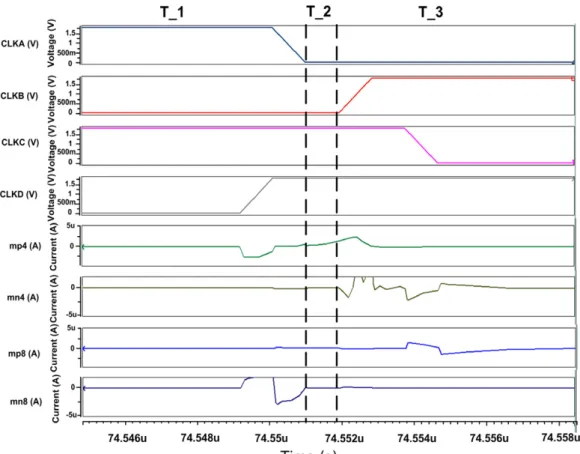

during the clock transitions.Fig. 9shows the method to estimate the return-back leakage current from the observed simulated waveforms. For the PMOS, the return-back leakage current is posi-tive. Two cases about the newly proposed charge pump circuit are depicted in this figure for clock signals with 1-ns and 12-ns rise/fall time. The quantity of the leakage charge in one transition can be approximately calculated, with its peak current value (H) and the major duration (W) when leakage is generated, by using the for-Fig. 4. The simulated results of return-back leakage current and corresponding clock transition in the newly proposed charge pump circuit with four-phase clocks of 1.8-V amplitude and same device sizes compared with the previous work[22].

Fig. 5. The simulated voltage waveforms at the nodes 1 to 8 and the output voltage (Vout) in the newly proposed charge pump circuit with VDD of 1.8 V.

mula of triangle area. Finally, the estimated return charge is the sum of all leakage currents (all the triangles) during the same per-iod. For the NMOS with negative return-back leakage current, the same method can still be applied. The estimated results of the sim-ulated return charge are shown inFig. 10with the clock signals of different rise/fall times. From this figure, the newly proposed charge pump circuit has smaller return charge than that in the pre-vious work[22]ofFig. 2a.Fig. 11shows the simulated output volt-ages of the charge pump circuits with different rise/fall times in the clock signals. InFig. 11, when the clock signals are not ideal, with increased rise/fall times of clock signals, the time period for the happening of leakage current is also increased so that the output voltages of the previous work[22]is significantly decreased. How-ever, by using this newly proposed design, the degradation on the output voltages of charge pump circuit due to the long rise/fall times in the clock transition can be alleviated.

4.2. Measurement in silicon chip

A test chip has been fabricated in a 65-nm CMOS process to ver-ify the newly proposed charge pump circuit (this work) and the

previous work[22](Fig. 2a). The chip photographs of the fabricated circuits are shown inFig. 12. With the main pumping capacitor (C) of 2 pF, the auxiliary capacitor (Cs) of 25 fF, supply voltage of 1.8 V, Fig. 6. The simulated output voltages of the four-stage charge pump circuits with

10-MHz clock frequency, 1-ns rise/fall time, and 20-pF capacitive loading under the different supply voltages (VDD).

Fig. 7. The simulated output voltage waveforms of (a) the previous work[22]and (b) this work with supply voltage of 1.8 V, frequency of 10 MHz, and capacitive loading of 20 pF.

Fig. 8. The simulated output ripples of this work and the previous work[22]with different supply voltages (VDD).

Fig. 9. The method used to estimate the return charge of PMOS by approximately calculating the quantity as the triangle area during the clock transitions in the charge pump circuits.

and clock frequency of 10 MHz, the measured output voltage of the newly proposed charge pump circuit is around 8.8 V and that of the prior art [22] is around 7.9 V when no loading resistor (Rout) is

added to the output (Vout).When the Routof different resistances

is added to the output node of the fabricated charge pump circuits,

the output voltages (Vout) will be degraded due to the limited

charges generated from the pumping capacitors at each clock cycle, as the measured results shown inFig. 13. When the clock gener-ated by the clock generator is not ideal, such as the rise/fall times of clocks increases or it generates overlapping situation, the effi-ciency of a charge pump circuit will be poorer because of the re-turn-back leakage current generated. By inserting a short turn-off period into the circuit operation of charge pump circuit to stagger the turn-on time of the charge-transfer devices, the return-back leakage current during the clock transitions can be successfully suppressed in the newly proposed charge pump circuit. Fig. 14

shows the measured results to verify the simulated results in

Fig. 11 about the output voltages under different rise/fall times when no loading resistor (Rout) is added. The measured output

volt-ages of the newly proposed charge pump circuit are still higher than that of the previous work[22]with the same device dimen-sions and capacitors. Thus, the newly proposed charge pump cir-cuit has been successfully proved to suppress the return-back leakage current during the clock transitions. Fig. 15 shows the measured output voltages corresponding with different supply voltages of the newly proposed charge pump circuit and the prior art[22]when no loading resistor (Rout) is added. The output

volt-ages of these circuits cannot be higher (over 9 V) with the supply voltage over 1.8 V, because the junction breakdown voltage of these devices in the given CMOS process is about 9 V. From the fact Fig. 10. The estimated return charge of the charge pump circuits under the clock

signals with different rise/fall times (f = 10 MHz, VDD = 1.8 V).

Fig. 11. The simulated output voltages of the charge pump circuits with different rise/fall times in the clock signals (f = 10 MHz, VDD = 1.8 V).

Fig. 12. Chip photographs of (a) the previous work[22], and (b) the newly proposed charge pump circuit, fabricated in a 65-nm CMOS process.

Fig. 13. The measured output voltages of this work and the previous work[22] (f = 10 MHz, VDD = 1.8 V, rise/fall time of 2 ns) with different loading resistances (Rout) at the output node.

that the newly proposed design provides output voltage closer to the ideal value, the newly proposed charge pump circuit is more suitable to be used in low-voltage process than the previous work

[22].

5. Conclusion

A new charge pump circuit with the design to suppress the re-turn-back leakage current in low-voltage CMOS process has been proposed and successfully verified in silicon. During the clock tran-sitions, it is difficult to control the devices turning on or turning off definitely, the return-back leakage current thus generated to cause the decrease of output voltage. Similarly, if the clock signals are not ideal or the pumping capacitors are too large, the rise/fall times of clock signals are increased, and the return-back leakage current will increase to degrade the output voltage. Since the turn-on times of the devices in the newly proposed charge pump circuit are separated completely, the leakage current path can be ob-structed, and the output voltage will be maintained in a high value without degradation. Furthermore, by using the two-branch struc-ture, the newly proposed charge pump circuit is also free from suffering the gate-oxide overstress problem. As a result, the newly proposed charge pump circuit by reducing the return-back leakage

current has better efficiency than that of the prior designs, and also without suffering the gate-oxide overstress problem in a low-volt-age CMOS process.

Acknowledgment

The authors would like to thank Taiwan Semiconductor Manu-facturing Company (TSMC) for their support on chip fabrication.

This work was supported by National Science Council (NSC), Taiwan, under Contract of NSC 99-2220-E-009-021 and in particularly supported by the ‘‘Aim for the Top University Plan’’ of National Chiao-Tung University and Ministry of Education, Taiwan.

References

[1] Jinbo T, Nakata H, Hashimito K, Watanabe T, Ninomiya K, Urai T, et al. A 5-V-only 16-Mb flash memory with sector erase mode. IEEE J Solid-State Circ 1992;27:1547–54.

[2] Atsumi S, Kuriyama M, Umezawa A, Banba H, Naruke K, Yamada S, et al. A 16-Mb flash EEPROM with a new self-data-refresh scheme for a sector erase operation. IEEE J Solid-State Circ 1994;29:461–9.

[3] Yoo C, Lee K-L. A low-ripple poly-si TFT charge pump for driver-integrated LCD panel. IEEE Trans Consum Electr 2005;51:606–10.

[4] Cockcroft JD, Walton ETS. Production of high velocity positive ions. In: Proceedings of Royal Soc., A; 1932. p. 619–30.

[5] Pan F, Samaddar T. Charge pump circuit design. New York: McGraw-Hill; 2006. [6] Dickson JF. On chip high-voltage generation in MNOS integrated circuits using an improved voltage multiplied technique. IEEE J Solid-State Circ 1976;1:374–8.

[7] Witters JS, Groeseneken G, Maes HE. Analysis and modeling of on-chip high-voltage generator circuits for use in EEPROM circuits. IEEE J Solid-State Circ 1989;24:1372–80.

[8] Umezawa A, Atsumi S, Kuriyama M, Banba H, Imamiya K, Naruke K, et al. A 5-V-only operation 0.6-lm flash EEPROM with row decoder scheme in triple-well structure. IEEE J Solid-State Circ 1992;27:1540–6.

[9] Sawada K, Sugawara Y, Masui S. An on-chip high-voltage generator circuit for EEPROM with a power supply voltage below 2V. In: Proceedings of Symp VLSI Circuits Dig Tech Papers; 1992. p. 75–6.

[10] Lin H, Chang K-H, Wong S-C. Novel high positive and negative pumping circuits for low supply voltage. In: Proceedings of IEEE Int Symp Circuits Syst; 1999. p. 238–41.

[11] Lai S-Y, Wang J-S. A high-efficiency CMOS charge pump circuit. In: Proceedings of IEEE Int Symp Circuits Syst; 2001. p. 406–9.

[12] Choi K-H, Park J-M, Kim J-K, Jung T-S, Suh K-D. Floating-well charge pump circuits for sub-2.0 V single power supply flash memories. In: Proceedings of Symp VLSI Circuits Dig Tech Papers; 1997. p. 61–2.

[13] Wu J-T, Chang K-L. MOS charge pump for low-voltage operation. IEEE J Solid-State Circ 1998;33:592–7.

[14] Shin J, Chung I-Y, Park YJ, Min HS. A new charge pump without degradation in threshold voltage due to body effect. IEEE J Solid-State Circ 2000;35:1227–30. [15] Racape E, Dage JM. A PMOS-switch based charge pump allowing lost cost implementation on a CMOS standard process. In: Proceedings of IEEE European solid-state circuits conference; 2005. p. 77–80.

[16] Pan J, Yoshihara T. A charge pump circuit without overstress in low-voltage CMOS standard process. In: Proceedings of IEEE conference on electron device and solid-state circuits; 2007. p. 501–4.

[17] Pulvirenti F, Gariboldi R. MOS voltage elevator of the charge pump type. US Patent 5874,850; February 23, 1999.

[18] Conte A, Ucclardello C. Charge pump circuit. US Patent 7583,132 B2; September 1, 2009.

[19] Lee D-U. Multi stage voltage pump circuit. US Patent 7098,725 B2; August 29, 2006.

[20] Cabrini A, Gobbi L, Torelli G. Enhanced charge pump for untra-low-voltage applications. Electron Lett 2006;42:512–4.

[21] Pelliconi R, Iezzi D, Baroni A, Pasotti M, Rplandi PL. Power efficient charge pump in deep submicron standard CMOS technology. IEEE J Solid-State Circ 2003;38:1068–71.

[22] Ker M-D, Chen S-L, Tsai C-S. Design of charge pump circuit with consideration of gate-oxide overstress in low-voltage CMOS process. IEEE J Solid-State Circ 2006;41:1100–7.

[23] Fantini A, Cabrini A, Torelli G. Impact of control signal non-idealities on two-phase charge pumps. In: Proceedings of IEEE international symposium circuits and system; 2001. p. 1549–52.

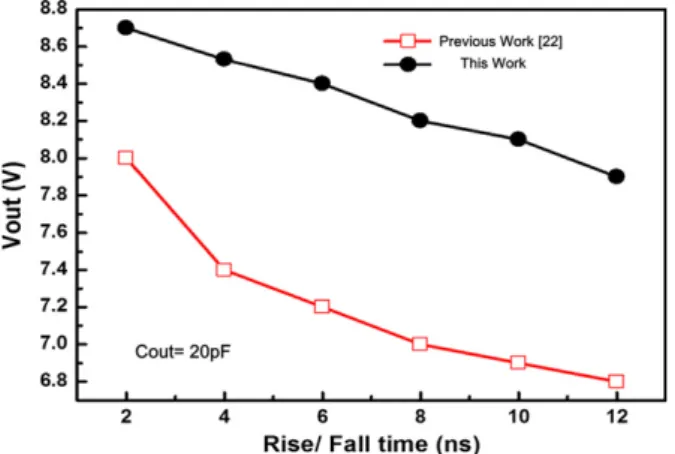

[24] Weng Y-H, Tsai H-W, Ker M-D. Design of charge pump circuit in low-voltage CMOS process with suppressed return-back leakage current. In: Proceedings of IEEE conference on integrated circuit design and technology; 2010. p. 155–8. Fig. 14. The measured output voltages of this work and previous work [22]

(f = 10 MHz, VDD = 1.8 V) with different rise/fall times of clock signals.

Fig. 15. The measured output voltages of the newly proposed charge pump circuit and the previous work[22]with the 20-pF capacitor loading and 2-ns rise/fall time in different the supply voltages (VDD).
