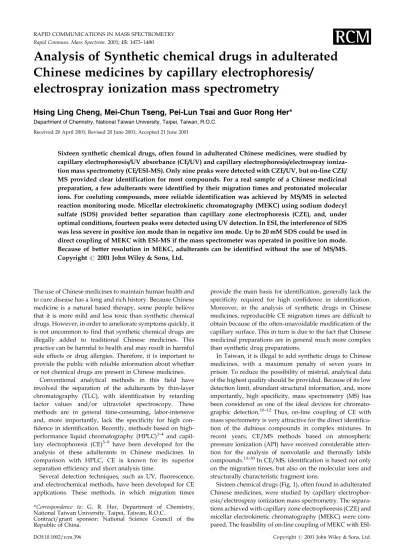

Analysis of Synthetic chemical drugs in adulterated
Chinese medicines by capillary electrophoresis/
electrospray ionization mass spectrometry
Hsing Ling Cheng, Mei-Chun Tseng, Pei-Lun Tsai and Guor Rong Her*
Department of Chemistry, National Taiwan University, Taipei, Taiwan, R.O.C.Received 20 April 2001; Revised 20 June 2001; Accepted 21 June 2001
Sixteen synthetic chemical drugs, often found in adulterated Chinese medicines, were studied by capillary electrophoresis/UV absorbance (CE/UV)and capillary electrophoresis/electrospray ioniza-tion mass spectrometry (CE/ESI-MS). Only nine peaks were detected with CZE/UV, but on-line CZE/ MS provided clear identification for most compounds. For a real sample of a Chinese medicinal preparation, a few adulterants were identified by their migration times and protonated molecular ions. For coeluting compounds, more reliable identification was achieved by MS/MS in selected reaction monitoring mode. Micellar electrokinetic chromatography (MEKC)using sodium dodecyl sulfate (SDS)provided better separation than capillary zone electrophoresis (CZE), and, under optimal conditions, fourteen peaks were detected using UV detection. In ESI, the interference of SDS was less severe in positive ion mode than in negative ion mode. Up to 20 mM SDS could be used in direct coupling of MEKC with ESI-MS if the mass spectrometer was operated in positive ion mode. Because of better resolution in MEKC, adulterants can be identified without the use of MS/MS. Copyright # 2001 John Wiley & Sons, Ltd.
The use of Chinese medicines to maintain human health and to cure disease has a long and rich history. Because Chinese medicine is a natural based therapy,some people believe that it is more mild and less toxic than synthetic chemical drugs. However,in order to ameliorate symptoms quickly,it is not uncommon to find that synthetic chemical drugs are illegally added to traditional Chinese medicines. This practice can be harmful to health and may result in harmful side effects or drug allergies. Therefore,it is important to provide the public with reliable information about whether or not chemical drugs are present in Chinese medicines.
Conventional analytical methods in this field have involved the separation of the adulterants by thin-layer chromatography (TLC),with identification by retarding factor values and/or ultraviolet spectroscopy. These methods are in general time-consuming,labor-intensive and,more importantly,lack the specificity for high con-fidence in identification. Recently,methods based on high-performance liquid chromatography (HPLC)1±4 and
capil-lary electrophoresis (CE)5±9 have been developed for the
analysis of these adulterants in Chinese medicines. In comparison with HPLC,CE is known for its superior separation efficiency and short analysis time.
Several detection techniques,such as UV,fluorescence, and electrochemical methods,have been developed for CE applications. These methods,in which migration times
provide the main basis for identification,generally lack the specificity required for high confidence in identification. Moreover,in the analysis of synthetic drugs in Chinese medicines,reproducible CE migration times are difficult to obtain because of the often-unavoidable modification of the capillary surface. This in turn is due to the fact that Chinese medicinal preparations are in general much more complex than synthetic drug preparations.
In Taiwan,it is illegal to add synthetic drugs to Chinese medicines,with a maximum penalty of seven years in prison. To reduce the possibility of mistrial,analytical data of the highest quality should be provided. Because of its low detection limit,abundant structural information,and,more importantly,high specificity,mass spectrometry (MS) has been considered as one of the ideal devices for chromato-graphic detection.10±12 Thus,on-line coupling of CE with
mass spectrometry is very attractive for the direct identifica-tion of the dubious compounds in complex mixtures. In recent years,CE/MS methods based on atmospheric pressure ionization (API) have received considerable atten-tion for the analysis of nonvolatile and thermally labile compounds.13±30In CE/MS,identification is based not only
on the migration times,but also on the molecular ions and structurally characteristic fragment ions.
Sixteen chemical drugs (Fig. 1),often found in adulterated Chinese medicines,were studied by capillary electrophor-esis/electrospray ionization mass spectrometry. The separa-tions achieved with capillary zone electrophoresis (CZE) and micellar electrokinetic chromatography (MEKC) were com-pared. The feasibility of on-line coupling of MEKC with
ESI-*Correspondence to: G. R. Her,Department of Chemistry, National Taiwan University,Taipei,Taiwan,R.O.C.
Contract/grant sponsor: National Science Council of the Republic of China.
RAPID COMMUNICATIONS IN MASS SPECTROMETRY Rapid Commun. Mass Spectrom. 2001; 15: 1473±1480
MS is discussed as well as the potential and the limitations of CZE/ESI-MS and MEKC/ESI-MS in the analysis of chemical drugs in Chinese medicines.
EXPERIMENTAL
Reagents and materials
All chemical drugs,acetaminophen,bucetin,caffeine, diazepam,ethoxybenzamide,fenbufen,flufenamic acid, indomethacine,ketoprofen,mefenamic acid,niflumic acid, oxyphenbutazone,phenylbutazone,prednisolone,salicyl-amide and sulindac,were obtained from the Laboratories of Foods and Drugs,Dept. of Health,Taipei,Taiwan. Methanol, ammonium acetate and formic acid were of chromato-graphic grade from J. T. Baker (Phillipsburg,NJ,USA). Ethanol was of HPLC-grade,purchased from Merck
(Darmstadt,Germany). Sodium dodecyl sulfate (SDS) was purchased from Sigma (St. Louis,MO,USA). Deionized (18 MO) water (Milli-Q water system,Millipore Inc.,Bedford, MA,USA) was used in the preparation of the buffer solution. Chemical drugs were dissolved in ethanol. The concentra-tion of each was 100 ppm for direct-infusion ESI-MS analy-sis,and 1000 ppm for CE/UV,MS and CE/ESI-MS/MS analysis.
Preparation of sample extract
Chinese medicine pills were obtained from National Laboratories of Foods and Drugs,Dept. of Health,Taipei, Taiwan. Each sample was pounded into powder. A sample of 100 mg was dissolved in 5 mL ethanol,extracted for 30 min by ultrasound,and centrifuged for 1 min to remove
the undissolved sample from the solution. The extract was filtered with a 0.45-mm filter and then concentrated to 50 mL.
CE system
The CE system was constructed in-house and has been described elsewhere.31CE columns were fused-silica
capil-lary (Polymicro Technologies,Phoenix,AZ,USA) 50 mm i.d., 375 mm o.d. and 90 cm length (80 cm to the UV detector). A small area of the polyimide coating was burned off to form a window for UV detection. On-column detection was performed with a UV detector (UV-C Rainin,Emeryville, CA,USA) operated at 254 nm. The MEKC running buffers were 20 mM SDS and 40 mM ammonium acetate,pH 9. The capillary was washed with 1 M NaOH,followed by 0.1 M NaOH,water,and running buffer. The capillary was equilibrated with running buffer for 20 min before each run.
Mass spectrometry
A Finnigan LCQ quadrupole ion trap mass spectrometer equipped with an electrospray ionization source (Finnigan MAT; San Jose,CA,USA) was used. The spray voltage was set to 4 kV and the heated capillary was set to 200°C. Solutions of chemical drugs (100 ppm) were infused with a syringe pump at a flow rate of 5 mL/min. The CE/MS interface utilizes a triaxial flow arrangement whereby CE eluent is mixed with a suitable make-up sheath liquid at the tip and nebulized by nitrogen gas. CE columns were 80 cm long. The high voltage applied to the buffer reservoir was 24 kV. With 4 kV ESI voltage applied at the outlet of the separation column,the potential difference during the analysis was about 20 kV for CE/ESI-MS analysis. The
sheath liquid consisted of water,methanol,and formic acid (30:70:0.2,v/v/v) and was delivered at a flow rate of 3 mL/ min by syringe pump. The mass spectrometer was operated in positive ion mode,and data were collected in full scan mode for CE/ESI-MS analysis and selected reaction mon-itoring (SRM) mode for CE/ESI-MS/MS analysis. In MS/MS analysis,voltage for the collision energy (peak-to-peak amplitude of the resonance excitation) ranged from 0.6 to 1 V. To avoid space charge effects,the number of ions stored in the trap was regulated by the automatic gain control, which was set at 5 107 ions for full scan mode,and
1.2 107for SRM mode. Helium was used as damping gas at
a pressure of 10 3Torr. The maximum ion collection time
was 200 ms for each step and 3 scans were averaged for each spectrum. The LCQ mass spectrometer was operated at unit resolution.
RESULTS AND DISCUSSION
CZE/UV and CZE/MS analysis of synthetic drugs
Because of the ease of on-line coupling with ESI-MS,CZE was first chosen to separate the sixteen chemical drugs. Under the optimal condition (40 mM ammonium acetate at pH 9),nine peaks were detected by UV (Fig. 2). Coinjection with authentic standards suggested that six analytes: salicylamide,ethoxybenzamide,caffeine,bucetin,diazepam, and prednisolone,coeluted and also migrated at a velocity equal to the EOF (peak 1). In addition to this first coeluting peak,phenylbutazone coeluted with oxyphenbutazone (peak 3) and flufenamic acid coeluted with mefenamic acid (peak 9). In the analysis of synthetic drugs from the crude
Figure 2. CZE/UV electrophorogram of the sixteen chemical drugs. A 90-cm (80-cm effective length)
fused-silica capillary tubing was used with 40 mM ammonium acetate at pH 9 as running buffer. The potential was 20 kV and the detection wavelength was 254 nm. Samples were injected hydrodynamically (15 mbar for 10 s). Peaks were assigned as (1) salicylamide, ethoxybenzamide, caffeine, bucetin, diazepam, and prednisolone (2) acetaminophen (3) phenylbutazone, and oxyphenbutazone (4) sulindac (5) indomethacine (6) fenbufen (7) niflumic acid (8) ketoprofen (9) flufenamic acid, and mefenamic acid.
extract of Chinese medicinal preparations,it was found that the reproducibility of migration time was poorer than in the analysis of pure standards. This is most likely due to capillary surface modification by the complex matrix in the crude extract. The poor reproducibility in migration time makes identification solely based on migration time not reliable.
Because of its very high specificity,mass spectrometry would be a better detector for CE than UV. Furthermore, with MS as the detector,baseline resolution of components may not be needed for a clear identification. Accordingly, CZE was coupled directly with ESI-MS using a sheath liquid interface. The CZE separation was carried out under basic conditions (pH 9). To perform positive ion ESI-MS,analytes should preferably be converted to protonated molecules ([M H]) before entering the electrospray needle. This was
achieved with the help of an acidic sheath liquid (methanol/ water/formic acid,70:30:0.2,v/v/v). The mass electrophor-ograms of the sixteen drugs are shown in Fig. 3.
Several real samples were studied by this CZE/MS method. The results of these analyses suggested that,in
cases with inadequate CE resolution,MS/MS would be a better choice for the identification of chemical drugs in Chinese medicines. For example,four compounds were detected in one Chinese medicinal preparation,but,of these four compounds,three compounds coeluted. In addition,the fourth compound had a migration time very similar to that of the first three. In this case,the detection specificity based on migration time and/or molecular weight might not be adequate for a clear identification. To improve the con-fidence of compound identification,MS/MS was used. The major fragment ions resulting from collision-induced dis-sociation (CID) are listed in Table 1. For better sensitivity, only one transition was monitored for each analyte. As shown in Fig. 4,four synthetic drugs were identified in this real sample. Three compounds were eluted at 11.2 min. The m/z 195 → 138 transition corresponds to the loss of CH3NCO
from the molecular ion of caffeine. The m/z 166 → 149 transition corresponds to the loss of NH3from the molecular
ion of ethoxybenzamide and the m/z 361 → 343 transition corresponds to the loss of H2O from the molecular ion of
prednisolone. The m/z 152 → 110 transition at 11.6 min
Figure 3. CZE/ESI-MS electrophorograms of the sixteen chemical drugs. Sheath liquid
composition was methanol/water (70:30) containing 0.2% formic acid. The potential applied to the buffer reservoir was24 kV, and the ESI voltage was set at 4 kV. Data were collected in full scan mode over the range m/z 100–400.
corresponds to the loss of C2H2O from the molecular ion of
acetaminophen.
MEKC/UV and MEKC/MS analysis of synthetic
drugs
MEKC is known for its excellent resolving power in the
separation of charged as well as neutral compounds.32To
improve the separation of the sixteen synthetic drugs,MEKC was then studied as the separation method.
MEKC was not selected initially because on-line coupling of MEKC with ESI-MS is generally considered much more difficult than the coupling of CZE with ESI-MS. Surfactants such as SDS are known to reduce ionization efficiency,and lead to ion source contamination.20 Several approaches
including APCI,21,22 coupled capillary,23 high molecular
weight surfactant,30 partial-filling MEKC,24±27 and
anodi-cally migrating micelles,28have been proposed to alleviate
this problem. Recently,it has been reported that MEKC can be coupled directly with ESI in the positive selected ion monitoring (SIM) mode.29
Direct coupling of MEKC with ESI-MS was investigated in this study because it required the least amount of technical manipulation. To investigate the feasibility of analyzing adulterants in Chinese medicines by direct coupling of MEKC with ESI-MS,the effect of SDS on ESI efficiency was studied using infusion experiments. The results of negative ion ESI showed that,even at a SDS concentration of 10 mM, which is only slightly higher than the critical micelle concentration value (8.2 mM),the signals of analytes were seriously suppressed. In positive ion ESI-MS mode,the interference was less severe. The effect of SDS on analyte signals as a function of SDS concentration is shown in Fig. 5.
Figure 4. CZE/ESI-MS/MS electrophorograms of a real sample. The CZE
and MS conditions were the same as in Fig. 3. Data were collected in SRM mode.

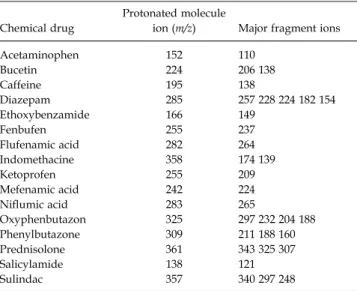

Table 1. Protonated molecular ions and their major CID fragment
ions for the sixteen chemical drugs
Chemical drug Protonated moleculeion (m/z) Major fragment ions
Acetaminophen 152 110 Bucetin 224 206 138 Caffeine 195 138 Diazepam 285 257 228 224 182 154 Ethoxybenzamide 166 149 Fenbufen 255 237 Flufenamic acid 282 264 Indomethacine 358 174 139 Ketoprofen 255 209 Mefenamic acid 242 224 Ni¯umic acid 283 265 Oxyphenbutazon 325 297 232 204 188 Phenylbutazone 309 211 188 160 Prednisolone 361 343 325 307 Salicylamide 138 121 Sulindac 357 340 297 248
The infusion experiment showed that,with SDS concen-trations greater than 20 mM,the signals were reduced to less than 30% for most analytes in comparision with those observed with no SDS. Accordingly,the sixteen analytes were separated at SDS concentrations less than 20 mM. The results showed that 20 mM gave much better separation than
10mM,and the separation (Fig. 6) appeared to be signifi-cantly better than that obtained using CZE. Fourteen instead of nine peaks were observed with UV detection. Coinjection with authentic standards suggested that ethoxybenzamide coeluted with salicylamide,and mefenamic acid coeluted with flufenamic acid. Among the fourteen peaks,many of
Figure 5. Effect of SDS on analyte signals as a function of SDS concentration. The concentration of each
analyte was 100 ppm.
Figure 6. MEKC/UV electrophorogram of the sixteen chemical drugs. A
90-cm (80-90-cm effective length) fused-silica capillary tubing was used with 20 mM SDS and 40 mM ammonium acetate at pH 9 as running buffer. The potential was20 kV and the detection wavelength was 254 nm. Samples were injected hydrodynamically (15 mbar for 10 s). Peaks were assigned as (1) acetaminophen (2) caffeine (3) oxyphenbutazone (4) phenylbutazone (5) bucetin (6) ethoxybenzamide, salicylamide (7) fenbufen (8) niflumic acid (9) sulindac (10) mefenamic acid, flufenamic acid (11) ketoprofen (12) indomethacine (13) prednisolone (14) diazepam.
Figure 7. MEKC/ESI-MS electrophorograms of the sixteen chemical drugs. Sheath
liquid composition was methanol/water (70:30) containing 0.2% formic acid. The potential applied to the buffer reservoir was24 kV and ESI voltage was set at 4 kV. Data were collected in full scan mode over the range m/z 100–400.
Figure 8. MEKC/ESI-MS electrophorograms of a real sample. The MEKC and MS
conditions were the same as those used to obtain Fig. 7. Data were collected in full scan mode over the range m/z 100–400.
them were only partially resolved. In order to achieve a clear identification of the presence of synthetic drugs in adulter-ated Chinese medicines,MEKC was coupled with ESI-MS.
Direct coupling of MEKC with ESI-MS appeared to be more difficult than the coupling of CZE with ESI-MS; the signals were not as stable as in CZE/MS,and the electrical continuity was relatively difficult to maintain. Despite these difficulties,we were able to analyze these synthetic drugs,as shown in Fig. 7. The isobaric compounds ketoprofen and fenbufen result in the appearance of two peaks in the chromatogram for [M H] ions at m/z 255. Several real
samples have been analyzed by this MEKC/ESI-MS method. The MEKC/ESI-MS reconstructed mass chromatograms of a real sample are shown in Fig. 8. The sample used in this MEKC/MS analysis is the same as that used for Fig. 4. Unlike the CZE/MS approach (Fig. 4),MS/MS was not necessary in this MEKC/MS study because of better MEKC separation.
CONCLUSIONS
Because of the lack of adequate resolution in CZE,MS/MS may be needed for the identification of adulterants in Chinese medicines. MEKC provided better separation than CZE in the analysis of the sixteen chemical drugs investi-gated here. However,it is more difficult to couple MEKC with ESI-MS. Currently,we are investigating the merits and pitfalls of these two approaches in quantitative analysis of the sixteen drugs. It is known that the signal of an analyte may be affected by the presence of other electrolytes. This may create some problems in the quantitative analysis of coeluting adulterants,especially under conditions in which isotopically labeled internal standards are not available.
Acknowledgements
We thank the National Science Council of the Republic of China for financial support.
