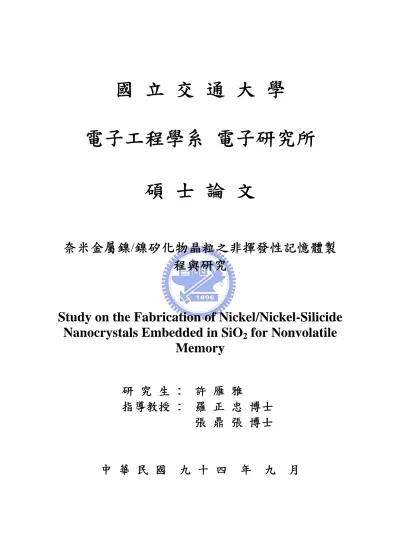

Study on the Fabrication of Nickel/Nickel-Silicide
Nanocrystals Embedded in SiO
2for Nonvolatile
Memory
:
:
/
Study on the Fabrication of Nickel/Nickel-Silicide
Nanocrystals Embedded in SiO
2for Nonvolatile
Memory
:
Student: Yen-Ya Hsu
:
Advisor: Dr. Jen-Chung Lou
Dr. Ting-Chang Chang
A Thesis
Submitted to the Institute of Electronics
College of Electrical Engineering and Computer Science
National Chiao Tung University
in Partial Fulfillment of the Requirements
for the Degree of
Master of Science
in Electronics Engineering
September 2005
Hsinchu, Taiwan, Republic of China
/
:
:
(carrier confinement) ( )
( )
/ /
800 (two-bit)
Study on the Fabrication of Nickel/Nickel-Silicide
Nanocrystals Embedded in SiO
2for Nonvolatile
Memory
Student: Yen-Ya Hsu
Advisor: Dr. Jen-Chung Lou
Dr. Ting-Chang Chang
Department of Electronic Engineering and Institute of Electronics
College of Electrical Engineering and Computer Science
National Chiao Tung University
Abstract
We have studied experimentally and theoretically two kinds of nonvolatile metal
nanocrystal memories: nickel nanocrystal memories and nickel-silicide nanocrystal
memories. The metal nanocrystals memories come into notice as so many advantages.
The advantages of metal nanocrystals over their semiconductor counterparts include
low power consumption, higher density of states, smaller energy perturbation due to
carrier confinement, stronger coupling with the channel, better size scalability, and the
design freedom of engineering the work functions to optimize device characteristics.
The reasons why nickel/nickel-silicide is chosen as the materials for the nanocrystals
are the compatibility with current manufacturing technology of semiconductor
industry and thermal stability of the nickel silicide.
nanocrystals as memory storage medium. We obtained some conclusions to explain
the memory effects for the different annealing temperatures. The two important
mechanisms were nickel diffusion problem and the reaction between nickel and
silicon dioxide. So these would be become the terrible problems as the high
temperature processes.
At the same time, we observed the nickel-silicide nanocrystal memories to
improve the disadvantages of the nickel nanocrystal memories. The nickel film was
only prepared to silicidation, so the high temperature processes were suitable for
nickel silicide formation. The thin nickel/silicon film was exact to be controlled the
dot size and observed good uniformity at the same time. However, another good result
was obtained the one cell two bit memory from the silicon/nickel/silicon structure at
( ) ( )
... NDL
!
Contents
Chinese Abstract
--- i
English Abstract
--- iii
Acknowledgment
--- v
Contents
--- vii
Figure Captions
---ix
Chapter 1 Introduction
1.1 General Background --- 11.2 Motivation ---12
1.3 Organization of the dissertation
---
13Chapter 2 A Novel Approach of Fabricating Nickel Nanocrystals
for Nonvolatile Memory Application
2.1 Introduction ---142.2 Experimental Procedures --- 15
2.3 Results and Discussions --- 17
2.4 Summary ---19
Chapter 3 Characteristics of Nickel-Silicide Nanocrystal Memory
Structures with Different Fabrication Processes
3.1 Introduction ---213.2 Experimental Procedures --- 22
3.3 Results and Discussions --- 27
3.4 Summary --- 32
Chapter 4 Integration with the Electrical Characteristics and the
Physical Characteristics of the Nanocrystal Memory
4.1 Electrical Characteristics --- 33Chapter 5 Conclusions and Suggestions for Future Work
5.1 Conclusions --- 36 5.2 Suggestions of the Future Work --- 37
Figure Captions
Chapter 1
Fig. 1-1 The structure of the conventional floating gate nonvolatile memory device. Continuous poly-Si floating gate is used as the charge storage element.
Fig. 1-2 The structure of the SONOS nonvolatile memory device. The nitride layer is used as the charge-trapping element.
Fig. 1-3 The structure of the nanocrystal nonvolatile memory device. The semiconductor nanocrystals or metal nano-dots are used as the charge storage element instead of the continuous poly-Si floating gate.
Fig. 1-4 The development of the gate stack of SONOS EEPROM memory devices. The optimization of nitride and oxide films has been the main focus in recent years.
Fig. 1-5 The energy band diagrams of the write/erase operation for a nanocrystal NVSM device.
Fig. 1-6 band diagram illustration of different approaches for improving the Jg,programming/erase/Jg,retention ratio.
Chapter 2
Fig. 2-1 The C-V hysteresis of Ni nanocrystals memory with Metal RTA 400 process after forward (from inversion to accumulation region) and reverse (from accumulation to inversion region) voltage sweeping for different voltage (6V, 8V, 12V) .
Fig. 2-2 The leakage current of Ni-nanocrystals memory with Metal RTA 400 process.
Fig. 2-3 The TEM image of Ni-nanocrystals memory with Metal RTA 400 process.
(6V, 8V, 12V) .
Fig. 2-5 The leakage current of Ni-nanocrystals memory with Metal RTA 500 process.
Fig. 2-6 The TEM image of Ni-nanocrystals memory with Metal RTA 500 process.
Fig. 2-7 The C-V hysteresis of Ni nanocrystals memory with Metal RTA 800 process after forward and reverse voltage sweeping for different voltage. The C-V shift was dominant with the gate injection.
Fig. 2-8 The TEM image of Ni-nanocrystals memory with Metal RTA 800 process.
Fig. 2-9 The C-V hysteresis of Ni nanocrystals memory with Metal RTA 900 process after forward and reverse voltage sweeping. The C-V shift was dominant with the gate injection.
Fig. 2-10 The TEM image of Ni-nanocrystals memory with Metal RTA 900 process.
Chapter 3
Fig. 3-1 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
800 10min in O2 process after forward and reverse voltage sweeping for
6V.
Fig. 3-2 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
850 10min in O2 process after forward and reverse voltage sweeping for
6V.
Fig. 3-3 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
900 10min in O2 process after forward and reverse voltage sweeping for
Fig. 3-4 The TEM image of NiSi2 nanocrystals memory with furnace oxidation 900 10min in O2 process before capping the PECVD oxide.
Fig. 3-5 The TEM image of NiSi2 nanocrystals memory with Metal RTA 850 60s in N2 process.
Fig. 3-6 The C-V hysteresis of NiSi2 nanocrystals memory with Metal RTA 850
60s in N2 process after forward and reverse voltage sweeping for different
voltage (6V, 8V).
Fig. 3-7 The C-V hysteresis of NiSi2 nanocrystals memory with Metal RTA 850
120s in N2 process after forward and reverse voltage sweeping for different
voltage (6V, 8V).
Fig. 3-8 The C-V hysteresis of NiSi2 nanocrystals memory with Metal RTA 850
180s in N2 process after forward and reverse voltage sweeping for different
voltage (6V, 8V).
Fig. 3-9 The C-V hysteresis of NiSi2 nanocrystals memory with Metal RTA 850 240s in N2 process after forward and reverse voltage sweeping for the voltage (8V).
Fig. 3-10 The C-V hysteresis of NiSi2 nanocrystals memory with Metal RTA 850
300s in N2 process after forward and reverse voltage sweeping for different
voltage (6V, 8V).
Fig. 3-11 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
900 10min in O2 process after forward and reverse voltage sweeping for
different voltage (6V,8V).
Fig. 3-12 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
800 10min in O2 process after forward and reverse voltage sweeping for
different voltage (6V,8V).
Fig. 3-13 The leakage current of NiSi2 nanocrystals memory with furnace oxidation 900 10min in O2 process.
oxidation 900 10min in O2 process.
Fig. 3-15 The C-V hysteresis and G-V diagram of NiSi2 nanocrystals memory with
furnace oxidation 900 5min in O2 process after forward and reverse
voltage sweeping for 6V.
Fig. 3-16 The C-V hysteresis and G-V diagram of NiSi2 nanocrystals memory with
furnace oxidation 900 10min in O2 process after forward and reverse
voltage sweeping for 6V.
Fig. 3-17 The C-V hysteresis of NiSi2 nanocrystals memory with furnace oxidation
900 15min in O2 process after forward and reverse voltage sweeping for
6V.
Fig. 3-18 The C-V hysteresis and G-V diagram of NiSi2 nanocrystals memory with
furnace oxidation 900 5min in N2 then 10min in O2 process after
forward and reverse voltage sweeping for 6V.
Fig. 3-19 The C-V hysteresis and G-V diagram of NiSi2 nanocrystals memory with
furnace oxidation 800 5min in O2 process after forward and reverse
voltage sweeping for 6V.
Fig. 3-20 The C-V hysteresis and G-V diagram of NiSi2 nanocrystals memory with
furnace oxidation 800 10min in O2 process after forward and reverse
voltage sweeping for 6V.
Fig. 3-21 The TEM image of NiSi2 nanocrystals memory with with furnace oxidation 800 10min in O2 process.
Fig. 3-22 The leakage current of NiSi2 nanocrystals memory with furnace oxidation 800 10min in O2 process.
Chapter 4
Fig. 4-1 C V and G V hysteresis curves with dry oxide/Ni/a-Si /PECVD oxide structure in furnace 900 oxidation for 10 minutes obtained by 6V sweep. Frequency dependence of the conductance peak position was
shown in the inset figure.
Fig. 4-2 The C-V hysteresis of NiSi2 nanocrystals memory with a-Si/Ni/a-Si
structure in furnace 900 oxidation.
Fig. 4-3 The C-V hysteresis of NiSi2 nanocrystals memory with a-Si/Ni/a-Si
structure in furnace 800 oxidation.
Fig. 4-4 C V and G V hysteresis curves with a-Si/Ni/a-Si structure in furnace 900 oxidation for 10 minutes obtained by 6V sweep. Frequency dependence of the conductance peak position was shown in the inset figure.
Fig. 4-5 C V and G V hysteresis curves with a-Si/Ni/a-Si structure in furnace 800
oxidation for 10 minutes obtained by 6V sweep. Frequency
dependence of the conductance peak position was shown in the inset
Chapter 1
Introduction
1.1 General Background
In recent years, the portable electronic product have widely applied, such as digit
camera, notebook computer, mp3 walkman, intelligent IC card, USB Flash personal
disc ,etc., and play an important role in the market. These products all are based on
flash memory. The demand for the flash memory device grows with each passing day,
the density and operation speed of flash memory and its reliability become the
popular research theme. The operation principal of conventional Flash memory is
using the polycrystalline silicon as floating gate to be the charge stored units. After
electrons which injected from the channel stored in floating gate, the threshold
voltage of devices will be changed. The logical § ¡¨ an definition of nonvolatile
memory devices are used for the difference between threshold voltages.
In 1960¦ s, due t o t he hi gh cost, l ar ge vol u me, and hi gh po wer cons u mpti on of t he
magnetic-core memory, the electronic industries urgently needed a new kind of
memory device to replace the magnetic-core memory. In 1967, D. Kahng and S. M.
Sze invented the floating-gate (FG) nonvolatile semiconductor memory at Bell Labs
[1.1]. A standard Conventional Flash device is similar to the Intel ETOX (EPROM
Tunnel Oxide) structure as shown in Figure 1-1. The basic device is a
Metal-Oxide-Semiconductor-Field-Effect-Transistor (MOSFET) with a modified gate
stack structure that has a control gate (CG) and a floating gate (FG) embedded in a
between the floating gate and the channel prevents electrons from leaking into the
channel. A second barrier between the floating gate and the control gate prevents
electrons from escaping to the control gate .The invention of FG memory impacts
more than the replacement of magnetic-core memory, and creates a huge industry of
portable electronic systems. The stacked-gate FG device structure continues to be the
most important position for the nonvolatile-memory, and is widely used in both
standalone and embedded memories up to today.
Although the conventional FG devices still come to be in face of their limitations.
The conventional FG devices are much slower to program and erase. Reliable data
retention is largely determined with good control and suppression of leakages from
the floating gate. Since the SiO2 barrier between the floating gate and the MOSFET
channel is very thin, its quality is critical to ensure good floating gate isolation.
Unfortunately, defects due to the structural imperfections and atomic bonding are
unavoidable in realistic materials. These defects allow for leakage paths that are
detrimental to charge storage in the floating gate. The most apparent way to avoid an
over-leaky barrier is to increase the barrier thickness. However, thicker barriers slow
down electron transport in and out of the floating gate. This, in turn, results in slower
program and erase times.
In order to improve the write/erase speed of a floating-gate device, the thickness of
the tunnel oxide must be reduced. The tunnel oxide must be less than 2.5 nm in order
to achieve 100 ns write/erase time for a reasonable programming voltage (<10V). On
the other hand, the tunnel oxide needs to provide superior isolation under retention,
endurance, and disturbed conditions in order to maintain information integrity over
periods of up to a decade. When the tunnel oxide is thinner for the first consideration,
thicker to take the isolation into account, the speed of the operation will be slower.
Therefore, there is a tradeoff between speed and reliability and the thickness of the
tunnel oxide is compromised to about 8-11 nm, which is barely reduced over more
than five successive generations of the industry [1.2]. Furthermore, if the tunneling
oxide can not be thinned any more, both the operation voltage and speed of memory
can not be improved.
To overcome the scaling limits of the conventional FG structure, two candidates are
mostly mentioned, SONOS [1.3-1.5] and nanocrystal nonvolatile memory devices
[1.6-1.8]. As for SONOS in Fig. 1-2, the nitride layer is used as the charge-trapping
element. The intrinsic distributed storage takes an advantage of the SONOS device
over the FG device, its improved endurance, since a single defect will not cause the
discharge of the memory [1.5]. Tiwari et al. [1.6] for the first time demonstrated the Si
nanocrystal floating gate memory device in the early nineties. As shown in Fig. 1-3,
the local leaky path will not cause the entire loss of information for the nanocrystal
nonvolatile memory device. Also, the nanocrystal memory device can maintain good
retention characteristics when tunnel oxide is thinner and lower the power
consumption [1.6-1.8]. The term endurance refers to the ability of the NVSM to
withstand repeated program cycles and still meet the specification in the data sheet.
The term retention describes the ability of the NVSM to store and recover
information after a number of program cycles at a specified temperature.
1.1.1 SONOS nonvolatile memory devices
The triple-dielectric polysilicon-blocking oxidesilicon nitride-tunnel
oxide-silicon (SONOS) structure is an attractive candidate for high density
dynamic random access memories (DRAM¦ s). Lo w pr ogr a mmi n voltages (5 V) and
high endurance (greater than 107 cycles) are possible in this multidielectric
technology as the intermediate Si3N4 layer is scaled to thicknesses of 50 A. Oxide
thickness in this range is necessary to minimize the undesirable effects of gate disturb
while still enabling a low-voltage operation to maximize the cost benefit of SONOS
memories. The thin gate insulator and low programming voltage enable the scaling of
the basic memory cell and associated complementary metal-oxide-semiconductor
(CMOS) peripheral circuitry on the memory chip.
Advancements in ultra-thin tunnel oxides during the 1990s have opened the path to
improve performance and reliability for NVSMs based on SONOS technology [1.9].
The optimization of nitride and oxide films has been the main focus in recent years.
Initial device structures in the early 1970s were p-channel metal-nitride-oxide-silicon
(MNOS) structures with aluminum gate electrodes and thick (45 nm) silicon nitride
charge storage layers. Write/erase voltages were typically 25-30 V. In the late 1970s
and early 1980s, scaling moved to n-channel SNOS devices with write/erase voltages
of 14-18 V. In the late 1980s and early 1990s, n- and p-channel SONOS devices
emerged with write/erase voltages of 5-12 V. Figure 1-5 illustrates the write/erase
operation using an energy-band diagram. The electrons injected from the channel are
trapped in the forbidden gap of the silicon nitride film. The electrons, which are not
trapped in the nitride film, tunnel through the blocking oxide into the gate electrode. If
the poly-Si gate is doped p+, then holes may tunnel from the gate to the silicon nitride
valence band, thereby compensating the trapped electrons and reducing the threshold
voltage shift. During the erase operation, holes are injected from the substrate into the
silicon nitride valence band where they are trapped in a manner similar to electrons.
compensating the injected holes. A larger barrier for holes (4.7 eV) requires tunnel
oxides to be less than 2.5 nm for efficient tunneling and, therefore, hole tunneling
depends strongly on the tunnel oxide thickness. Additionally, electrons may tunnel
from the valence band of the gate electrode; however, the barrier height for this
process is increased by the silicon bandgap (1 eV) as compared with the tunneling
from the conduction band. Thus, in summary, for SONOS device operation both
carrier types are involved in the transport process.
Low-voltage (5-10 V) SONOS NVSMs may be scaled in cell size to 6F2 (F=feature
size) and perhaps even smaller in the years to come. The simplified ONO gate stack in
SONOS memory transistors lends itself to the economics of scaled CMOS circuits.
The compatibility of SONOS technology with advanced CMOS logic technology
permits economical integration of NVSMs as embedded EEPROMs in ASIC chips.
Finally, radiation hardness provides a unique and important feature for advanced
military and space systems.
1.1.2
Nanocrystal
nonvolatile
memory
devices
(semiconductor
nanocrystals)
The charge storage property of semiconductor nanocrystals embedded in a
silicon oxide matrix is currently under intense investigation due to its potential
application in future nonvolatile memories. The continuous down scaling of device
dimensions requires more stringent and better controlled fabrication processes. One
way to conveniently achieve nanometer range structures without sophisticated
nanolithography techniques is through the synthesis of nanocrystals. However, the
charges loss through lateral paths in nanocrystal-based memory devices can be
superior charge storage characteristics compared with conventional floating-gate
memory devices. All stored charges cant be lost through the few leaky paths since the
charges are stored in distributed nano-dots. One way to alleviate the scaling limitation
of the conventional FG device, while still preserving the fundamental operating
principle of the memory, is to rely on distributed charge storage instead. The typically
investigations are used semiconductors (Si or Ge) as nano dot to reduce the tunneling
oxide of thickness without losing its reliability and further to reduce operation
voltage.
Nanocrystal nonvolatile memories first introduced in the early 1990s. In a
nanocrystal NVSM device, charge is not stored on a continuous FG poly-Si layer, but
instead of a layer of discrete, mutually isolated, crystalline nanocrystals or dots. Each
dot will typically store only a handful of electrons; collectively the charges stored in
these dots control the channel conductivity of the memory transistor. Figure 1-4
illustrates the progression of device cross section, which has led to the present
nanocrystal NVSM device structure.
As compared to conventional stacked gate NVSM devices, nanocrystal charge
storage offers several advantages, the main one being the potential to use thinner
tunnel oxide without sacrificing nonvolatility. This is a quite attractive proposition
since reducing the tunnel oxide thickness is a key to lowering operating voltages
and/or increasing operating speeds. This claim of improved scalability results not only
from the distributed nature of the charge storage, which makes the storage more
robust and fault-tolerant, but also from the beneficial effects of Coulomb blockade
[1.7]. Quantum confinement effects (bandgap widening; energy quantization) can be
notable of small nanocrystal geometries (sub-3 nm dot diameter) to further enhance
nanocrystal memories is more simplified and lower cost process as compared to
conventional stacked-gate Flash memories. Second, due to the absence of drain to FG
coupling, nanocrystal memories suffer less from drain induced barrier lowering
(DIBL) so they have intrinsically better punch through characteristics. This advantage
is gained a higher drain bias during the read operation, thus improving memory access
time [1.10]. Alternatively, it allows the use of shorter channel lengths and therefore
smaller cell area. Third, nanocrystal memories are characterized by excellent
immunity to stress induced leakage current (SILC) and oxide defects due to the
isolated charge storage in the nanocrystal layer. However, the other is the low
capacitive coupling between the external control gate and the nanocrystal charge
storage layer. This does not only results in lower operating voltages, thus offsetting
the benefits of the thinner tunnel oxide, it also removes an important design parameter
(the coupling ratio) typically used to optimize the performance and reliability tradeoff.
As for the fabrication processes, a first requirement is the aerial density of the
nanocrystal dots. A typical target is a density of at least 1012 cm-2. This is equivalent to
approximately 100 particles controlling the channel of a memory FET with 100 100
nm2 active area, and requires particle size of 5-6 nm and below. Second, the
fabrication process should result in a planar nanocrystal layer, i.e., the thickness of the
dielectric layer separating the nanocrystal and the substrate should be well controlled.
Poor control of the tunnel oxide thickness will result in wider threshold voltage
distributions and will increase the number erratic bits. More generally, good process
control is needed with regards to such nanocrystal features as: size and size
distribution, inter-crystal interaction (lateral isolation), uniformity of aerial crystal
density, and crystal doping (type and level). Recently, Lombardo et al. demonstrated the nucleation process is not purely random and the dots forms with partial
gate size, both for random and partially self-ordered nucleation processes [1.11]. A
theoretical model considering quantum confinement and Coulomb blockade in lower
Si dot shows that charge retention is improved exponentially by lower dot size scaling.
As the size and size distribution of the Ge nanocrystals have been considered, She et
al. [1.12] made a conclusion on Ge nanocrystal memory device that nanocrystal size
around 5 nm is preferred to achieve fast programming speed and longer retention time,
and the size should not be scaled below that. The quantum confinement effect for Ge
nanocrystals smaller than 5 nm is very significant so that the retention time is shorter
and the programming time is longer. Finally, it is preferred that the fabrication process
is simple and that it uses standard semiconductor equipments.
Several nanocrystal fabrication processes have been demonstrated. Numerous
efforts have focused on obtaining a high density of nanocrystals through a variety of
techniques including aerosol technique, ion implantation, MBE technique, direct
chemical vapor deposition (CVD) and recrystallization anneal of amorphous-Si. Kim
et al. used conventional LPCVD reactor to fabricate Si nanocrystals at 620 . [1.13]
Direct CVD of silicon is preferred over ion implantation and recrystallization anneal
due to the difficulty in obtaining the required amount of Si in the stack. Further,
nucleation and growth by CVD provides appropriate simpler processing controls to
manipulate the size and density of nanocrystals. Si nanocrystals with number density
between 1011 and 1012/cm2 have been deposited on various dielectrics such as SiO2,
Si3N4 and Al2O3 using CVD. A high density of about 5 1011/cm2 was obtained on
nitride surface, and the density was more than three times larger than that on oxide
[1.14-1.15]. Fernandes et al. acquired the higher density Si quantum dots (~1012/cm2)
by integrating on SiO2/ALD Al2O3 tunneling dielectrics [1.16]. Kanjilal et al.
combined with rapid thermal processing and characterized structurally and electrically
[1.17]. To fabricate Ge nanocrystals, the oxidation of SiGe contained films has been
utilized [1.18]. As the SiGe layer is oxidized, the Ge element will be downward
segregated and Si will be oxidized into SiO2 [1.19-1.20]. Ostraat et al. proposed an
aerosol silicon nanocrystal nonvolatile memory device with large threshold voltage
shift ( 3V), sub-microsecond program times, millisecond erase times, excellent
endurance ( 105 program/erase cycles), and long term nonvolatility ( 106 sec)
[1.21]. Qu et al. presented an approach for synthesizing Ge nanocrystals embedded in
amorphous silicon nitride films [1.22]. On the basis of preferential chemical bonding
formation of Si-N and Ge-Ge, thin films with Ge clusters embedded in amorphous
silicon nitride matrix have been prepared by plasma enhanced chemical vapor
deposition (PECVD) with reactant gases of SiH4, GeH4, and NH3 mixed in hydrogen
plasma at 250 . Park et al. also utilized PECVD to form Si nanocrystals embedded
in silicon nitride film [1.23]. They presented the electron charging and discharging
effects of the Si nanocrystals embedded in SiNx film. Capacitance-voltage hysteresis
is used to inspect the memory effects of the nanocrystal memory devices [1.24].
Differing from the required single planar nanocrystal layer, Ohba et al. proposed a
novel Si dot memory whose floating gate consists of self-aligned doubly stacked Si
dots. A lower Si dot exists immediately below an upper dot and lies between thin
tunnel oxides. It is experimentally shown that charge retention is improved compared
to the usual single layer Si dot memory [1.25].
As for the tunnel dielectric for the nanocrystal nonvolatile memory devices, Baik et
al. proposed a tunnel barrier structure that is composed of silicon dioxide and
amorphous carbon (a-C) to attain enhanced charge retention without degradation in
the injection efficiency. Additionally, high-k tunnel dielectrics were investigated for Si
asymmetry in programming and retention mode, the use of high-k dielectric on Si
channel offers lower electron barrier height at dielectric/Si interface and larger
physical thickness, results in a much higher Jg,programming/Jg,retention ratio than that in
SiO2 and therefore faster programming and longer retention. The programming is
considered as the electron injection from the channel under positive bias operation for
an NMOSFET memory device. However, the programming and erasing mechanisms
of p-channel nanocrystal memory devices were also investigated by Han et al. [1.29].
Promising device results have been presented, demonstrating low-voltage operation
for comparable threshold voltage windows and operating speeds, and thin tunnel
oxide retention behavior that suggests meeting long-term nonvolatility requirements.
In spite of these promising results, it is unclear whether nanocrystal memories will
ever see commercialization. In order for that to happen, the uniformity of the
nanocrystals needs to be improved, and the claimed benefits need to be more
unambiguously substantiated.
1.1.3 Nanocrystal nonvolatile memory devices (metal nanocrystals)
In optimizing the memory devices, the ideal goal is to achieve the fast write/erase
of DRAM and the long retention time of Flash memories simultaneously. For this
purpose we need to create an asymmetry in charge transport through the gate
dielectric to maximize the Jg,programming/Jg,retention ratio. Three different approaches for
achieving this goal are illustrated in Fig. 1-6. By replacing the rectangular barrier with
a parabolic or triangular barrier, the barrier height can be modulated by the electric
field in the tunnel oxide [1.30]. Therefore, a higher tunnel barrier is present during
Jg,programming/Jg,retention ratio. In practice, the parabolic or triangular barrier can be
simulated by stacking multiple layers of dielectrics. Another approach is to use
double-stacked storage nodes, preferably self-aligned with smaller dots at the lower
stack [1.31]. In such devices, fast write/erase can still be achieved, if sufficiently thin
tunnel oxides are used below and between the two stacks. However, the retention time
can be significantly improved due to the Coulomb blockade effect at the lower stack,
which prevents electrons in the top stack storage nodes from tunneling back into the
substrate. The third approach is to engineer the depth of the potential well at the
storage nodes, thus creating an asymmetrical barrier between the substrate and the
storage nodes, i.e., a small barrier for writing and a large barrier for retention. This
can be achieved if the storage nodes are made of metal nanocrystals. Then by
engineering the metal work function, the barrier height can be adjusted by about 2 eV,
giving much freedom for device optimization.
In addition to semiconductor nanocrystals, Liu et al. described the design
principles and fabrication processes of metal nanocrystals [1.32-1.33]. The metal
nanocrystal memory is exhibited to several advantages, such as stronger coupling with
the conduction channel, better size scalability, higher density of states around the
Fermi level, smaller energy perturbation due to carrier confinement, and the design
freedom of engineering the work functions to optimize the device characteristics. In
addition, the nanocrystals do not bear a voltage drop from gate voltage, which means
all the voltages provided from control gate are dropped to tunnel oxide and control
oxide and gains advantage. The higher density of states makes metal nanocrystals
more immune to Fermi-level fluctuation caused by contamination. The metal
nanocrystals tend to have more uniform charging characteristics, resulting in tighter
Vth control. The wide range of available work functions provides one more degree of
because the work function of nanocrystals affects both the depth of the potential well
at the storage node and the density of states available for tunneling in the substrate.
By aligning the nanocrystal Fermi level to be within the Si bandgap under retention
and above the conduction band edge under erase, a large Jg,erase/Jg,retention ratio can be
achieved even for very thin tunnel oxides. Because writing is performed by tunneling
electrons from the Si substrate into the nanocrystals (thus can always find available
states to tunnel into) and can have current level similar to Jg,erase , fast write/erase and
long retention time can be achieved simultaneously in metal nanocrystal memories.
Metal nanocrystals also provide a great degree of scalability for the nanocrystal size.
To enable single-electron or few-electron memories by the Coulomb blockade effect,
smaller nanocrystals are preferred. However, for semiconductor nanocrystals, the
band-gap of nanocrystals is widened in comparison with that of the bulk materials due
to the multidimensional carrier confinement, which reduces the effective depth of the
potential well and compromises the retention time. This effect is much smaller in a
metal nanocrystal because there are thousands of conduction-band electrons in a
nanocrystal even in charge neutral state. As a result, the increase of Fermi level is
minimal for metal nanocrystals of nanometer size.
1.2 Motivation
Recently, the memories are required by the high density, fast operation speed and
good reliability. Memory-cell structures employing discrete traps as the charge storage
media have attracted large of the researches as the promising candidates to replace
conventional DRAM or Flash memories.
power consumption, higher density of states, stronger coupling with the channel,
better size scalability, and the design freedom of engineering the work functions to
optimize device characteristics. A self-assembled nanocrystal formation process by
rapid thermal annealing of ultra thin metal film deposited on top of tunnel oxide is
developed and integrated with NMOSFET devices. Due to the minimization of the
surface energy of the metal film under rapid thermal annealing, the driving force
results in a discrete layer of metal nanodots reside on tunnel oxide.
The reasons why Nickel/Nickel Silicide are chosen as the materials for the
nanocrystals are the compatibility with current manufacturing technology of
semiconductor industry and thermal stability of the NiSi2.
1.3 Organization of the dissertation
This dissertation is divided into five chapters. The contents in each chapter are
described as follows.
In chapter 1, the potential memory devices about Conventional Flash, SONOS and
nanocrystal memory devices is introduced.
In chapter 2, the study on Nickel nanocrystal memory technology using Dual
E-Gun Evaporation System deposited Nickel thin film is investigated.
In chapter 3, the studies focus on Nickel Silicide (NiSi2) nanocrystal memories by
using the three different structures.
In chapter 4, we may make compare with some experimental results and make
some discussions to their storage mechanisms.
Chapter 2
A Novel Approach of Fabricating Nickel Nanocrystals for Nonvolatile
Memory Application
2.1 Introduction
To overcome the scaling limits of the conventional FG structure, Tiwari et al. [2.1]
for the first time demonstrated the Si nanocrystal floating gate memory device in the
early nineties. Recently, considerable attention has been focused on semiconductor or
metal nanocrystals embedded in the silicon dioxide of a metal-oxide-semiconductor
(MOS) device for future high speed and low power consuming memory device
[2.2-2.3]. The use of a floating gate composed of distributed nanocrystals reduces the
problems of charge loss encountered in conventional floating-gate EEPROM
memories, allowing for thinner tunnel oxide and, thereby, smaller operating voltages,
better endurance and retention, and faster program/erase speed [2.4-2.6].
The self-assembling of silicon or germanium nanocrystals embedded in SiO2 layers
has been widely studied, and strong memory effects in MOS devices were reported
[2.7-2.9]. There are, however, quite few reports on the memory effects of metal
nanocrystals during the past years. The major advantages of metal nanocrystals over
their semiconductor counterparts include (1) higher density of states around the Fermi
level, (2) stronger coupling with the conduction channel, (3) a wide range of available
work functions, and (4) smaller energy perturbation due to carrier confinement [2.3].
In addition, the nanocrystals do not bear a voltage drop from gate voltage, which
control oxide and gains advantage. The higher density of states makes metal
nanocrystals more immune to Fermi-level fluctuation caused by contamination. The
metal nanocrystals tend to have more uniform charging characteristics, resulting in
tighter Vth control. The wide range of available work functions provides one more
degree of design freedom to engineer the tradeoff between write/erase and charge
retention because the work function of nanocrystals affects both the depth of the
potential well at the storage node and the density of states available for tunneling in
the substrate.
The material of the nanocrystals was used by Ni and then M. Liehr et. al. was used
to study the influence of interfacial SiO2 on the reactivity of the Ni/Si(111) interface
[2.10]. Iterated Ni depositions, at room temperature, on Si oxide layers of various
thicknesses [grown on Si(111)] were made in ultrahigh vacuum and followed by in
situ annealing up to 900 ¢XC. It wa found that Ni initially agglomerates into islands at
room temperature and above. Furthermore, at elevated temperatures the Ni reacts with
the underlying Si through pinholes in the oxide to form NiSi2. A higher temperature
was required to initiate the silicide formation reaction for thicker SiO2 layers,
suggesting that the reaction is limited by mass transport through pinholes in the oxide.
Direct Ni-SiO2 interaction, in contrast, is rather limited. Some SiO2 decomposition
may take place for thicker Ni coverage ( 50A).
In this letter, we proposed a Ni nanocrystal memory device with 4.2nm-thick tunnel
oxide, and studied on the memory characteristics of the metal nanocrystal. The
material about Ni was suitable for the MOSFET devices as the devices scaling down.
2.2 Experimental procedures
standard RCA clean process was immersed in the HCl bench at 120 for 10 minutes
(called SC process). Next, the wafers were cleaned with NH4OH at 120 for 10
minutes (called SC process). These steps must be carefully handled because HCl
and NH4OH will cause the reaction to produce the NH4Cl which will hurt our bodies.
The last step was dipped in HF several seconds until the backside wafer was not
adhered to the DI water. This step can be observed the difference in our eyes. Second,
the wafers were followed by a thermal oxidation process to form 4.2nm-thick dry
SiO2 layer as a tunnel oxide in an atmospheric pressure chemical vapor deposition
(APCVD) furnacei. The equipment of the APCVD furnace was place at the classroom (class 10) in the National Nano Device Laboratories (NDL). As the process began, we
can leave until the § BOAT I ¡ ¨ st ep was c omplet e But we must wait until the
vacuum pressure was arrived for the Low pressure chemical vapor deposition
(LPCVD) furnace. Before the end of the auto processes about 30 minutes ago, we
must be remember come back to confirm all conditions were fine. Third, after the
growth of tunnel oxide, the Nickel thin film was deposited on the oxide by Dual
E-Gun Evaporation System (E-Gun)ii. The deposition of Nickel film was the critical process to determine the result of the size of the nanocrystals and the memory effect.
The Ni was deposited about 17A with 0.1 A/sec as current range in 50-70 A. Fourth,
the TEOS oxide 400 A was deposited on the Ni thin film by Plasma Enhanced
Chemical Vapor Deposition (PECVD) with reactant gases of TEOS 10 sccm mixed in
Nitrogen plasma at 300 iii. Before the deposition process began, we always done the clean process to make chamber spotless. Finally, the N2 rapid thermal annealing(RTA)
at 400 , 500 , 800 and 900 for 20 sec transformed the Ni layer to liquid phase
and the Ni nanocrystals formed after cooling down. This step was prepared by Metal
temperature. The fitting parameters were made into list as below.
Temp. Ramp T-SW Gain D-G I-W,I-C
900 90 50 -60 -6 4196
800 90 20 -50 -5 2997
500 60 20 -50 -5 1026
450 70 20 -50 -5 1426
400 70 40 -50 -5 403
Then, the samples were analyzed the micro-structure by Transmission Electron
Microscope (TEM). The TEM figures can be more powerful evidence to confirm the
shape of the nanocrystals. Subsequently, the Capacitance-Voltage measurement was
analyzed the memory effect of the nanocrystal memories in their electrical
characteristics. The Capacitance-Voltage characteristics were measured at different
frequency (10kHz-1MHz) by HP4284 Precision LCR Meter. However, the
Current-Voltage measurement was shown the leakage current to be verified the
quality of the control oxide. The Current-Voltage characteristics were measured by
HP4156C Precision Semiconductor Parameter Analyzer. The metal insulator
semiconductor (MIS) structure with Ni nanocrystals embedded between tunnel and
control oxide was fabricated.
2.3 Results and discussions
Our researches were focused on the forming of the Ni nanocrystals with the
different annealing temperature processes. The film was annealed at elevated
temperatures close to its eutectic temperature with the substrate in an inert ambient to
transfer the wetting layer into nanocrystals. [2.16-17]. Before RTA, the as-deposited
form (without a clear separation in between, though). When the film was RTA treated
to give the atoms enough surface mobility, the film will self-assemble into a
lower-total-energy state. To reduce the elastic energy carried by the stress built into
the film during the deposition process, the film tended to break into islands along the
initial perturbation. However, minimization of the surface energy and the dispersion
force between the top and bottom interfaces could help stabilize the film. So the final
geometry would depend on the balance between these driving forces.
But our experiment results were showed some strange phenomenon. The different
annealing temperature processes were prepared to analyze the Ni nanocrystal memory
characteristic. The best memory effect was showed in the 400 annealing process.
The C-V and I-V measurement results were showed in the Figure 2-1 and Figure 2-2.
The nano-dots were formed from this process in the Figure 2-3. On the contrary, the
C-V and I-V curves were showed in the Figure 2-4 and Figure 2-5 with 500
annealing process. We could find the memory effect was suppressed as the higher
temperature annealing process (500 ). So the unknown reason would cause that the
thermal treatment not only contributed to segregate the Ni film but some reactions
were happened. The nano-dots were also preformed with the 500 annealing
temperature process in the Figure 2-6. Both of the annealing processes were the same
order of the leakage current so the broken dielectric was not the main reason to
explain. The good reason was found in the M. Liehr s paper [2.10]. For thicker Ni
film ( 50A) would cause the silicide formation with the chemical interaction
between Ni and SiO2 at 300 . So the thermal energy would supply not only the
segregation of the Ni islands but also the chemical interaction. The silicide formation
would be more markedly occurred at 500 annealing process. That was why the
the high temperature annealing process were showed in the Figure 2-7 and Figure 2-9
at 800 and 900 . The gate injection effect were showed in these annealing
processes. From the M. Liehr s conclusions, we could also explain these abnormal
results. The high temperature (800-900 ) Ni/SiO2/Si reactions were dominant with
the Ni-Si reaction as NiSi2. At high temperature annealing, the Ni was the dominant
moving species in the Ni-Si reaction. In addition, the thin tunneling oxide was
enhanced the Ni-Si reaction. There existed more interface traps between the tunneling
oxide and the Si substrate. Because silicide formation would cause the interface traps
in the Si substrate. The interface traps would inhibit the substrate injection into the
nano-dots as the inversion process. So the gate injection was dominant as the high
temperature annealing processes. The silicide formation would also enhance the
leakage paths to lose the injection electrons especially at the higher annealing
temperature (900 ). That was why the less memory effect at 900 annealing
process. The TEM images were also showed the nanocrystal formation in Figure 2-8
and Figure 2-9 with 800 and 900 annealing processes.
2.4 Summary
In this chapter, we focused on the researches of the Ni-nanocrystal memories. The
Ni nanocrystals were necessary to overcome the Ni diffusion and silicide formation
problems as the thermal annealing treatment. The Ni diffusion through the tunneling
oxide would cause the Ni-Si reaction at the Si substrate. The silicide formation would
also react at the Ni/SiO2 interface. So the low temperature annealing(400 ) would be
i
We chose the sixth furnace and set up the parameters about OX50A ¨
ii
The deposition rate of the E-Gun was relied on adjustment of the current magnitude by a remote control. Not the rate magnitude but the current magnitude will be more exact as we determine our film thickness. However, the current and the deposition rate may be different because the E-Gun aimed at the target position will cause the error. So we must be surely the position as the deposition beginning.
iii
We chose the chamber 2 to deposited TEOS oxide by setting up the TEOS 400 ¨. As the process was started to the §gas st abili z ati o ¡¨ condit i on, we can pres ¡ F2¡ ¨ hold this step until the TEOS flow was stable in the setting value.
Chapter 3
Characteristics of Nickel-Silicide Nanocrystal Memory Structures
with Different Fabrication Processes
3.1 Introduction
Metal nanocrystal charge storage offers several potential advantages over
conventional stacked-gate nonvolatile memory devices
(1) A simple low cost floating-gate fabrication process.
(2) These were improved retention resulting from Coulomb blockade and quantum
confinement effects that enable the use of thinner tunnel oxides and lower operating
voltages.
(3) These could reduce punch-through achieved by eliminating drain-to-floating-gate
coupling, allowing higher drain voltages during readout, shorter channel lengths, and
smaller cell area.
(4) These were excellent immunity to stress induced leakage current and defects
within the floating-gate or insulating layers due to the distributed nature of the charge
storage in the discontinuous nanocrystal layer.
(5) The comfortable applications were caused by high density of states around the
Fermi level and wide ranges of available work functions.
The potential for improved device performance and reliability strongly depends
upon the ability to control particle core size, particle size distribution, crystallinity,
area particle density, oxide-passivation quality, and crystal-to-crystal insulation that
As the scaling down the size of device in very large scale integrated circuits (VLSI)
technology, silicides generally apply to any aspect such as lower contact resistance
and fully silicide (FUSI) metal gate [3.1]. Most important of all, some reports indicate
that silicide has self-passivating silicon dioxide formed under high oxidation
temperature or prolonging heat treatment time [3.2]. At the same time, silicide films
tended to agglomerate or form islands under such annealing condition. According to
these reason, we employed this phenomenon to manufacture our metal nanocrystals
embedded in the SiO2 layer. Furthermore we verified this method could have effect of
memory. And this method was one step process that we can form not only the memory
storage medium but also the control silicon dioxide. This process can be so simpler
low cost fabrication process than traditional nanocrystal memories processes.
However, we wanted to research in the storage characteristics of the Nickel-Silicide
dots so we studied on some different fabrication processes. In this letter, we proposed
a NiSi2 nanocrystal memory device and studied on the memory characteristics of the
metal nanocrystal.
In the Ni-Si binary system, a recent bulk annealing study [3.3] has demonstrated
the existence of a NiSi + Si NiSi2 eutectoid reaction in the temperature range
690¢XC t o 735¢ XCAbove this temperature, NiSi2 rather than NiSi is stable in contact
with Si. The existence of this reaction is evident in the present study as well. The
reaction does not appear in the most widely accepted version of the Ni-Si + binary
phase diagram [3.4]. From the eutectoid temperature up to the NiSi2 Si liquid
peritectic temperature of 968GC [3.5], NiSi2 is stable in contact with Si. Below the
eutectoid temperature, NiSi and Si are in equilibrium [3.6].
The experimental procedures were focus on the formation of the Nickel Silicide
nano-dots. The fabrication processes of the tunneling and control oxide also went
along with changes to be analyzed the nanocrsytals. Relying on the variable
fabrications to obtain the three structures, we studied on the memory effect of the
NiSi2 nanocrystals memories.
3.2.1 The Oxidation of the Dry Oxide/Nickel/amorphous Silicon Structure
First, the 6-in Si wafers (100) were cleaned with standard RCA recipes. The
standard RCA clean process was immersed in the HCl bench at 120 for 10 minutes
(called SC process). Next, the wafers were cleaned with NH4OH at 120 for 10
minutes (called SC process). The last step was dipped in HF several seconds until
the backside wafer was not adhered to the DI water. Second, the wafers were followed
by a thermal oxidation process to form 45A dry SiO2 layer as a tunnel oxide in an
atmospheric pressure chemical vapor deposition (APCVD) furnace. Third, after the
growth of tunnel oxide, Nickel thin film and amorphous Silicon film were deposited
on the oxide by Dual E-Gun Evaporation System (E-Gun) at the same run. This
process was deposited Ni layer then covering a-Si layer immediately. The deposition
of Nickel film was the critical process to determine the result of the memory windows
so checking the frequency range is necessary before deposition. The Ni was deposited
about 17A with 0.1 A/sec as current range in 50-70 A and the a-Si was deposited
about 150A with 0.3 A/sec as current range in 50-60 A. Finally, the furnace
oxidation processes at 900 ,850 and 800 for 10 minutes in the O2 surrounding
formed the NiSi2 nanocrystals and oxidized the a-Si to become SiO2 at the same time.
Moreover, the oxidation process was changed by the oxidation time. This step was
which belonged to the Nano Facility Center of the National Chiao Tung University in
the classroom (class 10k)i. We can set up the auto raising temperature to arrive at the setting temperature. When the faceplate was appeared E , we just began to calculate
the oxidation time. The oxidation process was demanded for infusing into the oxygen
gas so we need exchange N2 for O2 gas. The gas exchange sequences were list as
below. Oxidation Time Open O2 Close N2 Start to Count Oxidation Open N2 Close O2 Drop Temp. Open cover of tube 15min 24:00 22:30 21:30 6:30 5:00 00:00 10min 19:00 17:30 16:30 6:30 5:00 00:00 5min 14:00 12:30 11:30 6:30 5:00 00:00
Finally, the samples were analyzed the micro-structure by Transmission Electron
Microscope (TEM). Subsequently, the Capacitance-Voltage characteristics were
measured at different frequency (10kHz-1MHz) by HP4284 Precision LCR Meter.
The Current-Voltage characteristics were measured by HP4156C Precision
Semiconductor Parameter Analyzer. The metal insulator semiconductor (MIS)
structure with NiSi2 nanocrystals embedded between tunnel and control oxide was
fabricated.
3.2.2 The Oxidation of the Dry Oxide/Nickel/amorphous Silicon/PECVD
Oxide Structure
First, the 6-in Si wafers (100) were cleaned with standard RCA recipes. The
(called SC process). Next, the wafers were cleaned with NH4OH at 120 for 10
minutes (called SC process). The last step was dipped in HF several seconds until
the backside wafer was not adhered to the DI water. Second, the wafers were followed
by a thermal oxidation process to form 42A dry SiO2 layer as a tunnel oxide in an
atmospheric pressure chemical vapor deposition (APCVD) furnace. Third, after the
growth of tunnel oxide, Nickel thin film and amorphous Silicon film were deposited
on the oxide by Dual E-Gun Evaporation System (E-Gun) at the same run. This
process was deposited Ni layer then covering a-Si layer immediately. The Ni was
deposited about 10A with 0.1 A/sec as current range in 50-70 A and the a-Si was
deposited about 20A with 0.3 A/sec as current range about 50 A. Because NiSi2
components were formed 1 2 ratio as Ni to a-Si so the thickness of a-Si layer was
double of Ni layer. Forth, the TEOS oxide 200A was deposited on the Ni thin film by
Plasma Enhanced Chemical Vapor Deposition (PECVD) with reactant gases of TEOS
10 sccm mixed in Nitrogen plasma at 300 . Finally, the processes were separated
into two way. One of these was prepared by Metal Rapid Thermal Annealing, the N2
RTA process at 850 with several annealing time (60s, 120s, 180s, 240s and 300s).
Another was prepared by Oxidation and Diffusion Furnaces. The furnace oxidation
processes at 900 and 800 for 10 minutes in the O2 surrounding formed the NiSi2
nanocrystals. This process was prepared by the Ni silicidation furnace of the
Oxidation and Diffusion Furnaces which belonged to the Nano Facility Center of the
National Chiao Tung University in the classroom (class 10k). Finally, the samples
were analyzed the micro-structure by Transmission Electron Microscope (TEM).
Subsequently, the Capacitance-Voltage characteristics were measured at different
frequency (10kHz-1MHz) by HP4284 Precision LCR Meter. The Current-Voltage
characteristics were measured by HP4156C Precision Semiconductor Parameter
embedded between tunnel and control oxide was fabricated.
3.2.3 The Oxidation of the amorphous Silicon/Nickel/amorphous Silicon
Structure
First, the 6-in Si wafers (100) were cleaned with standard RCA recipes. The
standard RCA clean process was immersed in the HCl bench at 120 for 10 minutes
(called SC process). Next, the wafers were cleaned with NH4OH at 120 for 10
minutes (called SC process). The last step was dipped in HF several seconds until
the backside wafer was not adhered to the DI water. Second, amorphous Silicon,
Nickel and amorphous Silicon were sequent deposition by Dual E-Gun Evaporation
System (E-Gun) at the same run. The processes were deposited 15A a-Si layer then
covering 3A Ni layer and lastly deposited 125A a-Si layer. The Ni was deposited
about 3A with 0.1 A/sec as current range in 50-70 A and the a-Si was deposited
about 15A, 125A with 0.3 A/sec as current range in 50-60 A. Finally, the furnace
oxidation processes at 900 and 800 with some different oxidation time (5, 10, 15
minutes) in the O2 surrounding were formed the NiSi2 nanocrystals and oxidized the
a-Si to become SiO2 at the same time. In addition to these processes, 900 oxidation
process was added with 5minutes in N2 then with 10 minutes in O2. These steps were
prepared by the Ni silicidation furnace of the Oxidation and Diffusion Furnaces
which belonged to the Nano Facility Center of the National Chiao Tung University in
the classroom (class 10k). Finally, the samples were analyzed the micro-structure by
Transmission Electron Microscope (TEM). Subsequently, the Capacitance-Voltage
characteristics were measured at different frequency (10kHz-1MHz) by HP4284
semiconductor (MIS) structure with NiSi2 nanocrystals embedded between tunnel and
control oxide was fabricated.
3.3 Results and discussions
We wanted to overcome the problems of the Ni nanocrystals. The substitute was the
NiSi2 nanocrystals memory. The Ni would prefer to react with Si more than SiO2 so
the redundant Ni was not existed. However, the Ni diffusion and Ni-SiO2 interaction
were solved. The NiSi2 material can be known by the materials science. The NiSi2
sintering temperature was 600-800 so our researches were focused on the
temperature up to 800 . Because upper this temperature, NiSi2 was very stable
component and existed less unstable component of NiSi. The one major problem of
NiSi was the interface leakage current. Another problem was its less thermal stability.
But NiSi had lower resistivity than NiSi2. These were why we chose the temperature
between 800-900 in our experiment. And we had some information about the NiSi2
material
(1) The barrier height to n-Si is 0.66 eV
(2) 3.63nm of resulting Nickel Silicide per nm of Nickel metal
(3) 3.65nm of Si consumed per nm of metal
(4) NiSi2 would not react with Al
(5) The NiSi2 thin film resistivity was 40-50 -cm
3.3.1 Characteristics of the Dry Oxide/Nickel/amorphous Silicon
Structure
by the E-Gun. The experiments were researched by our group before [3.7]. So some
conclusions were obtained as before. First, the NiSi2 nanocrystals were formed
completely at temperature 800-900 . Second, the NiSi2 forming rate and the
oxidation rate were different from 800 to 900 . The NiSi2 forming rate was faster
than the oxidation rate at 900 . However, the oxidation rate was faster than the NiSi2
forming rate at 800 . This mechanism could also be proved by the a-Si/NiSi2/a-Si
structure later. So our study was just repeated to make sure that the NiSi2 nanocrystals
could be successful to be formed. The results were showed in the TEM images(Figure
3-4). The non-uniform nanocrystals(4~10nm) spread in the TEM images. Because the
Ni film was not thin enough as we expected, the NiSi2 nanocrystals were formed too
large to isolate the storage nodes. So we added one step by capping the PECVD
oxide(200 A) on these structures to isolate the storage nodes. The C-V curves were
measured in Figure 3-1 to Figure 3-3. The memory characteristics were appeared in
these results. Nevertheless, the unobvious memory windows (~1V) were revealed the
faulty condition to be formed nanocrystals.
3.3.2 Characteristics of the Dry Oxide/Nickel/amorphous Silicon/PECVD
Oxide Structure
We tried to understand the characteristic of the NiSi2 nanocrystals so we did
some different fabrication processes. The Ni thin film and a-Si thin film were
deposited at the same time but the thickness of the a-Si film was as double as the Ni
film. Therefore, the Ni/a-Si layer was prepared to form the nanocrystals only. Then,
the control oxide was deposited on the NiSi2 dots by PECVD system. Finally, the
nano-dot forming. The RTA process was specially formed the NiSi2 dots. Besides the
film was RTA treated to give the atoms enough surface mobility, the film would
self-assemble into a lower-total-energy state. The major driving forces contributed to
this process so the film tended to break into islands along the initial perturbation. The
Figure 3-6 to Figure 3-10 were showed the C-V measurement of the different
annealing processes. The memory windows for different processes were
approximately 1V after the forward and reverse 6V sweeping. But the memory
window became small (~0.5V) after the forward and reverse 8V sweeping. The Ni
diffusion into the Si substrate was unobvious in the NiSi2 nanocrystals memory
because the gate injection was not occurred. Figure 3-5 was the TEM image for the
60s annealing process. We could find that the NiSi2 dots(~3nm) were formed after the
RTA process. Even if annealing for the shorter time (60s), the segregation and NiSi2
formation were completed at the same time by the thermal annealing treatment.
Moreover, the nanocrystal distribution was uniform and each dot had the same
distance to tunnel into Si substrate.
Next, the different fabrication processes were prepared to form the NiSi2 dot by the
furnace. The samples were made the same treatment before annealing processes then
NiSi2 dots were formed with different temperatures (800 , 900 ) in O2 ambience
for 10 minutes. These processes could be compared with the first part of this chapter.
Figure 3-11 and Figure 3-12 were showed the C-V measurement for 900 , 800
annealing processes. The memory windows for these processes were approximately
1V after the forward and reverse 6V sweeping. But the memory window became
small (<0.5V) after the forward and reverse 8V sweeping. We could find that two
kind of the formation processes with metal RTA and furnace had the similar results.
This meant the NiSi2 dots were completely formed even if the fabrication processes
bear the high voltage. Figure 3-13 was showed the large leakage current of NiSi2
nanocrystals memory with furnace oxidation 900 10min in O2 process. This
showed that the higher voltage sweeping (8V) but less memory window. The I-V
curve was also showed the inverse leakage current as the small positive voltage.
Because of the dots filled up with electrons, these were induced the inverse built-in
field to dominate the leakage current as small gate voltage. But the mechanism of
NiSi2 nanocrystal was not clear and definite in the unobvious memory effect. The
TEM image of furnace oxidation 900 as showed in Figure 3-14 was compared with
TEM image of RTA process. The thick tunneling oxide (~150A) could be observed in
furnace processes so the memory windows during 8V sweeping were smaller than
RTA processes. The long time for thermal treatment would enhance a-Si oxidation
around the NiSi2 dots. For this reason, the a-Si consumed mostly to form the oxide
and NiSi2 dots were less to be formed about 2nm-sized. Furthermore, the small size
(<3nm) and sparse dot density would make the unobvious memory effect.
3.3.3 Characteristics of the amorphous Silicon/Nickel/amorphous Silicon
Structure
The samples were only one step to deposit the three layers (a-Si~15A/ Ni~3A/
a-Si~125A) by E-Gun. Then, the furnace oxidation processes were completed the
memory structures (tunneling oxide/ NiSi2 nanocrystlals/ control oxide). The
oxidation process was the thermal treatment to be formed the NiSi2 component and
segregated into low surface energy shape. Our experiments were variable with
thermal treatment to make a study of forming nanocrystals. Figure 3-15 to Figure 3-18
