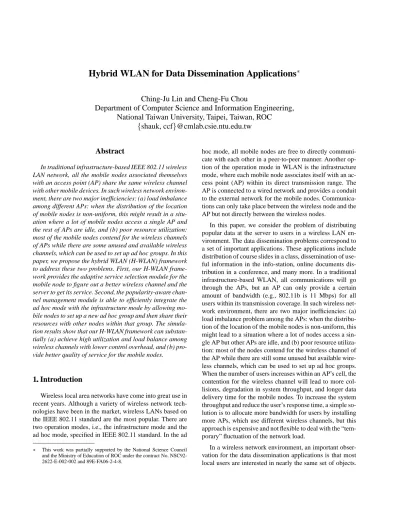

Hybrid WLAN for Data Dissemination Applications
∗Ching-Ju Lin and Cheng-Fu Chou
Department of Computer Science and Information Engineering,
National Taiwan University, Taipei, Taiwan, ROC
{shauk, ccf}@cmlab.csie.ntu.edu.tw
Abstract
In traditional infrastructure-based IEEE 802.11 wireless LAN network, all the mobile nodes associated themselves with an access point (AP) share the same wireless channel with other mobile devices. In such wireless network environ-ment, there are two major inefficiencies: (a) load imbalance among different APs: when the distribution of the location of mobile nodes is non-uniform, this might result in a situ-ation where a lot of mobile nodes access a single AP and the rest of APs are idle, and (b) poor resource utilization: most of the mobile nodes contend for the wireless channels of APs while there are some unused and available wireless channels, which can be used to set up ad hoc groups. In this paper, we propose the hybrid WLAN (H-WLAN) framework to address these two problems. First, our H-WLAN frame-work provides the adaptive service selection module for the mobile node to figure out a better wireless channel and the server to get its service. Second, the popularity-aware chan-nel management module is able to efficiently integrate the ad hoc mode with the infrastructure mode by allowing mo-bile nodes to set up a new ad hoc group and then share their resources with other nodes within that group. The simula-tion results show that our H-WLAN framework can substan-tially (a) achieve high utilization and load balance among wireless channels with lower control overhead, and (b) pro-vide better quality of service for the mobile nodes.
1.. Introduction
Wireless local area networks have come into great use in recent years. Although a variety of wireless network tech-nologies have been in the market, wireless LANs based on the IEEE 802.11 standard are the most popular. There are two operation modes, i.e., the infrastructure mode and the ad hoc mode, specified in IEEE 802.11 standard. In the ad
∗ This work was partially supported by the National Science Council and the Ministry of Education of ROC under the contract No. NSC92-2622-E-002-002 and 89E-FA06-2-4-8.
hoc mode, all mobile nodes are free to directly communi-cate with each other in a peer-to-peer manner. Another op-tion of the operaop-tion mode in WLAN is the infrastructure mode, where each mobile node associates itself with an ac-cess point (AP) within its direct transmission range. The AP is connected to a wired network and provides a conduit to the external network for the mobile nodes. Communica-tions can only take place between the wireless node and the AP but not directly between the wireless nodes.
In this paper, we consider the problem of distributing popular data at the server to users in a wireless LAN en-vironment. The data dissemination problems correspond to a set of important applications. These applications include distribution of course slides in a class, dissemination of use-ful information in the info-station, online documents dis-tribution in a conference, and many more. In a traditional infrastructure-based WLAN, all communications will go through the APs, but an AP can only provide a certain amount of bandwidth (e.g., 802.11b is 11 Mbps) for all users within its transmission coverage. In such wireless net-work environment, there are two major inefficiencies: (a) load imbalance problem among the APs: when the distribu-tion of the locadistribu-tion of the mobile nodes is non-uniform, this might lead to a situation where a lot of nodes access a sin-gle AP but other APs are idle, and (b) poor resource utiliza-tion: most of the nodes contend for the wireless channel of the AP while there are still some unused but available wire-less channels, which can be used to set up ad hoc groups. When the number of users increases within an AP’s cell, the contention for the wireless channel will lead to more col-lisions, degradation in system throughput, and longer data delivery time for the mobile nodes. To increase the system throughput and reduce the user’s response time, a simple so-lution is to allocate more bandwidth for users by installing more APs, which use different wireless channels, but this approach is expensive and not flexible to deal with the “tem-porary” fluctuation of the network load.
In a wireless network environment, an important obser-vation for the data dissemination applications is that most local users are interested in nearly the same set of objects.
In other words, since the requested objects of local users are similar, the mobile nodes can form a local ad hoc group to communicate with each other for sharing those objects without going through the APs until they have to switch back to the infrastructure mode. Furthermore, setting up the local ad hoc groups, which use different channels from the APs, can mitigate the contention and collisions in the infrastructure-based APs channels. Therefore, if we can ef-ficiently integrate the ad hoc mode and the infrastructure mode, such hybrid WLAN is able to increase both the sys-tem and user’s throughput, and provides a better and con-sistent service.
However, there are several important issues that need to be addressed in order to to design a high-performance hybrid WLAN framework. The first one is the service selection problem between different ad hoc groups and infrastructure-based networks. The second one is channel allocation problem including when to set up a new ad hoc group and which channel should be assigned to that group. An inappropriate service selection or channel allocation mechanism may lead to congestion in some channels or servers while others might be idle. In our H-WLAN frame-work, we use the adaptive service selection module for the mobile node to figure out a better channel-server selection to get its service. while achieving higher throughput for the mobile node and the load balance between the wire-less channels. The popularity-aware channel management
module is used to determine the proper wireless channel
al-location to fast and correctly react the actual network con-dition. The simulation results show that our H-WLAN can result in significant performance improvements. That is, the H-WLAN can efficiently integrate the ad hoc and infrastruc-ture modes and achieve load balance among wireless chan-nels, better channel utilization, and higher throughput for both the system and the mobile nodes.
The remainder of the paper is organized as follows. In section 2, we review the related works on integrating the ad hoc wireless network with infrastructure-based WLAN. The H-WLAN framework is described in Section 3. Sec-tion 4 presents a performance study of our proposed frame-work. At last, the conclusion is given in Section 5.
2.. Related Work
In this section, we give a brief literature survey of sev-eral recent works on WLAN. In gensev-eral, most of works on ad hoc networks focus on providing routing technologies to improve the efficiency of content distribution applications. In [7] the authors propose two schemes, i.e., CacheData and CachePath, that the mobile nodes cache the popular data or data path for others in the same ad hoc network whereas our H-WLAN system aims to improve data access in the
infrastructure-based WLAN environment with the help of multiple ad hoc groups.
On the other hand, some works based on infrastructure mode network aim to improve the performance of content dissemination and provide the QoS. In WICAT system [5], each mobile node has a list of interested objects, and these objects may be located at different infostations. Only when a mobile node moves close to an infostation, it is able to download those objects that are available at that infosta-tion and match user’s preference. In [6], their framework supports a map-on-the-go application, i.e., users move be-tween infostations, and each infostation provides relevant maps to these users. These two systems focus on design-ing an efficient infrastructure-based wireless system to dis-tribute useful objects and information for users; however, our framework is a hybrid wireless system integrating the ad hoc mode with infrastructure modes.
Other frameworks or systems, include [4], [1], [8],
NUMI [3], andM2-WLAN [2], use peer-to-peer
communi-cation to assist the infrastructure-based system for data ex-change or distribution. [8] did an initial study on using non-cooperative mechanism, e.g., peer-to-peer communica-tion, to improve the efficiency of content distribution for the infostation system. Two encountered mobile nodes check the file content lists of each other, identify some files they need, and exchange those files. In NUMI [3], the APs col-laborate among themselves and can predict the mobile node’s location in the near future. Using this informa-tion, the AP is able to select another mobile node, which is likely to move around the vicinity of the destination mo-bile node, to piggyback the requested data for the desti-nation mobile node. However, how to predict the moving behavior of mobile nodes has the great effect on the
per-formance of the NUMI system. In theM2-WLAN
frame-work [2], besides communicating with the APs, the mobile node can also switch to ad hoc mode to connect with an-other node under the administration of the AP, the central manager that assigns channels and keeps the
informa-tion for all mobile nodes. Both NUMI and M2-WLAN
frameworks are for host-centric applications while our H-WLAN framework is for data dissemination applica-tions. In addition, the peer-to-peer communication is a
single-hop connection in NUMI and M2-WLAN
sys-tems but can be a multi-hop connection in our H-WLAN framework, i.e., the transmission coverage of our frame-work can be extended by relaying data through multiple nodes.
For each requested object in a hybrid WLAN, there might be more than one available nodes (including the APs) having that object and willing to share it with other nodes. Therefore, the focus of this paper is on the service selection and channel management problems in the H-WLAN frame-work and illustrates how this system can benefit from them.
3.. Hybrid WLAN Framework
In this section, we first give an introduction about how a mobile node can switch its connection between the infras-tructure mode and ad hoc mode in the IEEE 802.11 stan-dard and then present our H-WLAN framework.
In a MAC frame header, ToDS and FromDS bits repre-sent the frame to be transmitted into a Distribution System (DS) or from a DS and indicate the meaning of the four ad-dress fields in the MAC frame. If both ToDS and FromDS bits are zero, this packet is exchanged between two wire-less nodes without an AP involved. If a mobile node runs in the infrastructure-mode, the ToDS bit is set to one and FronDS is set to zero. This means that the mobile node sends a packet to another node via the AP. In this work we assume that a mobile node can change some parameters set-ting to decide which mode (or wireless channel) it would like to use. That is, a mobile node can switch between the infrastructure mode and ad hoc mode dynamically. Usually there are multiple wireless channels available in a wireless network. For instance, there are 14 channels defined in the DSSS PHY frequency channel plan in the 802.11 standard. Our goal is to make use of the available but unused wire-less channels to form some ad hoc groups for assisting the data distribution to relieve the traffic load at the APs and to improve the performance for both the system and the users. The main challenge of H-WLAN framework is how to efficiently integrate ad hoc mode into the traditional infrastructure-based WLAN environment. To address this challenge in the H-WLAN framework, we propose two ma-jor components (a) the adaptive service selection module, and (b) popularity-aware channel management module. Af-ter a mobile node joins the wireless network and wants to get the objects, it first uses the service selection module to decide it can get the requested objects from which server through which channel. In popularity-aware channel man-agement module, the H-WLAN system is able to decide when and how to set up a new ad hoc group and to allo-cate which channel to this group. If a mobile node would like to share its objects with other nodes, the H-WLAN sys-tem determines if it is necessary to set up a new ad hoc group or just notifies this node to join the existing ad hoc group to share its resource using the same wireless chan-nel. Next, we discuss each of them in detail accordingly.
3.1.. Adaptive Service Selection Module
To choose a proper server, the service selection mod-ule consists of two phases: one is the resource discovery phase and the other is the server-channel selection phase. The resource discovery phase is that the system first pro-vides the potential server list, i.e., a list of all accessible servers which can provide the requested object, to the
re-object id channel id available server id
3 1 9, 8
2 7
7 1 9
Table 1. Group Information Table.
channel id group leader status
1 9 on
2 7 on
3 null off
Table 2. Channel Status Table.
quest mobile node. After the mobile node acquires the po-tential server list, it can use that information and choose a proper server. For instance, when the mobile node in the infrastructure mode wants to get an object via the wire-less network, it might contact with one of the APs within its direct transmission range and then obtain the potential server list from that AP. In order to provide such informa-tion, we use the APs as an information-managing center, and each AP maintains a group-information table, which contains three fields: the object id, the wireless channel and the available servers. Each tuple in the server list of object
i, as shown in Table 1, contains two fields: the first field is
the wireless channel used by these corresponding servers in the available server field, and the second field is the
avail-able servers, i.e., the nodes hold object i at that moment
and in this ad hoc group. The discussions of the mainte-nance issues, such as how to set up, delete and update the group-information table, are presented in the following sub-sections.
3.1.1. Resource Discovery Phase: Next, we describe
how a mobile node, according to its location, obtains the po-tential server list below:
1) Within the AP coverage: when the mobile node is
within some APs’ transmission range, there are two pos-sible cases as follows. If this mobile node is in some ad hoc group, it first needs to switch back to the infrastruc-ture mode without affecting ongoing communication. That is, the mobile node examines if it is involved in the process of any ongoing communications. If so, the mobile node has to wait for the end of those communications and then switch back to infrastructure mode. Otherwise, the mobile node is able to switch back to the infrastructure mode immediately. After the mobile node switches back to the infrastructure mode, the following procedures are the same as those in the infrastructure mode case. If this mobile node is in the in-frastructure mode, it sends out the request message to one of those APs and asks for the potential server list.
2) Beyond the AP coverage: when the mobile node is
be-yond the transmission range of any AP, it randomly joins an ad hoc group within its direct transmission range and then sends out the request message to the leader of that ad hoc group. After receiving the request message, the group leader processes that message, generates the corresponding request message and switches to the infrastructure mode to send that request message to the AP for that request mo-bile node. After getting the source list, the group leader for-wards the resource information back to the mobile node. Since the group leader is the relay node for those mobile nodes which cannot access any AP, one sufficient condition for the group leader is that it should locate within transmis-sion range of some APs.
As the AP receives the request, it cannot tell if this re-quest is from the intermediate node such as the group leader or not. The AP retrieves the potential server list from the group information table and returns that information to the client. The potential server list records all members that hold the requested objects in each different ad hoc group. In the traditional infrastructure-based 802.11 WLAN, if a mobile node is out of any APs’ transmission range, it is unable to set up any wireless connection even if there are some mobile nodes within its transmission range. The intu-ition behind our work is the mobile node still has the chance to get its requested objects via its neighbor nodes in an ad hoc group even though it cannot connect to any AP directly. Therefore, the data delivery range in H-WLAN is extended via combining the ad hoc mode, and it also lets more users be able to get their requested objects.
3.1.2. Server-Channel Selection Phase: After a mobile
node gets the potential server list from the AP, it is likely that there is more than one server in the list. In this subsec-tion, we discuss how the mobile node to choose the suit-able server to get its requested objects. Our goal is to main-tain the tradeoff between the load balance and the proximity among all available wireless channels so that the system uti-lization and users’ QoS can be improved. Five various meth-ods are presented to select a proper channel-server pair, and the motivations and characteristics of each method as fol-lows:
1) Signal-Strength Method (wlan): In this method,
the mobile node connects to the AP with the best sig-nal strength. This method is simple and widely used in cur-rent infrastructure-based WLAN. However, as the number of mobile nodes increases and the distribution of the mo-bile node’s location is non-uniform, some APs might have heavy traffic load but the others might be still idle, i.e., it leads to the load imbalance problem. We in-clude this signal-strength method and use it as a baseline approach to compare with.
2) Log-Based Method (wlan-nc): The log-based method
is that each AP keeps track of the total number of current
flows and includes this information in its broadcasting bea-con message. A mobile node might receive several beabea-con messages from different APs, and can connect to the light-loaded server in order to avoid the congestion. The motiva-tion for this method is to explore the benefit of such simple bookkeeping method.
3) Random-based Method (random): When there is more
than one server in the potential server list, the mobile node randomly chooses a server from it and then checks if this server is reachable. If not, the mobile node continues to se-lect another one until it can establish a connection with the chose server. The random-based method is straightforward and able to achieve load balance among the servers. How-ever, the selected server may be far from the request mobile node, or the channel that they use may happen to be con-gested. We illustrate this effect in the performance evalua-tion secevalua-tion.
4) Ping-based Methods (ping, pr2, and r2p): To
investi-gate more dynamic and adaptive source selection schemes, we consider the ping-based methods. The ping-based method is that the mobile node pings every source candi-dates in the potential list and then selects one server af-ter receiving their response messages. The idea of such scheme is to use the response time of the small prob-ing message to examine the condition of the transmis-sion path between the mobile node and the server. In other words, if the mobile node receives the reply from the source quickly, it indicate that the quality of connection be-tween the mobile node and the server is good enough. We also consider other two variations of ping-based meth-ods — the ping-random2 (pr2) method and the random2-ping (r2p) method. The random2-ping-random2 (pr2) method is similar to the ping-based method except that the mo-bile node has to choose one randomly from two servers that their ping response messages are most quickly re-turned. The random2-ping (r2p) method is that the mo-bile node randomly selects two servers from the poten-tial server list and then only sends out the ping mes-sages to these two servers rather than all servers in the list. In pr2 and r2p methods, the mobile node can not only se-lect the proper server dynamically but free from con-necting to the same server with other competing mobile nodes. Obviously, there is a number of other selec-tion schemes that could be built or just reconstructed from the above ones. However, this set is reasonably representa-tive for us to make comparisons.
3.2.. Popularity-Aware Channel Management
Module
In this section, we discuss some important issues in the channel management module including (i) when and how to create an ad hoc group, (ii) when and how to join an
ex-M : Total number of wireless channels; O : Total number of objects;
pi: The popularity of objecti; i = 1, 2, . . . , O Bi: Available bandwidth in channeli; i = 1, 2, . . . , M Bi= 1/M ;
if(pi>= Bj) then
Assign channelj for object i; pi= pi− Bj;
Bj= 0;
else if(Bj> pi> 0) then
Assign channelj for object i; Bj= Bj− pi;
pi= 0; else
reject;
end if
Figure 1. Channel management algorithm.
isting ad hoc group, and (iii) what should be done before a node leaves the ad hoc group.
3.2.1. Create an Ad Hoc Group: After the mobile node
has got its requested objects and is willing to share those ob-jects with other users, it can send the control message to the AP. After receiving this message, the AP determines if it is necessary to construct a new ad hoc group for those ob-jects according to the channel management protocol. Since the popularity of accessed objects may be skew, an inappro-priate channel assignment in the system may lead to poor resource utilization and system performance. We propose a popularity-aware channel management module and give its details as follows.
The main idea of the popularity-aware scheme is to al-locate all available channels to each object in proportion to its popularity. A popular object should take advantage of more channels than a non-popular one to meet more access requests from mobile nodes. The detail about how to allo-cate channels is described in Figure 1. The bandwidth of all wireless channels is normalized to 1, and will be fully uti-lized in our popularity-aware management protocol. More-over, each object will get the suitable amount of bandwidth based on its popularity. When an AP receives the request
from certain node, which wants to share objecti with the
popularitypi, it will check ifpiis greater than 0 first. If so,
the AP randomly chooses a channel, called channelj, which
there is still free bandwidth in and allocate it to objecti.
The amount of bandwidth that could be allocated to this ob-ject is max(pi,Bj) (the max(a,b) function returns the larger
one from two input values ), andpiandBjwill both be
re-duced by max(pi,Bj) after getting available bandwidth.
Af-ter updating the value ofpiandBj, the objecti could not
get any more resource if its popularitypihas been reduced
to 0, and the channelj cannot be allocated to other objects
ifBjhas been reduced to 0.
3.2.2. Join an Ad Hoc Group: In H-WLAN framework,
there are several conditions for a mobile node to join an ex-isting ad hoc group. We describe them as follows:
1) Retrieving an object: The mobile node decides to get
objects from another mobile node in some existing ad hoc group.
2) Sharing a wireless channel: The mobile node would
like to share its objects but there are no more available wire-less channels to build a new ad hoc group.
3) Out of range of APs: The mobile node cannot
con-nect to any AP directly, i.e., there is no AP within its direct transmission range.
After deciding to join which ad hoc group, the mobile node has to send new state message including the group identification and the object list to the AP. The APs update their group information table and channel status table re-spectively after receiving this message.
3.2.3. Leave an Ad Hoc Group: After joining an ad hoc
group, the mobile node might want to break the connec-tion or get some objects that cannot be found in the current ad hoc group. Thus, the mobile node has to leave its ad hoc group to get the requested objects from other ad hoc groups or APs. In order to let the hybrid system work correctly, the mobile node should notify the AP to update all relevant in-formation such as group inin-formation table and channel sta-tus table and take back the wireless channel before leaving. For instance, if some objects are only held on this leaving mobile node, the server has to delete this object field. If the group leader would like to leave, the APs have to appoint another group member as the new group leader before al-lowing it leaving or else this ad hoc group would be forced to be closed.
4.. Performance Evaluation
We evaluate the performance of our H-WLAN frame-work by simulation, implemented in NS2 with CMU wire-less extension. In the simulation topology, there are 3 APs
uniformly distributed in a450m × 400m area. The data rate
of a wireless channel is11M bps and the transmission range
of all mobile nodes, including the APs, is250m. The total
number of objects in the simulation is10. The object size is
uniformly distributed between100KB and 1M B. Another
important observation is that users usually request the ob-jects at some specific periods, such as the period before a meeting or a class, and hence the inter-arrival time of re-quest is getting smaller while the scheduled time of a pre-sentation (or a class) approaches. To address the above
ob-servation, we consider a2 phase arrival rate in the
simula-tions. About2 phase arrival rate, we use a lower arrival rate,
i.e.,λl, for the firstk arrivals and a higher arrival rate, i.e., λh, for the rest of arrivals. The random variables,λlandλh,
The performance metrics used in the remainder of this section are: (a) the mean response time to get a requested object, (b) the variance of mean response time, (c) the ra-tio of control overhead, which is exchanged for keeping some information such as potential server list, to total band-width consumption, and (d) the makespan, the time needed to complete the transfer of all requested objects. These met-rics will reflect the quality-of-service characteristics that would be of general interest to the wireless LAN system and users.
4.1.. Service Selection Study
First, we investigate the performance of different wire-less network systems under Poisson arrival case and then Bulk arrival case. Each AP uses a different wireless channel
and in this simulations there are2 additional wireless
chan-nels, which are available for setting up2 new ad hoc groups
to share the objects locally. We use the pure infrastructure-based WLAN as the baseline to be compared with the per-formance of H-WLAN.
4.1.1. Poisson arrival case: The request arrival pattern is
the Poisson arrival. Each user needs5 objects sequentially
and the order of requested objects is randomly selected from
all possible10 objects. There are total 30 users and each of
them expects to get5 different objects. We evaluate the
per-formance of different selection schemes respectively as fol-lows:
1) Hybrid mod vs. Infrastructure mode: From Figure 2
and 3, the simulation results show that the hybrid system, i.e., random, ping, pr2, or r2p, outperforms the traditional infrastructure-based system, i.e., wlan, in terms of mean response time and makespan time. Such performance im-provement for users is due to the fact that the hybrid sys-tem is able to make use of available wireless channels to increase both the system’s capacity and the user’s through-put. As the makespan time is concerned, the r2p method also has smaller mankspan than other methods; namely, us-ing the pus-ing-based methods, the mobile node can finish its schedule earlier. In addition to the wlan method, we con-sider an enhanced method for improving the performance of pure infrastructure mode, i.e., wlan-nc, which each AP keeps track of the number of connections and the AP with lowest load is assigned to next user’s request. The compari-son, illustrated in Figure 2 and 3, shows that our hybrid sys-tem, such as ping, pr2, and r2p, can still perform better than wlan-nc because of taking advantage of additional avail-able wireless channels.
2) Ping-based vs. Random: Another important and
inter-esting question arises which selection scheme is better and well-performing for the hybrid system. In Figure 2 and 3, we can see that the adaptive selection methods such as ping, pr2 and r2p have smaller mean response time or makespan
0 10 20 30 40 50 60 5 10 15 20 25 30 Number of nodes M ea n r es p o n se t im e (s ec ) wlan wlan-nc random ping pr2 r2p

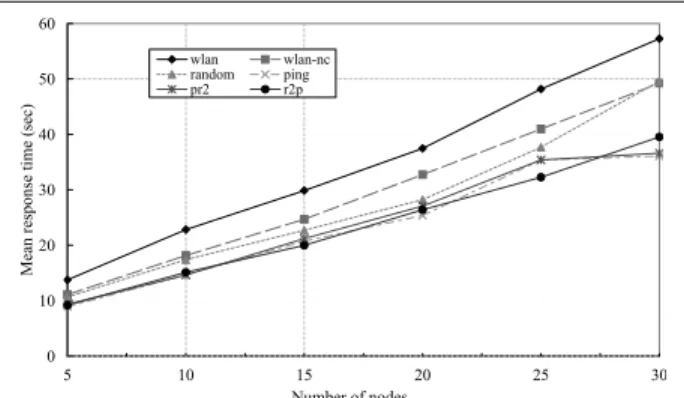

Figure 2. Poisson arrival: Mean response time.
0 50 100 150 200 250 300 350 5 10 15 20 25 30 Number of nodes M ak es p an ( se c) wlan wlan-nc random ping pr2 r2p
Figure 3. Poisson arrival: Makespan.
time than the random method. This can be explained as fol-lows. In all adaptive selection methods, the mobile node can choose a better server and channel to use according to the network condition at that moment; nevertheless, in the ran-dom method, it just blindly chooses one of feasible servers to connect. In other words, in the random method, it is more likely to choose the worst (highest-loaded) or farthest server to connect. In our simulations, we do not consider the sce-nario with other background traffic, but, however, in a more practical network environment, it is not easy for the ran-dom method to achieve the load balance if there exist dif-ferent amount of background traffic running on the servers. On the contrary, the mobile nodes, in the ping-based meth-ods, can choose the suitable server dynamically via the in-formation from ping response messages. Therefore, we will focus our discussion on ping-based methods, i.e., ping, pr2, and r2p, and tell the differences among them in the follow-ing sections.
3) Control Overhead Comparison: In this experiment,
we assume that the infrastructure-based WLAN, i.e., the wlan method, does not require additional wireless band-width for exchanging control messages. In contrast, both the wlan-nc method and the hybrid methods do require addi-tional wireless bandwidth to exchange information like the
0.00% 0.10% 0.20% 0.30% 0.40% 0.50% 0.60% 0.70% 0.80% 0.90% 1.00% 5 10 15 20 25 30 Number of nodes O v er h ea d ( % ) wlan wlan-nc random ping pr2 r2p
Figure 4. Poisson arrival: Overhead.
0 250 500 750 1000 1250 1500 1750 2000 5 10 15 20 25 30 Number of nodes v ar ia n ce wlan wlan-nc random ping pr2 r2p
Figure 5. Poisson arrival: Variance.
server list. The bandwidth requirements are normalized by all transferred data packets including the requested objects and the control messages. As the results shown in Figure 4, the bandwidth overhead of r2p is no more than 0.6% while the ping and pr2 methods result in the bandwidth overheads that don’t exceed 1%. It shows that our H-WLAN can have a substantial performance improvement but the additional bandwidth requirement is small relatively.
4) Variance Comparison: As illustrated in Figure 5, the
random method causes the higher variance compared with the rest of selection methods. This is not surprising since the random method is to select a server randomly from the server list without any further information; namely, the probability is equal for a mobile node to choose the nearest server or the farthest one. The rest of adaptive hybrid meth-ods such as ping, pr2, and r2p can provide fair and consis-tent service (mean response time) compared with the ran-dom method under this simulation setup.
4.1.2. Bulk arrival case: After the above discussions, an
important and interesting question arises: which service se-lection method is most suitable for the hybrid system. Thus, we consider a more bursty arrival pattern and observe the performances under the bursty network condition. In this simulation, all mobile nodes want to obtain the same
sin-0 10 20 30 40 50 60 70 5 10 15 20 25
Bulk arrival size
M ea n r es p o n se t im e (s ec ) wlan ping pr2 r2p
Figure 6. Bulk arrival: Mean response time.
gle object but the number of each arriving nodes may be
greater than 1. That is, the bulk arrival size of first 5
ar-rivals is1 and the bulk arrival size of the remaining arrivals
issb, where sb is from 5 to 25. There are total 30 mobile
users who are uniformly distributed within the simulation area.
As shown in Figure 6, both pr2 and r2p methods can maintain lower mean response time compared with the ping method, where we can make the following observations. As the arrival is not bursty, i.e., the bulk arrival size is small, the ping method can make a good decision to choose a suit-able server. However, when the bulk arrival size increases, it is not a good idea for all the users to choose its best server since they might choose the same one and swamp it. Con-sequently, the mobile node can avoid selecting the worst server and at the same time keep a load balance among all available servers. This is why the pr2 and r2p perform bet-ter than the ping method does.
4.2.. Channel Management Study
Since r2p method performs better than or as well as other server-channel selection schemes and only needs small con-trol overhead, we use it to evaluate the performance of popularity-aware channel management module. In this ex-periment, the popularity of objects is the Zipf distribution,
given in Eq. (1), and we set θ = 0 and K = 10. Each
mobile node desires to get a single object, which is
ran-domly selected from10 possible objects. There are 5
addi-tional wireless channels could be allocated for all objects to
construct the ad hoc group. We use the first-k and
round-robin (RR) method as the base case for comparing with our popularity-aware mechanism. Prob[requent of objecti] = c i(1−θ) ∀i = 1, 2, . . . , K and 0 ≤ θ ≤ 1 (1) Wherec = 1 HK(1−θ) andHK(1−θ)= PK j=1 1 j(1−θ)
In first-k method, all available channels can only be
mul-0 2 4 6 8 10 12 14 16 18 20 15 25 35 45 Number of nodes M ea n r es p o n se t im e (s ec ) RR First-k Popularity
Figure 7. Channel management.
tiple channels if it requests more than once and the request is still first-k ones. In this simulation setup, if one channel
can be only allocated to single object,5 wireless channels
can only respond to first 5 requests. When the popularity
of object is uniform distribution, first-k method might
per-form worse owing to the low utilization of bandwidth, i.e., the channels are not fully utilized but also not able to be al-located to other objects. On the other hand, it gets the ac-ceptable performance, as shown in Figure 7, when the
pop-ularity of object is non-uniform, since the first5 requests,
which get the wireless channels to set up new ad hoc groups, may happen to share the more popular object and use band-width adequately.
In the RR method, the APs allocate the channel by round-robin whether all bandwidth in this channel is fully used or not, and authorize objects to get the resource by round-robin as well, i.e., if an object was once authorized to get the channel, it is able to get additional channel un-less all other objects have been allowed to get the chan-nel once. It is fair for every objects but not a good scheme for this case that the popularity of objects is the Zipf distri-bution. As illustrated in Figure 7, the round-robin method has the worst performance, compared to others, due to im-proper management. The more popular objects can not get sufficient bandwidth to use, but at the same time the band-width that is allocated to non-popular objects is still idle. Moreover, the results show that our popularity-aware mech-anism has the best performance under the skew popularity. The lower mean response time also illustrates that the users can get a better QoS and the total amount of bandwidth can be utilized more effectively.
5.. Conclusions
In this paper, we discussed the issues about the integra-tion of ad hoc mode wireless network with infrastructure-based WLAN for the data dissemination applications. The main contributions of H-WLAN are as follows. First, we
have shown that it is promising to use extra available chan-nels to set up the ad hoc groups for aiding the traditional infrastructure-based WLAN, and the simulation results also illustrate that the QoS of users and the throughput and uti-lization of system are both substantially enhanced in H-WLAN. Second, the adaptive service selection module and the popularity-aware channel management module are pro-posed in this work. Both modules can provide the efficient resource management and consistent service. The mobility issue of nodes is beyond the focus of this work since the mobility may lead to separation in an ad hoc group and ter-mination in current connections. Our future work plans to take the mobility issue into consideration.
