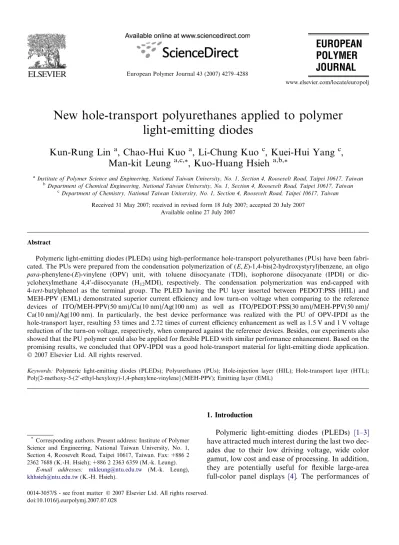

New hole-transport polyurethanes applied to polymer
light-emitting diodes
Kun-Rung Lin
a, Chao-Hui Kuo
a, Li-Chung Kuo
c, Kuei-Hui Yang
c,
Man-kit Leung
a,c,*, Kuo-Huang Hsieh
a,b,*aInstitute of Polymer Science and Engineering, National Taiwan University, No. 1, Section 4, Roosevelt Road, Taipei 10617, Taiwan bDepartment of Chemical Engineering, National Taiwan University, No. 1, Section 4, Roosevelt Road, Taipei 10617, Taiwan
cDepartment of Chemistry, National Taiwan University, No. 1, Section 4, Roosevelt Road, Taipei 10617, Taiwan
Received 31 May 2007; received in revised form 18 July 2007; accepted 20 July 2007 Available online 27 July 2007
Abstract
Polymeric light-emitting diodes (PLEDs) using high-performance hole-transport polyurethanes (PUs) have been fabri-cated. The PUs were prepared from the condensation polymerization of (E, E)-1,4-bis(2-hydroxystyryl)benzene, an oligo para-phenylene-(E)-vinylene (OPV) unit, with toluene diisocyanate (TDI), isophorone diisocyanate (IPDI) or dic-yclohexylmethane 4,40-diisocyanate (H
12MDI), respectively. The condensation polymerization was end-capped with
4-tert-butylphenol as the terminal group. The PLED having the PU layer inserted between PEDOT:PSS (HIL) and MEH-PPV (EML) demonstrated superior current efficiency and low turn-on voltage when comparing to the reference devices of ITO/MEH-PPV(50 nm)/Ca(10 nm)/Ag(100 nm) as well as ITO/PEDOT:PSS(30 nm)/MEH-PPV(50 nm)/ Ca(10 nm)/Ag(100 nm). In particularly, the best device performance was realized with the PU of OPV-IPDI as the hole-transport layer, resulting 53 times and 2.72 times of current efficiency enhancement as well as 1.5 V and 1 V voltage reduction of the turn-on voltage, respectively, when compared against the reference devices. Besides, our experiments also showed that the PU polymer could also be applied for flexible PLED with similar performance enhancement. Based on the promising results, we concluded that OPV-IPDI was a good hole-transport material for light-emitting diode application. 2007 Elsevier Ltd. All rights reserved.
Keywords: Polymeric light-emitting diodes (PLEDs); Polyurethanes (PUs); Hole-injection layer (HIL); Hole-transport layer (HTL); Poly[2-methoxy-5-(20-ethyl-hexyloxy)-1,4-phenylene-vinylene] (MEH-PPV); Emitting layer (EML)
1. Introduction
Polymeric light-emitting diodes (PLEDs) [1–3]
have attracted much interest during the last two dec-ades due to their low driving voltage, wide color gamut, low cost and ease of processing. In addition, they are potentially useful for flexible large-area full-color panel displays [4]. The performances of 0014-3057/$ - see front matter 2007 Elsevier Ltd. All rights reserved.
doi:10.1016/j.eurpolymj.2007.07.028
* Corresponding authors. Present address: Institute of Polymer
Science and Engineering, National Taiwan University, No. 1, Section 4, Roosevelt Road, Taipei 10617, Taiwan. Fax: +886 2 2362 7688 (K.-H. Hsieh); +886 2 2363 6359 (M.-k. Leung).
E-mail addresses: [email protected] (M.-k. Leung),
[email protected](K.-H. Hsieh).
European Polymer Journal 43 (2007) 4279–4288
www.elsevier.com/locate/europolj
POLYMER
JOURNAL
organic LED devices are governed by many factors, including balanced injection of charge carriers, quantum efficiency of the light-emitting process, and the charge confinement for bipolaron recombi-nation[5–7]. To achieve high efficient devices, multi-layer OLED structures have been commonly adopted to optimize the device performance. How-ever, applying the concept of multi-layer structures to PLED devices is somewhat challengeable because typical solvents such as chloroform, toluene or xylene have good etching ability for many polymers and would non-selectively destroy most of the pre-coated polymeric layers. Therefore, fabrication of multi-layer PLED devices through layer-by-layer spin-coating or inkjet printing would be difficult[8]. In order to establish the multi-layer polymer devices, many different approaches have been reported to bypass the solubility problem. One of the solutions is to make polymeric film insoluble by thermal treatments [1,9] or photochemical cross-linking prior to the processing of the subse-quent layer[10].
An alternative approach is to have polymers that are dissolved, respectively, in polar and non-polar solvent systems [11]. Since some well-known light-emitting polymers such as poly(para-phenylene-(E)-vinylenes)[12], or polyfluorenes[13]are soluble in non-polar solvents, therefore, electron and hole-transport polymers that are soluble in polar solvents are highly desired. A typical example is the two-layer structure device derived from the wide-used water soluble PEDOT:PSS and non-polar light-emitting polymers[12e].
Polyurethanes (PUs) are common polymers that have been widely used for industrial applications
[14]. Due to their big contrast of good solubility in polar solvents such as DMF, or NMP in compari-son to their poor solubility in non-polar solvents, they are appropriate candidates to study [15,16]. In this article, synthesis and study of the hole-trans-port polyurethanes (PUs) as well as their applica-tion to high-efficiency multi-layer PLED devices are reported.
2. Experimental
2.1. Materials synthesis[15a]
2.1.1. Tetraethyl a,a0-para-xylenediphosphonate (1)
To a two-necked flask was added N-bromosuc-cinimide (160 g, 0.9 mol), para-xylene (43.7 g, 0.41 mol) and methyl formate as solvent (388 mL).
The mixture was irradiated by a sun-lamp (120 W) for 20 min at room temperature with stirring. AIBN (0.044 g, 0.27 mmol) was then added to initiate the radical bromination. The mixture was heated to 40C and irradiated for 14 h, and then cooled to room temperature. White precipitates formed were collected by filtration and washed with small por-tions of methyl formate. The collected precipitates contained the desired a,a0-dibromo-para-xylene
and succinimide. The succinimide was removed by washing with water. The white crude product was dried and recrystallized from chloroform to give white needles (54 g, 0.21 mol, 51%). M.p. 142– 143C [lit. 143.5 C] [17], 1H NMR (200 MHz, CDCl3), d 7.35 (s, 4H), 4.45 (s, 4H);
13
C NMR (100 MHz, CDCl3) d 138.0, 129.5, 32.8. MS m/z
FAB (NBA) HRMS (M+) calcd. for C8H8Br2
261.8993, found C8H8Br2 261.8997; IR (KBr):
3034, 1229, 2977, 612 cm1.
To an oven-dried double-necked flask containing a stir bar were charged a,a0-dibromo-para-xylene
(10.0 g, 38.0 mmol) and triethyl phosphite (13.8 g, 83 mmol). The flask was repeatedly evacuated and flushed with argon for several times. The reaction mixture was stirred and heated at reflux temperature for 21 h, and was cooled to room temperature. The excess triethyl phosphite was removed by distilla-tion under reduced pressure. The white solid left inside the flask was collected and recrystallized from ether to give white crystals (9.45 g, 25 mmol, 66%). M.p. 45–46C. [lit. 70 C from hexane] [18], 1H NMR (200 MHz, DMSO-d6): d 7.20 (s, 4H), 3.92 (quintet, J = 7.2 Hz, 8H), 3.18 (d, JHP= 20.1 Hz, 4H), 1.15 (t, J = 7.0 Hz, 12H);13C NMR(100 MHz, DMSO-d6): d 135.6, 134.8, 66.5, 37.1 (d, Jcp = 130 Hz), 21.4; MS m/z FAB (NBA) (M++ H) 379.14; HRMS (M+) calcd. for C16H28O6P2 378.1361, found C16H28O6P2 378.1366. IR (KBr) 2990, 1517, 1233, 1054 cm1. 2.1.2. (E,E)-1,4-Bis(2-hydroxystyryl)benzene (OPV)
To a two-necked flask were added 2-hydroxy-benzaldehyde (11.4 g, 0.10 mol), (1) (10.4 g, 27.4 mmol), LiCl (4.78 g, 0.11 mol), and dried DMF (58 mL) as solvent. The mixture was first stir-red at room temperature under nitrogen for 20 min, and then pre-cooled in an ice bath, followed by addition of potassium tert-butoxide (24.6 g, 0.23 mol) slowly. The reaction was continued for 5 h at room temperature under an inert atmosphere. Aqueous HCl (1 N) was added slowly to quench the
reaction until the solution turned acidic. The yellow precipitate was collected by filtration, washed with water and methanol and recrystallized from acetone to afford as yellow crystals (6.5 g, 20.7 mmol, 74%). M.p. 210–211C [lit 230–231 C from DMF–ether]
[19], 1H NMR (300 MHz, DMSO-d6) d 9.79 (s, 2H), 7.59–7.54 (m, 4H), 7.43 (d, J = 16.5, 2H), 7.21 (d, J = 16.5, 2H), 7.09 (t, J = 6.9, 2H), 6.88– 6.81 (m, 4H); 13C NMR (100 MHz, DMSO-d6) d 155.0, 136.7, 128.6, 127.5, 126.6, 126.4, 123.8, 123.3, 119.3, 115.8; MS m/z FAB (NBA) 314.1; HRFAB (M+) calcd. for C22H18O2 314.38, found
C22H18O2 314.1310. IR (KBr) 3511, 1491, 813,
763 cm1.
2.2. General procedures for the synthesis of OPV-polyurethane
OPV, diisocyanate (TDI, IPDI, H12MDI) and
dried DMF were first reacted, with stirring, in a two-necked flask for 24 h at room temperature under nitrogen. 4-tert-Butylphenol was added in order to terminate the polymerization. The mixture was further stirred for 24 h. When the reaction was complete, the polymer was precipitated by drop-wise addition of the reaction mixture into methanol. The process of dissolution in DMF and precipita-tion in MeOH was repeated for several times. The polymers were further precipitated in toluene to remove any toluene-soluble oligomers. The poly-mers obtained under this precipitation condition would have higher resistance against solvent-etching in the multi-step spin-coating process.
2.2.1. OPV-TDI
OPV (942 mg, 3 mmol), toluene diisocyanate (548 mg, 3.15 mmol), dried DMF (15 mL) and ter-minal group 4-tert-butylphenol (45 mg, 0.3 mmol) were used to afford 1.32 g white-yellow solid (yield, 89%). M.p.: 214–215C. Calcd. for: C, 73.1; H, 7.1; N, 5.22. Found: C, 71.5; H, 6.9; N, 5.3. 1H NMR (400 MHz, DMSO-d6) d 3.9–4.2 (m, 3H), 6.2–8.3
(m, 28H). 2.2.2. OPV-IPDI
OPV (942 mg, 3 mmol), isophorone diisocyanate (700 mg, 3.15 mmol), dried DMF (15 mL) and ter-minal group 4-tert-butylphenol (45 mg, 0.3 mmol) were used to afford 1.5 g light white solid (yield, 92%). M.p.: 202–203C. Calcd. for: C, 76.2; H, 6.8; N, 5.10. Found: C, 76.5; H, 6.8; N, 5.3. 1H
NMR (400 MHz, DMSO-d6) d 0.7–2.0 (m, 18H),
2.7–3.0 (m, 2H), 3.5–3.8 (m,1H), 6.7–8.1 (m, 20H). 2.2.3. OPV-H12MDI
OPV (942 mg, 3 mmol), dicyclohexylmethane 4,40-diisocyanate (825 mg, 3.15 mmol), dried DMF
(15 mL) and terminal group 4-tert-butylphenol (45 mg, 0.3 mmol) were used to afford 1.50 g white solid (yield, 85%). M.p.: 189–190C. Calcd. for: C, 78.1; H, 6.5; N, 5.02. Found: C, 79.5; H, 7.1; N, 4.90.1H NMR (400 MHz, DMSO-d6) d 0.6–1.8 (m, 20H), 2.8–3.2 (m, 4H), 3.6–3.9 (m, 3H), 6.7– 8.0 (m, 14H). 2.3. Instrumentations 1
H NMR spectroscopy was performed on a Bru-ker 200, 300, or 400 MHz spectrometer. Elemental analyses were performed on an EA Heraeus Vario EL-3 analyzer. FTIR spectra were recorded using a Jasco-480 spectrometer. UV–vis analyses were performed on a Jasco V-570 UV–vis spectropho-tometer. The number-average and weight-average molecular weight of the polymers was determined by a Waters GPC-480 system with a column of AM GPC Gel (10 lm) from American Polymer Standard Company. Dimethylforamide (DMF) as eluent and polystyrene as standard were used in these experiments. TGA and DSC were performed on a TGA Perkin–Elmer TGA-7 and DSC Du Pont 2010 analyzer under a nitrogen atmosphere at a heating rate of 10C min1. The thickness of the polymer films was measured using an Alpha step Dektak 3030 profilometer. Photoluminescence (PL) spectra of the polymers were recorded using a Hitachi-4500 spectrofluorometer. Electrolumines-cence was recorded by a Minolta CS-1000 instru-ment. The I–V and L–V characteristics of the devices were measured by integrating a Keithley 2400 source-meter as the voltage and current source and a Minolta CS1000 instrument as the Luminance detector. All the measurements and device fabrica-tions were performed in air at room temperature under a dust-controlled environment.
2.4. Device fabrication
The PLED device structure was ITO/PED-OT:PSS(30nm)/PU(30nm)/MEH-PPV(50 nm)/ Ca(10 nm)/Ag(100 nm), which consisted of poly(ethylenedioxythiophene):poly(styrene sulfonic acid) (PEDOT:PSS) as the hole-injection layer
(HIL), OPV-TDI, OPV-IPDI or OPV-H12MDI as
the hole-transport layer (HTL), poly[2-methoxy-5-(20-ethyl-hexyloxy)-1,4-phenylene-(E)-vinylene]
(MEH-PPV) as the emitting layer (EML), and finally Ca/Ag as the cathode. The HOMO and LUMO of PEDOT:PSS is close to that of the ITO. Therefore, PEDOT:PSS was employed as HIL to increase hole-injection from the ITO anode to the EML in the latter study. Previous results revealed that the PEDOT:PSS layer has certain capability to resist the DMF etching and would not be significantly destroyed by the polar solvent in the following step of PU coating [15a]. On the other hand, low work function metal (Ca) was cho-sen as electron injection layer (EIL) to facilitate electron injection from Ag cathode. In addition, a primitive device, without inserting any HIL and HTL, of ITO/MEH-PPV(50 nm)/Ca(10 nm)/Ag(100 nm), as well as a standard device of ITO/PED-OT:PSS(30 nm)/MEH-PPV(50 nm)/Ca(10 nm)/ Ag(100 nm) were fabricated as references. The ITO surface was cleaned by a sequence of actions, including sonication, rinsing in deionized water, Tri-ton-100 water solution, deionized water, acetone and methanol. The hole-injection PEDOT:PSS layer was spin-coated on top of the ITO anode and dried on a hot plate at 130C for 30 min under vacuum. Each polymer solution for spin-coating, with the concentration of 5 mg/mL in DMF, was filtered through a membrane filter with the channel size of 0.45 lm. The PU solution was spin-coated onto the prepared PEDOT:PSS/ITO anode and dried under reduced pressure for 30 min at 120C. The deposition rates for Ca and Ag cathodes were set at 1 A˚ /s and 4 A˚/s, giving an active area of 0.1256 cm2. The thickness for each layers were mea-sured by an Alpha step instrument.
2.5. Fabrication of flexible PLED devices
The flexible PET/ITO plates used in the experi-ments have an electrical sheet resistance of 300 X/ h, being cut into 2.5 cm· 2.5 cm format. The flexi-ble ITO plates were first fixed onto a piece of glass plate by using two-sided Scotch tape before spin-coating, and then a layer of PEDOT:PSS was coated at the spin-rate of 5000 rpm. The plates were then baked at 120C under vacuum for 30 min and cooled. A layer of PU (5 mg/ml in dried DMF) was then coated on top at 4000 rpm. The plates were then baked again at 120C under vacuum for 30 min. A layer of yellow-light-emitting PPV was
then coated (5 mg/ml in dried toluene) at 4000 rpm and also baked at 120C under vacuum for 30 min. The Ca cathode was deposited under vacuum, at a rate of 1 A˚ /s, till 10 nm thickness, fol-lowed by Ag, at a rate of 4 A˚ /s, up to the 100 nm thickness. The device performances were measured under ambient conditions.
3. Results and discussion 3.1. Monomer synthesis
The preparation route of OPV monomer is illus-trated in Scheme 1 [13,15]. OPV was prepared in three steps from para-xylene. Radical bromination of para-xylene led to a,a0-dibromo-para-xylene[17]
in 51% yield. Treatment of a,a0
-dibromo-para-xylene with triethylphosphite afforded bis(diet-hylphosphonate) 1 (66%) [18] that was further condensed with 2-hydroxybenzaldehyde under the Wadsworth-Emmons-Wittig conditions to give the target OPV monomer (74%) [19]. Noteworthy to mention that only (E)-isomer would be obtained under the Wadsworth-Emmons-Wittig condensa-tion condicondensa-tions. Reaccondensa-tion under N2 atmosphere in
the last step was crucial because brownish contami-nants that were difficult to remove would be gener-ated without an inert atmosphere protection. 3.2. Polymer characterization
The polar polyurethanes were prepared from condensation polymerization of the OPV monomer with commercially available diisocyanates such as TDI, IPDI or H12MDI in dried DMF to give
poly-mers OPV-TDI, OPV-IPDI or OPV-H12MDI,
respectively (Scheme 2). As shown in Fig. 1, upon reaction, the IR-absorptions of the –NCO group and the ArOH groups disappeared at 2260 cm1 and 3500 cm1, respectively. Instead an absorption of the –NH group appeared at 3330 cm1. These results implied that the urethane linkages were formed completely. The molecular weight of the resultant polymers and their thermal behavior, including Tg and Td, were summarized in Table 1.
The molecular weight of the polymers was deter-mined by gel-permeation chromatography (GPC) analysis against polystyrene standard in DMF. The energy level of the highest occupied molecular orbital (HOMO) was obtained by photoelectron spectrometric measurements [20](Riken Keiki AC-2) in which the HOMO energy level of the polymeric
films was directly measured. The characterization and optical properties of the studied polymers in diluted solutions and in solid films were also listed inTable 1.
3.3. Optical properties
Fig. 2exhibits UV–vis absorption and PL spectra of the three PU polymer films. Compared with OPV-IPDI and OPV-H12MDI, both absorption
and PL spectra of OPV-TDI were red-shifted The half-width of PL emission band of the OPV-TDI was the largest among the PUs we studied. These phenomena may arise from the phenyl and OPV/
(b) P(OEt)3, 110oC, (66%) (a) NBS, HCO2Me (51%) (EtO)2OP PO(OEt)2 KOt-Bu, LiCl (74%) OH HO 1 2-HOC6H4CHO OPV Scheme 1. Synthesis of the OPV monomer.
Scheme 2. Condensation polymerization of the OPV monomer with diisocyanates.
Fig. 1. Infrared (IR) spectra of TDI, OPV-TDI, OPV-IPDI and OPV-H12MDI.
Table 1
Characterization and optical properties of PUs
Mw(·103) DPa Tg(C) Td(C) HOMOd/LUMOe(eV) UV (nm)bmax UV (nm)cmax/edge
OPV-TDI 9.4 2.12 105 300 5.71/3.00 388 399/458 OPV-IPDI 9.7 2.57 84 276 5.62/2.67 372 378/421 OPV-H12MDI 10.3 2.39 78 261 5.61/2.75 372 376/434 a From GPC. b Solution. c Film. d
From AC-2 measurement.
e
TDI p–p interactions. The optical band gaps of the polymers were estimated as 2.71, 2.95 and 2.86 eV, respectively, from the onset of the UV–vis absorp-tion band, shown in Fig. 3, at 458 nm for OPV-TDI, 421 nm for OPV-IPDI and 434 nm for OPV-H12MDI. The lowest unoccupied molecular
orbital (LUMO) energy levels were then calculated on the basis of their HOMO energy levels and the values of optical band gap of the polymers[21].
3.4. Thermal properties
The thermal behaviors of the polymers have been studied by differential scan calorimetry (DSC)
(Fig. 4) and thermogravimetric analysis (TGA)
(Fig. 5). OPV-H12MDI exhibited a relatively low
glass transition temperature (Tg) of 78C in
com-parison to OPV-TDI that showed a higher Tg of
105C. It is reasonable because benzene ring
usu-ally has higher rigidity than the cyclohexyl group. The lower Tg of OPV-H12MDI was attributed to
the relatively flexible segmental mobility of the dual cyclohexyl units per repeating unit. OPV-IPDI also showed relatively high flexibility than OPV-TDI. The Tgof 84C was recorded that was close to that
of OPV-H12MDI. As for the Td, there was a similar
trend as Tgdid.
3.5. Electroluminescence properties
PLED devices on ITO glass or on PET/ITO sub-strates have been studied. OPV-TDI, OPV-IPDI, and OPV-H12MDI were first applied as the HTL
materials on ITO glass substrates for PLED fabrica-tion. Totally five devices, denoted as devices 1–5, were examined and their device structures are listed in Table 2. The luminance–voltage and the current efficiency–voltage plots of devices 1–5 are shown inFigs. 6 and 7, respectively and their performance Fig. 2. UV–vis absorption and PL spectra of TDI,
OPV-IPDI and OPV-H12MDI polymer films.
Fig. 3. UV–vis absorption spectra of OPV-TDI, OPV-IPDI and OPV-H12MDI in solid-state films: (a) UV onset for OPV-IPDI:
(b) UV onset for OPV-H12MDI: (c) UV onset for OPV-TDI.
Fig. 4. Differential scan calorimetry curves of TDI, OPV-IPDI and OPV-H12MDI.
Fig. 5. Thermogravimetric analysis of OPV-TDI, OPV-IPDI and OPV-H12MDI.
are summarized inTable 3. Compared with the sin-gle-layer reference device 1, the PLED with either a
layer of PEDOT:PSS only (device 2) or having an extra OPV-TDI, OPV-IPDI or OPV-H12MDI layer
on top (devices 3–5) could dramatically enhance the maximum brightness and current efficiency. Such enhancements may due to more balanced hole–elec-tron transportation to the EML of the device. Under these conditions, the current efficiency was significantly improved. To act as a high-perfor-mance HTL layer, the material should be a good hole-transport layer with electron-block properties. In addition, the contact between the layers must be good so that the interfacial resistance could be minimized. The OPV fragments might play an important role for hole-transport process in the PU matrix. Related prior work using poly(para-phe-nylene-vinylene) as hole-transport layers have been reported for multi-layer PLED applications [15]. On the other hand, the PU layer may also act as an electron-blocking layer, helping to confine the excitons in the emitting layer and improving recom-bination in MEH-PPV. This point of view may be valid due to the higher lying LUMO of the PUs. It has been reported that the energy level of the LUMO of MEH-PPV is 2.9 eV [15d], which is lower than that of OPV-IPDI (2.67 eV) and of OPV-H12MDI (2.75 eV). In addition, the dipolar
urethane may have a good contact with the ionic PEDOT:PSS layer through dipole–moment interac-tions. Interfacial contact between layers is impor-tant for the charge transport process in the multilayer devices. Poor contact between layers would lead to high electrical resistance. In consider-ation the ionic PEDOT:PSS as a polar polymeric layer, the polymers containing polar urethane groups should have good adhesion to the PED-OT:PSS surface. Furthermore, the presence of the polar groups at the interface may also help to reduce the hole-injection energy barrier. It has been reported that grafting of dipolar molecules on the ITO surface would enhance the PLED performance
[16d]. Other theory also suggested that alignment of Table 2
PLED structure of devices 1–5 on ITO glass
HIL (nm) HTL (nm) EML (nm) Cathode (nm)
PEDOT:PSS MEH-PPV Ca Ag
Device 1 N/A N/A – 50 10 100
Device 2 30 N/A – 50 10 100
Device 3 30 OPV-TDI 30 50 10 100
Device 4 30 OPV-IPDI 30 50 10 100
Device 5 30 OPV-H12MDI 30 50 10 100
Fig. 6. Characteristic brightness–voltage curves of devices 1–5.
Fig. 7. Current efficiency–voltage characteristic of devices 1–5.
Table 3
Electroluminescence performance of devices 1–5 on ITO glass Turn-on voltage (V) Maximum brightness (cd/m2) Efficiency (cd/A) Device 1 5.0 10 0.02 Device 2 4.5 348 0.39 Device 3 4.5 463 0.62 Device 4 3.5 1598 1.06 Device 5 4.0 1125 0.93
dipolar molecules along the interface would signifi-cantly alter the work function of the surface [22]. Additionally, it has long been known that introduc-tion of ionic species into organic solvents would lead to solvent-dipole reorganization. Through the solvent reorganization, the ionic species could be stabilized[23]. Therefore, when a hole was injected from the PEDOT:PSS surface into the OPV seg-ment, the reorientation of the adjacent urethane groups was expected to induce a stabilization effect on the process, helping the hole-injection into the PU layers. Such mechanism may be the key factor for reducing driving voltage and improving current efficiency.
The device performance of the PLED devices are summarized inTable 3. One can see that devices 3–5 had lower turn-on voltage and much higher current efficiency than the reference devices 1 and 2. The effects of the PU layer on the turn-on voltage were definitely essential. The turn-on voltage, defined as the operating voltage at 1 cd/m2, significantly dropped from 5 V of the reference device 1 to 4.5 V for reference device 2, 4.5 V for device 3, 3.5 V for device 4, and 4 V for device 5, respectively. Device 4 showed superior hole-transport capability with the OPV-IPDI as a hole-transport layer and had the maximum current efficiency of 1.06 cd/A. Therefore, OPV-IPDI is the most suitable HTL causing the balanced hole and electron injection in the emitting layer. Under the best conditions, the OPV-IPDI achieved 53 times and 2.72 times of cur-rent efficiency enhancement and 1.5 V and 1 V volt-age reduction of the turn-on voltvolt-age, respectively, when compared against the bare ITO (reference device 1) and ITO/PEDOT (reference device 2) as anode, This approach could be applied for flexible PLED fabrication (Table 4). The flexible PLED device performances are summarized in Table 5. In these flexible devices, a phenyl-substituted poly (para-phenylenevinylene) copolymer (‘‘super-yel-low’’) has been used as the emitting layer [12d]. Device 7 showed superior hole-transport capability with the OPV-IPDI as a hole-transport layer and had the maximum brightness of 2800 cd/m2 and
maximum current efficiency of 2.1 cd/A in compar-ison to the device 6 which had the maximum bright-ness of only 703 cd/m2 and maximum current efficiency of 0.7 cd/A (Figs. 8 and 9).
Table 4
PLED structure of the flexible PLED devices 6 and 7
HIL (nm) HTL (nm) EML (nm) Cathode (nm)
PEDOT:PSS Yellow PPV Ca Ag
Device 6 30 N/A – 50 10 100
Device 7 30 OPV-IPDI 30 50 10 100
Table 5
Electroluminescence performance of the flexible PLED devices 6 and 7 Turn-on voltage (V) Maximum brightness (cd/m2) Efficiency (cd/A) Device 6 4.0 703 0.7 Device 7 3.0 2800 2.1
Fig. 8. Characteristic brightness–voltage curves of the flexible devices 6 and 7.
Fig. 9. Current efficiency–voltage characteristic of the flexible devices 6 and 7.
The electroluminescence spectra of MEH-PPV devices are shown in Fig. 10. The EL spectra illus-trated that the maximum emission peaked at 585 nm with the luminescence features almost iden-tical with the literature data[15d]. The emission did not shift even when the driving voltage increased from 6 V to 9 V, indicating that the exciton recom-bination was still confined within the MEH-PPV layer. Meanwhile, the spectral bleaching phenom-ena had not been observed when the applied voltage was increased. As we mentioned before, due to the higher lying LUMO and the lower lying HOMO of the PU layer, the excitons confinement in the MEH-PPV layer was reasonable. Therefore, the recombination zone would not cross-over to the PU layer. It could explain why the spectral prop-erties of the MEH-PPV device could be maintained when the applied voltage was increased. Fig. 11
illustrates the EL spectra of the flexible devices.
The maximum emission peaked at 555 nm was observed. These results also indicated the PU layer would not affect the emitting layer properties. The picture of the flexible device operating at 9 V was shown inFig. 12. Bright EL was clearly observed. 4. Conclusion
In short, the high-performance hole-transport polyurethanes (PUs) have been demonstrated as they can greatly achieve charge-balanced condition to reduce the driving voltage and to improve the current efficiency both on the glass and flexible PET substrates. Previous research results revealed that the OPV-PU has a good hole-transport prop-erty in the hole-only device study[15a]. We believed that the excellent hole-transport capability together with PUs’ good solubility in polar solvents made the OPV-IPDI a most potential candidate for use in the multi-layer PLED devices by solution processing techniques. All this suggested that IPDI is a suitable diisocyanate candidate for further PU derived light-emitting-diode investigations.
Acknowledgements
This work was supported by Ministry of Eco-nomic Affairs (93-EC-17-A-08-S1-0015), National Science Council of Taiwan (NSC 95-2113-M-002-020) and Advanced Polymer Nano Technology Re-search Center.
References
[1] Burroughes JH, Bradley DDC, Brown AR, Marks RN, Mackay K, Friend RH, et al. Nature 1990;347:539. Fig. 10. The electroluminescence spectra of device 4 at various
driving voltage.
Fig. 11. The electroluminescence spectra of the flexible devices 6 and 7 at 9 V.

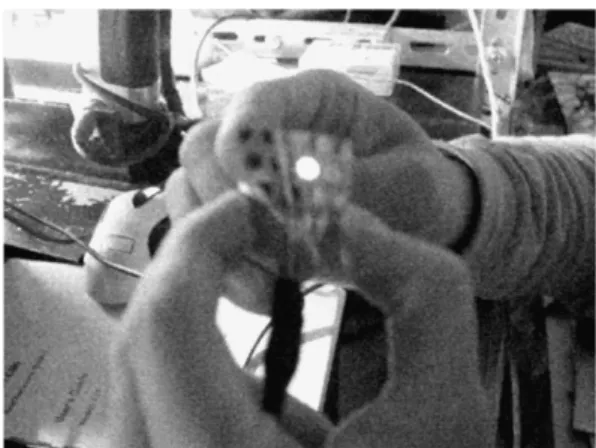

Fig. 12. The flexible PLED with PU hole-transport modification layer at 9 V.
[2] Ohmori Y, Uchida M, Muro K, Yoshino K. Jpn J Appl Phys 1991;30:L1938.
[3] Braun D, Heeger A. J Appl Phys Lett 1991;58:1982. [4] (a) Gu G, Shen Z, Burrows PE, Forrest SR. Adv Mater
1997;9:725–8;
(b) Tsutsui T, Fujita K. Adv Mater 2002;14:949–52; (c) Yang Y, Huang Q, Metz AW, Ni J, Jin S, Marks TJ, et al. Adv Mater 2004;16:321–4;
(d) Lee KJ, Motala MJ, Meitl MA, Childs WR, Menard E, Shim AK, et al. Adv Mater 2005;17:2332–6;
(e) Hide F, Dı´az-Garcı´a MA, Schwartz BJ, Heeger A. J Acc Chem Res 1997;30:430;
(f) Greenham NC, Friend RH. In: Enhrenreich H, Spaepen F, editors. Solid state physics, vol. 49. San Diego: Aca-demic; 1995. p. 1–149;
(g) Gustafsson G, Cao Y, Treacy GM, Klavetter F, Colaneri N, Heeger AJ. Nature 1992;357:477.
[5] Qiu Y, Gao Y, Wei P, Wang L. Appl Phys Lett 2002;80:2628.
[6] Baldo MA, Lamansky S, Burrows PE, Thompson ME, Forrest SR. Appl Phys Lett 1999;75:4.
[7] Xie ZY, Hung LS, Lee ST. Appl Phys Lett 2001;79:1048. [8] Sprengard R, Bonrad K, Da¨ubler TK, Frank T, Hagemann
V, Ko¨hler I, et al. Proc SPIE 2004;5519:173–83.
[9] Ho G-K, Meng H-F, Lin S-C, Horng S-F, Hsu C-S, Chen L-C, et al. Appl Phys Lett 2004;85:4576–8.
[10] Nuyken O, Bacher E, Braig T, Fa´ber R, Mielke F, Rojahn M, et al. Design Monom Polym 2002;5:195–210.
[11] (a) Ma W, Iyer PK, Gong X, Liu B, Moses D, Bazan GC, et al. Adv Mater 2005;17:274–7;
(b) Gong X, Wang S, Moses D, Bazan GC, Heeger A. J Adv Mater 2005;17:2053–8;
(c) Tonzola CJ, Alam MM, Jenekhe SA. Adv Mater 2002;14:1086;
(d) Cui Y, Zhang X, Jenekhe SA. Macromolecules 1999;32:3824.
[12] (a) Burn PL, Grice AW, Tajbakhsh A, Bradley DDC, Thomas AC. Adv Mater 1997;9:1171–4;
(b) Kraft A, Grimsdale AC, Holmes AB. Angew Chem Int Ed 1998;37:402–28;
(c) Becker H, Spreitzer H, Kreuder W, Kluge E, Schenk H, Parker I, et al. Adv Mater 2000;12:130–3;
(d) Edman L, Pauchard M, Moses D, Heeger AJ. J Appl Phys 2004;95(8):4357;
(e) Ouyang J, Guo TF, Yang Y, Higuchi H, Yoshiko M, Nagatsuka T. Adv Mater 2002;14:915.
[13] Bernius MT, Inbasekaran M, O’Brien J, Wu W. Adv Mater 2000;12:1737–50.
[14] Randall D, Lee S, editors. The polyurethanes book. New York: Wiley; 2002.
[15] (a) Kuo C-H, Lee J-H, Leung M-k, Hsieh K-H. Chem Mater 2006;18:4121–9;
(b) Jenekhe SA, Zhang X, Chen L. Chem Mater 1997;9:409; (c) Zhang X, Jenekhe SA. Macromolecules 2000;33:2069; (d) Maksudul M, Jenekhe SA. Chem Mater 2002;14:4775. [16] (a) Park JH, Park OO, Yu JW, Kim JK, Kim YC. Appl Phys
Lett 2004;84:1783;
(b) Wang H-L, Wen T-C. Mater Chem Phys 2003;82:341–6; (c) Ishchenko A. Polym Adv Technol 2002;13:744–52; (d) Lim H, Noh JY, Lee GH, Lee SE, Jeong H, Lee K, et al. Thin Solid Films 2000;363:152–5;
(e) Jeong H, Zou D, Tsutsui T, Ha C-S. Thin Solid Films 2000;363:279–81;
(f) Lee TW, Park OO. Appl Phys Lett 2000;76:3161–3; (g) Jeong H, Ha C-S. Mol Cryst Liquid Cryst Sci Technol, Sect A 1999;337:349–52.
[17] Sket B, Zupan MJ. Org Chem 1986;51:929–31. [18] Kauffman JM, Moyna G. J Org Chem 2003;68:839–53. [19] Tewari RS, Kumari N, Kendurkar PS. Indian J Chem (B)
1977;15:753–5.
[20] (a) Trigwell S, Grable N, Yurteri CU, Mazumder MK, Seo S. Surf Interf Anal 1998;26:483–9;
(b) Nakajima Y, Yamashita D. Jpn Patent JP2005257538, CAN 143:338608, AN 2005:1023803;
(c) Yoshino K, Onoda M, Manda Y, Yokoyama M. Jpn J Appl Phys 1988;27:L1606–8.
[21] Ishii H, Sugiyama K, Ito E, Seki K. Adv Mater 1999;11: 605.
[22] Ishii H, Seki K. Conjugated polymer and molecular inter-faces. In: Salaneck WR, Seki K, Kahn A, Pireaux JJ, editors. New York: Marcel Dekker; 2002. p. 293–350 [chapter 10].
[23] Reichardt C. Solvents and solvent effects in organic chem-istry. Weinheim: Wiley-WCH; 2003.
