A self-organization mining based hybrid evolution learning for TSK-type fuzzy model design

DOI 10.1007/s10489-010-0271-y

A self-organization mining based hybrid evolution learning

for TSK-type fuzzy model design

Sheng-Fuu Lin· Jyun-Wei Chang · Yung-Chi Hsu

Published online: 24 December 2010

© Springer Science+Business Media, LLC 2010

Abstract In this paper, a self-organization mining based hy-brid evolution (SOME) learning algorithm for designing a TSK-type fuzzy model (TFM) is proposed. In the proposed SOME, group-based symbiotic evolution (GSE) is adopted in which each group in the GSE represents a collection of only one fuzzy rule. The proposed SOME consists of struc-ture learning and parameter learning. In strucstruc-ture learning, the proposed SOME uses a two-step self-organization algo-rithm to decide the suitable number of rules in a TFM. In parameter learning, the proposed SOME uses the data min-ing based selection strategy and data minmin-ing based crossover strategy to decide groups and parental groups by the data mining algorithm that called frequent pattern growth. Illus-trative examples were conducted to verify the performance and applicability of the proposed SOME method.

Keywords Genetic algorithm· Fuzzy model · Group-based symbiotic evolution· Data mining · Identification ·

FP-Growth

1 Introduction

Neural fuzzy networks [1–3] are capable of inferring com-plex nonlinear relationships between input and output vari-ables. This property is important when the system to be modeled is nonlinear. The key advantage of the neural fuzzy

S.-F. Lin (



Department of Electrical Engineering, National Chiao Tung University, Hsinchu City, Taiwan, Republic of China e-mail:[email protected]

Y.-C. Hsu

Graduate Institute of Network Learning Technology, National Central University, Jhongli City, Taiwan, Republic of China

approach lies in the fact that it does not require a mathemat-ical description of the system while modeling it. The system can perform the nonlinear mapping once the system para-meters are trained based on a sequence of input and desired response pairs.

The training of the parameters (parameter learning) is an issue in designing a neural fuzzy system. Backpropagation (BP) training is widely used for solving this issue. It is a powerful training technique that can be applied to networks with feed-forward structure, to transform them into adaptive systems. Since neural fuzzy systems can be represented as layered feedforward networks, the same concept of BP can be applied and be particularly useful in cases where complex interaction among independent variables necessitates train-ing for all system parameters. Since steepest descent opti-mization technique is used in BP training to minimize the er-ror function, the algorithm may reach the local minima very fast but never find the global solution. Besides, BP training performance depends on the initial values of the system pa-rameters, and for different network topologies one has to de-rive new mathematical expressions for each network layer.

Considering the aforementioned disadvantages one may be faced with suboptimal performance even for a suitable neural fuzzy network topology. Hence, techniques capable of training the system parameters and finding the global solution while optimizing the overall structure are needed. In this respect, recently, several evolutionary algorithms, such as genetic algorithm (GA) [4], genetic programming [5], evolutionary programming [6], and evolution strate-gies [7], have been proposed. They are parallel and global search techniques. Because they simultaneously evaluate many points in the search space, they are more likely to con-verge toward the global solution. Therefore, an evolutionary method using for training the fuzzy model has become an important field.

The evolutionary fuzzy model generates a fuzzy model automatically by incorporating evolutionary learning proce-dures [8–18], where the most well-known procedure is the genetic algorithm (GA). Several genetic fuzzy models have been proposed in [8–16]. In [8], Karr applied GA to the de-sign of the membership functions of a fuzzy controller, with the fuzzy rule set assigned in advance. Since the member-ship functions and rule sets are co-dependent, simultaneous design of these two approaches will be a more appropriate methodology. In [9], a fuzzy controller design method uses a GA to find the membership functions and the rule sets simul-taneously. In [8] and [9], the input space was partitioned into a grid. The number of fuzzy rules (i.e., the length of each chromosome in the GA) increased exponentially as the di-mension of the input space increased. In [10], a GA was used to tune the consequent parameters of TSK-type fuzzy rules [1] as well as the membership functions in the precondi-tion parts. Juang [11] proposed a TSK-type recurrent fuzzy network with a GA for control problems. In [12], Juang et al. proposed genetic reinforcement learning in designing fuzzy controllers. In [13], a fuzzy-genetic algorithm used preprocessing data at the remote terminal unit in a power system. In [14, 15], Alcalá et al. proposed smartly tuned fuzzy logic controllers in heating, ventilating, and air condi-tioning (HVAC) systems. In [16], Kaya and Alhajj used GA to dynamically adjust and optimize membership functions.

Recently, several improved evolution algorithms have been proposed [17–21]. In [17], Bandyopadhyay et al. used the variable-length genetic algorithm (VGA) that allows the differentia of lengths of chromosomes in a popula-tion. Carse et al. [18] used the genetic algorithm to evolve fuzzy rule based controllers. Lin and Xu [19] proposed a sequential-search based dynamic evolution (SSDE) to en-sure better-performing chromosomes will be initially gener-ated and better mutation points will be determined for per-forming dynamic-mutation at upcoming generation. In [20] the group-based symbiotic evolution (GSE) was proposed to solve the issue of the traditional GA that all the fuzzy rules were encoded into one chromosome. In [21], authors proposed a hybrid evolution learning algorithm (HELA). The HELA combines the compact genetic algorithm (CGA) and the modified variable-length genetic algorithm, and per-forms the structure/parameter learning for constructing the network dynamically.

Although the above evolution learning algorithms [17– 21] can improve the traditional genetic algorithms, these al-gorithms may encounter one or more of the following is-sues: 1) all the fuzzy rules are encoded into one chromo-some; 2) the numbers of fuzzy rules have to be assigned in advance; 3) the population cannot evaluate each fuzzy rule locally; 4) the selection and crossover steps are vulnerable to local optima solution.

Recently, data mining becomes a popular field [22,23]. Data mining is a method of mining information in a database

formed by transactions. The data mining can be regarded as a new way of data analysis. One goal of data mining is to find association rules among frequent item sets in transac-tions. Several methods have been proposed to achieve goal [24–27]. In [24], the authors proposed a mining method of ascertain large item sets to find association rules in transac-tions. Han et al. [25] proposed the frequent pattern growth (FP-Growth) to mine frequent patterns without candidate generation. In [26], an algorithm of data mining for trans-action data with quantitative values was proposed. In [26], each quantitative item is translated to a fuzzy set and the authors use these fuzzy sets to find fuzzy rules. Wu et al. [27] proposed a data mining based GA algorithm to effi-ciently improve the Traditional GA by using analyzing sup-port and confidence parameters. Since data mining is able to find the information within large item sets, it should be useful to solve the problems that mentioned above.

In this paper, a self-organization mining based hybrid evolution learning (SOME) for designing a TFM is pro-posed for improving the evolution learning algorithms. The SOME consists of structure and parameter learning. In struc-ture learning, the SOME determines the number of fuzzy rules automatically and processes the variable combina-tion of chromosomes. The SOME proposes a two-step self-organization algorithm (TSSO) to decide the suitable num-ber of rules. In the TSSO, the modified compact genetic al-gorithm (MCGA) [21] is adopted. Different from [21], the TSSO uses two steps for determining the suitable number of rules to avoid the number of rules may from falling into local optima solution.

In parameter learning of the SOME, this paper proposes the data mining based selection strategy (DMSS) and the data mining based crossover strategy (DMCS) to decide the selected group indexes and parental group indexes of chro-mosomes by FP-Growth. In the DMSS, the groups are se-lected according to the frequent item sets based on three different actions. These three actions are the normal, the searching, and the exploring action. After performing the DMSS, the suitable groups are obtained and the chromo-somes are selected from these groups. In the DMCS, similar to the DMSS, the parental groups are selected based on the same three actions. After performing the DMCS and DMSS, the good combination of individuals can be retrieved while the exploration of other combinations continues to avoid the formerly-retrieved information from falling into the local optimum solution.

The advantages of the proposed SOME are summarized as follows: 1) the SOME uses the GSE so that each group represents only one fuzzy rule; 2) the TSSO is proposed to decide the suitable number of rules; 3) the SOME uses the GSE to evaluate the fuzzy rule locally; 4) the DMSS and DMCS are proposed to select the suitable group indexes and parental group indexes.

This paper is organized as follows. Section2introduces the TFM. The proposed SOME is described in Sect.3. Sec-tion 4presents the simulation results. The conclusions are summarized in the last section.

2 Structure of TSK-type Fuzzy Model (TFM)

A fuzzy controller is a knowledge-based system character-ized by a set of rules, which model the relationship among control input and output. The reasoning process is defined by means of the employed aggregation operators, the fuzzy connectives and the inference method. The fuzzy knowledge base contains the definition of fuzzy sets stored in the fuzzy database and a collection of fuzzy rules, which constitute the fuzzy rule base. Fuzzy rules are defined by their antecedents and consequents, which relate an observed input state to a desired control action. Most fuzzy systems employ the in-ference method proposed by Mamdani in which the conse-quence parts are defined by fuzzy sets [1]. A Mamdani-type fuzzy rule has the form:

IF x1is A1j(m1j, σ1j)and x2is A2j(m2j, σ2j)

and . . . and xnis Anj(mnj, σnj)

THEN yis Bj(mj, σj) (1)

where mij and σij represent a Gaussian membership

func-tion with mean and deviafunc-tion with ith dimension and j th rule node respectively. The consequences Bj of j th rule

is aggregated into one fuzzy set for the output variable y. The crisp control action is obtained through defuzzification, which calculates the centroid of the output fuzzy set. Besides the common fuzzy inference method proposed by Mamdani, Takagi, Sugeno and Kang introduced a modified infer-ence scheme [3]. The first two parts of the fuzzy inferinfer-ence process, fuzzifier the inputs and applying the fuzzy oper-ator are exactly the same. A Takagi-Sugeno-Kang (TSK) type controller employs different implication and aggrega-tion methods than the standard Mamdani controller. Instead of using fuzzy sets the conclusion part of a rule, is a linear combination of the crisp inputs.

IF x1is A1j(m1j, σ1j)and x2is A2j(m2j, σ2j)

and . . . and xnis Anj(mnj, σnj)

THEN y= w0j+ w1jx1+ . . . + wnjxn. (2)

Since the consequence of a rule is crisp, the defuzzifica-tion step becomes obsolete in the TSK inference scheme. Instead, the control output is computed as the weighted av-erage of the crisp rule outputs, which is computationally less expensive then calculating the center of gravity.

In this paper, the TFM is adopted to solve nonlinear con-trol problems. The structure of the TFM is shown in Fig.1,

where n and M are, respectively, the number of input di-mensions and the number of rules. It is a five-layer network structure. The functions of the nodes in each layer are de-scribed as follows:

Layer 1 (Input Node) No function is performed in this layer. The node only transmits input values to layer 2. That is

u(1)_i = xi. (3)

Layer 2 (Membership Function Node) Nodes in this layer correspond to one linguistic label of the input variables in layer 1; that is, the membership value specifying the degree to which an input value belongs to a fuzzy set is calculated in this layer. For an external input xi, the following Gaussian

membership function is used: u(2)_ij = exp  −[u (1) i − mij] 2 σ_ij2  (4) where mijand σij are, respectively, the center and the width

of the Gaussian membership function of the j th term of the ith input variable xi.

Layer 3 (Rule Node) The output of each node in this layer is determined by the fuzzy AND operation. Here, the prod-uct operation is utilized to determine the firing strength of each rule. The function of each rule is

u(3)_j = i

u(2)_ij . (5)

Layer 4 (Consequent Node) Nodes in this layer are called consequent nodes. The input to a node in layer 4 is the output delivered from layer 3, and the other inputs are the input variables from layer 1 as depicted in Fig.1. For this kind of node, we have u(4)_j = u(3)_j  w0j+ n  i=1 wijxi  , (6)

where the summation is over all the inputs and where wij

are the corresponding parameters of the consequent part. Layer 5 (Output Node) Each node in this layer corresponds to one output variable. The node integrates all the actions recommended by layers 3 and 4 and acts as a defuzzifier with y= u(5)= Mk j=1u (4) j Mk j=1u (3) j = Mk j=1u (3) j (w0j+ Mk i=1wijxi) Mk j=1u (3) j (7) where Mkis the number of fuzzy rule.

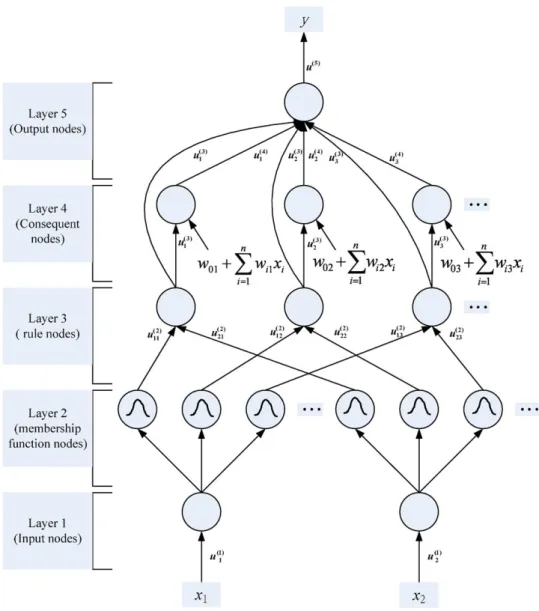

Fig. 1 Structure of the

proposed TFM

3 A self-organization mining based hybrid evolution learning

This section will introduce the SOME. Recently, many re-searches try to enhance the traditional GAs have been made [28–30]. One category of them tries to modify the structure of a population. Examples in this category include the dis-tributed GA [28], the cellular GA [29], and the symbiotic GA [30].

In structure learning of these papers, the SOME de-termines the number of fuzzy rules automatically and processes the variable combination of chromosomes. The length of combination of chromosomes denotes the rule sets that can form a TFM. In traditional symbiotic evolution, each individual in the population represents only a partial solution. The complete solution was consisted of several in-dividuals. The partial solution can be characterized as spe-cializations which avoid converging to local optimum so-lution [30]. Although the specialization property ensured

diversity, there still has a problem which the population can-not evaluate performance of each partial solution locally. To cope with this, the SOME adopts the GSE. The GSE is dif-ferent from the traditional symbiotic evolution; with each population in the GSE method is divided to several groups. Each group represents a set of the chromosomes that be-long to one single fuzzy rule. Each group will perform the reproduction and crossover operations in each generation independently.

In the proposed SOME, the numbers of rules in a TFM are variable. The structure of chromosomes in the SOME is shown in Fig.2. For determining the numbers of fuzzy rules, the TSSO is proposed. In the TSSO, a building block (BB) is used to determine the number of fuzzy rules and the number of selection times of the TFM with different num-ber of fuzzy rules. In Fig. 3, the TSSO codes the proba-bility vector into the BBs, Mk represents k rules that used

to form a TFM; VMk is a probability vector which repre-sents the suitability of a TFM model with k rules. In the

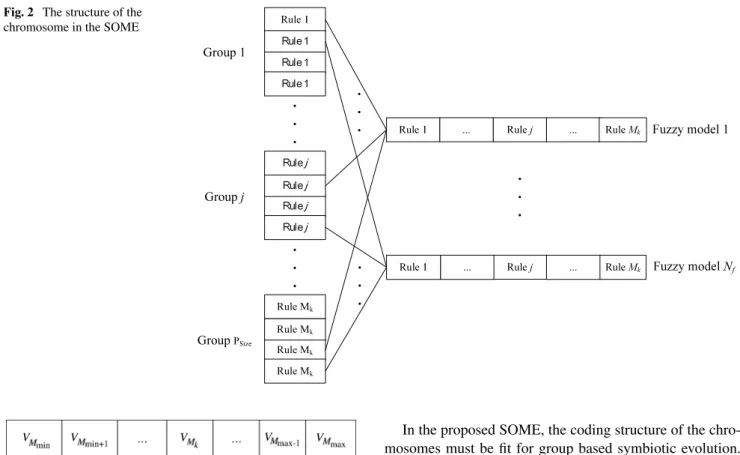

Fig. 2 The structure of the

chromosome in the SOME

Fig. 3 Coding the probability vector into the building blocks (BBs) in

the TSSO

TSSO, the maximum number of rules (Mmax)and the

min-imum number of rules (Mmin)must be predefined in

ad-vance.

In parameter learning, this study proposes the data min-ing based selection strategy (DMSS) and the data minmin-ing based crossover strategy (DMCS) by the FP-growth to de-cide Mk and to decide parental groups that are used to

per-form crossover step. The FP-Growth was proposed by Han et al. In the proposed DMSS, the FP-Growth is used to find the frequent group sets from transactions. In this pa-per, a transaction means the collection of well-performing chromosomes selected from Mk groups to form a TFM.

After the frequent group sets have been found, the DMSS uses three actions to form a TFM with k rules. The three actions are defined as the normal, searching, and explor-ing actions. In normal action, the selection of groups that are used to perform crossover is random. In search ac-tion, the groups are chosen from the frequent patterns ob-tained by FP-growth. And in explore action, the groups are chosen from the non-frequent patterns set to avoid the mined frequent patterns from falling into local optimum. In the DMCS, the parental groups are selected according to same three actions (normal, searching, and exploring ac-tions). The whole learning process of the SOME is shown in Fig.4.

In the proposed SOME, the coding structure of the chro-mosomes must be fit for group based symbiotic evolution. Figure5describes a fuzzy rule that has the form of (2) where mij, σij, and wijrepresent a Gaussian membership function

with mean and deviation and weight with ith dimension and jth rule node and w0j represents the coefficient with j th

rule.

The learning process of the SOME in each group in-volves seven major operators: initialization, the TSSO, the DMSS, fitness assignment, elite-based reproduction strategy (ERS), the DMCS, and the self-organization mutation strat-egy (SOMS). The whole learning process is described step-by-step as follows:

3.1 Initialization step

Before the SOME is designed, individuals forming several initial groups should be generated. The initial groups of the SOME are generated randomly within a fixed range. The fol-lowing formulations show how to generate the initial chro-mosomes in each group:

Deviation:

Chrg,c[p] = random[σmin, σmax]

where p= 2, 4, . . . , 2n;

g= 1, 2, . . . , Mk; c = 1, 2, . . . , NC; (8)

Mean:

Chrg,c[p] = random[mmin, mmax]

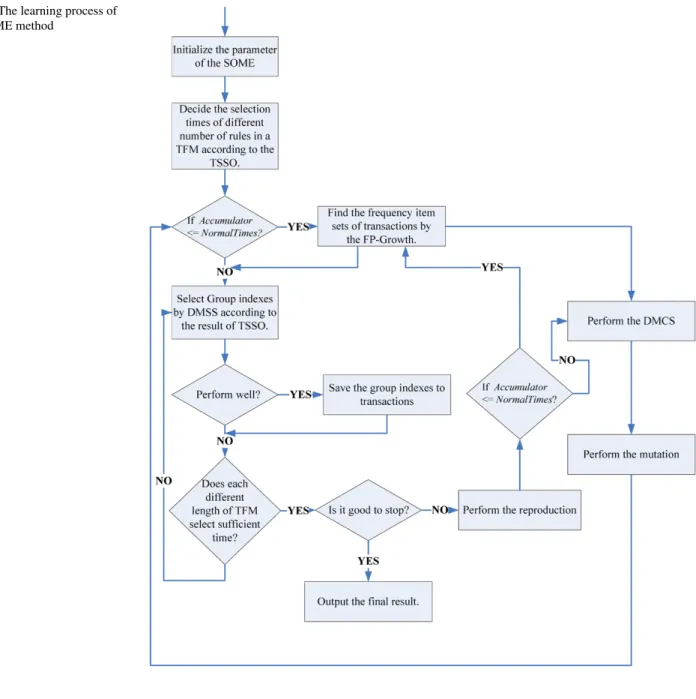

Fig. 4 The learning process of

the SOME method

Fig. 5 Coding a rule of a TFM into a chromosome in the SOME

Weight:

Chrg,c[p] = random[wmin, wmax]

where p= 2n + 1, 2n + 2, . . . , 2n + (n + 1), (10) where Chrg,crepresents cth chromosome in gth group; Mk

represents k rules that used to form a TFM and NCis the

to-tal number of chromosomes in each group; p represents the pth gene in a Chrg,c; and[σmin, σmax], [mmin, mmax], and

[wmin, wmax] represent the range that are predefined to

gen-erate the chromosomes.

3.2 Two-step self-organization algorithm (TSSO)

After every group is initialized, the SOME proposes the TSSO to decide the suitable selection times of each num-ber of rules (in this paper the numnum-ber of rules lie between [Mmax, Mmin]); that is, it determines the selection times of Mkgroups which form a TFM with k rules. After the TSSO,

the selection times of the suitable number of rules in a TFM will increase, and the selection times of the unsuitable num-ber of rules will decrease. The details of the TSSO are listed as follows:

Step 0 Initialize the probability vectors of the BBs: VMk= 0.5, where Mk= Mmin, Mmin+1, . . . , Mmax (11)

Step 1 Update the probability vectors of the BBs according to the following equations:

VMk= VMk+ (Upt_valueMk∗ λ), if Avg ≤ fitMk VMk= VMk− (Upt_valueMk∗ λ), otherwise

where Mk= Mmin, Mmin+1, . . . , Mmax (13)

Avg=

Mmax

Mk=Mmin

fitMk/(Mmax− Mmin) (14)

Upt_value_Mk= fit_Mk

Mmax Mk=Mmin

fit_Mk (15)

if FitnessMk≥ (Best_FitnessMk− ThreadFitnessvalue) then fitMk= fitMk+ FitnessMk; (16) where VMk is the probability vector in the BBs and repre-sents the suitable number of k rules; λ is a predefine thresh-old value; Avg represents the average fitness value in the whole population; Best_FitnessMk represents the best fit-ness value with k rules; fitMk is the sum of fitness value with k rules when the fitness value with k rules greater than

Best_FitnessMk minus a predefined threshold value named

ThreadFitnessvalue. As shown in (13), if fit_Mk ≥ Avg, then the suitable k rules that from a TFM should be increased. On the other hand, if fitMk<Avg, then the k rules that from a TFM should be decreased.

Step 2 Determine the selection times according to the prob-ability vectors of the BBs as follows:

RpMk= (Selection_Times) ∗ (VMk/Total_Velocy)

where Mk= Mmin, Mmin+1, . . . , Mmax; (17)

Total_Velocy=

Vmax

Mk=Vmin

VMk (18)

where Selection_Times represents total selection times in each generation; Rp_Mkis the selection times of Mk groups

that use to select k chromosomes for constructing a TFM. Step 3 After step 2, the selection times of every numbers of rules in a TFM are obtained. Then the RpMk times are used to select k chromosomes form Mk groups to construct

a TFM.

Step 4 In the proposed TSSO, for avoiding suitable Mk

groups may fall in the local optima solution, the TSSO pro-posed two different actions to update the VMk. Decide the deferent action according to the following equations: if Accumulator≤ TSSATimes

then do Step 1, Step 2, and Step 3; (19)

if Best_Fitnessg= Best_Fitness

then Accumulator= Accumulator + 1; (20)

if Accumulator > TSSATimes

then do Step 0 and Accumulator= 0, (21) where TSSOTimes is a predefined value; Best_Fitnessg

rep-resents the best fitness value of the best combination of chro-mosomes in gth generation; Best_Fitness represents the best fitness value of the best combination of chromosomes in cur-rent generations. Equations (19)–(21) represents that if the fitness is not changed for a sufficient number of generations, the suitable Mkgroups may fall in the local optima solution.

3.3 The data mining based selection strategy (DMSS) After the TSSO step, the selection times of each rule num-ber in a TFM is decided. The SOME then performs selec-tion step. The selecselec-tion step in the SOME can be divided by selection of groups and chromosomes. In the selection of groups, this paper proposes the DMSS to improve the random selection. In the DMSS, the groups are selected ac-cording to the frequent patterns found by FP-Growth. In the proposed DMSS, the FP-Growth finds the frequent groups from a transaction (in this paper a transaction means a set of the Mkgroup indexes that perform well). After the frequent

group indexes have been found, the DMSS selects the Mk

groups indexes according to the frequent group indexes. To avoid the frequently-occurring groups from falling in the lo-cal optimal solution, the DMSS uses three actions to select Mk groups. The three actions defined in this paper are

nor-mal, search, and explore. The detail of the DMSS is shown as follows:

Step 0 The transactions are building as follow equation:

if FitnessMk ≥ Best_FitnessMk− ThreadFitnessvalue then Transactionj[i] = TNFSRuleSetMk[i]

where i= 1, 2, . . . , Mk;

Mk= Mmin, Mmin+1, . . . , Mmax;

j= 1, 2, . . . , TransactionNum, (22) where the FitnessMk represents the fitness value of TFM with k rules; ThreadFitnessvalue is the predefined value;

TransactionNum is the total number of transactions Trans-actionj[i] represents the ith item in the jth transaction; and

TNFSRuleSetMk[i] represents ith group index in Mk group indexes that are selected to form a TFM with k rules. The transactions have the form that shown in Table1. As shown in Table1, every transaction represents Mk group indexes

Table 1 Transactions in a FP-Growth

Transaction index Group indexes

1 1, 4, 8 2 2, 4, 7, 10 . . . . . . TransactionNum 1, 3, 4, 6, 8, 9

that form a TFM with k rules. For example, as shown in Table 1, the first transaction of the transaction set means the 3 rules TFM that select from 1st group, 4th group, and 8th group has a well performance. The building transactions step continues in normal, searching, and exploring actions. Step 1 Normal action:

After building up the transactions, the DMSS selects group according to different action types. If the action type is normal action, the DMSS selects the group as following equation:

if Accumulator≤ NormalTimes

then GroupIndex[i] = Random[1, PulationSize] where i= 1, 2, . . . , Mk; Mk= Mmin,

Mmin+1, . . . , Mmax, (23)

where Accumulator is defined in (20); GroupIndex[i] repre-sents selected ith group index of the Mk group indexes and

PulationSize represents there are PulationSize groups in a

population in the SOME. Step 2 Find the frequent groups:

If the action is searching or exploring action, the DMSS uses the FP-Growth to find frequent group indexes in trans-actions. The frequent group indexes are found according to the predefined Minimum_Support. The Minimum_Support means the minimum fraction of transactions that contain an item set. The FP-Growth algorithm can be viewed as two parts: construction of the FP-tree and FP-growth. The sample transactions shown in Table 2 are taken as exam-ples. Minimum_Support= 3 is considered in this exam-ple. Frequent group indexes generated by FP-growth shown in Table 3 are then thrown into the pool that’s named

FrequentPool.

Step 3 Select the group indexes according to different ac-tions:

After obtaining the frequent item sets, the DMSS selected group indexes according to different actions that describe as follows:

Table 2 Sample transactions

Transaction index Group indexes

1 {b, c, e, f, g, h, p}

2 {a, b, c, f, i, m, o}

3 {c, f, i, m, o}

4 {b, c, e, s, p}

5 {a, b, c, d, f, m, o}

Table 3 Frequent group indexes generated by FP-growth with

Minimum_Support= 3

Suffix group Cond. group base Cond. FP-tree Frequent group indexes

B c:4 c:4 cb:4

F cb:3, c:1 c:4, cb:3 cf:4, bf:3, cbf:3 M cbf:2, cf:1 cf:3 cm:3, fm:3, cfm:3 O cbfm:2, cfm:1 cfm:3 co:3, fo:3, mo:3,

cfo:3, cmo:3, fmo:3, cfmo:3

(a) In the searching action, the group indexes are selected from the frequent item as follow equations:

if NormalTimes < Accumulator ≤ SearchingTimes then GroupIndex[i] = w,

where

w= Random[1, PulationSize] and w∈ FrequentItemSet[q];

FrequentItemSet[q] = Random[FrequentPool];

q= 1, 2, . . . , FrequentPoolNum;

i= 1, 2, . . . , Mk; Mk= Mmin, Mmin₊₁, . . . , Mmax,

(24) where SearchingTimes is a predefined value that judge to perform searching action; FrequentPool represents the sets of frequent item set that obtain from FP-Growth; FrequentPoolNum presents the total num-ber of sets in FrequentPool and FrequentItemSet[i] presents a frequent item set that select from

Frequent-Pool randomly. In (24), if Mk greater than the size of

FrequentItemSet[i], the remaining groups are selected

by (23).

(b) In the exploring action, the group indexes are selected according to the frequent item as follow equations: if SearchingTimes < Accumulator

then GroupIndex[i] = w, where

w= Random[1, PulationSize] and w /∈ FrequentItemSet[i];

FrequentItemSet[i] = Random[FrequentPool];

i= 1, 2, . . . , Mk; Mk= Mmin, Mmin+1, . . . , Mmax,

(25) where ExploringTimes is a predefined value that judge to perform exploring action.

Step 4 After selecting Mk group indexes, the k

chromo-somes are selected from Mkgroup as follows:

ChromosomeIndex[i] = q,

where q= Random[1, Nc];

i= 1, 2, . . . , k, (26)

where Nc represents the number of chromosomes in each

group; ChromosomeIndex[i] represents the index of a chro-mosome that select from ith group.

The illustration of the DMSS is shown in Fig.6with a simple description as follows:

Suppose the TSSO determines that 4 rules are expected, and 3 out of 7 groups, group 2, 3 and 6, are deemed as fre-quent groups. If the current action type of the DMSS is nor-mal action, then 4 random groups will be selected to form a TFS. If the search action is taken, then frequent group 2, 3 and 6 will be selected. The remaining one group will be draw randomly from group 1, 4, 5 and 7. If the explore ac-tion is taken, then the 4 non-frequent group 1, 4, 5 and 7 will be selected in case of the problem of local optimum. 3.4 Fitness assignment step

The fitness value of a rule (an individual) is calculated by concatenating this individual with elites of other groups se-lected by DMSS. The details for assigning the fitness value are described as follows:

Denote G1, G2, . . . , GMk, the Mk groups selected by the

DMSS; Gj· pidenotes the i-th individual of the j -th group; yj refers to the elite individual of the j -th group. Then the

fitness of the individual Gj· pi can be computed as follows:

fitness(Gj· pi)

= fitness(G1· y1, . . . , Gj· pi, Gj+1· yj+1,

. . . , GMk· yMk). (27)

3.5 Elites-based reproduction strategy (ERS)

Reproduction is a process in which individual strings are copied according to their fitness value. A fitness value is as-signed to each chromosome in each group according to a fitness assignment method in which high numbers denote a good fit. The goal of the SOME is to maximize the fitness value. For keeping the stable of the algorithm, this study pro-poses an elite-based reproduction strategy (ERS) to let the best combination of chromosomes in each group can be kept in the next generation. In the SOME, the chromosome that has best fitness value may not be the chromosome in the best combination. About this, in the ERS, every chromosome in the best combination of Mk groups must be kept by

per-forming reproduction step. In the remaining chromosomes in each group, this study uses the roulette-wheel selection method for this reproduction process. The best performing chromosomes in the top half of each group [12] advance to the next generation. The other half is generated to perform crossover and mutation operations on chromosomes in the top half of the parent generation. In the reproduction step, the top half of the population for each group must be kept the same number of chromosomes.

3.6 The data mining based crossover strategy (DMCS) Although the ERS operation can search for the best ex-isting individuals, it does not create any new individuals. In nature, an offspring has two parents and inherits genes from both. The main operator working on the parents is the crossover operator, the operation of which occurs for a se-lected pair with a crossover rate. In this paper, the data min-ing based crossover strategy (DMCS) is proposed to perform the crossover operation. The DMCS mimics the cooperation phenomenon in society [42,43], in which individuals be-come more suitable to the environment as they acquire and share more knowledge of their surroundings. In the DMCS, as same with the DMSS, the DMCS uses FP-Growth to se-lect the parental group indexes to perform crossover opera-tion in the next generaopera-tion. Moreover, the DMCS also pro-posed threes actions to select parental group indexes accord-ing to the frequent item set. The best performaccord-ing individuals in the top half of selected parental group indexes that are called elites are used to select the parents for performing with the DMCS. Details of the DMCS are shown below. Step 1 The first one of the parents that is used to perform the crossover operation is selected from the original group by using the following equations:

Fitness_Ratiog,t= t u=1fitnessg,u N c c=1fitnessg,c , where t= 1, 2, . . . , Nc; (28)

Fig. 6 The example of the DMSS Rand_Value[g] = Random[0, 1], where g= 1, 2, . . . , PulationSize; (29) Parent_SiteA[g] = t, if Fitness_Ratiog,t−1<Rand_Value[g] ≤ Fitness_Ratiog,t, (30)

where Fitness_Ratiog,t is a fitness ratio of the fitness value

of t th chromosome in the gth group; Rand_Value[g] ∈ [0, 1] is the random values of gth group; Parent_siteA[g] is the site where the first parent is. According (30), if the

Rand_Value[g] is greater than the fitness ratio at (t − 1)th

chromosome in gth group and smaller or equal to the fitness ratio at t th chromosome in gth group, the site of the first parent of gth group is assigned to t .

Step 2 After determining the first parent, the second paren-tal group index is decided according to different actions that describe as follows:

(a) In the normal action, the best performing elites in each group is used to determine the other parent. In this step, the total fitness ratio of every group is computed accord-ing to the followaccord-ing equations:

Total_Fitnessg= N c  c=1 fitnessg,c, where g= 1, 2, . . . , PulationSize; (31) Total_Fitness_Ratiow = w u=1Total_Fitnessu PulationSize g=1 Total_Fitnessg , where w= 1, 2, . . . , PulationSize; (32) where Total_Fitnessg represents the summation of the

fitness value of every chromosomes in gth group;

Total_Fitness_Ratiow is a total fitness ratio of wth

group. After computing the total fitness ratio, the group where the chromosome is selected from to be the other parent for performing crossover with the

Parent_SiteA[g]-th chromosome in gth group is

deter-mined according to the following equations:

Group_Rand_Value[g] = Random[0, 1], where g= 1, 2, . . . , M; (33) Parent_Group_SiteB[g] = w, if Total_Fitness_Ratiow−1<Group_Rand_Value[g] ≤ Total_Fitness_Ratiow, (34) where Group_Rand_Value[g] ∈ [0, 1] is a random val-ues of gth group; Parent_Group_SiteB[g] represents the site of the group that the second parent is selected from.

(b) In the searching action, the second parent is decided ac-cording to the following equations:

FrequentItemSet[q] = Random[FrequentPool]

where q= 1, 2, . . . , FrequentPoolNum; (35)

Parent_Group_SiteB[g] = w,

if w∈ FrequentItemSet[q]. (36)

(c) In the exploring action, the second parent is decided ac-cording to the following equations:

FrequentItemSet[q] = Random[FrequentPool]

where q= 1, 2, . . . , FrequentPoolNum; (37)

Parent_Group_SiteB[g] = w,

if w /∈ FrequentItemSet[q]. (38) Step 3 After the Parent_Group_SiteB[g]-th group is se-lected, the other parents in the selected Parent_Group_

SiteB[g]-th group according to the following equations: Fitness_RatioSelected_g,t

= t

u=1fitnessSelected_g,u

N c

c=1fitnessSelected_g,c

where t= 1, 2, . . . , Nc; Selected_g= Parent_Group_SiteB[g]; (39) Rand_Value[g] = Random[0, 1], where g= 1, 2, . . . , PulationSize; (40) Parent_SiteB[g] = l, if Fitness_RatioSelected_g,l−1

<Rand_Value[g] ≤ Fitness_RatioSelected_g,l, (41)

where Fitness_RatioSelect_g,t is a fitness ratio of the fitness

value of t th chromosome in the Parent_Group_SiteB[g]-th group; and Parent_SiteB[g] is the site where the second par-ent is.

After the DMCS selects the parents form the gth group and Parent_Group_SiteB[g]-th group, the individuals

Parent_SiteA[g]-th chromosome and the

Parent_SiteB[g]-th chromosome) are crossed and separated using a two-point crossover in the gth group. In two-point crossover, exchang-ing the site’s values between the selected sites of parents’ individual create new individuals.

Here we use Fig. 6 as the DMSS use for convenience to illustrate the DMCS. A simple example of the DMCS is described as follows:

Suppose the group 1 is scheduled to perform crossover step; group 2, 3 and 6, are deemed as frequent groups. At first, it randomly draws a chromosome from group 1 as the 1st parent chromosome of crossover. Second, the DMCS is used to determine the group that 2nd parent chromosome should be selected from based on three different actions. If the action type of the DMCS is normal action, the other group will be selected randomly from group 2 to 7. If the search action is taken, then the other group will be selected from frequent group 2, 3 and 6. If the explore action is taken, then one, beside the group 1 itself, of the non-frequent group

4, 5 and 7 will be selected. Finally, it randomly draws a chro-mosome from the group that DMCS determines as the 2nd parent chromosome, and applies crossover operation on it with the 1st parent chromosome.

3.7 Self-organization mutation strategy (SOMS)

Mutation is an operator that randomly alters the allele of a gene. Recently, the sequential-search based dynamic evolu-tion (SSDE) [19,33,34] is widely used in mutation oper-ator. Therefore, better mutation points will be determined to perform dynamic-mutation. To make sure the best com-bination of chromosomes will be mutated at the next gen-eration, the proposed SOME adopts the SSDE method [19] to generate the new chromosomes. The search algorithm of SSDE is similar to the local search procedure in [35]. In SSDE, every gene in the previous best combination of chro-mosomes is selected by using a sequential search and the gene’s value is updated to evaluate the performance based on the fitness value. Although the SSDE can obtain the bet-ter mutation point, the population may fall in local optimum solutions and may not easily to skip. This is because that the SSDE changes the gene according to the performance of the chromosomes, the closer performance of chromosomes leads to the fewer updating value of gene. For avoiding the issue of local optimum, the self-organization mutation strat-egy (SOMS) is proposed here. In the SOMS, if the SSDE cannot improve the performance of the best combination of chromosomes, the traditional mutation [32] takes over. The details of the SOMS method are listed as follows:

Step 1 Sequentially search for a gene in the best combina-tion of previous chromosomes.

Step 2 Update the chosen gene in step 1 according to the following formula:

Chrg,best_c[p] =

Chrg,best_c[p] + (fitness_value, mmax− Chrg,best_c[p]), if α > 0.5

Chrg,best_c[p] − (fitness_value, Chrg,best_c[p]−mmin), if α < 0.5 (42)

wherep= 2, 4, 6, . . . , 2n;

Chrg,best_c[p] =

Chrg,best_c[p] + (fitness_value, δmax− Chrg,best_c[p]), if α > 0.5

Chrg,best_c[p] − (fitness_value, Chrg,best_c[p]−δmin), if α < 0.5

where p= 1, 3, 5, . . . , 2n − 1; (43)

Chrg,best_c[p] =

Chrg,best_c[p] + (fitness_value, wmax− Chrg,best_c[p]), if α > 0.5

Chrg,best_c[p] − (fitness_value, Chrg,best_c[p]−wmin), if α < 0.5

where p= 2n + 1, 2n + 2, . . . , 2n + (n + 1); (44)

where α, λ∈ [0, 1] are the random values; fitness_value is the fitness value; Best_C represents the Best_Cth some in the gth group of the best combination of chromo-somes and p represents the gene in a chromosome; i and j represent the ith input dimension and j th rule.

Step 3 If the new gene that is generated from step 2 can improve the fitness value, then replace the old gene with the new gene in the chromosome. If not, recover the old gene in the chromosome. After this, go to step 1 until every gene is selected.

Step 4 If the genes check form step 1 to step 3 cannot im-prove the performance of the best combination of previous chromosomes, the algorithm adopts the traditional mutation operation [32] to mutate the chromosomes each group. In the following simulations, a mutation rate is set to 0.3 for per-forming the traditional mutation. The aforementioned steps are done repeatedly and stopped when the predetermined condition is achieved.

4 Illustrative examples

In two different simulations, the proposed SOME is used to train a TFM. The first simulation performs an approximation problem that is described in [36]. The second simulation is carried out to control a water bath temperature control sys-tem that is described in [34] and [37]. For the two computer simulations, the initial parameters are given in Table4 be-fore training. The initial parameters are determined by prac-tical experimentation or trial-and-error tests.

4.1 Example 1: approximation of nonlinear functions This example considers a nonlinear system presented by Sugeno et al. in [36],

z= (1 + x₁−2+ x₂−1.5)2, 1≤ x1, x2≤ 5 (46)

The fuzzy network identification was based on 50 sam-ples reported in [36]. The original samsam-ples were four in-puts and one output with two dummy inin-puts. Figure7show a three-dimension input-output graph of this system. The TFM discarded the two dummy inputs using the proposed SOME for training. The parameters of this example are show in Table5. These parameters are determined by prac-tical experimentation or trial-and-error tests. The evolution processed for 200 generations and was repeated 50 times. Figure8shows the results of the probability vectors in the TSSO. In this figure, the final optima number of rules is 7.

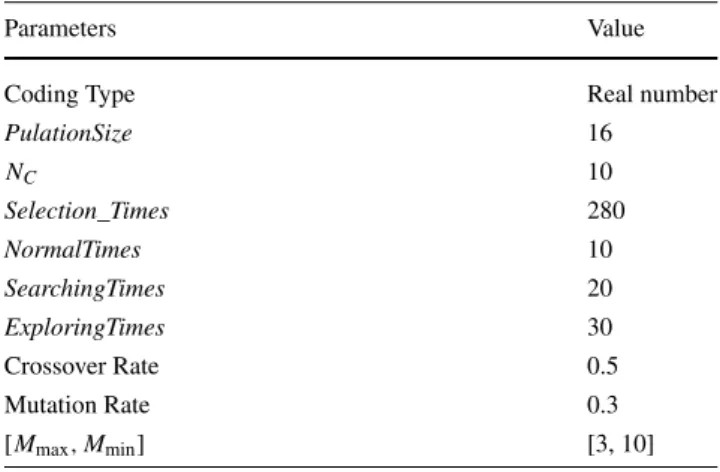

Table 4 The initial parameters before training

Parameters Value

Coding Type Real number

PulationSize 16 NC 10 Selection_Times 280 NormalTimes 10 SearchingTimes 20 ExploringTimes 30 Crossover Rate 0.5 Mutation Rate 0.3 [Mmax, Mmin] [3, 10]

Table 5 The initial parameters number in the example 1

Parameters Value ThreadFitnessvalue 100 TSSATimes 30 [mmin, mmax] [0, 5] [σmin, σmax] [0, 5] [wmin, wmax] [−10, 10] Minimum_Support TransactionNum/2

Fig. 7 Input-output relation of a nonlinear system

The obtained fuzzy rules of the TNFS using the SOME method are shown as follows:

R1: If x1is A1,1(0.87, 0.68) and x2is A2,1(2.93, 1.16)

Then y= 0.92 + 0.32x1+ 6.74x2

R2: If x1is A1,2(3.51, 2.37) and x2is A2,2(4.13, 1.04)

Fig. 8 The results of the probability vectors in the TSSO R3: If x1is A1,3(0.79, 0.62) and x2is A2,3(4.91, 2.63) Then y= 8.22 − 3.73x1+ 1.97x2 R4: If x1is A1,4(1.72, 0.68) and x2is A2,4(2.16, 0.94) Then y= −0.57 + 2.96x1− 0.43x2 R5: If x1is A1,5(2.43, 4.81) and x2is A2,5(0.91, 3.46) Then y= 8.67 − 0.12x1− 4.97x2 R6: If x1is A1,6(3.82, 4.21) and x2is A2,6(0.87, 1.78) Then y= −9.12 + 2.098x1+ 8.43x2 R7: If x1is A1,7(2.56, 4.67) and x2is A2,7(0.95, 2.21) Then y= 9.07 − 2.73x1+ 0.78x2

The final mean square error (MSE) of the output approx-imates 0.00026. In this example, in order to show the ef-fectiveness and efficiency of the proposed SOME method, the group-based symbiotic evolution (GSE) [20], the sym-biotic evolution (SE) [34], and the genetic algorithm (GA) [8] were applied to design TFM by solving the same prob-lem. In the GSE, the SE, and the GA, the population size and group size were set to 200 and the crossover and muta-tion probabilities were set to 0.5 and 0.3, respectively. There are seven rules that set to the GSE, SE, and the GA. The evolution processed for 200 generations and repeated for 50 times. Figure9shows the learning curves of the four mod-els. As shown in Fig.9, the proposed SOME method also yields better results.

Table 6 shows the results given in the relevant litera-ture plus the error found using the SOME method. The per-formance of the very compact fuzzy network obtained by the proposed SOME method is better than all the previous works.

Fig. 9 The learning curves of the proposed SOME, GSE [20], SE [34] and GA [8]

Table 6 Comparison results for Sugeno’s nonlinear function

approxi-mation example

Author and reference MSE

SOME 0.00026 GSE [20] 0.00063 GEFREX [41] 0.00078 SE [34] 0.0026 Lin [40] 0.005 Emami [38] 0.004 Sugeno [36] 0.01 Delgado [39] 0.231 GA [8] 0.019

To demonstrate the efficiency of the proposed TSSO, DMSS, DMCS, and SOMS methods, in this example the four different methods are used such as: the proposed SOME without TSSO, DMSS, and DMCS (Type I), the GSE method (Type II), the proposed SOME (Type III), the pro-posed SOME without SOMS (Type IV), and the GSE with the SSDE (Type V). In Type I method, the SOME method uses only the proposed SOMS method. In Type II method, the traditional GSE [20] is adopted. In Type III method, the SOME uses the proposed TSSO, DMSS, DMCS, and SOMS to perform structure and parameter learning. In Type IV, the SOME uses the proposed TSSO, DMSS, and DMCS meth-ods. In Type V method, the GSE combines the SSDE to perform parameter learning. Table7shows the performance comparison of four methods. As shown in Table7, the pro-posed SOME (Type III) obtains a better performance than other methods.

Table 7 Performance

comparison of three different methods in example 1 (Time steps)

Method MSE

Type I method (The proposed SOME without TSSO, DMSS and DMCS) 0.0005

Type II method (The GSE method) 0.00063

Type III method (The proposed SOME) 0.00026

Type IV method (The proposed SOME without SOMS) 0.00041

Type V method (The GSE with SSDE) 0.00054

Table 8 The initial parameters number in the example 2

Parameters Value ThreadFitnessvalue 50 TSSATimes 30 [mmin, mmax] [0, 2] [σmin, σmax] [0, 2] [wmin, wmax] [−30, 30] Minimum_Suppor TransactionNum/2

Fig. 10 Flow diagram of the TFM using the SOME for solving the

temperature control problem

4.2 Example 2: water bath temperature control system The goal of this simulation is to control the temperature of a water bath system given by

dy (t ) dt = u (t ) C + Y0− y (t) R1C (47) where y(t) is system output temperature in °C; u(t) is heat-ing flowheat-ing inward the system; Y0is room temperature; C is

the equivalent system thermal capacity; and R1is the

equiv-alent thermal resistance between the system borders and sur-roundings.

Assuming that R1and C are essentially constant, the

sys-tem in (47) can be rewritten into discrete-time form with

Fig. 11 The results of the probability vectors in the TSSO

Fig. 12 The learning curves of the proposed SOME, GSE [20], SE [34] and GA [8]

some reasonable approximation. The system y(k+ 1) = e−αTsy(k)+ β α(1− e−αTs) 1+ e0.5y(k)−40u(k) +1− e−αTs  y0 (48)

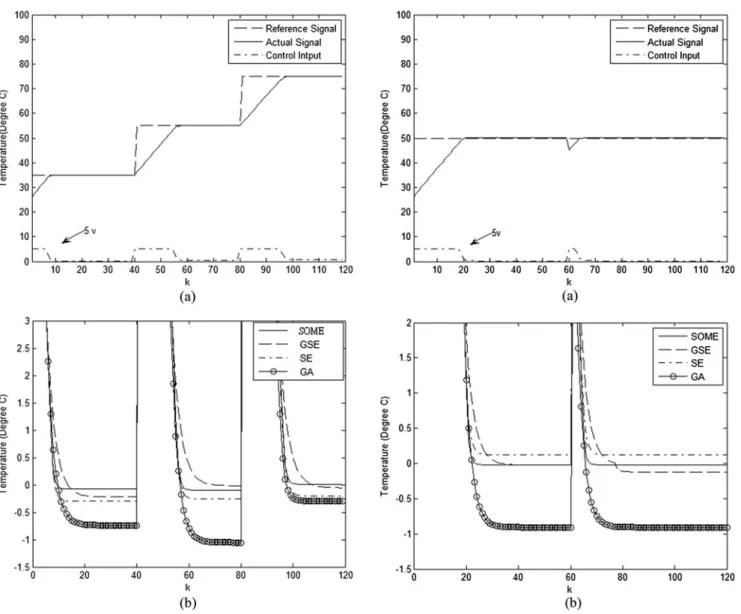

Fig. 13 (a) Final regulation performance of the TFM training by the

proposed SOME for water bath system. (b) The error curves of the SOME, GSE [20], SE [34] and GA [8]

is obtained, where α and β are some constant values describ-ing R and C. The system parameters used in this example are α= 1.0015e−4, β= 8.67973e−3, and Y0= 25.0 (°C),

which were obtained from a real water bath plant in [34] and [37]. The input u(k) is limited to 0 and 5 represent voltage unit. The sampling period is Ts= 30. The system configu-ration is shown in Fig.10, where yref is the desired

temper-ature of the controlled plant.

In the TFM, a sequence of random input signals u(k) limited to 0 and 5 V is injected directly into the simu-lated system described in (48). The 120 training patterns are chosen from the input-outputs characteristic in order to cover the entire reference output. The initial temperature of the water is 25°C, and the temperature rises progressively when random input signals are injected. The two input vari-ables yref and y(k) and the output u(k) are normalized

be-Fig. 14 (a) Behavior of the TFM training by the proposed SOME

un-der the impulse noise for water bath system. (b) The error curves of the SOME, GSE [20], SE [34] and GA [8]

tween 0 and 1 over the following ranges, yref : [25, 85],

y(k): [25, 85], u(k) : [0, 5]. The parameters of this example are show in Table8. These parameters are determined by practical experimentation or trial-and-error tests. The evolu-tion processed for 360 generaevolu-tions and was repeated for 50 times. Figure11shows the results of the probability vectors in the TSSO. In this figure, the final optima number of rules is 4.

In this example, the SOME is also compared the per-formance with other methods (the GSE [20], the SE [34], and the GA [8]). In the [20, 34], and [8], the parameters are the same with example 1. There are four rules that set to the GSE, the SE, and the GA. The evolution processed for 360 generations and was repeated for 50 times. Figure shows the learning curves of the four models. In Fig.12, the proposed SOME also obtains a better fitness value than

Fig. 15 (a) Behavior of the TFM training by the proposed SOME when a change occurs in the water bath system. (b) The error curves of the

SOME, GSE [20], SE [34] and GA [8]

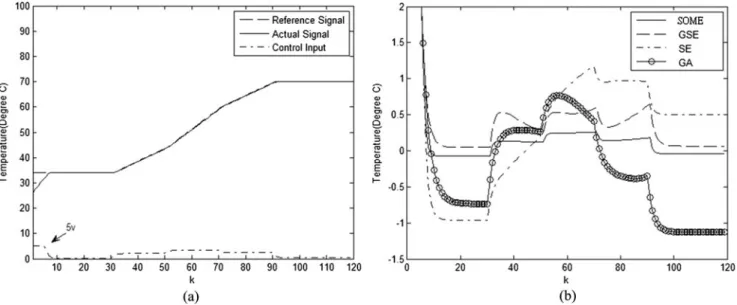

Fig. 16 (a) The tracking performance of the TFM training by the proposed SOME for the water bath system. (b) The error curves of the SOME,

GSE [20], SE [34] and GA [8]

other models. To test the performance of the four models, the comparison performance measures include set-points regu-lation, the influence of impulse noise, and a large parameter variation in the system, and tracking capability of the con-trollers.

The first task is to control the simulated system to follow three set-points. yref(k)= _{35°C, for k≤ 40} 55°C, for 40 < k≤ 80 75°C, for 80 < k≤ 120. (49) The regulation performance of the SOME is shown in Fig.13(a). In this paper, the regulation performance is also

test by using the GSE [20], the SE [34], and the GA [8]. The error curves of the SOME, the GSE, the SE, and the GA are shown in Fig.13(b). In this figure, the SOME obtains smaller errors than other controllers.

The second set of simulations is carried out for the pur-pose of studying the noise-rejection ability of the four mod-els when some unknown impulse noise is imposed on the process. One impulse noise value−5°C is added to the plant output at the sixtieth sampling instant. A set-point of 50°C is performed in this set of simulations. The behaviors of the SOME under the influence of impulse noise and the corre-sponding errors of the SOME, the GSE, the SE, and the GA are shown in Fig.14(a)–(b).

Table 9 Performance comparison of various controllers

SOME GSE [17] SE [31] GA [8] Regulation Performance 344.80 357.43 365.20 378.02 Influence of Impulse Noise 241.13 252.67 258.80 262.77 Effect of Change in Plant

Dynamics

235.87 240.84 244.14 280.38

Tracking Performance 40.56 58.17 87.18 100.22 Training Time (s) 31.43 52.2 153.59 122.17

One common characteristic of many industrial-control processes is that their parameters tend to change in an unpre-dictable way. To test the robustness of the four controllers, a value of 0.7∗ u(k − 2) is added to the plant input after the sixtieth sample in the fourth set of simulations. A set-point of 50°C is used in this set of simulations. The behaviors of the SOME when there is a change in the plant dynamics are shown in Fig.15(a). The corresponding errors of the SOME, the GSE, the SE, and the GA are shown in Fig.15(b).

In the final set of simulations, the tracking capability of the SOME with respect to ramp-reference signals is studied. The equation of this simulations are defined

yref(k) = ⎧ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎩ 34°C, for k≤ 30 (34+ 0.5 ∗ (k − 30))°C, for 30 < k ≤ 50 (44+ 0.8 ∗ (k − 50))°C, for 50 < k ≤ 70 (60+ 0.5 ∗ (k − 70))°C, for 70 < k ≤ 90 70°C, for 90 < k≤ 120 (50)

The tracking performance of the SOME is shown in Fig.16(a). The corresponding errors the SOME, the GSE [20], the SE [34], and the GA [8] are shown in Fig.16(b).

To test performances, a performance index, sum of ab-solute error (SAE), is defined by

SAE=

k

yref(k)− y(k) (51)

where yref(k)and y(k) are the reference output and the

ac-tual output of the simulated system, respectively. For the aforementioned simulation results, Table9 has shown that the proposed SOME method has better performance than those of other methods.

5 Conclusion

In this paper, a self-organization mining based hybrid evolu-tion learning algorithm (SOME) for designing a TSK-type fuzzy model (TFM) is proposed. The proposed SOME has structure-and-parameter learning ability. That is, it can de-termine the suitable number of fuzzy rules and efficiently tune the free parameters in the TFM model. The proposed learning method also processes variable lengths of the

com-bination of chromosomes in several groups. The advantages of the proposed SOME are summarized as follows: 1) the SOME used the GSE that each group represents only one fuzzy rule; 2) the TSSO is proposed to decide the suitable number of rules; 3) the SOME uses group-based population to evaluate the fuzzy rule locally; 4) the DMSS and DMCS are proposed to select the suitable combinations of individ-uals and parents; 5) it indeed can obtain better performs and converge more quickly than some genetic methods. Com-puter simulations have shown that the proposed SOME has a better performance than the other methods.

References

1. Lin CT, Lee CSG (1996) Neural fuzzy systems: A neural-fuzzy synergism to intelligent systems. Prentice Hall, Upper Saddle River

2. Jang J-SR, Sun C-T, Mizutani E (1997) Neuro-fuzzy and soft com-puting: a computational approach to learning and machine intelli-gence. Prentice Hall, Upper Saddle River

3. Takagi T, Sugeno M (1985) Fuzzy identification of systems and its applications to modeling and control. IEEE Trans Syst Man Cybern 15(1):116–132

4. Goldberg DE (1989) Genetic algorithms in search, optimization, and machine learning. Addison-Wesley, Reading

5. Koza JR (1992) Genetic programming: on the programming of computers by means of natural selection. MIT Press, Cambridge 6. Fogel LJ (1994) Evolutionary programming in perspective: The

top-down view. In: Zurada JM, Marks JM, Goldberg C (eds) Com-putational intelligence: imitating life. IEEE Press, New York 7. Rechenberg I (1994) Evolution strategy. In: Zurada JM, Marks

JM, Goldberg C (eds) Computational intelligence: imitating life. IEEE Press, New York

8. Karr CL (1991) Design of an adaptive fuzzy logic controller us-ing a genetic algorithm. In: Proceedus-ings of the 4th international conference on genetic algorithms, pp 450–457

9. Homaifar A, Mccormick E (1995) Simultaneous design of mem-bership functions and rule sets for fuzzy controllers using genetic algorithms. IEEE Trans Fuzzy Syst 3(2):129–139

10. Lee MA, Takagi H (1993) Integrating design stages of fuzzy sys-tems using genetic algorithms. In: Proceedings of the IEEE inter-national conference on fuzzy systems, pp 612–617

11. Juang CF (2002) A tsk-type recurrent fuzzy network for dynamic systems processing by neural network and genetic algorithms. IEEE Trans Fuzzy Syst 10(2):155–170

12. Juang CF, Lin JY, Lin CT (2000) Genetic reinforcement learn-ing through symbiotic evolution for fuzzy controller design. IEEE Trans Syst Man Cybern, Part B, Cybern 30(2):290–302

13. Kumar P, Chandna VK, Thomas MS (2004) Fuzzy-genetic algo-rithm for pre-processing data at the rtu. IEEE Trans Power Syst 19(2):718–723

14. Alcalá R, Benítez JM, Casillas J, Cordón O, Pérez R (2003) Fuzzy control of HVAC systems optimized by genetic algorithms. Appl Intell 18(2):155–177

15. Alcalá R, Alcalá-Fdez J, Gacto MJ, Herrera F (2009) Improving fuzzy logic controllers obtained by experts: a case study in HVAC systems. Appl Intell 31(1):15–30

16. Kaya M, Alhajj R (2006) Utilizing genetic algorithms to optimize membership functions for fuzzy weighted association rules min-ing. Appl Intell 24(1):7–15

17. Bandyopadhyay S, Murthy CA, Pal SK (2000) VGA-classifier: de-sign and applications. IEEE Trans Syst Man Cybern, Part B, Cy-bern 30(6):890–895

18. Carse B, Fogarty TC, Munro A (1996) Evolving fuzzy rule based controllers using genetic algorithms. Fuzzy Sets Syst 80(3):273– 293

19. Lin CJ, Xu YJ (2005) Efficient reinforcement learning through dynamic symbiotic evolution for tsk-type fuzzy controller design. Int J Gen Syst 34(5):559–578

20. Lin CH, Xu YJ (2006) A self-adaptive neural fuzzy network with group-based symbiotic evolution and its prediction applications. Fuzzy Sets Syst 157(8):1036–1056

21. Lin CJ, Hsu YC (2007) Reinforcement hybrid evolutionary learn-ing for recurrent wavelet-based neurofuzzy systems. IEEE Trans Fuzzy Syst 15(4):729–745

22. Larose DT (2005) Discovering knowledge in data: an introduction to data mining. Wiley-Interscience, Hoboken

23. Fayyad U (1997) Data mining and knowledge discovery in data-bases: implications for scientific database. In: Proceedings of in-ternational conference on scientific and statistical database man-agement, pp 2–11

24. Agrawal R, Srikant R (1994) Fast algorithms for mining associa-tion rules in large databases. In: Proceedings of the 20th interna-tional conference on very large data bases, pp 487–499

25. Han J, Pei J, Yin Y (2000) Mining frequent patterns without can-didate generation. SIGMOD Rec 29(2):1–12

26. Hong TP, Kuo CS, Chi SC (1999) A data mining algorithm for transaction data with quantitative values. Intell Data Anal 3(5):363–376

27. Wu Y-T, An YJ, Geller J, Wu Y-T (2006) A data mining based genetic algorithm. In: Proceedings of the fourth IEEE workshop on software technologies for future embedded and ubiquitous systems, and the second international workshop on collaborative computing, integration, and assurance, pp 52–62

28. Tanese R (1989) Distributed genetic algorithms. In: Proceedings of the 3rd international conference on genetic algorithms, pp 434– 439

29. Arabas J, Michalewicz Z, Mulawka J (1994) GAVAPS-a genetic algorithm with varying population size. In: Proceedings of the IEEE world congress on computational intelligence, pp 73–78 30. Moriarty DE, Miikkulainen R (1996) Efficient reinforcement

learning through symbiotic evolution. Mach Learn 22(1–3):11–32 31. Smith RE, Forrest S, Perelson AS (1993) Searching for diverse, cooperative populations with genetic algorithms. Evol Comput 1(2):127–149

32. Cordon O, Herrera F, Hoffmann F, Magdlena L (2001) Genetic fuzzy systems: evolutionary tuning and learning of fuzzy knowl-edge bases. Advances in fuzzy systems—applications and theory, vol 19. World Scientific, Singapore

33. Lin CJ, Xu YJ (2006) The design of tsk-type fuzzy controllers using a new hybrid learning approach. Int J Adapt Control Signal Process 20(1):1–25

34. Lin CH, Xu YJ (2006) A hybrid evolutionary learning algorithm for tsk-type fuzzy model design. Math Comput Model 43(5– 6):563–581

35. Jang J-SR, Sun C-T, Mizutani E (1997) Neuro-fuzzy and soft com-puting: a computational approach to learning and machine intelli-gence. Prentice Hall, Upper Saddle River, Chap 17

36. Sugeno M, Yasukawa T (1993) A fuzzy-logic-based approach to qualitative modeling. IEEE Trans Fuzzy Syst 1(1):7–31

37. Tanomaru J, Omatu S (1992) Process control by on-line trained neural controllers. IEEE Trans Ind Electron 39(6):511–521 38. Emami MR, Turksen IB, Goldenberg AA (1998) Development of

a systematic methodology of fuzzy logic modeling. IEEE Trans Fuzzy Syst 6(3):346–361

39. Delgado M, GomezSkarmeta AF, Martin F (1997) A fuzzy clustering-based rapid prototyping for fuzzy rule-based modeling. IEEE Trans Fuzzy Syst 5(2):223–233

40. Lin YH, Cunningham GA, Coggeshall SV (1997) Using fuzzy partitions to create fuzzy systems from input-output data and set the initial weights in a fuzzy neural network. IEEE Trans Fuzzy Syst 5(4):614–621

41. Russo M (2000) Genetic fuzzy learning. IEEE Trans Evol Comput 4(3):259–273

42. Heppner F, Grenander U (1990) A stochastic nonlinear model for coordinated bird flocks. In: Krasner S (ed) The ubiquity of chaos. AAAS, Washington

43. Reynolds CW (1987) Flocks, herds and schools: a distributed be-havioral model. Comput Graph 21(4):25–34

Sheng-Fuu Lin was born in Tainan,

the Republic of China, in 1954. He received the B.S and M.S. degree in mathematics from National Normal University in 1976 and 1979, re-spectively, the M.S. degree in com-puter science from the University of Maryland in 1985, and the Ph.D. de-gree in electrical engineering from the University of Illinois, Cham-paign, in 1988. Since 1988, he has been on the faculty of the Depart-ment of Electrical Engineering at National Chiao Tung University, Hsinchu, Taiwan, where he is cur-rently a professor. His research interests include fuzzy systems, genetic algorithms, neural networks automatic target recognition, scheduling, image processing, and image recognition.

Jyun-Wei Chang received the B.S.

and M.S. degree in electronic en-gineering from National Kaohsiung University of Applied Sciences, Tai-wan, R.O.C. in 2005 and 2007, re-spectively. He is currently pursu-ing the Ph.D. degree at the Depart-ment of electrical engineering from the National Chiao Tung Univer-sity, Taiwan, R.O.C. His research interests include neural networks, fuzzy systems, and evolutional al-gorithms.

Yung-Chi Hsu received the B.S.

degree in information management from Ming-Hsin University of Sci-ence and Technology, Taiwan, R.O.C., in 2002, the M.S. degree in computer science and informa-tion engineering from Chaoyang University of Technology, Taiwan, R.O.C., and the Ph.D. degree in electrical engineering from the Na-tional Chiao Tung University, Tai-wan, R.O.C. He is currently a Post Doctoral research fellow at Grad-uate Institute of Network Learning Technology, National Central Uni-versity, Taiwan, R.O.C. His research interests include artificial intelli-gence, data mining, personalization systems, and web-based learning.
