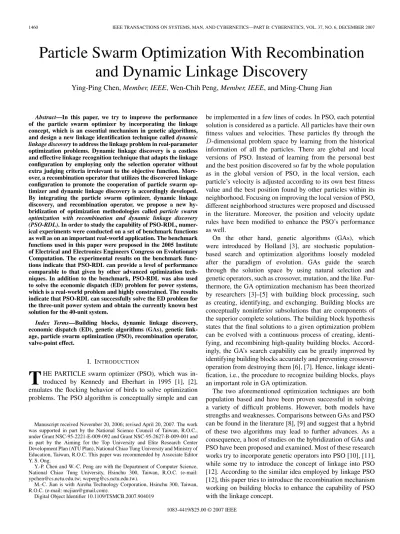

Particle Swarm Optimization With Recombination
and Dynamic Linkage Discovery
Ying-Ping Chen, Member, IEEE, Wen-Chih Peng, Member, IEEE, and Ming-Chung Jian
Abstract—In this paper, we try to improve the performance of the particle swarm optimizer by incorporating the linkage concept, which is an essential mechanism in genetic algorithms, and design a new linkage identification technique called dynamic linkage discovery to address the linkage problem in real-parameter optimization problems. Dynamic linkage discovery is a costless and effective linkage recognition technique that adapts the linkage configuration by employing only the selection operator without extra judging criteria irrelevant to the objective function. More-over, a recombination operator that utilizes the discovered linkage configuration to promote the cooperation of particle swarm op-timizer and dynamic linkage discovery is accordingly developed. By integrating the particle swarm optimizer, dynamic linkage discovery, and recombination operator, we propose a new hy-bridization of optimization methodologies called particle swarm optimization with recombination and dynamic linkage discovery (PSO-RDL). In order to study the capability of PSO-RDL, numer-ical experiments were conducted on a set of benchmark functions as well as on an important real-world application. The benchmark functions used in this paper were proposed in the 2005 Institute of Electrical and Electronics Engineers Congress on Evolutionary Computation. The experimental results on the benchmark func-tions indicate that PSO-RDL can provide a level of performance comparable to that given by other advanced optimization tech-niques. In addition to the benchmark, PSO-RDL was also used to solve the economic dispatch (ED) problem for power systems, which is a real-world problem and highly constrained. The results indicate that PSO-RDL can successfully solve the ED problem for the three-unit power system and obtain the currently known best solution for the 40-unit system.
Index Terms—Building blocks, dynamic linkage discovery, economic dispatch (ED), genetic algorithms (GAs), genetic link-age, particle swarm optimization (PSO), recombination operator, valve-point effect.
I. INTRODUCTION
T
HE PARTICLE swarm optimizer (PSO), which was in-troduced by Kennedy and Eberhart in 1995 [1], [2], emulates the flocking behavior of birds to solve optimization problems. The PSO algorithm is conceptually simple and canManuscript received November 20, 2006; revised April 20, 2007. The work was supported in part by the National Science Council of Taiwan, R.O.C., under Grant NSC-95-2221-E-009-092 and Grant NSC-95-2627-B-009-001 and in part by the Aiming for the Top University and Elite Research Center Development Plan (ATU Plan), National Chiao Tung University and Ministry of Education, Taiwan, R.O.C. This paper was recommended by Associate Editor Y. S. Ong.
Y.-P. Chen and W.-C. Peng are with the Department of Computer Science, National Chiao Tung University, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]).
M.-C. Jian is with Airoha Technology Corporation, Hsinchu 300, Taiwan, R.O.C. (e-mail: [email protected]).
Digital Object Identifier 10.1109/TSMCB.2007.904019
be implemented in a few lines of codes. In PSO, each potential solution is considered as a particle. All particles have their own fitness values and velocities. These particles fly through the
D-dimensional problem space by learning from the historical
information of all the particles. There are global and local versions of PSO. Instead of learning from the personal best and the best position discovered so far by the whole population as in the global version of PSO, in the local version, each particle’s velocity is adjusted according to its own best fitness value and the best position found by other particles within its neighborhood. Focusing on improving the local version of PSO, different neighborhood structures were proposed and discussed in the literature. Moreover, the position and velocity update rules have been modified to enhance the PSO’s performance as well.
On the other hand, genetic algorithms (GAs), which were introduced by Holland [3], are stochastic population-based search and optimization algorithms loosely modeled after the paradigm of evolution. GAs guide the search through the solution space by using natural selection and genetic operators, such as crossover, mutation, and the like. Fur-thermore, the GA optimization mechanism has been theorized by researchers [3]–[5] with building block processing, such as creating, identifying, and exchanging. Building blocks are conceptually noninferior subsolutions that are components of the superior complete solutions. The building block hypothesis states that the final solutions to a given optimization problem can be evolved with a continuous process of creating, identi-fying, and recombining high-quality building blocks. Accord-ingly, the GA’s search capability can be greatly improved by identifying building blocks accurately and preventing crossover operation from destroying them [6], [7]. Hence, linkage identi-fication, i.e., the procedure to recognize building blocks, plays an important role in GA optimization.
The two aforementioned optimization techniques are both population based and have been proven successful in solving a variety of difficult problems. However, both models have strengths and weaknesses. Comparisons between GAs and PSO can be found in the literature [8], [9] and suggest that a hybrid of these two algorithms may lead to further advances. As a consequence, a host of studies on the hybridization of GAs and PSO have been proposed and examined. Most of these research works try to incorporate genetic operators into PSO [10], [11], while some try to introduce the concept of linkage into PSO [12]. According to the similar idea employed by linkage PSO [12], this paper tries to introduce the recombination mechanism working on building blocks to enhance the capability of PSO with the linkage concept.
This paper presents a research project that aims to address the linkage problem in real-parameter optimization and introduces the linkage concept to the particle swarm optimizer. Thus, there are the following three primary objectives.
1) With the hypothesis that linkage also exists in real-parameter optimization, a linkage identification technique is needed to address the linkage problem. This paper provides both the linkage identification mechanism and observations from numerical experiments to support this hypothesis.
2) In order to improve the performance of the particle swarm optimizer, the linkage concept is introduced. An opti-mization algorithm that incorporates this mechanism is developed, and numerical experiments are conducted to evaluate the performance of the proposed methodology. 3) The economic dispatch (ED) problem, which is an
essen-tial topic in power control systems, can be appropriately handled and optimized.
Focusing on the three objectives, in this paper, we propose a dynamic linkage discovery technique to dynamically and effec-tively detect the building blocks of the objective function during the whole evolutionary optimization process. This technique differs from those traditional linkage detection techniques in that the evaluation cost is eliminated. The idea is to dynamically adapt the linkage configuration according to the search process and the feedback from the environment. Thus, this technique is costless and easy to be integrated into existing search algorithms. Our method introduces the linkage concept and the recombination operator to the operation of the particle swarm optimizer. Furthermore, in order to efficiently solve the ED problem, we incorporate the proposed algorithm with a new constraint handling technique. We use the three-unit [13] and 40-unit [14] problems with the nonsmooth fuel cost function considering valve-point effects [13] found in the literature of power systems as the experiments.
This paper is organized as follows. Section II provides a survey of related work in the literature. Section III describes the proposed method in detail. The three mechanisms including the particle swarm optimizer, dynamic linkage discovery tech-nique, and recombination operator are introduced. The frame-work consisting of the three components is then presented. Section IV shows the experimental results that evaluate the performance of the proposed algorithm in the 2005 Institute of Electrical and Electronics Engineers Congress on Evolutionary Computation (IEEE CEC 2005) benchmark. Section V applies the proposed framework to the ED problem, which is a signifi-cant topic in power systems. Section VI gives a summary of this paper. The future work and the main conclusions of this paper are provided.
II. RELATEDWORK
The traditional PSO algorithm, which is described in [1], consists of a number of particles representing possible solutions to a numerical problem and moving around in the search space. In an iteration, the velocity of each particle is updated according
to the best position encountered by the particle itself and by any of the particles as
vt+1i (j) = wvit(j) + c1ϕ1i(j)
pti(j)− xti(j)
+ c2ϕ2i(j)ptg(j)− xti(j) where t is the time index, i is the particle index, and j is the dimension index. pi is the individual best position. pg is the known global best position. w is the inertia weight described in [15]. c1and c2are the acceleration rates of the cognitive and social parts, respectively. ϕ1and ϕ2are random values different for each particle i as well as for each dimension j. The velocity update rule with constriction coefficients is proposed in [16]. The position of each particle is also updated in each iteration by adding the velocity vector to the position vector, i.e.,
xt+1i (j) = xti(j) + vit(j).
The particles used in this paper have no neighborhood restric-tion, which means each particle can affect all other particles. In the local version of PSO, pg is replaced by pn, i.e., the best position achieved by a particle within its neighborhood. Focusing on improving the local version of PSO, different neighborhood structures have been proposed and discussed [17]–[19]. Furthermore, studies on modifying the rule of up-dating position and velocity are also implemented [12], [20], [21]. Devicharan and Mohan [12] first computed the elements of the linkage matrix based on observation of the results of perturbations performed in some randomly generated particles. These elements of the linkage matrix were used in a modified PSO algorithm in which only strongly linked particle positions were simultaneously updated. Liang et al. [20], [21] proposed learning strategies where each dimension of a particle learned from just one particle’s historical best information, while each particle learned from different particles’ historical best infor-mation for different dimensions.
In order to enhance the performance of PSO by introducing genetic operators and/or mechanisms, many hybrid GA/PSO algorithms have been proposed and tested on function mini-mization problems [10], [11], [22], [23]. Løvbjerg et al. [10] incorporated a breeding operator into the PSO algorithm, where breeding occurred inline with the standard velocity and position update rules. Robinson et al. [22] tested a hybrid that used the GA algorithm to initialize the PSO population and another in which the PSO initialized the GA population. Shi et al. [23] proposed two approaches. The main idea of the proposed algorithm was to integrate PSO and GA. Settles and Soule [11] combined the standard velocity and position update rules of PSO with the concepts of selection, crossover, and mutation from GAs. They employed an additional parameter, i.e., the breeding ratio, to determine the proportion of the population that underwent breeding procedure (selection, crossover, and mutation) in the current generation.
Moreover, the importance of learning genetic linkage has long been discussed and recognized in the field of GAs [3], [4], [6], [7]. Because it is hard, if not impossible, to guarantee the user-designed chromosome representation that provides tightly linked building blocks when the problem domain knowledge is
unavailable, a variety of linkage learning techniques have been proposed and developed to handle the linkage problem, which refers to the need of good building block linkage. The issue of learning problem-specific linkage has been addressed in the GA literature [24]–[26]. Furthermore, some researchers try to introduce the linkage concept to PSO and formulate linkage-sensitive PSO algorithms [12], [20], [21].
III. FRAMEWORK
The proposed algorithm introduces the recombination opera-tor with the dynamic linkage discovery technique to the particle swarm optimization (PSO). Dynamic linkage discovery adapts the linkage configuration by utilizing natural selection without incorporating extra judging criteria. Furthermore, a specifically designed recombination operator is employed to work with the identified building blocks.
A. Dynamic Linkage Discovery
In the literature, most linkage identification techniques were proposed and tested on trap functions [27]. There are relatively fewer studies on handling linkage in real-number optimization problems. From the survey of linkage learning, Tezuka et al. identified linkage by nonlinearity check on real-coded GA [25]. Such a technique has also been incorporated with the particle swarm optimizer [12]. Different from this perturbation-based linkage identification technique, we propose the dynamic
linkage discovery in this paper.
In PSO, particles are encoded as real-number vectors. Be-cause of this representation, we use the term “linkage” to indicate the interrelation among dimensions as in the literature [12], [21], [28]. At different stages of an optimization process, the linkage configuration may be different according to the fitness landscape and the corresponding population distribution. Hence, in this paper, we make a hypothesis that the relation between different dimensions is dynamically changed along with the optimization process from the viewpoint of the popula-tion. Acting on this hypothesis, the linkage configuration should be updated accordingly such that the obtained information regarding the function structure embedded in the population distribution can be extracted and utilized.
For most problems, it is difficult to exactly identify the link-age configuration, especially when the linklink-age configuration may change over time. Instead of incorporating extra artificial criteria for linkage adaptation, we entrust the task to natural selection. As a consequence, we propose the dynamic linkage discovery technique, and we call the PSO combined with re-combination and dynamic linkage discovery as PSO-RDL. The dynamic linkage discovery technique is costless, effective, and easy to implement. The idea is to update the linkage configura-tion according to the fitness feedback. During the evoluconfigura-tionary optimization process, PSO-RDL assigns a set of random link-age groups and then adjusts the linklink-age configuration according to the objective values. If the average fitness value of the current population is improved above a specified threshold, the current linkage configuration is considered appropriate and remains unchanged. Otherwise, the linkage groups will be reassigned

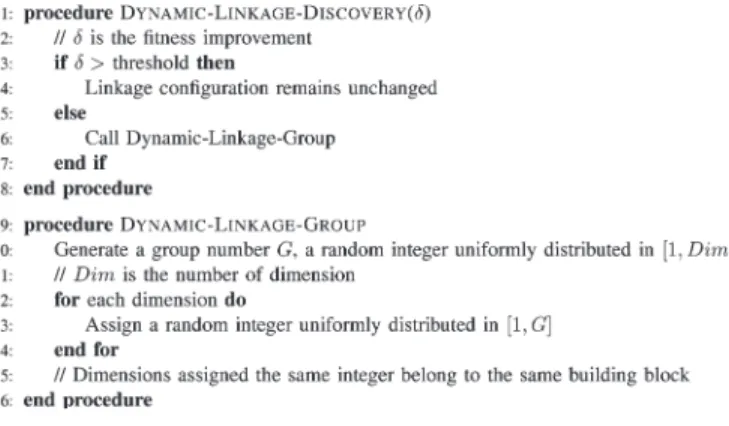

Fig. 1. Pseudocode of dynamic linkage discovery.
at random. Dynamic linkage discovery may seem similar to the mechanism of “random neighborhood” defined in
Stan-dard PSO 2006 and downloadable at Particle Swarm Central
[29] due to the concept of “if no improvement, redefine the neighborhoods.” The essential difference is that random neigh-borhood works on particles while dynamic linkage discovery works on dimensions. In this sense, the two methodologies are orthogonal and might cooperate with each other. Finally, the pseudocode of dynamic linkage discovery is shown in Fig. 1.
B. Recombination Operator
For evolutionary algorithms, the merits of crossover have been an essential research topic. Instead of the traditional two-parent recombinatory chromosome reproduction, there has been considerable discussion of multiparent crossover mech-anisms [30]–[32]. Work on multiparental recombination tech-niques (with a fixed number of parents) [31] showed that
n-parental inheritance (with n greater than 2 but less than the
size of the population) can be advantageous. Based on previ-ous research work, we develop a multiparental recombination operator for constructing the offspring population.
In this paper, since we have discovered the linkage configu-ration in order to make good use of the obtained information, we specifically design a new recombination operator. After selection, we consider the selected individuals as a building block pool. In the recombination process, every offspring is created by choosing and recombining building blocks from the pool at random. We use this recombination process to generate the next population. Fig. 2 shows an illustration of how a new individual is generated. By repeating the process, we can construct a new population in which each particle is composed of the building blocks. The pseudocode for constructing a new population is shown in Fig. 3.
C. Recombination With Dynamic Linkage Discovery in PSO
For the convenience of analysis and development, in this paper, we use a modified version of PSO [33]. In the proposed algorithm, we repeat PSO for a certain number of generations, which is called a PSO epoch. After each PSO epoch, we select the n best particles to establish the building block pool and conduct the recombination operation. After the recombination process, the linkage discovery step is executed if necessary.
Fig. 2. New particle is generated through the recombination operator.
Fig. 3. Constructing a new population by using recombination.
Fig. 4. Pseudocode of PSO-RDL.
We calculate the average fitness of the current epoch, compare the average to that calculated during the last epoch, and check whether the improvement is significant enough. When the specified threshold is reached, the current linkage configuration is considered appropriate and remains unchanged for the next PSO epoch. Otherwise, the linkage discovery process starts. The pseudocode is shown in Fig. 4.
Similar studies have been done in the literature, such as PSO with learning strategy [20], [21] and PSO with adaptive linkage learning [12]. The main difference between PSO-RDL and these previously proposed methods is the introduction of the recombination operator specifically designed to work with the identified building blocks. In addition, a new linkage
discov-ery technique to dynamically adapt the linkage configuration during the search process is proposed. Furthermore, since the local search is utilized in the proposed framework, PSO-RDL can also be regarded as a memetic algorithm. Interested readers can refer to the related publications [34]–[37].
IV. EXPERIMENTALRESULTS ONBENCHMARK Computer simulations were conducted to evaluate the per-formance of PSO-RDL. The test problems [38] are proposed in the special session on real-parameter optimization in IEEE CEC 2005. The reason we use the benchmark to test PSO-RDL is to understand how well PSO-RDL can do on the artificial test functions and to observe the runtime dynamics. The method we adopt in this paper to conduct the comparison is to directly cite the numerical results published and available in the literature. In this section, the test problems, parameter settings, and nu-merical results are presented.
A. Test Functions
The set of test problems proposed in IEEE CEC 2005 in-cludes in total 25 functions of different characteristics. Five of them are unimodal problems, and the others are multimodal problems [38]. However, because some of the 25 functions are solved by none of the algorithms compared in this paper, we use only 13 test functions from the benchmark of ten dimensions, i.e., ten decision variables, in this paper.
• Unimodal Functions (5):
1) F1: Shifted Sphere Function;
2) F2: Shifted Schewefel’s Problem 1.2;
3) F3: Shifted Rotated High Conditioned Elliptic Function;
4) F4: Shifted Schwefel’s Problem 1.2 with Noise in Fitness;
5) F5: Schwefel’s Problem 2.6 with Global Optimum on Bounds.
• Multimodal Functions (8): — Basic Functions (7):
1) F6: Shifted Rosenbrock’s Function;
2) F7: Shifted Rotated Griewank’s Function without Bounds;
3) F8: Shifted Rotated Ackley’s Function with Global Optimum on Bounds;
4) F9: Shifted Rastrigin’s Function;
5) F10: Shifted Rotated Rastrigin’s Function; 6) F11: Shifted Rotated Weierstrass Function; 7) F12: Schwefels’ Problem 2.13.
— Hybrid Composition Function (1): 1) F15: Hybrid Composition Function.
Please note that we keep the function number assigned in the original benchmark for reference. The bias of fitness value for each function f (x∗), the search ranges [Xmin, Xmax], and the initialization range of each function are given in Table I.
TABLE I
GLOBALOPTIMA, SEARCHRANGES,ANDINITIALIZATION
RANGES OF THEADOPTEDTESTFUNCTIONS
TABLE II
PARAMETERSETTINGS IN THENUMERICALEXPERIMENTS
B. Parameter Settings
The parameter settings for PSO-RDL employed in this pa-per are described as follows: the number of particles is 20,
w = 0.65, c1= 1.48, c2= 1.48, and Vmaxis equal to 25% of the search range. The PSO epoch is 50 generations. If the PSO epoch is too long, the whole swarm may have converged, and no further information exchange is needed. On the other hand, if the PSO epoch is too short, the linkage discovery mechanism may not be able to learn from a group of random particles. The number of particles selected for the recombination is 5. The threshold that determines whether the linkage configuration should be changed is set to 2% of the previous best fitness value. A high fitness improvement threshold may lead to an ever-changing linkage configuration, while a low threshold may not be helpful to guide the search and becomes useless. A list of the parameter settings is shown in Table II.
C. Experimental Results
Table III shows the number of successfully solved problems for PSO-RDL and other evolutionary algorithms. According to the criteria specified in the IEEE CEC 2005 benchmark, PSO-RDL successfully solved problems 1, 2, 4, 5, 6, 7, 12, and 15. Moreover, comparable results are achieved in solving problems 3, 8, and 11. Unfortunately, PSO-RDL failed to solve problems 9 and 10. Figs. 5–8 demonstrate how the dynamic linkage discovery technique changes the linkage configuration during the optimization process.
TABLE III
PROBLEMSSOLVED BYPSO-RDLANDOTHERADVANCED
EVOLUTIONARYALGORITHMS. UNIMODAL: UNIMODAL
FUNCTIONS; BASIC: BASICMULTIMODALFUNCTIONS; HYBRID: HYBRIDCOMPOSITIONFUNCTION
Fig. 5. Convergence and linkage dynamics for the Sphere function.
Fig. 6. Convergence and linkage dynamics for the Shifted Rotated Griewank’s function.
D. Discussion
According to the results listed in Table III, it can be con-sidered that PSO-RDL delivers a similar level of performance compared to other advanced evolutionary algorithms on the artificial test functions. For the total number of solved prob-lems, PSO-RDL can solve eight problems and is ranked top two. Although slightly inferior to dynamic multi-swarm particle
Fig. 7. Convergence and linkage dynamics for the Shifted Expanded Griewank’s plus Rosenbrock’s function (a multimodal function).
Fig. 8. Fitness convergence and linkage dynamics of PSO-RDL for the Shifted Rastrigin’s function (a multimodal function with many local optima).
swarm optimizer (DMS-PSO), PSO-RDL performs well on the artificial test functions.
Because the main purpose of using the benchmark is to understand the behavior of PSO-RDL, observations for fitness convergence and linkage dynamics are provided in Figs. 5–8. The gray areas represent the time frames when a proper linkage configuration is assisting the optimization mechanism. When the linkage configuration is not appropriate for the current optimization stage, i.e., the linkage configuration fails to assist the search, the linkage group composition will start to vibrate for some iterations until the next proper set of linkage groups is found, as shown in Figs. 5 and 6. The phenomenon evidently verifies our assumption that the building block’s composition is dynamically changed during the search process in the real-parameter optimization problem. Thus, it is reasonable that we hand over linkage adaptation to the mechanism of natural selection. Moreover, Fig. 8 shows the linkage dynamics for the function that PSO-RDL failed to solve. It can be seen that the linkage configuration keeps changing all the time. As
dis-cussed above, this phenomenon indicates that when the function may have no building block structure or is too difficult for PSO-RDL, an appropriate linkage configuration cannot be found, and the optimization task cannot be accomplished.
Focusing on the time ratio of the linkage status (changing versus unchanged), we can observe that for Figs. 5 and 6, the linkage configuration remains unchanged for most of the time. Correspondingly, PSO-RDL provides good results on these two functions. On the contrary, the linkage configuration keeps changing in Figs. 7 and 8. Thus, our algorithm does not work well on these two functions, although PSO-RDL can obtain numerical results comparable to those obtained by other algorithms on the shifted expanded Griewank’s plus Rosenbrock’s function. Hence, we can conclude that when the linkage configuration changes too often, PSO-RDL may fail to solve the problem with a high probability. Such a “signal” may be a performance indicator for PSO-RDL and worth further investigation.
V. REAL-WORLDAPPLICATIONS
In this section, we employ PSO-RDL to handle a real-world application, i.e., the ED problem, which is an essential topic in power systems. Thanks to the importance of the ED problem, researchers have been making a host of attempts to find better solutions. Among the promising sets of evolutionary optimization methods for tackling the ED problem are GAs [13], [39]–[42], evolutionary programming [14], [43]–[45], and PSO [46]–[49]. In order to observe the performance as well as to obtain better solutions, we will apply PSO-RDL on the ED problem. For this purpose, the following topics will be covered in this section.
• ED problem: A brief introduction to the ED problem. • PSO-RDL for ED: PSO-RDL used to solve the ED
problem.
• Experimental results: The numerical results for the 3- and 40-unit ED problems. The comparisons of PSO-RDL with other algorithms are also presented.
A. ED Problem
With the development of modern power systems, the ED problem has received increasing attention because many as-pects of power systems are involved. The ED problem consists of allocating the total generation required among the available generation units, assuming that a unit commitment is previously determined. The objective aims to minimize fuel cost subject to physical and operational constraints. As a result, the ED problem is to find the optimal output combination of the power generations that minimizes the total generation cost while satis-fying the equality and inequality constraints. In order to model the ED problem, a simplified cost function [50] of each gener-ator that is represented as a quadratic function can be put as
C =
j∈J
Fj(Pj) (1)
where
C total generation cost;
J set for all generators;
Pj electrical output of generator j;
Fj cost function for generator j;
aj, bj, cj cost coefficients for generator j.
In the real world, the total generation should be equal to the total system demand plus the transmission network loss. However, in a number of studies reported in the literature [13], [39], [40], [42], the network loss is not considered for simplic-ity. For the purpose to directly compare the numerical results obtained by PSO-RDL with those available in the literature, the transmission network loss is also not considered in this paper. Hence, the constraints of the problem include two main parts. The first part is the equality constraint. The sum of the output of all generators must be equal to the total system demand, which can be described as
D =
j∈J
Pj (3)
where D is the total system demand.
Second, the generation output of each unit has to be within its minimum and maximum limits. Such a requirement introduces the inequality constraint. The inequality constraint for generator
j can be put as
Pj min≤ Pj≤ Pj max (4) where Pj min and Pj max are the minimum and maximum outputs of generator j, and Pjis the desired output.
In reality, the objective function of the ED problem is more complicated than (2) due to the valve-point effect and the change of fuels. Therefore, the nonsmooth cost functions should be considered instead of (2), which is the most sim-plified form. The inclusion of the valve-point loading effect makes the modeling of the incremental fuel cost function of the generators more practical and increases the nonlinearity as well as number of local optima. The incremental fuel cost function of the generating units with valve-point loadings [13] can be represented as
Fj(Pj) = ajPj2+ bjPj+ cj+|ejsin (fj× (Pj min− Pj))| (5) where ejand fjare the coefficients for generator j to reflect the valve-point effect.
In this paper, we focus on solving the ED problem with the valve-point effect, which is modeled as (5). Thus, the combi-nation of (1) and (5) is the objective function for PSO-RDL to optimize, and a solution to the ED problem is a set of generation outputs specified for each generator in question. In addition, a solution is called a feasible solution if it satisfies the equality constraint (3) as well as the inequality constraint (4). Otherwise, it is called an infeasible solution. The regions in the
search space composed of feasible solutions are called feasible
regions, and the others are called infeasible regions.
B. PSO-RDL for ED
In order to solve the ED problem with PSO-RDL, the equal-ity and inequalequal-ity constraints have to be appropriately handled. To address this issue, we devise a constraint handling technique based on the concepts of repair and penalty. With the repair mechanism, infeasible solutions are modified to be feasible ones. For the ED problem, although the inequality constraints (4) might need to be handled in traditional mathematical pro-gramming methods, they can be ignored in this paper because the control of decision variable ranges is a built-in functionality of evolutionary algorithms.
As for the equality constraint (3), we repair infeasible so-lutions with the following procedure. We generate an integer sequence from one to the number of generators with a uni-formly random order. Each integer in the sequence represents one generator that needs processing. The sequence indicates the order in which the denoted generator is processed. For example, for four generators, if we randomly generate a sequence 3, 1, 2, 4, the sequence means that we will first process unit 3, then unit 1, unit 2, and unit 4. In this order, we check the equality constraint, i.e., the sum of the total generation output must be equal to the system demand. If the equality constraint is not satisfied, the output of the generator under processing is modified according to Pi= min (UBound(Pi), max D − j∈J,j=i Pj , LBound(Pi) (6) where D is the system power demand, J is the set for all generators, and LBound(Pi) and UBound(Pi) are the lower bound and upper bound of Pi.
The aforementioned repair procedure is conducted with a probability of 0.4 and adjusts the output of the generators one by one until the solution is feasible. However, if all infeasible solutions are repaired, the population diversity may be greatly reduced. Therefore, to preserve the diversity of the population, only a portion of infeasible solutions is repaired. For the rest of the infeasible solutions, we use a penalty function to indicate the infeasibility. The penalty function was designed as
Objective value with penalty = C + wp D− j∈J Pj (7) where C is the total generation cost, and the wp= 105 is the penalty coefficient.
By incorporating the constraint handling technique, PSO-RDL is capable of solving the ED problem. In order to verify the feasibility and demonstrate the performance of PSO-RDL on the ED problem, numerical experiments were conducted, and the results are given in Section V-C.
TABLE IV
PARAMETERS FORTESTCASEI (THREE-UNITSYSTEM) WITH
VALVE-POINTLOADINGEFFECT. a, b, c, e,ANDf ARE THE
COSTCOEFFICIENTS IN THEFUELCOSTFUNCTION:
Fj(Pj) = ajPj2+ bjPj+ cj+|ejsin(fj× (Pjmin− Pj))|
C. Experiments
In this section, the test problems will be described followed by the presentation of the numerical results.
1) Test Problems: We focus on solving the ED problem with
nonsmooth functions considering the valve-point effect. We employed PSO-RDL to solve two ED problems, one with three generators and the other with 40 generators. The input data for the three-unit system are given in [13], and those for the 40-unit are given in [14]. The detail parameters include each generator output range, and related coefficients in both systems are listed in Tables IV and V. The total demands for the 3- and 40-unit systems are 850 and 10 500 MW, respectively. The global optimum solution for the three-unit system is proven to be 8 234.07 [51]. For the 40-unit system, the global optimum has not been determined. The best known solution in the litera-ture is 122 252.265 [48]. The parameter settings for PSO-RDL are identical to those listed in Table II. The probability to repair infeasible solutions is 0.4.
2) Experimental Results: The experiments were conducted
for 100 independent runs to evaluate the performance of PSO-RDL on the ED problem. The numerical results for the three-unit system are given in Table VI, and the results are compared to those of GA [13], improved evolutionary pro-gramming (IEP) [52], evolutionary propro-gramming (EP) [44], and modified particle swarm optimization (MPSO) [48]. The results indicate that PSO-RDL has successfully found the reported global optimum solution [51] as EP and MPSO. For the 40-unit system, the results are compared to those obtained by other advanced methods described in [14], such as classical EP (CEP), fast EP (FEP), modified FEP (MFEP), improved FEP (IFEP), as well as MPSO in [48]. The best solution obtained by PSO-RDL is 121 468.820, which is better than the previously known best solution, i.e., 122 252.265 reported in [48]. The best solutions obtained by each method are shown in Table VII. In order to statistically compare the results, we show the numbers of solutions for the 100 independent runs in each range of cost in Table VIII. Finally, the gen-eration outputs and the corresponding costs of the best so-lution obtained by PSO-RDL are provided in Table IX for verification.
For the ED problem, we also follow the method to conduct the comparison by directly citing the numerical results pub-lished and available in the literature. Moreover, as pointed out in [13], [14], and [39], the test problem instances cannot be handled by classical LaGrangian techniques due to the lack of the monotonically increasing nature. As a consequence, the algorithms performing well on the artificial functions such as DMS-PSO [28] and local restart covariance matrix
TABLE V
PARAMETERS FORTESTCASEII (40-UNITSYSTEM) WITH
VALVE-POINTLOADINGEFFECT. a, b, c, e,ANDf ARE THE
COSTCOEFFICIENTS IN THEFUELCOSTFUNCTION:
Fj(Pj) = ajPj2+ bjPj+ cj+|ejsin(fj× (Pjmin− Pj))|
TABLE VI
COMPARISON OF THEEXPERIMENTALRESULTSOBTAINED BYVARIOUS
METHODS ON THENONSMOOTHCOSTFUNCTIONCONSIDERING THEVALVE-POINTLOADINGEFFECT. FOR THETHREE-UNIT
SYSTEM, IEP, EP, MPSO,ANDPSO-RDL WEREABLE TOFIND THEGLOBALOPTIMUM[51]
adaptation evolution strategy (LR-CMA-ES) [53] as well as the classical LaGrangian techniques are not included in the comparison.
TABLE VII
COMPARISON OF THEEXPERIMENTALRESULTSOBTAINED BYVARIOUSMETHODS ON THENONSMOOTHCOSTFUNCTIONCONSIDERING THEVALVE-POINTLOADINGEFFECT. FOR THE40-UNITSYSTEM, PSO-RDL WASABLE TOFIND THEBESTSOLUTION
TABLE VIII
COMPARISON OFMETHODS ONFREQUENCY OFCONVERGENCE IN THERANGES OFCOST
TABLE IX

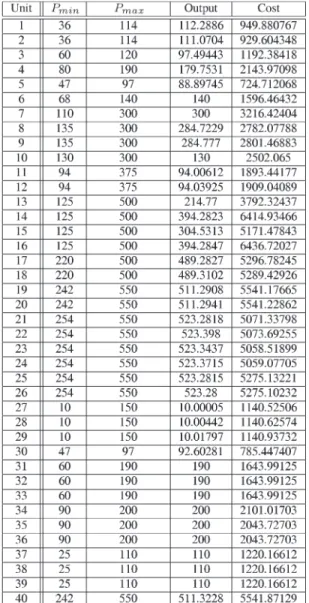

OUTPUTS ANDCORRESPONDINGCOSTS OF THE
BESTSOLUTIONOBTAINED BYPSO-RDL
From the experimental results, it can be observed that PSO-RDL performs quite well on the two ED problems. In particular, for the 40-unit system, we improve the known best solution to 121 468.82. According to Table VIII, PSO-RDL can be considered outperforming MPSO [48] on the 40-unit system. Based on the results of this real-world application, we can know that for constrained optimization problems, PSO-RDL can perform well and deliver good solutions.
VI. SUMMARY ANDCONCLUSION
In this paper, we have studied the PSO and the linkage problem. After conducting a survey on the hybridization of particle swarm optimizers and GAs, we introduced the linkage concept, which is an important topic in GAs, to the particle swarm optimizer. In order to address the linkage problem in real-parameter optimization problems, we developed the dy-namic linkage discovery technique. Furthermore, to make good use of the obtained information, we designed a recombination operator. By combining these mechanisms, we proposed a new evolutionary algorithm, which is called PSO-RDL, and conducted experiments on test functions. Finally, we applied PSO-RDL on the ED problem, which is an essential problem in power systems, and successfully obtained the currently best known result for the 40-unit system.
The work on PSO-RDL gives us two observations. First, in the literature, it is rarely discussed on the building blocks in real-parameter optimization problems. This paper may shed some light on the existence of building blocks in real-parameter optimization problems. Second, if building blocks do exist, why are these building blocks not detected by the linkage detection techniques previously proposed in the literature? According to the information obtained in this paper, perhaps in real-parameter optimization problems, at least on some of them, the configuration of building blocks dynamically changes along with the search stage. Thus, those traditional static linkage de-tection techniques may fail to accomplish the task of detecting linkage.
In this paper, we have introduced recombination with dy-namic linkage discovery to PSO and considered integration as a promising research direction. By combining the strengths of different optimization models, we have created PSO-RDL with intriguing features and properties. We will continue to work on understanding and analyzing the properties and characteristics of real-number optimization problems in order to design better evolutionary algorithms.
ACKNOWLEDGMENT
The authors would like to thank the National Center for High-performance Computing for computer time and facilities.
