Substrate-triggered ESD clamp devices for use in power-rail ESD clamp circuits

(1)

Substrate-triggered ESD clamp devices for use in power-rail

ESD clamp circuits

q

Ming-Dou Ker

*

_{, Tung-Yang Chen, Chung-Yu Wu}

Integrated Circuits and Systems Laboratory, Institute of Electronics, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan 300, ROC

Received 20 June 2000; accepted 31 August 2001

Abstract

New electrostatic discharge (ESD) clamp devices for using in power-rail ESD clamp circuits with the substrate-triggered technique are proposed to improve ESD level in a limited silicon area. The parasitic n–p–n and p–n–p bipolar junction transistors (BJTs) in the CMOS devices are used to form the substrate-triggered devices for ESD protection. Four substrate-triggered devices are proposed and investigated in this work, which are named as the substrate-triggered lateral BJT, the substrate-triggered vertical BJT, the substrate-triggered double BJT, and the double-triggered double BJT. An RC-based ESD-detection circuit is used to generate the triggering current to turn on the proposed substrate-triggered devices. In order to trigger on the parasitic bipolar transistors more eﬀectively, the symmetric multiple-cell square-type layout method is used to realize these substrate-triggered devices. The power-rail ESD clamp circuits with such substrate-triggered devices have been fabricated in a 0.6-lm CMOS process. Experimental results have shown that the substrate-triggered device with double-BJT structure can provide 200% higher ESD robustness in per silicon area, as compared to the NMOS with the traditional gate-driven design. Ó 2002 Elsevier Science Ltd. All rights reserved.

Keywords: Electrostatic discharge; Substrate-triggered technique; Electrostatic discharge clamp circuit; Secondary breakdown current (It2); Bipolar junction transistor

1. Introduction

Whole-chip electrostatic discharge (ESD) protec-tion has become an important reliability design for deep-submicron CMOS ICs. In the input/output ESD protection circuits, the ESD protection devices with larger device dimensions are often drawn in the multiple ﬁnger-type layout style. To enhance uniform turn-on phenomena among the multiple ﬁngers of the ESD protection devices, the gate-coupled technique had been reported to improve ESD level of ESD protection

cir-cuits [1,2]. But, the second breakdown current (It2) and

ESD level of NMOS device had been found to be sud-denly degraded if the NMOS gate voltage was somewhat over biased [3–6]. Therefore, the gate-coupled design has to be carefully optimized to avoid the sudden degrada-tion on ESD robustness [3,4]. However, even if there were suitable ESD protection circuits around the input and output pads, the internal circuits were still vulner-able to ESD damages [7–11].

Since the ESD stress may have positive or negative voltage on an input (or output) pin with respect to the grounded VDD or VSSpins, there are four diﬀerent

ESD-testing pin combinations at each input (output) pin, which are shown in Fig. 1(a) and (b). For a compre-hensive ESD veriﬁcation, two additional ESD-testing pin combinations, the pin-to-pin ESD stress and the VDD–VSSESD stress in Fig. 1(c) and (d), had been also

speciﬁed to verify the whole-chip ESD reliability [12]. These two additional ESD-testing pin combinations

q

This work was supported by the National Science Council (NSC), Taiwan, ROC.

*

Corresponding author. Tel.: 571-2121; fax: +886-3-571-5412.

E-mail address: [email protected] (M.-D. Ker).

(2)

often lead to more complex ESD current paths from the input or output pins through the power lines into the internal circuits, which will cause some unexpected damages on the internal circuits even if there are input and output ESD protection circuits in the ICs [7–11]. The ESD current discharging paths in an IC during the pin-to-pin ESD stress is illustrated in Fig. 2(a), where a positive ESD voltage is applied to an input pin with

some output pin relatively grounded, but the VDD and

VSSpins are ﬂoating. The ESD current will be diverted

from the input pad to the ﬂoating VDD power line

through the forward-biased diode in the input ESD protection circuit. The ESD current ﬂowing on the VDD

power line can be conducted into the internal circuits through the connection of VDD metal line. Then, the

ESD current is discharged through the internal circuits and may cause random ESD damage in the internal circuits, as the current Path_1 shown in Fig. 2(a). If there is an eﬀective ESD clamp circuit across the VDD

and VSSpower lines, the ESD current can be discharged

through the current Path_2 in Fig. 2(a). Therefore, the internal circuits can be safely protected against the ESD damages under a negative ESD stress, the similar ESD current paths are shown in Fig. 2(b). Thus, an eﬀective ESD clamp circuit with a quick turn-on speed across the power rails is necessary for protecting the internal cir-cuits against ESD damage.

To overcome such unexpected ESD damage on the internal circuits beyond the input or output ESD pro-tection circuits, some ESD clamp circuits across the VDD

Fig. 2. The ESD current discharging paths in an IC during the (a) positive, and (b) negative, pin-to-pin ESD stress conditions. If the IC has no eﬀective ESD clamp circuit between the VDD

and VSSpower rails, the ESD current is discharged through the

Path_1, which often causes ESD damage located at the internal circuits. If the IC has an eﬀective ESD clamp circuit between the VDDand VSSpower rails, the ESD current is discharged through

the Path_2.

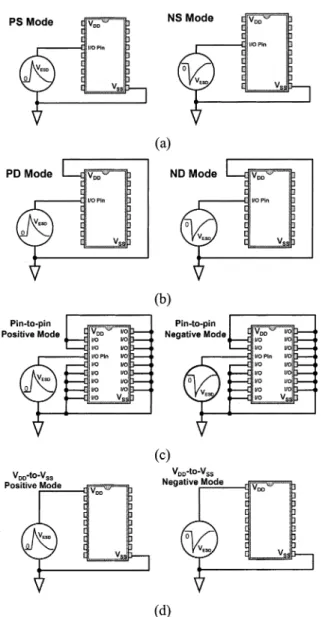

Fig. 1. (a) Positive and negative ESD stress on an input (or output) pin with respect to the grounded VSS. (b) Positive and

negative ESD stress on an input (or output) pin with respect to the grounded VDD. (c) The pin-to-pin ESD stress: the ESD

voltage is applied to an input (or output) pin while all other input or output pins are grounded but the VDDand VSSpins are

ﬂoating. (d) The VDD–VSSESD stress: the ESD voltage is

di-rectly applied to the VDDpin with the VSSpin grounded but all

(3)

and VSSpower rails had been reported [12–20]. In Refs.

[12–15], an RC-based ESD-detection circuit was used to turn on an NMOS to bypass the ESD current from VDD

to VSS. The schematic circuit diagram of such a

tradi-tional design by gate-driven technique is illustrated in Fig. 3 with the cross-sectional view of NMOS device structure. During the ESD stress, the RC-based ESD-detection circuit conducts some ESD voltage from VDD

power rail to bias the gate of the ESD-clamp NMOS. The positive gate voltage causes a strong inversion along the NMOS channel and leads to the ESD current focussing at the lightly doped drain (LDD) peak struc-ture. The ESD current, ﬂowing through the very shallow junction depth of the LDD peak structure and the in-version layer along the channel, causes a very low ESD level on the NMOS. The over-biased gate voltage on NMOS had been reported to cause a lower second breakdown current (It2) or ESD level on the NMOS

devices [3–6], as compared to a gate-grounded NMOS. In order to sustain a desired 3-kV human body metal (HBM) ESD level, the ESD-clamp NMOS was designed with a huge device dimension of W =L¼ 8000 lm=0:8 lm in Ref. [13]. Such a huge ESD-clamp NMOS gen-erally occupies a much more silicon area, which also causes a cost issue to IC products.

In Refs. [16–18], the diode string with multiple stacked diodes was reported as the ESD-clamp device across the power rails of an IC. The diode in the for-ward-biased condition can sustain a much higher ESD level than it in the reverse-biased condition. But, the forward-biased diode string conducts a considerable leakage current across the VDDand VSSpower rails, when

the IC with normal power supplies is operating in a higher temperature. In Refs. [19,20], the lateral SCR

device in CMOS process were used as the ESD-clamp device across the VDD and VSS power rails. The lateral

SCR device can sustain a very high-ESD stress with a much smaller silicon area, as compared to other ESD protection devices. But, the lateral SCR may be trig-gered on to cause latchup problem by overshooting noise pulses across the power rails [21–25], when the IC is in the normal operation condition with power sup-plies. In the system-level ESD testing [26] or the VDD

-transient latchup testing [27], the SCR used as the ESD-clamp device across the power rails could be trig-gered on by the overshooting noise pulses to cause a serious latchup problem in CMOS ICs. Thus, an area-eﬃcient and latchup-free ESD clamp circuit with quick turn-on speed across the power rails is strongly urged by the scaled-down CMOS ICs.

Recently, the substrate-triggered technique was re-ported to improve ESD level of NMOS devices in deep-submicron CMOS technologies for I/O ESD protection [28–31]. The potential of local substrate under the NMOS device is charged up in ESD-stress condition by both circuit design and suitable layout arrangement to earlier initiate the bipolar action of the NMOS device. When the parasitic lateral n–p–n bipolar junction tran-sistor (BJT) in the NMOS device is turned on, the ESD current is discharged through the BJT path in the NMOS structure. Such an ESD current discharging path is far away from the NMOS drain LDD peak and the NMOS surface channel. Therefore, the NMOS can sustain a higher ESD level by the substrate-triggered design, as compared to the gate-driven or gate-grounded design.

In this paper, four substrate-triggered devices for using in the power-rail ESD clamp circuits are proposed and investigated [32]. The parasitic lateral and vertical bipolar transistors in the NMOS or PMOS structures are used to discharge the ESD current, which are turned on by the substrate-triggered design. Therefore, the proposed ESD-clamp devices can sustain a much higher ESD level within a smaller silicon area.

2. Substrate-triggered ESD clamp devices

ESD robustness of CMOS devices is strongly de-pendent on the device structure, layout style, and layout spacing. If the ESD current is uniformly discharged through the parasitic lateral BJT of the MOS structure, the ESD current flows away from both the shallow surface channel and the LDD peak of MOS device. Therefore, the MOS device can sustain a much higher ESD stress. To induce the ESD current flowing through the parasitic lateral BJT away from the surface channel of MOS device, the substrate-triggered technique is proposed in this work to significantly improve ESD robustness of the ESD clamp devices.

Fig. 3. The schematic diagram of the RC-based ESD clamp circuit with a gate-driven NMOS as the ESD clamp device between the VDDand VSSpower rails.

(4)

To investigate the eﬃciency of the substrate-triggered technique, four substrate-triggered devices with diﬀerent devices structures are fabricated and investigated in a 0.6-lm CMOS process. In order to enhance the more uniform turn-on phenomena and the BJT action in the ESD clamp device, the cell-based square-type layout method [33] is used to realize these four substrate-trig-gering devices.

2.1. Substrate-triggered lateral BJT device

The schematic cross-sectional view of the substrate-triggered lateral BJT (STLB) device with its corre-sponding control circuit is shown in Fig. 4(a), where the base of the lateral n–p–n BJT is controlled by the RC-based ESD detection circuit. During the ESD transition, the voltage on the capacitor C is initially kept at a low level due to the RC time delay in the ESD-detection circuit [12–15]. The RC value is often designed around 0.1–1 ls to distinguish the ESD transition or the normal VDD power-on transition. To eﬃciently turn oﬀ the

sur-face channel of NMOS, the gate of NMOS is directly connected to ground (VSS). The inverter in Fig. 4(a) is

self-biased by the ESD energy and provides a trigger current, into the p-substrate from the node n2. The trigger current, ﬂowing in the local p-substrate region, forward biases the base–emitter junction of the parasitic lateral n–p–n BJT of the gate-grounded NMOS device. The parasitic lateral n–p–n BJT is therefore triggered on, and the ESD current is discharged through the lat-eral n–p–n BJT, which is far from the surface channel and the LDD peak of the gate-grounded NMOS. To improve the turn-on speed of the lateral BJT, an N-well structure is especially inserted under the NMOS source region to collect the triggering current in the local sub-strate. This N-well structure also increases the equiva-lent base resistance of the lateral n–p–n BJT to improve its turn-on speed. Therefore, the bipolar action in the NMOS device can be earlier initiated to bypass the ESD current in the ESD-stress condition.

The practical layout of a unit cell of the STLB device is drawn in Fig. 4(b), and its symbol is shown in Fig. 4(c). To connect the gate of the NMOS to ground, the width of the gate is locally extended to the four corners in the unit cell. The device cross-sectional view along the line A–A0_{of Fig. 4(b) is corresponding to that drawn in}

Fig. 4(a). The Pþ_{diﬀusion connected to the trigger node}

VBis drawn at the center of the cell, and the Pþdiﬀusion

connected to VSS surrounds the whole unit cell at the

outside. By using such a layout arrangement and the additional N-well inserted under the NMOS source re-gion, the bipolar action of the NMOS can be earlier triggered on for eﬀective ESD protection purpose. A unit cell of the STLB device realized in a 0.6-lm CMOS process occupies a silicon area of 47:7 47:4 lm2_{. A}

STLB device with a larger device dimension can be as-sembled by a plurality of such cells.

2.2. Substrate-triggered vertical BJT device

The vertical p–n–p BJT is also designed to discharge the ESD current across the power rails. The ESD clamp circuit with the schematic cross-sectional view of the substrate-triggered vertical BJT (STVB) device is shown in Fig. 5(a). The vertical BJT is formed by the pþ

dif-fusion (connected to VDD) in the N-well, the N-well

(connected to VB), and the p-substrate (connected to

VSS). To trigger on the vertical p–n–p BJT, the base node

(N-well) of the vertical p–n–p BJT has to be kept at a low-voltage level during the ESD transition. On the contrary, the base node (N-well) must be kept at the voltage level of VDDto turn oﬀ the BJT when the IC is in

normal operation condition. To achieve such require-ment, two-stage inverters are inserted in the ESD de-tection circuit between the RC and the vertical BJT, as that shown in Fig. 5(a). The two inverters are self-biased by the ESD energy to keep the node VBat a low-voltage

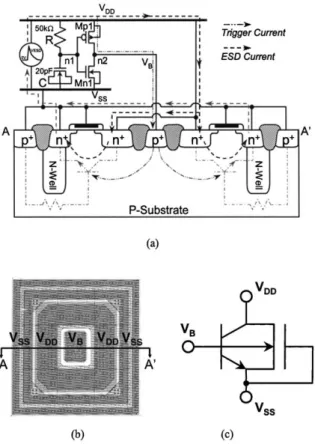

Fig. 4. (a) The schematic diagram of the ESD clamp circuit with the substrate-triggered lateral BJT (STLB) device, (b) the layout of a unit cell of the STLB device and (c) the symbol of STLB device.

(5)

level in the ESD-stress condition, but the node VB is

biased at VDD when the IC is in normal operation

con-dition.

The practical layout of a unit cell of the STVB device is shown in Fig. 5(b), and its symbol is shown in Fig. 5(c). The device cross-sectional view along the line B–B0

of Fig. 5(b) is corresponding to that drawn in Fig. 5(a). A unit cell of the STVB device realized in a 0.6-lm CMOS process occupies a silicon area of 40:5 40:5 lm2_{. A STVB device with a larger device dimension can}

be assembled by a plurality of such cells. 2.3. Substrate-triggered double BJT device

To make a complementary design to the STLB (with NMOS), the parasitic p–n–p BJT in the PMOS device is also designed to discharge the ESD current across the power rails. The ESD clamp circuit and the schematic cross-sectional view are shown in Fig. 6(a). In Fig. 6(a), the source and gate of the ESD-clamp PMOS are con-nected together to VDD. The drain of the ESD-clamp

PMOS is connected to VSS. When this ESD clamp circuit

is stressed by a positive ESD, the surface channel of the ESD-clamp PMOS is kept oﬀ. A lateral p–n–p BJT is formed by the drain and source of the PMOS. There is also a parasitic vertical p–n–p BJT within this device structure to constitute the double BJT structure in meanwhile. The vertical p–n–p BJT is formed by the source of the PMOS, the N-well, and the grounded p-substrate, as that shown in Fig. 6(a).

The substrate-triggered technique is used to trigger on the double BJT structure. To trigger on the double BJT, the base (N-well) of the double BJT has to be kept at a low-voltage level during the ESD transition. But, the base (N-well) has to be kept at the voltage level of VDD when this circuit is under normal operation

condi-tion. In the normal operation condition, the node n1 on the capacitance C is charged up to VDD. Therefore, the

node n3, connected to the nþ_{diﬀusion in the N-well, is}

biased at the voltage level of VDD to keep the parasitic

p–n–p BJTs oﬀ in the substrate-triggered double BJT (STDB) device. During the ESD transition, the node n1 in Fig. 6(a) is initially kept at a low-voltage level be-fore the capacitance C is charged up to a high-voltage level. The node n2 in Fig. 6(a) is therefore charged to a

Fig. 5. (a) The schematic diagram of the ESD clamp circuit with the substrate-triggered vertical BJT (STVB) device, (b) the layout of a unit cell of the STVB device and (c) the symbol of STVB device.

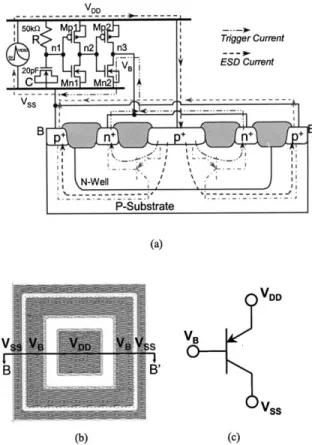

Fig. 6. (a) The schematic diagram of the ESD clamp circuit with the substrate-triggered double BJT (STDB) device, (b) the layout of a unit cell of the STDB device and (c) the symbol of STDB device.

(6)

high-voltage level by the ESD energy. Thus, the node n3 (also the node VB) is kept at a low-voltage level. The

emitter–base junction of the parasitic p–n–p BJTs in the STDB device is forward biased to turn on the STDB device during the ESD transition.

The practical layout of a unit cell of the STDB device is shown in Fig. 6(b), and its symbol is shown in Fig. 6(c). To connect the gate of the PMOS, the width of the gate is locally extended to inner at the four corners in the unit cell. The device cross-sectional view along the line C–C0_{of Fig. 6(b) is corresponding to that drawn in Fig.}

6(a). A unit cell of the STDB device realized in a 0.6-lm CMOS process occupies a silicon area 67:1 67:1 lm2_.

A STDB device with a larger device dimension can be assembled by a plurality of such cells.

2.4. Double-triggered double BJT device

To provide more current discharging path in per silicon area of the ESD clamp device, a double-triggered design is shown in Fig. 7(a) with the double-triggered

double BJT (DTDB) device. The double BJT structure is the same as that in the STDB device. The double-trig-gered design is achieved by applying the trigger voltage to the gate of ESD-clamp PMOS and the trigger current to the base of double BJT structure. Both the PMOS device and the double BJT structure can be quickly turned on to provide more ESD current discharging path in the device structure. The trigger circuit to turn on the DTDB is similar to that with the STDB device. During ESD transition, the ESD detection circuit pro-vides a trigger current (voltage) into the N-well (gate) to turn on the DTDB device. While the IC is in the normal operation condition, the node VBis biased at VDDvoltage

level. Therefore, the DTDB device is kept oﬀ.

The practical layout of a unit cell of the DTDB de-vice is shown in Fig. 7(b), and its symbol is shown in Fig. 7(c). To connect the gate of the PMOS, the width of the gate is locally extended at the top and bottom sides in the unit cell. The device cross-sectional view along the line D–D0_{of Fig. 7(b) is corresponding to that drawn in}

Fig. 7(a). A unit cell of the DTDB device realized in a 0.6-lm CMOS process occupies a silicon area of 67:1 67:1 lm2_{. A DTDB device with a larger device}

dimen-sion can be assembled by a pluarality of such cells.

3. Circuit simulation

To verify the actual operations of the RC-based ESD-detection circuits, the power-rail ESD clamp cir-cuits with the STLB and DTDB devices are simulated by HSPICE in both the ESD stress condition and the normal VDDpower-on condition.

3.1. ESD stress condition

A voltage pulse with a pulse width of 100 ns and a rise time of 2 ns is used to stimulate the rising edge of an HBM ESD voltage. The RC-based ESD-detection cir-cuits are designed to detect such a fast rising voltage on VDDand therefore to turn on the ESD clamp device. The

pulse height of the applied voltage pulse used in this simulation is selected to 8 V, which is smaller than the breakdown voltage of the proposed ESD clamp devices. The RC-based ESD-detection circuits are designed to turn on the ESD clamp devices during the ESD stress condition, before the ESD clamp devices are broken down by overstress ESD voltage. Therefore, the power-rail ESD clamp circuits can be really triggered on earlier to bypass the ESD current, before the internal circuits are damaged by the ESD energy.

The simulated results are shown in Fig. 8(a) and (b), where an 8-V voltage pulse is applied to the VDD power

rail and the VSSpower rail is relatively grounded. Due to

the time delay from the RC circuit of R¼ 50 kX and

Fig. 7. (a) The schematic diagram of the ESD clamp circuit with the double-triggered double BJT (DTDB) device, (b) the layout of a unit cell of the DTDB device and (c) the symbol of DTDB device.

(7)

C¼ 20 pF, the voltage on the node n1 in Figs. 4(a) and 7(a) increases much slower than that on VDDpower line,

as the V(n1) curves shown in Fig. 8(a) and (b), respec-tively. Because the node n1 is kept at a low-voltage level by the RC delay circuit, the PMOS (Mp1) of the inverter in the ESD-detection circuit is turned on simultaneously when the ESD pulse is applied on the VDD power rail.

Therefore, some ESD voltage is conducted from VDD to

the node n2, which is used to bias the base of the lateral n–p–n BJT in the STLB device in Fig. 4(a). The forward biased base–emitter junction of the STLB device limits the voltage level around 1 V at the node n2, as the V(n2) curve shown in Fig. 8(a). With a base bias of

1 V, the lateral n–p–n BJT in the STLB device can be strongly turned on to generate the desired discharging Path_2 in Fig. 2 to bypass the ESD current from VDDto

VSS. Thus, the internal circuits can be eﬀectively

pro-tected by such a power-rail ESD clamp circuit. In Fig. 8(b), the V(n2) waveform is almost the same as that of VDD, because the turned-on Mp1 of the ﬁrst

inverter charges up the node n2 (the input node of the second inverter) to the voltage level of VDD in the

ESD-detection circuit of Fig. 7(a). Therefore, the NMOS Mn2 of the second inverter is turned on to bias the node n3 at a voltage level of VSS, as the V(n3) curve shown in Fig.

8(b). Because the node n3 is kept at voltage level of VSSby the ESD-detection circuit, the n-well (base of the

p–n–p BJT) in the DTDB device is biased at a low-voltage level in the ESD stress condition. The emitter of the p–n–p BJT in the DTDB device is directly connected to VDD in Fig. 7(b), which is biased at a high-voltage

level by the ESD energy. Therefore, the emitter–base junction of the p–n–p BJT is strongly forward biased to turn on the DTDB device for discharging the ESD current from VDD to VSS. From the simulated curves in

Fig. 8(a) and (b), the proposed substrate-triggered de-vices can be quickly turned on by the ESD-detection circuits in Figs. 4(a) and 7(a), rather than by the junction breakdown. Thus, the internal circuits can be safely protected by such power-rail ESD clamp circuits.

3.2. VDDpower-on condition

A voltage ramp with a pulse height of 5 V and a rise time of 0.1 ms is used to simulate the rising edge of the normal VDD power-on voltage waveform. The rise time

of VDD power-on transition is generally in the range of

several milli-second (ms). The rise time of 0.1 ms used in this simulation is to verify that the substrate-triggered devices are not turned on in the power-on condition, even if the VDD has a fast power-on transition. The

simulated results on the power-rail ESD clamp circuits with the STLB and DTDB devices are shown in Fig. 9(a) and (b), respectively.

Because the time constant of 1 ls in the RC-based ESD-detection circuit, the voltage at node n1 can follow up the voltage increase with a rise time of ms on VDD

power rail. The simulated voltage waveform V(n1) in Fig. 9(a) is therefore the same as that of the applied VDD

power-on voltage waveform. The PMOS Mp1 in Fig. 4(a) is always oﬀ, because its Vgsis kept at 0 V during the

VDD power-on transition. With an increasing voltage

level at node n1, the NMOS Mn1 is turned on to keep the V(n2) curve always at 0 V during the VDDpower-on

transition. Therefore, the base of the n–p–n BJT, which is biased by the node n2, in the STLB device is biased at 0 V. So, the STLB device kept oﬀ during and after the VDD power-on transition.

Fig. 8. The HSPICE simulated voltage waveforms for (a) the ESD clamp circuit with the STLB device, and (b) the ESD clamp circuit with the DTDB device, under the triggering of an 8-V voltage pulse with 100-ns pulse width and 2-ns rise time to simulate the ESD stress condition.

(8)

In Fig. 9(b), the simulated V(n1) has voltage wave-form the same as that of VDD. The V(n2) has a little

voltage glitch (below 0.5 V) when the VDD starts to

in-crease. But, the V(n3) still has the voltage waveform almost the same as that of VDD. The base voltage of the

p–n–p BJT in the DTDB device is in Fig. 7(a) is biased by the node n3. Because the emitter–base junction bias of the p–n–p BJT in the DTDB device is kept at 0 V, the DTDB device is kept oﬀ during and after the VDD

power-on transitipower-on. From this simulatipower-on, such power-rail ESD clamp circuits are guaranteed to be kept off, when the IC is in the normal operating condition. This has verified the actual operation of the RC-based ESD-detection circuits, which are used to control the sub-strate-triggered devices on and off.

4. Experimental results 4.1. Device characteristics

The ESD clamp circuits with the proposed four substrate-triggered devices under different device sizes had been fabricated in a 0.6-lm non-silicided CMOS process. To find the I–V characteristics of these devices, every unit cell of the substrate-triggered devices is fab-ricated independently. The Tektronix-370A curve tracer is used to measure the I–V curves of the four substrate-triggered devices. The measured I–V curves of the STLB, STVB, STDB, and DTDB devices under different base current biases are shown in Fig. 10(a)–(d), respec-tively. In Fig. 10(a), the STLB device has the lowest snapback holding voltage (7.6 V) and breakdown voltage (12 V), as comparing to other three devices. In Fig. 10(b), the STVB device has the largest breakdown voltage (37 V) among the four devices. The breakdown voltage of the STDB device is 14.4 V in Fig. 10(c), and that of the DTDB device is 14 V in Fig. 10(d). The I–V characteristics of the STDB device and DTDB device are similar, as shown in Fig. 10(c) and (d). But, the collector current of the DTDB device is more than that of the STDB device under the same base current bias. This is due to the contribution of the channel current of the PMOS in the DTDB device.

The beta gains among the four devices are also measured and compared in Fig. 11. In Fig. 11, the X-axis with a logarithm scale is the collector current of the devices, and Y-axis with a linear scale is the beta gain of the devices. The beta gain of STLB device becomes higher than 1, when the collector current is more than 12.7 mA. The beta gain of STVB device drops from 16 to become less than 1, when the collector current is in-creased more than 14.3 mA. The beta gain of STDB device drops from 18.5 to become less than 1, when the collector current is increased more that 38.4 mA. The beta gain of DTDB device drops from 49 to become less than 1, when the collector current is more than 42.4 mA. The DTDB structure with a collector current of 1 lA has a highest beta gain (49) among these four devices. In the low-IC region, the DTDB structure provides a

high gain because the PMOS is also turned on. But in the high-IC region, the beta gains of STVB, STDB, and

DTDB devices are degraded to be below one. But, the beta gain of STLB becomes higher than one.

To investigate the leakage current of the proposed substrate-triggering devices when they are kept oﬀ, the HP-4145 is used to measure the total leakage current of the fabricated ESD clamp circuits with proposed sub-strate-triggered devices. Under the normal VDDbias of 5

V, the leakage currents of the ESD clamp circuits with the STLB (with a silicon area of 25 148 lm2_{), the STDB}

(with a silicon area of 46 757 lm2_{), and the DTDB (with}

a silicon area 46 757 lm2_{) devices are all about 12.3 pA.}

Fig. 9. The HSPICE simulated voltage waveforms for (a) the ESD clamp circuit with the STLB device, and (b) the ESD clamp circuit with the DTDB device, under the triggering of a 5-V ramp voltage with 0.1-ms rise time to simulate the VDD

(9)

The leakage current of the ESD clamp circuit with STVB device (with a silicon area of 16 642 lm2_{) is only}

0.7 pA. With such a small leakage current in the order of several pA, the RC-based ESD detection circuit can indeed keep the substrate-triggered devices oﬀ when the IC is under normal VDD bias.

4.2. ESD performance and TLPG I–V curves

The KeyTek ZapMaster is used to evaluate the ESD robustness of the fabricated ESD clamp circuits with the proposed substrate-triggered devices under diﬀerent de-vice dimensions. The applied HBM ESD voltages in the ESD tester are controlled from 200 to 1000 V with a step of 200 V and from 1000 to 8000 V with a step of 500 V. Every fabricated ESD clamp circuits in the testchip is placed in the stand-alone condition, where every power-rail ESD clamp circuit has its own VDD power pad. The

failure criterion to judge ESD level of the power-rail ESD clamp circuit is deﬁned as 1-lA current leakage under a 5-V VDD bias. The HBM ESD test results are

summarized in Fig. 12(a) and (b). The relations between ESD robustness and channel width of the proposed ESD clamp devices are shown in Fig. 12(a). The dependence of ESD level on the device silicon area among the four ESD clamp devices is shown in Fig. 12(b). The HBM ESD test results of all STVB devices with diﬀerent device dimensions can pass the stress of 1000 V, but they all fail when the HBM ESD voltage is over 1000 V. The breakdown of the vertical p–n–p bipolar transistor in the STVB device causes the ESD current mainly ﬂowing

Fig. 10. The measured I–V curves of (a) STLB, (b) STVB, (c) STDB and (d) DTDB devices. (X scale in (a), (c) and (d) is 2 V/div.; X scale in (b) is 5 V/div.; Y scale is 5 mA/div.)

Fig. 11. The dependence of the beta gains on the collector currents among the STLB, STVB, STDB, and DTDB devices.

(10)

form the contact of pþ _{diﬀusion (emitter) into the}

p-substrate (collector). In this vertical p–n–p bipolar transistor, the base width, between the junction depths of the n-well and pþ _{diﬀusion, is kept the same by the}

CMOS process. Therefore, even if the STVB has a wide layout area, its base width is still kept the same. Because the ESD current on STVB device is mainly discharged through its base region to the grounded p-substrate, the STVB devices with diﬀerent layout areas have the same low-ESD level (1000 V) when the narrow base region is damaged by ESD energy. From Fig. 12(b), the ESD clamp circuits with the STLB, the STDB, or the DTDB structures can sustain higher ESD level in per silicon area. The average ESD robustness in per silicon area of both the STDB and DTDB device is about 0.30 V/lm2_,

and that of the STLB is about 0.26 V/lm2_{. The ESD}

clamp circuit with the STVB device only sustains a low-ESD level of 1000 V even if it was drawn with a larger device dimension and a large silicon area.

To investigate the snapback characteristics of devices during ESD transition, the transmission line pulsing generator (TLPG) system [34] is used to measure the secondary breakdown currents (It2) of the four

sub-strate-triggered devices. The TLPG-measured results are shown in Fig. 13. From the experimental results, the STVB device with a silicon area of 4548 lm2_{has a much}

smaller It2 of only 0.26 A. The STVB device in the

0.6-lm CMOS process has the lowest ESD roubustness and the largest breakdown voltage, as compared to the other three devices. This means that the STVB device has a lower ESD roubustness, even if the STVB device is triggered by the substrate-triggering design.

From Fig. 13, the STDB and DTDB devices with a silicon area of 12 352 lm2_{have the I}

t2of 2.31 and 2.41 A,

respectively. The STLB device with a silicon area of 6546 lm2_{has the I}

t2 of 1.16 A. Then, the It2in per

sili-con area of the STLB, STDB, and DTDB devices in the 0.6-lm CMOS technology can be calculated as 177, 187, and 195 lA/lm2_{, respectively. The relation between the}

HBM ESD level and the secondary breakdown current It2 (which is measured by TPLG with a pulse width of

100 ns) can be written as [35]:

HBM ESD level It2 ð1500 X þ RdeviceÞ: ð1Þ

The Rdeviceis the turn-on resistance of the test device

under ESD stress. Generally, the turn-on resistance of an ESD clamp device is much smaller than the HBM resistance of 1500 X. The average HBM ESD level of the ESD clamp circuits with the STLB, STDB, and DTDB devices are nearly equal to the product of It2 with the

HBM resistance of 1500 X in this experimental result. The traditional power-rail ESD clamp circuit in Fig. 3 with an NMOS by gate-driven design is also fabricated in the same process. With a device dimension (W =L) of 500/1.0 (lm/lm) for the gate-driven NMOS, which oc-cupies a layout area of 6931 lm2_{, this traditional design}

of Fig. 3 can sustain an HBM ESD level of only 1000 V.

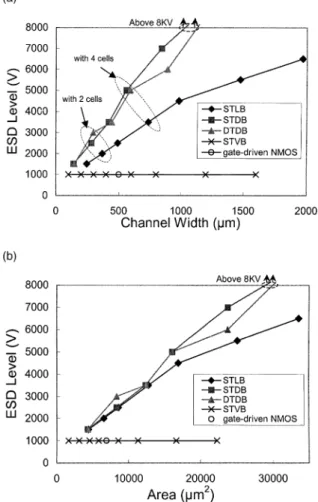

Fig. 12. The dependence of the HBM ESD level on (a) the channel width, and (b) the silicon area, of the power-rail ESD clamp circuits with diﬀerent protection devices.

Fig. 13. The TLPG measured I–V curves of the substrate-triggered devices under 0-V substrate bias.

(11)

The ESD roubustness in per silicon area of the NMOS is only 0.14 V/lm2_{, but that of the STLB is improved to}

0.26 V/lm2_{. This veriﬁes that the substrate-triggered}

technique can eﬀectively improve ESD level of the NMOS. With the substrate-triggered technique, the STDB and DTDB devices can provide about two-times greater ESD level in per silicon area than the gate-driven NMOS.

From the measured results on the ESD level and the secondary breakdown current, the STLB, STDB, and DTDB devices with the substrate-triggered design and the cell-based layout method can signiﬁcantly increase their ESD robustness in a limited silicon area.

4.3. Turn-on veriﬁcation

To verify the turn-on eﬃciency of the power-rail ESD clamp circuits, a voltage pulse with a rise time around 5– 10 ns and a pulse width of 400 ns applied to the VDD of

the ESD clamp circuits with the VSS grounded to

simu-late the ESD-stress condition. The experimental setup to verify the turn-on efficiency for the ESD clamp circuits with the STLB, STVB, STDB, or DTDB devices is shown in Fig. 14(a). The original waveform of the voltage pulse generated from a pulse generator to in-vestigate the turn-on efficiency of these ESD clamp cir-cuits is shown in Fig. 14(b). The voltage waveform on the VDDnode is observed to find the turn-on behavior of

the ESD clamp circuits. When the 8-V voltage pulse is applied, the voltage waveforms on the VDD of the ESD

clamp circuits with the STLB, STVB, STDB, and DTDB devices are measured and shown in Fig. 14(c)–(f), re-spectively. The 0–8 V voltage pulse is clamped by the turned-on ESD-clamp device (STLB, STVB, STDB, or DTDB), therefore the voltage pulse is degraded to a certain voltage level. When the capacitor C (node n1) in the RC-based ESD-detection circuit is charged up, the ESD-detection circuit will turn oﬀ the ESD-clamp de-vice. Then, the voltage waveform is restored to the original voltage level. Therefore, the period of the de-graded voltage waveform can be deﬁned as the turn-on time of the ESD-clamp devices in the power-rail ESD clamp circuits, which is marked as tonin Fig. 14(c)–(f).

The turn-on time in Fig. 14(f) for the power-rail ESD clamp circuit with the DTDB device is about 140 ns. The turn-on time of the power-rail ESD clamp circuit is varying if the applied voltage pulse has diﬀerent pulse heights. The relations between the turn-on time and the pulse height of the applied voltage pulse among the ESD clamp circuits with the four substrate-triggered devices are measured and summarized in Fig. 15. From the ex-perimental results, the turn-on times of these ESD clamp circuits are around 150–210 ns when the pulse height has a voltage of 10 V. The turn-on time of the ESD clamp circuit is almost linearly increased while the pulse height of the applied voltage pulse increases. This is due to the

longer delay time to charge up the capacitor C in the RC-based ESD-detection circuit to a voltage level that causes the inverter changing its output state, when the applied voltage pulse has a higher voltage level.

A 5-V ramp voltage with a rise time of 0.1 ms is also applied to the VDD (with the VSS grounded) to verify

whether the ESD clamp circuits are kept oﬀ in the normal VDDpower-on condition. When the 0–5 V ramp

voltage waveform is applied to the VDD of the ESD

clamp circuits with the STLB, STVB, STDB, or DTDB devices, no degradation is found on the applied voltage waveform during this VDD power-on condition.

There-fore, the ESD clamp circuits with the proposed four substrate-triggered devices are really kept oﬀ in the normal VDD power-on condition.

4.4. Power-rail noise clamping

When the IC is in the normal operation condition with 5-V VDDand 0-V VSSpower supplies, there are some

system-level or board-level noise pulses coupled to the power lines to generate the overshooting noise pulse across the power lines. Such an overshooting noise pulse may initiate the occurrence of latchup in the CMOS ICs to burn out the ICs [21,22]. The ESD clamp circuits with proposed substrate-triggered devices can be also trig-gered on to clamp such an overshooting noise pulse on the VDD power line. Therefore, the IC protected by

such power-rail ESD clamp circuits has a high immunity to the transient-induced latchup. To verify this noise-clamping eﬃciency of the power-rail ESD clamp circuits with the proposed substrate-triggered devices, a 5–12 V overshooting voltage pulse is added to the 5-V VDD

power line of the power-rail ESD clamp circuits. The experimental setup to investigate the noise-clamping eﬃciency of the power-rail ESD clamp circuits is shown in Fig. 16(a). The original overshooting noise pulse with a rise time of10 ns and a pulse width of 200 ns gen-erated from a pulse generator is shown in Fig. 16(b). The overshooting voltage waveforms clamped by the power-rail ESD clamp circuits with the STLB and DTDB de-vices are shown in Fig. 16(c) and (d), respectively.

In Fig. 16(c), the 5–12 V overshooting voltage pulse is clamped by the STLB to the voltage level of 9.2 V, which is near to its snapback holding voltage. But after the triggering of the 5–12 V overshooting voltage pulse, the VDD voltage level is restored to the original 5 V.

In Fig. 16(d), the 5–12 V overshooting voltage pulse is initially clamped by the DTDB device to the voltage level around 10 V, which is dependent on the device dimension of the DTDB device. A larger device di-mension causes a lower clamped voltage level on the overshooting noise pulse. A larger RC time constant in the control circuit causes a longer turn-on time on the DTDB device to clamp the overshooting noise pulse. After the triggering of the 5–12 V overshooting voltage

(12)

pulse, the VDDvoltage levels are restored to the original

5 V. The 5–12 V overshooting voltage pulse clamped by the STVB or STDB devices is almost the same as that clamped by the DTDB device. This veriﬁes that the power-rail ESD clamp circuits with the substrate-triggered devices have the beneﬁt to clamp the over-shooting noise pulse on the VDD power line. After the

noise transition, the power-rail ESD clamp circuits can

turn-oﬀ automatically to avoid current leaking from VDD

to VSSthrough the power-rail clamp circuits.

5. Conclusion

Area-eﬃcient power-rail ESD clamp circuits with four diﬀerent substrate-triggered devices have been

prac-Fig. 14. (a) The experimental setup to verify the turn-on behavior of the power-rail ESD clamp circuits under ESD-stress condition. (b) The original 8-V voltage pulse generated from a pulse generator. The degraded voltage waveforms clamped by the power-rail ESD clamp circuits with the (c) STLB, (d) STVB, (e) STDB, and (f) DTDB devices. (X scale: 100 ns/div.; Y scale: 2 V/div.)

(13)

tically investigated in a 0.6-lm CMOS process. By using the substrate-triggered technique, the DTDB, STDB, and STLB devices can provide much higher ESD ro-bustness within a smaller layout area, as compared to the traditional design with the gate-driven NMOS de-vice. The STDB and DTDB devices with the parasitic vertical BJT have higher ESD robustness. But, a pure vertical p–n–p BJT in the 0.6-lm CMOS process even with a large device size still sustains a low-HBM ESD level, due to higher breakdown voltage and the lower secondary breakdown current of the STVB device. To improve ESD robustness of an on-chip ESD protection circuit in a limited silicon area, the DTDB device has the best performance among these four substrate-triggered devices. With suitable design on both the bipolar structure in the ESD-clamp device and the substrate-triggered technique, the layout area of the ESD clamp circuit to achieve whole-chip ESD protection can be eﬃciently reduced to save the silicon cost of CMOS ICs.

Fig. 15. The relations between the turn-on time and the pulse height of the applied voltage pulses on the power-rail ESD clamp circuits with diﬀerent protection devices.

Fig. 16. (a) The experimental setup to verify the noise-clamping eﬃciency of the power-rail ESD clamp circuits when the IC is in the normal operating condition with 5-V VDDpower supply and an overshooting noise pulse. (b) The original voltage waveform of a 5–12

V overshooting noise pulse. The degraded voltage waveforms of the 5–12 V overshooting noise pulse clamped by the power-rail ESD clamp circuits with the (c) STLB and (d) DTDB devices. (X scale: 50 ns/div.; Y scale: 2 V/div.)

(14)

References

[1] Duvvury C, Diaz C. Dynamic gate coupling of NMOS for eﬃcient output ESD protection. Proceedings of IRPS, 1992. p. 141.

[2] Ker M-D, Wu C-Y, Cheng T, Chang H-H. Capacitor-couple ESD protection circuit for deep-submicron low-voltage CMOS ASIC. IEEE Trans VLSI Systems 1996; 4(3):307–21.

[3] Chen J, Amerasekera A, Duvvury C. Design methodology for optimized gate driven ESD protection circuits in submicron CMOS processes. Proceedings of EOS/ESD Symposium, 1997. p. 230.

[4] Chen J, Amerasekera A, Duvvury C. Design methodology for optimized gate driven ESD protection circuits in submicron CMOS processes. IEEE Trans Electron Dev 1998;45(12):2448–56.

[5] Anderson W, Krakauer D. ESD protection for mixed-voltage I/O using NMOS transistors staked in a cascode conﬁguration. Proceedings of EOS/ESD Symposium, 1998. p. 54.

[6] Chen T-Y, Ker M-D, Wu C-Y. Experimental investigation on the HBM ESD characteristics of CMOS devices in a 0.35-lm silicided process. Proceedings of the International Symposium VLSI Technology, System, and Application, 1999. p. 35.

[7] Duvvury C, Rountree RN, Adams O. Internal chip ESD phenomena beyond the protection circuit. IEEE Trans Electron Dev 1988;35(12):2133–9.

[8] Johnson C, Maloney T, Qawami S. Two unsual HBM ESD failure mechanisms on a mature CMOS process. Proceed-ings of EOS/ESD Simposium, 1993. p. 225.

[9] Terletzki H, Nikutta W, Reczek W. Inﬂuence of the series resistance of on-chip power supply buses on internal device failure after ESD stress. IEEE Trans Electron Dev 1993; 40(11):2081–3.

[10] Chaine M, Smith S, Bui A. Unique ESD failure mecha-nisms during negative to Vcc HBM tests. Proceedings of EOS/ESD Symposium, 1997. p. 346.

[11] Puvvada V, Duvvury C. A simulation study on HBM failure in an internal clock buﬀer and the design issues for eﬃcient power pin protection strategy. Proceedings of EOS/ESD Symposium, 1998. p. 104.

[12] Ker M-D. Whole-chip ESD protection design with eﬃcient VDD-to-VSS ESD clamp circuits for submicron CMOS VLSI. IEEE Trans Electron Dev 1999;46(1):173–83. [13] Merrill R, Issaq E. ESD design methodology. Proceedings

of EOS/ESD Symposium, 1993. p. 233.

[14] Croft G. Transient supply clamp with a variable RC time constant. Proceedings of EOS/ESD Symposium, 1996. p. 276.

[15] Worley E, Gupta R, Jones B, Kjar R, Nguyen C, Tennyson M. Sub-micron chip ESD protection schemes which avoid avalanching junctions. Proceedings of EOS/ESD Sympo-sium, 1995. p. 13.

[16] Dabral S, Aslett R, Maloney T. Core clamps for low voltage technologies. Proceedings of EOS/ESD Sympo-sium, 1994. p. 141.

[17] Maloney T, Dabral S. Novel clamp circuits for IC power supply protection. Proceedings of EOS/ESD Symposium, 1995. p. 1.

[18] Maloney T, Dabral S. Novel clamp circuits for IC power supply protection. IEEE Trans Compon, Pack, Manuf Technol–Part C 1996;19(3):150–61.

[19] Croft G. ESD protection using a variable voltage supply clamp. Proceedings of EOS/ESD Symposium, 1994. p. 135.

[20] Watt J, Walker A. A hot-carrier triggered SCR for smart power bus ESD protection. IEDM Tech Digit 1995. p. 341.

[21] Lewis R, Minor J. Simulation of a system level transient-induced latchup event. Proceedings of EOS/ESD Sympo-sium, 1994. p. 193.

[22] Weiss G, Young D. Transient-induced latchup testing of CMOS integrated circuits. Proceedings of EOS/ESD Sym-posium, 1995. p. 194.

[23] Corsi M, Nimmo R, Fattori F. ESD protection of BiCMOS integrated circuits which need to operate in the harsh environments of automotive or industrial. Proceed-ings of EOS/ESD Symposium, 1993. p. 209.

[24] Notermans G, Kuper F, Luchis J-M. Using an SCR as ESD protection without latch-up danger. Microelectronics Reliability 1997;37(10/11):1457–60.

[25] Ker M-D, Chang H-H. How to safely apply the LVTSCR for CMOS whole-chip ESD protection without being accidentally triggered on. Proceedings of EOS/ESD Sym-posium 1998. p. 72.

[26] IEC 801-2, Electromagnetic compatibility for indus-trial––process measurement and control equipment, part 2: Electrostatic discharge requirements, 2nd edition, 1991. [27] IC Latch-up Test, EIA/JEDEC standard no. 78,

Electron-ics Industries Association, 1997.

[28] Amerasekera A, Duvvury C, Reddy V, Rodder M. Substrate triggering and salicide eﬀects on ESD perfor-mance and protection circuit design in deep submicron CMOS process. IEDM Tech Digt 1995. p. 547.

[29] Ker M-D, Chen T-Y, Wu C-Y, Tang H, Su K-C, Sun S-W. Novel input ESD protection circuit with substrate-trigger-ing technique in a 0.25-lm shallow-trench-isolation CMOS technology. Proceedings of IEEE International Symposium on Circuits and Systems, 1998. p. 212.

[30] Smith J. A substrate triggered lateral bipolar circuit for high voltage tolerant ESD protection applications. Pro-ceedings of EOS/ESD Symposium, 1998. p. 63.

[31] Duvvury C, Ramaswamy S, Amerasekera A, Cline R, Andresen B, Gupta V. Substrate pump NMOS for ESD protection applications. Proceedings of EOS/ESD Sympo-sium, 2000, in press.

[32] Ker M-D, Chen T-Y, Wu C-Y. Design of cost-eﬃcient ESD clamp circuits for the power rails of CMOS ASIC’s with substrate-triggering technique. Proceedings of IEEE International ASIC/SoC Conference, 1997. p. 287. [33] Ker M-D, Wu C-Y, Hunag C-C, Chen T-Y. Multiple-cell

square-type layout design for output transistors in submi-cron CMOS technology to save silicon area. Solid-State Electron 1998;42(6):1007–14.

[34] Maloney T, Khurana N. Transmission line pulsing tech-niques for circuit modeling of ESD phenomena. Proceed-ings of EOS/ESD Symposium, 1985. p. 49.

[35] Diaz C, Kopley T, Marcoux P. Building-in ESD/EOS reliability for sub-halfmicron CMOS processes. IEEE Trans Electron Dev 1996;43(6):991–9.
