(1)國立交通大學資訊管理研究所. 博士論文. 主動式無線區域網路安全防護機制之研究 The Proactive Wireless Intrusion Prevention Mechanism for Wireless LANs. 研究生：謝文川指導教授：羅濟群. 中華民國九十四年七月.

(2) 主動式無線區域網路安全防護機制之研究學生：謝文川. 指導教授：羅濟群博士國立交通大學資訊管理研究所摘. 要. 隨著網際網路與可攜式裝置的普及，「無線區域網路」成為近年來通訊市場突破性的新興應用，由於無線區域網路係以電磁波為傳播媒介，傳輸資料完全曝露於周遭的環境中，相對於傳統有線網路透過實體線路的傳遞，其安全性更是值得堪慮。隨著無線區域網路不斷的擴張，預期將成為新興的網路犯罪環境，讓駭客可利用此環境入侵網站，散佈病毒、竄改網頁、竊取機密、癱瘓系統的通道。在現有無線區域網路標準的安全機制中， WEP（Wired Equivalent Privacy）是IEEE 802.11b在發展初期時定義的安全機制，也是目前無線網路最普遍的基本防護措施，近來日益竄起的無線網路安全事件，反映了WEP加密機制極待修正的穹境。WEP其主要的功能是對在無線區域網路上所傳輸之資料進行加密，以達到無線網路能夠擁有等同於有線區域網路一般的私密性。然而WEP加密機制，其安全漏洞已被各界所證實，駭客能利用適當破解工具如AirSnort在足夠時間內破解密碼，嚴重降低無線區域網路上資料傳輸的保密性。本研究提出『無線區域網路環境干擾式防禦安全機制』（Interference-Based Protection Mechanism；簡稱IBPM），以發送假冒封包的干擾的方式，藉以混淆竊聽者WEP加密金鑰還原統計演算分析結果，讓竊聽者無法從大量的假冒資料中分析出真實的金鑰，進而避免金鑰被破解，提升WEP加解密安全的防護機制，另本研究亦提出主動式無線區域網路誘陷機制，具備將網路上可疑的網路攻擊即時連線至所建構的無線區域網路誘陷系統監測，藉由觀察入侵方式。最後本研究將這兩種安全防護機制實作一『主動式無線區域網路安全防護系統』來證明其具可行性。. 關鍵字：無線區域網路、有線等效保密法、連線攔劫、無線區域網路誘陷系統. i.

(3) The Proactive Wireless Intrusion Prevention Mechanism for Wireless LANs. Student : Wen-Chuan Hsieh. Advisor : Dr. Chi-Chun Lo. Institute of Information Management National Chiao-Tung University. Abstract Over the past few years, wireless networks, specifically those based on the IEEE 802.11 standard have experienced tremendous growth and been the “hot spot” of a large amount of researches discussions with respect to its security architecture and mechanism. IEEE 802.11 was initially designed to provide data confidentiality and integrity protection through Wired Equivalent Privacy (WEP). However, WEP suffers from serious security flaws which arise due to the reuse of the Initialization Vector (IV) and the deployment of an unkeyed checksum for message authentication. This research devised an innovative solution called Interference-Based Prevention Mechanism (IBPM). The proposed method generates interference effect by injecting spoofed frames to delude the WEP cracker resulting in inaccurate statistic. This research also proposes a proactive diversion-based wireless honeypot mechanism, within which all users are closely monitored and diverted into honeypot if one’s behavior is considered to be malevolent. Under this architecture, wireless honeypot is able to capture intruders even if attacks are not targeted to the honeypot. A prototype named as “the proactive wireless prevention system” has been developed to evaluate feasibility of those two proposed mechanisms, and the research result shows that it is effective as well as useful in enhancing the security in wireless LAN environment. Keywords：Wireless LAN、WEP、Sesssion Hijacking、Wireless Honeypot ii.

(4) Contents Abstract in Chinese ..................................................................................................................................... i Abstract in English.....................................................................................................................................ii Contents ..................................................................................................................................................... iv List of Figures ............................................................................................................................................ vi List of Tables.............................................................................................................................................. ix CHAPTER 1 ............................................................................................................................................... 1. INTRODUCTION...................................................................................................................................... 1 1.1. MOTIVATION AND OBJECTIVE ........................................................................................................... 1 1.2. OUTLINE OF THIS THESIS ................................................................................................................... 3 CHAPTER 2 ............................................................................................................................................... 5. LITERATURE REVIEW.......................................................................................................................... 5 2.1. IEEE 802.11 STANDARD ................................................................................................................... 5 2.2. NETWORK ARCHITECTURE ................................................................................................................ 5 2.3. WIRELESS SECURITY .......................................................................................................................... 7 2.4 WLAN THREATS .............................................................................................................................. 8 2.4.1. WarDriving ............................................................................................................................. 8. 2.4.2 Encryption attacks ..................................................................................................................... 9 2.4.3 Interception and unauthorized monitoring of wireless traffic ................................................. 10 2.4.4 Brute force attacks against access point passwords................................................................ 11 2.4.5 Insertion attacks....................................................................................................................... 11 2.4.6 Jamming................................................................................................................................... 12 2.4.7 Client-to-Client attacks............................................................................................................ 12 2.4.8 Misconfigurations .................................................................................................................... 13 iii.

(5) 2.5. WIRED EQUIVALENT PRIVACY (WEP)............................................................................................. 13 2.5.1. WEP Vulnerability .................................................................................................................. 16 CHAPTER 3 ............................................................................................................................................. 19. THE INTERFERENCE-BASED PREVENTION MECHANISM ...................................................... 19 3.1 THE PROPOSED INTERFERENCE SCHEMES ......................................................................................... 21 3.2 THE SCENARIO OF THE IBPM ........................................................................................................... 23 3.3 STATISTICAL DIAGRAMS OF WEP CRACKING AND ANTI-WEP CRACKING ....................................... 25 3.4 PERFORMANCE EVALUATION RESULTS ............................................................................................ 27 3.4.1 Analysis of IVs Generated by a Little Endian Counter............................................................ 27 3.4.2 Analysis of IVs Generated by a Big Endian Counter............................................................... 28 CHAPTER 4 ............................................................................................................................................. 30. THE PROACTIVE WIRELESS HONEYPOT ..................................................................................... 30 4.1. INTRODUCTION ................................................................................................................................ 30 4.2 HONEYPOT........................................................................................................................................ 30 4.2.1 Definition of Honeypot............................................................................................................. 30 4.2.2 The Development State of Art .................................................................................................. 31 4.3. PROACTIVE DIVERSION PROCEDURE ............................................................................................... 33 4.4. SYSTEM FRAMEWORK ..................................................................................................................... 36 4.4 SYSTEM PROCEDURE ........................................................................................................................ 38 CHAPTER 5 ............................................................................................................................................. 40. THE PROACTIVE WIRELESS INTRUSION PREVENTION SYSTEM ........................................ 40 5.1. SYSTEM ARCHITECTURE AND DESIGN ........................................................................................... 40 5.1.1. Packet Capture Module .......................................................................................................... 41 5.1.2. TCP Session Analysis Module ................................................................................................ 41. iv.

(6) 5.1.3. Intrusion Reaction Module ..................................................................................................... 41 5.1.3.1 Anti-Wardriving ............................................................................................................................... 42 5.1.3.2 Anti-WEPcracking ........................................................................................................................... 42 5.1.3.3 MAC Authentication ........................................................................................................................ 43. 5.1.4 Honeypot Module..................................................................................................................... 44 5.1.5 GSM Alarm Module ................................................................................................................. 44 5.2. SYSTEM DEMONSTRATION ............................................................................................................... 44 5.2.1. TCP Session Analysis and Reassembly................................................................................... 44 5.2.2 Anti WarDriving ...................................................................................................................... 47 5.2.3 Anti-WEP-Cracking ................................................................................................................. 48 5.2.4 Wireless Honeypot ................................................................................................................... 49 5.2.5 GSM messaging ....................................................................................................................... 52 CHAPTER 6 ............................................................................................................................................. 53. CONCLUSIONS....................................................................................................................................... 53 6.1. SUMMARY ....................................................................................................................................... 53 6.2. FUTURE RESEARCH DIRECTIONS ..................................................................................................... 54 REFERENCES ......................................................................................................................................... 54. v.

(7) List of Figures. FIG. 3 AD HOC NETWORK .............................................................................................................................. 7 FIG. 4 WARDRIVING MAP OF TAIPEI CITY...................................................................................................... 9 FIG. 5 SCREENSHOT OF AIRSNORT WEPCRACKING TOOL.............................................................................. 10 FIG. 6 WEP ENCRYPTED FRAME FORMAT .................................................................................................... 14 FIG. 7 WEP ENCRYPTION PROCESS .............................................................................................................. 15 FIG. 8 WEP DECRYPTION PROCEDURE ......................................................................................................... 16 FIG. 9 IV PATTERN RESOLVING KEY COMBINATION ..................................................................................... 17 FIG. 10 XOR PLAINTEXT AND CIPHERTEXT TO RESOLVE KEY VALUE .......................................................... 17 FIG. 11 INTERFERENCE GENERATION DIAGRAM ........................................................................................... 20 FIG. 13 IBPM INTERFERENCE PROCEDURE .................................................................................................. 24 FIG. 14 K[0]~K[4] STATISTIC RESULT WITHOUT INTERFERENCE ................................................................. 26 FIG. 15 K[0] AND K[1] STATISTIC RESULT WITH INTERFERENCE.................................................................. 27 FIG. 16 CONNECTION PROCESS OF LEGITIMATE USERS ................................................................................. 34 FIG. 17 DIVERTING ATTACKER INTO HONEYPOT........................................................................................... 36 FIG. 18 FRAMEWORK OF THE PROPOSED WIRELESS HONEYPOT .................................................................... 38 FIG. 19 PROACTIVE WIRELESS IPS ARCHITECTURE ...................................................................................... 40 FIG. 20 SYSTEM MAIN INTERFACE ................................................................................................................ 45 FIG. 21 ACTIVATING SESSION VIEW ............................................................................................................. 46 FIG. 22 SELECTING A SESSION ...................................................................................................................... 46 FIG. 23 WEB PAGE RESTORED ...................................................................................................................... 47 FIG. 24 NETSTUMBLER DETECTED AN AP ................................................................................................... 47 FIG. 25 WAR-DRIVING WARNING MESSAGE................................................................................................. 47 FIG. 26 THE RESULT OF THE CONFUSED NETSTUMBLER .............................................................................. 48 FIG. 27 OCCURRENCES OF EACH CALCULATED WEP KEY ............................................................................ 48 FIG. 28 WIPS INTERFERENCES WEP KEY CALCULATION ............................................................................ 49. vi.

(8) FIG. 29 CONCEPT DIAGRAM OF HOW WIRELESS HONEYPOT OPERATES ......................................................... 49 FIG. 30 SCREENSHOT OF AN ATTACKER CONNECTING TO AIRFORCE AP...................................................... 50 FIG. 31 CURRENT CHANNEL OF THE ATTACKER............................................................................................ 50 FIG. 32 WIRELESS NIC INFORMATION OF FAKEAP ...................................................................................... 51 FIG. 33 HACKER IS DIVERTED ...................................................................................................................... 52 FIG. 34 ALARMED SMS OVER GSM ............................................................................................................ 52. vii.

(9) List of Tables TABLE 1 PERFORMANCE COMPARISONS OF BIG AND LITTLE ENDIAN ......................................................... 28 TABLE 2 MAC ADDRESS RULE.................................................................................................................... 43. viii.

(10) CHAPTER 1 INTRODUCTION. 1.1. Motivation and Objective Since IEEE developed the 802.11 standard to specify wireless local area networks in 1999, 802.11 related products are much common today. Wireless technology offers a more accessible and convenient means of connectivity. With the widely deployment of wireless network access around the world the requirement for a more enhanced security design emerges. The 802.11b standard for wireless networks includes a Wired Equivalent Privacy (WEP) protocol relied upon RC4 stream cipher algorithm, which is a symmetric stream cipher where both the client station and the target station share the same key for both encryption and decryption, for message confidentiality to protect link-layer communications from eavesdropping and other attacks by encrypting the data sent wirelessly. WEP keys are shared secret passwords that allow users to decode the encrypted data that travels on the wireless network. An Initialization vector (IV) is used to avoid encrypting two cipher texts with the same key stream and to produce a different RC4 key for each packet. However a lot of concerns were raised later regarding the effectiveness of WEP. However, WEP suffers from serious security flaws which arise due to the reuse of the Initialization Vector (IV). Borisov et al. (2001) demonstrated some security flaw in WEP. They explained that WEP fails to specify how initialization vectors for RC4 are specified. They found keystreams will be reused, leading to simple cryptanalytic attacks against the cipher, and decryption of message traffic due to resetting IVs to zero when initializing the PC cards.. 1.

(11) In 2001, Fluhrer et al. firstly showed a passive partial key exposure attack against RC4 and conjectured that their attack could be applied to WEP [1]. Later on Stubblefield et al. based on the partial key exposure vulnerability in the RC4 stream cipher discovered by Fluhrer, Mantin, and Shamir implements a practical key recovery attack on WEP [2]. Recently released tools and exploits like Airsnort and WepCrack attacked weaknesses in the 802.11 protocol and rendered these types of network highly insecure. Faria et al. (2002) discussed the main wireless idiosyncrasies and the need for taking them into account when designing an access control mechanism that can be used in both wireless and wired networks. They presented the design of a mobility-aware access control mechanism suitable for both wireless and wired environments and show how the DoS attacks discussed can be prevented by implementing secure association and other essential services. Their proposed architecture proposed composed of the SIAP and SLAP protocols, uses public keys together with the RSA and AES encryption algorithms to provide a flexible service [3]. Berghel (2004)et al. assessed the extent of the security risks invloved in wireless networking technology by considering three possible scenrios demonstrating vulnerabilities is discussed. The first scenario, which involves configuration WAP with SSID broadcast enabled, and no WEP enabled, is the most vulnerable case. The second scenario, which involves configuration of WAP with SSID broadcast disabled, and no WEP enabled, is the secondmost vulnerable case. The third scenario, which involves configuration of WAP with SSID broadcast disabled, and WEP enabled, is the least vulnerable case [3]. However, in it current form, WEP suffers from serious security flaws which arise due to the reuse of the Initialization Vector (IV) and the deployment of an unkeyed. 2.

(12) checksum for message authentication. This paper attempts to enhance the security of the existing WEP protocol without changing its basic architecture. The key mechanism proposed in the paper is built on poisoning the gathering frames of attack that are deliberately tailored to generate false result. The research devised an innovative solution called Interference-Based Prevention Mechanism (IBPM). The proposed method generates interference effect by injecting spoofed frames to delude the WEP cracker resulting in inaccurate statistic. This research also proposes a proactive diversion-based wireless honeypot mechanism, within which all users are closely monitored and diverted into honeypot if one’s behavior is considered to be malevolent. Under this framework, wireless honeypot is able to capture intruders even if attacks are not targeted to the honeypot. A prototype named as “the proactive wireless prevention system” has been developed to evaluate feasibility of those two proposed mechanisms, and the research result shows that it is effective as well as useful in enhancing the security in wireless LAN environment.. 1.2. Outline of This Thesis This dissertation is organized into six chapters as follows. Chapter1 outlines the motivation and the research goal. In Chapter 2, the state of the art in the wireless security. and. the. wireless. threats. are. reviewed.. Chapter. 3. proposes. an. Interference-Based Prevention Mechanism which is proven effective in preventing adversaries from deducing WEP key based on weak key detection. Chapter 4 describes an proactive wireless honeypot. This proposed system is capable of protecting legitimate users and systems from attacks, by diverting attackers instead of passively attracting intruders, while collecting detailed information about each attack even if the attack is not targeted to the honeypot. Chapter 5 provides an overview of the proposed 3.

(13) Wireless Intrusion Prevention System architecture, as well as a set of generic service components, and elaborates the anti-Wardriving and anti-wepcracking functions of the WIPS. Finally, Chapter 6 summarizes the main contributions of this dissertation and discusses some remaining issues.. 4.

(14) CHAPTER 2 LITERATURE REVIEW This chapter of the dissertation looks at previous efforts of subsetting as related to both wireless security and wireless honeypot.. 2.1. IEEE 802.11 Standard Wireless LANs can be categorized as providing low-mobility high-speed data communications within a confined region, e.g., a campus or a large building. Coverage range from a wireless data terminal is short, tens to hundreds of feet, like cordless telephone. It is limited to within a room or to several rooms in a building. Wireless LANs have been evolving for a few years, but the situation is chaotic, with many different products being offered by many different vendors[17]. With the increasing proliferation of wireless LANs comes the need for standardization to allow interoperability for an increasing mobile workforce, several standard bodies are currently defining standards which impact wireless LAN systems. Of these, IEEE 802.11 and European Telecommunications Standards Institute(ETSI) high-performance radio LAN (HIPERLAN) are influential physical and data link layer standards[18]. This study investigates the handoff algorithm for IEEE 802.11 Wireless LANs, so this section introduces network architecture and MAC protocol defined by the IEEE 802.11 committee.. 2.2. Network Architecture As the system architecture of IEEE 802.11 illustrated in Fig. 1[18], a wireless LAN may consist of multiple Basic Service Sets(BSS), which are interconnected through a 5.

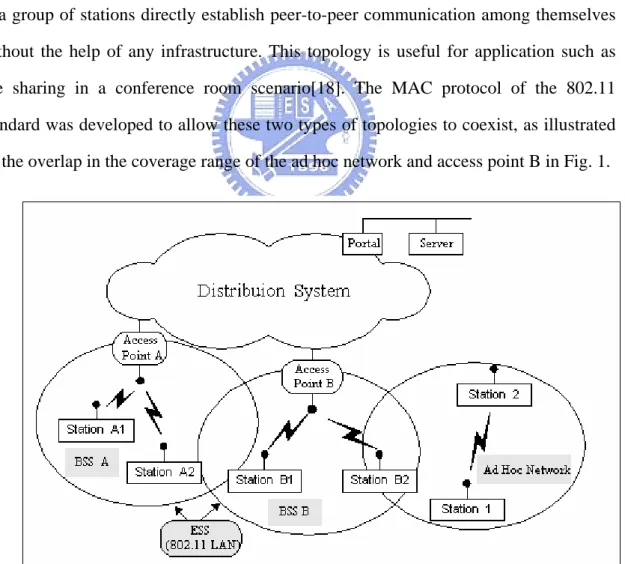

(15) distribution system via access points(AP), thus creating an Extended Service(ESS). In each BSS, a station can access the wireless medium after be associated with an AP. The members of the access point’s cell execute the same MAC protocol and compete for access to the same shared medium. Two primary topologies are supported by the IEEE 802.11 standard: “ad hoc” and “infrastructure”. In a infrastructure network, as illustrated in Fig. 2, stations access the backbone network(distribution system in 802.11 nomenclature) via access points. This topology is useful for providing wireless coverage of building or campus areas by deploying multiple access points whose radio coverage areas overlap to provide complete coverage. In an ad hoc network, as illustrated in Fig. 3, a group of stations directly establish peer-to-peer communication among themselves without the help of any infrastructure. This topology is useful for application such as file sharing in a conference room scenario[18]. The MAC protocol of the 802.11 standard was developed to allow these two types of topologies to coexist, as illustrated by the overlap in the coverage range of the ad hoc network and access point B in Fig. 1.. Fig. 1 System architecture of IEEE 802.11. 6.

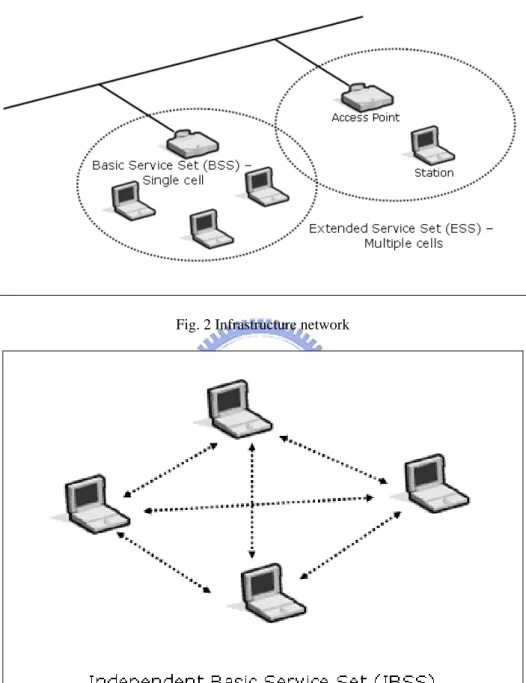

(16) Fig. 2 Infrastructure network. Fig. 3 Ad hoc network. 2.3. Wireless security The most prominent feature about WLAN is the absence of wires and its mobility. 7.

(17) As compares to the traditional network, WLAN requires no complicate configuration on its physical topology.. Data transmissions are carried through radio frequency (2.4GHz. spread spectrum band) between AP and its authenticated users.. When data travels. through air, however, it can easily be tapped by any one including unauthenticated personnel using sniffer. As defined in IEEE 802.11b standard, WEP can be applied to encrypt data so that it becomes unreadable to the intruder.. Despite the effort, WEP is now proved insecure. since its key can be stolen or cracked using tools such as Airsnort.. In addition, most. APs have their WEP setting switched off by default; and many customers usually do not spend time on reconfiguring the AP. security feature to WEP.. Most APs have MAC filter as a supplementary. However, keeping track of authorized MAC addresses is a. time consuming and inconvenient task.. Besides, some wireless cards allow users to. modify its MAC address.Although the new standard 802.11i has proposed TKIP (Temporal Key Integrity Protocol) to replace WEP, majority of the users are still using 802.11b wireless card and APs.. For the mean time WLAN is still considered to be. vulnerable.. 2.4. WLAN threats This section is segmented in accords to each of the eight known WLAN attacks. [3][10]:. 2.4.1. WarDriving. 8.

(18) Fig. 4 Wardriving map of Taipei City. The term “Wardriving” is first coined by Pete Shipley[28]. It is an act of scanning for unsecured wireless networks with a mobile device and tools (e.g. NetStumbler & MACStumbler) that detects AP signals while driving around in a vehicle. At the same time, a GPS (Global Positioning System) device is mapping out the potential attack point (AP’s coordinates). Possible threats about War Driving include: unauthorized network access, packets sniffing, virus implanting, jamming and etc.. 2.4.2 Encryption attacks As mentioned earlier, 802.11 uses WEP to improve WLAN security.. WEP is. based on RC4 algorithm and serves to encrypt data. However it is recently found ineffective because skilled hackers can deduce WEP key by collecting packets that may together reveal traits about the key. 9.

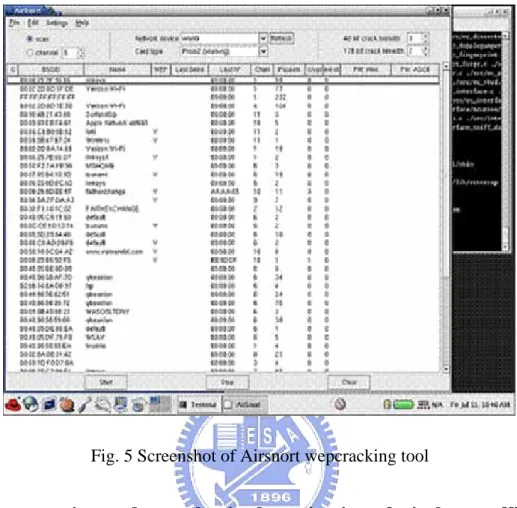

(19) Fig. 5 Screenshot of Airsnort wepcracking tool. 2.4.3 Interception and unauthorized monitoring of wireless traffic As in wired networks, it is possible to intercept and monitor network traffic across a wireless LAN. The attacker needs to be within range of an access point (approximately 300 feet for 802.11b) for this attack to work, whereas a wired attacker can be anywhere where there is a functioning network connection. Wireless Packet Analysis: a skilled attacker captures wireless traffic using techniques similar to those employed on wired networks. Many of these tools capture the first part of the connection session, where usually includes authentication data. An intruder can then access WLAN and issue unauthorized commands in the name of the victim. Broadcast Monitoring: from time to time, inappropriate topology significantly weakens WLAN security. If an access point is connected to a hub rather than a switch, 10.

(20) any network traffic across that hub are broadcasted out over the wireless network. In other words, an attacker, as one of the recipient, would be able to obtain sensitive data without even trying. Access Point Clone (Evil Twin) Traffic Interception: an attacker deceives legitimate wireless clients into connecting to the attacker’s faked AP with a stronger signal in close proximity to wireless clients. Users attempt to log into the substitute servers and unknowingly give away passwords and similar sensitive data.. 2.4.4 Brute force attacks against access point passwords Most access points use a single key or password that is shared with all connecting wireless clients. Brute force dictionary attacks attempt to compromise this key by methodically testing every possible password. The intruder gains access to the access point once the password is guessed. In addition, passwords can be compromised through less aggressive means. A compromised client can expose the access point. Not changing the keys on a frequent basis or when employees leave the organization also opens the access point to attack. Managing a large number of access points and clients only complicates this issue, encouraging lax security practices.. 2.4.5 Insertion attacks Insertion attacks are based on deploying unauthorized devices or creating new wireless networks without going through security process and review. Unauthorized Clients: It occurs when an attacker tries to connect a wireless client to an access point without authorization. Since WLAN does not constraint users to physical connection ports, users are able to access the AP anywhere when its security 11.

(21) setting is switched off. Unauthorized or Renegade Access Points: An organization may not be aware that internal employees have deployed wireless capabilities on their network. This lack of awareness could lead to the previously described attack, with unauthorized clients gaining access to corporate resources. Organizations need to implement policy to ensure secure configuration of access points, plus an ongoing process in which the network is scanned for the presence of unauthorized devices.. 2.4.6 Jamming Jamming is considered to be a type of denial of service on WLAN.. Traditional. DoS attacker floods target with tremendous amount of bogus traffics to bring down its performance and keep it from operating normally.. Jamming occurs when WLAN. hackers corrupting the signal until the wireless network ceases to function using certain equipment and tools to flood the 2.4 GHz frequency. In addition, any devices that operate on the 2.4 GHz band can disrupt a wireless network using this frequency. These denials of service can originate from outside the work area serviced by the access point, or can inadvertently arrive from other 802.11b devices installed in other work areas that degrade the overall signal.. 2.4.7 Client-to-Client attacks Two wireless clients can communicate directly to each other, bypassing the access point.. Users therefore need to defend clients not just against an external threat but also. against each other. Wireless clients running TCP/IP services such as a Web server or file sharing are open to the same exploits and misconfigurations as any user on a wired network. A 12.

(22) wireless device floods other wireless client with bogus packets, creating a denial of service attack. In addition, duplicate IP or MAC addresses, both intentional and accidental, can cause disruption on the network.. 2.4.8 Misconfigurations Occasionally negligence is the main cause of assaults. Many people take convenience for granted, and actually deploy WLAN without taking security into account.. For instance, organizations tend to use default settings.. Also, administrator. needs to configure each individual AP based on its physical location and purpose.. 2.5. Wired Equivalent Privacy (WEP) The concept of WEP is to prevent eavesdroppers by encrypting data transmitted over the WLAN from one point to another. Data encryption protects the vulnerable wireless link between clients and access points; that is, WEP does not offer end-to-end security because AP decrypts the frames before passing them to destinations that are beyond WLAN. WEP adopts RC4 algorithm, a stream cipher, developed by RSA security. “A stream cipher operates by expanding a short key into an infinite pseudo-random key stream. The sender XORs the key stream with the plaintext to produce cipher text. The receiver has a copy of the same key, and uses it to generate identical key stream. XORing the key stream with the cipher text yields the original plaintext”[4]. In other words, RC4 is a symmetric algorithm relies on a single shared key that is used at one end to encrypt plain text into cipher text, and decrypt it at the other end [7]. Current WEP implementations support key length up to 64 bits and 128 bits; technically, 13.

(23) the key length of both version are shorten by 24bits due to the use of plaintext Initial Vector (IV). In this research context, a key (or key combination) is a series of ASCII bytes often presented in hexadecimal; whereas a key value is one byte (8bits) out of the total combination. Fig. 6 shows a WEP encrypted frame which consists of IV(24 bits), padding(6 bits), key index(2 bits), encrypted message and Integrity Checksum Value (ICV)(32 bits). Note that the frame is transferred with the first 32 bits in plaintext and the rest of the body encrypted. This is because a sender generates IV, either incrementally or randomly, as part of inputs to encryption process. That is, the receiver must know the exact IV to decrypt the frame.. Fig. 6 WEP encrypted frame format. As indicated by the length of key index in the diagram, WEP can have up to 4 (22) keys. However, using shared static keys can be dangerous. Therefore, the purpose of constantly changing IV is to achieve the effect as if having a greater number (224) of key combinations. This gives WEP the capability of encrypting each frame with different keys (known as packet key). Fig. 7 illustrates WEP encryption process which starts by generating IV and selecting a predefined key. Next, RC4 uses both IV and chosen key (k) as inputs to generate key stream. Then, plaintext message (M), along with its ICV, is combined with. 14.

(24) key stream through a bitwise XOR process, which produces ciphertext (C). Upon sending the encrypted frame, WEP appends IV in clear to the front of the frame. The encryption process can be summarized as following formula.. C = (M, crc32(M) ) XOR RC4(IV, k). Fig. 7 WEP encryption process To decrypt, the receiving station uses the first 32bits IV and the shared key (k) as indicated by key index bits to generate the same key stream that encrypted the frame. Next, WEP XOR key stream with ciphertext (C), along with it ICV, to retrieve the plaintext (M). Note that, plaintext has ICV attached at the end. Finally, WEP computes plaintext, without ICV, CRC32 and compares the output with the ICV. Wireless environment is prone to interference; hence, data may be lost or damaged before reaching the destination. To ensure data integrity, sender computes CRC32 against the plaintext message and inserts the output (32 bits) at the back of the message prior to encryption. The receiver ensures data integrity by matching ICV of decrypted frame with the CRC32 result done locally with the resolved message. Frames with disconfirmed checksum will be discarded. The decryption process can be summarized as following formula based on the encryption formula.. 15.

(25) (M, crc32(M)) = C XOR RC4(IV, k). Fig. 8 WEP decryption procedure. 2.5.1. WEP Vulnerability Though combining IV into key stream computation increases key complexity so that it appears unpredictable, the reality that IV has to be transferred in clear may divulge WEP key. Such vulnerability is first discovered in a research undertaken by Fluhrer, Martin and Shamir[1] which states that IV . Specifically, frames with IV that matched (B+3, 255, X) form, where B points to the position of the key value in the combination and X can be any value between 0 and 255, may reveal key values. The probability of retrieving the right key value from the frame is 5%. Give sufficient time and traffic, one is able to obtain the WEP within hours or days. For instance, an IV (4, 255, 31) may resolve the value of the K[1], where IV (7, 255, 72) may resolve the K[4] (Fig 9). Often, attackers determine the key combinations by running statistic on all the potential key values computed from frames that matched such pattern.. 16.

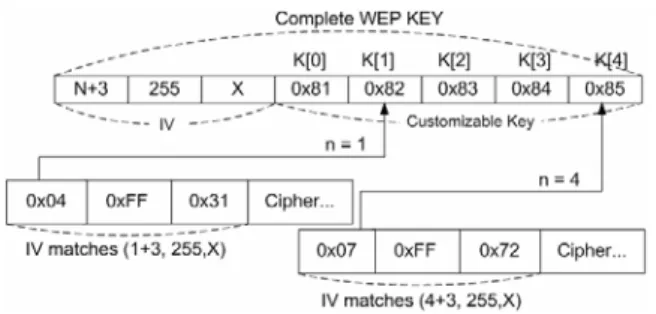

(26) Fig. 9 IV pattern resolving key combination. Part of the key value extracting concept is based on the nature of XOR. Suppose C is the result of P XOR K, then we are able to retrieve K by XOR C with P. In the case of WEP, the idea is extended and is much complicated due to RC4 algorithm; nevertheless, the fundamental idea is the same. That is, the initial step of cracking WEP key is to obtain ciphertext with its matching plaintext, which is almost readily available. As defined in 802.11 standard, any frames of type ARP or IP has to begin with 0xAA (known as SNAP). In IPX environment, 0xFF or 0xE0 is used instead. In fact, majority of the data transferred in WALN is in either format.. Fig. 10 XOR plaintext and ciphertext to resolve key value. 17.

(27) All in all, to crack WEP, one must first capture as much frames that matched the specified pattern as possible. Then, for each of the captured frame, XOR the first byte of the ciphertext with 0xAA to obtain the exact key stream that were used during encryption. By reverse-engineering RC4, attacker would be able to retrieve the key value (Fig 10). Please refer to Fluhrer’s study for detailed explanation on specific algorithms. Seth Fogie has published an article which describes detailed steps of WEP cracking. Also, WEP attack implementation can be found in the research done by Stubblefield et al [2].. 18.

(28) CHAPTER 3 THE INTERFERENCE-BASED PREVENTION MECHANISM. Obviously, the major flaw that makes WEP vulnerable is the fact that attacker is able to extract key from the gathered frames. Usually, statistics is used to assists in determining the real key values from the candidates. The real key value often has the highest occurrence among all. Therefore, it is reasonable to conclude that the resulting key is based on the amount and quality of the frames. That is, the attacker is unlikely to get the right key combination if traffic is scarce or there are more frames resulted in false key values than that of the right ones. Since it is impossible and unreasonable to prevent WLAN traffics from increasing, we propose that the alternative to prevent attacker from getting the correct key value is by poisoning the traffic with frames that are deliberately tailored to generate false result. Based on the understanding of the frames that the attackers are interested in and the algorithms applied to retrieve the key, this research devised an innovative solution called Interference-Based Prevention Mechanism (IBPM). As implied by its name, the proposed method generates interference effect by injecting spoofed frames to delude the attacker resulting in inaccurate statistic. As a matter of fact, injecting frame increases traffic load. Present WLAN bandwidth is still limited; hence, there must be an effective and space-efficient method to poison the traffic. IBPM utilizes the same technique similar to WEP crackers. That is, IBPM monitors the. 19.

(29) traffic and keeps computing the key values. The difference is that IBPM is implemented in a client station within a WEP protected WLAN; therefore, it is assumed that IBPM station possesses the key as a legitimate user. Having the key gives it the capability of interfering network traffic in advance. Fig. 11 shows IBPM generates spoofed frames whenever the speculated key value matches the real key value (we refer such event as weak-key occurrence). Consequently, the automated statistic program at the offense side takes those frames into account and increments false key values. What actually happened is that, IBPM pollutes attacker’s statistic in a way that causes false key values to increase to prevent real key value becoming distinct. Since IBPM has disrupted the statistic long before it reveals the real key value, WEP is, therefore, secured. This chapter discusses the proposed prevention schemes, which are discussed under interference schemes section, to distribute spoofed frames that generates false key across all possible key values.. Fig. 11 Interference generation diagram. 20.

(30) 3.1 The Proposed Interference Schemes The effect of interference is accomplished by increasing the tally of false key value whenever a weak-key is detected by IBPM. For instance, a weak-key 0xBB is detected, one may decide to increase all false-key tallies range form 0x00 to 0xFF excluding 0xBB. However, incrementing the tally arbitrarily incurs flaw that may eventually allows the attacker to discern the fixed pattern in the resulted statistic. Interference not only conceals the key, but also should prevent attackers from speculating the key based on the spoiled statistic again. The algorithm of IBPM is described as follows:. Fig. 12 IBPM Interference procedure. 21.

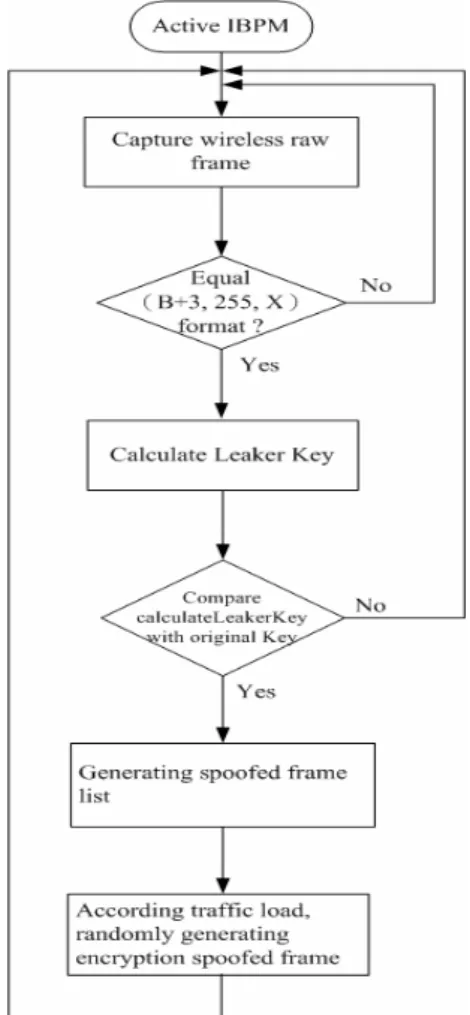

(31) SET WEP_Key to [5 or 13] SET Weak_IV to [3...15, 255, any] SET WEP Key's leakers to WEP key's calculateLeakers. Main Procedure WEP_Interference While (true) CAll Sniffing RETURNING Frame IF Frame is ENCRYPTION THEN CALL getInitVector with Frame RETURNING IV CALL getData with Frame RETURNING Data IF IV is Weak_IV THEN CALL calculateLeaker with IV, Data[0] RETURNING Leaker IF Leaker is WEP Key's leakers THEN CALL Weak_Key_Interference with Leaker End If End If Else Break Enf If End While. Procedure calculateLeaker(IV, Data) BEGIN # 802.11 SNAP Header should be 1st plaintext byte of WEP packet SET Text to 0xaa SET Range to 256 SET Schedule_List to [0...255] SET tmp_Schedule to [0, 1] key_List[0] = IV[0] key_List[1] = IV[1] key_List[1] = IV[2] SET Encr to IV[3] SET loopIndex to 0 SET arrayIndex to 0 FOR loopIndex = 0 to key_List[0] arrayIndex = (arrayIndex + Schedule_List[loopIndex] + key_List[loopIndex]) MOD Range SWAP Schedule_List[loopIndex], Schedule_List[arrayIndex] IF loopIndex = 1 THEN tmp_Schedule[0] = Schedule_List[0] tmp_Schedule[1] = Schedule_List[1] END IF END FOR SET Condition to Schedule_List[1] SET Leaker to INTEGER SET XORvalue to INTEGER IF (Condition < key_List[0]) THEN 22.

(32) IF ((Condition + Schedule_List[Condition]) = key_List[0]) THEN IF (Schedule_List[0] <> tmp_Schedule[0]) or (Schedule_List[1] <> tmp_Schedule[1]) THEN PRINT "IV error" #Initial Vector Error END IF XORvalue = int(Encr) XOR Text Leaker = XORvalue - arrayIndex - Schedule_List[loopIndex + 1] MOD Range END IF END IF RETURN Leaker END Procedure Weak_Key_Interference BEGIN SET interfereCount to 255 SET tmpData to "" FOR frame = 0 to interfereCount SET ram_leaker to random.randrange(0,255) IF ram_key <> WEP_key THEN CALL Scrambling with Weak_IV, ram_leaker RETURNING tmpData CALL send_encrypt_dataframe with socket, channel, interface, bssid, destMac, srcMac, IV, tmpData, tmpData's Length END IF END FOR END. 3.2 The Scenario of the IBPM This scheme randomly selects any amount of key values from the false set. The increment scale can also be any number. However, it is recommended to use a scale less than or equals to 3, because drastic change may ultimately cause the real key value to become the least and apparent. The scale can also be randomly assigned given a specified range. As mentioned earlier, IBPM requires no change on the legacy network configuration and is compatible to any WEP-enabled 802.11 WLAN. The IBPM-enabled device (preferably a desktop PC) appears just like any other regular wireless clients; therefore, attackers are unlikely to realize the intension behind such deployment. As shown in IBPM system framework (Fig 12), IBPM joined the WLAN 23.

(33) as a member client station which issues bogus frames upon weak key occurrences. At the same time, the attacker, being unaware of the spoofed frames, keeps gathering the frames.. Fig. 13 IBPM Interference procedure. IBPM involves both proactive and passive activities which include traffic sniffing and injection. Presently, this research has implemented an experimental system under 24.

(34) Linux. Various wireless drivers are available in the open-source community [11] with each offers slightly different capabilities. This research has modified and integrated some of the drivers in achieving features to support both monitor WLAN traffics and send frames with arbitrary format, including WEP encrypted, through individual wireless network interface cards. This research implemented IBPM using Python and C libraries under Redhat 9 Linux. The IBPM machine is equipped with two wireless network interfaces: one for sniffing frames and the other is used to inject spoofed frames whenever weak-key is detected.. 3.3 Statistical Diagrams of WEP cracking and Anti-WEP cracking To demonstrate the effectiveness of IBPM, two independent WEP attacks were launched against the experimental WLAN in the lab. At the end of each attack, the offender’s statistical result is captured. This demonstration adopted perfect probability interference scheme. Since WEP-128 is as vulnerable as WEP-64 despite of its extended key length, therefore WEP-64 is applied just to illustrate the concept due to space limitation. AP is configured with WEP key setting as K = {76, 210, 126, 196} and 24. Fig. 13 shows the result of the statistical result of the first attack without IBPM. Note that the thick line indicates the real key value.. 25.

(35) Fig. 14 K[0]~K[4] statistic result without interference. Clearly, the attacker can easily points out the real key value based on the statistical result. Evidently, each of the real key value stands out prominently. In contrasting to the previous test, the result captured in the second experiment with IBPM conceals the real key values (Fig 14). In addition, the overall distribution is almost random and there is no fixed pattern to follow. As for better observation, we deliberately thicken the line of the real key. In reality, the attackers will not be able to determine the real key value from such random formed statistical result.. 26.

(36) Fig. 15 K[0] and K[1] statistic result with interference. 3.4 Performance Evaluation Results In this section, the impact of key parameters on the actual interference performance of wireless LAN is discussed. The major two parameters considered in our discussion included the endian of IVs and the encrypted key length of WEP.. 3.4.1 Analysis of IVs Generated by a Little Endian Counter If the IVs are generated by a multibyte counter in little endian order ( IV[0] the first byte of the IV increments the fastest), then the attacker must collect IVs of the form ( N,255,X) for. 2<B<16. If he collected these for 60 different values of N, then he can 27.

(37) derive. the. secret. key. with. little.. This. requires. approximately. 4,000,000. (60*256*256=3,932160) packets. The influenced traffic load depends on the key length of WEP secret key. If the length of key is 5 bytes, the number of generated interference raw frame counts for 60*5%*5*255=3285 packets. Otherwise if the length of key is 13 bytes,. the. number. of. generated. interference. raw. frames. counts. for. 60*5%*13*255=9945 packets.. 3.4.2 Analysis of IVs Generated by a Big Endian Counter If the IVs are generated by a multibyte counter in Big endian order ( IV[2] the first byte of the IV increments the fastest), then the attacker must collect IVs of the form ( N,255,X) for. 2<B<16. If he collected more than 60 different values of N, then he. can derive the secret key with little. This requires approximately 4,000,000 (16*256*256=1,048,576) packets. If the length of key is 5 bytes, the number of generated interference raw frame counts for 256*5%*5*255= 16,320 packets. Otherwise if the length of key is 13 bytes, the number of generated interference raw frames counts for 256*5%*13*255= 42,432 packets.. Table 1 Performance Comparisons of Big and Little Endian IVs. generated Little endian counter. Big endian counter. counter Approximately. Required number. 4,000,000 Approximately. 1,000,000. of ( 60*256*256=3,932160)packet ( 16*256*256=1,048,576)packet. captured packets. s. s. 28.

(38) Raw. frame Approximately 55.6 hours. Approximately 13.9 hours. capture time(traffce average. 200. packets/s) Generated. 60*5%*5*255=3825. 256*5%*5*255=16,320. interference. 60*5%*13*255=9945. 256*5%*13*255=42,432. packets. 29.

(39) CHAPTER 4 THE PROACTIVE WIRELESS HONEYPOT. 4.1. Introduction Unlike other protection mechanism (such as firewall and IDS), honeypot is capable of both protecting systems by means of diverting attackers into a non-production system and collecting information about their habitats, intensions, potential targets and tools used. Presently, majority of the prior honeypot researches are concentrating on traditional wired network environment. With the increasing need of mobile communication and public acceptance on adopting wireless technology, it is necessary to extend the concept over WLAN (Wireless Local Area Network). In contrasting to traditional wired network, WLAN transmit data over radio frequency which can incur security problems due to data exposure. However, without additional protection, any AP (access point) can become an open gate to attackers. To further enhance security measures, much has to be learnt from the attackers. Therefore, the purpose of this research is to design and implement an active wireless honeypot under 802.11b standard. This proposed system is capable of protecting legitimate users and systems from attacks, by diverting attackers instead of passively attracting intruders, while collecting detailed information about each attack even if the attack is not targeted to the honeypot.. 4.2 Honeypot 4.2.1 Definition of Honeypot. 30.

(40) Researches and technologies related to Honeypots have attracted public’s attention in recently years.. As Lance Spitzner defined, a honeypot is expected to get probed,. attacked and potentially exploited. Honeypots do not fix anything. They provide us with additional, valuable information. The capability of collecting direct, concise and observable information is the greatest advantage honeypots have over other information gathering techniques. A honeypot can be actual computers with actual services or service simulators designed to mimic vulnerable systems, as entrapments.. In fact, a. honeypot can be regarded as deceptive device and information collector. Honeypot does not work along; like any other production systems, it is always recommended to have firewall and IDS installed.. Firewall provides protection and. data control while IDS is mainly designed to detect known signatures and anomalies to reduce manual analysis.. Both technologies are capable of gathering information. through packet sniffing and events logging. These additional data can help security officers to draw a better picture of the attacks.. 4.2.2 The Development State of Art In fact, the idea of honeypot has been realized for some time and several products are available in the market. However, each of them has advantages and disadvantages. This section lists some of the commercial honeypots with each followed by a short description on its features.. z. CyberCop Sting:CyberCop Sting, a product from Network Associates Inc., is a collection of security tools which includes CyberCop Monitor and. 31.

(41) CyberCop Scanner. Sting can simulate a realistic network environment and its consisting components such as Windows NT server, Unix server and routers. It is capable of both detecting and logging attack events.. z. NFR Back Officer Friendly[12]:. Known as a "honeypot" for its ability. to attract and trap hackers, Back Officer Friendly (BOF) is free and downloadable from NFR Security, Inc. BOF was once a tool used to detect scan attempts against targeted machines using Back Orifice. Presently, it supports several service traps such as Telnet, FTP, SMTP, POP3 and IMAP2. Traps are nothing but port listeners that responds upon receiving requests. When BOF receives a request for service, it will fake replies to the hopeful hacker. The primary goal is to distract attacker’s attention from the actual production system.. z. Deception Toolkit:Deception Toolkit is a customizable vulnerability simulation bundle developed by Fred Cohen. In times of port scanning, a machine running DTK can appear to attackers as if the system has a large number of widely known vulnerabilities. That is, DTK can waste the attacker significant amount of time on just trying to find out which ones are real. For well protected system, there can be none. The purpose is to discourage the adversaries.. z. Specter:Specter is a commercially supported product, developed and sold 32.

(42) by a Swiss company Netsec. Specter is classified as low-interaction honeypot with no actual operation system involved. It supports both traps and service simulation. Specter offers service simulation that provides basic interactive environment for the attackers.. The honeypots listed above are all low-involvement, which may certainly reduce risk. However, it also means little information can be gathered from interactions. With the exception of CyberCop Sting, these honeypots provides little or no interactive features that may encourage more interactions from the attacker. Most importantly, all of them do not support WLAN, which has becoming an essential part of any organizations.. 4.3. Proactive Diversion Procedure Within 802.11 WLAN, connections between clients and servers are established by AP. In an opened network, whereby AP accepts all connections, once AP recognizes clients’ SSID no further authentication is required. However, in a closed network, WEP key exchange is a compulsory procedure during authentication stage to verify user identity. For simplicity, the following section omitted concepts and details concerning WEP key exchange. Fig. 15 is an over view of connection process of a user accessing network through an AP. Basically, these processes can be grouped into two stages. In stage 1, client broadcasts probe request frame in querying for an available neighboring AP. Upon 33.

(43) receiving probe request, AP would first verify the user by examining whether its SSID matches with that of the current setting. Once matched, AP would regard the user as one of the WLAN member. Next, AP replies the requester with probe response frame to notify the user about its existence. Probe response frame header includes source, destination and currently occupied channel. Before establishing a connection, AP requires further identity verification, whereby authentication frames are exchanged between the user and AP. At last, user associates with AP. In stage 2, after association frame exchange, user is then able to access network resources through AP. The association is sustained until client or AP issues disassociation frame.. Fig. 16 connection process of legitimate users. Fig. 16 shows an attacker being diverted into honeypot. The diverting process of. 34.

(44) the proposed wireless honeypot involves client(attacker)、server(destination)、AP、 WIPS、FakeAP and honeypot. Note that WIPS is a device within WLAN that monitors wireless traffics for known attacks (signatures). Similar to the legitimate user in figure 1, client needs to go through discover, authentication and association processes before connecting to server (stage 1, 2). Next, client launches attacking server at stage 3. As soon as WIPS discerns unusual events, it starts sending disassociation frame to the attacker and prevents it from reconnecting with the AP. At the same time, WIPS activates FakeAP in preparing for processes that follows (stage 4). At stage 5, when client encounters interference that forces it to disconnect from AP, it would automatically begin searching for a new AP by broadcasting probe request frames using another channel. FakeAP replies the attacker with a faked probe response to make it into believe that it has found a real AP when in fact this FakeAP will not actually deliver its request to the destination but honeypot. The process of redirecting attacker from real target to honeypot is defined as “active diversion”. Finally, attacker would be diverted into honeypot whereby all events will be recorded and all damages do not affect production system.. 35.

(45) Fig. 17 diverting attacker into honeypot. 4.4. System Framework In contrast to simulation-based honeypot, this research attempts to build a high-involvement wireless honeypot equipped with real operation system and services utilizing VMware. VMware is software that is capable of creating working environment for various types of operating systems on a single host despite of its platform. 36. Currently, it.

(46) supports Windows, Linux, FreeBSD, Solaris and Mackintosh; therefore, it has become a convenient alternative for implementing honeypot. However, the host running virtual machine must allocate large memory and disk space and works fast enough to efficiently handle the operations from both the VMs and the host itself. There are several advantages on using VMs as honeypots.. First of all, one can. have several honeypots on just a single machine without additional spending. Secondly, different types of operating system can be switched and replaced easily. Third, VMs are stored as files on the host machine; which means backups can be made. Fourth, when a virtual honeypot is compromised, it can be recovered by simply replacing with its backup file. Most importantly, it is difficult for a hacker to differentiate an actual machine and a virtual machine. Wireless honeypot consists of WIPS（Wireless Intrusion Prevention System）, FakeAP and a honeypot (built by VM). The overall activities are: (a) monitoring, (b) divertsion and (c) logging. WIPS is responsible for monitoring unusual events and activating redirection procedure. FakeAP, as implied by the name, is a temporal special purpose AP that specifically designed to divert attacker’s traffic into honeypot. Honeypot is the device/environment that interacts with the intruder while recording every single event that occurred.. 37.

(47) Fig. 18 framework of the proposed wireless honeypot. 4.4 System Procedure The overall operation of the proposed wireless honeypot is as follows: 1.. Once attack is detected, WIPS terminates the connection between the offender and the AP through which illegal activities were carried out. To prevent the attacker from reconnecting with the AP, WIPS keeps sending disassociation frames until it gives up trying.. 2.. At the same time, WIPS activates FakeAP on a different channel with the same SSID that used by the original authentic AP. To prevent legitimate user from entering honeypot, FakeAP is configured so that it only accepts connections from the detected hackers.. 3.. The fact that FakeAP using same SSID as the original AP makes attacker into believe that he/she is still connecting through the same AP. Often, wireless 38.

(48) network card tend to look for new AP when disconnected or interfered. In such case, attackers are unlikely to find out the difference even after been forced to disconnect from the AP. 4.. Finally, FakeAP diverts attacker into honeypot whereby any movements made will be logged. These collected information provides details, such as intruder techniques used, habitats, interested targets, that serve as learning material and crucial evidence.. 39.

(49) CHAPTER 5 THE PROACTIVE WIRELESS INTRUSION PREVENTION SYSTEM. 5.1.. System Architecture and Design. Fig. 19 proactive wireless IPS architecture As shown in the system framework (Fig. 18), the proposed WIPS is able to protect network from Wardriving and WEP cracking attacks.. Also, with each different types. of attack, a proper response mechanism is designed to prevent protected-users on Intranet from further damage. This system component consists of five modules: packet capture, session analysis, intrusion reaction, honeypot and alarm module. Packet capture module collects and stores wireless packets for future analysis and reference. Session analysis module sorts packets into logical order in accords to its protocol and session. Intrusion reaction module monitors traffics and responds to offensive behaviors. Honeypot module is a mechanism designed to redirect intruder into a faked AP so that 40.

(50) risk is shifted to a non-production network. Alarm module takes charge of informing network administrator through GSM message service in times of attack.. 5.1.1. Packet Capture Module This module collects wireless frames using Airjack library and stores them into an audit file if requested. Airjack is an open-source library, that supports Prism 2 chip network cards, provides frame capture and injection interfaces. The gathered frames will then be utilized by session analysis module or intrusion reaction module.. 5.1.2. TCP Session Analysis Module Traditional packet analyzer focuses solely on its structure and characteristics. Consequently, the result is usually a list of raw packets sorted by its collected time; therefore, no distinct relationship is established between them.. Hence network. administrator would not be able to utilize this information efficiently.. In order to. overcome this obstacle, it is necessary to design an algorithm to rearrange the packets into individual session groups. TCP session analysis module is specifically designed to serve that purpose. As defined in IEEE 802.11 standard, there are three types of frames that must be recognized in WLAN: z. Management Frames: WLAN uses these frames to perform authorization and establish connections between AP and clients.. z. Control Frames: they are responsible for media access control.. z. Data Frames: they are used to deliver data.. 5.1.3. Intrusion Reaction Module It is crucial to respond to the offensive activities immediately after they are detected 41.

(51) by the system. Intrusion reaction module takes such role in handling procedures to prevent further damage.. The service type and functions provided by this module. include:. 5.1.3.1 Anti-Wardriving Before connecting to a WLAN, client device must first find an AP either by listening for AP’s beacon or broadcasting probe requests consecutively. As stated in 802.11, AP must reply a probe response, as to inform its existence, to the client that issues the request to establish connection. War-Driving takes the advantage of such vulnerability to scan every AP within reach by broadcasting probe request frames. Two indicators are used in War-Driving detection: NetStumbler is the most popular tool for War-Driving. However, it is possible to detect NetStumbler, because it always sends out a special packet whenever an AP is detected. This packet contains a unique value that can be used to identify NetStumbler. Probe Response traffic:War-Driving forces AP to generate probe response frames and is likely to increase the traffic of these frames. Such abnormal increase in traffic can be revealed by monitoring probe response frames. However, legitimate users may also request for AP response. Therefore, detailed analysis is required to determine the main cause of the increased traffic.. 5.1.3.2 Anti-WEPcracking The core of WEP is RC4 stream cipher, which XORs key-stream with plaintext to generate encrypted cipher-text. To crack WEP, attacker reverses encryption procedure to retrieve the key. WEP key vulnerability is first discovered in a research undertaken by Fluhrer, Martin and Shamir[1] which states that IV transferred in clear may divulge WEP key. Obviously, the major flaw that makes WEP vulnerable is the fact that 42.

(52) attacker is able to extract key from the gathered frames. Usually, statistics is used to assists in determining the real key values from the candidates. The real key value often has the highest occurrence among all. Therefore, it is reasonable to conclude that the resulting key is based on the amount and quality of the frames. That is, the attacker is unlikely to get the right key combination if traffic is scarce or there are more frames resulted in false key values than that of the right ones. WIPS adopted a interference-based mechanism of by poisoning the traffic with frames that are deliberately tailored to generate false result to prevent attacker from getting the correct key value.. 5.1.3.3 MAC Authentication This function is used to determine weather faked MAC address is being used in WLAN. Any users with a faked MAC address will be redirected into honeypot. A rule is set and binds network card manufacturer for a specific MAC pattern. As shown in table 1, MAC address the first 3 bytes of network cards from a producer will always be the same. In other words, it is possible to find out the potential attacker by checking its MAC address pattern.. Table 2 MAC Address rule Wireless NIC Manufacturer. First 3 bytes of MAC. 3COM. 00-02-9C. Toshiba. 00-08-0D. Cisco. 00-0B-45. SierraCom. 00-02-12. Oxygnet. 00-0B-50. OmniWerks. 00-0B-7F. Telencomm. 00-04-3E. IBM. 00-50-76. 43.

(53) 5.1.4 Honeypot Module A honeypot is a security resource whose value lies in being probed, attacked or compromised. This means, that a honeypot is expected to get probed, attacked and potentially exploited. In fact, honeypot provides additional and valuable information about the hacker. WIPS incorporates a basic honeypot feature, which diverts attacker into a faked AP (honeypot) where he/she is quarantined from the actual WLAN. With the target being deceived, it starts to record every single move made by it. Hopefully, these records can be used as a learning material and reference.. 5.1.5 GSM Alarm Module Although IDS should be designed to handle attacks automatically, there are times whereby manual procedure or decision making is required by administrator. Therefore, as with any IDS, severe attacks must be reported efficiently to administrator. Traditionally, alarms are delivered through email or other network message services. To be more efficient, WIPS employs SMS (Short Message Service) as a mean to enable immediate reporting.. 5.2. System Demonstration Presently, this WIPS system leveraging resources from Open-Source community was developed by Python, wxPython and executed on the Linux OS Environment (Red Hat 9.0).. 5.2.1. TCP Session Analysis and Reassembly 44.

(54) As shown in figure 19, the proposed system support two operating mode real-time capture and off-line.. Real-time mode collects frames that travel through the air; while. off-line retrieve historical frame data from audit file previously created. Section A is a list of captured frames with their information labeled: packet number, time stamp, source MAC, destination MAC, protocol used and payload summary. It gives analyst a quick view of network events that occurred within a certain period of time. Also, it reveals traces that are crucial evidence in computer forensics when determining the identity of the attacker. Section B shows full detail about the selected frame in section A. For better presentation, frame information is transformed into a tree data structure in accords to its protocol. Section C shows the raw data of the selected frame in hex for advanced users.. Fig. 20 system main interface In addition to the basic frame browsing method, this system provides user with a much convenient interface called session view. As shown in figure 20, user can activate session view by clicking on the menu item “session”.. 45.

(55) Fig. 21 activating session view As shown in figure 21, the session list on the left is a current session list generated from the collected frames with first session [prot1315,3128] selected. Detail section on the right displays the constituting frames of the chosen session and each summarized frame information. In this case, the selected session is between hosts 192.168.17.197 and 210.71.23.110 according to the information provided.. Fig. 22 selecting a session In addition to session analysis, WIPS even has the ability to reassemble the frames and reconstruct the fragmented data back to its original file form. By clicking the button “view” located at bottom-left, the file reconstructed from the session will be shown. Figure 22 displays a result of web page being restored.. 46.

(56) Fig. 23 web page restored. 5.2.2 Anti WarDriving To simulate War-Driving attack, a laptop with NetStumbler installed is used in this case. First, NetStumbler is started to probe for AP. Fig. 23 shows the search result with an AP being detected using channel 5.. Fig. 24 NetStumbler detected an AP Immediately after NetStumbler found an AP, WIPS also detected the presence of the attacker.. Fig. 24 is the system generated war-driving warning sign which indicates. that the attack source MAC address was 00:05:5d:f1:de:30. Next, GSM alarm module sent a message through SMS to report the current situation to network administrator.. Fig. 25 War-Driving warning message At the same time, WIPS starts to generate false probe request frames, which contain faked AP information, to confuse the attacker.. Fig. 25 is the result of NetStumbler. when war-driving is detected by WIPS. In this case, there are five faked APs.. 47.

(57) Fig. 26 The result of the confused NetStumbler. 5.2.3 Anti-WEP-Cracking A host running AirSnort is used to represent the attacker in attempt to crack WEP. AirSnort gathers large amount of frames, which contains traces that can be used to calculate possible WEP keys. The key with the highest occurrence is usually the true WEP key. Fig. 26 is the bar chart of WEP key occurrences with number of occurrence as Y-axis and candidate keys as X-axis. Clearly, the result shows that key 11 has the highest occurrence and is most likely to be the real WEP key.. Fig. 27 occurrences of each calculated WEP key To avoid WEP cracking, WIPS deliberately generates encrypted frames seemingly valuable to AirSnort using false WEP key. Consequently, the calculated result will be contaminated with false positives as shown in Fig. 27.. 48.

(58) Fig. 28 WIPS interferences WEP key calculation. 5.2.4 Wireless Honeypot It is difficult to demonstrate how wireless honeypot works by just showing output screens of each stage. Therefore, to enhance the comprehensibility, details of each stage will be described accompanied with Fig. 28.. Fig. 29 concept diagram of how wireless honeypot operates Step 1 and 2 (Fig. 28.) show that attacker has successfully connects to the target server through AP.. The framed section in Fig. 29 shows information about attacker’s. wireless NIC and the associated AP. Currently, the attacker is connecting using SSID AirFore on channel 5. 49.

(59) Fig. 30 screenshot of an attacker connecting to AirForce AP Fig. 30 is output screen of the attacker on issuing “iwlist” command to query the present communication channel. As shown in the diagram, current frequency is 2.432GHz (equivalent to channel 5). For the mean time, this person can still interact with the target server as long as he/she does not launch attack.. Fig. 31 current channel of the attacker 50.

(60) At step 3 (Fig. 28) shows the intruder has launched attacks on the target server. Meanwhile, WIPS detected this event and start the diversion procedure (step 4). Figure 31 describes FakeAP network information. Notice that FakeAP is using the exact SSID that the real AP is using. The purpose of faking the real AP is to deceit the attacker.. Fig. 32 wireless NIC information of FakeAP Step 5 and 6 (Fig. 28) show that the attacker has been redirected into honeypot (VM). Fig. 32 shows the wireless NIC information of the attacker after diversion. Note that the attacker is unlikely to discern the difference between real AP and faked one by observing SSID. In the case where attacker finds out the change in MAC address or channel, it would as well be misinterpreted as normal situation whereby AP suffered interference. Hence, FakeAP may be regarded as another potential target.. 51.

(61) Fig. 33 hacker is diverted. 5.2.5 GSM messaging When WIPS detects War-Driving, WEP cracking, MAC faking or other similar attacks, it is necessary to inform network administrator efficiently before its condition becomes critical. Fig. 33 shows a short message sent by WIPS when WLAN under malicious attack.. Fig. 34 alarmed SMS over GSM. 52.

(62) CHAPTER 6 CONCLUSIONS. 6.1. Summary With rapid growth of Internet and mobile device user population, Wireless Local Network (WLAN) is increasingly used in offices and home because of its convenient deployment and management. Comparing to traditional wired network, wireless environment does not constraint hacker in physical topology which sometimes protects network from direct attack. The fact that WLAN using radio frequency as the transmission media introduces new threats into network due to data exposure. That is, WLAN is prone to attacks. Hackers are exploiting these weaknesses in the field, from distances of a mile or more. This research has discussed WLAN vulnerabilities and threats it faces presently. Also, with concepts and techniques of different attack scheme as foundation, a proactive wireless intrusion prevention system is developed. Finally, the proposed WIPS is experimented and proved to be effective in detecting and preventing WEP cracking, MAC spoofing, War Driving and content violation Honeypot protects internal network from adversaries while collecting valuable information for post analysis. As people’s desire on mobility grows, wireless LAN gradually replaces part of the wired network. However, the most popular 802.11b standard lacks a secure protection mechanism that can prevent WLAN from becoming a threat to internal network. This research implements a wireless honeypot that functions. 53.
