IEEE 802.16e 服務品質保證之
省電機制排程演算法
An Energy-Saving Scheduling Algorithm
with QoS Guarantee for IEEE 802.16e
Broadband Access Networks
研 究 生:蔡 耀 誼
指導教授:李 程 輝 教授
中
中
中
中 華
華
華 民
華
民
民 國
民
國
國 九
國
九
九 十
九
十 七
十
十
七
七
七 年
年
年
年 十
十
十
十 月
月
月
月
IEEE 802.16e 服務品質保證之
省電機制排程演算法
An Energy-Saving Scheduling Algorithm with QoS Guarantee
for IEEE 802.16e Broadband Access Networks
研 究 生:蔡耀誼
Student:Yaw-Yi Tsai
指導教授:李程輝
Advisor:Tsern-Huei Lee
國 立 交 通 大 學
電 信 工 程 學 系
碩 士 論 文
A ThesisSubmitted to Department of Communication Engineering College of Electrical and Computer Engineering
National Chiao Tung University In partial Fulfillment of the Requirements
For the Degree of Master
In
Communication Engineering
October 2008
Hsinchu, Taiwan, Republic of China
學生:蔡耀誼 指導教授:李程輝 教授
國立交通大學電信工程學系碩士班
中文摘要
本篇論文即根據此睡眠機制,針對非請求的頻寬分配(UGS)的服務、固定
位元率(CBR),提出一種排程演算法,目的既要達到服務品質保證(QoS),即不
違反延遲界限(delay bound),又要達到省電,以及頻寬使用最大化。
此排程演算法根據比率單調排程(Rate Monotonic Scheduling)而設計,每個
系統內的工作站都具有靜態優先權(static priority),當工作站達到可以接受服務
的條件,才可以進行服務,萬一超過一個工作站符合服務條件,則基地台會挑
選優先權最高的工作站進行服務。另外,針對這個排程演算法,我們討論其允
入控制(admission control),先探討系統內多個工作站的可排性(schedulability),
再推導下一個系統可以允許進入服務的新工作站,其最小的封包抵達時間間隔
(inter-arrival time)為多少。最後並將此演算法與其他方法做省電效能與系統吞
吐量的比較。
Guarantee for IEEE 802.16e Broadband Access Networks
Student: Yaw-Yi Tsai
Advisor: Dr. Tsern-Huei Lee
Institute of Communication Engineering
National Chiao Tung University
Abstract
This thesis focuses on the scheduling problem for CBR traffic with delay
constraint in IEEE 802.16e broadband access networks. Multiple MSSs are
considered in our work. In order not to violate the delay constraint, and
maximize both the energy efficiency and bandwidth utilization, we propose a
scheduling algorithm based on rate monotonic scheduling for CBR traffic. In this
scheduling algorithm, any connection would be served when it becomes eligible.
The highest priority would be selected for service when there is more than one
eligible connection. Moreover, we discuss the admission control for this
algorithm which aims to obtain the minimum inter-arrival time of next
acceptable connection. The numerical results show that our scheduling algorithm
performs well on energy efficiency and bandwidth utilization.
誌謝
感謝指導教授—李程輝老師,兩年碩士班的訓練,從研讀學術期刊會議論文
起,到遇上研究問題該有的嚴謹思考態度,以求有效的解決問題,老師的經驗傳
承與精準的指導,確實導正了我很多思考面向。謝謝老師!
感謝我摯愛的雙親—蔡崇吉先生與陳玉琴女士,自小教導我正確的生活態
度,告訴我待人處事務求誠懇踏實,眼界要寬,心地要亮,為人要正直,求學態
度亦如是。感謝我最敬愛的奶奶,幼時的人格教育,與如今偶爾的叮嚀,我感念
謹記在心,希望您的身體能一天一天好轉。
感謝郁文學長在這篇論文研究,花了很多的時間,一起討論這個研究課題,
從他的身上,我看到了學術研究的熱誠。感謝景融學長對於我研究上的鼓勵,時
常給予細心的解釋與幫助。謝謝兩位學長無私的幫忙。
感謝學長姐及同窗們—瑋哥、迺倫、博文、柏庚、建成、世弘、凱文、勁文、
明鑫、錫堯、明智,一起努力打拼。感謝一群可愛的學弟們—松晏、鈞傑、家豪、
俊德、佑信、敬堯、晨屹,有你們的實驗室很融洽。感謝小汪在寫論文的日子裡,
幫我找回了對於籃球的衝勁與熱情。感謝 Ginny 在論文完成的後段幫了我很多
忙。謝謝大家!
謹將此論文獻給所有我愛與愛我的人。
2008 年 10 月 於風城交大
Chapter 1
Introduction... - 1 -
Chapter 2
Backgrounds... - 4 -
2.1 Scheduling Services in IEEE Standard 802.16【5】... - 6 -
2.2 Sleep Mode for mobility-support MS【4】 ... - 7 -
2.3 OFDM Frame Structure【4】 ... - 10 -
Chapter 3
Related Works... - 12 -
3.1 Scheduling Approaches: MMPS【3】... - 12 -
3.2 Rate-Monotonic Scheduling (RMS)【1】 ... - 17 -
Chapter 4
Our Proposed Scheduling Algorithm ... - 19 -
4.1 System model ... - 19 -
4.2 Proposed Algorithm ... - 20 -
4.2.1 Scheduling policies... - 21 -
4.2.2 The waiting time of next service ... - 22 -
Chapter 5
Admission Control ... - 28 -
5.1 Schedulability test... - 28 -
5.2 The empty-minus-backlog curve... - 31 -
5.3 The minimum inter-arrival time of next acceptable connection ... - 33 -
6.2 Numerical results... - 38 -
Chapter 7
Conclusions... - 44 -
Bibliographies ... 45
-F
IGURE2.1
P
OINT-
TO-
MULTIPOINTW
IMAX
APPLICATIONS-
5
-
F
IGURE2.2
E
XAMPLE OF SLEEP MODE OPERATIONS WITH TWO POWER SAVINGCLASSES
-
8
-
F
IGURE2.3
T
HE THREE POWER SAVING CLASSES-
9
-
F
IGURE2.4
A
SAMPLETDD
FRAME STRUCTURE FORM
OBILEW
IMAX
-
11
-
F
IGURE3.1
T
HE SLEEPING CYCLE OF A CONNECTION-
14
-
F
IGURE3.2
E
XAMPLE OFMMPS
SCHEDULING-
15
-
F
IGURE3.3
E
XAMPLE OFMMPS
WITH FRAGMENT COLLECTION-
16
-
F
IGURE3.4
MMPS
EXAMPLE WITH BOUNDARY FREE-
16
-
F
IGURE3.5
E
XAMPLE OF RATE MONOTONIC SCHEDULING-
18
-
F
IGURE4.1
T
HE EXAMPLE OF AI-
20
-
F
IGURE4.2
T
HE WAITING INTERVAL OF THE NEXT SERVICE-
24
-
F
IGURE4.3
T
HE FLOW CHART OF FINDING THE WAITING TIME OF NEXT SERVICE-25
-
F
IGURE4.4
E
XAMPLE OF THE WAITING TIME OF NEXT SERVICE-
26
-
F
IGURE5.1
T
HE ELIGIBLE REGION OF A CONNECTION-
29
-
F
IGURE5.2
S
ERVICES OF CONNECTION1
BETWEEN REQUESTS FOR CONNECTION M-30
-
F
IGURE5.5
H(
F)
FORD
1..3=
[4,
4,
6]
-
35
-
F
IGURE6.1
T
HE AVERAGE SLEEPING CYCLE-
39
-
F
IGURE6.2
C
HANNELO
CCUPANCY-
40
-
F
IGURE6.3
T
HE BANDWIDTH EFFICIENCY-
41
-
F
IGURE6.4
N
UMBER OF SERVICEDMSS
S-
42
-
T
ABLE2.1
S
ERVICEF
LOWSS
UPPORTED INW
IMAX ...-
7
-
T
ABLE4.1
T
HE ELIGIBLE VALUES OF ELIGIBLE CONDITIONS...-
21
-
Chapter 1
Introduction
Over recent decades, the explosive growth of the Internet has resulted in a substantial increase in demand for high speed and ubiquitous Internet access. Broadband Wireless Access (BWA) has the potential to satisfy these demands. IEEE Standard 802.16-2004 (World Interoperability for Microwave Access - WiMAX) is a broadband wireless communication technology for last mile access, which aims to provide high data rate, low cost between Subscriber Stations (SSs) and Base Station (BS). It is expected to fill up the gap between high data rate in wireless Local Area Networks and low data rate in mobile cellular systems.
However, IEEE Standard 802.16e does not provide mobility for SSs. A new modified version, IEEE Standard 802.16e (Mobile World Interoperability for Microwave Access - Mobile WiMAX) was proposed for providing services between Mobile Subscriber Stations (MSSs) and BS.
Moreover, real-time services such as Voice over Internet Protocol (VoIP), Video on Demand (VOD) have become widely-used, popular Internet applications. In order not to violate the guaranteed packet delay and packet loss constraints of each connection, issues in
Quality of Service (QoS) have become quite important for the design of Medium Access Control (MAC) Protocol, the original IEEE standard 802.16e MAC protocol does not particularly address this aspect though. On the other hand, for continuously providing convergence and seamless services to users, we have to explore energy management of MSSs in IEEE 802.16e systems.
In this thesis, we focus on the scheduling problem of the real-time services between BS and MSSs in IEEE 802.16e broadband wireless access OFDM networks. While serving the MSSs, the most effective way to reduce power consumption is to make them enter sleep mode periodically. In the sleep mode, MSSs would turn off the transceiver to save power. The BS which provides services to those MSSs has to buffer the downlink traffic for those MSSs who are in the sleep mode. The MSSs in sleep mode would wake up in the listening interval periodically to receive the buffered data from the BS. After that, they return to the sleep mode again. However, each connection of a MSS in the IEEE 802.16e networks has its own delay requirement, which implies the buffered data must be sent or received before its delay constraint expires.
In order to support a wide variety of applications, IEEE 802.16e defines five scheduling services: Unsolicited grant services (UGS), Real-time polling services (rtPS), Non-real-time polling service (nrtPS), Best-effort (BE) service, Extended real-time variable rate (ert-VR) service. In this thesis, we only consider the UGS traffic. The UGS traffic is designed to support fixed-size data packets at CBR, such as T1/E1 emulation and VoIP without silence suppression. Therefore, our objective is to find a scheduler for UGS to satisfy the delay constraints, maximize power saving, and maximize the bandwidth utilization.
802.16e broadband wireless OFDM networks. Here, we only consider the downlink traffic. The second power saving class in IEEE 802.16e standard is used. In our approaches, we assume that the delay bound of each connection is a multiple of its inter-arrival time, which is described as D= Ω . Based on the Rate-Monotonic Scheduling, we determine a set of T scheduling policies that a connection would be served when it accumulates the most packets in the queue so that it will save the most energy for a MSS. In order not to violate the delay constraint, a connection should be served before the head of line goes out of date. Furthermore, for a connection which is in service at a specific instant, the BS can calculate the next instant that it will be served. The BS should notice the MSSs that how long they could sleep for and when they should wake up. Also, for those existing connections, we can compute in advance the minimum inter-arrival time of the next acceptable connection by capitalizing on the empty-minus-backlog curve.
The remainder of this paper is organized as follows. In Chapter 2, the MAC mechanism in IEEE 802.16 and the enhanced one in IEEE 802.16e are described. A survey of related work about scheduling algorithm and admission control for wireless network is given in Chapter 3. We introduce the Rate-Monotonic Scheduling in this chapter as well. Chapter 4 and Chapter 5 respectively present our proposed algorithm (including the system model) and admission control based for IEEE 802.16e OFDM networks. Chapter 6 shows the performance evaluation with the numerical results of our proposed algorithm. Finally, we draw our conclusions and future work in Chapter 7.
Chapter 2
Backgrounds
IEEE Standard 802.16 (WiMAX) was proposed to solve the problem of the wireless access network for last-mile. It would provide the convenience of the connection on the Internet in rural areas or in damaged places which suffered from the unpredictable disasters. In IEEE 802.16e, there are two operation modes, Point-to-multipoint, and mesh. PMP is the most popular way to access WiMAX.
Point-to-point applications include interbuilding connectivity within a campus and microwave backhaul. Point-to-multipoint applications include (1) broadband for residential, small office/home office (SOHO), and small- to medium-enterprise (SME) markets, (2) T1 or fractional T1-like services to businesses, and (3) wireless backhaul for Wi-Fi hotspots. Figure 2.1 illustrates the various point-to-multipoint applications.
Consumer and small-business broadband applications are one kind of the largest applications of WiMAX in the near future which is likely to be the broadband access for residential, SOHO, and SME markets. Broadband services provided using fixed WiMAX could include high-speed Internet access, telephony services using voice over IP, and a host of other Internet-based applications. T1 emulation for business is the other major opportunity for
fixed WiMAX in developed markets which is as a solution for competitive T1/E1, fractional T1/E1, or higher-speed services for the business market. Given that only a small fraction of commercial buildings worldwide have access to fiber, there is a clear need for alternative high-bandwidth solutions for enterprise customers. Backhaul for Wi-Fi hotspots is another interesting opportunity for WiMAX in the developed world which is the potential to serve as the backhaul connection to the burgeoning Wi-Fi hotspots market.

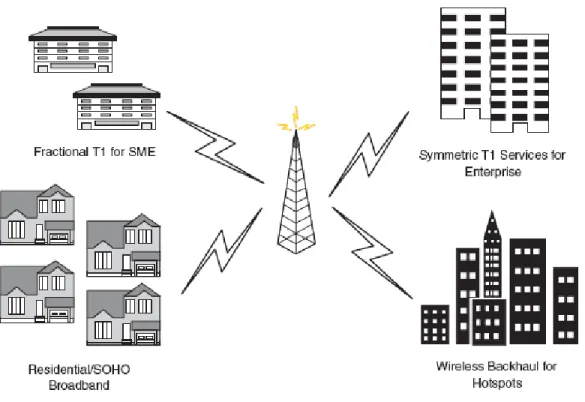

Figure 2.1 Point-to-multipoint WiMAX applications
The first version of IEEE standard 802.16 does not address the mobility. It only provides the services for fixed SS. However, as the growing needs for real-time services of wireless devices, those fixed things can not satisfy the customers anymore. Therefore, a modified standard of WiMAX, IEEE Standard 802.16e has been proposed by WiMAX Forum in 2005.
In IEEE 802.16e, it not only adds in the mobility of the system but also introduce the sleep mode into the MAC layer protocol. Three power saving classes are described in IEEE standard 802.16e.
2.1 Scheduling Services in IEEE Standard 802.16【
【
【
【5】
】
】
】
To support a wide variety of applications, WiMAX defines five scheduling services (Table 2.1) that should be supported by the base station MAC scheduler for data transport over a connection:
1. Unsolicited grant services (UGS): This is designed to support fixed-size data packets at a constant bit rate (CBR). Examples of applications which may use this service are T1/E1 emulation and VoIP without silence suppression.
2. Real-time polling services (rtPS): This service is designed to support real-time service flows, such as MPEG video, that generate variable-size data packets on a periodic basis.
3. Non-real-time polling service (nrtPS): This service is designed to support delay-tolerant data streams, such as an FTP, that require variable-size data grants at a minimum guaranteed rate.
4. Best-effort (BE) service: This service is designed to support data streams, such as Web browsing, that do not require a minimum service-level guarantee.
802.16-2005) is designed to support real-time applications, such as VoIP with silence suppression, that have variable data rates but require guaranteed data rate and delay. This is also referred to as extended real-time polling service (ErtPS).

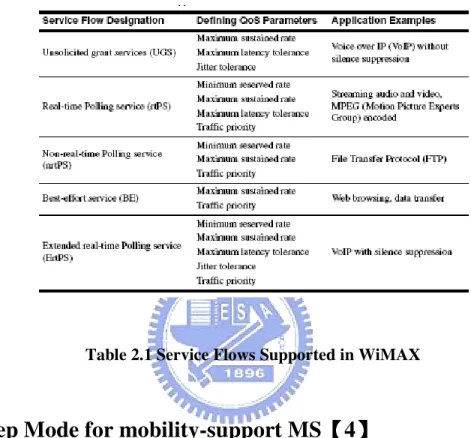

Table 2.1 Service Flows Supported in WiMAX
2.2 Sleep Mode for mobility-support MS【
【
【4】
【
】
】
】
Sleep mode is a state in which an MS conducts pre-negotiated periods of absence from the Serving BS air interface. These periods are characterized by the unavailability of the MS, as observed from the Serving BS, to downlink (DL) or uplink (UL) traffic. Sleep mode is intended to minimize MS power usage and decrease usage of Serving BS air interface resources. Implementation of sleep mode is optional for the MS and mandatory for the BS.
For each involved MS, the BS keeps one or several contexts, each one related to a certain power saving class. A power saving class is a group of connections that have common demand properties. For example, all BE and NRT-VR connections may be marked as
belonging to a single class while two UGS connections may belong to two different classes in case they have different intervals between consequent allocations. A power saving class may be repeatedly activated and deactivated. Activation of certain power saving class means starting sleep/listening windows sequence associated with this class. Algorithm of choosing power saving class type for certain connections is outside of the scope of the standard.

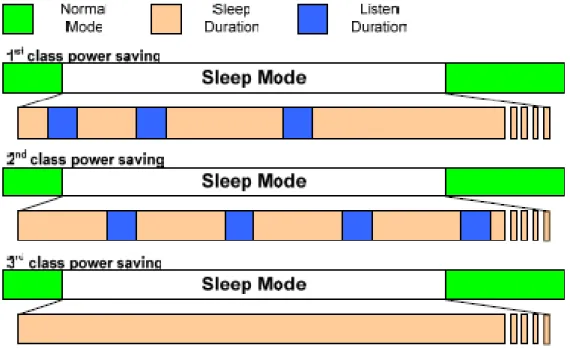

There are three types of power saving classes, which differ by their parameter sets, procedures of activation/deactivation, and policies of MS availability for data transmission. Figure 2.2 describes example of behaviors of MS with two Power Saving Classes: Class A contains several connections of BE and NRT-VR type, Class B contains a single connection of UGS type. Then for Class A the BS allocates sequence of listening window of constant size and doubling sleep window. For Class B the BS allocates sequence of listening window of constant size and sleep window of constant size. The MS is considered unavailable (and may power down) within windows of unavailability, which are intersections of sleep windows of A and B.
Figure 2.2 Example of sleep mode operations with two power saving classes
saving class which is suitable for web browsing or data access services, a connection sleeps for a specific period of time, and then wake up for listening that whether there is any traffic for it or not. If there is no packet sent or received, a MSS doubles its next sleep period. The length of the listening periods is fixed. In the second power saving class, the rules are the same as the first power saving class, except that the length of the sleeping and listening periods are fixed. This class fits the real-time applications such as VoIP or video stream services. The third power saving class, the length of the sleep period is predefined. The MSS sleeps for a defined period of time and then goes back to the normal mode. It is recommended for multicast connections as well as for management operations, such as periodic ranging, DSx operations. Figure 2.3 shows the three power saving classes
2.3 OFDM Frame Structure【
【
【4】
【
】
】
】
In this thesis, due to that we discuss about the IEEE OFDM network, it is necessary to introduce the OFDM frame structure. Figure 2.4 shows an OFDMA and OFDM frame when operating in TDD mode. The frame is divided into two subframes: a downlink frame followed by an uplink frame after a small guard interval. The downlink-to-uplink-subframe ratio may be varied from 3:1 to 1:1 to support different traffic profiles.
WiMAX also supports frequency division duplexing, in which case the frame structure is the same except that both downlink and uplink are transmitted simultaneously over different carriers. Some of the current fixed WiMAX systems use FDD. Most WiMAX deployments, however, are likely to be in TDD mode because of its advantages. TDD allows for a more flexible sharing of bandwidth between uplink and downlink, does not require paired spectrum, has a reciprocal channel that can be exploited for spatial processing, and has a simpler transceiver design. The downside of TDD is the need for synchronization across multiple base stations to ensure interference-free coexistence. Paired band regulations, however, may force some operators to deploy WiMAX in FDD mode.

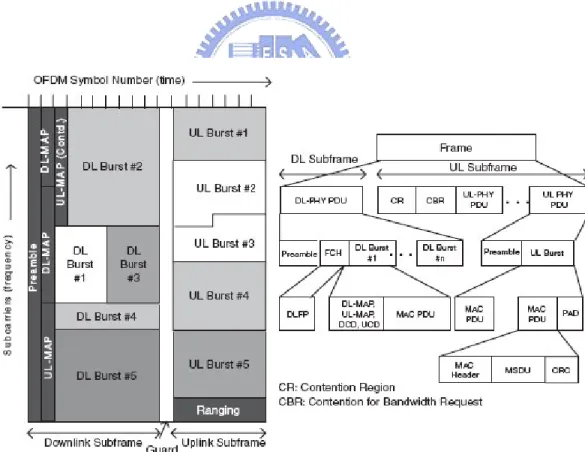

As shown in Figure 2.4, the downlink subframe begins with a downlink preamble that is used for physical-layer procedures, such as time and frequency synchronization and initial channel estimation. The downlink preamble is followed by a frame control header (FCH), which provides frame configuration information, such as the MAP message length, the modulation and coding scheme, and the usable subcarriers. Multiple users are allocated data regions within the frame, and these allocations are specified in the uplink and downlink MAP messages (DL-MAP and UL-MAP) that are broadcast following the FCH in the downlink
subframe. MAP messages include the burst profile for each user, which defines the modulation and coding scheme used in that link. Since MAP contains critical information that needs to reach all users, it is often sent over a very reliable link, such as BPSK with rate 1/2 coding and repetition coding. Although the MAP messages are an elegant way for the base station to inform the various users of its allocations and burst profiles on a per-frame basis, it could form a significant overhead, particularly when there are a large number of users with small packets (e.g., VoIP) for which allocations need to be specified. To mitigate the overhead concern, mobile WiMAX systems can optionally use multiple sub-MAP messages where the dedicated control messages to different users are transmitted at higher rates, based on their individual SINR conditions. The broadcast MAP messages may also optionally be compressed for additional efficiency.
Chapter 3
Related Works
There are many researches about the topics on Quality of Service (QoS) and energy saving in IEEE 802.16e. Part of the researches address on the scheduling problem. Though the IEEE standard 802.16e introduces the details of WiMAX, it does not address on the scheduling part. The challenge is that in order not to violate the QoS constraint and to reduce the most energy consumption, a scheduling algorithm has to be proposed for the traffic in the system. The following paragraphs will present some scheduling approaches for IEEE 802.16e, and a renowned scheduling algorithm called rate-monotonic scheduling which is for CPU processing.
3.1 Scheduling Approaches: MMPS【
【
【3】
【
】
】
】
Three scheduling approaches, MMPS, MMPS-FC, and MMPS-BF are proposed in [3] by Huang. In [3], the length of a common sleeping cycle is determined by the minimum of the sleeping cycles of all MSSs. It does reduce the energy consumption and does not violate the delay constraint of all the MSSs. However, for some MSSs whose sleeping cycles are shorter than the common cycle, it would save more energy if they maintain their own sleeping cycles.
They consider the second type of power saving class in IEEE 802.16e wireless network. The downlink CBR traffic is also considered. Suppose there are multiple MSSs in the system, and each of them has at least one UGS connection. They aim to find a scheduler to achieve the delay requirement of each connection and maximize the power saving. They would like to maximize the bandwidth utilization as well. Their proposed scheduling approaches would be described as follows.
Step1: Find a common fixed sleeping cycle for all MSSs to simplify their scheduling. As shown in figure 3.1, suppose there is a MSS which has three connections. Each of the connections has its own delay constraint, ϕ (frames). In order not violate each delay constraint. The sleeping cycle,Ts i_ , for each MSS Sican be determined by
_ min{ ,1 2, 3,..., }
s i m
T = ϕ ϕ ϕ ϕ (3.1)
For all MSSs, the common fixed sleeping cycle,Tcom(in units of OFDM frames), is determined as the minimum sleeping cycle over all serviced MSSs.
_1 _ 2 _ 3 _
min{ , , ,..., }
com s s s s n
Figure 3.1 The sleeping cycle of a connection
Step 2: Allocate OFDM frames (bandwidth), denoted as ω, for each MSS during a common sleeping cycle Tcom.
i com i T τ ω = × Ω (3.3)
In the equation, τi is the total traffic generation rate of a MSS Si and Ω is the capacity of an OFDM frame.
Step 3: Determine the number of MSSs, denoted as δ , which can be served by a BS. As shown in (3.4), the number of admitted MSSs must be less than or equal to the maximum number of MSSs where their allocated OFDM frames are smaller than the total bandwidth that can be supported by BS during Tcom.
0 arg max { } j i com j i T δ ω = =
∑
< (3.4)allocated OFDM frames overlap free, the BS should delay the starting times of some traffic streams from some MSSs. Figure 3.2 shows the example of MMPS scheduling.

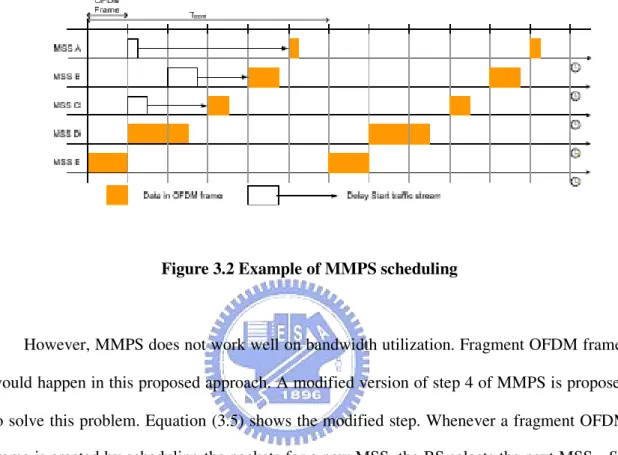

Figure 3.2 Example of MMPS scheduling
However, MMPS does not work well on bandwidth utilization. Fragment OFDM frames would happen in this proposed approach. A modified version of step 4 of MMPS is proposed to solve this problem. Equation (3.5) shows the modified step. Whenever a fragment OFDM frame is created by scheduling the packets for a new MSS, the BS selects the next MSS, Sx, whose required bandwidth is maximal but can fit into the remaining bandwidth of the fragment OFDM frame left by the previously scheduled MSS.
{
}
max ( )
x i
S = frag S and frag S( )i <θ (3.5)
Figure 3.3 Example of MMPS with fragment collection
However, it still wastes some bandwidth if the fragment OFDM frame can not be completely fulfilled by the next MSS. In third approach, MMPS-BF, it breaks the boundary constraint. The scheduling can allocate bandwidth sharing across the boundary of two OFDM frames. Thus, no fragments are left. Figure 3.4 shows this example.
3.2 Rate-Monotonic Scheduling (RMS)【
【
【1】
【
】
】
】
In computer science, rate-monotonic scheduling is a scheduling algorithm used in
real-time operating systems with a static-priority scheduling class. These operating systems are generally preemptive and have deterministic guarantees with regard to response times. Rate monotonic analysis is used in conjunction with those systems to provide scheduling guarantees for a particular application.
RMS is designed for the CPU processing in a hard-real-time environment. There some 5 assumptions.
(1) The requests for all tasks for which hard deadlines exist are periodic, with constant interval between requests.
(2) Deadlines consist of run-ability constraints only—i.e. each task must be completed before the next request for it occurs.
(3) The tasks are independent in that requests for a certain task do not depend on the initiation or the completion of requests for other tasks.
(4) Run-time for each task is constant for that task and does not vary with time. Run-time here refers to the time which is taken by a processor to execute the task without interruption.
(5) Any non-periodic tasks in the system are special; they are initialization or failure-recovery routines; they displace periodic tasks while they themselves are being run, and do not themselves have hard, critical deadlines.
The priorities are set up according to the request rate. The request rate of a task is defined to be the reciprocal of its request period. The higher the request rate is, the higher the priority is. The highest-priority ready process is selected for execution at a specific constant. Figure 3.5 shows an example of rate monotonic scheduling. At the beginning, two processes are ready for transmission. Process 1 gets the higher priority than process 2 due to its higher request rate, so that it would be served first.
Chapter 4
Our Proposed Scheduling Algorithm
4.1 System model
This section gives the whole environment assumptions and the definition of a state that we used on our scheduling algorithm. Suppose that each MSS in a network has one downlink connection. Each connection provides UGS traffic, which generates fixed size data packets on a periodic basis. Besides, each connection of a MSS has a specific delay requirement in which the packets need to be delivered before its expiry time. All the sleeping and listening periods are in units of OFDM frames. Suppose that the following things are known: Di, the delay bound of connection i ; Ti, the inter-arrival time of connection i ; m, numbers of MSSs; Ω, the capacity of an OFDM frame in the system, which implies that there are Ω packets that can be accommodated in a frame. In order to make the system simple, we assume thatDi = Ω . Ti We consider the second type of power saving class in IEEE 802.16e wireless networks. Moreover, suppose that the BS knows that all the queue states of connections anytime. We define a state as follows.
0 i
a = at the time that the head of line arrives. It is clearly to see that ai ≤ when the queue 0 is empty. To be more precise, the value would be represented as− + ≤Ti 1 ai≤Di− . On the 1 hand, in order not to violate the delay constraint, the value would be represented as 0≤ai ≤Di− . Figure 4.1 is an example. Suppose that there is a connection whose 1 inter-arrival time equals to 2 and delay bound equals to 4. Obviously, Ω is 2 in this case. The value ai is set to be zero when the first packet arrives, and it increases progressively until it is served. As in the example, the packets are in service afterai = , and then 2 ai becomes − 1 due to that the MSS needs to wait for a frame for its next coming packet.
Let
{ }
a be the states of all queues of MSSs at a certain instant, where i i=1 ~m.Figure 4.1 The example of ai
4.2 Proposed Algorithm
In this thesis, our main goal is to propose an energy-efficient scheduling algorithm for CBR traffic in IEEE 802.16e OFDM wireless networks. With the assumption Di = Ω , it is Ti easy to see that the BS could accumulate more than one packets for a connection, and deliver these packets at a time instead of delivering one packet per time. Among these conditions, we can observe that, for a MSS, the most packets in the queue would be Ω. From the point of
MSSi
-1 0 1 2 -1 0 1 2 3 0 1 2 3
ai
D=4 T=2
view of power saving, a MSS could only wake up and receive them when the queue is full of Ω packets, otherwise it enter the sleep mode. However, it decreases the system throughput if we let the connection only receive Ω packets at a time. We use the state mentioned in Section 2 to represent when a connection is ready to be served.
We call that a connection becomes eligible when it is ready to be served. A connection would request for the service from the BS when it becomes eligible. To unify the connections in the system, we separate the services into several conditions, i.e. Ω Ω −, 1,...,Ω −k,...,1. Each condition has its eligible value which can be represented as ai in Table 1. Take the Ω case for example, since ai increases progressively and a connection becomes eligible when it accumulates Ω packets in the queue. The eligible value ai for this case is from Di−Ti to
1 i
D − . Here in the paper, we only consider the Ω case.
Eligible conditions Eligible values
Ω Di - 1 a≧ i ≧ Di - Ti
Ω, Ω-1 Di - 1 a≧ i ≧ Di - 2Ti
Ω, Ω-1, Ω-2 Di - 1 a≧ i ≧ Di - 3Ti
Ω, Ω-1, Ω-2, …, Ω-k Di - 1 a≧ i ≧ Di - (k+1)Ti
Table 4.1 The eligible values of eligible conditions
4.2.1 Scheduling policies
Here in this thesis, we adopt the static priority scheduling. The followings are the scheduling policies.
The smaller the inter-arrival time is, the higher the priority is. We can describe it as
1 2 m
T ≤T ≤≤T . Connection 1 gets the highest priority, and connection m gets the lowest priority. Notice that the BS would randomly set up the priorities when Ti=Tj, for all 1≤i j, ≤m, i≠ . j
Step 2: Set up the eligible values ai of each MSS. Here, we set them as 1
i i i i
D −T ≤a ≤D − , i.e. the Ω case.
Step 3: A connection requests for service when it becomes eligible, which means it is ready to be served. The highest priority connection will be selected to be served when there is more than one eligible connection.
This scheduling algorithm can be described as follows. At the beginning of a frame, the BS picks an eligible connection j for service if and only if connection j has packets waiting for service and connection i does not for all i< . j
4.2.2 The waiting time of next service
Since the BS knows the inter-arrival time, the delay bound, and the state of each connection, it can calculate the waiting time of next service for each connection. That is to say, if connection i will be in service at a specific instant, the BS can notice connection i that how long it can sleep from this service and when it should wake up to be served next time. Figure 4.2 shows the waiting time of next service for connection i.
after the th
Ω packet arrives and before the next packet arrives. We call this interval as in eligible region. In figure 3, suppose that at a specific instant, connection i would be in service when its state is ai. In the meantime, the state for connection k is ak, where
1 ~ 1
k = i− . These connections are not eligible at this instant because if they are eligible, connection i would not be selected to be served at this instant.
We assume that li represents the interval between this service instant and the beginning of next eligible region. There are i− connections whose priorities are higher than 1 connection i and they will be selected for service if they are eligible as well in the next eligible region of connection i . Therefore, the BS has to calculate how many connections among these i− connections will be in service in this region, and notice connection when it 1 should wake up to receive data. Besides, for connection k (k =1 ~i− ), suppose that 1 lk represents the interval between its state is ak and the beginning of its next eligible region. It is clear to see, after the state ak, the interval up to the beginning of the eligible region can be represented as lk +sDk , where Dk is the delay bound of connection k , and
0,1, 2, ... ,
Figure 4.2 The waiting interval of the next service
For connection i , set
{ } {
L = 1, 2, 3,...,li+Ti−1}
, which represents the intervals from t1 to frames afterwards. The maximum element in this set is li+Ti− . On the other hand, for 1 connection k ( k=1 ~i− ), set 1{ } {
Lk = lk+sDk}
, for all lk +sDk ≤ +li Ti− , and 10,1, 2, ... ,
s= etc. Since these i− connections have higher priorities than connection i , we 1 have to consider their schedules. While calculating these schedules, we let the BS start from connection 1 to connection i− . The method would be described as Figure 4.3. 1
When a connection is chosen for service, the BS would set up its
{ }
L first. Then, the BSwould find out all
{ }
Lk . Starting from connection 1, the BS would check if there is anyelement in
{ }
Lk matches elements in{ }
L . Here, what we call matches means the sameelements. If there is any match, it collects them in
{ }
Lk' . If not, let the elements increases progressively, and check these values again. It would not stop this procedure till the valueincreases up to lk +sDk+T. After collecting all the elements of
{ }
Lk' , we update{ }
L as{ } { } { }
L = L − Lk' . Once it finishes the schedule of connection i− , the waiting time of 1 connection i would be the minimum in{ }
L during the interval ( ,l li i+Ti).After t1, for any connection whose priority is lower than connection i , the BS already knew its service instant and next service instant if it does not exceed the current schedule time. If it exceeds the current schedule time, this connection should calculate the schedules again. On the other hand, for any connection whose priority is higher than connection i , the BS should definitely calculate again because it only records the schedules of lower priority connections.
The advantage of this method is that the BS would not have to calculate every time when there is any connection in service, i.e. it reduces complexity at some extent.
The algorithm for calculating the waiting time is shown at the end of this section.
Figure 4.4 is an example of the waiting time of next service. We can simply put it as follows. Suppose that there is a connection which is ready to be served, the BS should look ahead to the end of its next eligible region. If it exceeds the current schedule time, the BS should re-calculate and schedule the exceeding time interval. If not, the BS does not have to do anything due to it already know its next service time.
Figure 4.4 Example of the waiting time of next service
Scheduling algorithm of the waiting time of next service
1. While ( Service StartTransmission ) do
2. i= priority_service
3. end_of _next eligible time_ _ = Ω −2 Ti ai
5. schedule time_ =end_of _next_eligible time look_ − _ahead
6. For (j=1;j= +j 1: j< ) i
7. FrameAllocation ( ,j schedule time ) _
8. End For
9. FrameAllocation ( ,j schedule time ) _
10. L i( )=
{
1, 2, ... ,schedule time_}
11. start of_ _next_eligible time_ = lj
12. For (t=0;t= +t 1;lj+tDj<schedule time_ )
13. s=lj+tDj
14. For (k =1;k= +k 1;k ≤schedule time_ )
15. If ( s= ) then k 16. L i( )=L i( )− k 17. Else 18. For (w=1;w=w+1;w<Tj) 19. s= +s w 20. If ( s= ) then k 21. L i( )=L i( )− k
Chapter 5
Admission Control
In this section, we would like to discuss the admission control of our proposed scheduling algorithm. As in [2], we discuss the schedulability test first. We have to derive a schedulable condition. And then we adopt the empty-minus-backlog curve to obtain the minimum inter-arrival time of the next acceptable connection. Besides, connection i is schedulable iff every packet of connection i is served within Di frames after it arrives; and
1..m
D is schedulable if connection i is schedulable for all i . (where 1 2 3
[D D D, , , ... ,Dm]
=
1..m
D ) represents these m connections with delay bounds)
5.1 Schedulability test
As mentioned above, a connection becomes eligible after the Ωth packet arrives at the queue. This connection has to be served before the head of line goes out of date. Figure 5 shows the eligible region of a connection. ( D= Ω ) A connection is requested for service T when it becomes eligible. In Figure 5.1, this connection is requested at the beginning of the eligible region. As in [1], we define the response time as the time span between the request and the end of the response to that request. For example, if a packet arrives at the beginning of
frame n and is served in frame k, its response time is k− + . n 1
Also, we define a critical instant as an instant at which a request for that connection will have the largest response time. We have the following theorem: A critical instant for any connection occurs whenever it is requested simultaneously with the requests for all higher priority connections. It can be proved in figure 6. Let connection 1, connection 2, … , and connection m denote a set of priority-ordered connections with connection m being the connection with the lowest priority. Consider a particular request for connection m that occurs at t1. Suppose that between t1 and t1+Tm, the time at which the subsequent request of
connection m occurs, requests for connection i, i < m occur at t2, t2+ 2T1, …, t2 + kT1 as
illustrated in figure 6. Clearly, connection i will be in scheduled first after t1, and each of them
will accommodate an OFDM frame. Hence, for connection m, it would get the largest response time if it is requested at the time that connection i is requested as well. Repeating the argument for all connection i, i = 2, …, m-1, we prove that theorem that a critical instant for any connection occurs whenever the connection is requested simultaneously with requests for all higher priority connections.
Figure 5.2 Services of connection 1 between requests for connection m
As a consequence, to study the schedulability problem of a set of m connections, we need only consider the situation where every connection is requested at the same time, i.e. all the connections just become eligible and ready to receive Ω packets. We only need to consider the situation that every connection generates the Ωth packet at the beginning of the frame 1.
It is known in [2] that the schedulable condition for rate-monotonic scheduling is described as follows: Connection k is schedulable iff there exists an fk such that 1≤ fk ≤Tk, and 1 ,1 k k j k k k j f D f f D = ≤ ≤ ≤
∑
, where Dj represents the delay bound of connection j. This condition occurs if all the connection generates a packet at the beginning of frame 1.We can modify this statement to meet our conditions: Connection k is schedulable iff there exists an fk such that 1≤ fk ≤Tk, and
1 ,1 k k k k k j j f f f T T = ≤ ≤ ≤ Ω
∑
(5.1)where j=1 ~k. If we can find an interval fk andfk is bigger than or equal to the number of requests up to fk, we can say connection k is schedulable.
5.2 The empty-minus-backlog curve
As in [2], we define the empty-minus-backlog curve H f( ), 1≤ f ≤C, where C is the upper bound of the maximum inter-arrival time of any connection. The function H f( ) is as follows, 1 ( ) m j j f H f f T = = − Ω
∑
(5.2)An example of H f( ) for D1..3=[4, 4, 6]is shown in figure 5.3. It is clear to see that [2, 2, 3]
=
1..3
T due to Ω=2 in this case. ( T1..m =[ ,T T T1 2, 3, ... ,Tm] represents these m connections with inter-arrival time.) In this figure, H f( ) is drawn as a continuous curve for clarity and the value of H(f) is shown at the end of frame f. We let H(0)= − so that m
(0)
H m
− = represents the number of requests waiting for service, i.e., backlog at the beginning of frame 1. Besides, on the x-axis, the number Tiis shown in frame f if connection i
is served in that frame. In the function H f( ), 1 / m j j f T = Ω
∑
means the total number of requests up to frame f so that H f( ) represents the total number of frames minus the total number of requests up to frame f. Notice that the frame without an number on that frame is called an empty frame. It means that there is no connection would be served in the frame.Figure 5.3 An example of the empty-minus-backlog curve
It is shown in [2] that H f( ) is equal to the number of empty frames up to frame f minus the backlog at the end of frame f. That is to say, if E f( ) and B f( ) denote, respectively, the number of empty frames up to frame f and the backlog at the end of frame f, then we have H f( )=E f( )−B f( ).
Moreover, connection m is schedulable iff the curve H f( ) ever hits the x-axis up to frame Dm, where Dm represents the delay bound of the connection m. (i.e., connection m has
to be served before the end of frame Dm.) Similarly, connection k is schedulable iff the curve
( )
H f ever hits − + up to frame Dm k m. Notice that a connection k is schedulable implies
its packets would be served no later than frame Dk. As in figure 7, for connection 3, it has to
be served before the end frame 3, which implies the curveH f( ) has to hit the x-axis before frame 3. On the other hand, for the other two connections, we can verify the descriptions as well. This can be shown as follows, D1..m is schedulable iff there exists an fk, 1≤ fk ≤Tk, such
5.3 The minimum inter-arrival time of next acceptable connection
Also, from the curve H f( ), we can derive the minimum inter-arrival time of a connection that can be added to the existing m connections. There are two topics that we should concern about here. One topic is that the new connection should not to violate the schedulability of these existing m connections. The other is the new connection must be schedulable in the system, which is already proven in [2].
We consider the effect of adding a new connection with inter-arrival time T to connection m first. Suppose there is more than one empty frame before the end of frame Dm.
And we say frame f is a maximum (of connection m) iff it is an empty frame and
( ) ( 1)
H f ≥H f + . It is shown in [2] that if one can move the packets to an empty frame, in order to maintain the schedualbility of connection m, the minimum period of the new connection is equal to [ /f H f( )]. Moreover, it is proven that we only need to consider the maxima before Dm. Therefore, in our case that D= Ω , if we consider one of the maxima, the T
minimum inter-arrival time will be f H f/ ( ) / Ω . We can get the following statement.
If there are i maxima f1, f2, … , and fi up to frame Dm, then
, 1 / ( ) min k k next m k i f H f T ≤ ≤ = Ω (4.2)
Figure 8 shows another example of H f( ). In this figure, connection 5 (suppose the connection number increases from the left to the right) has to be served before the end of frame 12. There are two maxima in this case. Hence, in order to maintain the schedulability of connection 5, Tnext,5= . 1
In the case that there is no empty frame before the end of Dm. Suppose that the first
empty frame occurs at fe. The minimum inter-arrival time of next acceptable connection will
be Tnext m, =fe/Ω . Figure 9 shows an example of this kind of case. The first empty frame
occurs at the end of frame 4. Hence, Tnext,3 = . 2
Figure 5.5 H(f) for D1..3 = [4, 4, 6]
Let us consider the effect of adding a new connection to connection m− . Similarly, we 1 can find Tnext m, −1, the minimum inter-arrival time of the new connection subject to the constraint that connection m− is served no later than frame 1 Tm−1. A maximum now is defined as a frame f which satisfies 1≤ f ≤Tm−1, H f( )> , 0 H f( )>H g( ) for all g< f and H f( )≥H f( +1). We can obtain the following formula:
, 1 1 ( ) 1 min k k next m k i f H f T − ≤ ≤ + = Ω (4.3)
Notice that it has H f( ) 1+ in the formula, which is different from the case when we consider connection m. This is because here in the case m− , we only discuss about the 1
schedulability about itself.
Also, if there no maximum up to Tm−1, then set Tnext m, −1=f0/Ω , where f0 is the first frame where H f( )= . 0
Finally, we can find Tnext j, , for all i, 1 i≤ ≤m. A maximum is modified as a frame which satisfies 1≤ f ≤Ti , H f( )> − + +m i 1 , H f( )>H g( ) for all g< f and
( ) ( 1)
H f ≥H f + . Then, we can get Tnext j, as follows,
, 1 ( ) min k k next j k i f H f m j T ≤ ≤ + − = Ω (4.4)
Now, we have known all the inter-arrival time of next acceptable connection without violating the scheduability of each connection. The value Tnext will be like below,
{
}
1 , max j m next next j T T ≤ ≤ = (4.5)Therefore, Theorem 4 in [2] can be re-written as follows,
If H f( )≤ , for all f, 10 ≤ f ≤C, then no more connection can be accepted in the system. If H f( )>0, for some f ≤C, then the minimum inter-arrival time of next
acceptable connection is given by
{
}
1 , max j m next next j T T ≤ ≤ =
Chapter 6
Numerical Results
In this section, we show our simulation results. There are four evaluation metrics in our simulation, which are the average sleeping cycle, channel occupancy, bandwidth efficiency and the number of serviced MSSs.
The average sleeping cycle is measured as the sleeping interval plus listening interval. The channel occupancy implies the ratio of the bandwidth used in the whole simulation. The bandwidth efficiency shows the average ratio of the bandwidth used in a frame.
6.1 Environment setup
The second type of power saving class defined in IEEE 802.16e is adopted here. We only consider the downlink scheduling for UGS traffic. Each MSS has only one connection. Refer to the ITU Telecommunication Standardization Sector (ITU-T) for VoIP, the followings are the parameters what we use in this simulation.
of type 1 and m connections of type 2. We compare our proposed methods to MMPS and MMPS-BF. Proposed A is each connection becomes eligible if it accumulates Ω in the queue, while proposed B is Ω − . The second part is evaluated with m connections of type2 , type 3, 1 and type 4. We compare these methods as well.
Inter-arrival rate (type 1) 15ms
Inter-arrival rate (type 2) 30ms
Inter-arrival rate (type 3) 60ms
Inter-arrival rate (type 4) 90ms
Delay constraint (type 1) 150ms
Delay constraint (type 2) 300ms
Delay constraint (type 3) 600ms
Delay constraint (type 4) 900ms
OFDM frame length 5ms
Frame capacity (Ω) 10
Table 6.1 Simulation parameters
6.2 Numerical results
Figure 6.1, 6.2, 6.3 are the simulation of the first part, and figure 6.4 and 6.5 are of the second part. In figure 6.1, the amount of sleeping cycle of MMPS and MMPS-BF are all the same. This is because they are bounded in a constant sleeping cycle, which is called the common sleeping cycle of all connections. The amount of proposed A (Ω case) and proposed B increases while the number of type 2 MSS increases. However, proposed A only can accommodate 5 connections of type 2, the curve would not rise up after 5 connections. This is
because that all the connections are supposed to be served before the head of line in the queue expires. Similarly, one can observe that proposed B would not rise up after 11 connections due to there is no more capacity for any other connection to add in.
Figure 6.1 The average sleeping cycle
Figure 6.2 shows the channel occupancy. We can observe that all the curves are tend to rise up while the number of type 2 MSS increases. The ratio of MMPS is getting higher with the increase of number of stations. Almost every other adjacent two points are at the same value in the curve of MMPS-BF. The reason is that each type 2 MSS occupy half of a frame now. Besides, the two proposed methods are going up from the beginning. Due to the same reason described before, proposed A maintains the same ration after 5 connections, and so does proposed B after 11 connections.
0 1 2 3 4 5 6 7 8 9 10 11 12 0 10 20 30 40 50 60
Average Sleeping Cycle
Number of MSS of type 2 S le e p in g C y c le ( fr a m e s ) MMPS MMPS-BF Proposed A Proposed B
Figure 6.2 Channel Occupancy
In figure 6.3, it shows the bandwidth efficiency. Proposed A obtains the best bandwidth efficiency with the ratio is equal to 1. This is because the each connection would only be served while its queue is full of Ω packets, and Ω is also the frame capacity. Proposed B performs worse than A by less than 0.1. The reason is that Ω-1 would not fully utilize the bandwidth of a frame. The curve of MMPS goes down while the number of type 2 MSS increases. The reason is that when there is no type 2 connection, the common sleeping cycle would be the sleeping cycle of type 1, and it would definitely be served Ω packets per time. But with adding type 2 MSS in the system, the average bandwidth efficiency would get lower due to type 2 can not fully utilize its bandwidth. As what we explain before, in MMPS-BF, each connection occupies half of a frame so that the points would be equal to 1 every other two adjacent connections.
0 1 2 3 4 5 6 7 8 9 10 11 12 0 0.1 0.2 0.3 0.4 0.5
Channel Occupancy
Number of MSS of type 2 R a ti o MMPS MMPS-BF Proposed A Proposed BFigure 6.3 The bandwidth efficiency
Figure 6.4 and figure 6.5 show the second part of our simulation. In figure 6.4, because MMPS and MMPS-BF have a common sleeping cycle, the number of serviced MSSs would be bounded at 30 here. However, Proposed A only can accommodate 3 connections (m= , 1 i.e. one type 2, one type 3, and one type 4 connections.) while proposed B accommodate 6 connections. (m= , i.e. two type 2, two type 3, and two type 4 connections.) 2
0 1 2 3 4 5 6 7 8 9 10 11 12 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1
Bandwidth Efficiency
Number of MSS of type 2 R a ti o MMPS MMPS-BF Proposed A Proposed BNumber of Serviced MSSs
0 5 10 15 20 25 30 35 MMPS MMPS-BF Proposed A Proposed B MSS numberFigure 6.4 Number of serviced MSSs
Figure 6.5 shows another point of view of bandwidth efficiency. Suppose that the simulation here would not violate the system capacity. Proposed A achieves 1 of the bandwidth efficiency. Proposed B achieves 0.9 due to Ω − is equal to 9. The ratio of 1 MMPS-BF is almost the same as proposed B. Besides, MMPS performs the worst among the four methods.
Bandwidth Efficiency
0 0.2 0.4 0.6 0.8 1 1.2 MMPS MMPS-BF Proposed A Proposed B RatioFigure 6.5 Bandwidth efficiency
From the results above, we can conclude that Proposed A achieves longer sleeping cycle and better bandwidth efficiency than the other three methods, but it performs the worst throughput. Obviously, there is a tradeoff between bandwidth efficiency and system throughput.
Chapter 7
Conclusions
This thesis proposes a scheduling algorithm with a system model under the assumption that D= Ω . We derive the admission control of this algorithm as well. The main idea of the T admission control is to find the minimum inter-arrival time of next acceptable connection.
Our proposed method performs well in the average sleeping cycle and the bandwidth efficiency, but achieves worse system throughput than MMPS and MMPS-BF. In this paper, we only discuss the theoretical system model of Ω case. In the future, we will introduce
, 1 ~ 1
k k
Bibliographies
[1] C. L. Liu and J. W. Layland, “Scheduling algorithms for multiprogramming in hard real-time environment,” Journal of ACM, vol.20, pp.44-61, Jan. 1973.
[2] T. H. Lee and A. B. Chang, “Fast admission control for rate monotonic schedulers,” IEICE Trans. Commun., Vol.E82-B, No.1 Jan. 1999.
[3] S. C. Huang, R. H. Jan, and C. Chen, “Energy efficient scheduling with QoS guarantee for IEEE 802.16e broadband wireless access networks,” In proceedings of IEEE International Wireless and Mobile Computing Conference 2008.
[4] IEEE Std 802.16e, “IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed and Mobile Broadband Wireless Access Systems,” Feb. 2006.
[5] J. G. Andrews, A. Ghosh, and R. Mohamed, “Fundamentals of WiMAX, Understanding Broadband Wireless Networking,” Prentice Hall Feb. 2007.
[6] Y. L. Chen and S. L. Tsao, “Energy-efficient Sleep Mode Operations for Broadband Wireless Access Systems,” In proceedings of IEEE Vehicular Technology Conference 2006.
[7] Dinh Thi Thuy Nga, and M.G. Kim, “Delay-guaranteed Energy Saving Algorithm for the Delay-sensitive Applications in IEEE 802.16e systems,” IEEE Transactions on
Consumer Electronics, 2007.
[8] A. K. Parekh, and R. G. Gallager, “A Generalized Processor Sharing Approach to Flow Control in Integrated Services Networks: The Single-Node Case,” IEEE Transactions on Networking, 1993.
[9] Vandana Singh and Vinod Sharma, “Efficient and Fair Scheduling of Uplink and Downlink in IEEE 802.16e OFDMA Networks,” In proceedings of IEEE Wireless Communication and Networking, 2006.
[10] Q. Zhao and Danny H. K. Tsang, “An Equal-Spacing-Based for QoS Guarantee in IEEE 802.11e HCCA Wireless Networks,” IEEE Transactions on Mobile Computing Nov., 2008.
[11] J Jang, K Han, S Choi, “Adaptive Power Saving Strategies for IEEE 802.16e Mobile Broadband Wireless Access,” IEEE Asia-Pacific Conference on Communications, 2006.
[12] J Shi, G Fang, Y Sun, J Zhou, Z Li, and E Dutkiewicz,”Improving mobile station energy efficiency in IEEE 802.16e WMAN by burst scheduling,” IEEE Globecom, 2006.
[13] L Kong, Danny H.K. Tsang, “Optimal Selection of Power saving classes in IEEE 802.16e,” In Proceedings of IEEE Wireless Communications and Networking Conference, 2007.
[14] L. Tian, Y. Yang, J. Shi, E. Dutkiewicz, and G Fang, ”Energy Efficient Integrated Scheduling of Unicast and Multicast Traffic in 802.16e WMANs,” IEEE Globecom, 2007.
[15] S. Zhu, T. Wang, “Enhanced Power Efficient Sleep mode operation for IEEE 802.16e based WiMAX,” IEEE Mobile WiMAXSymposium, 2007
Mobile WiMAX,” In Proceedings of IEEE Wireless Communications and Networking Conference, 2007.
[17] Y Ge, GS Kuo, “An efficient sleep mode management scheme in IEEE 802.16e networks,” IEEE International Conference on Communications, 2007.
[18] X. Perez-Costa, D Camps-Mur, “AU-APSD: Adaptive IEEE 802.11e Unscheduled Automatic Power Save Delivery,” IEEE International Conference on Communications, 2006.
