• 沒有找到結果。

氫化物氣相磊晶之側向蔓延磊晶技術之研究

N/A
N/A
Protected

Academic year: 2021

Share "氫化物氣相磊晶之側向蔓延磊晶技術之研究"

Copied!
4
0
0

加載中.... (立即查看全文)

全文

(1)

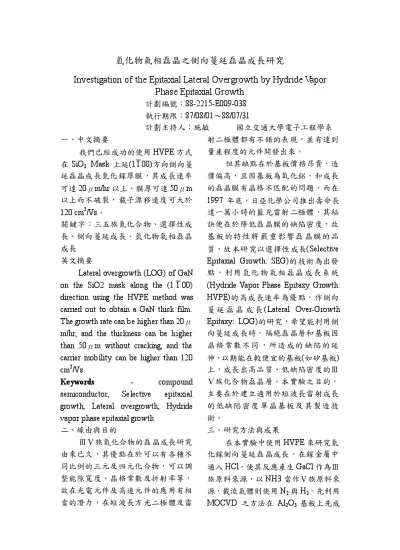

Investigation of the Epitaxial Lateral Overgrowth by Hydride Vapor

Phase Epitaxial Growth

88-2215-E009-038  87/08/0188/07/31     !"#$%&'() HVPE *+ , SiO2 Mask -.(11 00)*/0/1 .23%456789:;%4<= >? 20@m/hr A-:98>? 50@m A-BCDE:FGH<I>J 120 cm2/VsK LMN56OPQRS% 40/1.%4T6PUV23 %4 W

Lateral overgrowth (LOG) of GaN on the SiO2 mask along the (11 00) direction using the HVPE method was carried out to obtain a GaN thick film. The growth rate can be higher than 20@ m/hr, and the thickness can be higher than 50@m without cracking, and the carrier mobility can be higher than 120 cm2/Vs.

Keywords   -  compound semiconductor, Selective epitaxial growth, Lateral overgrowth, Hydride vapor phase epitaxial growth

XYZ[\' ]^N56OP'23%4_` Za#b:;cd,J>AefgC hij'Lklmk6OP:>An opqrI3stulvw=x: y,zk{l|<k{'})eV ~'€:,‚4*zXƒ„l… wXƒ„†eC‡'ˆ‰:Še?‹ ŒI'k{ŽaK ‘;’d,J“”•s–—:˜ •™|:𛓔œ6ž:Ÿ%4 '239e3sC ¡'¢£:B, 1997 ¤¥:¦§6¨©ª«¬4 ?­®¯'°z…wXƒ„:;± ²³,J´µ239'’¶·I:y “”'¸S¹ º»¼½2 39'¾ ¿:yÀ_`AQRS%4(Selective Epitaxial Growth: SEG)'Áœ d:Ã)T6 PUV23 %4Ä (Hydride Vapor Phase Epitaxy Growth: HVPE)'|%4<=œcd:Å0/ 1 . 2 3 % 4 (Lateral Over-Growth Epitaxy: LOG)'_`:ÆÇpÃ)0 /1.%4¯:ÈÉ23ʟ“”› 3stuCh :˘%' ’¶'. Ì:Ap,ͳÎ'“”(ÏГ”) -:%4|¾¿µ’¶·I'] ^N6OP23ÊKÀÑÒÓ\': ,JÔÕ)J‚4…w%4 'µ’¶·I Ö3“”l ;טÁ ÂK L_`*Ø[%Ù ,ÀÑÒ() HVPE a_`5 670/1.23%4K,7ÚÛ Ü HCl:(;Ý}Þ GaCl Ŝ] Nßàaá:A NH3 ~Å^Nßàa á:FâU„ã() N2[ H2KäÃ) MOCVD Ó*Ø, Al2O3 “”-ä%

(2)

4Ê 50nm Óµ å56 7 buffer layer:æ%4Ê 2@m Ó567:à ) PECVD Ó*Ø,567-ç- Ê 100nm Ó SiO2Ŝ mask:æAè ¼ % é ÂÓ * Ø , SiO2 -ê ë ì (112 0)[(1 1 00)Xí*/ސîïð ñ:ÏðËò:îïrIœ 3@m: îï[îïóôœ 4@mKæ¹-õÓ 2@m 567öœ HVPE %4567 0/1.23%4ӓ”:HVPE Ó% 4åIœ 1050÷:%4<=œ 1050 @m/hrK møÙ[ùú ZJ SiO2ŠCûüý3gþ56

7:›A HVPE '*؊Cû, SiO2

-%4567:BûZ SiO2îï

Ó567-%4: SiO2

Mask:ã, SiO2 Mask-0/1 .%4: B(îï[îïó0/1 .%4Ó567 a:B%œ5 67 9K ðXËòœ567, SiO2 Mask -.(11 2 0)*/0/1.23%4Ó SEM 0 ð:Zð>:567  SiO2 Mask:, SiO2 Mask-0/

1.%4%LKB567, (0001)Ó%4<=œ 70@m/hr:, (112 0)*/0/1.%4<=㜠3@m/hr:(0001)[(11 2 0)Xí*/Ó %4<=ijœ 23KZ‰: !">:567,(11 2 0)*/Ó 0/1.%4}œ 3-D %4:› 3-D %4J<:J0/1.%4 <=:B(567 SiO2 Mask: , SiO2 Mask -0/1.%4%L K îï[îïó0/1. %4Ó567 a:%œ567 9Ñ,A?‹:øÙŠ!" Ë ‹'Kœ !"¢£: !"#, SiO2-ì(1 1 00)*/ސî ïðñ:»$ÑÒK ðLËòœ567, SiO2 Mask -.(1 1 00)*/0/1.23%4Ó SEM 0 ð:Zð>:567  SiO2 Mask:, SiO2 Mask-0/

1.%4% 4%KB 567, (0001)Ó%4<=œ 34@m/hr:, (11 00)*/0/1.%4<=㜠31@m/hr:(0001)[(1 1 00)Xí*/Ó %4<=ijœ 1.1:&Xí*/ '%4<='()KZ‰: !">:567,(1 1 00)*/Ó 0/1.%4e*'+, 3-D %4l X-%.*}:B/œ 2-D %4:› >ª5650/1.%4Ó01 [%4Ó*/SeÉ2Ó34:BA (11 00)*/0/1.%4‹Í0Ó øÙ:Šš¹ HVPE '^/]iü|: >¹îï[îïó0/1.%4Ó5 67 a:%œ56789:› 0/1.23 %4>´µ 567[ Al2O3“”Óó'}€:>e*56X 7›89:4u;<B=>˘%' DEK

A?ÚÛ@A SiO2 Mask:hB

Aè¼%éÂì(1 1 00)*/ސîï ðñ:A HVPE »$ÑÒ:!"> ‹[ SiO2 MaskVh'øÙ:¹567

a:%œÊ89:š›;œ 2-D %4:yˆ Morphology V~Co: ÏðmËòK ;%4<=[FGH<I'3 4ÏðMËò:~%4<=DE¯: ;FGH<IûV2'´µ:>p Fîï[îïó0/1.%4Ó56 7 a¯:›%4<=:Þ

(3)

GHBÞ dislocationK~%4<=D E¯:,567IOJ'GHIK :BÞKL' dislocation:V2 M:&´µ567'FGH<IK œ NOGH<I[%4<=:>P )QRS%4'*+:Tä:ä´µ %4<=:UXV'567 a: Š‹ÍW'IO:Óæü|% 4<=:A‹56789K* +‹Ó89:;FGH<I>?  120 cm2/Vs:;8I>? 50@mK Møú !"#$%&'() HVPE *+ , SiO2 Mask -.(11 00)*/0/1 .23%456789:;FG H<I>? 120 cm2/VsA-:%4< =>? 20@m/hr A-:;8I>? 50 @m A-:BCûDEK›0/1. 23%4>´µ567[ Al2O3 “” Óó'}€:>e*56X7›89 :4u;<B=>˘%'DEKX Y'Z£&F_`Ï[DE567 98:BC(89DE:Š Y¹ 56789\] Al2O3“”K ^_`a

[1] T. Shibata, H. Sone, K. Yahashi. M. Yamaguchi. K. Hiramatsu, N. Sawaki, N. Itoh, J. Crystal Growth, 189/190(1998) 67-71.

[2] S. Nakamura, T. Mukai, M. Senoh, Appl. Phys. Lett. 64(1994) 1687. [3] S. Nakamura, M. Senoh, S.

Nagahama, N. Iwasa, T. Yamada, T. Matsushita, H. Kiyoku, Y. Sugimoto, Jpn. J.Appl. Phys. 35(1996) L74. [4] S. Kurai, Y. Naoi, T. Abe, S. Ohmi, S.

Sakai, Jpn. J.Appl. Phys. 35(1996) 1637.

[5] A. Usui, H. Sunakawa, A.A. Yamaguchi, Jpn. J.Appl. Phys. 36(1997) 899.

[6] Y. Kato, S. Kitamura, K. Hiramatsu, N. Sawaki, J. Crystal Growth, 144(1994) 133. bðˆ ðX 567, SiO2 Mask-.(112 0) */0/1.23%4Ó SEM 0 ð SiO2 4m 567 2@m LT-567 50nm Sapphire (0001) 3m ð SiO2/567/Sapphire 0 ð

(4)

ðL 567, SiO2 Mask-.(11 00) */0/1.23%4Ó SEM 0 ð ðm ,?ÚÛ Mask -.(11 00)*/ 0/1.23%456789Ó ˆ Morphology ðM %4<=[FGH<I'3 4 0 20 40 60 80 100 5 10 15 20 25 Growth Rate (m/hr) Mobility (cm2/Vs

參考文獻

相關文件

(Some campers may react faster than others to familiar words.) 5. The game can be repeated for a few rounds.. Before starting the game, the camp leaders show the campers both

The entire moduli space M can exist in the perturbative regime and its dimension (∼ M 4 ) can be very large if the flavor number M is large, in contrast with the moduli space found

Indeed, in our example the positive effect from higher term structure of credit default swap spreads on the mean numbers of defaults can be offset by a negative effect from

The closing inventory value calculated under the Absorption Costing method is higher than Marginal Costing, as fixed production costs are treated as product and costs will be carried

• If a graph contains a triangle, any independent set can contain at most one node of the triangle.. • We consider graphs whose nodes can be partitioned in m

The internationalization of Japanese higher education: Policy debates and realities[M]//Higher education in the Asia-Pacific... 国家。学术与科研能力也显著提高,目前

Through the help of this study, the inconvenient of insufficient information of biological pilot plant can be improved, the manufacture security can be promoted, and the

This can be used to guide small and medium construction industry to setup occupational safety and health management.. The checklists can be used to build and evaluate
