New pixel circuits for driving active matrix organic light emitting diodes

Bo-Ting Chen

a,*

, Ya-Hsiang Tai

b

, Yu-Ju Kuo

c

, Chun-Chien Tsai

a

, Huang-Chung Cheng

a

Department of Electronics Engineering and Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan

b

Department of Photonics and Display Institute, National Chiao Tung University, Hsinchu 300, Taiwan

c_{LCD Product Technology Division, Array Cell Design Department, AU Optronics Corporation, Hsinchu 300, Taiwan}

Received 23 September 2005; received in revised form 2 December 2005; accepted 20 December 2005

The review of this paper was arranged by Prof. Y. Arakawa

Abstract

New pixel circuit designs for active matrix organic light emitting diodes (AMOLEDs), based on the low-temperature polycrystalline silicon thin-film transistors (LTPS-TFTs) were proposed and verified by SPICE simulation and fabrication results. Threshold voltage compensation pixel circuits consisting of five TFTs, one additional control signal, and one storage capacitor were used to enhance display image uniformity. The simulation and measured results show that this pixel circuit has high immunity to the variation of poly-Si TFT characteristics.

Keywords: Pixel design; AMOLED(active matrix organic light emitting diode); LTPS-TFTs(low-temperature polycrystalline silicon thin-ﬁlm transistors)

1. Introduction

Organic light emitting diode (OLED) displays are widely researched and investigated nowadays due to various advantages such as fast response time, wide viewing angle, compact, simple structure and light weight[1–11]. Besides, active matrix driving methods are better than passive matrix driving for displays with high resolution and large panel size [1]. In this paper, low-temperature poly-Si thin-ﬁlm transistors (LTPS-TFTs) are used to drive OLED device, since they have possession of higher driving capa-bility due to the higher mocapa-bility than that of amorphous Si TFTs.

Although LTPS-TFTs have good characteristics, the inevitable non-uniformity problem is encountered because of process variation such as uncontrollable gate oxide trap density and grain size of poly-Si. In conventional pixel

cir-cuit design, the variation of TFTs will cause non-uniformity across the display. As a result, various compen-sation methods have been reported to overcome this problem. These circuits can be classiﬁed into voltage driving [1–6,10], current driving [5,8], and digital driving

[11].

In this paper, two new voltage programming pixel cir-cuits which consist of ﬁve poly-Si thin-ﬁlm transistors, a storage capacitor and one additional control signal were developed. The simulation and experimental results show that pixel design is capable of reducing the non-uniformity of brightness problem and possessing larger output current.

2. Voltage compensation pixel circuit for AMOLEDs

In the beginning, our pixel design started from the mea-sured and simulated OLED current versus bias voltage characteristics.Fig. 1shows the transient response of con-ventional 2T1C pixel circuit. In this case the threshold volt-age deviation of LTPS TFTs is assumed to be 0.33 V. It is observed that the anode voltage of OLED is dependent on

* _{Corresponding author. Tel.: +886 3 5712121x54218; fax: +886 3}

5738343.

E-mail address:[email protected](B.-T. Chen).

www.elsevier.com/locate/sse Solid-State Electronics 50 (2006) 272–275

(2)

the threshold voltage variation and the non-uniform image quality across the display is produced. Fig. 2 shows the proposed pixel structure[3]and the signal driving scheme, respectively. TFT1, TFT3, TFT4, and TFT5 are switching TFTs and TFT2 is a driving TFT. The operation scheme and compensation principle are described as follows.

2.1. Initialization period

During the ﬁrst period, reset action is performed. Vsel

and Vctrl signals are high voltages, all TFTs in the pixel

are on state. The previous stored voltage in the Cs would be charged up to a speciﬁc value.

2.2. Data input period

Vctrlsignal is low, turning oﬀ TFT4 and TFT5 for

stor-ing the threshold voltage of drivstor-ing transistor (TFT2). At this time, the gate terminal of TFT2 is connected with the drain terminal by TFT3. Because TFT2 acts as a diode, Vgs is Vth_T2 and stored voltage across the capacitor is

Vdata+ Vth_T2.

2.3. Emission period

After pixel scanning time and sampling the signal volt-age stvolt-age, Vselis low and Vctrlis high. During this period,

driving TFT (TFT2) starts to drive OLED. Because stored voltage in Cs would maintain until the next reset period, the drain current of TFT2 in the saturation region for OLED becomes as follows:

IOLED ¼ 1 2k2ðVgs T 2 Vth T 2Þ 2 ¼1 2k2ðVdataþ Vth T 2 Vth T 2Þ 2 ¼1 2k2V 2 data ð1Þ

Therefore, the drain current of TFT2 is independent of the threshold voltage of TFT2, and only aﬀected by Vdata, the

pixel-to-pixel threshold voltage variations can be compen-sated eﬀectively and uniform brightness image performance can be achieved.

Compared with conventional 2T1C pixel circuit, the transient response of the proposed pixel circuit shows much consistence of driving current against the threshold voltage variation as shown in Fig. 3. It is demonstrated that the anodes of OLED devices are insensitive to different threshold voltages. The difference of the stored voltage in the capacitor almost equals the difference of threshold volt-age in driving transistor.

Fig. 1. Transient response of the conventional 2T1C pixel circuit.

Fig. 2. Proposed circuit schematic and driving signals of voltage

compensation circuit for AMOLED. Fig. 3. Transient response of the proposed pixel circuit. B.-T. Chen et al. / Solid-State Electronics 50 (2006) 272–275 273

(3)

3. Fabrication and measured results

After pixel design finished, testing pixel circuits were fabricated and measured. First, a buffer oxide and 500 A˚ -thick a-Si thin-film was deposited on glass substrate. Then, the amorphous Si thin-film was crystallized by KrF exci-mer laser annealing at room temperature. After defining the active layer, a 1000 A˚ -thick gate oxide was deposited by plasma-enhanced chemical vapor deposition. A 3000 A˚ -thick Cr film was then deposited for gate electrode. Then, the Cr thin-film and gate oxide were etched to form gate electrodes. Next, a 4000 A˚ -thick SiNx was deposited by PECVD as interlayer. TFT testing pixel circuits were formed after contact-hole formation and 4000 A˚ -thick Cr metallization.Fig. 4shows the optical micrograph of pro-posed pixel circuit.

After system ready for measuring, proposed pixel and conventional pixel circuits were measured. Ten testing pixel circuits have been measured and the results compared to conventional pixel circuits with different data voltages are shown inFig. 5(a). It is obvious that proposed pixel circuit posses higher output voltage and better uniformity after calibration threshold voltage variation. Fig. 5(b) shows the measured and simulation results of non-uniformity compared with conventional 2T1C pixel circuit. The volt-age non-uniformity is defined as the difference between the maximum output voltage (OLED anode voltage) and the minimum output voltage divided by the average output voltage. By experimental results, the non-uniformity can be suppressed in the proposed circuit. It is verified that the proposed pixel design has high immunity to the variation of poly-Si TFT characteristics.

4. Modiﬁed voltage compensation pixel circuit for AMOLEDs

In order to reduce the current ﬂow through OLED dur-ing the reset period, a p-channel TFT5 used to block the emission current through OLED is modiﬁed as shown in

Fig. 6. Since the modiﬁed circuit can block current ﬂow

through TFT5 and OLED shown in Fig. 7, the power reduction can further be obtained through simulation results.

Fig. 4. Optical micrograph of proposed pixel circuit.

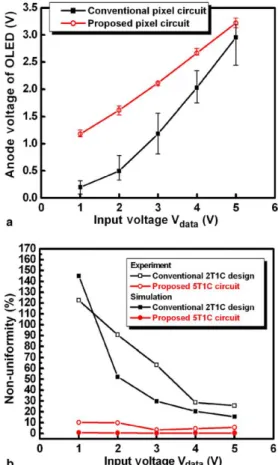

Fig. 5. (a) The measured results compared to conventional pixel circuit of diﬀerent data voltage; (b) the measured and simulation results of non-uniformity compared with conventional 2T1C pixel circuit.

Fig. 6. Modiﬁed pixel circuit schematic and the timing diagram of control signals.

(4)

5. Conclusions

New voltage modulated low-temperature polycrystalline silicon thin-film transistors (LTPS-TFTs) pixel circuits for active matrix organic light emitting diodes (AMOLEDs) are proposed and verified. The circuits show high immunity to the threshold voltage variation of poly-Si TFT charac-teristics which will lead to uniform display image for AMOLED. Through experimental results, it is verified that the proposed circuit is capable of reducing the threshold voltage variation problem of conventional pixel circuit and possessing larger output current.

Acknowledgements

We would like to thank the ChungHwa Picture Tubes for their technical support. This work has been sponsored

by the Ministry of Education of Taiwan, Republic of China, the Program for Promoting Academic Excellent of Universities under a Grant number (No. 91-E-FA04-2-4-B) and ChungHwa Picture Tubes, Ltd. (CPT).

References

[1] Kimura M et al. Low-temperature polysilicon thin-ﬁlm transistor driving with integrated driver for high-resolution light emitting polymer display. IEEE Trans Electron Dev 1999;46(12):2282–8. [2] Lin CW et al. Advanced poly-Si device and circuitry for AMOLED

and high-integration AMLCD. In: International display manufactur-ing conference, 2005. p. 315–8.

[3] Chen BT, Kuo YJ, Pai CC, Tsai CC, Cheng HC, Tai YH. A new pixel circuit for driving organic light emitting diodes with low-temperature polycrystalline thin-ﬁlm transistors. In: International display manu-facturing conference, 2005. p. 378–81.

[4] Lee JH, You BH, Nam WJ, Lee HJ, Han MK. A new a-Si:H TFT pixel design compensating threshold voltage degradation of TFT and OLED. In: SID Tech Dig, 2004. p. 264–7.

[5] Dawson RMA et al. The impact of the transient response of organic light emitting diodes on the design of active matrix OLED displays. In: IEDM Tech Dig, 1998. p. 875–8.

[6] Choi SM, Kwon OK, Chung HK. An improved voltage programmed pixel structure for large size and high resolution AM-OLED displays. In: SID Tech Dig, 2004. p. 260–3.

[7] Goh JC, Chung HJ, Jang J. A new pixel circuit for active matrix organic light emitting diodes. IEEE Electron Dev Lett 2002;23(September):544–6.

[8] He Y, Hattori R, Kanicki J. Four-thin ﬁlm transistor pixel electrode circuits for active-matrix organic light-emitting displays. Jpn J Appl Phys 2001;40:1199–208.

[9] Lih JJ, Sung CF, Li CH, Hsiao TH, Lee HH. Comparison of a-Si and poly-Si for AMOLEDs. In: SID Tech Dig, 2004. p. 1504–7. [10] Tam SWB, Shimoda T. Modelling and design of polysilicon drive

circuits for OLED displays. In: SID Tech Dig, 2004. p. 1406–9. [11] Mizukami M et al., 6-bit digital VGA OLED. In: SID Tech Dig,

2000. p. 912–5. Fig. 7. Transient response of the modiﬁed pixel circuit.
