multidrug-resistance proteins 1, 4 and 5 (ABCC1, 4 and 5)

and Margery A. Barrand1

1 Department of Pharmacology, University of Cambridge, UK

2 Laboratory of Cell Biology, Centre for Cancer Research, National Cancer Institute, Bethesda, MD, USA

Multidrug resistance (MDR) is associated with the over-expression of ATP-binding cassette (ABC) trans-porters such as P-glycoprotein (Pgp), multidrug-resist-ance proteins (MRPs) or ABCG2 (also called BCRP

or MXR) [1,2]. These transporters efflux a wide range of compounds and anticancer agents out of cells; thus, inhibition of these pumps is crucial to overcome drug resistance. MRP1, MRP4 and MRP5 belong to the

Keywords

ABC transporters; drug resistance; multidrug-resistant proteins 1, 4 and 5; plant polyphenols; red blood cells Correspondence

S. V. Ambudkar, Laboratory of Cell Biology, National Cancer Institute, NIH, Building 37, Room 2120, 37 Convent Drive, Bethesda, MD 20892-4256, USA

Fax: +1 301 435 8188 Tel: +1 301 402 4178 E-mail: ambudkar@helix.nih.gov (Received 17 June 2005, revised 25 July 2005, accepted 28 July 2005)

doi:10.1111/j.1742-4658.2005.04888.x

Plant flavonoids are polyphenolic compounds, commonly found in vegeta-bles, fruits and many food sources that form a significant portion of our diet. These compounds have been shown to interact with several ATP-bind-ing cassette transporters that are linked with anticancer and antiviral drug resistance and, as such, may be beneficial in modulating drug resistance. This study investigates the interactions of six common polyphenols; querce-tin, silymarin, resveratrol, naringenin, daidzein and hesperetin with the multidrug-resistance-associated proteins, MRP1, MRP4 and MRP5. At nontoxic concentrations, several of the polyphenols were able to modulate MRP1-, MRP4- and MRP5-mediated drug resistance, though to varying extents. The polyphenols also reversed resistance to NSC251820, a com-pound that appears to be a good substrate for MRP4, as predicted by data-mining studies. Furthermore, most of the polyphenols showed direct inhibition of MRP1-mediated [3H]dinitrophenyl S-glutathione and MRP4-mediated [3H]cGMP transport in inside-out vesicles prepared from human erythrocytes. Also, both quercetin and silymarin were found to inhibit MRP1-, MRP4- and MRP5-mediated transport from intact cells with high affinity. They also had significant effects on the ATPase activity of MRP1 and MRP4 without having any effect on [32P]8-azidoATP[aP] binding to these proteins. This suggests that these flavonoids most likely interact at the transporter’s substrate-binding sites. Collectively, these results suggest that dietary flavonoids such as quercetin and silymarin can modulate trans-port activities of MRP1, -4 and -5. Such interactions could influence bio-availability of anticancer and antiviral drugs in vivo and thus, should be considered for increasing efficacy in drug therapies.

Abbreviations

ABC, ATP-binding cassette; BCRP, breast cancer resistance protein; BeFx, beryllium fluoride; calcein-AM, calcein acetoxy-methylester; BCECF, 2¢,7¢-bis(2-carboxyethyl)-5-(6)-carboxyfluorescein; CFTR, cystic fibrosis transmembrane conductance regulator; DMEM, Dulbecco’s modified Eagle’s medium; DNP–SG, dinitrophenyl S-glutathione conjugate; FACS, fluorescence-activated cell sorter; GSH, reduced glutathione; GSSG: oxidized glutathione; IMDM, Iscove’s modified Dulbecco’s medium; MDR, multidrug resistance; MRP, multidrug-resistance protein; MK-571, (3-(3-(2-(7-chloro-2-quinolinyl)ethenyl)phenyl) ((3-(dimethyl amino-3-oxo propyl)thio)methyl)thio)propanoic acid; PGE1, prostaglandin E1; Pgp, P-glycoprotein; PMEG, 9-(2-phosphonyl-methoxyethyl) guanine.

MRP family (ABCC subfamily), some members of which are ubiquitously expressed and known to trans-port a vast variety of substrates across cell membranes [3–5]. Overexpression of these transporters is known to cause resistance to doxorubicin, etoposide, 9-(2-phos-phonyl-methoxyethyl) guanine (PMEG) and thiogua-nine [6–8].

Plant polyphenols such as flavonoids and stilbenes are abundant in vegetables, fruits and many of the plant products consumed daily. The average US diet supplies
200 mg of polyphenols daily; however, it is possible for an adult to ingest > 1 g of polyphenols per day depending on the types of food consumed [9]. Many of these compounds are also found in herbal medicines. A number of polyphenols cause carcinogen inactivation, antiproliferation, cell-cycle arrest and inhibition of angiogenesis [10,11]. Polyphenols are predominantly in sugar-conjugated forms but undergo enzymatic cleavage into free aglycone forms after ingestion. These free aglycones are then absorbed through the gut wall. After Phase I and II metabolism, the polyphenols can either remain as free aglycones or as glucoronidated, methylated or sulfated metabolites [12]. The bioavailability of polyphenols is highly dependant on the chemical structure of the polyphe-nol and physical variations within individuals [9]. Although plasma concentrations of polyphenols are usually < 1 lm, local concentrations within the intes-tine should be substantially higher and can reach 3 mm following a meal containing 500 mg of poly-phenols [9]. Because MRP1, -4 and -5 are located in the intestine [2], it is likely that they can be exposed to such high polyphenol concentrations. Furthermore, recent studies show a correlation between the in vitro effects of flavonoids in the low micromolar range and in vivowork using oral solutions of flavonoids [13,14].

Many of these plant polyphenols may modulate the activities of the multidrug transporters. It has previ-ously been reported that silymarin and several other flavonoids can increase daunomycin accumulation in Pgp-expressing cells in a manner that depends on both the concentration of the flavonoids and the level of Pgp expression. It has been proposed that the flavo-noids interacted directly with Pgp substrate binding because they potentiated doxorubicin cytotoxicity, inhibited Pgp ATPase activity and inhibited [3 H]azido-pine photoaffinity labelling of Pgp [15]. Interactions of polyphenols with MRP1 have also been reported. It has been shown that genistein could increase daunoru-bicin accumulation in non-Pgp-expressing MDR cell lines that were later shown to overexpress MRP1, and subsequently, other flavonoids were found to modulate the activities of MRP1 [16,17]. Leslie et al. [17] used

membrane vesicle preparations to demonstrate that flavonoids could directly inhibit MRP1-mediated LTC4 transport and to a lesser extent 17b-estradiol 17b-(d-glucoronide) transport. Because these inhibitory effects were enhanced by reduced glutathione (GSH), it was proposed that GSH might be cotransported with the polyphenolic compounds. Because there are variations in activity profiles for these flavonoids, it has been pro-posed that they may interact with different sites on the MRP1 molecule. Similar results were reported in another study in which several different flavonoids were used [18]. More recently, several flavonoids were shown to reverse breast cancer resistance protein (BCRP; ABCG2)-mediated transport and multidrug resistance [19,20] as well as to activate the cystic fibro-sis transmembrane conductance regulator (CFTR; ABCC7) chloride channel [21].

Despite the numerous studies investigating the inter-actions between polyphenols with Pgp, BCRP and MRP1, the possible interaction of these compounds with MRP4 and MRP5 has not been studied until now. Unlike MRP1, MRP4 and MRP5 are able to transport cyclic nucleotides such as cGMP and cAMP [22,23], antiviral drugs and prostaglandins [5,24]. In this study, we investigated the six most common plant polyphenols for their ability to modulate the function of MRP1, -4 and -5 in the low micromolar range. Our results show that these plant polyphenols interact with MRP4 and -5 and affect their transport function to a greater extent than the transport function of MRP1. Some polyphenols are high-affinity inhibitors, whereas others may be substrates themselves. Because poly-phenols are relatively nontoxic, they may be valuable in reversing resistance to various drug therapies because of their abundance in commonly consumed nutritional products. In addition, we also show that sensitivity to NSC251820, a compound predicted by data mining to be a substrate for MRP4 [25], is signifi-cantly lower in cells expressing this transporter. This suggests that NSC251820 may be a good sub-strate for this transporter, and polyphenols also reverse the resistance to this compound in MRP4-expressing cells.

Results

Characterization of the mRNA expression of selected ABC transporters in transfected HEK293 cells

To determine the relative mRNA expression of the various ABC transporters of interest in the cell lines utilized in this study, we isolated total RNA from each

of the cell lines and performed quantitative real-time RT-PCR (sequence of specific primer sets given in Table 1). The expression levels for each of the ABC transporters in the transfected HEK293 cells were nor-malized to the levels within the parental HEK293 cells. These studies confirmed that each of the MRP trans-fectants shows overexpression of only that particular MRP (Fig. 1); for example MRP4-expressing HEK293⁄ 4.63 cells have nearly 100-fold more MRP4 than the parental HEK293 cells. It is also clear from the analyses that selection with G418 (transfected HEK293 cells) does not result in the overexpression of other ABC drug transporters. These results correlate well with western blotting results, which have previ-ously been reported for these three transfected cell lines [26,27].

Sensitivities of parental and MRP1-, MRP4- and MRP5-expressing HEK293 cells to plant

polyphenols

The relative sensitivities of the parental and various MRP-expressing HEK293 cell lines to the six plant polyphenols under investigation were determined fol-lowing exposure for 72 h. IC50 values were calculated from the cell survival curves; these are summarized in Table 2. For each polyphenol tested, the IC50 values for parental and vector alone transfected-HEK293 cells were similar, with naringenin being the least toxic and resveratrol the most toxic. IC50values for naringenin, hesperetin, silymarin and daidzein obtained in the MRP1-, MRP4- and MRP5-expressing cells did not differ significantly from those obtained in the parental HEK293 cells. By contrast, in MRP1-expressing cells the IC50values for quercetin were lower and those for resveratrol were higher; i.e. these cells were more sensi-tive to quercetin but more resistant to resveratrol than the parental HEK293 cells. In MRP4- and MRP5-expressing cells, the IC50values for both quercetin and resveratrol were higher, suggesting both cell types to be more resistant to these polyphenols. Such obser-vations hint at the possibility of these particular poly-phenols being expelled from the cells, i.e. being substrates for MRP4 and MRP5.

Effect of plant polyphenols on etoposide and vinblastine cytotoxicity in MRP1–HEK293 cells To investigate whether the polyphenols were able to modify MRP1-mediated resistance, the sensitivity of MRP1-expressing cells to etoposide and vinblastine, two known MRP1 substrates [7], was evaluated. MRP1–HEK293 cells were found to be approximately 138- and fourfold more resistant to etoposide (Table 3) and vinblastine (data not shown), respectively, than control pcDNA–HEK293 cells. Nontoxic concentra-tions of each polyphenol were used in combination with increasing concentrations of etoposide to deter-mine the effects of the polyphenols on IC50 values and relative resistance (Table 3). Silymarin, hesperetin,

Table 1. List of oligonucleotide primer sequences for the ABC transporters for quantitative real-time RT-PCR.

ABC transporter Position of primer Forward oligo sequence Reverse oligo sequence

ABCB1 834–1086 GCCTGGCAGCTGGAAGACAAATAC ATGGCCAAAATCACAAGGGTTAGC

ABCC1 1119–1670 AGTGGAACCCCTCTCTGTTTAAG CCTGATACGTCTTGGTCTTCATC

ABCC4 3880–4124 TGATGAGCCGTATGTTTTGC CTTCGGAACGGACTTGACAT

ABCC5 3692–3864 AGAGGTGACCTTTGAGAACGCA CTCCAGATAACTCCACCAGACGG

ABCC11 3025–3560 CCACGGCCCTGCACAACAAG GGAATTGCCAAAAGCCACGAACA

100000 10000 1000 100 10 1

MRP1-HEK293 MRP4-HEK293 MRP5-HEK293

% Expression of ABC T

ranspor

ters Compared

to parental HEK293 cells

ABCB1 ABCC1 ABCC4 ABCC5 ABCC11

Fig. 1. Characterization of expression of selected ABC transporters in HEK293 transfectants. Real-time RT-PCR using SYBR green was performed on all of the cell lines. mRNA expression values for MDR1 (ABCB1), MRP1 (ABCC1), MRP4 (ABCC4), MRP5 (ABCC5) and MRP8 (ABCC11) were determined for each cell line. Following normalization to GAPDH, the expression values for each transfect-ant were compared with the expression of each transporter within the parental HEK293 cells. The values represent the mean, and the error bars are standard deviation (n¼ 4).

resveratrol, MK-571 and naringenin significantly enhanced the sensitivity of MRP1–HEK293 cells to etoposide in a concentration-dependent manner, though silymarin and MK-571 also enhanced etoposide sensi-tivity in HEK293 cells (data not shown).

Effect of polyphenols on MRP4- and MRP5-mediated resistance to thioguanine and NSC251820

To examine the potential of the polyphenols at concen-trations below their IC50values to reverse MRP4- and MRP5- mediated resistance, the sensitivity to thiogua-nine, a known substrate of MRP4 and MRP5 [5,22,24], was first evaluated in MRP4- and MRP5-expressing HEK cells. These cells were shown to be

approximately four- and threefold more resistant than parental HEK293 cells, respectively (Fig. 2). The data are comparable with values reported previously [5]. Quercetin, hesperetin and MK-571 enhanced the sensi-tivity of MRP4-expressing cells, whereas quercetin, daidzein, naringenin and hesperetin enhanced the sen-sitivity of MRP5-expressing cells toward thioguanine. Silymarin (and⁄ or its metabolites) produced the oppos-ite effect, actually increasing resistance, rather as if it were enhancing thioguanine efflux, perhaps by stimula-ting transporter activity or by a cotransport mechan-ism (Table 4).

To study further the effect of polyphenols on MRP4, the sensitivity of MRP4-expressing cells to NSC251820 in the presence of polyphenols was also examined. NSC251820 (Fig. 2B) is a compound that, by data mining [25], has been predicted to be a poten-tial MRP4 substrate. MRP4-expressing cells were shown to be highly resistant to this compound (
7.5-fold) compared with their lower resistance to thio-guanine (approximately threefold). Interestingly, the MRP5-expressing cells did not show resistance to NSC251820 (Fig. 2C), suggesting that NSC251820 and⁄ or its metabolites are not transported by MRP5. All polyphenols tested, apart from daidzein, reduced the relative resistance values to NSC251820 in MRP4-expressing cells (Table 5), and among these, quercetin, hesperetin and resveratrol were the most effective.

Inhibition of [3H]DNP–SG and [3H]cGMP transport in human erythrocytes by polyphenols

Human erythrocytes are known to express not only MRP1, but also MRP4 and MRP5. Inside-out vesicles were prepared from red blood cells and used in uptake experiments to assess the direct inhibitory effects of polyphenols on transport mediated by these MRPs, so avoiding possible interference by potential polyphenol metabolites. It has been shown previously that ATP-dependent transport of high-affinity [3 H]dinitrophe-nyl S-glutathione conjugate ([3H]DNP–SG) in human

Table 2. Sensitivity of parental and MRP1-, MRP4- and MRP5-expressing HEK293 cells to selected plant polyphenols.

Polyphenols IC50(lM)a pcDNA-HEK293 MRP1–HEK293 HEK293 HEK293⁄ 4.63 (MRP4) HEK293⁄ 5I (MRP5)

Quercetin 40.9 ± 5.6 24.1 ± 5.7* 38.6 ± 5.4 108.5 ± 20.3** 90.9 ± 9.6** Silymarin 103.9 ± 35.9 152.6 ± 57.5 130.6 ± 41.6 180.6 ± 70.8 143.9 ± 36.7 Daidzein 84.4 ± 21.3 141.6 ± 30.6 157.6 ± 48.8 161.7 ± 50.4 151.5 ± 40.8 Naringenin 314.4 ± 70.8 252.3 ± 55.0 266.9 ± 78.4 309 ± 86.5 338.2 ± 86.8 Hesperetin 207.9 ± 51.5 131.7 ± 19.8 200.8 ± 49.3 162.4 ± 34.4 180.4 ± 34.1 Resveratrol 16.7 ± 4.8 37.7 ± 10.2* 17.4 ± 4.6 37.1 ± 11.7* 39.5 ± 10.7* a

IC50values are mean ± SD in the presence of flavonoids. The IC50values were calculated from dose–response curves obtained from three independent experiments (*P < 0.05, **P < 0.01).

Table 3. Reversal effect of plant polyphenols on etoposide toxicity in parental pcDNA-HEK293 and MRP1-expressing MRP1–HEK293 cells. Drug tested [Conc.] (lM) IC50(lM)a pcDNA-HEK293 MRP1– HEK293 Rel. resist.b Etoposide alone – 0.28 ± 0.07 38.8 ± 5.6 138.6 + Quercetin 10 0.27 ± 0.03 55.5 ± 6.8* 205.6 + Silymarin 10 0.15 ± 0.02 35.8 ± 4.3 238.7 20 0.12 ± 0.03 21.7 ± 3.3* 180.8 50 0.12 ± 0.03 15.4 ± 1.9** 128.3 + Daidzein 10 0.26 ± 0.04 39.5 ± 4.6 151.9 20 0.21 ± 0.04 45.2 ± 8.1 215.2 + Naringenin 10 0.27 ± 0.05 36.2 ± 4.0 134.1 20 0.18 ± 0.03 30.2 ± 5.6 167.8 50 0.21 ± 0.04 22.7 ± 3.8* 108.1 + Hesperetin 10 0.25 ± 0.02 45.2 ± 6.7 180.8 20 0.19 ± 0.03 24.7 ± 3.8* 130.0 + Resveratrol 10 0.32 ± 0.05 50.5 ± 3.9* 157.8 + MK571 50 0.15 ± 0.03 7.9 ± 1.1** 52.7 a_IC

50values are mean ± SD in the presence and absence of flavo-noids, which were calculated from dose–response curves obtained from three independent experiments (*P < 0.05, **P < 0.01).b Rel-ative resistance values were obtained by dividing the IC50value of the MRP1–HEK293 cells by the IC50 value of the empty vector (pcDNA3.1) transfected cell line.

erythrocyte vesicles is MRP1-mediated and linear for at least 60 min; however, ATP-dependent transport of 3.3 lm [3H]cGMP is most likely to be MRP4-mediated and linear for at least 30 min [28]. Concentrations of polyphenols were tested in the range of 0–200 lm. The

rate of 3 lm [3H]DNP–SG uptake was inhibited by all polyphenols tested except daidzein (Fig. 3A), and the rate of 3.3 lm [3H]cGMP uptake was inhibited by all six polyphenols tested (Fig. 3B). In Fig. 3A, the results suggest that a fraction of DNP–SG may be

Fig. 2. Sensitivity of control HEK293 and MRP4- and MRP5-expressing cells to thio-guanine and NSC251820. Cytotoxicity assays were used to determine the sensitiv-ity of control HEK293 (d), MRP4-expressing HEK293⁄ 4.63 (h) and MRP5-expressing HEK293⁄ 5I (n) to (A) thioguanine and pre-dicted substrate of MRP4 based on data-mining NSC 251820 (C) as described previ-ously [25]. The structure of NSC251820 is shown in (B). Cells (5.0· 103_{cells) were} plated into 96-well plates, cultured overnight and exposed to thioguanine for 72 h. Viable cells were determined by the Cell Counting Kit (CCK) technique as detailed in Experi-mental Procedures section. The mean val-ues from three independent experiments are shown with error bars as SD.

Table 4. Effect of polyphenols on the sensitivities of parental HEK293, MRP4-expressing (HEK293⁄ 4.63) and MRP5-expressing (HEK293 ⁄ 5I) HEK293 cells to thioguanine.

Drug tested [Conc.] (lM) IC50± SD (lM)a HEK293 HEK293⁄ 4.63 (MRP4) HEK293⁄ 5I (MRP5) Thioguanine alone – 1.1 ± 0.3 4.8 ± 1.3 3.4 ± 0.7 + Quercetin 5 1.0 ± 0.2 3.5 ± 1.0 2.0 ± 0.2* 10 0.8 ± 0.1 1.9 ± 0.6* 0.9 ± 0.3** + Silymarin 5 1.1 ± 0.3 8.9 ± 3.4 3.4 ± 0.7 10 0.9 ± 0.2 8.9 ± 3.1 4.0 ± 1.0 20 1.3 ± 0.3 9.4 ± 3.5 6.3 ± 1.1* 30 2.0 ± 0.4 13.0 ± 3.2* 10.7 ± 1.9** + Daidzein 20 0.9 ± 0.2 3.3 ± 0.6 1.9 ± 0.2* + Naringenin 20 0.8 ± 0.1 2.8 ± 0.4 1.8 ± 0.3* + Hesperetin 10 0.9 ± 0.2 4.2 ± 0.9 3.1 ± 0.5 20 0.7 ± 0.1 2.5 ± 0.5* 1.6 ± 0.2* + Resveratrol 5 1.2 ± 0.2 4.4 ± 0.8 2.8 ± 0.4 10 1.9 ± 0.4 3.3 ± 0.7 3.1 ± 0.4 + MK-571 50 1.2 ± 0.2 1.6 ± 0.2* 2.5 ± 0.2

a_{Values are mean IC}

50values ± SD in the presence and absence of flavonoids. The IC50values were calculated from dose–response curves obtained from six independent experiments (*P < 0.05, **P < 0.01).

Table 5. Effect of polyphenols on the sensitivities of parental HEK293 and MRP4-expressing (HEK293⁄ 4.63) HEK293 cells to NSC251820.

Drug tested [Conc.] (lM) IC50(lM)a HEK293 HEK293⁄ 4.63 (MRP4) Rel. resist.b

NSC251820 alone – 7.9 ± 1.2 58.6 ± 8.8 7.4 + Quercetin 10 8.3 ± 0.9 23.4 ± 4.0* 2.8 + Silymarin 20 6.7 ± 1.1 27.6 ± 3.5* 4.1 50 3.8 ± 0.6 11.5 ± 1.3** 3.0 + Daidzein 20 6.7 ± 0.9 46.9 ± 6.0 7.0 + Naringenin 20 5.4 ± 0.7 24.8 ± 3.4* 4.6 50 3.8 ± 0.4 15.5 ± 2.2* 4.1 + Hesperetin 20 4.3 ± 0.9 13.3. ± 1.9** 3.1 + Resveratrol 10 6.9 ± 1.0 20.7 ± 4.1* 3.0 + MK-571 25 3.3 ± 0.4 9.2 ± 0.7** 2.8

a_{Values are mean IC}

50values ± SD in the presence and absence of flavonoids. The IC50values were calculated from dose–response curves obtained from six independent experiments (*P < 0.01, **P < 0.001).b_{Relative resistance values were obtained by dividing the IC}

50value of the MRP1–HEK293 cells by the IC50value of the empty vector (pcDNA3.1) transfected cell line.

Fig. 3. Plant polyphenols inhibited uptake of [3_{H]DNP–SG and [}3_{H]cGMP into membrane vesicles prepared from human erythrocytes.} ATP-dependent uptake at 37
C for 30 min in erythrocytes membrane vesicles using 3 lM[3_{H]DNP–SG or 3.3 l}

M[3_{H]cGMP was carried out as} described in Experimental Procedures. (A) [3_{H]DNP–SG, (B) [}3_{H]cGMP uptake, quercetin ( ), hesperetin (e), daidzein (r), silymarin (h),} res-veratrol (s) and narigenin (d). The mean values from six independent experiments are shown with error bars as SEM.

transported by unknown transporters other than MRP4 or MRP5, which the polyphenols do not affect. The IC50 values are summarized in Table 6. Apart from silymarin, all polyphenols tested produced inhibi-tory effects on transport, in general by inhibiting cGMP transport at lower concentrations than those required to block DNP–SG transport. Silymarin, by contrast, inhibited DNP–SG transport with very high affinity compared with cGMP transport (IC50 values 0.26 and 0.91 lm, respectively).

Effect of polyphenols on fluorescent substrate accumulation and MRP-mediated efflux

The effects of polyphenols on efflux of fluorescent sub-strates from MRP-expressing cells were analysed using flow cytometry, where levels of accumulation in con-trol and MRP-expressing HEK293 cells were assessed in the absence or presence of polyphenols. Cells (5· 105) were incubated with nonfluorescent precursors, and the intensity of the fluorescence of accumulated sub-strates was then analysed by fluorescence-activated cell sorter (FACS). Calcein-AM which becomes hydrolysed to the fluorescent MRP1 substrate calcein, was used to measure MRP1-mediated transport, and 2¢,7¢-bis(2-carboxyethyl)-5-(6)-carboxyfluorescein (BCECF)-AM, which is hydrolysed to the fluorescent MRP5 substrate BCECF [29] was used to study MRP5-mediated trans-port. The results of the 50 lm polyphenol treatments are shown in Figs 4 and 5, respectively. Quercetin and silymarin dramatically increased the accumulation of the fluorescent substrates in both MRP1- and MRP5-expressing cells in a concentration-dependent

manner (data not shown), with concentrations nee-ded to achieve 50% of the maximum inhibitable portions of between 50–75 lm for MRP1, and 25– 50 lm for MRP5, respectively. By contrast, hesperetin, resveratrol, daidzein, and naringenin at concentrations

Table 6. Effect of plant polyphenols on MRP-mediated transport in membrane vesicles prepared from human erythrocytes.

Polyphenol MRP1-mediated DNP–SG transporta IC50(lM)b MRP4-mediated cGMP transporta IC50(lM)b Quercetin 45.12 ± 11.93 1.16 ± 0.17 Silymarin 0.26 ± 0.06 0.91 ± 0.11 Naringenin 23.70 ± 5.99 3.37 ± 0.28 Hesperetin 70.18 ± 40.24 2.46 ± 0.14 Resveratrol 169.9 ± 53.0 1.66 ± 0.14 (58.3 ± 4.6% UI) Daidzein No effect 9.67 ± 1.55

a_{The transport of [}3_{H]DNP–SG and [}3_{H]cGMP in inside-out} mem-brane vesicles of human erythrocytes was determined in the pres-ence and abspres-ence of indicated polyphenols as described in the experimental procedures.b_IC

50values are mean ± SD in the pres-ence and abspres-ence of flavonoids. The IC50 values were calculated from dose–response curves obtained from three independent experiments. Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity Counts 0 20 40 60 80 100 120 100 101 102 103 104 Fluorescence Intensity 25 µM MK-571 50 µM Silymarin 50 µM Resveratrol 50 µM Naringenin 50 µM 50 µM Daidzein Hesperetin 50 µM Quercetin A B D C E F H G

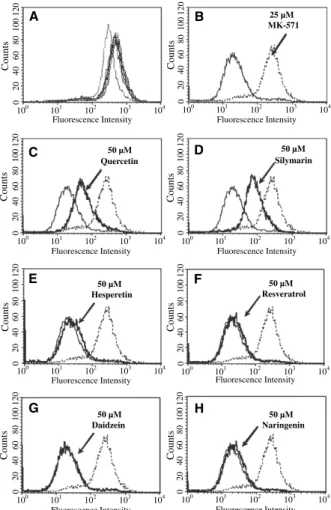

Fig. 4. Effect of selected polyphenols on calcein accumulation in MRP1–HEK293 cells. Cells (control pcDNA-HEK293 and MRP1-transfected MRP1–HEK293) were resuspended in IMDM supple-mented with 5% fetal bovine serum. 0.25 lM calcein-AM was added to 3· 105 _{cells in 4 mL of IMDM in the presence or} absence of MK-571 and polyphenols. The cells were incubated at 37
C in the dark for 10 min. The cells were pelleted by centrifuga-tion at 500 g and resuspended in 300 lL of NaCl⁄ Pi containing 0.1% bovine serum albumin. Samples were analysed immediately by using flow cytometry. (A) Except for 50 lMof silymarin (dotted line), MK-571 and other polyphenols had no effect on control HEK293 cells. (B–H) Thin solid line represents MRP1-overexpress-ing MRP1–HEK293 cells, dotted line represents MRP1–HEK293 cells in the presence of 25 lMMK-571 and bold solid line repre-sents MRP1–HEK293 cells in the presence of various polyphenols: (B) 25 lM MK-571, (C) 50 lM quercetin, (D) 50 lM silymarin, (E) 50 lMhesperetin, (F) 50 lMresveratrol, (G) 50 lMdaidzein and (H) 50 lMnaringenin. Representative histograms of three independent experiments are shown.

up to 50 lm had no significant effects on MRP1 sub-strate accumulation (Fig. 4), but a small effect on MRP5 substrate accumulation (Fig. 5). The LTD4 ant-agonist MK-571 (25 lm) completely blocked MRP1-mediated calcein efflux (Fig. 4B), while only having a moderate effect on MRP5-mediated BCECF efflux (Fig. 5B).

Effect of polyphenols on MRP1- and MRP4-mediated ATP hydrolysis

The effects of the polyphenols on the MRP1- and MRP4-mediated ATP hydrolysis were also examined (results summarized in Table 7). Hesperetin, naringe-nin, daidzein and resveratrol had moderate effects on the ATPase activities of both MRPs. Plant polyphen-ols exerted maximum stimulation on MRP1-mediated ATPase activity at 100 lm for hesperetin (15%), 50 lm for naringenin (7%), 5 lm for daidzein (35%), and 30 lm for resveratrol (49%) (Fig. 6). By contrast, flavo-noids had maximum stimulation on MRP4-mediated ATPase activity at various concentrations; 20 lm for hesperetin (33%), 10 lm for naringenin (9%), 200 lm for daidzein (34%) and 23 lm for resveratrol (10%) (Fig. 7A). Quercetin had a biphasic effect on both MRP1- and MRP4-mediated ATP hydrolysis, which indicates that it stimulated ATPase activity at low con-centrations, whereas it inhibited the activity at higher concentrations. The stimulatory effect suggests that quercetin is likely to be a substrate of both MRP1 and MRP4. Quercetin had maximum stimulation at 10 lm for MRP1 of 101 and 61% for MRP4, and it had maximum inhibitory effects of 25% for MRP1 at 100 lm and 55% for MRP4 at 200 lm. Conversely, silymarin inhibited both MRP1 (60% at 100 lm) and MRP4 (72% at 200 lm) ATPase activity. To assess whether polyphenols affect ATPase activity by inter-acting at the substrate site, we tested the effect of quercetin and silymarin on substrate-stimulated ATP hydrolysis by MRP4. Both quercetin and silymarin were able to inhibit prostaglandin E1 (PGE1)-stimula-ted MRP4-media(PGE1)-stimula-ted ATP hydrolysis (Fig. 7B). PGE1 has been shown to be a MRP4 substrate that stimu-lates its ATPase activity [24,30]. These results sugges-ted that quercetin and silymarin do interact at the same MRP4 substrate-binding sites as PGE1. Querce-tin inhibited 95% of the stimulated MRP4 ATPase activity, and silymarin inhibited 62% of this activity.

Effects of quercetin and silymarin on photoaffinity labelling of MRP1 and MRP4 with [32P] 8-azidoATP[aP]

To determine whether silymarin and quercetin bind to nucleotide (ATP)-binding sites on MRP1 and MRP4 (thus inhibiting ATPase activity), the effects of these two flavonoids on the photoaffinity labelling of MRP1 and MRP4 with [32P]8-azidoATP[aP] were examined [18]. The 8-azidoATP, an analogue of ATP, has been shown previously to bind specifically to the nucleotide binding domain of Pgp and MRPs [30,31]. At tested

0 2 0 4 0 6 0 8 0 1 00 120 Counts 0 2 0 4 0 6 0 8 0 1 00 120 Counts 0 2 0 4 0 6 0 8 0 1 00 120 Counts 02 0 4 0 6 0 8 0 1 0 0 1 2 0 Counts 02 0 4 0 6 0 8 0 1 0 0 1 2 0 Counts 0 2 0 4 0 6 0 8 0 1 00 120 Counts 02 0 4 0 6 0 8 0 1 0 0 1 2 0 Counts 02 0 4 0 6 0 8 0 1 0 0 1 2 0 Counts 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 100 101 102 103 104 Fluorescence Intensity 50 µM Quercetin 50 µM Silymarin 25 µM MK-571 50 µM Resveratrol 50 µM Naringenin 50 µM 50 µM Daidzein Hesperetin A B D C E F H G

Fig. 5. Effect of various polyphenols on BCECF accumulation and MRP5–HEK293 cells. Cells (control HEK293 and MRP5-transfected HEK293⁄ 5I) were resuspended in IMDM supplemented with 5% fetal bovine serum. We added 0.25 lMBCECF-AM to 3· 105

cells in 4 mL of IMDM in the presence or absence of MK-571 and poly-phenols. The cells were incubated at 37
C in the dark for 10 min and pelleted by centrifugation at 500 g and resuspended in 300 lL of NaCl⁄ Picontaining 0.1% bovine serum albumin. Samples were analysed immediately by flow cytometry. (A) All polyphenols and MK-571 had no effect on control HEK293 cells. (B–H) Thin solid line and bold solid line represent MRP5-overexpressing HEK293⁄ 5I cells in the absence and presence of drugs tested, respectively: (B) 25 lMMK-571 (dotted line), (C) 50 lMquercetin, (D) 50 lM silyma-rin, (E) 50 lMhesperetin, (F) 50 lMresveratrol, (G) 50 lMdaidzein, (H) 50 lMnaringenin. Representative histograms of three independ-ent experimindepend-ents are shown.

concentrations (10, 50 and 100 lm), neither quercetin nor silymarin had any effect on [32_{P]8-azidoATP[aP]} labelling (Fig. 8). This suggests that these flavonoids more likely bind to the transport-substrate binding site(s) rather than the nucleotide-binding sites to cause inhibition of the ATP hydrolysis. Note that lane 9 in Fig. 8A,B represents displacement of the [32 P]8-azido-ATP[aP] labelling by the presence of excess ATP (10 mm), as expected.

Discussion

This study was undertaken to determine whether six of the most abundant plant polyphenols found in

commonly consumed foods have modulatory effects on MRP1-, MRP4- and MRP5-mediated transport. Some of these compounds have already been shown to inter-act with other ABC transporters, e.g. Pgp, MRP1 and ABCG2 [15,17–20].

The transfected cell lines used in the study were first characterized by real-time RT-PCR to confirm that only the MRPs of interest and no other ABC drug transporters with similar substrate specificities were expressed at a significant level. This allowed us to study the effect of flavonoids on a given transporter without any detectable contribution by other ABC transporters. Sensitivities to the polyphenols were assessed using cell-survival assays. These showed variation between cell

Table 7. Effect of polyphenols on the beryllium-fluoride-sensitive ATPase activity measured in crude membranes prepared from High Five insect cells expressing human MRP1 or MRP4.

Drug Concentration tested (lM) Effect on basal ATPase activity Maximum stimulation or inhibition (%) na MRP1

Quercetin 5–100 Stimulation⁄ Inhibition 86⁄ 22 4

Quercetin + GSHb 2–100 Stimulation⁄ Inhibition 19⁄ 72 4

Silymarin ± GSH 5–100 Inhibition 60 3 Hesperetin ± GSH 5–100 No effect – 3 Daidzein ± GSH 5–100 No effect – 3 Naringenin ± GSH 5–100 No effect – 6 Resveratrol ± GSH 5–100 Stimulation 49 3 Misc. Reduced GSH 3000 Stimulation 68 3 Methotrexate 5–100 No effect – 3

Folinic acid 5–100 No effect – 3

Verapamil 5–100 Stimulation 35 4

Sodium arsenite (± GSH) 1–500 No effect – 3

MRP4

Quercetin 1–200 Stimulation⁄ Inhibition 61⁄ 55 4

Silymarin 1–200 Inhibition 72 6

Hesperetin 1–200 No effect – 6

Daidzein 1–200 Stimulation 34 6

Naringenin 1–200 No effect – 5

Resveratrol 1–200 Stimulation 23 4

Quercetin + PGE1 1–200 Inhibition 93 3

Silymarin + PGE1 1–200 Inhibition 62 3

Daidzein + PGE1 1–100 No effect – 4

Hesperetin + PGE1 1–200 No effect – 3

Naringenin + PGE1 1–100 No effect – 3

Resveratrol + PGE1 1–100 Inhibition 25 3

Misc. PGE1 1–200 Stimulation 66 6 DHEAS 1–200 Stimulation 42 7 GSH 1–5 No effect – 3 Ibuprofen 1–100 No effect – 3 Topotecan 1–100 No effect – 3 Dipyridamole 1–100 Inhibition 19 4

a_{The mean values were calculated from at least three independent experiments.}b_{3 m}

Mof reduced glutathione (GSH) was used where indi-cated.

types, MRP1-overexpressing cells being more resistant than untransfected HEK293 cells to silymarin and res-veratrol, whereas MRP4- and MRP5-overexpressing cells were more resistant than untransfected HEK293 cells to quercetin, silymarin, naringenin and resveratrol (Table 2). Such data suggest that these particular poly-phenols might be substrates for the MRPs.

Nontoxic concentrations of the polyphenols were chosen to investigate their potential in reversing MRP-mediated drug resistance. MRP1-expressing HEK293 cells are known to be highly resistant to etoposide [26]. In this study, it was seen that silymarin, naringenin and hesperetin could reduce this resistance in these cells by enhancing sensitivity to etoposide in a concen-tration-dependent manner, with silymarin being the

most potent (Table 3). Similar results were also obtained when vinblastine was used as the cytotoxic agent (data not shown).

MRP4- and MRP5-expressing cells are known to show resistance to the chemotherapeutic agent, thio-guanine [22], and in this study resistance factors of 4.4 and of 3 for MRP4-expressing HEK293⁄ 4.6 and MRP5-expressing HEK293⁄ 5I, respectively, were obtained (Fig. 2A, Table 4). These values are compar-able with values reported previously [22]. The poly-phenols quercetin and hesperetin significantly enhanced the sensitivity towards thioguanine in MRP4-expressing cells, whereas quercetin, daidzein, naringenin and hesperetin did so in MRP5-expressing cells, though resveratrol had only a moderate effect (Table 4). Inter-estingly, silymarin had the opposite effect, reducing the toxicity of thioguanine in MRP4- and MRP5-expres-sing cells. This may indicate that silymarin is, in some way, able to enhance efflux of thioguanine. It is, how-ever, possible that other action(s), unconnected with efflux, could account for such an effect. This requires further investigation in the future.

The effect of polyphenols on resistance of MRP4- and MRP5-expressing cells to another putative substrate, NSC251820, was also examined. This compound, though predicted to be a substrate for MRP4, has never been shown experimentally to be so [25]. Our results suggest very strongly that NSC251820 may indeed be a good MRP4 substrate because MRP4-expressing cells, but not MRP5-MRP4-expressing cells, were more resistant to this compound than the untransfected HEK293 cells (Fig. 2, Table 5). Sensitivity of MRP4-expressing cells to NSC251820 was significantly restored by a relatively low concentration of polyphenols (Table 5).

To obtain more direct evidence of flavonoid inter-actions with MRP-mediated transport, studies were conducted to examine their effects on uptake of the MRP1 substrate, DNP–SG and the MRP4 substrate, cGMP into inside-out vesicles prepared from human erythrocyte membranes. All six polyphenols showed high potencies and comparable IC50 values for inhibi-tion of MRP4-mediated cGMP uptake, whereas they were of limited potency against MRP1 (Table 6).

Data from flow cytometry, which assessed the effects of polyphenols on the accumulation of fluorescent sub-strates into intact cells, provided further support for interactions between the polyphenols and MRPs. Sily-marin and quercetin were the best inhibitors for both MRP1- and MRP5-mediated efflux. Naringenin, hes-peretin, resveratrol and daidzein at 50 lm had moder-ate to no effect on MRP1- and MRP5-medimoder-ated efflux (Figs 4 and 5). No flow cytometry studies were

Fig. 6. Effect of various polyphenols on MRP1-mediated ATP hydro-lysis. Crude membranes of MRP1 baculovirus-infected High Five insect cells (100 lgÆmL)1 protein) were incubated at 37
C for 5 min with polyphenols in the presence and absence of BeFx. The reaction was initiated by addition of 5 mMATP and terminated with SDS (2.5% final concentration) after 20 min incubation at 37
C. The amount of Pi released was quantitated using a colorimetric method [30,34]. MRP1-specific activity was recorded as the BeFx-sensitive ATPase activity. Top panel: quercetin ( ), silymarin (h) and naringenin (d); (lower) hesperetin (e), daidzein (r) and resvera-trol (s). Values represent mean ± SD from at least three independ-ent experimindepend-ents.

performed on MRP4-expressing cells because no suit-able fluorescent MRP4 substrate could be identified. Several fluorescent compounds, including calcein-AM, BCECF-AM, Fluo4-AM and Alexa Fluor 647-cAMP, were tested but none showed any differences in accu-mulation between untransfected cells and MRP4-over-expressing cells suggesting that none were being effluxed preferentially by MRP4 (data not shown).

ATPase assays showed that the polyphenols other than quercetin and silymarin moderately stimulated MRP1- and MRP4-mediated ATP hydrolysis (for sum-mary see Table 7). This confirmed the interactions between the polyphenols and MRP1 or MRP4 because ATP hydrolysis and transport are closely linked [32]. Exposure to drug substrates can lead to stimulation or inhibition of ATPase activity of the ABC transporters [33,34]. Quercetin had a biphasic effect on the ATPase

activity of MRP1 and MRP4. ATPase activities were stimulated at lower concentrations but inhibited at higher concentrations. Silymarin, however, significantly inhibited MRP1 and MRP4 ATPase activity. It was previously shown that a known MRP4 substrate PGE1 strongly stimulated MRP4 ATP hydrolysis [30]. Quercetin and silymarin were able to completely inhi-bit PGE1-stimulated MRP4 ATPase activity, which suggested that most likely PGE1, quercetin and silyma-rin shared the same MRP4 substrate-binding pocket(s). Hesperetin, naringenin and resveratrol only partially inhibited the PGE1-stimulated MRP4 ATP hydrolysis, whereas daidzein had no effect.

Previous studies suggested that a silybin analogue [18] can bind to ATP-binding sites of MRP1 thus affecting hydrolysis of ATP. Because silybin is a major compo-nent of silymarin, we examined whether silymarin or

Fig. 7. Effect of various bioflavonoids on basal and PGE1-stimulated MRP4 ATPase activity. (A) Crude membranes of MRP4 baculovirus infected High Five insect cells (100 lg proteinÆmL)1) were incubated at 37
C for 5 min with polyphenols in the presence and absence of BeFx. The reaction was initiated by addition of 5 mMATP and terminated with SDS (2.5% final concentration) after 20 min incubation at 37
C. The MRP4-specific activity was determined as described. (B) MRP4 substrate PGE1 stimulates MRP4 ATPase activity [30]. Briefly, crude membranes were incubated with 20 lMof PGE1 in the absence or presence of polyphenols at indicated concentrations, and the ATPase assay was carried out as described above. (A, B) Quercetin ( ), silymarin (h), naringenin (d), hesperetin (e), daidzein (r) and resve-ratrol (s). Values represent mean ± SD from at least three independent experiments.

quercetin binds to ATP sites of MRP1 and MRP4 by using photoaffinity analog of ATP, [32 P]8-azido-ATP[aP]. At concentrations that cause stimulation and inhibition of ATPase activity, both quercetin and sily-marin were unable to affect cross-linking of [32 P]8-azid-oATP[aP] to either MRP1 or MRP4 (Fig. 8). This provided further evidence that changes in MRP1 and MRP4 ATP hydrolysis were caused by polyphenols possibly binding to the substrate-binding sites and not the nucleotide binding sites.

The fact that quercetin inhibited MRP1-, MRP4-and MRP5-mediated transport in inside-out vesicle uptake and flow cytometry studies and stimulated MRP1 and MRP4 ATPase activity, suggests that quercetin is an MRP substrate. However, in a long-term (72 h) cell toxicity assay, resistance to quercetin was not observed in MRP1-expressing cells. This sug-gests that quercetin or some of its metabolites might be better substrates for MRP4 and MRP5 than MRP1. Silymarin, conversely, behaves as a typical inhibitor in short-term uptake assays, flow cytometry studies and ATPase assays, and it significantly inhib-ited the MRP1 and MRP4 ATPase activity. In 72 h cell toxicity assays, silymarin metabolites were formed and are likely to be substrates of MRP1, MRP4 and

MRP5. It is clear that additional work on the effect of metabolites of flavonoid is needed.

In conclusion, our results indicate that polyphenols interact directly with MRP1, MRP4 and MRP5, and that some of them, i.e. quercetin and silymarin, may well prove to be substrates for MRPs. They modulate both the transport function and ATPase activities of MRP1 and MRP4. Despite the fact that these poly-phenols belong to the same class of compounds and are structurally similar, they all have unique properties and should be studied individually. Given the amounts of polyphenols ingested daily, it is likely that the trans-porters in vivo would be exposed to relatively high con-centrations and become susceptible to modulation of both function and expression. This, in turn, could influence bioavailability, distribution and transport of various dietary toxins and chemotherapeutics handled by these transporters. Understanding the interactions of these polyphenols with MRPs may be useful for improving the efficacy of anticancer as well as antiviral drug therapies.

Experimental procedures

Chemicals

[Glycine-2-3H]glutathione (1.9 TBqÆmmol)1) and

[8-3

H]cGMP (0.559 TBqÆmmol)1) were purchased from

Perkin-Elmer (Boston, MA) and Amersham Biosciences (Piscata-way, NJ), respectively. ATP, ATP-c-S, 1-chloro-2, 4-dinitro-benzene (cDNB), creatine phosphokinase, creatine kinase, cGMP, doxorubicin, quercetin, silymarin, hesperetin, daidz-ein, resveratrol, naringenin, GSH and GST were all obtained from Sigma Chemicals (Poole, UK). Acetoxy-methyl esters of calcein (calcein-AM) and of BCECF (BCECF-AM) were purchased from Molecular Probes (Eugene, OR). GSH stock solutions were freshly prepared

on the day of each experiment. [32P]8-azidoATP[aP]

(15–20 CiÆmmol)1) and 8-azido ATP were obtained from

Affinity Labelling Technologies, Inc. (Lexington, KY). Dulbecco’s modified Eagle’s medium (DMEM), Iscove’s modified Dulbecco’s medium (IMDM), l-glutamine and

penicillin⁄ streptomycin were obtained from Invitrogen

(Carlsbad, CA). Cell Counting Kit-8 was purchased from Dojindo Molecular Technologies, Inc. (Gaithersburg, MD).

[3_{H]DNP–SG was synthesized enzymatically as described}

previously [35,36]. NSC251820 compound was obtained from the drug synthesis and chemistry branch, DCTD, NCI.

Cell lines

Parental HEK293 cells, HEK293⁄ 5I cells transduced

with MRP5 and the MRP4-overexpressing HEK293⁄ 4.63

cells [27,37] were generous gifts of P. Borst (Division of

A

B

Fig. 8. Quercetin and silymarin do not inhibit photoaffinity labelling of MRP1 or MRP4 with [32_{P]8-azidoATP[aP]. Crude membranes} (50–75 lg protein) of MRP1 or MRP4 baculovirus infected High Five insect cells were incubated at 4
C for 5 min with 10 lM

[32_{P]8-azidoATP[aP] (10 lCiÆnmol})1_{) in the presence and absence of} quercetin or silymarin. The photocrosslinking with 365 nm UV light was carried out on ice for 10 min as described previously [30]. Incorporation of [32_{P]8-azidoATP[aP] detected by phosphorimaging} and by exposure to X-ray film at)70
C for 2–8 h after gel electro-phoresis. Photolabelling of (A) MRP1 and (B) MRP4. In both panels, lane 1 and 5, membranes exposed to [32_{P]8-azidoATP[aP] alone,} lanes 2, 3 and 4 membranes treated with 10, 50 and 100 lM

quercetin, respectively, and lanes 6, 7 and 8, with 10, 50 and 100 lM silymarin, respectively. Lane 9, crude membranes were incubated with 10 lM [32_{P]8-azidoATP[aP] in the presence of} 10 mMATP-Mg2+.

Molecular Biology and Centre for Biomedical Genetics, the Netherlands Cancer Institute, Amsterdam, the Nether-lands). HEK293⁄ 4.63 and HEK293 ⁄ 5I cells were reported to express significantly more MRP4 and MRP5, respect-ively [5]. Parental HEK293 cells and all transfectants were grown in DMEM, supplemented with 10% fetal calf serum and 100 units of penicillin⁄ streptomycin per mL

(Invitro-gen, Carlsbad, CA), at 37
C in 5% CO2 humidified air.

G418 (80 lgÆmL)1) was added to the MRP1–HEK293 cell

culture medium [26].

RNA isolation

RNA was isolated from cells grown in six-well plates to

characterize ABC transporter expression in parental

HEK293 cells and all transfected HEK293 cell lines. The medium and any detached cells were first removed from the wells, and RNA isolation was performed on the cells that remained attached using the Qiagen RNeasy kit (Valencia, CA), as per the manufacturer’s protocol. RNA samples were isolated in duplicate. Pure RNA was quantified using a spectrophotometer. The integrity of the RNA was verified using the Agilent 2100 Bioanalyzer (Palo Alto, CA) with the Eukaryote Total RNA assay. The RNA samples were

stored at)80
C until needed.

Quantitative RT-PCR

Real-time quantitative RT-PCR was used to measure the mRNA expression levels of the selected ABC transport-ers. The LightCycler RNA Master SYBR Green Kit and LightCycler machine (Roche Biochemicals, Indianapolis, IN) were utilized in these studies. Specific PCR primer sequences for all ABC transporters except for ABCC5 were generously provided by G. Szakacs and M. Gottes-man (Laboratory of Cell Biology, National Cancer Insti-tute, NIH, Bethesda, MD) [25]. Primers for ABCC5 were designed using the lightcycler probe design 2.0 (Roche Biochemicals). All primer sets were tested prior to use in this work to ensure that only a single product of the cor-rect size was amplified for all ABC transporter primer sets (Table 1). The RT-PCR reaction was performed on 300 ng total RNA with 250 nm specific primers under the

following conditions: reverse transcription (20 min at

61
C), one cycle of denaturation at 95
C for 30 s, and

PCR of 45 cycles with denaturation (15 s at 95
C),

annealing (30 s at 58
C) and elongation (30 s at 72
C

with a single fluorescence measurement). The PCR was

followed by a melting curve programme (65–95
C with a

heating rate of 0.1
CÆs)1 and a continuous fluorescence

measurement) and then a cooling programme at 40
C.

Negative controls consisting of no template (water) reac-tion mixtures were run with all reacreac-tions. PCR products were also run on agarose gels to confirm the formation of a single product at the desired size. Crossing points

for each transcript were determined using the second derivative maximum analysis with the arithmetic baseline adjustment. Data were normalized to expression of only a single convenient reference gene, GAPDH. Data are presented as a comparison of gene expression for the transfectants relative to that for the parental HEK293 cells.

Preparation of red cell plasma membrane vesicles and vesicle transport assays

Membrane vesicles from human erythrocytes were isolated as previously described and ATP-dependent transport of

[3H]DNP–SG or [3H]cGMP into membrane vesicles was

measured using a rapid filtration technique [28]. Thawed membrane vesicles were diluted in transport buffer, and

all standard transport assays were carried out at 37
C.

Fifty micrograms of membrane vesicles from human eryth-rocytes was added to a buffer system (55 lL final volume)

containing 1 mm ATP, 10 mm MgCl2, 10 mm creatine

phosphate, 100 lgÆmL)1 creatine kinase, 10 mm Tris⁄ HCl

(pH 7.4). At the indicated time points, samples were taken from the mixture, diluted in 1 mL of ice cold stop

solu-tion (10 mm Tris⁄ HCl, pH 7.4) and subsequently filtered

through nitrocellulose filters (Whatman 0.2 lm pore size,

presoaked overnight in 3% w⁄ v bovine serum albumin).

Filters were rinsed with 3 mL of ice-cold stop solution, and the tracer retained on the filter was determined by liquid scintillation counting. All transport data are presen-ted as the difference of the values measured in the pres-ence and abspres-ence of ATP, and ATP-regenerating system was expressed relative to the protein concentration of the

membrane vesicles. All data were corrected for the

amount of radiolabel that remained bound to the filter in the absence of vesicle protein. Inhibitors were added to the uptake buffer solution immediately prior to the addi-tion of the vesicles.

Cytotoxicity assay

Sensitivities of cell lines to various chemicals were examined using the cell-counting kit (CCK) technique as detailed previously [38]. This technique detects the activities of dehydrogenases in viable cells, converting a colourless tetra-zolium salt to a yellow formazan product soluble in the culture medium. Briefly, cells were plated at a density of 2000–5000 cells per well in 96-well plates containing 100 lL

of culture medium. After 24 h incubation at 37
C in the

humidified tissue-culture chamber, drugs were added into wells to a final volume of 200 lL per well and incubated for an additional 72 h. CCK reagent was then added into each well and incubated for 4 h before reading at a

wave-length of 450 nm. IC50 values were calculated from dose–

response curves obtained from at least three independent

using a two-tailed unpaired t-test with combined estimate of the variance [39].

Effect of polyphenols on fluorescent substrate accumulation detected by FACS

A FACSort flow cytometer equipped with Cell Quest soft-ware (Becton-Dickinson, Franklin Lakes, NJ) was used for FACS analysis as described previously [31]. Two fluorescent substrates were used for the efflux assays.

Calcein was used to study MRP1-mediated efflux

(MRP1–HEK293), whereas BCECF was utilized for

MRP5-mediated efflux studies (HEK293⁄ 5I). Briefly, cells

were harvested after trypsinization by centrifugation at 500 g and then resuspended in IMDM supplemented with 5% fetal bovine serum. We added 0.25 lm calcein-AM or

BCECF-AM to 3· 105_{cells in 4 mL of IMDM in the}

pres-ence or abspres-ence of MK-571 and various polyphenols. The

cells were incubated in a water bath at 37
C in the dark

for 10 min for calcein and BCECF efflux assays prior to being pelleted by centrifugation at 500 g. The cell pellet

was then resuspended in 300 lL of NaCl⁄ Pi containing

0.1% bovine serum albumin and then analysed immediately using the flow cytometer.

Preparation of crude membranes from High Five insect cells infected with recombinant baculo-virus carrying the human MRP1 or MRP4 cDNA

High Five insect cells were infected with the recombinant baculovirus carrying the human MRP1 cDNA with a 10 histidine tag at the C-terminal end [BV-MRP1 (H10)] or human MRP4 cDNA (pVL1393-MRP4 plasmid was provi-ded by Dr Gary Kruh, Fox Chase Cancer Centre, PA). Crude membranes were prepared from these cells as des-cribed previously [30,34]. The protein content was deter-mined by the Amido-black B protein estimation method [34]. Crude membranes were quickly frozen in dry ice and

stored at)70
C.

ATPase assays

ATPase activities of MRP1 and MRP4 in crude membranes

of High Five cells were measured by endpoint, Piassay as

described previously [30,40]. MRP-specific activity was recorded as beryllium fluoride (BeFx)-sensitive ATPase activity. The assay measured the amount of inorganic

phos-phate released over 20 min at 37
C in the ATPase assay

buffer (50 mm Mes-Tris, pH 6.8, 50 mm KCl, 5 mm NaN3,

1 mm EGTA, 1 mm ouabain, 2 mm dithiothreitol and

10 mm MgCl2) in the absence and presence of 2.5 mm NaF

and 0.2 mm beryllium sulfate. The assay was initiated by the addition of 5 mm ATP in the presence and absence of test compounds or transport substrates and quenched with

SDS (2.5% final concentration). The amount of Pireleased

was quantified using a colorimetric method [40].

Photoaffinity labelling MRP1 and MRP4 with [32P]8-azidoATP[aP]

Crude membranes (1 mgÆmL)1 protein) were incubated in

the ATPase assay buffer containing 10 lm [32

P]8-azido-ATP[aP] (10 lCiÆnmol)1) on ice in the dark on ice for

5 min and then 4
C for 5 min in the presence or absence

of indicated concentrations of tested compounds. The samples were then illuminated with a UV lamp assembly

(365 nm) for 10 min on ice (4
C). Ice-cold ATP

(12.5 mm) was added to displace excess noncovalently

bound [32P]8-azidoATP[aP]. After SDS⁄ PAGE on an 7%

Tris⁄ glycine gel at constant voltage, gels were dried and

exposed to Bio-Max MR film at )70
C for the required

period (2–12 h) as described previously [41]. The gels were also exposed to a Phosphorimager screen for quantitation

of the incorporation of [32P]8-azidoATP[aP] in the

pres-ence and abspres-ence of test compounds as described previ-ously [41].

Acknowledgements

We thank Dr Piet Borst (the Netherlands Cancer Insti-tute) for the HEK294⁄ 4.63 and HEK293 ⁄ 5I cells and Dr Gary Kruh (Fox Chase Cancer Centre) for MRP4 plasmid. We also thank Developmental Therapeutics Program, DCT & D, NCI for providing NSC251820 and Mr George Leiman (LCB, NCI) for editorial help. CPW was supported by Cambridge Commonwealth Trust Fund and by a visiting preCRTA award from the NCI, NIH. This research was supported in part by the Intramural Research Program of the National Cancer Institute, NIH.

References

1 Allen JD, Brinkhuis RF, van Deemter L, Wijnholds J & Schinkel AH (2000) Extensive contribution of the multi-drug transporters P-glycoprotein and Mrp1 to basal drug resistance. Cancer Res 60, 5761–5766.

2 Gottesman MM, Fojo T & Bates SE (2002) Multidrug resistance in cancer: role of ATP-dependent transpor-ters. Nat Rev Cancer 2, 48–58.

3 Borst P & Oude-Elferink R (2002) Mammalian ABC transporters in health and disease. Annu Rev Biochem 71, 537–592.

4 Cole SP, Sparks KE, Fraser K, Loe DW, Grant CE, Wilson GM & Deeley RG (1994) Pharmacological char-acterization of multidrug resistant MRP-transfected human tumor cells. Cancer Res 54, 5902–5910.

5 Reid G, Wielinga P, Zelcer N, De Haas M, Van Deemter L, Wijnholds J, Balzarini J & Borst P (2003) Characterization of the transport of nucleoside analog drugs by the human multidrug resistance proteins MRP4 and MRP5. Mol Pharmacol 63, 1094–1103.

6 Breuninger LM, Paul S, Gaughan K, Miki T, Chan A, Aaronson SA & Kruh GD (1995) Expression of

multi-drug resistance-associated protein in NIH⁄ 3T3 cells

con-fers multidrug resistance associated with increased drug efflux and altered intracellular drug distribution. Cancer Res 55, 5342–5347.

7 Grant CE, Valdimarsson G, Hipfner DR, Almquist KC, Cole SP & Deeley RG (1994) Overexpression of multidrug resistance-associated protein (MRP) increases resistance to natural product drugs. Cancer Res 54, 357–361.

8 Schuetz JD, Connelly MC, Sun D, Paibir SG, Flynn PM, Srinivas RV, Kumar A & Fridland A (1999) MRP4: a previously unidentified factor in resistance to nucleoside-based antiviral drugs. Nat Med 5, 1048– 1051.

9 Scalbert A & Williamson G (2000) Dietary intake and bioavailability of polyphenols. J Nutr 130, 2073S–2085. 10 Kim HP, Son KH, Chang HW & Kang SS (2004)

Anti-inflammatory plant flavonoids and cellular action mechanisms. J Pharmacol Sci 96, 229–245.

11 Neuhouser ML (2004) Dietary flavonoids and cancer risk: evidence from human population studies. Nutr Cancer 50, 1–7.

12 Murota K & Terao J (2003) Antioxidative flavonoids quercetin: implication of its intestinal absorption and metabolism. Arch Biochem Biophys 417, 12–17. 13 Verbeek R, Plomp A, van Tol E & van Noort J (2004)

The flavones luteolin and apigenin inhibit in vitro anti-gen-specific proliferation and interferon-gamma produc-tion by murine and human autoimmune T cells. Biochem Pharmacol 68, 621–629.

14 Verbeek R, van Tol EAF & van Noort JM (2005) Oral flavonoids delay recovery from experimental auto-immune encephalomyelitis in SJL mice. Biochem

Pharmacol Corrected Proofin press.

15 Zhang S & Morris ME (2003) Effects of the flavonoids biochanin A, morin, phloretin and silymarin on P-glyco-protein-mediated transport. J Pharmacol Exp Ther 304, 1258–1267.

16 Bobrowska-Hagerstrand M, Wrobel A, Mrowcynska L, Soderstrom T, Shirataki Y, Motohashi N, Molnar J, Michalak K & Hagerstrand H (2003) Flavonoids as inhibitors of MRP1-like efflux activity in human ery-throcytes. A structure–activity relationship study. Oncol Res 13, 463–469.

17 Leslie EM, Mao Q, Oleschuk CJ, Deeley RG & Cole SP (2001) Modulation of multidrug resistance protein 1

(MRP1⁄ ABCC1) transport and ATPase activities by

interaction with dietary flavonoids. Mol Pharmacol 59, 1171–1181.

18 Trompier D, Baubichon-Cortay H, Chang XB, Maitre-jean M, Barron D, Riordon JR & Di Pietro A (2003) Multiple flavonoid-binding sites within multidrug resis-tance protein MRP1. Cell Mol Life Sci 60, 2164–2177. 19 Cooray H, Janvilisri T, van Veen H, Hladky S &

Barrand M (2004) Interaction of the breast cancer resis-tance protein with plant polyphenols. Biochem Biophys Res Commun 317, 269–275.

20 Zhang S, Yang X & Morris M (2004) Flavonoids are inhibitors of breast cancer resistance protein (ABCG2)-mediated transport. Mol Pharmacol 65, 1208–1216. 21 Andersson C, Servetnyk Z & Roomans GM (2003) Activation of CFTR by genistein in human airway epithelial cell lines. Biochem Biophys Res Commun 308, 518–522.

22 Chen ZS, Lee K & Kruh GD (2001) Transport of cyclic nucleotides and estradiol 17-beta-d-glucuronide by mul-tidrug resistance protein 4. Resistance to 6-mercapto-purine and 6-thioguanine. J Biol Chem 276, 33747– 33754.

23 Jedlitschky G, Burchell B & Keppler D (2000) The mul-tidrug resistance protein 5 functions as an ATP-depen-dent export pump for cyclic nucleotides. J Biol Chem 275, 30069–30074.

24 Reid G, Wielinga P, Zelcer N, van der Heijden I, Kuil A, de Haas M, Wijnholds J & Borst P (2003) The human multidrug resistance protein MRP4 functions as a prostaglandin efflux transporter and is inhibited by nonsteroidal antiinflammatory drugs. Proc Natl Acad Sci USA 100, 9244–9249.

25 Szakacs G, Annereau JP, Lababidi S, Shankavaram U, Arciello A, Bussey KJ, Reinhold W, Guo Y, Kruh GD, Reimers M et al. (2004) Predicting drug sensitivity and resistance: profiling ABC transporter genes in cancer cells. Cancer Cell 6, 129–137.

26 Mu¨ller M, Yong M, Peng XH, Petre B, Arora S & Ambudkar SV (2002) Evidence for the role of glycosyla-tion in accessibility of the extracellular domains of human MRP1 (ABCC1). Biochemistry 41, 10123–10132. 27 Wielinga PR, Reid G, Challa EE, van der Heijden I,

van Deemter L, de Haas M, Mol C, Kuil AJ, Groeneveld E, Schuetz JD et al. (2002) Thiopurine metabolism and identification of the thiopurine metabo-lites transported by MRP4 and MRP5 overexpressed in human embryonic kidney cells. Mol Pharmacol 62, 1321–1331.

28 Klokouzas A, Wu CP, van Veen HW, Barrand MA & Hladky SB (2003) cGMP and glutathione-conjugate transport in human erythrocytes. Eur J Biochem 270, 3696–3708.

29 McAleer MA, Breen MA, White NL & Matthews N (1999) pABC11 (also known as MOAT-C and MRP5), a member of the ABC family of proteins, has anion

transporter activity but does not confer multidrug resis-tance when overexpressed in human embryonic kidney 293 cells. J Biol Chem 274, 23541–23548.

30 Sauna ZE, Nandigama K & Ambudkar SV (2004) Mul-tidrug resistance protein 4 (ABCC4)-mediated ATP hydrolysis: effect of transport substrates and characteri-zation of the post-hydrolysis transition state. J Biol Chem 279, 48855–48864.

31 Sauna ZE, Mu¨ller M, Peng XH & Ambudkar SV (2002) Importance of the conserved Walker B glutamate resi-dues, 556 and 1201, for the completion of the catalytic cycle of ATP hydrolysis by human P-glycoprotein (ABCB1). Biochemistry 41, 13989–14000.

32 Ambudkar SV, Cardarelli CO, Pashinsky I & Stein WD (1997) Relation between the turnover number for vin-blastine transport and for vinvin-blastine-stimulated ATP hydrolysis by human P-glycoprotein. J Biol Chem 272, 21160–21166.

33 Ambudkar S, Dey S, Hrycyna C, Ramachandra M, Pastan I & Gottesman M (1999) Biochemical, cellular, and pharmacological aspects of the multidrug transpor-ter. Annu Rev Pharmacol Toxicol 39, 361–398.

34 Kerr KM, Sauna ZE & Ambudkar SV (2001) Correla-tion between steady-state ATP hydrolysis and vanadate-induced ADP trapping in human P-glycoprotein. Evi-dence for ADP release as the rate-limiting step in the catalytic cycle and its modulation by substrates. J Biol Chem 276, 8657–8664.

35 Ishikawa T (1989) Leukotriene C4 inhibits ATP-depend-ent transport of glutathione S–conjugate across rat

heart sarcolemma. Implication for leukotriene C4 trans-location mediated by glutathione S–conjugate carrier. FEBS Lett 246, 177–180.

36 Klokouzas A, Barrand MA & Hladky SB (2001) Effects of clotrimazole on transport mediated by multidrug resistance associated protein 1 (MRP1) in human ery-throcytes and tumour cells. Eur J Biochem 268, 6569– 6577.

37 Wijnholds J, Mol CA, van Deemter L, de Haas M, Scheffer GL, Baas F, Beijnen JH, Scheper RJ, Hatse S, De Clercq E et al. (2000) Multidrug-resistance protein 5 is a multispecific organic anion transporter able to transport nucleotide analogs. Proc Natl Acad Sci USA 97, 7476–7481.

38 Ishiyama M, Tominaga H, Shiga M, Sasamoto K, Ohkura Y & Ueno K (1996) A combined assay of cell viability and in vitro cytotoxicity with a highly water-soluble tetrazolium salt, neutral red and crystal violet. Biol Pharm Bull 11, 1518–1520.

39 Wonnacott RJ & Wonnacott TH (1985) Introductory Statistics, 4th edn. Wiley, New York.

40 Ambudkar SV (1998) Drug-stimulatable ATPase activ-ity in crude membranes of human MDR1-transfected mammalian cells. Methods Enzymol 292, 504–514. 41 Sauna ZE & Ambudkar SV (2001) Characterization

of the catalytic cycle of ATP hydrolysis by human P-glycoprotein. The two ATP hydrolysis events in a single catalytic cycle are kinetically similar but affect different functional outcomes. J Biol Chem 276, 11653–11661.
