Who Should Read This Document
The document is primarily focused on administrators. However, some portions of this document cater to the needs of a developer. In such scenarios, the roles are identified at the beginning of a section. Unless specified otherwise, the procedures in the document are meant for administrators.
11 | About This Product
About This Product
The TIBCO ActiveSpaces® software is a distributed in-memory data grid product. Some features of ActiveSpaces® include use of familiar database concepts, high I/O capacity, and network scalability.
ActiveSpaces features a complete redesign and reimplementation of the product and is straightforward to understand, use, and administer.
Product Editions
ActiveSpaces is now available in two editions: Community Edition and Enterprise Edition.
ActiveSpaces - Community Edition
ActiveSpaces® - Community Edition is ideal for getting started with ActiveSpaces for
implementing application projects, including proof of concept projects, for testing, and for deploying applications in a production environment. Although the community license limits the number of production instances, you can easily upgrade to the enterprise edition as your use of ActiveSpaces expands.
The community edition is available free of charge. It is a full installation of the ActiveSpaces product. The limitation of using the community edition is that the users can run up to 25 nodes (a total of the copyset nodes or proxies in your data grid).
ActiveSpaces - Community Edition is compatible with both the enterprise and community editions of TIBCO FTL®.
ActiveSpaces - Enterprise Edition
ActiveSpaces® - Enterprise Edition is ideal for all application development projects, and for deploying and managing applications in the production environment of an enterprise. It includes all features presented in this documentation set, and you also have access to TIBCO Support. Choose the enterprise edition for production deployments with more than 25 nodes (a total of the copyset nodes or proxies in your data grid) and for enterprise monitoring using dashboards.
ActiveSpaces - Enterprise Edition depends on the enterprise edition of TIBCO FTL for monitoring and management of data grid components and secure communication.
12 | Administrative Concepts
Administrative Concepts
These concepts and definitions pave the way to a more detailed understanding of ActiveSpaces administration.
Data Grid
A set of cooperating processes that distribute data across a set of host computers.
Three kinds of cooperating processes implement a data grid: nodes, proxies, and state keepers.
Copyset
A data grid partitions the complete set of data into copysets. Each copyset contains a portion of the full data set.
Each table row resides within only one copyset.
Partitioning
The data grid horizontally partitions the rows of a table across copysets. So a query or a transaction can span many copysets.
Node
Nodes are processes that implement a copyset. Administrators define nodes and assign them to copysets.
Each copyset requires a primary node. Secondary nodes can provide optional backup protection.
Each node of a copyset maintains one copy of the data (that is, one copy of all the rows in that copyset).
Each node is part of only one copyset.
Replica
The number of replicas in a copyset is identical to the number of nodes that implement that copyset. Replicas provide fault tolerance and protect data against hardware failures.
More replicas yield greater protection.
l In a prototyping or testing environment, you can implement a copyset using only one node.
13 | Administrative Concepts
l In most production environments, two nodes provide adequate protection.
l For even stronger fault tolerance, you can use three nodes.
Replication
The replication feature, when used, provides fault tolerance by preventing data loss when a node (or the computer running the node) fails and cannot be accessed.
All nodes in a given copyset are replicas of each other and they all have the exact same set of data.
There is a single primary replica in a copyset and the other nodes in that copyset are secondary replicas.
Every copyset in the data grid is organized to make sure the slice of data owned by that copyset is stored on as many replicas as desired.
Reconciling Nodes of a Copyset
When a node of a copyset is brought back online, the data for the node is reconciled with the primary node. After reconciliation, the node being brought back online resumes as a secondary node of the copyset.
For more information, see Copysets.
Using Multiple Nodes
There are several reasons for using multiple nodes:
l Nodes in different copysets are created with the goal of scaling horizontally.
As a result multiple copysets are created, each with a slice of the data.
l Nodes in the same copyset are created to provide multiple replicas for fault tolerance.
These contain identical copies of the data.
l In a product environment a combination of the previously described use cases can be used.
For example, you might choose to have two replicas per copyset and multiple copysets (say three) to scale horizontally.
In this example, your environment would have a total of six nodes.
Proxy
Proxies are processes that mediate data grid operations on behalf of application programs.
Application programs connect to proxies, which in turn connect to nodes.
14 | Administrative Concepts
Proxy processes are independent of one another and do not require persistent state, so you can share the load of operations among multiple proxies.
State Keeper
Fault-tolerant state keeper processes determine and record the data grid's run time state information by which a data grid operates, and supply this information to the proxies and copyset nodes.
A set of fault-tolerant state keeper processes protect this crucial information and ensure nonstop access to it. One of the state keepers is designated the lead state keeper and supplies this information to the proxies and copyset nodes. If the lead state keeper goes down, one of the secondary state keepers takes over as the lead. In a fault-tolerant set of 3 state keepers, a quorum of 2 state keepers must always be running to ensure data consistency in split brain scenarios. If a state keeper is restarted when a quorum is running, one of the running state keepers updates the state of the restarted state keeper. If the number of running state keepers falls below the quorum and state of a copyset changes (for example, a node goes down), operations on the data grid continue to fail until a quorum of state keepers are running again. Until a copyset state change occurs, live operations may still continue working. However, it is critical that a quorum of state keepers be running to provide the full grid functionality.
For more information, see State Keeper.
Copysets
A data grid partitions the complete set of data into copysets. Each copyset contains a portion of the full data set.
The data grid horizontally partitions each table, assigning each row to one specific copyset.
This partitioning is transparent to application programs.
Programs explicitly interact with tables, but do not refer to copysets.
Tables and Copysets
Tables and copysets are independent concepts.
Tables organize data in a way that makes sense to users of the data. Tables consist of rows, structured by columns.
Copysets store table rows, distributing them across a network in a way that facilitates fast access, fault tolerance, data replication, and flexibility.
15 | Administrative Concepts
State Keeper
The state keeper determines and records the data grid's run time state information by which a data grid operates, and supplies this information to the proxies and copyset nodes.
Runtime Information Stored in the State Keeper Primary Nodes
Within each copyset, one node is the primary copy, which both stores data and provides read access. Other nodes are secondary nodes that store backup copies of the data. The state keeper records which node is the primary.
Data Distribution Mapping
The state keeper determines the mapping that assigns each table row to a copyset.
State Keeper Fault Tolerance
A set of fault-tolerant state keeper processes protect this crucial information and ensure nonstop access to it. One state keeper process supplies this information to the proxies and copyset nodes.
In production environments, use three processes. In a prototyping or testing environment, only one process suffices.
For added protection, each state keeper process also maintains a copy of the governing decisions in a disk file.
Realm Service
A data grid is run inside a TIBCO FTL realm. A TIBCO FTL realm serves as a repository for data grid configuration information and provides communication services that enable all data grid processes to communicate with each other. A client application accesses the data grid by using the realm service URL.
The realm service URL is the URL of the TIBCO FTL server. The realm service offers the following capabilities:
l Stores data grid definitions
l Communicates with the administrative tools to store and retrieve data grid definitions l Communicates with all the processes running in the data grid and updates the
internal configuration if anything changes l Collects monitoring data from all processes
16 | Administrative Concepts
Concepts guide.
Terminology Used to Address the TIBCO FTL Realm
With TIBCO FTL 6.1 or later, ActiveSpaces uses the realm service capabilities or processes of the TIBCO FTL server. The following changes are made to the terminology to generically address the components of TIBCO FTL 5.x and TIBCO FTL 6.x:
The Term Used in the
Document
The Equivalent Component in TIBCO FTL 5.4.1
The Equivalent Component in TIBCO FTL 6.1 or Later
Realm service Realm server Realm service running on the TIBCO FTL server
Realm service URL Realm server URL TIBCO FTL server URL
Backup realm service
Backup realm server TIBCO FTL server that is a member of a cluster of three or more TIBCO FTL servers
Primary Realm Primary Realm Server and its Backup Realm Server
A cluster of primary TIBCO FTL servers that provide realm services for the data grid.
Satellite Realm Satellite Realm Server and its Backup Realm Server
A cluster of satellite TIBCO FTL servers that are connected to a cluster of primary TIBCO FTL servers.
17 | Development Environment
Development Environment
In many enterprises programmers act as administrators during the development and test phases of a project. To develop and test application programs that use ActiveSpaces software, deploy the following processes.
l Realm service One realm service l State keeper One process
l Node One process l Proxy One process
l Your application programs One or more processes, as appropriate
In a development environment you can run all of these processes on the same host computer.
Sample Scripts
Refer to the TIBCO_HOME/as/<version>/samples/readme.md before using the sample scripts.
The following scripts are available:
l TIBCO_HOME/as/<version>/samples/scripts/as-start defines a simple data grid and starts its component processes.
l TIBCO_HOME/as/<version>/samples/scripts/as-stop stops those component pro- cesses.
Sample Docker Environment
A sample docker-compose environment is provided to demonstrate how to deploy an ActiveSpaces data grid in Docker. For more information, see TIBCO_
HOME/as/<version>/samples/docker/README.md.
Sample Kubernetes Environment
A sample Kubernetes manifest file and Helm chart are provided to demonstrate how to deploy an ActiveSpaces data grid in Kubernetes. For more information, see TIBCO_
HOME/as/<version>/samples/kubernetes/README.md and TIBCO_
HOME/as/<version>/samples/kubernetes-helm/README.md.
18 | Development Environment
Note: The installation environment of ActiveSpaces is referenced as TIBCO_
HOME. For example, on Microsoft Windows, TIBCO_HOME might be C:\tibco.
19 | Production Environment
Production Environment
To use ActiveSpaces software in a production environment, deploy the following processes.
l Realm service: A realm service is a cluster of TIBCO FTL servers that provide realm services. If one realm service goes down, any of the other services can take over for it provided the applications have included them in their pipe separated connection URL. For fault tolerance, they must not all be on the same computer. Run either one TIBCO FTL server, or a group of three or five or seven TIBCO FTL servers.
l State keeper: The minimum production arrangement consists of three state keeper processes. To ensure high availability during a network partition or hardware failure, each state keeper process must run on a separate host computer. Not doing so might result in grid-wide data loss.
At any given time, you must maintain a quorum of running state keepers. If you want to run more than one state keeper, configure three state keepers and make sure you have at least two running state keepers.
l Node: The minimum production arrangement consists of two node processes per copyset.
Optional. For greater data protection you can run three nodes per copyset.
Note: Additional copies can become expensive in two ways:
o Increasing the node count by one adds one complete copy of all the data.
o Every node process must run on a separate host computer. Usually this requirement determines the number of host computers you must maintain. For example, a data grid with three copysets and two nodes per copyset requires six nodes, all on separate hosts.
Increasing to three nodes per copyset would require nine nodes, all on separate hosts.
l Proxy: The minimum production arrangement consists of one proxy process.
Optional. You can run additional proxies to increase the capacity for client programs and to improve response time. For best results, run proxy processes on a separate host computers.
l Your application programs Run processes as appropriate.
20 | Production Environment
Components Sharing a Host Computer
You can reduce the number of host computers in a production environment by running more than one component per host.
For example, you can run a realm service, a state keeper, a node, and a proxy, all on one host. (In contrast, do not run two state keepers on the same host.)
For effective fault tolerance, run the nodes of each copyset on separate host computers.
Warning: Combining component processes on a host computer increases the risk that a single point of failure on the host can disrupt all those processes sim- ultaneously. Assess the risk tolerance of your enterprise.
21 | String Encoding
String Encoding
To preserve interoperability throughout your enterprise, all strings must use UTF-8 encoding.
l When the TIBCO FTL Java libraries send messages, all strings are automatically UTF-8 encoded.
l C programs must treat strings in inbound messages as UTF-8 encoded strings.
l C programs must send only UTF-8 encoded strings.
l With the Golang API, strings are automatically UTF-8 encoded.
Note: Strings cannot include embedded null characters.
22 | Starting a Realm Service

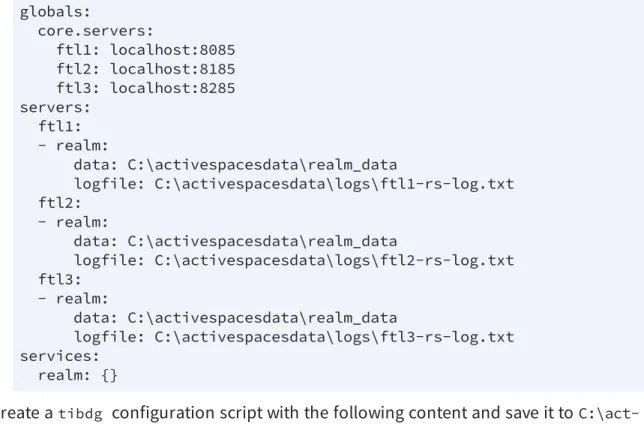

Starting a Realm Service
Each ActiveSpaces data grid depends on a TIBCO FTL realm service to supply configuration data to its components. To start a realm service process, complete this task.
Dedicate a separate realm for each data grid. If your application programs also use TIBCO FTL communications, arrange a separate realm for them. Run either one FTL server, or a group of three or five or seven FTL servers.
Before you begin
TIBCO FTL software must already be installed on all computers hosting a realm service.
Procedure
1. Navigate to the realm configuration data directory.
cd my_data_dir_1
The realm service uses the current directory as the default location to store its work- ing data files.
l The first time you start a realm service for a data grid, navigate to an empty dir- ectory. When the realm service detects an empty working directory, it begins with a default realm definition. As you configure the realm definition, in sub- sequent tasks, the realm service stores that definition in its data directory.
l If you have already begun to configure the realm definition, then navigate to the same data directory. The realm service reads the realm definition from the work- ing directory.
2. Run the realm service executable.
tibftlserver -n <name>@<host>:<port>
where
<name> is a unique name for the FTL server, for example, ftl1.
The port must not be bound by any other process.
ActiveSpaces component processes initiate contact with the realm service at this address.
23 | Starting a Realm Service
Note: Application programs must supply this realm service URL (host:port) to data grid connect call.
24 | Administration Tool
Administration Tool
tibdg is an administrative command-line tool for ActiveSpaces. You can use it to define data grid components, tables, and indexes; to see the status of data grid components; and to save and restore the definitions of a data grid.
Usage Help
To see a summary of commands, run the administration tool with the help command:
tibdg help
To see information about a specific command or command area, run the administration tool with the help command and the command as an argument. For example:
tibdg help copyset
tibdg help table
tibdg help status
Realm Service Interactions
Administration tool commands interact with the realm service:
l Storing definitions in the realm service l Retrieving definitions from the realm service
l Retrieving status information from the realm service
Every interaction command requires the location of the realm service, either as an argument or as the value of an environment variable.
Modes of Operation
You can use the administration tool in two ways:
l Immediate command execution When you run tibdg, the tool makes the change in the realm service workspace, and immediately deploys that change to the realm service's clients (namely, data grid component processes).
25 | Administration Tool
This mode is convenient for changes to a running data grid (such as adding a new table), for saving the data grid definition to a file, and for requesting status
information about a running data grid.
l Command script Alternatively, you can create a command script file containing several commands. Then tibdg executes that batch of commands, accumulating those changes in the realm service workspace. Finally, the tool deploys all the workspace changes to the realm service's clients before exiting.
This mode is convenient for a series of related changes, such as defining a data grid, or creating a table and its columns.
Consider the following two examples, which accomplish the same goal: defining a data grid.
The first example runs five separate command-lines, deploying each change immediately.
tibdg grid create
tibdg copyset create my_copyset tibdg node create my_node
tibdg keeper create my_keeper tibdg proxy create my_proxy
In contrast, the second example consists of five commands in a script file, my_script_
file.tibdg:
grid create
copyset create my_copyset node create my_node
keeper create my_keeper proxy create my_proxy
Then it runs the script with one command-line, deploying all the changes at the end.
tibdg -s my_script_file.tibdg
For more information about the realm service and its workspace, see TIBCO FTL Administration.
Administration Tool Reference
Administrators use tibdg to configure and monitor a data grid.
Syntax
tibdg [-r realm_service_URL] [-g grid_name] [-c path] [-s path] [-m mes- sage] [Command Command_Args]
26 | Administration Tool
Note:
l If the -r command-line option is not specified, the default realm service URL of http://localhost:8080 is used.
l If the -g command-line option is not specified, the default grid name of _ default is used. The -g option is ignored for commands that take the grid name as an argument. For example, grid rebuild <grid name>
l If the -m command-line option is specified, then the message provided is included in the TIBCO FTL deployment and is visible on the Deployments page of the TIBCO FTL UI. This helps you store the purpose of the deploy- ment.
Command-Line Parameters
See also Environment Variables for the Administration Tool.
Parameter Description
-h --help
Output help text about tibdg and its command-line parameters.
Environment Variables for the Administration Tool
The following environment variables can be used with the tibdg command-line administrative tool.
Values on the command-line override the values of these environment variables.
Environment Variable
Description
TIBDG_FTL The administration tool contacts the realm service at this URL (host and port).
TIBDG_PARAM_
FILE
The administration tool reads parameters from this file path.
Values in this file override the tool's default values.
Individual values on the command-line override values in this file.
If this variable is not set, the tool reads parameters from the file it finds in either
27 | Administration Tool
Environment Variable
Description
of these two default locations:
l ./.tibdg l ~/.tibdg
TIBDG_FTL_USER The user name and password used to connect to the secure realm service.
TIBDG_FTL_
PASSWD
TIBDG_FTL_
TRUSTFILE
The value of this property is the location of the trust file.
tibdg Status
Run the administrative tool with the status command to view the status of the data grid components.
The following information is displayed when you execute the tibdg status command:
The PROCESSES section lists the status of the tibdgnode, tibdgkeeper, and tibdgproxy
processes.
The value in the EST SIZE column represents how much data that node has written to the disk.
Note: EST SIZE is updated infrequently and must be interpreted as an approximate value.
28 | Administration Tool
The REINDEXING section displays information for any table that is currently being reindexed or is pending a reindex. If there is no reindexing in progress or pending, this section is not displayed.
To get a more detailed status from a specific process, include a process type and a process name when executing the status command.
For example:
tibdg node status t1
The following is an example of a tibdg node status:
user@user-mbp:[~/home]:tibdg -r http://users-mbp.na.tibco.com:7715 node status s1
Node Name: s1
Node ID: 6B97B5D0-EA30-4A63-AD64-781378D5848B Data Dir: /Users/home/grid1/asnodedb
Copyset Name: set1
Copyset ID: 796878AB-5BE8-4905-B4B3-2FDE19A64292 Running: true (1 instances)
Instance 1:
Host: users-mbp.na.tibco.com IP: 10.97.128.112
PID: 31344 Is Primary: true Active Transactions: 0 Active Requests: 0 Epoch: 0 Live Data Size (est): 0.0B Reindexing Operations: 0 Redistribution Operations: 0
The following is an example of tibdg proxy status:
user@users-mbp:[~/home]:tibdg -r http://users-mbp.na.tibco.com:7715 proxy status p1
Proxy Name: p1
Proxy ID: 4E50717C-C942-4AD9-876A-F79F688236E1 Running: true (1 instances)
Instance 1:
Host: users-mbp.na.tibco.com IP: 10.97.128.112
PID: 31335 Clients: 0 Client Ops: 502 Iterators: 0 Statements: 0
29 | Administration Tool
Queries: 0 Listeners: 0
The following is an example of tibdg keeper status:
user@users-mbp:[~/home]:tibdg -r http://users-mbp.na.tibco.com:7715 keeper status k1
State Keeper Name: k1
State Keeper ID: E9BFE22A-4271-4279-9007-5A7603BC449E State Dir: /Users/home/grid1/k1_data
Running: true (1 instances) Instance 1:
Host: users-mbp.na.tibco.com IP: 10.97.128.112
PID: 31331 Is Leader: true Grid Status Vote: true Primaries: 1
Copyset ID Primary Node ID 796878AB-5BE8-4905-B4B3-2FDE19A64292 6B97B5D0-EA30- 4A63-AD64-781378D5848B
Copysets: 1
Copyset ID Epoch Primary Bins Nodes
796878AB-5BE8-4905-B4B3-2FDE19A64292 0 6B97B5D0-EA30-4A63-AD64-781378D5848B 0-4095 6B97B5D0-EA30-4A63-AD64- 781378D5848B (alive)
tibdg Table Stats
Run the tibdg table stats <table-name> command to view statistics such as row counts or overall table size for a table and all of its indexes.
The following is an example that shows statistics for a table named t1:
$ tibdg table stats t1 Table 't1' statistics:
Rows: 10 (exact) Size by Index:
primary: 103.0B (exact)
In this example, t1 contains 10 rows. The (exact) after the row count indicates that this is an exact count. The table has one index named primary that takes up 103 bytes of space which is also exact. The size reported for the primary index is the size of data in all of the rows in the table, which includes all the data for the primary index. The size reported for a
30 | Administration Tool
secondary index is the additional data size of that index. The total data size for a given table, is the sum of the sizes of all its indexes.
The sizes reported by this command are the sizes of the uncompressed data, so they might not reflect the disk usage for the table due to other factors such as compression of the data when it is written to the disk.
If a table or index does not have statistics enabled, the values for row count and sizes is 0, and (off) is displayed next to the values. See Enabling Statistics to set the row_counts attribute during table or index create to exact.
tibdg Grid Generate and tibdg Table Generate
The tibdg grid generate command can be used to generate a sequence of commands that can later be executed to create a specific grid configuration. The tibdg table generate command is similar to the tibdg grid generate command except it only generates the commands required to create a single table.
When you execute the tibdg grid generate command, you are asked a series of questions regarding the design of the grid. After you have provided the necessary input values, the command generates the sequence of necessary commands to create that data grid. These commands can either be output to the console or written to a file. Then you can make any modifications to the commands and execute them either one at a time or by using the -s option to execute all the commands in a file.
tibdg Grid Generate Example

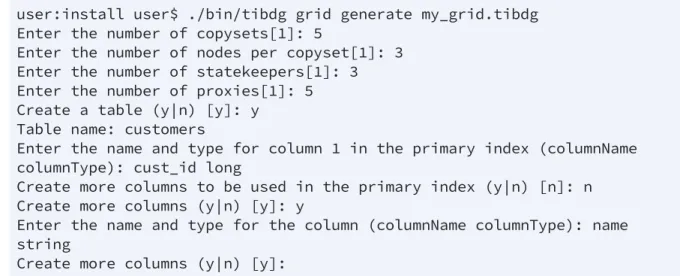

The following example shows a record using the tibdg grid generate command to generate the necessary commands to create a grid with five copysets, three nodes per copyset, three state keepers, five proxies, and two tables:

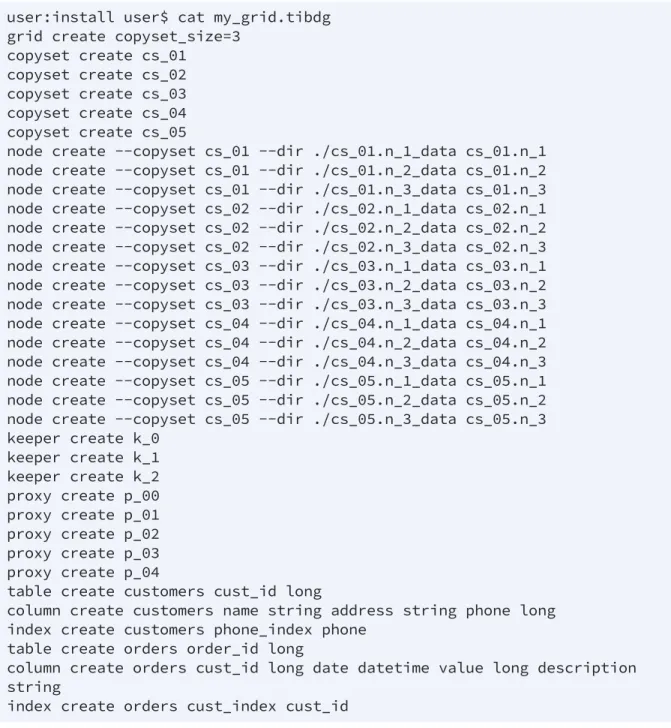

user:install user$ ./bin/tibdg grid generate my_grid.tibdg Enter the number of copysets[1]: 5
Enter the number of nodes per copyset[1]: 3 Enter the number of statekeepers[1]: 3 Enter the number of proxies[1]: 5 Create a table (y|n) [y]: y
Table name: customers
Enter the name and type for column 1 in the primary index (columnName columnType): cust_id long
Create more columns to be used in the primary index (y|n) [n]: n Create more columns (y|n) [y]: y
Enter the name and type for the column (columnName columnType): name string
Create more columns (y|n) [y]:
31 | Administration Tool
Enter the name and type for the column (columnName columnType): address string
Create more columns (y|n) [y]:
Enter the name and type for the column (columnName columnType): phone long Create more columns (y|n) [y]: n
Create a secondary index (y|n) [n]: y Enter index name: phone_index
Columns defined:
1. cust_id 2. name 3. address 4. phone
Select the ids of the columns in the order that is used in the index (# #
#...): 4
Create another secondary index (y|n) [n]:
Create another table (y|n) [n]: y Table name: orders
Enter the name and type for column 1 in the primary index (columnName columnType): order_id long
Create more columns to be used in the primary index (y|n) [n]: n Create more columns (y|n) [y]: y
Enter the name and type for the column (columnName columnType): cust_id long
Create more columns (y|n) [y]:
Enter the name and type for the column (columnName columnType): date datetime
Create more columns (y|n) [y]:
Enter the name and type for the column (columnName columnType): value long Create more columns (y|n) [y]:
Enter the name and type for the column (columnName columnType):
description string
Create more columns (y|n) [y]: n Create a secondary index (y|n) [n]: y Enter index name: cust_index
Columns defined:
1. order_id 2. cust_id 3. date 4. value
5. description
Select the ids of the columns in the order that is used in the index (# #
#...): 2
Create another secondary index (y|n) [n]:
Create another table (y|n) [n]:
35 commands written to my_grid.tibdg
32 | Administration Tool
This example session would write the following commands to the my_grid.tibdg file:
user:install user$ cat my_grid.tibdg grid create copyset_size=3
copyset create cs_01 copyset create cs_02 copyset create cs_03 copyset create cs_04 copyset create cs_05
node create --copyset cs_01 --dir ./cs_01.n_1_data cs_01.n_1 node create --copyset cs_01 --dir ./cs_01.n_2_data cs_01.n_2 node create --copyset cs_01 --dir ./cs_01.n_3_data cs_01.n_3 node create --copyset cs_02 --dir ./cs_02.n_1_data cs_02.n_1 node create --copyset cs_02 --dir ./cs_02.n_2_data cs_02.n_2 node create --copyset cs_02 --dir ./cs_02.n_3_data cs_02.n_3 node create --copyset cs_03 --dir ./cs_03.n_1_data cs_03.n_1 node create --copyset cs_03 --dir ./cs_03.n_2_data cs_03.n_2 node create --copyset cs_03 --dir ./cs_03.n_3_data cs_03.n_3 node create --copyset cs_04 --dir ./cs_04.n_1_data cs_04.n_1 node create --copyset cs_04 --dir ./cs_04.n_2_data cs_04.n_2 node create --copyset cs_04 --dir ./cs_04.n_3_data cs_04.n_3 node create --copyset cs_05 --dir ./cs_05.n_1_data cs_05.n_1 node create --copyset cs_05 --dir ./cs_05.n_2_data cs_05.n_2 node create --copyset cs_05 --dir ./cs_05.n_3_data cs_05.n_3 keeper create k_0
keeper create k_1 keeper create k_2 proxy create p_00 proxy create p_01 proxy create p_02 proxy create p_03 proxy create p_04
table create customers cust_id long
column create customers name string address string phone long index create customers phone_index phone
table create orders order_id long
column create orders cust_id long date datetime value long description string
index create orders cust_index cust_id
The tibdg Commands That Support Interaction
Certain tibdg commands, such as tibdg rollback, tibdg gridset remove can result in the reset of a grid and an inadvertent deletion of all the data within the grid. Therefore, such commands now require interactive confirmation from the user before they are run. To
33 | Administration Tool
run any of these commands in an unattended environment, use the [-f|--force] flag to run without confirmation.
If you do not specify the [-f|--force] flag, these commands prompt to confirm their execution. If you specify [-f|--force] flag, these commands are run by force. The following commands support interaction by using the [-f|--force] flag:
1. tibdg rollback create
2. tibdg gridset remove
3. tibdg gridset setPrimary
tibdg rollback create Creates a rollback record.
Usage:
tibdg rollback create [-f|--force] <checkpoint id>
Example of not using the -f flag:
tibdg --grid myGrid -r http://user-mbp:1234 rollback create A38F799B-2FC3- A800-B31B-3EDB0247FE9C
Enter yes to confirm rollback create. yes (the "yes" must be typed in by the user)
Rollback record 2CA87BE5-246D-48A1-9A19-9672A0BDF26A created for checkpoint A38F799B-2FC3-A800-B31B-3EDB0247FE9C
Example of using the -f flag:
tibdg --grid grid1 -r http://user-mbp:1234 rollback create -f 145B29B0- 73D9-A900-9BDB-177A18B91594
Rollback record F740B3B0-B316-4736-9130-1C7CB049F06B created for checkpoint 145B29B0-73D9-A900-9BDB-177A18B91594
tibdg gridset remove
Removes a member grid from a gridset.
Usage:
tibdg gridset remove [-f|--force] [-p|--makePrimary] <gridset> <grid>
Example of not using the -f flag:
tibdg --grid grid1 -r http://user-mbp:1234 gridset remove -makePrimary gridset1 grid2
Enter yes to confirm gridset remove. yes (the "yes" must be typed in by
34 | Administration Tool
the user)
Grid grid2 removed from gridset gridset1
Example of using the -f flag:
tibdg --grid grid1 -r http://user-mbp:1234 gridset remove -f -makePrimary gridset1 grid2
Grid grid2 removed from gridset gridset1
The gridset remove command has an important change in behavior. In ActiveSpaces 4.0,
gridset remove removed a mirror grid from the gridset, without deleting any of its data.
From ActiveSpaces 4.1.0, the mirror grid removed from the gridset is cleaned of all the data. Remember that a mirror grid removed from the gridset does not have any data in it after it is removed.
tibdg gridset setPrimary
Sets the primary grid in a gridset.
Usage:
tibdg gridset setPrimary [-f|--force] <gridset> <grid>
Example of not using the -f flag:
tibdg --grid grid1 -r http://user-mbp:1234 gridset setPrimary gridset1 grid2
Enter yes to confirm gridset setPrimary. yes (the "yes" must be typed in by the user)
Grid grid2 is now primary for gridset gridset1
Example of using the -f flag:
tibdg --grid grid1 -r http://user-mbp:1234 gridset setPrimary -f gridset1 grid2
Grid grid2 is now primary for gridset gridset1
Using tibdg grid mode to Put a Data Grid into Maintenance Mode
The tibdg grid mode command can be used to put a data grid into maintenance mode which prevents data from being written into your data grid.
35 | Administration Tool
Putting your data grid into maintenance mode can be useful when:
l Performing data grid backups.
l Transitioning primary grids to mirror grids for disaster recovery.
l Performing system software upgrades.
Syntax
tibdg grid mode [-r realm_service_URL] [-g grid_name] grid mode maintenance|normal
The following operations are allowed in the maintenance mode:
l read operations
Warning: Write operations are not allowed and result in an exception.
In 'normal' mode both read and write operations are allowed.
tibdg proxy shed
The tibdg proxy shed command is used to unbind one or more clients from a given proxy to force them to go through the binding process again. When the clients use the balanced binding strategy, this command is used to rebalance the clients across the running proxies.
The command has two forms:
tibdg proxy shed <proxy_name> connection <id>
This command notifies a specific client connection to unbind and re-bind by using the configuration that was already configured on the client. The client connection is identified by the connection id (a number). You can use the tibdg proxy clients <proxy_name>
command to list the clients by their connection id.
The second form notifies a specific number of clients at the proxy to unbind and then re- bind.
tibdg proxy shed <proxy_name> clients <n>
This command notifies the proxy to disconnect n clients.
For an example on using the shed command with the balanced binding strategy, see Using
36 | Administration Tool
Using the Proxy Shed Command and the Balanced Binding Strategy
The following example shows how you can use the shed command and the balanced binding strategy to balance a grid.
Assuming you had 3 proxies running and there were 20 clients connected to them, all using the balanced binding strategy. The proxies (P1, P2, P3) might have the following numbers of clients:
P1: 7 clients P2: 7 clients P3: 6 clients
Now you provision a new Proxy, P4, and start it. All the clients remain bound to their current proxies until either the clients or the proxies restart. Assuming all the clients
impose an equal load on their proxies, the ideal distribution across the proxies would be to have five clients per proxy. This distribution can be achieved by the following commands:
tibdg proxy shed P1 clients 2 tibdg proxy shed P2 clients 2 tibdg proxy shed P3 clients 1
Note that if you notify a proxy to disconnect from all its clients, it briefly has zero clients bound to it. Therefore, when the clients attempt to rebind to the proxy, their old proxy appears to have the lowest load so they rebind back to where they came from. The way to avoid this binding is to unbind only from the number of clients that you want to move, as was done in the example above.
tibdgadmind
tibdgadmind is an administrative daemon for ActiveSpaces. The SQL ExecuteUpdate
command requires tibdgadmind running in the data grid.
Syntax
tibdgadmind [-r realm_service_URL] [-l listen_URL][--logfile <file>][- -max-log-size <bytes>] [--max-logs <num-files>][--trace <level>]
By default, tibdgadmind listens on http://localhost:7171.
If more than one tibdgadmind needs to run on the same host or in a production environment where processes on other hosts must be able to communicate with the
37 | Administration Tool
tibdgadmind, the listen URL must be specified and must be something other than the default value localhost:7171. The value can be changed by specifying -l listen_URL. More than one realm service URL can be specified by separating the URLs with the pipe (|) character when starting the tibdgadmind process.
After connecting to the realm service, tibdgadmind is able to process requests for table configuration changes such as creating a table, dropping a table, creating an index, and deleting an index.
To make table and index configuration updates to your data grid, you must run a realm service and an active data grid, a tibdgadmind process, and you must use the
ExecuteUpdate API of the tibdgSession object. For more information, see Defining a Table by Using SQL DDL Commands.
Use the --logfile <file> command-line option to specify a file name or prefix to log to.
Use the --max-log-size <bytes> command-line option to specify the maximum size of a log file (bytes), This option is ignored if a log file is not set. The default size is
9223372036854775807 bytes.
Use the --max-logs <num-files> command-line option to specify the maximum number of log files. This option is ignored if a log file is not set. The default size is 1.
Use the --trace <level> command-line option to set the log level. The valid values are
severe, warn, info, or debug. The default value is severe.
The trace command-line option differs slightly from the equivalent option for the other processes. Also, the other processes have logging modules that allow for finer control of logging whereas tibdgadmind does not provide finer control.
You can only specify a log level as documented in the --trace level section.
To provide fault tolerance, multiple tibdgadmind processes can be run.
Stop the tibdg Daemon
You can stop the tibdg daemon by using the following command:
tibdg -r <URL> -t <adminURL> admind stop
For example, tibdg -r "http://localhost:8280" -t http://localhost:7171 admind stop.
38 | Designing a Data Grid
Designing a Data Grid
This task guides you through the design decisions that characterize the structure of a data grid.
Fundamental Decisions
The decisions you make in the following steps define the fundamental characteristics of the data grid. After completing this task, you cannot change these parameters except by
deleting the data grid definition and starting over again.
As you make these design decisions, record them for later reference.
Procedure
1. Determine the number of copysets in the data grid.
The amount of data that the grid can contain depends on the capacity of the host computers and the number of copysets.
A single copyset can suffice for prototyping and development.
2. Determine the number of nodes per copyset.
l For development, use one node per copyset.
l For fault tolerance, use two nodes per copyset.
l For stronger fault tolerance protection, use three nodes per copyset.
Each copyset consists of the same number of nodes.
3. Determine the number of state keeper processes.
l For development, use one state keeper process.
l For fault tolerance, use three state keeper processes.
4. Determine the number of proxy processes.
5. Determine unique process names.
Assign a unique name to each component process of the data grid. You can use these unique names to address the individual processes as you monitor and manage them.
a. Compose a name for each copyset.
For example, DG.CS-A, DG.CS-B, DG.CS-C.
b. Compose a name for each node, incorporating the copyset name.
For example, DG.CS-A.N1, DG.CS-A.N2.
39 | Designing a Data Grid
c. Compose a name for each state keeper process.
For example, DG.SK-1, DG.SK-2, DG.SK-3. d. Compose a name for each proxy process.
For example, DG.PX-1, DG.PX-2, DG.PX-3.
What to do next Defining a Data Grid
40 | Defining a Data Grid
Defining a Data Grid
To define and configure a data grid, complete the steps in this task.
This task implements decisions about the structure of your data grid, creating a data grid definition within a TIBCO FTL realm service. The realm service delivers the information to the component processes of the data grid and your application processes that use the grid.
The examples in these steps illustrate adding commands to a configuration script. When the script is complete, the administration tool executes the script to define the data grid.
Alternatively, you can execute each step immediately as a separate administration tool command, instead of accumulating them in a script.
You have already completed the task Designing a Data Grid. This task refers to decisions you recorded during that task.
Before you begin
A realm service must be running and reachable.
Procedure
1. In a text editor, begin editing a script file.
Follow the convention of naming your script with the .tibdg file name extension.
2. Add a script command to create the data grid by using the syntax: grid create [option=value]... [<grid_name>]. For example:
grid create statekeeper_count=1 copyset_size=1 mydevgrid
Note: For more information on grid create option, see Grid Create Con- figuration Options.
You can run the following command for a list of all the options for the grid create
script command:
tibdg help grid create
Define the Component Processes of the Data Grid
3. For each copyset, add a script command to create that copyset. For example:
copyset create copyset_name
41 | Defining a Data Grid
4. For each node, add a script command to create that node. For example:
node create --copyset copyset_namenode_name
5. For each state keeper, add a script command to create that state keeper. For example:
keeper create keeper_name
6. For each proxy, add a script command to create that proxy. For example:
proxy create proxy_name
7. Optional. Run the script to create the data grid.
Alternatively, you might postpone this step until you have defined the tables of the data base (see the task Defining a Table).
tibdg -s script_file_path -r http://<host>:<port>>
where <host> and <port> refer to the realm service URL.
What to do next
Starting the Data Grid Processes
Grid Create Configuration Options
The following configuration options can be used with the tibdg grid create command.
Properties that affect only a specific process type might only require restarting of that process type, but in general TIBCO recommends that you restart a grid whenever you update a property. For example, updating a proxy property does not require restarting a grid. In this case, it would suffice to restart only the proxy.
Option Description Default
Value
Valid Values
checkpoint_
interval
The interval, in seconds, between periodic checkpoints. The default value of 0.0 seconds disables periodic checkpoints.
0.0
42 | Defining a Data Grid
Option Description Default
Value
Valid Values
Warning: Checkpoints require additional space on disk, so care must be taken to avoid taking checkpoints frequently, as this can lead to a rapid increase in disk usage.
checkpoint_
retention_
limit
The number of checkpoints (manual and peri- odic) to keep at a time. When the total num- ber of checkpoints (manual and periodic) on disk exceeds the checkpoint_retention_
limit, the oldest checkpoint is deleted.
The default value of 0 indicates that all checkpoints should be kept. To determine the proper setting for this option, multiply the checkpoint_retention_limit by the check- point_interval. This value indicates the duration in seconds a checkpoint is retained.
This option should typically be set to a small number to avoid excessive disk usage.
0 Minimum: 0
client_req_
timeout
The time (in seconds) the client API syn- chronously waits for completion of a request (such as GET or PUT operation), before timing out.
5.0 Minimum: 0.0
compaction A value less than six indicates more emphasis on performance and less on the compaction of the disk space.
Conversely, a higher value indicates more emphasis on the compaction of the disk space than performance.
7 Minimum: 0 Maximum: 10
consistent_
query_limit The maximum number of iterators and state- ments (queries) that a node can handle con- currently.
64 Minimum: 1
copyset_size The number of nodes in a copyset. 2 Minimum: 1
