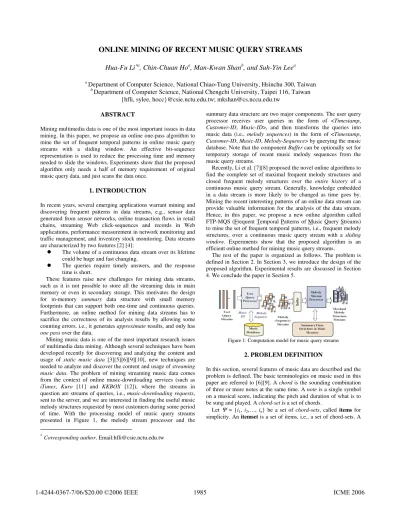

Online mining of recent music query streams

ONLINE MINING OF RECENT MUSIC QUERY STREAMS

Hua-Fu Li

, Chin-Chuan Ho

, Man-Kwan Shan

, and Suh-Yin Lee

b _{Department of Computer Science, National Chengchi University, Taipei 116, Taiwan} {hfli, sylee, hocc}@csie.nctu.edu.tw; [email protected]

∗

Corresponding author. Email:[email protected]

ABSTRACT

Mining multimedia data is one of the most important issues in data mining. In this paper, we propose an online one-pass algorithm to mine the set of frequent temporal patterns in online music query streams with a sliding window. An effective bit-sequence representation is used to reduce the processing time and memory needed to slide the windows. Experiments show that the proposed algorithm only needs a half of memory requirement of original music query data, and just scans the data once.

1. INTRODUCTION

In recent years, several emerging applications warrant mining and discovering frequent patterns in data streams, e.g., sensor data generated from sensor networks, online transaction flows in retail chains, streaming Web click-sequences and records in Web applications, performance measurement in network monitoring and traffic management, and inventory stock monitoring. Data streams are characterized by two features [2] [4]:

The volume of a continuous data stream over its lifetime

could be huge and fast changing.

The queries require timely answers, and the response

time is short.

These features raise new challenges for mining data streams, such as it is not possible to store all the streaming data in main memory or even in secondary storage. This motivates the design for in-memory summary data structure with small memory footprints that can support both one-time and continuous queries. Furthermore, an online method for mining data streams has to sacrifice the correctness of its analysis results by allowing some counting errors, i.e., it generates approximate results, and only has

one pass over the data.

Mining music data is one of the most important research issues of multimedia data mining. Although several techniques have been developed recently for discovering and analyzing the content and usage of static music data [3][5][6][9][10], new techniques are needed to analyze and discover the content and usage of streaming

music data. The problem of mining streaming music data comes

from the context of online music-downloading services (such as

iTunes, Kuro [11] and KKBOX [12]), where the streams in

question are streams of queries, i.e., music-downloading requests, sent to the server, and we are interested in finding the useful music melody structures requested by most customers during some period of time. With the processing model of music query streams presented in Figure 1, the melody stream processor and the

summary data structure are two major components. The user query processor receives user queries in the form of <Timestamp,

Customer-ID, Music-ID>, and then transforms the queries into

music data (i.e., melody sequences) in the form of <Timestamp,

Customer-ID, Music-ID, Melody-Sequence> by querying the music

database. Note that the component Buffer can be optionally set for temporary storage of recent music melody sequences from the music query streams.

Recently, Li et al. [7][8] proposed the novel online algorithms to find the complete set of maximal frequent melody structures and closed frequent melody structures over the entire history of a continuous music query stream. Generally, knowledge embedded in a data stream is more likely to be changed as time goes by. Mining the recent interesting patterns of an online data stream can provide valuable information for the analysis of the data stream. Hence, in this paper, we propose a new online algorithm called FTP-MQS (Frequent Temporal Patterns of Music Query Streams) to mine the set of frequent temporal patterns, i.e., frequent melody structures, over a continuous music query stream with a sliding

window. Experiments show that the proposed algorithm is an

efficient online method for mining music query streams.

The rest of the paper is organized as follows. The problem is defined in Section 2. In Section 3, we introduce the design of the proposed algorithm. Experimental results are discussed in Section 4. We conclude the paper in Section 5.

Figure 1: Computation model for music query streams

2. PROBLEM DEFINITION

In this section, several features of music data are described and the problem is defined. The basic terminologies on music used in this paper are referred to [6][9]. A chord is the sounding combination of three or more notes at the same time. A note is a single symbol on a musical score, indicating the pitch and duration of what is to be sung and played. A chord-set is a set of chords.

Let Ψ = {i1, i2,…, in} be a set of chord-sets, called items for

simplicity. An itemset is a set of items, i.e., a set of chord-sets. A

1985

k-itemset is an itemset with k items, denoted as (x1, x2, …, xk). For

brevity, the commas are omitted. For example, a 3-itemset (a, b, c) is written as (abc). A melody sequence stream, MSS, is a sequence of incoming melody sequences, [m1, m2, …, mN), where a

melody sequence mi is composed of a melody sequence identifier

(MSID) mi and an itemset, and N is an unknown largest number of

melody sequences that will arrive. The sequence of w recent melody sequences of MSS is called the sliding window (SW) of

MSS, i.e., SW = [mN−w+1, mN−w+2, …, mN]. The support of an

itemset X, denoted as sup(X), is the number of melody sequences in SW containing X as a subset. An itemset X is a frequent

temporal pattern (FTP), if and only if sup(X) ≥ s⋅w, where s is a

user-defined minimum support threshold in the range of [0, 1]. An itemset X is called infrequent temporal pattern (ITP), if and only if sup(X) ˏ s⋅w.

Problem Definition Given a melody sequence stream MSS, a

user-defined minimum support threshold s, and the size of sliding window w, the problem of online mining of user-centered music query streams is to discover the set of frequent temporal patterns by one scan of the w recent melody sequences of MSS.

Example 1 Let the first four melody sequences in a melody

sequence stream be <m1, (acd)>, <m2, (bce)>, <m3, (abce)>, and

<m4, (be)>, where m1, m2, m3, and m4 are melody sequence

identifiers and a, b, c, d, and e are chord-sets. Let the size of sliding window w be 3 and the user-defined minimum support threshold s be 0.6. Hence, the current melody sequence stream consists of two sliding windows, i.e., SW1 = [m1, m2, m3] and SW2

= [m2, m3, m4], where first window SW1 contains the melody

sequences m1, m2, and m3, and the second window SW2 contains

the sequences m2, m3, and m4. The example is shown in Figure 2.

<m1, (acd) > <m2, (bce) > <m3, (abce) > <m4, (be) > (a), (b), (c), (e), (ac), (bc), (be), (ce), (bce) (b), (c), (bc), (be), (ce), (bce)

A melody sequence stream is formed by melody sequences arriving in series Figure 2: An example melody sequence stream and the frequent temporal

patterns in two consecutive sliding windows

In Figure 2, the frequent temporal patterns in SW1 are (a), (b),

(c), (e), (ac), (bc), (be), (ce), and (bce), and the frequent ones in SW2 are (b), (c), (d), (bc), (be), (ce), and (bce). In this example, we

can find that {(a), (e), (ac)} are frequent temporal patterns in SW1,

but are not frequent ones in SW2.

3. ONLINE MINING OF RECENT MUSIC QUERY STREAMS

3.1. Bit-Sequence Representation of 1-Itemsets

In the proposed algorithm, for each item X in the current sliding window, a bit-sequence with w bit, denoted as Bit(X), is constructed. If an item X is in the i-th music sequence of current sliding window, the i-th bit of Bit(X) is set to be 1; otherwise, it is set to be 0. The process is called bit-sequence transform.

Example 2 Consider the melody sequence stream in Figure 2 and

assume that the size of sliding window is 3. The sliding window SW1 consists of three consecutive melody sequences: <m1, (acd) >,

<m2, (bce) >, and <m3, (abce) >, and five items (chord-sets): a, b, c,

d and e. Because item a appears in the 1st and 3rd melody

sequences of SW1, the bit-sequence of a, Bit(a), is 101. Similarly, Bit(b) = 011, Bit(c) = 111, Bit(d) = 100, and Bit(e) = 011.

3.2. The Proposed Algorithm FTP-MQS

In this section, based on the representation of appearing items, an efficient algorithm FTP-MQS is introduced. FTP-MQS consists of three phases: window initialization phase, window sliding phase, and frequent temporal patterns generation phase.

3.2.1. Window Initialization Phase

The phase is activated while the number of melody sequences generated so far in the melody sequence stream is less than or equal to a user-predefined sliding window size w. In this phase, each item in a new incoming melody sequence is transformed into its bit sequence representation.

Figure 3: Bit-sequence representations after window initialization phase Example 3 Consider the melody sequence stream in Figure 2. The

first sliding window SW1 contains three melody sequences: m1, m2,

and m3. The bit-sequences of items of SW1 in the window

initialization phase are shown in Figure 3. 3.2.2. Window Sliding Phase

The phase is activated after the sliding window SW becomes full. A new incoming melody sequence is appended to the sliding window, and the oldest melody sequence is removed from the current window.

For removing oldest information, an efficient method is used in the proposed algorithm. Based on the bit-sequence representation, FTP-MQS uses the bitwise left shift operation to remove the aged melody sequences from the set of items in the current sliding window. After sliding the window, an effective pruning method, called Item-Prune, is used to improve the memory requirement of FTP-MQS. The pruning approach is that a 1-itemset X in the

current sliding window is dropped if and only if sup(X) = 0.

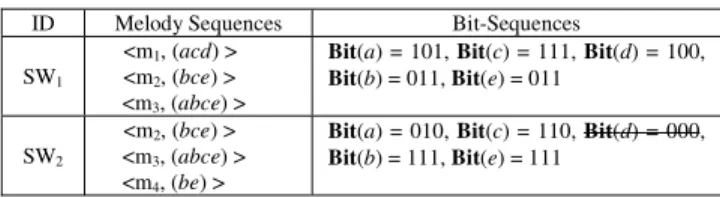

Figure 4: Bit-sequences of items after sliding SW1 to SW2 Example 4 Consider the melody sequence stream in Figure 2.

Before the fourth melody sequence <m4, (be)> is processed, the

first melody sequence m1 must be removed from the current

window using bitwise left shift on the set of items. Hence, Bit(a) is modified from 101 to 010. Similarly, Bit(c), Bit(d), Bit(b) and

Bit(e) are modified to 110, 000, 110, and 110, respectively. Then,

the new melody sequence <m4, (be)> is processed using

bit-sequence transform. The result is shown in Figure 4. Note that item

d is dropped since Bit(d) = 000, i.e., sup(d) = 0.

ID Melody Sequences Bit-Sequences SW1

<m1, (acd) >

<m2, (bce) >

<m3, (abce) >

Bit(a) = 101, Bit(c) = 111, Bit(d) = 100, Bit(b) = 011, Bit(e) = 011

SW2

<m2, (bce) >

<m3, (abce) >

<m4, (be) >

Bit(a) = 010, Bit(c) = 110, Bit(d) = 000, Bit(b) = 111, Bit(e) = 111

MSID Melody Sequence Bit-Sequences in current SW1

m1 (acd) Bit(a)=100, Bit(c)=100, Bit(d)=100

m2 (bce) Bit(a)=100, Bit(c)=110, Bit(d)=100,

Bit(b)=010, Bit(e)=010

m3 (abce) Bit(a)=101, Bit(c)=111, Bit(d)=100,

Bit(b)=011, Bit(e)=011

3.2.3. Frequent Temporal Patterns Generation Phase The phase is performed only when the up-to-date set of frequent temporal patterns is requested. In this phase, FTP-MQS uses a level-wise method to generate the set of candidate temporal patterns CTPk (candidate temporal patterns with k items) from the

pre-known frequent temporal patterns FTPk−1 (frequent temporal

patterns with k-1 items) according to the Apriori property [1]1. The step is called CandidateGenApriori (Candidate temporal pattern Generation using Apriori property). Then, the proposed algorithm uses the bitwise AND operation to compute the support of these candidates in order to find the frequent ones FTPk. The

generation-then-test process is stopped until no new candidates with k+1 items (CTPk+1) are generated. FTP-MQS algorithm is shown in Figure 5.

Algorithm FTP-MQS

Input: MSS (a continuous melody sequence stream), s (a

user-defined minimum support threshold), and w (the size of sliding window).

Output: a set of frequent temporal patterns, FTP-Output. Begin

SW = NULL; /* SW consists of w melody sequences */ Repeat:

for each incoming melody sequence mi in SW do if SW = FULL then

Do bitwise-shift on bit-sequences of all items in SW; end if

for each item X in mido Do bit-sequence transform(X); end for

end for

for each bit-sequence Bit(X) in SW do if sup(X) = 0 then

Drop X from SW; end if

end for

/* The following is the frequent temporal patterns generation phase. The phase is performed only when the up-to-date set of frequent temporal patterns is requested. */

FTP1 = {frequent temporal 1-itemsets}; for (k=2; FTPk−1≠ NULL; k++) do CTPk = CandidateGenApriori(FTPk−1); Do bitwise AND to find the supports of CTPk; for each candidate ck∈ CFPkdo

if sup(ck) ≥ w⋅s then FTPk = {ck∈ CFPk | sup(ck) ≥ w⋅s}; end if end for end for FTP-Output =ʳЖkFTPk; End Figure 5: Algorithm FTP-MQS

Example 5 Consider the bit-sequences of SW2 in Figure 4, and let

the minimum support threshold s be 0.6. Hence, a temporal pattern

X is frequent if sup(X) ≥ 0.6⋅3 = 1.8. In the following, we discuss

the frequent temporal patterns mining steps of SW2. The generated

patterns are shown in Figure 2.

First, FTP-MQS generates candidate 2-itemsets, (bc), (be) and (ce), by combining frequent 1-itemsets: (b), (c) and (e), where

Bit(b) = 111, i.e., sup(b) = 3, Bit(c) = 110, i.e., sup(c) = 2, and

1

It is a downward closure property, i.e., if a temporal pattern is

frequent, all of its sub-patterns will also be frequent.

Bit(e) = 110, i.e., sup(e) = 2. 1-itemset (a) is an infrequent

temporal pattern, since its Bit(a) = 010, i.e., sup(a) = 1. All these candidates are frequent temporal patterns after using bitwise AND operations to count the supports of these candidates. Because the

Bit(bc) is 110, the support of candidate 2-itemset bc are 2, i.e., sup(bc) = 2. Similarity, sup(be) = 3, and sup(ce) = 2.

Second, FTP-MQS generates one candidate 3-itemset (bce) according to Apriori property and uses bitwise AND operation to count the sup(bce) = 2, i.e., Bit(bc) AND Bit(be) AND Bit(ce) = 110. Because no new candidates are generated, the generation-then-test process is stopped. Hence, there are six frequent temporal patterns, (b), (c), (bc), (be), (ce), (bce), generated by FTP-MQS in SW2. The process is shown in Figure 6.

Melody Sequences (SW2) Bit-Sequences in SW2 FTP1 in SW2 (s = 0.6) sup <m2, (bce) > <m3, (abce) > <m4, (be) > Bit(a) = 010 Bit(c) = 110 Bit(b) = 111 Bit(e) = 111 {(b) | Bit(b) = 111} {(c) | Bit(c) = 110} {(e) | Bit(e) = 111} 3 2 3 CTP2 in SW2 FTP2 in SW2 sup

{(bc) | Bit(b) = 111 AND Bit(c) = 110} {(be) | Bit(b) = 111 AND Bit(e) = 111} {(ce) | Bit(c) = 110 AND Bit(e) = 111}

{(bc) | Bit(bc) = 110} {(be) | Bit(be) = 111} {(ce) | Bit(ce) = 110} 2 3 2 CTP3 in SW2 FTP3 in SW2 sup

{(bce) | Bit(bc) = 110 AND Bit(be) = 111 AND Bit(ce) = 110}

{(bce) | Bit(bce) = 110}

2

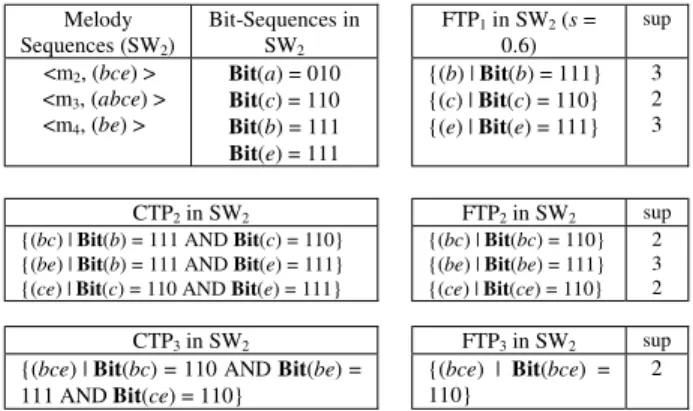

Figure 6: Steps of frequent temporal patterns generation in SW2 4. EXPERIMENTS

In this section, we report the experimental results of the proposed algorithm FTP-MQS. All the programs are implemented using Microsoft Visual C++ Version 6.0 and performed on a 1.80 GHz Pentium(R) PC machine with 512 MB memory running on Windows 2000. For testing frequent temporal patterns mining of melody sequence streams, we generate melody sequence streams using IBM synthetic data generator proposed by Agrawal and Srikant [1]. One synthetic melody sequence stream, denoted by T5.I4.D1000K, of size 1 million melody sequences each are used to evaluate the performance of the proposed algorithm FTP-MQS. T5.I4.D1000K, with 1,000 unique items, has an average melody sequence size of 5 items with average maximal frequent temporal pattern size of 4 items. In all experiments, the melody sequences are looked up in sequence to simulate the environment of an online data stream.

The experiments of memory requirements are shown in Figures 7 and 8, and the processing times are shown in Figures 9, 10, and 11. The minimum support threshold s and the size of a window w are set to 0.1% and 20,000, respectively. Figure 7 shows the memory usage of the window initialization phase and window sliding phase. As shown in Figure 7, FTP-MQS consumes only about 2.1MB in window initialization phase, but the memory consumption of original data is increased linearly from 0.2MB to 3.9MB. In window sliding phase, the memory usage of FTP-MQS is approximately a half of original data. Figure 8 shows the memory usage of the frequent temporal patterns generation phase. In frequent temporal patterns generation phase, the memory requirement of FTP-MQS is between 33.5MB to 39MB.

˃ ˈ˃˃ ˄˃˃˃ ˄ˈ˃˃ ˅˃˃˃ ˅ˈ˃˃ ˆ˃˃˃ ˆˈ˃˃ ˇ˃˃˃ ˇˈ˃˃ ˈ˃˃˃ ˄̆̇ ˅́˷ ˆ̅˷ ˇ̇˻ ˈ̇˻ ˉ̇˻ ˊ̇˻ ˋ̇˻ ˌ̇˻ ˄˃̇˻ ˜́˶̂̀˼́˺ʳ˦˿˼˷˼́˺ʳ˪˼́˷̂̊̆ ˠ ˸̀ ̂̅ ̌ʳ ˨ ̆˴ ˺˸ ʳʻ˞ ˕̌ ̇˸ ̆ʼ ˢ̅˼˺˼́˴˿ʳ˗˴̇˴ ˙˧ˣˀˠˤ˦

Figure 7: Memory usages in the window initialization phase and window sliding phase. ˆˆ˃˃˃ ˆˇ˃˃˃ ˆˈ˃˃˃ ˆˉ˃˃˃ ˆˊ˃˃˃ ˆˋ˃˃˃ ˆˌ˃˃˃ ˇ˃˃˃˃ ˄˃˃˃˃˃ ˅˃˃˃˃˃ ˆ˃˃˃˃˃ ˇ˃˃˃˃˃ ˈ˃˃˃˃˃ ˉ˃˃˃˃˃ ˊ˃˃˃˃˃ ˋ˃˃˃˃˃ ˌ˃˃˃˃˃ ˄˘ʾ˃ˉ ˜́˶̂̀˼́˺ʳ̀˸˿̂˷̌ʳ̆˸̄̈˸́˶˸̆ ˠ ˸̀ ̂̅ ̌ʳ ˨ ̆˴ ˺˸ ʳʻ˞ ʳ˕ ̌̇ ˸̆ ʼ

Figure 8: Memory usage in frequent temporal patterns generation phase

˃ ˄ ˅ ˆ ˇ ˈ ˉ ˊ ˋ ˄˃˃˃˃ ˅˃˃˃˃ ˇ˃˃˃˃ ˉ˃˃˃˃ ˋ˃˃˃˃ ˄˃˃˃˃˃ ˪˼́˷̂̊ʳ̆˼̍˸ ˣ̅ ̂˶ ˸̆ ̆˼́ ˺ʳ ̇˼̀ ˸ʳ ʻ̆ ˸˶ ̂́ ˷ʼ ˙˧ˣˀ˦̇̅˸˴̀

Figure 9: Processing time of window initialization phase under different window sizes ˃ ˅˃ ˇ˃ ˉ˃ ˋ˃ ˄˃˃ ˄˅˃ ˄ˇ˃ ˄ˉ˃ ˃ˁ˃˅ʸ ˃ˁ˃ˇʸ ˃ˁ˃ˉʸ ˃ˁ˃ˋʸ ˃ˁ˄˃ʸ ˠ˼́˼̀̈̀ʳ̆̈̃̃̂̅̇ ˣ̅ ̂˶ ˸̆ ̆˼́ ˺ʳ ̇˼̀ ˸ʳ ʻ̆ ˸˶ ̂́ ˷ʼ ˙˧ˣˀ˦̇̅˸˴̀

Figure 10: Mining time of frequent temporal patterns under different minimum supports ˃ ˄˃ ˅˃ ˆ˃ ˇ˃ ˈ˃ ˉ˃ ˊ˃ ˋ˃ ˅˃˃˃˃ ˇ˃˃˃˃ ˉ˃˃˃˃ ˋ˃˃˃˃ ˄˃˃˃˃˃ ˪˼́˷̂̊ʳ̆˼̍˸ ˣ̅ ̂˶ ˸̆ ̆˼́ ˺ʳ ̇˼̀ ˸ʳ ʻ̆ ˸˶ ̂́ ˷ʼ ˙˧ˣˀ˦̇̅˸˴̀

Figure 11: Mining time of frequent temporal patterns under different window sizes

Figure 9 shows the processing time of window initialization phase of FTP-MQS under different window sizes from 10,000 melody sequences to 100,000 melody sequences. Figure 10 shows the mining time of frequent temporal patterns using various minimum support thresholds from 0.02% to 0.1%. Figure 11 shows the mining time of frequent temporal patterns under different window sizes from 20,000 melody sequences to 100,000 melody sequences.

5. CONCLUSIONS

In this paper, we study the problem of mining frequent temporal patterns from a continuous music query stream with a sliding window. A new online algorithm, called FTP-MQS, is proposed. An effective bit-sequence representation is developed to maintain the essential information of recent frequent temporal patterns. Experiments show that the proposed algorithm is an efficient single-pass algorithm for mining music query streams.
