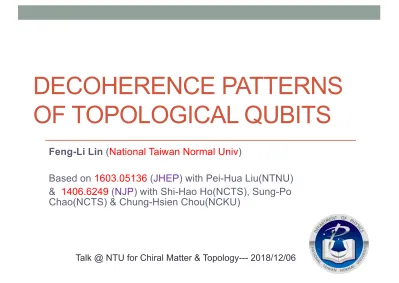

DECOHERENCE PATTERNS OF TOPOLOGICAL QUBITS
Feng-Li Lin (National Taiwan Normal Univ)
Based on 1603.05136 (JHEP) with Pei-Hua Liu(NTNU)
& 1406.6249 (NJP) with Shi-Hao Ho(NCTS), Sung-Po Chao(NCTS) & Chung-Hsien Chou(NCKU)
Talk @ NTU for Chiral Matter & Topology--- 2018/12/06
Outline
1. Motivation
2. Majorana zero modes & Topological qubit
3. Reduced dynamics
4. Robust topological qubits
5. Accelerating topological qubit
6. Conclusion
I. Motivation:Topological Order in Open
System
Motivation
nMost physical qubits are not robust against quantum decoherence, i.e., leaking its quantum information into the environment.
nThe robust qubits play key roles for reliable quantum computations. Looking for robust qubit is a urgent task.
nThe fundamental way of making robust qubit not by fine tuning is to implement it based on physical principle.
nOne way is to make the qubit topological, i.e., protected by the topological order.
II. Majorana zero mode & Topological qubit
Majorana zero modes (MZMs)
nThe Dirac fermion localizing on a topological defect (such as monopole, string or domain wall) results in MZMs. See Jackiw-Rebbi or Jackiw-Rebbi.
nIn some sense, a MZM is half of the Dirac fermion, and squares itself to unity. Two different MZMs anti-commute with each other.
Kitaev’s chain: 1D superconductor
nThe Z_2 1D p-wave superconductor is a model of TSc.
nThis can be seen by introducing the fractional Majorana fields
nThe edge Majorana modes are robust and protected by Z_2.
nTwo phases: one has no dangling Majorana modes, one does.
Topological Qubit
•
We can pair up two spatially separated Majorana zero modes to form a qubit. We call it topological qubit.
•
However, this is not really a qubit due to Z2 parity:
•
Thus, we cannot form a state like as
long as Z2 parity is preserved.
Way out
nOne way-out is to use 4 MZMs to form one topological qubit by just restricting to the parity even states, e.g., a logical qubit as
nAnother way-out is to couple the MZMs to the environment so that the MZMs are now open system, which can no
longer preserve Z2 parity.
nThe 2nd way is what we will consider in this talk. So, 2 MZMs make one topological qubit.
Fermionic or Bosonic environments
nIn this work, we consider two ways of coupling the Kitaev’s chains to the environments:
1. The fermionic channel:
These interactions breaks the parity symmetry.
2. The bosonic channel:
These interactions preserve the parity symmetry. We will see this will cause different decoherence patterns from the fermionic ones.
MZMs as Open System
•
Hamiltonian:
•
Environment operator, e.g.
•
They are assumed to Ohmic-type:
•
They obey the locality constraint:
Oa = a a† Oab = a b†
III. Reduced dynamics
RDM in Interaction picture
⇢0 = ⇢M,0 ⌦ |0ieh0|
• In general, it is difficult to obtain the closed form of RDM.
• It usually needs approximation. A common one is the Markov approximation which leads to Lindblad master equation for RDM.
Derive exact RDM for MZMs (1)
•
Use Clifford algebra of MZMs, we get
•
Note
bosonic time ordering for O operators!!
Derive exact RDM for MZMs (2)
•
Use the above and the locality constraint, we get
•
No odd parity terms like
•
These correlators are bosonic under time
ordering, and the closed form can be obtained by
Wick contraction.
Exact RDM for 2 MZMs
c.f.
IV. Robust topological qubits
Characterizing decoherence
nFor qubit systems, the most unambiguous way to
characterize quantum decoherence is to check if the reduced density matrix becomes a pointer state or not.
nA particular pointer state is the Gibbs state, i..e, thermalization.
Purity and Concurrence
nIf the state of the qubits does not reduce to a pointer state, it means the decoherence is incomplete, and could be
further purified. Then we can characterize the purity by
nFor two-qubit state, we can characterize the quantum entanglement between the two qubits by concurrence:
nZero concurrence implies no entanglement, but the state could be still quantum.
are the square roots of eigenvalues, in decreasing order, of
Single qubit: Memory in strongly correlated environment
For initial state described by Recall that
Fermionic environments:
Bosonic environments:
Diagonal elements in bosonic environments protected by (fermion) parity so that the qubit state decohere completely but does not thermalize for sub-Ohmic environment. This is not case for the fermionic one.
Special features
nThere is no retarded Green function appearing in the final form of the reduced dynamics. This is related to the fact that the Majorana modes are dissipationless, i.e.,
generating no heat.
nThe symmetric Green function appearing above is the
Majorana-dressed one as discussed. It control the overall time dependence.
nTurn out that this time factor for Ohmic-like spectrum has a closed form, and has a critical point at Q=1.
Time dependence factor --- critical at Q=1
Define the single qubit by With this we may choose as the single qubit operators. The time dependence of reduced density matrix is determined by
Fermionic:
Bosonic:
Here
Effective gap-ness
n The quantum information of the probe is carried away by the collective excitations of the environment, which is
specified by the spectral density.
nThe Ohmic-like spectrum has no gap at low energy, and one would expect the complete decoherence.
nHowever, the super-Ohmic spectrum suppress more the low energy modes than the higher energy ones.
nAdding the topological nature of the Majorana modes, we see an effective gap emerging for super-Ohmic cases.
Two Qubits: Special case for uniform environments
Before studying the reduced dynamics for more general initial states:
Let us first consider a simple case: choose the initial state as , i.e.,
Fermionic:
Bosonic:
Again, diagonal elements in bosonic environments protected by (fermion) parity.
Two qubits in fermionic environments I
Two qubits in bosonic environments II
The red lines all turn into the pointer states but the blue lines do not.
Parity-violating bosonic environments
n In the above, we mainly consider the parity- preserving bosonic environments, i.e.,
n For the parity-violating ones, i.e.,
for sub-Ohmic environment
Only for particular set of initial states, it will be thermalized.
C.f. Spin-Boson model
ref. S.T. Wu PRA89p034301
V. Accelerating topological qubit
MZMs in motion
•
We can generalize the above to the MZMs in motion, either boost or in acceleration.
Frame of MZMs (M-frame) vs Frame of Environment (E-frame)
Local frame change
•
The overall RDM formalism is the same as for the static case.
•
Only thing to take care is the change of the local time frame according to the relative motions.
Given local times for MZMs
Influence functionals in local frames
•
Influence functional in M-frame:
•
Influence functional in E-frame:
Worldline of constant a!
Transition Rate
• Treating the MZMs as kind of Unruh-DeWit detector, then the transition amplitude is
• The full transition probability is
• In the current setup, it is
Pi!f := X
m
|A(m)i!f|2 = lim
t!1hf|X
m
hm|U(t)|0i|iihi|h0|U†(t)|mi|fi = lim
t!1hf|TrE⇢D(t)|fi .
P0!1 = lim
t!1
1
2(1 eI1(t)+I2(t))
Decoherence à zero transition!
Thermalization
• We find that even for robust topological qubit will be thermalized due to Unruh effect.
M
T E
E M
T
Boosted MZMs
Overtaking/Decoherence inertial impedance
Anti-Unruh phenomenon (1)
Anti-Unruh phenomenon (2)
Decoherence inertial impedance
•
From the above, we see a highly nontrivial non- equilibrium phenomenon, we call it decoherence inertial impedance.
•
There is initial resistance for the system to
against the change caused by the external forces such as acceleration.
•
That is, the large acceleration cause less decoherence.
•
The anti-Unruh and decoherence inertial
impedance/overtaking imply each other.
Information backflow: coupling modulation
Information backflow:
Incoherent motions
Different
Initial L’s Different a2’s
Circular motions
• We see the similar overtaking, anti-Unruh and information back flow for the circular motions of MZMs.
overtaking backflow
VI. Conclusions
Conlusions
• Our works are the first systematic study of the topological order in open system.
• This is an interesting interplay between topological order and (relativistic) quantum information.
• By the locality constraint, the reduced dynamics can be solved exactly.
• We find the robust topological qubits in the super-Ohmic environment.
• By setting MZMs in motion, we find the universal thermalization, anti-Unruh, decoherence inertial impedance and information backflow.
