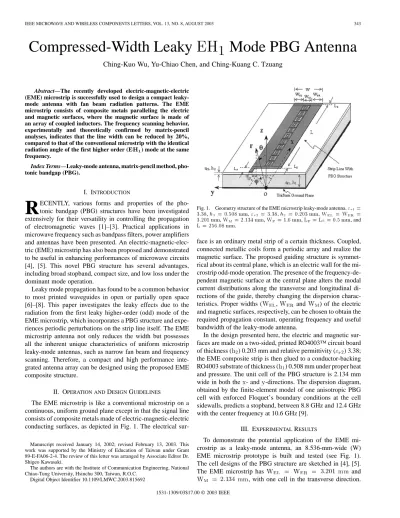

IEEE MICROWAVE AND WIRELESS COMPONENTS LETTERS, VOL. 13, NO. 8, AUGUST 2003 343
Compressed-Width Leaky
EH
1
Mode PBG Antenna
Ching-Kuo Wu, Yu-Chiao Chen, and Ching-Kuang C. Tzuang
Abstract—The recently developed electric-magnetic-electric (EME) microstrip is successfully used to design a compact leaky-mode antenna with fan beam radiation patterns. The EME microstrip consists of composite metals paralleling the electric and magnetic surfaces, where the magnetic surface is made of an array of coupled inductors. The frequency scanning behavior, experimentally and theoretically confirmed by matrix-pencil analyses, indicates that the line width can be reduced by 20%, compared to that of the conventional microstrip with the identical radiation angle of the first higher order (EH1) mode at the same frequency.
Index Terms—Leaky-mode antenna, matrix-pencil method, pho-tonic bandgap (PBG).
I. INTRODUCTION
R
ECENTLY, various forms and properties of the pho-tonic bandgap (PBG) structures have been investigated extensively for their versatility in controlling the propagation of electromagnetic waves [1]–[3]. Practical applications in microwave frequency such as bandpass filters, power amplifiers and antennas have been presented. An electric-magnetic-elec-tric (EME) microstrip has also been proposed and demonstrated to be useful in enhancing performances of microwave circuits [4], [5]. This novel PBG structure has several advantages, including broad stopband, compact size, and low loss under the dominant mode operation.Leaky mode propagation has found to be a common behavior to most printed waveguides in open or partially open space [6]–[8]. This paper investigates the leaky effects due to the radiation from the first leaky higher-order (odd) mode of the EME microstrip, which incorporates a PBG structure and expe-riences periodic perturbations on the strip line itself. The EME microstrip antenna not only reduces the width but possesses all the inherent unique characteristics of uniform microstrip leaky-mode antennas, such as narrow fan beam and frequency scanning. Therefore, a compact and high performance inte-grated antenna array can be designed using the proposed EME composite structure.
II. OPERATION ANDDESIGNGUIDELINES
The EME microstrip is like a conventional microstrip on a continuous, uniform ground plane except in that the signal line consists of composite metals made of electric-magnetic-electric conducting surfaces, as depicted in Fig. 1. The electrical
sur-Manuscript received January 14, 2002; revised February 13, 2003. This work was supported by the Ministry of Education of Taiwan under Grant 89-E-FA06-2-4. The review of this letter was arranged by Associate Editor Dr. Shigeo Kawasaki.
The authors are with the Institute of Communication Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C.
Digital Object Identifier 10.1109/LMWC.2003.815692
Fig. 1. Geometry structure of the EME microstrip leaky-mode antenna." =
3:38, h = 0:508 mm, " = 3:38, h = 0:203 mm, W = W = 3:201 mm, W = 2:134 mm, W = 1:6 mm, L = L = 0:5 mm, and L = 256:08 mm.
face is an ordinary metal strip of a certain thickness. Coupled, connected metallic coils form a periodic array and realize the magnetic surface. The proposed guiding structure is symmet-rical about its central plane, which is an electric wall for the mi-crostrip odd-mode operation. The presence of the frequency-de-pendent magnetic surface at the central plane alters the modal current distributions along the transverse and longitudinal di-rections of the guide, thereby changing the dispersion charac-teristics. Proper widths ( , and ) of the electric and magnetic surfaces, respectively, can be chosen to obtain the required propagation constant, operating frequency and useful bandwidth of the leaky-mode antenna.
In the design presented here, the electric and magnetic sur-faces are made on a two-sided, printed RO4003™ circuit board of thickness ( ) 0.203 mm and relative permittivity ( ) 3.38; the EME composite strip is then glued to a conductor-backing RO4003 substrate of thickness ( ) 0.508 mm under proper heat and pressure. The unit cell of the PBG structure is 2.134 mm wide in both the - and -directions. The dispersion diagram, obtained by the finite-element model of one anisotropic PBG cell with enforced Floquet’s boundary conditions at the cell sidewalls, predicts a stopband, between 8.8 GHz and 12.4 GHz with the center frequency at 10.6 GHz [9].
III. EXPERIMENTALRESULTS
To demonstrate the potential application of the EME mi-crostrip as a leaky-mode antenna, an 8.536-mm-wide (W) EME microstrip prototype is built and tested (see Fig. 1). The cell designs of the PBG structure are sketched in [4], [5]. The EME microstrip has and , with one cell in the transverse direction.
344 IEEE MICROWAVE AND WIRELESS COMPONENTS LETTERS, VOL. 13, NO. 8, AUGUST 2003
Fig. 2. Comparison of the main beam angles for the EME and uniform micro strip leaky-mode antennas with the same antenna length (L) and width (W).
The EME microstrip is 256.08 mm long (L), corresponding to 6.8 (free-space wavelength at 8 GHz). A short, 0.5 mm long ( ) metal strip is added at each end of the EME microstrip to facilitate the connection to the feeding structure. The ex-perimental antenna is fed asymmetrically with a 50 uniform microstrip of 1.6 mm wide ( ) and 0.5 mm long ( ).
We conduct the far-field radiation pattern measurement in an anechoic chamber. The particular design leaks in a fan beam fashion from about 7 to 9 GHz, polarized in the -direction with its maximum located in the plane, which is the H-plane ( - plane) of the antenna. Outside the space-wave leaky re-gion, the peak power gain of the tilted mainbeam is lower than 8 dBi and the radiation pattern contains many lobes and nulls. The gain and the efficiency of the EME microstrip antenna at 8.5 GHz are 10.4 dBi and 49.72%, which are comparable with the uniform microstrip antenna with the same width. The gain and the efficiency of the uniform microstrip antenna at 10.1 GHz are 12.1 dBi and 52.09%. Fig. 2 plots the main beam angle as a function of the frequency, measured from the broadside direc-tion ( -axis). The angle of the leakage is also related to the phase constant of the first higher order mode by
[8], where is extracted by matrix-pencil analyses [5] and is the free-space wavenumber. The theoretical values, in circle symbols, are superimposed to the measurement curves of Fig. 2, showing excellent agreement has been achieved and the differ-ence is less than 5 . Fig. 2 also plots the main beam angle of the uniform microstrip leaky-mode antenna with the same strip width (W) of 8.536 mm. It is obvious that the operating fre-quency of the EME microstrip is lower than that of the uniform microstrip for the same radiation angle, i.e., the physical width is 20% less than that of a conventional microstrip, needing 10.668 mm for the same radiation angle of 44 at 8.0 GHz.
Along the H-plane, the normalized radiation amplitude pat-terns of the EME microstrip leaky-mode antenna are plotted in Fig. 3 for different operating frequencies. Frequency scan char-acteristics of the antenna are shown at 7.5, 8.0, and 8.5 GHz where the beam position varies from 23 through 44 , to 59 as the 3-dB beamwidth is narrowed from 26 through 13.8 , and to 12 .
Fig. 3. Measured far-field H-plane radiation patterns of the asymmetrically fed EME microstrip leaky-mode antenna for three different frequencies.
IV. CONCLUSION
This paper presents the radiation characteristics of the EME microstrip that incorporates a uniform grounded substrate and uses PBG structures alongside the signal line in the axial direc-tion. The leakage, produced by the excitation of the first higher order microstrip mode, are validated by measured radiation pat-terns. The physical dimension of the EME leaky line is reduced by 20%, compared to the conventional uniform microstrip on the same substrate. The implementation of the EME composite strip reduces the circuit dimension without compromising the performance of the leaky mode antenna.
REFERENCES
[1] J. Maloney, M. Kesler, B. Shirley, and G. Smith, “A simple description for waveguiding in photonic bandgap materials,” Microw. Opt. Technol.
Lett., vol. 14, pp. 261–266, Nov. 1997.
[2] H. Y. D. Yang, N. G. Alexopoulos, and E. Yablonovitch, “Photonic band-gap materials for high-gain printed circuit antennas,” IEEE Trans.
Antennas Propagat., vol. 45, pp. 185–187, Jan. 1997.
[3] C. Y. Hang, V. Radisic, Y. Qian, and T. Itoh, “High efficiency power amplifier with novel PBG ground plane for harmonic tuning,” in IEEE
MTT-S Microwave Symp. Dig., June 1999, pp. 807–810.
[4] C. K. Wu and C. K. C. Tzuang, “Slow-wave propagation of microstrip consisting of electric-magnetic-electric (EME) composite metal strips,” in IEEE MTT-S Microwave Symp. Dig., May 2001, pp. 727–730. [5] C. K. Wu, H. S. Wu, and C. K. C. Tzuang,
“Electric-Magnetic-Elec-tric (EME) slow-wave microstrip line and bandpass filter of compressed size,” IEEE Trans. Microwave Theory Tech., vol. 50, Aug. 2002. [6] H. Shigesawa, M. Tsuji, and A. A. Oliner, “Conductor-backed slot line
and coplanar waveguide: Dangers and full-wave analyses,” in IEEE
MTT-S Microwave Symp. Dig., May 1988, pp. 199–202.
[7] L. Carin and N. K. Das, “Leaky waves on broadside-coupled mi-crostrip,” IEEE Trans. Microwave Theory Tech., vol. MTT-40, pp. 58–66, Jan. 1992.
[8] G. J. Chou and C. K. C. Tzuang, “An integrated quasiplanar leaky-wave antenna,” IEEE Trans. Antennas Propagat., vol. AP-44, pp. 1078–1085, Aug. 1996.
[9] C. K. Wu and C. K. Tzuang, “Dual-band microstrip leaky-mode antenna of similar radiation characteristics,” in IEEE AP-S Dig., vol. 3, 2002, pp. 387–390.
