Data Reuse Exploration for Low Power Motion Estimation Architecture
Design in H.264 Encoder
YU-HAN CHEN, TUNG-CHIEN CHEN, CHUAN-YUNG TSAI, SUNG-FANG TSAI AND LIANG-GEE CHEN
DSP/IC Design Lab., Graduate Institute of Electronics Engineering and Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan
Received: 27 March 2007; Revised: 11 May 2007; Accepted: 13 June 2007
Abstract. Data access usually leads to more than 50% of the power cost in a modern signal processing system. To realize a low-power design, how to reduce the memory access power is a critical issue. Data reuse (DR) is a technique that recycles the data read from memory and can be used to reduce memory access power. In this paper, a systematic method of DR exploration for low-power architecture design is presented. For a start, the signal processing algorithms should be formulated as the nested loops structures, and data locality is explored by use of loop analysis. Then, corresponding DR techniques are applied to reduce memory access power. The proposed design methodology is applied to the motion estimation (ME) algorithms of H.264 video coding standard. After analyzing the ME algorithms, suitable parallel architectures and processing flows of the integer ME (IME) and fractional ME (FME) are proposed to achieve efficient DR. The amount of memory access is respectively reduced to 0.91 and 4.37% in the proposed IME and FME designs, and thus lots of memory access power is saved. Finally, the design methodology is also beneficial for other signal processing systems with a low-power consideration.
Keywords: parallel processing, data reuse, motion estimation, H.264 1. Introduction
Power becomes the first-class design issue nowadays [1]. One of the reasons is the emerging mobile applications. Because the capacity of battery in portable devices is limited, power should be used economically to provide longer service time. In addition, it is also important to constrain power consumption in high performance computing sys-tems. Too much power consumption within a small silicon area leads to severe thermal problems. It increases the cost of heat disposal and reduces reliability of the system.
For multimedia applications, data access is usually a significant part of power consumption—50 to 80%
in the image and video processing systems [2]. For this reason, reduction of memory access power becomes important in modern designs. In a data-driven signal processing algorithm, many data are requested from memory several times. Data read from memory for one process may also be required for other processes in the future. If the temporal data locality can be exploited, power consumption can be saved. Hence, data reuse (DR), recycling previously accessed data, is an important technique to reduce memory access power for low-power systems.
At the architecture-level, DR can be achieved with two techniques—memory hierarchy [3, 4] and parallel processing. For a memory hierarchy design, the frequently accessed data are pre-stored in the
chip SRAMs and off-line reused for the future access. For a parallel processing design, the data read from memory are immediately shared between several processing engines (PE) and on-line reused. Therefore, memory access power of a signal pro-cessing system can be saved with customized mem-ory hierarchy and parallel architecture. This is the reason why ASIC designs tend to be more power-efficient than processor designs. For example, an ASIC design [5] and a processor design [6] respec-tively consume 18 mW and 1.76 W for VGA (640 480 ) MPEG-4 [7] Simple Profile video encoding at 30 fps with the 0:18m process. The ASIC design can achieve about one hundred times power efficiency.
A systematic method of DR exploration for low-power architecture design will be presented in this paper. A signal processing algorithm should be formulated as a nested loops structure. The nested loops are first decomposed, and then the data access pattern in each loop is analyzed to explore DR. Finally, memory hierarchy and parallel processing are applied to the suitable loops according to the characteristics of the algorithms, and the corre-sponding processing flows and memory data arrange-ment are also developed to realize a low-power design.
H.264 [8] is an emerging video coding standard with high coding gain and good visual quality. Multiple reference frame (MRF), variable-block size (VBS), and quarter-pel resolution ME are three useful tools to improve coding performance in H.264. However, they also greatly increase the memory access requirement, and thus corresponding DR techniques are needed for a low-power consideration. In this paper, the proposed systematic design method is applied to the integer ME (IME) and fractional ME (FME) algorithms in the H.264 encoder. With analyzing the ME algorithms, suitable hardware architectures are presented to achieve efficient DR. The amount of memory access of the IME and FME designs can be greatly reduced to 0.91 and 4.37%, respectively. Therefore, it is proven that the proposed design methodology is useful to reduce memory access power and beneficial for a low-power design.
The rest of the paper is organized as follows. The concepts of DR are first described in Section2. Then, a systematic method of DR exploration for low-power architecture design is introduced in Section3. In Section 4, the proposed design methodology is
applied to IME and FME algorithms of H.264 to realize low-power ME engines with efficient DR. Finally, we will draw a conclusion in Section5. 2. Data Reuse
For data dominated multimedia applications, a large number of data access are required. Power consump-tion of data access is usually a significant part in a signal processing system. However, in a signal processing algorithm, data accessed from memory for one process may also be required for some processes in the future. If the temporal data locality is exploited, the amount of memory access can be reduced and power consumption can be saved. Data reuse (DR), reuse of previously accessed data, is an effective technique to reduce memory access power. In this paper, DR is categorized as off-line DR and on-line DR. We will introduce the two kinds of DR schemes in the following.
2.1. Off-Line Data Reuse
Memory access power is dependent on the size and the technology of the memory. A larger memory usually consumes more power than a smaller one. In addition, off-chip DRAMs usually consume more power than on-chip SRAMs. For this reason, mem-ory hierarchy [3, 4] is common for low-power architecture design. On-chip SRAMs are added between the off-chip DRAMs and registers in the data path. The frequently accessed data are per-stored in the on-chip SRAMs and can be off-line reused for the future access. In this way, most of data access is changed from off-chip memory access to on-chip memory access, and thus memory access power will be greatly reduced. In addition, the external memory bandwidth (BW) is saved, and it is beneficial for system performance. The technique that data are pre-stored in the small memories and reused in the future is defined as off-line DR. 2.2. On-Line Data Reuse
Traditionally, parallel processing is used to reduce power with the cooperation of voltage scaling [9]. However, it can also be used to reduce memory access. Here, we assume there is a datum required for two processes. If the two processes are in sequential, two times of data access is needed.
However, if the two processes are in parallel, the datum can be only accessed once and then shared between the processing engines (PE). Hence, the amount of data access is reduced. The technique that the accessed data are immediately reused by other PEs is defined as on-line DR.
Here, bilinear interpolation is taken as an example to describe how on-line DR can be achieved with parallel processing. As shown in Fig. 1a, four reference pixels (A , B , C , and D ) are required to generate an interpolated pixel (M ). That is to say, four pixels of memory access are required to interpolate one pixel. If there are two interpolated pixels generated in sequential, eight pixels of memory access are required. However, if the two neighboring interpolated pixels are generated in parallel, only six pixels of memory access are sufficient as shown in Fig. 1b. It is because the middle two reference pixels can be on-line reused. Therefore, memory access is reduced by use of parallel processing.
Memory hierarchy and parallel processing both can reduce memory access power with the penalty of increase of hardware resources. As a result, leakage
power [10] will be increased. In this paper, we focus on reduction of switching power and ignore the impact of leakage power. If leakage power is taken into consideration, co-optimization is required for hardware resources and DR.
3. Systematic Method of Low-Power Architecture Design
Off-line DR with memory hierarchy and on-line DR with parallel processing should both be optimized to minimize memory access power. In this section, a systematic method of DR exploration for low-power architecture design will be presented. There are two assumptions here. First, temporal data locality should exist in the algorithm. It is because DR cannot be achieved if the processes are independent to each other. Second, we assume that the algorithm can be realized as a form with nested loops. Therefore, systematic loop analysis can be applied for DR exploration. The systematic flow of low-power architecture design is shown in Fig. 2. Two steps, loop analysis and architecture mapping, are identi-fied and will be introduced in the following.
Figure 1. Data reuse from parallel processing of bilinear interpolation. a Illustration of bilinear interpolation; b two-parallel processing with two reusable reference pixels; c four-parallel processing with six reusable reference pixels.
3.1. Loop Analysis
For a start, we need to transform the algorithm into a structure with nested loops. Then, the nested loops are decomposed in order to apply loop analysis to each loop.

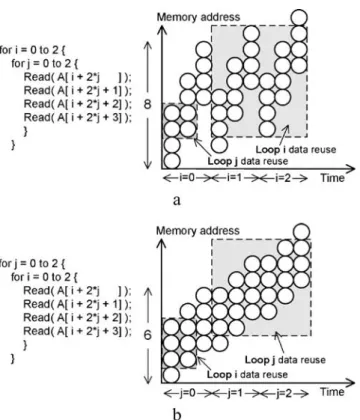

1. Data reuse exploration: Temporal data locality should be explored in order to achieve DR. At first, we have to find the data accessed pattern in each loop. Then, the overlapped accessed data in each loop can be found and are potential for DR. There is a simplified example shown in Fig.3a. There are two loops in the algorithm. Inside theLoop j, four consecutive data are read. Among them, two data are overlapped in the two consecutive processes of Loop j . Therefore, Loop j data locality is found, and it is a candidates for DR. In addition, there are also lots of overlapped data in two consecutive processes ofLoop i, and thus Loop i data locality is another candidate for DR.
2. Re-scheduling: In some algorithms, the original processing flow cannot achieve efficient DR. In this case, loop interchange may be an effective way to improve DR efficiency. Here comes an example. With the original schedule in Fig. 3a, two overlapped data in the consecutive processes of Loop j can be on-line reused if parallel processing is applied. However, if Loop i and Loop j are interchanged. Three overlapped data in the consecutive processes ofLoop i can be reused as shown in Fig. 3b. As a result, the on-line DR efficiency in the lower loop becomes better. In addition, the memory size can also be reduced with re-scheduling when we want to achieve
off-line DR. For the original schedule in Fig. 3a, eight data need to be buffered for off-line DR of all the required data in the lower loop. After rescheduling, only six pixels need to be buffered as shown in Fig.3b.
3. Algorithm Modification: In some algorithms, there are data dependencies inside a loop. The tasks must be processed sequentially, and parallel processing is not applicable. In addition, there are data dependencies between two loops in some algorithms. The processing order is fixed and cannot be re-scheduled. In those cases, algorithm modification is required for improvement of DR efficiency, and it may lead to some penalties. In a video coding system, the penalty may be the coding performance degradation. Therefore, there will be a trade-off between coding performance and power in this case.
3.2. Architecture Mapping
After loop analysis, we should first decide what kinds of DR techniques should be applied to the loops with temporal data locality. There are some circumstances that parallel processing cannot be applied. The memory addresses in some algorithms are dependent on a variable which will be changed in some loops. In that case, the amount of overlapped data will be variable. The total numbers of required data accessed in parallel are not fixed, and it leads to a problem of parallel memory access. Therefore, parallel processing is not suitable for those loops with variable addresses. On the other hand, it is more
suitable to apply parallel processing in the lower loops. It is because fewer data should be accessed in parallel, and fewer PEs are required. As shown in Fig.3a, six pixels are required to be accessed in parallel for two parallel processes in Loop j , but nine pixels are required for two parallel processes in Loop i . In conclusion, the overlapped data in the lower loops are more suitable to be on-line reused with parallel architecture design. On the contrary, the overlapped data in the higher loops are more suitable to be off-line reused by means of memory hierarchy design.
Secondly, we need to decide how many degrees of parallelism are required. Bilinear interpolation in Fig. 1 is taken as an example. Here, we define a factor AAPBI, which stands for average accessed
pixels for one bilinear-interpolated pixel.AAPBI can
be calculated by
AAPBI¼
Total numbers of accessed pixels Total numbers of interpolated pixels ð1Þ AAPBI is 4 for sequentially interpolated pixels. If
two pixels are interpolated in parallel as shown in Fig. 1b,AAPBIis decreased to 3 (6=2). Furthermore,
AAPBI will be reduced to 2:5 (10=4 ) if four
hor-izontally adjacent pixels are generated in parallel as shown in Fig. 1c. Thus it can be seen that more degrees of parallelism will result in more memory access reduction, but it also leads to more hardware resources. Finally, the degrees of parallelism will be dependent on both the area and power constrains.
Memory access requirement is different between distinct parallel architectures. As shown in Fig. 1, there are 2 2, 2 3, and 2 5 reference pixels needed to be accessed in parallel for 1-PE, 2-PE, and 4-PE architectures, respectively. More degrees of parallelism usually means more memory bitwidth requirement. Therefore, memory data should be arranged according to the parallel architecture to achieve the memory access requirement.
4. Design Examples
In this section, we will first introduce the motion estimation (ME) algorithm of H.264. Then, the systematic method of DR exploration is applied to the IME and FME algorithms in H.264. Finally, the corresponding hardware architectures are presented.
4.1. Motion Estimation Algorithm of H.264 ME is a powerful coding tool used to remove temporal redundancy in a video sequence. For each macroblock (MB) in the current frame, a best matching block insides the search window (SW) of the reference frame will be found as depicted in Fig.4. Then, the motion vector (MV) and the residues, the differences between the current and the best matching MBs, are coded. In H.264, multiple reference frame (MRF), variable block-size (VBS), and quarter-pel resolution ME algorithms are adopted to further improve coding performance. In the following, we will introduce these three coding tools.
1. Multiple reference frame: In the previous video coding standard, only one reference frame is supported in the process of ME. However, MRF-ME in H.264 provides at most five reference frames, and it is useful to improve coding performance for uncovered backgrounds, repetitive motions, and highly textured areas [11]. Although MRF is good for coding performance, the amount of memory access is increased with the number of reference frames. Without effective DR techniques, memory access power will be greatly increased.
2. Variable block-size: In the conventional ME algorithm, only one block size, 16 16 , is supported. In H.264, there are seven kinds of block-sizes, comprising 4 4, 4 8, 8 4, 8 8, 8 16, 16 8, and 16 16. VBS-ME can obtain good compression efficiency in a region with complex motion [12]. In the reference software
[13], ME of seven block-sizes are performed sequentially. For IME, all the sum of absolute difference (SAD) costs of the 4 4 block-size are pre-calculated and saved in a buffer. Then, the results can be off-line reused for all other larger block-sizes. However, the buffer of the 4 4 SAD costs is too large to be implemented in a dedicated hardware. For a 32 32 search range, the buffer size is 192 k-bit (32 32 16 12). Therefore, on-line SAD calculation for VBS IME should be adopted. In this manner, the SAD costs cannot be reused, and the amount of memory access becomes seven times as compared to the conventional single-block-sized algorithm. Mem-ory access power is greatly increased and becomes a serious problem.
3. Quarter-pel resolution: Half and quarter-pel re-finement is supported in the FME algorithm of H.264 and performed sequentially as illustrated in Fig.5a. Sum of absolute transformed difference (SATD) is used as the matching cost of FME. Block matching of eight half-pel and one integer-pel candidates are conducted in the first pass of refinement. Then, the matching costs of eight quarter-pel candidates around the best candidate in the first pass are computed for quarter-pel refinement. Finally, the best matching block with quarter-pel resolution is found. A six-tap filter is applied to interpolate the pixels at the half-pel position as shown in Fig.5b, and the quarter-pel data are generated with bilinear interpolation. (I, I), (I, H), (H, I), and (H, H) respectively stand for the search candidates in the horizontal-integer and
integer, horizontal-integer and vertical-half, horizontal-half and vertical-integer, and hori-zontal-half and vertical-half positions. In H.264, six integer pixels are required to generate one (I, H) or one (H, I) interpolated pixel, and 6 6 integer reference pixels are needed for an (H, H) one. As a result, the amount of memory access is greatly increased. In the reference software [13], all the half-pel and quarter-pel interpolated pixels in a frame are pre-computed, saved in a buffer, and off-line reused. But for dedicated hardware realization, the buffer cost (16 frame size) is too high to be implemented, and on-line fractional-pel interpola-tion is inevitable. Without efficient DR, lots of memory access will be required.
4.2. Integer Motion Estimation
1. Loop analysis: The nested loops of the IME algorithm in the reference software [13] is shown in Fig.6.AAPIME, average accessed pixels for one
IME search candidate, is defined to indicate DR efficiency of memory access for IME and can be calculated by
AAPIME¼
Total numbers of accessed pixels Total numbers of search candidates
ð2Þ
Loop 1 : the MB index in a current frame. For each MB, block matching is applied inside a SW. However, the SWs of the neighboring current MBs are overlapped, and thus the overlapped reference data can be reused. Because the amount of data in the SW is large, memory hierar-chy design is adopted. SW SRAMs are commonly used in most of the ME designs for off-line DR. Level-C DR is a technique that can achieve horizontally inter-MB DR, and Level-D DR can achieve both horizontally and vertically inter-MB DR. They are both frequently used to reduce external memory BW. Please reference [14] for the details. Loop 2 : the block index for VBS-ME. In H.264,
there are 41 blocks with seven kinds of block-sizes in a MB. As mentioned in Sec. 4.1.2, a sequential flow is adopted for VBS IME in the reference software [13], and it cannot achieve efficient DR for hardware implementation. To solve this problem, a modified parallel VBS IME algorithm has been adopted in many designs [15–18]. Parallel VBS IME al-gorithm computes all matching costs of different block-sizes in parallel. For a search candidate, the costs of 4 4 is
Figure 5. Illustration of quarter-pel resolution ME. a Flow of fractional motion estimation with two-pass iterations; b six-tap interpolation filter for the half pixels.
computed first, and all other cost of larger block-sizes are on-line calculated by summing up the corresponding 4 4 costs. As a result, computation and memory access is saved. AAPIME is
reduced from 1792 (256 7 ) to 256 , and 85:71% memory access is reduced. The technique that the matching costs of the smaller block-sizes are reused by larger block-sizes is called inter-VBS DR of IME.
Loop 3 : the reference frame index. In H.264, MRF-ME is supported. For a current MB, ME is applied to several SWs of the reference frames. With the conventional multiple reference frames single current MB schedule, the required on-chip SW memory size and the amount of off-chip memory access is proportional to the number of reference frames. In order to reduce memory power, DR is required for the MRF-ME algorithm. Inter-frame DR can be achieved by use of frame-level rescheduling–interchange ofLoop 0 and Loop 3. The new schedule is called single reference frame multiple current MBs. Multiple current MBs of different current frames can reuse the data inside the SW of a reference frame. In this way, only one SW buffer is required, and the external memory BW is greatly reduced. Please reference [19] for the details. Loop 4 : the candidate index in the search range.
For a search candidate, 16 16 reference pixels are needed to compute the match-ing cost. However, a large portion of reference pixels are overlapped for the neighboring candidates. Here comes the examples. For two vertically adjacent candidates as shown in Fig. 7(a), 15
16 reference pixels are overlapped. If those overlapped data can be reused, a large amount of memory access can be saved. In this case, AAPIME is reduced
from 256 to 136 (17 16 2). DR can also be achieved for the horizontally adjacent candidates in the same way as shown in Fig.7b. The technique that the overlapped reference pixels for the neighboring search candidates are reused is called inter-candidate DR of IME. 2. Architecture mapping: Parallel 2-D adder tree
architecture [18] is adopted as the basic architec-ture in our design and shown in Fig. 8. The current MB is stored in B16 16 current pel buffer.^ The reference data in a SW are stored in the SW SRAMs for inter-MB DR. Reference pixels are read row-by-row from SW SRAMs and input to B16 16 ref-pel systolic array.^ The original reference pixels in B16 16 Ref-Pel Systolic Array^ are shifted forward while a new row of data are input. To compute the SAD cost of the first candidate, 16 rows of reference pixels are input in 16 cycles. Then, only a new row of reference pixels are needed to compute a new search candidate below the first one, and 15 16 reference pixels are reused. In this way, inter-candidate DR can be achieved between the vertically adjacent candidates. Residues are generated in B256 processing unit array,^ and summed up by B2-D SAD tree.^ Two hundred fifty-six degrees of parallelism is provided here to generate 16 16 absolute difference values simultaneously for SAD summation. Sixteen SAD costs of 4 4 blocks are on-line computed byB16 2-D adder tree for 44-blocks.^ Then, all the SAD costs of larger block-sizes are calculated byBone VBS tree for larger blocks^ with the on-line generated 4 4 costs. Therefore, inter-VBS DR can be achieved inB2-D adder tree.^
For the full search algorithm, after the latency of 15 cycles, this architecture can process one candidate per cycle until the end of a column. However, if we want to compute the SAD costs of the search candidates in the next column, another 15-cycle latency is required to fill the reference data inB1616 ref-pel systolic array.^ The scan order is shown in Fig.9a. For a SW with a 32 32 search range, 47 16 reference pixels
are read from memory for a column of thirty-two search candidates, and thusAAPIMEis23:5.
The previous architecture can only reuse the reference data in the vertical direction (as shown in Fig.7a). Further memory access reduction can be achieved if 2-D inter-candidate DR is sup-ported. For this reason, a snake-scan search flow is adopted and illustrated in Fig.9b. At the end of each column, a column of 16 1 reference pixels are read from memory and horizontally inter-candidate DR is achieved (as shown in Fig. 7b). Although the concept is simple, it is not straight-forward for hardware implementation. It is be-cause 2-D random access is required for memory access. To solve this problem, a technique called ladder-shaped SW data arrangement is proposed and will be introduced latter in Section4.4. Here, we assume the SW SRAMs can provide 16 1 or 1 16 reference pixels random access. Besides,
to support snake-scan search flow, the B16 16 ref-pel systolic array^ in Fig.8 is designed with three configurations—up-shift, down-shift, and right-shift by on pixels. Finally, with 2-D inter-candidate DR,AAPIMEbecomes 16:23 for a 32
32 search range.
3. Results: Memory access requirement of different DR techniques is listed in Table 1. With the proposed architecture, VBS and 2-D inter-candidate DR can be achieved. Memory access is reduced to 0:91% as compared to the designs without DR. By the way, the minimum memory access occurs if all the reference data in the SW SRAMs are accessed once. The value of minimal AAPIMEis 2:16 (472=162), which is about 13:31%
of the proposed design. However, much more degrees of parallelism are required to achieve the minimal memory access of IME. In that case, the area cost will be extremely high.
Figure 7. Inter-candidate data reuse for integer motion estimation. The overlapped (grey) region of reference pixels of search candidate C0
andC1can be reused to reduce memory access. a Vertical data reuse; b horizontal data reuse.
The presented IME architecture is implemented with 0:18m technology. The logic gate count is 65k. Full search algorithm is supported in a search range of H[j16, 15] and V[j16, 15] with one reference frame, and 1=2 sub-sampling and 3-bit pixel truncation are adopted for reduction of SAD computation. Power consumption measured from the chip is 6:42mW with 1:3V supply voltage and 13:5 MHz operating frequency for CIF 30 fps format videos. In [20], Lin et al. proposes a 16 1-D adder tree architecture (256-PE) for the full search algorithm, and only 1-D inter-candidate DR is supported. The reported power consump-tion for 0:25m process and 2:5V supply voltage is 46:52mW. Although the normalized power of this design for 0:18m process and 1:3V supply voltage is similar to ours, the functionality of VBS-ME is not supported. In [21], a low-power ME engine based on 1-D adder tree architecture (16-PE) is proposed. In this design, a fast algorithm is adopted to reduce computation to 1=25, and no DR can be achieved in this archi-tecture. The power consumption is 6:56mW for 0:18 m process and 1:0 V supply voltage. Compared to the previous work, our design achieves the best DR efficiency and consumes
the least power. It is shown that DR is critical for low-power design.
4.3. Fractional Motion Estimation
1. Loop analysis: The nested loop structure of FME algorithm in the reference software [13] is shown in Fig.10. The DR techniques about the MB loop (Loop 1) and the reference frame loop (Loop 3) of FME are the same with those in IME and will be skipped here.
Loop 2 : the block index. For FME, different MVs should be refined for different blocks. There is no fixed inter-block data locality. Therefore, parallel process-ing cannot be applied here for DR. Loop 5 : the pixel index in a candidate. Here,
Loop 5 is discussed before Loop 4. The 6-tap interpolation filter defined in H.264 increases the memory access requirement of FME engine. For example, a 6 6 window of reference data are required to generate an (H, H) interpolated pixel. DR can be explored from the neighboring interpolated pixels at the same search candidate. For two horizontally adjacent (H, H) interpolated pixels, 6 5 pixels in the overlapped region of the two interpo-lation windows could be reused as shown in Fig. 11a. For an (H, H) search candidate with the 4 4 block-size, a 9 9 window of reference pixels are enough to generate all the interpolated pixels as shown in Fig. 11b. In this case, the required memory access is reduced from
a
b
Figure 9. Scan flow of5 5 search candidates for integer motion estimation. a Basic scan flow; b advanced snake scan flow.
Table 1. Memory access requirement for integer motion estimation.
(1) (2) (3) (4) Minimum
AAPIME 1792 256 23:5 16:23 2:16
Ratio 100% 14:29% 1:31% 0:91% 0:12% A 32 32 search range is assumed.
(1) No data reuse; (2) inter-VBS data reuse; (3) inter-VBS data reuse + 1-D inter-candidate data reuse;(4) Inter-VBS data reuse + 2-D inter-candidate data reuse
576 (4 4 6 6) to 81 (9 9). This technique that the required reference data of neighboring interpolated pixels at the same search candidate are reused is called inter-pixel or intra-candidate DR of FME. Loop 4 : the candidate index. DR can also be explored between the neighboring search candidates for FME. Take the half-pel refinement of a 4 4 block for example. There are nine candidates, comprising one (I, I), two (H, I), two (I, H), and four (H, H) candidates. With intra-candidate DR, the (I, I), (H, I), (I, H), and (H, H) candidates require 4 4, 4 9, 9 4, and 9 9 interpolation windows of ref-erence data, respectively. However, many parts of those interpolation windows are overlapped as shown in Fig. 12. If the nine search candidate are processed in parallel, the reference data read from memory can be shared with each other. Finally, a 10 10 window of reference
data are enough to compute the matching costs of all the nine candidates for half-pel refinement. In this case, the required memory access is reduced from 484 ( 4 4 þ 2 4 9þ 2 9 4 þ 4 9 9) to 100 (10 10). The technique that the reference data of neighboring search candidates are reused is called inter-candidate DR of FME.
2. Architecture mapping: Based on the analysis of [22], the basic hardware architecture of FME engine is shown in Fig.13. The 4 4 block-size is the smallest element of VBS, and the SATD computation is also based on 4 4 blocks. In addition, all other larger block-sizes can be decomposed into several 4 4 -elements with the same MV. Therefore, a 4 4-processing unit (PU) is designed and reused for larger blocks by use of folding. For the low-power consideration, intra-candidate and inter-candidate DR are both applied in this architecture. For horizontal filter-ing, six reference pixels are required to interpo-late one half pixel while nine pixels are needed for four adjacently half-interpolated pixels in a row of a search candidate. Furthermore, ten reference pixels are enough to generate a row of the required data for three horizontally adjacent search candidates as shown in Fig.12. Therefore, a row of ten reference pixels are read from SW SRAMs and input to the row-parallel interpolation engine in a cycle. Then, a rows of interpolated pixels are generated at the same time. For intra-candidate DR, each 4 4-element PU is designed
Figure 10. Nested loops of fractional motion estimation.
a
b

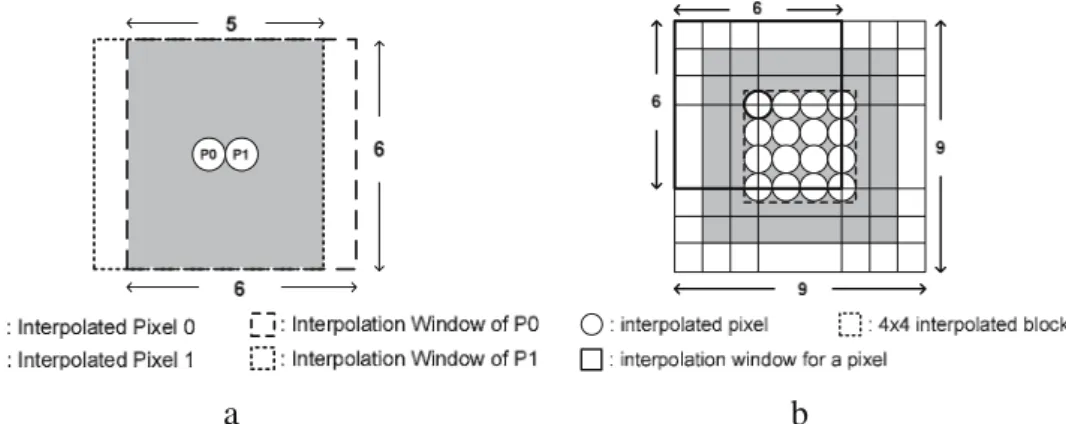

Figure 11. Intra-candidate data reuse for fractional motion estimation. a Reference pixels in the overlapped (grey) interpolation windows for two horizontally adjacent interpolated pixelsP0 and P1 can be reused; b overlapped (grey) interpolation windows data reuse for a 4 4 interpolated block. Totally, 9 9 reference pixels are enough with the technique of intra-candidate data reuse.
with four degrees of parallelism to process four horizontally adjacent pixels of a candidate at the same time. For inter-candidate DR, nine 4 4-element PUs is arranged to process the nine search candidates in parallel. Totally, 36 degrees of parallelism are provided. In this way, the interpolated fractional pixels are reused, and the redundant computation of interpolation operation is saved. Besides, the on-chip memory BW of SW SRAMs for reading reference pixels is also be decreased. In summary, not only logic power but also memory access power is reduced.
Because the proposed architecture is based on a 4 4 PU, VBS should be decomposed into several 4 4 blocks which are processed sequen-tially. The basic processing flow in [22] is shown in Fig.14a. Because only 1-D random access of SW SRAMs is supported in [22], the 4 4 blocks are strung up in the vertical direction. Therefore, vertically inter-block DR can be obtained as depicted in Fig.15a. For the next column of 4 4 blocks, reference pixels should be reloaded, and no DR can be achieved horizontally. With the basic flow of FME, DR of 4 8 and 8 16
Figure 12. Inter-candidate data reuse for half-pel refinement of fractional motion estimation. The overlapped (grey) region of interpolation windows can be reused to reduce memory access.
Interpolation Search Window SRAMs
Output Buffer Current MB SRAM MV/Ref/Mode Costs 9 costs 4x4Element PU #0 Lagrangian Mode Decision 4x4Element PU #1 4x4Element PU #1 4x4Element PU #0 4x4Element PU #1 4x4Element PU #1 4x4Element PU #0 4x4Element PU #1 4x4Element PU #1 Side Information SATD ACC 4-parallel 2-D Hadamard Transform Unit
-
-
-
-Row of Four Cur. MB Pels & Four Interpolated Ref. Pels
4x4 SATD
+
4x4ElementPU
block-sizes is not efficient. However, the proposed ladder-shaped SW SRAMs data arrangement in Section4.4can provide 2-D random access, and an advanced flow can be applied as shown in Fig.14b. For 4 8 and 8 16 block-sizes FME, the 4 4 sub-blocks can be strung up in the horizontal direction. Reference pixels are read column-by-column from SW SRAMs and input to the interpolation engine. In this case, horizontally inter-block DR (as shown in Fig. 15b) can be achieved. Therefore, memory access can be further reduced.
3. Results: Here, we define a factorAAPFME, which
stands for Average Accessed Pixels for one FME half-pel search candidate, to indicate the DR efficiency of a FME engine. AAPFME can be
computed as
AAPFME¼
Total numbers of accessed pixels 9ð#: of candidateÞ 7 ð#: of block sizeÞ
ð3Þ The amount of memory access for different block-sizes and AAPFME for different DR
tech-16 8 4 8 4 16 8 16 16 8 8 8
a
16 8 4 8 4 16 8 16 16 8 8 8b
Figure 14. Hardware processing flow of variable-block size fractional motion estimation. a Basic flow; b advanced flow.
a
b
niques are listed in Table 2. The presented archi-tecture with the advanced processing flow can achieve efficient DR and reduce the memory BW to 4:37% which is very close to the lower bound of 3:70% with fully inter- and intra-candidate DR. The proposed FME design is also implemented with 0:18m technology. The gate count is 127k. For real-time CIF 30fps video coding with the full search FME algorithm, power consumption reported from gate-level simulation is 22:58mW at 1:8V and 27 MHz. Because our design is based on the 4 4 block engine, full reuse of accessed reference pixels cannot be achieved. To further reduce memory access power, a FME engine with the 16 16 PU can be designed [23]. In this case, the area is increased to 189k gates [23], and about 15% memory access power can be further reduced.
4.4. Ladder-Shaped Search Window Data Arrangement
In order to support 2-D DR for both the presented IME and FME designs, memory access capability of consecutively horizontal or vertical 16 pixels is required. Here comes a simple example. Physical location of pixels in the SW is shown in Fig.16a. The conventional data arrangement is shown in Fig. 16b. Horizontally adjacent pixels are arranged in different banks of SW SRAMs. The first column of reference pixels,A1–A8, are placed in the bank M1. The second column of pixels, B1 –B8 , are placed in the bank M2, and so on. If there are eight banks of SRAM, the ninth column of pixels are placed in the first bank M1. In this way, a row of reference pixels, like A5–H5, can be read in parallel. However, a column of reference pixels, like C1–C8, cannot be accessed
Table 2. Memory access requirement for half-pel refinement of fractional motion estimation.
Block-size (1) (2) (3) (4) (5) 16 16 24832 2482 484 880 880 16 8 24832 2852 616 1120 880 8 16 24832 2852 704 880 880 8 8 24832 3272 784 1120 1120 8 4 24832 4112 1120 1600 1120 4 8 24832 4112 1120 1120 1120 4 4 24832 5152 1600 1600 1600 Total 173824 24834 6428 8320 7600 AAPFME 2759:11 394:19 102:03 132:06 120:63 Ratio 100% 14:29% 3:70% 4:79% 4:37%
(1) No data reuse; (2) only intra-candidate data reuse; (3) full intra-candidate and inter-candidate data reuse; (4) proposed architecture with the basic processing flow;(5) proposed architecture with the advanced processing flow
a
b
c
Figure 16. Search Window SRAMs data arrange. a Physical location of reference pixels in the search window; b traditional data arrangement with 1-D random access; c proposed ladder-shaped data arrangement with 2-D random access.
at the same time because they are located in the same bankM3. This is called 1-D random access.
The ladder-shaped SW data arrangement tech-nique is depicted in Fig. 16c. The second and third rows are rotated rightward by one and two pixels. The other rows are also rotated in the same manner. In this way, the reference pixels ofA5–H5 and C1– C8 are both put in different banks of SRAMs and can be accessed in one cycle. Therefore, a row or a column of pixels can both be accessed in parallel, and 2-D random access is achieved. As a result, the proposed data arrangement can enhance random access capability of SW SRAMs, and improve DR efficiency of the IME and FME designs.
5. Conclusion
A systematic method of DR exploration for low-power design is proposed and applied to the IME and FME algorithms of H.264 in this paper. With the loop analysis, data locality in the algorithms is first explored. A large number of required reference pixels are overlapped and can be reused. Therefore, the corresponding DR techniques for each loop of the ME algorithms are presented. With the DR techniques, not only memory access but also computation can be saved. Then, suitable parallel architectures and mem-ory hierarchy design are mapped into the loops in the algorithm for DR. Finally, a low-power design with efficient DR is realized. The amount of memory access of IME and FME designs is reduced to 0.91 and 4.37%, respectively. The design method of DR exploration for low-power architecture design can also be extended to other signal processing systems with a low-power consideration.
