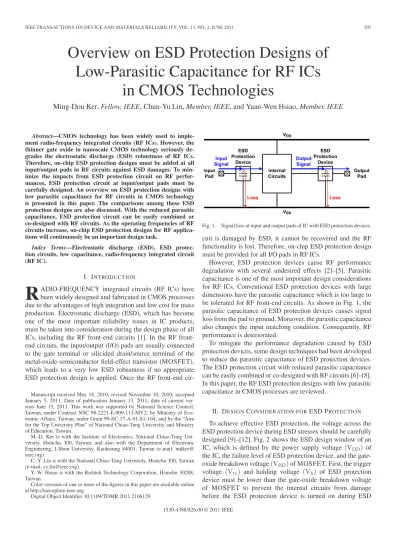

ment radio-frequency integrated circuits (RF ICs). However, the thinner gate oxide in nanoscale CMOS technology seriously de-grades the electrostatic discharge (ESD) robustness of RF ICs. Therefore, on-chip ESD protection designs must be added at all input/output pads in RF circuits against ESD damages. To min-imize the impacts from ESD protection circuit on RF perfor-mances, ESD protection circuit at input/output pads must be carefully designed. An overview on ESD protection designs with low parasitic capacitance for RF circuits in CMOS technology is presented in this paper. The comparisons among these ESD protection designs are also discussed. With the reduced parasitic capacitance, ESD protection circuit can be easily combined or co-designed with RF circuits. As the operating frequencies of RF circuits increase, on-chip ESD protection designs for RF applica-tions will continuously be an important design task.
Index Terms—Electrostatic discharge (ESD), ESD
protec-tion circuits, low capacitance, radio-frequency integrated circuit (RF IC).
I. INTRODUCTION
R
ADIO-FREQUENCY integrated circuits (RF ICs) have been widely designed and fabricated in CMOS processes due to the advantages of high integration and low cost for mass production. Electrostatic discharge (ESD), which has become one of the most important reliability issues in IC products, must be taken into consideration during the design phase of all ICs, including the RF end circuits [1]. In the RF front-end circuits, the input/output (I/O) pads are usually connected to the gate terminal or silicided drain/source terminal of the metal-oxide-semiconductor field-effect transistor (MOSFET), which leads to a very low ESD robustness if no appropriate ESD protection design is applied. Once the RF front-end cir-Manuscript received May 18, 2010; revised November 10, 2010; accepted January 5, 2011. Date of publication January 13, 2011; date of current ver-sion June 15, 2011. This work was supported by National Science Council, Taiwan, under Contract NSC 98-2221-E-009-113-MY2; by Ministry of Eco-nomic Affairs, Taiwan, under Grant 99-EC-17-A-01-S1-104; and by the “Aim for the Top University Plan” of National Chiao-Tung University and Ministry of Education, Taiwan.M.-D. Ker is with the Institute of Electronics, National Chiao-Tung Uni-versity, Hsinchu 300, Taiwan, and also with the Department of Electronic Engineering, I-Shou University, Kaohsiung 84001, Taiwan (e-mail: mdker@ ieee.org).
C.-Y. Lin is with the National Chiao-Tung University, Hsinchu 300, Taiwan (e-mail: cy.lin@ieee.org).
Y.-W. Hsiao is with the Richtek Technology Corporation, Hsinchu 30288, Taiwan.
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TDMR.2011.2106129
Fig. 1. Signal loss at input and output pads of IC with ESD protection devices. cuit is damaged by ESD, it cannot be recovered and the RF functionality is lost. Therefore, on-chip ESD protection design must be provided for all I/O pads in RF ICs.
However, ESD protection devices cause RF performance degradation with several undesired effects [2]–[5]. Parasitic capacitance is one of the most important design considerations for RF ICs. Conventional ESD protection devices with large dimensions have the parasitic capacitance which is too large to be tolerated for RF front-end circuits. As shown in Fig. 1, the parasitic capacitance of ESD protection devices causes signal loss from the pad to ground. Moreover, the parasitic capacitance also changes the input matching condition. Consequently, RF performance is deteriorated.
To mitigate the performance degradation caused by ESD protection devices, some design techniques had been developed to reduce the parasitic capacitance of ESD protection devices. The ESD protection circuit with reduced parasitic capacitance can be easily combined or co-designed with RF circuits [6]–[8]. In this paper, the RF ESD protection designs with low parasitic capacitance in CMOS processes are reviewed.
II. DESIGNCONSIDERATION FORESD PROTECTION To achieve effective ESD protection, the voltage across the ESD protection device during ESD stresses should be carefully designed [9]–[12]. Fig. 2 shows the ESD design window of an IC, which is defined by the power supply voltage (VDD) of
the IC, the failure level of ESD protection device, and the gate-oxide breakdown voltage (VBD) of MOSFET. First, the trigger
voltage (Vt1) and holding voltage (Vh) of ESD protection
device must be lower than the gate-oxide breakdown voltage of MOSFET to prevent the internal circuits from damage before the ESD protection device is turned on during ESD 1530-4388/$26.00 © 2011 IEEE
Fig. 2. ESD design window defined by the power supply voltage (VDD) of
the IC, the failure level of ESD protection device, and the gate-oxide breakdown voltage (VBD) of the MOSFET.
stresses. Second, the trigger voltage and holding voltage of the ESD protection device must be higher than the power supply voltage of the IC to prevent the ESD protection devices from being mistriggered under normal circuit operating conditions. Moreover, the turn-on resistance (Ron) of ESD protection
device should be minimized to reduce the joule heat generated in the ESD protection device and the clamping voltage of the ESD protection device during ESD stresses. As CMOS technology is continuously scaled down, the power supply voltage is decreased and the gate oxide becomes thinner, which leads to reduced gate-oxide breakdown voltage of MOSFET. Typically, the gate-oxide breakdown voltage is decreased to only∼5 V in a 65-nm CMOS process with gate-oxide thickness of∼20 Å [13]. As a result, the ESD design window becomes much narrower in nanoscale CMOS technologies. Furthermore, ESD protection circuits need to be quickly turned on during ESD stresses in order to provide efficient discharging paths in time.
III. SOLUTIONS TORF ESD PROTECTIONDESIGNS
A. Conventional ESD Protection Circuit
The conventional on-chip ESD protection scheme is shown in Fig. 3, where two ESD protection devices at I/O pad are assisted with the power-rail ESD clamp circuit to prevent internal circuits from ESD damage [7], [14], [15]. In Fig. 3, the ESD protection devices at I/O pad can be realized with STI diodes [14], poly diodes [15], silicon-controlled rectifier (SCR) devices [7], or other low-capacitance ESD protection de-vices. Fig. 4 shows the simulated insertion loss (S21-parameter)
of the conventional ESD protection scheme with 500-fF capacitance.
However, this scheme is only suitable for small ESD pro-tection devices because the parasitic capacitance of the ESD protection device is directly contributed at the I/O pad. The device dimensions of ESD protection devices should be de-creased to reduce the parasitic capacitance at I/O pad, which in turn reduces RF performance degradation caused by the
Fig. 3. Conventional ESD protection scheme.
Fig. 4. Simulated S21-parameters of conventional ESD protection scheme
with 500-fF ESD devices, and ESD protection scheme with stacked 500-fF ESD devices (equivalent to 250 fF).
parasitic capacitances of the ESD protection devices. However, ESD robustness needs to be maintained, so the minimum de-vice dimensions of ESD protection dede-vices cannot be shrunk unlimitedly.
B. Stacked ESD Protection Devices
In order to reduce the parasitic capacitance from ESD pro-tection devices without sacrificing ESD robustness, the ESD protection devices in stacked configuration had been presented, as shown in Fig. 5 [16], [17]. With two stacked ESD pro-tection devices, the overall equivalent parasitic capacitance theoretically becomes CESD/2, where CESD is the parasitic
capacitance of each ESD protection device. The simulated S21
-parameters of the stacked ESD protection devices are also shown in Fig. 4. More stacked ESD devices lead to more signifi-cant parasitic capacitance reduction. Besides reducing parasitic capacitance, using stacked configuration can also reduce the leakage current of ESD protection devices under normal circuit operating conditions. Although stacked ESD protection devices can reduce the parasitic capacitance and leakage current, this technique is adverse to ESD protection because the overall turn-on resistance and the clamping voltage of the stacked ESD protection devices during ESD stresses are increased as well.
Fig. 5. Stacked ESD protection devices to reduce the parasitic capacitance.
Fig. 6. Ideal parallel LC resonator and the simulated S21-parameters under
different frequencies.
C. Parallel LC Resonator
The technique of using parallel LC resonator to reduce equivalent parasitic capacitance is also called the impedance cancellation. In such a resonator, the resonant frequency (ωo) is ωo= 1 √ LCESD (1) where L and CESD denote the added parallel inductance and
parasitic capacitance of ESD protection device, respectively. An ideal parallel LC resonator and the simulated S21-parameters
under different frequencies are shown in Fig. 6. The signal loss at the resonant frequency is ideally zero, which means that the equivalent capacitance at the resonant frequency is zero. With the parallel LC network resonating at the operating frequency, the shunt impedance of the resonator becomes very large, which can effectively suppress signal loss. Therefore, the ESD protection design using parallel LC resonator can mitigate the impacts on RF performances for circuits operating in a narrow frequency band. Based on this concept, the on-chip spiral inductor had been designed to resonate with the parasitic capacitance of ESD protection devices [18], [19]. Furthermore,
Fig. 7. ESD protection design with the parallel LC resonator, where the inductor LESDprovides ESD current path between VDDand the I/O pad.
Fig. 8. ESD protection design with LC tanks.
the inductor cannot only resonate with the parasitic capacitance of the ESD protection device but also serve as an ESD pro-tection device by itself. In this configuration, the parallel LC resonator can be realized as shown in Fig. 7. The inductor (LESD) serves as an ESD protection device between I/O pad
and VDD, while the capacitive ESD protection device provides
ESD current path between I/O pad and VSS. The inductor
and the parasitic capacitance of the ESD protection device are designed to resonate at the operating frequency of the RF front-end circuit to minimize performance degradation caused by the ESD protection device. With an inductor directly connected between the I/O pad and VDD, the ESD protection device is
reverse-biased with the largest possible dc voltage under normal circuit operating conditions, which leads to the minimum the parasitic p-n junction capacitance in the ESD protection device. The placement of the inductor and the ESD protection device can be interchanged to provide the same function. Since the inductor is dc short, a dc blocking capacitor (Cblock) is required
to provide a separated dc bias for the internal circuits.
D. LC Tank
LC tank has been reported for low-capacitance ESD pro-tection design, which consists of an inductor, a capacitor, and an ESD diode [20]–[22]. As shown in Fig. 8, a pair of the LC tanks is placed at the I/O pad. One LC tank consists of
Fig. 9. Simulated S21-parameters of ESD protection scheme with LC tanks.
Fig. 10. Ideal series LC resonator and the simulated S21-parameters under
different frequencies.
the inductor LP and the capacitor CP is placed between the
I/O pad and ESD diode DP. Another LC tank consists of the
inductor LN and the capacitor CN is placed between the I/O
pad and ESD diode DN. The ESD diodes DP and DN are
used to block the steady leakage current path from VDDto VSS
under normal circuit operating conditions. Furthermore, the capacitors CP and CN can also be realized by ESD protection
devices. The simulated S21-parameters of the LC tanks are
shown in Fig. 9. At the resonant frequency of the LC tank, there is ideally infinite impedance from the signal path to the ESD diode. Consequently, the parasitic capacitances of the ESD protection devices are isolated, which can mitigate the parasitic effects from the ESD protection devices. To further reduce the parasitic capacitance from the ESD protection devices, two or more LC tanks can be stacked to provide better impedance isolation at resonant frequency, and the impacts of the ESD protection devices can be significantly reduced.
E. Series LC Resonator
For the wideband RF front-end circuits, the series LC resonator can be used for ESD protection. The simulated S21
-parameter of an ideal series LC resonator under different fre-quencies is shown in Fig. 10. With series inductance (LESD)
and capacitance (CESD), the resonant frequency (ωo) is
iden-tical to that shown in (1). There is a notch at the resonant frequency where the signal loss is very large, and the signal
Fig. 11. ESD protection design with the series LC resonator.
Fig. 12. ESD protection design with modified series LC resonator, where only one inductor is connected in series with two ESD protection devices. is totally lost. However, at frequencies above the resonant frequency, the inductor dominates the magnitude of impedance. Therefore, the magnitude of impedance increases to reduce the signal loss significantly. Thus, wideband ESD protection can be achieved by designing the application band of the series LC resonator to cover the frequency band of the RF signal. During ESD stresses, the ESD current can be discharged through the inductor and the ESD protection device. ESD protection design utilizing the series LC resonator is shown in Fig. 11, where a pair of the series LC resonators is placed at the I/O pad [23]. ESD current paths from the I/O pad to both VDD and VSS
are provided by the inductors and the series ESD protection devices.
To reduce the inductors used in the series LC resonators, a modified design using only one inductor is shown in Fig. 12 [18]. One inductor is connected in series with two ESD protec-tion devices connected to VDDand VSS, respectively. Because
the capacitance in the series LC resonator is the sum of the parasitic capacitances of these two ESD protection devices, the inductance used in Fig. 12 is smaller than that used in Fig. 11 under the same resonant frequency. Consequently, total cost can be reduced in this modified design.
Fig. 13. ESD protection design with impedance matching by using shunt and series components.
Fig. 14. Example of ESD protection design with impedance matching.
F. Impedance Matching
To achieve satisfactory ESD robustness, the size of ESD protection devices must be large enough. However, parasitic effects increase with the dimensions of ESD protection de-vices. To solve this dilemma, ESD protection devices can be treated as a part of the impedance matching network at the I/O pad. By co-designing the ESD protection circuit and the impedance matching network, large ESD protection devices can be used to achieve high ESD robustness without sacrificing RF performance [24]. The impedance matching technique of ESD protection device had been proposed. Fig. 13 illustrates the idea of matching the parasitic effects of ESD protection devices [25]. In this configuration, ESD current can be discharged from the I/O pad through the ESD protection devices to VDD and VSS.
The combined impedance of the shunt and series impedance is designed to provide impedance matching at the I/O pad with ESD protection. The shunt and series impedance can be realized by various components.
One example of ESD protection design with impedance matching technique is shown in Fig. 14 [26], which uses in-ductance to match the parasitic capacitances of ESD protection devices. The ESD protection devices are placed next to the I/O pad, and provide ESD protection for the internal circuits. The inductive component L, which can be an inductor or a transmission line, is connected in series with the signal line, and matches the parasitic capacitances of the ESD protection devices. The design goal is to neutralize the capacitance of
Fig. 15. Simulation results of ESD protection design with impedance matching.
Fig. 16. Inductive ESD protection design.
ESD protection devices at the operating frequency by using the inductance of L. The simulated S21-parameters of the
ESD protection design with impedance matching are shown in Fig. 15.
G. Inductive ESD Protection
ESD protection design for RF circuits by using inductor as the ESD protection device had been reported. In Fig. 16, the ESD protection inductor (LESD) is placed between the
input pad and VSS [27]–[30]. The simulated S21-parameters
of the inductive ESD protection under different frequencies are shown in Fig. 17. Inductors exhibits higher impedance at higher frequencies. Since the frequency component of ESD is much lower than that of the RF signal, the inductor can pass the ESD current while block the RF signal. To efficiently sink the ESD current, the metal width of the ESD protection inductor should be wide enough to enhance the current handling capability and to reduce the parasitic series resistance. However, inductors realized very wide metal traces occupy large chip area. This is the main design concern in the inductor-based ESD protection. Besides, a dc blocking capacitor (Cblock) is needed in this
design to provide a separated dc bias for the internal circuits. Another inductor-based ESD protection design is shown in Fig. 18 [31]. The ESD protection inductor can be merged with the gate inductor to save the chip area since the typical low-noise amplifier (LNA) needs a gate inductor connected between the input pad and the gate terminal of the input MOS transistor.
Fig. 17. Simulation results of inductive ESD protection and T-coil-based ESD protection.
Fig. 18. Inductive ESD protection design with transformer.
The ESD protection inductor is placed under the gate inductor to form a transformer. Consequently, the transformer-based ESD protection design provides not only the gate inductor in the impedance matching network but also the ESD protection for the input pad.
H. T-Coil
The ESD protection design with T-coil for wideband appli-cations had been reported. As shown in Fig. 19, with proper impedance matching design, this circuit can provide a purely resistive input impedance of RT [32]. Once the following
expressions hold, the input impedance Zinremains resistive at
all frequencies LESD= L2= CESDRT2 4 1 + 1 4ζ2 (2) CB= CESD 16ζ2 (3) k =4ζ 2− 1 4ζ2+ 1 (4)
where ζ is the damping factor of the network transfer function VX/Iin. With proper design, large ESD protection devices can
be used without degrading RF performance. The NMOS and PMOS transistors with gate-coupled technique are used in the first ESD protection design with T-coil [32]. The SCR has also been used as the ESD protection device in the T-coil-based ESD
Fig. 19. ESD protection design with T-coil.
Fig. 20. ESD protection with T-diode.
protection design for a high-speed transmitter [33]. The return loss of the transmitter was improved with the T-coil which compensated the parasitic effects of the SCR.
The simulated S21-parameters of the T-coil-based ESD
pro-tection under different frequencies are also shown in Fig. 17. Since the T-coil-based ESD protection design can overcome the band-limiting problems in the narrowband ESD protection circuits, they are suitable for wideband RF front-end circuits. However, the design concern for the T-coil-based ESD protec-tion is the inductor LESDwhich must be realized by wide metal
trace and in turn occupies large chip area.
Another wideband LNA with the transformer plus diode (T-diode) had been reported, as shown in Fig. 20 [34]. This is another T-coil-based ESD protection design. In this design, the capacitor CB in the T-diode can be realized with the parasitic
capacitance between the inductors LESDand L2.
I. Distributed ESD Protection
The π-model ESD protection scheme had been presented to achieve wideband impedance matching with ESD protection devices. The ESD protection devices are divided into two sections and are impedance matched by the transmission line or inductor, as shown in Fig. 21 [35], [36].
Another distributed ESD protection scheme had been pre-sented, as shown in Fig. 22 [37]. With the ESD protection devices divided into small sections and matched by the trans-mission lines, such a distributed ESD protection scheme can
Fig. 21. π-model ESD protection scheme.
Fig. 22. Distributed ESD protection scheme with equal-size ESD diodes.
Fig. 23. Distributed ESD protection scheme with decreasing-size ESD diodes. achieve wideband impedance matching. The number of ESD protection devices can be varied to optimize the performance. In Fig. 22, the ESD protection diodes are equally divided into three sections. However, most of ESD current is expected to flow through the first section which is closest to the I/O pad. To improve ESD robustness of distributed ESD protection scheme, the modified design of the decreasing-size distributed ESD protection scheme had been reported. The decreasing-size distributed ESD protection scheme is shown in Fig. 23, which allocates the ESD protection devices with decreasing sizes from the I/O pad to the internal circuit [38]. With larger ESD protection devices close to the I/O pad, ESD robustness is improved. It had also been verified that good wideband impedance matching is still maintained in this ESD protection scheme. The simulated S21-parameters of the π-model ESD
protection scheme and distributed ESD protection scheme with equal-size ESD diodes are compared in Fig. 24.
Recently, the distributed ESD protection scheme has been reported to protect 60-GHz broadband RF circuits [39]. Fig. 25 shows the measurement results on the S11- and S21-parameters
of this distributed ESD protection circuit. This ESD protection
Fig. 24. Simulation results of π-model ESD protection scheme and distrib-uted ESD protection scheme with equal-size ESD diodes.
Fig. 25. Measurement results of distributed ESD protection scheme with decreasing-size ESD diodes on S11- and S21-parameters.
circuit passes 2-kV human body model (HBM) ESD test with only 2-dB insertion loss in 60-GHz band.
IV. DISCUSSION ANDCOMPARISON
The reported ESD protection designs for RF circuits have been reviewed in previous section. The comparison among various ESD protection designs for RF front-end circuits is summarized in Table I. The evaluated parameters are explained as following.
• Suggested Operating Frequencies:
Each ESD protection circuit is suggested to be used in different frequencies, such as < 5 GHz, < 10 GHz, or > 5 GHz. Some of the ESD protection circuits can only be used in a specific narrow band.
• Design Complexity:
– “Low”: The stand-alone ESD protection device is the ESD protection circuit without extra inductive component.
– “Moderate”: The stand-alone ESD protection de-vice is the ESD protection circuit without extra inductive component, but the layout of the ESD protection device needs careful consideration. – “High”: Besides the ESD protection device, extra
inductive components are needed, and the auxiliary components should be carefully designed.
TABLE I
COMPARISONAMONGESD PROTECTIONDESIGNS FORRF CIRCUITS
• Equivalent Parasitic Capacitance:
– “∼0 at Designed Frequency”: The equivalent par-asitic capacitance of the ESD protection circuit at the I/O pad can be very small with proper design.
– “Dozens ∼ Hundreds of fF”: The equivalent par-asitic capacitance of the ESD protection circuit at the I/O pad is about dozens of fF or hundreds of fF, according to the used ESD protection devices and fabrication processes.
• Signal Loss:
– “∼0 at Designed Frequency”: The simulated S21
-parameters of the ESD protection circuit closed to 0 dB at its operating frequencies.
– “Worse at High Frequency”: The simulated S21
-parameters of the ESD protection circuit are worse at high frequency.
– “Worst at High Frequency”: The simulated S21
-parameters of the ESD protection circuit are distant from 0 dB at high frequency.
• Clamping Voltage at Internal Circuits:
– “RESD”: The clamping voltage seen at the internal
circuits under ESD stress consists of the clamping voltage of one resistive/capacitive ESD protection device.
– “LESD”: The clamping voltage seen at the internal
circuits under ESD stress consists of the clamping voltage of one inductive ESD protection device.
• HBM / CDM Robustness:
– “Poor”: The HBM or charged device model (CDM) ESD robustness is poor due to the higher clamping voltage at internal circuits.
– “Good”: The HBM or CDM ESD robustness is good due to the moderate clamping voltage at in-ternal circuits.
– “Better”: The HBM or CDM ESD robustness is better due to the lower clamping voltage at internal circuits.
• Area Efficiency:
– “Poor”: The area efficiency of the ESD protection design is poor.
– “Good”: The area efficiency of the ESD protection design is good.
The different RF front-end circuits have different require-ments on operating frequency, matching, noise, and other specifications for the designs. The comparison of suggested operating frequencies, design complexity, equivalent parasitic capacitance, signal loss, clamping voltage at internal circuits, HBM/CDM robustness, and area efficiency among various ESD protection designs in Table I can provide the useful information for RF circuit designers to apply ESD protection solution to their RF circuits.
The figure of merit used to compare the RF performance and ESD robustness is (signal loss)× (clamping voltage at internal circuits). With the lower signal loss and clamping voltage at internal circuits, the ESD protection design will be more suit-able for RF circuits. The conventional ESD protection circuit
Fig. 26. Sample layout of (a) conventional ESD protection circuit (Fig. 3), (b) stacked ESD protection devices (Fig. 5), (c) parallel LC resonator (Fig. 7), (d) LC tank (Fig. 8), (e) series LC resonator (Fig. 12), (f) impedance matching (Fig. 14), (g) inductive ESD protection (Fig. 16), (h) T-coil (Fig. 20), and (i) distributed ESD protection (Fig. 21).
or stacked ESD protection devices may be suitable for some RF circuits operated with lower frequencies. As the operating frequencies of RF front-end circuits increase, on-chip ESD protection designs with extra inductive components are needed. According to Table I, the reported ESD protection designs with additional components can lower the equivalent parasitic capac-itance and signal loss at the I/O pad and mitigate the impacts caused by the ESD protection circuit. By utilizing the proper design, the ESD protection device can be realized with large device dimensions to achieve good ESD robustness because the parasitic capacitance from the ESD protection device can be compensated or cancelled. By using the scheme of parallel LC resonator, impedance matching, T-coil, or distributed ESD
protection, the internal circuits can be clamped to the clamping voltage of one resistive/capacitive ESD protection device. The inductive ESD protection will clamp the internal circuits to the clamping voltage of one inductor. The LC tank and series LC resonator exist higher clamping voltage, since the ESD cur-rent paths consist of one inductor and one resistive/capacitive ESD protection device. With the lower clamping voltage at internal circuits, the ESD protection design performed better ESD robustness, particularly in nanoscale CMOS processes with thinner gate oxide. It should be noted that the inductor has large voltage overshoots during the CDM ESD stress, which typically has a fast rise time of < 1 ns [40]. Therefore, the LC tank, series LC resonator, and inductive ESD protection must be
carefully selected to prevent from the large voltage overshoots during CDM ESD stress. Besides, ESD protection designs with extra inductive components substantially increase the chip area, so the area efficiency of the schemes C∼ I in Table I are all poor. The fabrication costs also raise as the chip area increase.
In nanoscale CMOS technology, the thinner gate oxide and the silicided drain/source terminal seriously degrade the ESD robustness of RF circuits. The clamping voltage across the RF circuits under ESD stress must be reduced to improve ESD robustness of the RF circuits. Therefore, the ESD current path of ESD protection circuit must be shortened. Among the ESD protection schemes in the literature, the conventional ESD pro-tection circuit [14], impedance matching [24], inductive ESD protection [27], [29], [31], T-Coil [33], [34], and distributed ESD protection [39] with lower clamping voltage have been verified in sub-100 nm CMOS processes with oxide thickness of < 20 Å. Besides, the series LC resonator [23], inductive ESD protection [27], and distributed ESD protection [39] have been designed to operate with frequencies > 20 GHz. Therefore, some ESD protection designs, such as inductive ESD protec-tion and distributed ESD protecprotec-tion, are still useful for RF circuits fabricated in advanced CMOS processes and operating at higher frequencies in the future.
V. LAYOUTEXAMPLES OFRF ESD PROTECTIONDEVICES
With various conditions, such as different ESD protection de-vices, inductors, capacitors, pad styles, operating frequencies, and fabrication processes, the layout style of every RF ESD pro-tection scheme should be different. In this section, the sample layout of every RF ESD protection circuit operating at 5 GHz is provided in Fig. 26(a)–(i). The used resistive/capacitive ESD protection devices are STI diodes, and the other used devices include spiral inductors and metal-insulator-metal capacitors. The circuits are arranged with the pad style of ground-signal-ground and power-ground-signal-ground-power.
Fig. 26(a)–(i) show the sample layout of the conventional ESD protection circuit (Fig. 3), stacked ESD protection devices (Fig. 5), parallel LC resonator (Fig. 7), LC tank (Fig. 8), modified series LC resonator (Fig. 12), impedance match-ing (Fig. 14), inductive ESD protection (Fig. 16), T-diode (Fig. 20), and π-model ESD protection (Fig. 21), respectively. In Fig. 26(c), the LESDand CESDused in parallel LC resonator
are 1 nH and 1 pF, respectively; therefore, the resonant fre-quency is ∼5 GHz. In Fig. 26(d), the LP and CP (LN and
CN) used in LC tank are also 1 nH and 1 pF, respectively, to
resonate at∼5 GHz, so the parasitic effects of diodes (DP and
DN) are isolated at ∼5 GHz. In Fig. 26(e), the larger LESD
(6 nH) and CESD (1.5 pF) are used in modified series LC
resonator to resonate at < 2 GHz, and the application band covers 5 GHz. In Fig. 26(g), the large LESD (5 nH) is also
needed in inductive ESD protection to behave high impedance at 5 GHz. In Fig. 26(h), the LESD (0.42 nH), L2 (0.42 nH),
CB (42 fF), and DP and DN (500 fF) are used to realize ESD
protection with T-diode. In Fig. 26(i) of π-model ESD
protec-Fig. 27. (a) Layout top view and (b) device cross-sectional view, of p+n-well diode in waffle layout structure.
tion, the used LESDis 1.1 nH, and each ESD diode is 100 fF.
It should be note that the ESD inductors must be realized with wide metal traces and occupy large chip area, so the inductors usually dominate the layout area of ESD protection circuits.
Besides, the resistive/capacitive ESD protection devices used in every circuit can be carefully drawn to reduce their parasitic capacitance in layout. The waffle layout structures for diodes and SCR devices have been presented [41]–[43]. The ESD protection device with the maximum ratio of perimeter to area is preferred because it has the maximum ratio of ESD robustness to parasitic capacitance. Fig. 27 shows the layout top view and cross-sectional view of two waffle p+n–well diodes connected in parallel. The p+ diffusions are implemented in the n-well region and surrounded by the n+ diffusions. The arrows in Fig. 27 show the ESD current paths. The ESD currents can be discharged through four directions from each p+ diffusion. Under the same parasitic capacitance, the waffle diodes have the better ESD robustness than the traditional ESD diodes. In other words, the parasitic capacitance of ESD protection devices in waffle layout can be reduced under the same ESD robustness.
Although the sample layout of RF ESD protection designs are provided in this section, the actual layout in real case must be carefully considered to optimize both RF performance and ESD robustness simultaneously.
VI. CONCLUSION
A comprehensive overview in the field of ESD protection de-sign for RF front-end circuits has been presented. To optimize both RF performance and ESD robustness simultaneously, the undesired parasitic effects from ESD protection devices must be minimized or cancelled. Furthermore, the ESD protection circuits and RF front-end circuits can be co-designed to achieve
[3] M.-D. Ker and C.-M. Lee, “Interference of ESD protection diodes on RF performance in giga-Hz RF circuits,” in Proc. IEEE Int. Symp. Circuits
Syst., 2003, pp. 297–300.
[4] K. Gong, H. Feng, R. Zhan, and A. Wang, “A study of parasitic effects of ESD protection on RF ICs,” IEEE Trans. Microw. Theory Tech., vol. 50, no. 1, pp. 393–402, Jan. 2002.
[5] C. Richier, P. Salome, G. Mabboux, I. Zaza, A. Juge, and P. Mortini, “Investigation on different ESD protection strategies devoted to 3.3 V RF applications (2 GHz) in a 0.18 μm CMOS process,” J. Electrostat., vol. 54, no. 1, pp. 55–71, Jan. 2002.
[6] X. Guan, X. Wang, L. Lin, G. Chen, A. Wang, H. Liu, Y. Zhou, H. Chen, L. Yang, and B. Zhao, “ESD-RFIC co-design methodology,” in Proc.
IEEE Radio Freq. Integr. Circuits Symp., 2008, pp. 467–470.
[7] W. Soldner, M. Streibl, U. Hodel, M. Tiebout, H. Gossner, D. Schmitt-Landsiedel, J. Chun, C. Ito, and R. Dutton, “RF ESD protection strategies—Codesign vs. low-C protection,” Microelectron. Reliab., vol. 47, no. 7, pp. 1008–1015, Jul. 2007.
[8] V. Vassilev, S. Thijs, P. Segura, P. Leroux, P. Wambacq, G. Groeseneken, M. Natarajan, M. Steyaert, and H. Maes, “Co-design methodology to provide high ESD protection levels in the advanced RF circuits,” in Proc.
EOS/ESD Symp., 2003, pp. 195–203.
[9] S. Voldman, ESD: Circuits and Devices. Hoboken, NJ: Wiley, 2006. [10] A. Amerasekera and C. Duvvury, ESD in Silicon Integrated Circuits,
2nd ed. Hoboken, NJ: Wiley, 2002.
[11] A. Wang, On-Chip ESD Protection for Integrated Circuits. Norwell, MA: Kluwer, 2002.
[12] S. Dabral and T. Maloney, Basic ESD and I/O Design. Hoboken, NJ: Wiley, 1988.
[13] G. Boselli, J. Rodriguez, C. Duvvury, and J. Smith, “Analysis of ESD protection components in 65-nm CMOS technology: Scaling perspective and impact on ESD design windows,” in Proc. EOS/ESD Symp., 2005, pp. 43–52.
[14] M. Tsai, S. Hsu, F. Hsueh, C. Jou, S. Chen, and M. Song, “A wideband low noise amplifier with 4 kV HBM ESD protection in 65 nm RF CMOS,”
IEEE Microw. Wireless Compon. Lett., vol. 19, no. 11, pp. 734–736,
Nov. 2009.
[15] D. Linten, S. Thijs, W. Jeamsaksiri, M. Natarajan, V. Heyn, V. Vassilev, G. Groeseneken, A. Scholten, G. Badenes, M. Jurczak, S. Decoutere, S. Donnay, and P. Wambacq, “Design-driven optimisation of a 90 nm RF CMOS process by use of elevated source/drain,” in Proc. Eur. Solid-State
Device Res. Conf., 2003, pp. 43–46.
[16] M.-D. Ker and C.-Y. Chang, “ESD protection design for CMOS RF inte-grated circuits using polysilicon diodes,” Microelectron. Reliab., vol. 42, no. 6, pp. 863–872, Jun. 2002.
[17] M.-D. Ker, T.-Y. Chen, and C.-Y. Chang, “ESD protection design for CMOS RF integrated circuits,” in Proc. EOS/ESD Symp., 2001, pp. 346–354.
[18] S. Hyvonen, S. Joshi, and E. Rosenbaum, “Comprehensive ESD protec-tion for RF inputs,” Microelectron. Reliab., vol. 45, no. 2, pp. 245–254, Feb. 2005.
[19] S. Hyvonen, S. Joshi, and E. Rosenbaum, “Cancellation technique to provide ESD protection for multi-GHz RF inputs,” Electron. Lett., vol. 39, no. 3, pp. 284–286, Feb. 2003.
[20] M.-D. Ker and Y.-W. Hsiao, “Impedance-isolation technique for ESD pro-tection design in RF integrated circuits,” IEICE Trans. Electron., vol. E92-C, no. 3, pp. 341–351, Mar. 2009.
[21] M.-D. Ker, C.-I. Chou, and C.-M. Lee, “A novel LC-tank ESD protection design for giga-Hz RF circuits,” in Proc. IEEE Radio Freq. Integr. Circuits
Symp., 2003, pp. 115–118.
[22] M.-D. Ker and C.-M. Lee, “ESD protection design for giga-Hz RF CMOS LNA with novel impedance-isolation technique,” in Proc. EOS/ESD
Symp., 2003, pp. 204–213.
[27] K. Raczkowski, S. Thijs, W. Raedt, B. Nauwelaers, and P. Wambacq, “50-to-67 GHz ESD-protected power amplifiers in digital 45 nm LP CMOS,” in Proc. IEEE Int. Solid-State Circuits Conf. Dig. Tech. Papers, 2009, pp. 382–383.
[28] Y.-D. Shiu, B.-S. Huang, and M.-D. Ker, “CMOS power amplifier with ESD protection design merged in matching network,” in Proc. IEEE Int.
Electron., Circuits Syst. Conf., 2007, pp. 825–828.
[29] D. Linten, S. Thijs, M. Natarajan, P. Wambacq, W. Jeamsaksiri, J. Ramos, A. Mercha, S. Jenei, S. Donnay, and S. Decoutere, “A 5-GHz fully inte-grated ESD-protected low-noise amplifier in 90-nm RF CMOS,” IEEE J.
Solid-State Circuits, vol. 40, no. 7, pp. 1434–1442, Jul. 2005.
[30] P. Leroux and M. Steyaert, “A 5 GHz CMOS low-noise amplifier with inductive ESD protection exceeding 3 kV HBM,” in Proc. Eur. Solid-State
Circuits Conf., 2004, pp. 295–298.
[31] J. Borremans, S. Thijs, P. Wambacq, Y. Rolain, D. Linten, and M. Kuijk, “A fully integrated 7.3 kV HBM ESD-protected transformer-based 4.5– 6 GHz CMOS LNA,” IEEE J. Solid-State Circuits, vol. 44, no. 2, pp. 344– 353, Feb. 2009.
[32] S. Galal and B. Razavi, “Broadband ESD protection circuits in CMOS technology,” IEEE J. Solid-State Circuits, vol. 38, no. 12, pp. 2334–2340, Dec. 2003.
[33] M. Kossel, C. Menolfi, J. Weiss, P. Buchmann, G. Bueren, L. Rodoni, T. Morf, T. Toifl, and M. Schmatz, “A T-coil-enhanced 8.5 Gb/s high-swing SST transmitter in 65 nm bulk CMOS with−16 dB return loss over 10 GHz bandwidth,” IEEE J. Solid-State Circuits, vol. 43, no. 12, pp. 2905–2920, Dec. 2008.
[34] D. Linten, S. Thijs, M. Okushima, M. Scholz, J. Borremans, M. Dehan, and G. Groeseneken, “A 4.5 kV HBM, 300 V CDM, 1.2 kV HMM ESD protected DC-to-16.1 GHz wideband LNA in 90 nm CMOS,” in Proc.
EOS/ESD Symp., 2009, pp. 352–357.
[35] L. Moreno, D. Gomez, J. Gonzalez, D. Mateo, X. Aragones, R. Berenguer, and H. Solar, “A low-power RF front-end for 2.5 GHz receivers,” in Proc.
IEEE Int. Symp. Circuits Syst., 2008, pp. 976–979.
[36] M.-D. Ker, B.-J. Kuo, and Y.-W. Hsiao, “Optimization of broad-band RF performance and ESD robustness by π-model distributed ESD protection scheme,” J. Electrostat., vol. 64, no. 2, pp. 80–87, Feb. 2006.
[37] C. Ito, K. Banerjee, and R. Dutton, “Analysis and design of dis-tributed ESD protection circuits for high-speed mixed-signal and RF ICs,” IEEE Trans. Electron Devices, vol. 49, no. 8, pp. 1444–1454, Aug. 2002.
[38] M.-D. Ker and B.-J. Kuo, “Decreasing-size distributed ESD protection scheme for broadband RF circuits,” IEEE Trans. Microw. Theory Tech., vol. 53, no. 2, pp. 582–589, Feb. 2005.
[39] C.-Y. Lin, L.-W. Chu, M.-D. Ker, T.-H. Lu, P.-F. Hung, and H.-C. Li, “Self-matched ESD cell in CMOS technology for 60-GHz broadband RF applications,” in Proc. IEEE Radio Freq. Integr. Circuits Symp., 2010, pp. 573–576.
[40] J. Manouvrier, P. Fonteneau, C. Legrand, P. Nouet, and F. Azais, “Char-acterization of the transient behavior of gated/STI diodes and their asso-ciated BJT in the CDM time domain,” in Proc. EOS/ESD Symp., 2007, pp. 165–174.
[41] C.-T. Yeh, M.-D. Ker, and Y.-C. Liang, “Optimization on layout style of ESD protection diode for radio-frequency front-end and high-speed I/O interface circuits,” IEEE Trans. Device Mater. Rel., vol. 10, no. 2, pp. 238– 246, Jun. 2010.
[42] K. Bhatia, N. Jack, and E. Rosenbaum, “Layout optimization of ESD protection diodes for high-frequency I/Os,” IEEE Trans. Device Mater.
Rel., vol. 9, no. 3, pp. 465–475, Sep. 2009.
[43] M.-D. Ker and C.-Y. Lin, “Low-capacitance SCR with waffle layout struc-ture for on-chip ESD protection in RF ICs,” IEEE Trans. Microw. Theory
Ming-Dou Ker (S’92–M’94–SM’97–F’08) received
the Ph.D. degree from the Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan, in 1993.
He worked as the Department Manager with the VLSI Design Division, Computer and Communica-tion Research Laboratories, Industrial Technology Research Institute (ITRI), Hsinchu. Since 2004, he has been a Full Professor with the Department of Electronics Engineering, National Chiao-Tung Uni-versity. From 2008, he was rotated to be Chair Pro-fessor and Vice President of I-Shou University, Kaohsiung, Taiwan. Now, he has been the Distinguished Professor in the Department of Electronics Engi-neering, National Chiao-Tung University. During 2010–2011, he served as the Executive Director of National Science and Technology Program on System-on-Chip in Taiwan. Starting from 2011, he also served as the Executive Director of National Science and Technology Program on Nano Technology in Taiwan. In the technical field of reliability and quality design for microelectronic circuits and systems, he has published over 400 technical papers in international jour-nals and conferences. He has proposed many solutions to improve the reliability and quality of integrated circuits, which have been granted with 177 U.S. patents and 153 Taiwan patents. He had been invited to teach and/or to consult the reliability and quality design for integrated circuits by hundreds of design houses and semiconductor companies in the worldwide IC industry. His current research interests include reliability and quality design for nanoelectronics and gigascale systems, high-speed and mixed-voltage I/O interface circuits, on-glass circuits for system-on-panel applications, and biomimetic circuits and systems for intelligent prosthesis.
Prof. Ker has served as a member of the Technical Program Committee and the Session Chair of numerous international conferences for many years. He ever served as the Associate Editor for the IEEE Transactions on VLSI
Systems, 2006–2007. He was selected as the Distinguished Lecturer in the IEEE
Circuits and Systems Society (2006–2007) and in the IEEE Electron Devices Society (2008–present). He was the President of Foundation in Taiwan ESD Association. In 2009, he was awarded as one of the top ten Distinguished Inventors in Taiwan.
Chun-Yu Lin (S’06–M’09) was born in Taiwan, in
1984. He received the B.S. degree from the De-partment of Electronics Engineering, and the Ph.D. degree from the Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan, in 2006 and 2009, respectively.
Since 2009, he has been a Postdoctoral Researcher of National Chiao-Tung University. His current re-search interests include ESD protection designs and biomimetic circuit designs. From 2010, he has also served as the Secretary-General of Taiwan ESD Association.
Yuan-Wen Hsiao (S’03–M’08) was born in Taiwan,
in 1982. He received the B.S. degree from the De-partment of Electronics Engineering, and the Ph.D. degree from the Institute of Electronics, National Chiao-Tung University, Hsinchu, Taiwan, in 2004 and 2008, respectively.
In 2009, he was with Richtek Technology Corporation, Hsinchu, Taiwan, as a Senior Engineer. His current research interests include analog circuit design, ESD protection design for RF ICs and high-speed I/O interface circuits, and ESD issues in IC products.
