神經鞘氨醇 1-磷酸鹽導致人類前列腺癌PC-3細胞株產生細胞自噬現象之研究

(1)

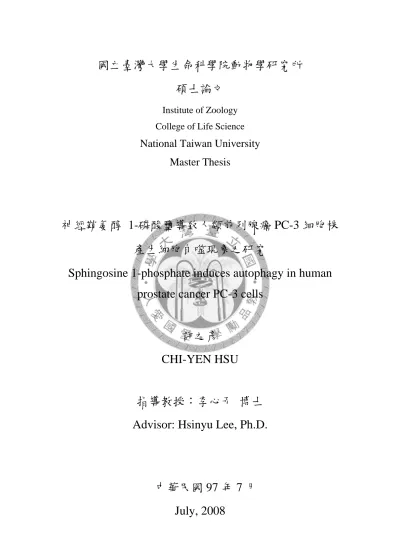

國立臺灣大學生命科學院動物學研究所碩士論文

Institute of Zoology College of Life Science

National Taiwan University Master Thesis

神經鞘氨醇 1-磷酸鹽導致人類前列腺癌 PC-3 細胞株產生細胞自噬現象之研究

Sphingosine 1-phosphate induces autophagy in human prostate cancer PC-3 cells

許之彥 CHI-YEN HSU

指導教授：李心予博士 Advisor: Hsinyu Lee, Ph.D.

中華民國 97 年 7 月

(2)

在不同細胞中引發各種不同的反應，包括細胞增生、發炎反應、細胞移行、血管新生以及細胞存活等細胞反應。另外，細胞自噬作用(autophagy)亦是一種常見的細胞反應，可使細胞在處於飢餓或是外在環境壓力下，行使降解反應將一些多餘的或是可以暫時回收利用的蛋白質、胞器以及細胞質消化掉。其消化的方式，是藉由細胞內因應刺激而產生的游離細胞膜將目標物包覆，而後和溶體結合進而達成目標分子消化、回收、再利用的目的，是一種維持細胞內平衡狀態的重要機制。

近年來愈來愈多研究指出，細胞自噬作用可能扮演一個能夠壓抑癌症細胞生長的

角色，而關於兩者之間的關係至今尚未完全明瞭。本實驗的重點在於S1P 和細胞

自噬之間的關係，並以人類前列腺癌PC-3 細胞株為實驗對象。關於細胞自噬反應

是藉由偵測細胞自噬指標蛋白microtubule-associated protein light chain 3-II (LC3-II)

的表現量，以及在穩定表現EGFP-LC3 的 PC-3 細胞株中觀察含綠螢光之 LC3-II

集中到細胞自噬體(autophagosome)的現象做為判斷標準。結果顯示，LC3-II 的表

現量不論是濃度上或是時間上都和S1P 有顯著的正相關，而含綠螢光之細胞自噬

體的出現亦被證明和濃度梯度有關。此實驗更進一步深入探查反應下游之訊息傳導途徑，包括Rho 鳥苷三磷酸水解酶(Rho GTPase)相關分子(Rho, Rac and cdc42)、

ERK1/2 蛋白激酶、環氧合酶-1 (cyclooxygenase-1)以及環氧合酶-2 (cyclooxygenase -2)等。本實驗結果是第一次發現 S1P 能夠促進前列腺癌 PC-3 細胞株產生細胞自噬。因為細胞自噬與癌症的關係密切，所以進一步深入研究其細節是絕對必要的。

(5)

Abstract

Sphingosine 1-phosphate (S1P), a bioactive sphingolipid is abundant in serum. S1P

can induce various responses in many cell types, such as cell proliferation,

inflammation, migration, angiogenesis and cell survival through a family of

S1P-specific G-protein-couple receptors (S1P1-5). Autophagy, one of main cellular

activities, is a cellular degradation pathway which serves an adaptive role to protect

cells under starvation or stress situations. Damaged or superfluous cellular proteins and

organelles can be engulfed by autophagosomes, then digested when fused with

lysosomes, and recycled back into the cytosol to maintain cellular homeostasis.

Recently, scientists have begun to consider autophagy as a tumor-suppressing pathway,

but the regulatory mechanisms are still controversial. In addition, the relationship

between S1P and autophagy remains unclear. Herein, autophagy was characterized by

using Western blotting analysis to detect microtubule-associated protein light chain 3-II

(LC3-II, an autophagy marker) formation, and to observe the LC3-II molecules

re-localization from cytosol to autophagosomes in EGFP-LC3 stably expressing cells by

using fluorescence microscopy. These results suggested that S1P induced autophagy in

PC-3 cells, a human prostate cancer cell line, is both time- and concentration-dependent.

Furthermore, by using chemical inhibitors, Rho family GTPase (Rho, Rac, and Cdc42)-,

(6)

ERK1/2-, COX-1-, and COX-2-dependent pathways were found to be involved in the

induction of autophagy. In conclusion, the results demonstrated the molecular

mechanisms of S1P-induced autophagy in PC-3 cells during starvation.

(7)

Introduction

Sphingosine 1-phosphate

Recently, lipids are being discovered to play increasingly important roles in all

areas of cell biology. Sphingomyelin (SM) is a structural component of eukaryotic cell

membranes, and it was discovered in some specialized membrane microdomains.

Metabolism of SM is necessary to maintain the integrity of plasma membranes (van

Blitterswijk et al., 2003). During the breakdown of SM, ceramide and sphingosine are

produced in turn, and a subsequent product is sphingosine 1-phosphate (S1P). All of

those products have different regulatory functions within cells (Hannun et al., 2001).

S1P is a low-molecular-weight sphingolipid which was found to regulate a variety of

cellular responses. It was first discovered to be a component of the intracellular second

messenger system that is involved in cell proliferation (Zhang et al., 1991). Once S1P is

released, it binds to albumin, its carrier within the serum, and then it can reach the entire

body through the circulatory system.

There are five S1P receptors (S1P1-5), previously called endothelial differentiation

gene (Edg) receptors, which are all G-protein-coupled receptors (Graler et al., 1998; Hla

et al., 1990; Im et al., 2000; Maclennan et al., 1994; Okazaki et al., 1993; Yamaguchi et

al., 1996). The binding between S1P and its receptors leads to activation of different

(8)

distinct downstream G-protein-responsive pathways which stimulate Rac, Ras-ERK,

PI3K-AKT-Rac, phospholipase C, and Rho, resulting in many events such as changes in

motility, cell proliferation, cell migration, cell survival, and stress-fiber formation.

Different cells and tissues express various S1P receptors and couple to different G

proteins, leading to distinct cellular responses and elaborate signaling pathways (Hla et

al., 2001; Pitson et al., 2003; Taha et al., 2004).

S1P is found as a normal component in human serum (0.5 µM), and it is believed

that platelets are not only the major S1P generator but are the most abundant reservoir

compared to other blood cells (Yatomi et al., 1997). What is more interesting is that

over the past 30 years, there have been increasing correlations between the spread of

cancer and platelets. Metastatic cancer cells were found to activate platelets, probably

through thrombin, ADP (from hypoxic sites within tumors), and other agonists. After

platelet activation, the expression of adhesion molecules on platelets is increased; thus

cancer cells can carry platelets with them as a helper during metastasis. Once activated,

platelets release considerable S1P into the blood, and the local concentration of S1P

around cancer cells is much higher than the background. Therefore, attention should be

focused on the relationship between S1P and cancer cells (Nash et al., 2002).

(9)

Autophagy overview

As a type II programmed cell death, autophagy (from the Greek, “auto” oneself,

“phagy” to eat) was discovered more than 40 years ago. Its best-known function of

autophagy is to remove damaged or dysfunctional organelles and misfolded proteins

within cells. Genes related to autophagy were first identified in yeast, but homologs

have been found in all eukaryotes. As an evolutionarily conserved metabolic mechanism,

autophagy plays an adaptive role in response to starvation to maintain homeostasis in

cells (Mizushima et al., 2008). As a cellular self-digestion mechanism, three major

types of autophagy have so far been discovered: microautophagy, chaperone-mediated

autophagy, and macroautophagy. Microautophagy and chaperone-mediated autophagy

respectively deliver target cargos to lysosomes by lysosomal membrane invagination

(De duve et al., 1966) and Hsc70 chaperone complex transfer (Dice, 2007). Herein, this

study focus on the well-studied macroautophagy, hereafter referred to as autophagy.

Specific or nonspecific cargos are sequestered into a cytosolic double-membrane vesicle

and than fused with lysosomes which ultimately leads to the degradation of all of its

contents. Abnormalities of autophagy have recently been discovered to cause some

severe diseases, such as cancer, neurodegeneration, microbial infection, and aging

(Mizushima et al., 2008).

(10)

Autophagosome formation

Generally speaking, autophagy can be selective or non-selective. Selective

autophagy, such as through the cytoplasm-to-vacuole targeting pathway, pexophagy,

and pathogen-containing autophagy, pack suitable cargos into autophagosomes which

contain a limited amount of cytosol (Baba et al., 1997; Guan et al., 2001; Ogawa et al.,

2005; Sakai et al., 1998; Scott et al., 1997). In contrast, autophagosomes in

non-selective autophagy contain considerable cytoplasmic material. The key step in

autophagy is the formation of autophagosomes, but the mechanism of determining their

loading capacity is unclear at present. Herein, this study focused on investigating

non-selective autophagosome formation.

To the present, genetic screening of yeast has identified 31 autophagy-related

genes (ATGs) (Klionsky et al., 2003), many of which have known analogues in other

eukaryotes. Hereafter, we use the unified yeast nomenclature except for LC3, the

mammalian homologue of yeast Atg8. Initially, an expending membrane sac called the

isolation membrane or phagophore enwraps a portion of the cytoplasm. The proposed

site for autophagosome formation is the phagophore assembly site (PAS) (Kim et al.,

2002; Suzuki et al., 2001). Atg9 cycles between the PAS and multiple peripheral sites

with the help of many regulatory factors, such as the Atg1 complex, Atg2, Atg18,

(11)

Atg23, and Atg27 (Kabeya et al., 2005; Kamada et al., 2000; Legakis et al., 2007; Nair

et al., 2005; Reggiori et al., 2004; Tucker et al., 2003; Yen et al., 2007). Potentially, this

shuttling might participate in delivering the membrane to the PAS (Reggiori et al., 2004,

2005). In addition to Atg9-related factors, there are still some other important molecules,

for example, PI3-K and the Atg12-Atg5-Atg16 complex, which participate in several

vesicular trafficking pathways and LC3-II recruitment. Taking all these facts together,

autophagosome formation truly is a sophisticated process, after which the fusion of an

autophagosome with a lysosome occurs. Finally, lysis of the autophagosome's inner

membrane and breakdown of the contents occur within the autolysosome, and the final

products are released back into the cytosol by membrane permeases.

LC3 and autophagy

Microtubule-associated protein light chain 3 (MAP-LC3) is a mammalian

autophagosomal ortholog of yeast Atg8. Modification of LC3 is essential for

autophagosome formation (Kabeya et al., 2000). Once pro-LC3 is produced, it is

processed by hAtg4B (a specific cysteine protease for LC3) to form LC3-I (Hemelaar et

al., 2003). LC3 is a ubiquitin-like protein (Ichimura et al., 2000), which is activated by an E1-like protein, hAtg7, subsequently transferred to an E2-like enzyme, hAtg3, and

finally modified to a lipid-containing form, LC3-II (Tanida et al., 2001, 2002). LC3-II,

(12)

which is conjugated with phosphatidylethanolamine (PE), can insert itself into both the

outer and inner membranes of autophagosomes, making this protein an autophagosome

marker. Following the fusion of autophagosomes and lysosomes, LC3-II in the inner

membrane is degraded by lysosomal hydrolases (Kabeya et al., 2000), and those in the

outer membrane are released back into the cytosol by the cleavage of hAtg4B (Fig. 1).

Autophagy and cancer

As mentioned above, autophagy holds a pivotal position, because it may both

promote and prevent cancer, and its specific role may depend on different cancer types.

The first link between autophagy and tumor suppression, discovered in 1999, was that

the ATG gene, beclin 1, can inhibit tumorigenesis and is expressed at low levels in

human breast carcinomas (Liang et al., 1999). Since then, the allelic loss of beclin 1 has

been found with high frequency in human breast, ovarian, prostate, and brain tumors

(Aita et al., 1999; Miracco et al., 2007; Paglin et al., 2001), and the incidence of tumor

formation is increased in beclin1^+/- mutant mice (Qu et al., 2003; Yue et al., 2003).

However, autophagy can prolong the survival of cells with defects in apoptosis under

metabolic stress for weeks (Degenhardt et al., 2006; Karantza-Wadsworth et al., 2007;

Lum et al., 2005; Mathew et al., 2007a). Long-term starvation and progressive

autophagy gradually causes such cells to shrink, but restoring nutrients can still bring

(13)

them back, and the smallest cell is called the minimal cell capable of recovery (MCCR).

In addition, cells defective in both apoptosis and autophagy fail to tolerate metabolic

stress and thus die by necrosis. In addition, a possible explanation of the pro-survival

and tumor-suppressive functions of autophagy is that some types of mismanagement of

metabolic stress in autophagy-deficient tumor cells result in genome damage and tumor

progression (Jin et al., 2007b; Karantza-Wadsworth et al., 2007; Mathew et al., 2007a,

b). Since DNA damage accelerates both cancer and aging, it seems that autophagy

might also play a role in lifespan extension other than by protecting cells from

environmental stresses. However, relationships between autophagy and cancer are still

controversial. Some proper management of metabolic stress through autophagy is

essential for tumor cells to repress the accumulation of detrimental mutations (Jin et al.,

2007a; Karantza-Wadsworth et al., 2007; Mathew et al., 2007a), but the precise reasons

that autophagy-defective cells have more DNA damage is not yet known. Therefore, the

best cancer therapy for killing apoptosis-resistant tumor cells is to inhibit autophagy and

simultaneously apply metabolic stress through surgery, radiation, and/or chemotherapy;

this can lead tumor cells to necrotic cell death. In conclusion, autophagy plays a

paradoxical role in tumorigenesis, and more-detailed investigations are required.

Our target cell model is the human prostate cancer PC-3 cell line, which was

(14)

derived from epithelium. Prostate cancer is one of the best-known malignancies among

men, and is reported to be the most common cancer in American men. In 2007, its

estimated occurrence was approximately 220,000 (29% of all cancers in men), with a

mortality estimated to be over 27,000 (9% of all male cancer deaths) in the US

(American Cancer Society, 2007). Many treatments against it are available nowadays,

including active surveillance, a prostatectomy, radiation therapy, and androgen ablation

therapy, all of which depend on serum prostate-specific antigen (PSA) levels (Lilja et

al., 2008). PSA testing allows physicians to detect prostate tumors when they are still

small, low-grade, and localized. Additionally, prostate cancer causes the PSA to be

released into the circulatory system, and the level in blood can increase up to 10⁵-fold.

Although clinically localized prostate cancer is highly curable, the death roll still

remains high, due to recurrence of the ‘clinically cured’ (Denmeade et al., 2002). As we

described above, we hypothesized that autophagy might maintain prostate cancer cells

which escape from the cancer therapy beneath the detectable level. This could be a

major reason for the high recurrence of prostate cancer.

(15)

Materials and Methods

Reagents

Sphingosine 1-phosphate (S1P), Clostridium difficile toxin B (toxin B), and fatty

acid-free bovine serum albumin (faf-BSA) were purchased from Sigma (St. Louis, MO).

PD98059 was purchased from Tocris Bioscience (Ellisville, MI). The monoclonal

mouse anti-human LC3 antibody was from Abgent (San Diego, CA), and a rabbit

polyclonal anti-LC3 antibody was from Novus (Littleton, CO). The goat anti-mouse

IgG-HRP and goat anti-rabbit IgG-HRP antibodies were the products of Santa Cruz

(Santa Cruz, CA). SC-560 and NS-398 were purchased from Cayman Chemicals (Ann

Arbor, MI). Fluoromount-G was purchased from Electron Microscopy Sciences

(Hatfield, PA). RPMI 1640 medium, penicillin-streptomycin, trypsin-EDTA, fetal

bovine serum (FBS), and G418 were purchased from Invitrogen (Grand Island, NY).

Cell culture

The human prostate cancer PC-3 cell line was purchased from the American Type

Culture Collection (ATCC; Manassas, VA) and maintained in RPMI 1640 medium

supplemented with 10% FBS. Cell density in all the experiments was under precise

control within the range of (1~1.5) x 10⁵ cells per 9.5 cm² during seeding. Incubation of

cell cultures was carried out at 37 °C with 5% CO2 in a humidified atmosphere. PC-3

(16)

cells stably transfected with EGFP-LC3 were previously selected, and kept in complete

medium supplemented with 500 µg/ml G418.

Immunoblotting

PC-3 cells were harvested and lysed in RIPA lysis buffer (50 mM Tris (pH 7.0),

150 mM NaCl, 0.1% SDS, 0.5% sodium deoxycholate, and 1% Triton X-100). Lysates

were cleared by centrifugation at 14,000 r.p.m. for 15 min at 4 °C. After centrifugation,

the supernatants were boiled with 6x sample buffer in boiling water for 5 min. Cell

lysates at 20~30 µl were subjected to 13.5% sodium dodecylsulfate polyacrylamide gel

electrophoresis (SDS-PAGE) (with 6 M urea) with running buffer (25 mM Tris, 192

mM glycine, and 0.1% SDS) and then electrotransferred with transfer buffer (25 mM

Tris, 192 mM glycine, and 20% methanol) to polyvinylidene fluoride (PVDF)

membranes. Membranes were then incubated with 5% nonfat milk in TBSt (10mM Tris,

150mM NaCl, 0.2% Tween-20, pH7.4) for 1.5 h at room temperature. After blocking,

membranes were incubated with the anti-human LC3 antibody at a titer of 1:100 (for

monoclonal mouse anti-human LC3 antibody from Abgent) or 1:6000 (for rabbit

polyclonal anti-LC3 antibody from Novus) overnight at 4 °C. After incubation of the

first antibody, it was washed three times for 15 min each with TBSt and then incubated

with 1:3000 of the anti-mouse-HRP secondary antibody for 1.5 h at room temperature.

(17)

When the last three washes were done, the chemiluminescence reagent was added to the

membrane as per the manufacturer’s instructions. Luminescence signals were detected

by exposure to film in a dark room.

Immunocytochemistry

PC-3 cells stably expressing EGFP-LC3 at a density of (4~4.8) x 10⁴ cells per 3.8

cm² were seeded on coverslips. After starvation, PC-3 cells stably expressing

EGFP-LC3 were pretreated with the indicated inhibitors for 1 h before 5 µM S1P

treatment for 8 h. Cells were washed with PBS once and fixed in 3.7%

paraformaldehyde at room temperature for 5 min. Soon after another washing,

coverslips were mounted with Fluoromount-G, and dried in dark place for 1 day.

Fluorescence was detected by a Zeiss Axioskop 2 plus fluorescent microscope (Jena,

Germany), and images were analyzed using Axiovision software. Confocal microscopy

was performed with a Leica TCS SP5 X Supercontinuum confocal microscope (Wetzlar,

Germany).

Statistical analyses

Each x-ray film was scanned, and the bands were measured by TotalLab v2.01. All

experiments were done at least three times, and the data are shown as the mean ± SD.

Statistical analyses were performed with ANOVA by Statview 5.0, and a p value of <

(18)

0.05 was considered statistically significant.

(19)

Results

S1P induces autophagy in dosage- and time-dependent manners in PC-3 cells

Previous studies in our lab showed that S1P has inhibitory effects on the

proliferation of PC-3 cells, a human prostate cancer cell line. The cell cycle was arrested

in G1 phase with S1P treatment, and the death of S1P-treated PC-3 cells might be

caused by that they pass through an apoptosis-independent and necrosis-dependent

pathway (Liao et al., 2005). In the past few years, autophagy has been demonstrated to

be an important non-apoptotic cell death pathway, and its role in cancer chemotherapy

is indisputable. Therefore, this study focused on the relationship between S1P and

autophagy in PC-3 cells.

To investigate the effect of S1P on autophagy, the PC-3 cells were starved for

14~16 h in serum-free RPMI 1640 medium. The starved cells were then treated with 0.5,

1, 5, or 10 µM S1P for 8 hrs. Treatment with RPMI 1640 medium alone or with

methanol/chloroform (M/C) was used as the control (Fig. 2A). After treatment, total cell

lysates were harvested, and the Western blotting analysis was utilized as described in

"Materials and methods". As shown in figure 2A, S1P caused autophagy in a

dose-dependent manner. A 2-fold induction was achieved with 10 µM S1P treatment,

(20)

and because we were considering the physiological concentration of S1P in human

serum, this study did not use higher concentrations.

To further confirm the effect of S1P on autophagy, the starved PC-3 cells were

treated with 5 µM S1P for various times, as indicated in figure 2B. The data showed a

time-dependent induction and a peak at 4 or 8 hrs (Fig. 2B), so we used 8 h of treatment

with 5 µM S1P as our working concentration hereafter.

S1P induces relocalization of EGFP-LC3 in stably transfected PC-3 cells in a concentration-dependent manner

Since LC3-II, which is conjugated with phosphatidylethanolamine (PE), can be

inserted into both the outer and the inner membranes of autophagosomes, we further

demonstrated the effect of S1P on autophagy by visualizing the pattern of EGFP-LC3

signals in the stably transfected PC-3 cells. After starvation for 14~16 h in serum-free

medium, EGFP-LC3 signals within PC-3 cells formed a punctate pattern, suggesting

that transfection of EGFP-LC3 for observing autophagy is workable. Following

treatment of EGFP-LC3 PC-3 cells with different concentrations of S1P, we determined

that the higher dosage of S1P used, the more-obvious punctate pattern we observed (Fig.

3). In conclusion, our data here further confirm that S1P can induce autophagy in a

concentration-dependent manner in the PC-3 cells.

(21)

Furthermore, we also observed that cells did not exhibit an autophagy pattern

without starvation, but S1P treatment (at a concentration of 5 µM) still caused cells to

be rounder than the negative control. Furthermore, we found that the brightness of cells

in different treatment groups were all distinct: from low to high brightness, the order

was the negative control group, starvation control group, and S1P treatment group (data

not shown). These observations suggest that S1P could cause morphological change in

PC-3 cells without starvation, and the brightness of EGFP-LC3 PC-3 cells is positive

correlated to the autophagy intensity.

S1P-induced autophagy is mediated by Clostridium difficile toxin B-, SC-560-, NS-398-, and PD98059-sensitive pathways

It is known that lysophospholipids, especially S1P and LPA, lead to actin

reorganization, and the influence of S1P here was thought to be much more potent than

that of LPA (Postma et al., 1996). Rho, a ras-related GTP-binding protein, is

specifically essential for the coordinated assembly of focal adhesions and stress fibers

induced by growth factors (Ridley et al., 1992). In addition, previous studies in our lab

suggest that S1P causes significant actin rearrangement and cell rounding in PC-3 cells

(Liao et al., 2005). On the other hand, recent research has shown that maturation of

autophagosomes into autolysosomes is controlled by MAPK/ERK activation, and

sustained activation of the ERK pathway is sufficient to commit cells to autophagy

(22)

(Corcelle et al., 2006). Inhibition by ERK1/2 of autophagy-induced breast cancer and

neuroblastoma cells leads to downregulation of autophagy (Plowey et al., 2008;

Sivaprasad U et al., 2008; Zhu et al., 2007). Furthermore, cyclooxygenase (COX) was

lately demonstrated to be a target of anticancer therapy. COX-1 is constitutively

expressed in most tissues and plays a housekeeping role in the production of

prostaglandins that control normal physiological processes. However, COX-2 is

undetectable in most normal tissues, but is induced by various inflammatory and

mitogenic stimuli (Meric et al., 2006). COX can convert procarcinogens to carcinogens

and thus initiates tumor formation, and overexpression of COX-2 is sufficient to induce

tumorigenesis in transgenic mice (Liu et al., 2001). Another study showed that COX-2

plays a key role in early stages of carcinogenesis by promoting the proliferation of

tumor cells and their resistance to apoptosis, as well as promoting angiogenesis, tumor

cell invasion and establishment of the metastatic process (Rodrigues et al., 2004). Since

COX is resistant to apoptosis, it might participate in autophagy pathways, so it would be

interesting to determine the relationship between COX and autophagy in PC-3 cells. In

conclusion, we took Rho family GTPases (Rho, Rac, and Cdc42), ERK1/2, COX-1, and

COX-2 as our suspected downstream signalings.

We pretreated starved PC-3 cells with inhibitors for 1 h before 8 hrs of treatment

(23)

with 5 µM S1P. The total cell lysates were harvested and used for the Western blot

analysis. Clostridium difficile toxin B, PD98059, SC-560, and NS-398, which are

respective inhibitors of Rho family GTPases (Rho, Rac, and Cdc42), MEK1/ERK,

COX-1, and COX-2, were used to treat PC-3 cells. As shown in Fig. 4, Clostridium

difficile toxin B and PD98059 had inhibitory effects on S1P-induced autophagy in the

PC-3 cells. On the other hand, the data surprisingly suggested that both SC-560 and

NS-398 can downregulate S1P-induced autophagy, and all these results above are a

brand new discovery of the relationship of autophagy with Rho GTPase, ERK1/2, and

COX in the prostate cancer cells (Fig. 4).

As for EGFP-LC3 stably transfected PC-3 cells, after pretreatment with all those

inhibitors described above, the punctate pattern of EGFP-LC3 signals induced by S1P

treatment was downregulated (Fig. 5A, B, quantified data given in 5C, D), and this was

consistent with the Western blotting results shown in Fig. 4. Furthermore, we tested the

inhibitors of NFκB (PDTC) and PI-3K (wortmannin), and found no inhibitory effects,

so we concluded that they might not participate in this pathway (data not shown).

(24)

Discussion

Previous studies showed that during nutrient starvation, overexpression of

sphingosine kinase 1 stimulates autophagy in human breast cancer MCF-7 cells (Lavieu

et al., 2006). They also proposed that endogenous S1P might cause autophagy but

lacked direct evidence to prove this hypothesis. Herein we demonstrate for the first time

that exogenous S1P can induce autophagy in prostate cancer PC-3 cells through the

S1P5-Gi/G12 pathways. Therefore, we speculated that in the study of Lavieu et al., S1P

might have acted through an autocrine or paracrine pathway to induce autophagic

effects in MCF-7 cells. On the other hand, we also demonstrated that Rho family

GTPases (Rho, Rac, and Cdc42), MEK1/ERK, COX-1, and COX-2 are all involved in

the downstream signaling of S1P-induced autophagy. Recent studies have shown that

S1P upregulates COX-2 through both Gi- and G12-dependent pathways (Ki et al., 2007;

Serrano-Sanchez et al., 2008), and Rac and Rho are respectively activated by Gi and G12

(Brown et al., 2006). The most interesting and confusing molecule is ERK, as

sphingosine kinase 1 can be activated by ERK1/2-mediated phosphorylation (Pitson et

al., 2003), while S1P upregulates ERK1/2 through S1P1~4 but inhibits it through S1P5

(Kluk et al., 2002). Nevertheless, in a previous study, S1P5-mediated repression of

ERK1/2 was first induced by serum, and the treatment time of S1P was no more than 60

(25)

min (Malek et al., 2001). Therefore, even though S1P did inhibit ERK1/2 through S1P5

within 1 hr, the inhibitory effect might not be sustained for 8 hrs. Accordingly, we

propose that S1P indirectly activates ERK1/2, and there might be some other

S1P-regulated pathways which activate them within the time period between 1 and 8 h

of treatment. Regarding the high S1P concentration (5 and 10 µM) we used, as

previously described, even though the physiological concentration of S1P within normal

human serum is only 0.5 µM, it is possible to encounter higher concentrations during

interactions between cancer cells and platelets, leukocytes, and erythrocytes (Hanel et

al., 2007; Jolly et al., 2005; Yatomi et al., 1995).

It is worth mentioning that the involvement of Rho GTPase- and COX-related

pathways in autophagy have not previously been published. COX-2 inhibitors are

thought to act as chemopreventive agents by sensitizing cancer cells to apoptotic signals

(Lev-Ari et al., 2008). Therefore, our data suggest that the apoptosis-sensitive effect of

COX-2 inhibitors might be caused by an inhibition of autophagy (Boya et al., 2005).

As discussed above, S1P-induced ERK1/2 activation seems to form a positive

feedback loop. S1P can upregulate ERK1/2 through most S1P receptors (S1P1~4), then

ERK1/2-mediated phosphorylation activates sphingosine kinase 1, finally sphingosine

kinase 1 processes sphingosine to form S1P. As previously described, we observed that

(26)

S1P-treated PC-3 cells are much brighter under microscopic view than control cells

(data not shown). This was thought to be the result of the S1P-ERK1/2 positive

feedback loop, which possibly leads to continuous stimulation of autophagy, so the

diffuse pattern of EGFP-LC3 signals becomes more concentrated, and the brightness

increases. Moreover, S1P is degraded to hexadecenal and phosphoethanolamine by S1P

lyase; these two products are subsequently reused for the biosynthesis of PE (Spiegel et

al., 2003), the most important component that enables LC3-II to insert itself into

autophagosomes, and this might be one of the reasons why S1P-treated cells are

brighter. In addition, the S1P-treated negative control of EGFP-LC3 PC-3 cells

displayed a rounder shape compared to non-treated cells, which suggests that PC-3 cells

are probably influenced by Rho family GTPases (Rho, Rac, and Cdc42) under normal

conditions, but the exact reason is not yet known.

There is no final conclusion about the relationship between autophagy and cancer

(Mathew et al., 2007), nor is there one between S1P and cancer (Payne et al., 2002;

Sabbadini, 2006; Spiegel et al., 2002). Both autophagy and S1P have tumor-promoting

and tumor-suppressing functions, and both of which depend on the situation, such as

different cancer cell types, different tumor stages, and various metabolic stresses and

environmental stimulants; these are all still controversial issues. At first, previous data

(27)

in our lab showed the inhibition of PC-3 cell proliferation by S1P, and we then found

the cause of death to be apoptosis-independent and necrosis-dependent (Liao et al.,

2005). Herein, we further demonstrate that autophagy is involved in the S1P-induced

inhibitory effect on cell proliferation. Although we could not determine which pathway

is the major cause of death here and whether other types of cancer cells exhibit this

phenomenon or not, we ensured that S1P induces autophagy in PC-3 cells, and this

evidence might be helpful in cancer therapy. As mentioned in the "Introduction",

autophagy plays an important role in chemotherapy, and as our knowledge of autophagy

becomes more complete, treatments against human cancers can be improved. We will

put our efforts into more-detailed investigations of the downstream signaling of

S1P-induced autophagy in PC-3 cells (summary is in Fig. 6).

(28)

References

Aita, VM, Liang, XH, Murty, V, Pincus, DL, Yu, WP, Cayanis, E, Kalachikov, S, Gilliam, TC, Levine, B (1999) Cloning and genomic organization of beclin 1, a candidate tumor suppressor gene on chromosome 17q21. Genomics 59(1):

59-65.

American Cancer Society (2007) Cancer Facts & Figures. Available at http://www.cancer.org/downloads/STT/CAFF2007PWSecured.pdf.

Baba, M, Osumi, M, Scott, SV, Klionsky, DJ, Ohsumi, Y (1997) Two distinct pathways for targeting proteins from the cytoplasm to the vacuole/lysosome.

Journal of Cell Biology 139(7): 1687-1695.

Boya, P, Gonzalez-Polo, RA, Casares, N, Perfettini, JL, Dessen, P, Larochette, N, Metivier, D, Meley, D, Souquere, S, Yoshimori, T, Pierron, G, Codogno, P, Kroemer, G (2005) Inhibition of macroautophagy triggers apoptosis. Molecular and Cellular Biology 25(3): 1025-1040.

Brown, JH, Del Re, DP, Sussman, MA (2006) The Rac and Rho hall of fame - A decade of hypertrophic signaling hits. Circulation Research 98(6): 730-742.

Corcelle, E, Nebout, M, Bekri, S, Gauthier, N, Hofman, P, Poujeol, P, Fenichel, P, Mograbi, B (2006) Disruption of autophagy at the maturation step by the carcinogen lindane is associated with the sustained mitogen-activated protein kinase/extracellular signal-regulated kinase activity. Cancer Research 66(13):

6861-6870.

Deduve, C, Wattiaux, R (1966) FUNCTIONS OF LYSOSOMES. Annual Review of Physiology 28: 435-92.

Degenhardt, K, Mathew, R, Beaudoin, B, Bray, K, Anderson, D, Chen, GH, Mukherjee, C, Shi, YF, Gelinas, C, Fan, YJ, Nelson, DA, Jin, SK, White, E (2006) Autophagy promotes tumor cell survival and restricts necrosis, inflammation, and tumorigenesis. Cancer Cell 10(1): 51-64.

Denmeade, SR, Isaacs, JT (2002) A history of prostate cancer treatment. Nature

(29)

Dice, JF (2007) Chaperone-mediated autophagy. Autophagy 3(4): 295-299.

Graler, MH, Bernhardt, G, Lipp, M (1998) EDG6, a novel G-protein-coupled receptor related to receptors for bioactive lysophospholipids, is specifically expressed in lymphoid tissue. Genomics 53(2): 164-169.

Guan, J, Stromhaug, PE, George, MD, Habibzadegah-Tari, P, Bevan, A, Dunn, WA, Klionsky, DJ (2001) Cvt18/Gsa12 is required for cytoplasm-to-vacuole transport, pexophagy, and autophagy in Saccharomyces cerevisiae and Pichia pastoris. Molecular Biology of the Cell 12(12): 3821-3838.

Hanel, P, Andreani, P, Graler, MH (2007) Erythrocytes store and release sphingosine 1-phosphate in blood. FASEB Journal 21(4): 1202-1209..

Hannun, YA, Luberto, C, Argraves, KM (2001) Enzymes of sphingolipid metabolism: from modular to integrative signaling. Biochemistry 40(16):

4893-4903.

Hemelaar, J, Lelyveld, VS, Kessler, BM, Ploegh, HL (2003) A single protease, Apg4B, is specific for the autophagy-related ubiquitin-like proteins GATE-16, MAP1-LC3, GABARAP, and Apg8L. Journal of Biological Chemistry 278(51):

51841-51850.

Hla, T, Lee, MJ, Ancellin, N, Paik, JH, Kluk, MJ (2001) Lysophospholipids - receptor revelations. Science 294(5548): 1875-1878.

Hla, T, Maciag, T (1990) An abundant transcript induced in differentiating human endothelial cells encodes a polypeptide with structural similarities to G-protein-coupled receptors. Journal of Biological Chemistry 265(16):

9380-9313.

Ichimura, Y, Kirisako, T, Takao, T, Satomi, Y, Shimonishi, Y, Ishihara, N, Mizushima, N, Tanida, I, Kominami, E, Ohsumi, M, Noda, T, Ohsumi, Y (2000) A ubiquitin-like system mediates protein lipidation. Nature 408(6811): 488-492.

Im, DS, Heise, CE, Ancellin, N, O'Dowd, BF, Shei, GJ, Heavens, RP, Rigby, MR, Hla, T, Mandala, S, McAllister, G, George, SR, Lynch, KR (2000) Characterization of a novel sphingosine 1-phosphate receptor, Edg-8. Journal of Biological Chemistry 275(19): 14281-14286.

(30)

Jin, S, DiPaola, RS, Mathew, R, White, E (2007) Metabolic catastrophe as a means to cancer cell death. Journal of Cell Science 120(3): 379-383.

Jin, SK, White, E (2007) Role of autophagy in cancer -- management of metabolic stress. Autophagy 3(1): 28-31.

Jolly, PS, Bektas, M, Watterson, KR, Sankala, H, Payne, SG, Milstien, S, Spiegel, S (2005) Expression of SphK1 impairs degranulation and motility of RBL-2H3 mast cells by desensitizing S1P receptors. Blood 105(12): 4736-4742.

Kabeya, Y, Kamada, Y, Baba, M, Takikawa, H, Sasaki, M, Ohsumi, Y (2005) Atg17 functions in cooperation with Atg1 and Atg13 in yeast autophagy.

Molecular Biology of the Cell 16(5): 2544-2553.

Kabeya, Y, Mizushima, N, Uero, T, Yamamoto, A, Kirisako, T, Noda, T, Kominami, E, Ohsumi, Y, Yoshimori, T (2000) LC3, a mammalian homologue of yeast Apg8p, is localized in autophagosome membranes after processing.

EMBO Journal 19(21): 5720-5728.

Kamada, Y, Funakoshi, T, Shintani, T, Nagano, K, Ohsumi, M, Ohsumi, Y (2000) Tor-mediated induction of autophagy via an Apg1 protein kinase complex.

Journal of Cell Biology 150(6): 1507-1513.

Karantza-Wadsworth, V, Patel, S, Kravchuk, O, Chen, GH, Mathew, R, Jin, S, White, E (2007) Autophagy mitigates metabolic stress and genome damage in mammary tumorigenesis. Genes & Development 21(13): 1621-1635.

Ki, SH, Choi, MJ, Lee, CH, Kim, SG (2007) G alpha(12) specifically regulates COX-2 induction by sphingosine 1-phosphate -- role for JNK-dependent ubiquitination and degradation of I kappa B alpha. Journal of Biological Chemistry 282(3): 1938-1947.

Kim, J, Huang, WP, Stromhaug, PE, Klionsky, DJ (2002) Convergence of multiple autophagy and cytoplasm to vacuole targeting components to a perivacuolar membrane compartment prior to de novo vesicle formation. Journal of Biological Chemistry 277(1): 763-773.

Klionsky, DJ, Cregg, JM, Dunn, WA, Emr, SD, Sakai, Y, Sandoval, IV, Sibirny, A,

(31)

nomenclature for yeast autophagy-related genes. Developmental Cell 5(4):

539-545.

Kluk, MJ, Hla, T (2002) Signaling of sphingosine-1-phosphate via the S1P/EDG-family of G-protein-coupled receptors. Biochimica et Biophysica Acta Molecular and Cell Biology of Lipids 1582(1-3): 72-80.

Lavieu, G, Scarlatti, F, Sala, G, Carpentier, S, Levade, T, Ghidoni, R, Botti, J, Codogno, P (2006) Regulation of autophagy by sphingosine kinase 1 and its role in cell survival during nutrient starvation. Journal of Biological Chemistry 281(13):

8518-8527.

Legakis, JE, Yen, WL, Klionsky, DJ (2007) A cycling protein complex required for selective autophagy. Autophagy 3: 422-432.

Lev-Ari, S, Lichtenberg, D, Arber, N (2008) Compositions for treatment of cancer and inflammation. Recent Patents on Anti-Cancer Drug Discovery 3: 55-62.

Liang, XH, Jackson, S, Seaman, M, Brown, K, Kempkes, B, Hibshoosh, H, Levine, B (1999) Induction of autophagy and inhibition of tumorigenesis by beclin 1. Nature 402(6762): 672-676.

Liao, J-J, Huang, Y-T, Lee, H (2005) Inhibitory effects of sphingosine 1-phosphate on proliferation of PC-3 human prostate cancer cells. Zoological Studies 44(2): 219-227.

Lilja, H, Ulmert, D, Vickers, AJ (2008) Prostate-specific antigen and prostate cancer: prediction, detection and monitoring. Nature Reviews Cancer 8(4):

268-278.

Liu, CH, Chang, SH, Narko, K, Trifan, OC, Wu, MT, Smith, E, Haudenschild, C, Lane, TF, Hla, T (2001) Overexpression of cyclooxygenase-2 is sufficient to induce tumorigenesis in transgenic mice. Journal of Biological Chemistry 276(21): 18563-18569.

Lum, JJ, Bauer, DE, Kong, M, Harris, MH, Li, C, Lindsten, T, Thompson, CB (2005) Growth factor regulation of autophagy and cell survival in the absence of apoptosis. Cell 120(2): 237-248.

(32)

Maclennan, AJ, Browe, CS, Gaskin, AA, Lado, DC, Shaw, G (1994) Cloning and characterization of a putative G-protein coupled receptor potentially involved in development. Molecular and Cellular Neuroscience 5(3): 201-209.

Malek, RL, Toman, RE, Edsall, LC, Wong, S, Chiu, J, Letterle, CA, Van Brocklyn, JR, Milstien, S, Spiegel, S, Lee, NH (2001) Nrg-1 belongs to the endothelial differentiation gene family of G protein-coupled sphingosime-1-phosphate receptors. Journal of Biological Chemistry 276(8): 5692-5699.

Mathew, R, Karantza-Wadsworth, V, White, E (2007) Role of autophagy in cancer. Nature Reviews Cancer 7(12): 961-967.

Mathew, R, Kongara, S, Beaudoin, B, Karp, CM, Bray, K, Degenhardt, K, Chen, GH, Jin, SK, White, E (2007) Autophagy suppresses tumor progression by limiting chromosomal instability. Genes & Development 21(11): 1367-1381.

Mathew, R, White, E (2007) Why sick cells produce tumors -- the protective role of autophagy. Autophagy 3(5): 502-505.

Meric, JB, Rottey, S, Olaussen, K, Soria, JC, Khayat, D, Rixe, O, Spano, JP (2006) Cyclooxygenase-2 as a target for anticancer drug development. Critical Reviews in Oncology Hematology 59(1): 51-64.

Miracco, C, Cosci, E, Oliveri, G, Luzi, P, Pacenti, L, Monciatti, I, Mannucci, S, De Nisi, MC, Toscano, M, Malagnino, V, Falzarano, SM, Pirtoli, L, Tosi, P (2007) Protein and mRNA expression of autophagy gene Beclin 1 in human brain tumours. International Journal of Oncology 30(2): 429-436.

Mizushima, N, Levine, B, Cuervo, AM, Klionsky, DJ (2008) Autophagy fights disease through cellular self-digestion. Nature 451: 1069-1075.

Nair, U, Klionsky, DJ (2005) Molecular mechanisms and regulation of specific and nonspecific autophagy pathways in yeast. Journal of Biological Chemistry 280(51): 41785-41788.

Nash, GF, Turner, LF, Scully, MF, Kakkar, AK (2002) Platelets and cancer.

Lancet Oncology 3(7): 425-430.

(33)

Ogawa, M, Yoshimori, T, Suzuki, T, Sagara, H, Mizushima, N, Sasakawa, C (2005) Escape of intracellular shigella from autophagy. Science 307(5710):

727-731.

Okazaki, H, Ishizaka, N, Sakurai, T, Kurokawa, K, Goto, K, Kumada, M, Takuwa, Y (1993) Molecular-cloning of a novel putative G-protein-coupled receptor expressed in the cardiovascular system. Biochemical and Biophysical Research Communications 190(3): 1104-1109.

Paglin, S, Hollister, T, Delohery, T, Hackett, N, McMahill, M, Sphicas, E, Domingo, D, Yahalom, J (2001) A novel response of cancer cells to radiation involves autophagy and formation of acidic vesicles. Cancer Research 61(2):

439-444.

Payne, SG, Milstien, S, Spiegel, S (2002) Sphingosine-1-phosphate: dual messenger functions. FEBS Letters 531(1): 54-57.

Pitson, SM, Moretti, PAB, Zebol, JR, Lynn, HE, Xia, P, Vadas, MA, Wattenberg, BW (2003) Activation of sphingosine kinase 1 by ERK1/2-mediated phosphorylation. EMBO Journal 22(20): 5491-5500.

Plowey, ED, Cherra, SJ, Liu, YJ, Chu, CT (2008) Role of autophagy in G2019S-LRRK2-associated neurite shortening in differentiated SH-SY5Y cells.

Journal of Neurochemistry 105(3): 1048-1056.

Postma, FR, Jalink, K, Hengeveld, T, Moolenaar, WH (1996) Sphingosine-1-phosphate rapidly induces Rho-dependent neurite retraction:

action through a specific cell surface receptor. EMBO Journal 15(10):

2388-2392.

Qu, XP, Yu, J, Bhagat, G, Furuya, N, Hibshoosh, H, Troxel, A, Rosen, J, Eskelinen, EL, Mizushima, N, Ohsumi, Y, Cattoretti, G, Levine, B (2003) Promotion of tumorigenesis by heterozygous disruption of the beclin 1 autophagy gene. Journal of Clinical Investigation 112(12): 1809-1820.

Reggiori, F, Shintani, T, Nair, U, Klionsky, DJ (2005) Atg9 cycles between mitochondria and the pre-autophagosomal structure in yeasts. Autophagy 1(2):

101-109.

(34)

Reggiori, F, Tucker, KA, Stromhaug, PE, Klionsky, DJ (2004) The Atg1-Atg13 complex regulates Atg9 and Atg23 retrieval transport from the pre-autophagosomal structure. Developmental Cell 6(1): 79-90.

Ridley, AJ, Hall, A (1992) The small GTP-binding protein rho regulates the assembly of focal adhesions and actin stress fibers in response to growth-factors. Cell 70(3): 389-399.

Rodrigues, S, Erik, B, Rodrigue, CM, Shahin, E, Gespach, C (2004) Cyclooxygenase 2 and carcinogenesis. Bulletin du Cancer 91: S61-S76.

Sabbadini, RA (2006) Targeting sphingosine-I-phosphate for cancer therapy.

British Journal of Cancer 95(9): 1131-1135.

Sakai, Y, Koller, A, Rangell, LK, Keller, GA, Subramani, S (1998) Peroxisome degradation by microautophagy in Pichia pastoris: identification of specific steps and morphological intermediates. Journal of Cell Biology 141(3): 625-636.

Scott, SV, Baba, M, Ohsumi, Y, Klionsky, DJ (1997) Aminopeptidase I is targeted to the vacuole by a nonclassical vesicular mechanism. Journal of Cell Biology 138(1): 37-44.

Serrano-Sanchez, M, Tanfin, Z, Leiber, D (2008) Signaling pathways involved in sphingosine kinase activation and sphingosine-1-phosphate release in rat myometrium in late pregnancy: role in the induction of COX2. Endocrinology:

en.2007-1756.

Sivaprasad U, A., B (2008) Inhibition of ERK attenuates autophagy and potentiates tumor necrosis factor-alpha-induced cell death in MCF-7 cells.

Journal of Cellular and Molecular Medicine 9999(999A).

Spiegel, S, Milstien, S (2002) Sphingosine 1-phosphate, a key cell signaling molecule. Journal of Biological Chemistry 277(29): 25851-25854.

Spiegel, S, Milstien, S (2003) Sphingosine-1-phosphate: An enigmatic signalling lipid. Nature Reviews Molecular Cell Biology 4(5): 397-407.

Stoffel, W, Assmann, G (1970) Metabolism of sphingosine bases .15. enzymatic

(35)

2T-hexadecen-1-al and ethanolamine phosphate. Hoppe-Seylers Zeitschrift fur Physiologische Chemie 351(8): 1041-9.

Suzuki, K, Kirisako, T, Kamada, Y, Mizushima, N, Noda, T, Ohsumi, Y (2001) The pre-autophagosomal structure organized by concerted functions of APG genes is essential for autophagosome formation. EMBO Journal 20(21):

5971-5981.

Taha, TA, Argraves, KM, Obeid, LM (2004) Sphingosine-1-phosphate receptors:

receptor specificity versus functional redundancy. Biochimica et Biophysica Acta Molecular and Cell Biology of Lipids 1682(1-3): 48-55.

Tanida, I, Tanida-Miyake, E, Komatsu, M, Ueno, T, Kominami, E (2002) Human Apg3p/Aut1p homologue is an authentic E2 enzyme for multiple substrates, GATE-16, GABARAP, and MAP-LC3, and facilitates the conjugation of hApg12p to hApg5p. Journal of Biological Chemistry 277(16): 13739-13744.

Tanida, I, Tanida-Miyake, E, Ueno, T, Kominami, E (2001) The human homolog of Saccharomyces cerevisiae Apg7p is a protein-activating enzyme for multiple substrates including human Apg12p, GATE-16, GABARAP, and MAP-LC3.

Journal of Biological Chemistry 276(3): 1701-1706.

Tucker, KA, Reggiori, F, Dunn, WA, Klionsky, DJ (2003) Atg23 is essential for the cytoplasm to vacuole targeting pathway and efficient autophagy but not pexophagy. Journal of Biological Chemistry 278(48): 48445-48452.

van Blitterswijk, WJ, van der Luit, AH, Veldman, RJ, Verheij, M, Borst, J (2003) Ceramide: second messenger or modulator of membrane structure and dynamics? Biochemical Journal 369: 199-211.

Yamaguchi, F, Tokuda, M, Hatase, O, Brenner, S (1996) Molecular cloning of the novel human G protein-coupled receptor (GPCR) gene mapped on chromosome 9. Biochemical and Biophysical Research Communications 227(2):

608-614.

Yatomi, Y, Igarashi, Y, Yang, LB, Hisano, N, Qi, RM, Asazuma, N, Satoh, K, Ozaki, Y, Kume, S (1997) Sphingosine 1-phosphate, a bioactive sphingolipid abundantly stored in platelets, is a normal constituent of human plasma and serum. Journal of Biochemistry 121(5): 969-973.

(36)

Yatomi, Y, Ruan, FQ, Hakomori, SI, Igarashi, Y (1995) Sphingosine-1-phosphate – a platelet-activating sphingolipid released from agonist-stimulated human platelets. Blood 86(1): 193-202.

Yen, WL, Legakis, JE, Nair, U, Klionsky, DJ (2007) Atg27 is required for autophagy-dependent cycling of Atg9. Molecular Biology of the Cell 18(2):

581-593.

Yue, ZY, Jin, SK, Yang, CW, Levine, AJ, Heintz, N (2003) Beclin 1, an autophagy gene essential for early embryonic development, is a haploinsufficient tumor suppressor. Proceedings of the National Academy of Sciences of the United States of America 100(25): 15077-15082.

Zhang, H, Desai, NN, Olivera, A, Seki, T, Brooker, G, Spiegel, S (1991) Sphingosine-1-phosphate, a novel lipid, involved in cellular proliferation. Journal of Cell Biology 114(1): 155-167.

Zhu, JH, Horbinski, C, Guo, FL, Watkins, S, Uchiyama, Y, Chu, CT (2007) Regulation of autophagy by extracellular signal-regulated protein kinases during 1-methyl-4-phenylpyridinium-induced cell death. American Journal of Pathology 170(1): 75-86.

(37)

Figures

Figure 1

(38)

Figure 1. Brief introduction to the transformation from LC3-I to LC3-II, which is

an important marker of autophagy. LC3-I is diffuse in the cytosol under normal

conditions. When autophagy occurs, LC3-I is processed by hAtg7 and hAtg3 to form

LC3-II. LC3-II is an autophagy marker, because it has a phosphatidylethanolamine (PE)

domain and thus it can be incorporated into autophagosomes.

(39)

Figure 2

A

(40)

B

(41)

Figure 2. Sphingosine 1-phosphate induces autophagy in dosage- and

time-dependent manners in PC-3 cells. (A) After 14~16 h of starvation in RPMI 1640

medium, PC-3 cells were treated with S1P or the control in various concentrations as

indicated for 8 h. (B) Starved cells were treated with 5 µM S1P or the control for

various times as indicated. After treatment, total cell lysates were collected, and LC3

protein levels were monitored by Western blotting. These results were confirmed by at

least three independent experiments, and data from one representative experiment are

shown here. Each bar within the diagrams represents the quantified results of a

designated band on the x-ray film, and the bar values stand for the relative ratio of

LC3-II / total LC3 which are compared to control. Results are shown as the mean value

± SD. ** p<0.01, *** p<0.001, compared to the control.

(42)

Figure 3

(43)

Figure 3. Sphingosine 1-phosphate induces relocalization of EGFP-LC3 in stably

transfected PC-3 cells in a concentration-dependent manner. EGFP-LC3 PC-3 cells

were treated with S1P or control in various concentrations as indicated for 8 h after

14~16 h of serum-free starvation. After treatment, cells were fixed with 3.7%

paraformaldehyde at room temperature for 5 min and analyzed by fluorescence

microscopy. The upper left and right panels are different fields photographed from the

same coverslip. Representative images shown here were selected from several

independent experiments and photographed by confocal microscopy. Control, starvation

control; Negative control, cells incubated in complete medium. The red scale bar

represents 15 µm.

(44)

Figure 4

(45)

Figure 4. Sphingosine 1-phosphate-induced autophagy is mediated through

Clostridium difficile toxin B-, SC-560-, NS-398-, and PD98059-sensitive pathways.

Starved PC-3 cells were pretreated with Clostridium difficile toxin B (0.5 nM), SC-560

(5 µM), NS-398 (10 µM), or PD98059 (50 µM) for 1 h before the 8 h of treatment with

5 µM S1P or the control. After that, cell lysates were collected, and LC3 protein levels

were monitored by Western blotting. These results were confirmed by at least three

independent experiments, and data from one representative experiment are shown. Each

bar within the diagrams represents the quantified results of the indicated band on x-ray

film, and the bar values stand for the induction fold calculated from (ratio of LC3-II /

total LC3 in S1P-treated group) / (ratio of LC3-II / total LC3 in non-treated group).

Results are shown as the mean ± SD. * p<0.05, ** p<0.01, compared to the control.

(46)

Figure 5

A

(47)

B

(48)

C

D

(49)

Figure 5. Sphingosine 1-phosphate-induced autophagy is mediated through Rho

GTPase-, COX-, and ERK1/2-related pathways in EGFP-LC3 PC-3 cells. Starved

EGFP-LC3 stably transfected PC-3 cells on coverslips were pretreated with (A)

Clostridium difficile toxin B (0.5 nM), PD98059 (50 µM), (B) SC-560 (5 µM), or

NS-398 (10 µM) for 1 h before the 8 h of treatment with 5 µM S1P or the control. Then

samples were fixed and mounted, the EGFP-LC3 signals were analyzed by fluorescence

microscopy, and data of the images were quantified by cell counting (C and D).

Representative images shown here were all selected from the same experiment and

photographed by confocal microscopy. Each bar within the diagram represents the

results of cell counting on images photographed by fluorescence microscopy, and

results are shown as the mean ± SD. The red scale bar represents 60 µm. * p<0.05, **

p<0.01, compared to control of 10 µM S1P.

(50)

Figure 6

(51)

Figure 6. Summary of the proposed mechanisms of sphingosine

1-phosphate-induced autophagy in human prostate cancer PC-3 cells. Taking all

our results together, we propose that S1P-induced autophagy is mediated through the

S1P5-Gi/G12 pathways, and downstream signals include GTPases (Rho, Rac, and Cdc42),

ERK1/2, COX-1, and COX-2.
