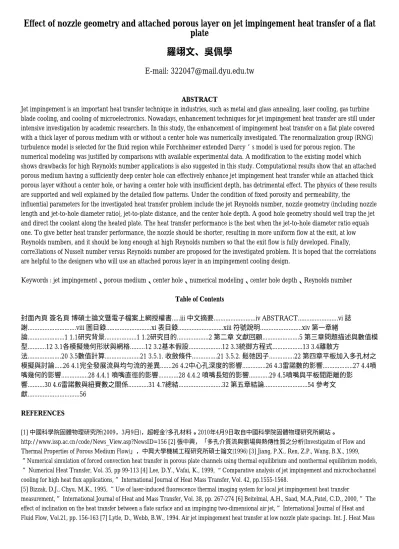

Effect of nozzle geometry and attached porous layer on jet impingement heat transfer of a flat plate
羅翊文、吳佩學
E-mail: [email protected]
ABSTRACT
Jet impingement is an important heat transfer technique in industries, such as metal and glass annealing, laser cooling, gas turbine blade cooling, and cooling of microelectronics. Nowadays, enhancement techniques for jet impingement heat transfer are still under intensive investigation by academic researchers. In this study, the enhancement of impingement heat transfer on a flat plate covered with a thick layer of porous medium with or without a center hole was numerically investigated. The renormalization group (RNG) turbulence model is selected for the fluid region while Forchheimer extended Darcy’s model is used for porous region. The numerical modeling was justified by comparisons with available experimental data. A modification to the existing model which shows drawbacks for high Reynolds number applications is also suggested in this study. Computational results show that an attached porous medium having a sufficiently deep center hole can effectively enhance jet impingement heat transfer while an attached thick porous layer without a center hole, or having a center hole with insufficient depth, has detrimental effect. The physics of these results are supported and well explained by the detailed flow patterns. Under the condition of fixed porosity and permeability, the
influential parameters for the investigated heat transfer problem include the jet Reynolds number, nozzle geometry (including nozzle length and jet-to-hole diameter ratio), jet-to-plate distance, and the center hole depth. A good hole geometry should well trap the jet and direct the coolant along the heated plate. The heat transfer performance is the best when the jet-to-hole diameter ratio equals one. To give better heat transfer performance, the nozzle should be shorter, resulting in more uniform flow at the exit, at low Reynolds numbers, and it should be long enough at high Reynolds numbers so that the exit flow is fully developed. Finally,
corre3lations of Nusselt number versus Reynolds number are proposed for the investigated problem. It is hoped that the correlations are helpful to the designers who will use an attached porous layer in an impingement cooling design.
Keywords : jet impingement、porous medium、center hole、numerical modeling、center hole depth、Reynolds number Table of Contents
封面內頁 簽名頁 博碩士論文暨電子檔案上網授權書...iii 中文摘要...iv ABSTRACT...vi 誌 謝...viii 圖目錄...xi 表目錄...xiii 符號說明...xiv 第一章緒
論...1 1.1研究背景...1 1.2研究目的...2 第二章 文獻回顧...5 第三章問題描述與數值模 型...12 3.1各模擬幾何形狀與網格...12 3.2基本假設...12 3.3統御方程式...13 3.4離散方
法...20 3.5數值計算...21 3.5.1. 收斂條件...21 3.5.2. 鬆弛因子...22 第四章平板加入多孔材之 模擬與討論...26 4.1完全發展流與均勻流的差異...26 4.2中心孔深度的影響...26 4.3雷諾數的影響...27 4.4噴 嘴幾何的影響...28 4.4.1 噴嘴直徑的影響...28 4.4.2 噴嘴長短的影響...29 4.5噴嘴與平板間距離的影
響...30 4.6雷諾數與紐賽數之關係...31 4.7總結...32 第五章結論...54 參考文 獻...56
REFERENCES
[1] 中國科學院固體物理研究所(2009，3月9日)，超輕金?多孔材料。2010年4月9日取自中國科學院固體物理研究所網站。
http://www.issp.ac.cn/code/News_View.asp?NewsID=156 [2] 張中興，「多孔介質流與劉場與熱傳性質之分析(Investigatim of Flow and Thermal Properties of Porous Medium Flow)」，中興大學機械工程研究所碩士論文(1996) [3] Jiang, P.X., Ren, Z.P., Wang, B.X., 1999,
”Numerical simulation of forced convection heat transfer in porous plate channels using thermal equilibrium and nonthermal equilibrium models,
” Numerical Heat Transfer, Vol. 35, pp 99-113 [4] Lee, D.Y., Vafai, K., 1999, “Comparative analysis of jet impingement and microchochannel cooling for high heat flux applications,” International Journal of Heat Mass Transfer, Vol. 42, pp.1555-1568.
[5] Bizzak, D.J., Chyu, M.K., 1995, ”Use of laser-induced fluorescence thermal imaging system for local jet impingement heat transfer
measurement,” International Journal of Heat and Mass Transfer, Vol. 38, pp. 267-274 [6] Beitelmal, A.H., Saad, M.A.,Patel, C.D., 2000,” The effect of inclination on the heat transfer between a flate surface and an impinging two-dimensional air jet,” International Journal of Heat and Fluid Flow, Vol.21, pp. 156-163 [7] Lytle, D., Webb, B.W., 1994. Air jet impingement heat transfer at low nozzle plate spacings. Int. J. Heat Mass
Transfer 37, 1687–1697.
[8] Lee, D.H., Song, J., Jo, Myeong Chan, 2004. The effect of nozzle diameter on impinging jet heat transfer and fluid flow. J. Heat Transfer 126, 554–557.
[9] Katti, V.V., Prabhu, S.V., 2008. Experimental study and theoretical analysis of local heat transfer distribution between smooth flat surface and impinging air jet from a circular straight pipe nozzle. Int. J. Heat Mass Transfer.
[10] San, J.Y., Huang, C.H., Shu, M.H., 1997,” Impingement cooling of a confined circular air jet,” International Journal of Heat and Mass Transfer, Vol. 40, pp. 1355-1364 [11] Shu, J.J., Wilks, G.., 1996,” Heat transfer in the flow of a Cold , two-dimensional vertical liquid jet against a hot,horizontal plate,” International Journal of Heat and Mass Transfer, Vol. 39,pp. 3367-3379 [12] Francis, N.D., Wepfer, W.J., 1996,” Jet impingement drying of amoist porous solid,” International Journal of Heat and MassTransfer, Vol. 39, pp. 1911-1923 [13] Jiang, P.X., Ren, Z.P., Wang, B.X., 1999,” Numerical simulationof forced convection heat transfer in porous plate channelsusing thermal equilibrium and nonthermal equilibrium models,” Numerical Heat Transfer,Vol. 35, pp. 99-113 [14] Jiang, P.X., Fan, M.H., Si, G.S., Ren, Z.P., 2001, ”Thermal-hydraufic performance of small scale micro-channeland porous media heat-exchangers,” International Journal of Heat and Mass Transfer, Vol. 44, pp.
1039-1051.
[15] Jiang, P.X., Wang, Z., Ren, Z.P., Wang, B.X., 1999,” Experimental research of fluid flow and convection heattransfer in plate channels filled with glass or metallicparticles,” Experimental Thermal and Fluid Science 20, pp.45-54 [16] 謝文政, 「具上限制板之紊流三維五噴射撞擊流場 數值模擬分析(Numerical Simulation and Analysis of Three-DimensionTurbulent Impinging Flow Field from Confined Five Jets)」, 逢甲大學機 械工程研究所碩士論文(1999)。
[17] 陳宗榮,「具橫向流之三維紊流雙噴射撞擊平板流場數值模擬與分析」中原大學機械工程研究所碩士論文(1997)。
[18] Jiang, P.X., Wang, Z., Ren, Z.P., Wang, B.X., 1999, “Experimental research of fluid flow and convection heat transfer in plate channels filled with glass or metallic particles,” Experimental Thermal and Fluid Science 20, pp.45-54.
[19] Wu, P.S., Hsieh, C.Y., Tsai, S.T., 2010, “Heat Transfer Enhancement of Jet Impingement on a Flat Plate Attached by a Porous Medium with a Center Cavity,” Defect and Diffusion Forum 297-301 (2010) pp. 427-432.
[20] Bhattacharya, A., Calmidi, V.V., Mahajan, R.L., 2002, “Thermophysiacl Properties of High Porosity Metal Foams,” International Journal of Heat and Mass Transfer, Vol. 45, pp. 1017-1031.
[21] Yang, Y.T., Hwang, M.L., 2009, “Numerical simulation of turbulent fluid flow and heat transfer characteristics in heat exchangers fitted with porous media,” International Journal of Heat and Mass Transfer, Vol. 52, pp.2956-2969.
[22] Sultan, K., DeGroot, C.T., Straatman A.G., Gallego N.C., Hangan H., 2009, “Thermal characterization of porous graphitic foam – Convection in impinging flow,” International Journal of Heat and Mass Transfer, Vol. 52, pp.4296-4301.
[23] Yakkatelli, R., Wu, Q., Fleischer, A.S., Experimental Thermal and Fluid Science (2010), article in press.
[24] Jiang, P.X., Ren, Z.P., 2001,” Numerical investigation of forced convection heat transfer in porous media using thermal non-equilibrium model,” International Journal of Heat and Fluid Flow, Vol. 22, pp. 102-110 [25] Lee, D.Y., Vafai, K., 1999,” Analytical characterization and conceptual assessment of solid and fluid temperature differentials in porous media,” International Journal of Heat and Mass Transfer, Vol.42, pp.
423-435 [26] Ould-Amer, Y., Chikh, S., Bouhadef, K., Lauriat, G., 1998,” Forced convection cooling enhancement by use of porous materials,”
Internation al Journal of Heat and Fluid Flow, Vol. 19, pp. 251-258 [27] Chen, Y.C., Chung, J.N., Wu, Y.F., 2000,” Non-Darcy mixed convection in a vertical channel filled with a porous medium,” International Journal of Heat and Mass Transfer, Vol. 43, pp.2421-2429 [28] Fu, W.S., Huang, H.C., 1997, “Thermal performances of different shape porous blocks under an impinging jet,” International Journal Heat and Mass Transfer 40 No. 10 (1997) pp. 2261-2272.
[29] Yang, J.H. and Lee, S.L., 1999,” Effect of anisotropy on transport phenomna in anisotropic porous media,” International Journal of Heat and Mass Transfer, Vol. 42, pp. 2673-2681 [30] Lee, S.L.,and Yang, J.H., 1997,” Modelling of effective thermal conductivity for a
nonhomogeneous anisotropic porous medium,” International Journal of Heat and Mass Transfer,Vol. 41, pp. 931-937 [31] Chen, C.Y., Wang, L., Kurosaki, Y., 2001,” Numerical simulations of heat transfer in porous media with effect of heterogeneities,” [32] Kim, S.J., Jang, S.P., 2002,
” Effects of Darcy number, the Prandtl number, and the Reynolds number on local thermal non-equilibrium,” International Journal of Heat and Mass Transfer, Vol. 45, pp. 3885-3896 [33] 吳佩學, 鄭豐嘉, 2004, “加裝挖中心孔多孔介質對平板衝擊熱傳增強的數值分析,” 中國機械工 程學會第二十一屆全國學術研討會論文集。
[34] 吳俊源, 2001, “多孔性電子散熱器應用於微處理器之散熱特性研究,” 中正大學機械工程研究所。
[35] 邱偉成, 2002, “電子多孔性散熱器熱傳特性之研究,” 中正大學機械工程研究所。
[36] FLUENT 6 User’s Guide Volume 1-4,Tutorial Guide Volume 1-2使用手冊
