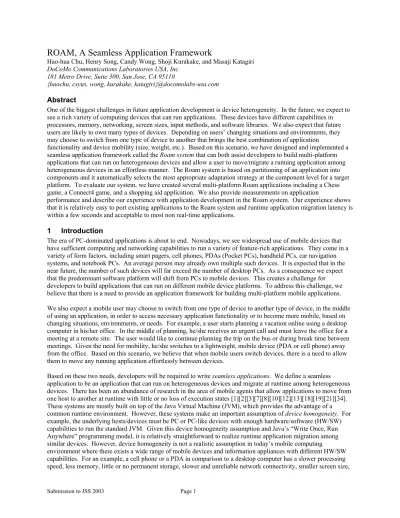

ROAM, A Seamless Application Framework
Hao-hua Chu, Henry Song, Candy Wong, Shoji Kurakake, and Masaji Katagiri DoCoMo Communications Laboratories USA, Inc.
181 Metro Drive, Suite 300, San Jose, CA 95110
{haochu, csyus, wong, kurakake, katagiri}@docomolabs-usa.com Abstract
One of the biggest challenges in future application development is device heterogeneity. In the future, we expect to see a rich variety of computing devices that can run applications. These devices have different capabilities in processors, memory, networking, screen sizes, input methods, and software libraries. We also expect that future users are likely to own many types of devices. Depending on users’ changing situations and environments, they may choose to switch from one type of device to another that brings the best combination of application
functionality and device mobility (size, weight, etc.). Based on this scenario, we have designed and implemented a seamless application framework called the Roam system that can both assist developers to build multi-platform applications that can run on heterogeneous devices and allow a user to move/migrate a running application among heterogeneous devices in an effortless manner. The Roam system is based on partitioning of an application into components and it automatically selects the most appropriate adaptation strategy at the component level for a target platform. To evaluate our system, we have created several multi-platform Roam applications including a Chess game, a Connect4 game, and a shopping aid application. We also provide measurements on application
performance and describe our experience with application development in the Roam system. Our experience shows that it is relatively easy to port existing applications to the Roam system and runtime application migration latency is within a few seconds and acceptable to most non real-time applications.
1 Introduction
The era of PC-dominated applications is about to end. Nowadays, we see widespread use of mobile devices that have sufficient computing and networking capabilities to run a variety of feature-rich applications. They come in a variety of form factors, including smart pagers, cell phones, PDAs (Pocket PCs), handheld PCs, car navigation systems, and notebook PCs. An average person may already own multiple such devices. It is expected that in the near future, the number of such devices will far exceed the number of desktop PCs. As a consequence we expect that the predominant software platform will shift from PCs to mobile devices. This creates a challenge for developers to build applications that can run on different mobile device platforms. To address this challenge, we believe that there is a need to provide an application framework for building multi-platform mobile applications.
We also expect a mobile user may choose to switch from one type of device to another type of device, in the middle of using an application, in order to access necessary application functionality or to become more mobile, based on changing situations, environments, or needs. For example, a user starts planning a vacation online using a desktop computer in his/her office. In the middle of planning, he/she receives an urgent call and must leave the office for a meeting at a remote site. The user would like to continue planning the trip on the bus or during break time between meetings. Given the need for mobility, he/she switches to a lightweight, mobile device (PDA or cell phone) away from the office. Based on this scenario, we believe that when mobile users switch devices, there is a need to allow them to move any running application effortlessly between devices.
Based on these two needs, developers will be required to write seamless applications. We define a seamless application to be an application that can run on heterogeneous devices and migrate at runtime among heterogeneous devices. There has been an abundance of research in the area of mobile agents that allow applications to move from one host to another at runtime with little or no loss of execution states [1][2][3][7][8][10][12][13][18][19][21][34].
These systems are mostly built on top of the Java Virtual Machine (JVM), which provides the advantage of a common runtime environment. However, these systems make an important assumption of device homogeneity. For example, the underlying hosts/devices must be PC or PC-like devices with enough hardware/software (HW/SW) capabilities to run the standard JVM. Given this device homogeneity assumption and Java’s “Write Once, Run Anywhere” programming model, it is relatively straightforward to realize runtime application migration among similar devices. However, device homogeneity is not a realistic assumption in today’s mobile computing
environment where there exists a wide range of mobile devices and information appliances with different HW/SW capabilities. For an example, a cell phone or a PDA in comparison to a desktop computer has a slower processing
and limited input capabilities. To address device heterogeneity, Java introduces mutually-incompatible Java 2 Micro Edition (J2ME) profiles and configurations for different classes of mobile devices. As a result, Java’s “Run Anywhere” ideal does not apply to the device heterogeneous environment.
1.1 Challenges
The focus of the Roam system is to address the device heterogeneity problem in runtime application migration.
Figure 1 shows different aspects of this problem that a Java application developer may face when developing a seamless application.
• Incompatible Java Virtual Machine (VM) Configurations & Profiles: Java provides incompatible VM configurations and profiles for different classes of mobile device. These VM configurations and profiles support different subsets of APIs that application developers can use to build applications. A device with more capable HW (e.g., more memory and faster processors) can typically support a VM with a more extensive Java class library. If an application uses APIs provided by a Java profile or configuration of a more capable platform, this application may not be able to run on less capable platforms that do not support these APIs.
• Execution State Migration: In a runtime application migration from a source device to a target device, the execution state of an application needs to be captured on the source device, transferred to a target device and restored. The application execution state includes heap, stack, network sockets, file I/O state, and other state information. Device heterogeneity brings an additional challenge in execution state migration. Given the incompatible configurations and profiles on different device platforms, application developers may choose to create multiple device-dependent implementations for an application component (e.g., one implementation for each specific device platform), or they can use an automated tool that can transform an application component into code that can be run on each platform. This means that, if an application has two different implementations (either hand-coded or transformed) on two different platforms, the captured runtime execution state on the source device may not correspond to the different implementation on the target device.
• User interface (UI): different platforms have different display sizes and input methods. A DoCoMo 503i cell phone has an approximately 120x130 pixel display and a small numeric keypad; a Compaq iPaq PocketPC has a 320x240 pixel display and a stylus; and an average notebook PC has a 1024x768 pixel display, a keyboard and a pointing device. Display size can change the presentation and layout of the GUI components. A large display (e.g., desktop PC) can accommodate big GUI components, and many GUI components can be presented at once in the same window or page. On the other hand, a small display can only accommodate highly compact GUI components, and only a few GUI components can be displayed at once. In addition, the constraints of the devices’ display sizes and input methods can affect the range of tasks that are appropriate on each platform. For example, a notebook PC or a Blackberry pager with a keyboard is suitable for performing tasks that involve text entry. On the other hand, a cell phone with only a numeric keypad is prohibitively difficult to use for tasks involving text entry.
Figure 1: Challenges for Application Migration in Heterogeneous Device Environment
1.2 General Approach
To address the challenges described in the previous section, the Roam system provides a seamless application framework for developers to build resource-aware seamless applications. By resource-aware, we mean that applications are aware of the underlying device capabilities (Java VM configuration and profile, display size, input method, memory, network, etc.), which may change when they migrate between devices. In order to migrate applications between devices with different capabilities, adaptation is needed. The Roam system utilizes the following three adaptation strategies:
• Dynamic Instantiation: An application is divided into multiple device-dependent components that perform the same function, but each component is implemented/re-implemented for different platforms. At migration time or runtime, the set of components that best fit the target device capabilities is selected for instantiation. For example, the Java VM configuration and profile supported on the target device is considered as a part of the target device capabilities in the Roam system. A developer can provide two device-dependent implementations of the same component, one for cell phones that support the Java 2 Micro Edition (J2ME) DoCoMo Java (DoJa) profile, and another for notebook PCs that support the Java 2 Standard Edition (J2SE) VM. When an application is started on or migrated to a cell phone, the Roam system dynamically instantiates the cell phone implementation.
• Offloading Computation: The Roam system allows applications to make use of distributed computing resources to run software components that are beyond the target device capabilities. These components may require a more capable Java VM, or have certain CPU, memory, or network requirements, such that it is necessary to dispatch them to remote servers that can better support these requirements. Consider an application that has a component implemented to run only on the J2SE VM. When this application is started on or migrated to a cell phone, the Roam system finds a remote server capable of running the J2SE VM and offloads that software component to that remote server.
• Transformation: The Roam system allows device-independent components to be transformed at runtime to fit the target device capabilities. It provides a device-independent GUI toolkit that a developer can use to build user interface components. At migration time or runtime, these device-independent UI components are transformed to run on the target device.
The Roam system is a framework to assist developers in building applications that can adapt to heterogeneous devices. At design time, a developer must make the decision on how to partition an application into separate components, and for each component, whether to provide multiple device-dependent implementations (M-DD), a single device-dependent implementation (S-DD), or a single device-independent presentation (S-DI). At runtime or migration time, the Roam system applies the most appropriate adaptation strategy, shown in Table 1, based on the developer’s design decision and the target device capabilities.
Adaptation Strategies Application Components Intended For Dynamic Instantiation Multiple Device Dependent
Implementations (M-DD)
Customized, High-Quality UI Components Offloading Computation Single Device Dependent
Implementation (S-DD) Application Logic Components Transformation Single Device Independent
Presentation (S-DI) UI components Table 1: Summary of Adaptation Strategies
We believe that some adaptation strategies are better suited for certain types of application components. For some UI components, we believe that transformation adaptation may be the most appropriate, given that most UI components cannot be offloaded to a remote server for execution. However, device-independent UI authoring sometimes does not result in high-quality interfaces. In these cases, multiple device-dependent UI components are developed, and dynamic instantiation adaptation is preferred. This decision is up to the UI developer. For application logic components, we believe that S-DD implementation, using offloading computation adaptation is often most suitable, because most application logic components can be offloaded to remote servers for execution.
In order to suspend and resume the execution of mobile applications across heterogeneous devices, the Roam system
restore it. Because M-DD components may be dynamically instantiated, and the implementation of each is different, execution state must be captured using a device-independent state representation, and converted into representations specific to each component implementation using execution state transformation. The Roam system requires developers to provide execution state transformation logic for M-DD components. There is no need for a developer to provide execution state transformations for S-DI or S-DD components that have a single implementation. When Roam system applies transformation adaptation to an S-DI component, it automatically generates the corresponding execution state transformation.
Another important requirement is Security. Proper security policy must be enforced to ensure that only authorized applications are allowed to migrate from one device to another.
1.3 Organization
We organize the remainder of the paper as follows: Section 2 presents the design of the Roam system, Section 3 describes its implementation, APIs and a sample application, Section 4 presents related work, and Section 5 draws conclusions.
2 Design
The Roam system architecture is shown in Figure 2. A Roamlet is an application that runs in the Roam system. A Roamlet can migrate between any two connected devices that have the Roam system running. The architecture contains three main components: Roam Agent, Roamlet, and HTTP Server. Roam agents must be installed and executed on both the source and target devices before a Roamlet can run, and before any Roamlet migration can occur. The flow for a Roamlet migration from a PC device to a PDA device is described as follows:
1. The Roam agent on the source device first negotiates with the Roam agent on the target device. The negotiation involves exchanges of the target device capabilities, the device capabilities needed by each application component, and the code base URL where the Roamlet component byte code can be downloaded from. Based on the exchanged information, the Roam agent decides the appropriate adaptation strategy for each component.
2. The Roam agent on the target device downloads the necessary Roamlet class byte code from the HTTP server for all application components that will be instantiated on the target device.
3. The Roamlet on the source device serializes its execution state and sends it to the Roam agent on the target device. The Roam agent may perform execution state transformation if an application component is transformed or dynamically instantiated.
4. The Roam agent instantiates the Roamlet on the target device.
.
Figure 2: Roam System Architecture
Roamlets are based on a component-based programming model: they are built as components that can be distributed across multiple devices, and can be composed together into a working application through well-defined interfaces.
Figure 3 shows an example of a Roamlet partitioned into three components: a GUI component with device-
independent representation (S-DI), a second GUI component with two device-dependent implementations on PC and PDA (M-DD), and an application logic component with a PC implementation (S-DD). The component-based programming model allows the Roam system to apply a different adaptation strategy on different application component, such as offloading an S-DD component to a remote device, dynamically instantiating an M-DD component of a different implementation, and transforming an S-DI component without affecting other components
HTTP Server PC (Source Device) (3) Sending
Serialized State PDA (Target Device)
Roamlet Roamlet Roamlet Classes
RoamAgent
(4) Instantiation
(2) Code Downloading RoamAgent
(1) Negotiation
in a Roamlet. This requires each component to invoke procedure calls of any other components regardless of whether they are running on remote or local hosts. In our current Roam system, the component-based programming model is built on top of Java Remote Method Invocation (RMI).
Roamlet Component-Based
Programming Model Application Migration
Figure 3: Roamlet Component-based Programming Model and Different Adaptation Strategies for Roamlet Components
Roamlets and Roam agents use resource specifications to describe the device requirements for each component implementation, and the capabilities of a host device, respectively. At migration or load time, the Roam agent can compare the device requirements from the application components with the target device capabilities and decide the best adaptation strategy for each application component. Note that components in a Roamlet may have different device requirements, so a Roamlet is required to provide a separate set of device requirements for each component implementation. The current Roam system supports specification of a limited set of device capabilities, including Java VM configuration or profile, display size and input method, as shown in Table 2. For example, device capabilities for a PC are {J2SE VM, 1024x780 pixels, keyboard & mouse}. The device requirements for the PDA implementation of the GUI component shown in Figure 3 can be {Personal Java VM, 320x240 pixels, stylus}, and the PC implementation of the GUI component can be {J2SE VM, 1024x780 pixels, keyboard & mouse}. Since the scalable GUI component has a device-independent representation, its device requirements can contain a range of capabilities.
Types of Java VM Display Sizes Input Methods
PC Device Capability J2SE 1024x780 Mouse & Keyboard
Pocket PC Device Capability PersonalJava 320x240 Stylus & Virtual Keyboard Cell Phone Device Capability J2ME / DoJa Profile 100x100 Keypad
Table 2: Specification for Device Capabilities
Application Logic Component (S-DD)
The Source Device (PC) The Target Device (PDA)
PC Implementation
GUI Component (M-DD)
PC PDA
Implementation Implementation
PDA Implementation
(a) Dynamic Instantiation
Computing Server
PC Implementation
PC PC
Implementation Implementation
Scalable GUI
Component (S-DI) (b) Offloading Computation Device-Independe t n
Representation
PC PDA
Presentation Presentation
(c) Transformation
2.1 Dynamic Instantiation
In dynamic instantiation, a developer provides multiple device-dependent (M-DD) implementations for a Roamlet component. The rule for selecting the most suitable device-dependent implementation is that the component implementation that best matches (but not exceeds) the target device capability is selected. An example of a Roamlet migrating from a PC to a PDA is shown in Figure 3 (a). The Roam agent finds that the PDA
implementation of the second GUI component exactly matches the target device (PDA) capability and instantiates it.
Using dynamic instantiation, Roamlet developers can program different Roamlet behaviors in separate code segments. At migration time the Roam system loads only the code segment that exhibits a behavior suited for the target device capability. Note that dynamic instantiation is different from programming different behaviors in the same code segment, which is not always desirable in Java. For this approach to work, the Roamlet has to be programmed to run on the least capable device (the lowest-common denominator approach) because the code segment that runs on different VM configurations and devices can only assume the most primitive API libraries provided by the least capable VM and devices. This is obviously undesirable for application programmers who would like to take advantage of rich class libraries provided by more capable devices.
The Connect4 Roamlet is a multiplatform game that we implemented to illustrate dynamic instantiation adaptation.
Its GUI component provides multiple device-dependent (M-DD) presentations, one matching the PDA device capability and one matching the PC device capability. When Connect4 is instantiated on the PC, its PC presentation is selected for instantiation [Figure 4 (a)]. When the user later migrates the Connect4 game to a PDA, its PDA presentation is selected for instantiation [Figure 4 (b)]. The PDA presentation is a scaled down version of the PC presentation with some features and buttons removed to fit the smaller PDA display size (such as “undo” and “new game”).
(a) PC Presentation (b) PDA Presentation
Figure 4: Screenshots of Multiple Device-Dependent Presentations of Connect4 Roamlet: one presentation for PC and one presentation for PDA
Dynamic instantiation creates a challenging situation, where a Roamlet is instantiated with a different
implementation on the source device from that on the target device, as shown in Figure 3 (a). The execution state of the PC GUI component on the source device does not correspond to the PDA GUI component instantiated on the target device. For example, the PC GUI component might use radio buttons to present a choice, while the PDA GUI component might use a drop-down list instead. In order to migrate the execution state of the PC GUI component to the PDA GUI component, execution state must be transformed before it can be restored on the target device (e.g., mapping the value of the radio button to the drop-down list). This state transformation logic is provided by developers.
2.2 Offloading Computation
Offloading computation allows a Roamlet to delegate the execution of computation- and memory-intensive components to any remote server that has the device capabilities to run them. Offloading computation is intended for an application component that has a single device-dependent implementation (S-DD). Figure 3 (b) shows offloading computation for an S-DD application logic component. After the Roam agent finds that the application logic component requires a PC-equivalent device, which exceeds the PDA host’s capabilities, it attempts to find a computing server (PC) where it can offload this application logic component. Both the Roamlet users and the Roam agent can specify a list of servers that can accept offloadable components. When a server is found, the Roam agent directs the application logic component to be migrated to that server. A Roam agent can apply offloading
computation to an M-DD component if none of its device dependent implementations can run on the target device.
For example, if an M-DD component has two implementations on PC and PDA and the target device is a cell phone, dynamic instantiation will fail. In this case, the Roam agent will find the most capable server on the list, and offload an appropriate M-DD component to it. The precedence rule for applying different adaptation strategies is that a Roam agent first applies dynamic instantiation adaptation to an application component. If the dynamic instantiation adaptation fails, it will apply offloading computation adaptation.
The Connect4 game in Figure 4 contains a single device-dependent (S-DD) application logic component that is offloadable. The application logic component keeps track of the state of the game and implements an artificial intelligence engine that computes the computer’s next move. Since the AI could be computationally- and memory- intensive, it requires a device with a fast processor and sufficient memory. When the Connect4 game is running on the PC, the application logic component is instantiated locally. When the Connect4 game is migrated to the PDA, the application logic component is offloaded to a computing server.
Not all components in a Roamlet are offloadable. The Roam system allows a Roamlet to specify its components as either non-offloadable or offloadable components. Non-offloadable components are required to run on the target device. For example, GUI components and security-sensitive components are rarely offloaded. If the target device does not have the capability to run the non-offloadable components, the application migration simply fails and an error is presented to the user. A Roamlet can also specify components as reverse-offloadable or non-reverse- offloadable. Consider the same example in Figure 3 (b). At a later time, the user wants to migrate the Roamlet back to the PC from the PDA. If the application logic component is reverse-offloadable, it will be pulled back from the computing server to the target PC device; otherwise, the application logic component will stay on the computing server. It is a trade-off between paying a one-time transfer cost of migrating the application logic component (in the case of reverse-offloadable) vs. the continuous cost of communicating with that remote component in a Roamlet (in the case of non-reverse-offloadable).
2.3 Transformation
Transformation is a runtime UI generation process from a device-independent representation constructed by developers at design time to device-dependent presentations. Figure 3 (c) shows transformation of a device- independent UI component into a PDA presentation when the Roamlet migrates to a PDA. To build a device- independent representation and to generate device-dependent presentations, we provide a device-independent GUI library and a runtime transformation tool, which we called the scalable GUI (SGUI) toolkit.
The design of the SGUI toolkit is shown in Figure 5. It contains three modules: SGUI library, transformation manager, and render manager. The process flow goes as follows. At design time, UI designers use widgets provided by the SGUI library to construct device independent UI presentations. At runtime, the transformation manager transforms a device-independent representation into a device-dependent presentation that satisfies the target device constraints (display size and the available input methods). The render manager displays the device- presentation on the target device.
Runtime Modules
Figure 5: SGUI Toolkit 2.3.1 Shop Hunter Application
“Shop hunter” is a hypothetical multi-platform application that helps a user to buy items anytime, anywhere. We will use the shop hunter application to illustrate transformation adaptation supported by the SGUI toolkit. The shop hunter application allows a user to input new shopping items, to view a list of shopping items, and to search for directions to nearby stores with the cheapest prices. We have prototyped a device-independent representation of the shop hunter UI using our SGUI toolkit, and applied transformation to generate device-specific presentations for notebook PCs, PDAs, and cell phones which are shown in Figure 6.
Figure 6: Shop Hunter Application
The first noticeable difference between different device-specific presentations is how the device’s displayable screen size changes the layout and pagination. The notebook PC presentation fits on one page, the PDA presentation is laid
Scalable GUI Library
Transformation Manager
Render Manager
Virtual Widget Library
Scalable GUI Events Design-Time Modules
out on three different pages, and the cell phone presentation is broken up into six pages. The second noticeable difference between the screenshots is that the “sort” UI components are different between the notebook/Pocket PC presentation and the cell phone presentation. The notebook and Pocket PC presentations use a radio button group and the cell phone presentation uses a more compact drop-down list. The third noticeable difference is that the UI components corresponding to “add shopping item” is missing on the cell phone presentation, because this task involves text entries and is therefore inconvenient on a cell phone.
2.3.2 SGUI Library
The SGUI library contains two modules: the virtual widget library and the SGUI events. The virtual widget library contains a comprehensive set of UI widgets similar to Java’s Swing library. It includes widgets such as labels, buttons, menus, text fields, scroll bars, tables, etc. The virtual widget library is implemented for each Roam- supported device platform. Since the virtual widget library is based on Swing, its APIs look very similar to Swing APIs.
The SGUI events are abstractions of user interaction events such as mouse, keypad, or stylus input. Since different device platforms support different input methods, the SGUI library describes mappings between device dependent events and abstract device-independent events. This abstraction allows UI developers to handle these events regardless of which platform a UI is running on. For example, an abstract action event associated with a button press can be generated from a mouse click on a PC, a tap from stylus on a Pocket PC, or a select-key press on a cell phone. The event is realized as a device-dependent event at runtime, and then delivered to the application.
For some applications, mapping between device-dependent GUI events to device-independent events may not always be possible due to platform constraints. For example, an application may contain an interactive map that can zoom in or out when a user clicks on a specific point in the map image. On a PC, a mouse event can be used to capture the specific location of the mouse click. However, a cell phone lacks a pointing input method; as a result, it is not possible to map an equivalent event on a cell phone. To address the need for device-dependent events, the SGUI library also retains a set of events for device-dependent input methods. This allows a scalable application to enhance its UI on a particular device platform. Since device-dependent events are generated only on some specific device platforms, they should not be used to implement any core features of UI that are expected to be available on any devices.
2.3.3 Device-Independent Representation
UI designers specify two kinds of information in the device-independent representation – task model and layout.
Figure 7 depicts the top portion of the device-independent representation for the shop hunter application. The device-independent representation has a tree-like structure. The child nodes of the root node are task nodes representing different tasks. For the shop hunter application, there are three tasks: add shopping item, view items, and search item. A task node can have sub-task nodes, and so forth. The add shopping item task contains a scalable button called update list, and logical panel A. The button is a scalable UI component instantiated from the virtual widget library. A logical panel is a presentation unit that groups related child logical panels and scalable UI widgets. A spatial layout can be specified on the relative positions of widgets and panels contained in logical panels. For the add shopping item task node, UI designers would specify that logical panel A be placed at the top, and update list button at the bottom. Logical panel A contains six smaller logical panels A1 through A6 arranged in a 2x3 grid.
Root node
View Items Task Search Item
Task
Add Shopping Item Task Logical
Panel A
Logical
Panel A1 Logical
Panel A2 Logical
Panel A6 Logical
Panel A3 Logical
Panel A4 Logical
Panel A5
Scalable Label Scalable Text Field
Scalable Button Logical Panel A
Figure 7: Device-Independent Representation for the Top Portion of Shop Hunter Application
UI designers can specify task preferences on task nodes. The task preference tells which platforms with which input methods are suitable to display this task. In the shop hunter application, a UI designer would specify the Add Shopping Item task to be suitable for displaying on notebook PCs or PDAs with virtual keyboards, but not for cell phones. As a result, UI components corresponding to Add Shopping Item task will not be displayed on cell phones as shown in Figure 6.
In addition to layout, UI designers can specify other layout properties on logical panels, such as layout priority, split-ability and title. Layout priority decides the order in which logical panels will be placed on pages. Split-ability decides if descendant nodes of a logical panel can be placed on separate pages. By default, all logical panels are not splittable. Titles of logical panels are used to create a navigation menu bar for moving between pages. For example, in the Pocket PC presentation of the shop hunter application of Figure 6, the navigation menu bar Page Selection contains the titles of logical panels as menus.
Integration of the layout structure and the task model in the device-independent representation tree poses a limitation that the task model hierarchy must not conflict with the layout structure hierarchy. It is not possible to specify a task that places its widgets in the same logical panel as widgets from another task. For example, the view items task cannot place a widget under Logical Panel A1 because it is also under Add Shopping Item task. To address this limitation, we are looking into separating the task model from the layout structure into two presentation trees similar to [6].
Note that UI designers must construct device-independent representations for both static and dynamic content. In the following sections, we explain how the transformation manager transforms a device-independent representation into a device-specific presentation.
2.3.4 Transformation Manager
The design of the transformation manager is shown in Figure 8. It contains three sub-modules: task manager, layout algorithm and widget transformation. The first step in transformation manager involves the task manager. Its job is to choose the appropriate tasks for the target device platform, and to remove widgets belonging to tasks not
appropriate for the target device platform. For example, if UI designers specify that the Add Shopping Item task in the shop hunter application is not suitable for cell phones; widgets corresponding to the Add Shopping Item task are removed by the task manager and not displayed on the cell phone presentation.
Transformation Manager
Task
Manager Layout Widget
Algorithm Transformation
Figure 8: Transformation Manager Design
The second step in the transformation manager involves the layout algorithm working with widget transformation.
Its job is to paginate the presentation into separate pages according to the layout specified by UI designers and also to meet the constraint that a page cannot exceed the target device’s displayable screen size.
2.3.5 Layout Algorithm
We define two requirements for our layout algorithm. First, the generated presentation should have reasonably high quality without requiring significant device-specific customization from UI developers. One implication of high quality and the display size constraint is that the generated presentation must fit the target display without scrolling, because scrolling generally degrades usability. Second, the algorithm must be fast, so that it does not cause significant presentation generation delay. There have been many methods on how to layout widgets for different display sizes. Some of these methods, such as the one proposed in [11], are highly computationally complex. Some methods require too much information from developers: for example, Humanoid [29] asks developers many layout- related questions before it can generate a final presentation. Among all proposed methods, TEX [9] is the most promising method in formatting two dimensional box-like GUI widgets [11] [17]. TEX allows each widget to report its desired size for positioning.
Fortunately, Java has default layout managers that are similar to TEX. Java also allows UI developers to specify the desired location of each widget through a set of predefined layout constraints. In order to meet our first requirement, we propose to have only one set of layout specification from UI developer, and this set of layout specification is used to generate layouts for other platforms. The specification is the same as the Grid Bag Layout Constraint in Java. We recommend UI developers to specify the layout according to the presentation on the largest device display, such as a presentation on a PC, for reasons detailed in Section 3.6. The layout algorithm will try to follow that specification as closely as possible when it is creating layouts for other platforms with smaller display sizes.
The general strategy for the layout algorithm is to start from the lowest nodes in the device-independent
representation tree, and then work its way up to the root node. When it encounters a non-splittable logical panel that cannot fit the display size using the specified grid bag layout, the layout algorithm applies flow layout. We choose flow layout because it is simple, and it involves minimum computation while maintaining a reasonable presentation [30]. Since using flow layout may not generate a high quality layout, it is only applied when the specified grid bag layout fails. If flow layout also fails on a non-splittable logical panel, the layout algorithm may apply widget transformation to find smaller alternative presentations. The detailed steps of the layout algorithm are described as follows:
1. The algorithm starts by finding the lowest-level unsplittable node with the highest layout priority in the presentation tree as shown in . A lowest-level unsplittable node is defined as a node whose child nodes are all widgets (or leaf nodes), and the widgets have to be placed on the same page. The goal is to try to place widgets that are assigned higher layout priorities to the first few pages, so that they are easier for users to locate. Denote v as the chosen node.
Figure 9
2. A default style corresponding to the target device platform is applied to the set of widgets under node v.
The style guide sets common properties of widgets such as font size, spacing between components, etc.
The purpose of the style is to have a consistent look across different widgets. The set of widgets under node v are laid out on a page according to the grid bag layout constraints specified by the UI developer.
The precise size of the page is then calculated.
3. If the size of page is bigger than the device display size, the page is over-filled. We apply flow layout on child nodes under v, and re-compute the page size. If the page is still over-filled, we check if the node is splittable or not. If the node is splittable, we allocate a new page to place extra widgets that cannot fit on the previous page. If the node is non-splittable, widget transformation is applied to as many child nodes under v as needed such that the flow layout can fit them on one page. If widget transformation also fails, the layout algorithm will leave some widgets out of the page and notify its users. Details on widget transformation are discussed in Section 2.3.7.
4. If the size of the page is smaller than the size of the device screen size, the page is under-filled. This means that the algorithm can accommodate additional widgets from sibling nodes of node v. The algorithm proceeds to find the highest ancestor node of node v in the presentation tree as shown in , such that using that ancestor node can pack the maximum number of widgets in a page without violating the display size. Denote the parent node of node v as PARENT(v). The algorithm tries to place the set of widgets under PARENT(v) on a page. This is done by repeating step 2, i.e., applying the current style and the grid bag layout specification to the widgets under PARENT(v). If the resulting page is still under-filled, it tries PARENT(PARENT(v)), and so forth until the resulting page becomes full.
Figure 9
Figure 9: Layout Algorithm
5. If the page is full, a new page is allocated for placing remaining widgets. The algorithm first finds another lowest level unsplittable node with the next highest task priority from the presentation tree that hasn’t been placed on any pages. This node becomes the new node v, and the algorithm goes to step 2.
6. When all nodes are processed – that is, placed on a page – the algorithm terminates.
For the shop hunter application in Figure 6, the table showing the shopping list has different device-specific presentations on Pocket PCs and cell phones. For the cell phone presentation, the table is transformed into a selection list using item names as indices. The map image is scaled down on the Pocket PC presentation and on the cell phone presentation. Techniques involving scaling images and graphic objects [31] are outside the scope of this paper.
2.3.6 Page Navigation
While the layout algorithm is automatically generating a new layout, it is also constructing a simple navigation menu bar for moving between pages. If the application already has a menu bar, the algorithm will simply add a customizable menu named “Page Selection” by default as the first menu from the left on the menu bar. If the application does not have any menu bar, a new one is created. On the Pocket PC, the menu bar always appears at the top of each page under the Page Selection menu bar as shown in Figure 6. On the cell phone, the first page is always the top-level task navigation menu. For each generated page, a menu item is created and it will be automatically added as the item of the “Page Selection Menu.” The name for each menu item is from the title property of the occupying logical panel.
highest
Full Page ancestor new v node of v
parent(v) v
lowest-level
unsplittable nodes splittable nodes scalable UI components
2.3.7 Widget Transformation
Widget transformation is the transformation from one widget, either primitive or composite, to another that consumes less space in the graphical layout. Transformation is guided by transformation rules, similar to rules in a rule-based system. Widget transformation rules are selectively applied to yield a presentation which is optimally usable given display size constraints. For example, shows the effect of a transformation rule mapping a large, composite widget containing pairs of property labels and value textfields, into a smaller composite widget containing a property list box and a single value textfield. The transformed composite widget is smaller and remains easy to use.
Figure 10
Figure 10: A Multiple-To-Multiple Transformation
Figure 10
At the core of widget transformation is an algorithm to determine which widgets to transform, and which transformation rules to apply to them.
To determine the widgets that are more acceptable to transform, developers specify which widgets are core – representing important application functionality, and which are optional – less important for use of the application.
These hints are provided for primitive widgets, as well as those that are combined into composite widgets. We prefer to transform optional widgets rather than core widgets whenever possible, so that we degrade usability as little as possible [30]; only when there are no optional widgets, or when the layout size reduction is insufficient to meet display size constraints, are core widgets transformed.
Determining the transformation rules to apply to the widgets is more complex. There are four types of transformation rule:
• One-to-One: transforms from a single primitive widget to another single widget, e.g., a rule transforming a list into a drop-down box.
• One-to-Multiple: transforms from a single widget into multiple widgets, e.g., a rule transforming a single table into multiple lists or drop-down boxes.
• Multiple-to-One: transforms from multiple widgets of the same type into a single widget, e.g., a rule transforming a group of radio buttons or checkboxes into a single drop-down list box, and a rule transforming a group of one-line textfields into a single multi-line textarea.
• Multiple-to-Multiple: transforms from multiple widgets of different types into other multiple widgets, e.g., a rule transforming a group of label and textfield pairs into a drop-down list box and a single textfield, as shown in . Note that a multiple-to-multiple rule is composed of a set of multiple-to-one rules, and a set of classic relationships described in [30].
Each of these classes of transformation rule has a priority assigned to it, corresponding to the demonstrated usability of widgets transformed by rules in the class. That is, we prefer transformation rules that tend to result in easier-to- use widgets over transformation rules that tend to result in harder-to-use widgets. One-to-one rules are preferred first, then one-to-multiple, multiple-to-one, and finally multiple-to-multiple. Note that multiple-to-multiple rules can change the UI drastically, and degrade usability, compared to one-to-one rules. Conversely, note that one-to- one rules tend to offer less space savings than multiple-to-multiple rules. Our prioritization balances this tradeoff:
we want as large – and consequently as usable – a UI as possible given display size constraints, but we accept smaller and less usable UIs as necessary.
We limit the set of transformation rules that may be applied by eliminating rules whose original widgets require
contains a J2ME DoJa button that has an action triggered on a mouse-in event, any rules transforming that button a softkey are not applicable, because softkeys do not support any equivalent to mouse-in events. The current SGUI toolkit provides a set of commonly used transformation rules. We also allow developers to add their own
transformation rules.
to
.3.8 SGUI State and Event Transformation
When an application is migrated from a device of one platform to another device of a different platform, the widgets from the source device, so there is a need to map
on and
ent device-
tion is also needed to support the same UI interaction across different device-dependent resentations. This is done by a bi-directional mapping mechanism between device-dependent events generated
agents have been installed securely and they are trusted entities. We also assume that a user pplications among his/her personal devices (not public and not shared) such as cell phones,
have applied an authenticated encryption scheme [20] that can provide both privacy nd authentication. Privacy means that application execution state is encrypted so that only the intended recipient
s vice
mber
e
mentation
system using the Java language and the Java language features: RMI, Serialization, tem currently runs on the PCs with JVM, and on Pocket PC (PDA) devices with
m provides a set of Roamlet APIs. The core class in the Roamlet APIs is called Roamlet, which all oamlets must extend. The Roamlet APIs allow a Roamlet to migrate at runtime, to be instantiated dynamically, to offload computation, or to be transformed. We describe the essential Roam APIs here.
2
presentation on the target device may use a different set of
running state between the source presentation and the target presentation. This is done by state synchronizati restoration between the running state of a device-specific widget and its corresponding device-independent widget.
These two mechanisms are supported in the SGUI library to ensure that the device-independent representation always has the most recent widget state right before and right after any migration. Prior to any application migration, the running state of a device-specific widget is synchronized with its corresponding device-independ widget. After an application migration, the running state of the device-independent widget is restored to the specific widget.
Event transforma p
from device-dependent widgets and their corresponding device-independent events generated by a device- independent widget. This mapping mechanism is supported in our SGUI library.
2.4 Security We assume that Roam would only migrate a
PDAs, and home PCs. This means that a user should know when to expect an application migration on which device and from which device.
Based on these assumptions, we a
with the correct password can decrypt it. Authentication means that the intended recipient can distinguish a legitimate application migration sent by its user from a malicious application migration sent by other users. Roam’
security works as follows. At the start of the application migration, the Roam agent running on the source de prompts the user for a password. This password is a one-time password that is valid only for one application migration. At the same time, it will also generate a one-time number called a nonce. The only requirement for the nonce is that it is a new number for each application migration. The nonce can be generated from a random nu generator or a simple counter that increments each time it is used. Based on the one time password and nonce, the application execution state is encrypted as ciphertext. The ciphertext is sent together with the cleartext nonce to the target device. On the target device, the Roam agent asks the user for the same password that was used to encrypt th ciphertext on the source device. Based on the password and the nonce, the Roam agent can decrypt the ciphertext to get the application execution state. If the password used in decryption does not match the password used in
encryption, the authenticated encryption algorithm returns “INVALID” to the Roam agent and the migration request is denied.
3 Imple
We have implemented the Roam and Reflection. The Roam sys
Personal Java VM. In the future, we are planning to port the Roam system to other Java virtual machines with RMI and Serialization. The total code size of the Roam system is approximately 15,000 lines, with 8,500 lines in the SGUI toolkit.
The Roam syste R
3.1 Roamlet Runtime Migration API
The runtime migration API is encapsulated in a class called Roamlet shown in Figure 11. All Roamlets must extend the class Roamlet. A Roamlet calls the migrate() method to be dispatched to a target device specified by the
hostname parameter. The Roam agent calls the Roamlet’s onInitialization() method when it is first instantiated on a Removal() method before it is removed from the source device, and
String hostname);
public synchronized boolean onInitialization();
rgs, String codebase);
};
device. The Roam agent calls the Roamlet’s on
after it migrates successfully to a target device. The Roam agent calls the Roamlet’s onArrival() method when it arrives at the target device. A Roamlet calls the exit() method to remove itself from the Roam system. The
instantiate() method is called to instantiate a Roamlet on a local host. After a Roamlet is instantiated on a device, the Roam agent creates a separate thread to run it.
public abstract class Roamlet implements Serializable { public Roamlet(Object[] args);
public synchronized final void migrate(
public synchronized boolean onRemoval();
Arrival();
public synchronized boolean on public synchronized boolean exit();
bject[] initA static final void instantiate(String className, O
Figure 11: Roamlet Runtime Migration API R
A oamlet can describe its components using the API shown in Figure 12. A Roamlet calls addComponentDesc()
to add a component descriptor, Roam nts. RoamletComponentDesc
ib , M-DD, S-DD, or S-DI), the class name of this component, the
name), and a list of possible implementations for this
implDesc[]);
3.2 R
oamlet Component Description API
letComponentDesc, for each of its compone descr es the type of component (type which can be
class name of the component to be instantiated (class
component. Each implementation of a component is described in a separate ImplDesc, which contains the class name (classname) of the implementation and the device requirement for this implementation (req).
public abstract class Roamlet implements Serializable {
… // from Figure 11
public synchronized boolean addComponentDesc(RoamletComponentDesc desc);
};
public class RoamletComponentDesc {
public RoamletComponentDesc(String classname, ComponentType type, ImplDesc };
public class ImplDesc {
public ImplDesc(String classname, DeviceRequirement req);
};
3.3 he
GUI API
Figure 12: Roamlet Component Description API S
T SGUI library provides four packages ( , , , and ) for UI developers. The sgui
package provides virtual widgets th prefix S, such as SButton,
, SLabel, etc. The sgui.event package provides device-independent events with S prefix, such package provides device-specific events, such as SMouseEvent. UI developers
riority, whether it can be paginated across multiple pages, and whether it represents core or optional features.
sgui sgui.event sgui.dd.event sgui.ir similar to widgets available in the Swing library wi SCheckbox, STextfield
as SActionEvent. The sgui.dd.event
follow the Java 2 event model to add SGUI event listeners and specify actions upon the reception of SGUI events.
The sgui.ir package provides APIs for constructing a device-independent representation. One of the core classes is the LogicalPanelNode shown in Figure 13. It has an add() method to add virtual widget and logical panels as its child nodes. A LogicalPanelNode can specify a list of properties, such as layout constraint, task preference, layout p
Figure 13: Sample APIs for constructing device-independent representation 3.4 Chess Roamlet
We have taken a Jav a Roamlet. The
ultiplayer mode where two users play against each other, and computer mode where a elligence (AI). The mobile environment is setup as in Figure 14: a Pocket PC device
Figure 14: Experimental Setup of Chess Roamlet
let contains the following components:
• An application logic component is implemented as an offloadable device-dependent component (S-DD). It runs an AI engine that calculates the computer’s next move by building a search tree, which is both
device requirement of a PC.
• A GUI component is implemented as a non-offloadable device-independent component (S-DI) using the
• ent component with two
a-based Chess game that is freely available on the Internet and rewritten it as Chess game has two modes: m
user plays against artificial int
running Personal Java VM, a notebook PC running a standard J2SE VM, and they are both connected by an 802.11 wireless LAN. The user starts the Chess game in computer mode on the notebook PC and then migrates it to the Pocket PC. There is a third device, a desktop PC, acting as the remote server where ponent can be offloaded to.
The Chess Roam
Computing Server J2SE VM
the AI com
computationally and memory intensive. It has a
SGUI library. It draws a player board that holds both a chessboard and chat/message boxes where two players can send messages to each other.
A second GUI component is implemented as a non-offloadable device-depend
implementations (M-DD). These two implementations have two different sets of images showing chess pieces, the set for the PC presentation has larger images than that of the Pocket PC presentation.
Notebook PC J2SE VM
Pocket PC Device Personal Java VM
WLAN Access Point Application Migration - sgui.SComponent
|
+ - (device-independent widgets: SButton, SCheckbox, STextfield, SLabel, SPanel, etc) public class LogicalPanelNode extends Node {
boolean[] taskPreference, ority,
public add(Node node);
}
public LogicalPanelNode(NodeGridBagLayoutConstraint layoutConstraint, int layoutPri
boolean splittability, boolean coreFeature);
The Che
migrates C
resentation shown on the right side of Figure 15. Since the player board is too large for the Pocket PC’s display, ows een
The Chess gam asked third
party developers, who are new to Roamlet programming, to rewrite the Chess game as a Roamlet using SGUI
y t most of the efforts in rewriting the Chess
s to arate
s om code that converts Java objects into Roamlet components, and the second (M-DD) GUI component that
is nd in
nted
the target device, to the moment when the Roamlet is ompletely restored on the target device. We have measured latency for both Connect4 and Chess games migrating
ss game in computer mode with PC presentation is shown on the left side of Figure 15. When the user the Chess game to the Pocket PC, the first (S-DI) GUI component is transformed into the Pocket P p
SGUI layout algorithm paginates it into two pages. The first page shows the chessbo he second page sh chat and message boxes. A page navigation menu is added to the right of the menu bar for users to switch betw two pages. The M-DD GUI component tiated with the Pocket PC presentation and it loads the smaller set of images for chess pieces. The application logic component is off-loaded to the computing server.
ard, and t is instan
e was originally implemented to run on the PC using Java AWT GUI library. We have Figure 15: Screenshots of Chess game on Notebook PC and Pocket PC after Migration 3.5 Experience on Development Effort and Performance
user1
librar . The experience from the third party developers have told us tha
application fall into the following three categories: (1) modularizing an application into application logic components and GUI components, and converting them into Roamlet components, (2) porting GUI component use the SGUI library, and (3) adding multiple device-specific GUI components for platforms that are not supported by the original Chess application. Their experience also told us that it is relatively straight-forward to sep
application logic components from UI components in a well-written Java application. The difficult part is to decide the type (S-DI, S-DD, or M-DD) for each component. Finally, their experience told us that, since our SGUI library follows Java Swing library, porting AWT components to use SGUI components is relatively straightforward.
The original Chess game has approximately 7,900 lines of code. After the converting it into a Roamlet, it has approximately 9,000 lines of code, which is about 14% increase in code size. Most of the additional code come fr
supports the Pocket PC presentation. This shows the tradeoff between development cost and UI quality. That device-dependent UIs in general have higher quality, but developers need to create multiple device-dependent presentations for different platforms, resulting in increased application code size. This tradeoff can also be fou the Connect4 game. When its UI component has two device-dependent implementations for PC and PDA, the code size is approximately 1,200 lines. The code size is reduced to 1,100 lines when its UI component is re-impleme as a device-independent component using SGUI library.
We have measured migration latency of application migration. Migration latency is defined as the elapsed time from the moment the user accepts the migration request on
c
from a notebook PC (Intel Pentium III-800 CPU running Windows XP) to a Compaq iPAQ H3870 Pocket PC (StrongARM 206 MHZ CPU running Linux) and vice versa. We divide the migration latency into two parts: (1) context transfer time is the time for saving the execution state on the source device, sending and restoring it on the
target device, and (2) GUI transformation time is the time for transforming a device-independent GUI compone into a target device-specific presentation. The measurements are shown in Table 3.
Migration Latency
nt
Notebook PC to Pocket PC t P
Applications Pocke
ut algorithm is computationally intensive and igration is from a Pocket PC to a notebook P
C to Notebook PC Context Transfer Time Transformation Time Context Transfer Time Transformation Time
Chess 4.9 seconds 10.2 seconds 4.2 seconds 1.1 seconds
Connect4 2.8 seconds 6.4 seconds 1.2 seconds 1.4 seconds
N/A 3.7 seconds N/A 0.9 second
e 3: Migratio easuremen
easurements ow th ime domina tion l tion is from
Shop Hunter
Tabl n Latency M ts
M sh at transformation t tes the migra atency when migra a notebook
PC to a Pocket PC, because the layo it runs the target device which is a
slower Pocket PC. However, when m C, the context transfer time
.7
e Roamlet applications shows that SGUI toolkit can generate consistent orms. There are three aspects of consistencies: task consistency, layout
nsistency. Task consistency means that, unless the developers specify that some cy acent to
n improve rporating device-specific navigation models rovided by SGUI toolkit or explicitly specified by UI developers. To generate better page navigation, the
tems
[10] is one of the most well-known Java-based agent systems. It provides a Java development toolkit and libraries for building
le ne computer to another. Like Roamlet, Aglets do not require any modifications dominates the migration latency. This is due to serialization of the Roamlet execution time on a slow Pocket PC.
For the shop hunter application, transformation is offloaded to a PC. Measurements show that the transformation manager takes less time to generate a presentation for a bigger display (0.9 second) than for a smaller display (3 seconds). The reason is that generating a presentation for a smaller display is likely to involve testing different paginations and transformation rules.
3.6 End-User Usability Our limited experience on the availabl presentations across different platf consistency, and transformation co
tasks are not appropriate on certain platforms, all tasks will be presented across all platforms. Layout consisten means that, if UI components are laid out next to each other on one platform, they are likely to be found adj
each other or on adjacent pages on other platforms. Transformation consistency means that users can expect similar transformations to be applied to same type of UI components across applications. We believe that these
consistencies contribute to better learnability of applications.
Our simple page navigation menu works only for simple UIs but not complex UIs. We believe that we ca the usability and efficiency of generated page navigation by inco
p
navigation model should consider interactions and relation between tasks and device’s input methods.
4 Related Work
We divide the related work into two parts: mobile agent systems and multi-platform user interfaces.
4.1 Mobile Agent Sys
There has been an abundance of research work in the area of migrateable mobile agent systems. Aglet mobi agents that can move from o
to the Java VM. An Aglet is shielded through an Aglet Proxy, which protects the Aglet from unauthorized access.
Aglets run in an execution environment called AgletContext, which is like the Roam agent. However, Roamlets differ from Aglets in that Roamlets assume a heterogeneous device environment, whereas the Aglet assumes a homogeneous PC or PC-equivalent environment. Furthermore, the Roam system implements dynamic instantiation and computation apportioning to address the device heterogeneity problem. We have found similar Java-based agent systems in Jumping Beans [1], MOA [12], Concordia [13], Voyager [18], Mole [21] and Telescript [34].
Voyager is a commercial product by ObjectSpace, and it incorporates features of mobile agents and mobile objects into the ORB and COBRA. MOA performs resource management on migrateable applications as to what system resource they can use on the target device, and it also supports migrateable communication channels (the externa running state) so that running communication channels can migrate with the rest of the applications. There are also similar but non-Java-based agent systems, e.g., AgentTcl [8].
l
Fünfrocken [7] and Ara [19] describe ways to achieve strong migration for Java applications. Strong migration means that the call stack, which is a part of the thread state that is not serializable, can also be migrated. Fünfrocken
ses a preprocessor that adds code to capture and to restore the state of the program stack at various execution ge
rce monitor watches the level and uality of the system resources, and provides updates to the applications either continuously or on-demand.
m, vice
y have described several research challenges, e.g., device-specific ndering and application apportioning, which are similar to the problems that the Roam system is addressing.
In model-base systems such as Humanoid [28], ITS [33], UIDE [22], and Mickey [16], UI designers would use a
vel models that describe what UI should be. The model-base tract
ing a
at tation model, and task model. The latform model allows the UI designers to specify platform constraints that the UI generation must follow, such as
,
interaction tasks, and application tasks. Each task is related to each other via a set of temporal lationships such as enabling, deactivation, and iteration. The ConcurTaskTree is generally accepted to be a
s rn e can
UI details, the quality of generated UI, and the time eeded for UI designers to learn and construct models. Our SGUI toolkit combines the model-based approach with the benefits of traditional widget-based UI programming, as a solution to some of these issues. Programming with u
points. Ara proposes modifications to the JVM interpreters. Since thread state migration is not a specific challen for heterogeneous device, the Roam system supports only weak mobility.
Sumatra [2] is an extension of Java that supports resource-aware migrateable mobile applications. Sumatra’s resource-awareness is based on a monitor-feedback-adaptation loop. A resou
q
Applications can then adapt based on the resource updates, e.g., migrating some threads to remote devices to perform the computation. Sumatra is focused on building adaptive applications in the PC or PC-equivalent device environment, and adaptation is based on runtime resource level and quality. This is different from the Roam syste which is focused on adaptation in a heterogeneous device environment. Roamlets adapt according to target de capability at migration time and load time only.
We have found parallel and ongoing research efforts at IBM [3]. The IBM researchers have proposed a new application model for pervasive computing. The
re
4.2 Multi-Platform User Interfaces
The model-based approach offers an attractive alternative to build a high-level tool for multi-platform UIs [27].
declarative language to specify abstract and high-le
system would automatically generate low-level UI executable code. The model-based technique can be exploited for multi-platform UI generation. For example, UI designers can specify the high-level models using AIOs (abs interactive objects), which are device-independent objects. The AIOs are mapped to device-dependent CIOs (concrete interactive objects) supported by the target platform UI library. This AIO-CIO selection technique has been illustrated in model-based systems for purposes other than multi-platform UI generation. For example, Humanoid uses a “replacement hierarchy” for selecting the most appropriate presentation template for display semantic object. UIDE contains constraints on how to select the most appropriate interface actions to represent application actions specified by the UI designers in application models.
In recent work, RedWhale software [5] [6] employs the model-based approach by introducing abstract models th specifically target multi-platform UIs. It is comprised of platform model, presen
p
device screen sizes, input methods, etc. The presentation model specifies the visual appearance of the generated UI which may include the layout of the UI components and the mapping between AIOs and CIOs. The task model specifies the decomposition of big tasks into smaller sub-tasks. The device-dependent UI generation is based on all three models.
Another recent model-based work is Paternò et al’s ConcurTaskTree [35]. Its task model contains user tasks, abstract tasks,
re
powerful task model to construct UIs. However, it is mainly targeted to single platform UIs. If we try to apply ConcurTaskTree to generate multiplatform UIs, all UIs will have the same interaction pattern as the interaction task are tightly coupled in the model. However, devices such as cell phones and PDAs have distinctive interaction patterns. To solve this problem, our device-independent representation only has user tasks. The interaction patte information is expressed as properties of the task, e.g. task preference, or as platform-specific interaction models that would interact with the task model. The latter expression will be our future work. With our task model, w easily customize the interaction pattern for each platform.
Although the model-based approach is an attractive technique for creating scalable GUI tools, it has usability and authoring issues [14] such as loss of fine-grained control of
n
