一個強健式模糊群聚以及新式模糊建模方法的整合與加強之研究

行政院國家科學委員會專題研究計畫 成果報告

一個強健式模糊群聚以及新式模糊建模方法的整合與加強 之研究

研究成果報告(精簡版)

計 畫 類 別 ： 個別型

計 畫 編 號 ： NSC 98-2221-E-011-118-

執 行 期 間 ： 98 年 08 月 01 日至 99 年 07 月 31 日 執 行 單 位 ： 國立臺灣科技大學電機工程系

計 畫 主 持 人 ： 楊英魁

計畫參與人員： 碩士班研究生-兼任助理人員：吳姿嫚 碩士班研究生-兼任助理人員：陳冠禹 博士班研究生-兼任助理人員：方偉力

報 告 附 件 ： 出席國際會議研究心得報告及發表論文

處 理 方 式 ： 本計畫可公開查詢

中 華 民 國 100 年 01 月 04 日

1

行政院國家科學委員會補助專題研究計畫成果報告

※※※※※※※※※※※※※※※※※※※※※※※※※

※ ※

※ 一個強健式模糊群聚以及新式模糊建模方法的整合 ※

※ 與加強之研究 ※

※ ※

※※※※※※※※※※※※※※※※※※※※※※※※※

計畫類別：

個別型計畫 □整合型計畫 計畫編號：NSC 98-2221-E-011-118

執行期間： 98 年 8 月 1 日至 99 年 7 月 31 日

計畫主持人：楊英魁 共同主持人：

本成果報告包括以下應繳交之附件：

□赴國外出差或研習心得報告一份

□赴大陸地區出差或研習心得報告一份

□出席國際學術會議心得報告及發表之論文各一份

□國際合作研究計畫國外研究報告書一份

執行單位：國立台灣科技大學

中 華 民 國 99 年 12 月 5 日

行政院國家科學委員會專題研究計畫成果報告

計畫編號：NSC 98-2221-E-011-118 執行期限：98 年 8 月 1 日至 99 年 7 月 31 日

主持人：楊英魁 國立台灣科技大學 電機工程研究所

一、中文摘要

在實際應用系統的取樣資料中，由於 各種因素影響，常常使得取樣資料中存有 一般雜訊(noise)或大誤差(outlier)的資 料。若將這些雜訊或大誤差資料直接使用 在系統行為函數的建模上，往往使得所建 立的系統模式與實際的系統行為產生很大 的誤差，這種現象稱為「過度適應」

(overfitting)。

為了解決這個問題，本研究提出一個 非監督模糊建模方式，可直接由具有雜訊 及大誤差的輸入-輸出取樣資料中擷取模 糊規則，以建立系統行為的近似函數。所 提方法主要有兩個特色：(1) 提出一個強健 式 fuzzy c-means(RFCM)演算法，以降低雜 訊及大誤差的影響。(2)提出一個模糊資料 篩選器(FDS)，可尋找資料轉折特徵點，藉 以將一個非線性系統分割成片段的子系統 組合。因此，可以建立起一個較少規則及 較少誤差的 Takagi and Sugeno 模糊模式。

關鍵詞：模糊群聚，函數趨近，強健式，

模糊建模，雜訊，大誤差 Abstract

Due to influence of various factors, the sampling data used for system modeling often include various kinds of noise and outliers. If such sampling data is directly being used to model a system, there will be a big difference, named overfitting, on the system behavior between the resultant modeled system and the actual system.

To overcome this problem, this proposal presents an unsupervised fuzzy model construction approach to extracting fuzzy rules directly from numerical input–output sampling data mixed up noise and outliers for nonlinear systems. There are two core ideas in the proposed method: (1) The robust fuzzy c-means (RFCM) algorithm is proposed to greatly mitigate the influence of data noises and outliers; and (2) A fuzzy-based data sifter (FDS) is proposed to locate good turning-points to partition a given nonlinear data domain into piecewise clusters so that a Takagi and Sugeno fuzzy model can be constructed with fewer rules and less errors.

Keywords: fuzzy clustering ， function approximation，robust，fuzzy modeling，

noise ， outlier, fuzzy clustering, pattern classification, data distribution, feature weight

3

二、緣由與目的

近年來，在科學應用上，對一個未知 的系統使用不明確知識建模(modeling)一 直是非常重要的研究課題，而類神經網路 (neural network) 和 模 糊 理 論 (fuzzy theory)常常是這些不明確知識建模最常 被使用的方法。這些建模的方式大都以系 統 的 輸 出 與 輸 入 的 取 樣 資 料 分 析 (sampling data analysis)作為基礎，並 嘗試為系統的行為建立其工作模式或是系 統 行 為 的 近 似 函 數 (approximate function)，並將系統的取樣資料作為所建 立模式的訓練樣本，用來調整系統模式的 參數，希望所建立的系統模式更能近似系 統的行為函數的要求。但是，在實際應用 系統的取樣資料中，由於系統的環境影 響、使用取樣的儀器或取樣的方法等因 素，常常使得取樣資料中存有一般雜訊 (noise)或大誤差(outlier)的資料。若將 這些雜訊或大誤差的資料直接使用在系統 的行為函數建模上，往往使得所建立的系 統模式與實際的系統行為產生很大的誤 差 ， 這 種 現 象 稱 為 「 過 度 適 應 」 (overfitting)。因此，在系統的建模過程 中，如何將雜訊或大誤差資料的影響降至 最低，誠屬系統建模中重要關鍵因素之一。

在系統建模的領域中，強健式學習 (robust learning)便是為了將雜訊或大誤 差資料的影響降到最低的方法之一。目前 大部分的強健式學習的演算法在學習的過

程中，都對目標函數(objective function) 加 入 調 整 函 數 (tuning function)( 例 如 loss function)，使得在系統的學習過程 中對雜訊或大誤差資料的影響降低。但此 種方法最大的問題是不知道那些資料點是 正確的資料點，那些點是具有大誤差的資 料點，使得強健式學習的結果產生誤差。

雖然在目標函數中加入調整函數的方法常 被拿來用在具有大誤差取樣資料的系統建 模上，但是這些方法仍然存在著問題。其 中最重要的是它的強健式學習演算法的初 始狀態必須小心的選擇，其主要的問題是 不知道那些資料點是正確的資料點，那些 點是具有大誤差的資料點，使得這些估測 (estimate)大誤差的資料點的調整函數可 能產生錯誤的結果。所以，當選擇到一個 不適合的模式初始狀態時，這些方法的調 整函數將無法正確的辨識大誤差的資料 點，以至於某些大誤差資料點被認為是真 正的資料點，某些真正的資料點被認為是 大誤差點，因而造成所建立的模式不符合 系統的行為模式。因此，本研究在建模過 程中，先利用非監督式群聚演算法對一群 具有雜訊的系統取樣資料找出資料的初始 群聚中心，再利用群聚間距離的計算修正 大誤差的資料點在學習過程中的影響，而 不需辨認取樣資料中真正的資料或大誤差 點，以避免上述調整函數的影響。

因此，本研究希望提出一種新的模糊 建模方式，藉以建立系統行為的近似函 數。此種建模方式乃基於資料分析(data

analysis)的技巧，在不需要指定大誤差的 的資料點下，將資料的雜訊及大誤差的的 資料點降低其影響程度，並可以不需事先 指定歸屬函數及規則的個數前提下，即能 將資料依照其分佈(distribution)的特徵 自動分成不同的群聚，並以此群聚為基 礎，為系統的行為模式建立近似函數，並 將降低雜訊及大誤差的影響後的資料點，

作為所建立模式的訓練樣本，以調整系統 行為的近似函數參數，如此可使得所建立 的系統模式更符合系統的行為函數。

三、研究結果與討論

本研究的主要目的在於提出一個 強健式(robust)的演算法，將取樣資料點 的雜訊及大誤差的影響減到最低，以得到 一組足以代表系統行為的資料點，再以這 些資料點作為模糊建模過程中所需的取樣 資料，以建立系統行為的近似函數。

在過去的二、三十年來，模糊建模被 成功的應用在複雜系統的建模上。模糊系 統依照知識庫的結構可分為語言式的模糊 模式(linguistic fuzzy models)、模糊關 係 模 式 (fuzzy relational models) 及 Takagi-Sugeno 模 糊 模 式 (TS model) 三 種。其中 TS 模糊模式將系統的輸入空間分 割成多個子空間(subspace)，這些子空間 被視為一個描述線性或非線性系統的群 聚。當取樣資料點的雜訊及大誤差的影響 減到最低後，如何有效的建立一個好又正

確的系統模式成為主要的課題。對此，本 研究的目的是提出一個新的建構 TS 模糊模 式方法以解決具有雜訊及大誤差的非線性 系統函數近似問題。為了使用 TS 模糊模式 建立系統的行為模式，將分析所獲得代表 系統行為模式的群聚中心，以產生群聚中 心的轉折點(turning point)。所謂轉折 點，代表系統行為模式的區域最大點或區 域最小點。在 TS 模糊模式中，每一條規則 的後件部代表系統行為模式的輸出可以用 系統輸入變數的線性組合加以描述，而轉 折點代表系統行為模式輸出的區域最大點 或區域最小點。因此，利用轉折點作為系 統的切割依據，即可將系統切割成線性子 群聚的組合，每一個群聚以一條 TS 模糊模 規則來表達。為計算系統行為模式群聚中 心的轉折點，本研究使用一個具有模糊型 樣比對滑動窗(slip window)的模糊資料篩 選器(fuzzy–based data sifter)計算群 聚 中 心 符 合 峰 值 (peak value) 及 谷 值 (valley value) 特 徵 的 符 合 程 度 (match degree)，將符合程度值較高的群聚中心點 作為系統建模時切割的依據，這些符合程 度值較高的取樣點稱之為轉折點。一個群 聚 中 心 點 若 是 具 有 峰 值 特 徵 點 (characteristic)，代表此點為系統群聚 中心點中的區域最大點(local maximum)，

相反地，一個群聚中心點若是具有谷值特 徵點，代表此點為系統群聚中心點中的區 域最小點(local minimum)。所以峰值及谷 值特徵的轉折點代表系統取樣資料分佈趨

5

勢，也代表是最佳的系統分割點。因此可 利用這些轉折點將系統分割(partition) 成多個群聚，然後對每一個群聚做線性迴 歸分析(linear regression analysis)，

以獲得足以代表每一個群聚的局部線性近 似 (approximate) 迴 歸 參 數 (regression parameter)。再將分割完成的每一個群聚 的迴歸參數，代入 TS 模糊模式，每一個群 聚用一條規則表示。在系統分割的過程 中，以目標系統的輸出值與模式輸出值間 的誤差值的大小決定是否將系統繼續分割 為更小的子空間的依據。當系統分割完 畢，即初步(rough)的建立起目標系統的模 糊初始模式(initial model)。最後，利用 梯度下降法(gradient descent algorithm) 對這個 TS 模糊初始模式的參數做細調，即 可對系統行為函數建立一個有效又正確的 TS 模糊模式。

為了解決這個問題，本研究提出一個 非監督模糊建模方式，可直接由具有雜訊 及大誤差的輸入-輸出取樣資料中擷取模 糊規則，以建立系統行為的近似函數。所 提方法主要有以下幾個重要步驟。

1. 首先提出一個以模糊距離關係為基礎 的非監督式群聚演算法，此演算法對 具有雜訊及大誤差的系統取樣資料找 出初始群聚中心。該演算法將每一個 取樣資料點視作一個群聚中心，並利 用群聚間的距離遠近修正這些群聚中 心，使得彼此距離較近的群聚慢慢相 互靠近，最後，同一個群聚的資料點，

所代表的群聚中心會收斂到一個點 上，該點即為該群聚資料點的中心。

2. 提出一個強健式模糊C-Means 演算法 (RFCM, robust FCM)以降低雜訊及大 誤差資料的影響。RFCM以非監督式群 聚演算法所產生的群聚中心為資料初 值，並以平滑曲線觀念，降低大誤差 資料點的影響。希望由此方法所找出 系統的行為曲線能更接近真實曲線。

且採用本方法不需要事先設定群聚的 數目，所以本法更適合用在對某些無 法事先預知群聚數目的系統模式建 立。

3. 為建立函數的近似行為，本研究提出 新的建構TS模糊模式方法以解決具有 雜訊及大誤差的非線性系統函數近似 問題。為了使用TS模糊模式建立系統 的行為模式，提出一個模糊資料篩選 器(Fuzzy-based Data Sifter, FDS) 以計算群聚中心的轉折點，並以此轉 折點作為系統切割的依據，將系統切 割成線性子群聚的組合。FDS是一種具 有模糊型樣辨識能力的篩選器，以滑 動窗的方式，每次從群聚中心所構成 的資料流中，選取m個群聚中心作為資 料點，以峰值及谷值兩個特徵型樣，

利用模糊理論的觀念計算每個資料點 滿足峰值及谷值特徵型樣的歸屬值。

某一個群聚中心點滿足峰值或谷值特 徵型樣的歸屬值愈高，代表該群聚中 心點符合區域最大點或區域最小點的

特徵愈高，該點即可當作系統的切割 點，當系統切割時，依群聚中心點的 歸屬值，由大到小依序取出作為切割 的依據。這些轉折點將系統分割成線 性子群聚的組合，因此，每一個子群 聚的輸入-輸出關係可用一個線性方 程式表達，亦即，一個子群聚可以用 一條TS模糊模式規則來描述。

當系統切割完後，即使用線性迴歸方 法來計算每一個子群聚的輸入-輸出的線 性迴歸參數，再以此參數建立系統的 TS 模 糊模式。由於是使用由 RFCM 所得的群聚中 心作為訓練資料，所產生的參數受到雜訊 及大誤差資料點的影響已被排除或很小。

本研究將 RFCM 所得的群聚中心作為訓練資 料，以梯度下降法來細調 TS 模糊模式的參 數，以獲得更近似系統行為函數的參數。

四、未來應用方向

1. 在本計畫的研究中，提出一個強健式 模糊群聚演算法，對於文字外型分析 時，可以找出足以代表文字字型的骨 架。因此，未來可延續這個成果，用 在字型辨識及圖形識別的研究上。

2. 將本計畫的理論繼續發揚光大，以適 用在資料探勘(data mining)、知識管 理(knowledge management)、控制等 領域上。

五、重要參考文獻

[1] George J. Klir and Bo Yuan, Fuzzy Sets and Fuzzy Logic ： Theory and Applications, Prentice Hall Inc.,New Jersey, 1995.

[2] V. Boskovitz, H. Guterman, “An adaptive neuro-fuzzy system for automatic image segmentation and edge detection, ” IEEE Trans. On Fuzzy Systems, vol. 10, pp. 247 -262 , Apr. 2002.

[3] N. Li, Y.F. Li, “Feature encoding for unsupervised segmentation of color images ” IEEE Trans. On Systems, Man, and Cybernetics, Part B, vol. 33, no. 3, pp. 438 –447, Jun. 2003.

[4] S. Eschrich, Ke Jingwei, L.O. Hall, and D.B. Goldgof, “Fast accurate fuzzy clustering through data reduction” IEEE Trans. On Fuzzy Systems, vol. 11, no. 2 , pp. 262 –270, Apr. 2003.

[5] C. Stutz, T.A. Runkler, “Classification and prediction of road traffic using application-specific fuzzy clustering”

IEEE Trans. On Fuzzy Systems, vol. 10, no. 3 , pp. 297 –308, Jun. 2002.

[6] N.R.Pal, J.C.Bezdek, “On cluster validity for the fuzzy c-means model,” IEEE Trans. On Fuzzy Systems vol. 3, no. 3, pp.

370-379, Aug. 1995.

[7] A.M. Bensaid, L.O. Hall, J.C. Bezdek, L.

P. Clarke, et al. “ Validity-guided (re)clustering with applications to image segmentation, ” IEEE Trans. On Fuzzy Systems, vol. 4, no. 2, pp. 112-123, May 1996.

[8] C.C.Lee, “Fuzzy logic in Control Systems : Fuzzy logic controller, part I&II,” IEEE Trans. on Systems, Man, and Cybernetics, vol.20, no.2, pp.404-435, Mar./Apr. 1990.

[9] M. Sugeno, “An introductory survey of

7

fuzzy control,” Information Sciences, vol. 36, no. 1/2, pp. 59-83, 1985.

[10] T. Takagi and M. Sugeno, “ Fuzzy identification of systems and its applications to modeling and control,”

IEEE Trans. on Systems, Man, and Cybernetics, vol. 15, pp. 116-132, Jan./Feb. 1985.

[11] L. X. Wang and J. M. Mendel,

“Generating fuzzy rules by learning from examples,” IEEE Trans. on Systems, Man, and Cybernetics, vol. 22, pp.

1414-1427, Nov./Dec. 1992.

[12] M. Sugeno and T. Yasukawa, “A fuzzy-logic-based approach to qualitative modeling,” IEEE Trans. on Fuzzy Systems, vol. 1, pp. 7-31, Feb.

1993.

[13] S. Abe, and M.-S. Lan, “A method for fuzzy rules extraction directly from numerical data and its application to pattern classification,” IEEE Trans. on Fuzzy Systems, vol. 3, pp. 18-28, Feb.

1995.

[14] S. Abe, M.-S. Lan, and R. Thawonmas,

“Tuning of a fuzzy classifier derived from data,” International Journal of Approximate Reasoning, vol. 14, no. 1, pp. 1-24, Jan. 1996.

[15] P. K. Simpson, “Fuzzy min-max neural networks—Part I: Classification, ” IEEE Trans. on Neural Networks, vol. 3, pp.

776-786, Sep. 1992.

[16] S. K. Pal and S. Mitra, “Multilayer perceptron, fuzzy sets, and classification,” IEEE Trans. on Neural Networks, vol. 3, pp. 683-697, Sep.

1992.

[17] V. Uebele, S. Abe, and M.-S. Lan, “A neural-network-based fuzzy classifier,”

IEEE Trans. on Systems, Man, and

Cybernetics, vol. 25, pp. 353-361, Feb.

1995.

[18] S. K. Halgamuge, W. Poechmueller, and M. Glesner, “An alternative approach for generation of membership functions and fuzzy rules based on radial and cubic basic function networks,” International Journal of Approximate Reasoning, vol.

12, no. 3/4, pp. 279-298, Apr./May 1995.

[19] H. Ishibuchi, K. Nozaki, and H. Tanaka,

“Distributed representation of fuzzy rules and its application to pattern classification,” Fuzzy sets and Systems, vol. 52, pp. 21-32, Nov. 1992.

[20] H. Ishibuchi, K. Nozaki, N. Yamamoto, and H. Tanaka, “Selecting fuzzy if-then rules for classification problems using genetic algorithms,” IEEE Trans. on Fuzzy Systems, vol. 3, pp. 260-270, Aug.

1995.

[21] I.H. Suh, J.H. Kim, and C.H. Rhee,

“Convex-set-based fuzzy clustering,”

IEEE Trans. on Fuzzy Systems, vol. 7, no. 3, pp. 271-285, 1999 .

[22] N. Zahid , O. Abouelala, M. Limouri, and A. Essaid, “Unsupervised fuzzy clustering,” Pattern Recognition Letters 20, pp.123-129, 1999 . [23] H.K. Kwan, and Y. Cai, “A fuzzy neural

network and its application to pattern recognition,” IEEE Trans. on Fuzzy Systems, vol. 2, no. 3, pp. 185-193, Aug. 1994.

[24] N.R. Pal, G.K. Mandal, and E.V. Kumar,

“Comments on A fuzzy neural network and its application to pattern recognition,” IEEE Trans. on Fuzzy Systems, vol. 7, no. 4, pp. 479-480, Aug. 1999.

[25] M.Y.Chen, and D.A.Linkens,“A fast fuzzy modelling approach using

clustering neural networks,” IEEE 98 on Fuzzy Systems Proceeding, pp.1088-1093,1998.

[26] H.M. Lee, C.M. Chen, J.M. Chen, and Y.L. Jou “An efficient fuzzy classifier with feature selection based on fuzzy entropy ” IEEE Trans. on Systems, Man, and Cybernetics, Part B, vol. 31, no. 3, pp. 426-432, Jun. 2001.

[27] W. Pedrycz, “Fuzzy sets in pattern recognition: Methodology and

methods,” Pattern Recognition, vol. 23, no. 1/2, pp. 121-146, 1990.

[28] L. I. Kuncheva, Fuzzy Classifier Design, Physica-Verlag,New York, 2000.

[29] E.H. Ruspini , “ A new approach to fuzzy clustering ,” Information and Control. vol. 15, pp.22-32,1969 .

[30] J. C. Dunn, “A fuzzy relative of the ISODATA process and its use in detecting compact well separated

clusters,” J.

Cybern.,vol.3,no.3,pp.32-57,1974.

[31] J. C. Bezdek, Pattern Recognition with Fuzzy Objective Function Algorithms, Plenum Press, New York,1981.

[32] M.P. Windham, “Cluster validity for the fuzzy c-means clustering algorithm,”

IEEE Trans. on Pattern Analysis and Machine Intelligence, PAMI-4 ,no.4, pp.357-363, July 1982.

[33] J.-S.R.Jiang , C.-T.Sun, and E.Mizutani, Neuro-Fuzzy and Soft Computing Prentice-Hall Inc. , pp.18-19,1997.

[34] Seymour Lipschutze, Theory and Problems of Probability, McGraw-Hill, Inc., New York, 1968.

[35] R. A. Fisher, “The use of multiple measurements in taxonomic problem,”

Annals of Eugenics, vol. 7, no. 2, pp.

179-188, 1936.

[36] G. Castellano and A.M. Fanelli, “A staged approach for generation and compression of fuzzy classification rules,” The Ninth IEEE International Conference on Fuzzy Systems, vol. 1, pp.42-47, May 2000.

[37] K. Nozaki, H. Ishibuchi, and H. Tanaka,

“Adaptive fuzzy rule-based classification systems,” IEEE Trans. on Fuzzy Systems, 4(3):238–250, Aug. 1996.

[38] D. Nauck and R. Kruse, “Nefclass - a neuro-fuzzy approach for the classification of data,” in Proceedings of the 1995 ACM Symposium on Applied Computing, pp. 461-465, Nashville, Feb 1995

9

1

參加 ICAI2010 研討會心得報告

報告人： 楊英魁 2010.07.13

時間： 2010 年 7 月 12 日 ~ 2010 年 7 月 15 日 地點： Las Vegas, USA

報告內容：

這次在 Las Vegas, USA 為期四天所舉行的研討會 The 2010 International Conference on Artificial Intelligence (ICAI2010)，是學術界在人工智慧與控制領域上重要的一次會議。ICAI2010 是 WORLDCOMP10 (The 2010 World Congress in Computer Science, Computer Engineering, and Applied Computing)中 25 個研討會之一。由於它的重要性，所以有另外九個與人工智慧領 域有關的研討會一起舉行。總共有來自全球不同領域的超過兩千五百個專家學者參與，氣氛熱 絡，連當地旅館都不容易定到，每位 Keynote Speaker 都是在人工智慧領域裡大師級的人物。

參加這次 ICAI2010，主要是去發表一篇由國科會所支持研究的成果論文：A Novel Approach of Enhancing CMAC Learning Mechanism。發表此論文時，大約有 90 幾位專家學者參與討論，

氣氛對非常熱絡，對此論文所提出的方法與理論，與會者都極為肯定。

這幾天期間，與各地學者專家深入討論各個不同的領域，受益良多，也能正確的掌握目前 人工智慧的領域，尤其是每天第一場的 keynote speech 更是精采。主講者不但學術豐富，有幽 默感，而且明確指出今後在此領域上可以進行的幾個方向，足以當作最好的參考。

參加此研討會，不但有機會與來自世界各地的學者專家廣泛討論，相互切磋，也因此更確 定目前所進行的研究方向是正確的。而且同時可以參加六個相關研討會，真是不虛此行

2

A Novel Approach of Enhancing CMAC Learning Mechanism

Ying-Kuei Yang¹, Po-Lun Chang¹² and Jin-Fang Liu¹

1Department of Electrical Engineering, National Taiwan University of Science and Technology, Taipei, TAIWAN

2Department of Electrical Engineering, Lunghwa University of Science and Technology, Taipei, TAIWAN e-mail: ¹[email protected], ²[email protected]

Abstract - Learning and convergence are the two issues being most concerned in the research area of Cerebellar Model Articulation Controller (CMAC). This paper proposes to incorporate grey relational analysis with number of learning to obtain an adequate and appropriate learning rate for improving CMAC convergence. Additionally, this paper also proposes that the amount of weight adjustment to a memory cell of an addressed hyper cube must be proportional to the learned input area, grey relational grade and inverse of number of learning instances to minimize the learning interference.

A credit apportionment approach is thus derived for implementing this idea to achieve fast and accurate learning performance. The results of the experiments conducted in this study clearly demonstrate that the proposed approach provides a more accurate learning mechanism and faster convergence.

Keywords: CMAC, learning interference, credit apportionment, learning instances, grey relational grade

1. Introduction

There were numerous studies employing Cerebellar Model Articulation Controller(CMAC) model in various applications [1][2][3]. In the relational papers dealing with CMAC, Chiang and Lin had proposed to embed the Gauss function into CMAC model to improve learning accuracy [4]. Sayil and Lee presented a maximum error algorithm that adopted the neighborhood training concept to accelerate CMAC convergence [5]. Horváth and Szabó presented the generalization features and enhanced strategy of the CMAC model [6]. Lin and Chiang had proposed some convergent features of CMAC [7]. However, the performance of these approaches in terms of convergence was inadequate and could not effectively satisfy the requirements of real-time applications [8][9][10].

In related research on learning rate and accuracy, Su、Tao、Hung[8][9] and Lu、Chang[11]

employed credit assignment to reform the CMAC learning strategy. However, the acceleration of learning speed takes place only during early learning cycles. Further, the lack of adaptive learning rate has caused an unstable system. Lu and Chang [11] applied credit assignment concept to the mapping hyper cubes of inputs and their neighborhood states to increase learning speed and accuracy. This approach unfortunately failed to achieve significant improvement [9][10].

In addition, the existent effect of learning interference reduces learning performance and

accuracy during this phase [8][9][10][11]. Therefore, this paper proposes a novel learning framework that employs the concept of credit assignment based on grey relational grade, the trained input area, the number of trainings, and the concept of adaptive grey learning rate in a CMAC model in order to mitigate the influence of learning interference so that the learning speed and output accuracy can be effectively improved. During the learning phase, the grey relational coefficient is calculated for each

3

input state after a learning iteration. An appropriate grey learning rate is then derived by incorporating the calculated grey relational coefficient with the number of learning iterations. Then the credit distributed to an addressed hyper cube is in inverse proportion to the number of trainings.

2. CMAC Architecture

The basic structure of a conventional CMAC model [1] is shown in Figure 1. A CMAC model quantizes the learning space into several discrete states that serve as input states of the CMAC model and are represented as set S in Figure 1. Each input state is mapped from indexed memory A to the corresponding real memory cells W that store the input states information and are summed to produce actual output value. A mapping block is a hyper cube between axes. The total hyper cubes are real memory cells that store relational information regarding addressed input states.

S1

Sk

S A

W

∑

l e a r n i n g

s p a c e m e m o r y i n d i c e s

m e m o r y c e l l s

y a c t u a l o u t p u t

∑

yˆ t a r g e t o u t p u t + e r r o r −

Figure1. Basic structure of a CMAC model

If there are Nh hyper cubes in which each input state maps to Ne hyper cubes, then theactual output is shown in following Equation (1). The ys denotes the actual system output for input state s,

T

a is the indexed vector, and w is the memory cell vector. s

(1)

During the learning phase, the error of actual output value to the desired output value is uniformly distributed to regulate and train the memory cells of a CMAC model. The weight relation between before and after trainings of a memory cell is shown in Equation (2).

( 1)

( ) ( 1)

,

( ^{T i} )

i i s s

j j s j

w w a y

α N e

∧ −

− −

= + ⋅ ⋅ a w (2)

In Equation (2), s denotes an input state, w^{( )}_jⁱ represents the weight of j-th hyper cube in the training iteration of number i, a_{s j,} is an index vector for input state s and hyper cube of number j,

(y_s ^T_s ( 1)ⁱ )

∧ − a w − denotes the learning error, α represents learning rate, and each input state corresponds to Ne hyper cubes.

1 2

,1 ,2 , ,

1

[ , , , ] ^h

h

h

N T

s s s s N s s j j

j

N

w

y a a a w a w

w

=

⎡ ⎤

⎢ ⎥

⎢ ⎥

= ⎢ ⎥= =

⎢ ⎥

⎢ ⎥

⎣ ⎦

∑

L a w M

4

3. A Novel Learning Framework

The goal of this study is to propose the concept of credit assignment [9][10] that incorporates the grey relational grade with adaptive learning rate to achieve better learning performance for a CMAC model.

3.1 Grey Relational Analysis

Grey relational analysis is a method for measuring similarity [10]. Assuming a reference sequence x₀ ={x₀(1),x₀(2),...,x₀(n)} with m comparison sequences x_i ={x_i(1),x_i(2),...,x_i(n)}, i=1,2,..., m, then the grey relational coefficient between x₀ and x_i at the k-th state is defined as follows [1][10].

( )

max 0

max

0( ), ( ) min( )

Δ

⋅ + Δ

Δ

⋅ +

= Δ

ξ ξ k k

x k x c

i

i ⁽³⁾

where c(x₀(k),x_i(k)) is termed as the grey relational coefficient,Δ_0i(k)= x₀(k)−x_i(k), ξ∈(0,1] denotes the distinguishing coefficient to control the resolution between Δ_max and Δ_min, _max maxmax _0i(k)

k

i Δ

=

Δ ,

and _min minmin _0i(k)

k

i Δ

=

Δ .

Once the grey relational coefficients are determined for all n states, their weighted average, termed grey relational grade, can be calculated by

( )

[ ]

∑

⋅

=

n

k

i k

i w cx k x k

x x g

1

0

0, ) ( ), ( )

( (4)

where w_k denotes the weighting factor of the grey relational coefficient c(x₀(k),x_i(k)) and

1 =1

∑ = n

k wk . Generally, wk =¹n is selected for all k.

By above descriptions, the grey relational coefficient and grey relational grade are two effective parameters for analyzing the difference and similarity measures of actual system outputs to their corresponding target outputs during the learning phase of a CMAC model.

3.2 Grey Learning Rate

If the learning rate of CMAC is set to a larger value during the learning phase, then CMAC could be faster convergence, but with lower accuracy and possibly unstable phenomenon. On the other hand, if the learning rate of CMAC is set to be smaller, then CMAC could result in slower

convergence but with better accuracy and less risk of reaching unstable situation.

Assume that input space is partitioned into n states and target function yˆ to be learned is known, then the desired system output for a specific input state, say s_k, k=1,2,...,n, can be mathematically expressed as yˆ k( ). These n desired outputs can be calculated to form a reference sequence as y^∧ ={yˆ(1),yˆ(2),...,yˆ(n)}. To analyze the grey relation between the desired outputs and their corresponding actual outputs, the comparison sequence that is generated using the actual output of the CMAC at every state is denoted asy={y(1),y(2),...,y(n)}. According to Equation (3), the grey

relational coefficient for input state s_k in a single comparison sequence can be written as follows.

5

max max min

) )) (

ˆ( ), (

( Δ + ⋅Δ

Δ

⋅ +

= Δ

ξ ξ k k

y k y GRC

y

⁽⁵⁾

whereΔ_y(k)= y(k)−yˆ(k) , _{max max y(k)}

k Δ

=

Δ , _min min _y(k)

k Δ

=

Δ and

1 )) ( ˆ ), ( 1 (

max min

≤ + ≤

Δ + Δ

k y k y ξ GRC

ξ .

Because both Δ_max and Δ_min are constant values for a CMAC model, the grey relational coefficient increases with decreasing output error _(k)

Δy .

During the learning phase, the output errors of input states should be also related to the inverse of the number of training iterations. Therefore, this paper proposes an adaptive regulation of learning rate, termed grey learning rate, that is based on the number of training iterations and grey relational

coefficients of input states in a CMAC model. During the i-th training iteration, the grey learning rate at the input state s_k is proposed as follows.

)) ( ), ( ( )

(

) 1 (

) 1 ( _

k y k y GRC i

i

i k

grey _∧

= −

α ⁽⁶⁾

where GRC ^{(i 1)}(y(k),y(k))

− ∧ is the grey relational coefficient at statesk in the (i-1)-th training iteration. Initially, GRC⁽⁰⁾₍y₍k_),^∧y₍k₎₎=₁ and grey_α⁽¹⁾(k)=1. When the training iteration i becomes larger, it means the systems has been trained more times already. Similarly, when the grey relational coefficient GRC becomes large, it means the system is closing to the final state. In these two cases, Equation (6) shows that the learning rate should be a smaller value. That is, the system is tuned by smaller changes to avoid any overshooting or instability.

3.3 Grey-area-time Credit Apportionment

A hyper cube that includes more input states is more influenced by the learning interference during the learning phase. To mitigate this effect, the distribution of errors among the addressed hyper cubes must be proportional to the hyper cube creditability. The key information available for use as credit is the number of times a hyper cube has been updated [8][9]. In addition, conceptually, the accuracy of the stored weights in hyper cubes should increases with the number of input states during a learning phase. For this, the trained proportion of input states is proposed to be considered as one factor of creditability. Further, as discussed previously, an adaptive learning rate is necessary to avoid an unstable system. This means the grey relational grade in a hyper cube should be also a factor involving creditability of the hyper cube. Consequently, the number of updated times for hyper cubes, the trained proportion of input states and grey relational grade in a hypercube can be integrated to provide an indicator of hyper cube creditability. The credibility, termed grey-area-time, is defined as shown below.

∑

−

−

×

× +

×

×

= +

−

− _m

c

i i

i i

i

j GRG j a c t

j GRG j a j j t time area grey

1

1 ) ( )

(

1 ) ( )

( )

(

)) ( ( ) ( ) 1 ) ( ((

)) ( ) ( ) 1 ) ( ) ((

( (7)

where t( j) denotes the accumulative learning times of the j-th hyper cube, and m represents the number of addressed hyper cubes for an input statesk. Notice that t(c) must include the value 1 to

6

prevent from dividing the equation by zero . a⁽ⁱ⁾(j)is defined as following Equation (8) and

)

)(

( j

GRGⁱ is defined as following Equation (9).

cube hyper the in states of number

states input trained of number j the

aⁱ

max ) 1

)(

( = + (8)

wherea⁽ⁱ⁾(j) denotes the trained area proportion of input states in the j-th hypercube at the iteration i.

Notice that the numerator of Equation (8) must include the value 1 to prevent the value being zero.

∑

− ∧

⎥⎦⎤

⎢⎣⎡

⎟⎠

⎜ ⎞

⎝

⋅ ⎛

= ^p

c

i c

i j w GRC yc y c

GRG

1

) 1 ( )

( ( ) ( ), ( ) (9)

where GRG⁽ⁱ⁾(j) represents the grey relational grade of the j-th hyper cube at present iteration i, and p is the number of addressed input states corresponding to the j-th hyper cube. Moreover, w_c is the weighting factor of the grey relational coefficient _⎟

⎠

⎜ ⎞

⎝

⎛ ( ),^∧( )

)

( yc yc

GRCⁱ and

∑

p

c wc . Normally,

c p

w = ¹ for all p. Initially, GRG⁽¹⁾(j)=1.

Based on above discussions, this study modifies the weight updating formula in Equation (2) according to the grey-area-time credit assignment. That is, the Equation (2) is rewritten as

) ( )

( ^{( 1) ()}

, ) 1 ( )

( w a y a w grey area time j

w_jⁱ = _jⁱ⁻ +α⋅ _sj⋅ ^∧_s− ^T_s ⁱ⁻ ⋅ − − ⁱ (10) 3.4 A Novel Learning Framework

Two key factors affecting the learning result of hyper cubes are: (1) the amount of error distributed to a hyper cube; and (2) the learning rate. Combining the previous discussions, the following Equation (11) shows how grey-area-time credit assignment and grey learning rate are

integrated together for better updating the weights of hyper cubes. The learning rate α of Equation (10) is replaced by grey_α⁽ⁱ⁾(k) of Equation (6).

) ( )

( ) (

_ ⁽⁾ _, ^{(1) ()}

) 1 ( )

( w grey k a y aw greyareatime j

w sj s ^Ts ^{i i}

i i

j i

j = ⁻ + α ⋅ ⋅^∧− ⁻ ⋅ − − (11)

A CMAC model using Equation (11) for its learning mechanism is termed as Grey-area-time CMAC. In Equation (11), it is easy to verify that grey_α⁽ⁱ⁾(k)⋅grey−area−time⁽ⁱ⁾(j) does not exceed value 1 and gradually approaches value zero in the later cycles of learning phase.

4. Simulation Results

In each experiment, results of four approaches of conventional CMAC, Time-Credit CMAC [8], Fuzzy-time-credit CMAC [9] and the Grey-area-time CMAC proposed in this paper are compared.

Example 1:

The target function is y(x)=sinx/x where –30<x<30. The distinguishing coefficient of grey relational coefficients is assigned asξ =0.1. There are 10 training cycles. The root mean square error (RMSE) is employed for comparison. Figure 2 shows the performance of different CMAC models. It is observed in Figure 2 that the proposed Grey-area-time CMAC has the best performance. Furthermore,

7

Grey-area-time CMAC has been stable and achieved convergence faster than other three methods.

Learnig comparisons

0 0.01 0.02 0.03 0.04 0.05 0.06 0.07

1 2 3 4 5 6 7 8 9 10

training iteration

RMSE error Conventional CMAC

Time-credit CMAC Fuzzy-time-credit CMAC Grey-area-time CMAC

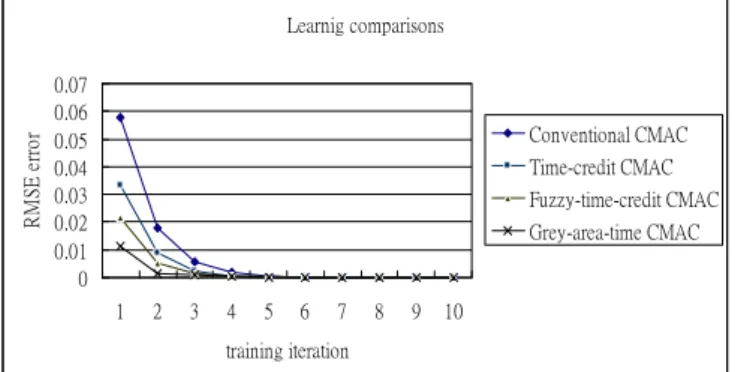

Figure 2: Learning comparison for different CMAC models

Example 2:

The target function is z x y( , ) (= x²−y²) sin 5x where -1< x < 1 and -1< y < 1. The distinguishing coefficient is set to ξ=0.1. Learning comparison adopts root mean square error

(RMSE). Figure 3 shows the performance for different CMAC models. It can be observed from Figure 3 that the proposed Grey-area-time CMAC results in less RMSE than other three models since the first learning cycle. Furthermore, the RMSE monotonically decreases in the Grey-area-time CMAC until it stabilizes after 9 learning cycles.

Learning comparisons

0 0.01 0.02 0.03 0.04

1 2 3 4 5 6 7 8 9 10

training iteration

RMSE error Conventional CMAC

Time-credit CMAC Fuzzy-time-credit CMAC Grey-area-time CMAC

Figure 3: Learning Comparisons for different CMAC models

5. Conclusions

This paper presents an enhanced strategy for creating a novel learning framework for the CMAC model. The accumulated frequency of updating to the hyper cubes [2][6], the trained proportion of input states and grey relational grade of hyper cubes are integrated into a measure of the credibility of the hyper cubes for each input state. This paper also considers the adaptive regulation of learning rate with the number of training iterations and grey relational coefficients in the CMAC model. The credit apportionment is combined with the grey learning rate to improve system performance. The conducted experiments indicate that the proposed approach works well in terms of system stabilization, fast

8

convergence and approximation to the target function.

References

[1] M. F. Yeh and H. C. Lu, “On-Line Adaptive Quantization Input Space in CMAC Neural Network”, IEEE International Conference on Systems, Man and Cybernetics, vol.4, 2002 [2] H. M. Lee and C. M. Chen, “Self-Organizing HCMAC Neural-Network Classifier”, IEEE

Transaction on Neural Networks, vol.14, no.1, pp.15-27, 2003

[3] J. C. Jan and S. L. Hung, “High-order MS_CMAC Neural Network”, IEEE Transaction on Neural Networks, vol.12, no.3, pp.598-603, 2001

[4] C. T. Chiang and C. S. Lin, “CMAC with General Basis Functions”, Neural Networks, vol.9, no.7, pp.1199-1211, 1996

[5] S. Sayil and K. Y. Lee, “A Hybrid Maximum Error Algorithm with Neighborhood Training for CMAC”, IEEE Proceedings of the International Joint Conference on Neural Networks, vol.1, pp.165-170, 2002

[6] G. Horváth and T. Szabó, “CMAC Neural Network with Improve Generalization Property for System Modeling”, IEEE Instrumentation and Measurement Technology Conference, vol.2, pp.1603-1608, 2002

[7] C. S. Lin and C. T. Chiang, “Learning Convergence of CMAC Technique”, IEEE Transaction on Neural Networks, vol.8, no.6, pp.1281-1292, 1997

[8] S. F. Su, T. Tao, and T. H. Hung, “Credit Assigned CMAC and Its Application to Online Learning Robust Controllers”, IEEE Transaction on System, Man, and Cybernetics-Part B:

Cybernetics, vol.33, no.2, pp.202-213, 2003

[9] Shun-Feng Su, Zne-Jung Lee, and Yan-Ping Wang, “Robust and Fast Learning for Fuzzy Cerebellar Model Articulation Controllers”, IEEE Transaction on System, Man, and Cybernetics-Part B: Cybernetics, vol.36, no.1, pp.203-208, 2006

[10] Ming-Feng Yeh and Kuang-Chiung Chang, “A Self-Organizing CMAC Network With Grey Credit Assignment”, IEEE Transaction on System, Man, and Cybernetics-Part B: Cybernetics, vol.36, no.3, pp.623-635, 2006

[11] H. C. Lu and J. C. Chang, “Enhance the Performance of CMAC Neural Network via Fuzzy Theory and Credit Apportionment”, IEEE Proceedings of the 2002 International Joint Conference on Neural Networks, vol.1, pp.715-720, 2002
