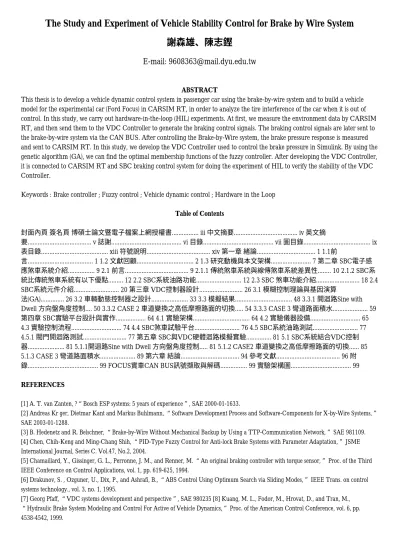

The Study and Experiment of Vehicle Stability Control for Brake by Wire System 謝森雄、陳志鏗
E-mail: [email protected]
ABSTRACT
This thesis is to develop a vehicle dynamic control system in passenger car using the brake-by-wire system and to build a vehicle model for the experimental car (Ford Focus) in CARSIM RT, in order to analyze the tire interference of the car when it is out of control. In this study, we carry out hardware-in-the-loop (HIL) experiments. At first, we measure the environment data by CARSIM RT, and then send them to the VDC Controller to generate the braking control signals. The braking control signals are later sent to the brake-by-wire system via the CAN BUS. After controlling the Brake-by-Wire system, the brake pressure response is measured and sent to CARSIM RT. In this study, we develop the VDC Controller used to control the brake pressure in Simulink. By using the genetic algorithm (GA), we can find the optimal membership functions of the fuzzy controller. After developing the VDC Controller, it is connected to CARSIM RT and SBC braking control system for doing the experiment of HIL to verify the stability of the VDC Controller.
Keywords : Brake controller ; Fuzzy control ; Vehicle dynamic control ; Hardware in the Loop Table of Contents
封面內頁 簽名頁 博碩士論文暨電子檔案上網授權書... iii 中文摘要... iv 英文摘
要... v 誌謝... vi 目錄... vii 圖目錄... ix 表目錄... xiii 符號說明... xiv 第一章 緒論... 1 1.1前
言... 1 1.2 文獻回顧... 2 1.3 研究動機與本文架構... 7 第二章 SBC電子感 應煞車系統介紹... 9 2.1 前言... 9 2.1.1 傳統煞車系統與線傳煞車系統差異性... 10 2.1.2 SBC系 統比傳統煞車系統有以下優點... 12 2.2 SBC系統油路功能... 12 2.3 SBC 煞車功能介紹... 18 2.4 SBC系統元件介紹... 20 第三章 VDC控制器設計... 26 3.1 模糊控制理論與基因演算
法(GA)... 26 3.2 車輛動態控制器之設計... 33 3.3 模擬結果... 48 3.3.1 開迴路Sine with Dwell 方向盤角度控制.... 50 3.3.2 CASE 2 車道變換之高低摩擦路面的切換... 54 3.3.3 CASE 3 彎道路面積水... 59 第四章 SBC實驗平台設計與實作... 64 4.1 實驗架構... 64 4.2 實驗儀器設備... 65 4.3 實驗控制流程... 74 4.4 SBC煞車試驗平台... 76 4.5 SBC系統油路測試... 77 4.5.1 閥門開迴路測試... 77 第五章 SBC與VDC硬體迴路模擬實驗... 81 5.1 SBC系統結合VDC控制 器... 81 5.1.1開迴路Sine with Dwell 方向盤角度控制... 81 5.1.2 CASE2 車道變換之高低摩擦路面的切換... 85 5.1.3 CASE 3 彎道路面積水... 89 第六章 結論... 94 參考文獻... 96 附 錄... 99 FOCUS實車CAN BUS訊號擷取與解碼... 99 實驗架構圖... 99 REFERENCES
[1] A. T. van Zanten, ?“Bosch ESP systems: 5 years of experience”, SAE 2000-01-1633.
[2] Andreas Kr ger, Dietmar Kant and Markus Buhlmann, “Software Development Process and Software-Components for X-by-Wire Systems,”
SAE 2003-01-1288.
[3] B. Hedenetz and R. Belschner, “Brake-by-Wire Without Mechanical Backup by Using a TTP-Communication Network,” SAE 981109.
[4] Chen, Chih-Keng and Ming-Chang Shih, “PID-Type Fuzzy Control for Anti-lock Brake Systems with Parameter Adaptation,” JSME International Journal, Series C. Vol.47, No.2, 2004.
[5] Chamaillard, Y., Gissinger, G. L., Perronne, J. M., and Renner, M. “An original braking controller with torque sensor,” Proc. of the Third IEEE Conference on Control Applications, vol. 1, pp. 619-625, 1994.
[6] Drakunov, S. , Ozguner, U., Dix, P., and Ashrafi, B., “ABS Control Using Optimum Search via Sliding Modes,” IEEE Trans. on control systems technology., vol. 3, no. 1, 1995.
[7] Georg Pfaff, “VDC systems development and perspective”, SAE 980235 [8] Kuang, M. L., Fodor, M., Hrovat, D., and Tran, M.,
“Hydraulic Brake System Modeling and Control For Active of Vehicle Dynamics,” Proc. of the American Control Conference, vol. 6, pp.
4538-4542, 1999.
[9] Karlheinz Bill, Martin Semsch and Bert Breuer, “A New Approach to Investigate the Vehicle Interface Driver /Brake Pedal Under Real Road Conditions in View of Oncoming Brake-by-wire-systems,” 1999 Society of Automotive Engineers.
[10] Mazumdar, S. K., and Lin, C. C., “Investigation of the Use of Neural Networks for Anti-Skid Brake System Design,” Proc. of the 1995 IEEE International Symposium, pp. 505-510.
[11] Ross T. Bannatyne, “Advances and Challenges in Electronic Braking Control Technology,” SAE 982244.
[12] Shih, M-C., and Wu, M-C., “Hydraulic anti-lock braking control using the hybrid sliding mode pulse width modulation pressure control method, ” ImechE Proc. Instn. Mech. Engrs., vol. 215, part 1, pp. 177-187, 2001.
[13] Shih, M-C., and Wu, M-C., “Using The Sliding Mode PWM in an Anti-Lock Braking System,” Asian Journal of Control., vol. 3, no. 3, pp.
255-261, 2001.
[14] Shih, M-C., and Wu, M-C., “Simulated and experimental study of hydraulic anti-lock braking system using sliding mode PWM control,”
Mechatronics., pp. 331-351, 2003.
[15] Sascha Semmler, “Wheel slip control for antilock braking systems using brake-by-wire actuators”, SAE 2003-01-0325 [16] Wolf-Dieter Jonner, Hermann Winner, Ludwig Dreilich, and Eberhardt Schunck, “Electrohydraulic Brake System-The First Approach to Brake-By-Wire Technology,” SAE 960991.
[17] Yamaguchi,” Development of vehicle stability control system based on vehicle sideslip angle estimation”, SAE 2001-01-0137 [18]
http://www.mercedestechstore.com/pdfs/, 219 HO SBC (WJB) 9-30-02.pdf Sensotronic Brake Control (SBC), published by Mercedes -Benz USA, LLC 2003.
[19] http://www.mercedestechstore.com/pdfs/, 512_Maybach/512 HO Twin SBC (FrechW) 05-30-03.pdf , Twin SBC, published by Mercedes -Benz USA, LLC 2005.
[20] http://www.autozine.org/technical_school/traction/tech_traction_other.htm [21]
http://www.toyota.co.jp/jp/tech/new_cars/crown_majesta/advanced/index.html [22] 林明志, “泛用型車輛電子控制單元發展平台之研製”
大葉大學碩士論文 2005 [23] 嚴豪緯, “CAN匯流排即時訊息排程與頻寬分配 ” 大葉大學碩士論文 2005 [24] 王文俊, “認識FUZZY” 全 華科技圖書股份有限公司 2005 [25] 林慶銘, “最新汽車控制技術” 全華科技圖書股份有限公司1998 [26] 陳宗文, “汽車行駛動態模擬與 實驗” 大葉大學碩士論文 2003 [27] 蘇建彰, “汽車ABS控制之硬體迴路模擬與實驗” 大葉大學碩士論文 2004 [28] 施建賓, “車輛動態控 制技術之硬體迴路模擬與實驗” 大葉大學碩士論文 2006
