一、 前言

Currently, multi-level cell (MLC) flash memory has occupied the largest part of the flash memory market, due to an increasing demand for a larger capacity and smaller-size storage medium. In MLC flash memory, each cell can store two or more bits of data. Although MLC flash memory offers a lower cost and higher density solution (compared with the traditional SLC flash memory), it introduces additional stringent constraints. First, the number of partial program cycles in the same page is limited to one. This constraint implies that it is no longer permitted to mark a page as dead by simply clearing some specific bit in the spare area, which is widely adopted in previous researches. Another constraint is related to the order in which write operations are performed. In MLC, free pages of a block must be written consecutively from the first free page to the target one in the block; random written order is prohibited. Such a constraint makes most existing block-level mapping schemes, such as NFTL, inapplicable for modern flash memory chips. Further, direct modification to these mapping schemes is not appropriate as it will inevitably lead to a significant increase of overhead.

二、 研究目的

Motivated by the above concerns, we propose a hybrid mapping scheme for the management of modern MLC flash memory. Since FAT file system is most commonly used for accessing flash memory, the proposed scheme focuses on the file access behavior under FAT file system. In the proposed scheme, the mapping granularity is adjusted adaptively according to the access behavior. Our scheme is distinguished from existing solutions in that the proposed scheme consumes less RAM, while providing a better performance. In addition, existing solutions does not take stringent constraints of MLC flash memory into account (since they were designed for SLC flash memory), while our scheme could apply to SLC flash memory as well.

三、 文獻探討

FAT File System

Figure 1 illustrates the structure of a FAT file system. A FAT file system consists of a boot record, File Allocation Tables (FAT1 and FAT2), a root directory, and data area. To create a file under the FAT file system, the system first creates the file name and writes it to the root directory. Note that the FAT file system does not allocate space for the entire file in a single step. Instead, it does so incrementally in multiple rounds. Basically, in each round of the operation, the system allocates space for only a portion of the file, followed by updating File Allocation Tables FAT1 and FAT2 (or FAT tables for short) and then writing the data to the data area accordingly. It repeats the above operation until all data of the file are written to the storage. During the write process, the root directory and FAT tables are updated repeatedly and the body of the file is appended to the data area of the storage step by step.

Figure 1: The Structure of a FAT File System.

Figure 2 is a trace extracted from a set of file creations in a FAT file system. Figure 2.(a) shows the write flow associated with creating two 4KB files, while Figure 2.(b) presents the write flow associated with creating two 64KB files after the previous file creations. We align the two traces for comparison purpose. In the figure, the column labeled with “Address” gives the starting address of the data accessed by a request with “WAddr”

indicating a write operation. It shows the sector address associated with a request, with each sector being 512 bytes in length. The column labeled with “Count” gives the size of the data associated with a request. In the trace, the basic space allocation unit is 32KB in size. The column labeled with “Area” indicates the part of the FAT file structure that is accessed.

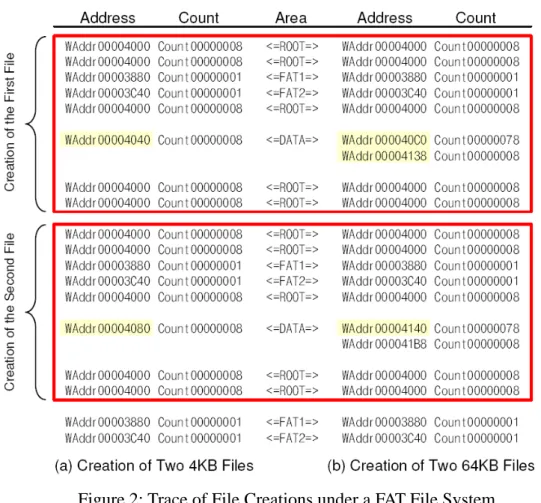

Figure 2: Trace of File Creations under a FAT File System.

From the trace, the following observations are noteworthy: (1) The root directory and FAT tables are updated frequently; (2) As shown in Figure 2.(a), although only 4KB of data are written to the storage, 32KB space is occupied; the second 4KB file starts from 0x00004080, rather than 0x00004048; (3) For those files that are larger than 32KB, the FAT system allocates space continuously. As shown in Figure 2.(b), for creation of the

first 64KB file, the system writes data to 0x000040C0 with 0x00000078 sectors, followed by writes to 0x00004138 with 0x00000008 sectors. The second 64KB file starts from 0x00004140, right after the previous 64KB file.

Hybrid Mapping Schemes: BAST and FAST

Block Associative Sector Translation (BAST) is a hybrid mapping scheme proposed by Kim et al. [1]. BAST maintains a limited number of log blocks in flash memory to handle update requests. Each data block is associated with at most one log block. When processing an update request, the associated data is appended to free pages of the corresponding log block sequentially, as long as such free pages are available. Merge operation is activated when either of the following two conditions is met:

1. All pages in the corresponding log block have been written, and a new update request to the block arrives;

2. All log blocks are used, and a new write request requires an update to a data block that is not associated with any log block.

With a merge operation, all live pages in the data block and the associated log block are copied to a new data block. The old data block and log block are then erased. A merge operation in BAST may induce an overhead of copying N pages and two block erasures, where N is the number of pages per block.

Fully Associative Sector Translation (FAST) is another hybrid mapping scheme proposed by Lee et al. [2].

FAST shares log blocks (RW blocks) with all of the data blocks. It allows an update request to be written to the current log block. As a result, FAST improves the utilization of log blocks and reduces the number of merge operations. However, since a log block may be associated with several data blocks at the same time, merging a log block may require the merging of several data blocks. To deal with sequential writes, FAST maintains a special log block, called sequential write log block (SW block). Since FAST must use physical page address in its page mapping table, rather than page offset as BAST does, FAST consumes more memory space than BAST while maintaining the same number of log blocks.

四、 研究方法

Data Structure

Some data structures are proposed to manage the proposed MLC Flash Translation Layer (MFTL), that is, BlockTable, UpdateRec, and PageMapStatus. BlockTable and UpdateRec are used to maintain block-level information, while PageMapStatus is used to keep page-level information. BlockTable, UpdateRec, and PageMapStatus are all stored in RAM. BlockTable is a one-to-one mapping table, which keeps the mapping information between virtual blocks and (physical) flash-memory blocks. When a write request arrives, MFTL calculates the corresponding virtual block address (VBA) via the logical address of the request, allocates a free (physical) flash-memory block for the virtual block, and writes data to the allocated block.

The physical block address (PBA) of the allocated block is recorded in BlockTable[VBA].

Since out-place update is a widely adopted solution for handling data-update requests, an extra replacement block (physical flash-memory block) is assigned to store the newly updated data. To keep track of the latest version of data, an UpdateRec is created whenever a replacement block is allocated for a virtual block. Each UpdateRec contains the following fields:

„ VBA records the corresponding virtual block address.

„ Primary records the physical block address of the associated primary block.

„ Replace records the physical block address of the associated replacement block.

„ LWP is the index of the last written page in the associated replacement block.

„ Count maintains the number of backward updates occurred in this record. The initial value of Count is 0.

„ Mode is a one-bit flag indicating whether the mapping is in block mapping mode (0) or page mapping mode (1).¹

„ Priority is the priority for UpdateRec replacement. When a write/update request arrives, Priority of the corresponding UpdateRec (if any) is set to 0xFF, while Priority of other UpdateRec's would be decreased by 1.

Finger 3 shows an instance of UpdateRec. To simplify the drawing, we assume that each flash-memory block contains eight pages. As shown in the figure, the physical block 3 is allocated for the virtual block 9 as its primary block. Starting from page 0, two continuous pages have already been updated. The physical block 1 is allocated as its replacement block, and the mapping is in block mapping mode. LWP is updated to 1 to indicate the index of the last written page in the replacement block. The value of Count is initialized to 0, and the initial value of Priority is set to 0xFF.

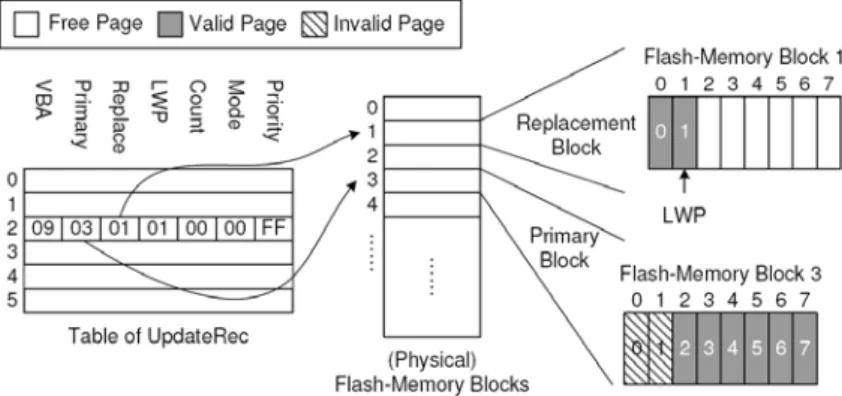

Figure 3: An Instance of UpdateRec.

Since data updates might be random and data amount of each update might be small, only UpdateRec is insufficient if fast data access is required. To deal with small and random updates, page-level mapping scheme might be an adequate solution. However, page-level mapping scheme must be used carefully since it will consume a large amount of RAM. In the proposed MFTL, PageMapStatus is created to work with UpdateRec whenever the mapping switches to page mapping mode. Each PageMapStatus contains two elements:

1 Initially, the mapping is in block mapping mode. When the Count value exceeds a pre-defined threshold, it will switch to page mapping mode.

„ VBA records the corresponding virtual block address.

„ MapArray[N] is an integer array keeping the page-mapping information of the block, where N is the number of pages per block. The value 0xFF in the MapArray[i] means the i-th logical page is located at the i-th page of the primary block. Otherwise, the i-th logical page is located at the MapArray[i]-th page of the replacement block.

To illustrate, we continue the example in Figure 3 but assume that the mapping has been switched to page mapping mode. Suppose subsequent data updates in the virtual block 9 are on pages 7, 3, 1, 6, and 3, in sequence. When a page is updated, the new version of the data is written to the first free page in the replacement block. After all the update requests are completed, a snapshot of UpdateRec and MapArray is shown in Figure 4. Backward updates occurred three times, so the value of Count in UpdateRec is 3. Here

“backward update” means the index of the target page is less than the index of the last written page in the associated replacement block. The MapArray records the information where logical pages are located. For example, logical page 2 is located at page 2 of the primary block as the value in MapArray[2] is 0xFF;

logical page 6 is located at page 5 of the replacement block due to the fact that MapArray[6] is 5.

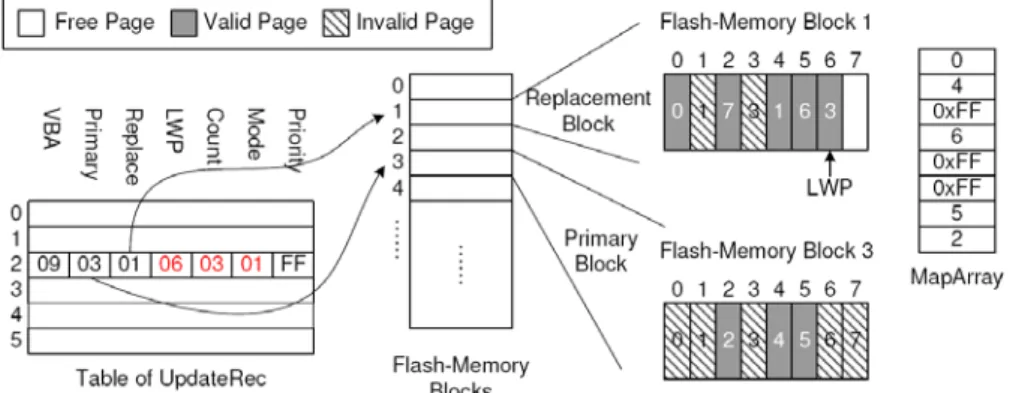

Figure 4: A MapArray Example.

Write Flow

When the FAT file system creates a new file, it first issues a write to root directory to update the file information. It then updates FAT tables to allocate required storage space for the file. Finally, the file body is written to the allocated area. Conceptually, the storage space could be treated as containing two parts: system area and data area. System area consists of a boot record, FAT tables and a root directory, while data area is the area used to store file body. Any write/update to a file (data area) is accompanied by several small updates to the system area to ensure correct file information. Observing the very different behavior over system area and data area, we shall adopt various mechanisms to deal with write operations in an adaptive manner. Since writing data is trivial in flash-memory management, we will focus on the operation of data updating.

Figure 5 illustrates the flowchart of an update operation. Upon arrival of an update request, MFTL first determines whether the corresponding UpdateRec exists by checking the VBA field of each UpdateRec. If no such an UpdateRec exists, MFTL creates a new one. Since the number of UpdateRec's is limited, UpdateRec replacement may be required. In case that all the UpdateRec's have been assigned and the new update request does not match any one of them, MFTL will select the UpdateRec with the lowest priority, i.e., the one with the smallest Priority value, as a victim for replacement. Live pages in the primary block and the

replacement block of the victim UpdateRec will be merged to a newly allocated block, and the victim UpdateRec could then be released and reassigned to the new request. After the UpdateRec is located, MFTL determines the mapping mode of the UpdateRec. Different mapping mode would affect the manner how MFTL writes data to flash memory.

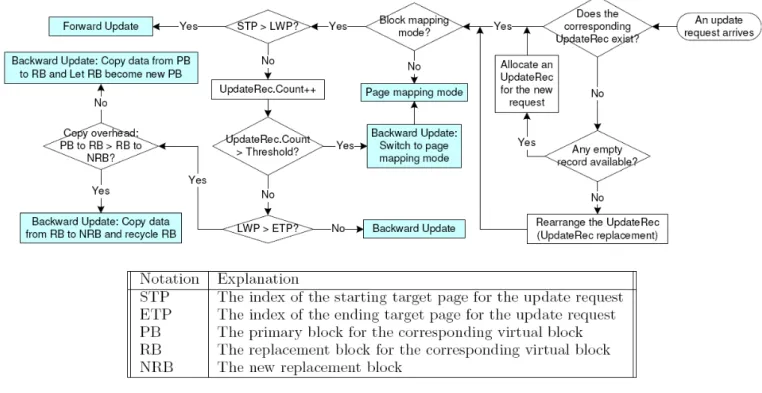

Figure 5: Flowchart of an Update Operation.

If the mapping mode is in block mapping mode, some further checks are required. According to the index of starting target page for the update request (i.e., STP) relative to the index of the last written page in the replacement block (i.e., LWP), the update request is treated differently. For the case in which STP is larger than LWP, the request is treated as a forward update. Otherwise, some previously updated data is to be updated again by the request, and the request is treated as a backward update. Since backward updates incur higher page-copying overheads, page-mapping mode is thus introduced to deal with small, random, and frequently updated data.

As mentioned previously, the Count field in UpdateRec is used to maintain the number of backward updates that had occurred in this record. When it exceeds a threshold, the mapping is switched to page mapping mode. If a backward update occurs but does not result in a switch to page mapping mode, MFTL will examine whether page-copying after updating data is required. The primary reason behind page-copying after updating data is the assurance of data integrity, since the primary block or the replacement block would be reassigned in this case.

Read Flow

For a read request, MFTL locates the target data through either BlockTable or UpdateRec's (and PageMapStatus's, if required). Figure 6 shows the flowchart of a read operation. When a read request arrives, MFTL first derives the corresponding VBA and STP via the logical address of the request. Then, MFTL determines whether the derived VBA matches the VBA field of any UpdateRec. If no such UpdateRec is

found, the PBA of the target data can be obtained from BlockTable[VBA]. With the PBA, MFTL accesses the corresponding flash-memory block and read the required data from page STP to the last page of the block.

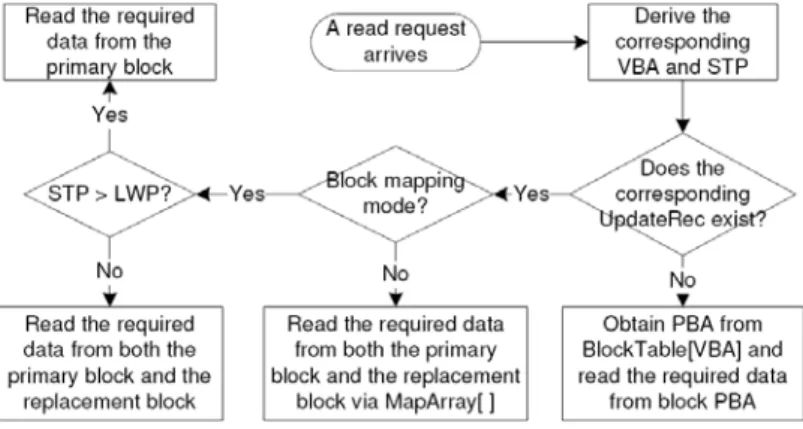

Figure 6: Flowchart of a Read Operation.

Suppose that the UpdateRec is successfully found and it is in block mapping mode. In this case, MFTL has to identify which block and how many pages shall be read. For this, MFTL compares the derived STP with LWP of the UpdateRec. If STP is smaller than or equal to LWP, a portion of the required data shall be read from the corresponding replacement block. In this case, MFTL reads the required data from page STP to page LWP in the replacement block and then read from page LWP+1 to the last page in the primary block. Otherwise, MFTL simply reads the required data from STP to the last page in the primary block.

For the case in which the corresponding UpdateRec is found and in page mapping mode, MFTL may not be able to read the required data sequentially because the live pages in the replacement block are not programmed in such a manner. MFTL must look up MapArray to determine physical locations of the needed data. For each target page i, if the value of MapArray[i] is 0xFF, MFTL reads data from page i in the primary block. Otherwise, MFTL reads from page MapArray[i] in the replacement block. Figure 7 illustrates a read operation in page mapping mode. Suppose the read request wants to read pages starting from page 4 (STP = 4).

According to the MapArray, the read sequence would be Primary:page4, Replace:page6, Replace:page7, and Primary:page7.

Figure 7: Read in Page Mapping Mode.

五、 結果與討論

Experiment Setup

The experiment is conducted by a trace-driven simulation. Traces with various access behaviors were collected under Windows XP with FAT16 file system over a 2GB flash memory. Note that although MFTL is designed for MLC flash memory, BAST and FAST are designed for SLC flash memory. Since directly apply

BAST or FAST over MLC flash memory would incur extra overhead, we compare the three schemes over SLC flash memory. The flash memory chip used in the experiment is Samsung K9WAG08U1B 16G-bit SLC flash memory, in which each block contains 64 2KB pages. All of the traces were captured by the SD/MMC card protocol analyzer VTE2100 [3]. The cluster size was set as 16KB, where the cluster size was the minimum allocation unit for a file. For example, FAT16 file system will allocate 16KB space for a 4KB file with internal fragmentation and allocate 4×16KB space for a 64KB file without any internal fragmentation.

Table I summarizes the characteristics of the seven evaluation patterns.

Table I: Characteristics of Evaluation Patterns.

Pattern Description

4KB-S Sequentially copy 5,000 4KB files into a directory to emulate a large amount of small file creations with internal fragmentation.

64KB-S Sequentially copy 5,000 64KB files into a directory to emulate a large amount of small file creations without internal fragmentation.

4KB-R Randomly create 120,000 4KB files and process up to 4,000,000 file write/update operations to emulate a tremendous amount of random small-file accessing with internal fragmentation.

64KB-R Randomly create 30,000 64KB files and process up to 4,000,000 file write/update operations to emulate a tremendous amount of random small-file accessing without internal fragmentation.

ROOT Copy files/directories of different sizes into the root directory to emulate a synthetic situation.

SUB Copy files/directories of different sizes into a subdirectory to emulate a synthetic situation.

MP3 Copy mp3 files and photos to NAND flash storage.

Experiment Results

Figure 8 and Figure 9 compare the number of extra page writes and the number of total block erasures for BAST, FAST, and MFTL, under different number of extra blocks over a 2GB flash memory. Except for the extreme cases (i.e., the patterns 4KB-R and 64KB-R), FAST performs better than the other two schemes when the number of extra blocks is very limited. In fact, its performance saturates at three extra blocks. This is because extra blocks are shared by all logical blocks with FAST. As the number of extra blocks is increased, BAST demonstrates better performance than FAST for patterns 4KB-S and SUB. For patterns 64KB-S, ROOT, and MP3, BAST and FAST perform similarly. However, MFTL outperform both BAST and FAST when four extra blocks are provided. In particular, the performance improvement with our scheme is significant when the number of extra blocks falls between four and six. This is due to the following two reasons: (1) At least four extra blocks are required in order to well support updates of two FAT tables, root directory, and data area, which are needed when writing a file to storage; (2) Windows XP uses two threads to carry out writing operations for files with sizes over 64 KB; hence five extra blocks are enough to support update operation for a large file. Additional extra blocks do not offer obvious improvement.

(a) 4KB-S, Page Writes (b) 4KB-S, Block Erasures

(c) 64KB-S, Page Writes (d) 64KB-S, Block Erasures

(e) 4KB-R, Page Writes (f) 4KB-R, Block Erasures

(g) 64KB-R, Page Writes (h) 64KB-R, Block Erasures

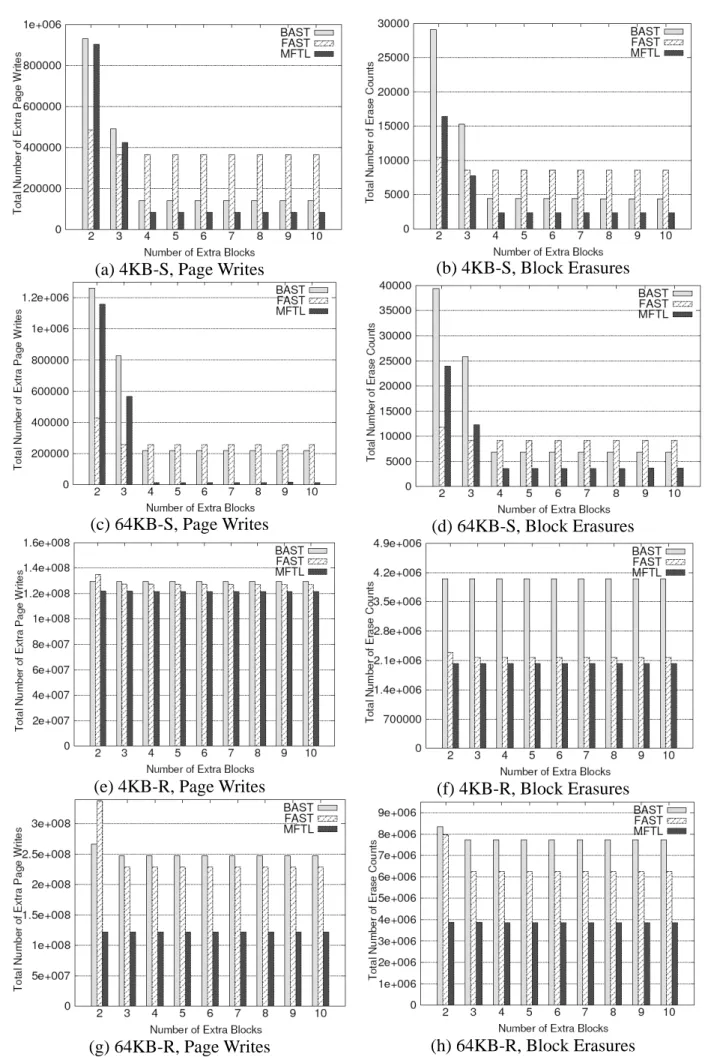

Figure 8: Performance Comparison of BAST/FAST/MFTL under Different Number of Extra Blocks for Accessing Small Files over a 2GB Flash Memory.

(a) ROOT, Page Writes (b) ROOT, Block Erasures

(c) SUB, Page Writes (d) SUB, Block Erasures

(e) MP3, Page Writes (f) MP3, Block Erasures

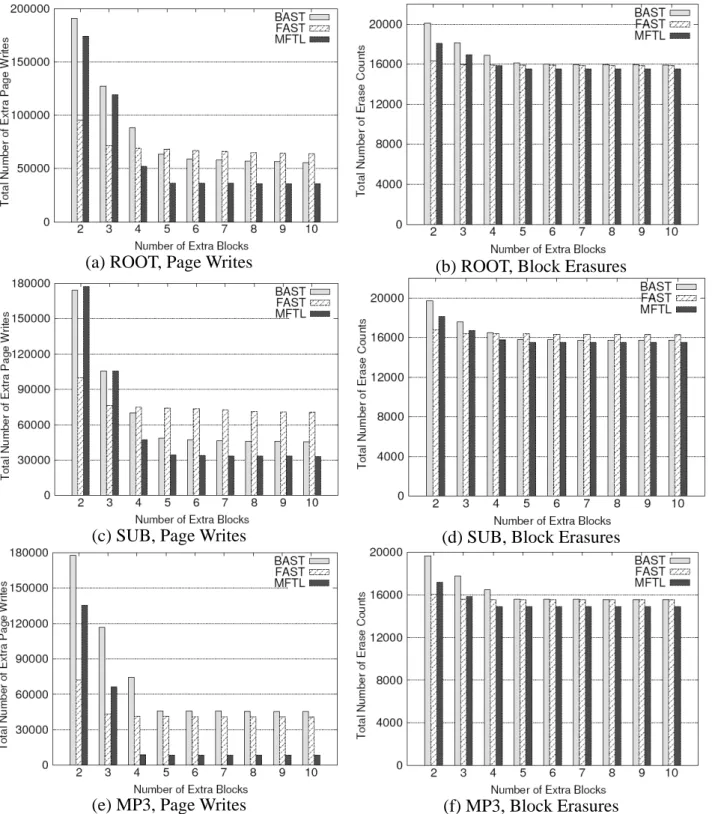

Figure 9: Performance Comparison of BAST/FAST/MFTL under Different Number of Extra Blocks for Accessing Synthetic Files over a 2GB Flash Memory.

Memory Requirement

We now discuss memory requirements for the three hybrid mapping schemes. Since block mapping tables are of the same size for all schemes, we focus on memory requirements for managing update requests. Table II lists memory requirements for each extra block and for managing page mapping information.

Table III lists the memory requirements for these schemes with respect to different number of extra blocks. As shown in the table, when the number of extra blocks is six, MFTL can save about 40.85% memory space

compared with BAST and up to 74.70% compared with FAST. These savings can be as high as 59.44% and 83.89% when there are ten extra blocks provided by the system.

Table II: Memory Requirements for Extra Block and MapArray (Unit: Bytes).

Extra Block Page Mapping VBA Primary Replace Other VBA Array

BAST 2 2 2 1 0 64

FAST 2 2 2 0 0 192

MFTL 2 2 2 3 2 64

Table III: Memory Requirements for Managing Update Requests with Different Number of Extra Blocks.

(Unit: Bytes)

Number of Extra Blocks

2 3 4 5 6 7 8 9 10 BAST 142 213 284 355 426 497 568 639 710 FAST 204 402 600 798 996 1,194 1,392 1,590 1,788 MFTL 84 159 234 243 252 261 270 279 288
