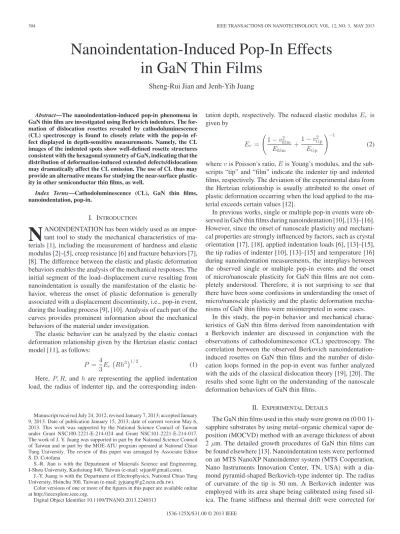

Nanoindentation-Induced Pop-In Effects
in GaN Thin Films
Sheng-Rui Jian and Jenh-Yih Juang
Abstract—The nanoindentation-induced pop-in phenomena in
GaN thin film are investigated using Berkovich indenters. The for-mation of dislocation rosettes revealed by cathodoluminescence (CL) spectroscopy is found to closely relate with the pop-in ef-fect displayed in depth-sensitive measurements. Namely, the CL images of the indented spots show well-defined rosette structures consistent with the hexagonal symmetry of GaN, indicating that the distribution of deformation-induced extended defects/dislocations may dramatically affect the CL emission. The use of CL thus may provide an alternative means for studying the near-surface plastic-ity in other semiconductor thin films, as well.
Index Terms—Cathodoluminescence (CL), GaN thin films,
nanoindentation, pop-in.
I. INTRODUCTION
N
ANOINDENTATION has been widely used as animpor-tant tool to study the mechanical characteristics of ma-terials [1], including the measurement of hardness and elastic modulus [2]–[5], creep resistance [6] and fracture behaviors [7], [8]. The difference between the elastic and plastic deformation behaviors enables the analysis of the mechanical responses. The initial segment of the load–displacement curve resulting from nanoindentation is usually the manifestation of the elastic be-havior, whereas the onset of plastic deformation is generally associated with a displacement discontinuity, i.e., pop-in event, during the loading process [9], [10]. Analysis of each part of the curves provides prominent information about the mechanical behaviors of the material under investigation.
The elastic behavior can be analyzed by the elastic contact deformation relationship given by the Hertzian elastic contact model [11], as follows:
P = 4
3Er
Rh31/2. (1)
Here, P, R, and h are representing the applied indentation load, the radius of indenter tip, and the corresponding
inden-Manuscript received July 24, 2012; revised January 7, 2013; accepted January 9, 2013. Date of publication January 15, 2013; date of current version May 6, 2013. This work was supported by the National Science Council of Taiwan under Grant NSC100-2221-E-214-024 and Grant NSC101-2221-E-214-017. The work of J. Y. Juang was supported in part by the National Science Council of Taiwan and in part by the MOE-ATU program operated at National Chiao Tung University. The review of this paper was arranged by Associate Editor S. D. Cotofana
S.-R. Jian is with the Department of Materials Science and Engineering, I-Shou University, Kaohsiung 840, Taiwan (e-mail: [email protected]).
J.-Y. Juang is with the Department of Electrophysics, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TNANO.2013.2240313
tation depth, respectively. The reduced elastic modulus Er is
given by Er = 1− vfilm2 Efilm +1− v 2 tip Etip −1 (2) where v is Poisson’s ratio, E is Young’s modulus, and the sub-scripts “tip” and “film” indicate the indenter tip and indented films, respectively. The deviation of the experimental data from the Hertzian relationship is usually attributed to the onset of plastic deformation occurring when the load applied to the ma-terial exceeds certain values [12].
In previous works, single or multiple pop-in events were ob-served in GaN thin films during nanoindentation [10], [13]–[16]. However, since the onset of nanoscale plasticity and mechani-cal properties are strongly influenced by factors, such as crystal orientation [17], [18], applied indentation loads [6], [13]–[15], the tip radius of indenter [10], [13]–[15] and temperature [16] during nanoindentation measurements, the interplays between the observed single or multiple pop-in events and the onset of micro/nanoscale plasticity for GaN thin films are not com-pletely understood. Therefore, it is not surprising to see that there have been some confusions in understanding the onset of micro/nanoscale plasticity and the plastic deformation mecha-nisms of GaN thin films were misinterpreted in some cases.
In this study, the pop-in behavior and mechanical charac-teristics of GaN thin films derived from nanoindentation with a Berkovich indenter are discussed in conjunction with the observations of cathodoluminescence (CL) spectroscopy. The correlation between the observed Berkovich nanoindentation-induced rosettes on GaN thin films and the number of dislo-cation loops formed in the pop-in event was further analyzed with the aids of the classical dislocation theory [19], [20]. The results shed some light on the understanding of the nanoscale deformation behaviors of GaN thin films.
II. EXPERIMENTALDETAILS
The GaN thin films used in this study were grown on (0 0 0 1)-sapphire substrates by using metal–organic chemical vapor de-position (MOCVD) method with an average thickness of about 2 μm. The detailed growth procedures of GaN thin films can be found elsewhere [13]. Nanoindentation tests were performed on an MTS NanoXP Nanoindenter system (MTS Cooperation, Nano Instruments Innovation Center, TN, USA) with a dia-mond pyramid-shaped Berkovich-type indenter tip. The radius of curvature of the tip is 50 nm. A Berkovich indenter was employed with its area shape being calibrated using fused sil-ica. The frame stiffness and thermal drift were corrected for 1536-125X/$31.00 © 2013 IEEE
Fig. 1. (a) Load–displacement curve measured by Berkovich indenter on GaN thin films at the indentation load of 50 mN, and (b) corresponding pop-in event (see the arrow) from (a) is zoomed in, where the plastic strain work is denoted as, Wp(critical loading times the displacement).
all measurements. The cyclic nanoindentation tests were per-formed in a sequence described as followings. We first apply the indentation loading to the set maximum load and unloading by 90%. Then, reload the indenter to the maximum load and unload it by 90% again. At this stage, the indenter was kept on hold for 10 s at 10% of the maximum load for thermal drift cor-rection. After that, the indenter was completely unloaded and, thus, finished a cyclic nanoindentation test for a certain targeted maximum load. Fig. 1(a) displays a typical load–displacement curve comprising four cyclic tests at the maximum loads of 6, 12, 25, and 50 mN, respectively. The thermal drift was kept below±0.05 nm/s for all indentations considered in this study. The same loading/unloading rate of 10 mN/s was used. At least ten indents were performed and the nanoindentations were suf-ficiently spaced to prevent from mutual interactions. The room temperature CL measurement was performed using a Gata mon-ocle equipped on the JEOL JSM-7000F field-emission SEM. A
20-keV electron beam energy level was selected to excite the sample.
III. RESULTS ANDDISCUSSION
Typical load–displacement curve from GaN thin films loaded to an indentation load of 50 mN is shown in Fig. 1(a). Similar to many previous studies [10], [14], [15], the results indicate a slight pop-in event of yield response for GaN thin films, which has been commonly attributed to the sudden nucleation of dislo-cations propagating along the slip systems lying on the{0 0 0 1} basal planes and the{1 0 ¯1 1} pyramidal planes. As shown in Fig. 1(b), a single pop-in is observed at the critical indentation load (Pcr) of∼0.8 mN. The initial yielding is related to the onset
of plasticity since the deformation behavior prior to yield excur-sion is elastic. The elastic deformation behavior does not involve any dislocation motion until the applied stress approaches the theoretical shear strength of the materials. Beyond this point, homogeneous nucleation of dislocations or activation of pre-existing dislocation sources starts to emerge and is followed by subsequent glide and multiplication events [21]. The tip radius of our Berkovich-type indenter is only∼50 nm; therefore, the pop-in effect should have been dominated by homogeneous dis-location nucleation [22]. Under such circumstances, it can be assumed that the applied shear stress required to trigger the dis-location nucleation is the maximum shear stress τm ax beneath
the indenter during the pop-in and can be described by
τm ax = 0.18 PcrEr2 R2 1/3 . (3)
From the classical dislocation theory [19], [20], the formation free energy F of a circular dislocation loop with radius r is determined by the line energy of the newly formed loop γdis
and the work (∼τm axb per loop area) to extend it, as following:
F = γdis2πr− τm axbπr2. (4)
Taking into account the Hertzian contact stress [23] during the indentation, the dislocation line energy for a circular loop is obtained as γdis = Gb2 8π 2− vfilm 1− vfilm ln 4r rcore − 2 . (5)
Here, the value of τm axis about 6.4 GPa, vfilmis Poisson’s
ra-tio (=0.25) [13], G is the shear modulus (=Efilm/2(1 + vfilm)≈
120 GPa), and b is the Burgers vector (=0.319 nm) [24] of the GaN thin film.
As expressed in (4), nucleation of a dislocation loop involves two prominent terms, namely the line energy of the dislocation loop and the work-done to extend the dislocation loop in the expense of reducing the stress energy. This is similar to the nucleation process of a spherical new phase of radius,r, within the parent phase, wherein the surface energy associated with the
newly formed interface between the nucleus and the parent phase and the free energy reduction resulting from forming new phase are the two relevant energy terms. In both cases the free energy has a maximum at a critical radius rc which gives dF/dr = 0
and the formation free energy has a critical maximum value at rc, which has to be at least of the order of the thermal energy.
Since the thermal energy is very small compared to the two energy terms on the right-hand side of (4), the F (rc)∼ 0 is thus
assumed as an additional condition for calculating rc. These
considerations lead to rc= 2γdis bτm ax and rc = e3 4 rcore ≈ 5rcore. (6)
Here, rcoreis the cut-off radius of the dislocation core, which
has been directly revealed as an eight-fold ring with diame-ter in the order of 0.4–0.5 nm for threading dislocations in GaN [25]. Therefore, the number of loops formed can be es-timated from the work-done associated with the pop-in event. From the shaded area depicted in Fig. 1(b), this work is estimated to be∼5.24 × 10−12 Nm, implying that∼3 × 105 dislocation loops with critical diameter might have been formed during the pop-in event. This number is low and is consistent with the sce-nario of homogeneous dislocation nucleation-induced pop-in, instead of activation of pre-existing dislocations [12]. When the total dissipation energy, namely the area between the loading and unloading curves shown in Fig. 1(a), is taken as the energy to generate dislocations with critical radius, dislocation loops as high as∼4 × 108 may be formed within a load–unload cy-cle. Although it is not realistic to assume that all the dissipated indentation energy was entirely transferred to generate disloca-tion loops, the estimadisloca-tion has, nevertheless, provided an upper limit for the number of dislocation loops with critical radius in the initial state. Subsequent to their formation, the embry-onic loops grow further and coalesce under the action of the applied indentation load. The unloading may give rise to the relaxation of dislocation loops, which eventually stabilizes into the dislocation rosette patterns shown later.
Fig. 2 shows two typical CL images of near-gap emission ob-tained from the pristine and the indented area with the maximum indentation load of 50 mN on GaN thin film, respectively. The Berkovich nanoindentation-induced “rosette” pattern character-istically reflecting the hexagonal symmetry of GaN is clearly observed in the indented area, whereas in the pristine region it is essentially featureless in the CL image. It is noted that, de-pending on the indenter shapes, the nanoindentation-induced CL patterns on GaN thin films can be very different [10], [18]. Nev-ertheless, the symmetrical CL patterns that resulted from various indenters do reflect intimately the nanoindentation-induced dis-location activities [18]. As can be seen in Fig. 2, the CL image from the indented region appear to display two well separated zones: 1) a strongly perturbed central zone, appearing as a very dark zone presumably containing extremely dense damage dis-tribution, and 2) the six secondary arms, nearly parallel to the crystal axes separated by an angle of∼60◦, which is indicative of certain active defect propagation systems for the hexagonal symmetry.
Fig. 2. Room temperature CL images and CL spectra of the pristine GaN surface and indented area (at the indentation loading of 50 mN). CL imaging conditions: electron beam energy = 20 keV, CL wavelength = 366 nm.
The rosettes arms in Fig. 2 are aligned along the1 1 ¯2 0 directions. As reported in our previous study [15], the CL and cross-sectional transmission electron microscopy (XTEM) stud-ies indicated that the active slip systems in GaN films induced by the Berkovich nanoindentations are on the{0 0 0 1} basal planes and the{1 0 ¯1 1} pyramidal planes with the slip bands extending exclusively along the1 1 ¯2 0 orientation. This is also consistent with the plane-view TEM observations reported by Jahn et al. [26], which confirmed that the Burgers vector of indentation-induced dislocations in c-plane GaN is 1 1 ¯2 0. Both are consistent with the extending directions of the rosette arms observed in Fig. 2. Furthermore, comparing with the fea-tureless CL picture taken from the pristine region of the same sample, it is suggestive that the rosette pattern is indeed risen from indentation-induced dislocations.
Typical CL spectra for the pristine surface and the indented areas of GaN thin film are also displayed in Fig. 2. Both exhibit a room temperature near-band edge emission peak at∼370 nm, albeit the emission density is markedly different, presumably due to the defect-induced local luminescence quench in the indented areas. The effects of the defect-induced local lumines-cence quench are further evidenced by the progressive suppres-sion of the near-gap CL emissuppres-sion intensity with increasing load-ing. An exponential decay relationship between the relative CL intensity and indentation loads are observed as shown in Fig. 3. It is evident that the data can be fitted very well with the expres-sion: I = C exp(0.86− 0.05P ), which might be related to the density of the indentation-induced dislocations. It is noted that, although the near-band edge luminescence intensity decreases
Fig. 3. Relationship of CL intensity ratio (indented GaN/pristine GaN) versus with various indentation loads.
significantly after indentations, there is no additional emission band observed, indicating that the Berkovich nanoindentation-induced dislocations merely act as non-radiative recombination centers and did not induce newly formed phases or emission bands.
IV. CONCLUSION
In summary, a combination of Berkovich nanoindentation and CL techniques was carried out to investigate the Berkovich nanoindentation-induced pop-in effect in c-plane GaN thin films. The number of the indentation-induced dislocation loops estimated from the work-done within the course of the pop-in event suggested that the pop-in was mainly due to homoge-neous nucleation of dislocations. The CL images of Berkovich nanoindentation on GaN thin film showed a very well-defined rosette structure with the hexagonal symmetry, which consists of a strongly perturbed central dark zone and six double arms emanating from this region along the1 1 ¯2 0 directions. Fur-thermore, the CL spectra recorded at room temperature showed the near band-edge luminescence intensity falling exponentially with the applied load and reduced to about 2% of that ob-tained in pristine area as the maximum indentation load up to 100 mN, presumably due to the increased number of induced dislocations.
REFERENCES
[1] W. C. Olive and G. M. Pharr, “An improved technique for determin-ing hardness and elastic modulus usdetermin-ing load and displacement sens-ing indentation experiments,” J. Mater. Res., vol. 7, pp. 1564–1583, 1992.
[2] L. Zou, H. Jin, W. Y. Lu, and X. D. Li, “Nanoscale structural and mechan-ical characterization of the cell wall of bamboo fibers,” Mater. Sci. Eng.
C, vol. 29, pp. 1375–1379, 2009.
[3] L. Bao, Z. H. Xu, R. Li, and X. D. Li, “Catalyst-free synthesis and struc-tural and mechanical characterization of single crystalline Ca2B2O5·H2O nanobelts and stacking faulted Ca2B2O5 nanogrooves,” Nano Lett., vol. 10, pp. 255–262, 2010.
[4] S. R. Jian, J. Y. Juang, N. C. Chen, J. S. C. Jang, J. C. Huang, and Y. S. Lai, “Nanoindentation-induced structural deformation in GaN/AlN multilay-ers,” Nanosci. Nanotechnol. Lett., vol. 2, pp. 315–321, 2010.
[5] S. R. Jian, H. G. Chen, G. J. Chen, J. S. C. Jang, and J. Y. Juang, “Struc-tural and nanomechanical properties of a-plane ZnO thin films deposited under different oxygen partial pressures,” Curr. Appl. Phys., vol. 12, pp. 849–853, 2012.
[6] S. R. Jian, T. H. Fang, and D. S. Chuu, “Nanomechanical characteriza-tions of InGaN thin films,” Appl. Surf. Sci., vol. 252, pp. 3033–3042, 2006.
[7] X. D. Li, X. Wang, Q. Xiong, and P. C. Eklund, “Mechanical properties of ZnS nanobelts,” Nano Lett., vol. 5, pp. 1982–1986, 2005.
[8] S. J. Bull, “Nanoindentation of coatings,” J. Phys. D, Appl. Phys., vol. 38, pp. R393–R413, 2005.
[9] J. E. Bradby, J. S. Williams, J. Wong-Leung, M. V. Swain, and P. Munroe, “Mechanical deformation of InP and GaAs by spherical indentation,”
Appl. Phys. Lett., vol. 78, pp. 3235–3237, 2001.
[10] J. E. Bradby, S. O. Kucheyev, J. S. Williams, J. Wong-Leung, M. V. Swain, P. Munroe, G. Li, and M. R. Phillips, “Indentation-induced damage in GaN epilayers,” Appl. Phys. Lett., vol. 80, pp. 383–385, 2002. [11] K. L. Johnson, Contact Mechanics. Cambridge, U.K.: Cambridge Univ.
Press, 1985.
[12] D. Lorenz, A. Zeckzer, U. Hilpert, P. Grau, H. Johnson, and H. S. Leipner, “Pop-in effect as homogenous nucleation of dislocations during nanoin-dentation,” Phys. Rev. B, vol. 67, p. 172101-4, 2003.
[13] S. R. Jian, T. H. Fang, and D. S. Chuu, “Analysis of physical properties of III-nitride thin films by nanoindentation,” J. Electron. Mater., vol. 32, pp. 496–500, 2003.
[14] S. R. Jian, W. C. Ke, and J. Y. Juang, “Mechanical characteristics of Mg-doped GaNthin films by nanoindentation,” Nanosci. Nanotechnol. Lett., vol. 4, pp. 598–603, 2012.
[15] S. R. Jian, “Berkovich indentation-induced deformation behaviors of GaN thin films observed using cathodeluminescence and cross-sectional trans-mission electron microscopy,” Appl. Surf. Sci., vol. 254, pp. 6749–6753, 2008.
[16] J. Y. Lu, H. Ren, D. M. Deng, Y. Wang, K. J. Chen, K. M. Lau, and T. Y. Zhang, “Thermally activated pop-in and indentation size effects in GaN films,” J. Phys. D, Appl. Phys., vol. 45, pp. 085301–7, 2012. [17] T. Wei, Q. Hu, R. Duan, J. Wang, Y. Zeng, J. Li, Y. Yang, and Y. Liu,
“Mechanical deformation behavior of nonpolar GaN thick films by Berkovich nanoindentation,” Nanoscale Res. Lett., vol. 4, pp. 753–757, 2009.
[18] J. Huang, K. Xu, M. Fan, M. T. Niu, X. H. Zeng, J. F. Wang, and H. Yang, “Nanoscale anisotropic plastic deformation in single crystal GaN,” Nanoscale Res. Lett., vol. 7, pp. 150–154, 2012.
[19] R. Kirchheim, “Reducing grain boundary, dislocation line and vacancy formation energies by solute segregation: I. Theoretical background,” Acta
Mater., vol. 55, pp. 5129–5138, 2007.
[20] R. Kirchheim, “Revisiting hydrogen embrittlement models and hydrogen-induced homogeneous nucleation of dislocations,” Scr. Mater., vol. 62, pp. 67–70, 2010.
[21] A. Barnoush, M. T. Welsch, and H. Vehoff, “Correlation between dislo-cation density and pop-in phenomena in aluminum studied by nanoin-dentation and electron channeling contrast imaging,” Scr. Mater., vol. 63, pp. 465–468, 2010.
[22] J. R. Morris, H. Bei, G. M. Pharr, and E. P. George, “Size effects and stochastic behavior of nanoindentation pop-in,” Phys. Rev. Lett., vol. 106, p. 165502-4, 2011.
[23] A. Barnoush, Ch. Biess, and H. Vehoff, “In situ electrochemical nanoin-dentation of FeAl(1 0 0) single crystal: hydrogen effect on dislocation nucleation,” J. Mater. Res., vol. 24, pp. 1105–1113, 2009.
[24] S. Basu, M. W. Barsoum, A. D. Williams, and T. D. Moustakas, “Spherical nanoindentation and deformation mechanisms in freestanding GaN films,”
J. Appl. Phys., vol. 101, p. 083522-7, 2007.
[25] Y. Xin, S. J. Pennycook, N. D. Browning, P. D. Nellist, S. Sivananthan, F. Omn`es, B. Beaumont, J. P. Faurie, and P. Gibart, “Direct observation of the core structures of threading dislocation in GaN,” Appl. Phys. Lett., vol. 72, pp. 2680–2682, 1998.
[26] U. Jahn, A. Trampert, Th. Wagner, O. Brandt, and K. H. Ploog, “Inden-tation of GaN: A study of the optical activity and strain state of extended defects,” Phys. Stat. Sol. A, vol. 192, pp. 79–84, 2002.
