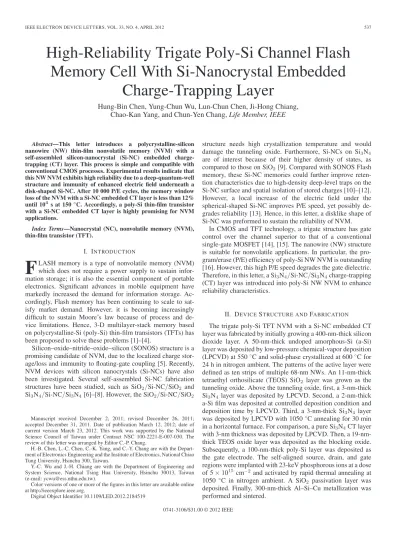

IEEE ELECTRON DEVICE LETTERS, VOL. 33, NO. 4, APRIL 2012 537
High-Reliability Trigate Poly-Si Channel Flash
Memory Cell With Si-Nanocrystal Embedded
Charge-Trapping Layer
Hung-Bin Chen, Yung-Chun Wu, Lun-Chun Chen, Ji-Hong Chiang,
Chao-Kan Yang, and Chun-Yen Chang, Life Member, IEEE
Abstract—This letter introduces a polycrystalline-silicon nanowire (NW) thin-film nonvolatile memory (NVM) with a self-assembled silicon-nanocrystal (Si-NC) embedded charge-trapping (CT) layer. This process is simple and compatible with conventional CMOS processes. Experimental results indicate that this NW NVM exhibits high reliability due to a deep-quantum-well structure and immunity of enhanced electric field underneath a disk-shaped Si-NC. After 10 000 P/E cycles, the memory window loss of the NVM with a Si-NC embedded CT layer is less than 12% until 104 s at 150◦C. Accordingly, a poly-Si thin-film transistor with a Si-NC embedded CT layer is highly promising for NVM applications.
Index Terms—Nanocrystal (NC), nonvolatile memory (NVM),
thin-film transistor (TFT).
I. INTRODUCTION
F
LASH memory is a type of nonvolatile memory (NVM) which does not require a power supply to sustain infor-mation storage; it is also the essential component of portable electronics. Significant advances in mobile equipment have markedly increased the demand for information storage. Ac-cordingly, Flash memory has been continuing to scale to sat-isfy market demand. However, it is becoming increasingly difficult to sustain Moore’s law because of process and de-vice limitations. Hence, 3-D multilayer-stack memory based on polycrystalline-Si (poly-Si) thin-film transistors (TFTs) has been proposed to solve these problems [1]–[4].Silicon–oxide–nitride–oxide–silicon (SONOS) structure is a promising candidate of NVM, due to the localized charge stor-age/loss and immunity to floating-gate coupling [5]. Recently, NVM devices with silicon nanocrystals (Si-NCs) have also been investigated. Several self-assembled Si-NC fabrication structures have been studied, such as SiO2/Si-NC/SiO2 and Si3N4/Si-NC/Si3N4[6]–[8]. However, the SiO2/Si-NC/SiO2
Manuscript received December 2, 2011; revised December 26, 2011; accepted December 31, 2011. Date of publication March 12, 2012; date of current version March 23, 2012. This work was supported by the National Science Council of Taiwan under Contract NSC 100-2221-E-007-030. The review of this letter was arranged by Editor C.-P. Chang.
H.-B. Chen, L.-C. Chen, C.-K. Yang, and C.-Y. Chang are with the Depart-ment of Electronics Engineering and the Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan.
Y.-C. Wu and J.-H. Chiang are with the Department of Engineering and System Science, National Tsing Hua University, Hsinchu 30013, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this letter are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/LED.2012.2184519
structure needs high crystallization temperature and would damage the tunneling oxide. Furthermore, Si-NCs on Si3N4 are of interest because of their higher density of states, as compared to those on SiO2[9]. Compared with SONOS Flash memory, these Si-NC memories could further improve reten-tion characteristics due to high-density deep-level traps on the Si-NC surface and spatial isolation of stored charges [10]–[12]. However, a local increase of the electric field under the spherical-shaped Si-NC improves P/E speed, yet possibly de-grades reliability [13]. Hence, in this letter, a disklike shape of Si-NC was preformed to sustain the reliability of NVM.
In CMOS and TFT technology, a trigate structure has gate control over the channel superior to that of a conventional single-gate MOSFET [14], [15]. The nanowire (NW) structure is suitable for nonvolatile applications. In particular, the pro-gram/erase (P/E) efficiency of poly-Si NW NVM is outstanding [16]. However, this high P/E speed degrades the gate dielectric. Therefore, in this letter, a Si3N4/Si-NC/Si3N4charge-trapping (CT) layer was introduced into poly-Si NW NVM to enhance reliability characteristics.
II. DEVICESTRUCTURE ANDFABRICATION
The trigate poly-Si TFT NVM with a Si-NC embedded CT layer was fabricated by initially growing a 400-nm-thick silicon dioxide layer. A 50-nm-thick undoped amorphous-Si (a-Si) layer was deposited by low-pressure chemical-vapor deposition (LPCVD) at 550◦C and solid-phase crystallized at 600◦C for 24 h in nitrogen ambient. The patterns of the active layer were defined as ten strips of multiple 68-nm NWs. An 11-nm-thick tetraethyl orthosilicate (TEOS) SiO2 layer was grown as the tunneling oxide. Above the tunneling oxide, first, a 3-nm-thick Si3N4 layer was deposited by LPCVD. Second, a 2-nm-thick a-Si film was deposited at controlled deposition condition and deposition time by LPCVD. Third, a 3-nm-thick Si3N4 layer was deposited by LPCVD with 1050◦C annealing for 30 min in a horizontal furnace. For comparison, a pure Si3N4CT layer with 3-nm thickness was deposited by LPCVD. Then, a 19-nm-thick TEOS oxide layer was deposited as the blocking oxide. Subsequently, a 100-nm-thick poly-Si layer was deposited as the gate electrode. The self-aligned source, drain, and gate regions were implanted with 23-keV phosphorous ions at a dose of 5× 1015 cm−2 and activated by rapid thermal annealing at 1050 ◦C in nitrogen ambient. A SiO2 passivation layer was deposited. Finally, 300-nm-thick Al–Si–Cu metallization was performed and sintered.
538 IEEE ELECTRON DEVICE LETTERS, VOL. 33, NO. 4, APRIL 2012
Fig. 1. (a) Top view of trigate TFT NVMs. (b) Cross-sectional view cor-responding to (a) in the AA direction. (c) Cross-sectional TEM image of the trigate structure with NWs = 68 nm, and SiO2= 11 nm/Si3N4=
3 nm/Si-NC = 2 nm/Si3N4= 3 nm/SiO2= 19 nm stacked gate dielectric.
(d) Top view of Si-NCs with disk shape on the control wafer. The inset of (d) shows the diffraction pattern of the Si-NC trap layer.
III. RESULTS ANDDISCUSSION
Fig. 1(a) shows the top view of the pi-gate TFT NVM with a hybrid (Si3N4/Si-NCs/Si3N4) CT layer, and Fig. 1(b) exhibits the cross-sectional view of trigate NVMs in the AAdirection. Ten strips of NW are made, and the space is 300 nm between each NW. Fig. 1(c) shows the cross-sectional transmission elec-tron microscopy (TEM) photograph of one NW of trigate NVM with a hybrid (Si3N4/Si-NCs/Si3N4) CT layer, and the poly-Si active layer of the trigate device is surrounded by the stacked gate dielectric. The physical width of each NW is 68 nm, and the gate length is 10 µm. Fig. 1(d) shows the top view of Si-NCs surrounded by Si3N4, which is deposited and annealed on the control wafer. During the high-temperature thermal annealing, the ultrathin a-Si film (2 nm) self-assembles to form the Si-NCs with a diameter of around 7–10 nm with a disklike shape [7], [8], in which the density of Si-NCs is around 1012 cm−2. The inset of Fig. 1(d) illustrates the diffraction pattern taken from the Si-NC trap layer. It is clearly found that the Si thin-film is amorphous as-deposited and then turns out to be polycrystalline after 1050◦C furnace annealing.
Fig. 2 plots the normalized drain current (Id× L/W ) versus
gate voltage for NW and single-channel (SC, gate width = 1 µm) devices in the fresh and programmed states. The devices are programmed at Vgs= 22.5 V for 1 s from the fresh state. The NW device exhibits a much higher programming speed and a better subthreshold slope than the SC device due to the corner effect and excellent gate control of the trigate structure, which is consistent with previous studies [3].
Fig. 3 plots the P/E characteristics of the trigate device with a Si-NC embedded CT layer (Si-NC device) and the trigate device with a single Si3N4 CT layer of 3 nm (SONOS device). For the Vg= 26 V program condition of Si-NC and
SONOS memory devices, the electric field of the tunnel oxide is 8.23 MV/cm in the Si-NC device and 8.47 MV/cm in the SONOS memory device. Although the electric field of the Si-NC device is smaller than that of the SONOS device, the Si-NC device shows the same threshold shift with the SONOS device for the P/E characteristics due to the local increase of the electric field under the oval-shaped Si-NC [13].
Fig. 2. Id–Vgtransfer characteristics of fresh and programmed states of NW trigate and conventional single-gate (SC) devices with Si-NC embedded CT layer. Both devices are programmed at Vg= 22.5 V for 1 s from the fresh state.
Fig. 3. P/E characteristics of Si-NC and SONOS devices under F-N bias conditions.
Fig. 4. Endurance characteristics of Si-NC and SONOS devices. Both devices have the same applied voltage but different physical thickness of stacked gate dielectric. Therefore, the SONOS device has the higher electric field in tunnel oxide, resulting in worse endurance than that of the Si-NC one. The inset shows SS during 104P/E cycles.
Fig. 4 shows the endurance characteristics of Si-NC and SONOS devices. The subthreshold swing (SS) during 104P/E cycling tests is shown in the inset of Fig. 4. Although Si-NC and SONOS devices both guarantee 10 000 P/E operations, the P/E efficiency of the SONOS device decreases with an increasing number of P/E cycles. For the SONOS device, the upward
CHEN et al.: FLASH MEMORY CELL WITH Si-NC EMBEDDED CT LAYER 539

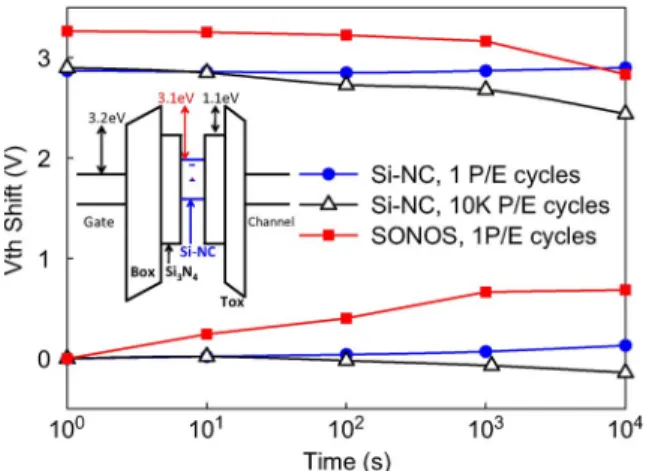

Fig. 5. Retention characteristics of Si-NC and SONOS devices at 150◦C. The inset is the band diagram of poly-Si/SiO2/Si3N4/Si-NC/Si3N4/
SiO2/poly-Si stacked film.
threshold-voltage shift (∆Vth) is due to the low-injected hole into the CT layer, higher electric field across the tunneling oxide, generation of Si−SiO2 interface traps, and electron trapping in the deep states [10], [17]–[19]. The interface traps lead to SS degradation (inset of Fig. 4) and reduce the P/E speed. Hence, the Si-NC device exhibits excellent endurance of around 86% of the initial memory window after 104P/E cycles. Fig. 5 plots the data retention of Si-NC and SONOS devices at 150◦C. The memory windows of Si-NC and SONOS devices sustain 95% and 65%, respectively, for 104 s at 150◦C. After 10 000 P/E cycles, the memory window of the Si-NC device remains 88% for 104s at 150◦C. The inset of Fig. 5 is a band structure of the Si-NC device. As the Si-NC embedded CT layer sustains a large amount of charges for data storage, the deep quantum well of Si-NC effectively suppresses direct tunneling from the CT layer into the channel [20], [21]. Moreover, the stored charges in the trap sites of the Si3N4layer have tended to tunnel back into the Si-NC quantum well rather than out of the CT layer due to a markedly shorter tunneling width. These characteristics result in an excellent retention of the Si-NC device even with 10 000 P/E cycles, i.e., oxide-defect-induced charge leakage is also reduced extensively.
IV. CONCLUSION
A poly-Si thin-film Flash NVM with a Si-NC embedded CT layer through self-assembly processes has been presented. Experimental results indicate that memories with a Si-NC CT layer exhibits high retention and endurance characteristics. Af-ter 10 000 P/E cycles, the data retention is remarkable for NVM applications due to the deep quantum well of Si-NC encapsu-lated in the Si3N4layer and immunity to the enhanced electric field underneath the disk-shaped Si-NCs. In addition, reducing the thickness of the tunnel oxide can further lower the P/E volt-age. This investigation examines the feasibility of the poly-Si thin-film NVM with a Si-NC embedded CT layer on 3-D layer-to-layer stacked high-density NAND memory applications.
ACKNOWLEDGMENT
The authors would like to thank the National Nano Device Laboratories of Taiwan for the technical support.
