Using patent data for technology forecasting: China RFID patent analysis
Charles V. Trappey
a, Hsin-Ying Wu
a, Fataneh Taghaboni-Dutta
b,*, Amy J.C. Trappey
c,da
Department of Management Science, National Chiao Tung University, Taiwan
b
Department of Business Administration, College of Business, University Illinois at Urbana-Champaign, Champaign, IL, USA
c
Department of Industrial Engineering and Management, National Taipei University of Technology, Taiwan
d
Department of Industrial Engineering and Engineering Management, National Tsing Hua University, Taiwan
a r t i c l e
i n f o
Article history:
Received 3 November 2009
Received in revised form 29 March 2010 Accepted 7 May 2010
Available online 8 June 2010
Keywords:
Radio Frequency Identification (RFID) Clustering
Patent analysis China patents Patent mapping
a b s t r a c t
China is one of the world’s largest manufacturers and consumers of Radio Frequency Identification (RFID) applications. Current estimates show that China will need over 3 billion RFID tags to satisfy demand in the year 2009. The applications for RFID patents have spread across a very diverse range of inventions and in the future it is likely that most products manufactured in China will contain an RFID tag. China’s RFID industry has grown along with the demand and researchers are making significant technological advances. In this research, patent data from the State Intellectual Property Office of the People’s Republic of China (SIPO) have been used to explore RFID technology development and its trends. Patent abstracts containing the keyword and phrase ‘‘RFID” and ‘‘Radio Frequency Identification” were collected for anal-ysis, content extraction, and clustering. In total, 1389 patents from the SIPO database covering the years 1995–2008 were retrieved and archived for analysis. Patents provide exclusive rights and legal protection for inventors, play an important role in the development and fair diffusion of technology, and contain detailed specifications necessary to define and protect the boundaries of an invention. Through patent analysis, companies monitor the development of technology and evaluate the position of potential com-petitors in the market. This research introduce a methodology which combines patent content clustering and technology life cycle forecasting to find a niche space of RFID technology development in China.
A patent content clustering method is used to cluster different patent documents into homogenous groups, and then technology forecasting is applied to evaluate possible market opportunities for future inventors and investors. The results suggest that the cluster called RFID wireless communication devices has entered the saturation stage and thus provides limited opportunity for development. Four other clus-ters; RFID concepts and applications, RFID architecture, RFID tracking implementation, and RFID trans-mission apparatus, have entered the mature stage. The RFID frequency and waves cluster appears to be in early growth stage with good development potential. Since the technology related to basic RFID concepts and devices has reached a mature stage in China, the research and development seems to be targeting the improvement of the RFID frequencies and waves as a means to develop more reliable RFID systems and applications.
Ó 2010 Elsevier Ltd. All rights reserved.
1. Introduction
Radio Frequency Identification (RFID) tags are small silicon microchips (often less than 1 cm) designed as wireless identifica-tion systems to store and broadcast informaidentifica-tion while tracking things or people. RFID tags equipped with an antenna send infor-mation to readers which can be placed hundreds of meters away. RFID technology has a wide range of applications including retail inventory management, drug security, customer service, national defense, and health care [1]. RFID greatly reduces management
and labor cost and enhances the efficiency and security of business processes by adding a ‘‘voice” to the objects it is attached to. The barcode is being replaced by RFID technology and this substitution has increased the demand for related market applications, prod-ucts, and services.
Since RFID automatically broadcasts signals, it facilitates a myriad of processes such as inventory control, delivery, pricing, product recall, and real time accounting[2]. Thus, the retail and logistics industries have accepted RFID technology as an impor-tant means to monitor, manage, and control business processes [3]. For example, BEA Systems predicted that Wal-mart would save up to US $8.35 billion per year after building RFID capabili-ties into their supply chain[4]. IDTeckEx reported that the global market scale for RFID products and systems was US $4.93 billion in 2007 and US $5.29 billion in 2008. The products and systems
1474-0346/$ - see front matter Ó 2010 Elsevier Ltd. All rights reserved. doi:10.1016/j.aei.2010.05.007
* Corresponding author.
E-mail addresses: [email protected] (C.V. Trappey), cindywu. [email protected](H.-Y. Wu), [email protected](F. Taghaboni-Dutta), trap [email protected](A.J.C. Trappey).
Contents lists available atScienceDirect
Advanced Engineering Informatics
j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / a e iinclude tags, readers, software and services for RFID cards, labels, and chips[5]. ABI research estimates that global RFID expendi-tures will exceed US $8.49 billion in 2012 with the Asia–Pacific region to become the largest user of RFID tags[6]. Clampitt also claims that China will be the largest potential RFID market of the world [7]. Fig. 1 shows the RFID global market distribution in 2008 with China and the US leading the world in sales[5].
In 2008, China’s Gross Domestic Product experienced a growth of 9% [8] and was the global leader in receiving foreign direct investment[9]. China is widely recognized as an important player in this high-tech industry [10], requiring the investors to better understand the marketplace and players before committing invest-ments. China RFID technology was first deployed in the transporta-tion industry and included rail car and freight container identification systems, entrance guard systems, parking lot control systems, and highway toll systems. Research by Wu et al. showed that the efficiency of global supply chain and the domestic logistics infrastructure and manufacturing operations would increase if Chi-na’s manufacturers placed more RFID tags on pallets and cases [11].Fig. 2illustrates the scale of China’s RFID market for the years 2006–2008 and forecasts the sales volume for the years 2009– 2011.
Patents contain detailed specifications used to define and pro-tect the legal use boundaries of an invention. Through patent anal-ysis, companies can monitor the development of a technology and evaluate the position of potential competitors in the market. This research uses patent content analysis to map the current RFID technology development trends in China. The methodology first clusters patent documents into homogenous groups and then ap-plies a technology forecasting model to evaluate possible market opportunities for new patent research and development.
2. Patent content analysis methodologies
Since patents provide exclusive rights and legal protection for inventors, patents play an important role in the development and fair diffusion of technology. Patent data analysis has been used to gain insights into various economic and social issues[12–15]. For example, Stern, Porter, and Furman [12] used patent data from the years 1973–1995 to model and explain the growth of innova-tion between seventeen nainnova-tions. Crosby[13]used Australian pat-ent data to discuss the relationship between workforce levels and economic growth and to predict the impact of subsidies and foreign technology. Marinova[14]discussed the patent activities of East European countries in the US and Jung and Imm[15] stud-ied patents from 1988 until 1998 to compare the different patent application procedures in Taiwan, South Korea and the US.
Other researchers have used patent data to analyze the techno-logical ability between competitors and within industries to help corporations form technology strategies [16–18]. Liu and Shyu
[16]used patent data to study the technology development of Tai-wan’s LED and TFT-LCD and provide directions and strategies for business planning. Stuart and Podolny[17]applied patent data to analyze the technological abilities and evolution of Japanese semi-conductor companies. Ernst [18] discussed the relationship be-tween the quantity and quality of patents and business operations after studying 50 German machine tool companies. This research applies patent map analysis, patent document clustering, technology forecasting, and technology life cycle analysis to ana-lyze the content of patent abstracts.Fig. 3depicts the patent con-tent analysis process.
2.1. Patent map analysis
Patents archived in most patent databases contain a variety of information such as the publication and application date, the appli-cants, the inventors, and the international classification number. Patent map analysis uses this information to create general sum-maries. One such summary is the patent count which can be ex-pressed as a cumulative patent count or as yearly patent count. Cumulative patent counts reflect the technology life cycle which in turn can be used to determine the development stage of the technology. If analysts know the development stage of the technol-ogy, it is possible to forecast future trends and predict market sat-uration levels. Knowledge about the maturity and future market growth of technology innovations helps researchers decide whether to continue investing resources or switch research directions.
Patent analysis can also be used to compare the strategic indus-try positioning between nations. By analyzing patent counts or the number of applicants from different countries, researchers can quickly determine which countries are taking the lead in different areas of a technology. Inventor profiling is used to identify inven-tors with the most patents, to analyze the contributions of a spe-cific inventor, and to link the inventors to the companies that share in the ownership and application of the invention.
2.2. Technology and patent document clustering
Clustering is widely used for text mining, pattern recognition, webpage analysis, and marketing analysis [19,20]. Clustering is used to separate a heterogeneous population into a number of homogeneous subgroups without predefined classes[21]. The pur-pose of clustering is to select elements that are as similar as possi-ble within groups but as different as possipossi-ble between groups. Groups are clustered based on entities’ similarity according to specified variables and the meanings of clusters depend on the context of the analysis. In this research, the clustering technique proposed by Hsu[22]has been used to extract clusters from China RFID patent documents. The process includes data preprocessing
Other, 5.34 Australia, 1.26 Latin America, 3 Germany, 3 Korea, 4 U.K., 4 Japan, 6 U.S., 13 China, 13 China U.S. Japan U.K. Korea Germany Latin America Australia Other

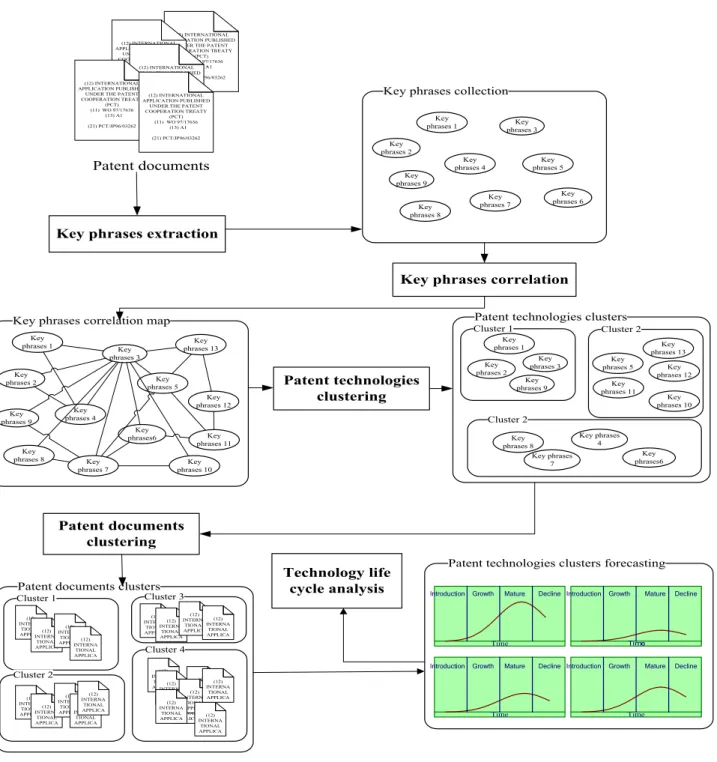

and key phrase extraction, key phrase correlation measure, patent technology clustering and patent document clustering. Since Hsu used English patent documents, some of the processes are modi-fied to accommodate Chinese language patent analysis.
2.2.1. Data preprocessing and key phrase extraction
Patent document key phrase extraction requires preprocessing the patent documents into a standard format. The standard format is created by removing the spaces between words and phrases. Then, word processing software is used to count the frequencies of words and phrases. An ontology serves as the specification of re-lated concepts used to extract meaningful words and phrases from the patent document. Since the ontology is domain specific, ex-perts must define the keywords and phrases related to the patent concepts. Then, the concept related keywords and phrases of the patent document are extracted for analysis. The frequency of these keywords and phrases are used as input for patent technology clustering.
The RFID ontology tree for this research is a modification of the tree originally defined by Pitzek[23]. Since the RFID patent documents downloaded from SIPO use simplified Chinese charac-ters, the 46 English phrases of the original ontology were trans-lated into Chinese.Fig. 4shows the ontology and the simplified Chinese character translation for the Chinese language RFID ontology tree.
2.2.2. Key phrase correlation measures
The key phrase extraction generates a list of important phrases from each patent document which is then used to form logical link between ideas and methodologies. Hsu et al.’s[24]algorithm uses four stages for key phrases analysis. First, the patent document is transformed into a key phrases vector by analyzing the frequency of the keywords and phrases. Second, by eliminating redundant phrases, the key phrase frequency vector is derived. Third, the cor-relation values between key phrases are computed as shown in Formula(1). Finally, the number of different key phrases occurring in the document is used to derive the correlation coefficients as shown inTable 1. Rij¼ PND l¼1 Xi;lXj;l NDXiXj ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi PND l¼1 X2 i;l NDX2i PND l¼1 X2 j;l NDX2j s ; ð1Þ
where NDis the total number of documents and Xi;lis the number of
key phrase I occurring in document Dl.
2.2.3. Patent technology clustering
Once the key phrase correlation matrix is derived, it is used for patent technology clustering. The key phrase correlation matrix is the input for the clustering algorithm and represents the technol-ogy contained in the patent documents. By applying the key phrases correlation matrix as input, the K-means algorithm gener-ates patent technology clusters. Patent technology clusters provide insight into the relationships between patents.
2.2.4. Patent document clustering
Patent document clustering, unlike technology clustering which clusters technology represented by key phrases, splits many docu-ments into groups according to the similarity between docudocu-ments. Using the K-means algorithm, the technology clusters which are generated from the correlation matrices are then used as the key variables to cluster patent documents. As shown in Table 2, the matrix is constructed as an input for patent document clustering. There are two major patent classification systems; the Interna-tional Patent Classification (IPC) and the United States Patent Clas-sification (USPC) system. However, patents with the same classification code may be entirely different. To solve this problem, patent document clustering derives the internal relationship based on the key aspects of the technologies and groups patents that are within the same technology field. In addition to generating the characteristic of each patent document cluster, the frequency of each key phrase (KP) appearing in each patent cluster is calculated as shown inTable 3. KPnis a representative phrase of the patent
cluster TCM if the Fnm is the largest frequency among TC1–TCM.
For example, if F12is the largest frequency among TC1–TCM, then
KP1is a representative phrase of TC2; if F32is also the largest
fre-quency among TC1–TCM, then KP3is also the representative phrase
of TC2. Thus, TC2may have several representative phrases, such as
KP1, KP3, KP18, KP23, and KP41. Thus, the characteristics of cluster
TC2 are defined using these KPs. 2.3. Patent technology forecasting
Patents are important indicators that can be used to explore technological trends and development[25–27]. Ernest[26]states that patent applications are easily retrieved and can measure the 420 658 721 823 911 953 0 200 400 600 800 1000 1200 2006 2007 2008 2009(f) 2010(f) 2011(f) Year Sale
s volume (million US dolla
rs)
impact of R&D activities. Andersen[27]suggests that the accumu-lations of patents are useful for measuring technology trends and reflect the diffusion of the technology. Therefore, in this research, cumulative patent applications are used for forecasting future RFID technology development trends. Patent application volume reveals the maturity of a new technology and can be viewed as shared knowledge. If the volume of patent applications is growing, then there are many resources creating the technology and the innova-tion. In such cases the technology may soon reach its peak. On the other hand, if the volume of applications is declining, then the technology may be is in the processes of being substituted by a new technology and thus entering the decline stage of the technol-ogy life cycle.
Growth curves are widely used in technology forecasting [28–31]. The most common is the S-curve which is used to model
product life cycles. The simple logistic model is a widely used S-curve forecasting model[32–35]. The most important characteris-tic of the simple logischaracteris-tic model is its symmetry about the point of inflection. Therefore, if the point of inflection of an S-curve has oc-curred, then it is easy to forecast the remaining trend. In this re-search, cumulative patent application volume is modeled as an S-curve with a point of inflection. The model for the simple logistic curve is controlled by three coefficients, a, b, and L is expressed as
yt¼
L
1 þ aebt ð2Þ
where ytrepresents the cumulative patent applications at time T, L
is the maximum value of yt, a describes the location of the curve,
and b controls the shape of the curve. L, a, and b are computed using a nonlinear least squared estimation method provided by a statistic
Introduction Growth Mature Decline Introduction Growth Mature Decline
Introduction Growth Mature Decline Introduction Growth Mature Decline
software package like SYSTAT. Using this model, one can forecast how many patent applications will be submitted in the future. Once
the possible ceiling value of cumulative applications (L) is deter-mined, the stage of the technology life cycle is estimated and time when the saturation of the technology will occur is computed. 2.4. Technology life cycle analysis
Patent activities can be used to interpret the technological stage of an industry. Ernst [26] suggests that the cumulative patent applications for a particular technology over time can be plotted as S-shape curve to represent its technology life cycle. The technol-ogy life cycle has four stages including introduction, growth, matu-rity and saturation [26]. During the introduction stage, there is little growth in the number of patent applications. The growth stage, on the other hand, is characterized by exponential growth. As the patent application rate declines, the mature stage is entered. The saturation stage indicates limited growth with few patent applications.
Fig. 4. Pritzek’s RFID technology ontology tree with corresponding simplified Chinese characters.
Table 1
Key phrases correlation matrix.
KP1 KP2 KP3 . . . KPn KP1 R1,1 R1,2 R1,3 . . . . KP2 R2,1 R2,2 . . . . KP3 R3,1 . . . . . . . . . . . . KPn . . . . Table 2
The matrix of patent documents with M patent clusters.
Patent1 Patent2 Patent3 . . . PatentN
TC1 N11 N12 N13 . . . N1N TC2 N21 N22 N23 . . . N2N TC3 N31 N32 N33 . . . N3N .. . .. . .. . .. . . . . .. . .. . .. . .. . .. . . . . .. . TCM NM1 NM2 NM3 . . . NMN
Notation: Nij¼PNðKPm¼1iÞKPFm, where NðKPiÞ is the number of key phrases (belonging
to technology cluster i) that are included in patent j and KPFmis the frequency of the
key phrase m (belonging to technology cluster i) of the document j. TCM, total
patent clusterM.
Table 3
The frequency of key phrase in M patent clusters.
TC1 TC2 TC3 . . . TCM KP1 F11 F12 F13 . . . F1M KP2 F21 F22 F23 . . . F2M KP3 F31 F32 F33 . . . F3M .. . .. . .. . .. . . . . ... .. . .. . .. . .. . . . . ... KPn Fn1 Fn2 Fn3 . . . FnM
Andersen[27]used simple logistic models to plot the technol-ogy lifecycle and uses different cyclical points to calculate the duration of the four stages of the life cycle. After the upper limit L is estimated using the forecasting model, and then the technol-ogy’s life cycle stage is determined.
For the simple logistic model, Meyer and Ausubel[31]propose that the range from 10% to 90% of the limit L represents the growth stage. Additionally, Ernest[26]defines the maturity stage begin-ning from the inflection point, or 50% of the upper limit, for a sim-ple logistic curve. In this paper the 10%, 50%, and 90% of the limit L are used to define the three cyclical points for classifying the four stages of the technology life cycle. Thus, if y(T) represents the cumulative patent applications at time T, L is the maximum value of y(T). Then, y(T)/L < 10%, 10% 5 y(T)/L < 50%, 50% 5 y(T)/L < 90%, and 90% 5 y(T)/L, mark the range for technology in introduction, growth, maturity, and saturation stages, respectively.
The early period of each stage may have characteristics similar to the previous stage. Moreover, the growth and maturity stages are important stages with long durations. Thus, the growth stage is partitioned into the early growth stage and the growth stage that together reach 30% of the upper limit; the mature stage is also par-titioned with the early maturity and the mature stage reaching 50% of the upper limit.
Liu[36]notes that strategic planning for patent management should account for the technology life cycle. When technology is in the introduction stage, companies should develop and apply re-lated patent technology as a means to strengthen their position in the industry. If the technology is in its growth stage, the plan should include means to modify the core technology and search for new applications. During the maturity stage, technology devel-opers should be clear on the boundaries of intellectual property and evaluate the advantages of forming strategic alliances to trade IP. Finally, if the technology is in the decline stage, new technology will be created to replace the old and signal new opportunities for research and development.
3. China RFID patent analysis
In order to understand the development of RFID technology in China, the patent database maintained by the SIPO[37]was used.
The SIPO database covers all patent information filed in China since September, 1985. The SIPO database does not provide a function to search for key phrases among full text patent documents. Patents can only be searched using attributes set by the SIPO database. The search attributes are limited to the patent title, abstract, the application number, the application date, publication number, publication date, international classification, name of the appli-cant(s), inventor’s name, priority, patent cooperation treaty (PCT), grant publication date, attorney and agent, and the address of the applicant. Since the database does not allow a key phrase search among the full text of the Chinese document, the search and analysis is limited to the electronic text contained in the ab-stract. Thus, the patents abstracts from 1995 to 2008 with either the key phrases of ‘‘RFID” or ‘‘Radio Frequency Identification” were downloaded and archived for analysis.
3.1. Patent map analysis
A patent map analysis is used to synthesize patent information including patent counts, patent contribution by nation, and inven-tor analysis.Fig. 5shows the patent counts and cumulative num-ber of RFID patent applications generated from the SIPO patent database from the earliest filings until the year 2008. As seen in Fig. 5, the trends for RFID related patents have increased sharply since 1995, with a peak in the number of applications reached in
2 1 0 6 15 16 18 2684 50 121 317 388 324 105 2 3 3 9 24 40 58 134 255 572 960 1284 1389 0 200 400 600 800 1000 1200 1400 1600 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 Year Patents RFID patent
Cumulative RFID patents
Fig. 5. Number of RFID patent applications per year in SIPO database. Table 4

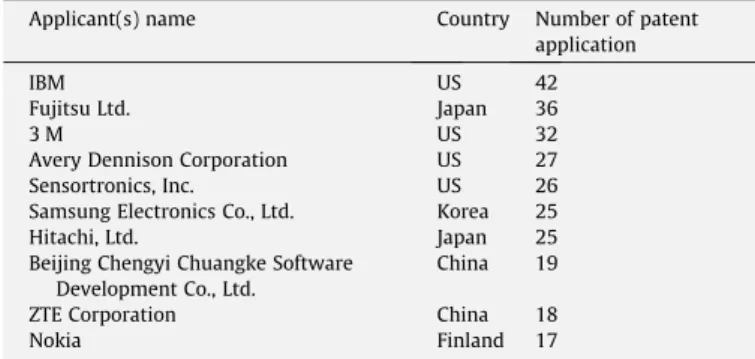

The 10 largest corporate RFID patent applications in China.
Applicant(s) name Country Number of patent application
IBM US 42
Fujitsu Ltd. Japan 36
3 M US 32
Avery Dennison Corporation US 27
Sensortronics, Inc. US 26
Samsung Electronics Co., Ltd. Korea 25
Hitachi, Ltd. Japan 25
Beijing Chengyi Chuangke Software Development Co., Ltd.
China 19
ZTE Corporation China 18
2006. From the year 1995 to the year 2008, a total of 1389 RFID patent applications were added to the SIPO database.
Table 4shows the top 10 applicants who applied for RFID re-lated patents in China. As shown inTable 4, the applicants include some well known companies like IBM, Fujitsu, 3 M, and Samsung Electronics. Companies that applied for the most patents were from the US and Japan, with only two Chinese companies on the list. However, as shown inFig. 6, China holds the largest number with 551 RFID patent applications in the SIPO database. Applicants from the US are the second largest group with a total of 362 RFID patents. Applicants from Japan, Taiwan, and Korea are the third, fourth, and fifth largest holders of RFID patent applications and in total hold 186, 73, and 55 entries.
3.2. China RFID patent content clustering
Patent documents downloaded from SIPO with RFID or Radio Frequency Identification appearing in the abstract from 1995 to 2008 were used for patent content clustering. The patent abstracts are written in simplified Chinese so a modified ontology tree with 46 translated key phrases was used to extract keywords and phrases. Since the Chinese translation of five key phrases; wired
device ( ), passive tag ( ), directivity
( ), personal tracking ( ), and animal tracking
( ) do not appear in any patent abstracts, only 41 key phrases are used for our analysis. After key phrases extraction, the correlation matrix was derived as shown inTable 5.
To better understand how phrase extraction and counting are used to derive the correlation matrix shown inTable 5, one must look at how patent applications are filed. Inventors apply for pat-ents for a single new invention; for example, if a new function
for enhancing the capacity of tag is invented, then a patent appli-cation can be filed in which the keyword ‘‘tag” may appear many times while the keyword ‘‘reader” may not appear at all, even though tag and reader cannot work without each other. The key phrase extraction used in this research builds on an earlier re-search conducted on the RFID patent applications filed with the US Patent and Trademark Office and[43]. The methodology starts with key phrase extraction and then proceeds to counting the fre-quency of key phrase in the patent document to derive the key phrase correlation matrix.
The key phrase correlation matrix is used for patent technology clustering. In this step, patent technology clusters are computed using the K-means clustering method. The 41 key phrases are clus-tered into six technology clusters.Fig. 7presents the six clusters and the key phrases of each cluster.
Patent document clustering is a method that classifies patents based on the similarity of the technologies. Patents with similar technologies fall into the same clusters which enables researchers to readily analyze the characteristics or features of the patent doc-uments within the cluster. By comparing the frequency of each key phrase appearing in the patent document cluster, the representa-tive phrases of each document clusters can be generated. Different clusters are named based on each clusters’ representative phrases to give the audience a general idea about the cluster. However, when discussing the development of a cluster, each element in the cluster should be clearly analyzed individually. As shown in Ta-ble 6, six clusters are classified from the patent documents and the representative phrases of each cluster are shown inTable 6.
The meaning of key phrases inFig. 7is different from that of in Table 6. The key phrases inFig. 7are clustered from the correlation matrix and are the results of the technology cluster. The key phrases in the same technology cluster have close relationships and are of similar concepts. The representative phrases inTable 6 are used to explore the characteristics and features of the docu-ment clusters by comparing the frequency of the phrases. 3.3. Technology forecasting and technology life cycle analysis
The clustering results are then used to forecast the future trends of the clusters. The growth curves of the six clusters are depicted in Fig. 8. Using the simple logistic model, the trajectory of the Chinese RFID patents and the maximum cumulative RFID patent applica-tions (upper limit) are estimated as shown inAppendix 1. The data are then used to determine the stage of cluster’s technology life cy-cle as shown inTable 7.
3.4. China RFID patent document clustering results
Using the clustering technique described earlier, the data was further analyzed. The first cluster, RFID concepts and applications, contains the fundamental RFID technologies, including the concepts of developing a tag and the interaction system. Some basic functions of RFID, such as security and distribution are also 362 186 73 55 33 551 0 100 200 300 400 500 600 China US Japan Taiwan Korea Germany
Fig. 6. The six largest applicant’s county of origin.
Table 5
Key phrase correlation matrix (partial).
Device Connector Wireless Reader Memory Tag Active Standard
Device 1.0000 0.0125 0.0175 0.0172 0.0284 0.0465 0.0161 0.0104 Connector 0.0125 1.0000 0.0093 0.0202 0.0053 0.0136 0.0021 0.0083 Wireless 0.0175 0.0093 1.0000 0.0036 0.0080 0.0058 0.0049 0.0037 Reader 0.0172 0.0202 0.0036 1.0000 0.0237 0.1384 0.0066 0.0141 Memory 0.0284 0.0053 0.0080 0.0237 1.0000 0.0273 0.0033 0.0074 Tag 0.0465 0.0136 0.0058 0.1384 0.0273 1.0000 0.0764 0.0255 Active 0.0161 0.0021 0.0049 0.0066 0.0033 0.0764 1.0000 0.0053 Standard 0.0104 0.0083 0.0037 0.0141 0.0074 0.0255 0.0053 1.0000
included in this cluster. The patents in this cluster provide innova-tions for providing improvements such as the modification to RFID tags and security system to increase the safety in using RFID tags. The analysis of the applicants’ original country shows that the most patent applicants in this cluster are from China (98), the sec-ond largest country is the US (61) and the third is Japan (22) (See Appendix 2). One purpose of this research is to determine if there are RFID technology gaps that can be exploited for further R&D. From the technology life cycle analysis (Table 7), the first cluster appears to be in the maturity stage and the number of patent appli-cations is forecasted to reach its upper limit (279) in 2018.
The second cluster, wireless communication devices, introduces techniques for tag identification and includes RFID wireless trans-mission technologies. Communication devices are the main focus of this cluster and many patents describe the wireless signal trans-mission technologies, and the communication of different kinds of messages. For example, there is a patent in this cluster which uti-lizes an RFID tag in an IC card to automatically send messages to other electronic devices. The dominant applicant countries in the
second cluster are from China (50), Taiwan (24), and Japan (19). The US holds fourth place with only 18 patents. The life cycle anal-ysis shows the second cluster to be in the saturation stage with a predicted 90% share of upper limit to be reached in the year 2013. This cluster is the only cluster in the saturation stage.
Cluster number 3, RFID architecture, contains key phrases like ‘‘reader”, ‘‘protocol”, ‘‘processor” and ‘‘standard” and these terms describe the essential architecture of RFID. The patents in this clus-ter focus on how to improve the functions of RFID readers or pro-tocols and increase the efficiency of RFID operations. For example, a patent in this cluster describes a method and protocol to commu-nicate between different RFID readers and simultaneously transmit data. The ability to strengthen the processors for RFID readers is also mentioned in this cluster. The largest group of applicant is from China (24) followed by groups of applicants from the US (22) and Japan (6). As shown inTable 7, the current share of RFID patent applications is at 78%, which means this cluster has entered the mature stage and will reach an upper limit (90 applications) in 2016. creature, plant, animal unit, person, tracking, asset tracking, inventory device, wireless, band, communication, encoding, identification, portable tag, active, value,
security, tolerance, item, parts, RFID application, access, distribution, interaction reader, memory, standard, gain, processor, protocol connector, frequency band, impedance, antenna, wave, direction, frequency, circuit, range Technology Cluster 1 Technology Cluster 5 Technology Cluster 2
Technology Cluster 4 Technology Cluster 6
Technology Cluster 3
Fig. 7. Technology clusters for RFID.
Table 6
The patent document clustering result. Clusters
number
Cluster features Representative phrases The number of patents in the
cluster 1 RFID concepts and
application
Tag, security, interaction, item, distribution, active, value, access, tolerance 217 2 Wireless communication
device
Device, wireless, communication, identification, portable, band, parts 134
3 RFID architecture Reader, protocol, processor, standard 73
4 Frequency band and wave
Frequency band, wave 54
5 RFID tracking
implementation
RFID application, tracking, asset tracking, inventory, creature, person, animal, memory, unit, gain, encoding, plant
686 6 RFID transmission
apparatus
The fourth cluster contains patents relating to frequency bands and waves. Frequency bands and waves are the means by which RFID systems transmit data. Different waveforms use different transmission methods and carry different amounts of data with different efficiencies. Therefore, methods to improve wave patterns are a crucial R&D direction. Noting that this cluster has the fewest patent applications and a continuing growth rate shown inFig. 8, there is good potential for the development of related technology.
As shown inTable 7, this cluster has only reached 66% of its upper limit and the life cycle is in the early part of the mature stage. Therefore, inventors and investors should analyze potential oppor-tunities in this cluster. The largest group of patent holders in this cluster are from China (25), followed by the US (13), and Japan (12).
The fifth cluster represents the implementation and applica-tions of RFID related technologies used for tracking. There are more
RFID Patent Application
Cluster 1- RFID Concepts and Application
1 1 5 3 1 7 12 43 71 57 1 2 7 10 11 18 30 73 144 201 0 50 100 150 200 250 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
RFID Patent Application
Cluster 2-Wireless Communication Device
1 1 2 2 3 12 36 49 22 1 2 4 6 9 21 57 106 128 0 20 40 60 80 100 120 140 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
RFID Patent Application Cluster 3-RFID Architecture
1 0 1 1 2 7 15 24 19 1 1 2 3 5 12 27 51 70 0 10 20 30 40 50 60 70 80 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
RFID Patent Application Cluster 4-Frequency and Wave
1 0 1 0 2 3 12 13 16 1 1 2 2 4 7 19 32 48 0 10 20 30 40 50 60 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
Cluster 1
RFID Concepts and Application
Cluster 2
Wireless Communication Device
Cluster 3 RFID Architecture
Cluster 4 Frequency and Wave
RFID Patent Application Cluster 5-RFID Tracking Implementation
1 1 0 4 7 8 9 19 25 62 155 187 166 1 2 2 6 13 21 30 49 74 136 291 478 644 0 100 200 300 400 500 600 700 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
RFID Patent Application Cluster 6-RFID Transmission Apparatus
1 0 0 1 4 2 2 3 11 25 56 44 44 1 1 1 2 6 8 10 13 24 49 105 149 193 0 50 100 150 200 250 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 Year Patents RFID patent Cumulative RFID patents
Cluster 6
RFID Transmission Apparatus Cluster 5
RFID Tracking Implementation
patents in this cluster (686) than any other cluster. The technolo-gies developed within this cluster contain technolotechnolo-gies needed in monitoring and tracking of inventories, people, and animal. The patented technologies in this cluster define how RFID technology can be implemented in the public transportation system, mobile phones, community security systems, and animal tracking sys-tems. This cluster includes patents from the earliest application period (i.e. 1995), is in the mature stage, and is forecasted to reach its upper limit in 2021 (Table 7). Applicants from China have sub-mitted the most patent to this cluster (289), followed by the US with 192 applications.
Finally, cluster number 6, RFID transmission apparatus, defines the framework and architecture for RFID transmission apparatus and systems. Most patents in this cluster are related to the anten-na, circuits and connectors which improve the functions of RFID. Some device innovations for data transmission and the activation range are introduced in this cluster. As shown inTable 7, the sixth cluster has entered the mature stage of the technology life cycle with 80% share of its upper limit. This cluster is predicted to reach saturation in the year 2018. Once again the group of patent holders from China is the largest with 551 applications, the US with 362 applications, and Japan with 186 patent applications.
4. Discussion
There are many research papers and reports that analyze pat-ents to discuss the development of RFID industry[38–43]and most conclude that there is still more opportunities for technology development. However, the research does not describe the specific areas that have the greatest R&D potential. There are many differ-ent subareas and technologies within an industry. For example, the RFID industry can be classified as RFID architectures, RFID devices, RFID applications, and different subareas fall into different devel-opmental stages. If researchers analyze patent data from a macro level and view the information by using descriptive statistical anal-ysis such as patent counts, patent analanal-ysis by nations or inventor analysis, the subareas that should be targeted for development cannot be determined. In this research, the Chinese RFID patent applications are analyzed using the K-means algorithm to cluster patent documents. Six clusters are derived and each cluster is stud-ied using a forecasting model to determine developmental stage and trends.
Based on the forecasting model used in this research and given the rate of applications filed in China, it appears that the China RFID patent applications will reach an upper limit of 1734 in the year 2020. Although there will likely be another 10 years of growth and innovation, each subarea does not have the same potential for development.
This research, along with previous research[36], suggests that analyzing patent data could reveal the technology life cycle which then can be used to direct a patent management strategy. For the RFID technology, the analysis of patents suggests that, for
manufacturers in RFID frequency and waves subarea, the most promising area of development is in modifying the core technol-ogy and searching for more applications. The manufacturers in RFID wireless communication devices subarea should start to re-duce any further investment in this area and start licensing or selling their old patents while shifting their R&D focus toward creating new technologies which will in time replace the old technology. As for the RFID manufacturers in other four subareas, since they are in the maturity stage, patent applicants should avoid invading other’s patent intellectual property and innova-tors should seek the cooperation of the other applicants (i.e. for-mation of alliances).
The results of this study show that RFID wireless communica-tion devices have entered the saturacommunica-tion stage and the technology in this cluster is mature with little room for development. Four clusters: RFID concepts and applications, RFID architecture, RFID tracking implementation, and RFID transmission apparatus, have also entered the maturity stage. One clusters, RFID frequency and waves is still in the early growth stage with the most potential for further development. The RFID operating frequencies are gener-ally organized into four main frequency bands including low fre-quency (LF), high frefre-quency (HF), ultra high frefre-quency (UHF), and microwave[44]. Higher frequencies cover longer ranges and have higher data transfer rates and offer better security. RFID can be fur-ther applied in tracking and managing living things (e.g., medical care) and there is a growing need for RFID systems that can better utilize high frequency bands for communication.
5. Conclusions
The R&D and innovation strategies for different technology life cycle are different. In mature stage, the basic characteristic is a peak growth and the competition is fiercer and the development of the technologies is mature, therefore, a customer-orientated R&D strategy would focus on either improving or designing a RFID product, application or technology which can attract more or new customers. For instance, researchers can use customer-centric market research method like quality function deployment (QFD) to innovate for desirable new applications. Alternatively, the man-ufacturers focus can shift toward standardizing their products by improving their production process to create robust designs which will improve product reliability. In maturity stage, the existing manufacturers own many patents related to the products, thus a patent search is strongly recommended before any new functions or designs are added to the products or technology.
As for saturation stage, its characteristic is that the growth be-gins to slow down and decline. The market is stable and strong brands appear. Some new products or technologies will replace the existing ones, so the marketing objective for the companies in the subarea of wireless communication device is to reduce expenditure to remain profitable. To reduce expenditure, compa-nies need to start phasing out the unprofitable products to lower
Table 7
The forecasting results.
Patent applications (1995–2007)a
Estimated maximum patent applications Year of upper limit Share of upper limit (%) Stage of technology life cycle
Cluster 1 201 279 2018 72.04 Mature
Cluster 2 128 142 2013 90.14 Saturated
Cluster 3 70 90 2016 77.78 Mature
Cluster 4 48 73 2018 65.75 Early maturity
Cluster 5 644 927 2021 69.47 Mature
Cluster 6 193 240 2018 80.42 Mature
Total 1284 1734 2020 74.05 Mature
the operation cost. At this stage, a price-orientated R&D strategy is appropriate. Since there will be new substitutions for this product or technology, the leading manufacturers need to sell their stock items with lower price. For those producers with no strong brand, they can only provide additional functions with much lower price to survive in the market place. Thus, the function combinations or alternative materials or technologies are useful innovations strat-egy in maturity stage.
This research introduce a methodology which combine patent content clustering and technology life cycle forecasting to find a niche space of an industry. Since China is currently one of the world’s largest manufacturers and consumers of RFID applications, the study focus was RFID development in China. The results suggest that the most promising niche into invest in for firms in China ap-pears to be in the improvement of the RFID frequencies and waves which will yield more reliable RFID systems and applications. The future research can apply the same methodology to study different patent databases, such databases in United States Patent and Trade-mark Office (USPTO) and World Intellectual Property Organization (WIPO) to analyze the RFID industry more completely.
Appendix 1. Estimated parameters using the simple logistic model
Cluster features L a b R2
RFID concepts and applications 278.58 6533.71 0.98 0.997 Wireless communication devices 141.51 17466.49 1.35 0.998 RFID architecture 90.36 3119.98 1.03 0.999
Frequency bands and waves
72.61 1548.90 0.89 0.997
RFID tracking and implementation
926.88 17703.89 0.82 0.998 RFID transmission
apparatus
240.40 21560.08 0.88 0.997
Total RFID industry 1734.04 37566.03 0.89 0.998
Appendix 2. Patent counts of applicants’ country of origin and application percentage
Country Patent Application percentage
Cluster 1 China 98 45.16 US 61 28.11 Japan 22 10.14 Korea 16 7.37 Taiwan 5 2.30 Cluster 2 China 50 37.31 Taiwan 24 17.91 Japan 19 14.18 US 18 13.43 Finland 6 4.48 Cluster 3 China 24 32.88 US 22 30.14 Japan 6 8.22 Korea 6 8.22 Finland 4 5.48 Appendix 2 (continued)
Country Patent Application percentage
Cluster 4 China 25 46.30 US 13 24.07 Japan 12 22.22 Taiwan 1 1.85 Finland 1 1.85 Cluster 5 China 289 42.13 US 192 27.99 Japan 53 7.73 Taiwan 35 5.10 Germany 25 3.64 Cluster 6 Japan 74 32.89 China 65 28.89 US 56 24.89 Taiwan 5 2.22 Korea 5 2.22 References
[1] R. Want, An introduction to RFID technology, IEEE Pervasive Computing 5 (1) (2006) 25–33.
[2] F. Taghaboni-Dutta, B. Velthouse, RFID enabled supply chain: harvesting the opportunities, International Journal of Electronic Business Management 3 (3) (2005) 165–173.
[3] S.R. Walton, Wal-mart, supplier-partners, and the buyer power issue, Antitrust Law Journal 72 (2) (2005) 509–527.
[4] BEA Systems Inc., RFID for Retail: Blueprints for Bottom-Line Benefits, White paper, 2006, 23p.
[5] IDTeckEx RFID Forecasts, Players & Opportunities 2008–2018, By Raghu Das and Dr. Peter Harrop.
[6] ABI Research 2008 RFID Annual Market Overview Vertical Market and Application Market Overviews for Tags, Readers, Software, and Services. [7] H. Clampitt, RFID and China, RFID Journal News, 2005. Available from: <http://
www.rfidjournal.com/article/articleview/1391/1/82/>.
[8] J. Ma, National economy: Steady and fast growth in 2008, National Bureau of Statistics of China, January 22, 2009. Available from: <http://www.stats. gov.cn/was40/gjtjj_en_detail.jsp?searchword=GDP&channelid= 9528&record=2>. [9] O. Hussain, D. Fernandez, Strategy intellectual property and emerging standards for entering the Chinese market, Intellectual Property & Technology Magazine (2005) 1–6.
[10] N. Radjou, How India, China redefine the tech world order, Forrester Research (2005) 1–27.
[11] N.C. Wu, Y.S. Chang, H.C. Yu, The RFID Industry Development Strategies of Asian Countries, RFID Eurasia, 2007 1st Annual, 2007.
[12] S. Stern, M.E. Porter, J.L. Furman, The determinants of national innovative capacity, Research Policy 31 (6) (2002) 899–933.
[13] M. Crosby, Patents, innovation and growth, The Economic Record 76 (234) (2000) 255–262.
[14] D. Marinova, Eastern European patenting activities in the USA, Technovation 21 (2001) 571–584.
[15] S. Jung, K.-Y. Imm, The patent activities of Korea and Taiwan: a comparative case study of patent statistics, World Patent Information 24 (2002) 303–311.
[16] S. Liu, J. Shyu, Strategic planning for technology development with patent analysis, International Journal of Technology Management 13 (5/6) (1997) 661–680.
[17] T.E. Stuart, J.M. Podolny, Local search and the evolution of technological capabilities, Strategic Management Journal 17 (1996) 21–38.
[18] H. Ernst, Patent applications and subsequent changes of performance: evidence from time-series cross-section analyses on the firm level, Research Policy 30 (2001) 143–157.
[19] P. Berkhin, Survey of Clustering and Data Mining Techniques, Technical Report, Accrue Software, Inc., 2002.
[20] B. Chen, P.C. Tai, R. Harrison, P. Yi, Novel hybrid hierarchical–K-means clustering method (H–K-means) for microarray analysis, Computational Systems Bioinformatics Conference, Aug. 8–11, Standford CA, USA, 2005. [21] M.J.A. Berry, G. Linoff, Data Mining Techniques: For Marketing, Sale, and
Customer Support, John Wiley & Sons Inc., New York, NY, 1997. p. 55. [22] F.C. Hsu, Intelligent Patent Document Analysis Based on Clustering and
and Engineering Management, National Tsing Hua University, Hsinchu, Taiwan, 2006.
[23] S. Pitzek, An Ontology for the RFID Domain, 2005. Available from: <http:// move.ec3.at/Ontology/RFIDOntology0903/RFIDOntology-Report.pdf>. [24] F.C. Hsu, A.J.C. Trappey, C.V. Trappey, J.L. Hou, S.J. Liu, Technology and
knowledge document cluster analysis for enterprise R&D strategic planning, International Journal of Technology Management 36 (4) (2006) 336–353. [25] R.S. Campbell, Patent trends as a technological forecasting tool, World Patent
Information 5 (3) (1983) 137–143.
[26] H. Ernst, The use of patent data for technological forecasting: the diffusion of CNC-technology in the machine tool industry, Small Business Economics 9 (1997) 361–381.
[27] B. Andersen, The hunt for S-shaped growth paths in technological innovation: a patent study, Journal of Evolutionary Economics 9 (1999) 487–526. [28] R.R. Levary, D. Han, Choosing a technological forecasting method, Industrial
Management 37 (1995) 14.
[29] N. Meade, T. Islam, Forecasting with growth curves: an empirical comparison, International Journal of Forecasting 11 (1995) 199–215.
[30] N. Meade, T. Islam, Technological forecasting-model selection, model stability, and combining models, Management Science 44 (1998) 1115–1130. [31] P.S. Meyer, J.H. Ausubel, Carrying capacity: a model with logistically varying
limits, Technological Forecasting and Social Change 61 (1999) 209–214. [32] G.P. Boretos, The future of the mobile phone business, Technological
Forecasting and Social Change 74 (2007) 331–340.
[33] M. Bengisu, R. Nekhili, Forecasting emerging technologies with the aid of science and technology databases, Technological Forecasting and Social Change 73 (2006) 835–844.
[34] C.L. Lackman, Logit forecasting of high tech products, Industrial Management 35 (2) (1993) 20–21.
[35] J.S. Morrison, How to use diffusion models in new product forecasting, The Journal of Business Forecasting Methods & Systems 15 (2) (1996) 6–9. [36] S. Liu, Industry competition and patent strategy, Sci-Tech Policy Review 8908
(2000) 1085–1098.
[37] State Intellectual Property Office of the People’s Republic of China (SIPO), 2008. Available from: <http://www.sipo.gov.cn/sipo2008/zljs/>.
[38] H. Forcinio, Pilots and partnerships move RFID forward, Pharmaceutical Technology 29 (9) (2005) 42–46.
[39] N.C. Wu, M.A. Nystrom, T.R. Lin, H.C. Yu, Challenges to global RFID adoption, Technovation 12 (26) (2006) 1317–1323.
[40] Y.J. Wu, T.C. Yen, RFID technology innovations: the use of patent data, International Journal of Manufacturing Technology and Management 10 (1) (2006) 106–120.
[41] Y.J. Wu, A holistic look at RFID innovations: the patent approach, in: S. Kumar (Ed.), Connective Technologies in the Supply Chain, CRC Press, 2007, pp. 159– 168.
[42] Y.J. Wu, M.J. Cheng, RFID technology innovators: DEA analysis, in: S. Kumar (Ed.), Connective Technologies in the Supply Chain, CRC Press, 2007, pp. 238– 256.
[43] F. Taghaboni-Dutta, A. Trappey, C. Trappey, H.Y. Wu, An exploratory RFID patent analysis, Management Research News 32 (12) (2009) 1163–1176. [44] M. Ward, R.V. Kranenburg, RFID: frequency, standards, adoption and
innovation, JISC Technology and Standards Watch, 2006. Available from: <http://www.rfidconsultation.eu/docs/ficheiros/TSW0602.pdf>.
