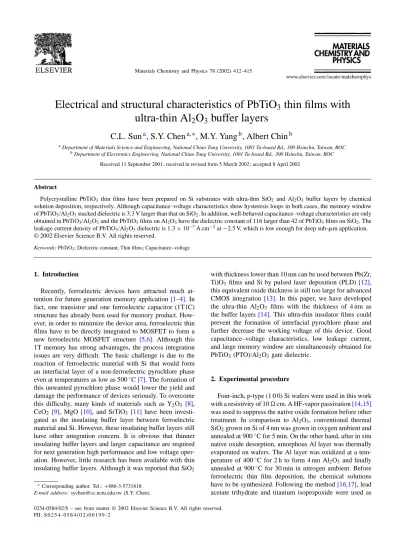

Electrical and structural characteristics of PbTiO

3

thin films with

ultra-thin Al

2

O

3

buffer layers

C.L. Sun

a

, S.Y. Chen

a,∗

, M.Y. Yang

b

, Albert Chin

b

a_{Department of Materials Science and Engineering, National Chiao Tung University, 1001 Ta-hsued Rd., 300 Hsinchu, Taiwan, ROC} b_{Department of Electronics Engineering, National Chiao Tung University, 1001 Ta-hsued Rd., 300 Hsinchu, Taiwan, ROC}

Received 11 September 2001; received in revised form 5 March 2002; accepted 8 April 2002

Abstract

Polycrystalline PbTiO3 thin films have been prepared on Si substrates with ultra-thin SiO2 and Al2O3 buffer layers by chemical solution deposition, respectively. Although capacitance–voltage characteristics show hysteresis loops in both cases, the memory window of PbTiO3/Al2O3stacked dielectric is 3.3 V larger than that on SiO2. In addition, well-behaved capacitance–voltage characteristics are only obtained in PbTiO3/Al2O3and the PbTiO3films on Al2O3have the dielectric constant of 116 larger than 42 of PbTiO3films on SiO2. The leakage current density of PbTiO3/Al2O3dielectric is 1.3 × 10−7A cm−2at−2.5 V, which is low enough for deep sub-␮m application. © 2002 Elsevier Science B.V. All rights reserved.

Keywords: PbTiO3; Dielectric constant; Thin films; Capacitance–voltage

1. Introduction

Recently, ferroelectric devices have attracted much at-tention for future generation memory application[1–4]. In fact, one transistor and one ferroelectric capacitor (1T1C) structure has already been used for memory product. How-ever, in order to minimize the device area, ferroelectric thin films have to be directly integrated to MOSFET to form a new ferroelectric MOSFET structure [5,6]. Although this 1T memory has strong advantages, the process integration issues are very difficult. The basic challenge is due to the reaction of ferroelectric material with Si that would form an interfacial layer of a non-ferroelectric pyrochlore phase even at temperatures as low as 500◦C[7]. The formation of this unwanted pyrochlore phase would lower the yield and damage the performance of devices seriously. To overcome this difficulty, many kinds of materials such as Y2O3 [8],

CeO2 [9], MgO [10], and SrTiO3 [11]have been

investi-gated as the insulating buffer layer between ferroelectric material and Si. However, these insulating buffer layers still have other integration concern. It is obvious that thinner insulating buffer layers and larger capacitance are required for next generation high performance and low voltage oper-ation. However, little research has been available with thin insulating buffer layers. Although it was reported that SiO2

∗_{Corresponding author. Tel.:}_{+886-3-5731818.}

E-mail address: sychen@cc.nctu.edu.tw (S.Y. Chen).

with thickness lower than 10 nm can be used between Pb(Zr, Ti)O3 films and Si by pulsed laser deposition (PLD)[12],

this equivalent oxide thickness is still too large for advanced CMOS integration [13]. In this paper, we have developed the ultra-thin Al2O3 films with the thickness of 4 nm as

the buffer layers [14]. This ultra-thin insulator films could prevent the formation of interfacial pyrochlore phase and further decrease the working voltage of this device. Good capacitance–voltage characteristics, low leakage current, and large memory window are simultaneously obtained for PbTiO3(PTO)/Al2O3gate dielectric.

2. Experimental procedure

Four-inch, p-type (1 0 0) Si wafers were used in this work with a resistivity of 10 cm. A HF-vapor passivation[14,15]

was used to suppress the native oxide formation before other treatment. In comparison to Al2O3, conventional thermal

SiO2grown on Si of 4 nm was grown in oxygen ambient and

annealed at 900◦C for 5 min. On the other hand, after in situ native oxide desorption, amorphous Al layer was thermally evaporated on wafers. The Al layer was oxidized at a tem-perature of 400◦C for 2 h to form 4 nm Al2O3 and finally

annealed at 900◦C for 30 min in nitrogen ambient. Before ferroelectric thin film deposition, the chemical solutions have to be synthesized. Following the method[16,17], lead acetate trihydrate and titanium isopropoxide were used as

(2)

C.L. Sun et al. / Materials Chemistry and Physics 78 (2002) 412–415 413

precursors and dissolved in the acetic acid and methanol, re-spectively. These precursor solutions were then mixed at any proportion to obtain the desired PbTiO3(PT) compositions.

The PT thin film were fabricated on ultra-thin SiO2or Al2O3

buffered Si by multiple spin coating at 4000 rpm for 30 s. Between each coating, the wet films were dried at 150◦C to drive off the solvent and then pyrolyzed at 350◦C for sev-eral minutes. After multiple coating, the films were directly annealed at 550◦C in air for 1 h. We used X-ray diffrac-tion (XRD) to determine the phase and the crystallinity of ferroelectric thin films. The surface morphology and the thickness of ferroelectric films were observed by scanning electron microscopy (SEM). For electrical properties mea-surement, gold was deposited as upper electrode with area of 5× 10−4cm2and Al contact was made at the bake side of Si substrates. Capacitance–voltage (C–V) characteristics were measured for±10 V sweep voltages. Moreover, cur-rent density–voltage (J–V) characteristics were measured from 0 to−20 V to check the stacked gate dielectric quality.

3. Results and discussion

We have first checked the high frequency C–V characteris-tics of 4 nm Al2O3gate dielectric. As shown inFig. 1, good

C–V characteristic at 1 MHz is observed and dielectric con-stant of about 9 is obtained from the measured capacitance value that is two times larger than that of SiO2. An

equiv-alent oxide thickness of 1.7 nm is obtained for 4 nm Al2O3

that could be used for sub-␮m technology generation. The good gate dielectric property would be further considered to integrate PTO thin films on Al2O3gate dielectric.

Fig. 2(a) and (b) show the XRD patterns of PTO films deposited on 4 nm SiO2 and Al2O3 gate dielectrics on Si,

respectively. As shown in Fig. 2(a), the relative intensity of (1 0 0) peak is much higher than other directions so that PTO films grown on SiO2 are (1 0 0)-oriented. Fig. 2(b)

displays XRD pattern of PTO films on ultra-thin 4 nm Al2O3. The result reveals that PTO films on Al2O3 are

also polycrystalline but the XRD pattern is similar to that of bulk materials without preferred orientation. According to the results of Fig. 2(a) and (b), both PTO films have

Fig. 1. C–V characteristics of 4 nm Al2O3 at 1 MHz.

Fig. 2. XRD patterns of 250 nm PbTiO3 on: (a) SiO2 and (b) Al2O3 buffered Si substrates.

stable ferroelectric perovskite phase rather than undesirable non-ferroelectric pyrochlore phase although the buffer layer thickness is just 4 nm.

We have further used SEM to observe the microstructure of PTO films. The thickness of PTO films is determined to be 250 nm by the SEM cross-sectional images. The surface morphology images are shown inFig. 3(a) and (b)for PTO films on SiO2 and Al2O3 gate dielectrics, respectively. As

shown inFig. 3(a), the PTO films on SiO2are polycrystalline

and have smooth surface without cracks. Additionally, poly-crystalline structure and continuous films are also observed

Fig. 3. SEM pictures of 250 nm PbTiO3 on: (a) SiO2 and (b) Al2O3 buffered Si substrates.

(3)

414 C.L. Sun et al. / Materials Chemistry and Physics 78 (2002) 412–415

Fig. 4. C–V characteristics of 250 nm PbTiO3on: (a) SiO2and (b) Al2O3 buffered Si substrates at 1 MHz.

for PTO films on Al2O3shown inFig. 3(b). The grain size

and distribution in both cases are similar that would not be affected by the different buffer layers. The dense poly-crystalline microstructure in both cases suggests that PTO films could be integrated on Si with either ultra-thin SiO2

or Al2O3buffer layers.

The electrical properties of PTO films are further ex-amined by C–V measurement.Fig. 4(a) and (b) show the C–V characteristics of PTO/SiO2 and PTO/Al2O3 stacked

dielectrics, respectively. The sweep voltages in this mea-surement change between+10 and −10 V back and forth at the frequency of 1 MHz. For PTO/SiO2 stacked dielectric,

as shown inFig. 4(a), an accumulation capacitance of only 64 pF is measured. Besides, the transition between accu-mulation and depletion regions is elongated and distorted from the typical high frequency C–V curves. The obvious distortion in C–V curves indicates that more interface trap density was generated in the Au/PTO/SiO2/Si capacitor. In

other words, the PTO probably tends to react with SiO2

to form a non-ferroelectric pyrochlore phase at PTO/SiO2

interface even at temperatures as low as 550◦C[7]. The di-electric constant of PTO films on SiO2is about 42, which is

relatively low as compared to the data reported in literature

[18]. This result suggests that different buffer layers would affect the electrical properties of the ferroelectric films. In contrast, as shown inFig. 4(b), PTO films on Al2O3 have

the higher capacitance value of 170 pF and the higher di-electric constant of 116. In addition to the well-behaved

Fig. 5. J–V characteristics of 250 nm PbTiO3on: (a) SiO2and (b) Al2O3 buffered Si substrates.

C–V curves and the higher dielectric constant of PTO films, the larger memory window of 3.3 V is also obtained for PTO/Al2O3dielectric. These excellent results indicate that

PTO films could be integrated on Si if using high k Al2O3

rather than SiO2gate dielectric as the buffer layer.

Both J–V characteristics of PTO/SiO2 and PTO/Al2O3

are shown in Fig. 5(a) and (b), respectively. Typical Fowler–Nordheim (F–N) tunneling currents at high voltage region are observed in both cases and it indicates the good quality of both stacked dielectrics on Si with little dielec-tric defect-induced leakage current. The current density of 5.6 × 10−8and 1.3 × 10−7A cm−2are measured at an ap-plied voltage of−2.5 V for PTO/SiO2and PTO/Al2O3and

they are acceptable for gate dielectric application. Because the grain sizes in both PTO films are very similar, the larger leakage current in PTO/Al2O3 is not due to PTO structure

itself but due to the slightly inferior quality of Al2O3 gate

dielectric to thermal SiO2. However, the leakage current is

still low enough for advanced deep sub-␮m application.

4. Conclusions

In conclusion, we have studied the characteristics of fer-roelectric PTO thin films on both ultra-thin SiO2and Al2O3

(4)

C.L. Sun et al. / Materials Chemistry and Physics 78 (2002) 412–415 415

better memory performance than that on thermal SiO2. The

excellent memory characteristics are evidenced from the large 3.3 V threshold voltage difference, well-behaved C–V curves, and small leakage current.

Acknowledgements

The authors gratefully acknowledge National Science Council of the Republic of China for its financial support under Contract No. NSC 89-2218-009-049.
