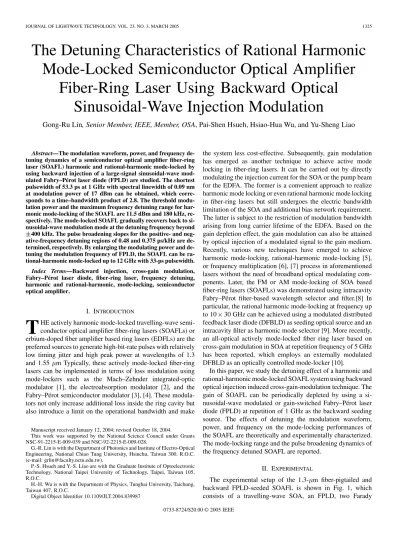

Abstract—The modulation waveform, power, and frequency de-tuning dynamics of a semiconductor optical amplifier fiber-ring laser (SOAFL) harmonic and rational-harmonic mode-locked by using backward injection of a large-signal sinusoidal-wave mod-ulated Fabry–Pérot laser diode (FPLD) are studied. The shortest pulsewidth of 53.3 ps at 1 GHz with spectral linewidth of 0.09 nm at modulation power of 17 dBm can be obtained, which corre-sponds to a time–bandwidth product of 2.8. The threshold modu-lation power and the maximum frequency detuning range for har-monic mode-locking of the SOAFL are 11.5 dBm and 180 kHz, re-spectively. The mode-locked SOAFL gradually recovers back to si-nusoidal-wave modulation mode at the detuning frequency beyond 400 kHz. The pulse broadening slopes for the positive- and neg-ative-frequency detuning regions of 0.48 and 0.375 ps/kHz are termined, respectively. By enlarging the modulating power and de-tuning the modulation frequency of FPLD, the SOAFL can be ra-tional-harmonic mode-locked up to 12 GHz with 33-ps pulsewidth. Index Terms—Backward injection, cross-gain modulation, Fabry–Pérot laser diode, fiber-ring laser, frequency detuning, harmonic and rational-harmonic, mode-locking, semiconductor optical amplifier.
I. INTRODUCTION
T
HE actively harmonic mode-locked travelling-wave semi-conductor optical amplifier fiber-ring lasers (SOAFLs) or erbium-doped fiber amplifier based ring lasers (EDFLs) are the preferred sources to generate high-bit-rate pulses with relatively low timing jitter and high peak power at wavelengths of 1.3 and 1.55 m Typically, these actively mode-locked fiber-ring lasers can be implemented in terms of loss modulation using mode-lockers such as the Mach–Zehnder integrated-optic modulator [1], the electroabsorption modulator [2], and the Fabry–Pérot semiconductor modulator [3], [4]. These modula-tors not only increase additional loss inside the ring cavity but also introduce a limit on the operational bandwidth and makeManuscript received January 12, 2004; revised October 18, 2004.
This work was supported by the National Science Council under Grants NSC-91-2215-E-009-039 and NSC-92-2215-E-009-028.
G.-R. Lin is with the Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu, Taiwan 300, R.O.C. (e-mail: grlin@faculty.nctu.edu.tw).
P.-S. Hsueh and Y.-S. Liao are with the Graduate Institute of Optoelectronic Technology, National Taipei University of Technology, Taipei, Taiwan 105, R.O.C.
H.-H. Wu is with the Department of Physics, Tunghai University, Taichung, Taiwan 407, R.O.C.
Digital Object Identifier 10.1109/JLT.2004.839987
the system less cost-effective. Subsequently, gain modulation has emerged as another technique to achieve active mode locking in fiber-ring lasers. It can be carried out by directly modulating the injection current for the SOA or the pump beam for the EDFA. The former is a convenient approach to realize harmonic mode locking or even rational harmonic mode locking in fiber-ring lasers but still undergoes the electric bandwidth limitation of the SOA and additional bias network requirement. The latter is subject to the restriction of modulation bandwidth arising from long carrier lifetime of the EDFA. Based on the gain depletion effect, the gain modulation can also be attained by optical injection of a modulated signal to the gain medium. Recently, various new techniques have emerged to achieve harmonic mode-locking, rational-harmonic mode-locking [5], or frequency multiplication [6], [7] process in aforementioned lasers without the need of broadband optical modulating com-ponents. Later, the FM or AM mode-locking of SOA based fiber-ring lasers (SOAFLs) was demonstrated using intracavity Fabry–Pérot filter-based wavelength selector and filter.[8] In particular, the rational harmonic mode-locking at frequency up to 10 30 GHz can be achieved using a modulated distributed feedback laser diode (DFBLD) as seeding optical source and an intracavity filter as harmonic mode selector [9]. More recently, an all-optical actively mode-locked fiber ring laser based on cross-gain modulation in SOA at repetition frequency of 5 GHz has been reported, which employs an externally modulated DFBLD as an optically controlled mode-locker [10].
In this paper, we study the detuning effect of a harmonic and rational-harmonic mode-locked SOAFL system using backward optical injection induced cross-gain-modulation technique. The gain of SOAFL can be periodically depleted by using a si-nusoidal-wave modulated or gain-switched Fabry–Pérot laser diode (FPLD) at repetition of 1 GHz as the backward seeding source. The effects of detuning the modulation waveform, power, and frequency on the mode-locking performances of the SOAFL are theoretically and experimentally characterized. The mode-locking range and the pulse broadening dynamics of the frequency detuned SOAFL are reported.
II. EXPERIMENTAL
The experimental setup of the 1.3- m fiber-pigtailed and backward FPLD-seeded SOAFL is shown in Fig. 1, which consists of a travelling-wave SOA, an FPLD, two Farady
1326 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 23, NO. 3, MARCH 2005
Fig. 1. Experimental setup of a harmonic mode-locked SOAFL using backward seeded FPLD as a gain modulation element. Amp: microwave amplifier; BPF: bandpass filter; FPLD: Fabry–Pérot laser diode; ISO: isolator; OC: optical coupler; PC: polarization controller; RFS: radio-frequency synthesizer; TWSOA: traveling-wave semiconductor optical amplifier.
Fig. 2. Output traces of the FPLD sinusoidal-wave modulated (solid line) and gain-switched (dashed) at 1 GHz.
isolators, and two 1 2 optical couplers with various power splitting ratios. The SOA with maximum small-signal gain coefficient of 23 dB is dc biased at 70 mA, which is slightly above threshold ( mA) condition. The wavelength of peak gain and the 3 dB gain bandwidth of the free-running SOA are about 1306 and 31 nm, respectively. The FPLD is sinu-soidal-wave modulated at 1 GHz using a radio-frequency (RF) synthesizer (Rohde & Schwarz, SML01) in connection with a power amplifier of 24-dB gain. The linearly modulated FPLD is backward seeded into the SOAFL for cross-gain modulation (XGM) operation, which then induces harmonic mode-locking via the fine adjustment of the modulation frequency to match the one harmonic mode of the SOAFL. To ensure a linearly sinusoidal-wave modulation with higher modulation depth, the FPLD with longitudinal mode spacing of 93.8 GHz ( 0.75 nm) is dc biased from 35.6 to 58 mA as the RF signal amplitude increases from 8 to 19 dBm. Under such operation, the peak power of FPLD is increasing from 1 to 2.2 mW, in which an average power from 0.15 to 0.35 mW is also observed. The maximum modulation depth of the FPLD is up to 80% or larger in this case (see Fig. 2). As the RF modulation power of the FPLD further increases beyond 21 dBm, the FPLD becomes gain-switched, as shown in Fig. 2. The FPLD is coupled into the closed-loop SOAFL ring cavity with coupling ratio of 50%. The maximum output power of the SOAFL at
contin-uous-wave mode (without the backward seeding of modulated FPLD signal) is 1.4 mW. The Farady isolators are employed to ensure the unidirectional propagation of light and to avoid the amplification of backward seeded FPLD signal in the SOAFL ring cavity. The cavity length of the SOAFL is 21.16 m, cor-responding to a longitudinal mode spacing (i.e., fundamental repetition frequency) of 9.45 MHz. The harmonic mode-locking of SOAFL is achieved by matching the modulation frequency of FPLD to the one-hundred-sixth harmonics of the SOAFL cavity mode, which is about 1001.7 MHz. The mode-locked performances are characterized from the 80% coupling output of SOAFL by using a high-speed digital sampling oscilloscope (HP 53 GHz).
III. RESULTS ANDDISCUSSIONS A. The Effect of Modulation Power Detuning
The mode locking is achieved by injecting sufficient power of modulated laser diode to deplete and equivalently to modulate the gain in the SOA. The relation between mode-locked perfor-mance and modulated power of injection laser is therefore an important data to be built up. We found that the SOAFL cannot be harmonic mode-locked as the RF modulation power for the FPLD is less than 8 dBm. Meanwhile, the SOAFL exhibits small-signal sinusoidal and nonreturn-to-zero modulation. The gain-depletion of the SOAFL is not well established since the peak power of the linearly modulated FPLD is below 0.8 mW. When the RF modulation power for the FPLD is between 8 and 11.5 dBm, we have observed weak and broadened optical pulses from the SOAFL ( 150 ps) due to its insufficient gain-depletion depth. The threshold modulating power for FPLD to mode-lock SOAFL is around 11.5 dBm. As the modulation power of the FPLD increased from 12 to 17 dBm, the mode-locked pulse width is significantly reduced from 130 to 53.3 ps (see Fig. 3). The best RF amplitude and dc driving current of FPLD for mode-locking the SOAFL at shortest pulse width are 17 dBm and 53 mA, respectively. The shortest SOAFL pulse under the backward injection of sinusoidal-wave modulated FPLD is shown in Fig. 4. Theoretically, the mode-locked pulsewidth of the SOAFL can be estimated by [11]
Fig. 3. Pulsewidth (hollow circle) and peak power (solid square) of the SOAFL at different of RF modulating powers and FPLD output powers.
Fig. 4. Mode-locked pulses of SOAFL with the FPLD operating under sinusoidal-wave modulation (upper trace) and gain-switching (lower trace) conditions.
where denotes the round-trip gain of the SOAFL, denotes the modulation frequency of the FPLD, m is the measure of the modulation depth (on-to-off transmission ratio of the mod-ulated FPLD), and is the gain bandwidth of the SOAFL. In our case, 22.5 0.5 dB, 1001.7 MHz, m 4, and 20 nm 2.5 THz. The shortest pulsewidth of 53.3 ps from the harmonic mode-locked SOAFL at repetition fre-quency of 1 GHz is somewhat larger than the estimated value of 30.8 ps, which may be attributed to the insufficient modulation depth and the excessive gain of the SOA. In addition, Fig. 5 illus-trates the amplified spontaneous emission spectra of a
free-run-Fig. 5. Amplified spontaneous emission spectrum of the free-running SOA, and the lasing spectra of the sinusoidal-wave modulated FPLD and the FPLD backward-injection mode-locked SOAFL.
ning SOA at driving current of 50 mA. The peak wavelength and 3 dB linewidth of gain spectra for the SOA driving at 40 mA are about 1304 and 20 nm, respectively. The central wavelength of the sinusoidal-wave modulated FPLD is 1309 nm. The lasing spectra of the SOAFL mode-locked by the FPLD modulating at different RF powers are shown in Fig. 6. The lasing threshold of the SOA is reduced when the SOA is closed-loop configured to form a SOAFL, which makes the cavity effect of the SOA more significant and reveals several longitudinal modes of the SOA with spacing of about 0.4 nm in the lasing spectrum. The peak wavelength of the FPLD mode-locked SOAFL is at 1306 nm,
1328 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 23, NO. 3, MARCH 2005
Fig. 6. Lasing spectra of the FPLD backward-injection mode-locked SOAFL with the FPLD at different modulating powers.
Fig. 7. Linewidth (hollow square) and time–bandwidth product (solid square) of the SOAFL at different of RF modulating powers.
which is slightly red-shifted due to the backward injection of DFBLD at 1309 nm. The spectral linewidth of SOAFL pulses slightly broadens from 0.7 to 1.4 nm as the RF modulating power increases from 9 to 17 dBm. The lasing linewidth and the time–bandwidth product of the harmonic mode-locked SOAFL as a function of average power from the sinusoidal-wave modu-lated FPLD is shown in Fig. 7. The time–bandwidth product of 2.8 is obtained as the FPLD power increases up to 2 mW.
The single-sideband (SSB) phase noise and timing jitter of the FPLD backward injection mode-locked SOAFL are comparable with those using conventional mode-locked schemes, as shown in Fig. 8. By using a frequency synthesizer with SSB phase noise density of 120 dBc/Hz at offset frequency of 10 kHz from carrier, the corresponding phase noise and timing jitter of the FPLD backward injection mode-locked SPAFL are determined as 95 dBc/Hz at offset frequency of 10 kHz from carrier and 0.3 ps at integral region between 10 Hz and 10 kHz, respectively. A maximum side-mode suppression ratio of up to 40 dB has been observed. With a high-power sinusoidal-wave modulated FPLD, the SOAFL can easily be either harmonic or rational-har-monic mode-locked due to the sufficiently large gain-depletion
Fig. 8. The SSB phase noise spectrum and the corresponding timing jitter of the mode-locked SOAFL.
Fig. 9. The pulse shapes of the FPLD backward-injection mode-locked SOAFL at different harmonic mode-locking frequencies.
depth and narrow gain window. In addition, the pulse shapes of a FPLD harmonic mode-locked SOAFL at different repetition frequencies are illustrated in Fig. 9. The operating conditions of the FPLD, such as the RF modulating powers, the driving currents, and its output powers, etc., are listed in Table I. In ex-periment, the dc driving current of the FPLD remains constant and the RF modulation power is slightly increased to obtain a similar output power from FPLD. SOAFL pulsewidth as short as 12 ps can be obtained at harmonic mode-locking frequency of 5 GHz. The obtained pulsewidth is even shorter than those ever reported using a DFBLD in connection with a pulse-modulated integrated-optic modulator as the mode-locker [9]. On the other hand, the rational-harmonic mode-locking of SOAFL can also be achieved by slightly detuning the modulating frequency of FPLD apart from the harmonic mode frequency of the SOAFL by to satisfy the condition of , where is the fundamental SOAFL cavity frequency and and are integers denoting the harmonic and rational harmonic or-ders of the SOAFL, respectively. This leads to a frequency mul-tiplication with repetition rate changing from to
Fig. 10. The rational-harmonic mode-locked pulse-trace of SOAFL at repeti-tion frequencies of 12 GHz.
, which is exactly times the detuned modulation frequency of FPLD. As a result, the pulse-train of rational-har-monic mode-locked SOAFL with highest repetition frequency up to 12 GHz (with ) is shown in Fig. 10. Note that the rational-harmonic mode-locked pulsewidth of SOAFL is about 33 ps, which is somewhat broadened and is not return-to-zero at such high repetition frequency. This is mainly due to the finite bandwidth of of the SOA, where and
are the photon and carrier lifetimes of the SOA.
B. The Effect of Modulating Waveform Detuning
The nonlinear modulation situation or gain-switching of FPLD appears as the RF modulating power of FPLD is fur-ther enlarged to 21 dBm or the dc current is decreased to threshold condition. The effect of backward injecting waveform on the transient gain of the SOA is illustrated in Fig. 11. A backward sufficiently large pulsewidth [or a sinusoidal-wave, see Fig. 11(a)] of the backward injection is essential to induce a wide gain-depletion region [and result in a narrow gain window, see Fig. 11(b)] of SOA for perfect mode-locking. The gain window is hereafter defined as the duration within one modulating period while the SOA still exhibits gain. In opposite, the backward injection of short optical pulse [see Fig. 11(c)] can only result in a less pronounced gain-depletion effect and induces a dip in the gain profile temporally. This causes a relatively wide gain window for the SOA, as shown in
Fig. 11(d). Such a wide gain window is helpless for generating short mode-locking pulses from SOAFL. Under the backward pulsed injection, a relatively broadened gain window of the SOAFL is left since the gain of SOA is not fully depleted within one modulation period, which consequently degrades the harmonic mode-locking pulses of the SOAFL. Note that a sufficiently narrow gain window is mandatory to the initia-tion of mode-locking process. To confirm, the output trace of SOAFL mode-locked by gain-switched FPLD with pulsewidth of 20 ps is shown in the lower trace of Fig. 4. In fact, the harmonic mode-locked SOAFL pulse width becomes broader (lengthening to 70 ps or larger) at higher modulation powers ( 18 dBm) since now the FPLD turns to be gain-switching with a greatly decreased pulsewidth (20 ps at modulation power of 25 dBm). The peak power of the SOAFL at perfect mode-locking frequency is first increasing up to 2.7 mW at modulation power of 17 dBm, and then slightly decreases to 1.8 mW as the FPLD modulation power becomes larger. In comparison, the harmonic mode locking of SOAFL is relatively easy to establish via the optical injection from a sinusoidal-wave modulated FPLD instead of a gain-switched one. Note that the injection of a pulse-modulated or gain-switched FPLD signal at higher RF modulation powers only causes a narrower gain-de-pletion window. In frequency-domain analysis, the power in the fundamental frequency such a short-pulse modulated waveform is decreased, while the powers in the dc and higher harmonic components are gradually enlarged. This eventually leads to a weak mode-locked pulse followed by a larger pedestal, as shown in the lower trace of Fig. 4. Consequently, the SOAFL is continuous-wave lasing instead of harmonic mode-locking. Such a pedestal results from the insufficient gain depletion of SOAFL under the backward injection of gain-switched FPLD pulse.
To further investigate the effect of the backward injected waveform on the gain depletion and mode-locking performance of the SOAFL, the pulse shapes of harmonic mode-locked SOAFL gain-depletion modulated by sinusoidal-wave modu-lated and gain-switched FPLDs are theoretically simumodu-lated. By splicing the SOA in SOAFL into sections, the differential rate equations that describe the time-varied carrier density in the th gain section under the influence of mode-locked and backward injected signals with average powers of
and are written as
1330 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 23, NO. 3, MARCH 2005
Fig. 11. The illustration of different gain windows in SOA caused by the different waveforms from the backward injected DFBLD.
Fig. 12. The simulated pulse shapes of the harmonic mode-locked SOAFL with backward injection of sinusoidal-wave modulated (solid curve) and gain-switched (dashed curve) FPLDs.
(3)
(4) (5) (6) where the index and denotes the corresponding parame-ters for the mode-locked SOAFL signal and backward-injection modulated FPLD signals, respectively. In addition, , and denote the injection current, cross-section area in ac-tive area, and volume of SOA; is the electron charge; denotes mode-locking and modulating photon energies; de-notes the spontaneous emission lifetime; and , and
Fig. 13. The frequency-detuned pulse-train of the harmonic mode-locked SOAFL.
are the internal loss and the corresponding gain coefficients for the mode-locked and backward-injection modulated signals in SOAFL cavity, respectively. The spontaneous emission lifetime is obtained by with , and denoting the nonradiative, bimolecular, and auger recombi-nation coefficients, respectively. Equation (6) is a cubic for-mula which sifor-mulates the gain coefficient of the DFBLD back-ward injection modulated SOAFL, in which denotes the dif-ferential gain coefficient, and are experimentally deter-mined constants which characterized the width and asymmetry of the gain profile, represents the transparent carrier den-sity, is the corresponding wavelength for peak gain, and denotes the empirical constant showing the shift of the gain peak. The parameters of the SOA used in our simulation are 20 cm 500 m,
0.4 m m

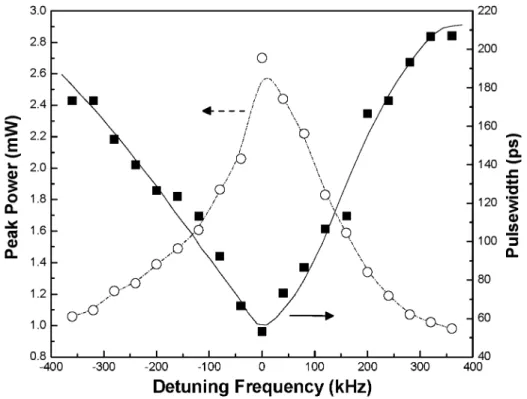

Fig. 14. The pulsewidth (solid square) and peak power (hollow circle) of the SOAFL at different detuning frequencies.
s m s
m s m C,
m/s, 1309 nm, 1306 nm, nm, 20 ps /km, (W km) 70 mA,
, and 1 GHz. As a result, the continuous-wave lasing of SOAFL is more pronounced when compared with the small mode-locking peak in the rising part, as shown in Fig. 12. The continuous-wave lasing component (i.e., the pedestal after the principle pulse peak of the dashed line in Fig. 12) can be narrower when the pulsewidth of the gain-switched FPLD becomes wider, or which can be suppressed as the peak amplitude of the gain-switched FPLD becomes larger. The theoretical simulation reveals that such a pulse-modulated (or gain-switched) FPLD signal at higher RF modulation powers only causes an narrow gain-depletion window, which eventually leads to the degradation in mode-locked pulsewidth and peak power of the SOAFL. The lengthened high-level duration of the modulated FPLD signal (i.e., a larger duty cycle of the modu-lation), which can fully deplete the gain and temporally shrink the gain window, is mandatory to optimize the mode-locking performance of the SOAFL.
C. The Effect of Modulating Frequency Detuning
The evolution on the pulse shape of the harmonic mode-locked SOAFL under the detuning of FPLD modulating fre-quency is shown in Fig. 13. The change in pulse shape is not significant within the detuning range of 10 kHz. The degradation in pulsewidth is less than 10% within detuning frequency of 50 kHz. Fig. 14 plots the measured output pulsewidth and peak power against the detuning frequency for the backward FPLD seeded, harmonic mode-locked SOAFL. The shortest pulsewidth of 53.3 ps associated with highest peak power of 2.7 mW for the SOAFL at perfect mode-locked
frequency is observed. As the modulation frequency of FPLD detuned from zero to 400 kHz, the mode-locked pulsewidth is enlarged from 53.3 to 206.7 ps and the peak power is decreased from 2.7 to 0.98 mW. The locking range of the harmonic molocked SOAFL (which is defined as the bandwidth of de-tuning frequency which causes pulse broadening of 50% from the original pulsewidth) is about 180 kHz. The mode-locked pulse is further degraded and becomes similar to sinusoidal wave at detuning frequency beyond 320 kHz, and the SOAFL finally transforms into sinusoidal-wave modulation mode as the detuning frequency beyond 400 kHz, which interprets that the mode-locking mechanism no longer exists in the SOAFL. The rational harmonic mode-locking phenomenon is not observed in the SOAFL output since the detuning frequency of 400 kHz is corresponding to a thirty-fifth-order rational harmonic mode-locking at repetition frequency of 35 GHz.
Moreover, it is found that the effects of positive- and negative-frequency detuning process on the pulse shape distortion and pulsewidth degradation are completely different, as shown in Figs. 15 and 16. Under positive-frequency detuning, the pulse-shape broadening in leading and trailing edges of the harmonic mode-locked SOAFL pulse shape remains almost identical. In contrast, the increasing falling time of the pulse shape under negative-frequency procedure is more pronounced due to the growth of a secondary pulse peak [see Fig. 4(b)]. It is easily un-derstood that when the gain depletion process is delayed due to the negative-frequency detuning, the trailing edge of the mode-locked pulse shifts across the peak and toward the rising part of the gain profile, which subsequently experiences higher gain than the leading edge. This inevitably leads to the broadening in trailing edge together with a slightly larger decaying rate in peak power of the harmonic mode-locked SOAFL pulse. The pulse broadening slope of the positive-frequency detuning region of
1332 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 23, NO. 3, MARCH 2005

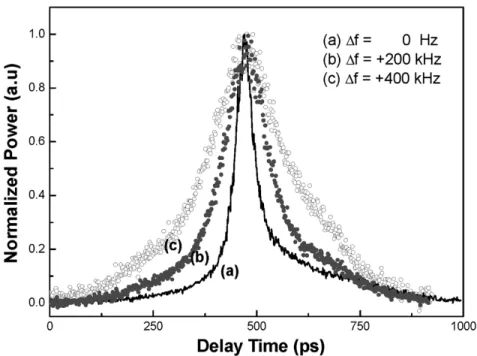

Fig. 15. The evolution of harmonic mode-locked SOAFL pulse shapes (a) without or with positively detuning frequencies of (b) 200 kHz and (c) 400 kHz.
Fig. 16. The evolution of harmonic mode-locked SOAFL pulse shapes (a) without or with negatively detuning frequencies of (b) 200 kHz and (c) 400 kHz.
0.48 ps/kHz is slightly larger than that of the negative-frequency detuning region (0.375 ps/kHz). It seems that the broadening ratio of the negatively frequency detuned pulse is less distinct as compared to that observed in positive frequency detuning process. However, the actual pulsewidth of the negatively fre-quency-detuned harmonic mode-locked SOAFL is not reflected in Fig. 3(b), since the peak power of the incompletely separated secondary pulse appeared on the trailing edge is lower than half of the principle peak power.
IV. CONCLUSION
The detuning dynamics of the backward optical injection induced harmonic and rational-harmonic mode-locking of
SOAFL using a sinusoidal-modulated or gain-switched FPLD seeding are reported. The effects of modulation waveforms, frequency, and power detuning on variation of pulse shape and pulsewidth of SOAFL are discussed. A backward seeded FPLD signal with larger duty cycle is mandatory to optimize the mode-locking performance of the SOAFL. The RF powers required for initiating and optimizing the mode-locking mech-anism of SOAFL are 12 and 17 dBm, respectively. A nonlinear modulation of FPLD appears as the RF amplitude is further enlarged or the dc current is decreased, which can efficiently enhance rational-harmonic mode-locking frequency of the SOAFL up to 12 GHz. The mode-locked pulsewidth and peak power significantly degrade as the modulation power exceeds 18 dBm or the modulation frequency detunes greater than
of the mode-locked SOAFL under positive-frequency detuning condition can thus be concluded.
