液相層析/串聯質譜儀連線偵測極長鏈脂肪酸於新生兒之先天性過氧
化
體
失
用
調
之篩
應
(1/2)
選
計畫類別：R 個別型計畫 □ 整合型計畫
計畫編號：NSC 91－2113－M－039－001－
執行期間：2002 年 08 月 01 日至 2003 年 07 月 31 日
計畫主持人：賴建成
共同主持人：蔡輔仁、蔡長海、鄔哲源
計畫參與人員：
成果報告類型(依經費核定清單規定繳交)：R精簡報告 □完整
報告
本成果報告包括以下應繳交之附件：
□赴國外出差或研習心得報告一份
□赴大陸地區出差或研習心得報告一份
□出席國際學術會議心得報告及發表之論文各一份
□國際合作研究計畫國外研究報告書一份
處理方式：除產學合作研究計畫、提升產業技術及人才培育研究
計畫、列管計畫及下列情形者外，得立即公開查詢
□涉及專利或其他智慧財產權，□一年□二年後可公開
查詢
執行單位：中國醫藥學院醫學系
1.
前言
中國醫藥學院附設醫院 (中國附醫) 於 2000 年初安裝液相層析/串聯式質譜 儀工作平台 (liquid chromatography/tandem mass spectrometry;LC/MS/MS)，期望 利用先進的質譜技術提升國內的遺傳醫學水平，初期針對胺基酸、脂肪酸及有機 酸代謝疾病進行篩檢，同年 10 月完成本院 2100 例新生兒篩檢分析，建立國內第 一套濃度標準範圍。其中於六月篩檢出一例罕見疾病：異戊酸血症，並及早進行 治療，在優生保健部、醫學研究部、兒科部、護理部及婦產部共同努力下，中國 附醫於 2000 年 12 月 20 日正式對外宣佈提供台灣第一個第二代新生兒篩檢服 務，同時與罕見疾病基金會簽約合作共同推動第二代新生兒篩檢。中國附醫為國 內第一個利用液相層析/串聯式質譜儀技術完成正式報告及臨床應用並首度提供 此項技術於正式之新生兒篩檢服務，於國內居於領先地位。 目前中國附醫之新生兒篩檢一次 2 分鐘的分析可篩檢 30 種以上之遺傳疾 病，平均一天一位技術員可篩檢上百位之新生兒，若能應用至其他各種遺傳疾病 篩檢分析，則相對於傳統方法，新的檢驗方法將會更準確、快速、經濟、大量自 動化及簡便。
2.
研究目的
Currently, the amino acids, acylcarnitine and 17-hydroxyprogesterone profiling of dry blood specimens using LC/MS/MS has been developed and recognized as a useful tool for screening inherited metabolic defects of newborns in our laboratory. In this study, our most important goal was to provide a high throughput and specific method with potential to screen for many of the peroxisomal disorders (ex. adrenleukodystrophy (ALD), adrenomyelinoneuropathy (AMN), peroxisomal biogenesis defects (PBD), Refsum disease and etc.) with a 3-mm blood spot (~3.6 µl blood impregnated on filter paper) from newborns using high performance liquid chromatography/electrospray ionization tandem mass spectrometry (LC-ESI/MS/MS).
3.
文獻探討
There is considerable pressure to expand universal newborn screening programmes to cover a broader range of inborn errors of metabolism. Peroxisomes catalyze the β-oxidation of fatty acids and related substrates. The specificity of peroximal β-oxidation overlaps that of mitochondrial β-oxidation. Substrates that are preferentially or exclusively oxidized in peroxisomes include very long chain fatty acids (VLCFA), polyunsatured fatty acids, dicarboxylic fatty acid,
prostaglandins and the side chain of cholesterol. Peroxisomal disorders are a heterogeneous collection of inherited disorders characterized by impaired, reduced or total absence of peroxisomes in cells1. Patients with these disorders can be detected by an accumulation of VLCFA such as eicosanoic (C20:0), docosanoic (C22:0), tetracosanoic (C24:0) and hexacosanoic (C26:0) acids in their red blood cells, plasma or cultured skin fibroblasts. Zellweger syndrome2 is the most severe of this group of disorders. It is apparent at birth and results in death within the first year. Neonatal adrenoleukodystrophy (ALD)3 and infantile Refsum disease4 and hyperpipecolic acidemia5 are less severe, and some patients are in stable condition in the third or forth decade, albeit with deficits in vision, hearing, and cognitive function. They demonstrate similar, although generally milder, symptoms and biochemical abnormalities. Death often occurs in childhood. Other inborn errors appear to be caused by single peroximal enzyme defects. Some them mimic the disorders of peroxisome biogenesis to a considerable extent but the underlying cause is entirely different. Rhizomelic chondrodysplasia punctata appears to be an intermediate case with deficiency of a subset of peroximal enzymes.
Currently, neonatal screening procedures for the peroximal disorders are based on its determination of VLCFA by gas chromatography (GC) and gas chromatography/mass spectrometry (GC/MS). Quantification of VLCFA by GC6,7 or GC/MS8,9 takes 1-2 days. Elevated ratios of C26:0/C22:0 and C24:0/C22:0 indicate a peroximal disorder. The GC/MS method has been applied to the analysis of large blood spots containing 50-100 µl of blood10-12. An elevated C26:0/C22:0 ratio has been observed in blood spots obtained from Guthrie cards collected at birth from Zellweger syndrome patients11 and in cord blood of X-linked ALD12,13. This gives justtification to developing a rapid, reliable method for screening for peroximal disorders on a sample size as small as that contained in a 3-mm neonatal blood spot. Analyses of VLCFA by GC and GC/MS methods, while highly sensitive and specific, is still slow and difficult to automate.
Recently, electrospray ionization (ESI)14 has rapidly emerged as a very promising technique for the analysis of compounds with medium or high polarity. Similar to atmospheric pressure chemical ionization (APCI), ESI produces ions at atmospheric pressure, but without the need of high temperature that could decompose labile compounds. Because of its low detection limit, high specificity,
soft ionization and more importantly, abundant structural information, electrospray mass spectrometry (ESI-MS) and its related techniques have been considered one of the ideal devices for drug and screening analysis.
Today, tandem mass spectrometry (MS/MS) has already emerged as a powerful analytical tool in clinical biochemical genetics15. MS/MS was developed as a technique for expanding the scope and efficiency of newborn screening for inherited metabolic disorders16-18. Liquid chromatography coupled with electrospray/multidimensional mass spectrometry (LC-ESI/MSn)19-21 represents a powerful alternative combining rapidly, easy process, high throughput, accuracy, specificity and sensitivity. One advantage of using MS instead of UV as the detector is that baseline separation may not be needed for a clear identification, and the relative concentration of each compound can be calculated based on their peak areas. A few publications have proposed the detection of very long chain fatty acids using liquid chromatography/tandem mass spectrometry (LC/MS/MS)22,23. An faster LC/MS/MS can be used to replace the slow GC and GC/MS assays. The strategy developed was to liberate all of the VLCFA from the dried blood sample and to derivatize them if possible. An LC/MS/MS assay was suitable for measuring VLCFA in a 3-mm blood spot (~3.6 µl blood). The amino acid, acylcarnitine and 17-hydroxyprogesterone profiling of dry blood specimens using LC/MS/MS has been recognized as a useful tool for screening inherited metabolic defects of newborns in our laboratory24-26. A LC/MS/MS coupled with the microtiter plate technology to perform lower-sample volume screening for peroximal disorders in the newborn filter-paper blood specimens was designed in this study. We have sought the first development of an alternative method for the determination of VLCFA in newborn that takes advantage of the analytical versatility, specificity, and high throughput unique to the combination of HPLC and MS/MS.
Liter ature Cited：
1. Lazarow PB, Moser HW. Disorder of peroxisome biogenesis. In Scriver CR, Beaudet AL, Sly WS, Valle D, eds: The metabolic and molecular bases of inherited disease, 7th edn, vol. 2. New York: McGraw-Hill, 2287-2325. 2. Optiz JM, Am. J. Med. Genet. 22, 419 (1985).
3. Kelley RI, Datta NS, Dobyns WB, Hajra AK, Moser AB, Noetzel MJ, Zackal EH, Moser HW, Am. J. Med. Genet. 23, 869 (1986).
4. Poll-The BT, Saudubray JM, Ogier H, Schutgens RBH, Wanders RJA,
SchrakampG, Van den Bosch H, Trybels JMF, Poulos A, Moser HW, van Eldere J, Eyssen HJ, J. inherited Metab. Dis. 9, 169 (1986).
5. Burton BK, Reed SP, Reny WT, J Pediatr. 99, 729 (1981).
6. Moser HW, Moser AB, (1991) Measurement of saturated very long chain fatty acids in plasma. In Hommes FA, ed. Techniques in Diagnostic Human
Biochemical Genetics New York: Wiley Liss, 177-191.
7. Paik MJ, Lee KO, Shin HS, J. Chromatogr B Biomed Sci Appl. 721, 3-11 (1999). 8. Stellaard F, ten Brink HJ, Kok RH, van den Heuvel L, Jakobs C, Clin Chim Acta.
192, 133-144 (1990).
9. Vallance H, Applegarth D, Clin Biochem. 27, 183-186 (1994).
10. Inoue K, Suzuki Y, Yajima S, Shimozawa N, Orii T, Kondo N, Clin Chem. 43, 2197-2198 (1997).
11. Yang YJ, Choi MH, Paik MJ, Yoon HR, Chung BC, J. Chromatogr B Biomed Sci Appl. 742, 37-46 (2000).
12. Jakobs C, van den Heuvel CMM, stellaard F, Largilliere C, Skovby F, Christensen E, J Inherit Metab Dis. 16, 63-66 (1993).
13. Moser AB, Kreiter N, Bezman L, Lu S, Raymond GV, Naidu S, Moser MW, Ann Neurol. 45, 100-110 (1999).
14. M. Yamashita, and J. B. Fenn, J. Phys. Chem. 88, 4451-4471 (1984).
15. Nyhan WL, Ozand PT. 1998. Atlas of metabolic disease. London: Chapman and Hall. p680.
16. Millington DS, Kodo N, Norwood DL, Roe CR.J Inherit Metab Dis. 13, 321-4 (1990).
17. Chace DH, Hillman SL, Millington DS, Kahler SG, Adam BW, Levy HL. Clin Chem, 42, 349-355 (1997).
18. Rashed MS, Rahbeeni Z, Ozand PT. Semin Perinatol, 23, 183-193 (1999). 19. Cardenas MS, van der Heeft E, de Jong APJM. Rapid Commun Mass Spectrom.
11, 1271-1278 (1998).
20. Lee MS, Kerns EH. Mass Spectrom Rev. 18, 187-279 (1999). 21. Jemal. M. Biomed Chromatogr. 14, 422-429 (2000).
22. Johnson DW, Rapid Commun Mass Spectrom. 14, 2019-2024 (2000). 23. Johnson DW, Rapid Commun Mass Spectrom. 13, 2388-2393 (1999).
Shuan-Pei Lin, Dau-Ming Niu, Acta Paediatr. Taiwan. 42, 224 (2001).
25. C. C. Lai, C. H. Tsai, F. J. Tsai, C. C. Lee and W. D. Lin, Rapid Commu. Mass Spectrom. 15, 2145 (2001).
C. C. Lai, C. H. Tsai, F. J. Tsai, J. Y. Wu, W. D. Lin and C. C. Lee, J. Clin. Lab Anal. 16, 20-25 (2002).
4.
研究方法
Chemicals
Glacial acetic acid, very long chain fatty acids (VLCFA) and related compounds were purchased from Sigma (St. Louis, MO, U.S.A.). HPLC grade methanol and acetonitrile were obtained from LAB-SCAN Analytical Science (Labscan Ltd. Dublin, Ireland). Deionized (18MΩ) water (Milli-Q water system, Millipore Inc., Bedford, MA, U.S.A.) was used in the preparation of the samples and buffer solution. Prior to use, the mobile phase was filtered through a 0.45 µm membrane filter (Gelman Sciences, Michigan, U.S.A.). Blank human whole blood samples were obtained from China Medical College Hospital, Taichung, Taiwan.
Standar d solutions
Standard stock solutions were prepared at the concentration of 0.1 mg/ml in ethanol and kept in the dark at -20℃ when not in use. For the calibration, standard samples containing VLCFA were prepared at 500, 300, 250, 200, 150, 100, 50 and 30 ng/ml. 30 µl of a blank sample (mobile phase), and of each standard, were loaded on to newborn screening cards. All newborn screening cards for calibration were dried at room temperature for at least three hours, and then stored in polypropylene bags at room temperature until analyzed.
Collection of filter-paper blood specimens
Standardized filter-paper forms (Standardized Schleicher & Schull filter-paper S&S 903; Dassel, Germany), impregnated with whole capillary blood from peroximal disorder patients or 2-5-day-old infants, were collected from the Department of Genetics, China Medical College Hospital, Taichung, Taiwan. We collected blood spot samples from these patients in order to establish corresponding abnormal VLCFA profiles. All filter papers containing blood samples were dried at room temperature for at least three hours, and then stored in polypropylene bags at room temperature until analyzed.
Sample extr action
One 1/8-inch circles from each blood spot (equivalent to 3.6 µl of whole blood) were excised from a 0.5-inch (12.7mm)-diameter dried blood spot and placed into a flat bottom 96 well block (individual 250µl wells, Corning Incorporated, USA) using an automated Wallac DELFIA DBS puncher (Turku, Finland). A stock solution containing a known concentration of internal standard (100 µmol/L, margaric acid) in ethanol was prepared and added to each well (3.6 µl). Internal standard margaric acid was only used in this extraction step. Acetonitrile (180 µl) and 5N hydrochloric acid (20 µl) were added to each well. The wells were sealed, shaked and heated at 85 ℃ for 50 minutes. Subsequently, using a multi-channel pipette, the extracts were transferred into a clean V-bottomed 96 well microplate (individual 220µl wells, Corning Incorporated, USA). Each 96-well microplate was placed in an evaporator (SPEDry-96, JONES CHROMATOGRAPHY Ltd, U.K.) and the solutions evaporated to dryness under a gentle stream of dry nitrogen.
Der ivatization of VLCFA
Oxalyl chloride (50 µl) was added to the residue, then it was sealed and heated at 50℃ for 5 min. The volatile material was evaporated to dryness under a gentle stream of dry nitrogen and several derivatizing agents (dimethylaminoethanol, 2-amino-2-methyl-1-propanol and choline, 50 µl) were added for testing. After 5 min at 20℃, the volatile material was evaporated under a gentle stream of dry nitrogen. The derivatized VLCFA were reconstituted in 50µl of acetonitrile/ water/ acetic acid (70:30:0.2) solution. The plate was covered with aluminum foil and placed on an autosampler tray for HPLC/ESI-MS/MS or other analysis.
HPLC system
The HPLC separation was performed on a Surveyor LC system (Thermo-Finnigan, San Jose, CA). HPLC analysis was performed on a 5 µm C-18 microbore column (50╳2.0 mm I.D.), operated at ambient temperature. A guard column (C-8 cartridge) was used to prolong the life of the HPLC column. The mobile phase was acetonitrile/ water/ acetic acid=70:30:0.2 (v/v) and the flow rate was 200 µl/min. At the end of each series, the column was thoroughly rinsed with a mixture of acetonitrile-deionized water (30:70, v/v) at a flow rate of 200 µl/min for 2 hours, and stored. The autosampler was fitted with a 10 µl loop and equipped with a
96 well sample plate stack. The HPLC and autosampler systems were all synchronized via the PC P4 workstation (Xcalibrate 1.3 software).
Electr ospr ay and Mass Spectr ometr y (ESI-MS)
A Finnigan LCQ Deca XP quadrupole ion trap mass spectrometer (Finnigan Corp., San Jose, CA, U.S.A.), equipped with a pneumatically assisted electrospray ionization source, was used. The mass spectrometer was operated in the positive ion mode by applying a voltage of 4.5 kV to the ESI needle. The temperature of the heated capillary in the ESI source was set at 280 ℃. To avoid space charge effects, the number of ions stored in the trap was regulated by the automatic gain control, which was set at 1 ╳ 108 ions for full scan mode, 5 ╳ 107 for MS/MS mode, and 2 ╳ 107
for ZoomScan mode. The flow rate of the sheath gas of nitrogen was set at 45 (arbitrary units). Helium was used as the damping gas at a pressure of 10-3 torr. Voltages across the capillary and the octapole lenses were tuned by an automated procedure to maximize signal for the ion of interest.
In MS/MS analysis, typical values for the relative collision energy (peak-to-peak amplitude of the resonance excitation) ranged from 0.4 to 0.8 eV. Mass spectra collected in full-mass scan mode were obtained by scanning over the range m/z 95 to 500. The maximum ion collection time was 0.3 s for each step and 3 scans were added for each spectrum.
Matr ix assisted laser desor ption ionization-quadr upole-time of flight (MALDI-Q-TOF) mass spectrometr y
MALDI-Q-TOF was performed with a hybrid quadrupole-time of flight (Q-TOF) mass spectrometer (Qstar XL hybrid Quadrupole TOF system, Applied Biosystems-MDS Sciex).
5.
結果與討論
目 前 過 氧 化 體 失 調 的 的 檢 測 方 式 大 都 用 氣相層 利 析 或氣相 層析質譜連 線 技術偵測極長鏈脂肪酸，雖然具有靈敏度及專一性高之優點，但常會有步驟緩慢 及自動化困難之情形。大量分析、高專一性、低偵測極限與富含分析物結構物訊 息是液相層析-電灑游離/質譜/質譜連線技術的優點，因此選擇此技術開發應用於 新 生 兒 極 長 鏈 脂 肪 酸 的 偵 測 ， 而 不 同 型 式的先天性過氧化 體失調症也將可在一 次 分 析 中 同 時 篩 檢 出 來 。 因 此 相 對 於 傳 統方法，新的先天性過氧化 體失調症篩 檢方法將會更準確,快速,經濟及簡便。目前本實驗室發展液相層析/質譜/質譜連線偵測氨基酸、醯基肉毒鹼及 17 羥孕酮已成功應用於新生兒遺傳代謝疾病之偵測。 為萃取並釋放出血卡中血球及血液中等等所含之所有極長鏈脂肪酸，如: 十 四、十六、十八、二十、二十二、二十四及二十六烷酸等，需實驗條件較劇烈之 前處理方式，於此利用打孔機將含有樣品之濾紙打下一點 (直徑 1/8-inch、約 3.6 µl 之血液) 置於 96 孔樣品盤中，加入含內標準品之試劑後，我們採用了酸化後 加熱將樣品中含極長鏈脂肪酸之脂質全轉換成極長鏈脂肪酸，避免傳統複雜之鹼 化與多次萃取方式。 針對長鏈脂肪酸之質譜偵測方式，我們採取電灑法與介質輔助雷射脫附法兩 種方式去嘗試，希望能得到較適當且快速之分析方法。 電灑法-串聯式質譜儀： 因長鏈脂肪酸本身帶有一羧基，初步以直接進樣電灑分析來測試,如圖 1 所 示，於質譜/質譜圖譜中可見到清楚的[M-H]-母離子，嘗試逐步提高碰撞能量， 仍未可得到相關之特徵裂解離子，圖 1a 的 26 烷酸與圖 1b 的 22 烷酸質譜/質譜 圖 中法 顯並 示 於 離 子裂 模 式 下 直到 接 進樣 無 圖 譜得 解 。
(a)
Cerotic acid
(b)
C 2 2 m s m s#1 -1 0 R T :0 .0 0 -0 .0 8 AV:1 0 N L :3 .4 5 E 5 T :- p E S I F u l l m s 2 3 3 9 .5 9 @ 1 2 .0 0 [ 9 0 .0 0 -4 1 0 .0 0 ] 5 0 5 5 6 0 6 5 7 0 7 5 8 0 8 5 9 0 9 5 1 0 0 R e la ti v e A b u n d a n c e 3 3 9 .3 C 2 6 m s m s _ 0 3 0 5 1 2 2 3 4 9 4 6#1 -1 0 R T :0 .0 1 -0 .0 8 AV:1 0 N L :2 .6 6 E 5 T :- p E S I F u l l m s 2 3 9 5 .6 4 @ 1 0 .0 0 [ 1 5 0 .0 0 -4 1 0 .0 0 ] 1 6 0 1 8 0 2 0 0 2 2 0 2 4 0 2 6 0 2 8 0 3 0 0 3 2 0 3 4 0 3 6 0 3 8 0 4 0 0 m /z 0 5 1 0 1 5 2 0 2 5 3 0 3 5 4 0 4 5 5 0 5 5 6 0 6 5 7 0 7 5 8 0 8 5 9 0 9 5 1 0 0 R e la ti v e A b u n d a n c e 3 9 5 .4 3 9 6 .3 4 0 4 .3
Behenic acid
圖 1.利 用 直 接 進 樣 電 灑 法分析，以 離子-質譜/質譜模式偵測 (a)26 烷酸 cerotic acid (b)22 烷酸 behenic acid (濃度 5 ppm、流速 5 µl/min)

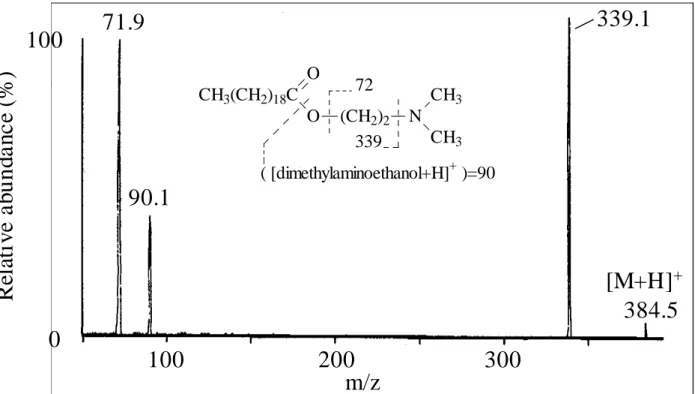

在缺乏特徵裂解離子下並無法利用靈敏度及專一性高之選擇反應偵測(SRM) 模式，因此嘗試以衍生化的方式來獲得具有特徵裂解離子之母離子，利用不同之 醇 類 與 極 長 鏈 脂 肪 酸 進 行 酯 化 反 應 ， 如 dimethylaminoethanol 、 2-amino-2-methyl-1-propanol、choline 等等，如圖 2 所示為經二甲基乙醇胺酯化 之極長鏈脂肪酸 arachidic acid 之質譜/質譜圖，但為了增加靈敏度，目前仍嘗試 其他之衍生化方式。
