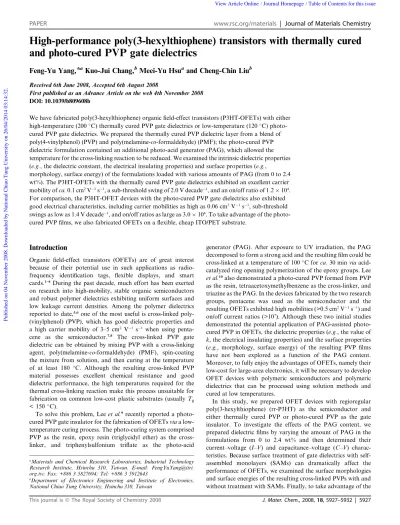

High-performance poly(3-hexylthiophene) transistors with thermally cured
and photo-cured PVP gate dielectrics
Feng-Yu Yang,*
aKuo-Jui Chang,
bMeei-Yu Hsu
aand Cheng-Chin Liu
b Received 6th June 2008, Accepted 6th August 2008First published as an Advance Article on the web 4th November 2008 DOI: 10.1039/b809608b
We have fabricated poly(3-hexylthiophene) organic field-effect transistors (P3HT-OFETs) with either high-temperature (200C) thermally cured PVP gate dielectrics or low-temperature (120C) photo-cured PVP gate dielectrics. We prepared the thermally photo-cured PVP dielectric layer from a blend of poly(4-vinylphenol) (PVP) and poly(melamine-co-formaldehyde) (PMF); the photo-cured PVP dielectric formulation contained an additional photo-acid generator (PAG), which allowed the temperature for the cross-linking reaction to be reduced. We examined the intrinsic dielectric properties (e.g., the dielectric constant, the electrical insulating properties) and surface properties (e.g.,
morphology, surface energy) of the formulations loaded with various amounts of PAG (from 0 to 2.4 wt%). The P3HT-OFETs with the thermally cured PVP gate dielectrics exhibited an excellent carrier mobility of ca. 0.1 cm2V1s1, a sub-threshold swing of 2.0 V decade1, and an on/off ratio of 1.2 104.
For comparison, the P3HT-OFET devices with the photo-cured PVP gate dielectrics also exhibited good electrical characteristics, including carrier mobilities as high as 0.06 cm2V1s1, sub-threshold
swings as low as 1.4 V decade1, and on/off ratios as large as 3.0 104. To take advantage of the
photo-cured PVP films, we also fabricated OFETs on a flexible, cheap ITO/PET substrate.
Introduction
Organic field-effect transistors (OFETs) are of great interest because of their potential use in such applications as radio-frequency identification tags, flexible displays, and smart cards.1–4During the past decade, much effort has been exerted
on research into high-mobility, stable organic semiconductors and robust polymer dielectrics exhibiting uniform surfaces and low leakage current densities. Among the polymer dielectrics reported to date,5,6one of the most useful is cross-linked
poly-(vinylphenol) (PVP), which has good dielectric properties and a high carrier mobility of 3–5 cm2 V1 s1when using
penta-cene as the semiconductor.7,8 The cross-linked PVP gate
dielectric can be obtained by mixing PVP with a cross-linking agent, poly(melamine-co-formaldehyde) (PMF), spin-coating the mixture from solution, and then curing at the temperature of at least 180 C. Although the resulting cross-linked PVP material possesses excellent chemical resistance and good dielectric performance, the high temperatures required for the thermal cross-linking reaction make this process unsuitable for fabrication on common low-cost plastic substrates (usually Tg
< 150 C).
To solve this problem, Lee et al.9recently reported a
photo-cured PVP gate insulator for the fabrication of OFETs via a low-temperature curing process. The photo-curing system comprised PVP as the resin, epoxy resin (triglycidyl ether) as the cross-linker, and triphenylsulfonium triflate as the photo-acid
generator (PAG). After exposure to UV irradiation, the PAG decomposed to form a strong acid and the resulting film could be cross-linked at a temperature of 100C for ca. 30 min via acid-catalyzed ring opening polymerization of the epoxy groups. Lee et al.10also demonstrated a photo-cured PVP formed from PVP
as the resin, tetraacetoxymethylbenzene as the cross-linker, and triazine as the PAG. In the devices fabricated by the two research groups, pentacene was used as the semiconductor and the resulting OFETs exhibited high mobilities (>0.5 cm2V1s1) and
on/off current ratios (>107). Although these two initial studies
demonstrated the potential application of PAG-assisted photo-cured PVP in OFETs, the dielectric properties (e.g., the value of k, the electrical insulating properties) and the surface properties (e.g., morphology, surface energy) of the resulting PVP films have not been explored as a function of the PAG content. Moreover, to fully enjoy the advantages of OFETs, namely their low-cost for large-area electronics, it will be necessary to develop OFET devices with polymeric semiconductors and polymeric dielectrics that can be processed using solution methods and cured at low temperatures.
In this study, we prepared OFET devices with regioregular poly(3-hexylthiophene) (rr-P3HT) as the semiconductor and either thermally cured PVP or photo-cured PVP as the gate insulator. To investigate the effects of the PAG content, we prepared dielectric films by varying the amount of PAG in the formulations from 0 to 2.4 wt% and then determined their current–voltage (I–V) and capacitance–voltage (C–V) charac-teristics. Because surface treatment of gate dielectrics with self-assembled monolayers (SAMs) can dramatically affect the performance of OFETs, we examined the surface morphologies and surface energies of the resulting cross-linked PVPs with and without treatment with SAMs. Finally, to take advantage of the
aMaterials and Chemical Research Laboratories, Industrial Technology
Research Institute, Hsinchu 310, Taiwan. E-mail: FengYuYang@itri. org.tw; Fax: +886 3 5827694; Tel: +886 3 5912643
bDepartment of Electronics Engineering and Institute of Electronics,
National Chiao Tung University, Hsinchu 310, Taiwan
PAPER www.rsc.org/materials | Journal of Materials Chemistry
PAG-assisted photo-cured PVP films, we fabricated P3HT-OFETs on flexible indium tin oxide (ITO)-coated polyethylene terephthalate (PET) substrates and investigated their electrical performance.
Experimental section
MaterialsA heavily doped N-type low-resistance wafer and a flexible ITO/ PET sample were used as substrates and common gate elec-trodes. PVP (Mw ¼ 20 000), PMF (Mw ¼ 511), and
octyltri-chlorosilane (OTS) were obtained commercially from Aldrich. {4-[(2-hydroxyltetradecyl)oxy]phenyl}phenyliodonium hexa-fluoroantimonate (Sartomer, CD1012) was used as the PAG. Regioregular P3HT was purchased from Aldrich and purified through Soxhlet extractions with hexane and CH2Cl2to remove
low-molecular-weight chains. The chemical structures of the materials used for the gate dielectrics are presented in Fig. 1.
Film fabrication and characterization
The weight percentage ratios of PVP, PMF, and the PAG in the photo-cured formulations (blends) in this study were 8 : 4 : 0 (PVP0), 8 : 4 : 0.5 (PVP05), 8 : 4 : 1.0 (PVP10), and 8 : 4 : 2.4 (PVP24) in propylene glycol methyl ether acetate (PGMEA). For the formulation lacking the PAG, PVP0, the resulting film was cured at 200C for 1 h. The other formulations (PVP05, PVP10, and PVP24) were spin-coated and then exposed to 365 nm UV irradiation (9.6 mW cm2) for 1 min to catalyze the cross-linking
reaction; these films were then hardened through baking at 120 C for an additional 30 min. Prior to spin-coating of the organic semiconductor, the surfaces of the PVP films were treated with OTS to form SAMs to improve the performance of the OFET devices. OTS treatment was performed through the deposition of OTS vapor in a chamber.
The thicknesses of the corresponding PVP films were deter-mined using cross-sectional scanning electron microscopy (SEM). The morphologies of all of the cross-linked PVP films were evaluated using atomic force microscopy (AFM; Nano-scope IIIa, Digital Instruments). All of the root-mean-square (rms) surface roughnesses are reported herein over an area of 25 mm2. The surface energies of the cross-linked PVP films were
determined from contact angle measurements (FACE contact-angle meter, Kyowa Kaimenkagaku Co.) using distilled water and CH2I2as the probe liquids.
Device fabrication and electrical measurements
The OFETs were fabricated with the thermally cured and photo-cured PVP as gate dielectrics; the source and drain electrodes having channel widths and lengths of 1000 and 10 mm, respec-tively, were prepared using a photolithography/Pt (20 nm) deposition/lift-off (acetone) process. Fig. 2 provides a schematic representation of the bottom-gate P3HT-OFETs fabricated in this study.
To characterize the leakage currents and capacitances of the cross-linked PVP films, we prepared a metal–insulator–metal (MIM) capacitor structure by sandwiching the cross-linked PVP materials between the heavily doped N-type wafer and the Pt electrode (dot area¼ 0.0010 cm2).
The capacitances were measured using a capacitance analyzer (590 CV, Keithley) at 100 kHz. All I–V measurements for our OFETs and MIM devices were performed using a semiconductor parameter analyzer (4156C, Agilent) at room temperature under ambient conditions.
Results and discussion
We prepared the high-temperature thermally cured PVP0 film and low-temperature photo-cured PVP05, PVP10, and PVP24 films by spin-coating a solution of the composite blends using the procedures described in the Experimental section. Each of these films exhibited good chemical resistance to the bases typically found in positive photoresist developers; thus, the photo-cured PVP samples prepared in this study were suitable for use in photolithography processes. Thus, we defined the region of the electrodes on the OFET and MIM devices by using a photoli-thography/electrode-deposition/lift-off process (rather than by using a traditional vacuum-deposition process through a shadow
Fig. 1 Chemical structures of the materials used to prepare the cross-linked PVP gate insulators.
Fig. 2 (a) Device structure of the bottom-gate, bottom-contact config-uration employed in this study. (b) Optical micrograph of finger elec-trodes having a channel length of 1000 mm and a width of 10 mm.
mask), leading to an accurately patterned electrode and an intact surface of the underlying cross-linked PVP films. Moreover, these films also exhibited good chemical resistance toward the organic solvents, such as toluene and chlorobenzene, that are commonly used as solvents for the preparation of organic semiconductors; thus, we suspected that these films would be good candidates for use as insulators for fabricating bottom-gate OFET devices.
We performed quantitative leakage current and capacitance measurements to evaluate the dielectric characteristics of the MIM devices with the cross-linked PVP films. In addition, we used SEM to measure the thicknesses of the cross-linked PVP films. Fig. 3a reveals that the dielectric films PVP0, PVP05, PVP10, and PVP24 exhibited leakage currents ranging from 105
to 106A cm2at 40 V. The leakage current of PVP0 (3.6 106
A cm2) is consistent with that reported by Halik et al.8All of the
photo-cured PVP films, except for PVP05, exhibited current densities lower than that of PVP0, presumably because the PVP10 (530 nm) and PVP24 (580 nm) films were thicker than the PVP0 film (445 nm). The thickness of these PVP films increased upon increasing the solid content in the PVP formulations. Although the thickness of the PVP05 film (505 nm) was greater than that of the PVP0 film, its leakage current density was slightly higher, indicating that a PVP05 film was only partially cross-linked because of an insufficient PAG loading in the
composition blend. The low-temperature photo-cured PVP films (PVP05, PVP10, and PVP24) all exhibited insulating properties as good as those of the high-temperature thermally cured PVP0 film, suggesting that they would be good candidates for use as solution-processed gate dielectrics for OFETs, especially on flexible, low-cost, plastic substrates.

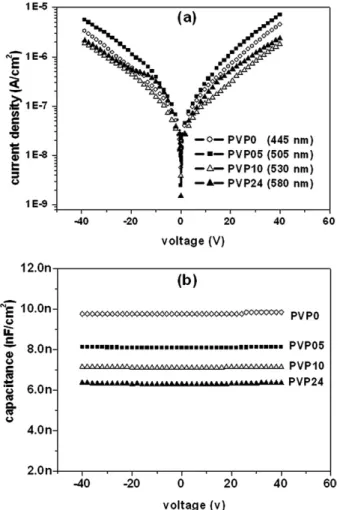

Fig. 3b reveals that the C–V characteristics of these cross-linked PVP0, PVP05, PVP10, and PVP24 films were 9.7, 8.1, 7.2, and 6.3 nF cm2, respectively. According to the capacitance and
the thickness data, we estimated the dielectric constants (k) of the PVP0, PVP05, PVP10, and PVP24 films to be 4.9, 4.6, 4.3, and 4.1, respectively (Table 1). Thus, the values of k of these films decreased from 4.9 to 4.1 upon increasing the content of PAG from 0 to 2.4 wt%.
We determined the surface energies of the dielectrics using distilled water and CH2I2 as probe liquids and employing the
geometric mean equation (1)11
(1 + cos q)gpl¼ 2(gdsgdpl)1/2+ 2(gpsgppl)1/2 (1)
where gsand gplare the surface energies of the sample and the
probe liquid, respectively, and the superscripts d and p are the dispersion and polar components of the surface energy, respec-tively. Table 1 summarizes the dielectric constants and surface properties of the cross-linked PVP films. The surface energy of the high-temperature thermally cured PVP0 film was 53 mJ m2;
those of the low-temperature photo-cured PVP05, PVP10, and PVP24 films ranged from 49 to 43 mJ m2. Thus, the surface
energy decreased from 53 to 43 mJ m2upon increasing the PAG
content from 0 to 2.4 wt%. The low surface energies of the photo-cured PVP films are most likely due to the presence of residues arising from PAG, the structure of which contains a long alkyl side chain. When we treated the surfaces with OTS to form SAMs, the water contact angle increased from ca. 60to ca. 110, indicating that the hydrophilic surfaces of the original PVP films had been transformed into hydrophobic surfaces. It is interesting to note that all of our OTS-treated PVP films exhibited the same surface energy (ca. 22 mJ m2), despite the fact that the pristine
PVP films were prepared using different curing processes and different PAG loadings. It is well known that the growth of organic semiconductor layers on gate dielectrics possessing different surface energies will result in a change in the morphology of the semiconductor film.12,13Hence, to investigate
the advantages of employing the thermally and photo-cured PVP films and the effects of the PAG residues within them, we fabricated OFET devices using only the OTS-treated surfaces because their surface energies were identical.
The surface roughness of gate insulators is another important factor affecting the performance of OFETs. We used tapping-mode AFM to determine the surface roughness of each film (Fig. 4, Table 1). Fig. 4a and 4b reveal that no aggregates had formed on the PVP0 and PVP24 surfaces; the rms values of the PVP films on the silicon wafer were 0.58 and 0.28 nm, respec-tively, very close to that of the SiO2surface on the Si substrate.
The other two photo-cured PVP films also exhibited small rms values, revealing the good uniformity of all of the PVP–PMF– PAG blends. After OTS treatment (Fig. 4c and 4d), we observed uniform aggregates on the PVP0 surface; the rms value increased from 0.58 to 0.66 nm. The other three photo-cured PVP films also
Fig. 3 Plots of (a) current density and (b) capacitance as a function of the applied voltage for the cross-linked PVP films.
exhibited uniform aggregates; their rms values increased from 0.28 to 1.20 nm—slightly higher than that of PVP0, but still sufficiently low to behave as smooth surfaces for growing semi-conductor layers.
We fabricated P3HT-OFET devices by spin-coating P3HT (3 mg mL1in toluene, 500 rpm, 60 s) as the semiconductor upon
the OTS-treated PVP substrates. After thermally annealing at 120C for 30 min in an oven, we obtained gate, bottom-contact OFET devices with each of the four types of cross-linked PVP gate dielectrics. Table 2 summarizes the mobilities, threshold voltages, sub-threshold swings, and on/off current ratios of these devices. We determined the transfer characteristics by operating the four devices at Vdsof40 V and Vgsranging
from +40 to40 V (Fig. 5). We determined the carrier mobility u and the threshold voltage Vthby using the following equation (2):
ffiffiffiffiffiffiffiffiffiffiffiffi ID;SAT p ¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi W mCox 2L r ðVG VthÞ (2)
where ID,SAT is the saturated drain current, Cox is the gate
capacitance per unit area, W and L are the conducting channel width and length, respectively, Vthis the threshold voltage, and
VGis the gate applied voltage. We extracted the mobilities from
the slopes of the linear plots of the square root of the drain current versus the gate voltage.
For the device with the OTS-treated PVP0 gate insulator, the mobility in the saturation region was 0.097 cm2 V1 s1, the
threshold voltage was14.8 V, the sub-threshold swing was 2.0 V decade1, and the on/off ratio was 1.2 104. Thus, the
performance of this device was comparable with that of reported P3HT-OFETs possessing an HMDS-treated SiO2 gate
dielec-tric.14To the best of our knowledge, this is the first example of
a P3HT-OFET with a PVP gate dielectric that exhibits a mobility reaching almost 0.1 cm2V1s1as well as an on/off ratio greater
than 104. Among the thermally cured PVP gate dielectrics
reported previously,15–17 in which HMDS or
octadecyltri-chlorosilane was used as the SAM and deposited by solution process, the mobilities of the P3HT-OFETs usually ranged from 103to 102cm2V1s1with on/off ratios of 102–103.
For our devices with the OTS-treated PVP10 and PVP24 gate dielectrics, the mobilities (ca. 0.06 cm2V1s1) were somewhat
lower than that of the PVP0-containing device, but the on/off ratios (2.5 104and 3.5 104, respectively) were better; the
sub-threshold swings of these OFETs were 2.0 and 1.4 V decade1,
respectively. Again, these systems are the first examples of high-performance P3HT devices based on PVP dielectrics prepared through a low-temperature curing process. The mobility of the PVP05 device was 0.029 cm2 V1 s1 with an on/off ratio of
6.9 103; thus, its performance was inferior to those of the
PVP0-, PVP10-, and PVP24-based devices. In addition, the sub-threshold swing of the OFET with the PVP05 gate dielectric was

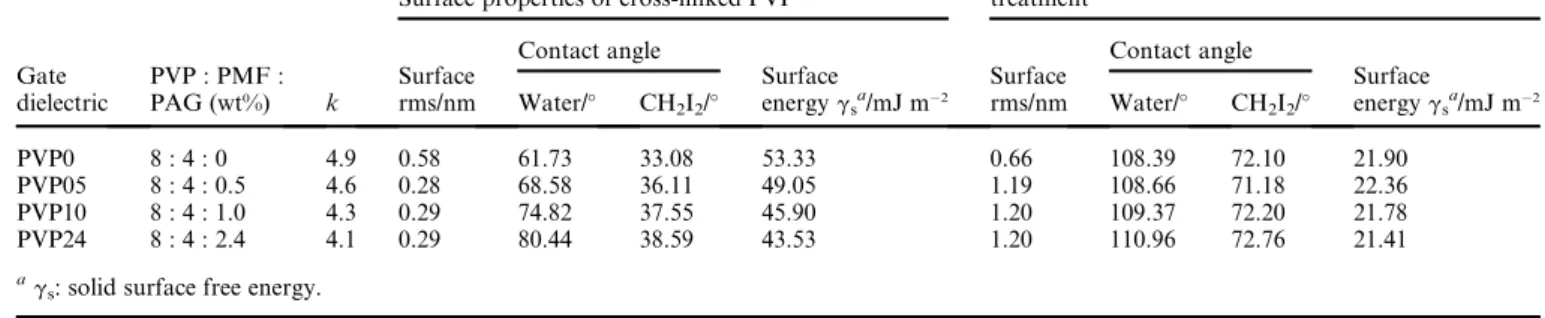

Table 1 Dielectric and surface properties of the cross-linked PVP films
Gate dielectric
PVP : PMF :
PAG (wt%) k
Surface properties of cross-linked PVP
Surface properties of cross-linked PVP with OTS treatment Surface rms/nm Contact angle Surface energy gs a /mJ m2 Surface rms/nm Contact angle Surface energy gs a /mJ m2 Water/ CH 2I2/ Water/ CH2I2/ PVP0 8 : 4 : 0 4.9 0.58 61.73 33.08 53.33 0.66 108.39 72.10 21.90 PVP05 8 : 4 : 0.5 4.6 0.28 68.58 36.11 49.05 1.19 108.66 71.18 22.36 PVP10 8 : 4 : 1.0 4.3 0.29 74.82 37.55 45.90 1.20 109.37 72.20 21.78 PVP24 8 : 4 : 2.4 4.1 0.29 80.44 38.59 43.53 1.20 110.96 72.76 21.41 a
gs: solid surface free energy.
Fig. 4 Tapping-mode AFM images of (a, b) the highly smoothly surfaces of PVP0 and PVP24 and (c, d) the surfaces of PVP0/OTS and PVP24/OTS exhibiting a few aggregates. All images represent a scan area of 5 5 mm2.
Table 2 Electrical characteristics of P3HT-OFETs with cross-linked PVP gate dielectrics Gate dielectric C/nF cm2 Electrical parameters u/cm2V1s1 On/off ratio Ss/V dec1 V th/V PVP0 9.7 0.097 1.2 104 2.0 14.8 PVP05 8.1 0.029 6.9 103 3.9 2.6 PVP10 8.3 0.050 2.5 104 2.0 5.1 PVP24 6.3 0.060 3.5 104 1.4 2.9
twice as large as those of the other three gate dielectrics. The relatively low mobility and low on/off ratio of the PVP05-based device might be due to the insufficient PAG loading in its composition blend, thereby leading to a partially cross-linked film that was slightly soluble at the polymer surface, causing the polymer to swell when immersed in the semiconductor solution. To take the advantage of the excellent properties of the low-temperature photo-cured PVP films, we employed PET (a flexible plastic) and ITO as the bottom-gate substrate. To obtain a thicker gate dielectric layer on this plastic substrate, we
spin-coated the PVP24 solution at 800 rpm for 40 s, exposed it to UV irradiation for 1 min, and then cured the sample at 120C for 30 min. The thickness of the gate dielectric was 635 nm; the roughness of its OTS-treated surface was 2.17 nm. Fig. 6 displays the output and transfer characteristics of the P3HT-OFET prepared from the PVP24 gate dielectric on the ITO/PET substrate. The mobility and threshold voltage of this device were 0.046 cm2V1s1and19.7 V, respectively, with an on/off ratio
of 4.9 103. The sub-threshold swing was 3.0 V decade1.
Although the performance of P3HT with the PVP24 gate

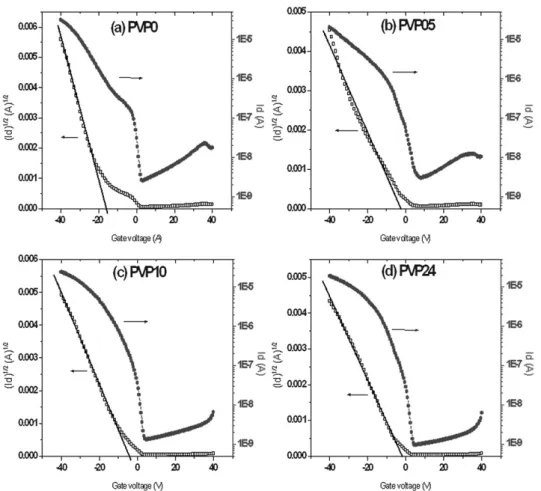

Fig. 5 Transfer characteristics of P3HT-OFETs with (a) PVP0, (b) PVP05, (c) PVP10, and (d) PVP24 as gate dielectrics.
Fig. 6 (a) Output characteristics and transfer characteristics (inset) of the P3HT-OFET device with the PVP24 gate dielectric on an ITO/PET substrate. (b) Photograph of the OFET fabricated on the ITO/PET substrate.
dielectric on the plastic substrate was not as good as that on the silicon wafer, this photo-cured PVP still has great potential for application in OFETs prepared on low-cost, flexible substrates. Further efforts to improve the film smoothness and optimize the other experimental parameters should lead to an increase in the device performance on such plastic substrates.
Conclusion
We have investigated the intrinsic dielectric and surface proper-ties of thermally cured and photo-cured PVP films with various PAG loadings. MIM devices prepared with thermally cured (PVP0) and photo-cured (PVP05, PVP10, and PVP24) PVP films exhibited leakage currents ranging from 105to 106A cm2at 40
V. The value of k of these films decreased from 4.9 to 4.1 upon increasing the PAG content from 0 to 2.4 wt%. The surface energy of PVP0 was 53 mJ m2; those of the photo-cured PVP05,
PVP10, and PVP24 ranged from 49 to 43 mJ m2. After OTS
treatment, the four PVP films exhibited identical surface energies (ca. 22 mJ m2). From AFM images, we determined that all the
PVP films possessed small rms values (<0.58 nm) that were very close to that of SiO2surfaces on Si substrates; after OTS
treat-ment, however, we observed some aggregation and the rms values increased up to 1.2 nm. The P3HT-OFETs that we prepared from the thermally cured PVP gate dielectric and the three low-temperature photo-cured PVP gate dielectrics all exhibited good carrier mobilities (up to ca. 0.1 cm2V1s1) and
on/off current ratios up to 3 104. We also fabricated OFETs
from the photo-cured PVP films deposited onto a cheap plastic substrate (ITO/PET); the devices exhibited carrier mobilities of up to 0.046 cm2V1s1, sub-threshold swings of up to 3.0 V
decade1, and on/off ratios of up to 4.9 103.
