網路工程研究所
碩
碩
碩 士
士
士 論
論
論 文
文
文
É(¼åSIPºúVoIP°KIPM@IÛ_6
IP Address Translation Mechanisms for SIP-based VoIP
v ÃÅ3
Y s Y
中
É(¼åSIPºúVoIP°KIPM@IÛ_6
IP Address Translation Mechanisms for SIP-based VoIP
v ÃÅ3 StudentYa-Lin Huang
Y s AdvisorYi-Bing Lin
Ë ¤ ' x
² ï å v @
© ë Ö
A Thesis
Submitted to Institute of Network Engineering College of Computer Science
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Computer Science July 2007
Hsinchu, Taiwan, Republic of China
É(¼å SIP ºú VoIP °K IP M@IÛ_6
x ÃÅ3
Y s Y
ˤ'x²ïå v@©ëí
X
(å Session Initiation Protocol (SIP) ºúK Voice over IP (VoIP) Ù- ²ï ûq( IP M@h:v@(Mn àd IPv4 M@ ³OLqÿ SIP Ô ÙHúîM8ãz¹Õ/ ( IPv4 ²ï-Hú²ïM@IÛh (Network
Address Translator; NAT) /²ïûqq( IPv4 M@ Fd{ô
SIP/Real-time Transport Protocol (RTP) NAT OL| ºd|ú/ô
þ ãz NAT OL¹Õ²ïûqßÔ &Ö.ãz¹Õ*:Þ æ ãz IPv4 M@ ³OL¹Õ/¡( IPv6 г M@ Ï/²ïûqG vh ! IPv6 M@ê/(Hú IPv6 Åbè IPv4 IPv6 " OL ¼dOL Ðú Hãz¹Õ v(qúËåÊó³ Hýhþ*¼þ ¹Õ9Ú NAT OL* AhAã z¹Õ ( IPv6 -M@Ðúãz IPv4 IPv6 OL¹Õ ¼Húå
SIPºúK VoIP Ù/ H¹H
Ü Ü
ÜuuuWWW ICE, IPv4/IPv6 , NAT, Í°, SBC, SIP, SIP-ALG, STUN, IP I
IP Address Translation Mechanisms for SIP-based VoIP
Student: Ya-Lin Huang
Advisor: Dr. Yi-Bing Lin
Institute of Network Engineering
National Chiao Tung University
ABSTRACT
In Session Initiation Protocol (SIP)-based Voice over IP (VoIP) services, IP addresses are used as location information of User Agents (UAs). The insufficiency of IPv4 ad-dresses becomes a problem in SIP-based VoIP deployment. Deploying Network Address Translators (NATs) into IPv4 networks is one approach so that a public IPv4 address is shared by multiple UAs. However, this approach leads to SIP/Real-time Transport Protocol (RTP) NAT traversing problem. We design and develop a UA that supports the existing SIP/RTP NAT traversing solutions. This UA is used for further analyses and experiments. Another approach is to adopt IPv6 so that every UA owns a unique IPv6 address. Nevertheless, IPv4/IPv6 interworking problem for SIP-based VoIP may occur in the early stage of IPv6 deployment. To solve this problem, we propose an ef-fective solution where the least call setup overhead is introduced and no impairment is incurred to the RTP transmission performance. Our study indicates that none of the existing SIP/RTP NAT traversing solutions is perfect in all aspects. Instead, the usage of IPv6 cooperating with our proposed solution is the best choice with the most efficient performance for deploying SIP-based VoIP services.
Keywords: ICE, IPv4/IPv6 interworking, NAT, redirect, SBC, SIP, SIP-ALG, STUN, translation, UPnP, VoIP, VPN
Acknowledgements
I would like to express my sincere thanks to my advisor, Prof. Yi-Bing Lin. Not only perspicacious advice and strict training in research but also valuable suggestion and timely encouragement regarding future career and philosophy of life, he provides. Also, he is always patient of my slow improvement and never gives me up. Without his supervision, I will not have a chance to complete this thesis and to be who I am.
Next, I feel grateful for endless help from seniors: thanks to my master committee members, Dr. Jeu-Yih Jeng, Dr. Yuan-Kai Chen, Prof. Wei-Ru Lai, Prof. Wei-Zu Yang, Prof. Phone Lin, Prof. Ai-Chun Pang, Prof. Shun-Ren Yang, Dr. Hsien-Ming Tsai, Prof. Quincy Wu, and Dr. Whai-En Chen, for their practical comments; thanks to Prof. Rong-Jaye Chen and Prof. Ying-Dar Lin for their recommendation towards higher education and scholarships; thanks to Prof. Ying-ping Chen for his recommendation as well as a great deal of living philosophy and experiences; thanks to senior members in Lab 117 for their kind sharing and beneficial guidance, especially to Prof. Pei-Chun Lee, Dr. Lin-Yi Wu, Ya-Chin Sung, and Meng-Hsun Tsai.
Also, I appreciate inexhaustible support from my lovely friends, including my high schoolmates, university colleagues, and all the others known through common interests, friends, and the Internet. Thank them for priceless suggestion and heartily honesty. Particularly, I would like to mention Bing-Jhen Wu, Hui-Chen Lin, and Ya-Ching Chiu for their thoughtfulness all the time, especially when I was in a terrible status.
Last but not least, I owe a great deal to my parents and my elder brother. Thank them for providing me with a perfect environment to grow up physically and mentally; thank them for instructing me in correct values; thank them for giving me freedom to develop my personality. Most important of all, thank them for always being supportive even though they did not really quite understand what I was working for. I feel truly lucky and satisfied to be their family.
Contents
X X X i Abstract ii Acknowledgements iii Contents iv List of Figures viList of Tables vii
1 Introduction 1
1.1 IP-related SIP/SDP Fields . . . 2
1.2 Network Address Translation Mechanism . . . 2
2 SIP/RTP NAT Traversing 5 2.1 The VPN Solution . . . 7
2.2 The Static Route Solution . . . 9
2.3 The UPnP Solution . . . 12
2.4 The STUN Solution . . . 14
2.5 The SIP-ALG Solution . . . 16
2.6 The SBC Solution . . . 18
2.7 The ICE Solution . . . 21
2.8 Comparisons . . . 26
3 IPv4/IPv6 Interworking for SIP-based VoIP 30
3.1 The SIP-ALG Solution . . . 32
3.2 The Redirect Solution . . . 34
3.3 The ICE Solution . . . 35
3.4 Our Solution . . . 37
3.5 Comparisons . . . 38
3.6 Summary . . . 40
4 Conclusions 41
List of Figures
1.1 NAT Architecture . . . 3
2.1 SIP Message Flow with Standard NAT Mechanism . . . 6
2.2 SIP/RTP NAT Traversing: the VPN Solution . . . 8
2.3 SIP/RTP NAT Traversing: the Static Route Solution . . . 10
2.4 Establishing Private-to-public Transport Address Mapping through UPnP 13 2.5 Establishing Private-to-public Transport Address Mapping through STUN 14 2.6 SIP/RTP NAT Traversing: the SIP-ALG Solution . . . 17

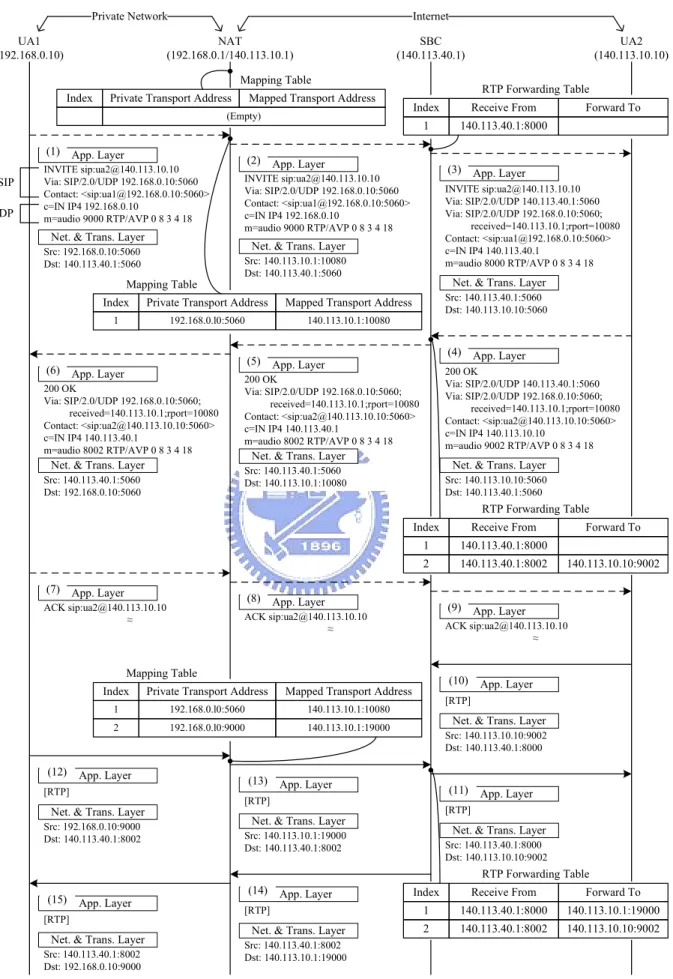

2.7 SIP/RTP NAT Traversing: the SBC Solution . . . 19

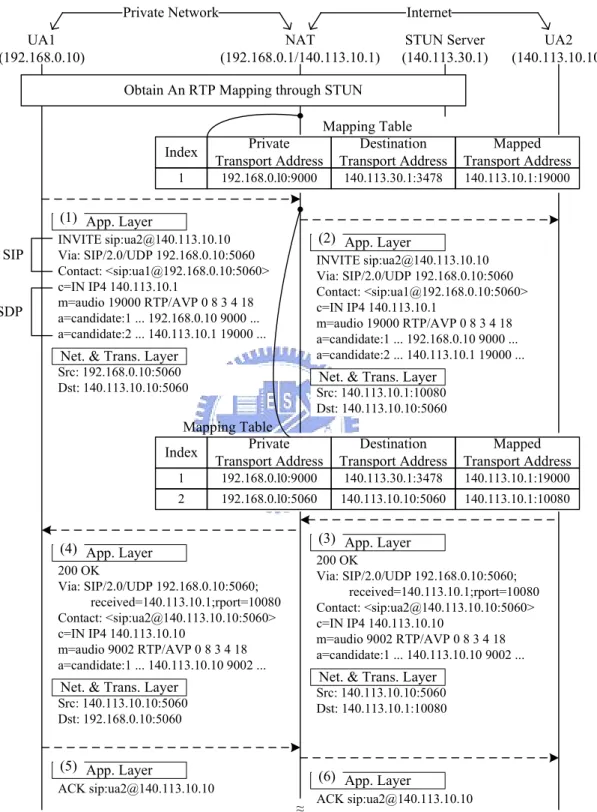

2.8 SIP/RTP NAT Traversing: Call Setup in the ICE Solution . . . 22
2.9 SIP/RTP NAT Traversing: Connectivity Checks in the ICE Solution . . . 24
2.10 Experimental Environment for SIP/RTP NAT Traversing Solutions . . . . 28
3.1 IPv4/IPv6 Interworking Environment for SIP-based VoIP . . . 31
3.2 SIP Registration Message Flow . . . 31
3.3 IPv4/IPv6 Interworking for SIP-based VoIP: the SIP-ALG Solution . . . . 33
3.4 IPv4/IPv6 Interworking for SIP-based VoIP: the Redirect Solution . . . 34
3.5 IPv4/IPv6 Interworking for SIP-based VoIP: the ICE Solution . . . 36
List of Tables
2.1 Mapping Table in the NAT and the UA (A Simplified Version) . . . 9
2.2 Comparisons of the SIP/RTP NAT Traversing Solutions . . . 26
2.3 Time Complexities of the SIP/RTP NAT Traversing Solutions . . . 29
Chapter 1
Introduction
Session Initiation Protocol (SIP) [23] is a Voice over IP (VoIP) signaling protocol for establishing calls, where the voice and the multimedia data are typically transmitted using Real-time Transport Protocol (RTP) [24]. The information of the voice and the multimedia data (e.g., the data type, the media codec, and the IP address/port number that the data should be sent to) is carried in the SIP message body, and mostly it is encoded in the format of Session Description Protocol (SDP) [16] [18]. In SIP, User Agents (UAs) are the IP network endpoints just like telephones in the telephone networks. Since every UA requires a unique IP address to serve as location information, the shortage of IPv4 addresses becomes a problem in SIP deployment. This problem can be solved by either introducing Network Address Translators (NATs) [27] into IPv4 networks or replacing IPv4 with IPv6 [13].
With an NAT connecting a private network to a public network (e.g., the Internet), a public IPv4 address is shared by multiple UAs in the private network. However, a UA cannot establish a call correctly when it resides in the private network. This issue is referred to as SIP/RTP NAT traversing problem. Several solutions have been proposed in the literature. According to our analyses, none of them is perfect in all aspects.
On the other hand, IPv6 provides large address space so that every UA owns a unique IPv6 address. In other words, NAT no longer exists, and neither does SIP/RTP NAT traversing problem. Nevertheless, in the early stage of IPv6 deployment, IPv6 UAs and IPv4 UAs coexist in the same network. Without proper mechanisms, IPv6 and IPv4 UAs cannot interact with each other correctly. This issue is referred to as IPv4/IPv6
inter-working problem for SIP-based VoIP. Three solutions have been proposed in the literature,
but each of them has disadvantages. Therefore, we propose an effective solution where the least extra call setup overhead is introduced and no impairment is incurred to the RTP transmission performance. The rest of this chapter introduces the background information of the IP-related SIP/SDP fields and the network address translation mechanism.
1.1
IP-related SIP/SDP Fields
Several SIP header fields in a SIP message contain the IP address and the port number (transport address) for SIP message delivery. For example,
• The Via header fields indicate the SIP nodes visited by a SIP request so far. The
reverse direction of the path should be followed to route the SIP responses for this request. When a SIP request is received, the IP address in the topmost Via header field is compared to the IP address in the Source Address header of the IP packet that carries the SIP request (source IP address). If they are different, a received parameter containing the source IP address is added to the topmost Via header field. In this case, a SIP response must be sent to the IP address specified in the
received parameter of the topmost Via header field, instead of the IP address in the
topmost Via header field.
• The Contact header field indicates the transport address where the other party can
send subsequent SIP requests.
Two SDP fields in the SIP message body provide the transport address for the media session.
• The IP address is provided in the c field.
• The port number is provided in the m field.
1.2
Network Address Translation Mechanism

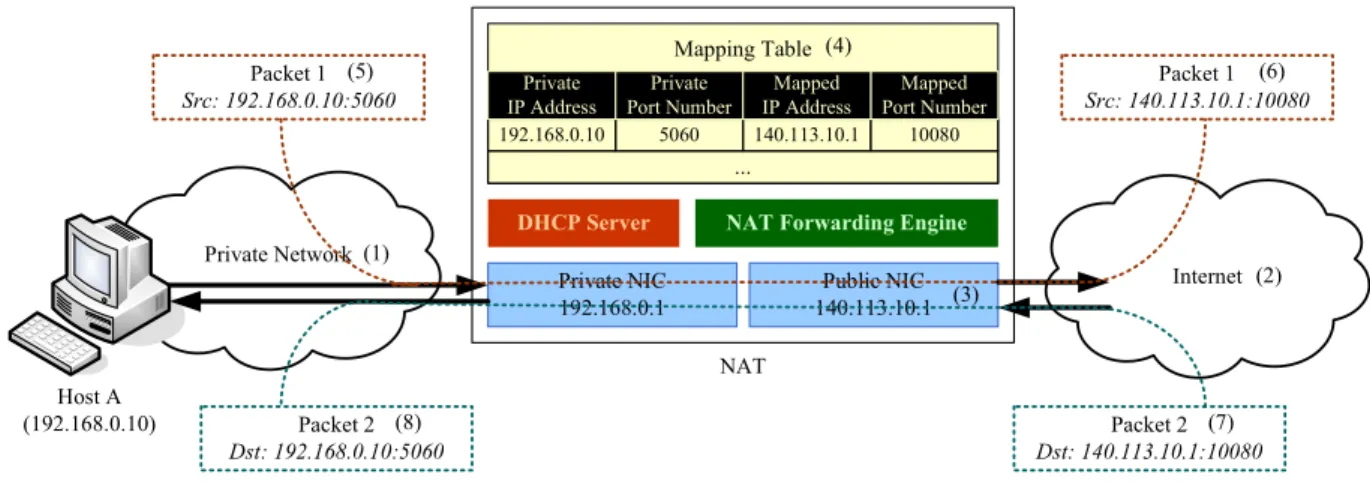

Figure 1.1 shows the NAT architecture. In this figure, a private network (Figure 1.1 (1)) connects to the Internet (Figure 1.1 (2)) through an NAT. The private IP addresses
Internet Packet 1 Src: 192.168.0.10:5060 Packet 2 Dst: 192.168.0.10:5060 Packet 1 Src: 140.113.10.1:10080 Packet 2 Dst: 140.113.10.1:10080 Private Network Host A (192.168.0.10) Mapping Table
DHCP Server NAT Forwarding Engine
Private NIC 192.168.0.1 Public NIC 140.113.10.1 NAT ... 192.168.0.10 5060 10080 (1) (2) (3) (4) (5) (8) (6) (7) 140.113.10.1 Private IP Address Mapped Port Number Private Port Number Mapped IP Address
Figure 1.1: NAT Architecture
192.168.0.0/24 are assigned to the hosts in the private network. The IP address of the public Network Interface Card (NIC, Figure 1.1 (3)) in the NAT is 140.113.10.1. Suppose that Host A sends a packet (Packet 1 with the source transport address 192.168.0.10:5060; see Figure 1.1 (5)) to the destination in the Internet. In most cases, the source transport address of the packet is treated as the destination transport address of another packet that is sent back to Host A. The packet with the private destination IP address 192.168.0.10 cannot be routed in the Internet. Therefore, the NAT performs the transport address translation at the network and the transport layers before sending Packet 1 to the Internet. Specifically, the NAT replaces the source IP address by the public IP address of the NAT (i.e., 140.113.10.1; see Figure 1.1 (3)) and changes the source port number to an unused port number 10080 in the NAT (see Figure 1.1 (6)). The mapping between the private transport address and the public transport address (private-to-public transport address
mapping) is stored in the NAT’s mapping table (Figure 1.1 (4)). Packet 1 is then routed
to the destination in the Internet. When the NAT receives Packet 2 (a packet with the destination transport address 140.113.10.1:10080 from the Internet; see Figure 1.1 (7)), it retrieves the mapping from the mapping table to translate the destination transport address into 192.168.0.10:5060 and then sends Packet 2 to Host A (Figure 1.1 (8)). Note that the NAT only translates the transport address at the network and the transport layers. The application-layer content is left unchanged.
The rest of this thesis is organized as follows. Chapter 2 describes SIP/RTP NAT traversing problem in detail. Also, the existing solutions of the problem are discussed and
analyzed. Chapter 3 elaborates IPv4/IPv6 interworking problem for SIP-based VoIP as well as the existing solutions. Besides, an effective solution is proposed and compared to those existing solutions. Finally, this thesis is concluded in Chapter 4.
Chapter 2
SIP/RTP NAT Traversing
An NAT only translates the transport address at the network and the transport layers. It does not translate the transport address carried in the content of a SIP message. This results in the inconsistency between the transport address at the application layer and that at the network and the transport layers when the SIP message traverses the NAT. This issue is further elaborated in the following example.
Figure 2.1 illustrates SIP message delivery between UA1 (in the private network) and UA2 (in the Internet) through a standard NAT. UA1 is assigned a private IP address 192.168.0.10, and UA2 is assigned a public IP address 140.113.10.10. As in Figure 1.1, the NAT has two IP addresses: 192.168.0.1 for the private NIC and 140.113.10.1 for the public NIC. Suppose that UA1 sends a SIP INVITE message (Figure 2.1 (1)) to UA2. In this message, both the Via and the Contact header fields contain UA1’s IP address 192.168.0.10 and the port number 5060. For the RTP media session, 192.168.0.10 and 9000 are recorded in the c and the m fields, respectively. This message is carried by an IP packet with the source transport address 192.168.0.10:5060. At the NAT, the source transport address is translated to 140.113.10.1:10080 (Figure 2.1 (2)). However, the application-layer content (i.e., the SIP message) is left unchanged.
Upon receipt of the INVITE message, UA2 creates a SIP 200 OK message where the
Via header field (i.e., 192.168.0.10:5060) is copied from the INVITE message. Then UA2
adds a received parameter with the value 140.113.10.1 to the Via header field. UA2 replies the 200 OK message using the IP address 140.113.10.1 and the port number 5060 in the
[RTP]
Src: 140.113.10.10:9002 Dst: 192.168.0.10:9000
App. Layer Net. & Trans. Layer (4) 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 140.113.10.1:5060 App. Layer
Net. & Trans. Layer (3) UA1 (192.168.0.10) NAT (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 192.168.0.10 m=audio 9000 RTP/AVP 0 8 3 4 18 Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 SIP SDP
Net. & Trans. Layer App. Layer (1) INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 192.168.0.10 m=audio 9000 RTP/AVP 0 8 3 4 18 Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (2)
Net. & Trans. Layer
Figure 2.1: SIP Message Flow with Standard NAT Mechanism
mapping table (10080 is the correct port number), this message cannot be delivered to the destination (i.e., UA1). Also, the RTP packets are delivered to 192.168.0.10:9000 (Figure 2.1 (4)) as designated by the c and the m fields in the INVITE message. Clearly, the destination is unreachable from the Internet.
The SIP/RTP NAT traversing problem consists of three main scenarios where the UA in the private network performs registration, call origination, and call termination. The UA performs registration in order to announce its location information so that other UAs can reach it. Therefore, the private transport address in the Via and the Contact header fields becomes a problem in registration. In call origination, not only the private transport address in the Via and the Contact header fields but also that in the c and the m fields cause the SIP/RTP NAT traversing problem. In call termination, the UA
should be reached first and then establishes the call. In other words, the UA in the private network performs correct call termination if the SIP/RTP NAT traversing problems in registration and call origination are solved. Since most SIP/RTP NAT traversing solutions for call origination can be applied to registration, this thesis focuses on the call origination scenario.
The SIP/RTP NAT traversing problem can be resolved by two types of solutions:
UA-based and server-UA-based. In the UA-UA-based solution, the application-layer transport address
translation is performed at the UA in the private network. In the server-based solution, the translation is performed at a server in the Internet. Note that in the UA-based so-lution, the UA may still need to interact with a server to obtain the specific information for a particular solution. Examples of UA-based solutions include Virtual Private Net-work (VPN) [7], Static Route [2], Universal Plug and Play (UPnP) [4], Simple Traversal of UDP through NATs (STUN) [20], STUN Relay Usage [21], Interactive Connectivity Establishment (ICE) [19], and Realm Specific IP (RSIP) [8]. Examples of server-based solutions include SIP-Application Layer Gateway (SIP-ALG) [11], Session Border Con-troller (SBC) [9], and midcom [28]. This thesis focuses on several widely used SIP/RTP NAT traversing solutions (i.e., VPN, Static Route, UPnP, STUN, ICE, SIP-ALG, and SBC) and shows their trade-offs.
2.1
The VPN Solution

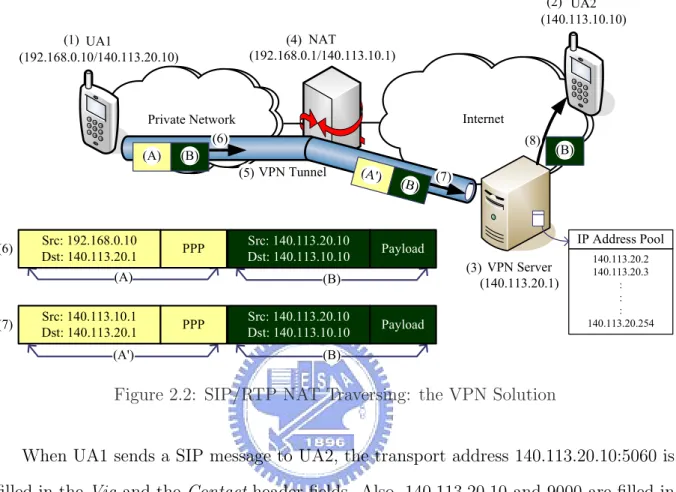

Figure 2.2 illustrates the VPN solution [7], where UA1 (Figure 2.2 (1)) is a VPN client in the private network while both UA2 (Figure 2.2 (2)) and the VPN server (Figure 2.2 (3)) reside in the Internet. The IP address settings for UA1, UA2, and the NAT are the same as those in Figure 2.1, and the IP address of the VPN server is 140.113.20.1. The VPN server maintains an address pool with IP addresses ranging from 140.113.20.2 to 140.113.20.254. After UA1 has established a VPN tunnel (Figure 2.2 (5)) connecting to the VPN server, a virtual NIC with a public IP address 140.113.20.10 (belonging to the VPN server) is created at UA1. This virtual NIC is set as the default interface. That is, the public IP address is used for all outgoing packets from UA1. On the other hand, all
packets from the Internet with the destination IP address 140.113.20.10 are first sent to the VPN server, and the VPN server forwards these packets to UA1 through the VPN tunnel. (4) Internet Internet Private Network NAT (192.168.0.1/140.113.10.1) UA1 (192.168.0.10/140.113.20.10) VPN Server (140.113.20.1) UA2 (140.113.10.10) (B) VPN Tunnel (A) (B) (A) (B) Src: 192.168.0.10 Dst: 140.113.20.1 PPP Src: 140.113.20.10 Dst: 140.113.10.10 Payload (A') (B) Src: 140.113.10.1 Dst: 140.113.20.1 PPP Src: 140.113.20.10 Dst: 140.113.10.10 Payload (1) (2) (3) (6) (7) (8) (5) (A') (B) (6) (7) IP Address Pool 140.113.20.2 140.113.20.3 : : : 140.113.20.254
Figure 2.2: SIP/RTP NAT Traversing: the VPN Solution
When UA1 sends a SIP message to UA2, the transport address 140.113.20.10:5060 is filled in the Via and the Contact header fields. Also, 140.113.20.10 and 9000 are filled in the c and the m fields, respectively. This message is then carried by an IP packet with the source IP address 140.113.20.10 (Figure 2.2 (B)). In order to deliver the packet through the VPN tunnel, the packet is encapsulated by the IP and the Point-to-Point Protocol (PPP) [6] (Figure 2.2 (A)) to be a tunneled packet. Before the tunneled packet arrives at the NAT (Figure 2.2 (6)), the source and the destination IP addresses are 192.168.0.10 and 140.113.20.1, respectively. After the tunneled packet leaves the NAT (Figure 2.2 (7)), the source IP address is translated to 140.113.10.1 by the NAT. The tunneled packet is then sent to the VPN server. Upon receipt of the tunneled packet, the VPN server decapsulates the packet and sends it to UA2 (Figure 2.2 (8)). Since the public IP address 140.113.20.10 (of the VPN server) is contained in the SIP message received by UA2, UA1 is reachable from the Internet through the VPN tunnel, as described in the following example.

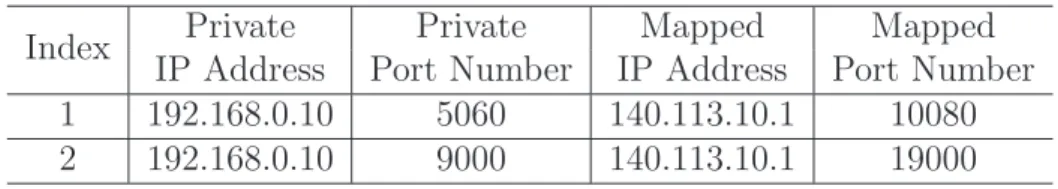

Table 2.1: Mapping Table in the NAT and the UA (A Simplified Version)
Index Private Private Mapped Mapped
IP Address Port Number IP Address Port Number 1 192.168.0.10 5060 140.113.10.1 10080 2 192.168.0.10 9000 140.113.10.1 19000
When UA2 replies a SIP message to UA1, the message is carried by an IP packet with the destination transport address 140.113.20.10:5060, which is designated in the Via header field of the received SIP message (part B of the packets in Figure 2.2 (6), (7), and (8)). Upon receipt of the packet, the VPN server encapsulates it by the IP and the PPP and sends the tunneled packet, of which the source and the destination IP addresses are 140.113.20.1 and 140.113.10.1, through the VPN tunnel. At the NAT, the destination IP address is translated to 192.168.0.10, and the tunneled packet is then sent to UA1. UA1 decapsulates the packet to obtain the SIP message. Similarly, the RTP packets between UA1 and UA2 can be correctly delivered through the VPN tunnel.
2.2
The Static Route Solution
In Static Route [2], the application-layer transport address translation is performed at a UA in the private network, and a standard NAT is used to translate the transport address at the network and the transport layers. This solution requires that SIP/RTP related private-to-public transport address mappings are manually configured in both the UA and the NAT before a SIP call is set up. Specifically, both the UA and the NAT need to configure a SIP mapping (e.g., entry 1 in Table 2.1) and an RTP mapping (e.g., entry 2 in Table 2.1). If the UA is engaged in multiple media streams (e.g., audio plus video), extra RTP mappings are required.

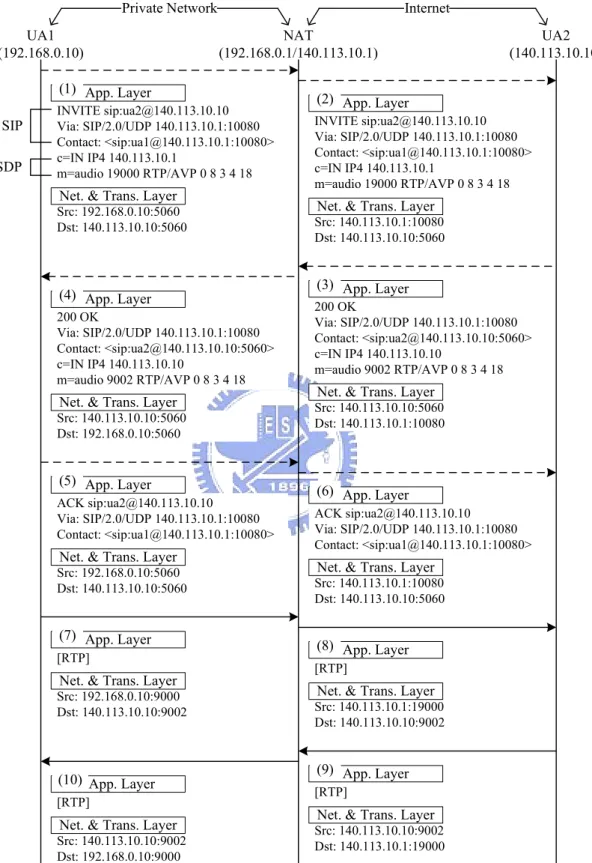

Figure 2.3 illustrates SIP message delivery between UA1 (in the private network) and UA2 (in the Internet) based on the Static Route solution. The IP address settings for UA1, UA2, and the NAT are the same as those in Figure 2.1. Initially, the SIP mapping and the RTP mapping are configured in both UA1 and the NAT. Note that UA1 is modified to implement the mapping table while UA2 is a standard UA.
UA1 (192.168.0.10) NAT (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> c=IN IP4 140.113.10.1 m=audio 19000 RTP/AVP 0 8 3 4 18 Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (2)
Net. & Trans. Layer
INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> c=IN IP4 140.113.10.1 m=audio 19000 RTP/AVP 0 8 3 4 18 Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 SIP SDP App. Layer (1)
Net. & Trans. Layer
200 OK Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 192.168.0.10:5060 App. Layer
Net. & Trans. Layer (4) 200 OK Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 140.113.10.1:10080 App. Layer
Net. & Trans. Layer (3) ACK sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (6)
Net. & Trans. Layer
ACK sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 App. Layer (5)
Net. & Trans. Layer
[RTP]
Src: 140.113.10.10:9002 Dst: 192.168.0.10:9000
App. Layer Net. & Trans. Layer (10)
[RTP]
Src: 192.168.0.10:9000 Dst: 140.113.10.10:9002
App. Layer Net. & Trans. Layer (7)
[RTP]
Src: 140.113.10.1:19000 Dst: 140.113.10.10:9002
App. Layer Net. & Trans. Layer (8)
[RTP]
Src: 140.113.10.10:9002 Dst: 140.113.10.1:19000
App. Layer Net. & Trans. Layer (9)
When UA1 sends a SIP INVITE message to UA2 (Figure 2.3 (1)), the message is car-ried by an IP packet with the source transport address 192.168.0.10:5060. The transport address reserved for the media session is 192.168.0.10:9000. The above private transport addresses are not shown in the application-layer content. Instead, through the mapping table in UA1, the private transport address 192.168.0.10:5060 is replaced by the mapped (public) transport address 140.113.10.1:10080, which is filled in both the Via and the
Con-tact header fields. Also, the public IP address 140.113.10.1 and the public port number
19000 for RTP are filled in the c and the m fields, respectively. At the NAT, the source transport address is translated from 192.168.0.10:5060 to 140.113.10.1:10080 (Figure 2.3 (2)). The application-layer content is left unchanged.
Upon receipt of the INVITE message, UA2 replies a SIP 200 OK message (Figure 2.3 (3)). The Via header field (i.e., 140.113.10.1:10080) in the INVITE message (Figure 2.3 (2)) is copied to the 200 OK message as the destination of the message. Then the 200 OK message is sent to the NAT. Based on the mapping table, the NAT translates the destination transport address from 140.113.10.1:10080 to 192.168.0.10:5060 and sends the message to UA1 (Figure 2.3 (4)). After UA1 receives the 200 OK message, a SIP ACK message (with 140.113.10.1:10080 in the Via and the Contact header fields) is delivered to UA2 (Figure 2.3 (5) and (6)) just like the INVITE message.
The RTP packets from UA1 to UA2 are delivered to 140.113.10.10:9002 (Figure 2.3 (7)) as designated by the c and the m fields in the 200 OK message (Figure 2.3 (4)). At the NAT, the source transport address is translated from 192.168.0.10:9000 to 140.113.10.1:19000. These packets are then sent to UA2 (Figure 2.3 (8)). For the RTP packets sent from UA2 to UA1 (Figure 2.3 (9)), they are delivered to 140.113.10.1:19000, which is specified in the c and the m fields in the INVITE message (Figure 2.3 (2)). Upon receipt of the RTP packets, the NAT translates the destination transport address from 140.113.10.1:19000 to 192.168.0.10:9000 and sends the packets to UA1 (Figure 2.3 (10)).
2.3
The UPnP Solution
Manual configuration in the Static Route solution can be automated by UPnP [4]. UPnP is a network protocol for automatic discovery and configuration when a certain device (i.e., a UPnP client) is online. The solution for traversing NAT using UPnP is investigated by the UPnP Internet Gateway Working Committee [5]. Similar to Static Route, the SIP and the RTP mappings are configured in both the UA and the NAT before a SIP call is set up. Unlike Static Route, the standard UA is modified to support UPnP and to implement the mapping table. Also, the NAT must be modified to support UPnP because the mappings in both the UA and the NAT are automatically established by the UPnP protocol. After the mappings are confirmed, all SIP/RTP packets traverse over the NAT with the same procedure described in Section 2.2.
A UPnP system typically consists of several UPnP clients and one Internet Gateway Device (IGD). The IGD joins in the multicast group 239.255.255.250 [5] and listens on the port number 1900 for requests issued by the UPnP clients. The UPnP messages are exchanged through the Hypertext Transfer Protocol (HTTP) [14]. Figure 2.4 illustrates how the mapping in entry 1 of Table 2.1 is established by the UPnP messages exchanged between UA1 (a UPnP client) and the NAT (the IGD). The IP address settings for UA1 and the NAT are the same as those in Figure 2.1. The message flow in Figure 2.4 is described as follows.
Step 1. When UA1 is online, it sends a UPnP multicast M-SEARCH request (with the destination transport address 239.255.255.250:1900) to find the NAT (i.e., the IGD). M-SEARCH is a method defined by Simple Service Discovery Protocol (SSDP) [15] for service discovery.
Step 2. Upon receipt of the M-SEARCH request, the NAT returns its private location to UA1 by filling the transport address 192.168.0.1:2869 in the payload of a unicast HTTP response (i.e., 200 OK). The transport address is then used as the destination of the messages sent from UA1 to the NAT.
HTTP/1.1 200 OK Location: 192.168.0.1:2869 (2) (3)POST ... HTTP/1.1 GetExternalIPAddress HTTP/1.1 200 OK 140.113.10.1 (4) (5) POST ... HTTP/1.1 NewPortMappingDescription (192.168.0.10:5060) 10080 HTTP/1.1 200 OK (6) M-SEARCH * HTTP/1.1 ssdp:discover InternetGatewayDevice Dst: 239.255.255.250:1900 (1) UA1 (UPnP Client)
(192.168.0.10) NAT (IGD) (192.168.0.1/140.113.10.1) Private Network Discover NAT Obtain Mapped IP Address Create Mapping
Figure 2.4: Establishing Private-to-public Transport Address Mapping through UPnP
request (an HTTP POST message) to the NAT.
Step 4. The NAT then replies its public IP address (i.e., 140.113.10.1) to UA1 through an HTTP 200 OK message.
Step 5. UA1 sends a UPnP NewPortMappingDescription request (an HTTP POST mes-sage) with a transport address and a port number “(192.168.0.10:5060) 10080”, in-dicating the private transport address and the mapped port number in entry 1 of Table 2.1, respectively.
Step 6. If the proposed public mapped port number (i.e., 10080) is unused, the NAT confirms the mapping by replying an HTTP 200 OK message, and the procedure is completed.
In Steps 3 and 4, the NAT informs UA1 of the mapped IP address (i.e., the NAT’s public IP address 140.113.10.1) for the corresponding private IP address. In Steps 5 and 6, UA1
Binding Response MAPPED-ADDRESS IP 140.113.10.1 Port 10080 Src: 140.113.30.1:3478 Dst: 192.168.0.10:5060 App. Layer (4)
Net. & Trans. Layer
Binding Response MAPPED-ADDRESS IP 140.113.10.1 Port 10080 Src: 140.113.30.1:3478 Dst: 140.113.10.1:10080 App. Layer (3)
Net. & Trans. Layer UA1 (STUN Client)
(192.168.0.10) NAT (192.168.0.1/140.113.10.1) STUN Server (140.113.30.1) Internet Private Network Binding Request Src: 192.168.0.10:5060 Dst: 140.113.30.1:3478 App. Layer (1)
Net. & Trans. Layer Binding Request
Src: 140.113.10.1:10080 Dst: 140.113.30.1:3478
App. Layer (2)
Net. & Trans. Layer

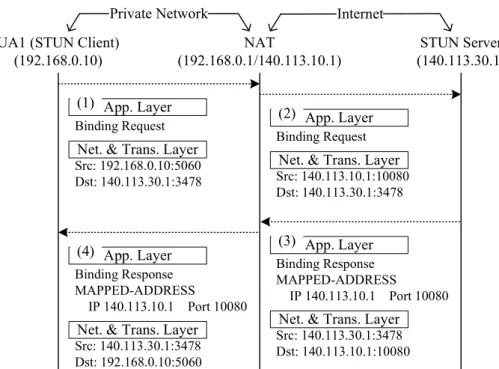

Figure 2.5: Establishing Private-to-public Transport Address Mapping through STUN
selects a port number for the mapped IP address and informs the NAT of the private-to-public transport address mapping. Steps 5 and 6 allow the applications (e.g., SIP or FTP) to specify well known port numbers (e.g., 5060 or 21) at the NAT. The UPnP solution also supports the deletion of mappings. This feature enables applications to create short-lived mappings for short session-based communications.
2.4
The STUN Solution
Like UPnP, STUN [20] supports automatic configuration of the SIP and the RTP map-pings in both the UA and the NAT before a SIP call is set up. Also the standard UA is modified to support STUN and to implement the mapping table. Unlike UPnP, the standard NAT does not need any modification. Instead, an extra STUN server is required for the UA to obtain the mappings. After the mappings are confirmed, all SIP/RTP packets traverse over the NAT with the same procedure described in Section 2.2. At this stage, the STUN server needs not to involve.
A STUN system is typically composed of a STUN server in the Internet and several STUN clients in the private network. The STUN server listens on the port number 3478 for requests. Figure 2.5 illustrates how the mapping in entry 1 of Table 2.1 is established.
STUN messages in this figure are exchanged between UA1 (a STUN client) and the STUN server (with public IP address 140.113.30.1). The IP address settings for UA1 and the NAT are the same as those in Figure 2.1. The steps are described as follows.
Step 1. UA1 sends a STUN Binding Request message to the STUN server. This message is carried by an IP packet with the source transport address 192.168.0.10:5060.
Step 2. At the NAT, the mapping in entry 1 of Table 2.1 is established. According to the mapping table, the source transport address is translated from 192.168.0.10:5060 to 140.113.10.1:10080.
Step 3. Upon receipt of the message, the STUN server retrieves the source IP address 140.113.10.1 and the source port number 10080, and it then fills them separately in the IP and the Port fields of the MAPPED-ADDRESS attribute in a STUN Binding Response message. This Binding Response message is then carried by an IP packet with the destination transport address 140.113.10.1:10080 and sent to the NAT.
Step 4. The NAT retrieves the mapping from its mapping table, translates the destina-tion transport address from 140.113.10.1:10080 to 192.168.0.10:5060, and sends the message to UA1. UA1 retrieves the transport address 140.113.10.1:10080 from the message and creates the mapping (i.e., entry 1 of Table 2.1) in its mapping table. The NAT may eliminate the entries in its mapping table due to timeout. Therefore, the UA in the private network should periodically transmit the STUN Binding Request messages to refresh the mappings.
STUN does not support SIP/RTP NAT traversal over symmetric NAT. In a symmetric NAT, the private-to-public transport address mapping is affected by both the source and the destination transport addresses. In other words, two packets (sent from the private network to the Internet) with the same private source transport address but different destination transport addresses would be translated to those with the same public source IP address but different source port numbers. In this case, the mappings created through the STUN Binding Request/Response messages (stored in the UA’s mapping table) are
different from those for the SIP/RTP packet delivery (stored in the NAT). Hence, the packets from the Internet cannot be delivered correctly to the UA in the private network.
2.5
The SIP-ALG Solution
A SIP-ALG [11] for SIP/RTP NAT traversal typically collocates with an NAT to create the SIP and the RTP mappings. The NAT and the SIP-ALG use these mappings to translate the SIP messages and the RTP packets. Specifically, when the NAT receives a packet, it identifies the packet as a SIP message by the source/destination port numbers (i.e., 5060) or the ASCII keyword “SIP/2.0” in the payload of the packet [12]. The SIP message is forwarded to the SIP-ALG for translation. Then the translated SIP message is returned to the NAT, and the NAT sends the SIP message to the destination.
Figure 2.6 illustrates SIP message delivery between UA1 (in the private network) and UA2 (in the Internet) based on the SIP-ALG solution. The IP address settings for UA1, UA2, and the NAT are the same as those in Figure 2.1.
Suppose that UA1 sends UA2 a SIP INVITE message with the source transport ad-dress 192.168.0.10:5060 (Figure 2.6 (1)). Upon receipt of the INVITE message, the NAT invokes the SIP-ALG to translate the message. Specifically, the SIP-ALG instructs the NAT to create a SIP mapping (i.e., entry 1 of the mapping table in Figure 2.6) and an RTP mapping (i.e., entry 2 of the mapping table in Figure 2.6). Based on the SIP map-ping, the private transport address in the Via and the Contact header fields is translated from 192.168.0.10:5060 into 140.113.10.1:10080. Also, based on the RTP mapping, the private transport address in the c and the m fields is translated from 192.168.0.10:9000 into 140.113.10.1:19000. The modified INVITE message is then returned to the NAT. Af-ter the NAT translates the source transport address into 140.113.10.1:10080, the INVITE message is sent to UA2 (Figure 2.6 (2)).
Upon receipt of the INVITE message, UA2 replies a SIP 200 OK message (Figure 2.6 (3)). The Via header field (i.e., 140.113.10.1:10080) in the INVITE message is copied to the 200 OK message as the destination of the message. The 200 OK message is then sent to the NAT. At the NAT, the SIP-ALG is invoked to translate the Via header field from
200 OK Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 140.113.10.1:10080 App. Layer
Net. & Trans. Layer (3) 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 192.168.0.10:5060 App. Layer
Net. & Trans. Layer (4) INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> c=IN IP4 140.113.10.1 m=audio 19000 RTP/AVP 0 8 3 4 18 Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (2)
Net. & Trans. Layer
INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 192.168.0.10 m=audio 9000 RTP/AVP 0 8 3 4 18 Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 SIP SDP App. Layer (1)
Net. & Trans. Layer UA1 (192.168.0.10) NAT (SIP-ALG) (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network
Private Transport Address Mapping Table
Mapped Transport Address Index (Empty) ACK sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 App. Layer (5)
Net. & Trans. Layer
ACK sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.10.1:10080 Contact: <sip:ua1@140.113.10.1:10080> Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (6)
Net. & Trans. Layer
[RTP]
Src: 140.113.10.1:19000 Dst: 140.113.10.10:9002
App. Layer Net. & Trans. Layer (8)
[RTP]
Src: 192.168.0.10:9000 Dst: 140.113.10.10:9002
App. Layer Net. & Trans. Layer (7)
[RTP]
Src: 140.113.10.10:9002 Dst: 192.168.0.10:9000
App. Layer Net. & Trans. Layer (10)
[RTP]
Src: 140.113.10.10:9002 Dst: 140.113.10.1:19000
App. Layer Net. & Trans. Layer (9)
Private Transport Address Mapping Table
Mapped Transport Address
192.168.0.l0:5060 140.113.10.1:19000 Index 1 192.168.0.l0:9000 140.113.10.1:10080 2
140.113.10.1:10080 into 192.168.0.10:5060 based on the SIP mapping while the transport addresses in the Contact header field and the c/m fields need not be modified. The NAT then translates the destination transport address to 192.168.0.10:5060 and sends the 200 OK message to UA1 (Figure 2.6 (4)). Similar translation is applied to the SIP ACK message sent from UA1 to UA2 except that the ACK message does not contain the SDP description (see Figure 2.6 (5) and (6)).
The RTP packets from UA1 to UA2 are delivered to 140.113.10.10:9002 (Figure 2.6 (7)) as designated by the c and the m fields in the 200 OK message. Based on the RTP mapping, the NAT translates the source transport address into 140.113.10.1:19000 and sends these packets to UA2 (Figure 2.6 (8)). For the RTP packets from UA2 to UA1 (Figure 2.6 (9)), they are delivered to 140.113.10.1:19000, which is specified in the
c and the m fields in the INVITE message received by UA2. After the NAT translates
the destination transport address into 192.168.0.10:9000 based on the RTP mapping, the packets are sent to UA1 (Figure 2.6 (10)).
2.6
The SBC Solution
An SBC [9], locating in the Internet, serves as an outbound SIP proxy of the UAs in the private network so that all the SIP messages from the private network arrive at the SBC first. The SBC utilizes the received and the rport parameters to solve the SIP NAT traversing issue. The RTP NAT traversing issue is resolved by breaking one RTP media session into two. That is, instead of one RTP media session with the RTP packets directly delivered between the two UAs, two RTP media sub-sessions are set up: one from the UA in the private network to the SBC and the other from the SBC to the UA in the Internet. The details are elaborated in the following example as shown in Figure 2.7.
In Figure 2.7, UA1 (in the private network) attempts to establish a call to UA2 (in the Internet) and sets an SBC, which is assigned an IP address 140.113.40.1, as its outbound SIP proxy before any SIP message is issued. The IP address settings for UA1, UA2, and the NAT are the same as those in Figure 2.1.
ad-ACK sip:ua2@140.113.10.10 ≈ App. Layer (9) 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.40.1 m=audio 8002 RTP/AVP 0 8 3 4 18 Src: 140.113.40.1:5060 Dst: 192.168.0.10:5060
Net. & Trans. Layer App. Layer (6) 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.40.1 m=audio 8002 RTP/AVP 0 8 3 4 18 Src: 140.113.40.1:5060 Dst: 140.113.10.1:10080
Net. & Trans. Layer App. Layer (5) 200 OK Via: SIP/2.0/UDP 140.113.40.1:5060 Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 Src: 140.113.10.10:5060 Dst: 140.113.40.1:5060 App. Layer
Net. & Trans. Layer (4) INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 140.113.40.1:5060 Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 140.113.40.1 m=audio 8000 RTP/AVP 0 8 3 4 18 Src: 140.113.40.1:5060 Dst: 140.113.10.10:5060 App. Layer (3)
Net. & Trans. Layer UA1 (192.168.0.10) NAT (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network SBC (140.113.40.1) [RTP] Src: 140.113.10.10:9002 Dst: 140.113.40.1:8000 App. Layer Net. & Trans. Layer (10)
[RTP]
Src: 140.113.40.1:8000 Dst: 140.113.10.10:9002
App. Layer
Net. & Trans. Layer (11)
[RTP]
Src: 140.113.40.1:8002 Dst: 192.168.0.10:9000
App. Layer Net. & Trans. Layer (15)
[RTP]
Src: 140.113.40.1:8002 Dst: 140.113.10.1:19000
App. Layer Net. & Trans. Layer (14) INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 192.168.0.10 m=audio 9000 RTP/AVP 0 8 3 4 18 Src: 140.113.10.1:10080 Dst: 140.113.40.1:5060 App. Layer (2)
Net. & Trans. Layer
INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 192.168.0.10 m=audio 9000 RTP/AVP 0 8 3 4 18 Src: 192.168.0.10:5060 Dst: 140.113.40.1:5060 SIP SDP App. Layer (1)
Net. & Trans. Layer
[RTP]
Src: 140.113.10.1:19000 Dst: 140.113.40.1:8002
App. Layer
Net. & Trans. Layer (13)
[RTP]
Src: 192.168.0.10:9000 Dst: 140.113.40.1:8002
App. Layer
Net. & Trans. Layer (12)
Private Transport Address Mapping Table
Mapped Transport Address Index
1 192.168.0.l0:5060 140.113.10.1:10080
Private Transport Address Mapping Table
Mapped Transport Address
192.168.0.l0:5060 140.113.10.1:19000 Index 1 192.168.0.l0:9000 140.113.10.1:10080 2 140.113.40.1:8000 RTP Forwarding Table Index 1
Receive From Forward To Private Transport Address
Mapping Table
Mapped Transport Address Index (Empty) ACK sip:ua2@140.113.10.10 ≈ App. Layer (7) ACK sip:ua2@140.113.10.10 ≈ App. Layer (8) 140.113.40.1:8000 RTP Forwarding Table Index 1
Receive From Forward To 140.113.40.1:8002 2 140.113.10.10:9002 140.113.40.1:8000 RTP Forwarding Table Index 1 Receive From 140.113.10.1:19000 Forward To 140.113.40.1:8002 2 140.113.10.10:9002
dress 192.168.0.10:5060 (Figure 2.7 (1)). Upon receipt of the INVITE message, the NAT creates a SIP mapping (i.e., entry 1 of the mapping table in Figure 2.7), translates the source transport address into 140.113.10.1:10080, and sends the INVITE message to the SBC (Figure 2.7 (2)). When the SBC receives the INVITE message, it detects that the source transport address (i.e., 140.113.10.1:10080) is different from that in the Via header field (i.e., 192.168.0.10:5060). Hence, the SBC adds a received parameter with the IP address 140.113.10.1 and an rport parameter [22] with the port number 10080 to the Via header field for subsequent SIP response message delivery. In addition, to break the RTP media session into the UA1-SBC and the SBC-UA2 sub-sessions, the SBC replaces the pri-vate transport address 192.168.0.10:9000 in the c and the m fields by the SBC’s transport address 140.113.40.1:8000 (i.e., the port number 8000 is used in the SBC for the SBC-UA2 sub-session). Then the SBC adds another Via header field with its transport address for SIP (i.e., 140.113.40.1:5060) and sends the INVITE message to UA2 (Figure 2.7 (3)).
Upon receipt of the INVITE message, UA2 replies a SIP 200 OK message with the Via header fields copied from the INVITE message (Figure 2.7 (4)). The 200 OK message is sent to the SBC according to the topmost Via header field (i.e., 140.113.40.1:5060). The SBC replaces the transport address in the c and the m fields with 140.113.40.1:8002 (i.e., the port number 8002 is used in the SBC for the UA1-SBC sub-session), removes the topmost Via header field, and sends the 200 OK message to UA1 according to the
received and the rport parameters in the topmost Via header field (Figure 2.7 (5)). At the
NAT, the destination transport address is translated into 192.168.0.10:5060, and the 200 OK message is sent to UA1 (Figure 2.7 (6)). The SIP ACK message from UA1 to UA2 is handled as the INVITE message except that the ACK message does not contain the SDP description (see Figure 2.7 (7), (8), and (9)). After UA2 receives the ACK message, the call is established.
For the SBC-UA2 sub-session, the RTP packets are delivered between the SBC and UA2 directly (Figure 2.7 (10) and (11)). For the UA1-SBC sub-session, UA1 learns from the 200 OK message the destination transport address for RTP (i.e., 140.113.40.1:8002) and sends the RTP packets to the SBC through the NAT (Figure 2.7 (12)). When these
RTP packets pass through the NAT, an RTP mapping is created (i.e., entry 2 of the mapping table in Figure 2.7) and used to translate the source transport address into 140.113.10.1:19000 (Figure 2.7 (13)). At the SBC, the source transport address of the RTP packets from UA1 is used as the destination transport address of the RTP packets to UA1 (Figure 2.7 (14)). In this way, the RTP packets from UA2 can arrive at UA1 correctly based on the RTP mapping (Figure 2.7 (15)).
2.7
The ICE Solution
ICE [19] is used to select the appropriate source/destination transport addresses for RTP packet delivery. The candidates of the transport addresses for RTP include the UA’s lo-cal transport addresses and the mapped transport addresses obtained using the solutions described in the previous sections (e.g., the STUN solution). These candidates are ex-changed during call setup by being filled in the a=candidate fields in the SDP description. In addition, the SIP NAT traversing issue is out of the scope of the ICE solution. Any solution can be adopted to cooperate with ICE, such as the usage of the rport parame-ter [22] described in Section 2.6. In ICE, both the UAs engaged in the RTP media session are required to support ICE so that the connectivity checks (which check the connectivity of the combination of a source and a destination transport addresses) can be performed. The connectivity checks are for selecting the most suitable source/destination transport addresses for RTP packet delivery. The details of the ICE solution are elaborated in the following example as shown in Figures 2.8 and 2.9.
Assume that UA1 (in the private network) obtains an RTP mapping through STUN and attempts to establish a call to UA2 (in the Internet). The IP address settings for UA1, UA2, the NAT, and the STUN server are the same as those in Figures 2.1 and 2.5. In this example, the symmetric NAT is adopted to show how ICE supports RTP NAT traversal over symmetric NAT while the mapped transport address for RTP is obtained through STUN (which does not support symmetric NAT traversal). The RTP mapping in the NAT’s mapping table, which is created when UA1 obtains the RTP mapping through STUN, is shown in entry 1 of the mapping table in Figure 2.8.
INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 140.113.10.1 m=audio 19000 RTP/AVP 0 8 3 4 18 a=candidate:1 ... 192.168.0.10 9000 ... a=candidate:2 ... 140.113.10.1 19000 ... Src: 140.113.10.1:10080 Dst: 140.113.10.10:5060 App. Layer (2)
Net. & Trans. Layer
INVITE sip:ua2@140.113.10.10 Via: SIP/2.0/UDP 192.168.0.10:5060 Contact: <sip:ua1@192.168.0.10:5060> c=IN IP4 140.113.10.1 m=audio 19000 RTP/AVP 0 8 3 4 18 a=candidate:1 ... 192.168.0.10 9000 ... a=candidate:2 ... 140.113.10.1 19000 ... Src: 192.168.0.10:5060 Dst: 140.113.10.10:5060 SIP SDP App. Layer (1)
Net. & Trans. Layer
≈ UA1 (192.168.0.10) NAT (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 a=candidate:1 ... 140.113.10.10 9002 ... Src: 140.113.10.10:5060 Dst: 192.168.0.10:5060 App. Layer
Net. & Trans. Layer (4) 200 OK Via: SIP/2.0/UDP 192.168.0.10:5060; received=140.113.10.1;rport=10080 Contact: <sip:ua2@140.113.10.10:5060> c=IN IP4 140.113.10.10 m=audio 9002 RTP/AVP 0 8 3 4 18 a=candidate:1 ... 140.113.10.10 9002 ... Src: 140.113.10.10:5060 Dst: 140.113.10.1:10080 App. Layer
Net. & Trans. Layer (3) Private Transport Address Destination Transport Address Mapping Table Mapped Transport Address 192.168.0.l0:9000 140.113.30.1:3478 140.113.10.1:19000 Index 1 Private Transport Address Destination Transport Address Mapping Table Mapped Transport Address 192.168.0.l0:9000 140.113.30.1:3478 140.113.10.1:19000 Index 1 192.168.0.l0:5060 140.113.10.10:5060 140.113.10.1:10080 2 STUN Server (140.113.30.1) ACK sip:ua2@140.113.10.10 App. Layer (5) ACK sip:ua2@140.113.10.10 App. Layer (6)
Obtain An RTP Mapping through STUN
Figure 2.8 illustrates the SIP message flow for call setup. The SIP NAT travers-ing issue is resolved by the usage of the rport parameter. The call setup procedure is similar to that in Section 2.6. During SIP message exchange, UA1 includes its private transport address 192.168.0.10:9000 and the corresponding mapped transport address 140.113.10.1:19000 in the a=candidate fields of the INVITE message (Figure 2.8 (1)). Similarly, UA2 includes its transport address 140.113.10.10:9002 in the a=candidate field of the 200 OK message (Figure 2.8 (3)). After exchange, UA1 combines its private trans-port address 192.168.0.10:9000 with UA2’s transtrans-port address 140.113.10.10:9002 as a pair of the source/destination transport addresses. The pair is added to UA1’s check list (i.e., entry 1 of UA1’s check list in Figure 2.9). In addition, the pair with the source/destination transport addresses 140.113.0.1:19000/140.113.10.10:9002 is added to UA1’s check list (i.e., entry 2 of UA1’s check list in Figure 2.9). Since 140.113.10.1:19000 is the corre-sponding mapped transport address of 192.168.0.1:9000, the second entry is marked as associated to the first entry. That is, UA1 does not perform the connectivity check to the second entry because the transport address 140.113.10.1:19000 does not belong to UA1. (The transport address 140.113.10.1:19000 belongs to the NAT.) UA2 performs similar procedure to construct its check list (see UA2’s check list in Figure 2.9) except that the second entry is not associated to the first entry.
Before sending the RTP packets to each other, UA1 and UA2 perform the connectivity checks to all the entries in their check lists, as illustrated in Figure 2.9. Suppose that UA1 checks the first entry in its check list. First, UA1 sends a STUN Binding Request message with the source transport address 192.168.0.10:9000 and the destination transport address 140.113.10.10:9002 (Figure 2.9 (1)). Upon receipt of the message, the NAT creates a new private-to-public transport address mapping (i.e., entry 3 of the NAT’s mappings table in Figure 2.9), translates the source transport address into 140.113.10.1:29000, and forwards the message to UA2 (Figure 2.9 (2)). Note that the source port number of the message received by UA2 (i.e., 29000) is different from UA1’s mapped port number specified in the INVITE message (i.e., 19000). Therefore, UA2 adds to its check list a new pair with the source/destination transport addresses 140.113.10.10:9002/140.113.10.1:29000 (i.e., entry
Binding Response MAPPED-ADDRESS IP 140.113.10.1 Port 29000 Src: 140.113.10.10:9002; Dst: 192.168.0.10:9000 App. Layer (4)
Net. & Trans. Layer
Binding Response MAPPED-ADDRESS IP 140.113.10.1 Port 29000 Src: 140.113.10.10:9002; Dst: 140.113.10.1:29000 App. Layer (3)
Net. & Trans. Layer Binding Request
Src: 140.113.10.1:29000; Dst: 140.113.10.10:9002 App. Layer
(2)
Net. & Trans. Layer Binding Request
Src: 192.168.0.10:9000; Dst: 140.113.10.10:9002 App. Layer
(1)
Net. & Trans. Layer
Binding Response MAPPED-ADDRESS IP 140.113.10.10 Port 9002 Src: 192.168.0.10:9000; Dst: 140.113.10.10:9002 App. Layer (9)
Net. & Trans. Layer
Binding Response MAPPED-ADDRESS IP 140.113.10.10 Port 9002 Src: 140.113.10.1:29000; Dst: 140.113.10.10:9002 App. Layer (10)
Net. & Trans. Layer Binding Request
Src: 140.113.10.10:9002; Dst: 140.113.10.1:29000 App. Layer
(7)
Net. & Trans. Layer Binding Request
Src: 140.113.10.10:9002; Dst: 192.168.0.10:9000 App. Layer
(8)
Net. & Trans. Layer
Binding Request
Src: 140.113.10.10:9002; Dst: 140.113.10.1:19000 App. Layer
(6)
Net. & Trans. Layer Binding Request
Src: 140.113.10.10:9002; Dst: 192.168.0.10:9000 App. Layer
(5)
Net. & Trans. Layer UA1 (192.168.0.10) NAT (192.168.0.1/140.113.10.1) UA2 (140.113.10.10) Internet Private Network
UA1's Check List Source Transport Address Destination Transport Address 192.168.0.l0:9000 140.113.10.10:9002 Index 1 140.113.10.1:19000 140.113.10.10:9002 2 Association /Valid /N 1/N Source Transport Address Destination Transport Address UA2's Check List
140.113.10.10:9002 192.168.0.l0:9000 Index 1 140.113.10.10:9002 140.113.10.1:19000 2 Association /Valid /N /N Private Transport Address Destination Transport Address Mapped Transport Address 192.168.0.l0:9000 140.113.30.1:3478 140.113.10.1:19000 Index 1 192.168.0.l0:5060 140.113.10.10:5060 140.113.10.1:10080 2 192.168.0.l0:9000 140.113.10.10:9002 140.113.10.1:29000 3 Mapping Table Source Transport Address Destination Transport Address UA2's Check List
140.113.10.10:9002 192.168.0.l0:9000 Index 1 140.113.10.10:9002 140.113.10.1:19000 2 140.113.10.10:9002 140.113.10.1:29000 3 Association /Valid /N /N /N UA1's Check List
Source Transport Address Destination Transport Address 192.168.0.l0:9000 140.113.10.10:9002 Index 1 140.113.10.1:19000 140.113.10.10:9002 2 Association /Valid /Y 1/Y 140.113.10.1:29000 140.113.10.10:9002 3 1/Y Source Transport Address Destination Transport Address UA2's Check List
140.113.10.10:9002 192.168.0.l0:9000 Index 1 140.113.10.10:9002 140.113.10.1:19000 2 140.113.10.10:9002 140.113.10.1:29000 3 Association /Valid /N /N /Y
3 of UA2’s check list in Figure 2.9). UA2 then replies a STUN Binding Response message to UA1 (Figure 2.9 (3)). When UA1 receives this message, the first entry in its check list is marked “valid” (Figure 2.9 (4)). Besides, UA1 learns from the message a new mapped transport address (i.e., 140.113.10.1:29000). UA1 then adds to its check list a new pair with the source/destination transport addresses 140.113.10.1:29000/140.113.10.10:9002 (i.e., entry 3 of UA1’s check list in Figure 2.9). Like the second entry, the new entry is marked as associated to the first entry, and no connectivity check is performed to it.
UA2 performs similar procedure to check all the entries in its check list. For the first entry, the destination transport address 192.168.0.10:9000 is unreachable from the Inter-net (Figure 2.9 (5)). For the second entry, there is no mapping in the NAT’s mapping table that satisfies the condition where the destination transport address is 140.113.10.10:9002 and the mapped transport address is 140.113.10.1:19000 (Figure 2.9 (6)). For the third entry, the STUN Binding Request message from UA2 is sent to UA1 according to entry 3 in the NAT’s mapping table in Figure 2.9 (Figure 2.9 (7) and (8)). After receiv-ing the STUN Bindreceiv-ing Response message from UA1 (Figure 2.9 (9) and (10)), UA2 marks the third entry “valid.” After the connectivity checks, both UA1 and UA2 se-lect the source/destination transport addresses for RTP from the entries that are marked “valid.” In this example, UA1 selects 192.168.0.10:9000/140.113.10.10:9002, and UA2 selects 140.113.10.10:9002/140.113.10.1:29000. Therefore, the RTP packets delivered be-tween UA1 and UA2 are translated by the NAT according to entry 3 in the NAT’s mapping table in Figure 2.9.
Consider another example where UA1 and UA2 reside in the same private network. Both UA1 and UA2 obtain the mapped transport addresses through STUN and exchange their private and mapped transport addresses during call setup. After the connectivity checks, they detect that they can send the RTP packets to each other directly using each other’s private transport address. This avoids the address translation performed at the NAT. Therefore, in this case, ICE provides more efficient RTP packet delivery than the other solutions.
Table 2.2: Comparisons of the SIP/RTP NAT Traversing Solutions
Solution UA Scope of NATs Multi-layer Extra Extra Public Configuration Modification Supported NAT Traversal Server IP Address Complexity
VPN Yes All Types of NATs Yes Yes Yes Medium
Static
Yes All Types of NATs Yes No No High
Route
UPnP Yes NATs Supporting UPnP No No No Low
STUN Yes All Types of NATs Yes Yes No Medium
except Symmetric NAT
ICE Yes All Types of NATs Yes Yes No Low
SIP-ALG No NATs Supporting Yes No No Low
SIP-ALG
SBC No All Types of NATs Yes Yes No Medium
2.8
Comparisons
This section compares the SIP/RTP NAT traversing solutions. The compared items are listed in Table 2.2 and described as follows.
UA Modification: For VPN, the UA is equipped with the VPN software to establish the VPN tunnel. For ICE, not only the UA in the private network but also the UA in the Internet are equipped with the ICE software. For SIP-ALG and SBC, the UA does not require any modification (except for outbound SIP proxy setting in SBC). For Static Route, UPnP, and STUN, the standard UA is modified to perform two tasks. In the first task, the SIP and the RTP mappings at the NAT are obtained through manual setting, UPnP, or STUN. In the second task, the UA translates the transport address in the SIP messages. For example, this task can be achieved by the functions in eXtended osip (eXosip) library [3]:
• The eXosip set firewallip() uses the specific IP address in the Via header
field, the Contact header field, and the c field in the generated SIP messages (i.e., in which the mapped IP address in Table 2.1 should be filled).
• The eXosip initiate call() fills the indicated port number in the m field in
the generated SIP messages.
in both the Via and the Contact header fields. Instead, the source port number of those IP packets carrying the generated SIP messages is used. To resolve this issue, we have added a function eXosip set firewallsipPort() that allows the UA to specify the port number filled in both the Via and the Contact header fields.
Scope of NATs Supported: VPN, Static Route, ICE, and SBC support SIP/RTP traversal over all types of NATs. The NATs need not be modified. In UPnP and SIP-ALG, an agent should be collocated with the NAT to serve as an IGD and a SIP-ALG, respectively. Although no modification is made to the NAT for STUN, STUN does not support SIP/RTP traversal over symmetric NAT.
Multi-layer NAT Traversal: When a UA resides in a private network within another private network (therefore there are multi-layer NATs), all solutions but UPnP support SIP/RTP NAT traversal. UPnP does not work because a UPnP client can only identify the NAT closest to it. It does not have any knowledge to pass through the other NATs.
Extra Server: VPN, STUN, ICE, and SBC require extra servers in the Internet. Static Route does not require any extra server. For UPnP, the NAT is modified as a UPnP server. SIP-ALG typically resides in the NAT.
Extra Public IP Address: In VPN, an extra public IP address is required for each VPN tunnel. Other solutions do not require any extra public IP address.
Configuration Complexity: Since the SIP and the RTP mappings are automatically established by UPnP, ICE, and SIP-ALG, these solutions do not incur any configu-ration cost. In VPN and STUN, a user configures the server location and the user name/password for authentication. In SBC, the UA sets the SBC as the outbound SIP proxy. On the other hand, a Static Route user should manually configure the SIP and the RTP mappings for SIP/RTP in both the UA and the NAT.
Furthermore, We conduct measurements in an experimental environment (as shown in Figure 2.10) where the UA in the private network (UA1) connects to the NAT through
NAT VPN Server STUN Server UA2 Packet Analyzer
Private Network Internet
UA1
SBC Hub
Hub
Figure 2.10: Experimental Environment for SIP/RTP NAT Traversing Solutions
a hub. The other UA (UA2), the VPN server, the STUN server, and the SBC reside in the Internet and connect to the NAT through another hub. To provide the same baseline for the following performance comparisons, a UA that supports all the SIP/RTP NAT traversing solutions discussed in this chapter is required. Therefore, we design and develop a UA using eXosip library [3] to which some modifications are made as described above. Table 2.3 shows the time complexities of the solutions discussed in this chapter ex-cept ICE. Since ICE utilizes the solutions described in this chapter for resolving SIP NAT traversing issue and for obtaining the RTP mappings, the costs for private-to-public transport address mapping establishment, the call setup latency, and the RTP latency are the same as those of the solution utilized in ICE. Moreover, the connectivity checks increase the call setup latency for ICE.
The table indicates that UPnP has the longest private-to-public transport address mapping establishment time, and VPN requires long VPN connection establishment time. In terms of SIP setup and RTP delivery, Static Route, UPnP, and STUN are better than the server-based solutions, which are in turn better than VPN.
Table 2.3: Time Complexities of the SIP/RTP NAT Traversing Solutions
Solution Address Mapping EstablishmentPrivate-to-public Transport VPN ConnectionEstablishment SetupCall LatencyRTP
VPN N/A 2114 ms 161 ms 8.3 ms
Static Route Manual Setup N/A 71 ms 0.7 ms
UPnP 261 ms N/A 71 ms 0.7 ms
STUN 27 ms N/A 71 ms 0.7 ms
SIP-ALG N/A N/A 96 ms 0.7 ms
SBC N/A N/A 96 ms 4.3 ms
2.9
Summary
In this chapter, five UA-based (VPN, Static Route, UPnP, STUN, and ICE) and two server-based (SIP-ALG and SBC) SIP/RTP NAT traversing solutions are investigated. Our study indicates that VPN’s time complexity is much higher than those of the other solutions. Static Route requires manual setting, which is considered inefficient. UPnP automates Static Route. However, UPnP requires NAT modification and cannot traverse over multi-layer NATs. STUN also automates Static Route while it requires an extra server and cannot traverse symmetric NAT. ICE supports symmetric NAT traversal and automates the selection of the source/destination transport addresses for RTP through connectivity checks. Nevertheless, ICE requires both the UAs engaged in the RTP media session to support ICE, and the connectivity checks introduce extra call setup latency. Both SIP-ALG and SBC automate translation of SIP messages without any modification to UAs. The NAT needs to be modified to accommodate the SIP-ALG, and an extra server is required for SBC. The call setup time and the RTP latency for the server-based solutions are longer than those for the UA-based solutions (except for VPN). In summary, there is no SIP/RTP NAT traversing solution that is better than the others in all aspects.
Chapter 3
IPv4/IPv6 Interworking for
SIP-based VoIP
In the early stage of IPv6 deployment, most newly developed UAs support both IPv4 and IPv6 (called IPv4/IPv6 dual-stack UAs). Without a proper mechanism, IPv4/IPv6 interworking problem may occur when IPv4/IPv6 dual-stack UAs attempt to interact with the UAs that support IPv4 only (IPv4-only UAs). For example, when an IPv4/IPv6 dual-stack UA initiates a call by sending an IPv6 SIP INVITE message to an IPv4-only UA, the call cannot be established correctly. The IPv4-IPv4-only UA may ignore the IPv6 INVITE message because it is unable to process the SIP messages that contain IPv6 addresses. Furthermore, the IPv4-only UA cannot send the RTP packets to the IPv4/IPv6 dual-stack UA because the destination of the RTP packets resides in the IPv6 network. That is, IPv6 network is unreachable for an IPv4 host. To resolve this problem, three solutions have been proposed in the literature: the SIP-ALG solution for IPv4/IPv6 interworking [26] (“the SIP-ALG solution” for short in this chapter), the Redirect solution [17], and the ICE solution for IPv4/IPv6 interworking [19] (“the ICE solution” for short in this chapter). Since these existing solutions either degrade the RTP transmission performance or introduce extra call setup latency, we propose an effective solution where the call setup and the RTP transmission overheads are minimized. All the four solutions will be elaborated and analyzed in the following sections.
For the sake of discussion, the IPv4/IPv6 interworking environment for SIP-based VoIP is simplified as illustrated in Figure 3.1. The calling party (UA1; see Figure 3.1 (1)) is an IPv4/IPv6 dual-stack UA. The called party (UA2; see Figure 3.1 (2)) is an
IPv4-(3) SIP Server (4) RTP Proxy IPv4 Network (2) UA2 (1) UA1 IPv4/IPv6 Network
Figure 3.1: IPv4/IPv6 Interworking Environment for SIP-based VoIP
(140.113.1.1/2001:f18:113::1) UA1 (140.113.1.2) UA2 (140.113.1.10/2001:f18:113::10) SIP Server UA1 [2001:f18:113::1]:5060
User Contact Information Registrar Database
UA2 140.113.1.2:5060 UA1 140.113.1.1:5060
(Empty)
User Contact Information Registrar Database 1. REGISTER (IPv6) Contact: <sip:UA1@[2001:f18:113::1]:5060> Contact: <sip:UA1@140.113.1.1:5060> Contact: <sip:UA1@[2001:f18:113::1]:5060> Contact: <sip:UA1@140.113.1.1:5060> 2. 200 OK (IPv6) 3. REGISTER (IPv4) Contact: <sip:UA2@140.113.1.2:5060> 4. 200 OK (IPv4) Contact: <sip:UA2@140.113.1.2:5060> UA1 [2001:f18:113::1]:5060
User Contact Information Registrar Database
UA1 140.113.1.1:5060
only UA. An IPv4/IPv6 dual-stack SIP server (Figure 3.1 (3)) functions as a registrar and proxy. An RTP proxy (Figure 3.1 (4)) is responsible for translating IPv4 RTP packets to IPv6 RTP packets, and vice versa. For the four solutions discussed in this chapter, the SIP server is required for all solutions while the RTP proxy is used in the SIP-ALG solution only. Without loss of generality, we assume that both UA1 and UA2 register their contact information at the SIP server in all the four solutions. Consider the SIP registration message flow in Figure 3.2 where UA1’s IPv4/IPv6 addresses are 140.113.1.1 and 2001:f18:113::1. UA2’s IPv4 address is 140.113.1.2. The SIP server’s IPv4/IPv6 ad-dresses are 140.113.1.10 and 2001:f18:113::10, respectively. In the registration procedure, UA1 first sends an IPv6 SIP REGISTER message to the SIP server with both its IPv6 and IPv4 contact information filled in two separate Contact header fields (Step 1 in Fig-ure 3.2). The SIP server then stores the contact information in its registrar database and replies an IPv6 SIP 200 OK message indicating that the registration is successful (Step 2 in Figure 3.2). UA2 performs similar procedure to register its IPv4 contact information (Steps 3 and 4 in Figure 3.2). After registration, a UA can be reached through the SIP server. Furthermore, we assume that when UA1 initiates a call, it always attempts to send an IPv6 SIP INVITE message [10] [25].
3.1
The SIP-ALG Solution
In the SIP-ALG solution [26], the SIP server cooperates with the RTP proxy to translate the SIP/RTP packets delivered between UA1 and UA2. The call setup procedure is illustrated in Figure 3.3 with the following steps.
Step 1. UA1 sends an IPv6 SIP INVITE message to UA2 through the SIP server.
Step 2. Upon receipt of the INVITE message, the SIP server retrieves UA1’s IP address from the Contact header field of the INVITE message and UA2’s IP address from the SIP server’s registrar database. The SIP server then compares the versions of UA1’s and UA2’s IP addresses. This action is called IP version comparison. In this example, the versions of UA1’s and UA2’s IP addresses are IPv6 and IPv4, respectively. To establish the call without changing the IP version that UA1 chooses
UA1 SIP Server RTP Proxy UA2 1. INVITE (IPv6)
Create Address Mapping 2. INVITE (IPv4) 3. 200 OK (IPv4) Create Address Mapping 4. 200 OK (IPv6)
5. ACK (IPv6)
6. ACK (IPv4)
RTP Stream (IPv6) RTP Stream (IPv4)
Figure 3.3: IPv4/IPv6 Interworking for SIP-based VoIP: the SIP-ALG Solution
for the call, the SIP server acts as a SIP-ALG to translate the SIP messages for this call setup. For the INVITE message, UA1’s IPv6 transport address for SIP in the
Via and the Contact header fields is replaced by the SIP server’s IPv4 transport
address. In addition, UA1’s IPv6 transport address for RTP in the SDP description is passed to the RTP proxy to build an IPv4-to-IPv6 transport address mapping for forwarding the RTP packets from UA2 to UA1. The RTP proxy returns its IPv4 address and an unused port number to the SIP server for modifying the SDP description. After modification, the IPv4 INVITE message is then forwarded to UA2.
Step 3. Upon receipt of the INVITE message, UA2 retrieves the Via header field in the INVITE message. When UA2 accepts the call, an IPv4 SIP 200 OK message with the retrieved Via header field is created. The IPv4 200 OK message is then sent to the SIP server according to the Via header field.
Step 4. Upon receipt of the 200 OK message, the SIP server replaces its IPv4 transport address in the Via header field by UA1’s IPv6 transport address for SIP. Also, UA2’s IPv4 transport address for SIP in the Contact header field is replaced by the SIP server’s IPv6 transport address. Similar to Step 2, the SIP server passes UA2’s IPv4 transport address for RTP in the SDP description to the RTP proxy to build an
IPv6-to-IPv4 transport address mapping for forwarding the RTP packets from UA1
