Adsorption of reactive dye onto carbon nanotubes: equilibrium, kinetics and thermodynamics

(1)

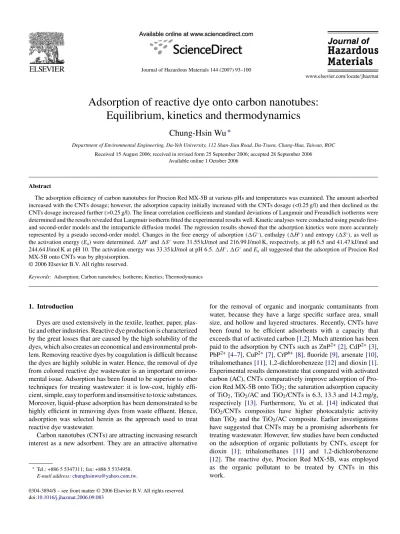

Journal of Hazardous Materials 144 (2007) 93–100

Adsorption of reactive dye onto carbon nanotubes:

Equilibrium, kinetics and thermodynamics

Chung-Hsin Wu

∗

Department of Environmental Engineering, Da-Yeh University, 112 Shan-Jiau Road, Da-Tsuen, Chang-Hua, Taiwan, ROC Received 15 August 2006; received in revised form 25 September 2006; accepted 28 September 2006

Available online 1 October 2006

Abstract

The adsorption efficiency of carbon nanotubes for Procion Red MX-5B at various pHs and temperatures was examined. The amount adsorbed increased with the CNTs dosage; however, the adsorption capacity initially increased with the CNTs dosage (<0.25 g/l) and then declined as the CNTs dosage increased further (>0.25 g/l). The linear correlation coefficients and standard deviations of Langmuir and Freundlich isotherms were determined and the results revealed that Langmuir isotherm fitted the experimental results well. Kinetic analyses were conducted using pseudo first-and second-order models first-and the intraparticle diffusion model. The regression results showed that the adsorption kinetics were more accurately represented by a pseudo second-order model. Changes in the free energy of adsorption (G◦), enthalpy (H◦) and entropy (S◦), as well as the activation energy (Ea) were determined.H◦ andS◦were 31.55 kJ/mol and 216.99 J/mol K, respectively, at pH 6.5 and 41.47 kJ/mol and

244.64 J/mol K at pH 10. The activation energy was 33.35 kJ/mol at pH 6.5.H◦,G◦ and Eaall suggested that the adsorption of Procion Red

Keywords: Adsorption; Carbon nanotubes; Isotherm; Kinetics; Thermodynamics

1. Introduction

Dyes are used extensively in the textile, leather, paper, plas-tic and other industries. Reactive dye production is characterized by the great losses that are caused by the high solubility of the dyes, which also creates an economical and environmental prob-lem. Removing reactive dyes by coagulation is difficult because the dyes are highly soluble in water. Hence, the removal of dye from colored reactive dye wastewater is an important environ-mental issue. Adsorption has been found to be superior to other techniques for treating wastewater: it is low-cost, highly effi-cient, simple, easy to perform and insensitive to toxic substances. Moreover, liquid-phase adsorption has been demonstrated to be highly efficient in removing dyes from waste effluent. Hence, adsorption was selected herein as the approach used to treat reactive dye wastewater.

Carbon nanotubes (CNTs) are attracting increasing research interest as a new adsorbent. They are an attractive alternative

∗_{Tel.: +886 5 5347311; fax: +886 5 5334958.}

E-mail address:chunghsinwu@yahoo.com.tw.

for the removal of organic and inorganic contaminants from water, because they have a large specific surface area, small size, and hollow and layered structures. Recently, CNTs have been found to be efficient adsorbents with a capacity that exceeds that of activated carbon[1,2]. Much attention has been paid to the adsorption by CNTs such as ZnP2+[2], CdP2+[3], PbP2+[4–7], CuP2+ [7], CrP6+[8], fluoride[9], arsenate[10], trihalomethanes[11], 1,2-dichlorobenzeze[12]and dioxin[1]. Experimental results demonstrate that compared with activated carbon (AC), CNTs comparatively improve adsorption of Pro-cion Red MX-5B onto TiO2; the saturation adsorption capacity of TiO2, TiO2/AC and TiO2/CNTs is 6.3, 13.3 and 14.2 mg/g, respectively [13]. Furthermore, Yu et al. [14] indicated that TiO2/CNTs composites have higher photocatalytic activity than TiO2 and the TiO2/AC composite. Earlier investigations have suggested that CNTs may be a promising adsorbents for treating wastewater. However, few studies have been conducted on the adsorption of organic pollutants by CNTs, except for dioxin [1]; trihalomethanes [11] and 1,2-dichlorobenzene [12]. The reactive dye, Procion Red MX-5B, was employed as the organic pollutant to be treated by CNTs in this work.

(2)

94 C.-H. Wu / Journal of Hazardous Materials 144 (2007) 93–100

Fig. 1. The structure of Procion Red MX-5B.

An understanding of adsorption equilibrium, kinetics and thermodynamics is critical in supplying the basic information required for the design and operation of adsorption equipment. Earlier studies have obtained only equilibrium and kinetic adsorption data and few works have measured the thermo-dynamic parameters of adsorption on CNTs: Peng et al. [12] measured those of the adsorption of 1,2-dichlorobenzene and Li et al.[5]examined the thermodynamics of the adsorption of PbP2+ on CNTs. Few investigations focused on the adsorption of organic pollutants on CNTs and simultaneously determined the equilibrium, kinetics and thermodynamic parameters. Hence, this study elucidates the equilibrium, kinetics and thermodynamics of the adsorption of Procion Red MX-5B onto CNTs. The Langmuir and Freundlich equations were used to fit the equilibrium data. The effects of temperature on the dynamic behaviors of adsorption were determined. The adsorption rates were determined quantitatively and those obtained using the pseudo first- and second-order models and the intraparticle diffusion model was also compared. The objectives of this study were: (i) to determine the appropriate CNTs dosage to adsorb Procion Red MX-5B; (ii) to measure the coefficients of Langmuir and Freundlich isotherms; (iii) to evaluate the adsorption rate using various kinetic models; (iv) to derive the thermodynamic parameters—activation energy (Ea), and the changes in free energy (G◦), enthalpy (H◦_{) and entropy (S}◦_{) during adsorption at various pH} values.

2. Materials and methods

2.1. Materials

The CNTs adopted herein were multi-wall nanotubes (CBT, MWNTs-2040, which were used without further purification). CNTs were produced by the pyrolysis of methane gas on parti-cles of Ni in a chemical vapor deposition. The length of CNTs was 5–15␮m and the mass proportion of amorphous carbon in CNTs was less than 2%. The parent compound, Procion Red MX-5B, was purchased from Aldrich Chemical Company. The formula, molecular weight and maximum wavelength of light absorbed by Procion Red MX-5B (CI Reactive Red 2) were C19H10Cl2N6Na2O7S2, 615 g/mol, and 538 nm, respectively. The structure of Procion Red MX-5B is shown inFig. 1. All solutions were prepared using deionized water (Milli-Q) and reagent-grade chemicals.

2.2. Characterization of CNTs

CNTs were subjected to energy dispersive spectrometer for surface distribution of elemental composition and scanning elec-tron microscopy (SEM) with a JEOL JSM-6500F. Size and morphology of CNTs were recorded by transmission electron microscopy (TEM) with a Philips/FEI Tecnai 20 G2 S-Twin. The specific surface area of CNTs was measured by the BET method using a Quantachrome-Autosorb1. The zeta potential of the CNTs was measured at pH values of 2–9 using a Zeta-Meter 3.0. Ten measurements were made of each sample at each pH and the average was determined as the zeta potential.

2.3. Adsorption experiments

All experiments were conducted in a closed 250 ml glass pyramid bottle and HClO4or NaOH was used to adjust the pH. The 250 ml glass pyramid bottle, containing 0.05 g of CNTs and 200 ml of Procion Red MX-5B solution, was placed in a water bath and shaken at 160 rpm. In experiments to determine CNTs dosage, Procion Red MX-5B (20 mg/l) was equilibrated with a suspension of CNTs (0.025, 0.05, 0.25, 0.5 and 0.75 g/l) at pH 6.5 for 24 h. In the experiments on the effect of temperature (Procion Red MX-5B = 20 mg/l and CNTs = 0.25 g/l), the tem-perature was held at 281, 291, 301 and 321 K and the pH was fixed at 6.5 and 10. At the end of the equilibrium period, the suspensions were centrifuged at 4000 rpm for 10 min, and the supernatant was then filtered through 0.2␮m filter paper (Gel-man Sciences) for later analysis of the dye concentration. The adsorption of Procion Red MX-5B was detected using a spec-trophotometer (Hitachi-U2001) at 538 nm. Each experiment was performed twice and experimental results are average values. The adsorbed amounts qiwere calculated from:

qi= C i− Co

m (1)

where Ciand Coare the initial and equilibrium concentrations, respectively, in mg/l, and m is the amount of CNTs in g/l.

3. Results and discussion

3.1. Effects of CNTs dosage

Fig. 2displays the surface morphology of CNTs. The SEM and TEM figures show that the CNTs were cylindrical and that the range of main external and internal diameters was 20–80 and 5–10 nm, respectively. Additionally, the distance between the wall and wall of CNTs was approximately 0.5–1 nm and the TEM analysis confirmed the hollow structure of CNTs. The spe-cific surface area of the CNTs used in this study was 106.9 m2/g. The pH of the zero point of charge (pHzpc) for CNTs was deter-mined to be 4.9, which was the same as that measured by Lu and Chiu[2]for multi-wall nanotubes. This result indicated that the surface of CNTs was positively charged at a solution pH of <4.9. The element characteristics of CNTs showed the content of C, O and Ni was 90.6, 8.1 and 1.3%, respectively. Since the CNTs were generated by the pyrolysis of methane gas on particles of

(3)

C.-H. Wu / Journal of Hazardous Materials 144 (2007) 93–100 95

Fig. 2. Micrographs of CNTs (a) SEM and (b) TEM.

Ni by chemical vapor deposition, the major element was carbon, with only a few Ni atoms present.

Fig. 3 presents the effect of CNTs dosage on the adsorp-tion of Procion Red MX-5B. The amount adsorbed increased with the dose of CNTs; however, the adsorption capacity

ini-Fig. 3. Effect of CNTs dosage on the adsorption of Procion Red MX-5B (Procion Red MX-5B = 20 mg/l, pH 6.5, contact time = 24 h and T = 301 K).

tially increased and then dropped as the CNTs dosage increased. In dilute CNTs suspensions (<0.25 g/l), CNTs are suggested to be separated and dispersed. In this case, the adsorption capac-ity at the external surface predominated, and for this reason, the adsorption capacity of Procion Red MX-5B would be high. Increasing the CNTs dose (>0.25 g/l) increases the probability of the CNTs entanglement in the solution, causing adsorption in the interlayer space and a decrease in the aggregation of dye at the external surface.

Accordingly, the adsorption capacity declined as the CNTs dosage increased above 0.25 g/l. Moreover, the high CNTs dosage may influence the physical characteristics of the solid–liquid suspensions, such as by increasing the viscosity and inhibiting the diffusion of dye molecules to the surface of the CNTs. Since the concentration of Procion Red MX-5B was fixed, the adsorption capacity decreased as the CNTs dosage increased (>0.25 g/l). The increase with CNTs dosage of the amount of dye adsorbed was caused by the availability of more surface area of the CNTs. Direct evidence of CNTs entanglement was unclear and unobtainable. However, similar observations can be found in literature. Bhattacharyya and Sharma[15], who utilized Neem leaf powder to adsorb dyes, suggested that the amount adsorbed (mg/g) decreased as the amount of the adsor-bent increased; similar results were also obtained for algae cell walls by Marungrueng and Pavasant[16]and for cross-linked chitosan beads by Chiou et al.[17]. Gemeay[18]employed Na+ -montmorillonite to adsorb rhodamine-6G and obtained similar results to those in this study: adsorption increased as Na+ -montmorillonite increased (<0.2 g/l) and decreased with further increases of Na+-montmorillonite (>0.2 g/l). Since the adsorp-tion capacity was greatest when 0.25 g/l CNTs was added, this dosage (0.25 g/l) was used in the following experiments. 3.2. Adsorption isotherms

The correlation of equilibrium adsorption data by either theo-retical or empirical equations is important in the design and oper-ation of adsorption systems. This study employed the Langmuir and Freundlich models to describe the equilibrium adsorption. The expression of the Langmuir model is:

q = qm KLC 1+ KLC

(2) where q is the amount of dye adsorbed per gram of CNTs (mg/g); C denotes the equilibrium concentration of dye in solu-tion (mg/l); KL represents the Langmuir constant (l/mg) that relates to the affinity of binding sites and qm is the theoretical saturation capacity of the monolayer (mg/g). The values of qm and KLare calculated from the intercept and slope of the linear plot of 1/q versus 1/C. Furthermore, the effect of the isotherm shape is considered with a view to predict whether an adsorption system is favorable or unfavorable. Another important param-eter, RL, called the separation factor or equilibrium parameter, also evaluated in this study, is determined from the relation: RL=

1 1+ KLC0

(4)

100 C.-H. Wu / Journal of Hazardous Materials 144 (2007) 93–100

4. Conclusion

This investigation examined the equilibrium and the dynamic adsorption of Procion Red MX-5B onto CNTs at various pHs and temperatures. The adsorption capacity was highest when 0.25 g/l CNTs was added. KL increased with temperature and declined as the pH increased. The results suggested that the adsorption of Procion Red MX-5B on CNTs decreased as the pH rose but increased with temperature. RL lied between zero and unity, revealing that the adsorption of Procion Red MX-5B on CNTs was favorable. The values of k2, h, qe,exp and qe,calall increased with the temperature, suggesting that increas-ing the temperature increased the adsorption capacity and the adsorption rate. The regression results of the intraparticle dif-fusion model suggested that intraparticle difdif-fusion was not the only rate-controlling step. PositiveH◦ andS◦values indi-cated that the adsorption of Procion Red MX-5B onto CNTs was endothermic, which result was supported by the increasing adsorption of Procion Red MX-5B with temperature. The values ofH◦,G◦and Eaall suggested that the adsorption of Procion Red MX-5B onto CNTs was a physisorption process and was spontaneous.

Acknowledgements

The authors would like to thank the National Science Coun-cil of the Republic of China for financially supporting this research under Contract no. NSC 94-2211-E-212-012. Addi-tionally, the partial experiments of this research by Shu-Hui Kuo of National Yunlin University of Science and Technology were greatly appreciated.

References

[1] R.Q. Long, R.T. Yang, Carbon nanotubes as superior sorbent for dioxin removal, J. Am. Chem. Soc. 123 (2001) 2058–2059.

[2] C.S. Lu, H.S. Chiu, Adsorption of zinc(II) from water with purified carbon nanotubes, Chem. Eng. Sci. 61 (2006) 138–145.

[3] Y.H. Li, S. Wang, Z. Luan, J. Ding, C. Xu, D. Wu, Adsorption of cad-mium(II) from aqueous solution by surface oxidized carbon nanotubes, Carbon 41 (2003) 1057–1062.

[4] Y.H. Li, S.G. Wang, J.Q. Wei, X.F. Zhang, C.L. Xu, Z.K. Luan, D.H. Wu, B.Q. Wei, Lead adsorption on carbon nanotubes, Chem. Phys. Lett. 357 (2002) 263–266.

[5] Y.H. Li, Z. Di, J. Ding, D. Wu, Z. Luan, Y. Zhu, Adsorption thermodynamic, kinetic and desorption studies of Pb2+_{on carbon nanotubes, Water Res. 39}

(2005) 605–609.

[6] Y.H. Li, Y. Zhu, Y. Zhao, D. Wu, Z. Luan, Different morphologies of carbon nanotubes effect on the lead removal from aqueous solution, Diam. Relat. Mater. 15 (2006) 90–94.

[7] X. Peng, Z. Luan, Z. Di, Z. Zhang, C. Zhu, Carbon nanotubes-iron oxides magnetic composites as adsorbent for removal of Pb(II) and Cu(II) from water, Carbon 43 (2005) 880–883.

[8] Z.C. Di, J. Ding, X.J. Peng, Y.H. Li, Z.K. Luan, J. Liang, Chromium adsorption by aligned carbon nanotubes supported ceria nanoparticles, Chemosphere 62 (2006) 861–865.

[9] Y.H. Li, S. Wang, X. Zhang, J. Wei, C. Xu, Z. Luan, D. Wu, Adsorption of fluoride from water by aligned carbon nanotubes, Mater. Res. Bull. 38 (2003) 469–476.

[10] X. Peng, Z. Luan, J. Ding, Z. Di, Y. Li, B. Tian, Ceria nanoparticles sup-ported on carbon nanotubes for the removal of arsenate from water, Mater. Lett. 59 (2005) 399–403.

[11] C.S. Lu, Y.L. Chung, K.F. Chang, Adsorption of trihalomethanes from water with carbontubes, Water Res. 39 (2005) 1183–1189.

[12] X. Peng, Y. Li, Z. Luan, Z. Di, H. Wang, B. Tian, Z. Jia, Adsorption of 1,2-dichlorobenzeze from water to carbon nanotubes, Chem. Phys. Lett. 376 (2003) 154–158.

[13] Y. Yu, J.C. Yu, C.Y. Chan, Y.K. Che, J.C. Zhao, L. Ding, W.K. Ge, P.K. Wong, Enhancement of adsorption and photocatalytic activity of TiO2by

using carbon nanotubes for the treatment of azo dye, Appl. Catal. B: Env-iron. 61 (2005) 1–11.

[14] Y. Yu, J.C. Yu, J.G. Yu, Y.C. Kwok, Y.K. Che, J.C. Zhao, L. Ding, W.K. Ge, P.K. Wong, Enhancement of photocatalytic activity of mesoporous TiO2

by using carbon nanotubes, Appl. Catal. A: Gen. 289 (2005) 186–196. [15] K.G. Bhattacharyya, A. Sharma, Kinetics and thermodynamics of

Methy-lene Blue adsorption on Neem (Azadirachta indica) leaf powder, Dyes Pigments 65 (2005) 51–59.

[16] K. Marungrueng, P. Pavasant, Removal of basic dye (Astrazon Blue FGRL) using macroalga Caulerpa lentillifera, J. Environ. Manage. 78 (2006) 268–274.

[17] M.S. Chiou, P.Y. Ho, H.Y. Li, Adsorption of anionic dyes in acid solutions using chemically cross-linked chitosan beads, Dyes Pigments 60 (2004) 69–84.

[18] A.H. Gemeay, Adsorption characteristics and kinetics of the cation exchange of rhodamine-6G with Na+_{-montmorillonite, J. Colloid Interf.}

Sci. 251 (2002) 235–241.

[19] Y.S. Ho, G. McKay, Sorption of dye from aqueous solution by pit, Chem. Eng. J. 70 (1998) 115–124.

[20] A.S. Ozcan, B. Erdem, A. Ozcan, Adsorption of Acid Blue 193 from aque-ous solutions onto Na-bentonite and DTMA-bentonite, J. Colloid Interf. Sci. 280 (2004) 44–54.

[21] S. Netpradit, P. Thiraretyan, S. Towprayoon, Application of “waste” metal hydroxide sludge for adsorption of azo reactive dyes, Water Res. 37 (2003) 763–772.

[22] J.Q. Jiang, C. Cooper, S. Ouki, Comparison of modified montmorillonite adsorbents. Part I: Preparation, characterization and phenol adsorption, Chemosphere 47 (2002) 711–716.

[23] I.D. Mall, V.C. Srivastava, N.K. Agarwal, Removal of Orange-G and Methyl Violet dyes by adsorption onto bagasse fly ash—kinetic study and equilibrium isotherm analyses, Dyes Pigments 69 (2006) 210–223. [24] W.J. Weber Jr., J.C. Morris, Kinetics of adsorption on carbon from solution,

J. Sanit. Eng. Div. 89 (1963) 31–59.

[25] A. Ozcan, E.M. Oncu, A.S. Ozcan, Kinetics, isotherm and thermodynamic studies of adsorption of Acid Blue 193 from aqueous solutions onto natural sepiolite, Colloid Surf. A 277 (2006) 90–97.

[26] A. Ozcan, A.S. Ozcan, Adsorption of Acid Red 57 from aqueous solu-tions onto surfactant-modified sepiolite, J. Hazard. Mater. 125 (2005) 252– 259.

[27] A.S. Ozcan, B. Erdem, A. Ozcan, Adsorption of Acid Blue 193 from aque-ous solutions onto BTMA-bentonite, Colloid Surf. A 266 (2005) 73–81. [28] A. Ozcan, E.M. Oncu, A.S. Ozcan, Adsorption of Acid Blue 193 from

aqueous solutions onto DEDMA-sepiolite, J. Hazard. Mater. 129 (2006) 244–252.

[29] E. Guibal, P. McCarrick, J.M. Tobin, Comparison of the sorption of anionic dyes on activated carbon and chitosan derivatives from dilute solutions, Sep. Sci. Technol. 38 (2003) 3049–3073.

[30] K. Kannan, M.M. Sundaram, Kinetics and mechanism of removal of Methylene Blue by adsorption on various carbons—a comparative study, Dyes Pigments 51 (2001) 25–40.

[31] H. Nollet, M. Roels, P. Lutgen, P. Meeren, W. Verstraete, Removal of PCBs from wastewater using fly ash, Chemosphere 53 (2003) 655–665. [32] M. Kara, H. Yuzer, E. Sabah, M.S. Celik, Adsorption of cobalt from aqueous

solutions onto sepiolite, Water Res. 37 (2003) 224–232.

[33] M.J. Jaycock, G.D. Parfitt, Chemistry of Interfaces, Ellis Horwood Ltd., Onichester, 1981, pp. 12–13.

[34] M. Dogan, M. Alkan, Adsorption kinetics of Methyl Violet onto perlite, Chemosphere 50 (2003) 517–528.

[35] N.K. Lazaridis, D.D. Asouhidou, Kinetics of sorptive removal of chromium(VI) from aqueous solutions by calcined Mg–Al–COB3
