摘要

(composite meta-material, CMM, 由SRR和WIRE組成)，圖形陣列面積大約是 0.09cm2。傅

式光學轉換紅外線光譜儀(FTIR)被用於實驗研究超常介質物質圖案所產生的光學性

質。通過改變入射光的偏極化特性，在600-2000 cm-1_{波數範圍內，在三種圖案上觀察到}

了由不同物理機制導致的多各共振模態。為了進一步深入探討這些銅基超常介質物質光 學特性之物理內涵，我們亦採用CST MWS軟體按所設計製造的超常介質物質圖形 作了電磁模擬，模型計算結果與實驗有較好的符合。

Optical Studies of Cu-based Meta-materials

Student:

Pei-Hsuan Han

Advisor:

Prof. Wei-Xin Ni

Department of Electronics Engineering

and Institute of Electronics

National Chiao-Tung University

Abstract

Meta-materials are a group of periodically patterned two-dimensional (or even three-dimensional) metal structures (lattices), which reveal some novel optical properties, such as plasmonic resonance, artificial magnetism, and/or left-handed behaviors, due to existing negative values of permittivity (ε), permeability (μ), and consequent refraction index (n), when electromagnetic (EM) waves (light) propagating along the surface of these pattern arrays at a certain range of wavelengths.

By using copper (Cu) chemical replacement instead of electrochemical plating, a new fabrication technology has been developed through this thesis work, and been successfully used in producing Cu-based meta-materials with line-widths at the sub-micrometer-scale. Three types of pattern structures, namely, split ring resonator (SRR), discontinuous wires (WIRE) and composite meta-materials (CMM = SRR+WIRE) were designed and processed forming periodic arrays in the area of about 0.09 cm2_{. Fourier transfer infrared spectroscopy}

(FTIR) measurements were engaged for the study of optical properties of these meta-material structures. Over the range of 600-2000 cm-1_{, several resonance modes with different physics}

origins were observed from the spectra of three type patterns, when varying the polarization of incident light. EM simulations were also performed using a CST MWS solver for modeling the meta-material behavior at the corresponding wavelength range. Comparison with experiment results were made, in order to facilitate discussions of possible mechanism and physical insights of these Cu-based meta-materials.

Acknowledgement

I would like to express my sincere gratitude to my advisor professor Wei-Xin Ni, and Dr. Shich-Chuan Wu for their support and guidance on my research. They were kind in correcting my mistakes. I’d also give my thanks to engineers at NDL: Jing-Sian Chen, Yao-Jhen Chen, Bai-Yan Chen, Syu-Jyun Jheng, Jin-Cai Syu, and Zu-Rong Ge, who assisted me in various ways in solving problems during my thesis work. Besides, I am thankful to my friends: Bing-Sian Chen, You-Jhen Jhang, Shih-Ming You, Bing-Ruei Lyu, Guo-Jheng Jhang, and specially thanks to Feng-I Tai, for their assistance. It was wonderful having the chance to work with them all. Finally, I am deeply grateful to my parents for their support and love.

Contents

1 Introduction………1

1.1Basic concepts and definitions………1

1.2 Structure of meta-materials and effects of negative permittivity (ε) and permeability (μ)……3

1.2.1 Negative permittivity ε………4

1.2.2 Negative permeability μ………..5

1.2.2.1 The split ring resonator (SRR)………..5

1.2.2.2 The Swiss roll structure at radio-frequencies………...7

1.2.2.3 Other geometry for negative permeability………8

1.2.3 Negative refraction index n………...15

1.2.3.1 SRR+WIRE………15

2 Materials and goal...21

2.1 Introduction...21

2.2 Materials...21

2.2.1 Advantages of process………...21

2.2.2 Optical properties of copper………..22

2.3 Goal………..23

3 Mechanism and properties of meta-materials………25

3.1 Introduction………..25

3.2 Split ring resonator (SRR)………....25

3.3 Wire-mesh structure as negative dielectric (WIRE)……….31

3.4 Composite meta-materials (CMMs or means LHMs)………..36

4 Experimental techniques………..38

4.1 Introduction………..38

4.2 Process steps of pattern fabrication………..38

4.3 Chemical replacement of Cu patterns………...42

4.4 Optical characterization of meta-materials………...49

4.5 Procedure for Spectral normalization………...51

5.1 Introduction………..55

5.2 Spectral intensity calibration of optical measurements………55

5.2.1 Optical measurements of SRR………...56

5.2.2 Optical measurements of WIRE………58

5.2.3 Optical measurement of CMM………..61

5.3 Spectral processing and analyses………..63

5.3.1 Spectra of SRR………..64 5.3.2 Spectra of WIRE………66 5.3.3 Spectra of CMM………68 6 Simulation results by CST………72 6.1 Introduction………..72 6.2 Simulation results……….73 6.2.1 Simulation results of SRR……….73 7 Conclusion………...77

List of Table

1-1 Measured magnetic resonance frequencies for six different resonator structures………….15 1-2 THz specifications of a rod–split-ring structure………19 2-1 Optical properties of copper at T=900, 3000 , and 5000K………..23 4-1 Materials specifications of Si wafers………39

List of Figure

1-1 A schematic showing the classification of materials based on the dielectric and magnetic

properties………...3

1-2 An array of infinitely long thin metal wires………4

1-3 The split ring resonator (SRR)………7

1-4 The behavior of the real and the imaginary parts of the effective magnetic permeability…..7

1-5 The Swiss roll structure: more capacitance for lower frequency operation………8

1-6 The SRRs develop an electric polarization too although driven by a magnetic field……...10

1-7 Schematic drawings of different resonator structures………...10

1-8 Transmission spectra of single ring resonator with different number of cuts………...12

1-9 Variation of magnetic resonance frequency with the split width of (a) the one-cut SRR, (b) two-cut SRR and (c) four cut SRR………..12

1-10 Transmission spectra of SRRs with different number of cuts………...13

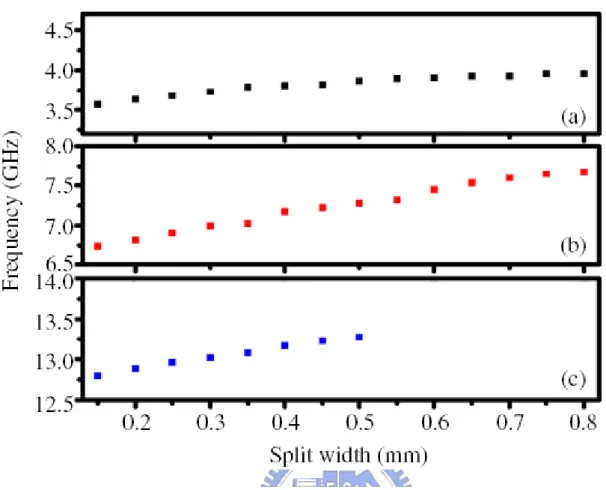

1-11 Variation of magnetic resonance frequency with the split width of (a) the one-cut SRR, (b) two-cut SRR and (c) four cut SRR………..14

1-12 A scheme show (a) A single copper SRR with parameters (b) the negative μ medium, (c) the negative ε medium, and (d) the composite DNG(double negative) meta-material……...17

1-13 Measured broad range transmission and reflection spectra of the SRR………18

1-14 Measured transmission and reflection characteristics of the thin wire medium…………...18

1-15 Measured transmission and reflection spectra of the DNG composite meta-materials……18

1-16 Geometric parameter definition of the RSR (left)……….19

1-17 Amplitude ratio of transmitted and incident waves as expressed by the parameters S21…….20

2-1 Real part of dielectric constant of copper at 3000K………..23

2-2 Imaginary part of dielectric constant of copper at 3000K……….23

3-1 Structure of SRR………...26

3-2 SRR geometry studied and the four studied orientations of the SRR………...29

3-3 Measured transmission spectra of a lattice of SRRs for the four different orientations…...30

3-4 Simple drawing for the polarization in two different orientations of a single ring SRR…..31

3-6 three-dimensional lattice of thin conducting wires behaves like an isotropic low frequency

plasma………...36

4-1 Process flow of micro-fabrication……….39

4-2 Geometries of SRR, WIRE, and LHM are in three types of dimension………...41

4-3 Thickness changes of the deposited Cu and the consumed a-Si films during contact displacement at 30°C………44

4-4 SEM of SRR after copper replacement……….44

4-5 SEM image (15000X) of WIRE after copper replacement………...45

4-6 SEM image (15000X) of LHM after copper replacement………45

4-7(a)EDX of SRR at a measure-point over outer split ring………..46

4-7(b)EDX of SRR at a measure-point over inner split ring………..47

4-7(c)EDX of SRR at a measure-point over trench outside………...48

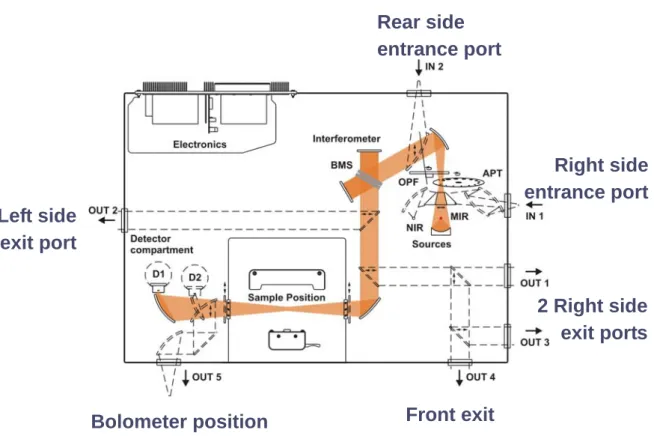

4-8 Optical path run in Vertex 70. Figure 4-8 also show simple structure of vertex…………..49

4-9 Optical path from light source to detector. The sample is placed at sample position chamber………50

4-10 Original reflection signals of SRR with three degrees of polarization………...51

4-11 Normalized reflection signals of SRR with three degrees of polarization……….52

4-12 Reflectance of SRR with three degrees of polarization……….53

4-13 Normalized reflectance of SRR………..54

5-1 Polarization of light for type I arrangement of SRR when E parallel to the pattern is defined as polarization degrees=00………56

5-2 Polarization of light for type II arrangement of SRR when E parallel to the pattern is defined as polarization degrees =00………..57

5-3 Reflection spectra of type I arrangement of SRR with three polarization .angles…………57

5-4 Reflection spectra of type II arrangement of SRR with three polarization angles…………58

5-5 Reflection spectra of background of SRR with three polarization angles………58

5-6 Polarization of light for type I arrangement of WIRE when E parallel to the pattern is defined as polarization degrees = 00……….59

5-7 Polarization of light for type II arrangement of WIRE when E parallel to the pattern is defined as polarization degrees = 00……….59

5-9 Reflection spectra of type II arrangement of WIRE. with three polarization angles………60

5-10 Reflection spectra of background of WIRE with three polarization angles………...61

5-11 Polarization of light for type I arrangement of CMM when E parallel to the pattern is defined as polarization degrees = 00………...61

5-12 Polarization of light for type II arrangement of CMM when E parallel to the pattern is defined as polarization degrees = 00………...62

5-13 Reflection spectra of type I arrangement of CMM with three polarization angles…………62

5-14 Reflection spectra of type II arrangement of CMM with three polarization angles………...63

5-15 Reflection spectra of background of CMM with three polarization angles………...63

5-16 Type I and II arrangement of SRR’s reflectance………64

5-17 Type I and II arrangement of SRR’s normalized reflectance……….65

5-18 Type I and II arrangement of WIRE’s reflectance……….66

5-19 Type I and II arrangement of WIRE’s normalized reflectance………..67

5-20 Type I and II arrangement of CMM’s reflectance……….68

5-21 Type I and II arrangement of CMM’s normalized reflectance………..69

5-22 Normalized reflectance of three structures of type 1 arrangement………70

5-23 Normalized reflectance of three structures of type 2 arrangement………71

6-1 Diagram of E, H and K of asymmetrical incidence of SRR……….74

6-2 Diagram of E, H and K of symmetrical incidence of SRR………...74

6-3 Simulation results of symmetrical and asymmetrical incidence of SRR………..75

6-4 Permeability of symmetrical incidence of SRR………75

Chapter 1

Introduction

Usually, optical materials have positive values of dielectric permittivity ε and magnetic permeability μ. The refractive index n could then be simply taken as εμ . Although it was realized that the refractive index would have to be a complex quantity to account for absorption, and even a tensor to describe anisotropic behavior of materials, the question of the sign of the refractive index did not arise.

In 1976, Veselago [1] first considered the case of a medium that had both negative ε and μ. At a given frequency, he concluded that the medium should be considered to have a negative refractive index (i.e. the negative square root, n=- εμ , had to be chosen). His result remained an academic curiosity for a long time, as real materials with simultaneously negative ε and μ were not available. During recent years, there has been a significantly increased interest, since theoretical proposals [2, 3] for structured photonic media whose ε and μ could become negative in certain frequency ranges were realized experimentally [4, 5]. This development thus brought the Veselago’s result into limelight, and the field has then become a hot topic of scientific research.

The dielectric permittivity (ε) and the magnetic permeability (μ) characterize the macroscopic response of a homogeneous medium to apply electric and magnetic fields. These are macroscopic parameters because one usually only seeks time- and spatial-responses that were averaged over sufficiently long times and sufficiently large spatial volumes. All that survives the averaging in macroscopic measurements are the frequency components of the individual (atomic or molecular) oscillators driven by the external fields. This idea can now be extended to a higher class of inhomogeneous materials where the inhomogeneities were in length-scales much smaller than a wavelength of the radiation, but can be compared with atomic or molecular length-scales. The radiation then does not resolve these individual mesostructures, but responds to the (atomically) macroscopic resonances of the structure. Such materials have been named meta-materials [6, 7]. And could be characterized by macroscopic parameters such as ε and μ that define their response to applied electromagnetic fields, much like homogeneous materials.

Consider the Maxwell’s equation for a planar harmonic wave exp [i(k · r − ωt)]:

k × E = ωμ₀μH, (1.1) k × H = −ωε₀E, (1.2)

where E and H are the electric and magnetic fields, respectively. If we take a medium with negative real parts of ε and μ with the imaginary parts being small (negligibly small for the time being) at some frequency (ω), then we realize that the vectors E, H and k will form a left-handed triad. It is for this reason that such materials are also popularly termed as left-handed materials, although this does risky confusion with the terminology of chiral optical materials. Using the definition that the wave-vector k = (nω/c) , where is the unit vector along E × H, it appears that the refractive index in such media with Re(ε) < 0 and Re(μ)

< 0 is also negative. Such materials permit propagating waves with a reversed phase vector (k)

compared with media with only one of Re(ε) or Re(μ) negative which do not allow any propagating modes (all waves decay evanescently in such media from the point of injection as

k2 < 0). Note that in the case of the NRMs (negative refractive index materials), the Poynting vector (S = E×H, representing the energy flux (W/m2) of an electromagnetic field) and the phase vector, k, are anti-parallel. In figure 1-1, we show the four quadrants in the Re(ε)–Re(μ) plane into which we can conveniently classify electromagnetic materials. The behavior of the waves in each of the quadrants is qualitatively different: materials that fall in the first quadrant allow the usual right-handed electromagnetic propagating waves; the materials that fall in the second and fourth quadrants do not allow any propagating waves inside them (all electromagnetic radiation is evanescently damped in these media); and the NRMs that fall in the third quadrant allow left-handed propagating waves inside them.

Figure 1-1. A schematic presentation of the materials classification based on the

dielectric and magnetic properties. The wavy lines represent materials that allow propagating waves, and the axes set in quadrants 1 and 3 show the right- and left-handed nature of E, H and k vectors. The waves in quadrants 2 and 4 are decay evanescently inside the materials, which is depicted schematically. S is the Poynting vector. The figure is imaged from [8].

1.2 Structure of meta-materials and effects of negative

permittivity (ε)

and permeability (μ)

1.2.1 Negative permittivity ε

The structures depicted the effect of negative permittivity are wire-mesh structures as a negative dielectric. Pendry et al [2, 9] and Sievenpiper et al [10] independently demonstrated that metallic wire-mesh structures have a low frequency stop band from zero frequency up to a cutoff frequency, which they attributed to the motion of electrons along the metal wires. The meta-materials that Pendry et al reported consisted of very thin wires. They were structured on truly sub-wavelength length-scales, and could be effectively homogenized. The low frequency stop band was attributed to an effective negative dielectric permittivity, and provided us with a way of obtaining negative dielectrics at even microwave frequencies.

The plasma frequency of Pendry’s wire array is given by

Figure 1-2. An array of infinitely long thin metal wires of radius r and lattice period of a

behaves as low frequency plasma for the electric field oriented along the wires and E.M. wave

f =p c

a a 2πln( )

r

(1.3)

where a is the wire lattice spacing, r is the wire radius, and c is the velocity of light. The

permittivity value is given by

2 p 2 2 2 0 p ω ε 1 ω(ω+i(ε a ω /πr σ)) = − (1.4) σ is the conductivity of metal and ωp=2 p . In above discussion, only wires pointing in the

s the m

ative permeability μ

aterials tends to tail off at high frequencies of even a few giga-hertz. So it was

.2.2.1 The split ring resonator (SRR)

l metallic shells with a gap in them as shown in Figure 1-3

tic permeability

π f

z-direction were considered. This make edium anisotropic with negative ε only for waves with the electric field along the z direction and incident light normal to z-axis.

1.2.2 Neg

The magnetic activity in most m

indeed a challenge to obtain magnetism, let alone negative magnetic permeability, at microwave frequencies and beyond. In the case of nano-metallic structures, the magnetic moments of induced real and displacement current distributions could actually contribute to an effective magnetization if the electric polarizability of the corresponding medium was small.

1

Consider an array of concentric cylindrica

. This has become well known subsequently as the split ring resonator—SRR.

The SRRs are the basis of most of the meta-materials exhibiting negative magne nowadays [4, 5, 10–15]. The SRR works on the principle that the magnetic field of the electromagnetic radiation can drive a resonant L–C circuit through the inductance, and it therefore results in a dispersive effective magnetic permeability. The induced currents flow in the directions indicated in figure 1-3, with charges accumulating at the gaps of the rings.

The larger gap in each ring prevents the current from flowing around a single ring, but the circuit is completed across the smaller capacitive gap between two rings. Assuming that the gap (d) is rather small compared with the radius (r) and the capacitance due to the larger gaps in any single ring is negligible, we balance the emf around the circuit as

2 2 0 0 2 πr j -iωμ πr (H +j- j)=2πrρj- a iωC (1.5)

tant, c is the effective capacitanc

where a is the lattice cons e , and ε is the relative dielectric

permittivity of the material in the gap. It is assumed that the potential varies linearly with the azimuth angle around the ring. Proceeding as before, we obtain the effective permeability as μ =1-_eff πr /a₂ 2_{2 3}2 =1+ ₂ fω₂2 , (1.6

0 0 0 0

1-(3d/μ ε επ ω r )+i(2ρ/μ ωr) ω -ω -iΓω )

ave a resonant form of the permittivity with a resonan

and thus we h t frequency of

1/2 0 2 3 3d ω =( ) 0 0 μ ε επ r (1.7)

ance of the system

that arises from the L–C reson . The factor f = πr2/a2 is the filling fraction of the material. For frequencies larger than ω0, the response is out of phase with the driving

magnetic field and μeff is negative up to the ‘magnetic plasma’ frequency of

1/2 m 2 3 3d ω =( ) 0 0 (1-f)μ ε επ r (1.8) e material is negligibl

assuming the resistivity of th e. It is seen that the filling fraction plays a fundamental role in the bandwidth over which μ < 0. The dielectric permittivity of the embedding medium, ε, can be used to tune the resonant frequency. A finite resistivity, in general, broadens the peak, and in the case of very resistive materials the resonance is so highly damped that the region of negative μ can disappear altogether as shown in Figure1-4. The resonance frequency and the negative μ band can be varied by changing the inductance (area) of the loop and the capacitance (the gap width, d, or the dielectric permittivity, ε, of the material in the capacitive gap) of the system. For typical sizes of r = 1.5 mm, a = 5 mm, d = 0.2 mm, we have a resonance frequency of ω0 = 6.41 GHz, and a ‘magnetic plasma

frequency’ ωm = 7.56 GHz. The dispersion in μeff is shown in Figure1-4. We note that μeff≅1

− πr2/a2 was changing asymptotically at large frequencies. This was due to the assumption o perfect conductor in our analyses. One also notes that μ

f a

eff can attain very large values on the

low frequency side of the resonance. Thus, the effective medium of SRR is going to have a very large surface impedance Z = μ / ε . _{eff eff}

Figure 1-3. The split ring resonator (SRR)：The capacitance

across the rings now causes the structure to be resonant, and split width=d, radius=r. The figure is imaged from [8].

1.2.2.2 The Swiss roll structure at radio-frequencies

Figure 1-4. The behavior of (a) the real and (b) the imaginary parts of the effective

magnetic permeability for a system of split cylinders with r = 1.5 mm, d = 0.2mm and the magnetic field along the axis for different values of ρ. The system has negative magnetic permeability for 6.41 < ω < 7.56 GHz. As the resistance increases, the response of the system tends to tail off. The figure is imaged from [8].

For lower radio-frequencies, the capacitance of the system can be made large instead o nient way and increases the validity of

f increasing the size of the loop (inductance), as which is a conve

our assumption of an effective medium as well. Practically, it can be achieved by rolling up a metal sheet in the form of a cylinder with each coil separated by an insulator of thickness d as illustrated in Figure1-5. This structure has also been popularly called the Swiss

roll structure. The current loop is now completed through the differential capacitance across the space between the metal sheets as shown. As before, the effective magnetic permeability for a system of such structures can be calculated as

(1.9)

0

1-(dc /2π r (N-1)ω )+i(2ρ/μ ωr(N-1))

med that the total thickness of the r the cylinder radius. This system also has th

fre

wound layers Nd  e same generic resonance

form of the permeability with frequency as the SRR structures, but now the resonance occurs at a much smaller quency owing to the larger capacitance of the structure. This has seen applications in magnetic resonance imaging (MRI) at radio-frequencies as magnetic flux tubes in the region where the effective magnetic permeability assumes very large values on the lower frequency side of the resonance [16-17].

Figure 1-5. The Swiss roll structure: more capacitance for

lower frequency operation. The figure is imaged from [8].

1.2.2.3 Other geometry for negative permeability

Fundamentally, the basic structures of negative permeability are composite of spilt ring ant magnetic medium are just a capac

with single or double rings. The main ingredients of a reson

itance and an inductance. In fact, SRR structures with (1) a single ring and a single split [18–20] and (2) a double ring with a single split in each ring [21] have been proposed as candidates for a resonant magnetic medium. The point is that we would like to have an electrical polarizability as low as possible. With a single split ring, a large electric dipole moment would be generated across the capacitive gap (see Figure 1-6(a)), which could then dominate over the weaker magnetic dipole moment generated in the ring. When there are two

splits present, the dipole moments across opposite ends cancel each other. Therefore, one only gets a weak electric quadrupole moment (see Figure 1-6(c)) whose effects would be expected to be much weaker than those of the magnetic dipole moment. Most of the magnetic media that simultaneously generate an electric dipole moment are bi-anisotropic media, i.e. the constitutive relations are

D = εE + αH, B = βE + μH, (1.10)

where α and β are the bi-anisotropy coefficients. The Ω–shaped particles first introduced as the components of a bi-anisotropic medium [22], when arranged in a periodic lattice also have a resonant ε and μ and can behave as negative magnetic materials [23]. Even the original SRR medium [3] is bi-anisotropic [24] as there is an electric dipole moment that develops across the capacitive gaps (see figure 1-6(b)), and this can also be driven by an electric field [25]. Thus the SRR is oriented such that the magnetic field is normal to the plane of the SRR and the electric field is along the SRR and can be driven by the electric field and the magnetic and electric resonances can overlap. This can be effectively resolved, of course, by rotating adjacent SRRs in the plane by 180° and the corresponding electric dipole moments would cancel. The symmetry of the single ring with two symmetrically placed capacitive gaps renders this less bi-anisotropic and electrically less active.

Figure 1-6. The SRRs develop an electric polarization too, although driven by a magnetic

field. This bi-anisotropic behavior is maximal for (a) a single split ring which develops a large dipole moment. (b) The original SRR with two splits is also bi-anisotropic as it develops an electric dipole. The field lines due to the charges are also shown by thin lines. (c) The single ring with two symmetric splits only develops a quadrupole moment and is hardly bi-anisotropic. The figure is imaged from [8].

Figure 1-7. Schematic drawings of different resonator structures: (a) single ring

with one cut, (b) single ring with two cuts, (c) single ring with four cuts, (d) SRR with two cuts and (e) SRR with four cuts. Figure is imaged from [26].

People then studied how splits in ring affect resonance [26], as which was driven by the need for new resonator designs for the followi

resonant behavior at certain frequencies. ng reasons. First of all, a conventional SRR structure is not easy to fabricate for operation at higher frequencies. As the structure is scaled down, the dimensions of the narrow split and gap regions will be very small, which may eventually lead to contact problems between the metallic regions. Conventional SRR structures were fabricated for operation at a few THz [27], but for the resonator structure working at 100 THz [28] a single ring with a single split was chosen for easier fabrication. The second reason is that SRR structures are electrically resonant for different polarizations and propagation directions [29]. This effect would suppress the LH-behavior for 3D-constructed LHMs, where EM waves would be incident on the structure from all directions. Therefore, additional splits should be added to destroy the electrical coupling effect to the magnetic resonance.

Simulation results are provided in Figure 1-8(b) and experimental results were compared with the simulations. The resonance frequency of one-cut ring was measured was at 4.58 GHz, whereas numerical simulations predicted it to be 4.67 GHz. For two-cut and four-cut ring resonators, measured and simulated resonance frequencies were 7.82 and 7.5 GHz; and 12.9 and 13.1 GHz, respectively. We then varied the split width of these single-ring resonators. Figure 1-9shows the measured resonance frequencies as a function of split width. In all cases, the magnetic resonance frequency increases with increasing split width. But the rate of changing ωm for the one-cut ring resonator (Figure 1-9(a)), two cut ring resonator (Figure

1-9(b)), and four-cut ring resonator (Figure 1-9(c)) are different. The rate of increase is larger for structures with more splits. Since the capacitance due to all splits will change, the change in total capacitance will be larger for structures having more splits. Note that the magnetic resonance frequencies increased drastically when more cuts were introduced into the system. When the second split was placed on the ring (Figure 1-7(b)), the capacitances were connected in series. Therefore, the total capacitance was decreased approximately by a factor of 2. Because of this great amount of decrease in capacitance of individual ring resonators, the change in ωm was much larger compared to the changes owning to split widths, gap distances

Figure 1-8. Transmission spectra of single-ring resonator with different number of cuts

are shown by (a) experiments and (b) simulations. The figure is imaged from [26].

Figure 1-9. Variation of magnetic resonance frequency with the split width of (a) the

one-cut ring resonator, (b) two-cut ring resonator and (c) four-cut ring resonator. The figure is imaged from [26].

For double rings with two or four cuts (splits) in each ring, as a convention, these resonator structures are called two-cut SRR (Figure 1-7(d)) or four-cut SRR (Figure 1-7(e)), where the number of cuts presented the number of splits in each ring. The split width was initially taken with a size of d=0.2 mm. Measured and simulated transmission spectra of these structures are depicted in Figure 1-10(a) and 1-10(b), respectively. The resonance frequency of the one-cut SRR was found at 3.63 and 3.60 GHz, from both measurements and

simulations. For two-cut SRR and four-cut SRR structures, measured and simulated resonance frequencies were 6.86 and 6.45 GHz, and 12.96 and 13.2 GHz, respectively. We then varied the split width of all splits in both inner and outer rings. Figure 1-11 shows the measured resonance frequencies as a function of split width. In all cases the magnetic resonance frequency increased with increase of split width. Similar to the behavior observed in single split ring, the rate of increase in resonance frequency was also larger for structures having more splits.

Figure 1-10. Transmission spectra of SRRs with different number of cuts obtained from

Figure 1-11. Variation of magnetic resonance frequency with the split width of (a) the

one-cut SRR, (b) two-cut SRR and (c) four-cut SRR. The figure is imaged from [26].

Table 1-1 summarizes the measured resonant frequencies obtained for six different split ring resonator structures for some detailed analyses and a comparison of the results obtained in single split rings and double split rings. Columns represent the number of rings in the resonator structures, whereas the rows correspond to the number of cuts in each ring. Increasing the number of splits increases the magnetic resonance frequency drastically,since the amount of decrease in the capacitance of the system is very large. For one-cut and two-cut resonator structures, the amount of decrease of ωm is around 1 GHz. But in the case of the

four-cut structure,such a behavior is not observed. There is essentially no change in resonant frequency between both configurations. The orientation of the splits is important in this case. Unlike theanti-symmetric orientations of splits in the one-cut and two-cut SRRs, the four-cut SRRs have symmetric orientations. So the mutual capacitance between the inner and outer rings is very small. This is due to the fact that the induced chargesalong both the rings have

the same sign and a similar magnitude. As a result, addition of a secondring does not affect the overall capacitance of four-cut single-ring resonator. In turn, the resonancefrequency did not change appreciably.

Table 1-1. Measured magnetic resonance frequencies for six different resonator

structures. The figure is imaged from [26].

1.2.3 Negative refraction index n

There is no material with negative refraction index in nature. However, with some design of structures in

.2.3.1 Composite meta-materials (CMM = SRR+WIRE)

mbination of the thin wire m

[4, 30] showed this was a realistic way to observ

some materials systems, the electromagnetic wave at certain frequency range could propagate a medium with Re(ε) < 0 and Re(μ) < 0 simultaneously, such that a negative refractive index value is expected to be observed in these artificial materials. .

1

Smith et al [4] proposed a composite, which was constructed by co

edium with ε < 0, and the SRR medium with μ < 0, would yield an effective medium with n < 0. Such materials are called meta-materials.

The calculations and experimental measurements

e negative refractive index. Two compositing ways of this type meta-material were reported. One of them [31] was constructed by alternatively stacking the SRR and wire mediums in a periodic manner as shown in Fig. 1-12(d) (material was copper). The

periodicity along direction was 6.5 mm, the same as in SRR and wire mediums. The measured transmission and reflection properties of the composite meta-material are displayed in Fig. 1-15. There appeared a broad pass-band extending from 9.6 to 14.3 GHz. The average transmission within the pass-band was around 4.5dB, corresponding to a transmission 0.3 dB for each unit cell. This transmission was significantly higher than the previously reported composite meta-material transmission properties [32-34]. As can be seen from Figures. 1-13 and 1-14, in this frequency range, the values of both effective permeability and permittivity were negative. It deserves to point out that if only one of the constitutive parameters is negative and the other is positive one would observe evanescent waves rather than propagating waves in the medium. So, the structure can be named as a DNG meta-material [35]. The reflection of the double-negative structure within this frequency range was quite low. This indicated that most of the EM waves penetrated into the DNG composite medium, and there was a certain amount of scattering loss at these frequencies [36-37]. The reflection of the structure is around unity for the first stop-band region, which suggests that the composite structure acted as an almost perfect mirror for these frequencies.

Figure 1-12. (a) A single copper SRR with parameters r1 = 2.5 mm, r2 = 3.6 mm, d = w =

0.2 mm, and t = 0.9 mm. Schematic drawing of (b) the negative μ medium, (c) the negative ε medium, and (d) the composite DNG(double negative) meta-material. The figure is imaged from [31].

Figure 1-13. Measured broad-range

transmission and reflection spectra of the SRR medium along x direction in free space. The transmission spectrum exhibits series stop-bands and pass-bands. The negative permeability regions do not allow the propagation of electromagnetic waves through the SRR structure. The figure is imaged from [31].

Figure 1-14. Measured transmission and

reflection characteristics of the thin wire medium. The transmission spectrum exhibits a wide stop-band extending from 7 to 18 GHz. The lower pass-band is observed due to discontinuous nature of the wires. The reflection data also indicates the strong rejection of electromagnetic waves from the crystal for the negative permittivity region. The figure is imaged from [31].

Figure 1-15. Measured transmission and

reflection spectra of the DNG composite meta-materials. Relatively high power, -4.5 dB, is measured between frequencies 9.5 and 14.5 GHz in which both effective permittivity and permeability have negative values. The reflection spectrum also has average -20 dB rejection throughout this region. The figure is imaged from [31].

Another way of forming the composite of SRR and WIRE was putting SRR and WIRE side by side [38].Figure 1-16 shows an overview of the structures and the parameters used for calculations. Five geometric variants were considered there, involving four different radii and a fat version. The sets of geometric parameters and boundary frequencies for a rod–split-ring

(RSR) patterned material to become left-handed in the lower THz spectral range are given in Table 1-2. Numerical simulations of a plane wave impinging on the RSR composite structure were performed using the MWS (Microwave studio) code. Three angles of incidence were chosen, namely 0°, 45°, and 90°, with the magnetic field pointing along ether split-ring axes in the latter case. The electric field was polarized either parallel or perpendicular to the rods. It was confirmed that the case of 90° incidence angle to the normal and the E field parallel to the rods showed the signature of the meta-material most clearly. In Figure 1-17 the ratio of the amplitudes of the transmitted and incident waves, which was represented as S21 that was used

in the MWS code, is shown for the individual cases of rods only, split ring resonators (SRR), and RSR for the Ni slim ring. The transmission of either rods or SRRs are small, indicating negative εeff and μeff, respectively, while the composite material shows a transmission peak as

expected.

Figure 1-16. Geometric parameter definition of the RSR (left). Periodic arrangement of

the RSR adopted for micro-fabrication (right). The figure is imaged from [38].

Figure 1-17. Amplitude ratio of transmitted and incident waves as expressed by the

parameters S21 (linear scale) in MWS for the rods, SRR and RSR. The figure is imaged

Chapter 2

Materials and goal

2.1 Introduction

In this chapter, Materials that were used for fabrication of metal structures of SRR, WIRE and CMM (composite of SRR and WIRE) in the thesis work are discussed. Section2.2 deals with the process advantages why choosing copper for fabrication of meta-materials, and some optical properties of copper. Section2.3 describes the experimental goal - what was expected, and what have been observed and achieved.

2.2 materials

2.2.1 Advantages of process

Copper metallization has nowadays been the standard technology for chip fabrication. The commonly used method of copper metallization is blanket Cu electroplating to fill in gaps and trenches of damascene structures, followed by chemical mechanical polishing (CMP) to remove the overburden of Cu and TaN barrier for flatness of the surface. To completely remove the overburden of copper and tantalum or titanium nitride barrier outside the trenches using CMP would be difficult, owing to the non-uniform removal selectivity. On the other hand, regarding the increasing aspect ratio of wires and vias, Coating of Cu seeding prior to Cu electroplating using conventional physical vapor deposition (PVD) would be limited by

step-coverage beyond 0.10 mm (what is the unit), due to poor coverage along sidewalls and at bottom corners or overhanging on the top corners. Although chemical vapor deposition (CVD) or electrode-less Cu seeding could improve the step coverage, the Cu seed formed by CVD would suffer from the carbon or nitrogen impurities decomposed from the metallic-organic precursors, and consequently rough surface.

In this experiment, the selective Cu metallization process based on electrochemical replacement reaction was employed, instead of the above mentioned conventional processing using a combination of Cu seeding, electroplating, and the complicated multi-step CMP steps. Through the implementation of the intrinsically selective Cu contact displacement from amorphous Si and the relative simple Si CMP to remove the overburden of Si outside the trenches, the selective Cu metallization was successfully carried out.

2.2.2 Optical properties of copper

Gold, silver and copper are mono-valent metals, so it can be approximated using simple “free electron model”. Compared to alkali metals, these three metals are much easier to handle. Their optical properties, especially in the red and infrared wavelength range are of interest, because they are almost entirely attributed to the free electron.

According to [39], S. Roberts defined the dielectric constant as k=k’-ik”. He showed a list of dielectric varieties with incident wavelengths ranged from 0.365um to~2.5um. As depicted in Table 2-1, one can see that E.M waves will collapse at this range. When increasing frequency (decreasing wavelength), both -k’ and k” decrease. Since k=ω εμ , the dielectric constant increases with the amplitude decay of E.M waves rapidly. S. Roberts also pointed out that in the wavelength range below 0.6um the data confirm that there is low transmission (i.e. high absorption) due to inter-band electronic transitions. At longer wavelengths the optical properties are determined almost entirely by free electrons model.

Table 2-1. Optical properties of copper at T=900, 3000 , and 5000K. The table is imaged

from [39].

Figure 2-1. Real part of dielectric

constant of copper at 3000K. The figure is imaged from[39].

Figure 2-2. Imaginary part of dielectric

constant of copper at 3000K. The figure is imaged from[39].

2.3 Goal and a short summary of the work

negative permeability at the multiple terahertz frequency range, namely covering from mid-infrared (IR) to near-IR and eventually visible light. Copper (Cu) has a spectra range over mid-near IR, so it is a suitable material for this purpose. A rising interest in using Cu is linked to the recent advances of Cu implementation for metal wiring in Si chip technology.

To obtain meta-materials that responding at even higher frequency, it need to reduce the geometrical size of patterns, or change to use lower damping metals, e.g., Ag and Au. It thus challenges the process technology in both lithography of linewidth and metal etching. A new fabrication technology has then been developed, in which the backbone Si patterns were first formed by trench filling using PECVD, followed by CMP. These patterns were finally converted to Cu by chemical reactions for replacement.

Three patterns, namely, SRR, WIRE, and CMM, have been designed with an expectation that have meta-materials with a negative permittivity, negative permeability, and eventually negative refractive index, respectively. The desired spectral range is to appear at mid-IR close to far-IR.

Optical measurements were performed utilizing FTIR, and it was observed different reflection spectra from the samples using the incident IR beam with different polarizations. After data processing for peak normalization and noise suppression in background, it was observed enhanced reflection peak that was introduced by artificial magnetism and electric resonance due to negative permittivity/permeability.

Simulations of the electromagnetic propagation behavior along with these patterns were made using a commercial code of Computer Simulation Technology (CST), and a comparison with our experimental results was made for all three pattern designs at various frequencies, which provided more understanding on physical nature how the negative refractive index was originated in such plamonic systems.

Chapter 3

Mechanism and properties of

meta-materials

3.1 Introduction

The mechanism and properties of meta-materials are discussed in more detail in this chapter. In this thesis work, three types of patterns, i.e., SRR, WIRE, and CMM were designed, processed, and characterized. Beginning from E.M waves induce current and displacement current, the mechanism how light cannot pass through in certain frequency range is discussed. In general, Most of the magnetic media that simultaneously generate an electric dipole moment are bi-anisotropic media. Thus, an explanation how this effect was related to electric or magnetic activity in different ways to produce negative permittivity/permeability is given.

3.2 Split ring resonator (SRR)

The discussion starts with a single split ring resonator, since it is the simplest example for understanding the physical mechanisms that produce effective negative permittivity /permeability. For a single split ring resonator, when the applied magnetic field has a component normal to the plane of ring resonator, it will excite a current loop around the ring. The split structure offer an effect of capacitance, then the current excited by external magnetic field will be circulated through a serials circuit of inductance and capacitance.

It is known that resonance occurs at the frequency ωm= 1

LC , in which there is a strong absorption of the external magnetic field. This effect results in an effective permeability that is smaller than zero. The primary physical mechanism is described above, being interest us news to understand how micro or nano-structures have an influence on E.M waves.

x

y

z

Figure 3-1. Structure of SRR.

The axial magnetic field is along z-axis. The figure is imaged from [8].

Below are more quantitative discussions on physical properties of SRR. Most materials have a natural tendency to be diamagnetic as a consequence of Lenz’s law. Consider the response of SRR arrays to an incident electromagnetic wave with the magnetic field normal to the plane, as shown in Figure 3-1. The SRR has a radius r, and is placed in the square lattice with a period of a. The oscillating magnetic field normal to the plane of SRR induces circumferential surface currents which tend to generate a magnetization opposing to the applied field. The axial (z-axis) magnetic field inside the cylinders is

H=H0

+J-2 2

πr

a J (3.1) where H0 is the applied magnetic field and J is the induced current per unit length of the SRR.

The third term

2 2

πr

a J is due to the depolarizing field, which is assumed to be uniform as the SRR are infinitely long along the z-axis. The electromagnetic force (emf) around the SRR can be calculated according to the Lenz’s law and is balanced by the Ohmic drop in potential：

-iωμ0πr2(H0 +J-2 2 πr a J)=2 rρJ-π J iωC (3.2)

where the effective capacitance C = ε0επr/(3d), and ε is the relative dielectric permittivity of

the material in the gap. It is assumed that the potential varies linearly with the azimuthal angle around the ring.

The system of SRRs is homogenized by adopting an averaging procedure that consists of averaging the magnetic induction, B, over the area of the unit cell while averaging the magnetic field, H, over a line along the edge of the unit cell. The averaged magnetic field is

Beff=μ0H0 (3.3)

While the averaged H field outside the SRR is Heff=H0

-2 2

πr

a J (3.4) Using above equations, it is obtained the effective relative magnetic permeability：

μeff= eff 0 eff B μ H =1-2 2 2 2 3 0 0 0 πr /a 1-(3d/μ ε επ ω r )+i(2ρ/μ ωr)=1+ 2 2 2 0 fω ω -ω -iΓω (3.5) and thus it derives a resonant form of the permittivity with a resonant frequency of

_{0 2 3}

0 0

3d ω =

μ ε επ r (3.6) that arises from the L–C resonance of the system. The factor f = πr2/a2 is the filling fraction of the material. For frequencies larger than ω0, the response is out of phase with the driving

magnetic field and μeff is negative up to the ‘magnetic plasma’ frequency of

_{m 2 3}

0 0

3d ω =

(1-f)μ ε επ r , (3.7) assuming the resistivity of the material is negligible, and it is seen that the filling fraction plays a fundamental role in the bandwidth over which μ < 0. It is noted that μeff =1 − πr2/a2

asymptotically at large frequencies. This is due to the assumption of a perfect conductor in above analyses. It deservers to be mentioned that μeff can attain very large values on the low

large surface impedance Z = eff eff

μ

ε .

In the following section, the electric coupling to the magnetic resonance of split ring resonators is discussed [40]. According to [40], authors observed unexpectedly that the incident electric field coupled to the magnetic resonance of the SRR, when the E.M. waves propagated perpendicular to the SRR plane while the incident E was parallel to the gap-bearing sides of the SRR.

It was recently shown [41-42] that the SRRs exhibited electric resonant response in addition to their magnetic resonant response. As a result of this electric response and its interaction with the electric response of the wires, the effective plasma frequency, '

p

ω , was much lower than the plasma frequency of the wires, ω . An easy criterion [41] to identify _p whether an experimental transmission peak was left-handed (LH) or right-handed (RH) was proposed, i.e., If closing the gaps of the SRRs in a designed LH structure would remove only one single peak from the transmission data in the low frequency regime, it could be a strong evidence to assign that transmission peak due to the LH effect. The authors reported numerical and experimental results for the transmission coefficient of a lattice of SRRs alone for different orientations of the SRR with respect to the external electric field, E, and the direction of propagation. It was considered an obvious fact that an incident EM wave excited the magnetic resonance of the SRR only through its magnetic field; hence one could conclude that this magnetic resonance appeared only if the external magnetic field H was perpendicular to the SRR plane, which in turn implied a direction of propagation parallel to the SRR [Figures. 3-2(a), and 1(b)]. If H was parallel to the SRR [Figures. 3-2(c), and 1(d)] no coupling to the magnetic resonance was expected. However, the present work shows that this was not always the case. If the direction of propagation was perpendicular to the SRR plane and the incident E was parallel to the gap-bearing sides of the SRR [Figure 3-2(d)], an electric

coupling of the incident EM wave to the magnetic resonance of the SRR occurred. It thus means that the electric field excited the resonant oscillation of the circular current inside the SRR, influencing the behavior of either only ε(ω) [in Figure 3-2(d)] or both ε(ω) and μ(ω) [in Figure 3-2(b)].

Figure 3-2. Left–hand side: SRR geometry studied. Right–hand side: The four studied

orientations of the SRR with respect to the triad k, E, H of the incident EM field. The two additional orientations, where the SRR are on the H-k plane, produce no electric or magnetic response. The figure is imaged from [40].

Four nontrivial orientations of the SRR are considered, as shown in Figure 3-2, while the measured transmission spectra, T, of the composite meta-material (CMM) are presented in Figure.3-3. The continuous line (line a) corresponds to the conventional case (Figure 3-2(a)), with H perpendicular to the SRR plane and E parallel to the symmetry axis of the SRR. Notice that T exhibited a stop band at 8.5–10.0 GHz, due to the magnetic resonance. The dashed line (line b) shows T for the orientation of Fig. 3-2(b); here E was no longer parallel to the symmetry axis of the SRR and thus there was no longer a mirror symmetry of the combined system of SRR plus EM field. Notice that now T exhibited a much wider stop band at 8–10.5 GHz, starting at lower frequency. An interesting result was obtained by comparing T for the two cases shown in Figures. 3-2(c) and 3-2(d), for which there was no coupling to the magnetic field since H was parallel to the SRR plane. For the case of Figure 3-2(c), where

E was parallel to the symmetry axis, no feature was observed around the magnetic resonance

frequency (line c) in Figure 3-3, as expected. However in the case of Figure 3-2(d), where the SRR plus EM field exhibited no mirror symmetry, a strong stop band in T around ωm was

observed (line d), similar to that of the conventional case [Figure 3-2(a)]. It thereby strongly suggested that the magnetic resonance could be excited by the electric field if there was no mirror symmetry.

Figure 3-3. Measured transmission spectra of a lattice of SRRs for the four different

orientations shown in Figure 3-2. The figure is imaged from [40].

At low frequencies, the SRR can basically be only represented by its outer ring. As shown in Figure 3-4, the SRR ring will experience different spatial distributions of the induced polarization, depending on the relative orientation of E with the SRR gap. If E is parallel to the no gap sides of the SRR, its polarization will be symmetric and the polarization current is only flowing up and down the sides of the SRR, as shown in Figure 3-4(a). If the SRR is turned by 90°, as shown in Fig. 3-4(b), the broken symmetry leads to a different configuration of surface charges on both sides of the SRR, connected with a compensating current flowing between the sides. This current contributes to the circulating current inside the SRR and hence couples to the magnetic resonance.

fundamental importance in understanding the refraction properties of SRRs in the low frequency region of the EM spectrum.

Figure 3-4. Schematic drawing for the polarization in two different orientations of a

single ring SRR. The external electric field points upward. Only in case of broken symmetry (b) a circular current will appear which excites the magnetic resonance of the SRR. The interior of the ring shows FDTD data for the polarization current component at a fixed time for normal incidence [Figures 3-2(c) and 3-2(d)] as a gray scale plot. The figure is imaged from [40].

E

J_&

3.3 Wire-mesh structure as negative dielectric (WIRE)

Consider an array of infinitely long, parallel and very thin metallic wires of radius r placed periodically at a distance a in a square lattice with a r as shown in Figure 3-5. The electric field is considered to be applied parallel to the wires (along the Z axis). The electrons are localized to move only within the wires, as which has the first effect of reducing the effective electron density since the radiation cannot sense the individual wire structure but only the average charge density. The effective electron density is immediately represented by

 neff= 2 2 πr n a (3.8) where n is the actual density of conduction electrons in the metal.

There is a second equally important effect to consider. The thin wires have a large inductance, and it is not easy to change the currents flowing in these wires. Thus, it appears as

Figure 3-5. An array of infinitely long thin metal wires of radius r, and a lattice period of

behaves as a low frequency plasma for the electric field oriented along the wires and E.M. wave oriented normal to the wires. the figure is imaged from [8].

if the charge carriers, namely the electrons, have acquired a tremendously large mass. By symmetry there is a point of zero field between the wires, and hence the magnetic field along the line between two wires can be estimated by

H(ρ)= ˆφI 1 1( - )

2π ρ a-ρ (3.9) The vector potential associated with the field of a single infinitely long current-carrying conductor is non-unique, unless the boundary conditions are specified at definite points. In our case, there is a periodic medium that sets a critical length of a/2. The vector potential

associated with a single wire can thus be approximated by A(ρ)= 2 0ˆ μ zI a ln[ ] 2π 4ρ(a-ρ) a ρ< 2 ∀ (3.10) A(ρ)=0 ρ>a 2 ∀ (3.11) This choice avoids the vector potential of one wire overlapping with another one, and thus the mutual induction between any two adjacent wires is addressed to some extent. Noting that r  a by about three orders of magnitude in the present model, and the current I = πr2nev, where v is the mean electron velocity, the vector potential can be written as

A(ρ)= 2 0 μ r nev a _ˆ ln[ ]z 2 ρ (3.12) This is a very good approximation in the mean field limit, when considering only two wires, but in fact the lattice has actually a four-fold symmetry. The actual deviations from this expression are much smaller than in this case. It is noted that the canonical momentum of an electron in an electromagnetic field is p + eA. Thus assuming that the electrons flow on the surface of the wire (assuming a perfect conductor), one can express the momentum per unit length of the wire as

P=πr ne (r)2

A

in which meff is an effective mass

meff= 2 2 0 μ r ne a ln( ) 2 r (3.14) for the electron.

Thus, assuming a longitudinal plasmonic mode for the system, one derives 2 2 2 eff p 2 0 eff n e 2πc ω = = ε m a ln(a/r) (3.15) to present the plasmon frequency. It is noted that reducing effective electron density as well as tremendously increasing effective electronic mass would immediately reduce the plasmon frequency for this system. As an example, for aluminum wires (n = 1029 m−3) with r = 1 μm

and a = 10 mm, the calculated effective mass value was

meff=2.67x10-26kg , (3.16)

was almost 15 times heavier than that of a proton, The derived plasma frequency is about 2 GHz, i.e. the structure is a negative dielectric material at microwave frequencies. Note that the final expression for the plasma frequency in equation (3.15) is independent of the microscopic quantities such as the electron density and the mean drift velocity. It only depends on the radius of the wires and the spacing, implying that the entire problem can be recast in terms of the value combination of capacitances and inductances. This approach was used in references [42-43], and it is presented below for the sake of completeness. Consider the current induced by the electric field along the wires, which is related to the total inductance (self and mutual) per unit length (L):

Ez= iωLI=iωLπr nev2 , (3.17)

and the polarization per unit volume in the homogenized medium is P=-neffer=n eveff

iω =-z 2 2 E

ω a L (3.18)

where neff = πr2n/a2 as before, one can estimate the inductance, L, by calculating the magnetic

flux per unit length, ϕ, passing through a plane between the wire and the point of symmetry between itself and the next wire where the field is zero: ϕ,is presented by

a/2 2 0 0 r μ I a φ=μ H(ρ)dρ= ln[ 2π 4r(a-r)

∫

Noting = LI, and the polarization P = (ε − 1)εΦ 0Ez, where ε is the effective permittivity, one

obtains in the limit ra, 2 2 2 2πc ε(ω)=1-ω a ln(a/r) (3.20) The Equation 3.19 is identical to the relation obtained in the plasmon picture. However, one loses the physical interpretation of a low frequency plasmonic excitation here. It is simple to add the effects of finite conductivity in the wires, which had been neglected in the above

discussion. The electric field and the current would now be related by

Ez=iωLI+σπr I2 (3.21)

where σ is the conductivity, which modifies the expression for the dielectric permittivity to 2 p 2 2 2 0 p ω ε=1-ω(ω+i(ε a ω /πr σ)) (3.22) Thus the finite conductivity of the wires contributes to the dissipation, showing up in the imaginary part of ε. For aluminum, the conductivity is σ = 3.65 × 107Ω−1m−1, which yields a values of γ = 0.1ωp that is comparable to the values in real metals [44]. Thus the low frequency plasmon is sufficiently stable against absorption to be observable.

In the above discussion, only wires pointing in the z-direction were considered. This made the medium anisotropic with negative ε only for waves with the electric field along the z direction. The medium could be constructed to have a reasonably isotropic response by considering a lattice of wires oriented along the three orthogonal directions as shown in figure3-6. In the limit of large wavelengths, the effective medium appears to be isotropic as the radiation fails to resolve the underlying cubic symmetry yielding a truly three-dimensional low frequency plasma.

For very thin wires, the polarization in the direction orthogonal to the wires is small and can be neglected. Thus the waves only sense the wires parallel to the electric field, and correspondingly have a longitudinal mode. The effects of the connectivity of the wires along different directions at the edges of the unit cell have also been examined [9]. A wire mesh with non-intersecting wires was shown to have a negative ε at low frequencies below the plasma frequency, but had strong spatial dispersion for the transverse modes above the plasma frequency. This issue of spatial dispersion has been studied more recently by Belov et al [43].

Figure 3-6. A three-dimensional lattice of thin conducting wires behaves like an

isotropic low frequency plasma. The figure is imaged from [8].

The continuous wire structure behaves like a high-pass filter, which means that the effective permittivity will take negative values below the plasma frequency. However, for discontinuous wire structures, the negative permittivity region does not extend to zero frequency, and there appears a stop-band around the resonance frequency. In contrary to the continuous wire structures that exhibit a stop-band with no lower frequency edge, the present configuration exhibits a stop-band with a well-defined lower edge due to the discontinuous nature of the wires.

3.4 Composite meta-materials (CMM)

This section is based on the results from last two sections. CMMs (also named as left-handed materials - LHM) combine two parts of negative permittivity and negative permeability simultaneously, in order to have a negative index of refraction. The physical mechanism was presented before. By selecting proper geometric structures of SRR and WIRE

that have been discussed in the proceeding sections, to combine them together through matching of suitable stop-bands, one can compose CMM for mid-IR range.

Chapter 4

Experimental techniques

4.1 Introduction

Experimental techniques and equipments that were used in this thesis work are presented in detail in this chapter. In the following sections, instruments and how these instruments were set up are introduced. A detailed process flow for fabrication of patterns is described, and a method for spectral analyses of FTIR measurements was developed in the section. A suitable way of setting up the experimental instruments is very crucial for effectively extracting the data of measurements and proving further understanding of physics insights.

4.2 Process steps of pattern fabrication

Micro-fabrication of patterns is the key part of the thesis work. The patterns were fabricated on Si substrates, therefore, the transmission measurements at the wavelengths short than 1.2 is prohibited due to strong band-to-band absorption, and the patterns for this study were fabricated by Cu materials. Since to coat a Cu film using either deposition or plating is very complex, in the present work a relative simple and manufacturable technique was developed for making Cu patterns. This technique was a combination to first form backbone of patterns using Si by the CMP process, followed by a chemical substitution reaction to replace Si by Cu. The process flow for such a micro-fabrication procedure is schematically

presented in Figure 4.1, and each step is detailed as follows.

1. Silicon substrate 2. SiO2 was patterned for window opening

4. α-Si deposited by PECVD

5. Removing α-Si and Ta by CMP 6. Forming Cu structures via substitution reaction 3. 50 nm Ta deposited for improving adhesion

Figure 4-1. Process flow of micro-fabrication

(1) Substrate: For most of experiments 6” Si (100) wafers were used as the substrate, as which was a prerequisite for process equipments in the fabrication pilot line. At the late stage of the work, quartz substrates were also used in order to fabrication some structure to be operated at the visible light spectral range. The major specifications of 6” silicon wafer are listed in the table below：

Diameter(mm) 149.5~150.5 Product Single side polished

Method CZ Type P

Orientation 1-0-0 Dopant boron

Thickness(µm) 650~700 Resistivity(Ω-cm) 15~25

Table 4-1. Materials specifications of Si wafers

(2) Thin dielectric film deposition: About 300nm thickness of silicon dioxide (SiO2) was

was to define the window opening of patterns using lithograph as will be described in the next step, and another was to provide a barrier for separating any copper film which was deposited outside of patters from the silicon substrate.

(3) Window opening: The thin silicon dioxide layer was successively patterned by e-beam lithography (LEICA WEPRINT 200 e-Beam stepper, and have the ability to reproducibly achieve feature sizes below 100 nm, and multilayer lithography with less than 40 nm overlay). Positive resist (PMMA) was chosen for e-beam lithography, and the resist layer was coated by Clean Track MK-8. The geometrical sizes of silicon dioxide patterns using in this work are summarized in Figure 4.2. The oxide through the opening of resist patterns were then removed by ICP dry etching using Larm Tel-5000 etcher.

(4) Tantalum layer deposition: A thin (~50 nm) tantalum layer was then deposited using sputtering over patterned silicon dioxide. Tantalum was used as a buffer layer for improving the adhesion between silicon dioxide and copper during and after copper replacement. It was observed that the copper film was peeled off from SiO2 when no adhesion layer was used.

Actually, 5~10nm tantalum was enough for serving the adhesion purpose.

(5) Si deposition: A amorphous silicon layer, which would be prepared to form the backbone of patterns for copper replacement, was deposited over thin film of tantalum using plasma enhanced chemical vapor deposition (PECVD), because it was demanded for trench filling with a good step coverage. PECVD usually provides better step coverage than conventional CVD and PVD. If step coverage is poor or no amorphous silicon fills into the trenches, copper replacement will be failed.

Type 1 (µm)

Type 2 (µm)

Type 3 (µm)

c 0.18 0.2 0.25

d 0.216

0.24 0.3

g 0.3474

0.386

0.4825

w 1.8864

2.096 2.62

X 0.576

0.64 0.8

Y 0.576

0.64 0.8

gap 0.144 0.16 0.2

X1 0.576 0.64 0.8

Figure 4-2. Geometrical sizes of SRR, WIRE, and CMM patterns.
