A novel process monitoring approach with dynamic independent component
analysis
Chun-Chin Hsu
a,, Mu-Chen Chen
b, Long-Sheng Chen
ca
Department of Industrial Engineering and Management, Chaoyang University of Technology, 168 Jifong E. Rd., Wufong Township Taichung County 41349, Taiwan
bInstitute of Traffic and Transportation, National Chiao Tung University, 114 Chung Hsiao W. Rd., Sec. 1, Taipei 10012, Taiwan c
Department of Information Management, Chaoyang University of Technology, 168 Jifong E. Rd., Wufong Township Taichung County 41349, Taiwan
a r t i c l e
i n f o
Article history: Received 7 November 2008 Accepted 1 November 2009 Keywords: PCA ICATennessee Eastman process TPC
Adjusted outlyingness
a b s t r a c t
A novel process monitoring scheme is proposed to compensate for shortcomings in the conventional independent component analysis (ICA) based monitoring method. The primary idea is first to augment the observed data matrix in order to take the process dynamic into consideration. An outlier rejection rule is then proposed to screen out outliers, in order to better describe the majority of the data. Finally, a rectangular measure is used as a monitoring statistic. The proposed approach is investigated via three cases: a simulation example, the Tennessee Eastman process and a real industrial case. Results indicate that the proposed method is more efficient as compared to alternate methods.
Crown Copyright & 2009 Published by Elsevier Ltd. All rights reserved.
1. Introduction
Principal component analysis (PCA) has been a widely used technique for monitoring multivariate processes. However, PCA assumes that latent variables follow a Gaussian distribution.
Martin and Morris (1996)reported that PCA extracted variables rarely conform to a multivariate Gaussian distribution in real industrial processes such as chemical and biological plants. More recently, independent component analysis (ICA) has been devel-oped to deal with non-Gaussian process monitoring. Kano, Tanaka, Hasebe, Hashimoto, and Ohno (2003) developed ICA-based statistical process control (SPC), and showed its superiority over the PCA-based SPC. However, their proposed method applies control charts to individually monitor extracted ICA components, and it may produce false alarms. Thus,Lee, Yoo, and Lee (2004a)
developed ICA-based monitoring statistics and variable contribu-tion plots for process monitoring and diagnosis, respectively. Further, Lee, Qin, and Lee (2006) proposed a modified ICA algorithm to sort the proper order of ICA components and determine how many components should be extracted. Ge and Song (2007)proposed a new monitoring scheme by integrating ICA and PCA. Then Ge and Song (2008) developed an adaptive local model approach for monitoring nonlinear multiple mode processes. Readers can refer to this work on ICA-based monitoring methods inYoo, Lee, Vanrolleghem, and Lee (2004),Lee, Yoo, and
Lee (2004b),Xia and Howell (2004),Gonza´lez and Sa´nchez (2007),
Lee, Qin, and Lee (2007),Lu, Wu, Keng, and Chiu (2008), andZhu, Hong, Wong, and Wang (2008).
The above-mentioned studies have demonstrated ICA to be an efficient tool for monitoring non-Gaussian processes. Yet there are still some disadvantages with the traditional ICA algorithm. ICA assumes observations at one time to be independent over time. This assumption is invalid because of dynamic process character-istics. AlthoughLee et al. (2004b)proposed a dynamic ICA (DICA) algorithm in order to deal with the dynamic non-Gaussian multivariate process, the DICA algorithm still has some limita-tions. First, the training dataset is assumed to be ‘‘clean’’, which means there is no contamination (outliers) in the training dataset. The effect of outliers may lead to an incorrect conclusion, such as a wrong estimation of parameters. Further, DICA applied Mahalanobis-type distance as the monitoring statistic, in which all variables are assumed to be obtained from an elliptical distribution, particularly the multivariate Gaussian (Hubert & Van der Veeken, 2008). Nevertheless, the extracted ICA compo-nents usually exhibit skewed distributions. In order to illustrate the influence, consider two independent uniform source signals with range [ 1, 1];Fig. 1(a) shows its scatter plot. By mixing the source signals with matrix A, the scatter plot of observed signals is shown in Fig. 1(b), and it exhibits a high correlation between variables. Fig. 1(c) shows the scatter plot of ICA extracted components. Clearly, ICA can reconstruct the source signals and make variables be independent. For process monitoring purposes, two types of control limits (i.e., rectangular and elliptical) are also drawn with a dotted line inFig. 1(c). Obviously, the rectangular Contents lists available atScienceDirect
journal homepage:www.elsevier.com/locate/conengprac
Control Engineering Practice
0967-0661/$ - see front matter Crown Copyright & 2009 Published by Elsevier Ltd. All rights reserved. doi:10.1016/j.conengprac.2009.11.002
Corresponding author. Tel.: + 886 4 23323000. E-mail address: [email protected] (C.-C. Hsu).
type control limit fits better than the elliptical one. This implies that when an elliptical control limit is used for monitoring ICA components, the type II error (oblique lines in Fig. 1(c)) is increased and hence the fault detection rate is decreased. Note that the rectangular control limit only fits well for the assumption
of variables to be skew-distributed. It implies that the elliptical control limit is still suitable for monitoring Gaussian processes. Thus, the constraint of this study assumes process variables to be non-Gaussian distributed.
This study proposes a new process monitoring scheme for ICA. The observed data matrix is first augmented by adding time-lagged variables for each measurement so as to take the process dynamic into consideration. After that, ICA is used for dimension reduction and then a rejection rule is proposed for excluding outliers. Next, the extracted ICA components are combined into a rectangular type monitoring measure. Finally, the kernel density estimation (KDE) method is utilized to determine the control limit. The proposed monitoring method will be investigated by using a simulated dynamical process with five variables and the Tennessee Eastman (TE) process. Additionally, it is applied to a real industrial case of a thermal power plant in Taiwan. To demonstrate the efficiency of this proposed method, several traditional monitoring methods are applied as benchmarks.
The remainder of this article is as follows. In the next section, the theory of the ICA algorithm is first introduced. After that, the ICA-based monitoring method is also introduced. The proposed method is then demonstrated in Section 3. Section 4 implements the proposed method and illustrates the comparisons with other alternatives. Finally, conclusions are drawn in Section 5.
2. ICA-based process monitoring
This section introduces the application of the ICA technique for non-Gaussian multivariate process monitoring. The theory of ICA is first reviewed, and an ICA-based process monitoring method which was proposed byLee et al. (2004a)is then introduced.
2.1. ICA algorithm
In the ICA algorithm, the d observed variables x1;x2; . . . ; xdcan
be expressed in linear combination with m (rd) unknown independent components s1;s2; . . . ; sm. The relationship between
them is given as
X ¼ AS ð1Þ
where XA Rdnis the data matrix (unlike PCA, ICA employs the
transposed data matrix), S is the independent component matrix, and A is the unknown mixing matrix.
The objective of ICA is to find a de-mixing matrix W such that the reconstructed signal ^S ¼ WX becomes as independent as possible. The initial step in ICA is whitening. Assume the whitened signal can be expressed as z ¼ QX where Q denotes the whitening matrix. The Q can be obtained by calculating Q ¼
K
-1=2UT, whereK
is a diagonal matrix with the eigenvalues of the data covariance matrix (i.e. EðXXTÞ) and U is a matrix with the corresponding eigenvectors as its columns. Thus, the whitened signal can be further expressed asz ¼ QX ¼ QAS ¼ BS ð2Þ
where B is an orthogonal matrix ðEðzzTÞ ¼BEðSST
ÞBT
¼BBT
¼IÞ. According to Eq. (2), the reconstructed signal can be obtained by
^
S ¼ BTz ð3Þ
To calculate B, each column vector bi is initialized and then
updated so that ith independent component may have great non-Gaussianity (Lee et al., 2004b). Two common measures of non-Gaussianity are kurtosis and negentropy. However, the kurtosis is sensitive to outliers and hence the negentropy becomes the widely used measure of non-Gaussianity. The negentropy J of
1.5 1 0.5 0 -0.5 -1 -1.5 3 2 1 0 -1 -2 -3 -4 -4 -3 -2 -1 0 1 ICA 2 3 4 4 3 2 1 0 -1 -2 -3 -3 -2 -1 0 1 2 3 -1.5 -1 -0.5 0 0.5 1 1.5 A=
[ ]
2 32 1random variable y is defined as
JðyÞ ¼ HðyGaussianÞ-HðyÞ ð4Þ
where HðyÞ ¼ -Rf ðyÞlogf ðyÞ dy and f ðyÞ is the density of y. The yGaussianis a Gaussian random variable with the same variance of y.
According to Eq. (4), if JðyÞ ¼ 0, then y follows the same distribution of yGaussian. Thus, negentropy is non-negative and
measures the departure of y from Gaussianity (Lee et al., 2004a). From Eq. (4), it is known that an estimate of probability density function is required before estimating negentropy. Thus,
Hyv ¨arinen (1999)suggested approximating negentropy by using a fixed-point algorithm for ICA (FastICA), calculated over the whitened signal z (i.e. Eq. (2)). In general, the FastICA calculates matrix B according to the following procedures.
1. Randomly choose an initial weight vector biwith unit norm.
2. Let bi’Efxgðb T
ixÞg-Efg0ðb T
ixÞgbi, where g is the first derivative
and g0 is the second derivative of G in which
GðuÞ ¼ 1=a1log coshða1uÞ, and a1is a constant and 1ra1r2.
3. Normalize bi’bi=JbiJ.
4. If bihas not converged, go back to Step 2.
Note that the convergence means that the dot-product of old and new values of biis equal to 1. After constructing the matrix B,
the signal can be reconstructed as ^S ¼ BTz ¼ BTQX ¼ WX. The
related Matlab software of FastICA toolbox can be downloaded fromhttp://www.cis.hut.fi/projects/ica/fastica/.
ICA considers higher order statistics and tries to let components be independent. Thus, the ICA components can reveal more useful information than PCA components (Lee et al., 2004a). In the next section, the ICA-based process monitoring method will be reviewed.
2.2. ICA process monitoring
Lee et al. (2004a) proposed three measures for ICA process monitoring: I2, I2
e and squared prediction error (SPE). To divide W
into two parts: the dominant part ðWdÞ and the excluded part
ðWeÞ, the I2at observation k is defined as
I2ðkÞ ¼ ^s
dðkÞT^sdðkÞ ð5Þ
where ^sdðkÞ ¼ WdxðkÞ. Thus, I2 is usually used to monitor the
systematic part of process variation.
The second statistic, squared prediction error (SPE), is used to monitor the non-systematic part of common cause of variation, and it is defined as
SPEðkÞ ¼ eðkÞTeðkÞ ¼ ðxðkÞ- ^xðkÞÞTðxðkÞ- ^xðkÞÞ ð6Þ where eðkÞ is the residual at observation k and the predictor
^
xðkÞ ¼ A^sðkÞ ¼ AWxðkÞ. Another statistic, I2
erepresents an incorrectly selected number
of dominant ICA components, and it is defined as I2
eðkÞ ¼ ^seðkÞT^seðkÞ ð7Þ
where ^seðkÞ ¼ WexðkÞ.
For process monitoring, the kernel density estimation (KDE) is applied to determine the control limits for I2, SPE and I2
e, respectively.
A univariate kernel estimator with kernel K is defined by ^fðxÞ ¼ 1 nh Xn i ¼ 1 k x-xi h n o ð8Þ
where x is the considered data point, xiis the observation, h is the
smoothing parameter, n is the number of observations and K is the kernel function. There are several kernel functions adopted in the literature, among which the Gaussian kernel is the most popular one (Chen, Kruger, & Leung, 2004; Chen, Wynne, Goulding, & Sandoz, 2000;Silverman, 1986).
The aforementioned ICA process monitoring method does not take the dynamic characteristic into account. Hence, Lee et al. (2004b) suggested augmenting the observed data matrix by adding time-lagged observations and then performing FastICA algorithm. This procedure was named ‘‘dynamic ICA (DICA)’’. However, DICA still has some shortcomings. First, DICA is sensitive to outliers. Second, the process monitoring statistic in DICA is of an elliptical type. Therefore, an outlier rejection procedure will first be proposed. Further, a rectangular type measure is recommended to be the monitoring statistic.
3. Proposed process monitoring scheme
This section will present a novel process monitoring scheme for ICA. In the proposed approach, a measurement, namely adjusted outlyingness (AO), which is proposed byBrys, Hubert, and Rousseeuw (2005), is utilized for rejecting outliers and on-line process monitoring. The definition of AO is presented in Appendix A.Figs. 2(a) and (b) graphically illustrate the results of I2
and AO for measuring ICA components, in which the used data are the same as inFig. 1(c). Obviously, AO can produce a rectangular type measure, but I2generates an elliptical type measure.
Fig. 3 presents the framework of the proposed monitoring scheme. In outline, the proposed method includes three primary extensions. First, the original data matrix is augmented with time-lagged variables in order to take the process of autocorrelation into consideration. Second, an outlier rejection procedure is developed so as to better describe the greater part of the training data. Note that the proposed outlier rejection procedure is different from the work ofBrys et al. (2005). In this study, the ICA is first performed to reduce the number of variable dimensions and then reject the outliers according to the extracted ICA components. The main advantages of this outlier rejection procedure include simplicity and shorter computation time. Third, AO is used as the monitoring statistic, and KDE is then performed to determine the control limit. The procedure of this proposed monitoring method includes off-line training and on-line process monitoring. The objective of the off-on-line training procedure is used to build a reference model. After that, the built model is executed on-line in order to monitor the process. The steps of off-line training are detailed as follows.
3.1. Off-line training
Step 1: Obtain a training dataset X A Rndwith n observations and d variables.
Step 2: Determine the time lag l and augment each observation vector with previous observations as in the following form:
lag0 lag1 lagl
XðlÞ ¼ xT t xT t þ 1 ^ xT t þ n-1 xT t-1 xT t ^ xT t þ n ^ xT t-l xT t-l þ 1 xT t þ n-1-l 3 7 7 7 7 5 2 6 6 6 6 4 ð9Þ where xT
t denotes the d-dimensional observation vector at time t
and T is the transpose operator.Ku, Storer, and Georgakis (1995)
presented an iterative procedure to determine l in order to capture process dynamics. Besides,Chiang, Russell, and Braatz (2001) utilized Akaike’s Information Criterion (AIC) and the subspace identification method for selecting l. Further,Lee et al. (2004b)concluded according to their experience that a value of l= 1 or 2 is usually appropriate for conducting dynamic process monitoring. As mentioned above, there is no standard criterion for
determining l. Thus, this study adopts l= 2 to implement Step 2 according to Lees’ suggestion.
Step 3: Normalize the augmented data matrix, and then perform FastICA algorithm. Thus, a demixing matrix W can be obtained. By selecting a few rows of W in which the first ith rows of W have the largest sum of squares (Lee et al., 2004a). The
dominant part of W is denoted as Wd. Hence, the m extracted
independent components (ICs) can be obtained by ^S ¼ XðlÞWTd.
Step 4: Screen out outliers by AO. The rejection rule for AO is given as follows (Brys, 2005):
AO4 Q3þ1:5e4MCIQR ð10Þ
-2 -1 0 1 2 -2 0 2 0 2 4 6 -2 -1 0 1 2 -2 0 2 0 0.2 0.4 0.6 0.8 1 IC1 IC 2 IC1 IC 2 I2 AO
Fig. 2. I2and AO measures for ICA signal.
where AO can be calculated by using Eq. (14) in Appendix A, in which the ^S substitutes for x0. The MC can be obtained from Eq.
(16) and IQR ¼ Q3-Q1 is the interquartile range between Q3 (i.e.
the third quartile of projected data points ^SvT) and Q
1(i.e the first
quartile of projected data points ^SvT). Note that the filtering
procedure is conducted once, in order to avoid destroying the non-Gaussianity that ICA depends on. After eliminating outliers, a robust data matrix, Xrobust can be obtained. Re-run the FastICA
algorithm to Xrobust, the robust ICs ð ^SrobustÞand dominant part of W
ðWrobustÞcan been obtained.
Step 5: Apply ^Srobustto substitute x0in Eq. (14) and the value of
AO can be calculated. Each projection direction v is obtained as the normal on the hyperplane through m randomly selected data points. Further, the bound of ½c1;c2can be calculated from Eq. (15).
Step 6: Perform the KDE method in order to determine the 99% control limit for AO measurement.
The steps of on-line process monitoring are detailed as follows.
3.2. On-line process monitoring
Step 1: Obtain a new data matrix, Xnew.
Step 2: Generate the augmented data matrix with lag l and then apply the same normalization to the augmented data matrix, denoted as XnewðlÞ.
Step 3: Calculate ICs by ^Snew¼XnewðlÞWTd.
Step 4: Calculate AO measure for ^Snew, which is given as
where med denotes medcouple and is defined in Eq (16). From Steps 4 and 5 of the off-line training procedure, the ^Srobust, v and
½c1;c2can be obtained.
Step 5: Determine whether AOnew exceeds the control limit
generated in the off-line training procedure. If an out-of-limit alarm is generated, some rectification should be enacted.
The proposed monitoring scheme takes account of the process dynamic, the contaminated dataset, and utilizes a rectangular measure for ICA. In the next section, the efficiency of this proposed method will be demonstrated through the implementa-tion of three examples.
4. Implementation
This section first verifies the efficiency of the proposed method via a simulation example. Second, a Tennessee Eastman (TE) process is used to demonstrate the superiority of the proposed monitoring approach by comparison to several traditional methods. Finally, a real test case of a thermal power plant in Taiwan is implemented.
4.1. A simulation example
The applied simulation work is similar toLee et al. (2004a, 2004b) and Ku (1995). Consider a dynamic process with five monitored variables as follows:
zðkÞ ¼ 0:118 -0:191 0:287 0:847 0:264 0:943 -0:333 0:514 -0:217 2 6 4 3 7 5zðk-1Þþ 1 2 3 -4 -2 1 2 6 4 3 7 5uðk-1Þ yðkÞ ¼ zðkÞ þ vðkÞ ð12Þ
where y is the output with three variables ðy1;y2;y3Þ. v is the
normal distributed random vector with zero mean and variance of
0.1. u is the input with uðkÞ ¼ 0:811 -0:226 0:477 0:415 uðk-1Þ þ 0:193 0:689 -0:320 -0:749 wðk-1Þ ð13Þ
w is a uniformly distributed random vector over interval ( 2,2). The input u and output y, total five variables ðy1;y2;y3;u1;u2Þ
which are used for process monitoring.
A total of 1,000 observations are sampled for each simulation. The first 500 observations are used as a training dataset and the remainders are used for on-line process monitoring. A step change of w1by 3 is introduced at observation 500. This means that the
first 500 training observations are not contaminated by outliers. In several simulation runs, the training dataset is contaminated by adding a contamination fraction (
e
%) into the training dataset. In other words, there are 500e
% outliers existing in the training dataset.For comparison purposes, several methods are also imple-mented, as shown below.
Scheme 1: The traditional ICA method without outlier rejection procedure and I2monitoring statistic is investigated by running
the dataset.
Scheme 2: The DICA method without outlier rejection proce-dure and I2 monitoring statistic is applied, in which two
time-lagged variables are added in Eq. (9).
Scheme 3: The DICA method with Stahel–Donoho (SD) (Brys et al., 2005) outlier rejection procedure and I2monitoring statistic
is applied, in which two time-lagged variables are added in the
augmented data matrix. In short, the details of the SD method can be referred to in Brys et al. (2005), Stahel (1981), andDonoho (1982).
Scheme 4: The DICA method with AO outlier rejection procedure and I2 monitoring statistic is applied. Also, two
time-lagged variables are added in the augmented data matrix. Scheme 5: The proposed monitoring method (i.e. DICA method with AO outlier rejection procedure and AO monitoring statistic) is investigated by using the dataset. Two time-lagged variables are also added to the augmented data matrix.
For Scheme 1, the normalization is performed to the original data matrix, whereas the normalization procedure is conducted to the augmented data matrix for Schemes 2–5. In order to make a fair comparison, the 99% control limits for all schemes are determined by the KDE method.Table 1summarizes the process monitoring results of the above five schemes in terms of detection rate (%). Additionally, the number of outliers that were omitted from the training data for Schemes 3–5 is also listed inTable 1.
Table 1 indicates that all methods detect disturbance well when the training dataset is not contaminated. Also, the DICA methods (Schemes 2–5) perform better than the traditional ICA method (Scheme 1). Comparing the results of Schemes 1 and 2 (without outlier rejection rule) to those of Schemes 3–5 (with outlier rejection rule) shows that when the contamination is small (say
e
r2%), Schemes 1 and 2 still possess satisfactory detection rates. However, when the training dataset is highly contaminated, the outlier rejection procedure can enhance the detection rate. To compare the SD and AO based rejection rule, even though Scheme 3 (SD with I2monitoring statistic) is comparable to Scheme 4 (AOwith I2 monitoring statistic) in terms of detection rates, the SD
rejection rule discovers less outliers than AO. Further, comparing the detection rates between Schemes 4 and 5 andTable 1presents that the AO-based monitoring statistic possesses performance superior to that of the I2-based monitoring statistic. Thus, a
AOnew¼max v A H
½ ^SnewvT-medð ^SrobustvTÞ
ðc2ðvÞ-medð ^SrobustvTÞÞI½ ^SnewvT4medð ^SrobustvTÞ þ ðmedð ^SrobustvTÞ-c1ðvÞÞI½ ^SnewvTomedð ^SrobustvTÞ
rectangular measure is more suitable than the elliptical measure for describing ICA components.
4.2. Tennessee Eastman process
Several previous studies such asGe and Song (2007),Lee et al. (2007, 2004b), and Ku et al. (1995) have used the Tennessee Eastman (TE) process as the experimental example for monitoring multivariate processes. The TE process is schematically presented inFig. 4, which is taken fromDowns and Vogel (1993). Five major units are contained in the process: an exothermic two-phase reactor, a condenser, a recycle compressor, a flash separator and a reboiler stripper. The TE process produces two products (G and H) and one by-product F from four reactants (A, C, D and E), according to the following reactions:
A + C + D-G Product 1 A + C + E-H Product 2
A + E-F By-product
3D-2F By-product
Readers may refer to the book of Chiang et al. (2001) for a detailed description of this process. In this current study, the same simulation data generated by Chiang et al. (2001)
are applied, which can be downloaded from http://brahms.scs. uiuc.edu.
Table 2presents the 33 monitored process variables, namely 22 process measurements and 11 manipulated variables. The 21 process faults are presented inTable 3. The Fault 0 was generated with no faults, and a total of 500 observations are used as the training dataset. The testing dataset contains 960 observations, and all 21 faults are introduced at observation 160. For implementing the dynamic methods (i.e., DPCAðT2Þ, DICAðI2Þ,
DICA(AO)), two time-lagged variables for each monitored variable are added. Similar to the work by Lee et al. (2004b), nine components are selected for implementing static methods (i.e., PCAðT2Þ, ICAðI2Þ, ICA(AO)) and 22 components are extracted for
implementing dynamic methods. Note that the original data matrix is normalized before implementing static methods and the augmented data matrix is normalized before conducting dynamic methods. Furthermore, there are total eight outliers (observation 195, 207,224, 304, 433, 435, 446 and 488) that were omitted from the training data before conducting each monitoring scheme. For fair comparison, the 99% control limit for each process monitoring scheme is determined by KDE from Eq. (8).

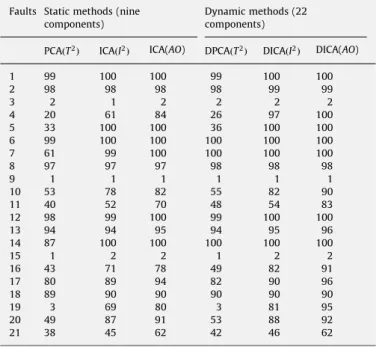

The detection rates for all 21 faults under several monitoring methods are computed and tabulated inTable 4. Not all methods detected Faults 3, 9 and 15 well, since these faults are quite small and had almost no effect on the overall process (Lee et al., 2004b). On the contrary, all methods produced high detection rates for Faults 1, 2, 6, 8, 12, 13, 14 and 18.
Table 1
Comparison results in terms of detection rates (%). Contamination on fraction (e) Number of outliers added Without outlier rejection
With outlier rejection
SD-based rejection rule AO-based rejection rule Scheme 1 Scheme 2 Scheme 3 Number of omitted outliers Scheme 4 Scheme 5 Number of omitted outliers 0% 0 96 99 99 0 99 99 0 1% 5 94 99 99 1 99 99 2 2% 10 71 98 99 5 99 99 6 3% 15 46 74 81 5 83 99 11 4% 20 37 56 69 6 71 97 12 5% 25 30 47 61 6 61 88 15
From Table 4 it can be seen that the ICA-based monitoring methods (ICAðI2Þ, ICA(AO), DICAðI2Þand DICA(AO)) outperformed
PCA-based monitoring methods (PCAðT2Þ, DPCAðT2Þ) for most fault
modes. This indicates that ICA can detect non-Gaussian multi-variate processes more efficiently than PCA.Fig. 5compares the monitoring results for Fault 5 by using PCAðT2Þand ICAðI2Þ. Fault 5
is the step where there is a change in the condenser cooling water inlet temperature. The increased temperature will also cause a rise in the flow rate of the outlet stream from the condenser to the separator. As shown in Fig. 5, PCAðT2Þ can initially detect this
approximately at observation 160. However, it cannot detect the fault mode after observation 350.
Overall, the dynamic methods possess better detection rates than static methods, since the dynamic methods take process autocorrelation into account. Furthermore, the detection rates by using the rectangular monitoring statistic (AO) for ICA can outperform the elliptical based monitoring statistic ðI2Þ. For
example, DICA(AO) produces better performance than DICAðI2Þ
for Faults 10, 11, 16, 17 and 19.Fig. 6illustrates the monitoring results for Fault 10 by using DICAðI2Þand DICA(AO). FromFig. 6,
both methods generate no false alarms, but DICAðI2Þ produces
more points that fall within the control limit after observation 160 as compared to DICA(AO). In summary, the above results indicate that DICA(AO) can more efficiently monitor the process than all the other methods. Therefore it can be concluded that the proposed dynamic ICA approach can provide operators more correct information for judging the process status.
Table 2
Monitored process variables.
No. Process measurements No. Manipulated variables
1 A feed (stream 1) 23 D feed flow (stream 2)
2 D feed (stream 2) 24 E feed flow (stream 3)
3 E feed (stream 3) 25 A feed flow (stream 1)
4 A and C feed (stream 4) 26 Total feed flow valve (stream 4)
5 Recycle flow (stream 8) 27 Compressor recycle valve
6 Reactor feed rate (stream 6) 28 Purge valve (stream 9)
7 Reactor pressure 29 Separator pot liquid flow (stream 10)
8 Reactor level 30 Stripper liquid product flow (stream 11)
9 Reactor temperature 31 Stripper steam valve
10 Purge rate (stream 9) 32 Reactor cooling water valve
11 Product sep temp 33 Condenser cooling water flow
12 Product sep level
13 Prod sep pressure
14 Prod sep underflow (stream 10)
15 Stripper level
16 Stripper pressure
17 Stripper underflow (stream 11)
18 Stripper temperature
19 Stripper steam flow
20 Compressor work
21 Reactor cooling water outlet temp
22 Separator cooling water outlet temp
Table 3 Process faults. Fault no. State Disturbance 0 No fault No
1 A/C feed ratio, B composition constant (stream 4)
Step 2 B composition, A/C ratio constant (stream
4)
Step
3 D feed temperature (stream 2) Step
4 Reactor cooling water inlet temperature Step 5 Condenser cooling water inlet
temperature
Step
6 A feed loss (stream 1) Step
7 C header pressure loss-reduced availability (stream 4)
Step
8 A, B, C feed composition (stream 4) Random variation
9 D feed temperature (stream 2) Random variation
10 C feed temperature (stream 4) Random variation
11 Reactor cooling water inlet temperature Random variation 12 Condenser cooling water inlet
temperature
Random variation
13 Reaction kinetics Slow drift
14 Reactor cooling water valve Sticking
15 Condenser cooling water valve Sticking
16 Unknown Unknown
17 Unknown Unknown
18 Unknown Unknown
19 Unknown Unknown
20 Unknown Unknown
21 Valve position constant (stream 4) Constant position
Table 4
Detection rates (%) of TE process. Faults Static methods (nine
components)
Dynamic methods (22 components)
PCAðT2Þ ICAðI2Þ ICA(AO) DPCAðT2Þ DICAðI2Þ DICA(AO)
1 99 100 100 99 100 100 2 98 98 98 98 99 99 3 2 1 2 2 2 2 4 20 61 84 26 97 100 5 33 100 100 36 100 100 6 99 100 100 100 100 100 7 61 99 100 100 100 100 8 97 97 97 98 98 98 9 1 1 1 1 1 1 10 53 78 82 55 82 90 11 40 52 70 48 54 83 12 98 99 100 99 100 100 13 94 94 95 94 95 96 14 87 100 100 100 100 100 15 1 2 2 1 2 2 16 43 71 78 49 82 91 17 80 89 94 82 90 96 18 89 90 90 90 90 90 19 3 69 80 3 81 95 20 49 87 91 53 88 92 21 38 45 62 42 46 62
4.3. A thermal power plant case
4.3.1. Case description
The power company studied herein possesses eight thermal power plants. More than 70% of the power is generated from these thermal power plants (Chien, Chen, Lo, & Lin, 2007). Thus, immediate fault detection for its equipment is an important issue.Fig. 7shows the thermal power plant layout. Generally, the equipment in a thermal power plant consists of four major parts: the steam generator, the steam turbine generator, the electrical driven generator, and the monitoring alarm system.
1. The steam generator: The steam-generating boiler aims to produce high pressure steam required for the steam turbine that drives the electrical generator. The generator includes a boiler, water feeding system, fuel system, SCR, air heater, EP, FGD, etc.
2. The steam turbine generator: The steam turbine generator is used to transform the thermal energy into mechanical energy. The generator includes the turbine and the condensed system. It is the major piece of equipment at a thermal power plant. 3. The electrical driven generator: The electrical driven generator
transforms the mechanical energy into electrical energy. The
0 100 200 300 400 500 600 700 800 900 1000 0 200 400 600 800 1000 1200 1400 0 100 200 300 400 500 600 700 800 900 1000 0 0.2 0.4 0.6 0.81 1.2 1.4 1.6 1.8 2 x 10 4 I2
Fig. 5. Monitoring results of Fault 5: (a) PCAðT2Þand (b) ICAðI2Þ.
0 100 200 300 400 500 600 700 800 900 1000 0 500 1000 1500 2000 2500 3000 0 100 200 300 400 500 600 700 800 900 1000 0 5 10 15 20 25 AO
generator includes the electrical generator, exciter, and transformer, etc.
4. The monitoring and alarm system: This system is used to monitor the above generators, and to sound alarms if any abnormal event occurs.
Among these four systems, the steam turbine generator is the main equipment module in the thermal power plant. The key monitoring parameters of steam turbine generation include temperature and pressure of the primary steam, temperature and pressure of the reheated steam, vibration of the steam turbine generator, and rotation speed of the turbine blade. Table 5
summarizes the causes of abnormal changes in monitoring parameters that may lead to failures in steam turbine generation.
4.3.2. Implementation
The case comes from a thermal power plant which owns four 500-MW oil/gas fired units. A total of 10,960 observations were collected by the real-time monitoring system, with 29 variables monitored, which are listed in Table 6. The normality test (by using the Shapiro-Wilk statistic) for each variable is tabulated in
Table 7. It indicates that all 29 variables depart from the assumption of a normal distribution. X6, X12, X18 and X24 are randomly selected to plot the autocorrelation function as shown inFig. 8. Clearly, observations at one time are not independent over time due to the high autocorrelation in the process.
The electric power loads in the 10,960 observations are exhibited inFig. 9. From this figure, obviously, two faults can be located. The first type of fault can be found at observations 7,098– 7,675 and 10,702–10,935, in which the negative load is generated, and this abnormal situation is named Fault 1: low load. Another
type of fault appears at the surrounds of peaks inFig. 9. The effect of a high power load may rapidly increase the pressure and temperature of equipment which may cause an increase in air and water pollutions. Thus, it is also necessary to detect any high load situations, and this type of fault is named as Fault 2: overload. Analysis based on the data of electric power loading is ineffective since the faults may have occurred before detection. Hence, the proposed process monitoring approach will be applied for detecting faults by using these 29 variables.
The first 4,000 observations were used as the dataset of off-line training. The rest of the observations are used for on-line process monitoring. Six components of PCAðT2Þand ICAðI2Þare extracted
for analysis. In the proposed method (DICA(AO)), two-lagged variables for each measurement are added and 10 components are extracted. The original data matrix is normalized before
imple-Fig. 7. Layout of thermal power plant (http://www.taipower.com.tw/).
Table 5
Abnormal parameters vs. failure modes.
Monitored parameters Parameter
variation
Failure modes
Pressure and temperature of primary steam and reheated steam
Abnormal increase
Failure in inlet steam of turbine Pressure and temperature of primary
steam and reheated steam
Abnormal decrease Erosion of turbine blade Vibration Abnormal increase Failure in bearing of turbine
Rotation speed Over speed Failure in blade of
turbine
Table 6
Monitored variables.
Variable no. Variable code Variable name
X1 M4471 Vibration X2 M4499 Velocity X3 P4111 Stress X4 P4113 Stress X5 P4115 Stress X6 P4120 Stress X7 P4129 Stress X8 P4132 Stress X9 P4144 Stress X10 P4145 Stress X11 P4151 Stress X12 T4107 Temperature X13 T4108 Temperature X14 T4109 Temperature X15 T4111 Temperature X16 T4113 Temperature X17 T4114 Temperature X18 T4115 Temperature X19 T4122 Temperature X20 T4129 Temperature X21 T4132 Temperature X22 T4144 Temperature X23 T4151 Temperature X24 T4470 Temperature X25 T4484 Temperature X26 T4485 Temperature X27 T4486 Temperature X28 T4487 Temperature X29 T4488 Temperature
menting PCA and ICA, whereas the augmented data matrix is normalized before implementing DICA. Furthermore, there are total 174 outliers that were omitted from the training data before implementing each monitoring method. In order to make a fair
comparison, the KDE 99% control limit is determined for each method.
Fig. 10 shows the monitoring results of PCAðT2Þ, ICAðI2Þ
and DICA(AO). As shown in Fig. 10, PCAðT2Þ, ICAðI2Þ and
DICA(AO) can detect Fault 1: low load well. However, Fault 2 (overload) can only be discovered by ICAðI2Þ and DICA(AO).
Therefore, the ICA-based monitoring methods can efficiently provide information for notifying operators to reduce the rotation speed of steam turbines in order to decrease the pressure and temperature of equipment or to perform maintenance to equipment. The detection rate for ICAðI2Þ is
about 97% and 99% for DICA(AO). Thus, the proposed method possesses a slight superiority.
5. Conclusion
In this study, a novel dynamic process monitoring scheme for ICA has been developed and presented. The advantage of this proposed method takes the process dynamic into con-sideration. Further, the proposed AO outlier rejection procedure has been shown to eliminate outliers before implementing ICA. Additionally, a rectangular type measure, AO, was used as the monitoring statistic. Through investigating a five-variable simulation example, the rejection procedure was seen to be more efficient when the training dataset was contaminated. The TE process demonstrated that the proposed monitoring method possessed superior performance for most faults in comparison to other alternatives. Finally, a real case of a thermal power plant showed that the proposed method can correctly detect fault types when compared to PCA.
The proposed method can be extended to other ICA algorithms, such as kernel ICA, multiway ICA and so forth. Determining the number of lags (l) is also an important issue worthy of further
Table 7
Normality test for variables.
Variable no. Shapiro-Wilk statistics p-Value
X1 0.2276 o0.01 X2 0.5302 o0.01 X3 0.2036 o0.01 X4 0.1776 o0.01 X5 0.1839 o0.01 X6 0.1999 o0.01 X7 0.1767 o0.01 X8 0.1519 o0.01 X9 0.1621 o0.01 X10 0.1718 o0.01 X11 0.2809 o0.01 X12 0.4867 o0.01 X13 0.3997 o0.01 X14 0.4310 o0.01 X15 0.4485 o0.01 X16 0.5020 o0.01 X17 0.5020 o0.01 X18 0.4922 o0.01 X19 0.3572 o0.01 X20 0.3992 o0.01 X21 0.4157 o0.01 X22 0.4640 o0.01 X23 0.3971 o0.01 X24 0.3393 o0.01 X25 0.5065 o0.01 X26 0.5038 o0.01 X27 0.5051 o0.01 X28 0.4948 o0.01 X29 0.3862 o0.01
investigation. Last but not least, reduction in computational time of AO is an additional benefit.
Acknowledgment
This work was supported in part by National Science Council of Taiwan (Grant no. NSC 98-2410-H-324-006-MY2).
Appendix A
The adjusted outlyingness (AO) is defined as
AOi¼max v A H
½xi0v-medðxj0vÞ
ðc2ðvÞ-medðxj0vÞÞI½xi0v 4 medðxj0vÞ þ ðmedðxj0vÞ-c1ðvÞÞI½xi0vomedðxj0vÞ
ð14Þ where x represents the observed data vector, med denotes median operator and v is the projection direction. The bound of c1and c2
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 -100 0 100 200 300 400 500 600

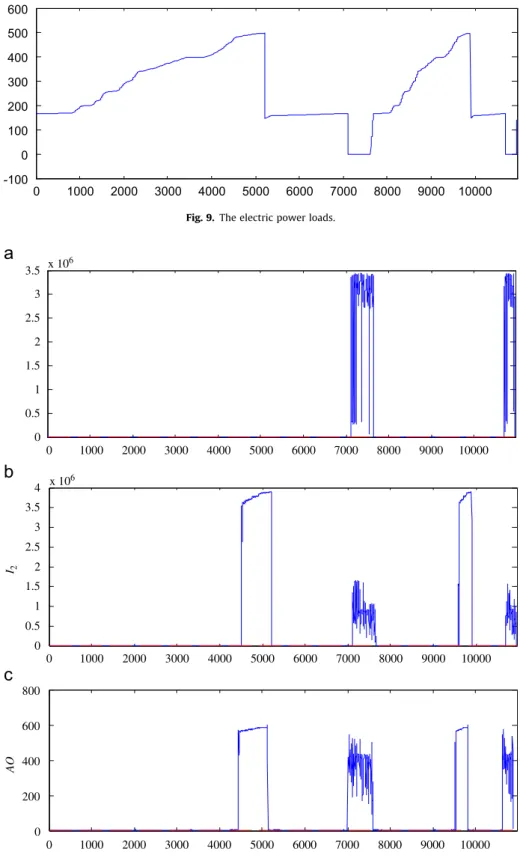

Fig. 9. The electric power loads.
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0 0.5 1 1.5 2 2.5 3 3.5 x 10 6 0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0 0.5 1 1.5 2 2.5 3 3.5 4 x 10 6 0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0 200 400 600 800 I2 AO
can be obtained by
½c1;c2 ¼ ½Q1-1:5e-4MCIQR; Q3þ1:5e3MCIQR if MC 40
½c1;c2 ¼ ½Q1-1:5e-3MCIQR; Q3þ1:5e4MCIQR if MCo0 ð15Þ
where Q1and Q3are the first and third quartiles, respectively, of
the projected data xi0v, and IQR ¼ Q3-Q1. The MC means medcouple
(Brys, Hubert, and Strufy, 2004) and is a robust measure of skewness which is given as
MCðg1; . . . ; gnÞ ¼med i;j
ðgj-medkgkÞ-ðgi-medkgkÞ
gj-gi
ð16Þ where i and j satisfy girmedkðgkÞrgjand giagj. To implement
the AO measure, readers may download the software of LIBRA Matlab toolbox fromhttp://www.wis.kuleuven.ac.be/stat/robust. html, and the user guide can be obtained from Verboven and Hubert (2005).
References
Available at: /http://www.taipower.com.tw/S.
Brys, G., Hubert, M., & Rousseeuw, P. J. (2005). A robustification of independent component analysis. Journal of Chemometrics, 19, 364–375.
Brys, G., Hubert, M., & Strufy, A. (2004). A robust measure of skewness. Journal of Computational and Graphical Statistics, 13, 996–1017.
Chen, Q., Kruger, U., & Leung, A. T.Y. (2004). Regularised kernel density estimation for clustered process data. Control Engineering Practice, 12, 267–274. Chen, Q., Wynne, R. J., Goulding, P., & Sandoz, D. (2000). The application of
principal component analysis and kernel density estimation to enhance process monitoring. Control Engineering Practice, 8, 531–543.
Chiang, L. H., Russell, E. L., & Braatz, R. D. (2001). Fault detection and diagnosis in industrial systems. London: Springer.
Chien, C. F., Chen, W. C., Lo, F. Y., & Lin, Y. C. (2007). A case study to evaluate the productivity changes of the thermal power plants of the Taiwan power company. IEEE Transactions on Energy Conversion, 22, 680–688.
Donoho, D. L. (1982). Breakdown properties of multivariate location estimators. Ph.D. qualifying paper, Harvard University.
Downs, J. J., & Vogel, E. F. (1993). A plant-wide industrial process control problem. Computers and Chemical Engineering, 17(3), 245–255.
Ge, Z., & Song, Z. (2007). Process monitoring based on independent component analysis—principal component analysis (ICA-PCA) and similarity factors. Industrial and Engineering Chemistry Research, 46, 2054–2063.
Ge, Z., & Song, Z. (2008). Online monitoring of nonlinear multiple mode processes based on adaptive local model approach. Control Engineering Practice, 16, 1427–1437. Gonza´lez, I., & Sa´nchez, S. (2007). Principal alarms in multivariate statistical
process control using independent component analysis. International Journal of Production Research, 46(22), 6345–6366.
Hubert, M., & Van der Veeken, S. (2008). Outlier detection for skewed data. Journal of Chemometrics, 22, 235–246.
Hyv ¨arinen, A. (1999). Fast and robust fixed-point algorithms for independent analysis. IEEE Transactions on Neural Networks, 10, 626–634.
Kano, M., Tanaka, S., Hasebe, S., Hashimoto, I., & Ohno, H. (2003). Monitoring independent components for fault detection. A.I.Ch.E. Journal, 49(4), 969–976. Ku, W., Storer, R. H., & Georgakis, C. (1995). Disturbance detection and isolation by dynamic principal component analysis. Chemometrics and Intelligent Laboratory Systems, 30, 179–196.
Lee, J. M., Qin, S. J., & Lee, I. B. (2006). Fault detection and diagnosis based on modified independent component analysis. A.I.Ch.E. Journal, 52(10), 3501–3514. Lee, J. M., Qin, S. J., & Lee, I. B. (2007). Fault detection of non-linear process using kernel independent component analysis. The Canadian Journal of Chemical Engineering, 85, 526–536.
Lee, J. M., Yoo, C. K., & Lee, I. B. (2004a). Statistical process monitoring with independent component analysis. Journal of Process Control, 14, 467–485. Lee, J. M., Yoo, C. K., & Lee, I. B. (2004b). Statistical monitoring of dynamic
processes based on dynamic independent component analysis. Chemical Engineering Science, 59, 2995–3006.
Lu, C. J., Wu, C. M., Keng, C. J., & Chiu, C. C. (2008). Integrated application of SPC/ EPC/ICA and neural networks. International Journal of Production Research, 46(4), 873–893.
Martin, E. B., & Morris, A. J. (1996). Non-parametric confidence bounds for process performance monitoring charts. Journal of Process Control, 6(6), 349–358. Silverman, B. W. (1986). Density Estimation for Statistics and Data Analysis. UK:
Chapman & Hall.
Stahel, W. A. (1981). Robust estimation: Infinitisimal optimality and covariance matrix estimators. Ph.D. thesis, ETH Z ¨urich.
Verboven, S., & Hubert, M. (2005). LIBRA: A MATLAB library for robust analysis. Chemometrics and Intelligent Laboratory Systems, 75, 127–136.
Xia, C., & Howell, J. (2004). Isolating multiple sources of plant-wide oscillations via independent component analysis. Control Engineering Practice, 13, 1027–1035. Yoo, C. K., Lee, J. M., Vanrolleghem, P. A., & Lee, I. B. (2004). On-line monitoring of batch processes using multiway independent component analysis. Chemo-metrics and Intelligent Laboratory Systems, 71(2), 151–163.
Zhu, K., Hong, G. S., Wong, Y. S., & Wang, W. (2008). Cutting force denoising in micro-milling tool condition monitoring. International Journal of Production Research, 46(16), 4391–4408.
