Interfacial reaction issues for lead-free electronic solders

Abstract The interfacial reactions between Sn-based solders and two common substrate materials, Cu and Ni, are the focuses of this paper. The reactions between Sn-based solders and Cu have been studied for several decades, and currently there are still many un-resolved issues. The reactions between Sn-based solders and Ni are equally challenging. Recent studies further pointed out that Cu and Ni interacted strongly when they were both present in the same solder joint. While this cross-interaction introduces complications, it offers oppor-tunities for designing better solder joints. In this study, the Ni effect on the reactions between solders and Cu is discussed first. The presence of Ni can in fact reduce the growth rate of Cu3Sn. Excessive Cu3Sn growth can lead to the formation of Kirkendall voids, which is a leading factor responsible for poor drop test perfor-mance. The Cu effect on the reactions between solders and Ni is then covered in detail. The knowledge gained from the Cu and Ni effects is applied to explain the recently discovered intermetallic massive spalling, a process that can severely weaken a solder joint. It is pointed out that the massive spalling was caused by the

shifting of the equilibrium phase as more and more Cu was extracted out of the solder by the growing inter-metallic. Lastly, the problems and opportunities brought on by the cross-interaction of Cu and Ni across a solder joint is presented.

1 Introduction

Soldering has been the key assembly and intercon-nection technology for electronic products since the dawn of the electronic age, and will remain so in the foreseeable future. Solder joints have long been rec-ognized as the weak links in electronic products, and the reliability of each individual joint can control the overall lifespan of an electronic product. Soldering by definition involves the chemical reaction(s) between the solder and the two surfaces to be joined together [1], and consequently the importance of understanding the chemical reactions between solders and bonding surfaces cannot be overemphasized.

Figure 1is a schematic illustration showing the key elements of the solder joints in an up-to-date electronic package. Here, the chip is connected to a ball grid array (BGA) substrate through an array of solder joints (flip-chip joints) with a diameter of around 90 lm. The BGA substrate is then connected to the printed circuit board (PCB) through another array of solder joints (BGA joints) that are one order of mag-nitude larger in diameter. This one order of magmag-nitude difference in joint diameter actually translates into a 1,000 times difference in solder volume. Since the heat transfer during soldering is not a weak function of distance (and thus volume), the thermal histories of the flip-chip joints and the BGA joints could be very C. E. Ho

Department of Chemical Engineering & Materials Science, Michigan State University, East Lansing, MI 48824, USA e-mail: [email protected]

S. C. Yang

Department of Chemical & Materials Engineering, National Central University, 320 Jhongli City, Taiwan

e-mail: [email protected] C. R. Kao (&)

Department of Materials Science & Engineering, National Taiwan University, 106 Taipei, Taiwan

e-mail: [email protected] DOI 10.1007/s10854-006-9031-5

Interfacial reaction issues for lead-free electronic solders

Published online: 22 September 2006

different. This difference in thermal history could in turn result in different extents of the chemical reaction, and possibly different solidification microstructures if both types of joints become molten during soldering. This effect is just one of many reasons why electronic soldering is becoming an ever more challenging technology.

Those regions on the surface of a chip that are to be in direct contact with the solders are the so-called un-der bump metallurgy (UBM) regions. Copper is the most popular choice for the surface layer of the UBM, mainly due to its good wetting property with solders [2,

3]. In Fig.1, Cu is selected for illustration as the sur-face layer of the UBM, and the Ni layer beneath serves as the diffusion barrier layer. During assembly or normal service of the device, the Cu layer will be consumed completely, exposing the Ni layer to the solder. Those regions on the BGA and PCB substrates that are to be in contact with solders are known as the soldering pads, and the base metal of the soldering pads is always Cu with a few rare exceptions. The Cu base metal on the soldering pads of the BGA and PCB substrates has to be coated with a surface finish (or final finish) to preserve the wetting property during the storage period before assembly. Popular surface fin-ishes include Au/Ni, immersion Sn, immersion Ag, and organic surface preservative (OSP). In the case of Au/ Ni, the Au layer will be dissolved into the solder rapidly during soldering [4–15], exposing the Ni layer below. In the cases of the other three surface finishes, Sn, Ag, or OSP will be dissolved into the solder (immersion Sn and immersion Ag) or be displaced from the interface (OSP) during soldering, leaving the

Cu layer exposed to the solder. In Fig. 1, Au/Ni is used as the surface finish for the BGA substrate, and OSP for the PCB substrate. Summarizing all the popular material choices for the UBM and the surface finishes, one can expect that the most common material sequences across a post-assembly solder joints are, Cu/ solder/Cu, Cu/solder/Ni, and Ni/solder/Ni. The Ni layer here can be deposited by electroplating, electroless plating, or sputtering. In the electroless process, a few atomic percents of P are often co-deposited with Ni, and the Ni layer is customarily labeled as Ni(P). In the sputtering process, V is often added to the sputtering target to ease off the Ni magnetic effect to enhance the deposition rate, resulting in the co-deposition of one or two atomic percents of V into the Ni layer. This type of Ni layer is customarily labeled as Ni(V), or simply NiV. The presence of P or V in the Ni layer do complicate the chemical interactions between Ni and solders [16–38], but these reactions still share enough common features to allow a discussion of them together in this paper.

Several good review articles for electronic solders have been published in the past few years [3,11,29,39–

44]. The intention here is not to duplicate their efforts. The focus of this paper is to review and to present original data on three key issues related to the inter-facial reactions between common lead-free solders and Ni, Cu, or Ni + Cu. The first issue is about the effect of Ni on the interfacial reactions between solders and Cu (Sect. 2). Recently, the formation of Kirkendall voids during the solders/Cu reactions had been observed. These Kirkendall voids have been attributed to being the root cause for joint fracture during the drop test.

Chip ~90 µm UBM Pad PCB ~760 µm Pad Pad BGA substrate Pad Pad Cu Ni Cu

BGA joint

Fig. 1 Schematic drawing showing two types of solder joints, flip-chip joints and BGA joints, used in microelectronic packaging

The addition of Ni into solders has a strong effect on the Kirkendall voids in the solders/Cu reactions. The second issue is related to the effect of the Cu concen-tration in solders on the reactions between solders and Ni (Sect.3). The problem caused by the limited supply of Cu, known as the solder volume effect, will also be discussed. The third issue is about the cross-interaction between Cu and Ni in Cu/solder/Ni sandwich joints (Sect.4).

2 Effects of Ni on the reactions between Sn-based solders and Cu

Among all the binary systems, the Cu–Sn is the most important one in many respects. Historically, Cu–Sn alloys have been used as bronze for 6,000 years, and soldering based on the Cu–Sn reaction for Jewellery making has a history of over 4,000 years. Today, Cu–Sn reaction is relied on for electronic interconnections that involve electronic products with a total commer-cial value second to none. It is no wonder that the Cu– Sn reaction is probably the most extensively studied one in binary metallic systems. Nevertheless, even for such an important system with such a long history, there are still many un-resolved problems. The brittle fracture induced by the Kirkendall voids is one such problem that recently is receiving significant attention. 2.1 Kirkendall voids formation in solders/Cu

reactions

It is well known that at temperatures greater than 50~60C the reactions between Cu and Sn-based sol-ders (pure Sn, eutectic PbSn, and SnAgCu, with the exception of SnZn solders) will produce two reaction products, Cu6Sn5 and Cu3Sn. At temperatures lower than 50~ 60C, only Cu6Sn5is detected at the interface [29]. The Kirkendall voids tend to form with Cu3Sn, and the formation of Cu6Sn5alone does not induce the formation of such voids [29, 45–51]. Zeng et al. [50] reported that a large number of Kirkendall voids formed when electroplated Cu was reacted with eutectic PbSn solder at 100–150C. As shown in Fig.2(a), these voids located not only at the Cu/Cu3Sn interface but also within the Cu3Sn layer. The forma-tion of the Kirkendall voids is not limited to the eutectic PbSn solder. The Kirkendall voids were also reported to form when electroplated Cu was reacted with SnAgCu solder [46], as shown in Fig.2(b), or pure Sn [29]. Without question, the rapid diffusion of Cu out of the Cu3Sn layer was the major contributing factor for the formation of these voids. It had been pointed

out that both Cu and Sn were mobile within Cu3Sn, although the Cu flux was somewhat greater than that of the Sn flux (three times greater at 200C) [52].

The Kirkendall voids accompanying the Cu3Sn growth raise serious reliability concerns because excessive void formation increases the potential for brittle interfacial fracture [45–47, 50]. The voids in Fig.2(b) had reached such a high population that they almost aggregated into continuous regions. Such a reliability threat is especially serious at high tempera-ture because Cu3Sn only grows at temperatures greater than 50~60C. In brief, there is a need for ways to reduce the Cu3Sn growth so that excessive Kirkendall void formation can be avoided.

2.2 Ni addition to solders

It had been shown that Ni addition to Sn3.5Ag (3.5 wt.% Ag, balance Sn) in amounts as minute as 0.1 wt.% was able to substantially hinder the Cu3Sn growth during soldering [53] as well as during the sequential solid-state aging [54–57]. As shown in Fig.3,

Kirkendall voids _Cu Eutectic PbSn (a) Cu₃Sn Kirkendall voids Cu SnAgCu (b)

Fig. 2 (a) Secondary electron image showing the Kirkendall voids located within the Cu3Sn layer in the reaction between

eutectic PbSn and Cu at 125C for 40 days [50]. (b) Secondary electron image showing the continuously aggregated Kirkendall voids in the reaction between SnAgCu and Cu at 125C for 40 days [46]

the Cu3Sn thickness remained very thin even after aging at 150C for 1,000 h [54]. As the growth of Cu3Sn is the culprit for the formation of the Kirkendall voids, the addition of Ni can therefore reduce the amount of the Kirkendall voids. In fact, recently it had been shown that the interfacial strength from drop test indeed increase for solders joints with just a small amount of Ni addition (< 1 wt.%) [56].

Figure3 also shows that Ni addition increased the amount of Cu6Sn5 at the interface compared to that without Ni addition. In addition, the Cu6Sn5phase now possessed a small amount of Ni, and became (Cu1-x Nix)6Sn5. A close examination of Fig.3(b) reveals that there were two distinct (Cu1-xNix)6Sn5 regions [54]. The inner region was a dense layer of (Cu 0.98-Ni0.02)6Sn5, and the outer region was actually

composed of an aggregate of (Cu0.89Ni0.11)6Sn5 parti-cles. The compositions noted were carefully deter-mined by using the electron probe microanalysis (EPMA). The space between these (Cu0.89Ni0.11)6Sn5 particles was occupied by the solder. It was proposed that the inner region formed during the solid-state aging period, and the outer region was the remains of the (Cu1-xNix)6Sn5 formed during the reflow period. This proposition was supported by the micrographs for the as-reflow samples shown in Fig. 4 [54]. It can be seen that Ni addition induced a thicker layer of (Cu1-xNix)6Sn5 during the reflow stage. During the solid-state aging, the region of the aggregate near the Cu side was converted into the dense (Cu1-xNix)6Sn5 layer, and what was left of the aggregate showed up in Fig.3(b). The outer (Cu1-xNix)6Sn5region in Fig.4(b) apparently served as a short cut for Sn diffusion, that enhanced the Cu6Sn5growth but inhibited the growth of Cu3Sn. Consequently, the un-desirable growth of Cu3Sn was hindered. Another possibility for the shrinkage of Cu3Sn could be attributed to the substi-tution of Ni into the Cu sublattice of Cu–Sn com-pound(s), to reduce the interdiffusion coefficient [56]. The observation that Ni addition could induce a larger amount of (Cu1-xNix)6Sn5during reflow deserves more attention. It is proposed that this phenomenon is closely related to the Cu metastable solubility and the Cu equilibrium solubility in the solder. Here, these two types of solubility will be briefly discussed first. During the reaction of Cu with molten solders, it is often observed that in some regions bare Cu was in direct contact with the molten solders without being covered

Cu

Cu

Sn

4

µm

Cu

(Cu

Ni

)

Sn

Cu

Sn

10

µm

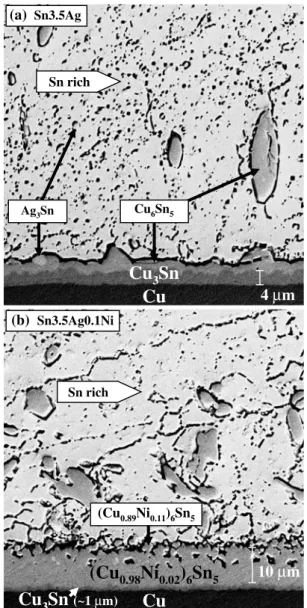

Fig. 3 Backscatter electron micrographs for the Sn3.5Ag/Cu interface (a) and the Sn3.5Ag0.1Ni/Cu interface (b) that had been aged at 150C for 1,000 h. [54]

Cu Sn rich Cu6Sn5 10 µm Ag3Sn (a) Sn3.5Ag Cu 10 µm (b) Sn3.5Ag0.1Ni (Cu_1-xNi_x)₆Sn₅

Fig. 4 Backscatter electron micrographs for the Sn3.5Ag/Cu interface (a) and the Sn3.5Ag0.1Ni/Cu interface (b) after reflow soldering at 240C for 2 min. [54]

by Cu6Sn5or Cu3Sn. Under such circumstance, Cu is in a local, metastable equilibrium with solders, and a metastable solubility of Cu in solders will eventually be established. According to thermodynamic arguments, this metastable solubility is always higher than the stable solubility of Cu in solders at the same temperature. As had been pointed out by Laurial et al. [29], it is the metastable solubility that determines the dissolution rate of Cu into molten solders because during dissolution bare Cu is in direct contact with the solder. The metastable solubility cannot be determined experimentally, and has to be calculated by approaches such as the CALPHAD method [29]. As for the equilibrium solubility, some experimental results are available. Shown in Fig.5is the Sn-rich corner of the Cu–Ni–Sn isotherm at 240C. This isotherm is drawn based on the previously published isotherms [19, 29,

41] and the solubility data from the Cu–Sn [58,65] and Ni–Sn [59] binary systems. This isotherm shows that the addition of Ni into molten Sn can substantially decrease the Cu solubility in Sn. While the equilibrium solubility of Cu in Sn is sensitive to the presence of Ni, the metastable solubility of Cu in Sn must be less sensitive to minor Ni additions from the arguments of the common tangent construction of the Gibbs free energies of the phases involved. Under the assumption that the Cu metastable solubility in Sn is indeed insensitive to the presence of Ni, one can conclude that the Cu dissolution rate into Sn is insensitive to the presence of Ni. In other words, adding Ni to Sn will not decrease the Cu dissolution flux into molten solders. Because the Cu flux entering Sn does not decrease with Ni addition and because the equilibrium Cu solubility

does decrease substantially with the Ni addition, the amount of (Cu1-xNix)6Sn5 at the interface has to in-crease as had been observed in Fig. 4.

The way Ni was introduced into the reacting system did not seem to matter as far as hindering the Cu3Sn growth was concerned. It had been reported that the growth of Cu3Sn was hindered even if Ni-alloyed Cu substrates were used. These substrates included Cu alloyed with 6–9 wt.% Ni [60] and Cu alloyed with 15 at.% Ni [29]. This fact seems to support the view that dissolution plays a very important role during li-quid/solid reaction because Ni in Cu–Ni alloys must dissolve into Sn first to function as an additive of the solders.

3 Effects of Cu on the reactions between Sn-based solders and Ni

According to the binary phase diagram [59], there are three stable intermetallic compounds, Ni3Sn, Ni3Sn2, and Ni3Sn4, in the Ni–Sn system. However, when Ni reacted with Sn at temperatures relevant to soldering, only Ni3Sn4 was observed [29,61, 62]. The other two compounds were observed only at higher tempera-tures, outside the usual operating range of soldering [29, 61, 62]. The reaction rate of Ni with solder is roughly one order of magnitude lower than that of Cu, and this is one of the reasons for Ni being a popular diffusion barrier material [3].

By using the microstructure features of the grains, it had been proposed that Ni was the dominant diffusing species in Ni3Sn and Ni3Sn2, and Sn was the dominant diffusing species in Ni3Sn4[63]. A marker experiment had been performed to verify if Sn was indeed the dominant diffusing species in Ni3Sn4[64]. In that study, a layer of 2 lm Ti film was deposited on a Ni substrate. The Ti layer was then patterned into 10 lm wide thin strips to serve as the markers. As shown in Fig.6(a), the spacing between neighboring Ti strips was 40 lm. The sample was then dipped into pure molten Sn at 250C for 10 min to produce the diffusion couple shown in Fig.6(b). The resulting diffusion couple after aging at 225C for 1,000 h is shown in Fig.6(c). From the location of the Ti markers after aging, one can conclude that Sn is indeed the dominant diffusing species in Ni3Sn4.

Although the reaction between Ni and pure Sn only produces Ni3Sn4at temperatures relevant to soldering, the reaction between Ni and Sn alloys with a small amount of Cu is very complicated (see Sect.3.1). Unfor-tunately, the common lead-free solders recommended by various national or international organizations all Cu, wt.% 0.0 0.2 0.4 Sn 0.6 0.8 1.0 1.2 1.4 1.6 L b c a L + Cu₆Sn₅ L + Cu6Sn5 + Ni3Sn4 Ni ,wt.% L + Ni₃Sn₄ 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 (240°C)

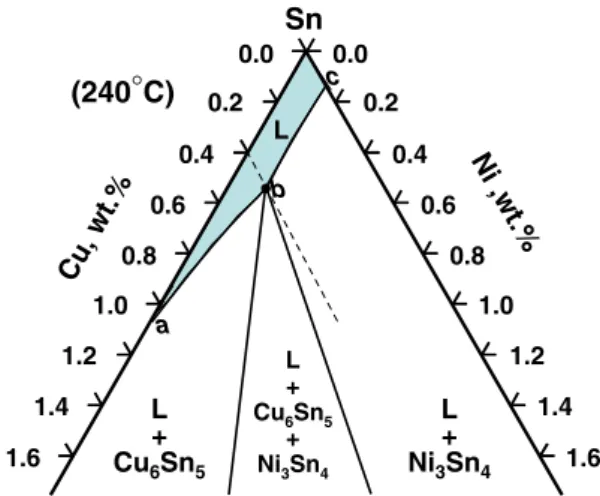

Fig. 5 Schematic drawing showing the Sn-corner of the Cu–Ni– Sn isotherm at 240C. This isotherm is drawn based on the previously published isotherms [19,29,41] and the solubility data from the Cu–Sn [58, 65] and Ni–Sn [59] binary systems

have Cu as a minor constituent (Table1), and the allowance for the concentration variation for each ele-ment is typically ± 0.2 wt.%, a customary adoption of the practice from the eutectic PbSn solder. As will be shown below, this ± 0.2 wt.% difference can change the compound formed at the interface after reflow.

3.1 Uncomplicated Cu concentration effect

During the reflow of SnCu or SnAgCu solders over those soldering pads that have the Ni, Ni(P), and Ni(V) underlayer, the reaction product(s) at the interface are

very sensitive to the Cu concentration in the solders. After the first report [73] of this Cu sensitivity a few years ago, over forty papers had been published on this subject. As summarized in Table2, the results of these studies as a whole are quite consistent, even though different reflow conditions and different Ni substrates, including Ni, Ni(P), Ni(V), or Au/Ni, had been used. As shown in Table2, when the Cu concentration was low (< 0.3 wt.%), only (Ni1-yCuy)3Sn4 formed at the interface. When the Cu concentration increased to 0.4–0.5 wt.%, both (Ni1-yCuy)3Sn4 and (Cu1-xNix)6Sn5 formed. When the Cu concentration increased above 0.5 wt.%, only (Cu1-xNix)6Sn5formed. In a few specific cases [28,86,89–91,96,104,105], where the reported results seemed to differ from the trend shown in Table 2at the first sight, the inconsistency in fact could be attributed to the so-called ‘‘solder volume effect,’’ which is to be discussed in the next section.

To exclude other factors that may obscure the dis-cussion, the reaction between a large amount of solder and a piece of thick, high purity Ni substrate will be examined first. Since the amount of solder was large, one can then assume that the solder composition remained constant during the reaction even though Cu was being extracting out of the solder to be incorpo-rated into the reaction product(s). In addition, since the Ni substrate was thick, the Ni substrate was never totally consumed. In some aspects, the system approached the limit of classical infinite/infinite diffu-sion couple. As shown in Fig.7(a), the reaction prod-uct at the interface was a continuous layer of (Ni1-y Cuy)3Sn4 when the Cu concentration was 0.2 wt.%. When the Cu concentration increased to 0.4 wt.%, discontinuous (Cu1-xNix)6Sn5 particles began to form over the (Ni1-yCuy)3Sn4 continuous layer, Fig.7(b). When the Cu concentration increased to 0.5 wt.%, both (Cu1-xNix)6Sn5and (Ni1-yCuy)3Sn4were continu-ous, Fig. 7(c). When the Cu concentration reached 0.6 wt.%, only a continuous (Cu1-xNix)6Sn5 layer was present, Fig. 7(d). The crystal structures of the prod-ucts had been verified by the X-ray diffraction (XRD) patterns shown in Fig. 8 [73, 106]. To obtain such

40 µm 10 µm 10 µm 40 µm 10 µm Ni Ni Ti Ti Ni Ti Ni (a) (b) Ti 40 µm 40 µm (c)

Ni

Sn

₄₀

_µm

Fig. 6 (a) Optical micrograph showing the plane-view of a Ni substrate that had been deposited with Ti stripes as markers. (b) Cross-sectional view of the Ni/Sn diffusion couple before aging. (c) After aging at 225C for 1,000 h. [64]

Table 1 Lead-free solders recommended by various national or international organizations

a _{SnAgCu with additive(s)} b

Under consideration

SnAgCu composition (wt.%) Recommending organizations Sn-(3.5 ± 0.3)Ag-(0.9 ± 0.2)Cu NIST (ternary eutectic) [65] Sn-(3.9 ± 0.2)Ag-(0.6 ± 0.2)Cu NEMI (N. America) [66] Sn-(3.4~ 4.1)Ag-(0.45~ 0.9)Cu Soldertec-ITRI (UK) [67]

Sn-3.8Ag-0.7Cu IDEALS (EU) [68]

Sn-3.0Ag-0.5Cu JEITA (Japan) [69]

Sn-4.0Ag-0.5Cu –

a_{Sn-2.5Ag-0.8Cu-0.5Sb AIM, CASTIN alloy [70]}

a_{Sn-3.5Ag-0.5Cu-1.0Zn NCMS [71]}

patterns, the solders had to be etched away first by using a proper etching solution, and the remaining reaction products as well as the Ni substrate were then subjected to the measurements. The amount of the discontinuous (Cu1-xNix)6Sn5particles in Fig.7(b) was too small to allow for a positive identification through XRD, but the identity of these particles was estab-lished by using the transmission electron microscopy (TEM) shown in Fig.9[106]. The discontinuous (Cu1-x Nix)6Sn5particles in Fig.7(b) and the continuous (Cu1-x Nix)6Sn5 layer in Fig.7(d) might have different for-mation mechanisms. Those (Cu1-xNix)6Sn5 grains in Fig.7(d) formed through the direct reaction of Ni and the solder, and accordingly these grains had a preferred growth direction of 0001 as shown in Fig.10[106]. This preferred growth direction had also been observed during the reaction between Ni and the eutectic PbSn solder with 0.5 wt.% Cu dopant [107]. On the other hand, those discontinuous (Cu1-xNix)6Sn5 particles in Fig.7(b) did not show any preferred orientation.

To understand this strong Cu concentration depen-dency, one needs to have the relevant phase diagram information for the Sn–Ag–Cu–Ni system. Although Ag is an important constituent controlling the solidification microstructure of the solder itself [44,93,108–112], it has been shown that Ag is inert as far as the interfacial reaction is concerned [73,75,87]. Accordingly, the Sn– Cu–Ni ternary phase diagram is sufficient for the

present purpose. The Sn–Cu–Ni isotherm had been measured by two independent groups [113,114], and the results are reasonably consistent. The 240C Sn–Cu–Ni isotherm basing on these two studies is shown in Fig. 11. The Sn-rich corner of this isotherm is shown in Fig.5. There is some evidence for the existence of a ternary compound (Ni26Cu29Sn45, atomic percent) [115]. If this compound is indeed stable, then the isotherm in Fig.11 is only a metastable isotherm [29, 41]. Never-theless, as far as soldering is concerned, the isotherm shown in Fig.11is still adequate, as results from most soldering reaction experiments were observed to follow the phase relationships shown in Fig.11.

As shown in Fig.5, the molten Sn phase (L) has a phase boundary a–b–c, which is composed of two seg-ments a–b and b–c. Along a–b, L is in equilibrium with the Cu6Sn5phase, and L is in equilibrium with Ni3Sn4 along b–c. The point b represents that L is in equilib-rium with both Cu6Sn5and Ni3Sn4. As indicated by the dash line passing through b, b has a Cu concentration of about 0.4 wt.%. In other words, when the Cu con-centration in the solder is 0.4 wt.%, this solder is in equilibrium with both Cu6Sn5 and Ni3Sn4. This explains why both these two phases form as shown in Fig.7(b). When the Cu concentration is less than 0.4 wt.%, the solder in this range is in equilibrium with only Ni3Sn4, and consequently only this phase forms as shown in Fig.7(a). When the Cu concentration is Table 2 Summary of the reported reaction products between SnAgCu solders and various Ni-bearing soldering pads after reflow Cu (wt.%) Ag (wt.%) Sn (wt.%) Base metal Intermetallic(s) References

0.0 3.5–3.9 Balance Ni and Ni(P) Ni3Sn4 [26,74–77]

Au/Ni and Au/Ni(P) Ni3Sn4 [20,22,23,25,28,31,78–85]

0.1 0 Balance Ni Ni3Sn4 [86]

0.2 0–3.9 Balance Ni and Ni(P) (Ni,Cu)3Sn4 [32,73,75,87,88]

0.3 0–3.0 Balance Ni (Ni,Cu)3Sn4 [86,89]

0.4 0–3.9 Balance Ni (Ni,Cu)3Sn4/(Cu,Ni)6Sn5 [75,87–91]

Au/Ni(P) (Ni,Cu)3Sn4/(Cu,Ni)6Sn5 [33]

0.5 1.0–4.0 Balance Ni and Ni(P) (Cu,Ni)6Sn5 [89–91]

Au/Ni and Au/Ni(P) (Cu,Ni)6Sn5 [21,25,34,82,83,85,92]

Ni and Ni(P) (Ni,Cu)3Sn4/(Cu,Ni)6Sn5 [32,75,88]

Au/Ni and Au/Ni(P) (Ni,Cu)3Sn4/(Cu,Ni)6Sn5 [21,28,81,93]

0.6 0–3.9 Balance Ni (Cu,Ni)6Sn5 [73,75,88–91]

0.7 0–3.8 Balance Ni and Ni(P) (Cu,Ni)6Sn5 [27,32,75,86,87,94,95]

Au/Ni and Au/Ni(P) (Cu,Ni)6Sn5 [19,28,30,96–101]

0.75 3.5 Balance Au/Ni and Au/Ni(P) (Cu,Ni)6Sn5 [102]

Ni and Ni(P) (Cu,Ni)6Sn5 [22,23,81,102]

0.8 0–3.9 Balance Au/Ni and Au/Ni(P) (Cu,Ni)6Sn5 [75,88]

Ni (Cu,Ni)6Sn5 [25]

0.9 0 Balance Ni (Cu,Ni)6Sn5 [86]

1.0 3.5–3.9 Balance Ni and Ni(P) (Cu,Ni)6Sn5 [32,75,87]

Au/Ni (Cu,Ni)6Sn5 [103]

1.5 0 Balance Ni (Cu,Ni)6Sn5 [86]

1.7 4.7 Balance Ni (Cu,Ni)6Sn5 [103]

3.0 0–3.9 Balance Ni (Cu,Ni)6Sn5 [75,94]

Au/Ni (Cu,Ni)6Sn5 [100]

higher than 0.4 wt.%, L is in equilibrium with only Cu6Sn5, and only this phase can be immediately next to L, as shown in Fig.7(c) and (d).

3.2 Solder volume effect during reaction with molten solders (reflow)

During reflow and the subsequent aging, Cu atoms are incorporated into the intermetallic(s) [i.e., (Cu1-x Nix)6Sn5 and (Ni1-yCuy)3Sn4] at the interface. As the intermetallic(s) grow, more Cu atoms are being con-sumed. The results presented in the previous section were for the condition that the amount of the solder was relatively large so that the supply of Cu was also

large. The average Cu concentration in the solder could consequently remain nearly constant. The ther-modynamic condition at the interface was thus static, and the formation of one compound or another was more or less dictated by the thermodynamics. For a real solder joint in array–array packages, the supply of Cu is actually very limited because the solder volume is quite small in the first place, and secondly the Cu concentration in SnAgCu solder is always less than a few atomic percents (see Table 2). The Cu concen-tration can decrease noticeably as the intermetallic(s) grow [89–91]. As the Cu concentration changes, the type of the equilibrium intermetallic at the inter-face might also change. Now the condition at the

5 µm 5 µm 5 µm 5 µm Sn Sn--richrich Ag Ag₃₃SnSn (a) Sn3.9Ag0.2Cu Ag Ag₃₃SnSn Sn Sn--richrich 5 µm (Cu (Cu_0.600.60NiNi_0.400.40))₆₆SnSn₅₅ Ag Ag₃₃SnSn (Ni0.83Cu0.17)3Sn4 (Cu (Cu_0.580.58NiNi_0.420.42))₆₆SnSn₅₅ Ag Ag₃₃SnSn Ni 5 µm 5 µm 5 µm Ni Ni Ni (b) Sn3.9Ag0.4Cu (c)Sn3.9Ag0.5Cu (d) Sn3.9Ag0.6Cu (Cu (Cu_0.580.58NiNi_0.420.42))₆₆SnSn₅₅ (Ni0.84Cu0.16)3Sn4 (Ni (Ni_0.860.86CuCu_0.140.14))₃₃SnSn₄₄ Fig. 7 Micrographs showing

the Sn3.9AgxCu/Ni interfaces after 250C soldering for 10 min. The left column is cross-sectional view, and the right column is top view. The reaction couples here approached the classical infinite/infinite diffusion couples. [73,75]

interface becomes dynamic. The volume effect must be considered as the volume of the solder determines the total available Cu. As the size of the joints shrinks, the supply of Cu becomes more limited, and the decrease in Cu concentration becomes more critical. Next, the combined effects of the limited Cu supply (solder volume effect) and the Cu concentration (Cu concentration effect) will be presented.

In the reaction between SnAgCu solder balls and Ni substrate (Fig.12), the original amount of Cu in the solder ball before reflow equals the remaining Cu in the solder plus the Cu which is incorporated into the intermetallic(s). Neglecting the Cu atoms in those intermetallic particles located inside the solder, one can obtain the following equation [89–91]:

WCu
Wo Cuffi
40 d2 pad d3 joint TIMCðwt.%Þ ð1Þ

where WCuo and WCu represent the Cu concentration (in wt.%) in SnAgCu before reflow and the remaining Cu concentration after reflow, respectively. The symbols djoint and dpad represent the diameters (in lm) of the solder ball and the pad’s opening of the substrate, respectively. The symbol TIMC repre-sents the thickness (in lm) of intermetallic compound (IMC) at the interface. The compounds (Cu1-x Nix)6Sn5 and (Ni1-yCuy)3Sn4 are the only two Cu-bearing intermetallics that can be present at the interface, and their compositions had been deter-mined by EPMA to be around (Cu0.60Ni0.40)6Sn5and (Ni0.80Cu0.20)3Sn4 for those solders with Cu within 0.4–0.6 wt.% [73, 75, 87, 89–91]. Here, those Cu in (Ni1-yCuy)3Sn4could be ignored because the thickness of this compound was thin and its Cu concentration was low (~6 wt.%). The drop of the Cu concentration according to Eq. 1 for several different ball/pad

Intensity (Arbitrary unit)

Two theta (Degree) Sn3.9Ag0.2Cu Sn3.9Ag0.4Cu Sn3.9Ag0.5Cu Sn3.9Ag0.6Cu 30 35 40 45 50 55 Ni Ni Ni Ni Ni Ni Ni Ni (Ni_1-yCu_y)₃Sn₄ (Cu1-xNix)6Sn5 Fig. 8 XRD patterns for the

reaction products in Fig.7(a)–(d). The Ni signals originated from the Ni layer beneath the intermetallic compounds [73,106]

combinations ranging from the BGA to flip-chip dimensions is plotted in Fig.13. For example, if 2 lm (Cu1-xNix)6Sn5, which is the thickness commonly seen in real solder joints, forms in the 100 lm/80 lm combination, the Cu concentration will drop by as large as 0.51 wt.%. Under such a condition, the resi-due Cu concentration in solder will be less than 0.3 wt.% for most SnAgCu solder compositions listed in Table1. If the Cu concentration indeed become less than 0.3 wt.%, then the Cu6Sn5/molten solder interface is no longer thermodynamically stable

[020]

(Ni

Cu

)

Sn

Solder

(Cu

Ni

)

Sn

(Ni

Cu

)

Sn

Fig.9 (b)

(Cu

Ni

)

Sn

Fig. 9 (a) Scanning electron image showing the reaction zone of Sn3.9Ag0.4Cu/Ni after 250C soldering for 10 min. (b) TEM bright field image of (a) and selected area diffraction pattern of (Cu1-xNix)6Sn5. (c) TEM bright field image of (a) and selected

area diffraction pattern of (Ni1-yCuy)3Sn4. [106]

[00

01

]

Fig. 10 TEM bright field image and selected area diffraction patterns for a (Cu1-xNix)6Sn5needle shown in Fig.7(d) [106]

Sn Cu Ni Ni₃Sn Ni3Sn2 Ni3Sn4 Cu₃Sn Cu₆Sn₅ (240o_C) (at.%) Cu6Sn5 Ni3Sn4 L + + Cu6Sn5 L + L + Ni3Sn4

Fig. 11 Cu–Ni–Sn isotherm at 240C. This isotherm is re-drawn basing on the literature data [113,114]

Fig. 12 Schematic diagram showing a Sn3AgxCu solder ball soldered onto a Ni/Cu pad

according to Fig.5. There will be a huge driving force for Ni3Sn4 [or (Ni1-yCuy)3Sn4] to form.

For BGA or flip-chip joints, the design rule usually calls for the condition that djoint 1.2dpad, therefore, the following equation can be obtained from Eq. 1:

WCu
WCuo
28 TIMC djoint / 1 djoint ð2Þ This joint size dependence can be clearly seen in Fig.14, where the drop of the Cu concentration is plot-ted against the joint size. In short, the Cu concentration drop rapidly increases as the joint becomes smaller.

Additional experimental evidence of the solder vol-ume effect is presented in Fig.15[89–91]. The experi-mental setup in Fig.15was used with dpad being kept constant at 375 lm, and djointbeing varied from 760 to 500, and to 300 lm. In other words, three different djoint/dpadvalues were used. The solder used here was Sn3Ag0.6Cu, and the samples had been reflowed with a typical profile (235C peak temperature, 90 s molten solder duration). Using Eq. 1 and the (Cu1-xNix)6Sn5 thicknesses measured from the three cases shown in Fig.15 (1.2, 1.5, and 2.2 lm, respectively), one can calculate the Cu concentration drops to be 0.02, 0.05, and 0.48 wt.% for 760, 500, and 300 lm djoint, respec-tively. As a result, the remaining Cu concentrations of the solders after reflow were 0.58, 0.55, and 0.12 wt.% for djoint= 760, 500, and 300 lm, respectively. As expected, the intermetallic compound for the first two cases shown in Fig.15(a) and (b) was still

(Cu1-xNix)6Sn5. However, for the 300 lm case, the Cu concentration was so low that a new layer of (Ni 1-yCuy)3Sn4 had nucleated beneath the (Cu1-xNix)6Sn5 layer that formed in the early stage of the reaction when the Cu concentration was still high. In Fig.15(c), a series of voids can be seen, separating these two inter-metallic compounds. As will be shown in the next sec-tion, an advanced development, when the reflow time is increased longer (see Fig.18) or the solder joint is shrunk even smaller (see Fig.17), of this effect is the total separation (spalling) of the upper (Cu1-xNix)6Sn5 layer from the interface. That is, the consequence of the shifting equilibrium phase leads to the massive spalling of (Cu1-xNix)6Sn5.

In summary, in the reaction between Ni substrate and the SnAgCu solder with a small volume, the supply of Cu becomes a problem. Under such conditions, the Cu concentration is no longer constant during the reaction. In fact, it is possible that the interface expe-riences several phase equilibrium conditions during the course of the reaction. This solder volume effect is more severe for smaller solder joints and for joints with a thicker (Cu1-xNix)6Sn5 at the interface (i.e., joints with a longer reaction time).

3.3 Massive spalling of intermetallic compound from the interface

Spalling refers to the detachment of a compound from the interface into one of the reacting phases. One

0 2 4 6 8 10 -1.0 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0.0 Thickness of (Cu_1-xNi_x)₆Sn₅(µm) Drop of Cu Conc. ( wCu -w Cu ) (w t. % ) 0 B all_D ia_m ete r/P ad D ia_m ete_r (d jo_in t/d pa_d ) 300 µ_m/250 µ_m 760 µm/600 µm 500 µm/400 µm 100 µ_m/80 µ_m 50 µ_m/40 µ_m

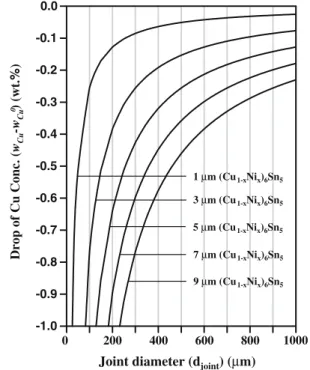

Fig. 13 Drop of Cu concentration according to Eq. 1 for different djoint/dpadcombinations

-1.0 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0.0 0 200 400 600 800 1000 1 µm (Cu1-xNix)6Sn5 3 µm (Cu1-xNix)6Sn5 5 µm (Cu1-xNix)6Sn5 7 µm (Cu1-xNix)6Sn5 9 µm (Cu1-xNix)6Sn5

Joint diameter (d_joint) (µm)

Drop of Cu Conc. ( wCu -w Cu ) (w t. % ) 0

Fig. 14 Drop of Cu concentration according to Eq. 2 for different djoint

classical example, shown in Fig.16, is the spalling of Cu6Sn5during the reaction of eutectic PbSn solder with Au/Cu/Cu–Cr thin film [3,116]. Spalling here was due to the exhaustion of the Cu film, and the poor wetting between Cu6Sn5and the remaining Cr (or SiO2) caused the compound to detach itself from the interface. The ‘‘massive spalling’ introduced in this section is not caused by the exhaustion of a reaction layer. Instead, it is caused by the consumption of one element inside the reacting phase, as had been discussed in the previous section. The shifting of the interfacial equilibrium causes the product phase to separate itself from the interface [89–91].

The massive spalling has a higher tendency to occur in smaller joints because these joints will experience a lager Cu concentration drop. Fig.17shows an example of massive spalling in its early stage. The reflow

con-ditions were the same as those in Fig. 15, but dpadand djoint were 175 and 200 lm, respectively. As can be seen in Fig.17, a new (Ni1-yCuy)3Sn4layer had formed over the Ni substrate, pushing the original (Cu1-x Nix)6Sn5layer away from the interface, and a gap had appeared between these two layers. It should be stressed again that even though the reflow conditions were the same, such spalling did not occur for the larger joints in Fig.15(a) and (b). Longer reflow time also favors the spalling, as shown in Fig.18. Here, the sample had the same configuration as that of Fig.15(c), but the reflow time was increased from 90 s to 20 min. Longer reflow time had increased the separation between (Ni1-yCuy)3Sn4 and (Cu1-xNix)6Sn5 from a series of voids in Fig.15(c) to a gap in Fig.18.

A very revealing example of the massive spalling is shown in Fig. 19, where a djoint/dpad= 760 lm/600 lm joint had been reflowed at 235C for 5 min. In this

(a)

Ni

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

Sn

Sn

-

-

rich

rich

(b) 500 mm-Sn3Ag0.6Cu 5 µm 5 µm Ni

Sn

Sn

-

-

rich

rich

Sn

Sn

-

-

rich

rich

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

760 lm (a), 500 lm (b), and 300 lm (c). The solder was 96.4Sn3Ag0.6Cu (wt.%). [89–91]

Cu6Sn5compound

Fig. 16 SEM image showing the spalling of Cu6Sn5during the

reaction between eutectic SnPb and Au/Cu/Cu–Cr substrate [3,116]

Ni

Cu

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

Fig.17 (b)

Fig.17 (b)

Fig. 17 (a) Massing spalling of (Cu1-xNix)6Sn5 after a typical

reflow (235C peak temperature, 90 s molten solder duration) in a solder joint with djoint/dpad= 200 lm/175 lm. (b) Zoom-in

particular sample, a 1.2( ± 0.1) lm Au layer had been coated over the Ni layer of the substrate before reflow. The images in Fig.19(a) and (b) were obtained from the same specimen, but the solder in Fig.19(b) had been etched away. As can be seen here, the detached Au-bearing (Cu1-xNix)6Sn5 layer was almost continu-ously. The extensive spalling shown in this pair of micrographs demonstrates the justification of naming the phenomenon massive spalling. It should be pointed out that our recent data suggests that Au does have the effect of stimulate early massive spalling. More studies are needed to clarify this effect.

There are two approaches to inhibit the massive spalling during reflow. The first is to use solders with a higher Cu concentration. The second method is to provide an infinite Cu source, such as a thick Cu layer on either side of a solder joint [89–91]. Our latest results also supported this view.

3.4 Solder volume effect during reaction with solid solders (aging)

The solder volume effect also plays an important role during the solid-state aging. Fig.20 shows the solder

joints with the same reflow conditions (235C peak temperature, 90 s molten solder duration), the same aging conditions (160C for 1,000 h), and the same dpad value (375 lm), but with different djoint values and different Cu compositions in solder. When the joint was relatively large (760 lm), the only inter-metallic compound at the interface was (Cu1-x Nix)6Sn5 for all the solder compositions, as shown in Fig.20(a)–(c). This is due to the fact that the supply of Cu was relatively abundant for the larger solder joints.

For the solder joints with the medium diameter (500 lm), the supply of Cu became somewhat limited. There was still only the (Cu1-xNix)6Sn5 layer at the interface if the joint’s Cu concentration was high enough (0.5 and 0.7 wt.%), as shown in Fig.20(d) and (e). But when the applied Cu concentration became very low (0.3 wt.%), as shown in Fig.20(f), a layer of (Ni1-yCuy)3Sn4 formed beneath (Cu1-xNix)6Sn5. Given more time, the remaining (Cu1-xNix)6Sn5will also dis-appear, leaving (Ni1-yCuy)3Sn4as the only layer. This is because the Cu atoms in (Cu1-xNix)6Sn5 are extracted out to form more (Ni1-yCuy)3Sn4.

When the solder joints became even smaller (300 lm), the supply of Cu became very limited. For

Fig.18 (b)

Sn-rich

Ag

Sn

(Ni

Cu

)

Sn

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

Sn

Sn

-

-

rich

rich

Ag

Ag

Sn

Sn

(Cu

Ni

)

Sn

Fig. 18 (a) Massing spalling of (Cu1-xNix)6Sn5 after reflow at

235C for 20 min in a solder joint with djoint/dpad= 300 m/

375 lm. (b) Zoom-in view of (a). [89–91]

50 µm (b) 760 mm-Sn3Ag0.5Cu Ni (Ni_0.78Cu_0.22)₃Sn₄ (Cu (Cu_0.590.59AuAu_0.010.01NiNi_0.400.40))₆₆SnSn₅₅ Cu

Fig.19 (b)

Sn-rich

Ag

Sn

Pad

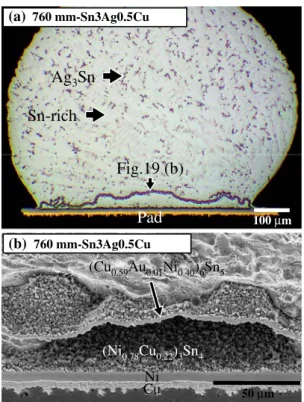

Fig. 19 (a) Cross-section view of a solder joint that had been reflowed at 235C for 5 min. A 760 lm Sn3Ag0.5Cu sphere was attached to a 600 lm pad with the Au(1.2 lm)/Ni surface finish. (b) Zoom-in view of (a) after etching away the solder. This micrograph had been tilted 45

the joint with the highest Cu concentration (0.7 wt.%), shown in Fig.20(g), the amount of Cu was still enough to sustain a (Cu1-xNix)6Sn5 layer over the (Ni1-y Cuy)3Sn4, as shown in Fig.20(g). But when the Cu concentration became lower (0.5 and 0.3 wt.% Cu), shown in Fig.20(h) and (i), the amount of Cu was not enough to sustain the (Cu1-xNix)6Sn5layer, and only a (Ni1-yCuy)3Sn4 layer was present. It should be noted that in these two cases (Cu1-xNix)6Sn5did appear over the (Ni1-yCuy)3Sn4 layer once during certain time frame, but (Cu1-xNix)6Sn5eventually disappeared and be converted into (Ni1-yCuy)3Sn4. It can be anticipated that the (Cu1-xNix)6Sn5 layer in Fig.20(g) will also disappear if this sample is subjected to longer aging.

From our recent study, the formation of both (Ni1-yCuy)3Sn4 and (Cu1-xNix)6Sn5 layers at the interface after aging has a negative impact on the strength of the joints. The joints tend to fail along the interface of these two compounds. This is because both these two compounds are quite brittle, and the interface between two brittle intermetallics unfortunately tends to be weak, especially for two compounds originate from two different binary sys-tems. To avoid the formation of two compounds simultaneously, both the Cu concentration effect and the solder volume effect have to be taken into account at the same time.

4 Cross-interaction between Cu and Ni across a solder joint

In Sects. 2 and 3, the effect of Ni on the reaction between Cu and solder and the effect of Cu on the reaction between Ni and solder are discussed, respec-tively. In this section, the interaction between Cu and Ni across a solder joint will be considered. The importance of such cross-interaction had been reported in several publications available in the literature [53,

80,117–120].

4.1 Cross-interaction during reaction with molten solders (reflow)

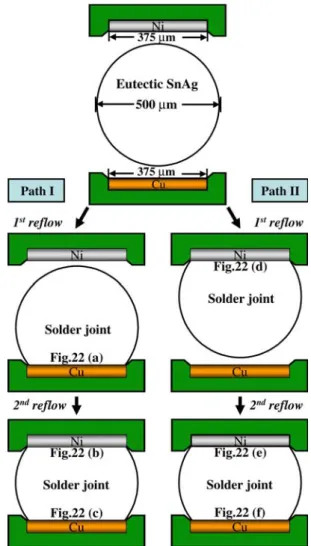

To investigate the cross-interaction during the reflow stage more carefully, the solder joints that were assembled by two different paths are compared. As illustrated in Fig.21, in Path I, the solder (Sn3.5Ag) was attached to the Cu substrate in the first reflow, and then the Ni substrate was attached to the other side of the solder joint in the second reflow. In path II, the solder was attached to the Ni substrate first (the first reflow), and in the second reflow Cu substrate was attached to the other side of the solder joint.

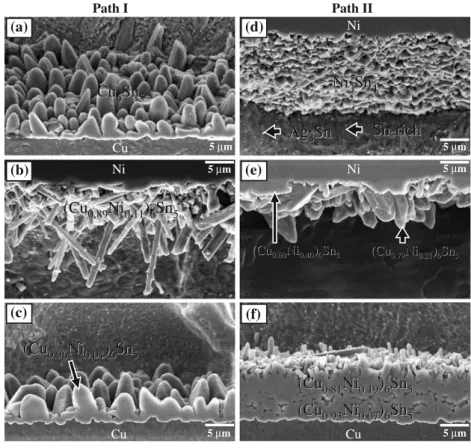

Shown in Fig. 22 are the solder/Cu and Ni/solder interfaces for Path I (left column) and path II (right

5 µm 5 µm 5 µm 5 5 µmµm 5 µm 5 µm 5 µm 5 µm 5 µm Ni (a)760 µm-Sn3Ag0.7Cu Ni (c)760 µm-Sn3Ag0.3Cu Ni (b)760 _{µm-Sn3Ag0.5Cu} Ni (d)500 µm-Sn3Ag0.7Cu Ni (f) 500 µm-Sn3Ag0.3Cu (Ni0.87Cu0.13)3Sn4 Ni (e)500 µm-Sn3Ag0.5Cu (Cu (Cu0.870.87NiNi0.130.13))66SnSn55 (Cu (Cu_0.770.77NiNi0.230.23))66SnSn55 (Cu (Cu0.650.65NiNi0.350.35))66SnSn55 (Cu (Cu0.800.80NiNi0.200.20))66SnSn55 (Cu (Cu0.780.78NiNi0.220.22))66SnSn55 (Cu (Cu0.600.60NiNi0.400.40))66SnSn55 Ni (g)300 µm-Sn3Ag0.7Cu (Ni0.88Cu0.12)3Sn4 Ni (i)300 µm-Sn3Ag0.3Cu (Ni0.84Cu0.16)3Sn4 Ni (h)300 µm-Sn3Ag0.5Cu (Ni0.90Cu0.10)3Sn4 Ag Ag33SnSn (Cu (Cu0.640.64NiNi0.360.36))66SnSn55

Decreasing joint size

Decreasing Cu concentration

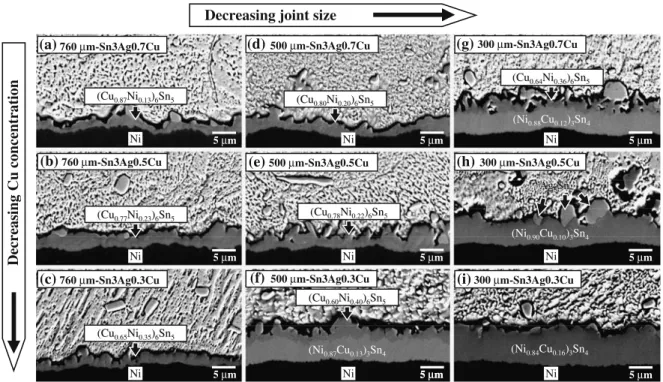

Fig. 20 Micrographs showing solder joints with the same reflow conditions (235C peak temperature, 90 s molten solder dura-tion), the same aging conditions (160C for 1,000 h), and the same dpad value (375 lm), but with different djoint values and

different Cu compositions. Pictures in the first, second, and third row have Cu concentrations equal 0.7, 0.5, and 0.3 wt.%, respectively. Pictures in the first, second, and third column have djointequal 760, 500, and 300 lm, respectively

column) after the first reflow, and the second reflow. For Path I, the solder/Cu interface after the first reflow, Fig.22(a), is typical of the reaction between Cu and Sn-based solders: formation of Cu6Sn5 scallops along the interface. A typical reflow actually dissolves a large quantity of Cu from the substrate. Our own data shows that as high as 7.5(±0.3) lm of Cu can be dissolved into the Sn3.5Ag during a typical reflow (90 s reflow time with a peak temperature of 235C of a 760 lm BGA joint, making the Cu concentration in solder become as high as ~1.2 wt.%. These dissolved Cu atoms precipi-tated out as long Cu6Sn5 rods inside the solder when the solder solidified, as shown in Fig.23. During the second reflow of Path I, the dissolved Cu atoms had an effect on the Ni/solder reaction. As shown in Fig.22(b), the reaction product under such conditions was (Cu0.89Ni0.11)6Sn5. This microstructure shows marked difference with that of Fig.22(d), which shows fresh Sn3.5Ag soldered over the Ni substrate. The

second reflow also influenced the solder/Cu interface. As shown in Fig.22(c), a small amount of Ni (~2 at.%) can be detected in Cu6Sn5. The only Ni source was from the Ni substrate. This result clearly shows that during the second reflow Ni had the capacity to have itself dissolved at the Ni/solder interface, migrate across the solder joint, and incorporate itself into Cu6Sn5. Nevertheless, the amount of Ni that was able to reach the solder/Cu interface, it was apparently not large enough to cause the effect described in Sect.2.2. In short, during the assembly of a Cu/solder/Ni solder joint through Path I, the two interfaces can cross-interact during the reflow stage.

For Path II after the first reflow, a thin layer of Ni3Sn4 formed at the Ni/solder interface, as shown in Fig.22(d). A small amount of Ni also dissolved into the molten solder. During the second reflow, the dissolved Ni atoms had an effect on the solder/Cu reaction. As shown in Fig.22(f), the reaction product at the solder/ Cu interface had two distinct regions with their own compositions, (Cu0.81Ni0.19)6Sn5and (Cu0.93Ni0.07)6Sn5. This microstructure is the same as that shown in Fig.4(b). Apparently, the reflow condition was suffi-cient to dissolve enough amount of Ni into solder to produce the Ni effect as discussed in Sect. 2.2. Quite surprisingly, the dissolved Cu during its fist reflow (i.e., the second reflow in path II) was also high enough to induce the Cu concentration effect. As shown in Fig.22(e), the outer intermetallic at the Ni/solder interface had changed from Ni3Sn4 to (Cu1-xNix)6Sn5. This fast transformation from one compound to another in time as short as 90 s does not seem rea-sonable. A careful cutting by using the focused ion beam (FIB) technique was able to show that this transformation was indeed fast, but was not complete. As shown in Fig.24, there was a very thin layer of (Ni1-yCuy)3Sn4 beneath the (Cu1-xNix)6Sn5 layer. The FIB technique was also applied to other interface of Fig. 22, but only one type of intermetallic was observed. As shown in Fig.25, the crystal structures of the Ni3Sn4compound and the Cu6Sn5-based compound in Fig.22(d) and (e) had also been positively identified by the glancing angle XRD measurements.

Comparing Path I and II, one can conclude that even the sequence of assembly has an effect on the intermetallic microstructures.

4.2 Cross-interaction during reaction with solid solders (aging)

Figure 26 shows the microstructures of the interfaces in Fig. 22 after aging at 160C for 1,000 h. The Ni/ solder interface and the solder/Cu interface that had Fig. 21 Illustration showing the two sequences that the solder

been soldered only once and consequently had no cross-interaction during aging were shown in the left column for comparison. In the middle column and the right column, the corresponding interfaces for the Path I and Path II after aging are shown, respectively. It can be seen that Cu3Sn in Fig.26(d) and (f) are thinner than that in Fig. 26(b). This is due to the Ni effect presented in Sect.2.2. Moreover, Cu3Sn in Fig.26(f) is also thinner than that in Fig.26(d). This is reasonable because in Path II more Ni was dissolved because Ni in Path II went through one more reflow than in Path I. In addition, no Kirkendall void was observed in Fig.26(d) and (f) even by the means of FIB sample preparation. It should also be pointed that the cross-interaction accelerated the consumption rate of the Cu substrate and reduced the consumption rate of the Ni substrate [120]. The Ni consumption rate decreased because the growth of (Cu1-xNix)6Sn5consumed a less amount of Ni than did the growth of (Ni1-yCuy)3Sn4 [81, 107, 117,

120].

5 Summary

The addition of Ni to Sn, SnCu, SnAg, and SnAgCu in amounts as minute as 0.1 wt.% is able to substantially hinder the Cu3Sn growth in the reaction between these

solders and the Cu substrate. The growth of Cu3Sn often accompanies the formation of Kirkendall voids, which has been linked to the weakening of the solders joints. Accordingly, Ni has been proposed as a useful alloying additive to these solders.

Likewise, Cu has a strong effect on the reactions between these solders and Ni-based substrates. When the amount of solder is large so that the supply of Cu is not an issue, the interfacial reaction is dictated by the Cu–Ni–Sn phase equilibrium, and the types of the reaction products formed depend on the Cu tration. Under such a condition, when the Cu concen-tration is low (£0.3 wt.%), only (Ni1-yCuy)3Sn4forms at the interface. When the Cu concentration increases to 0.4–0.5 wt.%, both (Ni1-yCuy)3Sn4 and (Cu1-xNix)6Sn5 form. When the Cu concentration increases above 0.5 wt.%, (Cu1-xNix)6Sn5forms. However, in BGA or flip-chip solder joints, where the solder joints are small and the Cu supply becomes limited, the solder volume effect becomes important because the Cu concentra-tion is no longer constant during the reacconcentra-tion. An equation, Eq. 1, for the Cu concentration drop has been derived as a function of the joint size and the intermetallic compound thickness. As the Cu concen-tration decreases, the equilibrium phase at the inter-face may change, and the local thermodynamic equilibrium at the interface is no longer static. The

Ni

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

(Cu

(Cu

Ni

Ni

)

)

Sn

Sn

Cu

Cu

Sn

Sn

Ni

Ni

Sn

Sn

Ag

Ag

Sn

Sn

Sn

Sn

-

-

rich

rich

Fig. 22 Micrographs showing the solder/Cu and Ni/solder interfaces for Path I (left column) and path II (right column) illustrated in Fig.21. The micrographs in (a) and (d) had been tilted by 30

shifting of the equilibrium phase at the interface could cause the massive spalling of the intermetallic from the interface.

Lastly, the effect of cross-interaction of the Cu and Ni substrate across a solder joint was highlighted. This cross-interaction can occur during the reflow stage. Consequently, the sequence of assembly has an effect on the microstructure of the solder joints.

Acknowledgements This work was supported by the National Science Council of R.O.C. through grants NSC-94-2216-E-008-001 and NSC-94-2214-E-008-005. The author (CRK) would like to thanks his students for their contributions to the study of soldering reactions (C. M. Liu, J. Y. Tsai, C. W. Chang, W. C. Luo, W. T. Chen, and L. C. Shiau).

References

1. A. Rahn (ed.), in The Basics of Soldering (John Wiely & Sons, New York, 1993)

2. J.H. Lau (ed.), in Flip Chip Technology (McGraw Hill, New York, 1996)

3. K.N. Tu, K. Zeng, Mater. Sci. Eng. R34, 1 (2001) 4. W.G. Bader, Weld. J. Res. Suppl. 28, 551s (1969)

5. C.J. Thwaites, Electroplat. Met. Finish. 26, 10 (1973) 6. W.A. Mulholland, D.L. Willyard, Weld. J. Res. Suppl. 54,

466s (1974)

7. R. Duckett, M.L. Ackroyd, Electroplat. Met. Finish. 29, 13 (1976)

8. H. Heinzel, K.E. Saeger, Gold Bull. 9, 7 (1976) 9. D.M. Jacobson, G. Jumpston, Gold Bull. 22, 9 (1989) 10. P.A. Kramer, J. Glazer, J.W. Morris, Jr., Metall. Mater.

Trans. 25A, 1249 (1994)

11. J. Glazer, Inter. Mater. Rev. 40, 65 (1995) 12. F.G. Yost, Gold Bull. 10, 94 (1977)

13. C.E. Ho, Y.M. Chen, C.R. Kao, J. Electron. Mater. 28, 1231 (1999)

14. C.E. Ho, S.Y. Tsai, C.R. Kao, IEEE Trans. Adv. Packag. 24, 493 (2001)

15. Z. Huang, P.P. Conway, C. Liu, R.C. Thomson, J. Electron. Mater. 33, 1227 (2004)

16. J.W. Jang, P.G. Kim, K.N. Tu, D.R. Frear, P. Thomson, J. Appl. Phys. 85, 8456 (1999) Ni Ni

(Cu

Ni

)

Sn

(Ni

Cu

)

Sn

Sn-rich

Ag

Sn

Sn-rich

Ag

Sn

Fig.24 (b)

(Cu

Ni

)

Sn

Fig. 24 (a) Plain view micrograph showing the Ni/solder interface in Fig.22(e) after FIB polishing. (b) Cross-section view micrograph from the dash line in (a)

(a) Cu

Cu

Cu

Sn

Sn

Solder

Solder

Cu

Sn

Fig. 23 (a) Micrograph showing the solder/Cu interface after the first reflow. The Cu atoms in those Cu6Sn5needles inside the

solder came from the dissolved Cu atoms when the solder was molten. (b) Long Cu6Sn5needles described in (a). Part of the

17. P. Liu, Z. Xu, J.K. Shang, Metall. Mater. Trans. 31A, 2857 (2000)

18. H. Matsuki, H. Ibuka, H. Saka, Sci. Technol. Adv. Mater. 3, 261 (2002)

19. K. Zeng, V. Vuorinen, J.K. Kivilahti, IEEE Trans. Electron. Packag. Manufact. 25, 162 (2002)

20. S.K. Kang, D.Y. Shih, K. Fogel, P. Lauro, M.J. Yim, G.G. Advocate, Jr., M. Griffin, C. Goldsmith, D.W. Henderson, T.A. Gosselin, D.E. King, J.J. Konrad, A. Sarkhel, K.J. Puttlitz, IEEE Trans. Electron. Packag. Manufact. 25, 155 (2002)

21. Y.D. Jeon, S. Nieland, A. Ostmann, H. Reichl, K.W. Paik, J. Electron. Mater. 32, 548 (2003)

22. N. Torazawa, S. Arai, Y. Takase, K. Sasaki, H. Saka, Mater. Trans. 44, 1438 (2003)

23. T. Hiramori, M. Ito, M. Yoshikawa, A. Hirose, K.F. Ko-bayashi, Mater. Trans. 44, 2375 (2003)

24. C.W. Hwang, K. Suganuma, M. Kiso, S. Hashimoto, J. Mater. Res. 18, 2540 (2003)

25. C.W. Hwang, K. Suganuma, M. Kiso, S. Hashimoto, J. Electron. Mater. 33, 1200 (2004)

26. M. He, Z. Chen, G. Qi, Acta Mater. 52, 2047 (2004) 27. J.W. Yoon, S.W. Kim, S.B. Jung, J. Alloys Compd. 385, 192

(2004)

28. Y.D. Jeon, K.W. Paik, A. Ostmann, H. Reichl, J. Electron. Mater. 34, 80 (2005)

29. T. Laurila, V. Vuorinen, J.K. Kivilahti, Mater. Sci. Eng. R49, 1 (2005)

30. T.T. Mattila, J.K. Kivilahti, J. Electron. Mater. 34, 969 (2005)

31. A. Kumar, M. He, Z. Chen, Surf. Coat. Tech. 198, 283 (2005)

32. S.T. Kao, J.G. Duh, J. Electron. Mater. 34, 1129 (2005) 33. J.W. Yoon, S.B. Jung, J. Alloys Compd. 396, 122 (2005)

Cu₆Sn₅ Cu₃Sn 5 µm 5 µm 5 µm 5 µm 5 µm 5 µm (a) (c) (e) (b) (d) (f) Ni Ni Ni Cu₃Sn Cu₃Sn (Cu_0.97Ni_0.03)₆Sn₅ (Cu_0.90Ni_0.10)₆Sn₅ Cu₆Sn₅ (Cu0.90Ni0.10)6Sn5 (Cu_0.62Ni_0.38)₆Sn₅ Cu Cu Cu Ni₃Sn₄

No cross-interaction Path I Path II

Fig. 26 Micrographs showing the microstructures of the interfaces in Fig.22after aging at 160C for 1,000 h. Each micrograph here corresponds to the after-aging microstructure of the interface that has the same label in Fig.22

Ni Ni

Ni Ni

Intensity (Arbitrary unit)

Two theta (Degree)

30 35 40 45 50 55 ¿ Ni3Sn4 (Cu1-xNix)6Sn5 2nd _reflow 1st _reflow

Fig. 25 Glancing angle XRD pattern of the interface in Fig.21(d) and (e). The crystal structures of the Ni3Sn4

compound [Fig.21(d)] and the (Cu1-xNix)6Sn5compound

[Fig.21(e)] were positively identified

34. D.G. Kim, J.W. Kim, S.B. Jung, Mater. Sci. Eng. B 121, 204 (2005)

35. C.Y. Liu, K.N. Tu, T.T. Sheng, C.H. Tung, D.R. Frear, P. Elenius, J. Appl. Phys. 87, 750 (2000)

36. P.S. Teo, Y.W. Huang, C.H. Tung, M.R. Marks, T.B. Lim, in Proc. of 2000 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 33

37. F. Zhang, M. Li, C.C. Chum, K.N. Tu, J. Mater. Res. 17, 2757 (2002)

38. F. Zhang, M. Li, C.C. Chum, Z.C. Shao, J. Electron. Mater. 32, 123 (2003)

39. M. Abtew, G. Selvaduray, Mater. Sci. Eng. R27, 95 (2000) 40. K. Suganuma, Curr. Opin. Solid State Mater. Sci. 5, 55

(2001)

41. K. Zeng, K.N. Tu, Mater. Sci. Eng. R38, 55 (2002) 42. K.N. Tu, A.M. Gusak, M. Li, J. Appl. Phys. 93, 1335 (2003) 43. C.M.L. Wu, D.Q. Yu, C.M.T. Law, L. Wang, Mater. Sci.

Eng. R44, 1 (2004)

44. S.K. Kang, P.A. Lauro, D.-Y. Shih, D.W. Henderson, K.J. Puttlitz, IBM J. Res. & Dev. 49, 607 (2005)

45. S. Ahat, M. Sheng, L. Luo, J. Electron. Mater. 30, 1317 (2001) 46. T.-C. Chiu, K. Zeng, R. Stierman, D. Edwards, K. Ano, in Proceedings of 2004 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 1256

47. M. Date, T. Shoji, M. Fujiyoshi, K. Sato, K. N. Tu, Pro-ceedings of 2004 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 668

48. P.T. Vianco, J.A. Rejent, P.F. Hlava, J. Electron. Mater. 33, 991 (2004)

49. P. Borgesen, D. W. Henderson, Report of Universal Instruments (http://www.uci.com), (2004)

50. K. Zeng, R. Stierman, T.-C. Chiu, D. Edwards, K. Ano, K.N. Tu, J. Appl. Phys. 97, 024508 (2005)

51. Z. Mei, M. Ahmad, M. Hu, G. Ramakrishna, in Proceedings of 2005 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 415 52. M. Oh, Doctor Dissertation, Lehigh University, (1994) 53. S.W. Chen, S.H. Wu, S.W. Lee, J. Electron. Mater. 32, 1188

(2003)

54. J.Y. Tsai, Y.C. Hu, C.M. Tsai, C.R. Kao, J. Electron. Mater. 32, 1203 (2003)

55. C.M. Chung, P.C. Shih, K.L. Lin, J. Electron. Mater. 33, 1 (2004)

56. L. Garner, S. Sane, D. Suh, T. Byrne, A. Dani, T. Martin, M. Mello, M. Patel, R. Williams, Intel Technol. J. 9, 297 (2005)

57. I.E. Anderson, J.L. Harringa, J. Electron. Mater. 35, 94 (2006)

58. T.B. Massalski (ed.), in Binary Alloy Phase Diagrams (ASM International, Metal Park, OH, 1990) p. 1481 59. P. Nash, A. Nash, Bull. Alloy Phase Diag. 6, 350 (1985) 60. E.K. Ohriner, Weld. J. Res. Suppl. 7, 191 (1987)

61. S. Bader, W. Gust, H. Hieber, Acta. Metall. Mater. 43, 329 (1995)

62. D. Gur, M. Bamberger, Acta Mater. 46, 4917 (1998) 63. J.A. van Beek, S.A. Stolk, F.J. J. van Loo, Z. Metallkde 73,

441 (1982)

64. C.M. Liu, M.S. Thesis, National Central University, Taiwan (2000)

65. K.-W. Moon, W.J. Boettinger, U.R. Kattner, F.S. Bianca-niello, C.A. Handwerker, J. Electron. Mater. 29, 1122 (2000)

66. NEMI (National Electronics Manufacturing Initiative)-Workshop on Modeling and Data Needs for Lead-Free solders, (New Orleans, LA, February 15th 2001)

67. Soldertec-ITRI, Lead-free alloys-the way forward, October 1999 (http://www.lead-free.org)

68. IDEALS (International Dental Ethics and Law Society), Improved design life and environmentally aware manufac-turing of electronics assemblies by lead-free soldering, Brite-Euram contract BRPR-CT96-0140, project number BE95-1994 (1994–1998)

69. JEITA (Japan Electronics and Information Technology Industries Association), Lead-Free Roadmap 2002, v 2.1, (2002)

70. K.F. Seeling, D.G. Lockard, United States Patent, Patent No. 5352407, (Oct 1994)

71. IPC Roadmap, Assembly of Lead-Free Electronics, 4th draft, IPC, (Northbrook, IL, June 2000)

72. L.S. Bai, Taiwan Printed Circuit Association (TPCA) Magazine 31, 21 (2006)

73. C.E. Ho, Y.L. Lin, C.R. Kao, Chem. Mater. 14, 949 (2002) 74. J.W. Jang, D.R. Frear, T.Y. Lee, K.N. Tu, J. Appl. Phys. 88,

6359 (2000)

75. C.E. Ho, R.Y. Tsai, Y.L. Lin, C.R. Kao, J. Electron. Mater. 31, 584 (2002)

76. S.M. Hong, C.S. Kang, J.P. Jung, IEEE Trans. Adv. Packag. 27, 90 (2004)

77. G.Y. Jang, J.G. Duh, J. Electron. Mater. 34, 68 (2005) 78. C.M. Liu, C.E. Ho, W.T. Chen, C.R. Kao, J. Electron.

Mater. 30, 1152 (2001)

79. M. Li, K.Y. Lee, D.R. Olsen, W.T. Chen, B.T. C. Tan, S. Mhaisalkar, IEEE Trans. Electron. Packag. 25, 185 (2002) 80. S.K. Kang, W.K. Choi, M.J. Yim, D.Y. Shih, J. Electron.

Mater. 31, 1292 (2002)

81. L.C. Shiau, C.E. Ho, C.R. Kao, Solder. Surf. Mount Tech. 14/3, 25 (2002)

82. M.O. Alam, Y.C. Chan, K.N. Tu, Chem. Master. 15, 4340 (2003)

83. K.Y. Lee, M. Li, J. Electron. Mater. 32, 906 (2003) 84. C.B. Lee, J.W. Yoon, S.J. Suh, S.B. Jung, C.W. Yang, C.C.

Shur, Y.E. Shin, J. Mater. Sci.: Mater. Electron. 14, 487 (2003)

85. A. Sharif, M.N. Islam, Y.C. Chan, Mater. Sci. Eng. B 113, 184 (2004)

86. D.Q. Yu, C.M. L. Wu, D.P. He, N. Zhao, L. Wang, J.K.L. Lai, J. Mater. Res. 20, 2205 (2005)

87. W.T. Chen, C.E. Ho, C.R. Kao, J. Mater. Res. 17, 263 (2002)

88. W.C. Luo, C.E. Ho, J.Y. Tsai, Y.L. Lin, C.R. Kao, Mater. Sci. Eng. A 396, 385 (2005)

89. C.E. Ho, W.C. Luo, S.C. Yang, C.R. Kao, in Proceedings of IMAPS Taiwan 2005 International Technical Symposium (Taipei, June 2005), p. 98

90. C.E. Ho, Y.W. Lin, S.C. Yang, C.R. Kao, in Proceedings of the 10th International Symposium on Advanced Packaging Materials: Processes, Properties and Interface, IEEE/ CPMT (Irvine, March 2005), p. 39

91. C.E. Ho, Y.W. Lin, S.C. Yang, C.R. Kao, D. S. Jiang, J. Electron. Mater. 35, 1017 (2006)

92. M.O. Alam, Y.C. Chan, K.N. Tu, J.K. Kivilahti, Chem. Mater. 17, 2223 (2005)

93. K.S. Kim, S.H. Huh, K. Suganuma, J. Alloys Compd. 352, 226 (2003)

94. J.S. Ha, T.S. Oh, K.N. Tu, J. Mater. Res. 18, 2109 (2003) 95. C.H. Wang, S.W. Chen, Acta Mater. 54, 247 (2006) 96. S.K. Kang, W.K. Choi, D.Y. Shih, P. Lauro, D.W.

Hen-derson, T. Gosselin, D.N. Leonard, in Proceedings of 2002 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 146 97. Y. Zheng, C. Hillman, P. McCluskey, in Proceedings of

2002 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 1226 98. M.D. Cheng, S.Y. Chang, S.F. Yen, T.H. Chuang, J.

99. J.H. L. Pang, T.H. Low, B.S. Xiong, X. Luhua, C.C. Neo, Thin Sol. Films, 462–463, 370 (2004)

100. J.W. Yoon, S.W. Kim, J.M. Koo, D.G. Kim, S.B. Jung, J. Electron. Mater. 33, 1190 (2004)

101. J.W. Yoon, S.W. Kim, S.B. Jung, J. Alloys Compd. 391, 82 (2005)

102. C.B. Lee, S.B. Jung, Y.E. Shin, C.C. Shur, Mater. Trans. 43, 1858 (2002)

103. A. Zribi, A. Clark, L. Zavalij, P. Borgesen, E.J. Cotts, J. Electron. Mater. 30, 1157 (2001)

104. G. Ghosh, Acta Mater. 49, 2609 (2001) 105. G. Ghosh, J. Electron. Mater. 33, 229 (2004)

106. C.E. Ho, Doctor Dissertation, National Central University, Taiwan, (2002)

107. C.E. Ho, L.C. Shiau, C.R. Kao, J. Electron. Mater. 31, 1264 (2002)

108. L.P. Lehman, S.N. Athavale, T.Z. Fullem, A.C. Giamis, R.K. Kinyanjui, M. Lowenstein, K. Mather, R. Patel, D. Rae, J.Wang, Y. Xing, L. Zavalij, P. Borgesen, E.J. Cotts, J. Electron. Mater. 33, 1429 (2004)

109. D.W. Henderson, T. Gosselin, A. Sarkhel, S.K. Kang, W.K. Choi, D.Y. Shih, C. Goldsmith, K. Puttlitz, J. Mater. Res. 17, 2775 (2002)

110. S.K. Kang, W.K. Choi, D.Y. Shih, D.W. Henderson, T. Gosselin, A. Sarkhel, C. Goldsmith, K. Puttlitz, in

Proceedings of 2003 IEEE Electron. Comp. Tech. Conf. (ECTC), p. 64

111. S.K. Kang, W.K. Choi, D.Y. Shih, D.W. Henderson, T. Gosselin, A. Sarkhel, C. Goldsmith, K. Puttlitz, J. Minerals Metals Mater. Soc. 55, 61 (2003)

112. S. Terashima, Y. Kariya, T. Hosoi, M. Tanaka, J. Electron. Mater. 32, 1527 (2003)

113. C.H. Lin, S.W. Chen, C.H. Wang, J. Electron. Mater. 31, 907 (2002)

114. C.Y. Li, J.G. Duh, J. Mater. Res. 20, 3118 (2005)

115. P. Oberndorff, Doctoral Dissertation, Technical University of Eindhoven, (2001)

116. G.Z. Pan, A.A. Liu, H.K. Kim, K.N. Tu, P.A. Totta, Appl. Phys. Lett. 71, 2946 (1997)

117. C.R. Kao, C.E. Ho, L.C. Shiau, Solder Point with Low Speed of Consuming Nickel, R.O.C. patent, patent No. 181410, (2003)

118. S.J. Wang, C.Y. Liu, J. Electron. Mater. 32, 1303 (2003) 119. T.L. Shao, T.S. Chen, Y.M. Huang, C. Chen, J. Mater. Res.

19, 3654 (2004)

120. C.M. Tsai, W.C. Luo, C.W. Chang, Y.C. Shieh, C.R. Kao, J. Electron. Mater. 33, 1424 (2004)
