Vol. 49, No. 12, 15 June 2011, 3635–3652
Evaluating capacity pooling strategy in semiconductor manufacturing:
a productivity perspective study
Wen-Chih Chena* and Chen-Fu Chienb a
Department of Industrial Engineering and Management, National Chiao Tung University, Taiwan;bDepartment of Industrial Engineering and Engineering Management, National Tsing
Hua University, Taiwan
(Received 30 September 2009; final version received 12 April 2010) Recently, increasing attention has been focusing on the concept of the borderless fab, which expands capacity through a manufacturing strategy rather than capital investments. In a borderless fab, the capacity of several wafer fabs is pooled, and partially completed wafers are allowed to move from one fab to another. This paper proposes a model to evaluate the potential benefits of adopting capacity pooling from the macro-viewpoint. We demonstrate our model using actual full-scale fab-level operational data, and the result reveals that capacity pooling can improve monthly capacity by 3% on average.
Keywords: manufacturing strategy; capacity pooling; borderless fab; performance evaluation; semiconductor manufacturing
1. Introduction
The global semiconductor industry is highly competitive. Semiconductor companies compete on the basis of reductions in the cost per transistor through a combination of advances in technology nodes as well as efficiency and scale in manufacturing. Continual technological innovation results in shorter product life-cycles and requires firms to respond rapidly to fluctuating demand. Thus, decision-making to meet market require-ments is often challenging. Capacity is an essential factor to strengthen a firm’s competitive edge and ensure long-term success. Larger capacity provides more services/ products within a shorter timeframe to satisfy faster delivery for products with higher variability and complexity, and may also imply lower marginal costs due to economies of scale. However, capacity expansion that depends on investing in new fabrication facilities (fabs) and/or tools is astonishingly expensive, and the long lead times tend to produce great uncertainty. Fine-tuning individual fabs to increase their productivity is one alternative, but may prove difficult for mature processes and products.
Recently, increasing attention has been focusing on the concept of a borderless fab, in which the capacity of several wafer fabs is pooled, and partially completed wafers are allowed to move between fabs (e.g., Gan et al. 2007). The borderless fab is achievable when a semiconductor manufacturer has fabs located within reasonable proximity. This requirement is practically feasible in the semiconductor industry in general, which is capital-intensive, with high barriers to entry and a few key manufacturers with many
*Corresponding author. Email: [email protected]
ISSN 0020–7543 print/ISSN 1366–588X online ß 2011 Taylor & Francis
DOI: 10.1080/00207543.2010.492799 http://www.informaworld.com
production facilities. The industry’s clustering effect, seen, for example, in Taiwan’s Hsinchu Science and Industrial Park, provides an attractive environment for implementing the borderless fab concept.
Capacity pooling, in particular inventory pooling, has been studied in the context of operations management. For example, Corbett and Rajaram (2006) document the pooling benefits under different product dependence. Benjaafar et al. (2005) present a general analytical model, in which production and inventory systems are modelled independently, to investigate issues of pooling in production-inventory systems. The results yield several useful managerial insights about the benefits of pooling. In semiconductor manufacturing, intra-fab tool grouping to share capacities, particularly as a backup for unexpected machine breakdown, has been well addressed (e.g., Chien and Hsu 2006, Chien et al. 2007). Recently, there has been another line of research addressing the inter-fab capacity pooling and sharing (e.g, Gan et al. 2007, Wu et al. 2009).
Previous research has noted the quantitative benefits of capacity pooling in the semiconductor manufacturing industry. For example, Gan et al. (2007) build a discrete event simulation model to evaluate borderless fab performance, and report that the aggregated cycle time of pooling fabs can be reduced in different operational settings. Other authors have attempted to resolve scheduling and/or routing problems in semiconductor manufacturing under the capacity pooling scenario (e.g., Wu et al. 2009), i.e., they study the operational optimisation given the adoption of capacity pooling. Small-scale cases with detailed operational assumptions are used to demonstrate the effectiveness of proposed algorithms, and the results show that the capacity pooling scenario leads to shortened time cycles and higher throughput.
This paper proposes a model to analyse the potential gains from adopting the borderless fab concept especially with respect to productivity. Clearly, whether or not to employ a manufacturing strategy such as the borderless fab is a key decision. We believe that the model described in this paper provides outstanding quantitative evaluation to assist strategic decision-making. Unlike the simulation studies (e.g., Gan et al. 2007) that specify highly detailed production environments and demand intensive engineering, technical backgrounds and advanced computational power, the proposed model is based on non-parametric productivity analysis approaches, also known as data envelopment analysis (DEA) (Charnes et al. 1978, Banker et al. 1984). This type of approach takes a macro-viewpoint of large and complex wafer fabrication processes, and is more consistent with the nature of strategic decision-making. We can simulate the possible ‘behaviour’ of a fab operating under a specified strategy and summarise its performance according to a pre-specified objective. The prediction is based on ideal, not average, performance. Since ideal performance resembles capacity-related decision-making, it can reveal the optimum potential benefits of a firm’s candidate strategies.
In addition, we use actual full-scale fab-level data representing the overall operations of a firm to demonstrate our approach. The results of our analysis show that about 50% of cases have more than 4% improvement on average when capacity pooling is adopted. The results are far more meaningful than studies that rely on small-scale data. Emanating from the characteristics of the semiconductor manufacturing processes we study, we propose an analytical model to represent aggregate product design specifications, which is a significant contribution to the productivity analysis and DEA methodology literature.
It should be pointed out that, although motivated by a real need in semiconductor manufacturing with a specific purpose, we approach the problem and present our model in a general symbolic form; the model is not case-dependent. There is enough flexibility to
extend the approach to other applications and industries. For example, TFT-LCD (thin film transistor and liquid crystal display) and printed circuit board (PCB) manufacturing share similar characteristics, including re-entrant process and multi-site production (see, e.g., Rau et al. 2005), and have the same problems. It can also apply as an aid to outsourcing decisions, such as ‘should a firm outsource a portion of its final products or a portion of intermediate products (processes)?’ The former option corresponds to no capacity pooling while the latter is an extension of capacity pooling.
The remainder of this paper is organised as follows. Section 2 introduces notions of conventional non-parametric productivity analysis as the technical background for the study. Section 3 proposes a model to analyse general design-related activities. Section 4 addresses the fabrication processes, and models the fabrication capability using the models addressed in Sections 2 and 3. Section 5 evaluates the potential benefits of the capacity pooling strategy by comparing the results of two output-maximisation models. Section 6 shows the empirical results based on a real case in Taiwan. Section 7 concludes.
2. Methodology background – production technology
Our model relies on non-parametric productivity analysis methods to ‘simulate’ the feasible behaviour based on observed data from the macro-viewpoint. We will first introduce the technical background of productivity analysis in this section, and propose a new model to analyse design specifications. The topics presented are not tied directly to semiconductor manufacturing; the models proposed can be easily adapted to other industries.
Conventional productivity analyses utilise technology to describe a process transform-ing a set of inputs, I, into a set of outputs, J. Technology is represented by its production possibility set: T ðx, yÞ 2 <j jI þ <J j j þ : x can produce y ,
where x 2 <jIjþ is the input vector and y 2 <jJjþ is the output vector. The output level set P(x)
is the collection of feasible outputs produced by given input vector x, namely PðxÞ ¼ fy: ðx, yÞ 2 T g. Similarly, the input level set given output y is Lð yÞ ¼ fx : ðx, yÞ 2 T g. Some basic axioms are imposed on the technology as its underlying characteristics:
(A1) strong disposability of inputs and outputs: ðx, yÞ 2 T if ðx0, y0Þ 2T, x x0 and/or
y y0.
(A2) returns to scale:
(1) constant returns to scale (crs): ðx, yÞ 2 T implies ðx, yÞ 2 T for 8 2 ½0, 1Þ. (2) non-increasing returns to scale (nirs): ðx, yÞ 2 T implies ðx, yÞ 2 T for 8 2 ½0, 1. (3) variable returns to scale (vrs): ðx, yÞ 2 T implies ðx, yÞ 2 T for 8 2 f1g.
(A3) convexity: ðx, yÞ 2 T and ðx0, y0Þ 2T, then ðx, yÞ þ ð1 Þðx0, y0Þ 2T, 8 2 ½0, 1.
(A1) states that using more resources to produce fewer outputs than an achieved observation is always doable. (A2) is related to the feasibility due to scaling up or down of (x, y). (A3) utilises the straightforward engineering interpolation as an approximation.
In reality, the underlying technology T is unknown but can be estimated based on a set of observations R and the belief of axioms. Adopting (A1) and (A2), the estimated production possibility set with respect to a single observation ðxr, yrÞ, r 2 R, is:
TrðrsÞ ¼ ðx, yÞ : x xr, 0 y yr, 2 ðrsÞ where: ðcrsÞ ¼ 0, 1½ Þ; ðnirsÞ ¼ 0, 1½ ; ðvrsÞ ¼ f1g:
(rs) characterises the returns to scale, and inequalities represents the strong disposability. Considering all data in R and following (A1) and (A2), the estimated production technology is as follows, according to the presence of adopting convexity (A3):
Tðrs, Þ ¼ ðx, yÞ : x X r2R rxrr; y X r2R ryrr; r2ðrsÞ; r2ð Þ, r 2 R ( ) where: ðncÞ ¼ r2 <j jþR : X r2R r¼1; r2f0, 1g, r 2 R ( ) ðcÞ ¼ r2 <j jþR : X r2R r¼1; r0, r 2 R ( ) :
ð Þ indicates whether (A3) convexity is imposed; ¼ c is a case adopting convexity, and ¼ ncdoes not assume convexity.
Consequently, imposing assumptions of (A1) to (A3) and their combinations characterises different production technologies. For example, it is clear that allowing r¼rr, Tðcrs, cÞ can be rewritten as:
Tðcrs, cÞ ¼ ðx, yÞ : x X r2R xrr; y X r2R yrr; r0, r 2 R ( ) :
This is the standard expression of crs technology estimated by convexity. Following the same procedure: Tðvrs, cÞ ¼ ðx, yÞ : x X r2R xrr; y X r2R yrr; X r2R r¼1; r0, r 2 R ( ) ,
is the expression of standard vrs technology. Following only (A1), vrs and non-convexity leads to standard free disposal hull (FDH) technology:
Tðvrs, ncÞ ¼ ðx, yÞ : x X r2R xrr; y X r2R yrr; X r2R r¼1; r2f0, 1g, r 2 R ( ) :
Furthermore, we note that the selection of production technologies addressed above is case-dependent and also based on making certain assumptions. The careful use of assumptions will yield better approximation of underlying technology1.
3. Design technology
Motivated by real need, we propose a model to analyse input-output transformation processes related to product design specifications. Consider another process also transforming inputs x 2 <jIjþ to products y 2 <
jJj
þ and denote it as D, i.e.:
D ðx, yÞ 2 <j jI þ <J j j þ : x can produce y :
Unlike production technology T addressed above, any input-output bundle ðx, yÞ 2 D is designed, not manufactured. For example, (x, y) may represent overall input requirements based on bill of material (BOM) for a family of products sharing common parts, or a recipe for a wafer type. Hereafter, D is termed as the design technology.
We refer to the fundamental component of the design as the atom, which is the basic element and cannot be decomposed. For example, an atom could be the BOM list for a single product, or a recipe for a specific wafer product. Leontief (1953) pioneered this concept regarding a special case with only a single output; paraphrasing him, let us suppose that an input rate vector 2 <jIjþ to produce a single unit output y 2 <þ is
given. The maximum output produced by the quantity vector of input q 2 <jIjþ can be
determined by:
max
2 <þ: q
: The information ð, yÞ 2 <jIjþ <þis an atom.
In this paper, D, collecting feasible product specifications, represents not only a collection of atoms, but can be interpreted as the results of both atoms and the scale (quantity) of the products, e.g., the resource-product requirements for any customer order. Suppose atoms A and B represent two product specifications: the component requirements with respect to an order of 1000 units of A and 500 units of B is a feasible product specification and is collected in D. The fundamental axiom for D is the additivity property: (A4) additivity: ðx, yÞ 2 D and ðx0, y0Þ 2Dimplies ðx, yÞ þ ðx0, y0Þ 2D.
The additivity property generalises D from a set of different atoms to product requirements, and aggregates product requirements from the design aspect. Consider ðx, yÞ 2 D; we have ðx, yÞ þ ðx, yÞ ¼ 2ðx, yÞ 2 D according to (A4). Thus, any quantity as the multiplier of an atom is also in set D. Extending this idea, design technology D can be estimated providing a single observed record ðxr, yrÞ 2Das:
DrðZþÞ ¼ ðx, yÞ : x ¼ xr; 0 y ¼ yr; 2 Zþ
,
where are non-negative integers, and ¼ 0 leads to (0, 0) and implies that nothing can provide nothing. In addition, ¼ 1 reveals the transformation (the design) consisting of one unit of ðxr, yrÞ, and 4 1 suggests that there are times of ðxr, yrÞ. Since DrðZþÞis
derived from (A4), the only possibility of scaling down ( 5 1) is (0, 0).
Now consider a set of records, each with identical input-output structure, that are observed and thus are feasible. These records are based on experienced units (batches)
according to a specific process design BOM or recipes, but not necessarily the basic presence of an atom. For example, ðxr, yrÞ, r 2 R can be the results of a 1000 units of a
particular product. Extending DrðZþÞ, the estimated design technology based on a data
set R is: DðZþÞ ¼ [r2RDrðZþÞ ¼ ðx, yÞ : x ¼X r2R rxrr; y ¼ X r2R ryrr; r2Zþ, r2 f0, 1g, r 2 R ( ) , ð1Þ where rindicates whether or not record r is added as part of the estimation. In fact, (1)
assumes that no decomposition of observed records is allowed, but is simply a combination of DrðZþÞ. Let r¼rr, (1) can be rewritten as:
DðZþÞ ¼ ðx, yÞ : x ¼ X r2R xrr; y ¼ X r2R yrr; r2Zþ, r 2 R ( ) : ð2Þ
DrðZþÞ and DðZþÞ are conservative estimations not allowing the decomposition of
ðxr, yrÞ, r 2 R. This assumption typically applies to cases when (xr, yr) is an atom, or
represents a basic batch of various products. For cases in which all observed records are aggregate data and significantly larger than an atom, assuming fractional decomposition is reasonable for practical simplicity. Therefore, we can further assume the continuity of input-output data; the estimated technology based on a single record r 2 R can be expressed as:
DrðcrsÞ ¼ ðx, yÞ : x ¼ xr; 0 y ¼ yr; 2 ðcrsÞ
:
In fact, constant returns to scale is the variety of (A4) assuming continuity. Similar to the derivation of (2), the estimation of D allowing continuity based on entire Ris: DðcrsÞ ¼ [r2RDrðcrsÞ ¼ ðx, yÞ : x ¼X r2R rxrr; y ¼ X r2R ryrr; r2ðcrsÞ, r2 f0, 1g, r 2 R ( ) ¼ ðx, yÞ : x ¼X r2R xrr; y ¼ X r2R yrr; r2 <þ, r 2 R ( ) :
It should be noted that if a single product specification record, say r, is given, DrðZþÞ or DrðcrsÞ is used as the approximation. Set R can be interpreted as historical
data, or, most important in practice, as a set of product specifications; for example, each record r 2 R may represent a single product (output) and its necessary components or processes (inputs). Therefore, DðZþÞ and DðcrsÞ are used as the overall possible
aggregated input-output bundles. D represents possible input-output bundles, which are the results of design, not production; there is no tolerance or waste. Thus DðZþÞ and
DðcrsÞ do not apply (A1); there are only equalities in DðZþÞ and DðcrsÞ. Unlike T,
design technologies only exist crs if returns to scale is assumed; other types of returns to scale are impossible.
4. Wafer fabrication process
This section presents the wafer fabrication process as a two-stage process and models it using the technologies addressed in Sections 2 and 3. The proposed model describes and predicts the capability of a fabrication process according to its past experience.
4.1 Two-stage wafer fabrication process
Wafer fabrication transforms resources (inputs), e.g., labour, equipment, etc., into outputs. Various types of wafers are the physical final outputs produced and delivered by a fab. Wafer fabrication from resources to final delivered products can be described as a two-stage transformation process as shown in Figure 1 (Chen and Chien 2009).
The first stage (Stage 1) is a process providing various types of masking layer (outputs) by consuming resources. For clarity, we can interpret the output of Stage 1, layers, as a service provided rather than a physical product. This is a standard production process and is related to productivity.
The second stage (Stage 2) shows the process of transforming layers, the outputs of Stage 1, to wafers. Different types of wafer products require different masking layer processes. Design for manufacturability (DFM) is an important new engineering concept, including a set of methodologies, of designing products in a manner that simplifies manufacture. The number of layers is the number of processes required in wafer manufacturing. A larger number of wafer outputs with fewer layers are always preferred since it means fewer efforts in manufacturing. Manufacturability results from engineering supports, particularly in R&D activities of design, or manufacturing, such as the manufacturing recipe. It is also affected by business strategies, i.e., allocating products to each fab. Obviously, products with fewer layers per wafer are easier to produce; therefore, the fab assigned to such products will likely achieve superior performance. In general, manufacturability is closely related to the product specifications.
Stage 1 is a typical input-output transformation in the productivity literature, and thus we can use production technology Tðrs, Þ based on observed records as an estimation to characterise the process. As described above Stage 2 concerning manufacturability means that the related input-output bundles are designed, not produced, and thus inefficiency or
Figure 1. The fabrication process.
mix changes are impossible. Design technology D can be used to characterise this process. The outputs of Stage 1 (layers) will be transformed to the final products – wafers – via design technology.
4.2 Technology for wafer fabrication
To formalise the concept, we consider a two-stage process with intermediate products (e.g., layers), which are the outputs of Stage 1 and the inputs of Stage 2. Let I be a set of inputs (resources), J a set of intermediate outputs (e.g., layers in the fabrication) and O the final outputs (e.g., wafers). The two-stage process thus utilises inputs x 2 <jIjþ to
produce intermediate outputs y 2 <jJjþ in Stage 1 and transforms y to the final outputs
z 2 <jOjþ in Stage 2. As addressed in Section 4.1, Stage 1 technology of the wafer
fabrication process is production-related and can be described using T. Stage 2 technology is manufacturability (product specification), which is related to design technology, and can be described using D. In a two-stage process, intermediate products y link Stages 1 and 2, and the overall process can be expressed by integrating Stage 1 and Stage 2 as:
F ¼ ðx, y, zÞ 2 <j jI þ < J j j þ < O j j þ : ðx, yÞ 2 T, ð y, zÞ 2 D :
It should be noted that F indeed assumes that every y produced will be completely transformed to z without loss. However, F can be easily modified to relax the assumption by adding dummy intermediate products, y02 <jJj
þ, and then we have ðx, yÞ 2 T, ð y0, zÞ 2 D
and y y0.
Consequently, F defines the underlying capability of a wafer fabrication process; namely, it determines the feasible results of consuming resources to provide final products. Suppose R is the observed record set, and each record r 2 R consists of ðxr, yr, zrÞ 2
<jIjþ <jJjþ <jOjþ . Typically, each record r, a historical record for a specific time period r, tracks how resources (xr) are used to produce intermediate products (yr) and subsequently
converted into final products (zr). It should be noted that ðxr, yr, zrÞ is the aggregated
information in period r, and not for a single product. F can be estimated in practice through the estimations of T and D corresponding to R.
5. Strategy evaluation
We evaluate the potential benefits of the capacity pooling strategy by comparing the results of two output-maximisation models presented in this section. Both models reveal maximum total wafer outputs delivered from the viewpoint of management: one adopts the borderless fab strategy while the other uses the current strategy. Both models utilise the estimated F proposed in Section 4.2 to describe the production and design technology of individual fabs and to represent the input-output transformation capability, i.e., the feasible region of the transformation. Together with a given objective function, we simulate the best possible results for both settings. That is, we determine and compare the ideal capacity for two strategies, and the difference in the results will reveal the potential benefits of adopting the new strategy.
5.1 Models
Consider that management wishes to maximise wafer outputs for a particular wafer recipe or a summary of certain recipes ð y0, z0Þ. ð y0, z0Þ represents the given layer-wafer bundle
corporate-wise, where z0 is the quantity vector of different wafer outputs, and y0 are the
necessary number of layer processes associated with z0. For example, ð y0, z0Þcan be the
monthly summary of various product recipes, or a recipe for one wafer type. Further, assume that S collects different fabs and the available resources at fab s 2 S are xs
0.
Hereafter the superscripts represent the index of the production site. The problem corresponding to the proposed output-maximising objective can be restated as: manage-ment tries to maximise wafer outputs with the required recipe configuration ð y0, z0Þusing
resources xs
0 at fab s. The corporate decision model corresponding to the capacity
non-pooling strategy is:
max ys,zs,s r,s X s2S s ðB-OÞ
subject to for each fab s 2 S: production technology: xs0X r2Rs xsrsr ð3Þ ysX r2Rs ysrsr ð4Þ X r2Rs sr¼1, sr0, r 2 Rs; ð5Þ design technology: ys¼sy0 ð6Þ zs¼sz0 ð7Þ ys0: Rs is the collection of wafer production data ðxs
r, ysr, zsrÞ 2 < jIj þ < jJj þ < jOj þ , r 2 Rs, at fab s. Each ðxs
r, ysr, zsrÞ has identical interpretations to those addressed in Section 4.2, but
now represents fab s. Using the observed data, constraints (3) to (5) specify the production technology of fab s, determining feasible ys using available resources xs
0. Constraints (6)
and (7) characterise design technology, i.e., the product specifications, for fab s. Volume of wafer subject to the product recipe ð y0, z0Þis to be maximised as sðy0, z0Þfor each fab s.
To achieve this goal, fab s should provide ys¼sy
0as (6). The optimal solution simplies
that s times of ð y
0, z0Þcan be produced in fab s; the total maximum wafer outputs are
thusPs2Sstimes of z0 for corporate.
There are Sj jgroups for all constraints, and each group represents one fab. Variable returns to scale and convexity which are commonly seen in the literature are assumed and thus Tðvrs, cÞ’s are used for individual fabs. We assume heterogeneous production technology for fabs, and technology T is estimated by observations from only the corresponding fab Rs. Fabs with homogeneous production technology can also be
assumed if necessary; in those cases, R ¼Ss2SRs is used to estimate T. As mentioned
earlier, other assumptions about (A2) and (A3) are possible, but are case-dependent and rely on subjective judgements. Constraints (6) and (7) indeed adopt D0ðcrsÞ, which
estimates D based on a single record and allows decomposition of given records. D0ðZþÞ
can be used when fraction of products is not allowed, and this assumption is particularly useful when ð y0, z0Þis the atom or simple sum of atoms. Further, constraints (6) and (7)
are unnecessary and can be removed from the model as: max s r,s X s2S s: xs0X r2Rs xsrsr, sy0 X r2Rs ysrsr, X r2Rs sr¼1, sr0, r 2 Rs, s 2 S ( ) : ð8Þ The optimal quantity of wafer outputs can be obtained by the optimal solution P
s2Ssof Model (8) as ð
P
s2SsÞz0.
The following model (BL-O) determines the maximum wafer outputs with the same product recipes ð y0, z0Þand resource xs0 when adopting the borderless fab strategy:
max
z,ys,s r,
ðBL-OÞ
Subject to for each fab s 2 S: production technology: xs0X r2Rs xsrsr ð9Þ ysX r2Rs ysrsr ð10Þ X r2Rs sr¼1, sr0, r 2 Rs; ð11Þ corporate-wise wafer outputs
design technology: X s2S ys¼y0 ð12Þ z ¼ z0 ð13Þ ys0, s 2 S:
Identical to Model (B-O), production technology for individual fabs is specified by Tðvrs, cÞ as constraints (9) to (11). Borderless fab pools the capacity of the layer processes to deliver the final products as (12) and (13); Ps2Sys shows that production capacity is
pooled. Constraints (12) and (13) also specify the design technology in response to the requirement ð y0, z0Þas D0ðcrsÞ. The optimal value indicates (100 )% of z0 will be
delivered overall. Further, (13) is unnecessary and can be removed from the model to provide the same optimal solution as:
max ys,s r, : xs0X r2Rs xsrsr, ysX r2Rs ysrsr,X r2Rs sr¼1, ys0, sr0, r 2 Rs, s 2 S;X s2S ys¼y0 ( ) :
It should be noted that Ps2Sys indicates that the layer processes are pooled, but
(BL-O) does not reveal where the final products are delivered, i.e., which fab processes the last layer required. However, the overall allocation of different layer types can be observed from the optimal solution ys.
z
0 ðPs2SsÞz0¼ ðPs2SsÞz0shows the difference in capacity after adopting
the borderless fab strategy given the product specification of ð y0, z0Þ. Ps2Ssis the
proportional increment in the benefits while maintaining the same wafer product mix. Therefore, the percentage improvement due to borderless fab strategy:
P s2Ss P s2Ss ð14Þ is the measure. Higher values of (14) suggest more significant benefits due to the borderless fab. ðP
s2SsÞz01 is the improvement in terms of total wafer outputs in a particular
period, where 1 is the Oj j 1 vector of 1’s.
Model (B-O) assumes all fabs produce the same product mix as required by management. In reality this assumption may be invalid since the overall product demand can be allocated to fabs to improve their outputs. Product allocation is the decision to enhance the use of individual independent capacities, and can be seen as fine-tuning the process under the non-pooling circumstance. In addition, price information should be considered to incorporate management and individual fabs’ performance, while recognising that prices may vary dramatically over time. Whether or not to pool capacity is a long-term decision; and product allocation is short-term and so we can disregard it. However, we note that other objectives, such as profit maximisation, are also possible, but may require additional information, e.g., prices and costs. Moreover, unlike simulation studies requiring strong engineering technical background and costly software, our models (B-O) and (BL-O) are based on standard linear programming (LP) problems, and can be implemented by standard packages such as Lingo and Cplex. Microsoft Excel also provides an add-in package, called solver, to solve LP problems.
5.2 Numerical example
We present a simple hypothetical example to illustrate the proposed models and visualise the benefits of capacity pooling. Suppose there are two fabs (S ¼ fU, Vg) using the same units, say 100, of a resource to provide two types of layer process (J ¼ fY1, Y2g). Each fab
has three historical records (RU¼ fA, B, Cg and RV¼ fL, M, Ng), which are listed in
Table 1. Further assume that there is only one type of wafer product requiring both Y1and

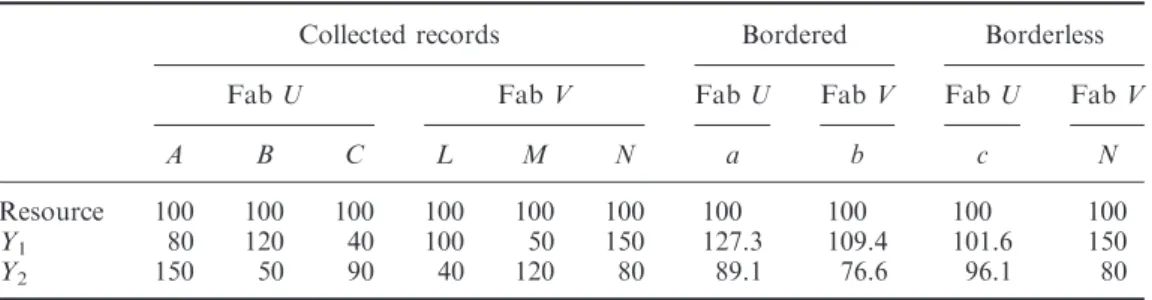

Table 1. Values for the numerical example.
Collected records Bordered Borderless Fab U Fab V Fab U Fab V Fab U Fab V
A B C L M N a b c N
Resource 100 100 100 100 100 100 100 100 100 100 Y1 80 120 40 100 50 150 127.3 109.4 101.6 150
Y2 150 50 90 40 120 80 89.1 76.6 96.1 80
Y2 processes. A recipe needs processing Y1 and Y2 50 and 35 times, respectively, to
produce one unit of wafer output, i.e., y0¼ ð50, 35Þ and z0¼1. The corresponding Model
(B-O) is as follows: max UþV subject to: 100 100Aþ100Bþ100c yU1 80Aþ120Bþ40c yU2 150Aþ50Bþ90c AþBþc ¼1 yU1 ¼50U, yU2 ¼35U zU¼1U 100 100Lþ100Mþ100N yV1 100Lþ50Mþ150N yV2 40lþ120Mþ80N LþMþN¼1 yV1 ¼50V, yV2 ¼35V zV¼1V A, B, c, yU1, y U 2 0 L, M, N, yV1, yV2 0:
The corresponding (BL-O) is:
max subject to: 100 100Aþ100Bþ100c yU1 80Aþ120Bþ40c yU2 150Aþ50Bþ90c AþBþc ¼1 100 100Lþ100Mþ100N yV1 100Lþ50Mþ150N yV2 40lþ120Mþ80N LþMþN¼1 yU1 þyV1 ¼50 yU 2 þyV2 ¼35 z ¼1 A, B, c, yU1, y U 2 0 L, M, N, yV1, yV2 0:
Optimal solutions of the two LP problems above are U¼1:27, V¼1:09, and
¼2:56, which suggests that improvement level is 6.3% according to (14). Detailed
optimal solutions for the maximum numbers of layer processed are listed in the last four columns of Table 1.
Figure 2 visualises the benefits of capacity pooling in this example, in which the x-axis and y-axis are the values of Y1 and Y2, respectively. According to our approach, the
feasible production technology of Fab U, using 100 units of resource, is the area surrounded by x-axis, y-axis and the solid lines. Records A and B are on the boundaries of the feasible region, representing the ideal performance, while C, with poor performance, is within the region. This shows that our models simulate the feasible behaviour by ideal, not average, performance. Similarly, dashed lines represent the boundaries of feasible production for Fab V. Under a bordered fab strategy, identical output mix is required for both fabs, represented by ray OP; the optimal layers processed are points a and b for Fab U and Fab V, respectively. We observe that the slopes of line segments AB and MN are different. The slopes represent the marginal rate of transformation, i.e., the rate at which one output must be sacrificed to produce a single extra unit of another output by using the same level of resources. Fab U will benefit by reallocating product (layer type) mix to process more Y2, while Fab V should process Y1as much as possible. The optimal
solutions under a borderless fab strategy are points c and N for Fabs U and V, respectively (Figure 2, Table 1), which indicate both fabs also reallocate their product mix (from a to c and from b to N). Consequently, the corporate-wise layers processed improve from (236.6, 165.7) to (251.6, 176.1), and wafer output increases by 6.3%. One fab may be more productive in processing a particular layer type; a careful allocation of the mix of layer types optimally can generate more benefits. Capacity pooling allows the flexibility to reallocate the different layers processed to achieve higher productivity.
Figure 2. A two-output illustration.
6. Case study
This section reports a case study based on real data from a leading semiconductor manufacturer to demonstrate the effectiveness of the proposed approach. Our data set represents the overall full-scale fab-level operations, and provides a complete picture of the operations. The case study evaluates the potential benefits of adopting new capacity pooling strategies using the proposed models, particularly by comparing Models (B-O) and (BL-O).
6.1 Data
We study two fabs (S ¼ fA, Bg) located within a few miles of one another that are owned by the same semiconductor manufacturer. They are 8-inch fabs, which are more stable compared to 12-inch or advanced fab, making a borderless fab strategy ideal. We consider four resources: headcount, equipment, space and time, i.e., I ¼ {headcount, equipment, space, time}. The first three resources are commonly found in other studies. Time, which is not as straightforward as the first three, is the total time used in production. Given the same level of labour, equipment and space, more layers require longer times. Similarly, for example, less labour (equipment) generally results in longer times to generate the required layers, and this reveals the substitutability among resources. For practical implementation, the detailed definitions of resources can be found in Chen and Chien (2009).
We consider three different layer processing types – polysilicon layers, metal layers and the others – as intermediate products, i.e., J ¼ {poly, metal, other}. The three layer types are fundamental processes for all wafer products. Layer data is collected as number of layers processed per month. The four categories of wafer outputs are 0.13 mm, 0.18 mm, 0.25 mm and 0.35 mm. Hence, O ¼ {0.13, 0.18, 0.25 and 0.35}. Wafer outputs are measured as pieces of equivalent 8-inch wafers. A single record ðxsr, ysr, zsrÞ consists of monthly information about resources (xs
r), effective layers processed (ysr) and effective wafer
products delivered (zs
r) for a particular month r at fab s. We collect records for 39
consecutive months at each fab, for a total of 78 records (39 for each fab, i.e., Rj sj ¼39)2
.
6.2 Results and discussion
To evaluate the potential gains, we compare (B-O) and (BL-O) based on (14). The same parameters (Rs, xs
0 and ð y0, z0Þ) are applied to both models. Rs determines the possible
resource-output transformation while xs
0 and ð y0, z0Þ define the environmental settings,
which are dynamic due to internal resource supply and external demand. We must compare both models considering the dynamic environment, i.e., testing different scenarios in terms of resources and product configurations (xs
0 and ð y0, z0Þ).
To represent different scenarios, 39 monthly resource configurations for fabs (xs r’s) are
considered. We use each ð ys
r, zsrÞ (r 2 Rs and s 2 S) to represent possible corporate-wise
overall product parameters for ð y0, z0Þ ¼ ðysr, zsrÞ. There are 78 scenarios regarding product
specifications, 39 from each fab. Therefore, 3042 (39 78) different resource and product design combinations can be used as the testing scenarios. In addition, since ð ys
r, zsrÞis the
aggregate data and can be assumed decomposable, crs is assumed to estimate D. We first present the potential output differences by adopting the borderless fab strategy to a particular case. Tables 2 and 3 list the resource configurations for two fabs (xs
0, s 2 S ¼ fA, Bg) and the overall product specifications (ð y0, z0Þ). There are slight
resource differences between Fabs A and B, but their individual underlying production capabilities cannot be revealed explicitly. Table 4 compares the optimal capacity for the requested products (Table 3) based on (B-O) and (BL-O). The results show that capacity pooling can increase wafer outputs by 10.28%. Using a bordered strategy, the metal layer process (229.2 K layers) and poly layer process (78.8 K layers) are the bottlenecks for Fabs A and B, respectively, resulting in significant excess capacities for the other layer masking processes in both fabs. For example, Fab A has excess capacity of 25.5 K layers for the poly layer process, which is about one third of the total capacity. Capacity pooling allows trans-shipment between fabs, and excess capacity is better utilised for both fabs (Table 4). We observe that Fab A has identical total capacities (used plus excess) for each layer type under both strategies while Fab B shows inconsistent results (Table 4). This observation reveals that the improvements of Fab A derive from better use of the excess capacity. On the other hand, Fab B benefits by reallocating the output (layer type) mix,
Table 4. Production outputs under different strategies.
Layers processed (K layers) Wafers produced (K pieces) Fab Poly Metal Other 0.13 0.18 0.25 0.35 Bordered A 77.2 229.2 1182.14 0 26.2 16.3 13.7
(25.5)a (0) (73.73)
B 78.8 233.7 1205.45 0 26.7 16. 7 14.0 (0) (90.7) (167.67)
Sumb 156.0 462.9 2387.6 0 53.0 33.0 27.7
Borderless A 102.7 229.2 1255.87 n/a n/a n/a n/a (0) (0) (0)
B 69.2 280.8 1374.8 n/a n/a n/a n/a (0) (24.6) (0)
Sum 171.9 510.0 2630.7 0 58.4 36.4 30.5 Notes:aexcess capacity;
b
total used capacity.
Table 3. Product configuration.
Layer type Wafer type
Poly Metal Other 0.13 0.18 0.25 0.35 127913 379577 1957906 0 43429 27070 22719 Table 2. Resource configuration for two fabs.
Resources Headcount Equipment Space Time Fab A 2222 76150 19548 2192033 Fab B 1973 74950 19000 2195735
e.g., poly layers drop from 78.8 K to 69.2 K while other layer types increase from 1373.1 K (1205.45 K þ 167.67 K) to 1374.8 K. At a macro level, capacity pooling provides more productive loading mix and better use of excess capacities, and thus more wafer outputs. Consequently, the capacity pooling benefits would be more significant if there are more differences in fabs’ excess capacity status and optimal layer mix. In addition, the results suggest that simply adding up available capacity from individual fabs as the overall capacity is improper although this approach is intuitive and easy to use. As observed, output mix reallocation should be considered.
Different scenarios may give different results. Table 5 summarises the percentage improvement due to the borderless strategy for the 3042 instances. The improvement measure is based on (14), using the best of current strategy as the comparing basis, not the initial status. The average improvement for the 3042 scenarios is 2.15% and the maximum improvement is 16.65%. The improvement is equivalent to an additional 3097 pieces of 8-inch wafer monthly on average, or 18,136 pieces as the maximum once the borderless fab strategy is adopted (Table 5). The first quartile of improvement is 0% and the median is 0.96%. The numbers imply a large proportion of the scenario instances without significant improvement or even no improvement. Fifty percent of the instances have improvement less than 1%. However, the findings do not imply the failure of borderless fab, but rather reveal that there is no need for transporting between two fabs in these circumstances. In other words the current strategy can handle ð y0, z0Þand xs0, s 2 S, as well as borderless.
A borderless fab strategy allows incomplete wafers to be transported from one fab to another, but such transportation is not necessary. The capacity pooling utilises inter-fab logistics to expand the overall corporate capacity. A central decision unit, not a fab, plans and controls detailed operations.
We further investigate the instances in which transshipments do exist. Table 6 presents the 1495 (out of 3042) instances with improvement no less than 1%, which are about 49% of the scenario instances studied. The average improvement becomes 4.19% or 5987 pieces of 8-inch wafer. We conclude that if current capacity strategy cannot sufficiently support the need, borderless fab can improve the overall corporate capacity about 4% (or around 6000 8-inch wafer outputs per month) on average.
Table 6. Summary of improvements (41%).
No. of obs. Mean Min Q1 Median Q3 Improvement (%) 1495 4.19 1.0 2.07 3.47 5.47 8-inch wafer outputs (pieces)a 1495 5987 873 3000 5200 8166
Note:aadditional outputs due to capacity pooling. Table 5. Summary of improvements.
No. of obs. Mean Min Q1 Median Q3 Max Improvement (%) 3042 2.15 0 0 0.96 3.44 16.65 8-inch wafer outputs (pieces)a 3042 3097 0 0 1505 5065 18,136 Note:aadditional outputs due to capacity pooling.
We observe that the improvement in capacity from employing the borderless fab strategy comes with some costs. Additional inter-fab transportation expenses, including carrier investment and operation expenses, are required. Therefore, typically we decide to adopt the borderless fab strategy only when the potential gains in wafer outputs are significant. The ‘cutting edge’ of significance is case-dependent and subjective. Rather than making a call on whether to apply capacity pooling, we reiterate that this paper provides reliable quantitative information to assist the decision-making process. Although we investigate the effect of pooling only two fabs, the model is more general for any number of fabs. Further, in the implementation of (B-O) and (BL-O), a sufficient number of records produce better estimation of technologies.
7. Conclusion
This paper presented a model to evaluate the capacity pooling, ‘borderless fab’, strategy in semiconductor manufacturing. The model provides quantitative information as an aid to decision-making. The model is based on non-parametric activity analysis and is a macro-level evaluation, which closely resembles strategic decision-making. Our study used a full-scale data set representing real aggregate fab operations, while previous research has relied only upon small-scale cases to demonstrate effectiveness. We found that capacity pooling can improve monthly capacity by 3% on average.
In summary, the major contributions of this paper are three-fold. First, we presented a tool to answer an important question in the semiconductor industry: ‘How much benefit can be gained from adopting the borderless fab strategy?’ Rather than promoting adoption of capacity pooling, we provide quantitative information for key decision-making. Second, the generic model proposed, termed design technology, described and analysed high-level product design specifications. Third, our case study was based on a fab-level data set collected from the past operations of a leading semiconductor manufacturer. The empirical results thus are more meaningful and provide more salient insights than earlier research.
The implementation of capacity pooling is not free, but, for example, is accompanied by logistics costs and delay in batching to transport. Other hurdles to adopting capacity pooling include the need to invest heavily in information technology, such as integrating manufacturing execution system (MES). Further, trade-offs regarding quality issues are required. For example, the displacements (i.e., overlay errors) between layers often should be reduced to enhance the yield; this engineering concern results in a constraint for capacity pooling and we suggest it requires further studies. We note that the potential benefits should be studied prior to undertaking a cost-benefit analysis, and that our model fulfils this function from the perspective of productivity rather than alternative selection. A recent trend in the industry is twin-fab construction. Instead of building a large fab at one time, two fabs can be built separately in the same location, considering the firm’s fiscal status and market demand. If the trend holds, productivity gains due to capacity pooling can be realised and possible negative concerns can be minimised. For example, the transportation costs for capacity pooling can be reduced significantly in a twin-fab setting. The two fabs have the same MES, and the material handling systems can integrate both facilities for optimum control. The findings of our empirical study provide quantitative information to support this concept for new facility investments.
Our approach, which is deterministic, static, and based on historical data, does provide a quick, macro-level evaluation for capacity pooling. We recognise that its limitations – that the detailed dynamic behaviour of the systems are not revealed and future demand uncertainty and technology changes are not fully incorporated – should be addressed in future research. However, as mentioned, the proposed model can be easily applied to other cases and industries. The proper use of the assumptions we have discussed will yield better approximations of the underlying production technology, which typically requires domain expertise and subjective judgements. We also suggest that a fruitful area of research will be the development of a systematic procedure.
Acknowledgements
This research was supported in part by the National Science Council, Taiwan (NSC 97-2221-E-009-113) and Taiwan Semiconductor Manufacturing Company (96A0280J8).
Notes
1. Please refer to Fare et al. (1994) for comprehensive information.
2. However, we are not able to reveal any detailed information due to manufacturer confidentiality.
References
Banker, R.D., Charnes, A., and Cooper, W.W., 1984. Some models for estimating technical and scale inefficiency in data envelopment analysis. Management Science, 30 (9), 1078–1092. Benjaafar, S., Cooper, W.L., and Kim, J.-S., 2005. On the benefits of pooling in
production-inventory systems. Management Science, 51 (4), 548–565.
Charnes, A., Cooper, W.W., and Rhodes, E., 1978. Measuring the efficiency of decision making units. European Journal of Operational Research, 2 (6), 429–444.
Chen, W.-C. and Chien, C.-F., 2009. Measuring relative performance of wafer fabrication operations: a case study. Journal of Intelligent Manufacturing, doi: 10.1007/s10845-009-0302-x. [In press].
Chien, C.-F. and Hsu, C., 2006. A novel method for determining machine subgroups and backups with an empirical study for semiconductor manufacturing. Journal of Intelligent Manufacturing, 17 (4), 429–440.
Chien, C.-F., et al., 2007. Construct the OGE for promoting tool group productivity in semiconductor manufacturing. International Journal of Production Research, 45 (3), 509–524. Corbett, C.J. and Rajaram, K., 2006. A generalization of the inventory pooling effect to nonnormal
dependent demand. Manufacturing and Service Operations Management, 8 (4), 351–358. Fare, R., Grosskopf, S., and Lovell, C.A.K., 1994. Production frontiers. Cambridge, UK: Cambridge
University Press.
Gan, B.P., et al., 2007. Analysis of a borderless fab using interoperating AutoSched AP models. International Journal of Production Research, 45 (3), 675–697.
Leontief, W.W., 1953. The structure of the American economy. New York: Oxford University Press. Rau, H., Chu, Y.-H., and Cho, K.-H., 2005. Layer modelling for the inspection allocation problem in re-entrant production systems. International Journal of Production Research, 43 (17), 3633–3655.
Wu, M.C., Chen, C.F., and Shih, C.F., 2009. Route planning for two wafer fabs with capacity-sharing mechanisms. International Journal of Production Research, 47 (20), 5843–5856.
