Adaptive upstream optical power adjustment depending on required power

budget in PON access

C.H. Yeh

a,b,n

, C.W. Chow

c

, Y.L. Liu

a a

Information and Communications Research Laboratories, Industrial Technology Research Institute (ITRI), Chutung, Hsinchu 31040, Taiwan bGraduate Institute of Applied Science and Engineering, Fu Jen Catholic University, New Taipei 24205, Taiwan

c

Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan

a r t i c l e

i n f o

Article history: Received 3 May 2012 Received in revised form 2 July 2012

Accepted 11 July 2012 Available online 1 August 2012 Keywords: Green network Energy-saving TDM-PON NG-PON

a b s t r a c t

According to the present passive optical network (PON) standard, the fiber transmission lengths are from 500 m to 20 km between the optical line terminal (OLT) and different optical network units (ONUs). It will result in difference power losses (DPloss) from 4 to 5 dB. Hence, we propose to adjust

adaptively the output optical power of the upstream laser diode (LD) depending on the different fiber lengths. With the different fiber transmission lengths, we can properly adjust the bias current and modulation index of upstream LD for energy-saving. We characterize and analyze experimentally the relationship of output optical power and modulation amplitude Vamp under different fiber transmis-sions in PON access. Moreover, due to the adaptive power control of upstream signal, the optical upstream equalization also can be retrieved with power variation of 1.1 dB in this experiment.

&2012 Elsevier B.V. All rights reserved.

1. Introduction

Recently, the time-division-multiplexed passive optical network (TDM-PON) is one of the promising choices for the next generation fiber to the home (FTTH) system[1]. And the TDM-PON has been thoroughly explored and standardized, and commercial products for the TDM-PON have already existed[2,3]. In practical, the point-to-multipoint connectivity between the optical line termination (OLT) and multiple optical network units (ONUs) is obtained using a passive branching device at the remote node (RN). Typically, the 1310 and 1490 nm wavelengths are used for the upstream and downstream signals in current TDM-PON networks[4,5].

In particular, the broadband PON systems have the higher power consumption than that of metro and core networks, due to the high number of communication components involved [6]. Generally speaking, to reduce the energy consumption in com-munication systems, nodes are allowed to switch to sleep mode since they are idle, and to wake up when they need to either send or receive data. To reduce the energy consumption in PON system, most of the studies were conducted within both the research community[7]and working groups in standard bodies[8]build upon the idea of allowing PON network devices, specifically the ONUs, to switch to sleep mode for power saving[9].

According to the standard PONs, the fiber transmission length was between 500 m and 20 km. Hence, it would result power loss

difference of 4–5 dB between the OLT and each ONU because of the fiber loss. Usually, the output power of Tx in each ONU was fixed at certain power level for upstream data traffic. Hence, the larger power budget can obtain while the shorter fiber length is used between the OLT to ONU. In addition, the auto-gain control (AGC) and clock and data recover (CDR) processes have to be performed in the OLT to different upstream signals sending form different ONUs. And the success of the AGC and CDR processes require that the incoming upstream signals should be in a certain power dynamic range. By using the adaptive power control, the upstream signal powers from different ONUs can be adjusted in the optical domain; hence other power equalization processes[10,11] are not required. In this work, we propose to adaptively control the upstream optical output power in each ONU by properly adjusting the bias current and modulation amplitude voltage (Vamp) depending on the different fiber transmission lengths. Due to 4–5 dB power difference, the shorter fiber length can use smaller upstream power for data traffic and achieve energy saving. We characterize and analyze experimentally the relationship of output optical power and mod-ulation amplitude Vampunder different fiber transmissions in PON access. Besides, the maximum received upstream power difference (

D

Pup) at the OLT can be measured within 1.1 dB in for power equalization simultaneously by the proposed method.

2. Experiment and discussions

Fig. 1 shows the typical TDM-PON system. The fiber length

between the OLT and ONU is from 500 m to 20 km long. As shown

inFig. 1, the 1490 nm downstream signal is broadcasting to each

Contents lists available atSciVerse ScienceDirect

journal homepage:www.elsevier.com/locate/optcom

Optics Communications

0030-4018/$ - see front matter & 2012 Elsevier B.V. All rights reserved. http://dx.doi.org/10.1016/j.optcom.2012.07.049

n

Corresponding author at: Information and Communications Research Laboratories, Industrial Technology Research Institute (ITRI), Bldg. 14, 195, Sec. 4, Chung-Hsing Rd., Chutung, Hsinchu 31040, Taiwan.

E-mail addresses: [email protected], [email protected] (C.H. Yeh).

(2)

ONU. And each 1310 nm upstream signal is scheduled for the upstream data traffic via the multi-point control protocol (MPCP) mechanism. Hence, the difference of fiber transmission lengths will result in power loss difference (

D

Ploss) of 4–5 dB. According to the

D

Ploss, we can adaptively adjust the output power of 1310 nm laser for energy saving. The output power can be adjusted by varying the laser operating bias current and modulation index.

Fig. 2presents the output power of 1310 nm Fabry–Perot laser

diode (FP-LD) versus different bias currents. We observe that the threshold current (Ithres) of FP-LD is around 10 mA. The max-imum output power of FP-LD is about 1.4 dBm at the bias current of 35 mA. Usually, the 1.4 dBm upstream power can be used to support 20 km fiber transmission. And, when the bias currents are 18 and 24 mA, respectively, the measured output powers of  3.5 and  1.4 dBm can be obtained. Besides, the inset ofFig. 2is the output spectrum of 1310 nm multi-mode FP-LD at the bias current of 35 mA.

Here, we select three output powers of 1.4, 1.4 and 3.5 dBm (with 4.9 dB power difference) from upstream FP-LD in this measurement due to the maximum fiber loss difference of 4–5 dB in PON. In the experiment, the FP-LD is directly modulated at 1.25 Gb/s non-return-to-zero (NRZ) format with pseudo-random binary sequence (PRBS) of 2311.Fig. 3(a) presents the upstream receiver (Rx) sensitivities against different modulated amplitude voltages (Vamp) using 3 different cases of output powers (output powers are 1.4, 1.4 and  3.5 dBm). The Rx sensitivity was measured at bit error rate (BER) level of 109. In each output power case, the Rx sensitivity at B2B is always lower than that after 20 km fiber transmission. This is because the fiber chromatic dispersion degrades the upstream signal in the fiber transmission, producing power penalty and increasing the Rx sensitivity. While the output powers are 1.4, 1.4 and

3.5 dBm, respectively, the Rx sensitivities can be measured at 29.3,  29.4 and  29.3 dBm at B2B status under the Vampof 1.3, 0.9 and 0.5 V, as shown inFig. 3(a). And the Rx sensitivities of 23.6,  25.6 and  28.3 dBm also can be observed through the fiber transmissions of 20, 10 and 1 km respectively.

The measured Vampof 1.3, 0.9 and 0.5 V has the minimum Rx sensitivities at various output power of FP-LD, as seen inFig. 3(a). The reason we selected minimum Rx sensitivity is because it requires less Rx optical power to achieve the same BER perfor-mance (at BER of 109). Hence, this means that the three V

ampare the optimal operating points for different upstream output powers at different fiber lengths. Moreover, the related power penalty is also measured under the different Vampas the output power is 1.4, 1.4 and  3.5 dBm, respectively, after transmitting through 20, 10 and 1 km fiber transmission length as illustrated

inFig. 3(b). And the power penalties of 5.3, 3.8 and 1.0 dB can be

observed respectively, at the same operating conductions as above. Insets ofFig. 3(b) are the corresponding eye diagrams at the Vampof 1.3, 0.9 and 0.5 V in the fiber transmission of 20, 10 and 1 km, respectively. And these measured eyes are widely opening and clear. As shown in Fig. 3(b), when the Vamp is increased gradually, the power penalty decreases.

The total power consumption (Ptotal) of upstream FP-LD with modulation status can be expressed as below

Ptotal¼PSþPD¼I2biasR þ CV 2

ampf ð1Þ

where PS and PD are the power consumptions of static and dynamic states. Here, the Ibiasand R ( ¼6

O

) are the bias current and resistance for the FP-LD respectively. Besides, the C, Vampand f are the capacity ( ¼3 pF), modulation amplitude voltage and signal frequency ( ¼1250  70%¼875 MHz), respectively.

Fig. 4 shows the power consumption of PS and PD under

different bias currents and Vamp, respectively. Here, as the bias current and Vampare increased, the obtained PSand PDare also increase, as shown inFig. 4. When the Ibiasis 18, 24 and 35 mA respectively, the PSis measured at 1.94, 3.46, 7.35 mW. And its corresponding PDis also observed at 0.066, 0.213 and 0.444 mW, when the Vampis 0.5, 0.9 and 1.3 V respectively.

Here, to realize the total energy consumption of upstream FL-LD, we set three fiber transmission lengths of 20, 10 and 1 km, respectively, at three output powers of 1.4,  1.4 and  3.5 dBm. Three scenarios are discussed while the corresponding operation conditions are used in PON with 64 ONUs, as shown inTable 1. Scenario I is the extreme case in which all the ONUs are assumed located at 20 km away from the OLT, hence each ONU should be operated in full power. Then we arbitrarily select half the number of ONUs at 20 km away and the other half at 10 km away (scenario II); and the ONUs are distributed in 20, 10 and 1 km away from the OLT (scenario III). In general, each ONU is operated at maximum output power in current PON. As seen inTable 1, the total power consumption per day can be calculated at 42,396.5 W in the scenario (I), when the 64 ONUs are used and switched-on

1490nm

Rx

WC

1310nm

Rx

WC

OSP

(RN)

500m ~ 20km

MA

C

MAC

ONUs

OLT

WC : WDM Coupler RN : Remote Node OSP : Optical Splitter

OLT : Optical Line Terminal ONU : Optical Network Unit MAC : Medium Access Control

Fig. 1. Standard TDM-PON architecture.

Bias Current (mA)

5 10 15 20 25 30 35 40 Output Pow e r (dBm) -40 -35 -30 -25 -20 -15 -10 -5 0 5

Fig. 2. Output power curve of 1310 nm FP-LD under different bias currents. Insert is the output spectrum of FP-LD at 35 mA.

C.H. Yeh et al. / Optics Communications 285 (2012) 4927–4930 4928

(3)

Rx Sensi

tivity

(

d

Bm)

-32 -28 -24 -20 -16 -12 -8 B2B (P = 1.4 dBm) 20km B2B (P = -1.4 dBm) 10km B2B (P = -3.5 dBm) 1km

Vamp (V)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

Pow

e

r Penal

ty

(dB)

0 2 4 6 8 10 P = 1.4 dBm P = -1.4 dBm P = -3.5 dBm

Fig. 3. (a) The upstream received power and (b) measured power penalty under different modulated amplitude voltage (Vamp), when the FP-LD is directly modulated at 1.25 Gb/s NRZ-OOK format at BER level of 109at B2B and 20, 10 and 1 km fiber transmissions, respectively, when the output power of FL-LD are 1.4,  1.4 and  4 dBm. Insert of (b) is the corresponding eye diagrams at the Vampof 1.3, 0.9 and 0.5 V, respectively.

Bias Current (mA)

5 10 15 20 25 30 35 40

P

o

w

e

r Consumption, P

S

(

m

J/s)

0 2 4 6 8

Vamp (V)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

Power Co

ns

u

m

pt

io

n,

P

D

(

m

J/s)

0.0 0.1 0.2 0.3 0.4 0.5

Current

Vamp

Fig. 4. Power consumption of PSand PDunder the different bias current and Vamp, respectively.

(4)

for a whole day. To achieve energy saving, we can adaptively adjust the upstream output power with properly modulation Vamp according to the different fiber transmission lengths. As shown in

Table 1, the scenarios (II) and (III) will reduce the energy

consumption when the properly bias current and Vamp of upstream FP-LD are employed. As a result, we can properly adjust the upstream output power and Vampaccording to the different fiber transmission lengths for power saving.

Finally, we analyze if there is enough upstream optical power for achieving the PON having a split-ratio of 64. The split ratio of 64 corresponds to 18 dB power loss. The Rx optical powers at OLT are 20.6, 21.4 and  21.7 dBm after transmitting through 20 km (4 dB loss), 10 km (2 dB loss) and 1 km (0.2 dB loss) fiber transmis-sion lengths, respectively, when the output powers of FP-LD are 1.4, 1.4 and 3.5 dBm. According toFig. 3(a), the Rx sensitivities of 23.6,  25.6 and  28.3 dBm are observed through the fiber transmissions of 20, 10 and 1 km respectively. Therefore, the Rx optical powers are higher than the Rx sensitivities in the 3 cases,

showing the feasibility of the proposed PON supporting a split-ratio of 64.

3. Conclusion

We have proposed to adaptively control the output optical power of the upstream Tx in each ONU by properly adjusting the bias current and modulation index (Vamp) of upstream FP-LD according to the different fiber transmission lengths. Therefore, when ONUs closer to the OLT (shorter fiber transmission length), the bias current and Vampof FP-LD can be reduced properly for energy saving and enhance the PON performance simultaneously. Thus, when more ONUs are used in PON access, the proposed technique would obtain more energy saving. In addition, due to the adaptively power adjustment of each upstream FP-LD in a properly fiber length, it also can result in 1.1 dB upstream power variation (

D

Pup) for upstream power equalization in the PON.

References

[1] P.P. Iannone, K.C. Reichmann, Optical access beyond 10 Gb/s PON, in: Proceedings of the ECOC, 2010, Paper Tu.3.B.1.

[2] Ethernet in the First Mile Task Force, IEEE 802.3ah, Draft 3.0b, 2004. [3] 10 Gb/s Ethernet Passive Optical Network, IEEE P802.3av, Draft 3.0, 2009. [4] C.-H. Yeh, C.-S. Lee, S. Chi, Journal of Optical Networking 7 (2008) 288. [5] C.-H. Yeh, C.-W. Chow, C.-H. Wang, F.-Y. Shih, Y.-F. Wu, S. Chi, Optics Express

16 (2008) 18857.

[6] J. Baliga, R. Ayre, W.V. Sorin, K. Hinton, R.S. Tucker, Energy consumption in access networks, in: Proceedings of the OFC, 2008, Paper OThT6.

[7] T. Smith, R.S. Tucker, K. Hinton, A.V. Tran, Implications of sleep mode on activation and ranging protocols in PONs, in: Proceedings of the IEEE LEOS, 2008, pp. 604–605.

[8] J. Mandin, EPON power saving via sleep mode, IEEE 802.3az Meeting, September 2008.

[9] S.-W. Wong, L. Valcarenghi, S.-H. Yen, D.R. Campelo, S. Yamashita, L. Kazovsky, Sleep mode for energy saving PONs: advantages and drawbacks, IEEE Glombecom Workshops, 2009, pp. 1–6.

[10] C.-H. Yeh, D.-Z. Hsu, S. Chi, Optics Express 15 (2007) 5191.

[11] Y. Park, C. Lim, I. Jung, IEEE Photonics Technology Letters 16 (2004) 1984. Table 1

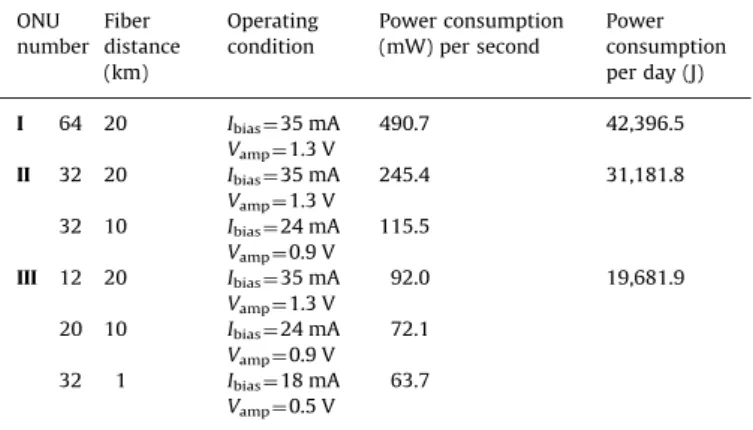

Power consumption of upstream signal under different operation conditions at the fiber transmission lengths of 20, 10 and 1 km, respectively.

ONU number Fiber distance (km) Operating condition Power consumption (mW) per second Power consumption per day (J) I 64 20 Ibias¼35 mA Vamp¼1.3 V 490.7 42,396.5 II 32 20 Ibias¼35 mA Vamp¼1.3 V 245.4 31,181.8 32 10 Ibias¼24 mA Vamp¼0.9 V 115.5 III 12 20 Ibias¼35 mA Vamp¼1.3 V 92.0 19,681.9 20 10 Ibias¼24 mA Vamp¼0.9 V 72.1 32 1 Ibias¼18 mA Vamp¼0.5 V 63.7

C.H. Yeh et al. / Optics Communications 285 (2012) 4927–4930 4930
