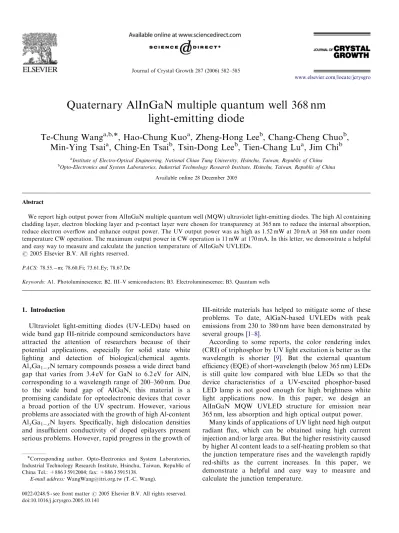

Journal of Crystal Growth 287 (2006) 582–585
Quaternary AlInGaN multiple quantum well 368 nm
light-emitting diode
Te-Chung Wang
a,b,, Hao-Chung Kuo
a, Zheng-Hong Lee
b, Chang-Cheng Chuo
b,
Min-Ying Tsai
a, Ching-En Tsai
b, Tsin-Dong Lee
b, Tien-Chang Lu
a, Jim Chi
baInstitute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu, Taiwan, Republic of China bOpto-Electronics and System Laboratories, Industrial Technology Research Institute, Hsinchu, Taiwan, Republic of China
Available online 28 December 2005
Abstract
We report high output power from AlInGaN multiple quantum well (MQW) ultraviolet light-emitting diodes. The high Al containing cladding layer, electron blocking layer and p-contact layer were chosen for transparency at 365 nm to reduce the internal absorption, reduce electron overflow and enhance output power. The UV output power was as high as 1.52 mW at 20 mA at 368 nm under room temperature CW operation. The maximum output power in CW operation is 11 mW at 170 mA. In this letter, we demonstrate a helpful and easy way to measure and calculate the junction temperature of AlInGaN UVLEDs.
r2005 Elsevier B.V. All rights reserved.
PACS: 78.55.m; 78.60.Fi; 73.61.Ey; 78.67.De
Keywords: A1. Photoluminescence; B2. III–V semiconductors; B3. Electroluminescence; B3. Quantum wells
1. Introduction
Ultraviolet light-emitting diodes (UV-LEDs) based on wide band gap III-nitride compound semiconductors have attracted the attention of researchers because of their potential applications, especially for solid state white lighting and detection of biological/chemical agents.
AlxGa1xN ternary compounds possess a wide direct band
gap that varies from 3.4 eV for GaN to 6.2 eV for AlN, corresponding to a wavelength range of 200–360 nm. Due to the wide band gap of AlGaN, this material is a promising candidate for optoelectronic devices that cover a broad portion of the UV spectrum. However, various problems are associated with the growth of high Al-content AlxGa1xN layers. Specifically, high dislocation densities
and insufficient conductivity of doped epilayers present serious problems. However, rapid progress in the growth of
III-nitride materials has helped to mitigate some of these problems. To date, AlGaN-based UVLEDs with peak emissions from 230 to 380 nm have been demonstrated by several groups[1–8].
According to some reports, the color rendering index (CRI) of triphosphor by UV light excitation is better as the
wavelength is shorter [9]. But the external quantum
efficiency (EQE) of short-wavelength (below 365 nm) LEDs is still quite low compared with blue LEDs so that the device characteristics of a UV-excited phosphor-based LED lamp is not good enough for high brightness white light applications now. In this paper, we design an AlInGaN MQW UVLED structure for emission near 365 nm, less absorption and high optical output power.
Many kinds of applications of UV light need high output radiant flux, which can be obtained using high current injection and/or large area. But the higher resistivity caused by higher Al content leads to a self-heating problem so that the junction temperature rises and the wavelength rapidly red-shifts as the current increases. In this paper, we demonstrate a helpful and easy way to measure and calculate the junction temperature.
ARTICLE IN PRESS
www.elsevier.com/locate/jcrysgro
0022-0248/$ - see front matter r 2005 Elsevier B.V. All rights reserved. doi:10.1016/j.jcrysgro.2005.10.141
Corresponding author. Opto-Electronics and System Laboratories, Industrial Technology Research Institute, Hsinchu, Taiwan, Republic of China Tel.: +886 3 5912004; fax: +886 3 5915138.
2. Experimental procedure
For the desired short wavelengths below 365 nm, there exists strong internal absorption by GaN, leading to significant reduction in EQE. To prevent strong absorption by GaN, we set the wavelength a little longer than 365 nm and reduce the thickness of binary p-GaN contact layers as much as possible. Excluding the GaN template and two contact layers used for n-electrode and p-electrode, the
LED structure is composed of ternary AlxGa1xN. The
AlInGaN MQW UVLED structure, as shown in Fig. 1,
was grown on c-face sapphire substrates by low-pressure
horizontal-flow metal–organic vapor phase epitaxy
(MOVPE). Deposition began with a 30 nm low-tempera-ture GaN nucleation layer grown at 550 1C followed by a 2 mm thick high-temperature undoped GaN buffer layer and 1 mm Si-doped GaN both grown at 1050 1C, to form the type contact layer. Next, 50 nm of graded
n-AlxGa1xN (x ¼ 0.1–0.14) was deposited to be a cladding
layer. Thereafter, the temperature was gradually decreased to 850 1C to grow the active region consisting of quaternary AlInGaN multiple quantum wells. The compositions of the quaternary AlInGaN layers were theoretically estimated from PL emission and X-ray analysis by using the following expression for the AlInGaN band gap
incorpor-ating the recently revised InN band gap (0.8 eV)[10]and
an AlGaN bowing parameter of 1 eV[11].
EgðAlxInyGa1xyNÞ
¼6:2x þ 0:8y þ 3:42ð1 x yÞ
ð1ÞðxÞð1 xÞðeVÞ. ð1Þ
The quantum wells and barriers were estimated to be 3-nm-thick In0.02Al0.005Ga0.975N and 9-nm-thick In0.005Al
0.12-Ga0.875N, respectively. The temperature was then increased
to 1050 1C and a 25 nm p-Al0.19Ga0.81N electron blocking
layer was deposited to prevent overflow of electrons out of the active region. The structure was completed with a 125 nm thick p-Al0.09Ga0.91N layer followed by a 10 nm
p-GaN contact layer. After MOVPE growth, the LED wafer was partially etched by reactive ion etching from the surface of the p-type GaN until the n-type GaN was exposed. A Ni/Au contacting metal layer was evaporated onto the p-type GaN contact layer, and a titanium/ aluminum (Ti/Al) contact was evaporated onto the n-type GaN layer, respectively. Finally, for output power mea-surements, the UV LED chips were packaged into 5 mm lamps and TO cans by standard processes.
3. Result and discussion
Fig. 2 shows the characteristics of an AlInGaN MQW UVLED lamp under pulse and CW operation, respectively. To eliminate the self-heating as much as possible, we choose 0.1% duty cycle and carefully make all transmission lines short and all contacts perfect to obtain a clean pulse shape on an oscilloscope. This measurement really has to be done carefully and is a little difficult. Under pulse operation, the output power and the forward voltage

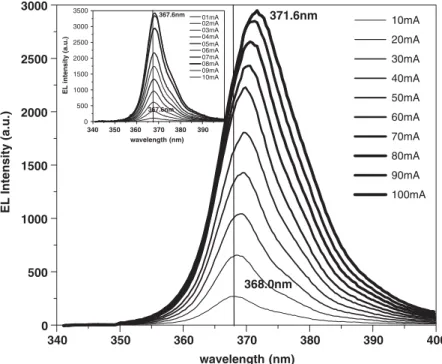

increase linearly with current. As shown in Fig. 3, in CW
