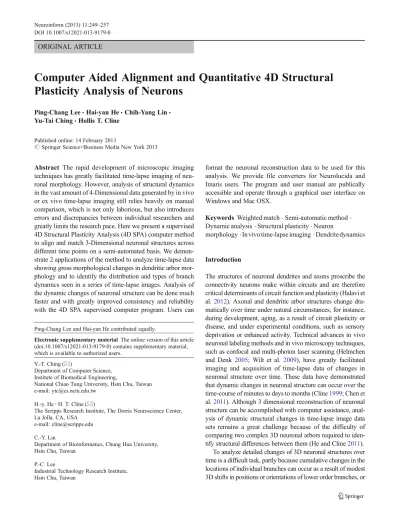

ORIGINAL ARTICLE
Computer Aided Alignment and Quantitative 4D Structural
Plasticity Analysis of Neurons
Ping-Chang Lee&Hai-yan He&Chih-Yang Lin&
Yu-Tai Ching&Hollis T. Cline
Published online: 14 February 2013
# Springer Science+Business Media New York 2013
Abstract The rapid development of microscopic imaging techniques has greatly facilitated time-lapse imaging of neu-ronal morphology. However, analysis of structural dynamics in the vast amount of 4-Dimensional data generated by in vivo or ex vivo time-lapse imaging still relies heavily on manual comparison, which is not only laborious, but also introduces errors and discrepancies between individual researchers and greatly limits the research pace. Here we present a supervised 4D Structural Plasticity Analysis (4D SPA) computer method to align and match 3-Dimensional neuronal structures across different time points on a semi-automated basis. We demon-strate 2 applications of the method to analyze time-lapse data showing gross morphological changes in dendritic arbor mor-phology and to identify the distribution and types of branch dynamics seen in a series of time-lapse images. Analysis of the dynamic changes of neuronal structure can be done much faster and with greatly improved consistency and reliability with the 4D SPA supervised computer program. Users can
format the neuronal reconstruction data to be used for this analysis. We provide file converters for Neurolucida and Imaris users. The program and user manual are publically accessible and operate through a graphical user interface on Windows and Mac OSX.
Keywords Weighted match . Semi-automatic method . Dynamic analysis . Structural plasticity . Neuron
morphology . In vivo time-lapse imaging . Dendrite dynamics
Introduction
The structures of neuronal dendrites and axons proscribe the connectivity neurons make within circuits and are therefore critical determinants of circuit function and plasticity (Halavi et al.2012). Axonal and dendritic arbor structures change dra-matically over time under natural circumstances, for instance, during development, aging, as a result of circuit plasticity or disease, and under experimental conditions, such as sensory deprivation or enhanced activity. Technical advances in vivo neuronal labeling methods and in vivo microscopy techniques, such as confocal and multi-photon laser scanning (Helmchen and Denk 2005; Wilt et al. 2009), have greatly facilitated imaging and acquisition of time-lapse data of changes in neuronal structure over time. These data have demonstrated that dynamic changes in neuronal structure can occur over the time-course of minutes to days to months (Cline1999; Chen et al.2011). Although 3 dimensional reconstruction of neuronal structure can be accomplished with computer assistance, anal-ysis of dynamic structural changes in time-lapse image data sets remains a great challenge because of the difficulty of comparing two complex 3D neuronal arbors required to iden-tify structural differences between them (He and Cline2011). To analyze detailed changes of 3D neuronal structures over time is a difficult task, partly because cumulative changes in the locations of individual branches can occur as a result of modest 3D shifts in positions or orientations of lower order branches, or
Ping-Chang Lee and Hai-yan He contributed equally.
Electronic supplementary material The online version of this article (doi:10.1007/s12021-013-9179-0) contains supplementary material, which is available to authorized users.
Y.-T. Ching (*)
Department of Computer Science, Institute of Biomedical Engineering,
National Chiao Tung University, Hsin Chu, Taiwan e-mail: ytc@cs.nctu.edu.tw
H.-y. He
:
H. T. Cline (*)The Scripps Research Institute, The Dorris Neuroscience Center, La Jolla, CA, USA
e-mail: cline@scripps.edu C.-Y. Lin
Department of Bioinformatics, Chung Hua University, Hsin Chu, Taiwan
P.-C. Lee
Industrial Technology Research Institute, Hsin Chu, Taiwan
because minor differences in the position of the animal during in vivo imaging may shift the orientation of the neuron in the image. Most 4D analysis of neuronal structural dynamics from time-lapse imaging data is done by manual comparison of 2D or 3D reconstructions. To analyze the changes between two 3D reconstructions of neurons manually takes an expert hours to align and match the two reconstructed 3D complete dendritic arbor structures. Manual identification of the numbers and distribution of dynamic branches, categorized as retracted, newly added, transient, and stable, over a set of multiple images (Haas et al.2006; Bestman and Cline2009) is laborious and greatly slows down research in the field (He and Cline2011). A computer method that assists in comparing 3D neuronal struc-tures would address the weaknesses of manual analysis.
Recent work reported that computer-assisted automatic analysis of neuronal structures from time-lapse images could be achieved in cultured neurons (Al-Kofahi et al.
2006). This advance was facilitated by the 2D structure of cultured neurons and their relatively simple neuronal mor-phology. In this paper, we present a supervised 4D neuronal Structural Plasticity Analysis (4D SPA) computer method that computes precise changes in the positions and lengths of all neuronal branches in the arbor between two images or time-points and presents the data as an image superimposed on the 3D reconstruction of the neuron. The method is based on the identification of stable branch points, or‘significant points’ in a pair of images, which are used as reference points to facilitate the alignment of the dendritic structures. We then decompose the neuronal arbor into subsets of branches, or subtrees, with each branch defined as the pro-cess extending from a significant point to the branch tip. Similarities between two branches at sequential time-points were then calculated, generating a suggestion list of poten-tially matching branches, which was then evaluated by the analyst. This method takes advantage of both the computer algorithm and human expertise to significantly reduce the time to identify matching branches in the sequential images and increases the reliability of the analysis results.
Methods Data Preparation
Neurons from the optic tectum of Xenopus laevis tadpoles were labeled by expression of GFP (green fluorescent protein) and time-lapse images were acquired with a two-photon laser-scanning microscope, at either 4 h or 24 h intervals. Recon-struction of the entire dendritic arbor of the neurons was done by the computer-aided filament tracing function in the 3D image analysis software Imaris (Bitplane, USA) and the full filament data set was exported and converted into a txt file for dynamic analysis using the 4D SPA method. An example of a
3D image of a GFP-labeled neuron and the reconstructed dendritic arbor is shown in online resource Video 1. In the input txt file, the branches are represented as data points defined by their 3D location (coordinates) and are organized block-wise. Each block starts with a line defining the branch index (P #) and the number of nodes in that branch (N #). The first point is the starting point of the branch, either the soma or the branching point, and the last point in the block is the tip. The first point in the first block of the file represents the soma position. The detailed description of the input data format can be found in the manual of the 4D SPA (available through
supplemental online resources). To facilitate usage of the SPA program, we made converting tools for reconstructed filament files generated from two of the most commonly used recon-struction software programs (Imaris and Neurolucida), which are also available throughsupplemental online resources. Computer-Aided Comparison Method
A flow diagram of the program is shown in Fig. 1. The traced neuron, denoted N, is presented as a three-dimensional tree rooted at the soma, s. The tree structure data are composed of a series of vertices. The vertices in N are categorized into 3 sets: tips, regular points and branch points. The tips are the unbranched ends of branches in N denoted ti, 1≤i≤n, where n is the number of tips. The branch
points are vertices that have out degree, i.e. the number of
points directly connected to this point on the path away from the soma, greater than 1. All the other vertices are regular points in the neuronal structure. They have out degree equal to 1.
Branches are defined as following: For a pair of points u and v among all points in N, if there is a direct path b=< u, p1,
p2,…,pk, v >, in which p1, p2,…,pk, are points in between u and
v, the path length LðbÞ ¼ u; pj 1j þ P
1 j<kpj; pjþ1 þjpk; vj. We also use <u,v> to denote the path b. If u is the soma or a branch point and v is a tip, then the path b is called a“branch” in N. To estimate the length of each branch, which will be used to compute the similarity between a pair of branches in two images, we resample points on the path between the branch point and the branch tip by arbitrarily counting the length between neighboring points as 1.
To facilitate comparison of the reconstructions of neuronal trees imaged at different time points, we need to define refer-ence points or‘significant’ points. Within the neuronal tree, each branch point can be considered as the root of a subtree (Fig.2a). The size of a subtree is defined as the number of branch tips in that subtree. The“average tree size” of neuron N is then calculated by dividing the sum of the size of all subtrees within neuron N by the total number of branch points. A branch point, v, is defined as a“significant” point if 1. The size of any subtree, rooted at v is greater than the average tree size of the neuron; and 2. One of the following criteria is also satisfied: 1. There are more than 2 subtrees rooted at v.
2. There are only two subtrees rooted at v and the sizes of both subtrees are greater than 3.
Empirically, significant points, defined above, are usually stable over time and would exist in the dendritic trees of the same neuron at two consecutive time-points, thus can be used as reference points for alignment of the arbors (Fig.2). In the following matching process, we first consider the branches emanating from a significant branch point bito a
tip tiwhere biis the closest significant point to tion the path
from ti to the soma. If there is no significant branch point
along the path from tito the soma, then the soma is used as
the starting point. Branch Attributes
Each branch b=< bi, ti>has 3 attributes, the length, L(b), the
parent, and the position. The parent is either itself (the default value) or another branch b′=< bj, tj>that b attaches
to. The position of b is deemed as undefined if the parent is itself. If the parent of b is b′, then the position of branch b is defined as L < bj; bi>
L bð Þ0
= . The parent and position of b are denoted as parent (b) and position (b) respectively. As mentioned earlier, the default parent of each branch is itself at the beginning of the matching process. During the match-ing process, the startmatch-ing points of some branches change to the closest branch point or the soma if no other branch point is available along its path and their parents are revised accordingly.
To compare a pair of branches between two images, the attributes, branch length, parent branch and position, are compared in a screening step (the detailed
pre-Fig. 2 Application of computer assisted 4D structural plasticity anal-ysis to evaluate changes in dendritic arbor structure in neurons in daily time-lapse images. a Schematic drawing of the structure of a neuronal dendritic tree to illustrate the terminology used in this report. The soma is marked by the dark gray circle. Branch points are points where more than one branch is rooted, such as points a and b. All of the points along the branch path that are neither the branch point nor the branch tip are called regular points. There are altogether 13 branch points (including the soma) in the whole tree structure. The average tree size of the schematic neuron is 5.25, calculated as (3+4+2+3+4+8+2+ 2+3+5+13+14)/12; the tree sizes are listed in depth first traversal order. Branch point A is a‘significant point’ because it has a subtree that is larger than the average tree size of the entire arbor and the size of
both of its subtrees are larger than 3. Branch point B is not a ‘signif-icant point’ since none of its subtrees (shaded in light gray) is larger than 5.25. b, c Reconstructions from a pair of images collected 24 h apart (data set No 5). The soma position is marked with the grey oval. Significant points are marked with filled red circles. To illustrate the branch matching process between arbors of 2 consecutive time-points, we colored one branch in the arbor from the first time-point in B in red (an amplified image of the dendritic part in the box is shown in B′). The five candidate matching branches provided by the algorithm in the arbor from the second time-point in C are shown in different colors to distinguish them from each other. Amplification of the boxed part is shown in C′ with each individual candidate matching branch. Scale bar: 10μm
screening step is depicted in the following section). The similarity of the branches is taken into consideration only if the pair of branches pass the pre-screening. The similarity between two shapes is calculated by Eq. (1)
f bð 1; b2Þ ¼ minR; v1n X xi2b1;yj2b2 Rxiþ v yj 2 þ max L bð Þ1 L bð Þ2 ;L bð Þ2 L bð Þ1 ð1Þ where R is a rotation matrix and v is a translation vector. The number of points on b1is n. The value of f(b1, b2) goes up when
similarity goes down. The first term of Eq. (1) can be solved by the iterative closest pair method (Besl and MaKay1992). Pairwise Matching Analysis
For two reconstructions of the same neuron traced from image stacks acquired at different time-points, the first one is designated N1 and the second one is designated N2, in chronological order. During the matching process, branches in N1 are categorized into 3 types, remaining, retracted, and undefined. A branch in N1 is remaining if there is a matching branch in N2. A branch is retracted if there is no matching branch in N2. An undefined branch is a branch that has not been processed yet. Similarly, the branches in N2 are also characterized into 3 types. The remaining and the undefined are the same as defined in N1. There is no retracted branch category in N2, instead, there are newly added branches, which refer to branches in N2that do not have a match in N1.
Each iteration of the matching process consists of the following steps:
1. The longest undefined branch, B in N1is chosen. 2. For each undefined branch, eb¼< bj; tj> in N2, we
check its attributes. eb is in the candidate short list if it satisfied all criteria listed below:
a. Both B and eb are undefined or parent(B) and parent (eb) are a matching pair;
b. max L eb LðBÞ ;LLðBÞ eb ( ) < a; c. position(B)—position(eb < b).
a sets the upper limit of variation allowed in the branch length for the two branches being compared. β accounts for the largest variation allowed in the branch position on the parent branch. Both parame-ters help take into account the difference in structure caused by neuronal growth over the imaging time interval. The values are decided empirically and could be adjusted to optimize the program for
specific applications. In all of our experiments we used the default setting seta=2.5 and β=0.4.
The similarity (Eq.1) between B and all branches in the candidate short list is calculated. The default setting of the length of the suggested list is limited to five, so at most, the most similar five branches will be included in the list. An example of the candidate branches in the suggestion list is shown in Fig.1B, B′, C and C′.
3. The analyst then uses the suggestion list to assign a matching branch for B. If the analyst decides that B has a matching branch eb in the candidate short list, B and eb are moved into the remaining category. If the analyst decides that there is no matching branch for B, then B is assigned to the‘retracted’ category. Based on the assignment of branches to categories, the attributes of some branches in both N1and N2are updated. The following is the update procedure for the branches in N1 and N2:
a. If L(B)<γ, then the procedure stops. Here, γ stands for the minimum length (measuring from the closest branch point to the tip) a branch must have to be used for morphology comparison. This is because very short branches usually do not have many unique morphological features and could be easily confused with other non-matching short branches. The value ofγ was determined empirically. During the course of our experiments, we setγ=15 μm. b. If eb is categorized as remaining or retracted, no
further process is needed.
c. Assuming an undefined branch, eb¼< bk; tk> in N1has a common path with B and the conjunction point of B and eb isec, then eb0s parent and starting point become B andec respectively.
4. If there are no more undefined branches in N1, then all of the remaining undefined branches in N2are changed to newly added and the process terminates. Otherwise, the iteration restarts from step 1.
A graphic-user interface (GUI) software system was implemented to help the analyst complete the matching process. Through the GUI, the analyst can decide the type of branch and set up parameters for the matching process. Dynamics Branch Analysis
Pairwise analysis of sequential images in a longer time-lapse data set requires that branches have unique identifiers that are maintained through the image series. Initially, the branches are assigned an identifier or an“index” according to their length in descending order. After the analyst con-firms all the matching branch pairs in N1 and N2, the 4D SPA program adjusts the indices so that matching branches
are assigned with the same identifier. To combine the mul-tiple pairwise alignment results in data sets with more than 2 images, an extra step is added at the end of each comparison to synchronize the branch indices. This way, we can easily identify each individual branch in every time-point and analyze the dynamic changes of that particular branch over time.
Results
Ten data sets of fully reconstructed dendritic arbors were used in our experiments. The analyst was allowed to use two data sets to become familiar with the 4D SPA program. Then the time to analyze the remaining eight data sets was determined. Pairwise Analysis
In this analysis, N1and N2are two reconstructed neuronal arbors imaged at consecutive time-points. Typically, for manual evaluation of structural dynamics in two images, the analyst identifies a branch in N1, reviews all un-matched branches in N2, and selects the best matching one. This process is extremely time-consuming and subjec-tive. Our program generates a reliable short-list of suggested matching branch candidates in N2 for every branch in N1 based on the algorithm described above, which should greatly reduce the processing time. In addition, use of the same algorithm to generate the short list of suggested match-ing branch candidates helps to maintain consistent criteria to identify candidate matches and reduce human errors.
We quantified the reliability of the algorithm by calculating the hit ratio. For a branch in N1, the 4D SPA method generates a list of suggested matching branches in N2. We get a hit if one of the following two criteria is met.
1. The user decided there is no match, and the branch is identified as retracted, or
2. The user selected a matching branch from the suggested short list.
The hit ratio is calculated as the percentage of hits rela-tive to the total number of branches in N1, which measures the accuracy of the suggested match list. The analysis result for each data set is listed in Table1. The mean number of branches on the suggested match list was 2.78 (Table 1). The average hit ratio was 85.8±8.4 % (Table1). Note that dataset No5, which showed the highest hit ratio, is also the most complicated dataset with the largest total dendritic branch tip number. This indicates that the reliability of this matching program is not compromised by increased com-plexity of the neuronal structure. A pair-wise alignment result of representative dataset number 6 is shown in online resource Video 2. In this video, each frame displays both N1
and N2, and only one matching pair, which had been con-firmed by the analyst, is rendered in red. Among all the data sets, data set number 9 had the lowest hit ratio (70.3 %) and the longest average list of the suggested matches. This is due to the high similarity between subtrees emanating from the same parent branch in N1and N2(Fig.3). This combination (similarity in both subtree structure and the parent branch) tends to mislead the algorithm, thus might require more human intervention to locate the correct matching branch. The average time to align a pair of complete dendritic arbors was about 43 min (Table1). In the worst case (dataset No5), it took 111 min to process a set of data. Given that this time includes both the time it takes by the program to do the calculation as well as the time it takes the analyst to validate the matches, it is understandable that the time increases with increased complexity of the dendritic arbor. Without the help of 4D SPA, it usually takes hours for an expert analyst to process a paired data set, depending on the complexity of the arbor and the magnitude of change between the two neuronal structures (He and Cline2011).
Dynamic Branch Analysis
This method can be easily applied to analyze data sets consisting of multiple time-points in which N1 is aligned
Table 1 Parameters for 4D SPA data analysis results. Each data set contains a pair of neuronal dendritic arbors (reconstructed from the same neuron imaged at different time point, N1 and N2). Hit ratio measures the percentage of correct matches in the suggested list rela-tive to the total branch number. Time records the total time taken for the analysis of that data set. Size of N1 (or N2) shows the total branch number of the dendritic arbor. Avg list size shows the average number of branches in the‘suggestion list’ for each branch in N1 during the analysis of that data set. The first two data sets were used for the analyst to become familiar with the program, and thus were not included in the final calculations of the mean hit ratio, mean time, and mean Avg. list size, which are listed at the bottom of the table
Data Hit ratio Time (min.) Size of N1 Size of N2 Avg. list size 1 0.969 – 31 24 1.407 2 0.856 – 69 80 2.814 3 0.921 42 76 63 2.422 4 0.859 43 63 79 2.422 5 0.967 111 89 84 2.422 6 0.795 13 38 58 3.051 7 0.917 46 58 59 3.483 8 0.758 44 60 80 3.515 9 0.704 35 80 94 3.741 10 0.833 5 13 18 2.5
mean Hit ratio: 0.858±0.084 mean Time: 42.375 min mean Avg. list size: 2.78
with N2, then N2is aligned with N3,…, and so on. Analysis of data sets with more than 2 time-points provides detailed analysis of branch dynamics, and often reveals important information about the underlying mechanisms of structural plasticity that are lost when long-interval data points are compared (Haas et al.2006; Bestman and Cline2008; Chiu et al. 2008). In the analysis of branch dynamics, branches are categorized as stable, newly added, retracted or transient. A stable branch is a branch that is present at all time-points. A retracted branch is a branch that is present at the first time-point but is lost at a later time-time-point. A ‘newly added’ branch is a branch that does not exist at the first time-point but appears later and remains in place until the last time-point. The‘added’ branch category includes those that ap-pear at the last time point. A transient branch is a branch that appears at a time-point after the first time-point and is then retracted by the last time-point. To better visualize the alignment results and branch dynamics, we implemented a color-coding system for the final display of the matching results. The stable branches are coded black, the retracted branches are blue, the transient branches are magenta, and the newly added branches are green (Fig.4). This imple-mentation facilitates the identification of qualitative changes
in branch dynamics as well as possible spatial patterns of dynamic changes in the dendritic arbor over time. The results of the dynamic analysis can be exported as a spread-sheet for further analysis (Table2). In addition, the matched neuronal filament data can be saved as txt files with the categorization information for each branch and used for further analysis.
Discussion
We present a method to provide computer assisted 4D structural plasticity analysis (4D SPA) of neuronal dendritic arbors. Here, we describe a simple but efficient algorithm that takes advantage of the presence of relatively stable branch points within the neuronal arbor structure combined with their geometry to facilitate the analysis of dynamic changes in the neuronal structure. To precisely identify similar structures within the tree structure by computer algorithms is a very difficult problem, given the subtle difference the arbors could have at different time points, and artifactual differences caused by shifts in the position of the animal during imaging and other factors. To achieve
Fig. 3 Examples of subtree structure that is potentially confusing to the algorithm. A-C. Reconstructions of dataset numbers 8 and 9. Images were collected every 24 h over 3 days. The subtree structures that caused confusion to the program were marked with red boxes. The morphologies of these subtrees are very similar and they join the same parent branch right next to each other. This results in very similar
attribute values for the branches and could increase the possibility of mismatching in the candidate list provided by the algorithm. This in turn might require more human intervention to identify the matching branch. Significant points are marked with filled red circles, and the soma is marked by dark grey circles. Scale bar: 10μm
Fig. 4 Application of computer assisted 4D structural plasticity anal-ysis to identify branch dynamics over relatively short time periods. A-C. Reconstructions of time-lapse imaging data of a representative optic tectal neuron imaged at 4 hour intervals. A′-C′. Computer generated reconstructions of the neuron at the timepoints corresponding to A-C to show the accuracy of the reconstruction generated by the 4D SPA
program. Dendritic branches are color-coded according to their dynam-ic properties. The stable branches are black, the retracted branches are blue, the transient branches are magenta, and the newly added branches are green. Position of the neuronal soma is marked with the black oval. Scale bar: 10μm
the most reliable result in an expeditious manner, we com-bined the advantages of the computer algorithm and the ex-pertise of the human analyst. Instead of having the computer generate the final analysis, we use the computer algorithm to effectively narrow down the candidate list of the matching branches and let the human expert select the optimal match.
Many methods based on weighted-matching (Donte et al.
2004) and their applications to biomedical data have been reported (Dumay et al. 1992; Haris et al. 1999). We com-pared the performance of two automatic weighted-matching methods, the Hungarian algorithm and the greedy method, to our method, using the same data sets (data sets 3–10 in Table1). The traced neuronal arbors were decomposed into sets of branches and Eq. (1) was used as the weighted function.
The processing time and the accuracy are two of the most important parameters to consider when comparing the matching methods. The average time cost per data set using the Hungarian algorithm was 90.4 min, which is more than twice the average processing time with our method. In addition, the accuracy of the Hungarian algorithm was far from perfect, which means that human verification and correction would be required. Online resource video 3 (Hugarian-ICP.avi) shows the matching result of data set No 6 reported by the Hungarian algorithm. The other automatic algorithm, the greedy method, was much faster. The average processing time was less than a minute. However, the accuracy of the matching results was poor. A representative video clip of the greedy method is shown in online resource video 4 (Greedy_ICP.avi). These results suggest that our strategy of combining the computer program with human supervision is indeed a highly efficient method.
4D SPA significantly increases the rate at which structur-al dynamics can be quantified and mapped onto the neuronstructur-al structure, and effectively reduces errors in the analysis and discrepancies between experimenters. As described in the methods section, there are three parameters (α,β,γ) used in the program that can be adjusted by the analyst to optimize
Table 2 An example of the output data spreadsheet of 4D SPA dynamic analysis results. Each branch is identified by an index number and categorized by its presence at a different time points of the time-lapse series (Type). The base length depicts the length from the soma to the branch tip at T0 (or from the soma to the last branch point in cases of newly-added and transient branches, which do not exist at T0). Change in the branch length, as measured from the last branch point to each branch tip at T1 and T2, are also listed
Index Type Base T0 T1 T2
0 Retracted 108.347 0 −10.0098 −8.626 1 Retracted 100.107 0 −2.8265 b 2 Stable 96.2109 0 1.6266 0.856 3 Retracted 93.4048 0 0.1274 −3.0637 4 Stable 88.892 0 −1.2518 −10.9032 5 Stable 86.5705 0 −7.6944 13.0401 6 Stable 82.7616 0 −0.3493 −4.2367 7 Retracted 82.5884 0 −1.2502 b 8 Retracted 82.3081 0 −0.7123 −2.9365 9 Retracted 82.1164 0 −2.5229 b 10 Stable 78.0166 0 −19.886 −0.8122 11 Retracted 76.6955 0 −7.4872 −5.186 12 Retracted 69.4699 0 −4.4555 b 13 Stable 69.3531 0 0.8682 0.1089 14 Retracted 67.5669 0 −4.4827 b 15 Retracted 66.0081 0 −2.1148 b 16 Retracted 65.2153 0 −8.5441 b 17 Stable 64.1979 0 −8.8023 −0.4913 18 Retracted 63.9182 0 −11.6571 b 19 Retracted 63.2111 0 9.3652 −2.7323 20 Retracted 61.1388 0 −1.4803 b 21 Stable 59.4221 0 −2.7697 0.768 22 Stable 59.2012 0 10.917 7.5843 23 Stable 57.0635 0 −0.0772 −2.5156 24 Stable 54.485 0 1.5444 3.1327 25 Retracted 54.3478 0 −7.9197 b 26 Retracted 53.8825 0 −15.5446 b 27 Retracted 53.1091 0 −0.848 b 28 Retracted 52.8387 0 −8.7012 b 29 Stable 51.9241 0 1.8833 −5.6866 30 Retracted 49.4744 0 −1.5338 b 31 Stable 47.4518 0 0.2116 −1.0798 32 Stable 47.1564 0 −3.6643 1.3552 33 Retracted 40.5623 0 −6.8592 b 34 Retracted 36.5024 0 −9.9099 b 35 Stable 35.9169 0 0.1452 −1.761 36 Retracted 35.6123 0 −3.5941 b 37 Retracted 35.2614 0 −6.7228 b 38 Stable 35.0497 0 22.5963 −3.7935 39 Retracted 34.7067 0 −3.1454 b 40 Retracted 33.6457 0 1.4 −5.9116 41 Retracted 31.2966 0 −4.7041 b 42 Retracted 30.8287 0 −12.1339 b Table 2 (continued)
Index Type Base T0 T1 T2
43 Retracted 30.4663 0 −2.026 b 44 Newly-Added 75.7073 a 4.0313 −2.0182 45 Newly-Added 56.5727 a 4.7453 −5.4807 46 Transient 55.471 a 3.5334 −3.5334 47 Transient 55.471 a 3.0259 −3.0259 48 Transient 52.1022 a 5.5507 −5.5507 a
branch not existing at T0
the algorithm to particular applications and cell types. For instance, higher values ofα and β can be used if the images are taken over a longer time interval and the neuron is expected to have grown or changed a lot by the second time point. On the other hand, for relatively stable neuronal structures, smaller values would be preferred to reduce false positives on the list of suggested matching candidates. The value ofγ can also be adjusted to better fit specific types of neurons with unique morphological features. The accuracy of the suggestion list decreases when the morphology of the subtrees connected to the same parent branch are highly similar, for instance in highly symmetric neuronal struc-tures. In this case, extra care needs to be taken using the suggestion list. In cases where the real matching branch is not included in the suggestion list, we have implemented a manual assignment function in the program, which allows the analyst to pick any branch in N2 and assign it as the matching branch for the branch in question.
4D SPA could easily be applied to neuronal axon arbors, which exhibit structural changes under a variety of condi-tions (Reh and Constantine-Paton 1985; Antonini and Stryker 1993; Cantallops et al. 2000; Cohen-Cory 2002; Ruthazer et al.2003; De Paola et al.2006). Other neuronal structures, such as the neuromuscular junction (Turney and Lichtman2008), of which the morphological changes under different experimental conditions have been studied inten-sively, could also benefit from this tool. In addition, 4D SPA could be applied to study the structural dynamics of other cell types, the vasculature (Zhang et al.2005) and extracel-lular space (Hochman2012). In vivo time-lapse images of Xenopus radial glial cells collected at relatively short inter-vals have demonstrated rapid structural rearrangements of filopodia that were modulated by visual activity, NMDA receptor activity and nitric oxide signaling (Tremblay et al.
2009). Furthermore, images of Xenopus radial glial cells undergo significant structural changes during proliferation and neuronal differentiation (Bestman et al.2012). In addi-tion, immune cells are highly dynamic and their structural dynamics are essential to their function. In vivo imaging studies of microglia in rodent visual cortex demonstrate that they exhibit dynamic morphological rearrangements in re-sponse to visual deprivation and light exposure, suggesting an active role of microglial cells in experience-dependent synaptic modifications (Tremblay et al.2010). Acute neuro-inflamation in response to viral protein induces mobility of both leukocytes and microglia in the CNS, resulting in engulfment of synaptic structures and immune cells (Lu et al.2011). As a final example, the CNS vasculature shows significant structural changes under healthy and diseased conditions (Carmeliet2003; Zhang et al. 2005; Thal et al.
2012). Similar to efforts to automate reconstruction of neuro-nal structures, recent work has succeeded in automating re-construction of vasculature from single time points (Zudaire et
al. 2011), suggesting that comparisons of vasculature be-tween timepoints could benefit from the algorithm pre-sented here. Quantitative analysis of structural dynamics has been key to gaining insight into the mechanisms and function of dynamics in neurons. We anticipate that appli-cation of this algorithm to a variety of biological systems will be valuable.
Information Sharing Agreement
The software and user manual described in this work will be publicly accessible online at http://people.cs.nctu.edu.tw/ ~percycat/4DSPA/
