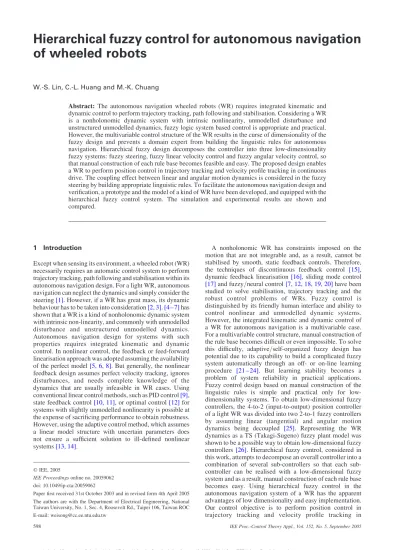

Hierarchical Fuzzy Control for Autonomous Navigation of Wheeled Robots

Hierarchical fuzzy control for autonomous navigation

of wheeled robots

W.-S. Lin, C.-L. Huang and M.-K. Chuang

Abstract: The autonomous navigation wheeled robots (WR) requires integrated kinematic and dynamic control to perform trajectory tracking, path following and stabilisation. Considering a WR is a nonholonomic dynamic system with intrinsic nonlinearity, unmodelled disturbance and unstructured unmodelled dynamics, fuzzy logic system based control is appropriate and practical. However, the multivariable control structure of the WR results in the curse of dimensionality of the fuzzy design and prevents a domain expert from building the linguistic rules for autonomous navigation. Hierarchical fuzzy design decomposes the controller into three low-dimensionality fuzzy systems: fuzzy steering, fuzzy linear velocity control and fuzzy angular velocity control, so that manual construction of each rule base becomes feasible and easy. The proposed design enables a WR to perform position control in trajectory tracking and velocity profile tracking in continuous drive. The coupling effect between linear and angular motion dynamics is considered in the fuzzy steering by building appropriate linguistic rules. To facilitate the autonomous navigation design and verification, a prototype and the model of a kind of WR have been developed, and equipped with the hierarchical fuzzy control system. The simulation and experimental results are shown and compared.

1 Introduction

Except when sensing its environment, a wheeled robot (WR) necessarily requires an automatic control system to perform trajectory tracking, path following and stabilisation within its autonomous navigation design. For a light WR, autonomous navigation can neglect the dynamics and simply consider the steering[1]. However, if a WR has great mass, its dynamic behaviour has to be taken into consideration[2, 3].[4 – 7]has shown that a WR is a kind of nonholonomic dynamic system with intrinsic non-linearity, and commonly with unmodelled disturbance and unstructured unmodelled dynamics. Autonomous navigation design for systems with such properties requires integrated kinematic and dynamic control. In nonlinear control, the feedback or feed-forward linearisation approach was adopted assuming the availability of the perfect model[5, 6, 8]. But generally, the nonlinear feedback design assumes perfect velocity tracking, ignores disturbances, and needs complete knowledge of the dynamics that are usually infeasible in WR cases. Using conventional linear control methods, such as PID control[9], state feedback control[10, 11], or optimal control[12]for systems with slightly unmodelled nonlinearity is possible at the expense of sacrificing performance to obtain robustness. However, using the adaptive control method, which assumes a linear model structure with uncertain parameters does not ensure a sufficient solution to ill-defined nonlinear systems[13, 14].

A nonholonomic WR has constraints imposed on the motion that are not integrable and, as a result, cannot be stabilised by smooth, static feedback controls. Therefore, the techniques of discontinuous feedback control [15], dynamic feedback linearisation [16], sliding mode control [17]and fuzzy=neural control[7, 12, 18, 19, 20]have been studied to solve stabilisation, trajectory tracking and the robust control problems of WRs. Fuzzy control is distinguished by its friendly human interface and ability to control nonlinear and unmodelled dynamic systems. However, the integrated kinematic and dynamic control of a WR for autonomous navigation is a multivariable case. For a multivariable control structure, manual construction of the rule base becomes difficult or even impossible. To solve this difficulty, adaptive=self-organized fuzzy design has potential due to its capability to build a complicated fuzzy system automatically through an off- or on-line learning procedure [21 – 24]. But learning stability becomes a problem of system reliability in practical applications. Fuzzy control design based on manual construction of the linguistic rules is simple and practical only for low-dimensionality systems. To obtain low-dimensional fuzzy controllers, the 4-to-2 (input-to-output) position controller of a light WR was divided into two 2-to-1 fuzzy controllers by assuming linear (tangential) and angular motion dynamics being decoupled [25]. Representing the WR dynamics as a TS (Takagi-Sugeno) fuzzy plant model was shown to be a possible way to obtain low-dimensional fuzzy controllers [26]. Hierarchical fuzzy control, considered in this work, attempts to decompose an overall controller into a combination of several controllers so that each sub-controller can be realised with a low-dimensional fuzzy system and as a result, manual construction of each rule base becomes easy. Using hierarchical fuzzy control in the autonomous navigation system of a WR has the apparent advantages of low dimensionality and easy implementation. Our control objective is to perform position control in trajectory tracking and velocity profile tracking in qIEE, 2005

IEE Proceedings online no. 20059062 doi: 10.1049/ip-cta:20059062

The authors are with the Department of Electrical Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Rd., Taipei 106, Taiwan ROC E-mail: weisong@cc.ee.ntu.edu.tw

Paper first received 31st October 2003 and in revised form 4th April 2005

IEE Proc.-Control Theory Appl., Vol. 152, No. 5, September 2005 598

continuous drive. The linear and angular motion dynamics of a WR is assumed to be a coupling system so that stability in tracking curved trajectories will be considered in the design for automatic steering. The WR controller is decomposed into three subsystems: fuzzy steering, fuzzy linear velocity control and fuzzy angular velocity control. The fuzzy steering consists of two 2-to-1 fuzzy mappings to generate desired linear and angular velocities and, in addition, considers the coupling effect between the linear and angular motion dynamics. The fuzzy linear and angular velocity control are each composed of a 2-to-1 fuzzy mapping to produce signals for driving the motors. Each of the fuzzy mappings takes input and output quantities with physical meaning so that a skilled expert can easily extract linguistic rules from his experience. To facilitate the autonomous navigation design and verification, a prototype and the model of a kind of WR have been developed and equipped with the hierarchical fuzzy control system. The simulation and experimental results in performing auton-omous navigation are shown and compared.

2 Kinematic and dynamic model of a kind of wheeled robot

Figure 1shows the schematic top view of the kind of WR

considered in this work. The WR has a symmetrical structure and consists of a vehicle with two rear wheels mounted on the same axis and driven independently to produce translation and orientation control. The front wheels are free-to-rotate passive wheels. Such a WR is a typical nonholonomic mechanical system[4]and literature

[5 – 8]has shown the dynamics of a nonholonomic system

with n-dimension generalised coordinates q2 <n
1subject to m constraints can generally be described by

MðqÞ €qqþ Cðq; _qqÞ _qqþ Fð _qqÞ þ GðqÞ þ td

¼ BðqÞt þ ATðbfqÞbflambda ð1Þ

AðqÞ _qq¼ 0 ð2Þ

where MðqÞ 2 <n
nis a symmetric, positive definite inertia matrix, Cðq; qÞ 2 <n
n _{is the centripetal and Coriolis}

matrix, Fð _qqÞ 2 <n
1 denotes the surface friction, GðqÞ 2 <n
1 is the gravitational vector, td2 <n
1 denotes the

bounded unknown disturbance including unstructured, unmodelled dynamics, BðqÞ 2 <n
r represents the input

transformation matrix, t2 <r
1 _{denotes the input vector,}

AðqÞ 2 <m
n is a full rank matrix associated with the constraints and l2 <m
1 is the Lagrange multiplier or the vector of constraint forces.

Equation (2) represents the kinematic equality constraints that are independent of time and _qqmust be restricted to the null space of A(q). Assume ZðqÞ 2 <n
ðnmÞ is a set of smooth and linearly independent vector fields spanning the null space of A(q). Then there exists an auxiliary vector time function uðtÞ 2 <ðnmÞ
1 _{such that, for all t}

_q

q¼ ZðqÞu ð3Þ

where u has forms depending on the choices of Z(q) and not necessarily with any physical meaning. Substituting (3) into (1) and left-multiplying each term by ZTðqÞ; we obtain the following first-order dynamic model:

MðqÞ _uuþ Cðq; _qqÞu þ Fð _qqÞ þ GðqÞ þ td¼ BðqÞt ð4Þ

where MðqÞ¼ZT_{ðqÞMðqÞZðqÞ;Cðq; _qqÞ¼Z}T_{ðqÞðMðqÞ _ZZðqÞ}

þCðq; _qqÞZðqÞÞ;Fð _qqÞ¼ZT_{ðqÞFð _qqÞ;GðqÞ¼Z}T_{ðqÞGðqÞ and}

td¼ZTðqÞtd: Equations (3) and (4) describe generally the

kinematics and dynamics of the WR system, and hold the following properties [6]: MðqÞ is a symmetric, positive definite, bounded matrix or there exists positive constants bn

and bmsuch that bnMðqÞbm; and _MMðqÞ2Cðq; _qqÞ is a

skew-symmetric matrix such that _MMðqÞ2Cðq; _qqÞ¼ _ZZTMZ ð _ZZTMZÞTþZT_{ð _MMZ2CÞZ:}

2.1

The kinematic parameter matrices

As shown inFig. 1, an inertial Cartesian frame {O, X, Y} and a body frame fP; Xc; Ycg with origin at the middle of

the axle of the driving wheels are attached; p¼ ½x y yT denotes a posture vector completely specifying the position and orientation of the WR; b is the half width of the axle of the driving wheels; d is the displacement from point P along the Xc axis to the centre of mass; r is the radius of the

driving wheels; mcis the weight of the body, i.e. exclude the

driving wheels and their associated rotors; mwis the weight

of a single driving wheel, i.e. take the associated rotor into account; Ic is the moment of inertia of the body; Iw is the

moment of inertia of each driving wheel about the axle; and Im is the moment of inertia of each driving wheel about a

wheel diameter. The nonholonomic constraint (2) states that the WR can only move in the direction normal to the axis of the driving wheels. The constraint for the WR cannot move in the lateral direction giving:

_yy cos y _xx sin y ¼ 0 ð5Þ

The constraints for the two driving wheels are pure rolling and non-slipping obtaining:

_yy cos y _xx sin y ¼ 0 ð6Þ

_xx cos yþ _yy sin y þ b_yy¼ r _jjr ð7Þ

Taking the generalised coordinate vector as q¼ ½x; y; y; jl;

jr T

; then (5), (6) and (7) can be organised to obtain the following matrix: AðqÞ ¼ sin y  cos y 0 0 0 cos y sin y b r 0 cos y sin y b 0 r 2 4 3 5 ð8Þ

To find Z(q) in (3), we need to derive the velocity equations _q

q: Choose u¼ ½ v o T

; i.e. linear and angular velocities, so that the hierarchical fuzzy controller may command the WR and measure feedback through physical signals. Since

v¼ _xx cos y þ _yy sin y; and o¼ _yy ð9Þ and by substituting (9) into (6) and (7)

r _jjl¼ v  bo; and r _jjr¼ v þ bo ð10Þ we obtain ZðqÞ ¼ cos y 0 sin y 0 0 1 1 r  b r 1 r b r 2 6 6 6 6 4 3 7 7 7 7 5 ð11Þ

2.2

The dynamic parameter matrices

Consider the WR being composed of three rigid components as the body, right driving wheel, and left driving wheel. Then using the Lagrange formalism[4, 6], we can obtain the parameters in (1) as follows: MðqÞ ¼ m 0 mcd sin y 0 0 0 m mcd cos y 0 0 mcd sin y mcd cos y I 0 0 0 0 0 Iw 0 0 0 0 0 Iw 2 6 6 6 6 6 6 6 4 3 7 7 7 7 7 7 7 5 Cðq; _qqÞ ¼ 0 0 mcd _yy cos y 0 0 0 0 mcd _yy cos y 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 6 6 6 6 4 3 7 7 7 7 5BðqÞ ¼1 r cos y cos y sin y sin y b b r 0 0 r 2 6 6 6 6 4 3 7 7 7 7 5 ð12Þ The unmodelled dynamics and disturbance are represented by hðq; _qqÞ ¼ Fð _qqÞ þ GðqÞ þ td: Without loss of generality,

this work assumes that the bounded conditionkhðq; _qqÞk < eh¼ constant holds. Ideally, the constraint of no vertical

motion obtains GðqÞ ¼ 0: But actually a practical trajectory may not be perfectly horizontal. Small vertical motion is possible and considered as a part of the disturbance. Using (11) and (12), the parametric matrices appearing in (4) are obtained as follows: openup 3ptMðqÞ ¼ ZTðqÞMðqÞZðqÞ ¼ mr2_þ2I w r2 0 0 Iþ2b2Iw r2 " # ð13Þ Cðq; _qqÞ ¼ ZTðqÞðMðqÞ _ZZðqÞ þ Cðq; _qqÞZðqÞÞ ¼ 0 _yymcd _yymcd 0 " # ð14Þ BðqÞ ¼ ZT_{ðqÞBðqÞ ¼} 2r 2 r 2b r 2b r
 ð15Þ and hðq; _qqÞ ¼ ZT_{hðq; _qqÞ ¼ Z}T_{½Fð _qqÞ þ GðqÞ þ t} d ð16Þ

is unknown but bounded askhðq; _qqÞk < eh¼ constant:

2.3

Torque equations of the driving wheels

To verify the hierarchical fuzzy design of autonomous navigation, a prototype WR has been developed in this work. The two driving wheels of the prototype WR are each actuated by a permanent magnet (PM) DC motor. Since all torque-velocity control of the PM DC motor is achieved by adjustment of the armature voltage, the field of the permanent magnet is not affected by armature reaction[27]. The torque and voltage equations of the driving wheels are

tl tr
 ¼ ktl 0 0 ktr
 il ir
 ð17Þ ul ur " # ¼ Lal 0 0 Lar " # dil dt dir dt " # þ Ral 0 0 Rar " # il ir " # þ Kel 0 0 Ker " # r_gjj_l rgjj_r " # ð18Þ where sub-indexes l and r denote the left and right driving wheels, respectively, t is the output torque, ktis the torque

constant, i is the armature current, u is the applied voltage, La

denotes the armature inductance, Ra is the armature

resistance, keis the black electromotive force constant, _jj is

the wheel’s angular velocity, rgis the gear ratio between the

wheel and the associated rotor, and rgjj is the angular velocity_

of the rotor.

3 Hierarchical fuzzy controller of the autonomous navigation system

The complexity resulting from unmodelled nonlinear dynamics and disturbance makes the autonomous naviga-tion design of the WR a challenging task. Without the availability of an accurate mathematical model, it is difficult to obtain an appropriate controller for conventional model-based designs. Instead, a fuzzy controller may use a set of fuzzy rules and linguistic variables to capture domain experts’ knowledge and experience in manoeuvring the WR. However, (1) shows that a WR has a multivariable structure. With an integrated fuzzy design using the five-dimensional vector q¼ ½x; y; y; jl;jrTand its difference as

inputs it will be impossible for a skilled expert to build the linguistic rules. Alternatively, referring to Fig. 2, we decompose the WR controller into three sub-controllers: a fuzzy steering (FS), a proportional fuzzy linear velocity controller (PFLC), and a proportional fuzzy angular velocity controller (PFAC). The FS consists of two 2-to-1 fuzzy mappings. The PFLC and PFAC each have a 2-to-1 fuzzy mapping. All the fuzzy mappings take input and output quantities with physical meaning so that a skilled expert can easily construct the rule bases.

A basic fuzzy system, which provides a systematic procedure for transforming a set of linguistic rules into a nonlinear mapping, comprises four principal components: fuzzifier, fuzzy rule base, fuzzy inference engine and defuzzifier [28, 29]. Let the fuzzy system perform a mapping from X to F where X¼ X1

Xn <n and

F¼ F1

Fm <m: Then a kinematic or dynamic

system can be controlled by the following N linguistic rules: IEE Proc.-Control Theory Appl., Vol. 152, No. 5, September 2005 600

RðlÞ: IF x1 is A l 1 and   and xn is A l n THEN f1 is B l 1 and   and fmis B l m ð19Þ where l¼ 1; . . . ; N; xk and k¼ 1; 2; . . . ; n; are the input

variables to the fuzzy system, fi; i¼ 1; 2; . . . ; m; are the

output variables of fuzzy system, and the antecedent fuzzy sets Al_k in Xk and the consequent fuzzy sets Bli in Fi are

linguistic terms characterised by the fuzzy membership functions m_Al

kðxkÞ and mB l

iðziÞ; respectively. The output of a

fuzzy system with centre-average defuzzifier and singleton fuzzifier is defined as fiðxÞ ¼ PN l¼1mlðxÞ  cli PN l¼1mlðxÞ ð20Þ where x is the premise vector, mlðxÞ ¼ minfmAl

kðxkÞjk ¼

1 to ng for intersection inference, i.e. ml_{ðxÞ ¼ P}n k¼lmAl

kðxkÞ

for product inference, is the matching degree of the lth rule, and cliis the centre of the consequent membership function

of the lth rule.

Figure 2shows a block diagram of the fuzzy autonomous

navigation system of the prototype WR. The optical encoders attached to each driving motor measure the linear and angular velocitiesðv; oÞ :

v o
 ¼ r 2 r 2 r 2b  r 2b
 ol or
 ð21Þ Dead reckoning estimate of the WR’s current posture is obtained by numerical approximation to

_p pc¼ _xx _yy _yy 2 4 3 5 ¼ cos ysin y 00 0 1 2 4 3 5 v o
 ð22Þ xðn þ 1Þ ¼ xðnÞ þ TsvðnÞ cosðyðnÞÞ

yðn þ 1Þ ¼ yðnÞ þ TsvðnÞ sinðyðnÞÞ

yðn þ 1Þ ¼ yðnÞ þ TsoðnÞ

ð23Þ

where Ts is the sampling interval. The path-planning unit

attempts to accomplish tasks such as tracking or obstacle avoidance, and generates a reference path represented by pr:

The reference posture generated by a path plan unit is compared with WR’s current posture pc to produce the

posture error: pe¼ ex ey e_y 2 4 3

5 ¼  sin ycos y cos ysin y 00

0 0 1

2 4

3

5½pr  pc ð24Þ

The FS takes the polar coordinateðde;fÞ; i.e. distance and

angle of the position errorðex; eyÞ as inputs so as to facilitate

the construction of fuzzy rules and membership functions. The objective of the FS is to infer the desired linear and angular velocities ðvd;odÞ for guiding the WR to reduce

position error. In building the linguistic rules of the FS, the stability of the system affected by the coupling between linear and angular motion dynamics must be taken into consideration. The function of the FS can be represented by the following 2-to-1 fuzzy mappings:

vdðkÞ ¼ fv½deðkÞ; fðkÞ ð25Þ

odðkÞ ¼ fo½deðkÞ; fðkÞ ð26Þ

where fv½deðkÞ; fðkÞ or fo½deðkÞ; fðkÞ denote a fuzzy

mapping in the form of (20). The PFLC and PFAC each has a proportional partðkv; koÞ for feed-forward control, and

a fuzzy part FLC and FAC, respectively, for error compensation and stabilisation. The PFLC and PFAC operate in discrete-time mode, and take the velocity error ei; i2 fv; og and change of velocity error Dei; i2 fv; og

as inputs. To facilitate the design of fuzzy sets and membership functions, ei and Dei are converted into polar

coordinates ri(radius) and yi(angle) as follows:

ri¼

ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi e2

i þ De2i

q

and yi¼ arctanðDei=eiÞ for ei6¼ 0;

i2 fv; og

ð27Þ Using fi½riðkÞ; yiðkÞ; i 2 fv; og to represent a fuzzy

map-ping in the form of (20), the output of the PFLC and PFAC can be expressed as

uiðkÞ ¼ KiidðkÞ þ yiðkÞ

¼ KiidðkÞ þ Cifi½riðkÞ; yiðkÞ; i2 fv; og ð28Þ

where Kiis a proportional gain of the feed-forward control.

C_iis a scaling factor of the physical output signal, and y_iðkÞ is a fuzzy feedback compensation considering stabilisation of the velocity control system.

The appropriate design of the fuzzy sets and the associated membership functions for each fuzzy sub-controller will actually determine the system performance. However, the theoretical method to prove or analyse the performance of a fuzzy design is lacking. In this work, the hierarchical fuzzy control structure has been built as discussed above, and the fuzzy parameters simply need to be adjusted by a domain expert. Performance of the resulting design is studied by using simulation and experimental tests. To make the parameter adjustment as easy as possible, each term value is associated with a

triangular membership function characterised by left spread a, vertex b, and right spread c as follows:

mðx; a; b; cÞ ¼ 0 for x < a xa ba for a x < b cx cb for b x  c 0 for x > c 8 > > > < > > > : ð29Þ

Therefore, simply the number of term sets, the spreads and vertexes of the associated membership functions need be decided by the domain expert. For simulation and experimental study on the prototype WR, we have set up a typical design for each fuzzy sub-controller. The polarised inputsðri;yiÞ; i 2 fv; og of the PFLC and PFAC are termed

as {zero (ZE), positive small (PS), positive big (PB)} for ri;

and {negative big (NB), negative medium (NM), zero (ZE),

positive medium (PM), positive big (PB)} for yi;

respect-ively. The fuzzy outputs of the PFLC and PFAC are both termed the same as those for yi: For the FS, term sets of de

and vdare both represented as {ZE, PS, PM, PB}, and term

sets of f and od are both denoted as {NB, NM, negative

small (NS), ZE, positive small (PS), PM, PB}. For the convenience of comparison, the simulation and the experimental studies shown in the next Section use the same fuzzy design. Figure 3 and Table 1 present the input membership functions and rule base of the PFLC, respectively. The PFAC case is similar and not shown.

Figure 4andTable 2show the input membership functions

and rule bases of the FS, respectively. All output

member-Table 1: Rule base of PFLC in simulation and experiment rv
v ZE PS PB PB ZE NM NB PM ZE PM PB ZE ZE PM PB NM ZE NM NB NB ZE NM NB

Table 2: Rule bases of the FS in simulation and experiment de ZE PS PM PB  vd !d vd !d vd !d vd !d PB ZE ZE ZE PS ZE PM ZE PB PM ZE ZE PS PB PS PM PM PM PS ZE ZE PS PM PM PS PB PS ZE ZE ZE PS ZE PM ZE PB ZE NS ZE ZE PS NM PM NS PB NS NM ZE ZE PS NB PS NM PM NM NB ZE ZE ZE NS ZE NM ZE NB

Fig. 3 Membership functions for input a rvof PFLC

b yvof PFLC

Fig. 4 Membership functions for input a deof FS

b f of FS

IEE Proc.-Control Theory Appl., Vol. 152, No. 5, September 2005 602

ship functions are an appropriate number of equally spaced isosceles triangles and not shown.

Closed-loop kinematic control of a WR requires posture estimate relative to the world. Dead reckoning refers to estimate of the posture by using wheel rotation information alone. But the dead-reckoned estimate will be inaccurate over long distances travelled due to imprecisely known initial conditions, errors in the kinematic model, or disturbance during a physical motion, such as wheel slippage. To correct the posture estimate, visual, ultrasonic, and global positioning sensors are frequently adopted to provide the environmental information. In the combined estimation, considering the slow response of an environ-mental sensor such as machine vision, the dead reckoning may be allowed to dominate the posture estimate, and the environmental sensor, whenever its output is available, provides information to correct the estimate.

4 Results of experiment and simulation

Figure 5shows a block diagram of the prototype WR system

developed in this work. The WR has basically four wheels with two free-to-rotate front wheels and two independent driving rear wheels. A PM DC motor coupled with an optical encoder to measure the wheel rotation drives each rear wheel. The WR has a front viewing stereovision set to observe its environment. Either position or velocity control mode can be selected to navigate the prototype WR. Position control mode can be used to perform trajectory tracking, whereas velocity control mode can track velocity profiles in continuous drive. An autonomous navigation system can switch between position and velocity control modes to generate a variety of styles of motion. The model parameters of the prototype WR were estimated in[30]and

Tables 3 and 4 tabulate the main numbers. For cross

comparison and verification, the same studies of auton-omous navigation have been conducted both by simulation and experiment.

4.1

Tracking velocity profiles

Stability and performance of the velocity tracking subject to WR’s nonlinear dynamics has been studied to verify the mathematical model. Figure 6 shows the results of simultaneously tracking a trapezoidal linear velocity profile with the maximum 0:8 m=sec and a trapezoidal angular velocity profile with the minimum 1:5 rad=sec Figs. 6a

and 6b depict the experimental and simulation results,

respectively. Except for the unmodelled noise and disturb-ance appearing in the prototype system, the consistency between the experimental and simulation results verifies the model. In addition, the well-performed velocity tracking confirms the PFLC and PFAC in the dynamic control.

4.2

Autonomous navigation performing a left

turn

This autonomous navigation plans to perform a left turn. The linear velocity is desired to be kept at 0:8 m=sec:

Figure 7a shows the experimental result of the movement

recorded for every half second, i.e. the simulation result is similar and not shown.Figure 7bshows the trajectories, and the maximum overshoots presenting in the experimental and simulation results are both around 0.5 m. The settling time during the left turn is about 5 and 4.5 s in the experiment and simulation, respectively. The linear velocity is mainly controlled by the PFLC as shown in Fig. 7c, and the PFAC dominates the orientation control as shown inFig. 7d. Except for the unmodelled noise and disturbance presenting in the prototype WR, the results obtained by simulation and experiment are consistent.

4.3

Autonomous navigation performing an

S-curve trajectory

This autonomous navigation plans to track an S-curve trajectory with 1 m radiuses at each circular segment and straight at the beginning and ending segments. The desired linear velocity is 0:5 m=sec: Figure 8 shows the

Table 3: Mechanical figures of prototype WR

b, m d, m r, m wc; m

0.265 0.1 0.125 0.8

mcðkgÞ mwðkgÞ Icðkg m2Þ Iwðkg m2Þ Imðkg m2Þ

110 5 1.057 0.004 0.002

Table 4: Parameters of driving motor Gear ratio Armature inductance, ohm Armature inductance, mH Coef. of back EMF, N m=A rg¼ 21 Ral¼ 0:476 Lal¼ 0:232 Ke¼ 0:057 Rar¼ 0:233 Lar¼ 0:230 Ker¼ 0:051

Fig. 7 Left turn movement

a Experimental result recorded every 0.5 s b Trajectories

c Linear velocity d Angular velocity

Fig. 6 Result of velocity tracking a By experiment: 0:8 m=sec;1:5 rad=sec b By simulation: 0:8 m=sec;1:5 rad=sec

IEE Proc.-Control Theory Appl., Vol. 152, No. 5, September 2005 604

Fig. 8 S-curve movement

a Experimental result recorded every 0.5 s b Trajectories

c Error of trajectories d Linear velocity e Angular velocity f Error of orientation

results of the experiment and simulation.Figure 8a shows the movement of the WR recorded for every half second in the experiment Fig. 8bshows the resulting trajectories of the experiment and simulation, and Fig. 8c shows the errors compared with the commanded value. The maximum error is 0.28 m in the simulation and 0.32 m in the experiment. One of the causes of the difference is some unmodelled noise and disturbance resulting from the road condition and front wheel alignment condition are not considered in the simulation. The fee-to-rotate front wheels when not aligned in the tangential direction may result in a frictional force preventing movement.Figure 8d shows that the linear velocity in both the simulation and experimental cases is settled and maintained around the commanded value 0:5 m=sec: Figure 8e shows that manoeuvring the angular velocity takes the responsibility of orientation control, and Fig. 8fshows that the absolute orientation error is no more than 0.07 rad both in simulation and experiment.

5 Conclusions

For autonomous navigation of a kind of wheeled robot, a hierarchical fuzzy structure of integrated kinematic and dynamic control has been developed. This structure facilitates the fuzzy controller design by combining several low-dimensionality fuzzy systems so that the manual construction of each rule base becomes easy. For a WR driven by the two rear wheels, the fuzzy steering is designed to consist of two 2-to-1 fuzzy mappings and takes the coupling effect between linear and angular motion dynamics into consideration. The fuzzy dynamic controller is composed of a proportional-fuzzy linear velocity controller and a proportional-fuzzy angular velocity controller. Each of them has a 2-to-1 fuzzy mapping to produce driving signals. The stability and performance of the overall design have been verified both by computer simulation and experiment. In the computer simulation, the WR is considered as a nonholonomic dynamic system and using the Lagrange formalism its mathematical model has been built. In the experiment, a computer controlled, motorised prototype has been implemented. Equipped with the hierarchical fuzzy controller, the prototype has been tested for various cases of autonomous navigation. The consist-ency demonstrated by the simulation and experimental results has verified the model and confirmed the hierarchical fuzzy control design. Future works may integrate some environmental sensors into the hierarchical fuzzy control system to achieve complete fuzzy autonomous navigation.
