Selecting transition process for WLAN security

Wirel. Commun. Mob. Comput. 2008;8:921–925 Published online 17 August 2007 in Wiley InterScience (www.interscience.wiley.com) DOI: 10.1002/wcm.538

Selecting transition process for WLAN security

1_{Department of Computer Science, National Chiao Tung University, Hsinchu, Taiwan} 2_{Institute of Information Science, Academia Sinica, Nankang, Taipei, Taiwan}

Summary

In wireless local area network (WLAN), a station (STA) accesses the Internet through an access point (AP). When switching from one AP to another, the STA executes the transition process, which may incur long delay and result in force-termination for real-time applications. The IEEE 802.11r proposes the fast basic service set (BSS) transition to speed up the transition process for a STA moving within the same mobility domain (MD). This scheme requires unique MD assignment so that the STA knows whether it should conduct fast BSS transition process (for intra-MD scenario) or the expensive initial MD association process (for inter-MD scenario). However, how to guarantee unique MD identifier (MDID) assignment is not mentioned in the specification. This paper proposes a mechanism for IEEE 802.11r fast transition without using MDID, and therefore eliminates the cost for MDID management. Copyright# 2007 John Wiley & Sons, Ltd.

KEY WORDS: authentication; authorization and accounting (AAA); fast basic service set (BSS) transition; pairwise transient key (PTK); security; wireless LAN

1. Introduction

Wireless local area network (WLAN) was originally designed for cable replacement. In recent year, WLAN functionality has been extended for users with mobi-lity and has even been integrated with cellular system to serve as an access technology to the cellular system, and therefore scales up the coverage of mobile ser-vices. To offer commercial mobile operations with WLAN, several mobile telecommunications network issues, e.g., mobility management [1–3], voice quality [4], and power saving [5], must be addressed in the WLAN environment. Among them, security is prob-ably one of the most important and essential issue that must be carefully addressed. This paper will focus on transition process for WLAN security.

In IEEE 802.11 WLAN, a station (STA; Figure 1 (1)) accesses the Internet through an access point (AP; Figure 1 (2)) over the air [6,7]. Because WLAN is much easier to be intercepted than a wired network, it is important to exercise authentication and encryption between the STA and the AP with a security key. If the STA and the AP are not assigned the same security key through an offline process, the key must be generated in the transition process. When an STA connects to an AP for the first time or switches from one AP to another, the transition process consisting of the following four procedures is exercised.

IEEE 802.11 open system authentication is per-formed between the STA and the AP. The AP will grant any authentication request from the STA

*Correspondence to: Yi-Bing Lin, Department of Computer Science, National Chiao Tung University, Hsinchu, Taiwan. y_{E-mail: [email protected]}

unless the open system authentication is disabled in the AP.

Association enables the STA and the AP to negoti-ate the security policy and the encryption algo-rithm.

IEEE 802.1X authentication is executed between the STA and an authentication, authorization, and accounting server (AAA server; Figure 1 (3)) [8]. A master session key (MSK; or AAA-Key) is gener-ated independently in both the STA and the AAA server.

IEEE 802.11i 4-way handshake generates the pair-wise transient key (PTK) from the MSK. This PTK provides data integrity and confidentiality by en-crypting data transmitted between the STA and the AP.

This transition process may incur long delay and result in force-termination for real-time applications such as voice over IP. To reduce the latency for security key generation in the transition process, IEEE 802.11r proposed fast basic service set (BSS) transition implemented in a three-level key hierarchy [6]. In this hierarchy, the first-level key is Pairwise Master Key first level (PMK-R0) derived from the MSK and is shared between the STA and the PMK-R0 Key Holder (R0KH; Figure 1 (a)). The R0KH is the authenticator that maintains the MSK received from the AAA server. The second-level key is PMK second level (PMK-R1) shared between the STA and the R1 Key Holder (R1KH; Figure 1 (b)). PMK-R1 is derived from PMK-R0 and is used to derive PTK at the third-level (i.e., the AP; Figure 1 (c)).

Mobility domain (MD) is defined in this three-level key hierarchy. An MD consists of several R0KHs.

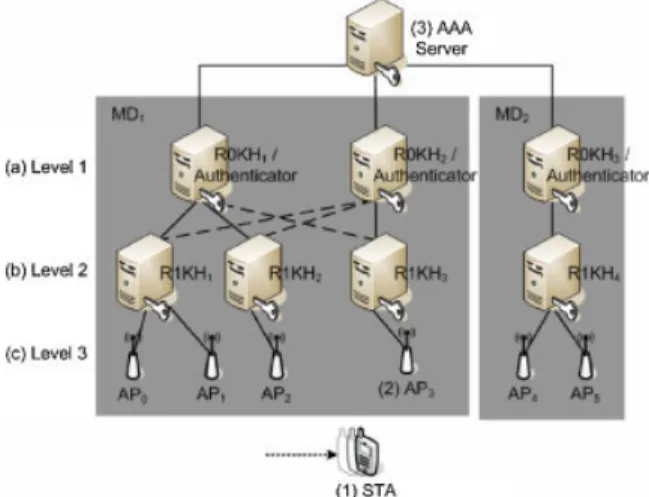

Figure 1 illustrates two mobility domains MD1and

MD2. MD1consists of two R0KHs (i.e., R0KH1and

R0KH2) and MD2 consists of one R0KH (i.e.,

R0KH3). Each R0KH directly associates with several

nearby R1KHs that can acquire PMK-R1 from this R0KH. In Figure 1, R0KH1directly associates with

two R1KHs (i.e., R1KH1and R1KH2; the

connectiv-ity is represented by solid links) and R0KH2directly

associates with one R1KH (i.e., R1KH3). An R1KH

can obtain PMK-R1 from an R0KH which does not directly associate with this R1KH, if both key holders are in the same MD. In Figure 1, R1KH1and R1KH2

can acquire PMK-R1 from R0KH2, and this indirect

association is represented through the dashed links. Based on the MD structure, there are three STA transition scenarios: intra-R1KH transition (e.g., from AP0to AP1in Figure 1), inter-R1KH transition

in an MD (e.g., from AP1to AP2or AP3), and initial

MD association (or inter-MD transition; e.g., from AP3to AP4) scenarios. In this paper, the third scenario

is described in Section 2. The first two scenarios are intra-MD scenarios described in Section 3. Section 4 proposes a selection mechanism that automatically selects the appropriate transition process for intra- and inter-MD scenarios.

2. Initial MD Association Process (Inter-MD Scenario)

When an STA first associates to the WLAN or moves from one MD to another (inter-MD transition), PMK-R0 and PMK-R1 for this STA are generated and stored in the R0KH and the R1KH, respectively [6]. Assume that an STA first connects to AP1 in Figure 1. The

steps in Figure 2 are executed as follows.

Fig. 1. IEEE 802.11r security hierarchy.

Fig. 2. IEEE 802.11r initial MD association process.

Step 0. The STA scans multiple channels for an AP with good signal, and checks the information elements (IEs) advertised in the signal (i.e., Beacon and Probe Response frames). If the mobility domain IE (MDIE) is included in the frames, it means that the AP supports the IEEE 802.11r fast BSS transition. The MDIE contains the mobility domain identifier (MDID) of MD1and the transition policy.

Steps 1 and 2. Suppose that AP1is selected. The STA

sends an authentication request message to AP1and

performs the open system authentication.

Steps 3 and 4. The STA sends an association request message to AP1. In this message, the MDIE field is set

to 0 to indicate that the initial MD association process is exercised. AP1 replies an association response

message to indicate the MDID of MD1, and fast

BSS transition IE (FTIE) which includes the identi-fiers of R0KH1and R1KH1.

Step 5. The IEEE 802.1X authentication is executed between the STA and the AAA server. A new MSK is independently generated in the STA and the AAA server. This key is also passed from the AAA server to R0KH1.

Steps 6 and 7. The STA and R0KH1independently

generate the PMK-R0 key by executing the key derivation function (KDF; Figure 3 (1)) with the R0KH1 identifier, the MSK (generated at Step 5),

the MD1identifier, and the supplicant address (SPA;

the STA’s Medium Access Control (MAC) address). Then PMK-R1 is derived from PMK-R0, SPA, and the R1KH1identifier (Figure 3 (2)).

Step 8. The STA and AP1perform the IEEE 802.11i

4-way handshake procedure by exchanging two ran-dom numbers (i.e., ANonce generated by AP1 and

SNonce generated by the STA). To derive PTK, AP1

sends the related parameters to R1KH1, including the

R0KH1identifier, SNonce, ANonce, and SPA. Then

the STA and R1KH1 independently derive the PTK

key from inputs including the PMK-R1 generated at

Steps 6 and 7 (Figure 3 (3)). After PTK is generated, R1KH1passes it to AP1for encrypting and decrypting

data transmitted between the STA and AP1.

After this initial MD association process, PMK-R0 and PMK-R1 are kept in R0KH1and R1KH1,

respec-tively. When the STA moves to another AP in MD1,

these two keys are reused to generate new PTK with-out executing the IEEE 802.1X authentication.

3. Fast BSS Transition (Intra-MD Scenarios)

The IEEE 802.11r fast BSS transition is exercised in intra-MD transition scenarios. When the STA per-forms inter-R1KH transition from AP1to AP3in MD1,

the following steps are executed (see Figure 4).

Step 1. Since AP1and AP3are in the same MD, the

STA sends an authentication request message with fast BSS transition (FT) authentication to AP3. This

message contains the MDID of MD1and FTIE

(con-taining the R0KH1identifier and a random number

SNonce for PTK derivation).

Step 2. From the MDIE and the FTIE provided by the STA, AP3 knows that the inter-R1KH transition

oc-curs. AP3sends an authentication response message to

the STA. This response message contains the identi-fiers of R0KH2, R1KH3, MD1, and a random number

ANonce for deriving PTK.

Step 3. Upon receipt of ANonce and the identifiers from AP3, the STA generates a new PMK-R1 key

from the R1KH3identifier, SPA, and PMK-R0 (Figure

3 (2)). This PMK-R1 key is shared between the STA and R1KH3, and is used together with SPA, ANonce,

and SNonce to derive the PTK key (Figure 3 (3)). If the STA moves from AP1to AP0connecting to the

Fig. 3. Derivation of PMK-R0, PMK-R1, and PTK. Fig. 4. IEEE 802.11r fast BSS transition process.

same R1KH in Figure 1, the old PMK-R1 is reused to generate the new PTK key.

Step 4. AP3 sends SPA, ANonce, SNonce, and the

R0KH1identifier to R1KH3for deriving new PTK.

Step 5. According to the R0KH1 identifier, R1KH3

acquires the new PMK-R1 from R0KH1. If the STA

moves from AP1 to AP0 in Figure 1, this step is

omitted.

Step 6. R1KH3 derives PTK by executing KDF

(Figure 3 (3)) and sends the generated PTK to AP3.

After this step, PTK is kept in both the STA and AP3.

Step 7. The STA switches from AP1 to AP3 after

resource reservation and re-association between the STA and AP3.

In the fast BSS transition, the IEEE 802.1X authen-tication procedure is omitted. Instead, PMK-R0 is reused to derive the new PTK key to speed up the transition process.

4. Transition Process Selection Mechanism

Since every AP advertises the MDID in the Beacon and Probe Response frames, the STA can select the appropriate transition process for intra-MD or inter-MD scenarios. Specifically, the MAC addresses are used as the identifiers for R0KH and R1KH to ensure global uniqueness. The MDID is assumed to be managed by vendors [6]. However, it is not clear how to guarantee unique MDID among vendors. If ambiguity of MDID does occur, this error will be detected at Step 5 in Figure 4 because the new PMK-R1 can not be acquired. Therefore the STA is forced to stop the fast BSS transition process and is switched to perform the IEEE 802.11r initial MD association process.

To resolve the ambiguous MDID issue, we propose a new method that does not require the MDID for transition. In our approach, every AP maintains an R0KH table recording all R0KHs that can be accessed by the AP. In Figure 1, the identifiers of R0KH1and R0KH2are recorded in AP0, AP1, AP2,

and AP3, and the R0KH3identifier is recorded in AP4

and AP5. Upon receipt of the authentication request

message (i.e., Step 1 in Figure 4), an AP queries its R0KH table to determine whether the STA comes from another MD, and selects the appropriate transi-tion process for executransi-tion. Suppose that the STA moves form APOld to APNew. The following steps

are executed (see Figure 5).

Step 1. The STA sends an authentication request message with FT authentication algorithm to APNew.

This message is similar to that in Step 1 of Figure 4, but does not include the MDID in MDIE.

Step 2. Upon receipt of the authentication request, APNewchecks the R0KH identifier in FTIE. There are

two possibilities. If the R0KH identifier is not found in the R0KH table of APNew, Steps 3 and 4 are executed

(for inter-MD scenario). Otherwise, Steps 5 and 6 are executed (for intra-MD scenarios).

Steps 3 and 4. APNewexercises open system

authen-tication and replies the authenauthen-tication response mes-sage with parameter ‘open system authentication.’ Then the STA proceeds to execute the IEEE 802.11r initial MD association process (Steps 2–8 in Figure 2). Steps 5 and 6. APNew exercises FT authentication

and replies the IEEE 802.11 authentication response message with parameter ‘FT authentication.’ The IEEE 802.11r fast BSS transition process is executed (Steps 2–7 in Figure 4).

Through the R0KH table in an AP, the above mechanism correctly distinguishes the inter-MD sce-nario from the intra-MD scesce-narios without using the MDID.

A few other studies have been reported in the literature which have also carried out research similar to that reported in this paper [9–11].

5. Conclusion

This paper describes the IEEE 802.11r transition process for WLAN, where a three-level key hierarchy was proposed to speed up the transition process

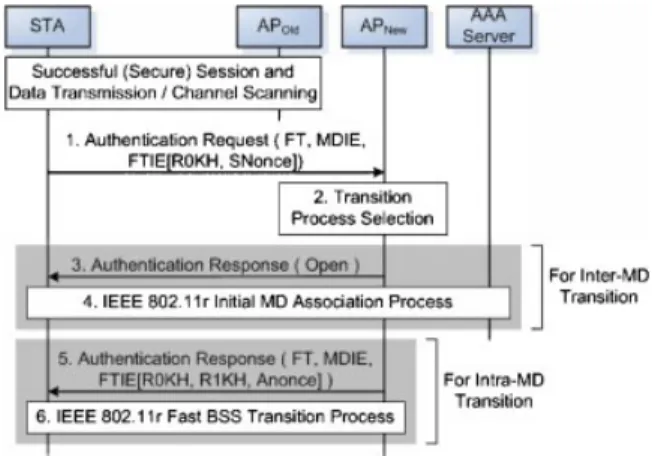

with-Fig. 5. The proposed selection mechanism for transition process.

out executing the expensive IEEE 802.1X authentica-tion for some scenarios. This hierarchy requires as-signment of unique MDIDs world wide. However, how to guarantee the uniqueness of MDID is not clear. This paper proposed a mechanism that does not need MDID, and therefore MDID management is elimi-nated. This mechanism also saves four message ex-changes incurred in the original fast BSS transition when MDID ambiguity occurs. Detailed performance evaluation of the selection mechanism for transition process will be our future work.

Acknowledgement

This work was sponsored in part by NSC Excellence project NSC 95-2752-E-009-005-PAE, NSC 2218-E-009-201-MY3, NSC 2221-E-009-024, NSC 95-2219-E-009-010, NSC 95-2219-E-009-019, Intel, Chung Hwa Telecom, IIS/Academia Sinica, ITRI/ NCTU Joint Research Center and MoE ATU.

References

1. Ma W, Fang Y, Lin P. Mobility management strategy based on user mobility patterns in wireless networks. IEEE Transactions on Vehicular Technology 2007; 56(1): 322–330.

2. Lin Y-B, Chlamtac I. Wireless and Mobile Network Architec-ture. John Wiley & Sons, Inc., 2001.

3. Lin Y-B. Performance modeling for mobile telephone net-works. IEEE Network 1997; 11(6): 63–68.

4. Qian Y, Hu RQ, Chen H-H. A call admission control frame-work for voice over WLANs. IEEE Wireless Communications 2006; 13(1): 44–50.

5. Yang S-R. Dynamic power saving mechanism for 3G UMTS system. ACM/Springer Mobile Networks and Applications (MONET), November 2006 (online version).

6. IEEE. Draft Amendment to STANDARD for Information Technology—Telecommunications and Information Exchange between Systems—Local and Metropolitan Area Network— Specific Requirements—Part 11: Wireless LAN Medium Ac-cess Control (MAC) and Physical Layer (PHY) Specifications:

Amendment 2: Fast BSS transition. IEEE Std. 802.11r/D4.0, November 2006.

7. Chen J-H, Pang A-C, Sheu S-T, Tseng H-W. High performance wireless switch protocol for IEEE 802.11 wireless networks. ACM Mobile Networking and Applications 2005; 10(5): 741– 751.

8. Lin Y-B, Pang A-C. Wireless and Mobile All-IP Networks. John Wiley & Sons, Inc., 2005.

9. Pang A-C, Chen Y-K. A study on availability of mobility databases. International Conference on Information Network-ing (ICOIN), 2004.

10. Kassab M, Belghith A, Bonnin J-M, Sassi S. Fast pre-authen-tication based on proactive key distribution for 802.11 infra-structure networks. ACM Wireless Multimedia Networking and Performance Modeling, October 2005.

11. Bargh MS, Hulsebosch RJ, Eertink EH, Prasad A, Wang H, Schoo P. Fast authentication methods for handovers between IEEE 802.11 wireless LANs. ACM WMASH 2004, October 2004.
